Convolutional Neural Networks (LeNet)

Note

This section assumes the reader has already read through Classifying MNIST digits using Logistic Regression and mlp. Additionally, it uses the following new Theano functions and concepts: TODO

Motivation

Convolutional Neural Networks (CNN) are variants of MLPs which are inspired from biology. From Hubel and Wiesel’s early work on the cat’s visual cortex [Hubel], we know there exists a complex arrangement of cells within the visual cortex. These cells are sensitive to small sub-regions of the input space, called a receptive field, and are tiled in such a way as to cover the entire visual field. These filters are local in input space and are thus better suited to exploit the strong local correlation present in natural images.

Additionally, two basic cell types have been identified: simple cells (S) and complex cells (C). Simple cells (S) respond maximally to specific edge-like stimulus patterns within their receptive field. Complex cells (C) have larger receptive fields and are locally invariant to the exact position of the stimulus.

The visual cortex being the most powerful “vision” system in existence, it seems natural to emulate its behavior. Many such neurally inspired models can be found in the litterature. To name a few: the NeoCognitron [Fukushima], HMAX [Serre] and LeNet-5 [LeCun]. LeNet-5 will be the topic of this tutorial.

The Model

Sparse Connectivity

CNNs exploit local correlation by enforcing a local connectivity pattern between neurons of adjacent layers. The input hidden units in the i-th layer are connected to a local subset of units in the (i-1)-th layer, which are spatially contiguous. We can illustrate this graphically as follows:

TODO FIGURE

This architecture thus confines the learnt filters to be local. Stacking many such layers leads to filters which become increasingly “global” (i.e spanning a larger region of pixel space) and abstract (as in any MLP).

Shared Weights

In CNNs, each sparse filter h_i is additionally replicated across the entire visual field. These “replicated” units form a feature map, which share the same parametrization, i.e. the same weight vector and the same bias. Replicating units in this way allows for features to be detected regardless of their position in the visual field. Each feature map can thus be modeled as the convolution of a single filter with the input image.

Note

Recall the following definition of convolution for a 1D signal. o[n] = f[n]*g[n] = \sum_{u=-\infty}^{\infty} f[u] g[u-n] = \sum_{u=-\infty}^{\infty} f[n-u] g[u]. This can be extended to 2D as follows: o[m,n] = f[m,n]*g[m,n] = \sum_{u=-\infty}^{\infty} \sum_{v=-\infty}^{\infty} f[u,v] g[u-m,v-n].

In terms of notation, each feature map is denoted as h^K , where K is the index of the feature map (Important: not to be confused with the notation h^{(k)}, referring to the k-th hidden layer). Each feature map h^K has a weight matrix W^K and bias b_K. Note that the matrix W^K is different in nature than the weight matrix of traditional MLPs. For MLPs, W is a matrix whose entries W_{ij} refer to the weight connecting unit h_i to x_i. For CNNs, W^K is a matrix of weights W_{ij}^K from the K-th feature map to the input pixel with coordinates (i,j). A CNN layer is thus fully determined by the set of all such matrices, W = \{W^K, \forall K\} and the bias vector b.

The k-th feature map is determined as follows:

h^K_{ij} = \sigma ( (W^K * x)_{ij} + b_K ).

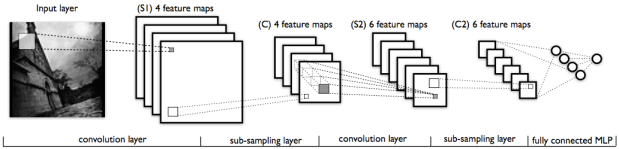

_images/mylenet.png

Going from MLP to convolutional MLP

Putting it All Together

Note

TODO introduce API for sparse filters

References

[Hubel]Hubel, D. and Wiesel, T. (1968). Receptive fields and functional architecture of monkey striate cortex. Journal of Physiology (London), 195, 215–243.
[Fukushima]Fukushima, K. (1980). Neocognitron: A self-organizing neural network model for a mechanism of pattern recognition unaffected by shift in position. Biological Cybernetics, 36, 193–202.
[Serre]Serre, T., Wolf, L., Bileschi, S., and Riesenhuber, M. (2007). Robust object recog- nition with cortex-like mechanisms. IEEE Trans. Pattern Anal. Mach. Intell., 29(3), 411–426. Member-Poggio, Tomaso.
[LeCun]LeCun, Y., Bottou, L., Bengio, Y., and Haffner, P. (1998d). Gradient-based learning applied to document recognition. Proceedings of the IEEE, 86(11), 2278–2324.

Footnotes

[1]For clarity, we use the word “unit” or “neuron” to refer to the artificial neuron and “cell” to refer to the biological neuron.
