PLearn::SumOverBagsVariable Class Reference

#include <SumOverBagsVariable.h>

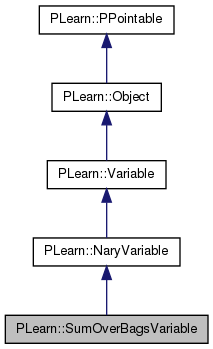

Inheritance diagram for PLearn::SumOverBagsVariable:
Inheritance graph
[legend]

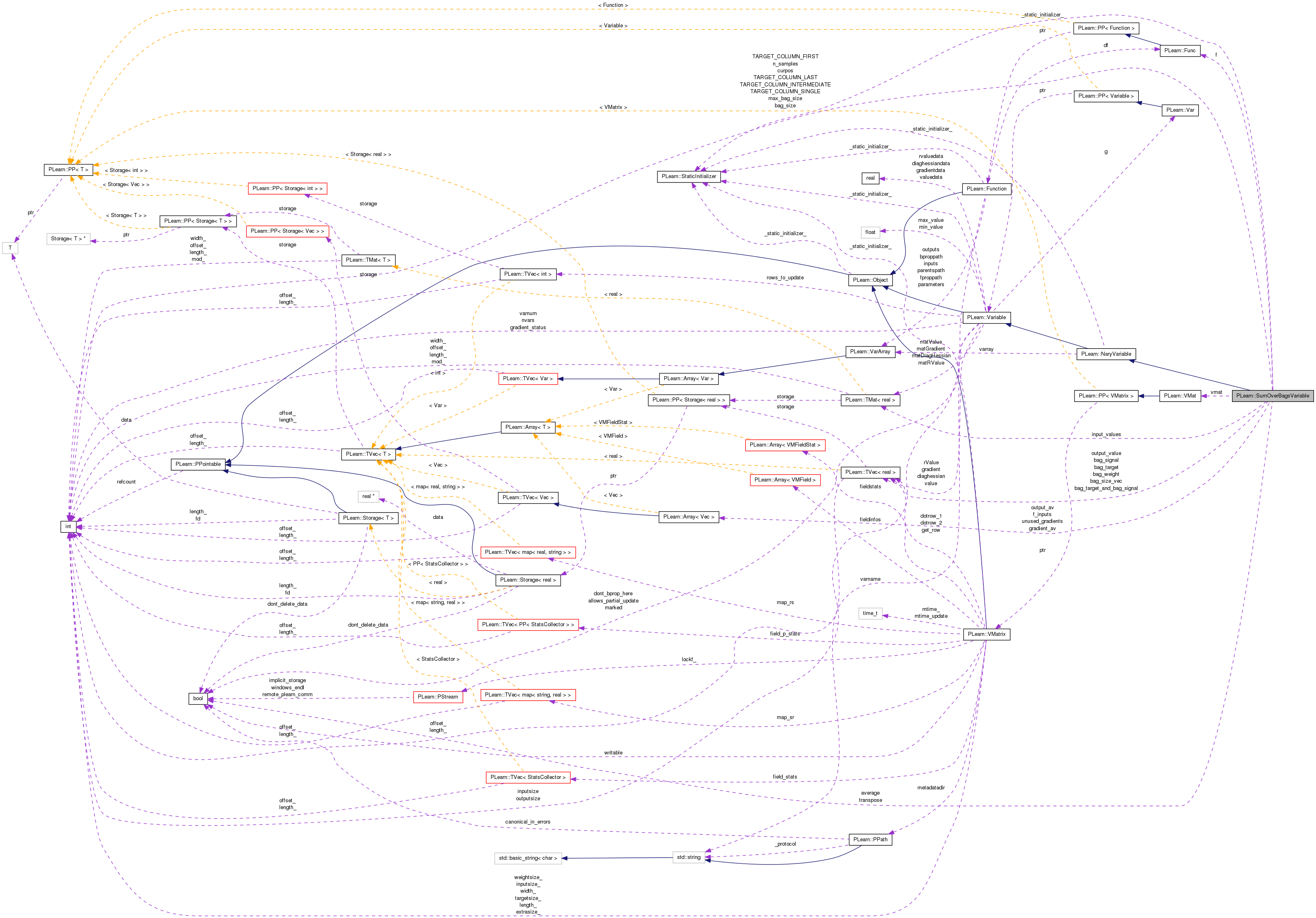

Collaboration diagram for PLearn::SumOverBagsVariable:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 SumOverBagsVariable ()
 protected default constructor for persistence
 SumOverBagsVariable (VMat the_vmat, Func the_f, int maxbagsize, int nsamples, bool average, bool transpose=false, bool call_build_=true)
 $ Sum_{bags \in vmat} f(inputs and targets in bag)$ By convention a bag is a sequence of rows of the vmat in which the last column of the target indicates whether the row is the first one (and/or) the last one, with its two least significant bits: last_column_of_target == 1 ==> first row last_column_of_target == 2 ==> last row last_column_of_target == 0 ==> intermediate row last_column_of_target == 1+2==3 ==> single-row bag (both first and last) the last column of the target is not given in the call to f, but a bag_size input is provided instead.
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual SumOverBagsVariabledeepCopy (CopiesMap &copies) const
virtual void build ()
 Post-constructor.
virtual void recomputeSize (int &l, int &w) const
 Recomputes the length l and width w that this variable should have, according to its parent variables.
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Does the necessary operations to transform a shallow copy (this) into a deep copy by deep-copying all the members that need to be.
virtual void fprop ()
 compute output given input
virtual void bprop ()
virtual void fbprop ()
 do both fprop and bprop
virtual void fpropOneBag (bool do_bprop=false)

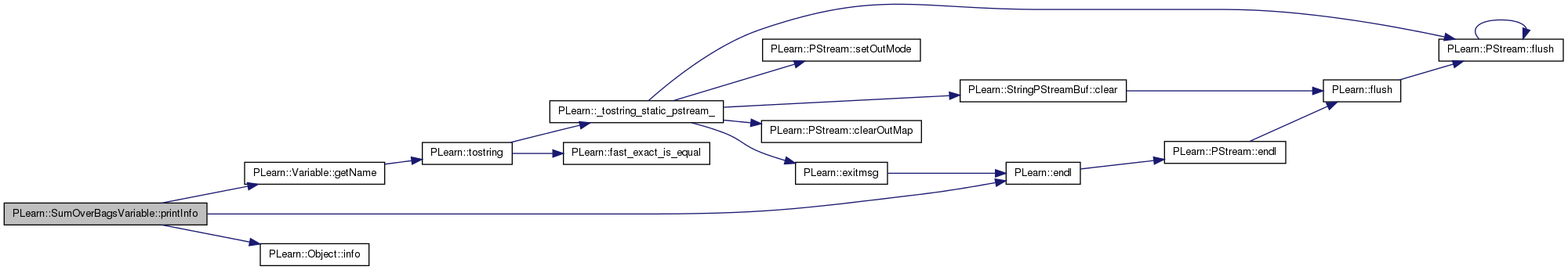

void printInfo (bool print_gradient)

Static Public Member Functions

static string _classname_ ()
 SumOverBagsVariable.
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()
static void declareOptions (OptionList &ol)
 Default constructor for persistence.

Public Attributes

VMat vmat
Func f
bool average
int max_bag_size
int n_samples
bool transpose
int curpos
 current pos in VMat
Vec output_value
Mat input_values
Vec bag_size_vec
Vec bag_target_and_bag_signal
Vec bag_target
Vec bag_signal
Vec bag_weight
Array< Vecf_inputs
Array< Vecunused_gradients
Array< Vecoutput_av
Array< Vecgradient_av
int bag_size

Static Public Attributes

static const int TARGET_COLUMN_FIRST = 1
 Tags to use in the vmat given to this variable.
static const int TARGET_COLUMN_LAST = 2
static const int TARGET_COLUMN_SINGLE = 3
static const int TARGET_COLUMN_INTERMEDIATE = 0
static StaticInitializer _static_initializer_

Protected Member Functions

void build_ ()
 Object-specific post-constructor.

Private Types

typedef NaryVariable inherited

Detailed Description

Definition at line 52 of file SumOverBagsVariable.h.


Member Typedef Documentation

Reimplemented from PLearn::NaryVariable.

Definition at line 54 of file SumOverBagsVariable.h.


Constructor & Destructor Documentation

PLearn::SumOverBagsVariable::SumOverBagsVariable ( )

protected default constructor for persistence

Definition at line 78 of file SumOverBagsVariable.cc.

                                        :
    average(false),
    max_bag_size(-1),
    n_samples(1),
    transpose(false),
    curpos()
{}

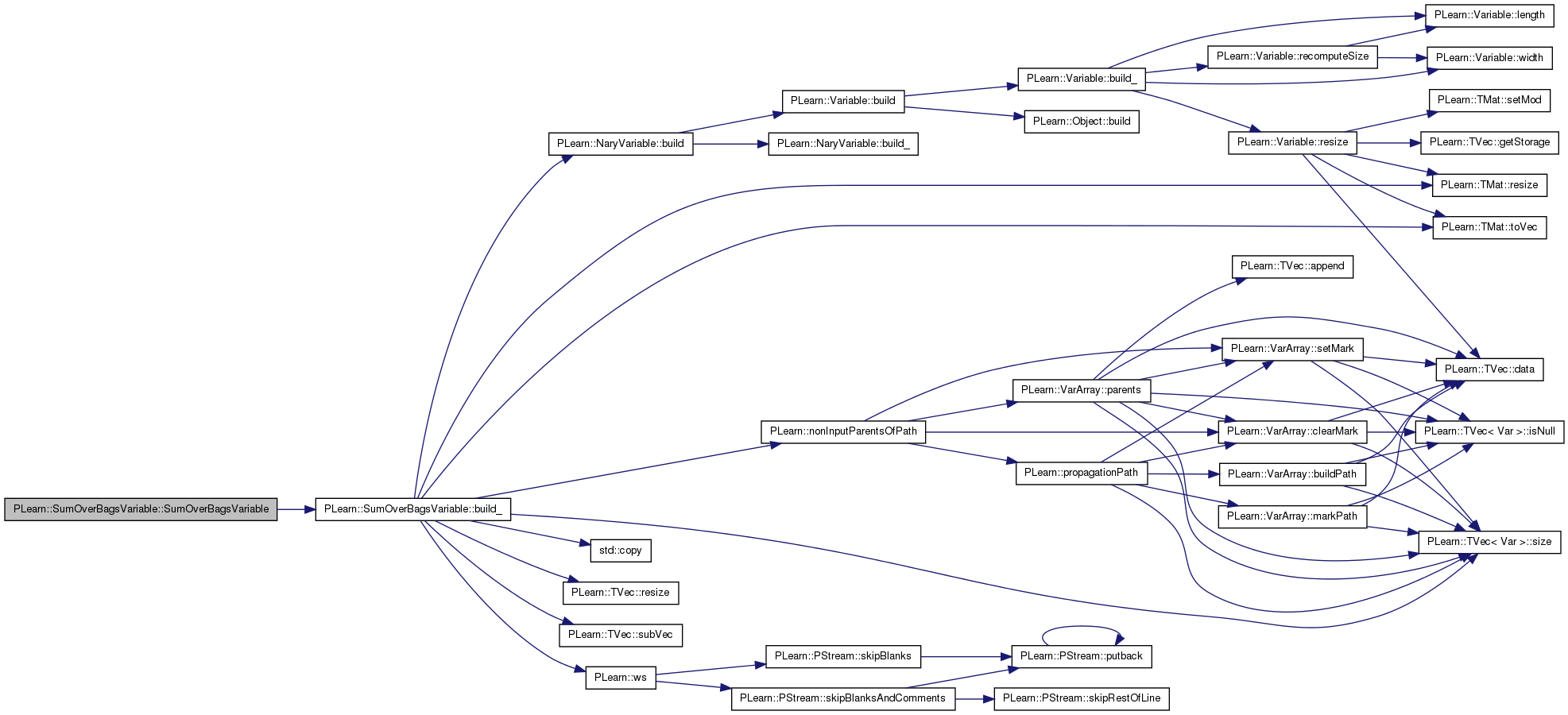

PLearn::SumOverBagsVariable::SumOverBagsVariable ( VMat  the_vmat,
Func  the_f,
int  maxbagsize,
int  nsamples,
bool  average,
bool  transpose = false,
bool  call_build_ = true
)

$ Sum_{bags \in vmat} f(inputs and targets in bag)$ By convention a bag is a sequence of rows of the vmat in which the last column of the target indicates whether the row is the first one (and/or) the last one, with its two least significant bits: last_column_of_target == 1 ==> first row last_column_of_target == 2 ==> last row last_column_of_target == 0 ==> intermediate row last_column_of_target == 1+2==3 ==> single-row bag (both first and last) the last column of the target is not given in the call to f, but a bag_size input is provided instead.

The inputs to f are: (matrix of bag inputs, the bag size, the bag target, the bag weight).

Definition at line 86 of file SumOverBagsVariable.cc.

References build_().

                                                               :
    inherited(nonInputParentsOfPath(the_f->inputs,the_f->outputs),
            the_f->outputs[0]->length(),
            the_f->outputs[0]->width(),
            call_build_),
    vmat(the_vmat), f(the_f),
    average(the_average),
    max_bag_size(max_bagsize), n_samples(nsamples),
    transpose(the_transpose),
    curpos(0), bag_size(0)
{
    if (call_build_)
        build_();
}

Here is the call graph for this function:


Member Function Documentation

string PLearn::SumOverBagsVariable::_classname_ ( ) [static]

SumOverBagsVariable.

Reimplemented from PLearn::NaryVariable.

Definition at line 73 of file SumOverBagsVariable.cc.

OptionList & PLearn::SumOverBagsVariable::_getOptionList_ ( ) [static]

Reimplemented from PLearn::NaryVariable.

Definition at line 73 of file SumOverBagsVariable.cc.

RemoteMethodMap & PLearn::SumOverBagsVariable::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::NaryVariable.

Definition at line 73 of file SumOverBagsVariable.cc.

bool PLearn::SumOverBagsVariable::_isa_ ( const Object o) [static]

Reimplemented from PLearn::NaryVariable.

Definition at line 73 of file SumOverBagsVariable.cc.

Object * PLearn::SumOverBagsVariable::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 73 of file SumOverBagsVariable.cc.

StaticInitializer SumOverBagsVariable::_static_initializer_ & PLearn::SumOverBagsVariable::_static_initialize_ ( ) [static]

Reimplemented from PLearn::NaryVariable.

Definition at line 73 of file SumOverBagsVariable.cc.

void PLearn::SumOverBagsVariable::bprop ( ) [virtual]

Implements PLearn::Variable.

Definition at line 371 of file SumOverBagsVariable.cc.

References fbprop().

{
    fbprop();
}

Here is the call graph for this function:

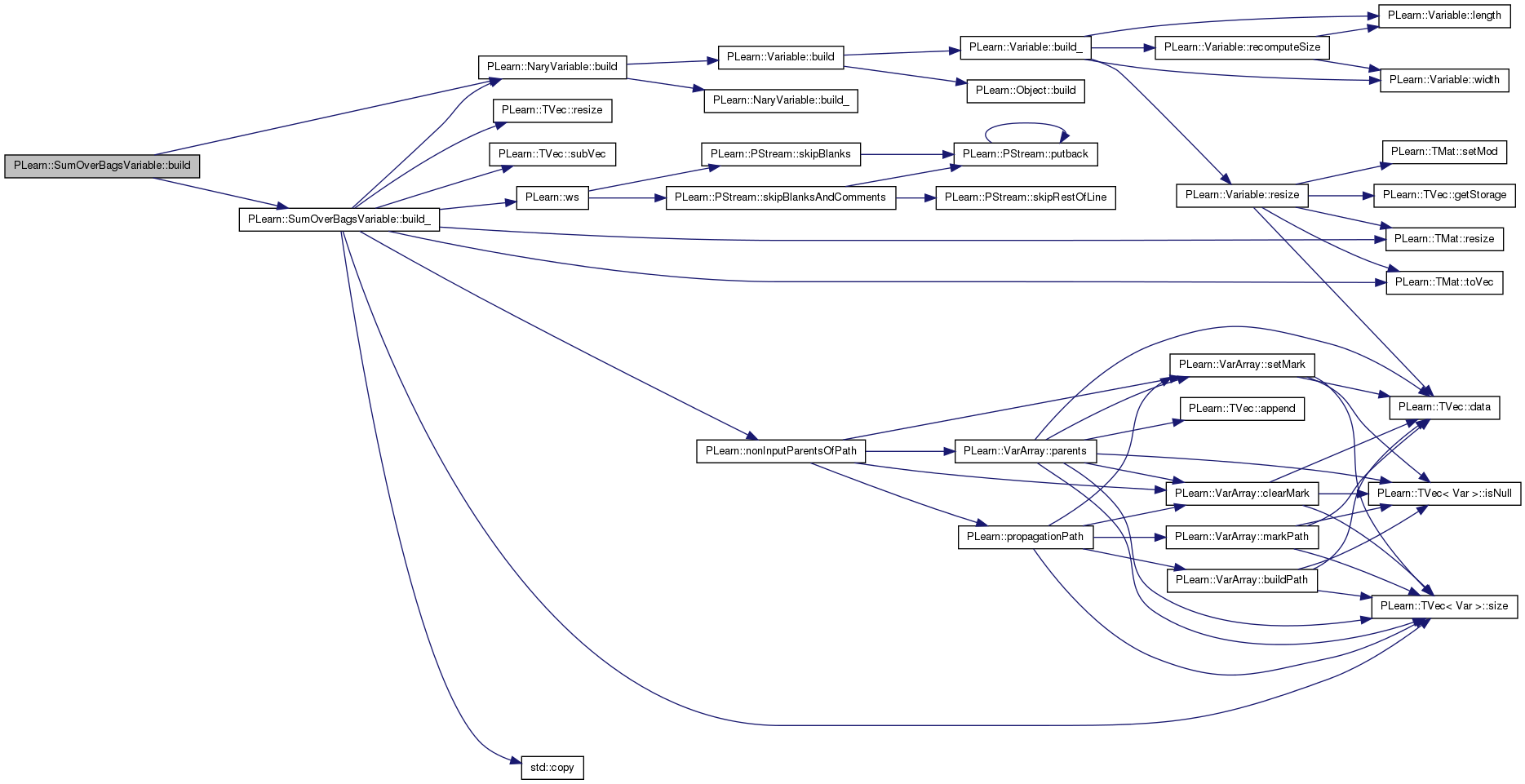

void PLearn::SumOverBagsVariable::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::NaryVariable.

Definition at line 106 of file SumOverBagsVariable.cc.

References PLearn::NaryVariable::build(), and build_().

Here is the call graph for this function:

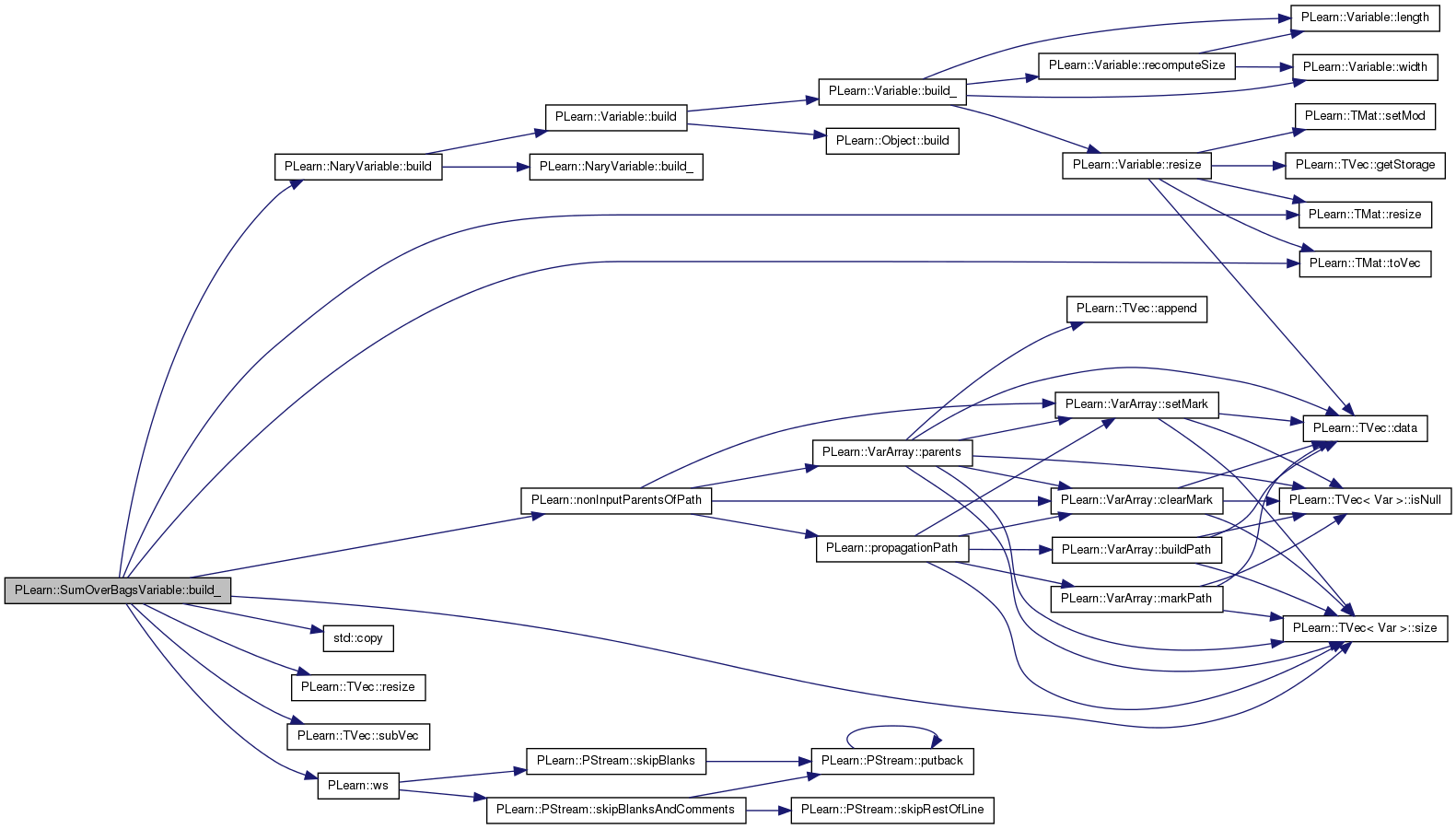

void PLearn::SumOverBagsVariable::build_ ( ) [protected]

Object-specific post-constructor.

This method should be redefined in subclasses and do the actual building of the object according to previously set option fields. Constructors can just set option fields, and then call build_. This method is NOT virtual, and will typically be called only from three places: a constructor, the public virtual build() method, and possibly the public virtual read method (which calls its parent's read). build_() can assume that its parent's build_() has already been called.

Reimplemented from PLearn::NaryVariable.

Definition at line 115 of file SumOverBagsVariable.cc.

References bag_signal, bag_size_vec, bag_target, bag_target_and_bag_signal, bag_weight, PLearn::NaryVariable::build(), std::copy(), f, f_inputs, PLearn::Variable::gradient, gradient_av, i, input_values, max_bag_size, PLearn::nonInputParentsOfPath(), output_av, output_value, PLASSERT, PLERROR, PLearn::TVec< T >::resize(), PLearn::TMat< T >::resize(), PLearn::TVec< T >::size(), PLearn::TVec< T >::subVec(), PLearn::TMat< T >::toVec(), transpose, unused_gradients, PLearn::NaryVariable::varray, vmat, and PLearn::ws().

Referenced by build(), and SumOverBagsVariable().

{
    if (vmat)
    {
        PLASSERT( f );

        varray = nonInputParentsOfPath(f->inputs, f->outputs);
        // We need to rebuild the parent class since a build option changed.
        inherited::build();

        if (f->outputs.size()!=1)
            PLERROR("SumOverBagsVariable: expected a func with a single output variable (you may use concat to form a single output Var)");
        if (vmat->weightsize()!=0 && vmat->weightsize()!=1)
            PLERROR("SumOverBagsVariable expected vmat->weightsize to be 0 or 1");

        if (transpose) {
            input_values.resize(vmat->inputsize(), max_bag_size);
        } else {
            input_values.resize(max_bag_size,vmat->inputsize());
        }
        output_value.resize(f->outputs[0]->nelems());
        output_av = Array<Vec>(output_value);
        gradient_av = Array<Vec>(gradient);
        f->inputs.setDontBpropHere(true);

        bag_size_vec.resize(1);
        bag_target_and_bag_signal.resize(vmat->targetsize());
        bag_target.resize(vmat->targetsize() - 1);
        bag_signal = bag_target_and_bag_signal.subVec(vmat->targetsize()-1,1);
        int ws = vmat->weightsize();
        bag_weight.resize(ws);
        if (ws > 0) {
            f_inputs.resize(4);
            f_inputs[3] = bag_weight;
        } else {
            f_inputs.resize(3);
        }
        f_inputs[0] = input_values.toVec();
        f_inputs[1] = bag_size_vec;
        f_inputs[2] = bag_target;
        unused_gradients.resize(f_inputs.size());
        for (int i=0;i<f_inputs.size();i++) unused_gradients[i] = f_inputs[i].copy();
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

string PLearn::SumOverBagsVariable::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 73 of file SumOverBagsVariable.cc.

void PLearn::SumOverBagsVariable::declareOptions ( OptionList ol) [static]

Default constructor for persistence.

Reimplemented from PLearn::NaryVariable.

Definition at line 163 of file SumOverBagsVariable.cc.

References average, PLearn::OptionBase::buildoption, PLearn::declareOption(), PLearn::NaryVariable::declareOptions(), f, max_bag_size, n_samples, transpose, and vmat.

{
    declareOption(ol, "f", &SumOverBagsVariable::f, OptionBase::buildoption,
                  "    Func that is applied on each bag, whose input is the following array of Vars:\n"
                  "    (matrix of bag inputs, the bag size, the bag target, [the bag weight]).\n");

    declareOption(ol, "vmat", &SumOverBagsVariable::vmat, OptionBase::buildoption,
                  "    VMatrix that contains the data, with multiple consecutive rows forming one bag.\n"
                  "    The last column of the target indicates the beginning and end of each bag, as follows:\n"
                  "   last_column_of_target == 1 ==> first row\n"
                  "   last_column_of_target == 2 ==> last row\n"
                  "   last_column_of_target == 0 ==> intermediate row\n"
                  "   last_column_of_target == 1+2==3 ==> single-row bag (both first and last).\n");

    declareOption(ol, "average", &SumOverBagsVariable::average, OptionBase::buildoption,
                  "    If set to 1, then will compute the mean of the sum, and not the sum itself.");

    declareOption(ol, "max_bag_size", &SumOverBagsVariable::max_bag_size, OptionBase::buildoption,
                  "    maximum number of examples in a bag (more than that in vmat will trigger a run-time error).\n");

    declareOption(ol, "n_samples", &SumOverBagsVariable::n_samples, OptionBase::buildoption,
                  "    number of bags to iterate over (1 for online gradient, <=0 for batch).");

    declareOption(ol, "transpose", &SumOverBagsVariable::transpose, OptionBase::buildoption,
                  "    If set to 1, then the bag inputs will be put in columns instead of rows.\n"
                  "    This can be useful if the Func f takes column vars as inputs.");

    inherited::declareOptions(ol);
}

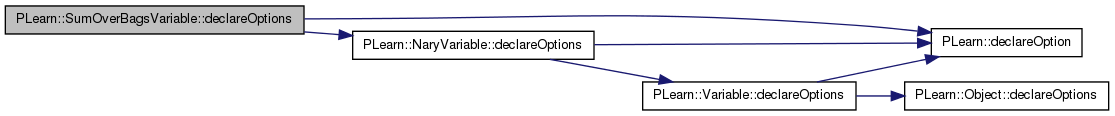

Here is the call graph for this function:

static const PPath& PLearn::SumOverBagsVariable::declaringFile ( ) [inline, static]

Reimplemented from PLearn::NaryVariable.

Definition at line 102 of file SumOverBagsVariable.h.

:
    void build_();
SumOverBagsVariable * PLearn::SumOverBagsVariable::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::NaryVariable.

Definition at line 73 of file SumOverBagsVariable.cc.

void PLearn::SumOverBagsVariable::fbprop ( ) [virtual]

do both fprop and bprop

Reimplemented from PLearn::Variable.

Definition at line 337 of file SumOverBagsVariable.cc.

References average, PLearn::TVec< T >::clear(), curpos, f, fpropOneBag(), PLearn::Variable::gradient, i, n_samples, PLERROR, and PLearn::Variable::value.

Referenced by bprop().

{
    value.clear();
    f->recomputeParents();
    if (n_samples==1)
        fpropOneBag(true);
    else if (n_samples<=0) // one pass through the whole data set
    {
        if (average) {
            // We don't know in advance how many bags there are, so the gradient
            // can't be propagated correctly.
            PLERROR("In SumOverBagsVariable::fbprop - If you want to get the average, you must tell me the number of bags in n_samples > 0, because I'm too dumb to guess it.");
        }
        curpos = 0;
        do {
            fpropOneBag(true);
        }
        while (curpos>0);
    }
    else {
        if (average) {
            gradient /= n_samples;
        }
        for (int i=0;i<n_samples;i++)
            fpropOneBag(true);
        if (average) {
            value /= n_samples;
        }
    }
}

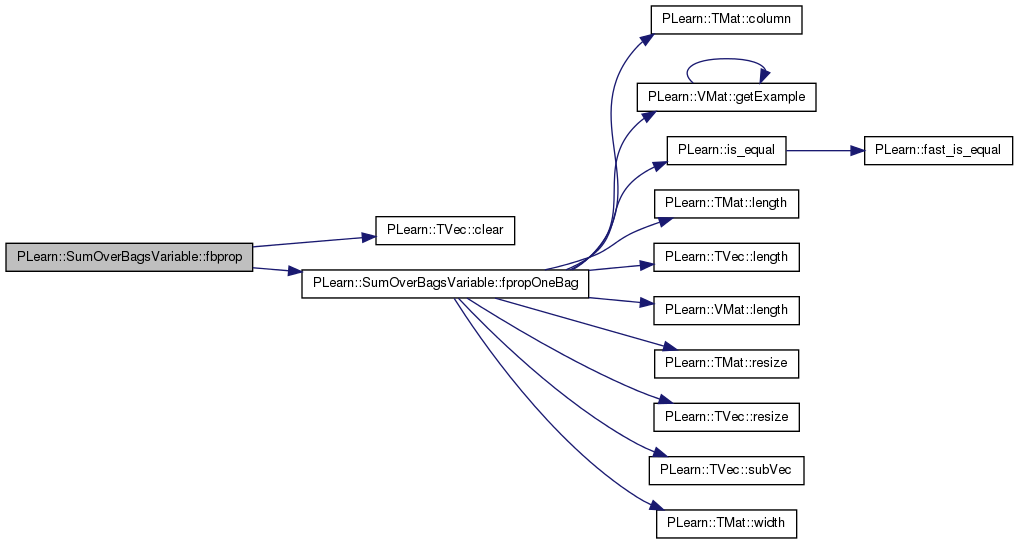

Here is the call graph for this function:

Here is the caller graph for this function:

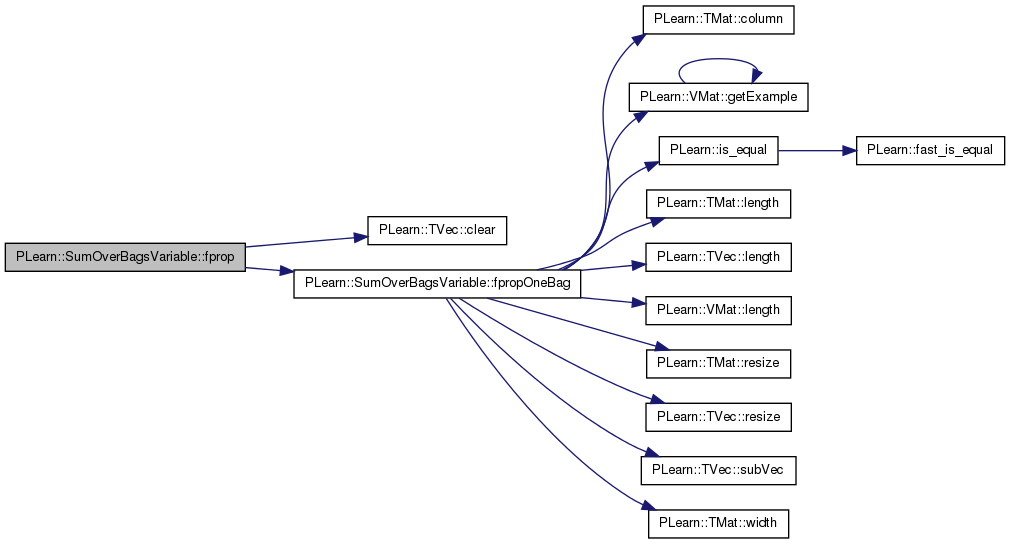

void PLearn::SumOverBagsVariable::fprop ( ) [virtual]

compute output given input

Implements PLearn::Variable.

Definition at line 305 of file SumOverBagsVariable.cc.

References average, PLearn::TVec< T >::clear(), curpos, f, fpropOneBag(), i, n_samples, and PLearn::Variable::value.

{
    value.clear();
    f->recomputeParents();
    if (n_samples==1)
        fpropOneBag();
    else if (n_samples<=0) // one pass through the whole data set
    {
        curpos=0;
        int count_bags = 0;
        do {
            fpropOneBag();
            count_bags++;
        }
        while (curpos>0);
        if (average) {
            value /= count_bags;
        }
    }
    else {
        for (int i=0;i<n_samples;i++)
            fpropOneBag();
        if (average) {
            value /= n_samples;
        }
    }
}

Here is the call graph for this function:

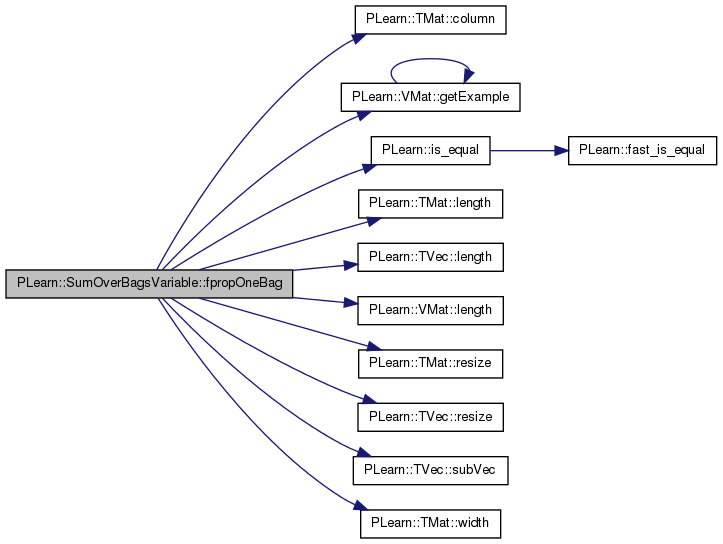

void PLearn::SumOverBagsVariable::fpropOneBag ( bool  do_bprop = false) [virtual]

Definition at line 231 of file SumOverBagsVariable.cc.

References bag_signal, bag_size, bag_size_vec, bag_target, bag_target_and_bag_signal, bag_weight, PLearn::TMat< T >::column(), curpos, f, f_inputs, PLearn::VMat::getExample(), gradient_av, i, input_values, PLearn::is_equal(), PLearn::TMat< T >::length(), PLearn::TVec< T >::length(), PLearn::VMat::length(), max_bag_size, output_av, output_value, PLASSERT, PLERROR, PLearn::TMat< T >::resize(), PLearn::TVec< T >::resize(), PLearn::TVec< T >::subVec(), transpose, unused_gradients, PLearn::Variable::value, vmat, and PLearn::TMat< T >::width().

Referenced by fbprop(), and fprop().

{
    static real dummy_weight=0;
    bool reached_end_of_bag=false;
    if (transpose) {
        input_values.resize(input_values.length(), max_bag_size);
    } else {
        input_values.resize(max_bag_size,input_values.width());
    }
    for (bag_size=0;!reached_end_of_bag;bag_size++)
    {
        if (bag_size>=max_bag_size)
            PLERROR("SumOverBagsVariable: bag size=%d > expected max. bag size(%d)",
                    bag_size,max_bag_size);
        Vec input_value;
        if (transpose) {
            input_value.resize(input_values.length());
        } else {
            input_value = input_values(bag_size);
        }
        if (vmat->weightsize()>0)
        {
            real& weight = bag_weight[0];
            vmat->getExample(curpos,input_value,bag_target_and_bag_signal,weight);
        }
        else
            vmat->getExample(curpos, input_value,
                             bag_target_and_bag_signal, dummy_weight);
        if (bag_size == 0) {
            // It's the first element: we copy the good target.
            bag_target << bag_target_and_bag_signal.subVec(
                                    0, bag_target_and_bag_signal.length() - 1);
        } else {
#ifdef BOUNDCHECK
            // Safety check: make sure the target is the same for all elements
            // in the bag.
            Vec targ = bag_target_and_bag_signal.subVec(
                    0, bag_target_and_bag_signal.length() - 1);
            PLASSERT( targ.length() == bag_target.length() );
            for (int i = 0; i < targ.length(); i++)
                if (!is_equal(bag_target[i], targ[i]))
                    PLERROR("In SumOverBagsVariable::fpropOneBag - A bag must "
                            "have the same target across all elements in it");
#endif
        }
        if (transpose) {
            // Need to put input_value into input_values, because it uses a separate
            // storage.
            input_values.column(bag_size) << input_value;
        }
        if (bag_size==0 && !(int(bag_signal[0]) & 1))
            PLERROR("SumOverBagsVariable: data synchronization error, first row of bag has wrong bag signal");
        reached_end_of_bag = (int(bag_signal[0]) & 2) != 0;
        if(++curpos == vmat->length())
        {
            curpos = 0;
            if (!reached_end_of_bag)
            {
                PLERROR("SumOverBagsVariable: last bag of VMatrix is not complete");
                return;
            }
        }
    }
    bag_size_vec[0]=bag_size;
    if (do_bprop)
        f->fbprop(f_inputs,output_av,unused_gradients,gradient_av);
    else
        f->fprop(f_inputs,output_av);
    value += output_value;
}

Here is the call graph for this function:

Here is the caller graph for this function:

OptionList & PLearn::SumOverBagsVariable::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 73 of file SumOverBagsVariable.cc.

OptionMap & PLearn::SumOverBagsVariable::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 73 of file SumOverBagsVariable.cc.

RemoteMethodMap & PLearn::SumOverBagsVariable::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 73 of file SumOverBagsVariable.cc.

void PLearn::SumOverBagsVariable::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Does the necessary operations to transform a shallow copy (this) into a deep copy by deep-copying all the members that need to be.

This needs to be overridden by every class that adds "complex" data members to the class, such as Vec, Mat, PP<Something>, etc. Typical implementation:

  void CLASS_OF_THIS::makeDeepCopyFromShallowCopy(CopiesMap& copies)
  {
      inherited::makeDeepCopyFromShallowCopy(copies);
      deepCopyField(complex_data_member1, copies);
      deepCopyField(complex_data_member2, copies);
      ...
  }
Parameters:
copiesA map used by the deep-copy mechanism to keep track of already-copied objects.

Reimplemented from PLearn::NaryVariable.

Definition at line 209 of file SumOverBagsVariable.cc.

References bag_signal, bag_size_vec, bag_target, bag_target_and_bag_signal, bag_weight, PLearn::deepCopyField(), f, f_inputs, gradient_av, input_values, PLearn::NaryVariable::makeDeepCopyFromShallowCopy(), output_av, output_value, unused_gradients, and vmat.

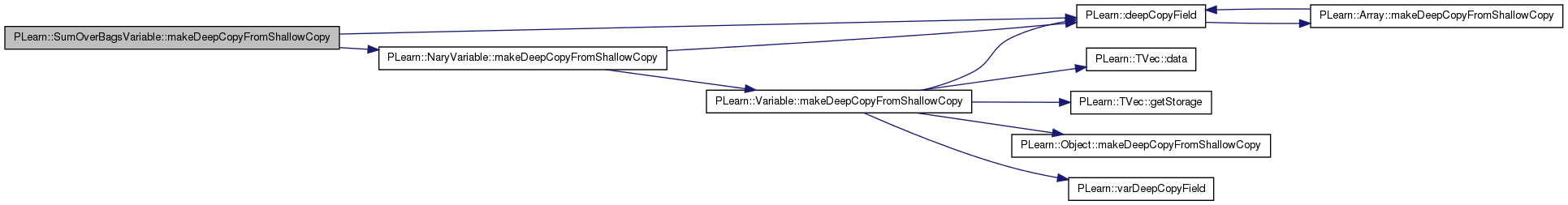

Here is the call graph for this function:

void PLearn::SumOverBagsVariable::printInfo ( bool  print_gradient) [virtual]

Reimplemented from PLearn::NaryVariable.

Definition at line 379 of file SumOverBagsVariable.cc.

References PLearn::endl(), f, PLearn::Variable::getName(), PLearn::Variable::gradient, PLearn::Object::info(), max_bag_size, n_samples, and PLearn::Variable::value.

{
    f->fproppath.printInfo(print_gradient);
    cout << info() << " : " << getName() << "(max_bag_size=" << max_bag_size << ", ";
    cout << ", n_samples=" << n_samples << ") = " << value;
    if (print_gradient) cout << " gradient=" << gradient;
    cout << endl;
}

Here is the call graph for this function:

void PLearn::SumOverBagsVariable::recomputeSize ( int l,
int w
) const [virtual]

Recomputes the length l and width w that this variable should have, according to its parent variables.

This is used for ex. by sizeprop() The default version stupidly returns the current dimensions, so make sure to overload it in subclasses if this is not appropriate.

Reimplemented from PLearn::Variable.

Definition at line 196 of file SumOverBagsVariable.cc.

References f.

{
    if (f && f->outputs.size()) {
        l = f->outputs[0]->length();
        w = f->outputs[0]->width();
    } else
        l = w = 0;
}

Member Data Documentation

Reimplemented from PLearn::NaryVariable.

Definition at line 102 of file SumOverBagsVariable.h.

Definition at line 60 of file SumOverBagsVariable.h.

Referenced by declareOptions(), fbprop(), and fprop().

Definition at line 72 of file SumOverBagsVariable.h.

Referenced by build_(), fpropOneBag(), and makeDeepCopyFromShallowCopy().

Definition at line 78 of file SumOverBagsVariable.h.

Referenced by fpropOneBag().

Definition at line 69 of file SumOverBagsVariable.h.

Referenced by build_(), fpropOneBag(), and makeDeepCopyFromShallowCopy().

Definition at line 71 of file SumOverBagsVariable.h.

Referenced by build_(), fpropOneBag(), and makeDeepCopyFromShallowCopy().

Definition at line 70 of file SumOverBagsVariable.h.

Referenced by build_(), fpropOneBag(), and makeDeepCopyFromShallowCopy().

Definition at line 73 of file SumOverBagsVariable.h.

Referenced by build_(), fpropOneBag(), and makeDeepCopyFromShallowCopy().

current pos in VMat

Definition at line 65 of file SumOverBagsVariable.h.

Referenced by fbprop(), fprop(), and fpropOneBag().

Definition at line 74 of file SumOverBagsVariable.h.

Referenced by build_(), fpropOneBag(), and makeDeepCopyFromShallowCopy().

Definition at line 77 of file SumOverBagsVariable.h.

Referenced by build_(), fpropOneBag(), and makeDeepCopyFromShallowCopy().

Definition at line 68 of file SumOverBagsVariable.h.

Referenced by build_(), fpropOneBag(), and makeDeepCopyFromShallowCopy().

Definition at line 61 of file SumOverBagsVariable.h.

Referenced by build_(), declareOptions(), fpropOneBag(), and printInfo().

Definition at line 62 of file SumOverBagsVariable.h.

Referenced by declareOptions(), fbprop(), fprop(), and printInfo().

Definition at line 76 of file SumOverBagsVariable.h.

Referenced by build_(), fpropOneBag(), and makeDeepCopyFromShallowCopy().

Definition at line 67 of file SumOverBagsVariable.h.

Referenced by build_(), fpropOneBag(), and makeDeepCopyFromShallowCopy().

Definition at line 100 of file SumOverBagsVariable.h.

Referenced by PLearn::MultiInstanceVMatrix::build_().

Definition at line 99 of file SumOverBagsVariable.h.

Referenced by PLearn::MultiInstanceVMatrix::build_().

Definition at line 63 of file SumOverBagsVariable.h.

Referenced by build_(), declareOptions(), and fpropOneBag().

Definition at line 75 of file SumOverBagsVariable.h.

Referenced by build_(), fpropOneBag(), and makeDeepCopyFromShallowCopy().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
