PLearn 0.1
Public Member Functions | Static Public Member Functions | Public Attributes | Static Public Attributes | Private Types | Private Member Functions
PLearn::Cov2CorrVariable Class Reference

#include <Cov2CorrVariable.h>

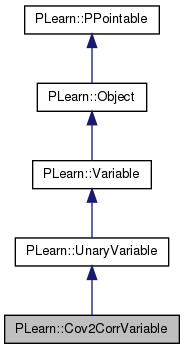

Inheritance diagram for PLearn::Cov2CorrVariable:
Inheritance graph
[legend]

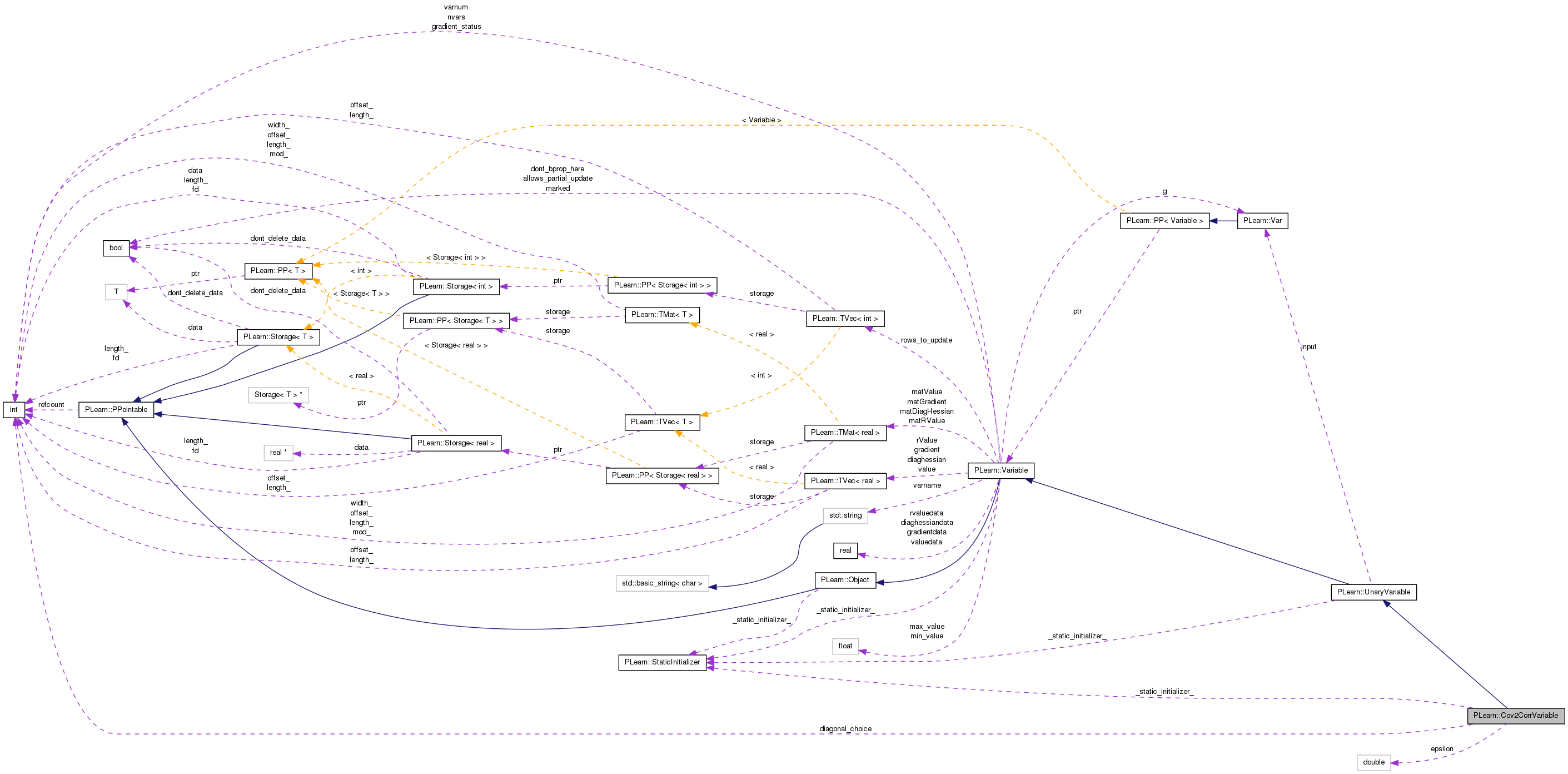

Collaboration diagram for PLearn::Cov2CorrVariable:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 Cov2CorrVariable ()
 Default constructor.
 Cov2CorrVariable (Variable *input, int diagonal_choice_=1, double epsilon_=0, bool call_build_=true)
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual Cov2CorrVariabledeepCopy (CopiesMap &copies) const
virtual void build ()
 Post-constructor.
virtual void recomputeSize (int &l, int &w) const
 Recomputes the length l and width w that this variable should have, according to its parent variables.
virtual void fprop ()
 Nothing to do by default.
virtual void bprop ()
 Nothing to do by default.
virtual void bbprop ()
 here don't approximate, do d2C/dx^2 = 4 x^2 d2C/dy^2 + 2 dC/dy
virtual void symbolicBprop ()
 compute a piece of new Var graph that represents the symbolic derivative of this Var
virtual void rfprop ()

Static Public Member Functions

static string _classname_ ()
 Cov2CorrVariable.
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()
static void declareOptions (OptionList &ol)
 Declare options (data fields) for the class.

Public Attributes

int diagonal_choice
double epsilon

Static Public Attributes

static StaticInitializer _static_initializer_

Private Types

typedef UnaryVariable inherited

Private Member Functions

void build_ ()
 Object-specific post-constructor.

Detailed Description

Definition at line 48 of file Cov2CorrVariable.h.


Member Typedef Documentation

Reimplemented from PLearn::UnaryVariable.

Definition at line 50 of file Cov2CorrVariable.h.


Constructor & Destructor Documentation

PLearn::Cov2CorrVariable::Cov2CorrVariable ( )

Default constructor.

Definition at line 60 of file Cov2CorrVariable.cc.

                                  :
    diagonal_choice(1),
    epsilon(0.)
{}
PLearn::Cov2CorrVariable::Cov2CorrVariable ( Variable input,
int  diagonal_choice_ = 1,
double  epsilon_ = 0,
bool  call_build_ = true
)

Definition at line 65 of file Cov2CorrVariable.cc.

References build_().

                                                                     :
    inherited(input, input->length(), input->width(), call_build_),
    diagonal_choice(diagonal_choice_),
    epsilon(epsilon_)
{
    if (call_build_)
        build_();
}

Here is the call graph for this function:


Member Function Documentation

string PLearn::Cov2CorrVariable::_classname_ ( ) [static]

Cov2CorrVariable.

Reimplemented from PLearn::UnaryVariable.

Definition at line 54 of file Cov2CorrVariable.cc.

OptionList & PLearn::Cov2CorrVariable::_getOptionList_ ( ) [static]

Reimplemented from PLearn::UnaryVariable.

Definition at line 54 of file Cov2CorrVariable.cc.

RemoteMethodMap & PLearn::Cov2CorrVariable::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::UnaryVariable.

Definition at line 54 of file Cov2CorrVariable.cc.

bool PLearn::Cov2CorrVariable::_isa_ ( const Object o) [static]

Reimplemented from PLearn::UnaryVariable.

Definition at line 54 of file Cov2CorrVariable.cc.

Object * PLearn::Cov2CorrVariable::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::UnaryVariable.

Definition at line 54 of file Cov2CorrVariable.cc.

StaticInitializer Cov2CorrVariable::_static_initializer_ & PLearn::Cov2CorrVariable::_static_initialize_ ( ) [static]

Reimplemented from PLearn::UnaryVariable.

Definition at line 54 of file Cov2CorrVariable.cc.

void PLearn::Cov2CorrVariable::bbprop ( ) [virtual]

here don't approximate, do d2C/dx^2 = 4 x^2 d2C/dy^2 + 2 dC/dy

Reimplemented from PLearn::Variable.

Definition at line 200 of file Cov2CorrVariable.cc.

References PLERROR.

{
    PLERROR("bbprop not implemented for this variable");
}
void PLearn::Cov2CorrVariable::bprop ( ) [virtual]

Nothing to do by default.

Reimplemented from PLearn::UnaryVariable.

Definition at line 176 of file Cov2CorrVariable.cc.

References diagonal_choice, epsilon, i, PLearn::UnaryVariable::input, j, PLearn::TMat< T >::length(), PLearn::Variable::matGradient, PLearn::Variable::matValue, w, and PLearn::TMat< T >::width().

{
    Mat C = input->matValue;
    Mat Cg = input->matGradient;
    Mat D = matValue;
    Mat Dg = matGradient;
    int l = C.length();
    int w = C.width();
    for(int i=0; i<l; i++)
        for(int j=0; j<w; j++)
        {
            if(i!=j)
            {
                Cg(i,j) += Dg(i,j)*D(i,j)/C(i,j);
                double h = -0.5*Dg(i,j)*D(i,j)/(C(i,i)*C(j,j)+epsilon);
                Cg(i,i) += C(j,j)*h;
                Cg(j,j) += C(i,i)*h;
            }
            else if(diagonal_choice==2)
                Cg(i,i) += Dg(i,i);
        }
}

Here is the call graph for this function:

void PLearn::Cov2CorrVariable::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::UnaryVariable.

Definition at line 92 of file Cov2CorrVariable.cc.

References PLearn::UnaryVariable::build(), and build_().

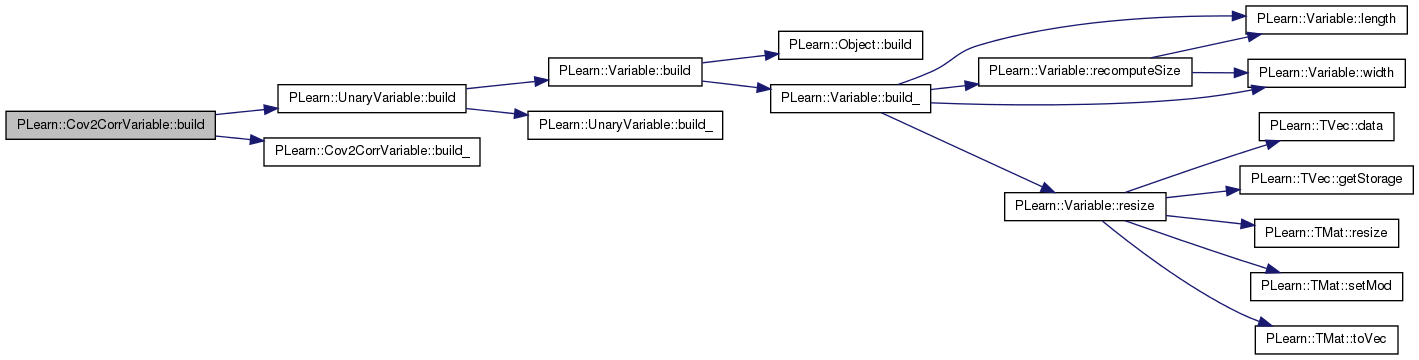

Here is the call graph for this function:

void PLearn::Cov2CorrVariable::build_ ( ) [private]

Object-specific post-constructor.

This method should be redefined in subclasses and do the actual building of the object according to previously set option fields. Constructors can just set option fields, and then call build_. This method is NOT virtual, and will typically be called only from three places: a constructor, the public virtual build() method, and possibly the public virtual read method (which calls its parent's read). build_() can assume that its parent's build_() has already been called.

Reimplemented from PLearn::UnaryVariable.

Definition at line 100 of file Cov2CorrVariable.cc.

Referenced by build(), and Cov2CorrVariable().

                              {
    // Nothing to do here.
}

Here is the caller graph for this function:

string PLearn::Cov2CorrVariable::classname ( ) const [virtual]

Reimplemented from PLearn::UnaryVariable.

Definition at line 54 of file Cov2CorrVariable.cc.

void PLearn::Cov2CorrVariable::declareOptions ( OptionList ol) [static]

Declare options (data fields) for the class.

Redefine this in subclasses: call declareOption(...) for each option, and then call inherited::declareOptions(options). Please call the inherited method AT THE END to get the options listed in a consistent order (from most recently defined to least recently defined).

  static void MyDerivedClass::declareOptions(OptionList& ol)
  {
      declareOption(ol, "inputsize", &MyObject::inputsize_,
                    OptionBase::buildoption,
                    "The size of the input; it must be provided");
      declareOption(ol, "weights", &MyObject::weights,
                    OptionBase::learntoption,
                    "The learned model weights");
      inherited::declareOptions(ol);
  }
Parameters:
olList of options that is progressively being constructed for the current class.

Reimplemented from PLearn::UnaryVariable.

Definition at line 75 of file Cov2CorrVariable.cc.

References PLearn::OptionBase::buildoption, PLearn::declareOption(), PLearn::UnaryVariable::declareOptions(), diagonal_choice, and epsilon.

{
    declareOption(
        ol, "diagonal_choice", &Cov2CorrVariable::diagonal_choice, OptionBase::buildoption,
        "Controls how to fill the diagonal.\n"
        "  0: fill it with 0\n"
        "  1: fill it with 1\n"
        "  2: keep the diagonal of the input (i.e. the original variances)\n");
    declareOption(
        ol, "epsilon", &Cov2CorrVariable::epsilon, OptionBase::buildoption,
        "value to add to product of variances before taking their sqrt.\n");
    inherited::declareOptions(ol);
}

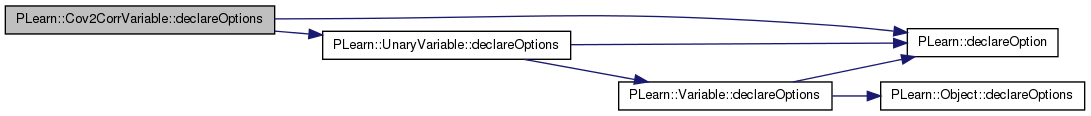

Here is the call graph for this function:

static const PPath& PLearn::Cov2CorrVariable::declaringFile ( ) [inline, static]

Reimplemented from PLearn::UnaryVariable.

Definition at line 62 of file Cov2CorrVariable.h.

:

Cov2CorrVariable * PLearn::Cov2CorrVariable::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::UnaryVariable.

Definition at line 54 of file Cov2CorrVariable.cc.

void PLearn::Cov2CorrVariable::fprop ( ) [virtual]

Nothing to do by default.

Reimplemented from PLearn::UnaryVariable.

Definition at line 117 of file Cov2CorrVariable.cc.

References diagonal_choice, epsilon, i, PLearn::UnaryVariable::input, j, PLearn::TMat< T >::length(), PLearn::Variable::matValue, PLERROR, PLearn::sqrt(), w, and PLearn::TMat< T >::width().

{
    Mat C = input->matValue;
    int l = C.length();
    int w = C.width();
    for(int i=0; i<l; i++)
        for(int j=0; j<w; j++)
        {
            if(i!=j)
                matValue(i,j) = C(i,j)/sqrt(C(i,i)*C(j,j)+epsilon);
            else // diagonal element
            {
                double diagval = 0;
                switch(diagonal_choice)
                {
                case 0:
                    diagval = 0;
                    break;
                case 1:
                    diagval = 1;
                    break;
                case 2:
                    diagval = C(i,j);
                    break;
                default:
                    PLERROR("Invalid diagonal_choice option");
                }
                matValue(i,j) = diagval;
            }
        }
}

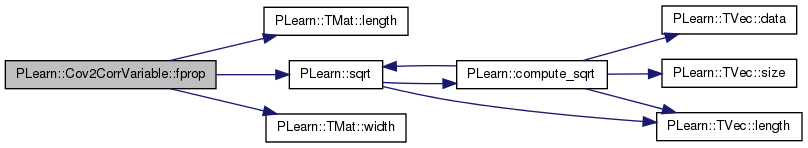

Here is the call graph for this function:

OptionList & PLearn::Cov2CorrVariable::getOptionList ( ) const [virtual]

Reimplemented from PLearn::UnaryVariable.

Definition at line 54 of file Cov2CorrVariable.cc.

OptionMap & PLearn::Cov2CorrVariable::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::UnaryVariable.

Definition at line 54 of file Cov2CorrVariable.cc.

RemoteMethodMap & PLearn::Cov2CorrVariable::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::UnaryVariable.

Definition at line 54 of file Cov2CorrVariable.cc.

void PLearn::Cov2CorrVariable::recomputeSize ( int l,
int w
) const [virtual]

Recomputes the length l and width w that this variable should have, according to its parent variables.

This is used for ex. by sizeprop() The default version stupidly returns the current dimensions, so make sure to overload it in subclasses if this is not appropriate.

Reimplemented from PLearn::Variable.

Definition at line 107 of file Cov2CorrVariable.cc.

References PLearn::UnaryVariable::input, PLearn::Var::length(), and PLearn::Var::width().

{
    if (input) {
        l = input->length();
        w = input->width();
    } else
        l = w = 0;
}

Here is the call graph for this function:

void PLearn::Cov2CorrVariable::rfprop ( ) [virtual]

Reimplemented from PLearn::Variable.

Definition at line 212 of file Cov2CorrVariable.cc.

References PLERROR.

{
    PLERROR("rfprop no yet implemented for this vairable");
}
void PLearn::Cov2CorrVariable::symbolicBprop ( ) [virtual]

compute a piece of new Var graph that represents the symbolic derivative of this Var

Reimplemented from PLearn::Variable.

Definition at line 206 of file Cov2CorrVariable.cc.

References PLERROR.

{
    PLERROR("symbolic bprop not yet implemented for this variable");
}

Member Data Documentation

Reimplemented from PLearn::UnaryVariable.

Definition at line 62 of file Cov2CorrVariable.h.

Definition at line 53 of file Cov2CorrVariable.h.

Referenced by bprop(), declareOptions(), and fprop().

Definition at line 54 of file Cov2CorrVariable.h.

Referenced by bprop(), declareOptions(), and fprop().


The documentation for this class was generated from the following files:
