PLearn::MinusColumnVariable Class Reference

#include <MinusColumnVariable.h>

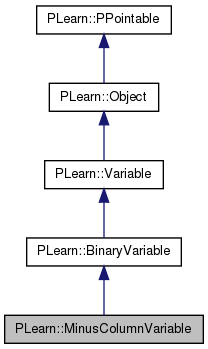

Inheritance diagram for PLearn::MinusColumnVariable:
Inheritance graph
[legend]

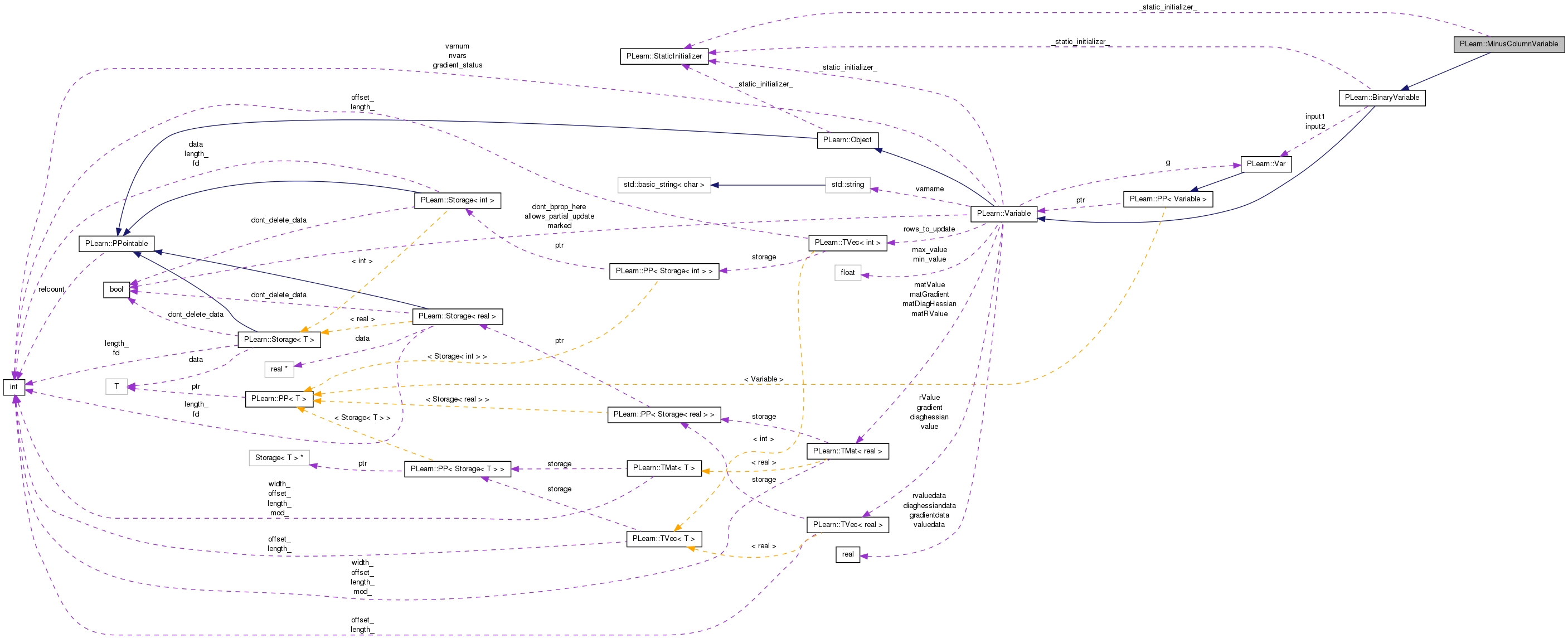

Collaboration diagram for PLearn::MinusColumnVariable:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 MinusColumnVariable ()
 Default constructor for persistence.
 MinusColumnVariable (Variable *input1, Variable *input2)
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual MinusColumnVariabledeepCopy (CopiesMap &copies) const
virtual void build ()
 Post-constructor.
virtual void recomputeSize (int &l, int &w) const
 Recomputes the length l and width w that this variable should have, according to its parent variables.
virtual void fprop ()
 compute output given input
virtual void bprop ()
virtual void bbprop ()
 compute an approximation to diag(d^2/dinput^2) given diag(d^2/doutput^2), with diag(d^2/dinput^2) ~=~ (doutput/dinput)' diag(d^2/doutput^2) (doutput/dinput) In particular: if 'C' depends on 'y' and 'y' depends on x ...
virtual void symbolicBprop ()
 compute a piece of new Var graph that represents the symbolic derivative of this Var

Static Public Member Functions

static string _classname_ ()
 MinusColumnVariable.
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Static Public Attributes

static StaticInitializer _static_initializer_

Protected Member Functions

void build_ ()
 This does the actual building.

Private Types

typedef BinaryVariable inherited

Detailed Description

Definition at line 52 of file MinusColumnVariable.h.


Member Typedef Documentation

Reimplemented from PLearn::BinaryVariable.

Definition at line 54 of file MinusColumnVariable.h.


Constructor & Destructor Documentation

PLearn::MinusColumnVariable::MinusColumnVariable ( ) [inline]

Default constructor for persistence.

Definition at line 58 of file MinusColumnVariable.h.

{}
PLearn::MinusColumnVariable::MinusColumnVariable ( Variable input1,
Variable input2
)

Definition at line 57 of file MinusColumnVariable.cc.

References build_().

    : inherited(input1, input2, input1->length(), input1->width())
{
    build_();
}

Here is the call graph for this function:


Member Function Documentation

string PLearn::MinusColumnVariable::_classname_ ( ) [static]

MinusColumnVariable.

Reimplemented from PLearn::BinaryVariable.

Definition at line 55 of file MinusColumnVariable.cc.

OptionList & PLearn::MinusColumnVariable::_getOptionList_ ( ) [static]

Reimplemented from PLearn::BinaryVariable.

Definition at line 55 of file MinusColumnVariable.cc.

RemoteMethodMap & PLearn::MinusColumnVariable::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::BinaryVariable.

Definition at line 55 of file MinusColumnVariable.cc.

bool PLearn::MinusColumnVariable::_isa_ ( const Object o) [static]

Reimplemented from PLearn::BinaryVariable.

Definition at line 55 of file MinusColumnVariable.cc.

Object * PLearn::MinusColumnVariable::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 55 of file MinusColumnVariable.cc.

StaticInitializer MinusColumnVariable::_static_initializer_ & PLearn::MinusColumnVariable::_static_initialize_ ( ) [static]

Reimplemented from PLearn::BinaryVariable.

Definition at line 55 of file MinusColumnVariable.cc.

void PLearn::MinusColumnVariable::bbprop ( ) [virtual]

compute an approximation to diag(d^2/dinput^2) given diag(d^2/doutput^2), with diag(d^2/dinput^2) ~=~ (doutput/dinput)' diag(d^2/doutput^2) (doutput/dinput) In particular: if 'C' depends on 'y' and 'y' depends on x ...

d^2C/dx^2 = d^2C/dy^2 * (dy/dx)^2 + dC/dy * d^2y/dx^2 (diaghessian) (gradient)

Reimplemented from PLearn::Variable.

Definition at line 114 of file MinusColumnVariable.cc.

References PLearn::Variable::diaghessiandata, i, PLearn::BinaryVariable::input1, PLearn::BinaryVariable::input2, j, PLearn::Var::length(), PLearn::Variable::length(), and PLearn::Variable::width().

{
    if (input1->diaghessian.length()==0)
        input1->resizeDiagHessian();
    if (input2->diaghessian.length()==0)
        input2->resizeDiagHessian();
    int k=0;
    for(int i=0; i<length(); i++)
        for(int j=0; j<width(); j++, k++)
        {
            input1->diaghessiandata[k] += diaghessiandata[k];
            input2->diaghessiandata[i] -= diaghessiandata[k];
        }
}

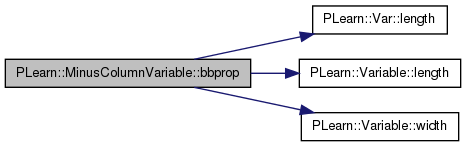

Here is the call graph for this function:

void PLearn::MinusColumnVariable::bprop ( ) [virtual]

Implements PLearn::Variable.

Definition at line 102 of file MinusColumnVariable.cc.

References PLearn::Variable::gradientdata, i, PLearn::BinaryVariable::input1, PLearn::BinaryVariable::input2, j, PLearn::Variable::length(), and PLearn::Variable::width().

{
    int k=0;
    for(int i=0; i<length(); i++)
        for(int j=0; j<width(); j++, k++)
        {
            input1->gradientdata[k] += gradientdata[k];
            input2->gradientdata[i] -= gradientdata[k];
        }
}

Here is the call graph for this function:

void PLearn::MinusColumnVariable::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::BinaryVariable.

Definition at line 64 of file MinusColumnVariable.cc.

References PLearn::BinaryVariable::build(), and build_().

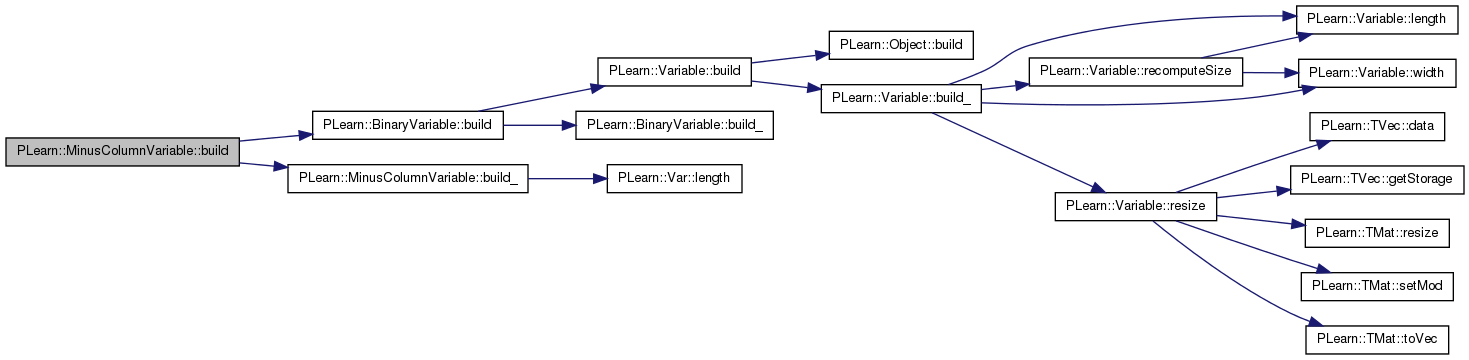

Here is the call graph for this function:

void PLearn::MinusColumnVariable::build_ ( ) [protected]

This does the actual building.

Reimplemented from PLearn::BinaryVariable.

Definition at line 71 of file MinusColumnVariable.cc.

References PLearn::BinaryVariable::input1, PLearn::BinaryVariable::input2, PLearn::Var::length(), and PLERROR.

Referenced by build(), and MinusColumnVariable().

{
    if (input1 && input2) {
        if(!input2->isColumnVec())
            PLERROR("IN MinusColumnVariable: input2 is not a column");
        if(input2->length() != input1->length())
            PLERROR("IN MinusColumnVariable: input1 and input2 have a different length()");
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

string PLearn::MinusColumnVariable::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 55 of file MinusColumnVariable.cc.

static const PPath& PLearn::MinusColumnVariable::declaringFile ( ) [inline, static]

Reimplemented from PLearn::BinaryVariable.

Definition at line 61 of file MinusColumnVariable.h.

:
    void build_();
MinusColumnVariable * PLearn::MinusColumnVariable::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::BinaryVariable.

Definition at line 55 of file MinusColumnVariable.cc.

void PLearn::MinusColumnVariable::fprop ( ) [virtual]

compute output given input

Implements PLearn::Variable.

Definition at line 93 of file MinusColumnVariable.cc.

References i, PLearn::BinaryVariable::input1, PLearn::BinaryVariable::input2, j, PLearn::Variable::length(), PLearn::Variable::valuedata, and PLearn::Variable::width().

{
    int k=0;
    for(int i=0; i<length(); i++)
        for(int j=0; j<width(); j++, k++)
            valuedata[k] = input1->valuedata[k] - input2->valuedata[i];
}

Here is the call graph for this function:

OptionList & PLearn::MinusColumnVariable::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 55 of file MinusColumnVariable.cc.

OptionMap & PLearn::MinusColumnVariable::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 55 of file MinusColumnVariable.cc.

RemoteMethodMap & PLearn::MinusColumnVariable::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 55 of file MinusColumnVariable.cc.

void PLearn::MinusColumnVariable::recomputeSize ( int l,
int w
) const [virtual]

Recomputes the length l and width w that this variable should have, according to its parent variables.

This is used for ex. by sizeprop() The default version stupidly returns the current dimensions, so make sure to overload it in subclasses if this is not appropriate.

Reimplemented from PLearn::Variable.

Definition at line 83 of file MinusColumnVariable.cc.

References PLearn::BinaryVariable::input1, PLearn::Var::length(), and PLearn::Var::width().

{
    if (input1) {
        l = input1->length();
        w = input1->width();
    } else
        l = w = 0;
}

Here is the call graph for this function:

void PLearn::MinusColumnVariable::symbolicBprop ( ) [virtual]

compute a piece of new Var graph that represents the symbolic derivative of this Var

Reimplemented from PLearn::Variable.

Definition at line 130 of file MinusColumnVariable.cc.

References PLearn::Variable::g, PLearn::BinaryVariable::input1, PLearn::BinaryVariable::input2, and PLearn::rowSum().

{
    input1->accg(g);
    input2->accg(-rowSum(g));
}

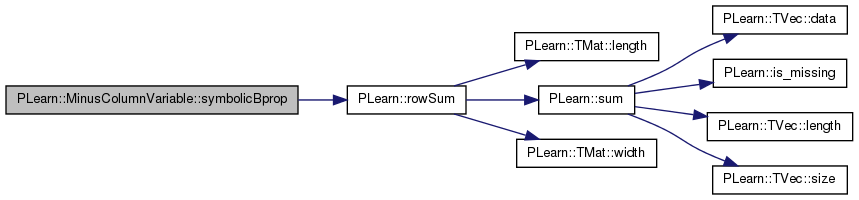

Here is the call graph for this function:


Member Data Documentation

Reimplemented from PLearn::BinaryVariable.

Definition at line 61 of file MinusColumnVariable.h.


The documentation for this class was generated from the following files:
