Chapter 1 - Getting Started

Contents

Behavioral Compiler Inputs and Outputs
Required Environmental Variables
Setting Initial Constraints
Starting Behavioral Compiler

Behavioral Compiler Inputs and Outputs

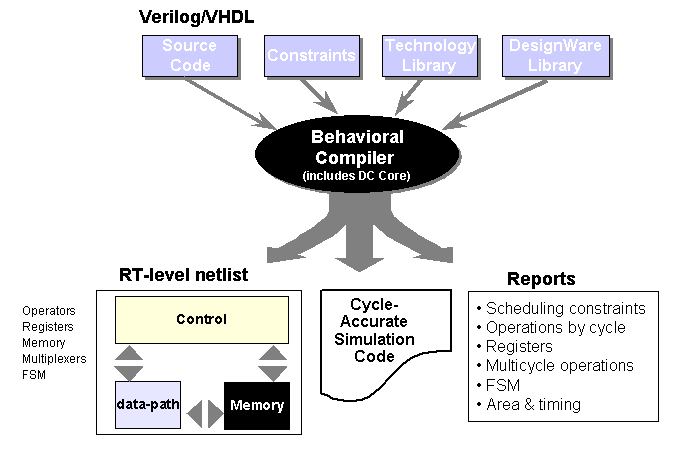

The following drawing illustrates the inputs you provide to Behavioral Compiler, user-created Verilog or VHDL designs, user-defined constraints (timing, area, throughput, etc), and data from a technology library and [optionally] a DesignWare library. Behavioral Compiler creates output RTL and HDL files for synthesis and simulation. Behavioral Compiler also provides reports and the Behavioral Compiler View tool for design analysis prior to simulation.

Required Environmental Variables

Your system administrator typically has the following environmental variables set for you: $SYNOPSYS, $SNPSLMD_LICENSE_FILE, $path and $ARCH

You can also set these in your .cshrc file. For example:

setenv ARCH sparcOS5

setenv SYNOPSYS /u/release/2000.05

setenv SNPSLMD_LICENSE_FILE $SYNOPSYS/admin/license/key

set path = ($path $SYNOPSYS/$ARCH/syn/bin )

Setting Initial Constraints

To begin the lab, cd into the .../bc_tutorial/synthesis directory.

unix% cd bc_tutorial/synthesis

For purposes of this lab and the others, some preliminary setup is done for you. Enter

unix% ls -a.

Notice the files .synopsys_dc.setup and .synopsys_aliases.
The .synopsys_aliases file contains the following:
alias rdl "report_design_lib work"
This provides a substitute to execute the Behavioral Compiler report_design_lib work function.

The .synopsys_dc.setup file is a startup file for both Design Compiler and Behavioral Compiler. This startup file is specific for this lab. You can also have user level startups and enterprise-wide startups.

The file .synopsys_dc.setup contains the following commands and variables that are applicable for both Verilog and VHDL:

target_library = tc6a_cbacore.db;
link_library = { "*", tc6a_cbacore.db};
symbol_library = tc6a_cbacore.sdb;
synthetic_library = {"dw01.sldb" "dw02.sldb" "dw03.sldb"}
vhdlout_bit_type = std_logic;
vhdlout_bit_vector_type = std_logic_vector;
vhdlout_use_packages = {"IEEE.std_logic_1164", "IEEE.std_logic_arith.all", "IEEE.std_logic_unsigned.all"}
define_design_lib work -path ./Des_Lib
search_path = search_path + ./VHDL + ./Verilog + ./DB + ./Scripts
bc_enable_analysis_info = true /* BCView */
bc_estimate_timing_effort = zero /* No extra Timing Estimations */
hdlin_store_assignment_delay = false /* Set to true if you have transport delay */

These commands and variables set up Behavioral Compiler in an automated, custom way so you do not have to enter of these commands each time you start Behavioral Compiler. Because each design can have its own .synopsys_dc.setup file, you are defining the operating conditions that are custom for a design and independent from other designs.

Starting Behavioral Compiler

To test your setup and the Behavioral Compiler environment, while still in the bc_tutorial/synthesis directory, start Behavioral Compiler.

unix% bc_shell

If the Behavioral Compiler shell invokes correctly, you may continue. If it does not invoke correctly, check your environmental variable settings or check with your system administrator.

Notice the prompt has changed from unix% to bc_shell> indicating you can now enter Design Compiler or Behavioral Compiler commands.

List the variables used within Behavioral Compiler. These are a combination of the defaults in the tool and those that have been set with the .synopsys_dc.setup file. The list of variables is extremely long. This shows you how many items are under your control in Behavioral Compiler.

bc_shell% list -variables bc

You can also enter the list command with no arguments to obtain a list of the other things list can show you about Behavioral Compiler.

bc_shell% list

At this point you are ready to begin working with Behavioral Compiler. Exit the tool and go on to the next tutorial section.

bc_shell% exit

On to Chapter 2 - Synthesis for Verilog or

On to Chapter 2 - Synthesis for VHDL
