PLearn::EarlyStoppingOracle Class Reference

#include <EarlyStoppingOracle.h>

Inheritance diagram for PLearn::EarlyStoppingOracle:
Inheritance graph
[legend]

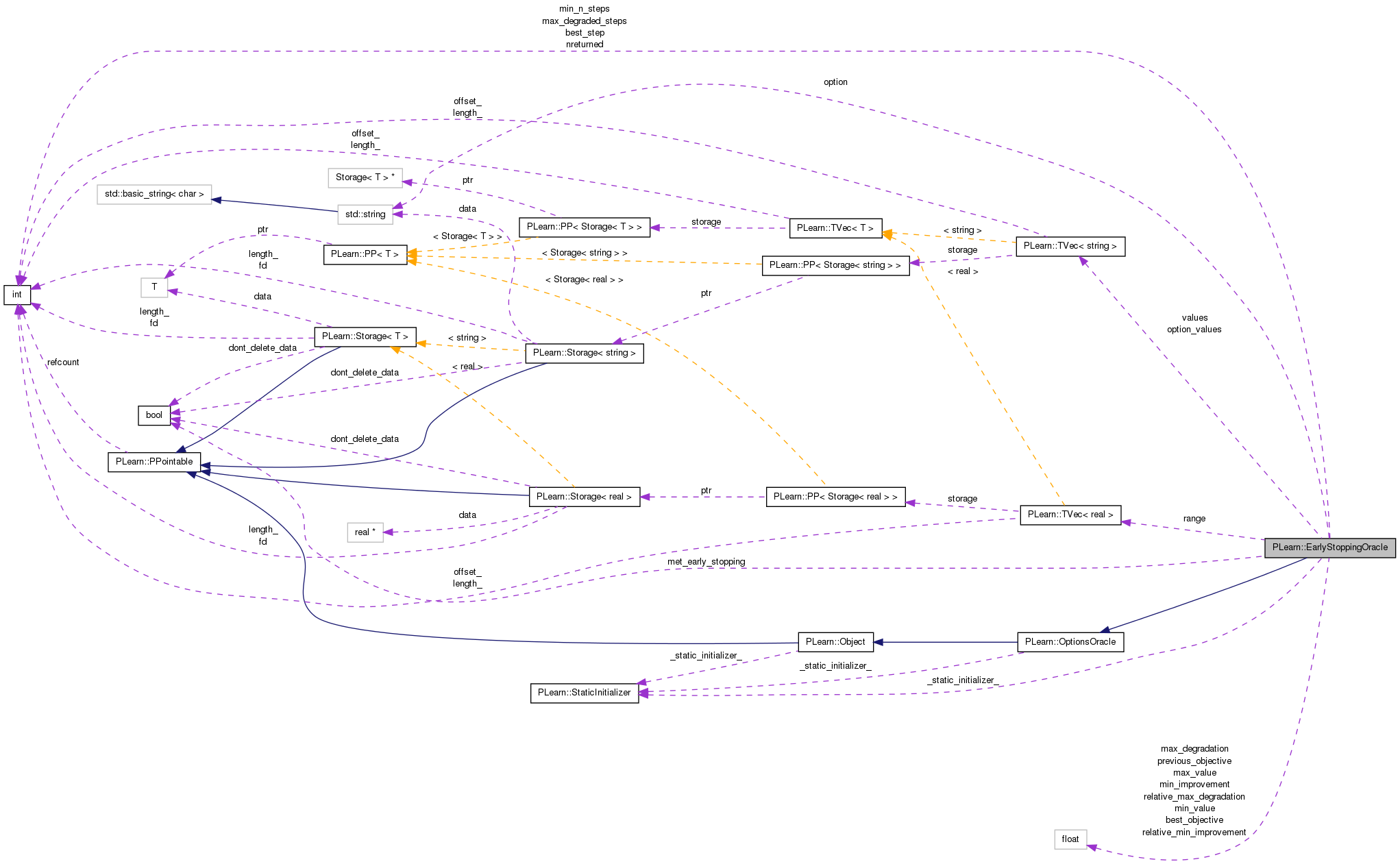

Collaboration diagram for PLearn::EarlyStoppingOracle:
Collaboration graph
[legend]

List of all members.

Public Types

typedef OptionsOracle inherited

Public Member Functions

 EarlyStoppingOracle ()
virtual TVec< string > getOptionNames () const
 returns the set of names of options this generator generates
virtual TVec< string > generateNextTrial (const TVec< string > &older_trial, real obtained_objective)
virtual void forget ()
 SUBCLASS WRITING: Should reset the generator's internal state (as having no info about previous trials).
virtual void build ()
 Post-constructor.
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual EarlyStoppingOracledeepCopy (CopiesMap &copies) const

Static Public Member Functions

static string _classname_ ()
 Declares name and deepCopy methods.
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

string option
 the name of the option to change
TVec< string > values
 a list of values to try in sequence
Vec range
 a numerical range of the form [ start, end ] or [ start, end, step ]
real min_value
 early-stopping parameters
real max_value
 maximum error beyond which we stop
real max_degradation
 maximum allowed degradation in error from last best value
real relative_max_degradation
real min_improvement
 required minimum improvement from last step
real relative_min_improvement
int max_degraded_steps
 max. nb of steps beyond best found
int min_n_steps
 min. nb of steps before early stopping

Static Public Attributes

static StaticInitializer _static_initializer_

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declares this class' options.

Protected Attributes

TVec< string > option_values
 if the values option was specified, then this points to it if the range option was specified, this is an extensive list of the values implied by the range (this field is built by the build_ method).
int nreturned
 number of trials returned so far (This is also the index of the next trial to be returned from options_values)
real previous_objective
real best_objective
int best_step
bool met_early_stopping

Private Member Functions

void build_ ()
 This does the actual building.

Detailed Description

Definition at line 51 of file EarlyStoppingOracle.h.


Member Typedef Documentation

Reimplemented from PLearn::OptionsOracle.

Definition at line 76 of file EarlyStoppingOracle.h.


Constructor & Destructor Documentation

PLearn::EarlyStoppingOracle::EarlyStoppingOracle ( )

Definition at line 51 of file EarlyStoppingOracle.cc.

    : nreturned(0),
      previous_objective(REAL_MAX),
      best_objective(REAL_MAX),
      best_step(-1),
      met_early_stopping(false),
      min_value(-REAL_MAX),
      max_value(REAL_MAX),
      max_degradation(REAL_MAX),
      relative_max_degradation(-1),
      min_improvement(-REAL_MAX),
      relative_min_improvement(-1),
      max_degraded_steps(100),
      min_n_steps(0)
{
    //    build_();
}

Member Function Documentation

string PLearn::EarlyStoppingOracle::_classname_ ( ) [static]

Declares name and deepCopy methods.

Reimplemented from PLearn::OptionsOracle.

Definition at line 69 of file EarlyStoppingOracle.cc.

OptionList & PLearn::EarlyStoppingOracle::_getOptionList_ ( ) [static]

Reimplemented from PLearn::OptionsOracle.

Definition at line 69 of file EarlyStoppingOracle.cc.

RemoteMethodMap & PLearn::EarlyStoppingOracle::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::OptionsOracle.

Definition at line 69 of file EarlyStoppingOracle.cc.

bool PLearn::EarlyStoppingOracle::_isa_ ( const Object o) [static]

Reimplemented from PLearn::OptionsOracle.

Definition at line 69 of file EarlyStoppingOracle.cc.

Object * PLearn::EarlyStoppingOracle::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 69 of file EarlyStoppingOracle.cc.

StaticInitializer EarlyStoppingOracle::_static_initializer_ & PLearn::EarlyStoppingOracle::_static_initialize_ ( ) [static]

Reimplemented from PLearn::OptionsOracle.

Definition at line 69 of file EarlyStoppingOracle.cc.

void PLearn::EarlyStoppingOracle::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::OptionsOracle.

Definition at line 157 of file EarlyStoppingOracle.cc.

References PLearn::OptionsOracle::build(), and build_().

Here is the call graph for this function:

void PLearn::EarlyStoppingOracle::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::OptionsOracle.

Definition at line 130 of file EarlyStoppingOracle.cc.

References PLearn::TVec< T >::append(), PLearn::fast_exact_is_equal(), PLearn::is_equal(), PLearn::TVec< T >::length(), option_values, PLERROR, PLWARNING, range, PLearn::TVec< T >::resize(), PLearn::tostring(), values, and x.

Referenced by build().

{
    if(values.length()>0)
        option_values = values;
    else if(range.length()>=2)
    {
        option_values.resize(0);
        real step = 1;
        if(range.length()==3){
            step = range[2];
            if(step<0 || is_equal(step,0))
                PLERROR("IN EarlyStoppingOracle::build_() - the"
                        " step(=%f) should be greater the 0!",step);
        }
        for(real x = range[0]; x<range[1]; x+=step)
            option_values.append(tostring(x));
        if(fast_exact_is_equal(range[0], range[1]))
            PLWARNING("In EarlyStoppingOracle::build_ - no range selected. "
                    "Maybe you forgot that the end part of the range is not "
                    "included!");
    }
    if(option_values.length()==0)
        PLWARNING("In EarlyStoppingOracle::build_ - no range selected.");

}

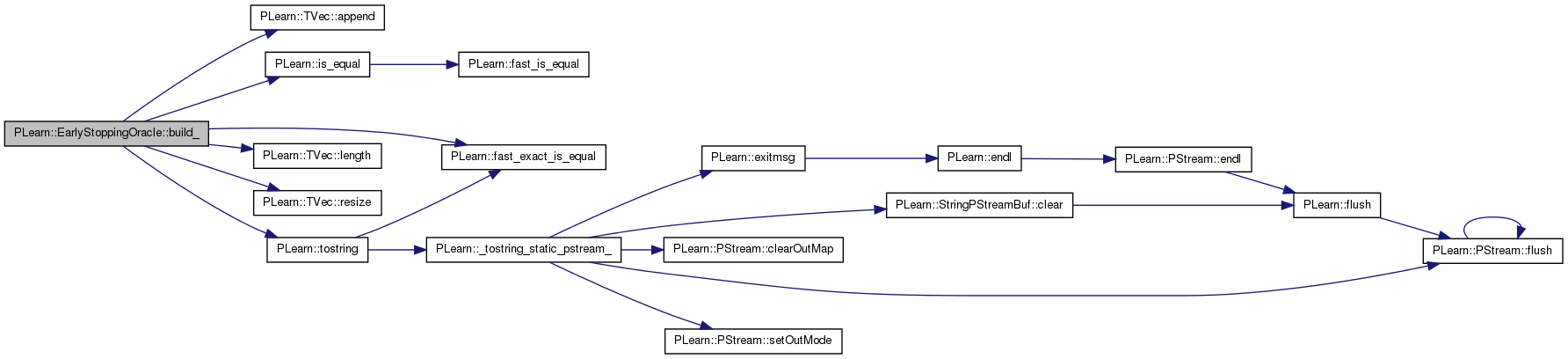

Here is the call graph for this function:

Here is the caller graph for this function:

string PLearn::EarlyStoppingOracle::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 69 of file EarlyStoppingOracle.cc.

void PLearn::EarlyStoppingOracle::declareOptions ( OptionList ol) [static, protected]

Declares this class' options.

Reimplemented from PLearn::OptionsOracle.

Definition at line 71 of file EarlyStoppingOracle.cc.

References best_objective, best_step, PLearn::OptionBase::buildoption, PLearn::declareOption(), PLearn::OptionsOracle::declareOptions(), PLearn::OptionBase::learntoption, max_degradation, max_degraded_steps, max_value, met_early_stopping, min_improvement, min_n_steps, min_value, nreturned, option, range, relative_max_degradation, relative_min_improvement, and values.

{
    declareOption(ol, "option", &EarlyStoppingOracle::option, OptionBase::buildoption,
                  "the name of the option to change");
    declareOption(ol, "values", &EarlyStoppingOracle::values, OptionBase::buildoption,
                  "a list of values to try in sequence ");
    declareOption(ol, "range", &EarlyStoppingOracle::range, OptionBase::buildoption,
                  "a numerical range of the form [ start, end ] or [ start, end, step ]\n"
                  "WARNING: end is not included!");

    declareOption(ol, "min_value", &EarlyStoppingOracle::min_value, OptionBase::buildoption,
                  "minimum allowed error beyond which we stop\n");

    declareOption(ol, "max_value", &EarlyStoppingOracle::max_value, OptionBase::buildoption,
                  "maximum allowed error beyond which we stop\n");

    declareOption(ol, "max_degradation", &EarlyStoppingOracle::max_degradation, OptionBase::buildoption,
                  "maximum allowed degradation from last best objective value\n");

    declareOption(ol, "relative_max_degradation", &EarlyStoppingOracle::relative_max_degradation, OptionBase::buildoption,
                  "maximum allowed degradation from last best objective, relative to abs(best_objective)\n"
                  "ex: 0.10 will allow a degradation of 10% the magnitude of best_objective\n"
                  "Will be ignored if negative}n");

    declareOption(ol, "min_improvement", &EarlyStoppingOracle::min_improvement, OptionBase::buildoption,
                  "minimum required improvement from previous objective value\n");

    declareOption(ol, "relative_min_improvement", &EarlyStoppingOracle::relative_min_improvement, OptionBase::buildoption,
                  "minimum required improvement from previous objective value, relative to it.\n"
                  "ex: 0.01 means we need an improvement of 0.01*abs(previous_objective)  i.e. 1%\n"
                  "Will be ignored if negative\n");

    declareOption(ol, "max_degraded_steps", &EarlyStoppingOracle::max_degraded_steps, OptionBase::buildoption,
                  "    ax. nb of steps beyond best found\n");

    declareOption(ol, "min_n_steps", &EarlyStoppingOracle::min_n_steps, OptionBase::buildoption,
                  "minimum required number of steps before allowing early stopping\n");

    //learnt option
    declareOption(ol, "nreturned", &EarlyStoppingOracle::nreturned,
                  OptionBase::learntoption,
                  "The number of returned option\n");

    declareOption(ol, "best_objective", &EarlyStoppingOracle::best_objective,
                  OptionBase::learntoption,
                  "The best objective see up to date\n");

    declareOption(ol, "best_step", &EarlyStoppingOracle::best_step,
                  OptionBase::learntoption,
                  "The step where we have see the best objective\n");

    declareOption(ol, "met_early_stopping", &EarlyStoppingOracle::met_early_stopping,
                  OptionBase::learntoption,
                  "True if we met the early stopping criterion\n");

    // Now call the parent class' declareOptions
    inherited::declareOptions(ol);
}

Here is the call graph for this function:

static const PPath& PLearn::EarlyStoppingOracle::declaringFile ( ) [inline, static]

Reimplemented from PLearn::OptionsOracle.

Definition at line 135 of file EarlyStoppingOracle.h.

EarlyStoppingOracle * PLearn::EarlyStoppingOracle::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::OptionsOracle.

Definition at line 69 of file EarlyStoppingOracle.cc.

void PLearn::EarlyStoppingOracle::forget ( ) [virtual]

SUBCLASS WRITING: Should reset the generator's internal state (as having no info about previous trials).

Implements PLearn::OptionsOracle.

Definition at line 258 of file EarlyStoppingOracle.cc.

References best_objective, best_step, met_early_stopping, nreturned, and previous_objective.

{
    nreturned = 0;
    previous_objective = FLT_MAX;
    best_objective = FLT_MAX;
    best_step = -1;
    met_early_stopping = false;
}
TVec< string > PLearn::EarlyStoppingOracle::generateNextTrial ( const TVec< string > &  older_trial,
real  obtained_objective
) [virtual]

SUBCLASS WRITING: This notifies the oracle, of the result obtained for a previous trial it suggested. The oracle is expected to return the next suggestion, or an empty vector if stopping conditions were met, or it run out of suggestions. An empty vector may be passed for older_trial if there is no result to report.

Implements PLearn::OptionsOracle.

Definition at line 166 of file EarlyStoppingOracle.cc.

References PLearn::abs(), best_objective, best_step, PLearn::endl(), PLearn::TVec< T >::length(), max_degradation, max_degraded_steps, max_value, met_early_stopping, min_improvement, min_n_steps, min_value, nreturned, option_values, previous_objective, relative_max_degradation, and relative_min_improvement.

{
    if(met_early_stopping)
        return TVec<string>();

    if(older_trial.length()>0)
    {
        real current_objective = obtained_objective;
        int current_step = nreturned;

        if(current_objective<best_objective && current_step >= min_n_steps)
        {
            best_objective = current_objective;
            best_step = current_step;
        }

        real improvement = previous_objective-current_objective;
        real degradation = current_objective-best_objective;

        int n_degraded_steps = current_step-best_step;

        // Check if early-stopping condition was met
        if (( (current_objective < min_value) ||
              (current_objective > max_value) ||
              (n_degraded_steps >= max_degraded_steps) ||
              (degradation > max_degradation) ||
              (relative_max_degradation>=0 && degradation > relative_max_degradation * abs(best_objective)) ||
              (improvement < min_improvement) ||
              (relative_min_improvement>=0 && improvement < relative_min_improvement * abs(previous_objective))
                ) && current_step >= min_n_steps){
            met_early_stopping = true;

            //print debug info
            if(current_objective < min_value){
                DBG_MODULE_LOG
                    <<"stopping the learner as: current_objective "
                    <<current_objective
                    <<" < min_value "<<min_value
                    <<endl;
            }
            if(current_objective > max_value){
                DBG_MODULE_LOG
                    <<"stopping the learner as: current_objective ("<<current_objective
                    <<") < max_value ("<<max_value<<")"<<endl;
            }
            if(n_degraded_steps >= max_degraded_steps){
                DBG_MODULE_LOG
                    <<"stopping the learner as:n_degraded_steps("<<
                    n_degraded_steps<<") >= max_degraded_steps("<<
                    max_degraded_steps<<") "
                    <<endl;
            }
            if(degradation > max_degradation){
                DBG_MODULE_LOG
                    <<"stopping the learner as: degradation("<<degradation
                    <<") > max_degradation("<<max_degradation<<")"
                    <<endl;
            }
            if(relative_max_degradation>=0
               && degradation > relative_max_degradation * abs(best_objective)){
                DBG_MODULE_LOG
                    <<"stopping the learner as: relative_max_degradation>=0 "
                    <<"&& degradation("<<degradation
                    <<") > relative_max_degradation("<<relative_max_degradation
                    <<") * abs(best_objective)("<<best_objective<<")"
                    <<endl;
            }
            if(improvement < min_improvement){
                DBG_MODULE_LOG
                    <<"stopping the learner as: improvement("<<improvement<<") < min_improvement("
                    <<min_improvement<<")"
                    <<endl;
            }
            if(relative_min_improvement>=0
               && improvement < relative_min_improvement * abs(previous_objective)){
                DBG_MODULE_LOG
                    <<"stopping the learner as: relative_min_improvement("<<relative_min_improvement<<")>=0 "
                    <<endl
                    <<"&& improvement("<<improvement<<") < relative_min_improvement("<<relative_min_improvement<<") * abs(previous_objective"<<previous_objective<<")"
                    <<endl;
            }
        }

        previous_objective = current_objective;
    }

    if(met_early_stopping || nreturned >= option_values.length())
        return TVec<string>();
    else
        return TVec<string>(1, option_values[nreturned++]);
}

Here is the call graph for this function:

OptionList & PLearn::EarlyStoppingOracle::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 69 of file EarlyStoppingOracle.cc.

OptionMap & PLearn::EarlyStoppingOracle::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 69 of file EarlyStoppingOracle.cc.

TVec< string > PLearn::EarlyStoppingOracle::getOptionNames ( ) const [virtual]

returns the set of names of options this generator generates

Implements PLearn::OptionsOracle.

Definition at line 163 of file EarlyStoppingOracle.cc.

References option.

{ return TVec<string>(1,option); }
RemoteMethodMap & PLearn::EarlyStoppingOracle::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 69 of file EarlyStoppingOracle.cc.

void PLearn::EarlyStoppingOracle::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Transforms a shallow copy into a deep copy.

Reimplemented from PLearn::OptionsOracle.

Definition at line 268 of file EarlyStoppingOracle.cc.

References PLearn::deepCopyField(), PLearn::OptionsOracle::makeDeepCopyFromShallowCopy(), option_values, range, and values.

Here is the call graph for this function:


Member Data Documentation

Reimplemented from PLearn::OptionsOracle.

Definition at line 135 of file EarlyStoppingOracle.h.

Definition at line 69 of file EarlyStoppingOracle.h.

Referenced by declareOptions(), forget(), and generateNextTrial().

Definition at line 70 of file EarlyStoppingOracle.h.

Referenced by declareOptions(), forget(), and generateNextTrial().

maximum allowed degradation in error from last best value

Definition at line 89 of file EarlyStoppingOracle.h.

Referenced by declareOptions(), and generateNextTrial().

max. nb of steps beyond best found

Definition at line 93 of file EarlyStoppingOracle.h.

Referenced by declareOptions(), and generateNextTrial().

maximum error beyond which we stop

Definition at line 88 of file EarlyStoppingOracle.h.

Referenced by declareOptions(), and generateNextTrial().

Definition at line 72 of file EarlyStoppingOracle.h.

Referenced by declareOptions(), forget(), and generateNextTrial().

required minimum improvement from last step

Definition at line 91 of file EarlyStoppingOracle.h.

Referenced by declareOptions(), and generateNextTrial().

min. nb of steps before early stopping

Definition at line 94 of file EarlyStoppingOracle.h.

Referenced by declareOptions(), and generateNextTrial().

early-stopping parameters

minimum error beyond which we stop

Definition at line 87 of file EarlyStoppingOracle.h.

Referenced by declareOptions(), and generateNextTrial().

number of trials returned so far (This is also the index of the next trial to be returned from options_values)

Definition at line 65 of file EarlyStoppingOracle.h.

Referenced by declareOptions(), forget(), and generateNextTrial().

the name of the option to change

Definition at line 82 of file EarlyStoppingOracle.h.

Referenced by declareOptions(), and getOptionNames().

if the values option was specified, then this points to it if the range option was specified, this is an extensive list of the values implied by the range (this field is built by the build_ method).

Definition at line 61 of file EarlyStoppingOracle.h.

Referenced by build_(), generateNextTrial(), and makeDeepCopyFromShallowCopy().

Definition at line 68 of file EarlyStoppingOracle.h.

Referenced by forget(), and generateNextTrial().

a numerical range of the form [ start, end ] or [ start, end, step ]

Definition at line 84 of file EarlyStoppingOracle.h.

Referenced by build_(), declareOptions(), and makeDeepCopyFromShallowCopy().

Definition at line 90 of file EarlyStoppingOracle.h.

Referenced by declareOptions(), and generateNextTrial().

Definition at line 92 of file EarlyStoppingOracle.h.

Referenced by declareOptions(), and generateNextTrial().

a list of values to try in sequence

Definition at line 83 of file EarlyStoppingOracle.h.

Referenced by build_(), declareOptions(), and makeDeepCopyFromShallowCopy().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
