PLearn::MixtureVMatrix Class Reference

Mixes several underlying source VMat, with ponderation. More...

#include <MixtureVMatrix.h>

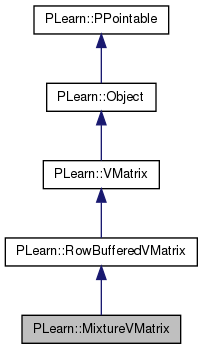

Inheritance diagram for PLearn::MixtureVMatrix:
Inheritance graph
[legend]

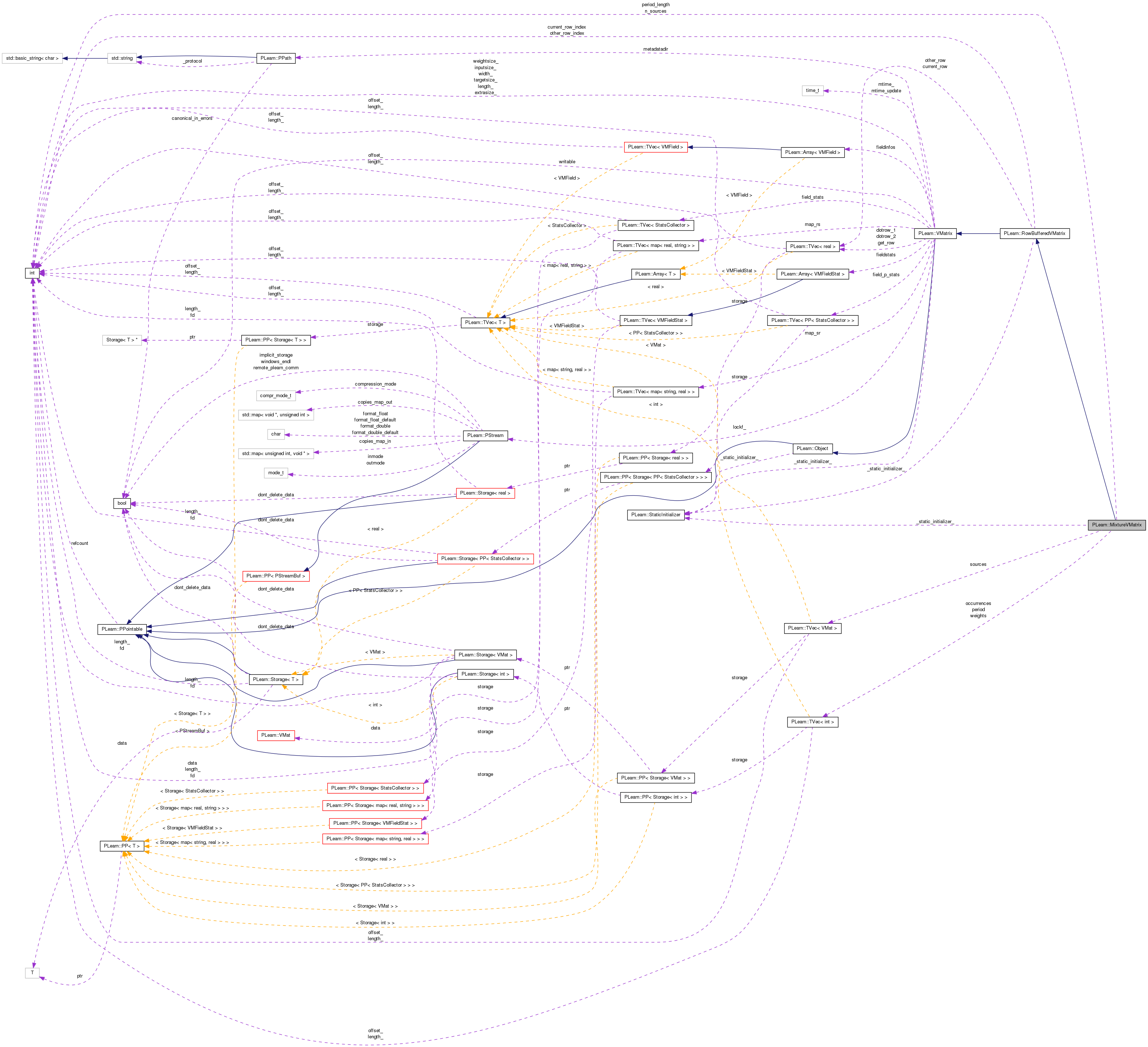

Collaboration diagram for PLearn::MixtureVMatrix:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 MixtureVMatrix ()
 Default constructor.
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual MixtureVMatrixdeepCopy (CopiesMap &copies) const
virtual void build ()
 Simply calls inherited::build() then build_().
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.

Static Public Member Functions

static string _classname_ ()
 RowBufferedVMatrix.
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

TVec< VMatsources
 The sources to mix (with repetitions if needed)
TVec< intweights
 Weights of the different sources.

Static Public Attributes

static StaticInitializer _static_initializer_

Protected Member Functions

virtual void getNewRow (int i, const Vec &v) const
 Fill the vector 'v' with the content of the i-th row.

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declares the class options.

Protected Attributes

int n_sources
 sources.size()
int period_length
 sum(weights)
TVec< intperiod
 Sequence of sources to select, ensuring the proportion of sources and their homogeneity.
TVec< intoccurrences
 occurrences[i] is the count of element period[i] in period[0..i-1]

Private Types

typedef RowBufferedVMatrix inherited

Private Member Functions

void build_ ()
 This does the actual building.
void buildPeriod ()
 build period and occurrences

Detailed Description

Mixes several underlying source VMat, with ponderation.

Definition at line 52 of file MixtureVMatrix.h.


Member Typedef Documentation

Reimplemented from PLearn::RowBufferedVMatrix.

Definition at line 54 of file MixtureVMatrix.h.


Constructor & Destructor Documentation

PLearn::MixtureVMatrix::MixtureVMatrix ( )

Default constructor.

Definition at line 52 of file MixtureVMatrix.cc.

                              :
    n_sources(0),
    period_length(0)
{
}

Member Function Documentation

string PLearn::MixtureVMatrix::_classname_ ( ) [static]

RowBufferedVMatrix.

Reimplemented from PLearn::RowBufferedVMatrix.

Definition at line 50 of file MixtureVMatrix.cc.

OptionList & PLearn::MixtureVMatrix::_getOptionList_ ( ) [static]

Reimplemented from PLearn::RowBufferedVMatrix.

Definition at line 50 of file MixtureVMatrix.cc.

RemoteMethodMap & PLearn::MixtureVMatrix::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::RowBufferedVMatrix.

Definition at line 50 of file MixtureVMatrix.cc.

bool PLearn::MixtureVMatrix::_isa_ ( const Object o) [static]

Reimplemented from PLearn::RowBufferedVMatrix.

Definition at line 50 of file MixtureVMatrix.cc.

Object * PLearn::MixtureVMatrix::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 50 of file MixtureVMatrix.cc.

StaticInitializer MixtureVMatrix::_static_initializer_ & PLearn::MixtureVMatrix::_static_initialize_ ( ) [static]

Reimplemented from PLearn::RowBufferedVMatrix.

Definition at line 50 of file MixtureVMatrix.cc.

void PLearn::MixtureVMatrix::build ( ) [virtual]

Simply calls inherited::build() then build_().

Reimplemented from PLearn::VMatrix.

Definition at line 190 of file MixtureVMatrix.cc.

References PLearn::VMatrix::build(), and build_().

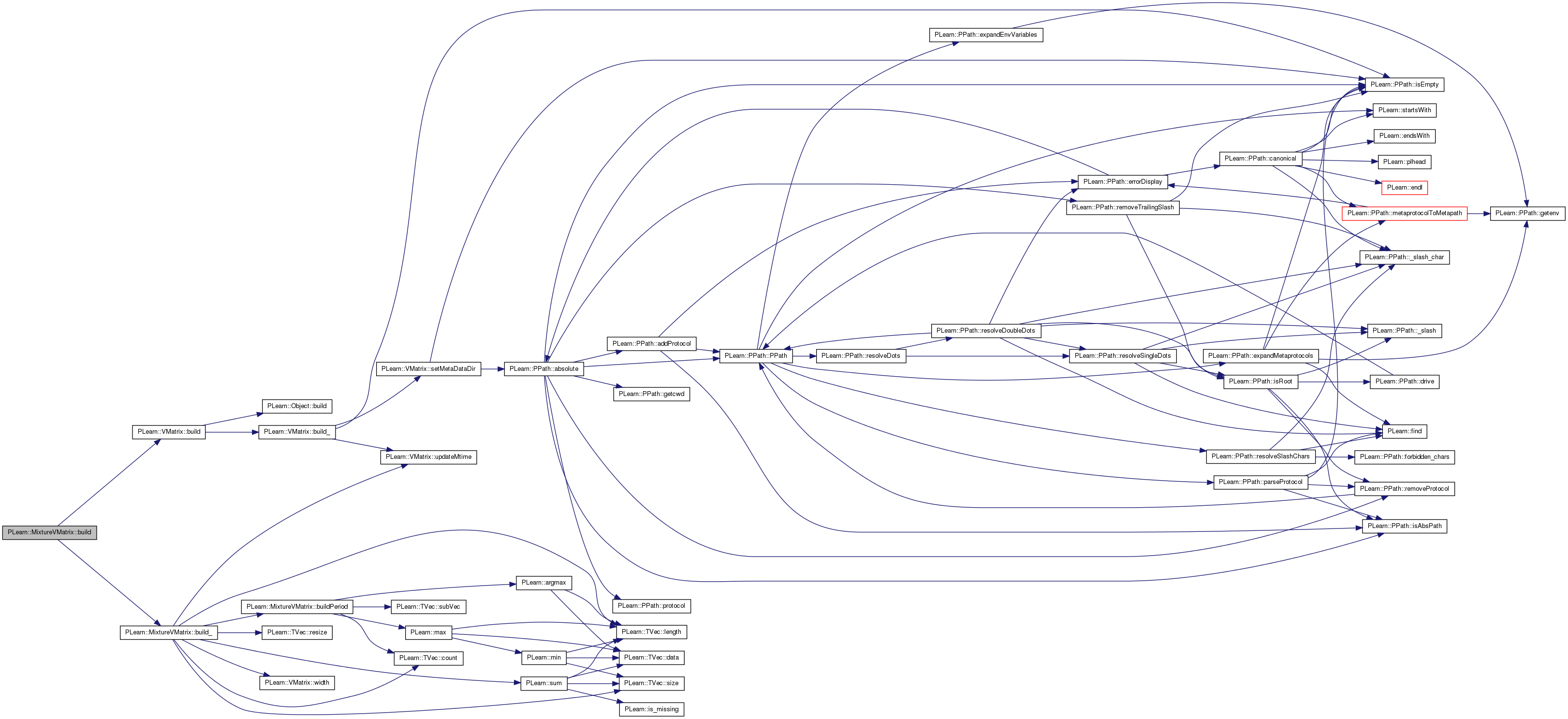

Here is the call graph for this function:

void PLearn::MixtureVMatrix::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::VMatrix.

Definition at line 106 of file MixtureVMatrix.cc.

References buildPeriod(), PLearn::TVec< T >::count(), PLearn::VMatrix::extrasize_, i, PLearn::VMatrix::inputsize_, PLearn::TVec< T >::length(), PLearn::VMatrix::length_, n_sources, occurrences, period, period_length, PLCHECK_MSG, PLearn::TVec< T >::resize(), PLearn::TVec< T >::size(), sources, PLearn::sum(), PLearn::VMatrix::targetsize_, PLearn::VMatrix::updateMtime(), weights, PLearn::VMatrix::weightsize_, PLearn::VMatrix::width(), and PLearn::VMatrix::width_.

Referenced by build().

{
    n_sources = sources.size();
    if (n_sources == 0)
        return;

    PLCHECK_MSG(sources.size() == weights.size(),
                "You should provide as many weights as sources");

    PLCHECK_MSG(length_ >= 0,
                "You should provide a length greater than 0");

    width_ = sources[0]->width();
    for (int i=1; i<n_sources; i++)
        PLCHECK_MSG(sources[i]->width() == width_,
                    "All sources should have the same width");

    if (inputsize_<0 || targetsize_<0 || weightsize_<0 || extrasize_<0
        || inputsize_ + targetsize_ + weightsize_ + extrasize_ != width_)
    {
        inputsize_ = sources[0]->inputsize();
        targetsize_ = sources[0]->targetsize();
        weightsize_ = sources[0]->weightsize();
        extrasize_ = sources[0]->extrasize();
    }

    period_length = sum(weights);
    period.resize(period_length);
    occurrences.resize(period_length);

    bool incorrect_period = false;
    for (int i=0; i<n_sources; i++)
        if (period.count(i) != weights[i])
        {
            incorrect_period = true;
            break;
        }

    if (incorrect_period)
        buildPeriod();
    for(int i=0;i<sources.length();i++)
        updateMtime(sources[i]);
}

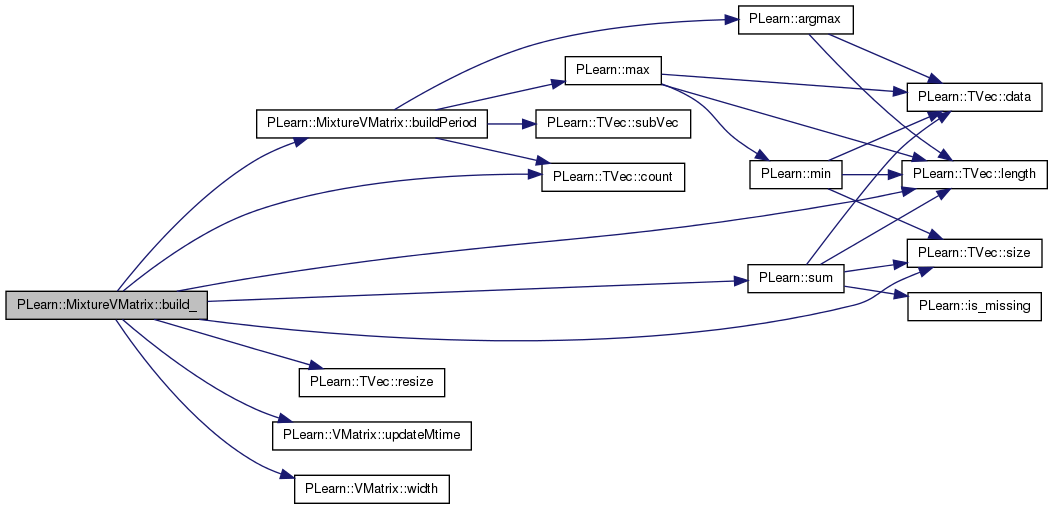

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::MixtureVMatrix::buildPeriod ( ) [private]

build period and occurrences

Definition at line 150 of file MixtureVMatrix.cc.

References PLearn::argmax(), PLearn::TVec< T >::count(), i, j, PLearn::max(), n_sources, occurrences, period, period_length, PLASSERT, PLearn::TVec< T >::subVec(), and weights.

Referenced by build_().

{
    TVec<int> ideal_count(n_sources);
    TVec<int> actual_count(n_sources);
    TVec<int> sources_count(n_sources);

    for (int i=0; i<period_length; i++)
    {
        // Find the source that is the most underrepresented
        ideal_count += weights;

        int max = 0;
        int argmax = -1;
        for (int j=0; j<n_sources; j++)
        {
            if (ideal_count[j] - actual_count[j] > max)
            {
                argmax = j;
                max = ideal_count[j] - actual_count[j];
            }
        }
        PLASSERT(argmax >= 0);

        period[i] = argmax;
        actual_count[argmax] += period_length;
        occurrences[i] = sources_count[argmax];
        sources_count[argmax]++;
    }

#ifdef BOUNDCHECK
    for (int i=0; i<n_sources; i++)
    {
        PLASSERT(period.count(i) == weights[i]);
        PLASSERT( (i==0 && occurrences[0]==0)
                  || period.subVec(0,i-1).count(period[i]) == occurrences[i]);
    }
#endif
}

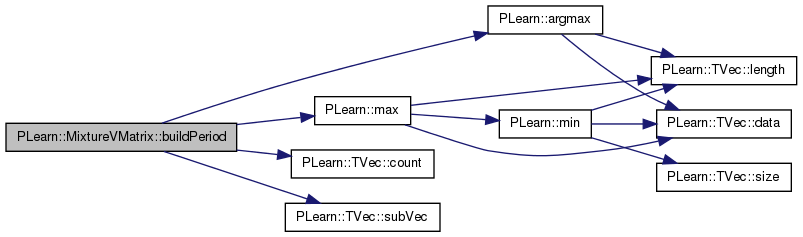

Here is the call graph for this function:

Here is the caller graph for this function:

string PLearn::MixtureVMatrix::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 50 of file MixtureVMatrix.cc.

void PLearn::MixtureVMatrix::declareOptions ( OptionList ol) [static, protected]

Declares the class options.

Reimplemented from PLearn::VMatrix.

Definition at line 70 of file MixtureVMatrix.cc.

References PLearn::OptionBase::buildoption, PLearn::declareOption(), PLearn::VMatrix::declareOptions(), PLearn::OptionBase::learntoption, n_sources, period, period_length, sources, and weights.

{
    // declareOption(ol, "myoption", &MixtureVMatrix::myoption,
    //               OptionBase::buildoption,
    //               "Help text describing this option");

    declareOption(ol, "sources", &MixtureVMatrix::sources,
                  OptionBase::buildoption,
                  "The VMat to mix");

    declareOption(ol, "weights", &MixtureVMatrix::weights,
                  OptionBase::buildoption,
                  "Weights of the different sources.\n"
                  "If weights[0]==2 and weights[1]==2, then there will be\n"
                  "twice as many exambles coming from sources[0] than from\n"
                  "sources[1], regardless of the sources' length."
                  );

    declareOption(ol, "n_sources", &MixtureVMatrix::n_sources,
                  OptionBase::learntoption,
                  "Number of sources");

    declareOption(ol, "period_length", &MixtureVMatrix::period_length,
                  OptionBase::learntoption,
                  "sum(weights)");

    declareOption(ol, "period", &MixtureVMatrix::period,
                  OptionBase::learntoption,
                  "Sequence of sources to select, ensuring the proportion of\n"
                  "sources and their homogeneity ."
                  );

    // Now call the parent class' declareOptions
    inherited::declareOptions(ol);
}

Here is the call graph for this function:

static const PPath& PLearn::MixtureVMatrix::declaringFile ( ) [inline, static]

Reimplemented from PLearn::RowBufferedVMatrix.

Definition at line 78 of file MixtureVMatrix.h.

:
    //#####  Protected Options  ###############################################
MixtureVMatrix * PLearn::MixtureVMatrix::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::RowBufferedVMatrix.

Definition at line 50 of file MixtureVMatrix.cc.

void PLearn::MixtureVMatrix::getNewRow ( int  i,
const Vec v
) const [protected, virtual]

Fill the vector 'v' with the content of the i-th row.

'v' is assumed to be the right size.

Implements PLearn::RowBufferedVMatrix.

Definition at line 58 of file MixtureVMatrix.cc.

References PLearn::VMatrix::length(), occurrences, period, period_length, sources, and weights.

{
    // The source it comes from
    int source = period[i % period_length];
    // The number of previous samples of the same source in the same period
    int occurrence = occurrences[i % period_length];
    // The index in this source
    int index = (i/period_length)*weights[source] + occurrence;

    sources[source]->getRow(index % sources[source].length(), v);
}

Here is the call graph for this function:

OptionList & PLearn::MixtureVMatrix::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 50 of file MixtureVMatrix.cc.

OptionMap & PLearn::MixtureVMatrix::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 50 of file MixtureVMatrix.cc.

RemoteMethodMap & PLearn::MixtureVMatrix::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 50 of file MixtureVMatrix.cc.

void PLearn::MixtureVMatrix::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Transforms a shallow copy into a deep copy.

Reimplemented from PLearn::RowBufferedVMatrix.

Definition at line 196 of file MixtureVMatrix.cc.

References PLearn::deepCopyField(), PLearn::RowBufferedVMatrix::makeDeepCopyFromShallowCopy(), occurrences, period, sources, and weights.

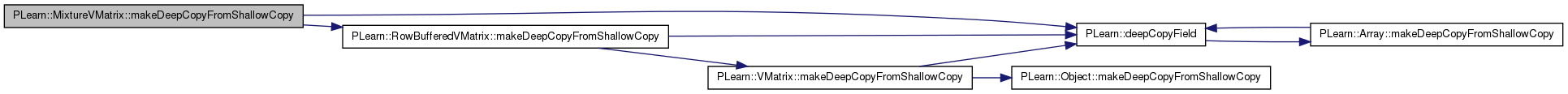

Here is the call graph for this function:


Member Data Documentation

Reimplemented from PLearn::RowBufferedVMatrix.

Definition at line 78 of file MixtureVMatrix.h.

sources.size()

Definition at line 91 of file MixtureVMatrix.h.

Referenced by build_(), buildPeriod(), and declareOptions().

occurrences[i] is the count of element period[i] in period[0..i-1]

Definition at line 101 of file MixtureVMatrix.h.

Referenced by build_(), buildPeriod(), getNewRow(), and makeDeepCopyFromShallowCopy().

Sequence of sources to select, ensuring the proportion of sources and their homogeneity.

Definition at line 98 of file MixtureVMatrix.h.

Referenced by build_(), buildPeriod(), declareOptions(), getNewRow(), and makeDeepCopyFromShallowCopy().

sum(weights)

Definition at line 94 of file MixtureVMatrix.h.

Referenced by build_(), buildPeriod(), declareOptions(), and getNewRow().

The sources to mix (with repetitions if needed)

Definition at line 60 of file MixtureVMatrix.h.

Referenced by build_(), declareOptions(), getNewRow(), and makeDeepCopyFromShallowCopy().

Weights of the different sources.

If weights[0]==2 and weights[1]==2, then there will be twice as many exambles coming from sources[0] than from sources[1], regardless of the sources' length.

Definition at line 65 of file MixtureVMatrix.h.

Referenced by build_(), buildPeriod(), declareOptions(), getNewRow(), and makeDeepCopyFromShallowCopy().


The documentation for this class was generated from the following files:
