PLearn::StepwiseSelectionOracle Class Reference

This oracle implements a stepwise forward variable selection procedure. More...

#include <StepwiseSelectionOracle.h>

Inheritance diagram for PLearn::StepwiseSelectionOracle:
Inheritance graph
[legend]

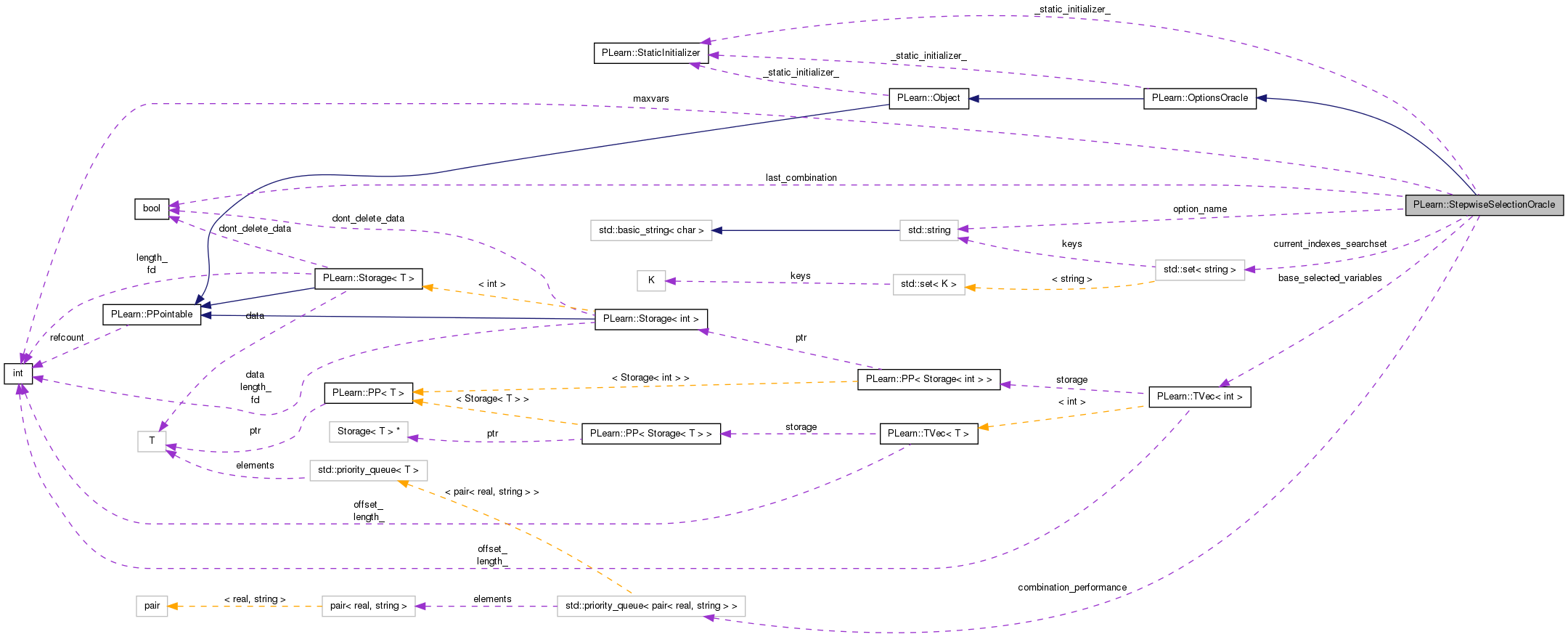

Collaboration diagram for PLearn::StepwiseSelectionOracle:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 StepwiseSelectionOracle ()
virtual void build ()
 Post-constructor.
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual StepwiseSelectionOracledeepCopy (CopiesMap &copies) const
virtual TVec< string > getOptionNames () const
 Returns the set of names of options this generator generates.
virtual TVec< string > generateNextTrial (const TVec< string > &older_trial, real obtained_objective)
 Given the objective value returned for a previous trial, generate a new trial.
virtual void forget ()
 Reset the generator's internal state (as having no info about previous trials).

Static Public Member Functions

static string _classname_ ()
 Declares name and deepCopy methods.
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

string option_name
 Name of option that should contain the returned list of selected inputs (default = 'selected_inputs')
int maxvars
 Maximum number of variables that should be permitted in the search.

Static Public Attributes

static StaticInitializer _static_initializer_

Protected Member Functions

void generateNewSearchset ()
 Generate a new searchset from base_selected_variables and combination_performance.

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declares this class' options.

Protected Attributes

TVec< intbase_selected_variables
 This remembers the current BASE set of selected indexes, EXCLUDING the variable we are currently iterating upon.
set< string > current_indexes_searchset
 This list contains the remaining combinations to generate for the current variable.
priority_queue< pair< real,
string > >
combination_performance
 This remembers the performance of each combination tried in the current search set.
bool last_combination
 To know that we have gone through all combinations.

Private Types

typedef OptionsOracle inherited

Private Member Functions

void build_ ()
 This does the actual building.

Detailed Description

This oracle implements a stepwise forward variable selection procedure.

It supports the interface provided by SelectInputsLearner, wherein the variables to selected are specified by a vector of normalized 'selected_inputs' ranging from 0 to n-1, where n is the maximum number of variables. (The object SelectInputsLearner is then responsible for mapping back those normalized inputs to the real inputs of the learner).

You simply specify to this oracle the maximum number of inputs that should be allowed.

The current implementation is the simplest: it adds variables one at a time. Look-ahead is not currently supported.

Definition at line 68 of file StepwiseSelectionOracle.h.


Member Typedef Documentation

Reimplemented from PLearn::OptionsOracle.

Definition at line 70 of file StepwiseSelectionOracle.h.


Constructor & Destructor Documentation

PLearn::StepwiseSelectionOracle::StepwiseSelectionOracle ( )

Definition at line 49 of file StepwiseSelectionOracle.cc.

    : option_name("selected_inputs"),
      maxvars(-1),
      last_combination(false)
{ }

Member Function Documentation

string PLearn::StepwiseSelectionOracle::_classname_ ( ) [static]

Declares name and deepCopy methods.

Reimplemented from PLearn::OptionsOracle.

Definition at line 70 of file StepwiseSelectionOracle.cc.

OptionList & PLearn::StepwiseSelectionOracle::_getOptionList_ ( ) [static]

Reimplemented from PLearn::OptionsOracle.

Definition at line 70 of file StepwiseSelectionOracle.cc.

RemoteMethodMap & PLearn::StepwiseSelectionOracle::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::OptionsOracle.

Definition at line 70 of file StepwiseSelectionOracle.cc.

bool PLearn::StepwiseSelectionOracle::_isa_ ( const Object o) [static]

Reimplemented from PLearn::OptionsOracle.

Definition at line 70 of file StepwiseSelectionOracle.cc.

Object * PLearn::StepwiseSelectionOracle::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 70 of file StepwiseSelectionOracle.cc.

StaticInitializer StepwiseSelectionOracle::_static_initializer_ & PLearn::StepwiseSelectionOracle::_static_initialize_ ( ) [static]

Reimplemented from PLearn::OptionsOracle.

Definition at line 70 of file StepwiseSelectionOracle.cc.

void PLearn::StepwiseSelectionOracle::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::OptionsOracle.

Definition at line 147 of file StepwiseSelectionOracle.cc.

References PLearn::OptionsOracle::build(), and build_().

Here is the call graph for this function:

void PLearn::StepwiseSelectionOracle::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::OptionsOracle.

Definition at line 141 of file StepwiseSelectionOracle.cc.

References forget().

Referenced by build().

{
    forget();
}

Here is the call graph for this function:

Here is the caller graph for this function:

string PLearn::StepwiseSelectionOracle::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 70 of file StepwiseSelectionOracle.cc.

void PLearn::StepwiseSelectionOracle::declareOptions ( OptionList ol) [static, protected]

Declares this class' options.

Reimplemented from PLearn::OptionsOracle.

Definition at line 72 of file StepwiseSelectionOracle.cc.

References PLearn::OptionBase::buildoption, combination_performance, current_indexes_searchset, PLearn::declareOption(), PLearn::OptionsOracle::declareOptions(), PLearn::OptionBase::learntoption, maxvars, and option_name.

{
    declareOption(ol, "option_name", &StepwiseSelectionOracle::option_name,
                  OptionBase::buildoption,
                  "Name of option that should contain the returned list of selected\n"
                  "inputs  (default = 'selected_inputs')");

    declareOption(ol, "maxvars", &StepwiseSelectionOracle::maxvars,
                  OptionBase::buildoption,
                  "Maximum number of variables that should be permitted in the search");

    declareOption(ol, "current_indexes_searchset",
                  &StepwiseSelectionOracle:: current_indexes_searchset,
                  OptionBase::learntoption,
                  "Contains the remaining combinations to generate for the"
                  " current variable.");

    declareOption(ol, "combination_performance",
                  &StepwiseSelectionOracle:: combination_performance,
                  OptionBase::learntoption,
                  "This remembers the performance of each combination tried in the"
                  " current search set.");

    // Now call the parent class' declareOptions
    inherited::declareOptions(ol);
}

Here is the call graph for this function:

static const PPath& PLearn::StepwiseSelectionOracle::declaringFile ( ) [inline, static]

Reimplemented from PLearn::OptionsOracle.

Definition at line 113 of file StepwiseSelectionOracle.h.

:
StepwiseSelectionOracle * PLearn::StepwiseSelectionOracle::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::OptionsOracle.

Definition at line 70 of file StepwiseSelectionOracle.cc.

void PLearn::StepwiseSelectionOracle::forget ( ) [virtual]

Reset the generator's internal state (as having no info about previous trials).

Implements PLearn::OptionsOracle.

Definition at line 133 of file StepwiseSelectionOracle.cc.

References base_selected_variables, combination_performance, current_indexes_searchset, last_combination, and PLearn::TVec< T >::resize().

Referenced by build_().

{
    base_selected_variables.resize(0);
    current_indexes_searchset.clear();
    combination_performance = priority_queue< pair<real,string> >();
    last_combination=false;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::StepwiseSelectionOracle::generateNewSearchset ( ) [protected]

Generate a new searchset from base_selected_variables and combination_performance.

Definition at line 159 of file StepwiseSelectionOracle.cc.

References base_selected_variables, PLearn::TVec< T >::begin(), combination_performance, current_indexes_searchset, PLearn::TVec< T >::end(), i, last_combination, maxvars, n, PLearn::openString(), PLASSERT, PLearn::PStream::plearn_ascii, PLearn::TVec< T >::size(), and PLearn::TVec< T >::subVec().

Referenced by generateNextTrial().

{
    if (last_combination)
        return;

    // First find the best-performing combination in combination_performance
    // and convert the option string into a vector of ints to obtain the new
    // base_selected_variables
    if (combination_performance.size() > 0) {
        const pair<real,string>& min_objective = combination_performance.top();
        const string& option = min_objective.second;
        PStream option_stream = openString(option,PStream::plearn_ascii);
        option_stream >> base_selected_variables;
    }
    else {
        // There should have been nothing computed before...
        PLASSERT( base_selected_variables.size() == 0);
    }

    // Second, find the remaining variables (not in base_selected_variables)
    TVec<int> range(0,maxvars-1,1);
    set<int> remaining_vars(range.begin(), range.end());
    for(int i=0, n=base_selected_variables.size() ; i<n ; ++i)
        remaining_vars.erase(base_selected_variables[i]);

    // Third, make up a new current_indexes_searchset if we have not yet
    // reached maxvars
    current_indexes_searchset.clear();
    combination_performance = priority_queue< pair<real,string> >();
    int newsize = base_selected_variables.size() + 1;
    if (newsize > maxvars) {
        last_combination = true;
        return;
    }

    TVec<int> new_combination(newsize);
    new_combination.subVec(0, newsize-1) << base_selected_variables;
    for (set<int>::iterator it = remaining_vars.begin() ;
         it != remaining_vars.end() ; ++it) {
        new_combination[newsize-1] = *it;
        ostringstream newoption;
        PStream newoption_stream(&newoption, false /* don't own */);
        newoption_stream << new_combination;
        current_indexes_searchset.insert(newoption.str());
    }
}

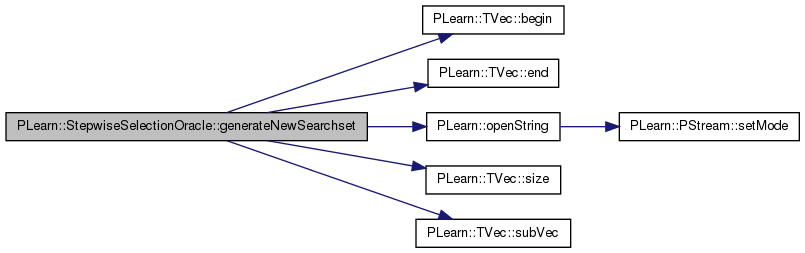

Here is the call graph for this function:

Here is the caller graph for this function:

TVec< string > PLearn::StepwiseSelectionOracle::generateNextTrial ( const TVec< string > &  older_trial,
real  obtained_objective
) [virtual]

Given the objective value returned for a previous trial, generate a new trial.

Implements PLearn::OptionsOracle.

Definition at line 104 of file StepwiseSelectionOracle.cc.

References combination_performance, current_indexes_searchset, generateNewSearchset(), last_combination, PLASSERT, and PLearn::TVec< T >::size().

{
    if (last_combination)
        return TVec<string>();
    else {
        if (older_trial.size() > 0) {
            PLASSERT(older_trial.size() == 1);
            // insert negative of objective since priority_queue computes
            // the maximum of its inserted elements
            combination_performance.push(make_pair(- obtained_objective,
                                                   older_trial[0]));
        }

        if (current_indexes_searchset.empty())
            generateNewSearchset();
        if (last_combination)
            return TVec<string>();

        PLASSERT(current_indexes_searchset.begin() !=
               current_indexes_searchset.end());

        string optionval = *current_indexes_searchset.begin();
        current_indexes_searchset.erase(current_indexes_searchset.begin());

        return TVec<string>(1,optionval);
    }
}

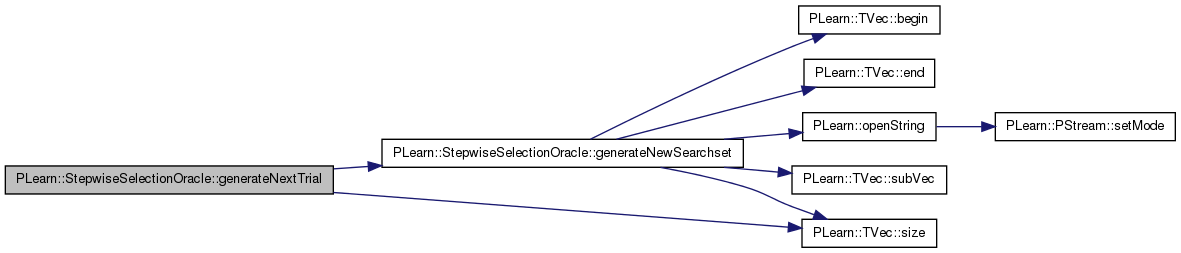

Here is the call graph for this function:

OptionList & PLearn::StepwiseSelectionOracle::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 70 of file StepwiseSelectionOracle.cc.

OptionMap & PLearn::StepwiseSelectionOracle::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 70 of file StepwiseSelectionOracle.cc.

TVec< string > PLearn::StepwiseSelectionOracle::getOptionNames ( ) const [virtual]

Returns the set of names of options this generator generates.

Implements PLearn::OptionsOracle.

Definition at line 99 of file StepwiseSelectionOracle.cc.

References option_name.

{
    return TVec<string>(1,option_name);
}
RemoteMethodMap & PLearn::StepwiseSelectionOracle::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 70 of file StepwiseSelectionOracle.cc.

void PLearn::StepwiseSelectionOracle::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Transforms a shallow copy into a deep copy.

Reimplemented from PLearn::OptionsOracle.

Definition at line 153 of file StepwiseSelectionOracle.cc.

References base_selected_variables, PLearn::deepCopyField(), and PLearn::OptionsOracle::makeDeepCopyFromShallowCopy().

Here is the call graph for this function:


Member Data Documentation

Reimplemented from PLearn::OptionsOracle.

Definition at line 113 of file StepwiseSelectionOracle.h.

This remembers the current BASE set of selected indexes, EXCLUDING the variable we are currently iterating upon.

Definition at line 85 of file StepwiseSelectionOracle.h.

Referenced by forget(), generateNewSearchset(), and makeDeepCopyFromShallowCopy().

priority_queue< pair<real,string> > PLearn::StepwiseSelectionOracle::combination_performance [protected]

This remembers the performance of each combination tried in the current search set.

Definition at line 95 of file StepwiseSelectionOracle.h.

Referenced by declareOptions(), forget(), generateNewSearchset(), and generateNextTrial().

This list contains the remaining combinations to generate for the current variable.

It consists of a set of strings of FULLY-FORMED options, starting with the current base_selected_variables and ending with each allowable index for the current variable

Definition at line 91 of file StepwiseSelectionOracle.h.

Referenced by declareOptions(), forget(), generateNewSearchset(), and generateNextTrial().

To know that we have gone through all combinations.

Definition at line 98 of file StepwiseSelectionOracle.h.

Referenced by forget(), generateNewSearchset(), and generateNextTrial().

Maximum number of variables that should be permitted in the search.

Definition at line 80 of file StepwiseSelectionOracle.h.

Referenced by declareOptions(), and generateNewSearchset().

Name of option that should contain the returned list of selected inputs (default = 'selected_inputs')

Definition at line 77 of file StepwiseSelectionOracle.h.

Referenced by declareOptions(), and getOptionNames().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
