PLearn::MissingIndicatorVMatrix Class Reference

#include <MissingIndicatorVMatrix.h>

Inheritance diagram for PLearn::MissingIndicatorVMatrix:
Inheritance graph
[legend]

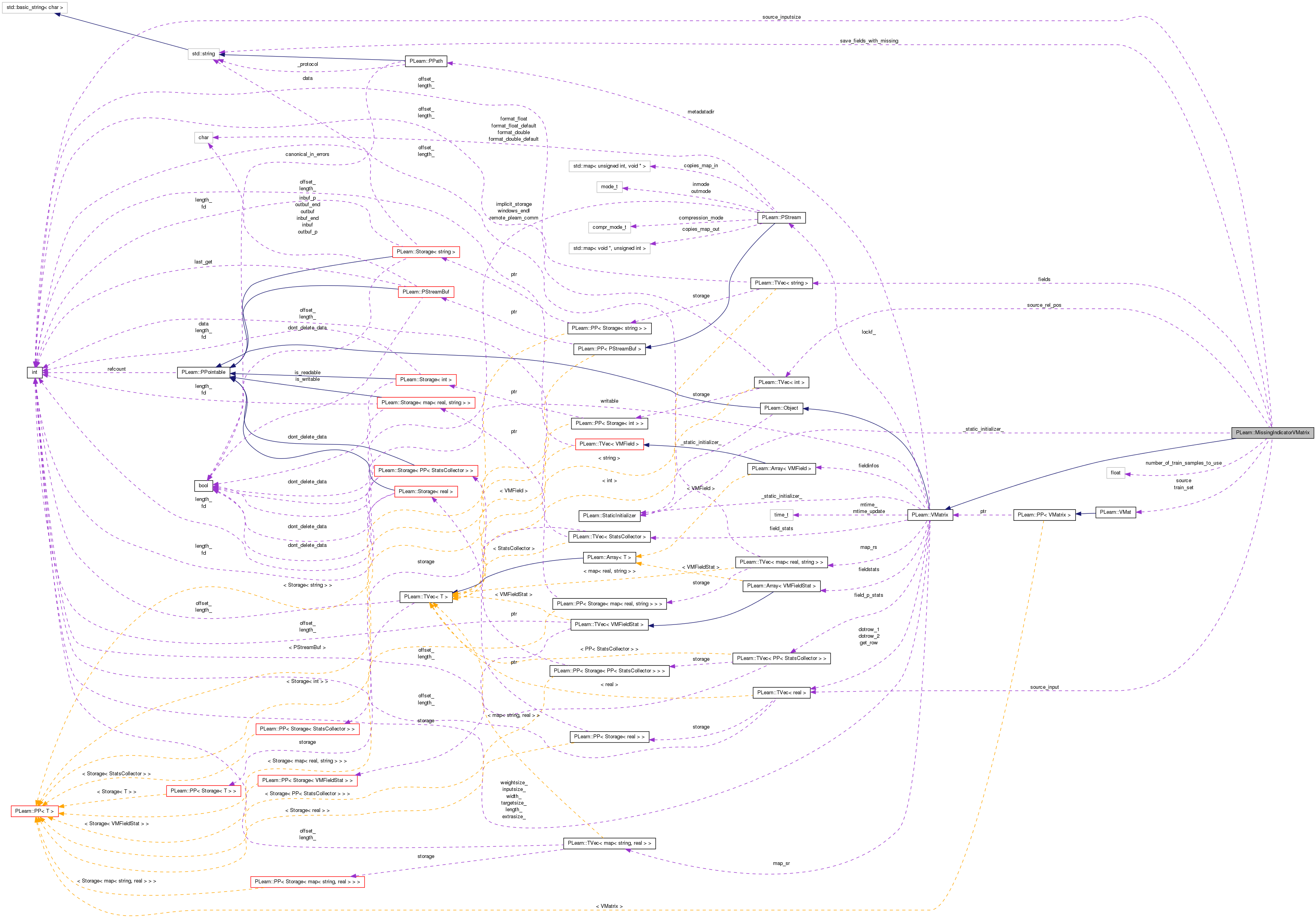

Collaboration diagram for PLearn::MissingIndicatorVMatrix:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 MissingIndicatorVMatrix ()
 MissingIndicatorVMatrix (VMat the_source, VMat the_train_set, real the_number_of_train_samples_to_use)
virtual ~MissingIndicatorVMatrix ()
virtual void build ()
 Simply calls inherited::build() then build_().
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Does the necessary operations to transform a shallow copy (this) into a deep copy by deep-copying all the members that need to be.
virtual void getExample (int i, Vec &input, Vec &target, real &weight)
 Default version calls getSubRow based on inputsize_ targetsize_ weightsize_ But exotic subclasses may construct, input, target and weight however they please.
virtual real get (int i, int j) const
 This method must be implemented in all subclasses.
virtual void getColumn (int i, Vec v) const
 Copies column i into v (which must have appropriate length equal to the VMat's length).
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual MissingIndicatorVMatrixdeepCopy (CopiesMap &copies) const

Static Public Member Functions

static void declareOptions (OptionList &ol)
 Declare this class' options.
static string _classname_ ()
 MissingIndicatorVMatrix.
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

VMat source
 The source VMatrix with missing values.
VMat train_set
 A referenced train set.
real number_of_train_samples_to_use
 The number of samples from the train set that will be examined to see if an indicator should be added for each variable.
TVec< string > fields
string save_fields_with_missing

Static Public Attributes

static StaticInitializer _static_initializer_

Private Types

typedef VMatrix inherited

Private Member Functions

void build_ ()
 This does the actual building.
void buildNewRecordFormat ()

Private Attributes

int source_inputsize
Vec source_input
TVec< intsource_rel_pos

Detailed Description

Definition at line 53 of file MissingIndicatorVMatrix.h.


Member Typedef Documentation

Reimplemented from PLearn::VMatrix.

Definition at line 55 of file MissingIndicatorVMatrix.h.


Constructor & Destructor Documentation

PLearn::MissingIndicatorVMatrix::MissingIndicatorVMatrix ( )

Definition at line 60 of file MissingIndicatorVMatrix.cc.

PLearn::MissingIndicatorVMatrix::MissingIndicatorVMatrix ( VMat  the_source,
VMat  the_train_set,
real  the_number_of_train_samples_to_use
)

Definition at line 65 of file MissingIndicatorVMatrix.cc.

References number_of_train_samples_to_use, source, and train_set.

{
  source = the_source;
  train_set = the_train_set;
  number_of_train_samples_to_use = the_number_of_train_samples_to_use;
}
PLearn::MissingIndicatorVMatrix::~MissingIndicatorVMatrix ( ) [virtual]

Definition at line 72 of file MissingIndicatorVMatrix.cc.

{
}

Member Function Documentation

string PLearn::MissingIndicatorVMatrix::_classname_ ( ) [static]

MissingIndicatorVMatrix.

Reimplemented from PLearn::VMatrix.

Definition at line 58 of file MissingIndicatorVMatrix.cc.

OptionList & PLearn::MissingIndicatorVMatrix::_getOptionList_ ( ) [static]

Reimplemented from PLearn::VMatrix.

Definition at line 58 of file MissingIndicatorVMatrix.cc.

RemoteMethodMap & PLearn::MissingIndicatorVMatrix::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::VMatrix.

Definition at line 58 of file MissingIndicatorVMatrix.cc.

bool PLearn::MissingIndicatorVMatrix::_isa_ ( const Object o) [static]

Reimplemented from PLearn::VMatrix.

Definition at line 58 of file MissingIndicatorVMatrix.cc.

Object * PLearn::MissingIndicatorVMatrix::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 58 of file MissingIndicatorVMatrix.cc.

StaticInitializer MissingIndicatorVMatrix::_static_initializer_ & PLearn::MissingIndicatorVMatrix::_static_initialize_ ( ) [static]

Reimplemented from PLearn::VMatrix.

Definition at line 58 of file MissingIndicatorVMatrix.cc.

void PLearn::MissingIndicatorVMatrix::build ( ) [virtual]

Simply calls inherited::build() then build_().

Reimplemented from PLearn::VMatrix.

Definition at line 103 of file MissingIndicatorVMatrix.cc.

References PLearn::VMatrix::build(), and build_().

Referenced by PLearn::Preprocessing::manageTrainTestUnknownSets().

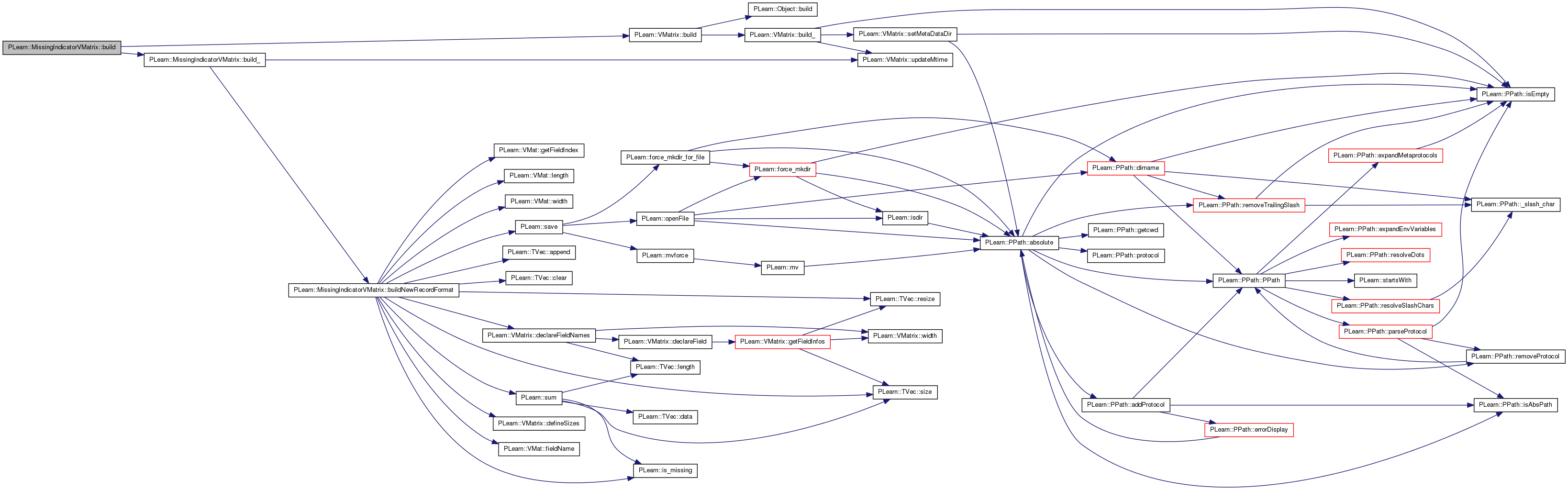

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::MissingIndicatorVMatrix::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::VMatrix.

Definition at line 159 of file MissingIndicatorVMatrix.cc.

References buildNewRecordFormat(), fields, PLERROR, source, train_set, and PLearn::VMatrix::updateMtime().

Referenced by build().

{
    if (!source) PLERROR("In MissingIndicatorVMatrix:: source vmat must be supplied");
    if(source->inputsize()<=0)
      PLERROR("In MissingIndicatorVMatrix::build_() source must have an inputsize <= 0."
              " inputsize = %d", source->inputsize());
    if(!train_set && !fields){
      train_set = source;
    }
    updateMtime(source);
    if(train_set)
      updateMtime(train_set);
    buildNewRecordFormat();
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::MissingIndicatorVMatrix::buildNewRecordFormat ( ) [private]

Definition at line 174 of file MissingIndicatorVMatrix.cc.

References PLearn::TVec< T >::append(), PLearn::TVec< T >::clear(), PLearn::VMatrix::declareFieldNames(), PLearn::VMatrix::defineSizes(), PLearn::VMat::fieldName(), fields, PLearn::VMat::getFieldIndex(), i, PLearn::is_missing(), PLearn::VMat::length(), PLearn::VMatrix::length_, number_of_train_samples_to_use, PLCHECK, PLERROR, PLearn::TVec< T >::resize(), PLearn::save(), save_fields_with_missing, PLearn::TVec< T >::size(), source, source_input, source_inputsize, source_rel_pos, PLearn::sum(), train_set, PLearn::VMat::width(), and PLearn::VMatrix::width_.

Referenced by build_().

{
    source_inputsize = source->inputsize();
    TVec<int> train_var_missing(source_inputsize);
    train_var_missing.clear();
    int source_width = source->width();

    if(train_set){
      int train_length = train_set->length();
      if (number_of_train_samples_to_use > 0.0){
        if (number_of_train_samples_to_use < 1.0) train_length = (int) (number_of_train_samples_to_use * (real) train_length);
        else train_length = (int) number_of_train_samples_to_use;
      }
      if (train_length > train_set->length()) train_length = train_set->length();

      int train_width = train_set->width();
      int train_inputsize = train_set->inputsize();

      if(train_length < 1)
        PLERROR("In MissingIndicatorVMatrix::length of the number of train"
                " samples to use must be at least 1, got: %i", train_length);
      if(train_inputsize < 1)
        PLERROR("In MissingIndicatorVMatrix::inputsize of the train vmat must"
                " be supplied, got : %i", train_inputsize);
      if (train_width != source_width)
        PLERROR("In MissingIndicatorVMatrix::train set and source width must"
                " agree, got : %i, %i", train_width, source_width);
      if (train_set->targetsize() != source->targetsize())
        PLERROR("In MissingIndicatorVMatrix::train set and source targetsize"
                " must agree, got : %i, %i", train_set->targetsize(),
                source->targetsize());
      if (train_set->weightsize() != source->weightsize())
        PLERROR("In MissingIndicatorVMatrix::train set and source weightsize"
                " must agree, got : %i, %i", train_set->weightsize(),
                source->weightsize());
      if (train_inputsize != source_inputsize)
        PLERROR("In MissingIndicatorVMatrix::train set and source inputsize"
                " must agree, got : %i, %i", train_inputsize, source_inputsize);

      Vec train_input(train_width);

      for (int train_row = 0; train_row < train_length; train_row++)
        {
          train_set->getRow(train_row, train_input);
          for (int train_col = 0; train_col < train_inputsize; train_col++)
            {
              if (is_missing(train_input[train_col]))
                train_var_missing[train_col] = 1;
            }
        }
    }else if(fields.size()>0){
      TVec<string> source_field_names = source->fieldNames();
      for(int i=0;i<fields.size();i++)
        {
          int index=source->getFieldIndex(fields[i]);
          if(index<0)
            PLERROR("In MissingIndicatorVMatrix::buildNewRecordFormat() - The fields '%s' is not in the source",
                    fields[i].c_str());
          else
            train_var_missing[index]=1;
        }

    }else
       PLERROR("In MissingIndicatorVMatrix, the train_set or fields option should be provided.");

    int added_colomns = sum(train_var_missing);
    width_ = source_width + added_colomns;

    TVec<string> source_field_names(source_width);
    source_rel_pos.resize(width_);
    TVec<string> new_field_names(width_);
    source_field_names = source->fieldNames();
    int new_col = 0;
    TVec<string> miss;
    for (int source_col = 0; source_col < source_inputsize; source_col++)
    {
      new_field_names[new_col] = source_field_names[source_col];
      source_rel_pos[new_col] = source_col;
      new_col += 1;
      if (train_var_missing[source_col] > 0)
      {
          new_field_names[new_col] = source_field_names[source_col] + "_MI";
          source_rel_pos[new_col] = -1;
          new_col += 1;
          miss->append(source->fieldName(source_col));
      }
    }
    PLCHECK(miss->size()==added_colomns);
    for (int source_col = source_inputsize; source_col < source_width; source_col++)
    {
      new_field_names[new_col] = source_field_names[source_col];
      source_rel_pos[new_col] = source_col;
      new_col += 1;
    }
    length_ = source->length();
    defineSizes(source_inputsize + added_colomns, source->targetsize(), source->weightsize(), source->extrasize());

    source_input.resize(source_inputsize);
    declareFieldNames(new_field_names);

    if(!save_fields_with_missing.empty())
      PLearn::save(save_fields_with_missing,miss);

}

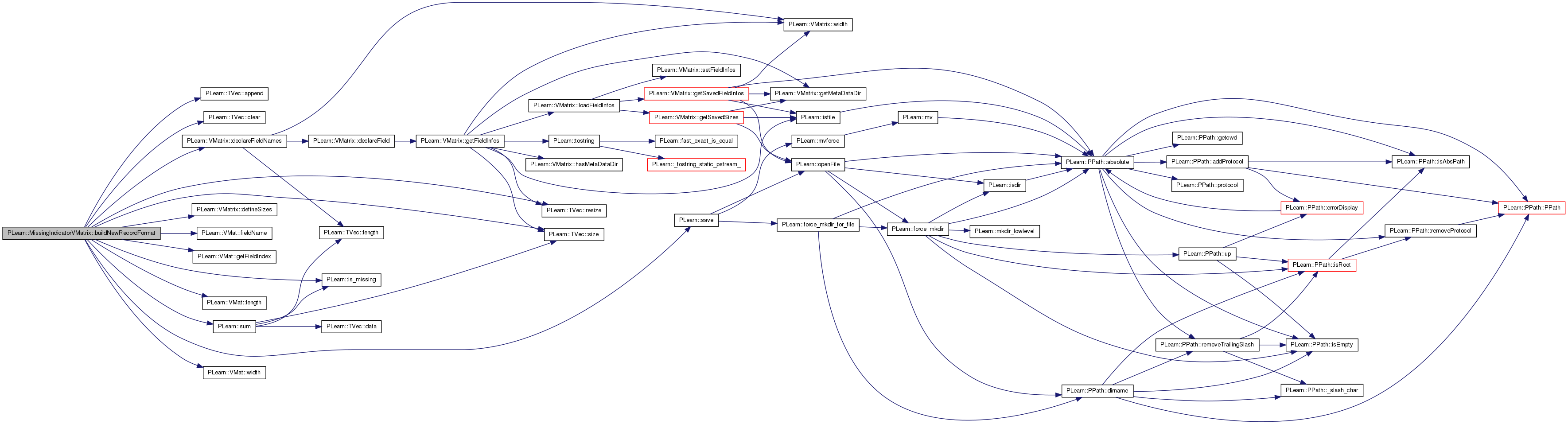

Here is the call graph for this function:

Here is the caller graph for this function:

string PLearn::MissingIndicatorVMatrix::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 58 of file MissingIndicatorVMatrix.cc.

void PLearn::MissingIndicatorVMatrix::declareOptions ( OptionList ol) [static]

Declare this class' options.

Reimplemented from PLearn::VMatrix.

Definition at line 76 of file MissingIndicatorVMatrix.cc.

References PLearn::OptionBase::buildoption, PLearn::declareOption(), PLearn::VMatrix::declareOptions(), fields, number_of_train_samples_to_use, save_fields_with_missing, source, and train_set.

{
  declareOption(ol, "source", &MissingIndicatorVMatrix::source, OptionBase::buildoption,
                "The source VMatrix with missing values.\n");

  declareOption(ol, "train_set", &MissingIndicatorVMatrix::train_set, OptionBase::buildoption,
                "A referenced train set.\n"
                "A missing indicator is added for variables with missing values in this data set.\n"
                "It is used in combination with the option number_of_train_samples_to_use\n");

  declareOption(ol, "number_of_train_samples_to_use", &MissingIndicatorVMatrix::number_of_train_samples_to_use, OptionBase::buildoption,
                "The number of samples from the train set that will be examined to see\n"
                "if an indicator should be added for each variable\n");

  declareOption(ol, "fields", &MissingIndicatorVMatrix::fields, OptionBase::buildoption,
                "The names of the fields to extract if the train_set is not provided.");

  declareOption(ol, "save_fields_with_missing",
                &MissingIndicatorVMatrix::save_fields_with_missing,
                OptionBase::buildoption,
                "The file name where we save the name of the fields that we"
                " add an indicator. It can be reused with the options fields"
                " to redo the same processing.");

  inherited::declareOptions(ol);
}

Here is the call graph for this function:

static const PPath& PLearn::MissingIndicatorVMatrix::declaringFile ( ) [inline, static]

Reimplemented from PLearn::VMatrix.

Definition at line 97 of file MissingIndicatorVMatrix.h.

MissingIndicatorVMatrix * PLearn::MissingIndicatorVMatrix::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::VMatrix.

Definition at line 58 of file MissingIndicatorVMatrix.cc.

real PLearn::MissingIndicatorVMatrix::get ( int  i,
int  j
) const [virtual]

This method must be implemented in all subclasses.

Returns element (i,j).

Implements PLearn::VMatrix.

Definition at line 137 of file MissingIndicatorVMatrix.cc.

References PLearn::is_missing(), source, and source_rel_pos.

{
  if (source_rel_pos[j] < 0)
  {
    if (is_missing(source->get(i, source_rel_pos[j - 1]))) return 1.0;
    else return 0.0;
  }
  return source->get(i, source_rel_pos[j]);
}

Here is the call graph for this function:

void PLearn::MissingIndicatorVMatrix::getColumn ( int  i,
Vec  v
) const [virtual]

Copies column i into v (which must have appropriate length equal to the VMat's length).

Reimplemented from PLearn::VMatrix.

Definition at line 147 of file MissingIndicatorVMatrix.cc.

References PLearn::VMat::getColumn(), PLearn::is_missing(), PLearn::TVec< T >::length(), source, and source_rel_pos.

{
  if (source_rel_pos[i] < 0) source->getColumn(source_rel_pos[i - 1], v);
  else source->getColumn(source_rel_pos[i], v);
  if (source_rel_pos[i] >= 0) return;
  for (int source_row = 0; source_row < v->length(); source_row++)
  {
    if (is_missing(v[source_row])) v[source_row] = 1.0;
    else v[source_row] = 0.0;
  }
}

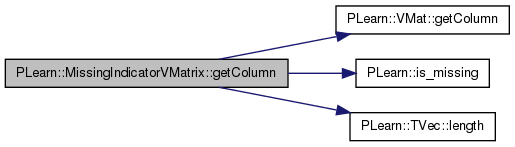

Here is the call graph for this function:

void PLearn::MissingIndicatorVMatrix::getExample ( int  i,
Vec input,
Vec target,
real weight
) [virtual]

Default version calls getSubRow based on inputsize_ targetsize_ weightsize_ But exotic subclasses may construct, input, target and weight however they please.

If not a weighted matrix, weight should be set to default value 1.

Reimplemented from PLearn::VMatrix.

Definition at line 120 of file MissingIndicatorVMatrix.cc.

References PLearn::VMat::getExample(), PLearn::is_missing(), source, source_input, source_inputsize, and source_rel_pos.

{
    source->getExample(i, source_input, target, weight);
    for (int source_col = 0, new_col = 0; source_col < source_inputsize;
         source_col++)
    {
      input[new_col] = source_input[source_col];
      new_col += 1;
      if (source_rel_pos[source_col] < 0)
      {
          if (is_missing(source_input[source_col])) input[new_col] = 1.0;
          else input[new_col] = 0.0;
          new_col += 1;
      }
    }
}

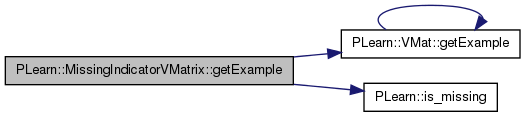

Here is the call graph for this function:

OptionList & PLearn::MissingIndicatorVMatrix::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 58 of file MissingIndicatorVMatrix.cc.

OptionMap & PLearn::MissingIndicatorVMatrix::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 58 of file MissingIndicatorVMatrix.cc.

RemoteMethodMap & PLearn::MissingIndicatorVMatrix::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 58 of file MissingIndicatorVMatrix.cc.

void PLearn::MissingIndicatorVMatrix::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Does the necessary operations to transform a shallow copy (this) into a deep copy by deep-copying all the members that need to be.

This needs to be overridden by every class that adds "complex" data members to the class, such as Vec, Mat, PP<Something>, etc. Typical implementation:

  void CLASS_OF_THIS::makeDeepCopyFromShallowCopy(CopiesMap& copies)
  {
      inherited::makeDeepCopyFromShallowCopy(copies);
      deepCopyField(complex_data_member1, copies);
      deepCopyField(complex_data_member2, copies);
      ...
  }
Parameters:
copiesA map used by the deep-copy mechanism to keep track of already-copied objects.

Reimplemented from PLearn::VMatrix.

Definition at line 109 of file MissingIndicatorVMatrix.cc.

References PLearn::deepCopyField(), fields, PLearn::VMatrix::makeDeepCopyFromShallowCopy(), number_of_train_samples_to_use, source, source_rel_pos, and train_set.

Here is the call graph for this function:


Member Data Documentation

Reimplemented from PLearn::VMatrix.

Definition at line 97 of file MissingIndicatorVMatrix.h.

The number of samples from the train set that will be examined to see if an indicator should be added for each variable.

Definition at line 69 of file MissingIndicatorVMatrix.h.

Referenced by buildNewRecordFormat(), declareOptions(), makeDeepCopyFromShallowCopy(), PLearn::Preprocessing::manageTrainTestUnknownSets(), and MissingIndicatorVMatrix().

Definition at line 73 of file MissingIndicatorVMatrix.h.

Referenced by buildNewRecordFormat(), and declareOptions().

Definition at line 91 of file MissingIndicatorVMatrix.h.

Referenced by buildNewRecordFormat(), and getExample().

Definition at line 90 of file MissingIndicatorVMatrix.h.

Referenced by buildNewRecordFormat(), and getExample().

A referenced train set.

A missing indicator is added for variables with missing values in this data set. It is used in combination with the option number_of_train_samples_to_use.

Definition at line 65 of file MissingIndicatorVMatrix.h.

Referenced by build_(), buildNewRecordFormat(), declareOptions(), makeDeepCopyFromShallowCopy(), PLearn::Preprocessing::manageTrainTestUnknownSets(), and MissingIndicatorVMatrix().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
