PLearn::RBMLLParameters Class Reference

Stores and learns the parameters between two linear layers of an RBM. More...

#include <RBMLLParameters.h>

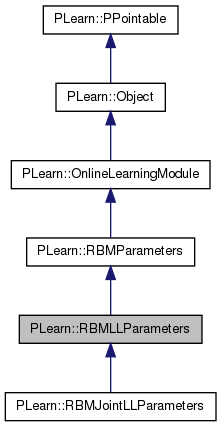

Inheritance diagram for PLearn::RBMLLParameters:
Inheritance graph
[legend]

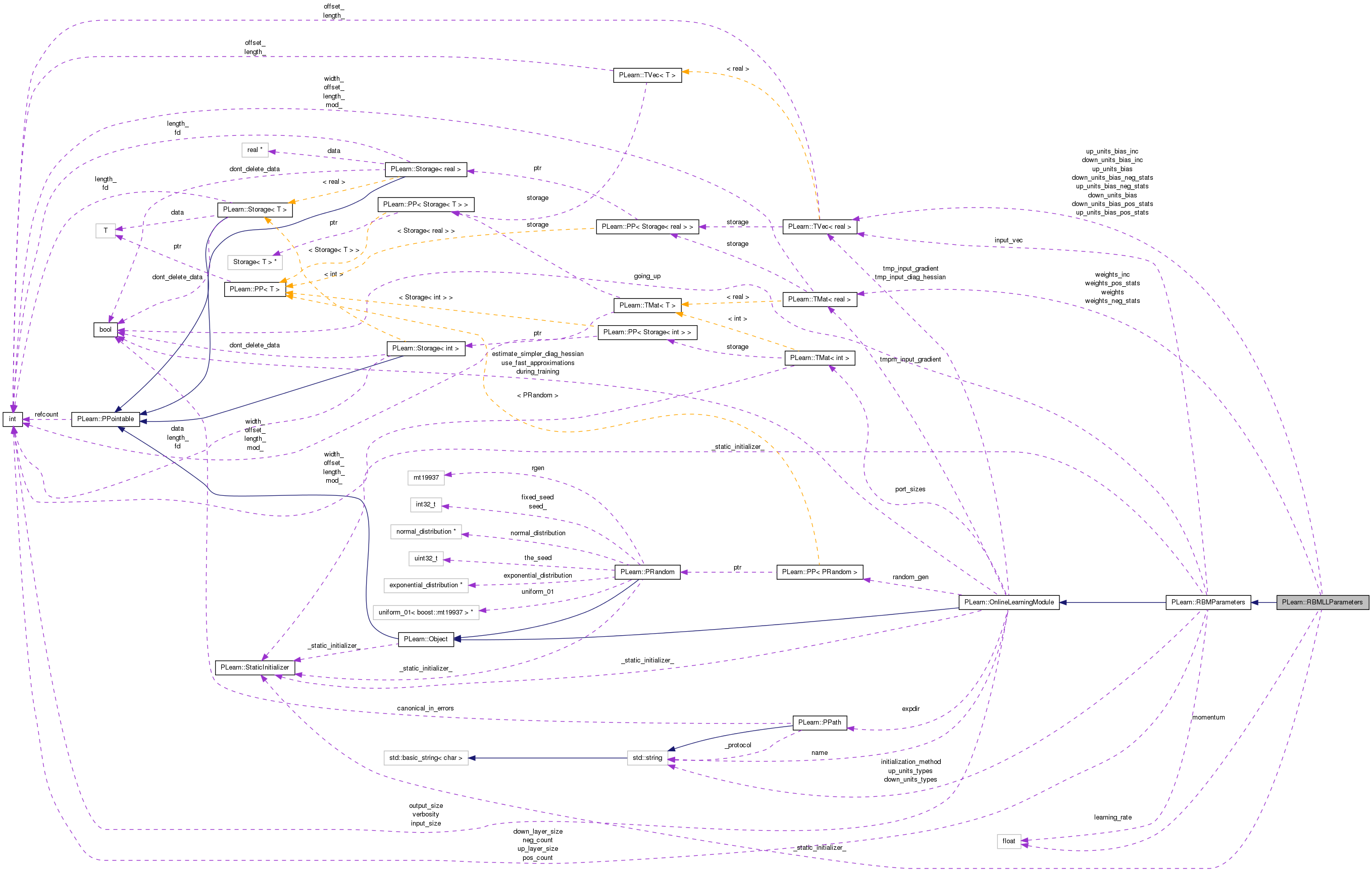

Collaboration diagram for PLearn::RBMLLParameters:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 RBMLLParameters (real the_learning_rate=0)
 Default constructor.
 RBMLLParameters (string down_types, string up_types, real the_learning_rate=0)
 Constructor from two string prototymes.
virtual void accumulatePosStats (const Vec &down_values, const Vec &up_values)
 Accumulates positive phase statistics to *_pos_stats.
virtual void accumulateNegStats (const Vec &down_values, const Vec &up_values)
 Accumulates negative phase statistics to *_neg_stats.
virtual void update ()
 Updates parameters according to contrastive divergence gradient.
virtual void update (const Vec &pos_down_values, const Vec &pos_up_values, const Vec &neg_down_values, const Vec &neg_up_values)
 Updates parameters according to contrastive divergence gradient, not using the statistics but the explicit values passed.
virtual void clearStats ()
 Clear all information accumulated during stats.
virtual void computeUnitActivations (int start, int length, const Vec &activations) const
 Computes the vectors of activation of "length" units, starting from "start", and concatenates them into "activations".
virtual void bpropUpdate (const Vec &input, const Vec &output, Vec &input_gradient, const Vec &output_gradient)
 Adapt based on the output gradient: this method should only be called just after a corresponding fprop; it should be called with the same arguments as fprop for the first two arguments (and output should not have been modified since then).

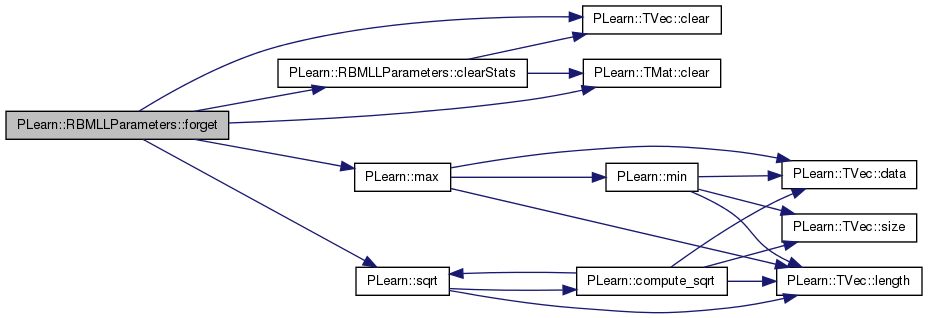

virtual void forget ()
 reset the parameters to the state they would be BEFORE starting training.
virtual int nParameters (bool share_up_params, bool share_down_params) const
 optionally perform some processing after training, or after a series of fprop/bpropUpdate calls to prepare the model for truly out-of-sample operation.
virtual Vec makeParametersPointHere (const Vec &global_parameters, bool share_up_params, bool share_down_params)
 Make the parameters data be sub-vectors of the given global_parameters.
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual RBMLLParametersdeepCopy (CopiesMap &copies) const
virtual void build ()
 Post-constructor.

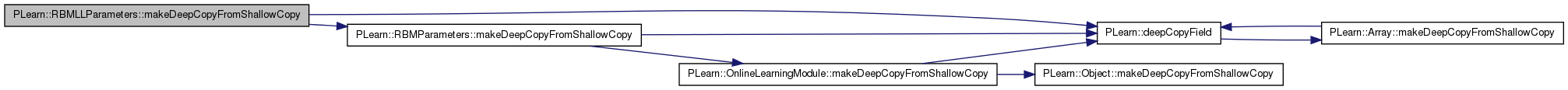

virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.

Static Public Member Functions

static string _classname_ ()
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

real momentum
 Momentum factor.
Mat weights
 Matrix containing unit-to-unit weights (output_size × input_size)
Vec up_units_bias
 Element i contains the bias of up unit i.
Vec down_units_bias
 Element i contains the bias of down unit i.
Mat weights_pos_stats
 Accumulates positive contribution to the weights' gradient.
Mat weights_neg_stats
 Accumulates negative contribution to the weights' gradient.
Vec up_units_bias_pos_stats
 Accumulates positive contribution to the gradient of up_units_bias.
Vec up_units_bias_neg_stats
 Accumulates negative contribution to the gradient of up_units_bias.
Vec down_units_bias_pos_stats
 Accumulates positive contribution to the gradient of down_units_bias.
Vec down_units_bias_neg_stats
 Accumulates negative contribution to the gradient of down_units_bias.
Mat weights_inc
 Used if momentum != 0.
Vec down_units_bias_inc
Vec up_units_bias_inc

Static Public Attributes

static StaticInitializer _static_initializer_

Static Protected Member Functions

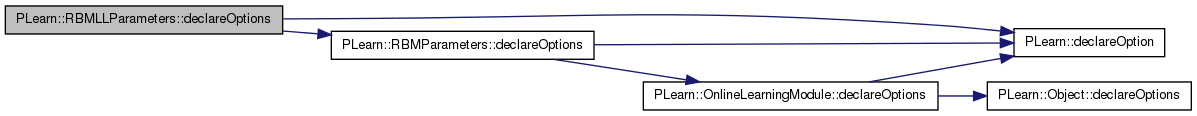

static void declareOptions (OptionList &ol)
 Declares the class options.

Private Types

typedef RBMParameters inherited

Private Member Functions

void build_ ()
 This does the actual building.

Detailed Description

Stores and learns the parameters between two linear layers of an RBM.

Todo:
: yes
Deprecated:
Use ../RBMMatrixConnection.h instead

Definition at line 55 of file RBMLLParameters.h.


Member Typedef Documentation

Reimplemented from PLearn::RBMParameters.

Reimplemented in PLearn::RBMJointLLParameters.

Definition at line 57 of file RBMLLParameters.h.


Constructor & Destructor Documentation

PLearn::RBMLLParameters::RBMLLParameters ( real  the_learning_rate = 0)

Default constructor.

Definition at line 52 of file RBMLLParameters.cc.

                                                         :
    inherited(the_learning_rate),
    momentum(0.)
{
}
PLearn::RBMLLParameters::RBMLLParameters ( string  down_types,
string  up_types,
real  the_learning_rate = 0
)

Constructor from two string prototymes.

Definition at line 58 of file RBMLLParameters.cc.

References build().

                                                           :
    inherited( down_types, up_types, the_learning_rate ),
    momentum(0.)
{
    // We're not sure inherited::build() has been called
    build();
}

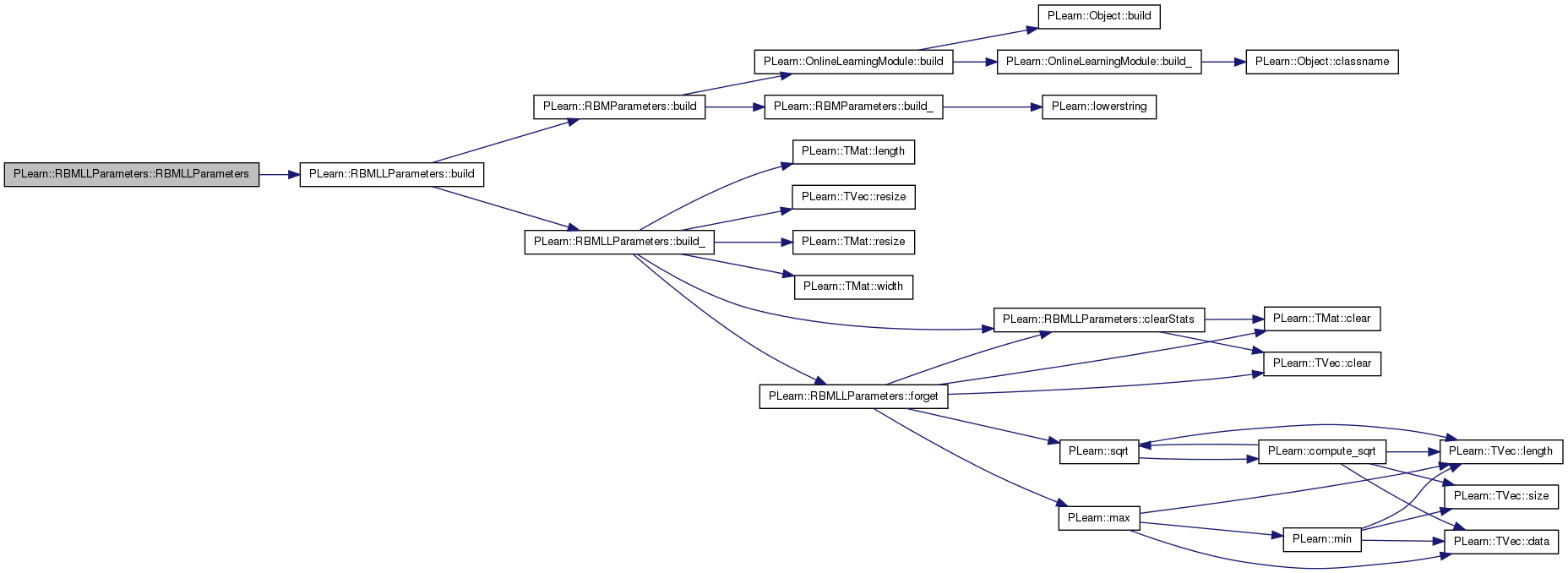

Here is the call graph for this function:


Member Function Documentation

string PLearn::RBMLLParameters::_classname_ ( ) [static]

Reimplemented from PLearn::RBMParameters.

Reimplemented in PLearn::RBMJointLLParameters.

Definition at line 50 of file RBMLLParameters.cc.

OptionList & PLearn::RBMLLParameters::_getOptionList_ ( ) [static]

Reimplemented from PLearn::RBMParameters.

Reimplemented in PLearn::RBMJointLLParameters.

Definition at line 50 of file RBMLLParameters.cc.

RemoteMethodMap & PLearn::RBMLLParameters::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::RBMParameters.

Reimplemented in PLearn::RBMJointLLParameters.

Definition at line 50 of file RBMLLParameters.cc.

bool PLearn::RBMLLParameters::_isa_ ( const Object o) [static]

Reimplemented from PLearn::RBMParameters.

Reimplemented in PLearn::RBMJointLLParameters.

Definition at line 50 of file RBMLLParameters.cc.

Object * PLearn::RBMLLParameters::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Reimplemented in PLearn::RBMJointLLParameters.

Definition at line 50 of file RBMLLParameters.cc.

StaticInitializer RBMLLParameters::_static_initializer_ & PLearn::RBMLLParameters::_static_initialize_ ( ) [static]

Reimplemented from PLearn::RBMParameters.

Reimplemented in PLearn::RBMJointLLParameters.

Definition at line 50 of file RBMLLParameters.cc.

void PLearn::RBMLLParameters::accumulateNegStats ( const Vec down_values,
const Vec up_values
) [virtual]

Accumulates negative phase statistics to *_neg_stats.

Implements PLearn::RBMParameters.

Definition at line 186 of file RBMLLParameters.cc.

References down_units_bias_neg_stats, PLearn::externalProductAcc(), PLearn::RBMParameters::neg_count, up_units_bias_neg_stats, and weights_neg_stats.

Referenced by PLearn::GaussianDBNClassification::jointGreedyStep(), and PLearn::UnfrozenDeepBeliefNet::train().

{
    // weights_neg_stats += up_values * down_values'
    externalProductAcc( weights_neg_stats, up_values, down_values );

    down_units_bias_neg_stats += down_values;
    up_units_bias_neg_stats += up_values;

    neg_count++;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::RBMLLParameters::accumulatePosStats ( const Vec down_values,
const Vec up_values
) [virtual]

Accumulates positive phase statistics to *_pos_stats.

Implements PLearn::RBMParameters.

Definition at line 174 of file RBMLLParameters.cc.

References down_units_bias_pos_stats, PLearn::externalProductAcc(), PLearn::RBMParameters::pos_count, up_units_bias_pos_stats, and weights_pos_stats.

Referenced by PLearn::GaussianDBNClassification::jointGreedyStep(), and PLearn::UnfrozenDeepBeliefNet::train().

{
    // weights_pos_stats += up_values * down_values'
    externalProductAcc( weights_pos_stats, up_values, down_values );

    down_units_bias_pos_stats += down_values;
    up_units_bias_pos_stats += up_values;

    pos_count++;
}

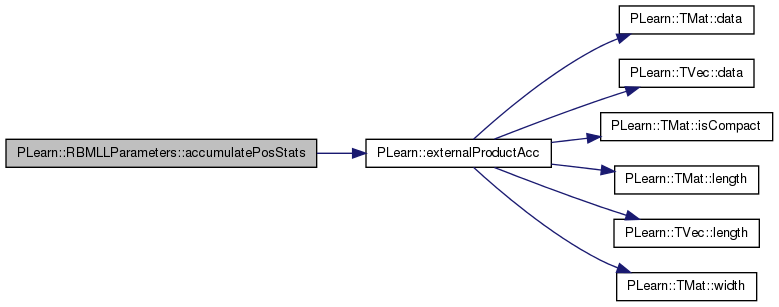

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::RBMLLParameters::bpropUpdate ( const Vec input,
const Vec output,
Vec input_gradient,
const Vec output_gradient
) [virtual]

Adapt based on the output gradient: this method should only be called just after a corresponding fprop; it should be called with the same arguments as fprop for the first two arguments (and output should not have been modified since then).

this version allows to obtain the input gradient as well

Since sub-classes are supposed to learn ONLINE, the object is 'ready-to-be-used' just after any bpropUpdate. N.B. A DEFAULT IMPLEMENTATION IS PROVIDED IN THE SUPER-CLASS, WHICH JUST CALLS bpropUpdate(input, output, input_gradient, output_gradient) AND IGNORES INPUT GRADIENT. this version allows to obtain the input gradient as well N.B. THE DEFAULT IMPLEMENTATION IN SUPER-CLASS JUST RAISES A PLERROR.

Reimplemented in PLearn::RBMJointLLParameters.

Definition at line 467 of file RBMLLParameters.cc.

References PLearn::RBMParameters::down_layer_size, PLearn::externalProductScaleAcc(), PLearn::RBMParameters::learning_rate, PLearn::multiplyAcc(), PLASSERT, PLearn::TVec< T >::resize(), PLearn::TVec< T >::size(), PLearn::transposeProduct(), PLearn::RBMParameters::up_layer_size, up_units_bias, and weights.

Referenced by PLearn::PartSupervisedDBN::jointGreedyStep(), and PLearn::GaussPartSupervisedDBN::jointGreedyStep().

{
    PLASSERT( input.size() == down_layer_size );
    PLASSERT( output.size() == up_layer_size );
    PLASSERT( output_gradient.size() == up_layer_size );
    input_gradient.resize( down_layer_size );

    // input_gradient = weights' * output_gradient
    transposeProduct( input_gradient, weights, output_gradient );

    // weights -= learning_rate * output_gradient * input'
    externalProductScaleAcc( weights, output_gradient, input, -learning_rate );

    // (up) bias -= learning_rate * output_gradient
    multiplyAcc( up_units_bias, output_gradient, -learning_rate );

}

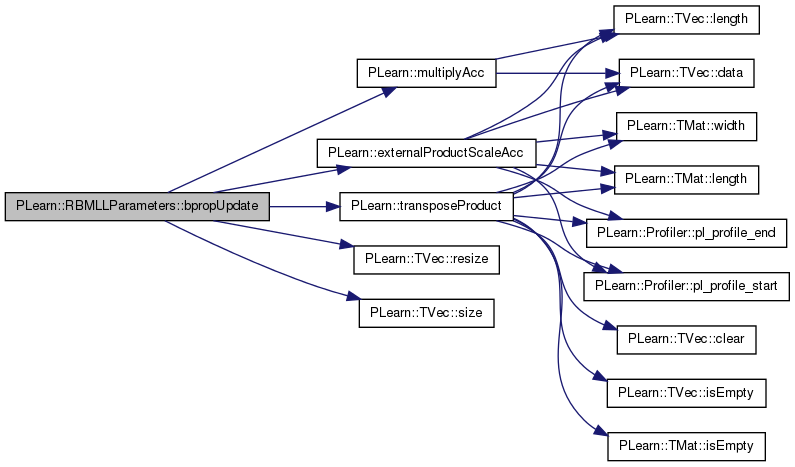

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::RBMLLParameters::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::RBMParameters.

Reimplemented in PLearn::RBMJointLLParameters.

Definition at line 149 of file RBMLLParameters.cc.

References PLearn::RBMParameters::build(), and build_().

Referenced by PLearn::RBMJointLLParameters::build(), and RBMLLParameters().

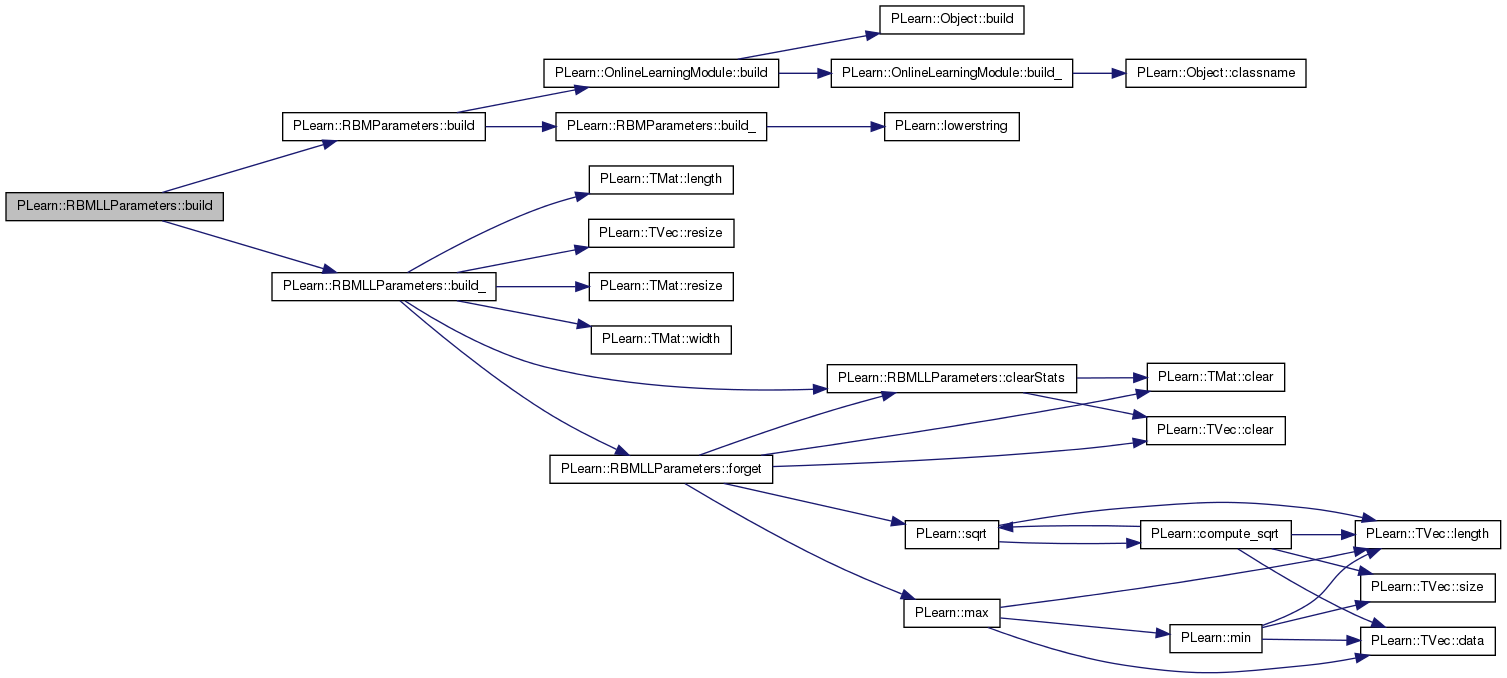

Here is the call graph for this function:

Here is the caller graph for this function:

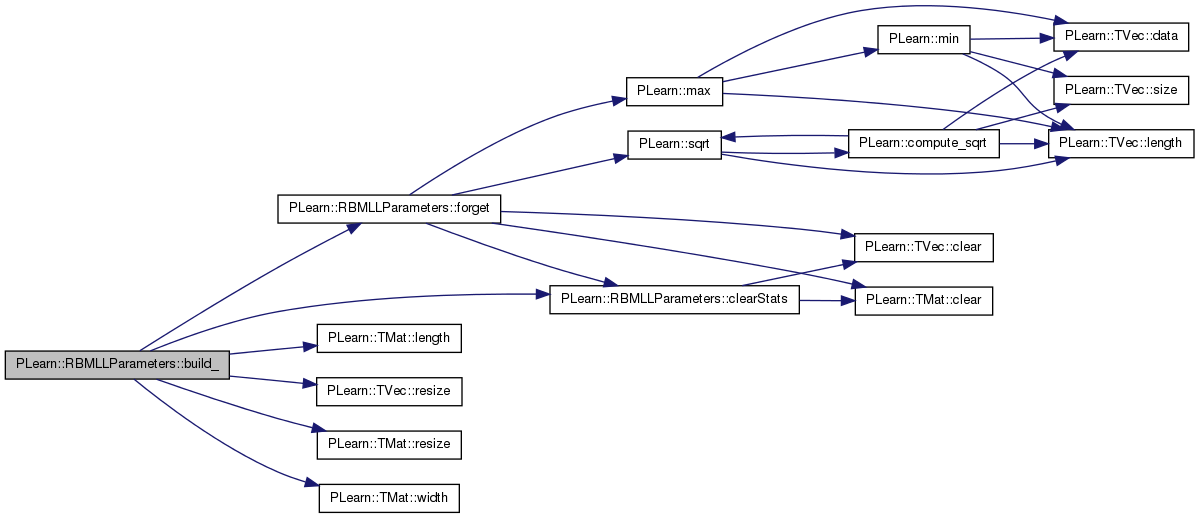

void PLearn::RBMLLParameters::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::RBMParameters.

Reimplemented in PLearn::RBMJointLLParameters.

Definition at line 92 of file RBMLLParameters.cc.

References clearStats(), PLearn::RBMParameters::down_layer_size, down_units_bias, down_units_bias_inc, down_units_bias_neg_stats, down_units_bias_pos_stats, PLearn::RBMParameters::down_units_types, forget(), i, PLearn::TMat< T >::length(), momentum, PLearn::OnlineLearningModule::output_size, PLERROR, PLearn::TVec< T >::resize(), PLearn::TMat< T >::resize(), PLearn::RBMParameters::up_layer_size, up_units_bias, up_units_bias_inc, up_units_bias_neg_stats, up_units_bias_pos_stats, PLearn::RBMParameters::up_units_types, weights, weights_inc, weights_neg_stats, weights_pos_stats, and PLearn::TMat< T >::width().

Referenced by build().

{
    if( up_layer_size == 0 || down_layer_size == 0 )
        return;

    output_size = 0;
    bool needs_forget = false; // do we need to reinitialize the parameters?

    if( weights.length() != up_layer_size ||
        weights.width() != down_layer_size )
    {
        weights.resize( up_layer_size, down_layer_size );
        needs_forget = true;
    }

    weights_pos_stats.resize( up_layer_size, down_layer_size );
    weights_neg_stats.resize( up_layer_size, down_layer_size );

    down_units_bias.resize( down_layer_size );
    down_units_bias_pos_stats.resize( down_layer_size );
    down_units_bias_neg_stats.resize( down_layer_size );
    for( int i=0 ; i<down_layer_size ; i++ )
    {
        char dut_i = down_units_types[i];
        if( dut_i != 'l' ) // not linear activation unit
            PLERROR( "RBMLLParameters::build_() - value '%c' for"
                     " down_units_types[%d]\n"
                     "should be 'l'.\n",
                     dut_i, i );
    }

    up_units_bias.resize( up_layer_size );
    up_units_bias_pos_stats.resize( up_layer_size );
    up_units_bias_neg_stats.resize( up_layer_size );
    for( int i=0 ; i<up_layer_size ; i++ )
    {
        char uut_i = up_units_types[i];
        if( uut_i != 'l' ) // not linear activation unit
            PLERROR( "RBMLLParameters::build_() - value '%c' for"
                     " up_units_types[%d]\n"
                     "should be 'l'.\n",
                     uut_i, i );
    }

    if( momentum != 0. )
    {
        weights_inc.resize( up_layer_size, down_layer_size );
        down_units_bias_inc.resize( down_layer_size );
        up_units_bias_inc.resize( up_layer_size );
    }

    if( needs_forget )
        forget();

    clearStats();
}

Here is the call graph for this function:

Here is the caller graph for this function:

string PLearn::RBMLLParameters::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Reimplemented in PLearn::RBMJointLLParameters.

Definition at line 50 of file RBMLLParameters.cc.

void PLearn::RBMLLParameters::clearStats ( ) [virtual]

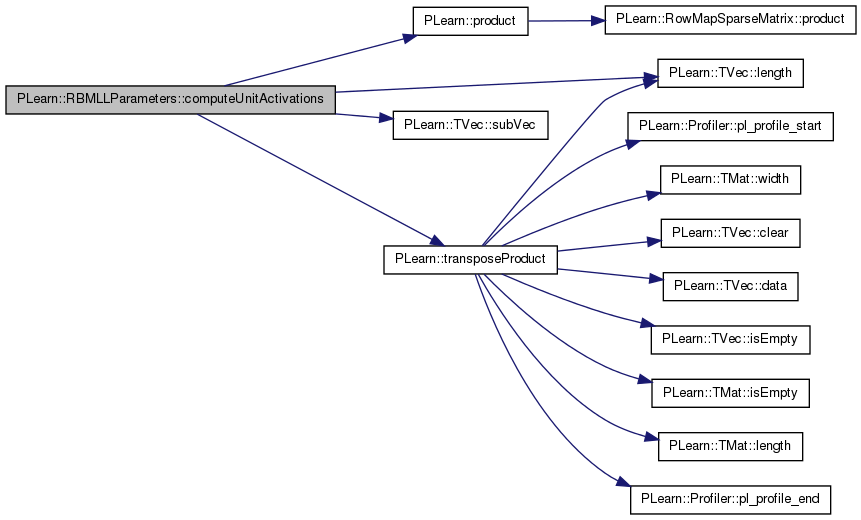

void PLearn::RBMLLParameters::computeUnitActivations ( int  start,
int  length,
const Vec activations
) const [virtual]

Computes the vectors of activation of "length" units, starting from "start", and concatenates them into "activations".

"start" indexes an up unit if "going_up", else a down unit.

Implements PLearn::RBMParameters.

Reimplemented in PLearn::RBMJointLLParameters.

Definition at line 446 of file RBMLLParameters.cc.

References PLearn::TVec< T >::length(), PLASSERT, PLearn::product(), PLearn::TVec< T >::subVec(), and PLearn::transposeProduct().

{
    PLASSERT( activations.length() == length );
    if( going_up )
    {
        PLASSERT( start+length <= up_layer_size );
        // activations[i-start] = sum_j weights(i,j) input_vec[j] + b[i]
        product( activations, weights.subMatRows(start, length), input_vec );
        activations += up_units_bias.subVec(start, length);
    }
    else
    {
        PLASSERT( start+length <= down_layer_size );
        // activations[i-start] = sum_j weights(j,i) input_vec[j] + b[i]
        transposeProduct( activations, weights.subMatColumns(start, length),
                          input_vec );
        activations += down_units_bias.subVec(start, length);
    }
}

Here is the call graph for this function:

void PLearn::RBMLLParameters::declareOptions ( OptionList ol) [static, protected]

Declares the class options.

Reimplemented from PLearn::RBMParameters.

Reimplemented in PLearn::RBMJointLLParameters.

Definition at line 67 of file RBMLLParameters.cc.

References PLearn::OptionBase::buildoption, PLearn::declareOption(), PLearn::RBMParameters::declareOptions(), down_units_bias, PLearn::OptionBase::learntoption, momentum, up_units_bias, and weights.

Referenced by PLearn::RBMJointLLParameters::declareOptions().

{
    declareOption(ol, "momentum", &RBMLLParameters::momentum,
                  OptionBase::buildoption,
                  "Momentum factor (should be between 0 and 1)");

    declareOption(ol, "weights", &RBMLLParameters::weights,
                  OptionBase::learntoption,
                  "Matrix containing unit-to-unit weights (output_size ×"
                  " input_size)");

    declareOption(ol, "up_units_bias",
                  &RBMLLParameters::up_units_bias,
                  OptionBase::learntoption,
                  "Element i contains the bias of up unit i");

    declareOption(ol, "down_units_bias",
                  &RBMLLParameters::down_units_bias,
                  OptionBase::learntoption,
                  "Element i contains the bias of down unit i");

    // Now call the parent class' declareOptions
    inherited::declareOptions(ol);
}

Here is the call graph for this function:

Here is the caller graph for this function:

static const PPath& PLearn::RBMLLParameters::declaringFile ( ) [inline, static]

Reimplemented from PLearn::RBMParameters.

Reimplemented in PLearn::RBMJointLLParameters.

Definition at line 180 of file RBMLLParameters.h.

:

RBMLLParameters * PLearn::RBMLLParameters::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::RBMParameters.

Reimplemented in PLearn::RBMJointLLParameters.

Definition at line 50 of file RBMLLParameters.cc.

void PLearn::RBMLLParameters::forget ( ) [virtual]

reset the parameters to the state they would be BEFORE starting training.

Note that this method is necessarily called from build().

Implements PLearn::OnlineLearningModule.

Reimplemented in PLearn::RBMJointLLParameters.

Definition at line 489 of file RBMLLParameters.cc.

References PLearn::TVec< T >::clear(), PLearn::TMat< T >::clear(), clearStats(), d, PLearn::RBMParameters::down_layer_size, down_units_bias, PLearn::RBMParameters::initialization_method, PLearn::max(), PLearn::OnlineLearningModule::random_gen, PLearn::sqrt(), PLearn::RBMParameters::up_layer_size, up_units_bias, and weights.

Referenced by build_().

{
    if( initialization_method == "zero" )
        weights.clear();
    else
    {
        if( !random_gen )
            random_gen = new PRandom();

        real d = 1. / max( down_layer_size, up_layer_size );
        if( initialization_method == "uniform_sqrt" )
            d = sqrt( d );

        random_gen->fill_random_uniform( weights, -d, d );
    }

    down_units_bias.clear();
    up_units_bias.clear();

    clearStats();
}

Here is the call graph for this function:

Here is the caller graph for this function:

OptionList & PLearn::RBMLLParameters::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Reimplemented in PLearn::RBMJointLLParameters.

Definition at line 50 of file RBMLLParameters.cc.

OptionMap & PLearn::RBMLLParameters::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Reimplemented in PLearn::RBMJointLLParameters.

Definition at line 50 of file RBMLLParameters.cc.

RemoteMethodMap & PLearn::RBMLLParameters::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Reimplemented in PLearn::RBMJointLLParameters.

Definition at line 50 of file RBMLLParameters.cc.

void PLearn::RBMLLParameters::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]
Vec PLearn::RBMLLParameters::makeParametersPointHere ( const Vec global_parameters,
bool  share_up_params,
bool  share_down_params
) [virtual]

Make the parameters data be sub-vectors of the given global_parameters.

The argument should have size >= nParameters. The result is a Vec that starts just after this object's parameters end, i.e. result = global_parameters.subVec(nParameters(),global_parameters.size()-nParameters()); This allows to easily chain calls of this method on multiple RBMParameters.

Implements PLearn::RBMParameters.

Definition at line 534 of file RBMLLParameters.cc.

References PLearn::TVec< T >::data(), down_units_bias, m, PLearn::TMat< T >::makeSharedValue(), PLearn::TVec< T >::makeSharedValue(), n, PLERROR, PLearn::TVec< T >::size(), PLearn::TMat< T >::size(), PLearn::TVec< T >::subVec(), up_units_bias, and weights.

{
    int n1=weights.size();
    int n2=up_units_bias.size();
    int n3=down_units_bias.size();
    int n = n1+(share_up_params?n2:0)+(share_down_params?n3:0); // should be = nParameters()
    int m = global_parameters.size();
    if (m<n)
        PLERROR("RBMLLParameters::makeParametersPointHere: argument has length %d, should be longer than nParameters()=%d",m,n);
    real* p = global_parameters.data();
    weights.makeSharedValue(p,n1);
    p+=n1;
    if (share_up_params)
    {
        up_units_bias.makeSharedValue(p,n2);
        p+=n2;
    }
    if (share_down_params)
        down_units_bias.makeSharedValue(p,n3);
    return global_parameters.subVec(n,m-n);
}

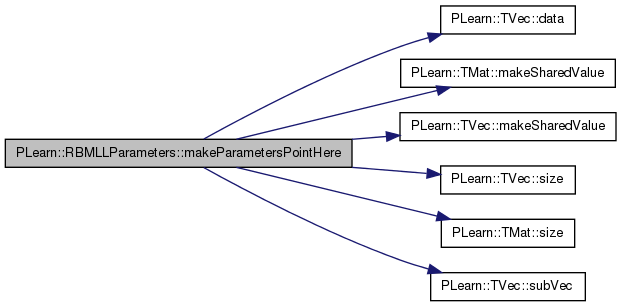

Here is the call graph for this function:

int PLearn::RBMLLParameters::nParameters ( bool  share_up_params,
bool  share_down_params
) const [virtual]

optionally perform some processing after training, or after a series of fprop/bpropUpdate calls to prepare the model for truly out-of-sample operation.

return the number of parameters

THE DEFAULT IMPLEMENTATION PROVIDED IN THE SUPER-CLASS DOES NOT DO ANYTHING. return the number of parameters

Implements PLearn::RBMParameters.

Definition at line 523 of file RBMLLParameters.cc.

References down_units_bias, PLearn::TVec< T >::size(), PLearn::TMat< T >::size(), up_units_bias, and weights.

{
    return weights.size() + (share_up_params?up_units_bias.size():0) +
        (share_down_params?down_units_bias.size():0);
}

Here is the call graph for this function:

void PLearn::RBMLLParameters::update ( ) [virtual]

Updates parameters according to contrastive divergence gradient.

Implements PLearn::RBMParameters.

Definition at line 198 of file RBMLLParameters.cc.

References clearStats(), PLearn::TVec< T >::data(), PLearn::TMat< T >::data(), down_units_bias, down_units_bias_inc, down_units_bias_neg_stats, down_units_bias_pos_stats, i, j, PLearn::RBMParameters::learning_rate, PLearn::TVec< T >::length(), PLearn::TMat< T >::length(), PLearn::TMat< T >::mod(), momentum, PLearn::RBMParameters::neg_count, PLearn::RBMParameters::pos_count, PLearn::TVec< T >::resize(), PLearn::TMat< T >::resize(), up_units_bias, up_units_bias_inc, up_units_bias_neg_stats, up_units_bias_pos_stats, w, weights, weights_inc, weights_neg_stats, weights_pos_stats, and PLearn::TMat< T >::width().

Referenced by PLearn::GaussianDBNClassification::jointGreedyStep(), and PLearn::UnfrozenDeepBeliefNet::train().

{
    // updates parameters
    //weights -= learning_rate * (weights_pos_stats/pos_count
    //                              - weights_neg_stats/neg_count)
    real pos_factor = -learning_rate / pos_count;
    real neg_factor = learning_rate / neg_count;

    int l = weights.length();
    int w = weights.width();

    real* w_i = weights.data();
    real* wps_i = weights_pos_stats.data();
    real* wns_i = weights_neg_stats.data();
    int w_mod = weights.mod();
    int wps_mod = weights_pos_stats.mod();
    int wns_mod = weights_neg_stats.mod();

    if( momentum == 0. )
    {
        // no need to use weights_inc
        for( int i=0 ; i<l ; i++, w_i+=w_mod, wps_i+=wps_mod, wns_i+=wns_mod )
            for( int j=0 ; j<w ; j++ )
                w_i[j] += pos_factor * wps_i[j] + neg_factor * wns_i[j];
    }
    else
    {
        // ensure that weights_inc has the right size
        weights_inc.resize( l, w );

        // The update rule becomes:
        // weights_inc = momentum * weights_inc
        //               - learning_rate * (weights_pos_stats/pos_count
        //                                  - weights_neg_stats/neg_count);
        // weights += weights_inc;
        real* winc_i = weights_inc.data();
        int winc_mod = weights_inc.mod();
        for( int i=0 ; i<l ; i++, w_i += w_mod, wps_i += wps_mod,
                             wns_i += wns_mod, winc_i += winc_mod )
            for( int j=0 ; j<w ; j++ )
            {
                winc_i[j] = momentum * winc_i[j]
                    + pos_factor * wps_i[j] + neg_factor * wns_i[j];
                w_i[j] += winc_i[j];
            }
    }

    // down_units_bias -= learning_rate * (down_units_bias_pos_stats/pos_count
    //                                    -down_units_bias_neg_stats/neg_count)
    l = down_units_bias.length();
    real* dub = down_units_bias.data();
    real* dubps = down_units_bias_pos_stats.data();
    real* dubns = down_units_bias_neg_stats.data();

    if( momentum == 0. )
    {
        // no need to use down_units_bias_inc
        for( int i=0 ; i<l ; i++ )
            dub[i] += pos_factor * dubps[i] + neg_factor * dubns[i];
    }
    else
    {
        // ensure that down_units_bias_inc has the right size
        down_units_bias_inc.resize( l );

        // The update rule becomes:
        // down_units_bias_inc =
        //      momentum * down_units_bias_inc
        //      - learning_rate * (down_units_bias_pos_stats/pos_count
        //                         -down_units_bias_neg_stats/neg_count);
        // down_units_bias += down_units_bias_inc;
        real* dubinc = down_units_bias_inc.data();
        for( int i=0 ; i<l ; i++ )
        {
            dubinc[i] = momentum * dubinc[i]
                + pos_factor * dubps[i] + neg_factor * dubns[i];
            dub[i] += dubinc[i];
        }
    }

    // up_units_bias -= learning_rate * (up_units_bias_pos_stats/pos_count
    //                                   -up_units_bias_neg_stats/neg_count)
    l = up_units_bias.length();
    real* uub = up_units_bias.data();
    real* uubps = up_units_bias_pos_stats.data();
    real* uubns = up_units_bias_neg_stats.data();
    if( momentum == 0. )
    {
        // no need to use up_units_bias_inc
        for( int i=0 ; i<l ; i++ )
            uub[i] += pos_factor * uubps[i] + neg_factor * uubns[i];
    }
    else
    {
        // ensure that up_units_bias_inc has the right size
        up_units_bias_inc.resize( l );

        // The update rule becomes:
        // up_units_bias_inc =
        //      momentum * up_units_bias_inc
        //      - learning_rate * (up_units_bias_pos_stats/pos_count
        //                         -up_units_bias_neg_stats/neg_count);
        // up_units_bias += up_units_bias_inc;
        real* uubinc = up_units_bias_inc.data();
        for( int i=0 ; i<l ; i++ )
        {
            uubinc[i] = momentum * uubinc[i]
                + pos_factor * uubps[i] + neg_factor * uubns[i];
            uub[i] += uubinc[i];
        }
    }

    clearStats();
}

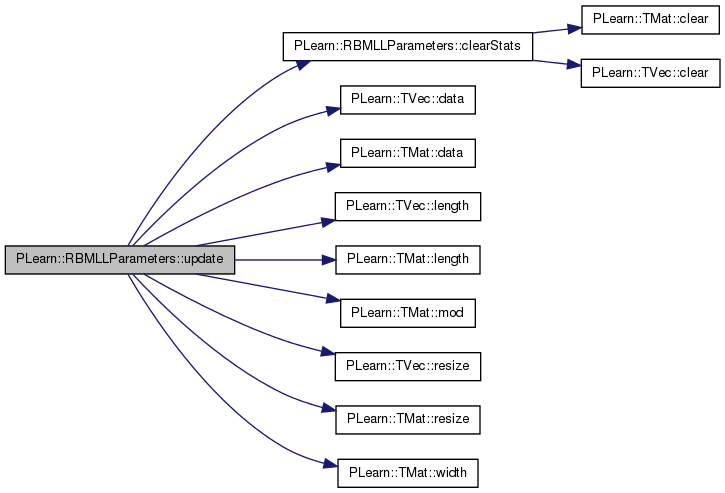

Here is the call graph for this function:

Here is the caller graph for this function:

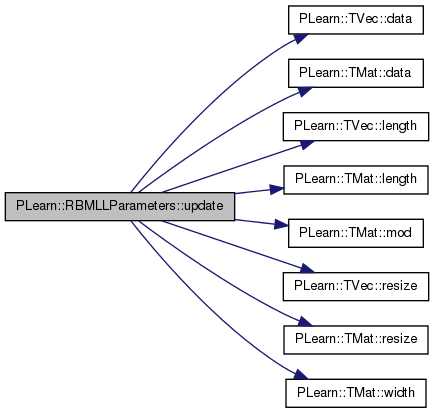

void PLearn::RBMLLParameters::update ( const Vec pos_down_values,
const Vec pos_up_values,
const Vec neg_down_values,
const Vec neg_up_values
) [virtual]

Updates parameters according to contrastive divergence gradient, not using the statistics but the explicit values passed.

Reimplemented from PLearn::RBMParameters.

Definition at line 315 of file RBMLLParameters.cc.

References PLearn::TVec< T >::data(), PLearn::TMat< T >::data(), down_units_bias, down_units_bias_inc, i, j, PLearn::RBMParameters::learning_rate, PLearn::TVec< T >::length(), PLearn::TMat< T >::length(), PLearn::TMat< T >::mod(), momentum, PLASSERT, PLearn::TVec< T >::resize(), PLearn::TMat< T >::resize(), up_units_bias, up_units_bias_inc, w, weights, weights_inc, and PLearn::TMat< T >::width().

{
    // weights -= learning_rate * ( h_0 v_0' - h_1 v_1' );
    // or:
    // weights[i][j] += learning_rate * (h_1[i] v_1[j] - h_0[i] v_0[j]);

    int l = weights.length();
    int w = weights.width();
    PLASSERT( pos_up_values.length() == l );
    PLASSERT( neg_up_values.length() == l );
    PLASSERT( pos_down_values.length() == w );
    PLASSERT( neg_down_values.length() == w );

    real* w_i = weights.data();
    real* puv_i = pos_up_values.data();
    real* nuv_i = neg_up_values.data();
    real* pdv = pos_down_values.data();
    real* ndv = neg_down_values.data();
    int w_mod = weights.mod();

    if( momentum == 0. )
    {
        for( int i=0 ; i<l ; i++, w_i += w_mod, puv_i++, nuv_i++ )
            for( int j=0 ; j<w ; j++ )
                w_i[j] += learning_rate * (*nuv_i * ndv[j] - *puv_i * pdv[j]);
    }
    else
    {
        // ensure that weights_inc has the right size
        weights_inc.resize( l, w );

        // The update rule becomes:
        // weights_inc = momentum * weights_inc
        //               - learning_rate * ( h_0 v_0' - h_1 v_1' );
        // weights += weights_inc;

        real* winc_i = weights_inc.data();
        int winc_mod = weights_inc.mod();
        for( int i=0 ; i<l ; i++, w_i += w_mod, winc_i += winc_mod,
                             puv_i++, nuv_i++ )
            for( int j=0 ; j<w ; j++ )
            {
                winc_i[j] = momentum * winc_i[j]
                    + learning_rate * (*nuv_i * ndv[j] - *puv_i * pdv[j]);
                w_i[j] += winc_i[j];
            }
    }

    // down_units_bias -= learning_rate * ( v_0 - v_1 )

    real* dub = down_units_bias.data();
    // pdv and ndv didn't change since last time
    // real* pdv = pos_down_values.data();
    // real* ndv = neg_down_values.data();

    if( momentum == 0. )
    {
        // no need to use down_units_bias_inc
        for( int j=0 ; j<w ; j++ )
            dub[j] += learning_rate * ( ndv[j] - pdv[j] );
    }
    else
    {
        // ensure that down_units_bias_inc has the right size
        down_units_bias_inc.resize( w );

        // The update rule becomes:
        // down_units_bias_inc = momentum * down_units_bias_inc
        //                       - learning_rate * ( v_0 - v_1 )
        // down_units_bias += down_units_bias_inc;

        real* dubinc = down_units_bias_inc.data();
        for( int j=0 ; j<w ; j++ )
        {
            dubinc[j] = momentum * dubinc[j]
                + learning_rate * ( ndv[j] - pdv[j] );
            dub[j] += dubinc[j];
        }
    }

    // up_units_bias -= learning_rate * ( h_0 - h_1 )
    real* uub = up_units_bias.data();
    real* puv = pos_up_values.data();
    real* nuv = neg_up_values.data();

    if( momentum == 0. )
    {
        // no need to use up_units_bias_inc
        for( int i=0 ; i<l ; i++ )
            uub[i] += learning_rate * (nuv[i] - puv[i] );
    }
    else
    {
        // ensure that up_units_bias_inc has the right size
        up_units_bias_inc.resize( l );

        // The update rule becomes:
        // up_units_bias_inc =
        //      momentum * up_units_bias_inc
        //      - learning_rate * (up_units_bias_pos_stats/pos_count
        //                         -up_units_bias_neg_stats/neg_count);
        // up_units_bias += up_units_bias_inc;
        real* uubinc = up_units_bias_inc.data();
        for( int i=0 ; i<l ; i++ )
        {
            uubinc[i] = momentum * uubinc[i]
                + learning_rate * ( nuv[i] - puv[i] );
            uub[i] += uubinc[i];
        }
    }
}

Here is the call graph for this function:


Member Data Documentation

Reimplemented from PLearn::RBMParameters.

Reimplemented in PLearn::RBMJointLLParameters.

Definition at line 180 of file RBMLLParameters.h.

Definition at line 95 of file RBMLLParameters.h.

Referenced by build_(), makeDeepCopyFromShallowCopy(), and update().

Accumulates negative contribution to the gradient of down_units_bias.

Definition at line 91 of file RBMLLParameters.h.

Referenced by accumulateNegStats(), PLearn::RBMJointLLParameters::build_(), build_(), clearStats(), makeDeepCopyFromShallowCopy(), and update().

Accumulates positive contribution to the gradient of down_units_bias.

Definition at line 89 of file RBMLLParameters.h.

Referenced by accumulatePosStats(), PLearn::RBMJointLLParameters::build_(), build_(), clearStats(), makeDeepCopyFromShallowCopy(), and update().

Momentum factor.

Definition at line 63 of file RBMLLParameters.h.

Referenced by build_(), declareOptions(), and update().

Definition at line 96 of file RBMLLParameters.h.

Referenced by build_(), makeDeepCopyFromShallowCopy(), and update().

Accumulates negative contribution to the gradient of up_units_bias.

Definition at line 87 of file RBMLLParameters.h.

Referenced by accumulateNegStats(), PLearn::RBMJointLLParameters::build_(), build_(), clearStats(), makeDeepCopyFromShallowCopy(), and update().

Accumulates positive contribution to the gradient of up_units_bias.

Definition at line 85 of file RBMLLParameters.h.

Referenced by accumulatePosStats(), PLearn::RBMJointLLParameters::build_(), build_(), clearStats(), makeDeepCopyFromShallowCopy(), and update().

Used if momentum != 0.

Definition at line 94 of file RBMLLParameters.h.

Referenced by build_(), makeDeepCopyFromShallowCopy(), and update().

Accumulates negative contribution to the weights' gradient.

Definition at line 82 of file RBMLLParameters.h.

Referenced by accumulateNegStats(), PLearn::RBMJointLLParameters::build_(), build_(), clearStats(), makeDeepCopyFromShallowCopy(), and update().

Accumulates positive contribution to the weights' gradient.

Definition at line 79 of file RBMLLParameters.h.

Referenced by accumulatePosStats(), PLearn::RBMJointLLParameters::build_(), build_(), clearStats(), makeDeepCopyFromShallowCopy(), and update().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
