PLearn::FinancePreprocVMatrix Class Reference

#include <FinancePreprocVMatrix.h>

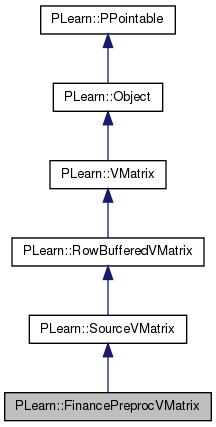

Inheritance diagram for PLearn::FinancePreprocVMatrix:
Inheritance graph
[legend]

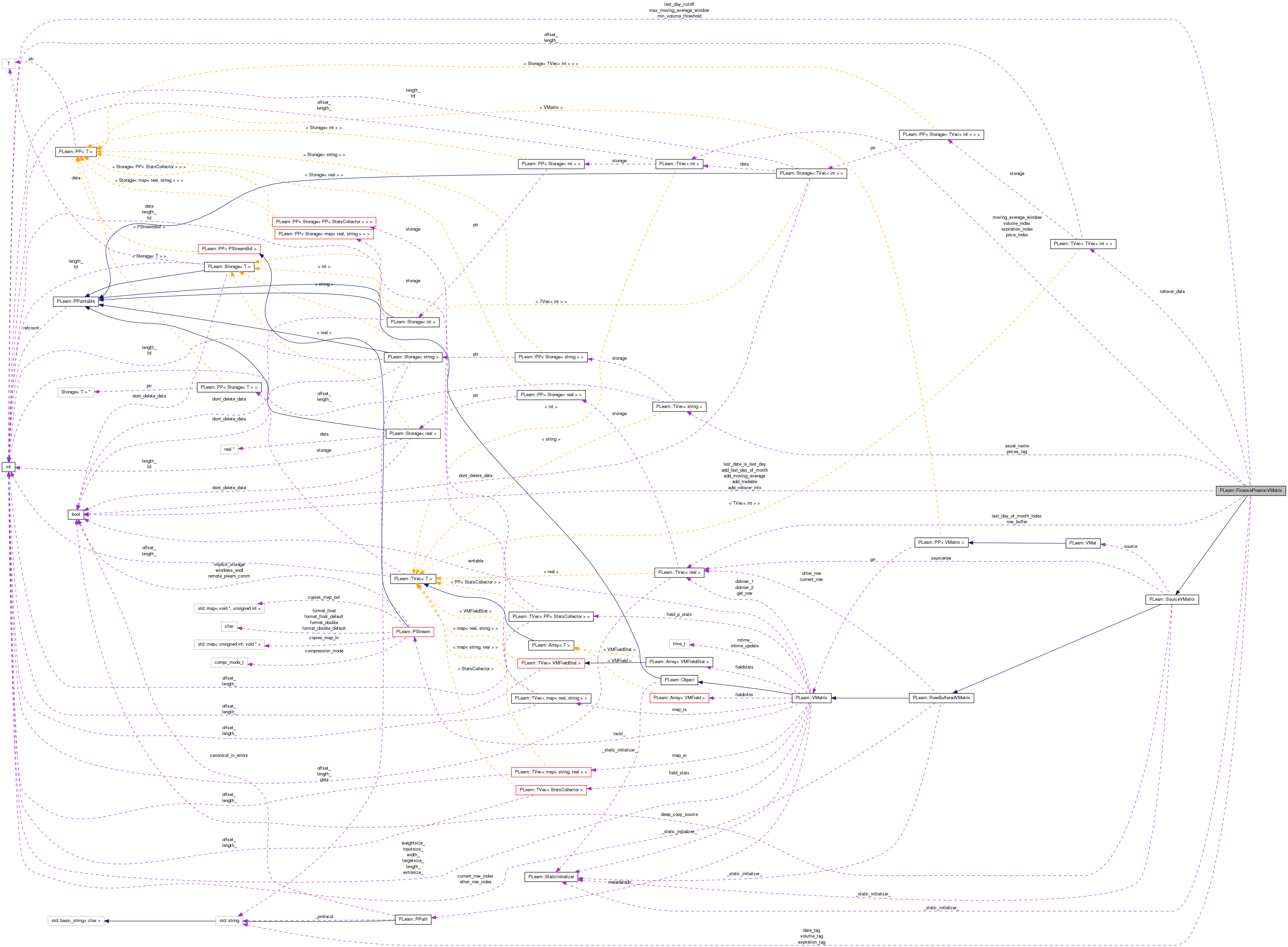

Collaboration diagram for PLearn::FinancePreprocVMatrix:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 FinancePreprocVMatrix ()
 a row buffer for the getRow method
 FinancePreprocVMatrix (VMat the_source, TVec< string > the_asset_names, bool add_tradable_info=true, bool add_last_day=false, bool add_moving_average_stats=false, bool add_roll_over_info=false, int threshold=20, TVec< string > the_price_tags=TVec< string >(), TVec< int > moving_average_window_length=TVec< int >(), string the_volume_tag="volume:level", string the_date_tag="Date", string the_expiration_tag="expiration-date", int the_last_day_cutoff=0, bool last_date_is_a_last_day=false)
 Simple constructor: takes as input only the source matrix, the number of assets and the threshold on the volume.
virtual void build ()
 Simply calls inherited::build() then build_().
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual FinancePreprocVMatrixdeepCopy (CopiesMap &copies) const

Static Public Member Functions

static string _classname_ ()
 Declares name and deepCopy methods.
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

TVec< string > asset_name
bool add_tradable
 all the asset names
bool add_last_day_of_month
 do we include the information about the last tradable day of the month
bool add_moving_average
 do we include the moving average statistics on the price_tag indexes
bool add_rollover_info
 add a column with '1' when the rollover occur (new expiration date)
int min_volume_threshold
 tradable = 1 if volume>min_volume_threshold
TVec< string > prices_tag
 all the price tags on which we want to compute the moving average (e.g.
TVec< intmoving_average_window
 the window size of the moving average
string volume_tag
string date_tag
 "volume" by default
string expiration_tag
 "expiration-date" by default. Only used if add_rollover_info==true
int last_day_cutoff
 0 by default (last day of month).
bool last_date_is_last_day
 is the last day a last day of month? (default=false)

Static Public Attributes

static StaticInitializer _static_initializer_

Protected Member Functions

void setVMFields ()

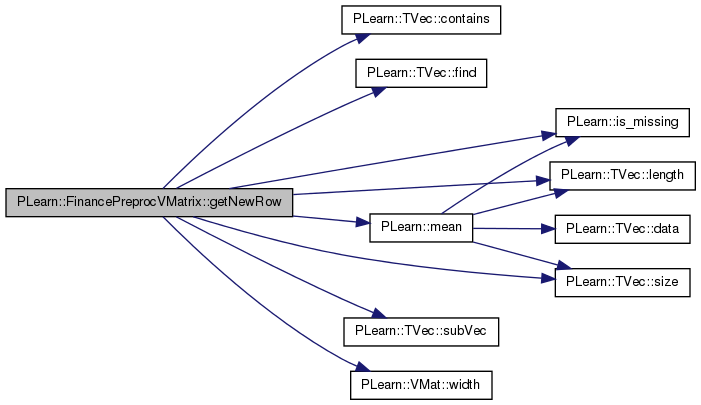

virtual void getNewRow (int i, const Vec &v) const
 Must be implemented in subclasses: default version returns an error.

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declares this class' options.

Protected Attributes

TVec< intvolume_index
 the indexes (in the vmat) of all the volume columns
TVec< intprice_index
 the indexes of all the prices on which we want to compute some stats
TVec< intexpiration_index
 the index of the expiration-date (related to the expiration_tag)
Vec last_day_of_month_index
 the index of all the last tradable day of the month, base on the date column of the source matrix
int max_moving_average_window
 the maximum value of moving_average_window
TVec< TVec< int > > rollover_date
Vec row_buffer
 the position (date) of all rollover

Private Types

typedef SourceVMatrix inherited

Private Member Functions

void build_ ()
 This does the actual building.

Detailed Description

Definition at line 50 of file FinancePreprocVMatrix.h.


Member Typedef Documentation

Reimplemented from PLearn::SourceVMatrix.

Definition at line 52 of file FinancePreprocVMatrix.h.


Constructor & Destructor Documentation

PLearn::FinancePreprocVMatrix::FinancePreprocVMatrix ( )

a row buffer for the getRow method

Definition at line 54 of file FinancePreprocVMatrix.cc.

PLearn::FinancePreprocVMatrix::FinancePreprocVMatrix ( VMat  the_source,
TVec< string >  the_asset_names,
bool  add_tradable_info = true,
bool  add_last_day = false,
bool  add_moving_average_stats = false,
bool  add_roll_over_info = false,
int  threshold = 20,
TVec< string >  the_price_tags = TVec<string>(),
TVec< int moving_average_window_length = TVec<int>(),
string  the_volume_tag = "volume:level",
string  the_date_tag = "Date",
string  the_expiration_tag = "expiration-date",
int  the_last_day_cutoff = 0,
bool  last_date_is_a_last_day = false
)

Simple constructor: takes as input only the source matrix, the number of assets and the threshold on the volume.

Definition at line 59 of file FinancePreprocVMatrix.cc.

References build().

    :inherited(the_source,
               the_source->length(),
               the_source->width()
                + (add_tradable_info?the_asset_names.size():0)
                + (add_last_day?1:0)
                + (add_moving_average_stats?the_asset_names.size()*the_price_tags.size()*moving_average_window_length.size():0)
                + (add_roll_over_info?the_asset_names.size():0)),
     asset_name(the_asset_names),
     add_tradable(add_tradable_info), add_last_day_of_month(add_last_day),
     add_moving_average(add_moving_average_stats),
     add_rollover_info(add_roll_over_info),
     min_volume_threshold(threshold), prices_tag(the_price_tags),
     moving_average_window(moving_average_window_length),
     volume_tag(the_volume_tag), date_tag(the_date_tag),
     expiration_tag(the_expiration_tag), last_day_cutoff(the_last_day_cutoff),
     last_date_is_last_day(last_date_is_a_last_day),
     rollover_date(asset_name.size()), row_buffer(the_source->width())
{
    build();
}

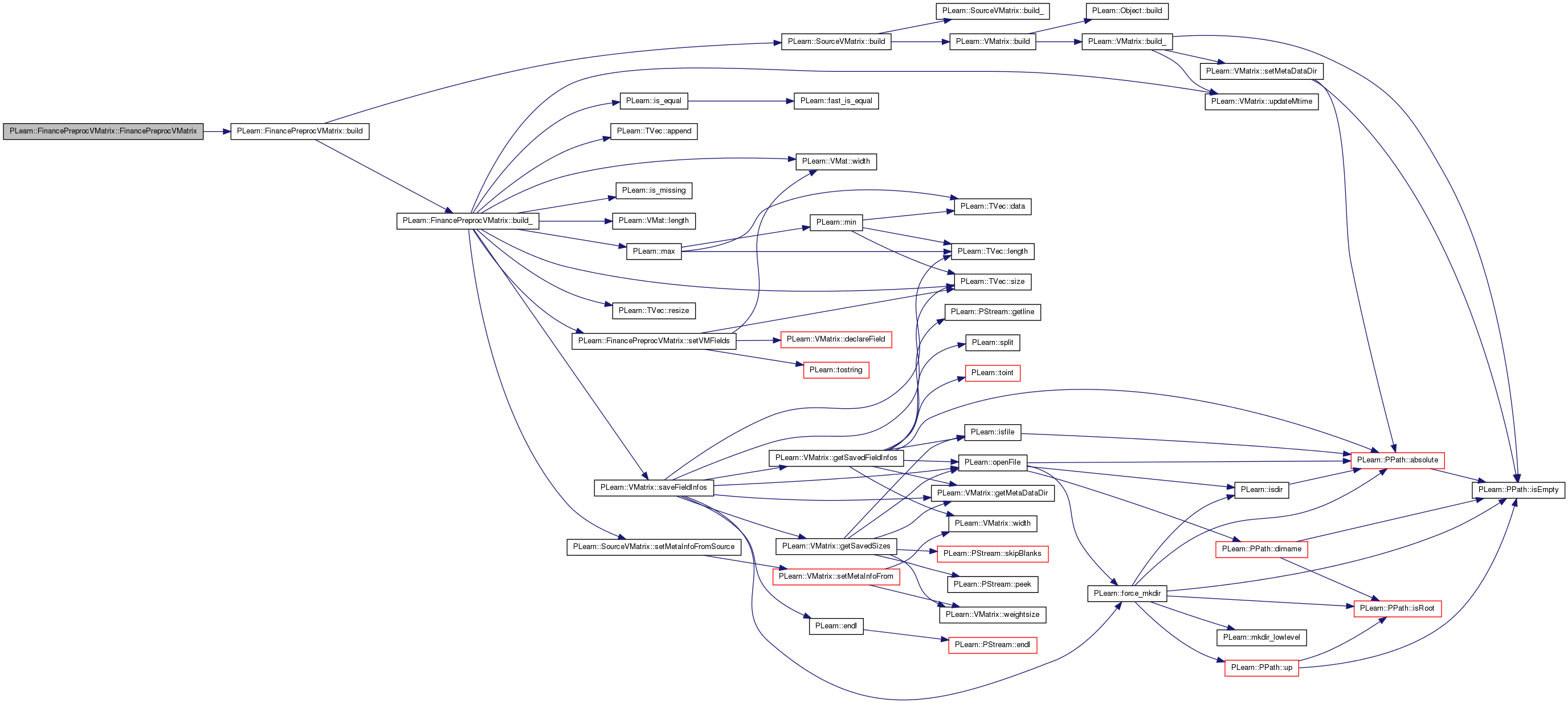

Here is the call graph for this function:


Member Function Documentation

string PLearn::FinancePreprocVMatrix::_classname_ ( ) [static]

Declares name and deepCopy methods.

Reimplemented from PLearn::SourceVMatrix.

Definition at line 52 of file FinancePreprocVMatrix.cc.

OptionList & PLearn::FinancePreprocVMatrix::_getOptionList_ ( ) [static]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 52 of file FinancePreprocVMatrix.cc.

RemoteMethodMap & PLearn::FinancePreprocVMatrix::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 52 of file FinancePreprocVMatrix.cc.

bool PLearn::FinancePreprocVMatrix::_isa_ ( const Object o) [static]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 52 of file FinancePreprocVMatrix.cc.

Object * PLearn::FinancePreprocVMatrix::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 52 of file FinancePreprocVMatrix.cc.

StaticInitializer FinancePreprocVMatrix::_static_initializer_ & PLearn::FinancePreprocVMatrix::_static_initialize_ ( ) [static]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 52 of file FinancePreprocVMatrix.cc.

void PLearn::FinancePreprocVMatrix::build ( ) [virtual]

Simply calls inherited::build() then build_().

Reimplemented from PLearn::SourceVMatrix.

Definition at line 341 of file FinancePreprocVMatrix.cc.

References PLearn::SourceVMatrix::build(), and build_().

Referenced by FinancePreprocVMatrix().

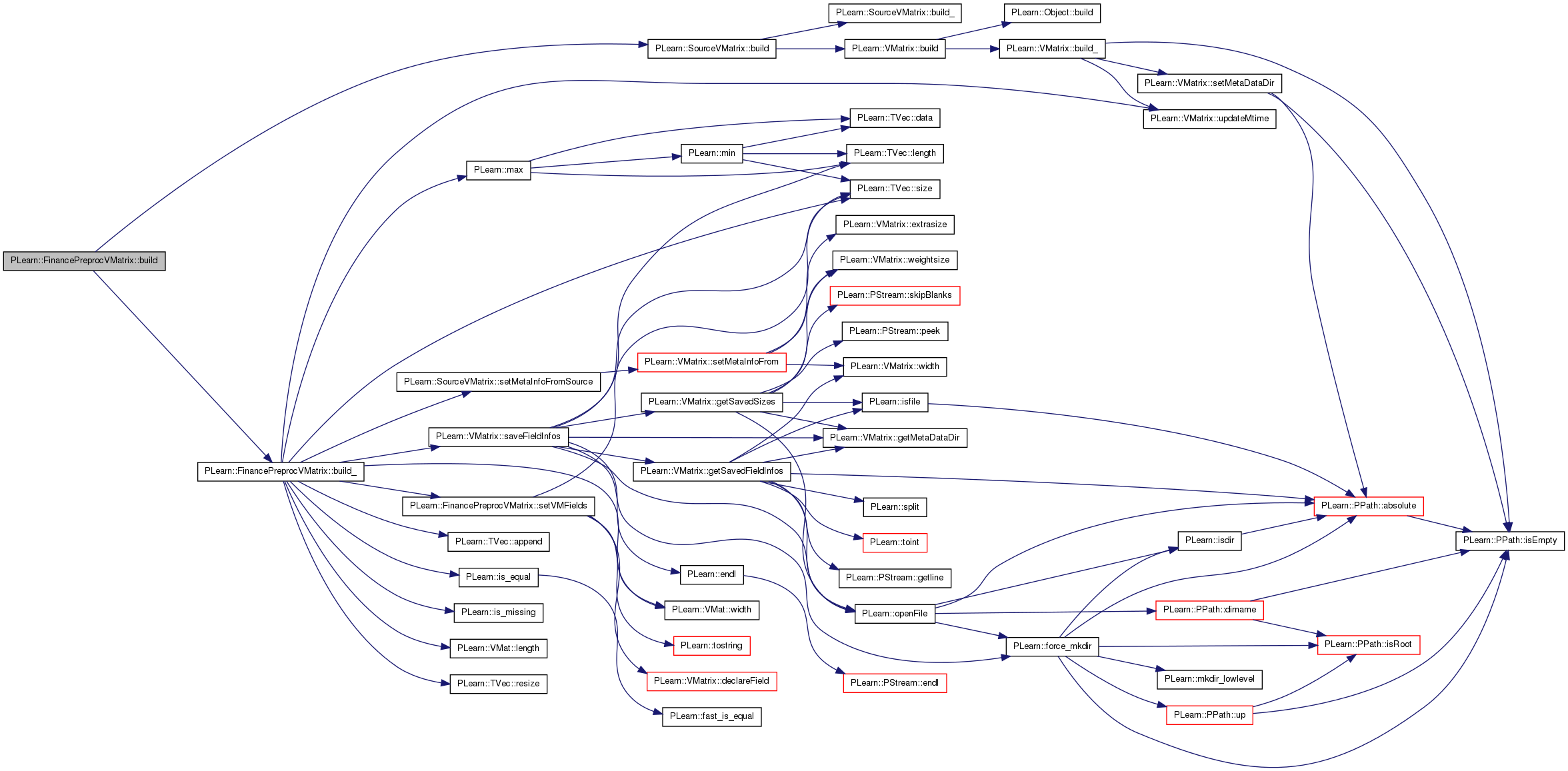

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::FinancePreprocVMatrix::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::SourceVMatrix.

Definition at line 250 of file FinancePreprocVMatrix.cc.

References add_last_day_of_month, add_moving_average, add_rollover_info, add_tradable, PLearn::TVec< T >::append(), asset_name, date_tag, expiration_index, expiration_tag, i, PLearn::is_equal(), PLearn::is_missing(), j, last_date_is_last_day, last_day_cutoff, last_day_of_month_index, PLearn::VMat::length(), PLearn::VMatrix::length_, PLearn::max(), max_moving_average_window, moving_average_window, price_index, prices_tag, PLearn::TVec< T >::resize(), rollover_date, PLearn::VMatrix::saveFieldInfos(), PLearn::SourceVMatrix::setMetaInfoFromSource(), setVMFields(), PLearn::TVec< T >::size(), PLearn::SourceVMatrix::source, PLearn::VMatrix::updateMtime(), volume_index, volume_tag, PLearn::VMat::width(), and PLearn::VMatrix::width_.

Referenced by build().

{
    if(length_ == -1 || width_ == -1)
    {
        length_ = source->length();
        width_  = ( source->width() +
                    (add_tradable?asset_name.size():0) +
                    (add_last_day_of_month?1:0) +
                    (add_moving_average?asset_name.size()*prices_tag.size()*moving_average_window.size():0) +
                    (add_rollover_info?asset_name.size():0) );
        updateMtime(source);
    }

    // stuff about the tradable information
    int nb_assets = asset_name.size();
    if (add_tradable)
    {
        volume_index.resize(nb_assets);
        for (int i=0; i<nb_assets; i++)
        {
            string volume_name_col = asset_name[i]+":"+volume_tag;
            volume_index[i] = source->fieldIndex(volume_name_col);
        }
    }

    if (add_last_day_of_month)
    {
        int date_col = source->fieldIndex(date_tag);
        int julian_day = int(source->get(0,date_col));
        PDate first_date(julian_day-last_day_cutoff);
        int previous_month = first_date.month;
        for (int i=1; i<source.length(); i++)
        {
            julian_day = int(source->get(i,date_col));
            PDate today(julian_day-last_day_cutoff);
            int this_month = today.month;
            if (this_month != previous_month) last_day_of_month_index.append(i-1);
            previous_month = this_month;
        }
        // if needed, we set the last day as a last tradable day of month
        if (last_date_is_last_day)
            last_day_of_month_index.append(source.length()-1);
    }

    if (add_moving_average)
    {
        max_moving_average_window = max(moving_average_window);

        int price_index_size = nb_assets*prices_tag.size();
        price_index.resize(price_index_size);
        int k = 0;
        for (int i=0; i<nb_assets; i++)
        {
            for (int j=0; j<prices_tag.size(); j++)
            {
                string moving_average_name_col = asset_name[i]+":"+prices_tag[j];
                price_index[k++] = source->fieldIndex(moving_average_name_col);
            }
        }
    }

    if (add_rollover_info)
    {
        expiration_index.resize(nb_assets);
        for (int i=0; i<nb_assets; i++)
        {
            string expiration_name_col = asset_name[i]+":"+expiration_tag;
            expiration_index[i] = source->fieldIndex(expiration_name_col);

            rollover_date[i].resize(0);
            real last_expiration_date = source->get(0,expiration_index[i]);
            for (int j=1; j<source.length(); j++)
            {
                real expiration_date = source->get(j,expiration_index[i]);
                if (!is_missing(expiration_date) &&
                    !is_equal(expiration_date, last_expiration_date))
                {
                    if (!is_missing(last_expiration_date))
                        rollover_date[i].append(j);
                    last_expiration_date = expiration_date;
                }
            }
        }
    }

    setVMFields();
    saveFieldInfos();
    setMetaInfoFromSource();
}

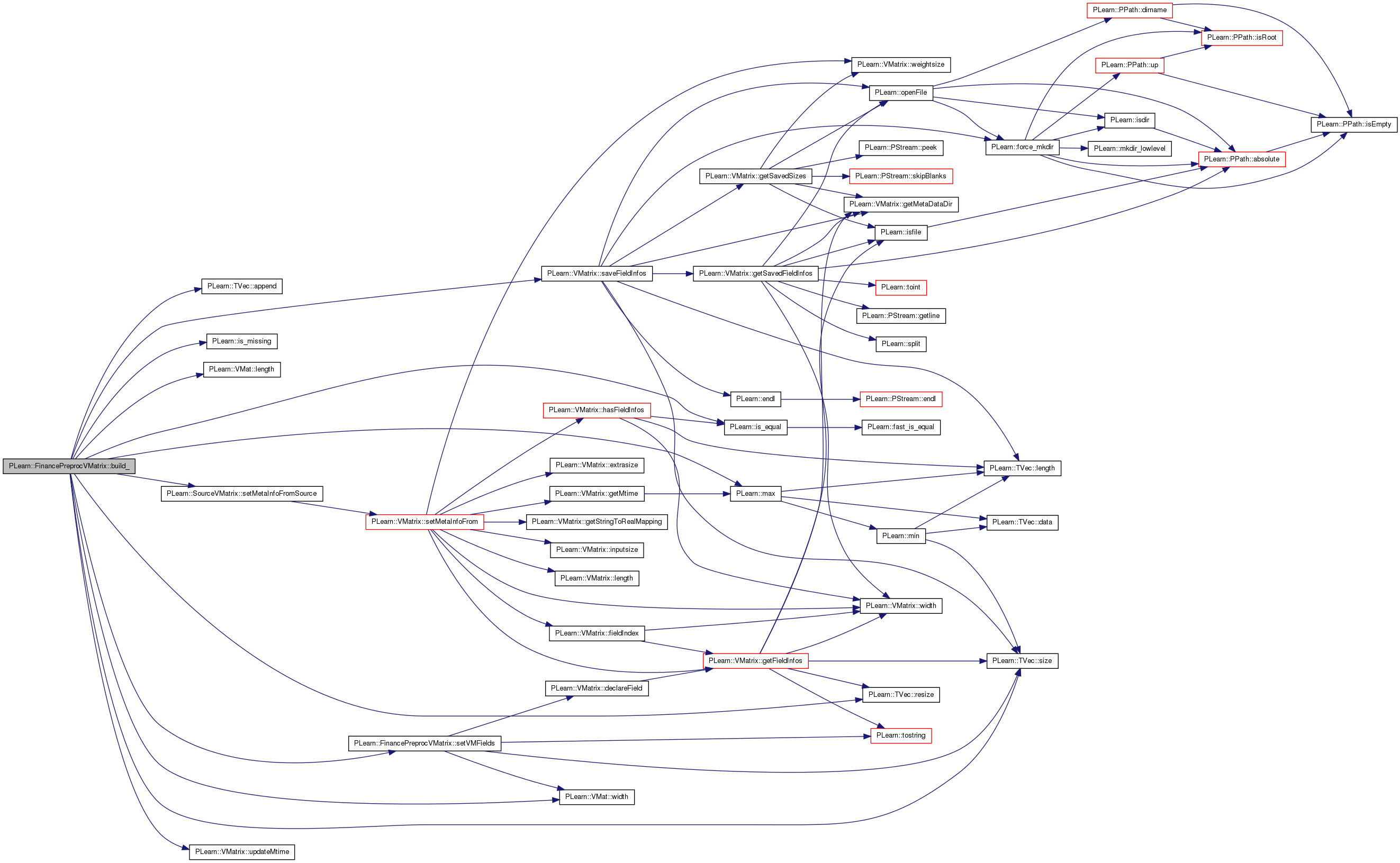

Here is the call graph for this function:

Here is the caller graph for this function:

string PLearn::FinancePreprocVMatrix::classname ( ) const [virtual]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 52 of file FinancePreprocVMatrix.cc.

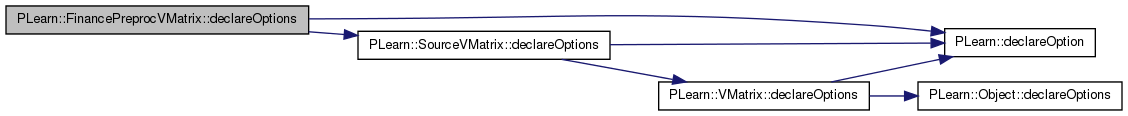

void PLearn::FinancePreprocVMatrix::declareOptions ( OptionList ol) [static, protected]

Declares this class' options.

Reimplemented from PLearn::SourceVMatrix.

Definition at line 141 of file FinancePreprocVMatrix.cc.

References add_last_day_of_month, add_moving_average, add_rollover_info, add_tradable, PLearn::OptionBase::buildoption, date_tag, PLearn::declareOption(), PLearn::SourceVMatrix::declareOptions(), expiration_tag, last_day_cutoff, PLearn::OptionBase::learntoption, min_volume_threshold, moving_average_window, PLearn::OptionBase::nosave, prices_tag, PLearn::SourceVMatrix::source, and volume_tag.

{
    declareOption(ol, "vmat", &FinancePreprocVMatrix::source,
                  (OptionBase::learntoption | OptionBase::nosave),
                  "DEPRECATED - use 'source' instead.");

    declareOption(ol, "add_tradable", &FinancePreprocVMatrix::add_tradable,
                  OptionBase::buildoption,
                  "Do we include the information telling if this day is"
                  " tradable or not.");

    declareOption(ol, "add_last_day_of_month",
                  &FinancePreprocVMatrix::add_last_day_of_month,
                  OptionBase::buildoption,
                  "Do we include the information about the last tradable day"
                  " of the month or not.");

    declareOption(ol, "add_moving_average",
                  &FinancePreprocVMatrix::add_moving_average,
                  OptionBase::buildoption,
                  "Do we include the moving average statistics on the"
                  " price_tag indexes.");

    declareOption(ol, "add_rollover_info",
                  &FinancePreprocVMatrix::add_rollover_info,
                  OptionBase::buildoption,
                  "Do we include the boolean information on whether or not\n"
                  "this is a new time series (new expiration date).\n");

    declareOption(ol, "min_volume_threshold",
                  &FinancePreprocVMatrix::min_volume_threshold,
                  OptionBase::buildoption,
                  "The threshold saying if the asset is tradable or not.");

    declareOption(ol, "moving_average_window",
                  &FinancePreprocVMatrix::moving_average_window,
                  OptionBase::buildoption,
                  "The window size of the moving average.");

    declareOption(ol, "prices_tag", &FinancePreprocVMatrix::prices_tag,
                  OptionBase::buildoption,
                  "The fieldInfo name for the prices columns.");

    declareOption(ol, "volume_tag", &FinancePreprocVMatrix::volume_tag,
                  OptionBase::buildoption,
                  "The fieldInfo name for the volume column.");

    declareOption(ol, "date_tag", &FinancePreprocVMatrix::date_tag,
                  OptionBase::buildoption,
                  "The fieldInfo name of the date column.");

    declareOption(ol, "expiration_tag", &FinancePreprocVMatrix::expiration_tag,
                  OptionBase::buildoption,
                  "The fieldInfo name of the expiration-date column.");

    declareOption(ol, "last_day_cutoff",
                  &FinancePreprocVMatrix::last_day_cutoff,
                  OptionBase::buildoption,
                  "Cutoff for the add_last_day_of_month flag (default=0).");

    // Now call the parent class' declareOptions
    inherited::declareOptions(ol);
}

Here is the call graph for this function:

static const PPath& PLearn::FinancePreprocVMatrix::declaringFile ( ) [inline, static]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 168 of file FinancePreprocVMatrix.h.

FinancePreprocVMatrix * PLearn::FinancePreprocVMatrix::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 52 of file FinancePreprocVMatrix.cc.

void PLearn::FinancePreprocVMatrix::getNewRow ( int  i,
const Vec v
) const [protected, virtual]

Must be implemented in subclasses: default version returns an error.

Reimplemented from PLearn::SourceVMatrix.

Definition at line 87 of file FinancePreprocVMatrix.cc.

References add_last_day_of_month, add_moving_average, add_rollover_info, add_tradable, asset_name, PLearn::TVec< T >::contains(), PLearn::TVec< T >::find(), PLearn::is_missing(), j, last_day_of_month_index, PLearn::TVec< T >::length(), MAX, max_moving_average_window, PLearn::mean(), MIN, min_volume_threshold, moving_average_window, price_index, prices_tag, rollover_date, row_buffer, PLearn::TVec< T >::size(), PLearn::SourceVMatrix::source, PLearn::TVec< T >::subVec(), volume_index, and PLearn::VMat::width().

{
    Vec row_buffer = v.subVec(0, source.width());
    source->getRow(i, row_buffer);

    int pos = source.width();
    if (add_tradable)
    {
        for (int k=0; k<asset_name.size(); ++k, ++pos)
        {
            real volume = row_buffer[volume_index[k]];
            if (!is_missing(volume) && (int)volume>=min_volume_threshold)
                v[pos] = 1.0;
            else
                v[pos] = 0.0;
        }
    }

    if (add_last_day_of_month)
        v[pos++] = (last_day_of_month_index.contains(i)) ? 1.0 : 0.0;

    if (add_moving_average)
    {
        int price_pos = 0;
        for (int j=0; j<asset_name.length(); j++)
        {
            for (int k=0; k<prices_tag.size(); k++)
            {
                int index = price_index[price_pos++];
                int prices_length = MIN(max_moving_average_window, i+1);
                int prices_start = i+1 - prices_length;
                Vec prices(prices_length);
                for (int l=0; l<prices_length; l++)
                    prices[l] = source->get(l+prices_start,index);

                for (int l=0; l<moving_average_window.size(); l++)
                {
                    int start = MAX(prices.length()-moving_average_window[l], 0);
                    int len = prices.length() - start;
                    v[pos++] = mean(prices.subVec(start,len),true);
                }
            }
        }
    }

    if (add_rollover_info)
    {
        for (int k=0; k<asset_name.size(); ++k, ++pos)
        {
            v[pos] = (rollover_date[k].find(i)==-1 ? 0.0 : 1.0);
        }
    }
}

Here is the call graph for this function:

OptionList & PLearn::FinancePreprocVMatrix::getOptionList ( ) const [virtual]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 52 of file FinancePreprocVMatrix.cc.

OptionMap & PLearn::FinancePreprocVMatrix::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 52 of file FinancePreprocVMatrix.cc.

RemoteMethodMap & PLearn::FinancePreprocVMatrix::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 52 of file FinancePreprocVMatrix.cc.

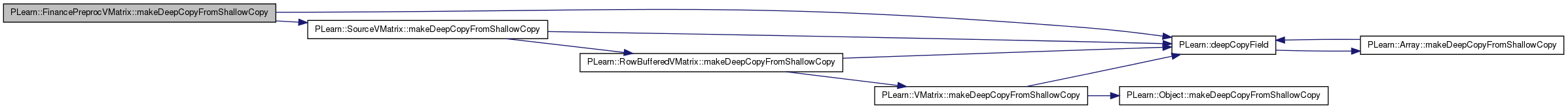

void PLearn::FinancePreprocVMatrix::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]
void PLearn::FinancePreprocVMatrix::setVMFields ( ) [protected]

Definition at line 205 of file FinancePreprocVMatrix.cc.

References add_last_day_of_month, add_moving_average, add_rollover_info, add_tradable, asset_name, PLearn::VMatrix::declareField(), PLearn::VMField::DiscrGeneral, i, j, moving_average_window, prices_tag, PLearn::TVec< T >::size(), PLearn::SourceVMatrix::source, PLearn::tostring(), and PLearn::VMat::width().

Referenced by build_().

{
    Array<VMField>& orig_fields = source->getFieldInfos();

    for (int i=0; i<orig_fields.size(); i++)
        declareField(i, orig_fields[i].name, orig_fields[i].fieldtype);

    int pos = source.width();
    if (add_tradable)
    {
        for (int i=0; i<asset_name.size(); ++i)
        {
            string name = asset_name[i]+":is_tradable";
            declareField(pos++, name, VMField::DiscrGeneral);
        }
    }

    if (add_last_day_of_month)
        declareField(pos++, "is_last_day_of_month", VMField::DiscrGeneral);

    if (add_moving_average)
    {
        for (int i=0; i<asset_name.size(); i++)
        {
            for (int j=0; j<prices_tag.size(); j++)
            {
                for (int k=0; k<moving_average_window.size(); k++)
                {
                    string moving_average_name_col = asset_name[i]+":"+prices_tag[j]+":moving_average:w="+tostring(moving_average_window[k]);
                    declareField(pos++, moving_average_name_col, VMField::DiscrGeneral);
                }
            }
        }
    }

    if (add_rollover_info)
    {
        for (int i=0; i<asset_name.size(); ++i)
        {
            string name = asset_name[i]+":rollover";
            declareField(pos++, name, VMField::DiscrGeneral);
        }
    }
}

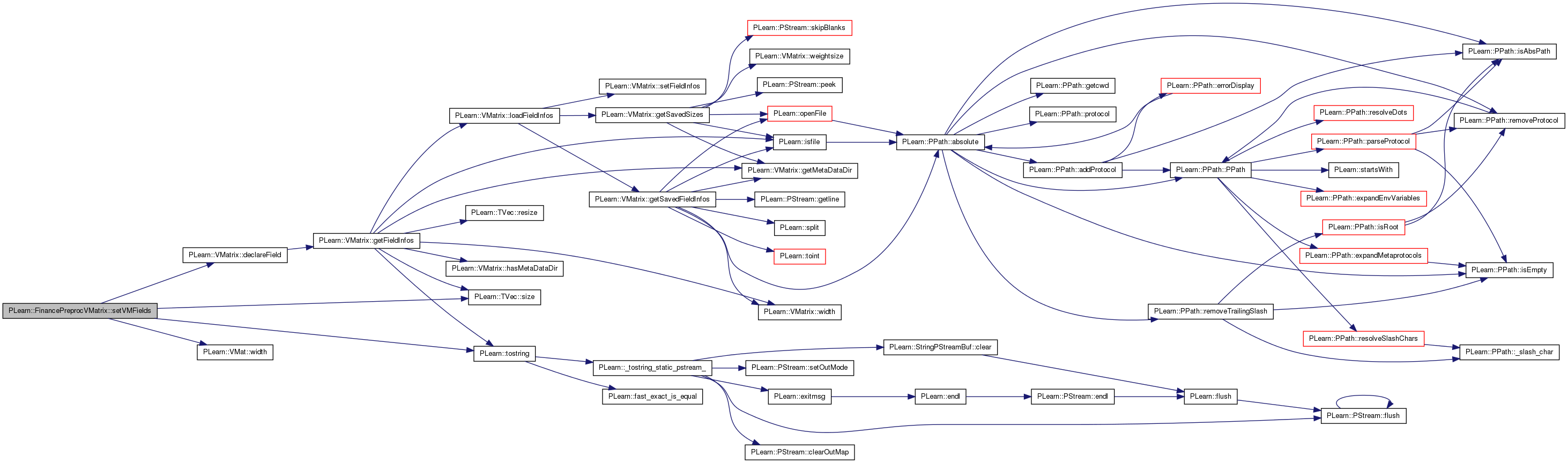

Here is the call graph for this function:

Here is the caller graph for this function:


Member Data Documentation

Reimplemented from PLearn::SourceVMatrix.

Definition at line 168 of file FinancePreprocVMatrix.h.

do we include the information about the last tradable day of the month

Definition at line 62 of file FinancePreprocVMatrix.h.

Referenced by build_(), declareOptions(), getNewRow(), and setVMFields().

do we include the moving average statistics on the price_tag indexes

Definition at line 65 of file FinancePreprocVMatrix.h.

Referenced by build_(), declareOptions(), getNewRow(), and setVMFields().

add a column with '1' when the rollover occur (new expiration date)

Definition at line 68 of file FinancePreprocVMatrix.h.

Referenced by build_(), declareOptions(), getNewRow(), and setVMFields().

all the asset names

do we include the information telling if this day is tradable or not

Definition at line 59 of file FinancePreprocVMatrix.h.

Referenced by build_(), declareOptions(), getNewRow(), and setVMFields().

"volume" by default

"Date" by default. Only used if add_last_day_of_month==true

Definition at line 83 of file FinancePreprocVMatrix.h.

Referenced by build_(), and declareOptions().

the index of the expiration-date (related to the expiration_tag)

Definition at line 104 of file FinancePreprocVMatrix.h.

Referenced by build_(), and makeDeepCopyFromShallowCopy().

"expiration-date" by default. Only used if add_rollover_info==true

Definition at line 86 of file FinancePreprocVMatrix.h.

Referenced by build_(), and declareOptions().

is the last day a last day of month? (default=false)

Definition at line 93 of file FinancePreprocVMatrix.h.

Referenced by build_().

0 by default (last day of month).

Set last_day=15 to simulate last_day_of_month as the 15 of each month

Definition at line 90 of file FinancePreprocVMatrix.h.

Referenced by build_(), and declareOptions().

the index of all the last tradable day of the month, base on the date column of the source matrix

Definition at line 108 of file FinancePreprocVMatrix.h.

Referenced by build_(), and getNewRow().

the maximum value of moving_average_window

Definition at line 111 of file FinancePreprocVMatrix.h.

Referenced by build_(), and getNewRow().

tradable = 1 if volume>min_volume_threshold

Definition at line 71 of file FinancePreprocVMatrix.h.

Referenced by declareOptions(), and getNewRow().

the window size of the moving average

Definition at line 78 of file FinancePreprocVMatrix.h.

Referenced by build_(), declareOptions(), getNewRow(), makeDeepCopyFromShallowCopy(), and setVMFields().

the indexes of all the prices on which we want to compute some stats

Definition at line 101 of file FinancePreprocVMatrix.h.

Referenced by build_(), getNewRow(), and makeDeepCopyFromShallowCopy().

all the price tags on which we want to compute the moving average (e.g.

close:level)

Definition at line 75 of file FinancePreprocVMatrix.h.

Referenced by build_(), declareOptions(), getNewRow(), makeDeepCopyFromShallowCopy(), and setVMFields().

Definition at line 113 of file FinancePreprocVMatrix.h.

Referenced by build_(), and getNewRow().

the position (date) of all rollover

Definition at line 114 of file FinancePreprocVMatrix.h.

Referenced by getNewRow().

the indexes (in the vmat) of all the volume columns

Definition at line 98 of file FinancePreprocVMatrix.h.

Referenced by build_(), getNewRow(), and makeDeepCopyFromShallowCopy().

Definition at line 80 of file FinancePreprocVMatrix.h.

Referenced by build_(), and declareOptions().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
