PLearn::NetworkConnection Class Reference

#include <NetworkConnection.h>

Inheritance diagram for PLearn::NetworkConnection:
Inheritance graph
[legend]

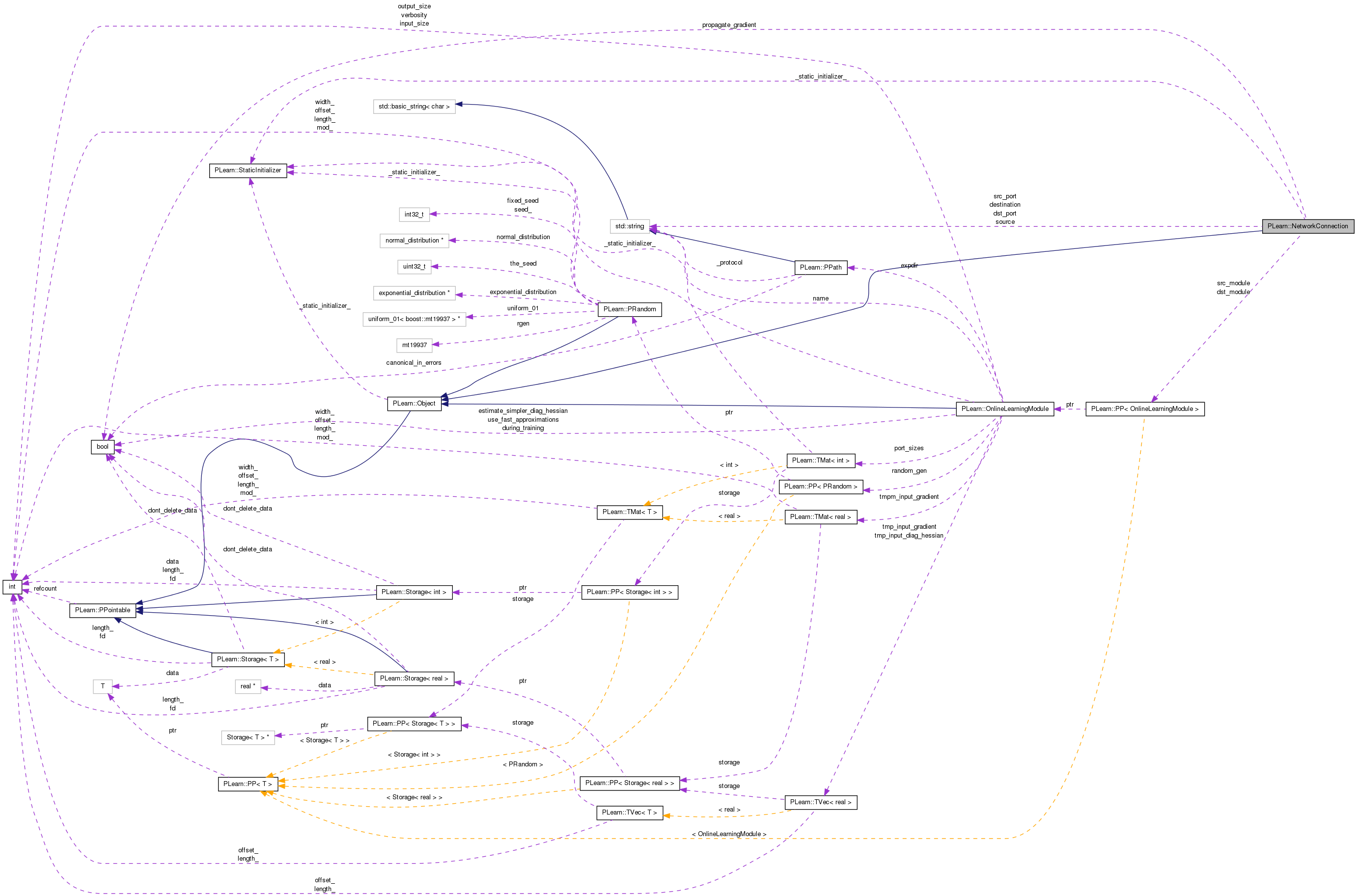

Collaboration diagram for PLearn::NetworkConnection:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 NetworkConnection ()
 Default constructor.
 NetworkConnection (const string &the_source, const string &the_destination, bool the_propagate_gradient, bool call_build_=true)
 Convenience constructors.
 NetworkConnection (PP< OnlineLearningModule > the_src_module, const string &the_src_port, PP< OnlineLearningModule > the_dst_module, const string &the_dst_port, bool the_propagate_gradient, bool call_build_=true)
void initialize (map< string, PP< OnlineLearningModule > > &modules)
 Initialize the connection using the list of modules provided as a map from modules' names to pointers to the modules themselves.
PP< OnlineLearningModulegetSourceModule ()
 Return the source module.
const string & getSourcePort ()
 Return the source port.
PP< OnlineLearningModulegetDestinationModule ()
 Return the destination module.
const string & getDestinationPort ()
 Return the destination port.
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual NetworkConnectiondeepCopy (CopiesMap &copies) const
virtual void build ()
 Post-constructor.
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.

Static Public Member Functions

static void declareOptions (OptionList &ol)
 Declares the class options.
static string _classname_ ()
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

string source
string destination
bool propagate_gradient

Static Public Attributes

static StaticInitializer _static_initializer_

Protected Attributes

PP< OnlineLearningModulesrc_module
 Source module.
string src_port
 Source port.
PP< OnlineLearningModuledst_module
 Destination module.
string dst_port
 Destination port.

Private Types

typedef Object inherited

Private Member Functions

void build_ ()
 This does the actual building.

Detailed Description

Definition at line 48 of file NetworkConnection.h.


Member Typedef Documentation

Reimplemented from PLearn::Object.

Definition at line 50 of file NetworkConnection.h.


Constructor & Destructor Documentation

PLearn::NetworkConnection::NetworkConnection ( )

Default constructor.

Definition at line 55 of file NetworkConnection.cc.

                                    :
    propagate_gradient(true)
{}
PLearn::NetworkConnection::NetworkConnection ( const string &  the_source,
const string &  the_destination,
bool  the_propagate_gradient,
bool  call_build_ = true
)

Convenience constructors.

Definition at line 62 of file NetworkConnection.cc.

References build_().

                                                      :
    inherited(call_build_),
    source(the_source),
    destination(the_destination),
    propagate_gradient(the_propagate_gradient)
{
    if (call_build_)
        build_();
}

Here is the call graph for this function:

PLearn::NetworkConnection::NetworkConnection ( PP< OnlineLearningModule the_src_module,
const string &  the_src_port,
PP< OnlineLearningModule the_dst_module,
const string &  the_dst_port,
bool  the_propagate_gradient,
bool  call_build_ = true
)

Definition at line 75 of file NetworkConnection.cc.

References build_(), destination, PLASSERT, and source.

                                                                    :
    inherited(call_build_),
    propagate_gradient(the_propagate_gradient),
    src_module(the_src_module),
    src_port(the_src_port),
    dst_module(the_dst_module),
    dst_port(the_dst_port)
{
    PLASSERT( the_src_module && the_dst_module );
    source = the_src_module->name + "." + the_src_port;
    destination = the_dst_module->name + "." + the_dst_port;
    if (call_build_)
        build_();
}

Here is the call graph for this function:


Member Function Documentation

string PLearn::NetworkConnection::_classname_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 50 of file NetworkConnection.cc.

OptionList & PLearn::NetworkConnection::_getOptionList_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 50 of file NetworkConnection.cc.

RemoteMethodMap & PLearn::NetworkConnection::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 50 of file NetworkConnection.cc.

bool PLearn::NetworkConnection::_isa_ ( const Object o) [static]

Reimplemented from PLearn::Object.

Definition at line 50 of file NetworkConnection.cc.

Object * PLearn::NetworkConnection::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 50 of file NetworkConnection.cc.

StaticInitializer NetworkConnection::_static_initializer_ & PLearn::NetworkConnection::_static_initialize_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 50 of file NetworkConnection.cc.

void PLearn::NetworkConnection::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::Object.

Definition at line 98 of file NetworkConnection.cc.

References PLearn::Object::build(), and build_().

Here is the call graph for this function:

void PLearn::NetworkConnection::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::Object.

Definition at line 173 of file NetworkConnection.cc.

Referenced by build(), and NetworkConnection().

{
}

Here is the caller graph for this function:

string PLearn::NetworkConnection::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 50 of file NetworkConnection.cc.

void PLearn::NetworkConnection::declareOptions ( OptionList ol) [static]

Declares the class options.

Reimplemented from PLearn::Object.

Definition at line 150 of file NetworkConnection.cc.

References PLearn::OptionBase::buildoption, PLearn::declareOption(), PLearn::Object::declareOptions(), destination, propagate_gradient, and source.

{
    declareOption(ol, "source", &NetworkConnection::source,
                  OptionBase::buildoption,
        "Source of the connection (of the form 'module.port').");

    declareOption(ol, "destination", &NetworkConnection::destination,
                  OptionBase::buildoption,
        "Destination of the connection (of the form 'module.port').");

    declareOption(ol, "propagate_gradient",
                  &NetworkConnection::propagate_gradient,
                  OptionBase::buildoption,
        "Whether or not the destination should propagate its gradient to the\n"
        "source.");

    // Now call the parent class' declareOptions
    inherited::declareOptions(ol);
}

Here is the call graph for this function:

static const PPath& PLearn::NetworkConnection::declaringFile ( ) [inline, static]

Reimplemented from PLearn::Object.

Definition at line 102 of file NetworkConnection.h.

:

NetworkConnection * PLearn::NetworkConnection::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 50 of file NetworkConnection.cc.

PP< OnlineLearningModule > PLearn::NetworkConnection::getDestinationModule ( )

Return the destination module.

Definition at line 180 of file NetworkConnection.cc.

References dst_module, and PLASSERT_MSG.

{
    PLASSERT_MSG( dst_module, "getDestinationModule() cannot be called before "
            "the connection is initialized");
    return dst_module;
}
const string & PLearn::NetworkConnection::getDestinationPort ( )

Return the destination port.

Definition at line 190 of file NetworkConnection.cc.

References dst_port, and PLASSERT_MSG.

{
    PLASSERT_MSG( !dst_port.empty(), "getDestinationPort() cannot be called "
            "before the connection is initialized");
    return dst_port;
}
OptionList & PLearn::NetworkConnection::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 50 of file NetworkConnection.cc.

OptionMap & PLearn::NetworkConnection::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 50 of file NetworkConnection.cc.

RemoteMethodMap & PLearn::NetworkConnection::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 50 of file NetworkConnection.cc.

PP< OnlineLearningModule > PLearn::NetworkConnection::getSourceModule ( )

Return the source module.

Definition at line 200 of file NetworkConnection.cc.

References PLASSERT_MSG, and src_module.

{
    PLASSERT_MSG( src_module, "getSourceModule() cannot be called before the "
            "connection is initialized");
    return src_module;
}
const string & PLearn::NetworkConnection::getSourcePort ( )

Return the source port.

Definition at line 210 of file NetworkConnection.cc.

References PLASSERT_MSG, and src_port.

{
    PLASSERT_MSG( !src_port.empty(), "getSourcePort() cannot be called before "
            "the connection is initialized");
    return src_port;
}
void PLearn::NetworkConnection::initialize ( map< string, PP< OnlineLearningModule > > &  modules)

Initialize the connection using the list of modules provided as a map from modules' names to pointers to the modules themselves.

The goal of the initialization is to properly set the 'src_module', 'src_port', 'dst_module' and 'dst_port' fields.

Definition at line 107 of file NetworkConnection.cc.

References PLearn::TVec< T >::append(), destination, dst_module, dst_port, PLearn::TVec< T >::find(), i, PLearn::TVec< T >::length(), PLASSERT, PLERROR, source, src_module, and src_port.

{
    TVec<string> specs;
    specs.append(source);
    specs.append(destination);
    for (int i = 0; i < specs.length(); i++) {
        const string& spec = specs[i];
        size_t dot_pos = spec.find('.');
        if (dot_pos == string::npos)
            PLERROR("In NetworkConnection::initialize - Could not find a dot "
                    "in the port specification '%s'", spec.c_str());
        string module_name = spec.substr(0, dot_pos);
        if (modules.find(module_name) == modules.end())
            PLERROR("In NetworkConnection::initialize - Could not find a "
                    "module named '%s'", module_name.c_str());
        PP<OnlineLearningModule> module = modules[module_name];
        string port = spec.substr(dot_pos + 1);
        if (i == 0) {
            src_module = module;
            src_port = port;
        } else {
            PLASSERT( i == 1 );
            dst_module = module;
            dst_port = port;
        }
    }

}

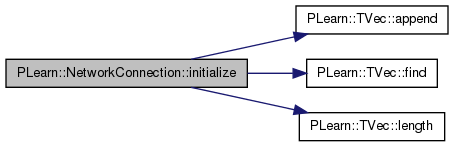

Here is the call graph for this function:

void PLearn::NetworkConnection::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Transforms a shallow copy into a deep copy.

Reimplemented from PLearn::Object.

Definition at line 139 of file NetworkConnection.cc.

References PLearn::deepCopyField(), dst_module, PLearn::Object::makeDeepCopyFromShallowCopy(), and src_module.

Here is the call graph for this function:


Member Data Documentation

Reimplemented from PLearn::Object.

Definition at line 102 of file NetworkConnection.h.

Definition at line 57 of file NetworkConnection.h.

Referenced by declareOptions(), initialize(), and NetworkConnection().

Destination module.

Definition at line 120 of file NetworkConnection.h.

Referenced by getDestinationModule(), initialize(), and makeDeepCopyFromShallowCopy().

Destination port.

Definition at line 123 of file NetworkConnection.h.

Referenced by getDestinationPort(), and initialize().

Definition at line 58 of file NetworkConnection.h.

Referenced by declareOptions().

Definition at line 56 of file NetworkConnection.h.

Referenced by declareOptions(), initialize(), and NetworkConnection().

Source module.

Definition at line 114 of file NetworkConnection.h.

Referenced by getSourceModule(), initialize(), and makeDeepCopyFromShallowCopy().

Source port.

Definition at line 117 of file NetworkConnection.h.

Referenced by getSourcePort(), and initialize().


The documentation for this class was generated from the following files:
