PLearn::DichotomizeVMatrix Class Reference

The first sentence should be a BRIEF DESCRIPTION of what the class does. More...

#include <DichotomizeVMatrix.h>

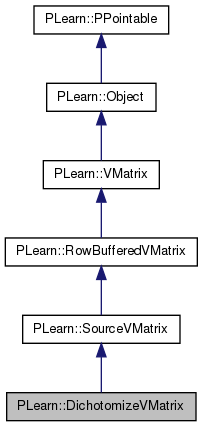

Inheritance diagram for PLearn::DichotomizeVMatrix:
Inheritance graph
[legend]

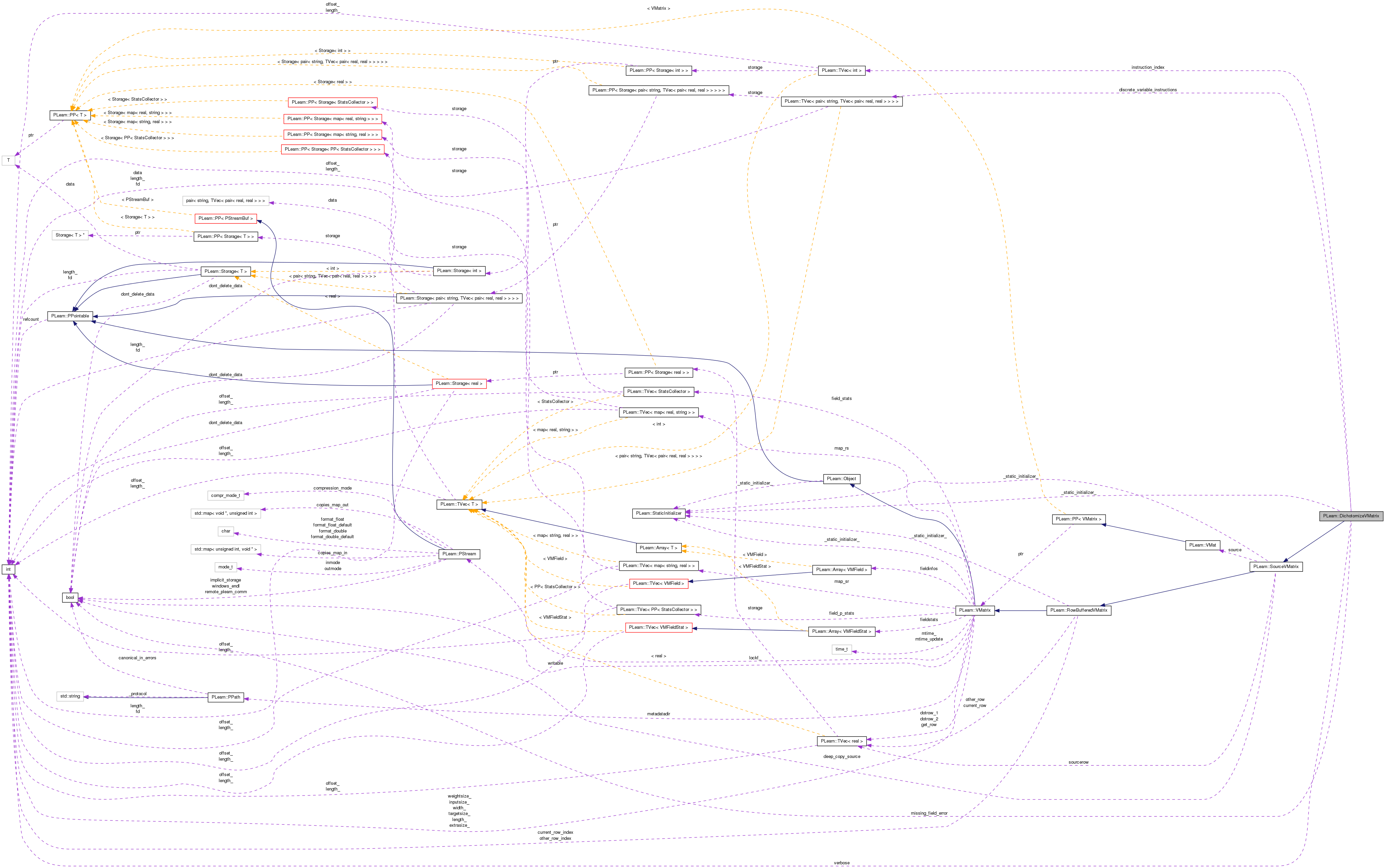

Collaboration diagram for PLearn::DichotomizeVMatrix:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 DichotomizeVMatrix ()
 Default constructor.
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual DichotomizeVMatrixdeepCopy (CopiesMap &copies) const
virtual void build ()
 Simply calls inherited::build() then build_().
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.

Static Public Member Functions

static string _classname_ ()
 Declares name and deepCopy methods.
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

TVec< pair< string, TVec< pair
< real, real > > > >
discrete_variable_instructions
 ### declare public option fields (such as build options) here Start your comments with Doxygen-compatible comments such as //!
int verbose
bool missing_field_error

Static Public Attributes

static StaticInitializer _static_initializer_

Protected Member Functions

virtual void getNewRow (int i, const Vec &v) const
 Fill the vector 'v' with the content of the i-th row.

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declares the class options.

Private Types

typedef SourceVMatrix inherited

Private Member Functions

void build_ ()
 This does the actual building.

Private Attributes

TVec< intinstruction_index

Detailed Description

The first sentence should be a BRIEF DESCRIPTION of what the class does.

Place the rest of the class programmer documentation here. Doxygen supports Javadoc-style comments. See http://www.doxygen.org/manual.html

Todo:
Write class to-do's here if there are any.
Deprecated:
Write deprecated stuff here if there is any. Indicate what else should be used instead.

Definition at line 57 of file DichotomizeVMatrix.h.


Member Typedef Documentation

Reimplemented from PLearn::SourceVMatrix.

Definition at line 59 of file DichotomizeVMatrix.h.


Constructor & Destructor Documentation

PLearn::DichotomizeVMatrix::DichotomizeVMatrix ( )

Default constructor.

Definition at line 54 of file DichotomizeVMatrix.cc.

                                      :
    verbose(3),
    missing_field_error(true)
/* ### Initialize all fields to their default value */
{
    // ...

    // ### You may (or not) want to call build_() to finish building the object
    // ### (doing so assumes the parent classes' build_() have been called too
    // ### in the parent classes' constructors, something that you must ensure)
}

Member Function Documentation

string PLearn::DichotomizeVMatrix::_classname_ ( ) [static]

Declares name and deepCopy methods.

Reimplemented from PLearn::SourceVMatrix.

Definition at line 52 of file DichotomizeVMatrix.cc.

OptionList & PLearn::DichotomizeVMatrix::_getOptionList_ ( ) [static]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 52 of file DichotomizeVMatrix.cc.

RemoteMethodMap & PLearn::DichotomizeVMatrix::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 52 of file DichotomizeVMatrix.cc.

bool PLearn::DichotomizeVMatrix::_isa_ ( const Object o) [static]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 52 of file DichotomizeVMatrix.cc.

Object * PLearn::DichotomizeVMatrix::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 52 of file DichotomizeVMatrix.cc.

StaticInitializer DichotomizeVMatrix::_static_initializer_ & PLearn::DichotomizeVMatrix::_static_initialize_ ( ) [static]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 52 of file DichotomizeVMatrix.cc.

void PLearn::DichotomizeVMatrix::build ( ) [virtual]

Simply calls inherited::build() then build_().

Reimplemented from PLearn::SourceVMatrix.

Definition at line 272 of file DichotomizeVMatrix.cc.

References PLearn::SourceVMatrix::build(), and build_().

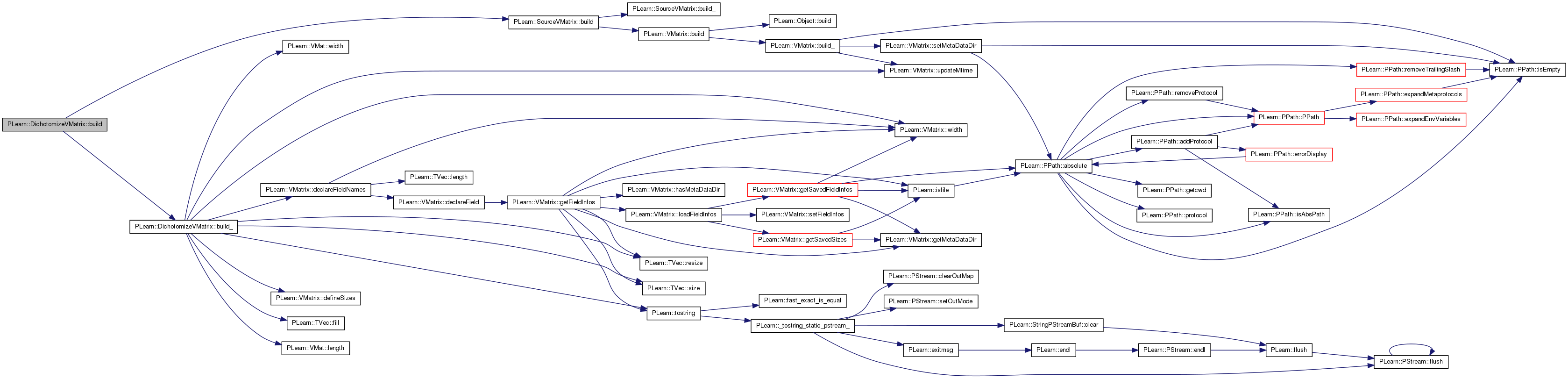

Here is the call graph for this function:

void PLearn::DichotomizeVMatrix::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::SourceVMatrix.

Definition at line 141 of file DichotomizeVMatrix.cc.

References PLearn::VMatrix::declareFieldNames(), PLearn::VMatrix::defineSizes(), discrete_variable_instructions, PLearn::TVec< T >::fill(), instruction_index, PLearn::VMat::length(), PLearn::VMatrix::length_, missing_field_error, PLERROR, PLWARNING, PLearn::TVec< T >::resize(), PLearn::TVec< T >::size(), PLearn::SourceVMatrix::source, PLearn::tostring(), PLearn::VMatrix::updateMtime(), PLearn::VMatrix::width(), PLearn::VMat::width(), and PLearn::VMatrix::width_.

Referenced by build().

{
    // ### This method should do the real building of the object,
    // ### according to set 'options', in *any* situation.
    // ### Typical situations include:
    // ###  - Initial building of an object from a few user-specified options
    // ###  - Building of a "reloaded" object: i.e. from the complete set of
    // ###    all serialised options.
    // ###  - Updating or "re-building" of an object after a few "tuning"
    // ###    options have been modified.
    // ### You should assume that the parent class' build_() has already been
    // ### called.

    updateMtime(source);

    TVec<string> source_names = source->fieldNames();

    instruction_index.resize(source->width());
    instruction_index.fill(-1);

    //validate the instruction and order them as in the source matrix
    for (int ins_col = 0; ins_col < discrete_variable_instructions.size();
         ins_col++)
    {
        int source_col;
        for (source_col = 0; source_col < source->width(); source_col++)
        {
            if (discrete_variable_instructions[ins_col].first == source_names[source_col]) break;
        }
        if (source_col >= source->width()){
            if(missing_field_error)
                PLERROR("In DichotomizeVMatrix::build_() -  "
                        "no field with this name in the source data set: %s",
                        (discrete_variable_instructions[ins_col].first).c_str());
            else
                PLWARNING("In DichotomizeVMatrix::build_() -  "
                        "no field with this name in the source data set: %s",
                        (discrete_variable_instructions[ins_col].first).c_str());
        }
        else instruction_index[source_col] = ins_col;
    }

    // initialize inputsize_,targetsize_,weightsize_, width_,length()
    length_=source->length();
    int sisize=source->inputsize();
    int stsize=source->targetsize();
    int swsize=source->weightsize();
    int isize=0;
    int tsize=0;
    int wsize=0;
    int esize=0;
    for (int source_col = 0; source_col < sisize; source_col++)
    {
        if (instruction_index[source_col] < 0) isize++;
        else
        {
            TVec<pair<real, real> > instruction_ptr =
                discrete_variable_instructions[instruction_index[source_col]].second;
            isize += instruction_ptr.size();
        }
    }
    for (int source_col = sisize;
         source_col < sisize + stsize; source_col++)
    {
        if (instruction_index[source_col] < 0) tsize++;
        else
        {
            TVec<pair<real, real> > instruction_ptr =
                discrete_variable_instructions[instruction_index[source_col]].second;
            tsize += instruction_ptr.size();
        }
    }
    for (int source_col = sisize + stsize;
         source_col < sisize + stsize + swsize ; source_col++)
    {
        if (instruction_index[source_col] < 0) wsize++;
        else
        {
            TVec<pair<real, real> > instruction_ptr =
                discrete_variable_instructions[instruction_index[source_col]].second;
            wsize += instruction_ptr.size();
        }
    }
    for (int source_col = sisize + stsize + swsize;
         source_col < sisize + stsize + swsize + source->extrasize() ; source_col++)
    {
        if (instruction_index[source_col] < 0) esize++;
        else
        {
            TVec<pair<real, real> > instruction_ptr =
                discrete_variable_instructions[instruction_index[source_col]].second;
            esize += instruction_ptr.size();
        }
    }
    defineSizes(isize, tsize, wsize, esize);
    width_ = isize + tsize + wsize + esize;

    //get the fieldnames
    TVec<string> fnames(width());
    int field_col = 0;
    for (int source_col = 0; source_col < source->width(); source_col++)
    {
        if (instruction_index[source_col] < 0)
        {
            fnames[field_col] = source_names[source_col];
            field_col += 1;
        }
        else
        {
           TVec<pair<real, real> > instruction_ptr =
               discrete_variable_instructions[instruction_index[source_col]].second;
           if (instruction_ptr.size() == 0)
           {
               PLWARNING("In DichotomizeVMatrix::build_() -"
                         "instruction for field %s have no range!",
                         discrete_variable_instructions[instruction_index[source_col]].first.c_str());
               continue;
           }
           for (int ins_col = 0; ins_col < instruction_ptr.size(); ins_col++)
           {
               fnames[field_col] = source_names[source_col] + "_"
                                        + tostring(instruction_ptr[ins_col].first) + "_"
                                        + tostring(instruction_ptr[ins_col].second);
               field_col += 1;
           }
        }
    }
    declareFieldNames(fnames);
}

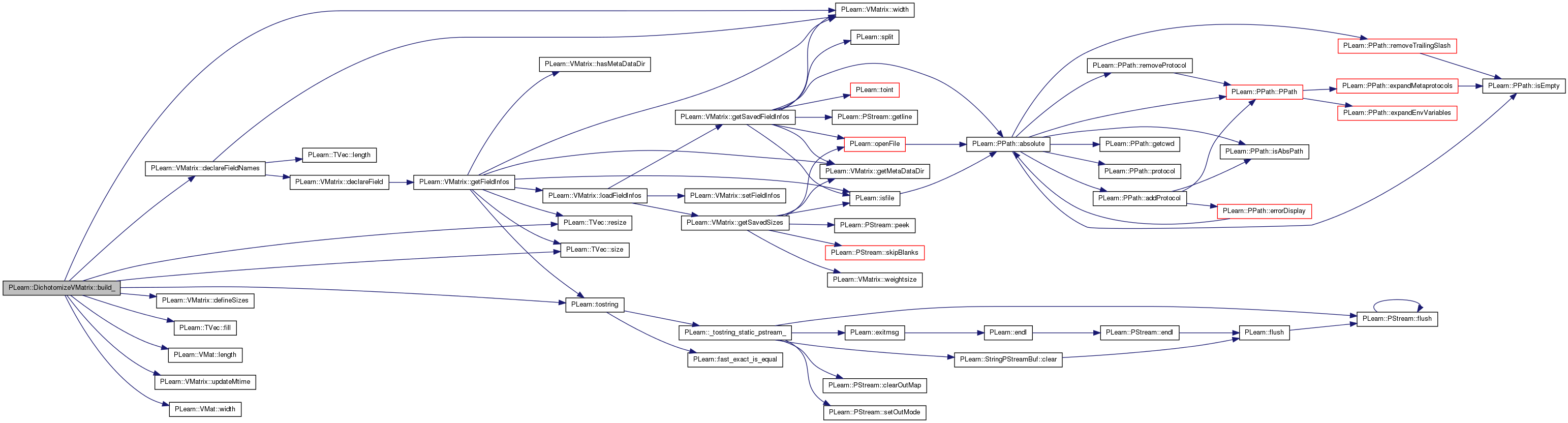

Here is the call graph for this function:

Here is the caller graph for this function:

string PLearn::DichotomizeVMatrix::classname ( ) const [virtual]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 52 of file DichotomizeVMatrix.cc.

void PLearn::DichotomizeVMatrix::declareOptions ( OptionList ol) [static, protected]

Declares the class options.

Reimplemented from PLearn::SourceVMatrix.

Definition at line 111 of file DichotomizeVMatrix.cc.

References PLearn::OptionBase::buildoption, PLearn::declareOption(), PLearn::SourceVMatrix::declareOptions(), discrete_variable_instructions, instruction_index, PLearn::OptionBase::learntoption, and missing_field_error.

{
    // ### Declare all of this object's options here.
    // ### For the "flags" of each option, you should typically specify
    // ### one of OptionBase::buildoption, OptionBase::learntoption or
    // ### OptionBase::tuningoption. If you don't provide one of these three,
    // ### this option will be ignored when loading values from a script.
    // ### You can also combine flags, for example with OptionBase::nosave:
    // ### (OptionBase::buildoption | OptionBase::nosave)

    declareOption(ol, "discrete_variable_instructions", &DichotomizeVMatrix::discrete_variable_instructions,
                  OptionBase::buildoption,
                  "The instructions to dichotomize the variables in the form of field_name : TVec<pair>.\n"
                  "The pairs are values from : to, each creating a 0, 1 variable.\n"
                  "Variables with no specification will be kept as_is.\n");

    declareOption(ol, "instruction_index", &DichotomizeVMatrix::instruction_index,
                  OptionBase::learntoption,
                  "An array that point each columns of the source matrix to its instruction.");

    declareOption(ol, "missing_field_error", &DichotomizeVMatrix::missing_field_error,
                  OptionBase::buildoption,
                  "If true we will generate an error is a field is"
                  " in the instruction but not in the source."
                  " Otherwise will generate a warning.");

    // Now call the parent class' declareOptions
    inherited::declareOptions(ol);
}

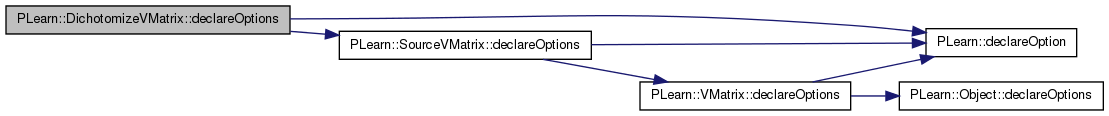

Here is the call graph for this function:

static const PPath& PLearn::DichotomizeVMatrix::declaringFile ( ) [inline, static]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 83 of file DichotomizeVMatrix.h.

:
    //#####  Protected Options  ###############################################
DichotomizeVMatrix * PLearn::DichotomizeVMatrix::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 52 of file DichotomizeVMatrix.cc.

void PLearn::DichotomizeVMatrix::getNewRow ( int  i,
const Vec v
) const [protected, virtual]

Fill the vector 'v' with the content of the i-th row.

'v' is assumed to be the right size.

Reimplemented from PLearn::SourceVMatrix.

Definition at line 66 of file DichotomizeVMatrix.cc.

References discrete_variable_instructions, PLearn::VMat::fieldName(), instruction_index, PLearn::is_missing(), MISSING_VALUE, PLWARNING, PLearn::TVec< T >::size(), PLearn::SourceVMatrix::source, verbose, and PLearn::VMat::width().

{
    Vec source_row(source->width());
    source->getRow(i,source_row);

    for (int source_col = 0,output_col = 0; source_col < source->width(); source_col++)
        {
            if (instruction_index[source_col] < 0)
            {
                v[output_col] = source_row[source_col];
                output_col += 1;
            }
            else
            {
               TVec<pair<real, real> > instruction_ptr = discrete_variable_instructions[instruction_index[source_col]].second;
               if (instruction_ptr.size() == 0) continue;
               bool missing = is_missing(source_row[source_col]);
               bool found_range = false;
               if(missing)
                   found_range=true;
               for (int ins_col = 0; ins_col < instruction_ptr.size(); ins_col++)
               {
                   if (missing)
                       v[output_col] = MISSING_VALUE;
                   else if (source_row[source_col] < instruction_ptr[ins_col].first
                            || source_row[source_col] > instruction_ptr[ins_col].second)
                       v[output_col] = 0.0;
                   else
                   {
                       v[output_col] = 1.0;
                       found_range=true;
                   }
                   output_col += 1;
               }
               if(found_range==false && verbose>2)
               {
                   PLWARNING("DichotomizeVMatrix::getNewRow() - "
                             "row %d, fields %s, have a value (%f) that are outside all dichotomize range",
                             i,source->fieldName(source_col).c_str(),source_row[source_col]);
               }
            }
        }

}

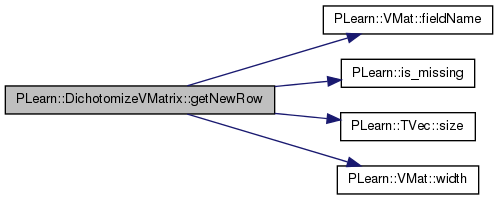

Here is the call graph for this function:

OptionList & PLearn::DichotomizeVMatrix::getOptionList ( ) const [virtual]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 52 of file DichotomizeVMatrix.cc.

OptionMap & PLearn::DichotomizeVMatrix::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 52 of file DichotomizeVMatrix.cc.

RemoteMethodMap & PLearn::DichotomizeVMatrix::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 52 of file DichotomizeVMatrix.cc.

void PLearn::DichotomizeVMatrix::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Transforms a shallow copy into a deep copy.

Reimplemented from PLearn::SourceVMatrix.

Definition at line 278 of file DichotomizeVMatrix.cc.

References PLearn::deepCopyField(), discrete_variable_instructions, instruction_index, and PLearn::SourceVMatrix::makeDeepCopyFromShallowCopy().

Here is the call graph for this function:


Member Data Documentation

Reimplemented from PLearn::SourceVMatrix.

Definition at line 83 of file DichotomizeVMatrix.h.

### declare public option fields (such as build options) here Start your comments with Doxygen-compatible comments such as //!

Definition at line 66 of file DichotomizeVMatrix.h.

Referenced by build_(), declareOptions(), getNewRow(), and makeDeepCopyFromShallowCopy().

Definition at line 69 of file DichotomizeVMatrix.h.

Referenced by build_(), and declareOptions().

Definition at line 68 of file DichotomizeVMatrix.h.

Referenced by getNewRow().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
