PLearn::MoleculeTemplate Class Reference

Subclass of Molecule, plus standard devs of points' positions and features. More...

#include <MoleculeTemplate.h>

Inheritance diagram for PLearn::MoleculeTemplate:
Inheritance graph
[legend]

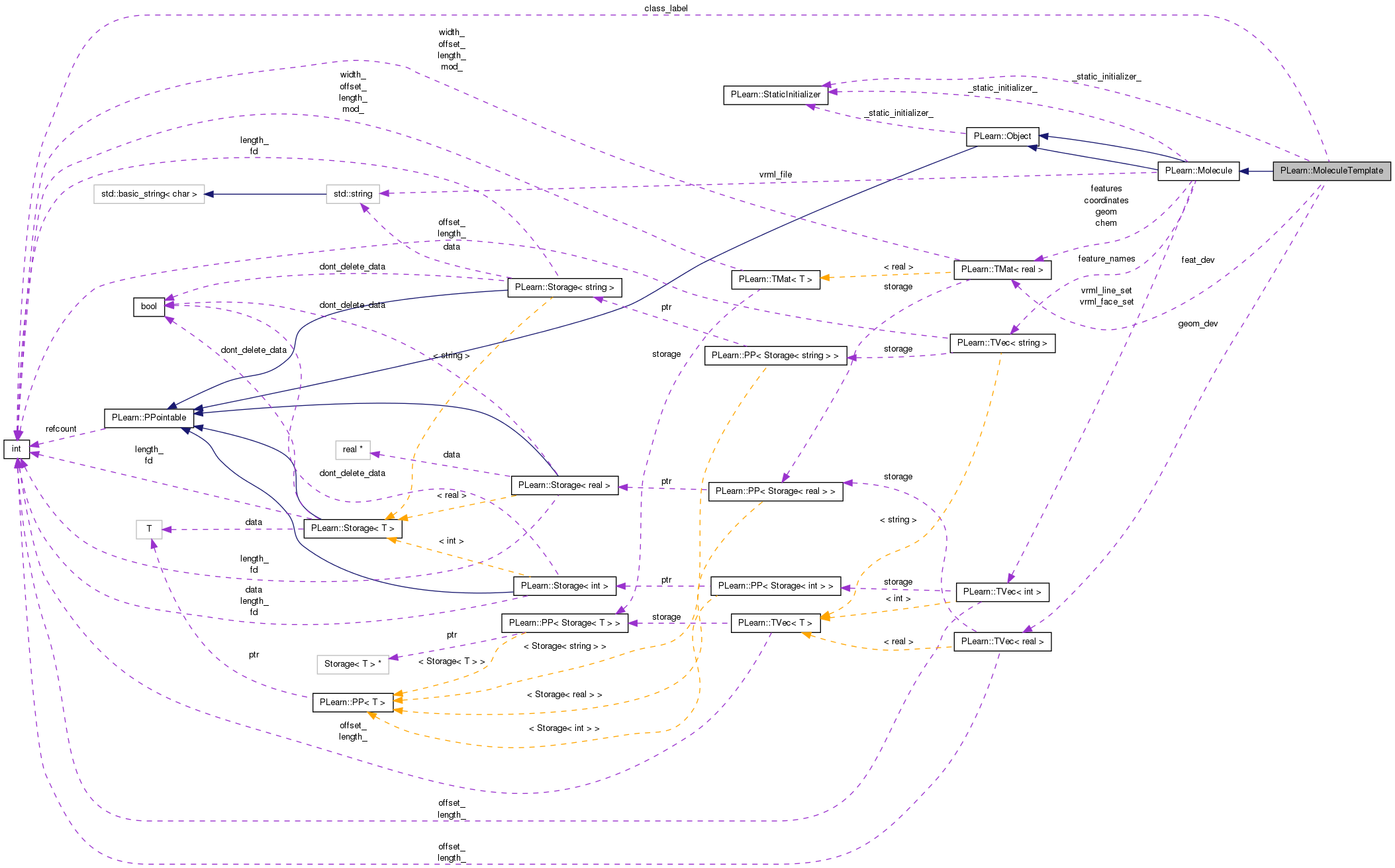

Collaboration diagram for PLearn::MoleculeTemplate:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 MoleculeTemplate (int the_class_label=-1)
 Default constructor.
 MoleculeTemplate (const PPath &filename, int the_class_label=-1)
 Constructor from files.
 MoleculeTemplate (const Molecule &molecule, const Vec &the_geom_dev=Vec(), const Mat &the_feat_dev=Mat(), int the_class_label=-1)
 Constructor from parent.
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual MoleculeTemplatedeepCopy (CopiesMap &copies) const
virtual void build ()
 Post-constructor.
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.

Static Public Member Functions

static string _classname_ ()
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

Vec geom_dev
 ### declare public option fields (such as build options) here
Mat feat_dev
 standard deviations of each chemical property
int class_label
 class label, 0 for inactive, 1 for active, -1 for uninitialized

Static Public Attributes

static StaticInitializer _static_initializer_

Protected Member Functions

virtual void readFromAMATFile (const PPath &filename)
 Override inherited function to read also deviation info, if able.
virtual void writeToAMATFile (const PPath &filename)
 Override inherited function to write also deviation info.

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declares the class options.

Private Types

typedef Molecule inherited

Private Member Functions

void build_ ()
 This does the actual building.

Detailed Description

Subclass of Molecule, plus standard devs of points' positions and features.

There is only one geometric standard deviation per point (since space dimenstions are equivalent), there is one chemical standard deviation per chemical feature on every point (stored in the same order as the corresponding feature value).

Definition at line 59 of file MoleculeTemplate.h.


Member Typedef Documentation

Reimplemented from PLearn::Molecule.

Definition at line 61 of file MoleculeTemplate.h.


Constructor & Destructor Documentation

PLearn::MoleculeTemplate::MoleculeTemplate ( int  the_class_label = -1)

Default constructor.

Definition at line 59 of file MoleculeTemplate.cc.

    : class_label( the_class_label )
{
}
PLearn::MoleculeTemplate::MoleculeTemplate ( const PPath filename,
int  the_class_label = -1
)

Constructor from files.

Definition at line 64 of file MoleculeTemplate.cc.

References build(), and PLearn::Molecule::readFromFile().

    : class_label( the_class_label )
{
    readFromFile( filename );
    build();
}

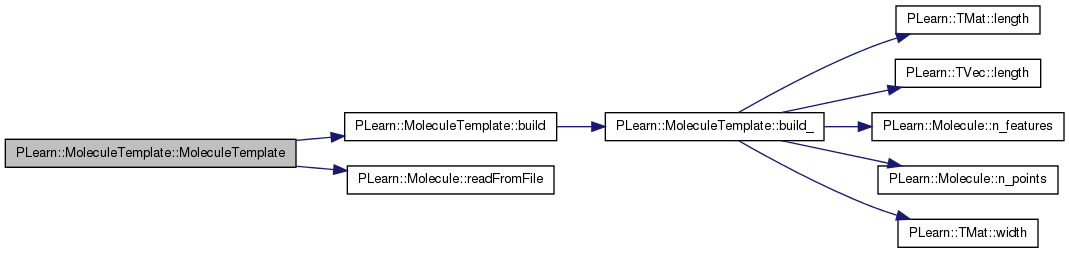

Here is the call graph for this function:

PLearn::MoleculeTemplate::MoleculeTemplate ( const Molecule molecule,
const Vec the_geom_dev = Vec(),
const Mat the_feat_dev = Mat(),
int  the_class_label = -1
)

Constructor from parent.

Definition at line 72 of file MoleculeTemplate.cc.

    : inherited( molecule ),
      geom_dev( the_geom_dev ),
      feat_dev( the_feat_dev ),
      class_label( the_class_label )
{
//    build();
}

Member Function Documentation

string PLearn::MoleculeTemplate::_classname_ ( ) [static]

Reimplemented from PLearn::Molecule.

Definition at line 57 of file MoleculeTemplate.cc.

OptionList & PLearn::MoleculeTemplate::_getOptionList_ ( ) [static]

Reimplemented from PLearn::Molecule.

Definition at line 57 of file MoleculeTemplate.cc.

RemoteMethodMap & PLearn::MoleculeTemplate::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::Molecule.

Definition at line 57 of file MoleculeTemplate.cc.

bool PLearn::MoleculeTemplate::_isa_ ( const Object o) [static]

Reimplemented from PLearn::Molecule.

Definition at line 57 of file MoleculeTemplate.cc.

Object * PLearn::MoleculeTemplate::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Molecule.

Definition at line 57 of file MoleculeTemplate.cc.

StaticInitializer MoleculeTemplate::_static_initializer_ & PLearn::MoleculeTemplate::_static_initialize_ ( ) [static]

Reimplemented from PLearn::Molecule.

Definition at line 57 of file MoleculeTemplate.cc.

void PLearn::MoleculeTemplate::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::Molecule.

Definition at line 84 of file MoleculeTemplate.cc.

References build_().

Referenced by MoleculeTemplate().

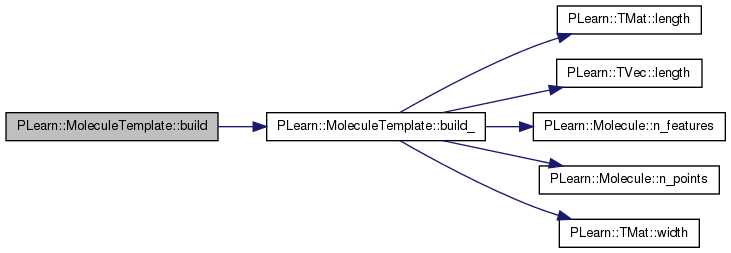

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::MoleculeTemplate::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::Molecule.

Definition at line 186 of file MoleculeTemplate.cc.

References feat_dev, geom_dev, PLearn::TMat< T >::length(), PLearn::TVec< T >::length(), PLearn::Molecule::n_features(), PLearn::Molecule::n_points(), PLERROR, PLWARNING, and PLearn::TMat< T >::width().

Referenced by build().

{
    // Size check
    int geom_dev_length = geom_dev.length();
    int feat_dev_length = feat_dev.length();
    int feat_dev_width = feat_dev.width();

    // TODO: resize if empty?
    if( geom_dev_length == 0 )
    {
        PLWARNING( "MoleculeTemplate::build_ - geom_dev.length() == 0,\n"
                   "resizing to n_points() (%d), and filling with"
                   " 1's.\n", n_points() );
        geom_dev = Vec( n_points(), 1 );
    }
    else if( geom_dev_length != n_points() )
        PLERROR( "MoleculeTemplate::build_ - geom_dev.length() should be equal"
                 " to\n"
                 "n_points() (%d != %d).\n",
                 geom_dev_length, n_points() );

    if( feat_dev_length == 0 && feat_dev_width == 0 )
    {
        PLWARNING( "MoleculeTemplate::build_ - feat_dev.length() == 0 and\n"
                   "feat_dev.width() == 0. Resizing to n_points() ×"
                   " n_features()\n"
                   "(%d × %d), and filling with 1's.\n",
                   n_points(), n_features() );
        feat_dev = Mat( n_points(), n_features(), 1 );
    }
    else if( feat_dev_length != n_points() )
        PLERROR( "MoleculeTemplate::build_ - feat_dev.length() should be equal"
                 " to\n"
                 "n_points() (%d != %d).\n",
                 feat_dev_length, n_points() );
    else if( feat_dev_width != n_features() )
        PLERROR( "MoleculeTemplate::build_ - feat_dev.width() should be equal"
                 " to\n"
                 "n_features() (%d != %d).\n", feat_dev_width, n_features() );

}

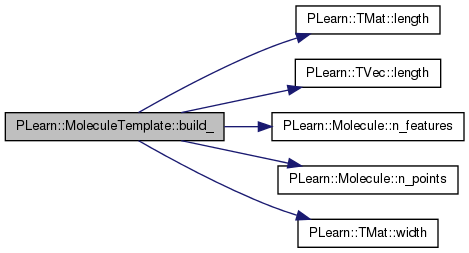

Here is the call graph for this function:

Here is the caller graph for this function:

string PLearn::MoleculeTemplate::classname ( ) const [virtual]

Reimplemented from PLearn::Molecule.

Definition at line 57 of file MoleculeTemplate.cc.

void PLearn::MoleculeTemplate::declareOptions ( OptionList ol) [static, protected]

Declares the class options.

Reimplemented from PLearn::Molecule.

Definition at line 164 of file MoleculeTemplate.cc.

References PLearn::OptionBase::buildoption, class_label, PLearn::declareOption(), feat_dev, and geom_dev.

{
    // declareOption(ol, "myoption", &MoleculeTemplate::myoption, OptionBase::buildoption,
    //               "Help text describing this option");

    declareOption(ol, "geom_dev", &MoleculeTemplate::geom_dev,
                  OptionBase::buildoption,
                  "Standard deviations of the geometrical distance");

    declareOption(ol, "feat_dev", &MoleculeTemplate::feat_dev,
                  OptionBase::buildoption,
                  "Standard deviations of each chemical property");

    declareOption(ol, "class_label", &MoleculeTemplate::class_label,
                  OptionBase::buildoption,
                  "Class label (0 for inactive, 1 for active, -1 for"
                  " uninitialized");

    // Now call the parent class' declareOptions
    inherited::declareOptions(ol);
}

Here is the call graph for this function:

static const PPath& PLearn::MoleculeTemplate::declaringFile ( ) [inline, static]

Reimplemented from PLearn::Molecule.

Definition at line 98 of file MoleculeTemplate.h.

:
    //#####  Protected Options  ###############################################
MoleculeTemplate * PLearn::MoleculeTemplate::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::Molecule.

Definition at line 57 of file MoleculeTemplate.cc.

OptionList & PLearn::MoleculeTemplate::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Molecule.

Definition at line 57 of file MoleculeTemplate.cc.

OptionMap & PLearn::MoleculeTemplate::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Molecule.

Definition at line 57 of file MoleculeTemplate.cc.

RemoteMethodMap & PLearn::MoleculeTemplate::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Molecule.

Definition at line 57 of file MoleculeTemplate.cc.

void PLearn::MoleculeTemplate::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Transforms a shallow copy into a deep copy.

Reimplemented from PLearn::Molecule.

Definition at line 90 of file MoleculeTemplate.cc.

References PLearn::deepCopyField(), feat_dev, and geom_dev.

{
    inherited::makeDeepCopyFromShallowCopy(copies);

    // deepCopyField(trainvec, copies);

    deepCopyField(geom_dev, copies);
    deepCopyField(feat_dev, copies);
}

Here is the call graph for this function:

void PLearn::MoleculeTemplate::readFromAMATFile ( const PPath filename) [protected, virtual]

Override inherited function to read also deviation info, if able.

Reimplemented from PLearn::Molecule.

Definition at line 100 of file MoleculeTemplate.cc.

References PLearn::TMat< T >::column(), PLearn::TMat< T >::compact(), feat_dev, PLearn::Molecule::feature_names, PLearn::Molecule::features, PLearn::TVec< T >::findIndices(), geom_dev, PLearn::getDataSet(), PLERROR, PLearn::TVec< T >::size(), PLearn::TMat< T >::subMatColumns(), PLearn::TVec< T >::subVec(), PLearn::VMat::toMat(), PLearn::TMat< T >::toVecCopy(), and PLearn::VMat::width().

{
    VMat all = getDataSet( filename );
    Mat all_mat = all->toMat();
    int all_width = all->width();
    TVec<string> all_names = all->fieldNames();

    TVec<int> geom_dev_positions = all_names.findIndices( "geom_dev" );
    if( geom_dev_positions.size() == 0 )
    {
        features = all_mat;
        features.compact();

        feature_names = all_names;
    }
    else if( geom_dev_positions.size() == 1 )
    {
        int gd_pos = geom_dev_positions[0];
        if( all_width != gd_pos+1 && all_width != 2*gd_pos+1 )
            PLERROR( "MoleculeTemplate::readFromAMATFile - 'geom_dev' is field"
                     " number %d,\n"
                     "there are %d following fields (expecting 0 or %d).\n",
                     gd_pos, all_width-gd_pos-1, gd_pos );

        features = all_mat.subMatColumns(0, gd_pos);
        features.compact();

        geom_dev = all_mat.column( gd_pos ).toVecCopy();
        feat_dev = all_mat.subMatColumns(all_width - gd_pos, gd_pos );
        feat_dev.compact();

        feature_names = all_names.subVec(0, gd_pos );
    }
    else
    {
        PLERROR( "MoleculeTemplate::readFromAMATFile - 'geom_dev' field should"
                 " be present\n"
                 "only once in amat file (present %d times).\n",
                 geom_dev_positions.size() );
    }
}

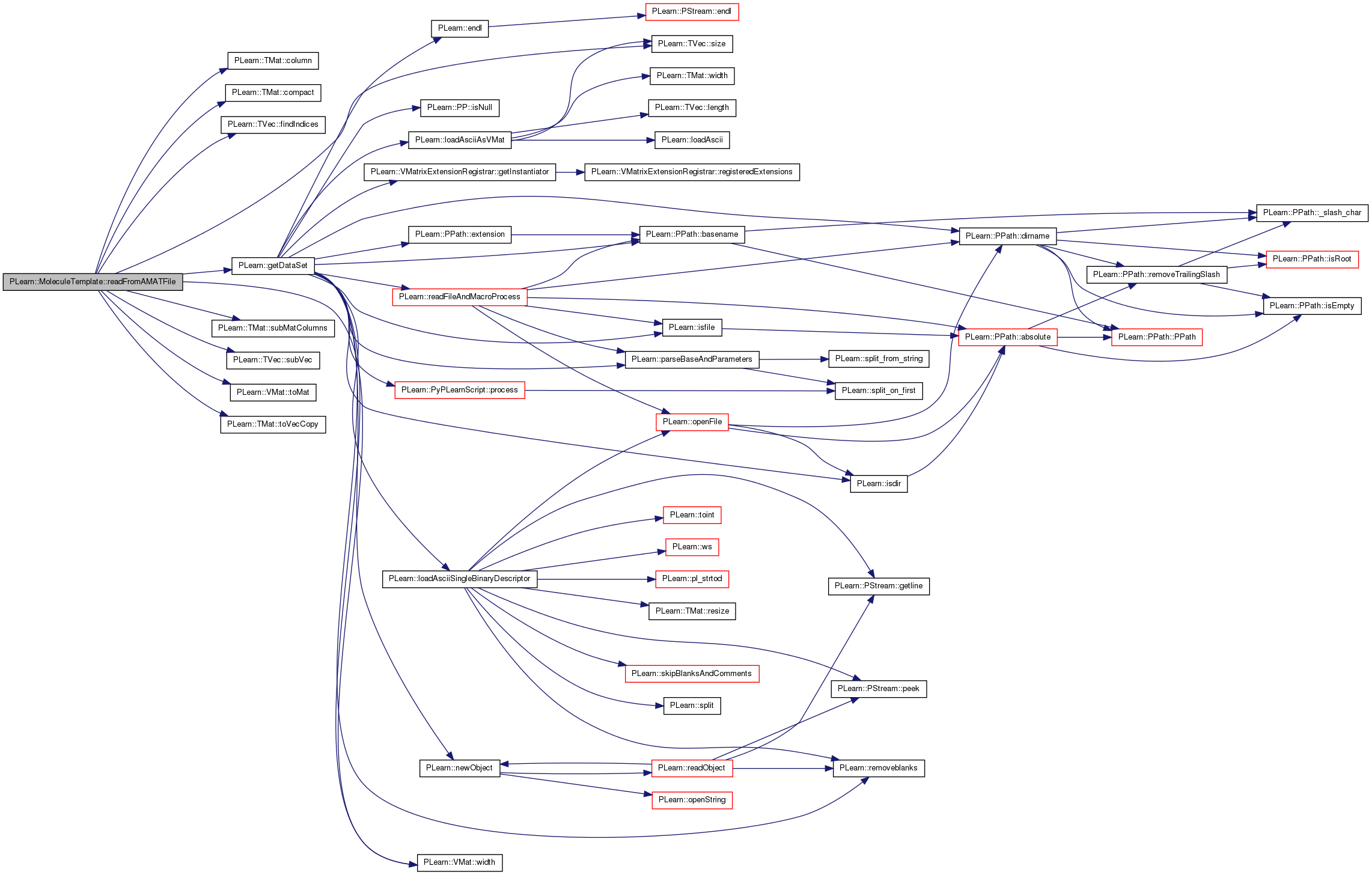

Here is the call graph for this function:

void PLearn::MoleculeTemplate::writeToAMATFile ( const PPath filename) [protected, virtual]

Override inherited function to write also deviation info.

Reimplemented from PLearn::Molecule.

Definition at line 143 of file MoleculeTemplate.cc.

References PLearn::TVec< T >::copy(), feat_dev, PLearn::Molecule::feature_names, PLearn::Molecule::features, geom_dev, PLearn::hconcat(), i, PLearn::TVec< T >::length(), PLearn::Molecule::n_features(), PLearn::TVec< T >::toMat(), and PLearn::VMat::width().

{
    VMat features_ = new MemoryVMatrix( features );
    features_->declareFieldNames( feature_names );

    VMat geom_dev_ = new MemoryVMatrix( geom_dev.toMat(geom_dev.length(), 1) );
    TVec<string> geom_dev_names( 1, "geom_dev" );
    geom_dev_->declareFieldNames( geom_dev_names );

    VMat feat_dev_ = new MemoryVMatrix( feat_dev );
    TVec<string> feat_dev_names = feature_names.copy();
    for( int i=0 ; i<n_features() ; i++ )
        feat_dev_names[i] += "_dev";
    feat_dev_->declareFieldNames( feat_dev_names );

    VMat all = hconcat( features_, hconcat( geom_dev_, feat_dev_ ) );
    all->defineSizes( all->width(), 0, 0 );
    all->saveAMAT( filename, false );
}

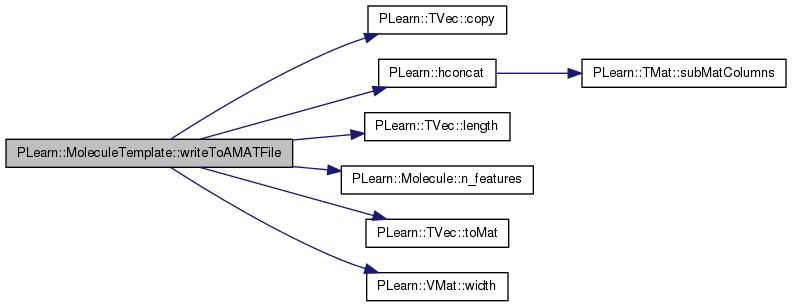

Here is the call graph for this function:


Member Data Documentation

Reimplemented from PLearn::Molecule.

Definition at line 98 of file MoleculeTemplate.h.

class label, 0 for inactive, 1 for active, -1 for uninitialized

Definition at line 75 of file MoleculeTemplate.h.

Referenced by declareOptions().

standard deviations of each chemical property

Definition at line 72 of file MoleculeTemplate.h.

Referenced by build_(), declareOptions(), makeDeepCopyFromShallowCopy(), readFromAMATFile(), and writeToAMATFile().

### declare public option fields (such as build options) here

standard deviations of the geometrical distance

Definition at line 69 of file MoleculeTemplate.h.

Referenced by build_(), declareOptions(), makeDeepCopyFromShallowCopy(), readFromAMATFile(), and writeToAMATFile().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
