PLearn::StructuralLearner Class Reference

Putain de code fait à la va-vite pour ICML. More...

#include <StructuralLearner.h>

Inheritance diagram for PLearn::StructuralLearner:
Inheritance graph
[legend]

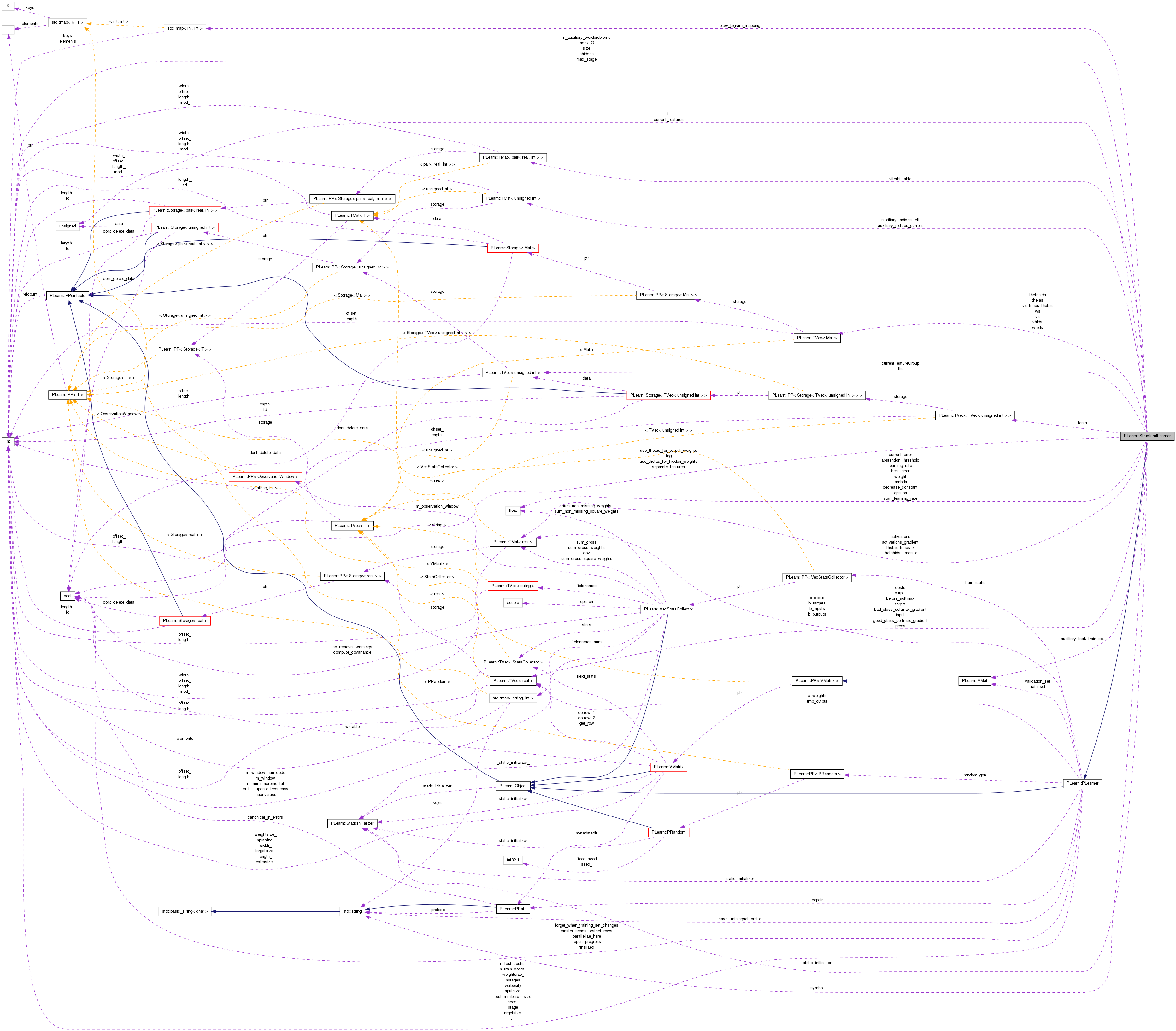

Collaboration diagram for PLearn::StructuralLearner:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 StructuralLearner ()
 Default constructor.
virtual int outputsize () const
 Returns the size of this learner's output, (which typically may depend on its inputsize(), targetsize() and set options).
virtual void forget ()
 (Re-)initializes the PLearner in its fresh state (that state may depend on the 'seed' option) and sets 'stage' back to 0 (this is the stage of a fresh learner!).
virtual void train ()
 The role of the train method is to bring the learner up to stage==nstages, updating the train_stats collector with training costs measured on-line in the process.
virtual void computeOutput (const Vec &input, Vec &output) const
 Computes the output from the input.
virtual void computeCostsFromOutputs (const Vec &input, const Vec &output, const Vec &target, Vec &costs) const
 Computes the costs from already computed output.
virtual TVec< std::string > getTestCostNames () const
 Returns the names of the costs computed by computeCostsFromOutpus (and thus the test method).
virtual TVec< std::string > getTrainCostNames () const
 Returns the names of the objective costs that the train method computes and for which it updates the VecStatsCollector train_stats.
virtual void computeOutputWithFeatures (TVec< TVec< unsigned int > > &feats, Vec &output, bool use_theta=true, int begin_class=-1, int end_class=-1) const
void computeFeatures (const Vec &input, const Vec &target, int data_set, int index, TVec< TVec< unsigned int > > &theFeatureGroups, char featureMask=0x1F) const
 Takes an example as input and returns the corresponding features.
void updateFeatures (const Vec &input, const Vec &target, TVec< TVec< unsigned int > > &theFeatureGroups, char featureMask=0x1F) const
 Updates features computed in computeFeatures().
virtual void test (VMat testset, PP< VecStatsCollector > test_stats, VMat testoutputs=0, VMat testcosts=0) const
 Performs test on testset, updating test cost statistics, and optionally filling testoutputs and testcosts.
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual StructuralLearnerdeepCopy (CopiesMap &copies) const
virtual void build ()
 Finish building the object; just call inherited::build followed by build_()
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.

Static Public Member Functions

static string _classname_ ()
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

real start_learning_rate
real decrease_constant
VMat auxiliary_task_train_set
real lambda
real abstention_threshold
real epsilon
int index_O
int nhidden
int n_auxiliary_wordproblems
bool separate_features
int max_stage
bool use_thetas_for_output_weights
bool use_thetas_for_hidden_weights

Static Public Attributes

static StaticInitializer _static_initializer_

Protected Member Functions

virtual void initializeParams (bool set_seed=true)
 Initialize the parameters.
void initWordProblemsStructures ()
 Determines the most frequent words on the auxiliary example set and fills auxiliary_indices_current, auxiliary_indices_left accordingly.
void initPreviousLabelCurrentWordBigramMapping ()
 Build a map of "previous label - current word" bigrams seen in train_set to an index.
void buildTasksParameters (int nout, TVec< unsigned int > feat_lengths)
void buildThetaParameters (TVec< unsigned int > feat_lengths)

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declares the class options.

Protected Attributes

Mat activations_gradient
Vec good_class_softmax_gradient
Vec bad_class_softmax_gradient
TVec< Matvs_times_thetas
TVec< Matws
TVec< Matvs
TVec< Matthetas
TVec< Matwhids
TVec< Matvhids
TVec< Matthetahids
TVec< TVec< unsigned int > > feats
unsigned intcurrent_features
Mat thetas_times_x
Mat thetahids_times_x
Mat activations
Vec input
Vec target
Vec before_softmax
Vec output
Vec costs
real weight
real learning_rate
TVec< unsigned intcurrentFeatureGroup
bool tag
int size
unsigned int fl
std::string symbol
TVec< unsigned intfls
TMat< unsigned intauxiliary_indices_current
TMat< unsigned intauxiliary_indices_left
TMat< pair< real, int > > viterbi_table
Vec preds
std::map< int, intplcw_bigram_mapping
real best_error
real current_error

Private Types

typedef PLearner inherited

Private Member Functions

void build_ ()
 This does the actual building.

Detailed Description

Putain de code fait à la va-vite pour ICML.

Definition at line 54 of file StructuralLearner.h.


Member Typedef Documentation

Reimplemented from PLearn::PLearner.

Definition at line 56 of file StructuralLearner.h.


Constructor & Destructor Documentation

PLearn::StructuralLearner::StructuralLearner ( )

Default constructor.

Definition at line 86 of file StructuralLearner.cc.

References PLearn::endl().

{

  std::cerr << "StructuralLearner::StructuralLearner()" << std::endl;

  // With these values, will not learn
  start_learning_rate=0.01;
  decrease_constant=0.0;
  lambda=1e-5;
  index_O = 0;
  nhidden = 0;
  separate_features = 1;
  n_auxiliary_wordproblems = 100;
  epsilon = 1e-4;
  max_stage = INT_MAX;
  use_thetas_for_output_weights=1;
  use_thetas_for_hidden_weights=0;

  //m_tvec_auxiliaryLearners.resize(0);

  // ### You may (or not) want to call build_() to finish building the object
  // ### (doing so assumes the parent classes' build_() have been called too
  // ### in the parent classes' constructors, something that you must ensure)
}

Here is the call graph for this function:


Member Function Documentation

string PLearn::StructuralLearner::_classname_ ( ) [static]

Reimplemented from PLearn::PLearner.

Definition at line 84 of file StructuralLearner.cc.

OptionList & PLearn::StructuralLearner::_getOptionList_ ( ) [static]

Reimplemented from PLearn::PLearner.

Definition at line 84 of file StructuralLearner.cc.

RemoteMethodMap & PLearn::StructuralLearner::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::PLearner.

Definition at line 84 of file StructuralLearner.cc.

bool PLearn::StructuralLearner::_isa_ ( const Object o) [static]

Reimplemented from PLearn::PLearner.

Definition at line 84 of file StructuralLearner.cc.

Object * PLearn::StructuralLearner::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 84 of file StructuralLearner.cc.

StaticInitializer StructuralLearner::_static_initializer_ & PLearn::StructuralLearner::_static_initialize_ ( ) [static]

Reimplemented from PLearn::PLearner.

Definition at line 84 of file StructuralLearner.cc.

void PLearn::StructuralLearner::build ( ) [virtual]

Finish building the object; just call inherited::build followed by build_()

Reimplemented from PLearn::PLearner.

Definition at line 366 of file StructuralLearner.cc.

void PLearn::StructuralLearner::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::PLearner.

Definition at line 318 of file StructuralLearner.cc.

References PLearn::endl(), i, and PLWARNING.

{
    std::cerr << "StructuralLearner::build_()" << std::endl;

  if(train_set)
  {
    // ***** Sanity checks
    if(weightsize_ < 0)
      PLWARNING("In StructuralLearner::build_(): negative weightsize_");
    if(weightsize_ > 0)
      PLWARNING("In StructuralLearner::build_(): does not support weighting of the training set");
    if(targetsize_ < 0)
      PLWARNING("In StructuralLearner::build_(): negative targetsize_");
    if(targetsize_ > 1)
      PLWARNING("In StructuralLearner::build_(): multi-target learning is not supported, only one (hardcoded) target will be considered");

    // ***** Resize vectors
    input.resize(inputsize());
    target.resize(targetsize());
    costs.resize(getTrainCostNames().length());

    initPreviousLabelCurrentWordBigramMapping();

    // dummy call to computeFeatures in order to set fls
    computeFeatures(input, target, 0, 0, feats);

    // Make sure that all feats have non null storage
    for(int i=0; i<feats.length(); i++)
        feats[i].resize(1);

    if(auxiliary_task_train_set && stage == 0)
        buildTasksParameters(2*n_auxiliary_wordproblems,fls);
    else
        buildTasksParameters(outputsize(),fls);

    if(auxiliary_task_train_set)
        buildThetaParameters(fls);

    if(stage==0 || stage ==1)
        initializeParams();

    if( auxiliary_task_train_set && stage==0 && auxiliary_indices_left.size()==0) {
        initWordProblemsStructures();
    }
  }// if we have a train_set
}

Here is the call graph for this function:

void PLearn::StructuralLearner::buildTasksParameters ( int  nout,
TVec< unsigned int feat_lengths
) [protected]

Definition at line 161 of file StructuralLearner.cc.

References i, PLearn::TVec< T >::length(), and PLearn::ws().

{

    before_softmax.resize(nout);
    output.resize(nout);
    good_class_softmax_gradient.resize(nout);
    bad_class_softmax_gradient.resize(nout);

    if(!separate_features)
    {
        if(nhidden <= 0 || use_thetas_for_output_weights)
            vs.resize( 1 );
        else
            vs.resize( 0 );

        if(nhidden > 0)
        {
            ws.resize(1);
            whids.resize( feat_lengths.length() );
            if(use_thetas_for_hidden_weights)
                vhids.resize( 1 );
            else
                vhids.resize( 0 );
            vs_times_thetas.resize(1);
        }
        else
            ws.resize(feat_lengths.length());
    }
    else
    {
        ws.resize( feat_lengths.length() );

        if(nhidden <= 0 || use_thetas_for_output_weights)
            vs.resize( feat_lengths.length()-3);
        else
            vs.resize( 0 );

        if(nhidden > 0)
        {
            whids.resize( feat_lengths.length() );
            if(use_thetas_for_hidden_weights)
                vhids.resize( feat_lengths.length()-3);
            else
                vhids.resize( 0 );
            vs_times_thetas.resize(feat_lengths.length()-3);
        }
    }

    for(int i=0; i<ws.length(); i++)  {
        if(nhidden>0)
            ws[i].resize( nout, nhidden +1);  // +1 for the bias
        else
            ws[i].resize( nout, feat_lengths[i] ); // bias is included in features...
    }

    for(int i=0; i<vs.length(); i++)  {
        vs[i].resize( nout, 50 );
    }

    for(int i=0; i<whids.length(); i++)  {
        whids[i].resize(nhidden,feat_lengths[i]);
    }

    for(int i=0; i<vhids.length(); i++)  {
        vhids[i].resize(nhidden,50);
    }


    for(int i=0; i<vs_times_thetas.length(); i++)
        vs_times_thetas[i].resize(nout,nhidden);

    if(nhidden > 0)
    {
        if(separate_features)
        {
            activations.resize(nhidden+1,feat_lengths.length()); // +1 for the bias
            activations_gradient.resize(nhidden+1,feat_lengths.length()); // +1 for the bias
        }
        else
        {
            activations.resize(nhidden+1,1); // idem
            activations_gradient.resize(nhidden+1,1); // idem
        }
    }
}

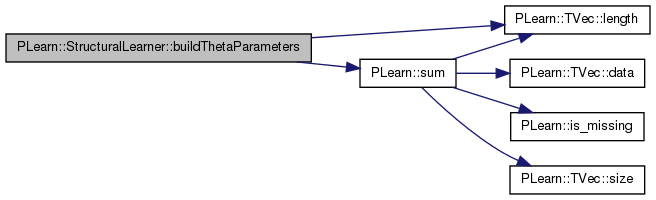

Here is the call graph for this function:

void PLearn::StructuralLearner::buildThetaParameters ( TVec< unsigned int feat_lengths) [protected]

Definition at line 247 of file StructuralLearner.cc.

References i, PLearn::TVec< T >::length(), and PLearn::sum().

{
    if(separate_features)
    {
        if(nhidden <= 0 || use_thetas_for_output_weights)
        {
            thetas.resize( feat_lengths.length()-3 );  // Do not consider features for previous tags, + features for the presence of digits and capital letters (there are too few of them)!
            thetas_times_x.resize( 50, feat_lengths.length()-3 );
            for(int i=0; i<thetas.length(); i++)  {
                if(nhidden>0)
                    thetas[i].resize( 50, nhidden +1); // +1 for the bias
                else
                    thetas[i].resize( 50, feat_lengths[i] );
            }
        }
        else
        {
            thetas.resize(0);
            thetas_times_x.resize(0,0);
        }

        if(nhidden > 0 && use_thetas_for_hidden_weights)
        {
            thetahids.resize( feat_lengths.length()-3 );  // Do not consider features for previous tags, + features for the presence of digits and capital letters (there are too few of them)!
            thetahids_times_x.resize( 50, feat_lengths.length()-3 );
            for(int i=0; i<thetahids.length(); i++)  {
                thetahids[i].resize( 50, feat_lengths[i] );
            }
        }
        else
        {
            thetahids.resize(0);
            thetahids_times_x.resize(0,0);
        }

    }
    else
    {
        int nfeat = sum(feat_lengths);
        if(nhidden <= 0 || use_thetas_for_output_weights)
        {
            thetas.resize( 1 );  // Do not consider features for previous tags, + features for the presence of digits and capital letters (there are too few of them)!
            thetas_times_x.resize( 50, 1 );
            if(nhidden>0)
                thetas[0].resize( 50, nhidden +1); // +1 for the bias
            else
                thetas[0].resize( 50, nfeat );
        }
        else
        {
            thetas.resize(0);
            thetas_times_x.resize(0,0);
        }

        if(nhidden > 0 && use_thetas_for_hidden_weights)
        {
            thetahids.resize( 1 );  // Do not consider features for previous tags, + features for the presence of digits and capital letters (there are too few of them)!
            thetahids_times_x.resize( 50, 1 );
            thetahids[0].resize( 50, nfeat );
        }
        else
        {
            thetahids.resize(0);
            thetahids_times_x.resize(0,0);
        }

    }
}

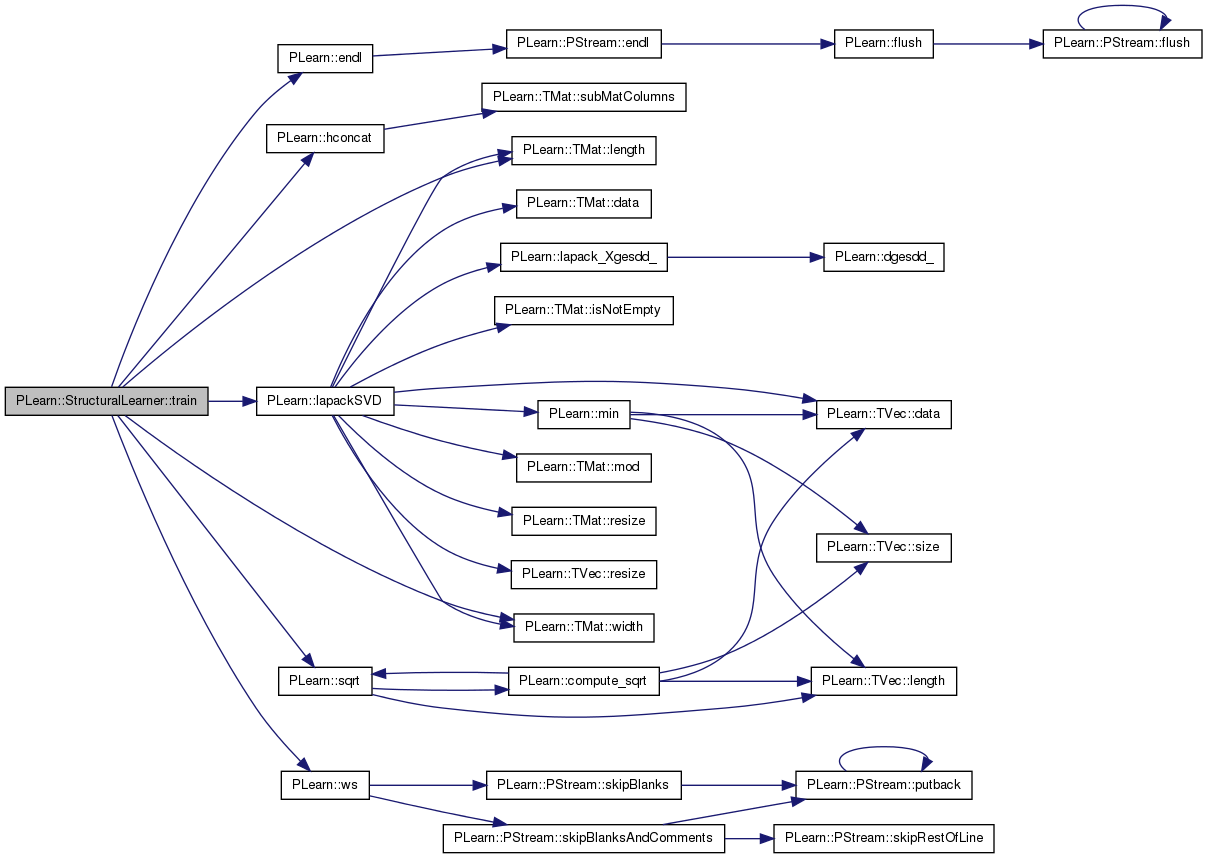

Here is the call graph for this function:

string PLearn::StructuralLearner::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 84 of file StructuralLearner.cc.

void PLearn::StructuralLearner::computeCostsFromOutputs ( const Vec input,
const Vec output,
const Vec target,
Vec costs
) const [virtual]

Computes the costs from already computed output.

Implements PLearn::PLearner.

Definition at line 1415 of file StructuralLearner.cc.

References PLearn::argmax(), MISSING_VALUE, and PLearn::safeflog().

{
    // Compute the costs from *already* computed output.
    int argout;
    real output_index_O = output[index_O];
    if(index_O < 0 || output_index_O > abstention_threshold)
        argout = argmax(output);
    else
    {
        output[index_O] = -1;
        argout = argmax(output);
        output[index_O] = output_index_O;
    }
    costs[0] = -safeflog( output[(int)target[2]] );
    costs[1] = argout == target[2] ? 0 : 1; //class_error(output,target);
    if(argout != index_O) costs[2] = costs[1];
    else costs[2] = MISSING_VALUE;
    if(target[2] != index_O) costs[3] = costs[1];
    else costs[3] = MISSING_VALUE;
}

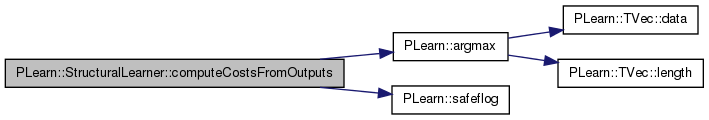

Here is the call graph for this function:

void PLearn::StructuralLearner::computeFeatures ( const Vec input,
const Vec target,
int  data_set,
int  index,
TVec< TVec< unsigned int > > &  theFeatureGroups,
char  featureMask = 0x1F
) const

Takes an example as input and returns the corresponding features.

These are onehot encoded and so it is the active indices that are returned. The function returns the features' onehot encoded length.

Parameters:
inputthe example's input
targetthe example's target
data_setthe index for the data set (-1 is for test set, 0 for training set and 1 for auxiliary task train set)
indexthe index of the example for which features are extracted
theFeatureGroupsthe features (the indices that are active) organized by groups - output
featureMaskspecifies whether the features are masked - lower 5 bits are used to represent the 5-token window. Inactive bit means do not output features for that position. '00011111' means return all features '00000100' means return only features for the position we're making the prediction at
Returns:
the features' onehot encoded length
Note:
check with Hugo: fl+=(train_set->getDictionary(0))->size()+2; HUGO: I don't think we need a feature for missing values...
Todo:
take option into account

Definition at line 1486 of file StructuralLearner.cc.

References PLearn::TVec< T >::find(), i, PLearn::is_missing(), and j.

{


    fl=0;               // length of the onehot encoded features (stands for "features' length")

    // We have 5 feature groups
    theFeatureGroups.resize(6);
    fls.resize(6);

    // *** Wordtag features ***
    // Wordtags in a 5 word window with a onehot encoding
    // Derived from the wordtags input[0], input[7], input[14], input[21],
    // input[28]
    currentFeatureGroup = theFeatureGroups[0];
    currentFeatureGroup.resize(6);
    size = 0;
    for(int i=0, ii=0; i<5; i++)  {
        ii=7*i;

        if( featureMask & (1<<i) ) {        // we are doing this test often, but it should be quick enough. If need be we'll optimize the function
            if( !is_missing(input[ii]) ) {
                currentFeatureGroup[size] = (unsigned int)(fl + input[ii]);
                size++;
            }
            // I don't think having a feature for missing value will help...
            /*
              else      {
              currentFeatureGroup.push_back( fl + (train_set->getDictionary(ii))->size() + 1 );  // explicitly say it's missing
              }
              fl += (train_set->getDictionary(ii))->size()+2; // +1 for OOV and +1 for missing<
            */
        }

        fl += (train_set->getDictionary(ii))->size()+1;
    }//for wordtags

    // For the bias!!!
    currentFeatureGroup[size] = fl;
    size++;
    fl++;
    fls[0] = fl;
    theFeatureGroups[0].resize(size);


    // *** Prefix features ***
    // Prefix features - prefix tag
    // Derived from input[1], input[8], input[15], input[23], input[31])
    currentFeatureGroup = theFeatureGroups[1];
    currentFeatureGroup.resize(5);
    size = 0;
    fl=0;
    for(int i=0, ii=0; i<5; i++)  {
        ii=7*i+1;

        if( featureMask & (1<<i) ) {        // we are doing this test often, but it should be quick enough. If need be we'll optimize the function
            // Prefix tag is not missing, look at it
            if( !is_missing(input[ii]) ) {
                currentFeatureGroup[size] = (unsigned int)(fl + input[ii]);
                size++;
            }
        }
        fl += (train_set->getDictionary(ii))->size()+1;
    }//for 5 word window
    theFeatureGroups[1].resize(size);
    fls[1] = fl;


    // *** Suffix features ***
    // Suffix features - suffix tags
    // Derived from input[2], input[9], ...
    currentFeatureGroup = theFeatureGroups[2];
    currentFeatureGroup.resize(5);
    size = 0;
    fl=0;
    for(int i=0, ii=0; i<5; i++)
    {
        ii=7*i+2;

        if( featureMask & (1<<i) ) {        // we are doing this test often, but it should be quick enough. If need be we'll optimize the function
            // Suffix tag is not missing, look at it
            if( !is_missing(input[ii]) ) {
                currentFeatureGroup[size] = (unsigned int)(fl + input[ii]);
                size++;
            }
        }
        fl += (train_set->getDictionary(ii))->size()+1;
    }//for 5 word window
    theFeatureGroups[2].resize(size);
    fls[2] = fl;


    // *** Char type features ***
    // Char type features in a 5 word window - 4 features (1 if true, 0 if not):
    //          -1st letter capitalized
    //          -All letters capitalized
    //          -All digits
    //          -All digits and '.'  ','
    // Explicit from input[3], input[4], input[5], input[6], input[10], ...

    currentFeatureGroup = theFeatureGroups[3];
    currentFeatureGroup.resize(20);
    size = 0;
    fl = 0;
    for(int i=0, ii=0; i<5; i++)  {
        ii=7*i+3;

        if( featureMask & (1<<i) ) {        // we are doing this test often, but it should be quick enough. If need be we'll optimize the function
            // for 4 features
            for(int j=0; j<4; j++)  {
                // feature not missing
                if( !is_missing(input[ii]) ) {
                    // feature active
                    if(input[ii]==1)    {
                        currentFeatureGroup[size] = (unsigned int)(fl);
                        size++;
                    }
                }
                fl++;
                ii++;
            }
        }   else    {
            fl = fl+4;
        }
    }//for 5 word window
    theFeatureGroups[3].resize(size);
    fls[3] = fl;

    // *** "Bag of words in a 3 syntactic chunk window" features ***
    // we have this from preprocessing
/*
    currentFeatureGroup = theFeatureGroups[5];
    currentFeatureGroup.resize(0);
    size = 0;
    fl=0;
    // TODO: fetch correct wordsIn3SyntacticContext Vec, depending
    //       on the values of data_set and index
    //for(int i=0; i<wordsIn3SyntacticContext.length(); i++)    {
    //currentFeatureGroup.push_back(wordsIn3SyntacticContext[i]);
    //}
    theFeatureGroups[5].resize(size);
    fls[5] = fl;
*/

    // *** Label features ***
    // Labels of the 2 words on the left - should always be in the target (if we are decoding, then the target
    // should hold what we have predicted
    currentFeatureGroup = theFeatureGroups[4];
    currentFeatureGroup.resize(2);
    size = 0;
    fl = 0;
    // Hugo: we don't use the tag features for auxiliary task???
    if( featureMask & 1 ) {
        if( !is_missing(target[0]) ) {
            currentFeatureGroup.push_back( fl+(int)target[0] );
            size++;
        }
    }
    fl += (train_set->getDictionary(inputsize_))->size()+1;

    // Hugo: idem
    if( featureMask & 2) {
        if( !is_missing(target[1]) ) {
            currentFeatureGroup.push_back( fl + (int)target[1] );
            size++;
        }
    }
    fl += (train_set->getDictionary(inputsize_))->size()+1;
    theFeatureGroups[4].resize(size);
    fls[4] = fl;

    // *** Bigrams of current token and label on the left
    currentFeatureGroup = theFeatureGroups[5];
    currentFeatureGroup.resize(1);
    fl = 0;
    size=0;

    // Hugo: idem!!!
    // if none of the 2 are masked than we'll compute the feature
    if( (featureMask & 2) && (featureMask & 4) ) {
        if( !is_missing(target[1]) && !is_missing(input[14]) ) {
          int bigram = (int)target[1] * ((train_set->getDictionary(0))->size()+1) + (int)input[14];
          std::map<int, int>::iterator itr_plcw_bigram_mapping;

          // is it in our mapping of bigrams seen in train_set?
          itr_plcw_bigram_mapping = plcw_bigram_mapping.find( bigram );

          if( itr_plcw_bigram_mapping != plcw_bigram_mapping.end() )  {
            currentFeatureGroup.push_back( itr_plcw_bigram_mapping->second );
            size++;
          }
        }
    }
    fl += plcw_bigram_mapping.size();
    theFeatureGroups[5].resize(size);
    fls[5] = fl;


    // *** Previous occurences features ***
  /*  // ...

    fl = 0;
    size=0;
    // Add things here...
    theFeatureGroups[8].resize(size);
    fls[8] = fl;
  */
}

Here is the call graph for this function:

void PLearn::StructuralLearner::computeOutput ( const Vec input,
Vec output
) const [virtual]

Computes the output from the input.

Reimplemented from PLearn::PLearner.

Definition at line 1410 of file StructuralLearner.cc.

References PLERROR.

{
    PLERROR("In StructuralLearner::computeOutput(): not implemented");
}

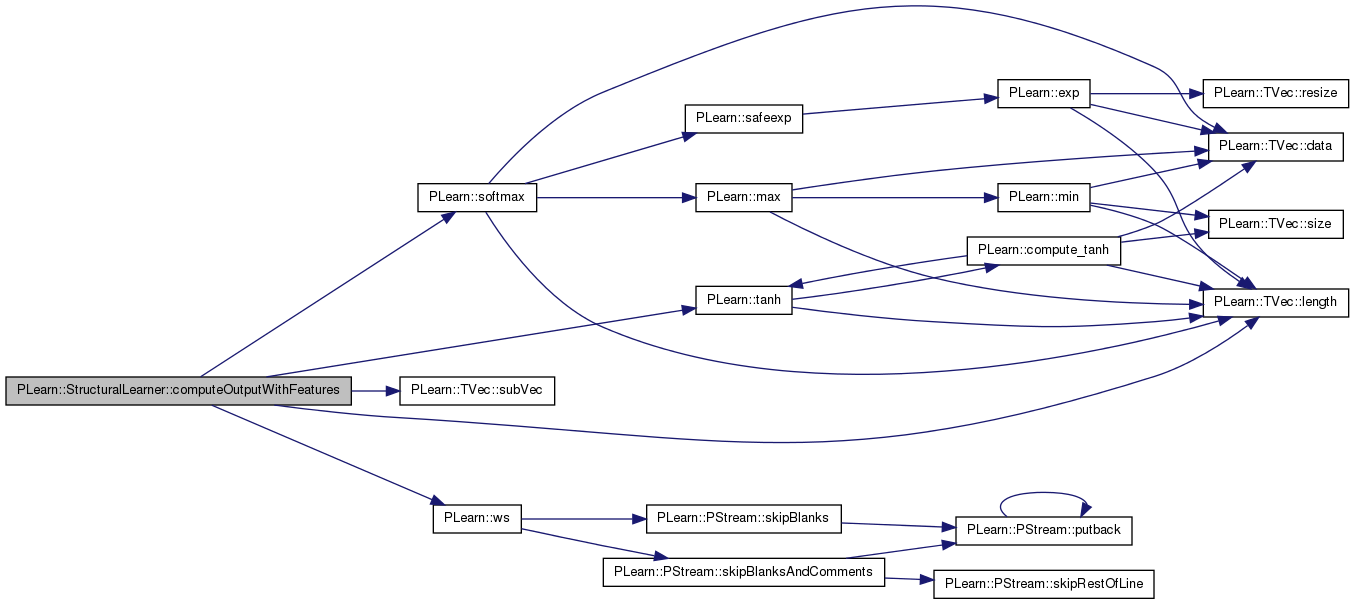

void PLearn::StructuralLearner::computeOutputWithFeatures ( TVec< TVec< unsigned int > > &  feats,
Vec output,
bool  use_theta = true,
int  begin_class = -1,
int  end_class = -1
) const [virtual]

Definition at line 1235 of file StructuralLearner.cc.

References i, j, PLearn::TVec< T >::length(), PLearn::softmax(), PLearn::TVec< T >::subVec(), PLearn::tanh(), and PLearn::ws().

{
    if(begin_class < 0) begin_class = 0;
    if(end_class < 0) end_class = output.length();
    /*
    if(only_this_class < 0)
    {
        output.resize(ws[0].lenght());
        before_softmax.resize(ws[0].lenght());
    }
    else
    {
        output.resize(1);
        before_softmax.resize(1);
    }
    */
    for(int i=0; i<before_softmax.length(); i++) {
        before_softmax[i] = 0;
    }

    // TODO: computations with Neural Network

    if(nhidden > 0)
    {

        if(use_theta && use_thetas_for_hidden_weights)
        {
            fl = 0;
            // compute theta * x
            thetahids_times_x.clear();
            for(int f=0; f<(separate_features ? thetahids.length() : feats.length()); f++)
            {
                current_features = feats[f].data();
                for(int j=0; j<50; j++)
                {
                    for(int k=0; k<feats[f].length(); k++)
                        if(separate_features)
                            thetahids_times_x(j,f) += thetahids[f](j,current_features[k]);
                        else
                            thetahids_times_x(j,0) += thetahids[0](j,current_features[k]+fl);
                }
                fl += whids[f].width();
            }
        }


        activations.clear();
        activations.lastRow().fill(1.0);
        for(int f=0; f<feats.length(); f++)
        {
            current_features = feats[f].data();
            for(int i=0; i<nhidden; i++) {
                for(int j=0; j<feats[f].length(); j++)  {
                    if(separate_features)
                        activations(i,f) += whids[f](i, current_features[j]);
                    else
                        activations(i,0) += whids[f](i, current_features[j]);
                }
                if(use_theta && use_thetas_for_hidden_weights && ((!separate_features && f==0) || (separate_features && f<thetahids.length())))
                    for(int ii=0; ii<50; ii++) {
                        activations(i,f) += vhids[f](i, ii)*thetahids_times_x(ii,f);
                    }
                if(separate_features)
                    activations(i,f) = tanh(activations(i,f));
            }
        }

        if(!separate_features)
            for(int i=0; i<nhidden; i++)
                activations(i,0) = tanh(activations(i,0));

        if(use_theta && use_thetas_for_output_weights)
        {
            // compute theta * x
            thetas_times_x.clear();
            for(int f=0; f< thetas.length(); f++)
            {
                for(int j=0; j<50; j++)
                {
                    for(int k=0; k<nhidden+1; k++)
                        thetas_times_x(j,f) += thetas[f](j,k)*activations(k,f);
                }
            }

        }

        for(int f=0; f<(separate_features ? feats.length() : 1); f++)
        {
            //if(only_this_class < 0)
            //{
                for(int i=begin_class; i<end_class; i++) {
                    for(int j=0; j<nhidden+1; j++)  {
                        before_softmax[i] += ws[f](i, j) * activations(j,f);
                    }
                    if(use_theta && use_thetas_for_output_weights && ((!separate_features && f==0) || (separate_features && f<thetas.length())))
                        for(int ii=0; ii<50; ii++) {
                            before_softmax[i] += vs[f](i, ii)*thetas_times_x(ii,f);
                        }
                }
                /*
            }
            else
            {
                for(int j=0; j<nhidden; j++)  {
                    before_softmax[0] += ws[f](only_this_class, j) * activations(j,f);
                }
                if(use_theta)
                    for(int ii=0; ii<50; ii++) {
                        before_softmax[0] += vs[f](only_this_class, ii)*thetas_times_x(ii,f);
                    }
            }
                */
        }
    }
    else
    {
        if(use_theta && (use_thetas_for_output_weights || use_thetas_for_hidden_weights))
        {
            fl = 0;
            // compute theta * x
            thetas_times_x.clear();
            for(int f=0; f<(separate_features ? thetas.length() : feats.length() ); f++)
            {
                current_features = feats[f].data();
                for(int j=0; j<50; j++)
                {
                    for(int k=0; k<feats[f].length(); k++)
                        if(separate_features)
                            thetas_times_x(j,f) += thetas[f](j,current_features[k]);
                        else
                            thetas_times_x(j,0) += thetas[0](j,current_features[k]+fl);
                }
                fl += ws[f].width();
            }
        }

        for(int f=0; f<feats.length(); f++)
        {
            current_features = feats[f].data();
            //if(only_this_class < 0)
            //{
                for(int i=begin_class; i<end_class; i++) {
                    for(int j=0; j<feats[f].length(); j++)  {
                        before_softmax[i] += ws[f](i, current_features[j]);
                    }
                    if(use_theta && use_thetas_for_output_weights && ((!separate_features && f==0) || (separate_features && f<thetas.length())))
                        for(int ii=0; ii<50; ii++) {
                            before_softmax[i] += vs[f](i, ii) * thetas_times_x(ii,f) ;
                        }
                }
                /*
            }
            else
            {
                for(int j=0; j<feats[f].length(); j++)  {
                    before_softmax[0] += ws[f](only_this_class, current_features[j]);
                }
                if(use_theta && (separate_features || f==0))
                    for(int ii=0; ii<50; ii++) {
                        before_softmax[0] += vs[f](only_this_class, ii) * thetas_times_x(ii,f) ;
                    }
            }
                */
        }

    }

    //if(only_this_class < 0)
    if(begin_class != 0 || end_class != output.length())
        softmax(before_softmax.subVec(begin_class,end_class-begin_class),output.subVec(begin_class,end_class-begin_class));
    else
        softmax(before_softmax,output);
}

Here is the call graph for this function:

void PLearn::StructuralLearner::declareOptions ( OptionList ol) [static, protected]

Declares the class options.

Reimplemented from PLearn::PLearner.

Definition at line 112 of file StructuralLearner.cc.

References abstention_threshold, auxiliary_task_train_set, best_error, PLearn::OptionBase::buildoption, current_error, PLearn::declareOption(), decrease_constant, epsilon, index_O, lambda, PLearn::OptionBase::learntoption, max_stage, n_auxiliary_wordproblems, nhidden, separate_features, start_learning_rate, thetahids, thetas, use_thetas_for_hidden_weights, use_thetas_for_output_weights, vs, whids, and ws.

{
    declareOption(ol, "ws", &StructuralLearner::ws, OptionBase::learntoption,
                   "Weights of the linear classifier: f(x) = wt x + vt theta x");
    declareOption(ol, "vs", &StructuralLearner::vs, OptionBase::learntoption,
                   "Weights of the linear classifier: f(x) = wt x + vt theta x");
    declareOption(ol, "whids", &StructuralLearner::whids, OptionBase::learntoption,
                   "Weights from input to hidden layers (one for each feature group)");
    declareOption(ol, "vhids", &StructuralLearner::whids, OptionBase::learntoption,
                   "Weights for the thetahids projections, for the layers (one for each feature group)");
    declareOption(ol, "thetas", &StructuralLearner::thetas, OptionBase::learntoption,
                   "structure parameter of the linear classifier: f(x) = wt x + vt theta x");
    declareOption(ol, "thetahids", &StructuralLearner::thetahids, OptionBase::learntoption,
                   "structure parameter of the linear classifier: f(x) = wt x + vt theta x");
    declareOption(ol, "start_learning_rate", &StructuralLearner::start_learning_rate, OptionBase::buildoption,
                   "Starting learning rate of the stochastic gradient descent");
    declareOption(ol, "decrease_constant", &StructuralLearner::decrease_constant, OptionBase::buildoption,
                   "Decrease constant of the stochastic learning rate");
    declareOption(ol, "best_error", &StructuralLearner::best_error, OptionBase::learntoption,
                   "Best training error, when training model before SVD");
    declareOption(ol, "current_error", &StructuralLearner::current_error, OptionBase::learntoption,
                   "Current training error, when training model before SVD");
    declareOption(ol, "auxiliary_task_train_set", &StructuralLearner::auxiliary_task_train_set, OptionBase::buildoption,
                   "Training set for auxiliary task");
    declareOption(ol, "epsilon", &StructuralLearner::epsilon, OptionBase::buildoption,
                   "Threshold to determine convergence of stochastic descent");
    declareOption(ol, "lambda", &StructuralLearner::lambda, OptionBase::buildoption,
                   "Weight decay for output weights");
    declareOption(ol, "nhidden", &StructuralLearner::nhidden, OptionBase::buildoption,
                   "Number of hidden neurons in the hidden layers");
    declareOption(ol, "use_thetas_for_output_weights", &StructuralLearner::use_thetas_for_output_weights, OptionBase::buildoption,
                   "Indication that structural parameters for the output weights should be used for the neural network");
     declareOption(ol, "use_thetas_for_hidden_weights", &StructuralLearner::use_thetas_for_hidden_weights, OptionBase::buildoption,
                   "Indication that structural parameters for the hidden weights should be used for the neural network");
    declareOption(ol, "max_stage", &StructuralLearner::max_stage, OptionBase::buildoption,
                   "Maximum number of stages when training the model to find the thetas");
    declareOption(ol, "index_O", &StructuralLearner::index_O, OptionBase::buildoption,
                   "Index of the \"O\" (abstention) symbol");
    declareOption(ol, "separate_features", &StructuralLearner::separate_features, OptionBase::buildoption,
                   "Indication that the features should be separated into groups");
    declareOption(ol, "abstention_threshold", &StructuralLearner::abstention_threshold, OptionBase::buildoption,
                   "Threshold on the probability of the index_O symbol below which the predictor should not abstain");
    declareOption(ol, "n_auxiliary_wordproblems", &StructuralLearner::n_auxiliary_wordproblems, OptionBase::buildoption,
                   "Number of most frequent words that are to be predicted.");

    // Now call the parent class' declareOptions
    inherited::declareOptions(ol);
}

Here is the call graph for this function:

static const PPath& PLearn::StructuralLearner::declaringFile ( ) [inline, static]

Reimplemented from PLearn::PLearner.

Definition at line 142 of file StructuralLearner.h.

:
    //#####  Protected Options  ###############################################
StructuralLearner * PLearn::StructuralLearner::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::PLearner.

Definition at line 84 of file StructuralLearner.cc.

void PLearn::StructuralLearner::forget ( ) [virtual]

(Re-)initializes the PLearner in its fresh state (that state may depend on the 'seed' option) and sets 'stage' back to 0 (this is the stage of a fresh learner!).

(Re-)initialize the PLearner in its fresh state (that state may depend on the 'seed' option) And sets 'stage' back to 0 (this is the stage of a fresh learner!)

A typical forget() method should do the following:

  • initialize a random number generator with the seed option
  • initialize the learner's parameters, using this random generator
  • stage = 0

Reimplemented from PLearn::PLearner.

Definition at line 410 of file StructuralLearner.cc.

References PLearn::ws().

{

    if(ws.size()!=0) // This means that build was called...
        initializeParams();

    stage = 0;
}

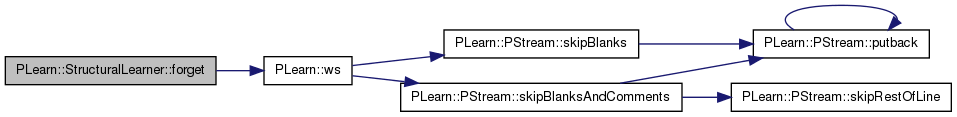

Here is the call graph for this function:

OptionList & PLearn::StructuralLearner::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 84 of file StructuralLearner.cc.

OptionMap & PLearn::StructuralLearner::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 84 of file StructuralLearner.cc.

RemoteMethodMap & PLearn::StructuralLearner::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 84 of file StructuralLearner.cc.

TVec< string > PLearn::StructuralLearner::getTestCostNames ( ) const [virtual]

Returns the names of the costs computed by computeCostsFromOutpus (and thus the test method).

Implements PLearn::PLearner.

Definition at line 1437 of file StructuralLearner.cc.

References PLearn::TVec< T >::resize().

{
    // Return the names of the costs computed by computeCostsFromOutpus
    // (these may or may not be exactly the same as what's returned by getTrainCostNames).
    TVec<string> ret;
    ret.resize(4);
    ret[0] = "NLL";
    ret[1] = "class_error";
    ret[2] = "precision";
    ret[3] = "recall";
    return ret;
}

Here is the call graph for this function:

TVec< string > PLearn::StructuralLearner::getTrainCostNames ( ) const [virtual]

Returns the names of the objective costs that the train method computes and for which it updates the VecStatsCollector train_stats.

Implements PLearn::PLearner.

Definition at line 1450 of file StructuralLearner.cc.

References PLearn::TVec< T >::resize().

{
    // Return the names of the objective costs that the train method computes and
    // for which it updates the VecStatsCollector train_stats
    // (these may or may not be exactly the same as what's returned by getTestCostNames).
    TVec<string> ret;
    ret.resize(4);
    ret[0] = "NLL";
    ret[1] = "class_error";
    ret[2] = "precision";
    ret[3] = "recall";
    return ret;
}

Here is the call graph for this function:

void PLearn::StructuralLearner::initializeParams ( bool  set_seed = true) [protected, virtual]

Initialize the parameters.

If 'set_seed' is set to false, the seed will not be set in this method (it will be assumed to be already initialized according to the 'seed' option).

Definition at line 1951 of file StructuralLearner.cc.

References PLearn::fill_random_uniform(), i, PLearn::manual_seed(), PLearn::seed(), PLearn::sqrt(), and PLearn::ws().

{
    if (set_seed) {
        if (seed_>=0)
            manual_seed(seed_);
        else
            PLearn::seed();
    }

  // initialize weights
  if (train_set) {
    real delta;
    int is;

    if(nhidden <= 0)
    {
        for(int i=0; i<ws.length(); i++) {
            ws[i].fill(0.0);
        }
    }
    else
    {
        is = 0;
        for(int i=0; i<ws.length(); i++) {
            is += ws[i].size();
        }
        for(int i=0; i<ws.length(); i++) {
            delta = 1.0 / sqrt(real(is));
            fill_random_uniform(ws[i], -delta, delta);
        }
    }

    is = vs.length() * 50;
    for(int i=0; i<vs.length(); i++) {
        delta = 1.0 / sqrt(real(is));
        fill_random_uniform(vs[i], -delta, delta);
    }

    is = vhids.length() * 50;
    for(int i=0; i<vhids.length(); i++) {
        delta = 1.0 / sqrt(real(is));
        fill_random_uniform(vhids[i], -delta, delta);
    }

    if(nhidden > 0)
    {
        for(int i=0; i<whids.length(); i++)
        {
            /*
              is = whids[i].size();
              delta = 1.0 / sqrt(real(is));
              fill_random_uniform(whids[i], -delta, delta);
            */
            whids[i].fill(0.0);
        }
    }
  }
}

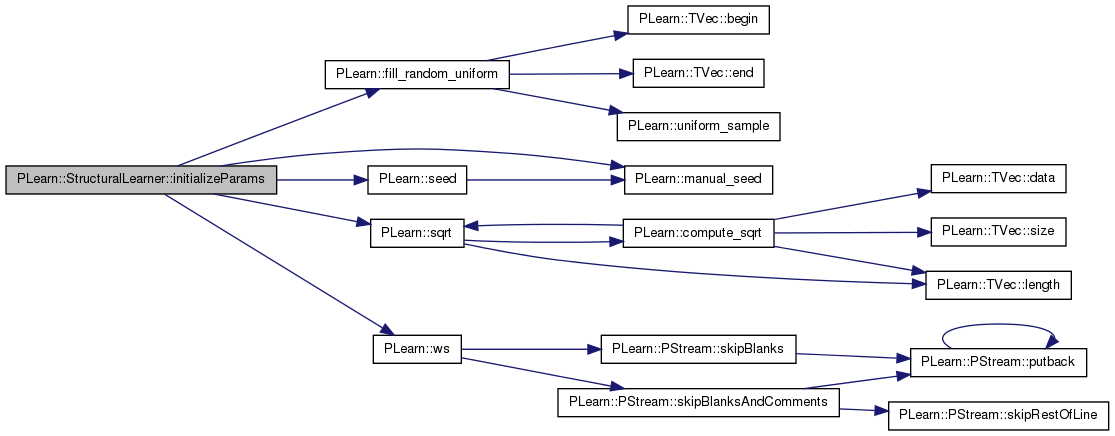

Here is the call graph for this function:

void PLearn::StructuralLearner::initPreviousLabelCurrentWordBigramMapping ( ) [protected]

Build a map of "previous label - current word" bigrams seen in train_set to an index.

Determines which "previous label - current word" bigrams are in the training set and indexes them is a stl map.

OOV's are ignored.

Note:

Definition at line 1875 of file StructuralLearner.cc.

References PLearn::is_missing().

{
    int bigram;
    int currentBigramIndex=0;

    std::map<int, int>::iterator itr_plcw_bigram_mapping;

    // Attribute an index to "previous label - current word" bigrams seen in train_set
    for(int e=0; e<train_set->length(); e++)  {
        train_set->getExample(e, input, target, weight);

        if( !is_missing(target[1]) && !is_missing(input[14]) ) {
            // if no OOV
            // Hugo: OOV is not necessarily 0!!!
            //       anyway, I think we should consider OOV after all
            //if( (target[1] !=((train_set->getDictionary(inputsize_))->oov_tag_id)) && (input[14] != (train_set->getDictionary(0))->oov_tag_id)) )  {
            // The bigram
            bigram = (int)target[1] * ((train_set->getDictionary(0))->size()+1) + (int)input[14];

            // if not already there, add it
            itr_plcw_bigram_mapping = plcw_bigram_mapping.find( bigram );

            if( itr_plcw_bigram_mapping == plcw_bigram_mapping.end() )  {
                plcw_bigram_mapping[bigram] = currentBigramIndex;
                currentBigramIndex++;
            }
        }
    }// end for auxiliary example

}

Here is the call graph for this function:

void PLearn::StructuralLearner::initWordProblemsStructures ( ) [protected]

Determines the most frequent words on the auxiliary example set and fills auxiliary_indices_current, auxiliary_indices_left accordingly.

Determines 1000 most frequent words and builds 2 TVecs of indices of examples that have respetively a frequent word at current and left positions.

Note:

Definition at line 1781 of file StructuralLearner.cc.

References freqCountGT(), and i.

{

  // *** Determine most frequent words
  // Just a big fequency array.

  // 1) Create and init the freq table - has for size the size of the vocabulary +1 for OOV
  unsigned long int* frequency;
  frequency = new unsigned long int[ (auxiliary_task_train_set->getDictionary(0))->size() + 1];
  //memset(frequency, 0, ((train_set->getDictionary(6))->size()+1) * sizeof(unsigned long int) );
  for(int i=0; i<((auxiliary_task_train_set->getDictionary(0))->size()+1); i++)  {
    frequency[i]=0;
  }

  // 2) Compute frequencies
  for(int e=0; e<auxiliary_task_train_set->length(); e++)  {
    auxiliary_task_train_set->getExample(e, input, target, weight);
    frequency[(int)input[14]]++;
  }

  // 3) extract most frequent entries -> build a map
  // build a stl vector (skip OOV output) and sort it
  std::vector<freqCount> tmp;
  for(int i=1; i<((auxiliary_task_train_set->getDictionary(0))->size()+1); i++)  {
    tmp.push_back( freqCount(i, frequency[i]) );
  }

  delete []frequency;

  // Sort the items in descending order
  std::sort(tmp.begin(), tmp.end(), freqCountGT);

  // Build a map of the most frequent words' wordtags with their "most frequent word's"-tag
  std::map<int, int> map_mostFrequentWords;  // word tag is key, value is the net's output for it
  std::vector<freqCount>::iterator itr;
  int i;
  for(i=0, itr=tmp.begin(); itr!=tmp.end() && i<n_auxiliary_wordproblems; itr++, i++) {
    map_mostFrequentWords[itr->wordtag] = i;
    //MostFrequentWordsCount+=itr->count;
  }

  tmp.clear();


  // *** Build the TMats for the auxiliary problems
  std::map<int, int>::iterator itr_map_mostFrequentWords;
  int leftWord_Wordtag, currentWord_Wordtag;
  int left_size=0;
  int current_size=0;

  auxiliary_indices_left.resize(auxiliary_task_train_set->length(), 2);
  auxiliary_indices_current.resize(auxiliary_task_train_set->length(), 2);

  for(int e=0; e<auxiliary_task_train_set->length(); e++)  {
    auxiliary_task_train_set->getExample(e, input, target, weight);

    // * if this example has a most frequent word at left
    leftWord_Wordtag = (int)input[7];

    itr_map_mostFrequentWords = map_mostFrequentWords.find( leftWord_Wordtag );

    if( itr_map_mostFrequentWords != map_mostFrequentWords.end() )  {
        auxiliary_indices_left[left_size][0] = e;
        auxiliary_indices_left[left_size][1] = itr_map_mostFrequentWords->second;
        left_size++;
    }

    // * if this example has a most frequent word at current
    currentWord_Wordtag = (int)input[14];

    itr_map_mostFrequentWords = map_mostFrequentWords.find( currentWord_Wordtag );

    if( itr_map_mostFrequentWords != map_mostFrequentWords.end() )  {
        auxiliary_indices_current[current_size][0] = e;
        auxiliary_indices_current[current_size][1] = itr_map_mostFrequentWords->second;
        current_size++;
    }

  }// end for auxiliary example

  map_mostFrequentWords.clear();

  auxiliary_indices_left.resize(left_size, 2);
  auxiliary_indices_current.resize(current_size, 2);

}

Here is the call graph for this function:

void PLearn::StructuralLearner::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Transforms a shallow copy into a deep copy.

Reimplemented from PLearn::PLearner.

Definition at line 373 of file StructuralLearner.cc.

References PLearn::deepCopyField(), and PLearn::ws().

{
    inherited::makeDeepCopyFromShallowCopy(copies);

    deepCopyField(thetas, copies);
    deepCopyField(thetas_times_x, copies);
    deepCopyField(thetahids, copies);
    deepCopyField(thetahids_times_x, copies);
    deepCopyField(auxiliary_task_train_set,copies);
    deepCopyField(ws,copies);
    deepCopyField(vs,copies);
    deepCopyField(whids,copies);
    deepCopyField(vhids,copies);
    deepCopyField(feats, copies);
    deepCopyField(input, copies);
    deepCopyField(target, copies);
    deepCopyField(activations, copies);
    deepCopyField(before_softmax, copies);
    deepCopyField(output, copies);
    deepCopyField(costs, copies);
    deepCopyField(auxiliary_indices_current, copies);
    deepCopyField(auxiliary_indices_left, copies);
    deepCopyField(viterbi_table, copies);

    deepCopyField(currentFeatureGroup, copies);
    deepCopyField(fls, copies);

    // ### Remove this line when you have fully implemented this method.
    //PLERROR("StructuralLearner::makeDeepCopyFromShallowCopy not fully (correctly) implemented yet!");
}

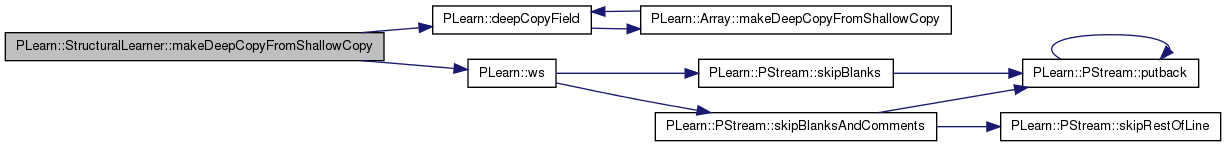

Here is the call graph for this function:

int PLearn::StructuralLearner::outputsize ( ) const [virtual]

Returns the size of this learner's output, (which typically may depend on its inputsize(), targetsize() and set options).

Implements PLearn::PLearner.

Definition at line 405 of file StructuralLearner.cc.

{
    return(train_set->getDictionary(inputsize_)->size() + (train_set->getDictionary(inputsize_)->oov_not_in_possible_values ? 0 : 1));
}
void PLearn::StructuralLearner::test ( VMat  testset,
PP< VecStatsCollector test_stats,
VMat  testoutputs = 0,
VMat  testcosts = 0
) const [virtual]

Performs test on testset, updating test cost statistics, and optionally filling testoutputs and testcosts.

The default version repeatedly calls computeOutputAndCosts or computeCostsOnly. Note that neither test_stats->forget() nor test_stats->finalize() is called, so that you should call them yourself (respectively before and after calling this method) if you don't plan to accumulate statistics.

Reimplemented from PLearn::PLearner.

Definition at line 953 of file StructuralLearner.cc.

References __FILE__, PLearn::endl(), PLearn::VMat::getExample(), i, PLearn::is_missing(), j, PLearn::VMat::length(), MISSING_VALUE, PA_DEBUG, and PLearn::safeflog().

{
    int l = testset.length();

    PP<ProgressBar> pb;
    if(report_progress)
        pb = new ProgressBar("Testing learner",l);

    if (l == 0) {
        // Empty test set: we give -1 cost arbitrarily.
        costs.fill(-1);
        test_stats->update(costs);
    }

    // TODO: VITERBI!!!! This is cheating!!!
    for(int i=0; i<l; i++)
    {
        testset.getExample(i, input, target, weight);

        computeFeatures(input,target,-1,i,feats);
        computeOutputWithFeatures(feats,output,auxiliary_task_train_set);
        computeCostsFromOutputs(input,output,target,costs);
        //computeOutputAndCosts(input,target,output,costs);

        // TODO: update dynamic feature
        //updateDynamicFeatures(token_prediction_train,input[3*2],target[2]);

        if(testoutputs)
            testoutputs->putOrAppendRow(i,output);

        if(testcosts)
            testcosts->putOrAppendRow(i, costs);

        if(test_stats)
            test_stats->update(costs,weight);

        if(report_progress)
            pb->update(i);
    }

    // *** Test procedure using Viterbi decoding
    // A row's cell encodes for each current tag and previous tag the best score to get there.
    // a row index is computed as (tag-0) * nout + (tag-1)
    // Not yet functional
    // todo consider sentences independently (or watchout for underflow)
    // being at j means predicting class "j/nout" when the previous prediction is "j%nout"
    // we must look at all the possibilities for prediction predAtMinus2 and find the best

    if(false)
    {
        // *** Table width is nout^2 - index is computed as (tag-0) * nout + (tag-1)
        int nout = outputsize();
        viterbi_table.resize(100, nout*nout); // HACK - assuming a sentence is not over 100 words

        real neg_log_seq_output;
        int index;

        // ** Go through all examples
        int i=0;    // index on the test examples
        int ii=0;   // index on the current sentence's test examples
        int iim1;   // ii minus 1

        while (i<l) // ie while we still have examples decode a sentence
        {

          // * A) Start of a sentence -> predictions independent of 2 previous tags

          testset.getExample(i, input, target, weight);
          preds.fill(MISSING_VALUE);
          computeFeatures(input,preds,0,0,feats);
          computeOutputWithFeatures(feats,output);
          ii=0;   // reposition current sentence index

          // - Sanity check - really BOS?
          // HACK input[0] and input[7] are the left context wordtags
          PA_DEBUG( if( !( is_missing(input[0]) && is_missing(input[7]) ) ) cerr << __FILE__ << __LINE__ << "error - not a BOS!" <<endl;)

          // first row
          for(int j=0; j<viterbi_table.width(); j++)
          {
              viterbi_table(ii,j).first = -safeflog( output[j/nout] );
              viterbi_table(ii,j).second = -1;
          }

          // * B) while next word is not BOS
          // Could also use "." if(viterbi_table(i-1,j).second/nout == index_dot)

          while( !( is_missing(input[0]) && is_missing(input[7]) ) )  {

            i++;
            ii++;
            iim1=ii-1;

            testset.getExample(i, input, target, weight);
            preds.fill(MISSING_VALUE);
            computeFeatures(input,preds,0,0,feats);

            // use previous row entries to compute the current one's
            // TODO save a couple ops by segmenting this in two loops
            for(int j=0; j<viterbi_table.width(); j++)
            {
              // Set previous predictions
              if( i>1 )  {
                preds[0] = j%nout;
              } else  {
                preds[0] = MISSING_VALUE;
              }
              preds[1] = j/nout;

              updateFeatures(input,preds,feats);
              computeOutputWithFeatures(feats,output);

              // this left prediction context has nout possible current predictions
              for( int k=0; k<nout; k++)
              {
                  index = j/nout + k*nout;  // current row index predicting k with p-1 = j/nout

                  neg_log_seq_output = (-safeflog(output[k]) + viterbi_table(iim1,j).first*iim1)/(ii); // score of predicting k with p-2 = j%nout and p-1 = j/nout

                  if(viterbi_table(ii,index).first > neg_log_seq_output)
                  {
                      viterbi_table(i,index).first = neg_log_seq_output;
                      viterbi_table(i,index).second = j;
                  }
              }
            } // for the previous row's elements
          } //while haven't reached a new sentence

          // * C) Decode from table
          // 1) search last row for best score
          real best_score = viterbi_table(ii,0).first;
          int best_index = 0;

          for(int j=1; j<viterbi_table.width(); j++)
          {
            if( viterbi_table(ii,j).first < best_score )  {
              best_score = viterbi_table(ii,j).first;
              best_index = j;
            }
          }

          // 2) Retrace best tags - will be in reversed order
          vector<int> v_predictions_r;

          for(int iii ; iii >=0; iii--)  {
            v_predictions.push_back( best_index/nout );
            best_index = viterbi_table(iii,best_index).second;
          }

          vector<int> v_predictions;

          vector<int>::reverse_iterator ritr = l_predictions_r.begin();
          while( ritr != l_predictions_r.end() )  {
            v_predictions.push_back( *ritr );
            ritr++;
          }

          // 3) Compute cost - TODO needs some nicer coding
          for(int j=i-ii; j<i; j++)
          {
            testset.getExample(j, input, target, weight);

            int jj=j-(i-ii);
/*
            // Set previous predictions
            if( jj>1 )  {
              preds[0] = %nout;
            } else  {
              preds[0] = MISSING_VALUE;
            }
            if
            preds[1] = j/nout;


              computeFeatures(input,target,-1,i,feats);
              computeOutputWithFeatures(feats,output,auxiliary_task_train_set);
              computeCostsFromOutputs(input,output,target,costs);
              //computeOutputAndCosts(input,target,output,costs);

              // TODO: update dynamic feature
              //updateDynamicFeatures(token_prediction_train,input[3*2],target[2]);

              if(testoutputs)
                  testoutputs->putOrAppendRow(i,output);

              if(testcosts)
                  testcosts->putOrAppendRow(i, costs);

              if(test_stats)
                  test_stats->update(costs,weight);

              if(report_progress)
                  pb->update(i);*/
          }


          // Go to next sentence
          v_predictions.clear();
          v_predictions_r.clear();
          i++;


          // Decode from table
  /*      for(int i=0; i<l; i++)
        {
            if(testoutputs)
                testoutputs->putOrAppendRow(i,output);

            if(testcosts)
                testcosts->putOrAppendRow(i, costs);

            if(test_stats)
                test_stats->update(costs,weight);

            if(report_progress)
                pb->update(i);
        }
*/


/*        // *** Fill first row

        testset.getExample(0, input, target, weight);
        preds.fill(MISSING_VALUE);
        computeFeatures(input,preds,0,0,feats);
        computeOutputWithFeatures(feats,output);

        for(int j=0; j<viterbi_table.width(); j++)
        {
            viterbi_table(0,j).first = -safeflog(output[j/nout]);
            viterbi_table(0,j).second = -1;
        }


        // Compute table
        for(int i=1; i<l; i++)
        {
            testset.getExample(i, input, target, weight);
            computeFeatures(input,preds,0,0,feats);
            for(int j=0; j<viterbi_table.width(); j++)
            {
                if( i>1) preds[0] = j%nout;
                else preds[0] = MISSING_VALUE;
                preds[1] = j/nout;                                          //!!!!!!!!!!
                // Take into account "."
                // if(viterbi_table(i-1,j).second/nout == index_dot)
                updateFeatures(input,preds,feats);
                computeOutputWithFeatures(feats,output);
                for( int k=0; k<nout; k++)
                {
                    index = j/nout + k*nout;
                    neg_log_seq_output = (-safeflog(output[k]) + viterbi_table(i-1,j).first*i)/(i+1);
                    if(viterbi_table(i,index).first > neg_log_seq_output)
                    {
                        viterbi_table(i,index).first = neg_log_seq_output;
                        viterbi_table(i,index).second = j;
                    }
                }
            }
        }

        // Decode from table
        for(int i=0; i<l; i++)
        {
            if(testoutputs)
                testoutputs->putOrAppendRow(i,output);

            if(testcosts)
                testcosts->putOrAppendRow(i, costs);

            if(test_stats)
                test_stats->update(costs,weight);

            if(report_progress)
                pb->update(i);
        }*/
    } // while still examples
  } // if viterbi decoding

}

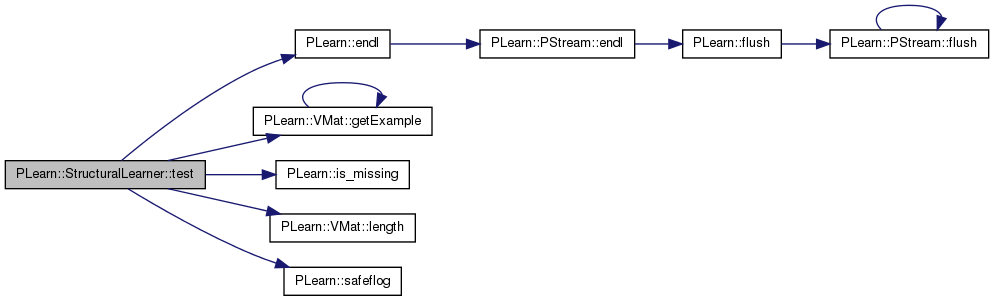

Here is the call graph for this function:

void PLearn::StructuralLearner::train ( ) [virtual]

The role of the train method is to bring the learner up to stage==nstages, updating the train_stats collector with training costs measured on-line in the process.

Implements PLearn::PLearner.

Definition at line 426 of file StructuralLearner.cc.

References PLearn::endl(), PLearn::hconcat(), i, j, PLearn::lapackSVD(), PLearn::TMat< T >::length(), m, MISSING_VALUE, PLearn::sqrt(), PLearn::TMat< T >::width(), and PLearn::ws().

{
  if (!initTrain())
      return;

  //Profiler p;
  //p.activate();

  int nout = outputsize();
  real lambda_times_2 = lambda*2;
  real log_softmax_gradient = 0;
  real v_times_theta = 0;
  // Compute thetas over auxiliary task,
  // if an auxiliary problem is given
  //p.start("All train");
  if( auxiliary_task_train_set && stage == 0)  {

      // Preprocessing of auxiliary task should be done by now!

      // Train initial weights ws
      std::cerr << "StructuralLearner::train() - Training learner for SVD" << std::endl;

      nout = 2*n_auxiliary_wordproblems;
      best_error=REAL_MAX;
      current_error=REAL_MAX/2;
      int it = 0;
      int n_auxiliary_samples = auxiliary_indices_current.length()+auxiliary_indices_left.length();
      int begin_class = 0;
      int end_class = n_auxiliary_wordproblems;

      while(current_error < best_error - epsilon && it < max_stage)  {
          best_error = current_error;
          train_stats->forget();
          for(int t=0; t<n_auxiliary_samples; t++)  {
              learning_rate = start_learning_rate / (1+decrease_constant*(it*n_auxiliary_samples+t));
              if(t<auxiliary_indices_current.length())
              {
                  begin_class = 0;
                  end_class = n_auxiliary_wordproblems;
                  auxiliary_task_train_set->getExample(auxiliary_indices_current(t,0), input, target, weight);
                  target.resize(5);
                  target.fill(MISSING_VALUE);
                  target[2] = auxiliary_indices_current(t,1);
                  computeFeatures(input,target,1,t,feats,27);
                  //p.start("Auxiliary computeOutputWithFeatures");
                  computeOutputWithFeatures(feats,output,false,begin_class,end_class);
                  //p.end("Auxiliary computeOutputWithFeatures");
              }
              else
              {
                  begin_class = n_auxiliary_wordproblems;
                  end_class = 2*n_auxiliary_wordproblems;
                  auxiliary_task_train_set->getExample(auxiliary_indices_left(t-auxiliary_indices_current.length(),0), input, target, weight);
                  target.resize(5);
                  target.fill(MISSING_VALUE);
                  target[2] = n_auxiliary_wordproblems+auxiliary_indices_left(t-auxiliary_indices_current.length(),1);

                  computeFeatures(input,target,1,t,feats,23);
                  //p.start("Auxiliary computeOutputWithFeatures");
                  computeOutputWithFeatures(feats,output,false,begin_class,end_class);
                  //p.end("Auxiliary computeOutputWithFeatures");
              }

              computeCostsFromOutputs(input, output, target, costs);
              train_stats->update(costs);

              //p.start("Auxiliary update");
              for(int i=begin_class; i<end_class; i++)
              {
                  good_class_softmax_gradient[i] = learning_rate*(output[i]-1);
                  bad_class_softmax_gradient[i] = learning_rate*output[i];
              }

              // Update weights
              if(nhidden>0)
              {
                  for(int i=0; i<activations.length(); i++)
                      for(int j=0; j<activations.width(); j++)
                      {
                          activations_gradient(i,j) = 1-activations(i,j)*activations(i,j);
                      }

                  // Output weights update
                  for(int f=0; f<ws.length(); f++)
                  {
                      for(int i=begin_class; i<end_class; i++)
                      {
                          // Update w
                          for(int j=0; j<nhidden+1; j++)  {
                              if(i!=target[2])  {
                                  ws[f](i, j) -= bad_class_softmax_gradient[i]*activations(j,f) + (lambda != 0 ? lambda_times_2*ws[f](i,j) : 0);
                              }
                              else  {
                                  ws[f](i, j) -= good_class_softmax_gradient[i]*activations(j,f) + (lambda != 0 ? lambda_times_2*ws[f](i, j) : 0);
                              }
                          }
                      }
                  }

                  // Hidden weights update

                  for(int f=0; f<ws.length(); f++)
                  {

                      for(int j=0; j<nhidden; j++)  {
                          log_softmax_gradient = 0;
                          for(int i=begin_class; i<end_class; i++)
                          {
                              if(i!=target[2])  {
                                  log_softmax_gradient += bad_class_softmax_gradient[i]*ws[f](i,j);
                              }
                              else {
                                  log_softmax_gradient += good_class_softmax_gradient[i]*ws[f](i,j);
                              }
                          }

                          log_softmax_gradient *= activations_gradient(j,f);

                          if(!separate_features)
                              for(int f2=0; f<whids.length(); f++)
                              {
                                  current_features = feats[f2].data();
                                  for(int k=0; k<feats[f2].length(); k++)
                                  {
                                      whids[f2](j, current_features[k]) -= log_softmax_gradient + (lambda != 0 ? lambda_times_2*whids[f2](j,current_features[k]) : 0);
                                  }
                              }
                          else
                          {
                              current_features = feats[f].data();
                              for(int k=0; k<feats[f].length(); k++)
                              {

                                  whids[f](j, current_features[k]) -= log_softmax_gradient + (lambda != 0 ? lambda_times_2*whids[f](j,current_features[k]) : 0);
                              }
                          }
                      }
                  }

              }
              else
              {
                  for(int f=0; f<feats.length(); f++)
                  {
                      current_features = feats[f].data();
                      for(int i=begin_class; i<end_class; i++)
                      {
                          // Update w
                          for(int j=0; j<feats[f].length(); j++)  {
                              if(i!=target[2])  {
                                  ws[f](i, current_features[j]) -= bad_class_softmax_gradient[i] + (lambda != 0 ? lambda_times_2*ws[f](i, current_features[j]) : 0);
                              }
                              else  {
                                  ws[f](i, current_features[j]) -= good_class_softmax_gradient[i] + (lambda != 0 ? lambda_times_2*ws[f](i, current_features[j]) : 0);
                              }
                          }
                      }
                  }
              }
              //p.end("Auxiliary update");
          }
          it++;
          train_stats->finalize();
          current_error = train_stats->getMean()[0];
          cout << "Current error = " << current_error << endl;
      }

      // Now, using computed theta to bias training
      Mat V;
      Vec D;
      for(int f=0; f<thetas.length(); f++)
      {
          // Perform SVD
          std::cerr << "StructuralLearner::train() - Performing " << f << "th SVD" << std::endl;
          Mat U_t;
          if(separate_features)
              U_t= sqrt(lambda) * ws[f];
          else
          {
              Array<Mat> to_concat(ws.length());
              for(int m=0; m<to_concat.length(); m++)
                  to_concat[m] = ws[m];
              U_t = hconcat(to_concat);
          }

          std::cout << "U_t.length() " << U_t.length() << " U_t.width() " << U_t.width() << std::endl;

          // --- Faire la SVD
          lapackSVD(U_t, thetas[f], D, V, 'S');

          std::cout << "thetas[f].length() " << thetas[f].length() << " thetas[f].width() " << thetas[f].width() << std::endl;

          thetas[f] = thetas[f].subMatRows(0, 50);
      }

      for(int f=0; f<thetahids.length(); f++)
      {
          // Perform SVD
          std::cerr << "StructuralLearner::train() - Performing " << f << "th SVD" << std::endl;
          Mat U_t;
          if(separate_features)
              U_t= sqrt(lambda) * whids[f];
          else
          {
              Array<Mat> to_concat(whids.length());
              for(int m=0; m<to_concat.length(); m++)
                  to_concat[m] = whids[m];
              U_t = hconcat(to_concat);
          }

          std::cout << "U_t.length() " << U_t.length() << " U_t.width() " << U_t.width() << std::endl;

          // --- Faire la SVD
          lapackSVD(U_t, thetahids[f], D, V, 'S');

          std::cout << "thetahids[f].length() " << thetahids[f].length() << " thetahids[f].width() " << thetahids[f].width() << std::endl;

          thetahids[f] = thetahids[f].subMatRows(0, 50);
      }

      // Resize and initialize ws, vs, whids, etc.
      nout = outputsize();
      // Free parameters space
      for(int p=0; p<vs.length(); p++)
          vs[p] = Mat();
      for(int p=0; p<ws.length(); p++)
          ws[p] = Mat();
      for(int p=0; p<vhids.length(); p++)
          vhids[p] = Mat();
      for(int p=0; p<whids.length(); p++)
          whids[p] = Mat();
      buildTasksParameters(nout,fls);
      initializeParams();
      stage++;
  }

  while(stage<nstages)
  {
      // Train target classifier
      std::cerr << "StructuralLearner::train() - Training target classifier" << std::endl;
      std::cerr << "StructuralLearner::train() - stage is " << stage << std::endl;

      train_stats->forget();
      int n_samples = train_set->length();
      // TODO: is this a good clear?
      //token_prediction.clear();
      for(int t=0; t<train_set->length(); t++)  {
          learning_rate = start_learning_rate / (1+decrease_constant*(stage*n_samples+t));
          train_set->getExample(t, input, target, weight);
          computeFeatures(input,target,0,t,feats);
          // 1) compute the output
          //p.start("Main computeOutputWithFeatures");
          computeOutputWithFeatures(feats,output,auxiliary_task_train_set) ;
          //p.end("Main computeOutputWithFeatures");
          // 2) compute the cost
          computeCostsFromOutputs(input, output, target, costs);
          train_stats->update(costs);
          // TODO: verify if OK
          //updateDynamicFeatures(token_prediction_train,input[3*2],target[2]);
          // 3) Update weights
          //p.start("Main update");


          for(int i=0; i<nout; i++)
          {
              good_class_softmax_gradient[i] = learning_rate*(output[i]-1);
              bad_class_softmax_gradient[i] = learning_rate*output[i];
          }

          // Update weights
          if(nhidden>0)
          {
              for(int i=0; i<activations.length(); i++)
                  for(int j=0; j<activations.width(); j++)
                  {
                      activations_gradient(i,j) = 1-activations(i,j)*activations(i,j);
                  }

              // Output weights update
              for(int f=0; f<ws.length(); f++)
              {
                  for(int i=0; i<nout; i++)
                  {
                      // Update w
                      for(int j=0; j<nhidden+1; j++)  {
                          if(i!=target[2])  {
                              ws[f](i, j) -= bad_class_softmax_gradient[i]*activations(j,f) + (lambda != 0 ? lambda_times_2*ws[f](i,j) : 0);
                          }
                          else  {
                              ws[f](i, j) -= good_class_softmax_gradient[i]*activations(j,f) + (lambda != 0 ? lambda_times_2*ws[f](i, j) : 0);
                          }
                      }
                      if(auxiliary_task_train_set && use_thetas_for_output_weights && ((!separate_features && f==0) || (separate_features && f<thetas.length())))
                      {
                          // Update v
                          for(int j=0; j<50; j++)  {
                              if(i!=target[2])  {
                                  vs[f](i, j) -= bad_class_softmax_gradient[i]*thetas_times_x(j,f);
                              }
                              else  {
                                  vs[f](i, j) -= good_class_softmax_gradient[i]*thetas_times_x(j,f);
                              }
                          }
                      }
                  }
              }

              // Hidden weights update

              for(int f=0; f<ws.length(); f++)
              {

                  for(int j=0; j<nhidden; j++)  {
                      log_softmax_gradient = 0;
                      for(int i=0; i<nout; i++)
                      {
                          if(i!=target[2])  {
                              log_softmax_gradient += bad_class_softmax_gradient[i]*ws[f](i,j);
                          }
                          else {
                              log_softmax_gradient += good_class_softmax_gradient[i]*ws[f](i,j);
                          }
                          if(auxiliary_task_train_set && use_thetas_for_output_weights && f<vs.length())
                          {
                              v_times_theta = 0;
                              for(int l=0; l<50; l++)
                              {
                                  v_times_theta += vs[f](i,l) * thetas[f](l,j);
                              }

                              if(i!=target[2])  {
                                  log_softmax_gradient += bad_class_softmax_gradient[i]*v_times_theta;
                              }
                              else {
                                  log_softmax_gradient += good_class_softmax_gradient[i]*v_times_theta;
                              }

                          }
                      }

                      log_softmax_gradient *= activations_gradient(j,f);

                      if(!separate_features)
                      {
                          for(int f2=0; f<whids.length(); f++)
                          {
                              current_features = feats[f2].data();
                              for(int k=0; k<feats[f2].length(); k++)
                              {
                                  whids[f2](j, current_features[k]) -= log_softmax_gradient + (lambda != 0 ? lambda_times_2*whids[f2](j,current_features[k]) : 0);
                              }
                          }
                          if(auxiliary_task_train_set && use_thetas_for_hidden_weights && f<vhids.length())
                          {
                              // Update v
                              for(int l=0; l<50; l++)  {
                                  vhids[f](j, l) -= log_softmax_gradient*thetahids_times_x(l,0);
                              }
                          }

                      }
                      else
                      {
                          current_features = feats[f].data();
                          for(int k=0; k<feats[f].length(); k++)
                          {

                              whids[f](j, current_features[k]) -= log_softmax_gradient + (lambda != 0 ? lambda_times_2*whids[f](j,current_features[k]) : 0);
                          }
                          if(auxiliary_task_train_set && use_thetas_for_hidden_weights && f<vhids.length())
                          {
                              // Update v
                              for(int l=0; l<50; l++)  {
                                  vhids[f](j, l) -= log_softmax_gradient*thetahids_times_x(l,f);
                              }
                          }
                      }
                  }
              }

          }
          else
          {
              for(int f=0; f<feats.length(); f++)
              {
                  current_features = feats[f].data();
                  for(int i=0; i<nout; i++)
                  {
                      // Update w
                      for(int j=0; j<feats[f].length(); j++)  {
                          if(i!=target[2])  {
                              ws[f](i, current_features[j]) -= bad_class_softmax_gradient[i] + (lambda != 0 ? lambda_times_2*ws[f](i, current_features[j]) : 0);
                          }
                          else  {
                              ws[f](i, current_features[j]) -= good_class_softmax_gradient[i] + (lambda != 0 ? lambda_times_2*ws[f](i, current_features[j]) : 0);
                          }
                      }
                      if(auxiliary_task_train_set && use_thetas_for_output_weights && ((!separate_features && f==0) || (separate_features && f<thetas.length())))
                      {
                          // Update v
                          for(int j=0; j<50; j++)  {
                              if(i!=target[2])  {
                                  vs[f](i, j) -=  bad_class_softmax_gradient[i]*thetas_times_x(j,f);
                              }
                              else  {
                                  vs[f](i, j) -= good_class_softmax_gradient[i]*thetas_times_x(j,f);
                              }
                          }
                      }

                  }
              }
          }
          //p.end("Main update");
      }

      /*
        if(nhidden>0)
        {
        // Output weights update
        for(int f=0; f<(separate_features ? feats.length() : 1); f++)
        {
        for(int i=0; i<nout; i++)
        {
        // Update w
        for(int j=0; j<nhidden+1; j++)  {
        if(i!=target[2])  {
        ws[f](i, j) -= learning_rate*output[i]*activations(j,f) + (lambda != 0 ? 2*lambda*ws[f](i,j) : 0);
        }
        else  {
        ws[f](i, j) -= learning_rate*(output[i]-1)*activations(j,f) + (lambda != 0 ? 2*lambda*ws[f](i, j) : 0);
        }
        }
        if(auxiliary_task_train_set && ((!separate_features && f==0) || (separate_features && f<thetas.length())))
        {
        // Update v
        for(int j=0; j<50; j++)  {
        if(i!=target[2])  {
        vs[f](i, j) -= learning_rate*output[i]*thetas_times_x(j,f);
        }
        else  {
        vs[f](i, j) -= learning_rate*(output[i]-1)*thetas_times_x(j,f);
        }
        }
        }
        }
        }

        // Hidden weights update
        for(int f=0; f<feats.length(); f++)
        {
        current_features = feats[f].data();
        for(int i=0; i<nout; i++) {
        for(int j=0; j<nhidden; j++)
        {
        for(int k=0; k<feats[f].length(); k++)
        {
        if(i!=target[2])  {
        if(separate_features) whids[f](j, current_features[k]) -= learning_rate*output[i]*ws[f](i,j)*(1-mypow(activations(j,f),2)) + (lambda != 0 ? 2*lambda*whids[f](j,current_features[k]) : 0);
        else whids[f](j, current_features[k]) -= learning_rate*output[i]*ws[0](i,j)*(1-mypow(activations(j,0),2)) + (lambda != 0 ? 2*lambda*whids[f](j,current_features[k]) : 0);
        }
        else  {
        if(separate_features) whids[f](j, current_features[k]) -= learning_rate*(output[i]-1)*ws[f](i,j)*(1-mypow(activations(j,f),2)) + (lambda != 0 ? 2*lambda*whids[f](j,current_features[k]) : 0);
        else whids[f](j, current_features[k]) -= learning_rate*(output[i]-1)*ws[0](i,j)*(1-mypow(activations(j,0),2)) + (lambda != 0 ? 2*lambda*whids[f](j,current_features[k]) : 0);
        }
        }
        if(auxiliary_task_train_set && ((!separate_features && f==0) || (separate_features && f<thetahids.length())))
        {
        // Update v
        for(int j=0; j<50; j++)  {
        if(i!=target[2])  {
        vhids[f](i, j) -= learning_rate*output[i]*ws[f](i,j)*(1-mypow(activations(j,f),2))*thetahids_times_x(j,f);
        }
        else  {
        vhids[f](i, j) -= learning_rate*(output[i]-1)*ws[f](i,j)*(1-mypow(activations(j,f),2))*thetahids_times_x(j,f);
        }
        }
        }
        }
        }
        }

        }
        else
        {

        for(int f=0; f<feats.length(); f++)
        {
        current_features = feats[f].data();
        for(int i=0; i<nout; i++)
        {
        // Update w
        for(int j=0; j<feats[f].length(); j++)  {
        if(i!=target[2])  {
        ws[f](i, current_features[j]) -= learning_rate*output[i] + (lambda != 0 ? 2*lambda*ws[f](i, current_features[j]) : 0);
        }
        else  {
        ws[f](i, current_features[j]) -= learning_rate*(output[i]-1) + (lambda != 0 ? 2*lambda*ws[f](i, current_features[j]) : 0);
        }
        }

        if(auxiliary_task_train_set && ((!separate_features && f==0) || (separate_features && f<thetas.length())))
        {
        // Update v
        for(int j=0; j<50; j++)  {
        if(i!=target[2])  {
        vs[f](i, j) -= learning_rate*output[i]*thetas_times_x(j,f);
        }
        else  {
        vs[f](i, j) -= learning_rate*(output[i]-1)*thetas_times_x(j,f);
        }
        }
        }
        }
        }
        }
        }
      */
      ++stage;
      train_stats->finalize(); // finalize statistics for this epoch

  }
  //p.end("All train");

  //p.report(cout);
}

Here is the call graph for this function:

void PLearn::StructuralLearner::updateFeatures ( const Vec input,
const Vec target,
TVec< TVec< unsigned int > > &  theFeatureGroups,
char  featureMask = 0x1F
) const

Updates features computed in computeFeatures().

Actually just recomputes the feature groups based upon the target vector, ie the previous labels and "previous label - current word" bigram.

Parameters:
inputthe example's input
theFeatureGroupsthe features (the indices that are active) organized by groups - output
featureMaskspecifies whether the features are masked - lower 5 bits are used to represent the 5-token window. Inactive bit means do not output features for that position. '00011111' means return all features '00000100' means return only features for the position we're making the prediction at
Note:

Definition at line 1712 of file StructuralLearner.cc.

References PLearn::TVec< T >::find(), and PLearn::is_missing().

{

    // *** Label features ***
    // Labels of the 2 words on the left - should always be in the target (if we are decoding, then the target
    // should hold what we have predicted
    currentFeatureGroup = theFeatureGroups[4];
    currentFeatureGroup.resize(2);
    size = 0;
    fl = 0;

    // Hugo: we don't use the tag features for auxiliary task???
    if( featureMask & 1 ) {
        if( !is_missing(target[0]) ) {
            currentFeatureGroup.push_back( fl+(int)target[0] );
            size++;
        }
    }
    fl += (train_set->getDictionary(inputsize_))->size()+1;

    // Hugo: idem
    if( featureMask & 2) {
        if( !is_missing(target[1]) ) {
            currentFeatureGroup.push_back( fl + (int)target[1] );
            size++;
        }
    }
    fl += (train_set->getDictionary(inputsize_))->size()+1;
    theFeatureGroups[4].resize(size);
    fls[4] = fl;

    // *** Bigrams of current token and label on the left
    currentFeatureGroup = theFeatureGroups[5];
    currentFeatureGroup.resize(1);
    fl = 0;
    size=0;

    // Hugo: idem!!!
    // if none of the 2 are masked than we'll compute the feature
    if( (featureMask & 2) && (featureMask & 4) ) {
        if( !is_missing(target[1]) && !is_missing(input[14]) ) {

          int bigram = (int)target[1] * ((train_set->getDictionary(0))->size()+1) + (int)input[14];
          std::map<int, int>::iterator itr_plcw_bigram_mapping;

          // is it in our mapping of bigrams seen in train_set?
          itr_plcw_bigram_mapping = plcw_bigram_mapping.find( bigram );

          if( itr_plcw_bigram_mapping != plcw_bigram_mapping.end() )  {
            currentFeatureGroup.push_back( itr_plcw_bigram_mapping->second );
            size++;
          }
        }
    }
    fl += plcw_bigram_mapping.size();
    theFeatureGroups[5].resize(size);
    fls[5] = fl;


}

Here is the call graph for this function:


Member Data Documentation

Reimplemented from PLearn::PLearner.

Definition at line 142 of file StructuralLearner.h.

Definition at line 64 of file StructuralLearner.h.

Referenced by declareOptions().

Definition at line 174 of file StructuralLearner.h.

Definition at line 154 of file StructuralLearner.h.

Definition at line 196 of file StructuralLearner.h.

Definition at line 197 of file StructuralLearner.h.

Definition at line 62 of file StructuralLearner.h.

Referenced by declareOptions().

Definition at line 156 of file StructuralLearner.h.

Definition at line 181 of file StructuralLearner.h.

Definition at line 205 of file StructuralLearner.h.

Referenced by declareOptions().

Vec PLearn::StructuralLearner::costs [mutable, protected]

Definition at line 181 of file StructuralLearner.h.

Definition at line 205 of file StructuralLearner.h.

Referenced by declareOptions().

unsigned int* PLearn::StructuralLearner::current_features [mutable, protected]

Definition at line 167 of file StructuralLearner.h.

Definition at line 186 of file StructuralLearner.h.

Definition at line 61 of file StructuralLearner.h.

Referenced by declareOptions().

Definition at line 65 of file StructuralLearner.h.

Referenced by declareOptions().

TVec< TVec<unsigned int> > PLearn::StructuralLearner::feats [mutable, protected]

Definition at line 166 of file StructuralLearner.h.

unsigned int PLearn::StructuralLearner::fl [mutable, protected]

Definition at line 189 of file StructuralLearner.h.

TVec<unsigned int> PLearn::StructuralLearner::fls [mutable, protected]

Definition at line 193 of file StructuralLearner.h.

Definition at line 155 of file StructuralLearner.h.

Definition at line 66 of file StructuralLearner.h.

Referenced by declareOptions().

Vec PLearn::StructuralLearner::input [mutable, protected]

Definition at line 181 of file StructuralLearner.h.

Definition at line 63 of file StructuralLearner.h.

Referenced by declareOptions().

Definition at line 183 of file StructuralLearner.h.

Definition at line 70 of file StructuralLearner.h.

Referenced by declareOptions().

Definition at line 68 of file StructuralLearner.h.

Referenced by declareOptions().

Definition at line 67 of file StructuralLearner.h.

Referenced by declareOptions().

Vec PLearn::StructuralLearner::output [mutable, protected]

Definition at line 181 of file StructuralLearner.h.

std::map<int, int> PLearn::StructuralLearner::plcw_bigram_mapping [mutable, protected]

Definition at line 203 of file StructuralLearner.h.

Definition at line 201 of file StructuralLearner.h.

Definition at line 69 of file StructuralLearner.h.

Referenced by declareOptions().

int PLearn::StructuralLearner::size [mutable, protected]

Definition at line 188 of file StructuralLearner.h.

Definition at line 61 of file StructuralLearner.h.

Referenced by declareOptions().

std::string PLearn::StructuralLearner::symbol [mutable, protected]

Definition at line 190 of file StructuralLearner.h.

bool PLearn::StructuralLearner::tag [mutable, protected]

Definition at line 187 of file StructuralLearner.h.

Vec PLearn::StructuralLearner::target [mutable, protected]

Definition at line 181 of file StructuralLearner.h.

Definition at line 163 of file StructuralLearner.h.

Referenced by declareOptions().

Definition at line 173 of file StructuralLearner.h.

Definition at line 162 of file StructuralLearner.h.

Referenced by declareOptions().

Definition at line 172 of file StructuralLearner.h.

Definition at line 72 of file StructuralLearner.h.

Referenced by declareOptions().

Definition at line 71 of file StructuralLearner.h.

Referenced by declareOptions().

TVec<Mat> PLearn::StructuralLearner::vhids [mutable, protected]

Definition at line 163 of file StructuralLearner.h.

TMat< pair<real,int> > PLearn::StructuralLearner::viterbi_table [mutable, protected]

Definition at line 200 of file StructuralLearner.h.

TVec<Mat> PLearn::StructuralLearner::vs [mutable, protected]

Definition at line 162 of file StructuralLearner.h.

Referenced by declareOptions().

Definition at line 157 of file StructuralLearner.h.

Definition at line 182 of file StructuralLearner.h.

TVec<Mat> PLearn::StructuralLearner::whids [mutable, protected]

Definition at line 163 of file StructuralLearner.h.

Referenced by declareOptions().

TVec<Mat> PLearn::StructuralLearner::ws [mutable, protected]

Definition at line 162 of file StructuralLearner.h.

Referenced by declareOptions().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
