PLearn::OptimizeOptionOracle Class Reference

#include <OptimizeOptionOracle.h>

Inheritance diagram for PLearn::OptimizeOptionOracle:
Inheritance graph
[legend]

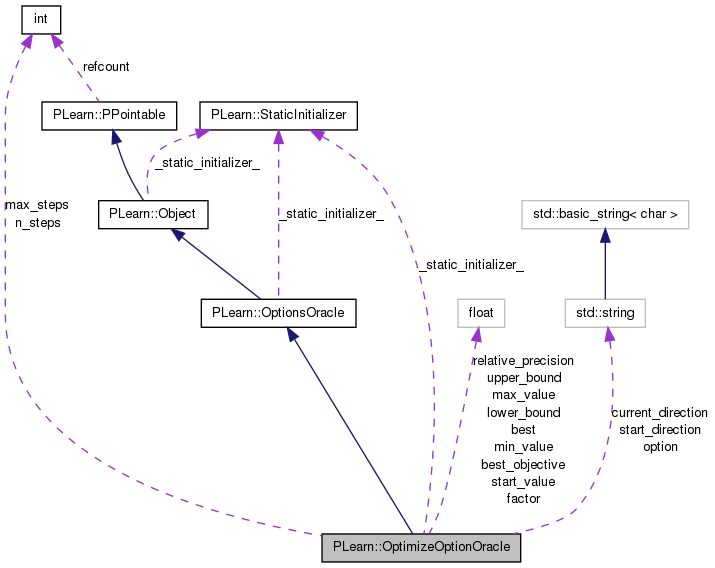

Collaboration diagram for PLearn::OptimizeOptionOracle:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 OptimizeOptionOracle ()
virtual TVec< string > getOptionNames () const
 Overridden.
virtual TVec< string > generateNextTrial (const TVec< string > &older_trial, real obtained_objective)
virtual void forget ()
 SUBCLASS WRITING: Should reset the generator's internal state (as having no info about previous trials).
virtual void build ()
 Post-constructor.
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual OptimizeOptionOracledeepCopy (CopiesMap &copies) const

Static Public Member Functions

static string _classname_ ()
 Declares name and deepCopy methods.
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

real factor
int max_steps
real max_value
real min_value
real relative_precision
string option
string start_direction
real start_value

Static Public Attributes

static StaticInitializer _static_initializer_

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declares this class' options.

Protected Attributes

string current_direction
real best
real best_objective
real lower_bound
int n_steps
real upper_bound

Private Types

typedef OptionsOracle inherited

Private Member Functions

void build_ ()
 This does the actual building.

Detailed Description

Definition at line 51 of file OptimizeOptionOracle.h.


Member Typedef Documentation

Reimplemented from PLearn::OptionsOracle.

Definition at line 56 of file OptimizeOptionOracle.h.


Constructor & Destructor Documentation

PLearn::OptimizeOptionOracle::OptimizeOptionOracle ( )

Definition at line 60 of file OptimizeOptionOracle.cc.

    : current_direction("not_started"),
      lower_bound(1),
      n_steps(0),
      upper_bound(-1),
      factor(2),
      max_steps(10),
      max_value(REAL_MAX),
      min_value(-REAL_MAX),
      relative_precision(0.5),
      option(""),
      start_direction("random"),
      start_value(0)
{}

Member Function Documentation

string PLearn::OptimizeOptionOracle::_classname_ ( ) [static]

Declares name and deepCopy methods.

Reimplemented from PLearn::OptionsOracle.

Definition at line 55 of file OptimizeOptionOracle.cc.

OptionList & PLearn::OptimizeOptionOracle::_getOptionList_ ( ) [static]

Reimplemented from PLearn::OptionsOracle.

Definition at line 55 of file OptimizeOptionOracle.cc.

RemoteMethodMap & PLearn::OptimizeOptionOracle::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::OptionsOracle.

Definition at line 55 of file OptimizeOptionOracle.cc.

bool PLearn::OptimizeOptionOracle::_isa_ ( const Object o) [static]

Reimplemented from PLearn::OptionsOracle.

Definition at line 55 of file OptimizeOptionOracle.cc.

Object * PLearn::OptimizeOptionOracle::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 55 of file OptimizeOptionOracle.cc.

StaticInitializer OptimizeOptionOracle::_static_initializer_ & PLearn::OptimizeOptionOracle::_static_initialize_ ( ) [static]

Reimplemented from PLearn::OptionsOracle.

Definition at line 55 of file OptimizeOptionOracle.cc.

void PLearn::OptimizeOptionOracle::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::OptionsOracle.

Definition at line 134 of file OptimizeOptionOracle.cc.

References PLearn::OptionsOracle::build(), and build_().

Here is the call graph for this function:

void PLearn::OptimizeOptionOracle::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::OptionsOracle.

Definition at line 142 of file OptimizeOptionOracle.cc.

References lower_bound, max_value, min_value, PLERROR, and upper_bound.

Referenced by build().

{
    if (min_value > max_value) {
        PLERROR("In OptimizeOptionOracle::build_ - You specified a min_value higher than max_value");
    }
    if (lower_bound > upper_bound) {
        // Should only happen when this object is built for the first time.
        lower_bound = min_value;
        upper_bound = max_value;
    }
}

Here is the caller graph for this function:

string PLearn::OptimizeOptionOracle::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 55 of file OptimizeOptionOracle.cc.

void PLearn::OptimizeOptionOracle::declareOptions ( OptionList ol) [static, protected]

Declares this class' options.

Reimplemented from PLearn::OptionsOracle.

Definition at line 78 of file OptimizeOptionOracle.cc.

References best, best_objective, PLearn::OptionBase::buildoption, current_direction, PLearn::declareOption(), PLearn::OptionsOracle::declareOptions(), factor, PLearn::OptionBase::learntoption, lower_bound, max_steps, max_value, min_value, n_steps, option, relative_precision, start_direction, start_value, and upper_bound.

{
    declareOption(ol, "option", &OptimizeOptionOracle::option, OptionBase::buildoption,
                  "The name of the option to optimize.");

    declareOption(ol, "max_steps", &OptimizeOptionOracle::max_steps, OptionBase::buildoption,
                  "The maximum number of steps performed.");

    declareOption(ol, "start_value", &OptimizeOptionOracle::start_value, OptionBase::buildoption,
                  "The value we start from for this option.");

    declareOption(ol, "min_value", &OptimizeOptionOracle::min_value, OptionBase::buildoption,
                  "The minimum value that should be tried.");

    declareOption(ol, "max_value", &OptimizeOptionOracle::max_value, OptionBase::buildoption,
                  "The maximum value that should be tried.");

    declareOption(ol, "relative_precision", &OptimizeOptionOracle::relative_precision, OptionBase::buildoption,
                  "The precision to which we want to find the optimal option. For instance\n"
                  "0.1 would indicate we want the 'best' value to be found in an interval\n"
                  "of the kind [best - 10% * best, best + 10% * best].");

    declareOption(ol, "factor", &OptimizeOptionOracle::factor, OptionBase::buildoption,
                  "The factor by which we multiply / divide the current value after\n"
                  "we started from 'start_value'.");

    declareOption(ol, "start_direction", &OptimizeOptionOracle::start_direction, OptionBase::buildoption,
                  "The direction we start going to ('up', 'down' or 'random').");

    //***************

    declareOption(ol, "best", &OptimizeOptionOracle::best, OptionBase::learntoption,
                  "The best value found so far.");

    declareOption(ol, "best_objective", &OptimizeOptionOracle::best_objective, OptionBase::learntoption,
                  "The objective obtained with option = 'best'.");

    declareOption(ol, "current_direction", &OptimizeOptionOracle::current_direction, OptionBase::learntoption,
                  "The current direction we are going ('up', 'down' or 'not_started').");

    declareOption(ol, "lower_bound", &OptimizeOptionOracle::lower_bound, OptionBase::learntoption,
                  "The lower bound of the interval in which we working.");

    declareOption(ol, "n_steps", &OptimizeOptionOracle::n_steps, OptionBase::learntoption,
                  "The number of steps performed so far.");

    declareOption(ol, "upper_bound", &OptimizeOptionOracle::upper_bound, OptionBase::learntoption,
                  "The upper bound of the interval in which we working.");

    // Now call the parent class' declareOptions
    inherited::declareOptions(ol);
}

Here is the call graph for this function:

static const PPath& PLearn::OptimizeOptionOracle::declaringFile ( ) [inline, static]

Reimplemented from PLearn::OptionsOracle.

Definition at line 123 of file OptimizeOptionOracle.h.

OptimizeOptionOracle * PLearn::OptimizeOptionOracle::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::OptionsOracle.

Definition at line 55 of file OptimizeOptionOracle.cc.

void PLearn::OptimizeOptionOracle::forget ( ) [virtual]

SUBCLASS WRITING: Should reset the generator's internal state (as having no info about previous trials).

Implements PLearn::OptionsOracle.

Definition at line 157 of file OptimizeOptionOracle.cc.

References current_direction, lower_bound, max_value, min_value, n_steps, and upper_bound.

TVec< string > PLearn::OptimizeOptionOracle::generateNextTrial ( const TVec< string > &  older_trial,
real  obtained_objective
) [virtual]

SUBCLASS WRITING: This notifies the oracle, of the result obtained for a previous trial it suggested. The oracle is expected to return the next suggestion, or an empty vector if stopping conditions were met, or it run out of suggestions. An empty vector may be passed for older_trial if there is no result to report.

Implements PLearn::OptionsOracle.

Definition at line 175 of file OptimizeOptionOracle.cc.

References best, best_objective, current_direction, factor, PLearn::TVec< T >::length(), lower_bound, max_steps, n_steps, PLERROR, relative_precision, start_direction, start_value, PLearn::tostring(), PLearn::uniform_sample(), and upper_bound.

{
    if (n_steps >= max_steps) {
        // Time to stop.
        TVec<string> empty(0);
        return empty;
    } else {
        n_steps++;
    }

    if (older_trial.length() == 0) {
        // This is the first try: we just start with the given start value.
        best = start_value;
        best_objective = REAL_MAX;
        return TVec<string>(1, tostring(start_value));
    }

    // We can stop if the interval is restrained enough.
    if (lower_bound >= best - (best * relative_precision) &&
        upper_bound <= best + (best * relative_precision)) {
        TVec<string> empty(0);
        return empty;
    }

    real last = toreal(older_trial[0]); // The last value tried
    bool improved = false;
    if (obtained_objective < best_objective) {
        improved = true;
        best_objective = obtained_objective;
    }

    if (current_direction == "not_started") {
        // This is the second try.
        if (start_direction == "random") {
            // Need to start with a random direction.
            real t = uniform_sample();
            if (t < 0.5) {
                current_direction = "up";
            } else {
                current_direction = "down";
            }
        } else {
            current_direction = start_direction;
        }
    } else {
        // Find out in which direction we should go now.
        if (improved) {
            // Going in the 'current_direction' helped, let's keep going.
            if (current_direction == "up") {
                lower_bound = best;
            } else {
                upper_bound = best;
            }
        } else {
            // Going in the 'current_direction' didn't help. We go the other way.
            if (current_direction == "up") {
                current_direction = "down";
                upper_bound = last;
            } else {
                current_direction = "up";
                lower_bound = last;
            }
        }
    }

    if (improved) {
        best = last;
    }

    real next = 0; // The next value we are going to try.
    if (current_direction == "up") {
        if (best * factor < upper_bound*0.99) {
            // We can try much higher (the 0.99 is there to ensure we do not indefinitely
            // try the same 'upper_bound' value).
            next = best * factor;
        } else {
            // We take the middle point between 'best' and 'upper_bound'.
            next = (best + upper_bound) / 2;
        }
    } else if (current_direction == "down") {
        if (best / factor > lower_bound*1.01) {
            // We can try much lower.
            next = best / factor;
        } else {
            // We take the middle point between 'best' and 'lower_bound'.
            next = (best + lower_bound) / 2;
        }
    } else {
        PLERROR("In OptimizeOptionOracle::generateNextTrial - Wrong value for 'current_direction'");
    }
    return TVec<string>(1, tostring(next));
}

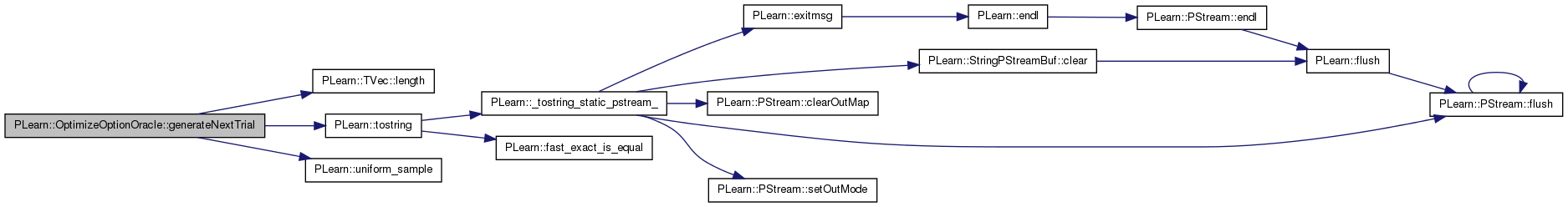

Here is the call graph for this function:

OptionList & PLearn::OptimizeOptionOracle::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 55 of file OptimizeOptionOracle.cc.

OptionMap & PLearn::OptimizeOptionOracle::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 55 of file OptimizeOptionOracle.cc.

TVec< string > PLearn::OptimizeOptionOracle::getOptionNames ( ) const [virtual]

Overridden.

Implements PLearn::OptionsOracle.

Definition at line 168 of file OptimizeOptionOracle.cc.

References option.

                                                        {
    return TVec<string>(1,option);
}
RemoteMethodMap & PLearn::OptimizeOptionOracle::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 55 of file OptimizeOptionOracle.cc.

void PLearn::OptimizeOptionOracle::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Transforms a shallow copy into a deep copy.

Reimplemented from PLearn::OptionsOracle.

Definition at line 271 of file OptimizeOptionOracle.cc.

References PLearn::OptionsOracle::makeDeepCopyFromShallowCopy(), and PLERROR.

{
    inherited::makeDeepCopyFromShallowCopy(copies);

    // ### Call deepCopyField on all "pointer-like" fields
    // ### that you wish to be deepCopied rather than
    // ### shallow-copied.
    // ### ex:
    // deepCopyField(trainvec, copies);

    // ### Remove this line when you have fully implemented this method.
    PLERROR("OptimizeOptionOracle::makeDeepCopyFromShallowCopy not fully (correctly) implemented yet!");
}

Here is the call graph for this function:


Member Data Documentation

Reimplemented from PLearn::OptionsOracle.

Definition at line 123 of file OptimizeOptionOracle.h.

Definition at line 65 of file OptimizeOptionOracle.h.

Referenced by declareOptions(), and generateNextTrial().

Definition at line 66 of file OptimizeOptionOracle.h.

Referenced by declareOptions(), and generateNextTrial().

Definition at line 64 of file OptimizeOptionOracle.h.

Referenced by declareOptions(), forget(), and generateNextTrial().

Definition at line 77 of file OptimizeOptionOracle.h.

Referenced by declareOptions(), and generateNextTrial().

Definition at line 67 of file OptimizeOptionOracle.h.

Referenced by build_(), declareOptions(), forget(), and generateNextTrial().

Definition at line 78 of file OptimizeOptionOracle.h.

Referenced by declareOptions(), and generateNextTrial().

Definition at line 79 of file OptimizeOptionOracle.h.

Referenced by build_(), declareOptions(), and forget().

Definition at line 80 of file OptimizeOptionOracle.h.

Referenced by build_(), declareOptions(), and forget().

Definition at line 68 of file OptimizeOptionOracle.h.

Referenced by declareOptions(), forget(), and generateNextTrial().

Definition at line 82 of file OptimizeOptionOracle.h.

Referenced by declareOptions(), and getOptionNames().

Definition at line 81 of file OptimizeOptionOracle.h.

Referenced by declareOptions(), and generateNextTrial().

Definition at line 83 of file OptimizeOptionOracle.h.

Referenced by declareOptions(), and generateNextTrial().

Definition at line 84 of file OptimizeOptionOracle.h.

Referenced by declareOptions(), and generateNextTrial().

Definition at line 69 of file OptimizeOptionOracle.h.

Referenced by build_(), declareOptions(), forget(), and generateNextTrial().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
