    PLearn 0.1
   |

Scales (or suppress) the gradient that is backpropagated. More...
#include <ScaleGradientModule.h>


Public Member Functions | |
| ScaleGradientModule () | |
| Default constructor.   | |
| virtual void | fprop (const Mat &inputs, Mat &outputs) |
| Given a batch of inputs, compute the outputs.   | |
| virtual void | fprop (const Vec &input, Vec &output) const |
| given the input, compute the output (possibly resize it appropriately) SOON TO BE DEPRECATED, USE fprop(const TVec<Mat*>& ports_value)   | |
| virtual void | bpropUpdate (const Mat &inputs, const Mat &outputs, Mat &input_gradients, const Mat &output_gradients, bool accumulate=false) |
| SOON TO BE DEPRECATED, USE bpropAccUpdate(const TVec<Mat*>& ports_value, const TVec<Mat*>& ports_gradient)   | |
| virtual void | bpropUpdate (const Vec &input, const Vec &output, Vec &input_gradient, const Vec &output_gradient, bool accumulate=false) |
| SOON TO BE DEPRECATED, USE bpropAccUpdate(const TVec<Mat*>& ports_value, const TVec<Mat*>& ports_gradient) this version allows to obtain the input gradient as well N.B.   | |
| virtual void | forget () |
| Reset the parameters to the state they would be BEFORE starting training.   | |
| virtual void | setLearningRate (real the_learning_rate) |
| virtual string | classname () const |
| virtual OptionList & | getOptionList () const |
| virtual OptionMap & | getOptionMap () const |
| virtual RemoteMethodMap & | getRemoteMethodMap () const |
| virtual ScaleGradientModule * | deepCopy (CopiesMap &copies) const |
| virtual void | build () |
| Post-constructor.   | |
| virtual void | makeDeepCopyFromShallowCopy (CopiesMap &copies) |
| Transforms a shallow copy into a deep copy.   | |
Static Public Member Functions | |
| static string | _classname_ () |
| static OptionList & | _getOptionList_ () |
| static RemoteMethodMap & | _getRemoteMethodMap_ () |
| static Object * | _new_instance_for_typemap_ () |
| static bool | _isa_ (const Object *o) |
| static void | _static_initialize_ () |
| static const PPath & | declaringFile () |
Public Attributes | |
| real | scale |
| Scaling factor.   | |
Static Public Attributes | |
| static StaticInitializer | _static_initializer_ |
Static Protected Member Functions | |
| static void | declareOptions (OptionList &ol) |
| Declares the class options.   | |
Private Types | |
| typedef OnlineLearningModule | inherited |
Private Member Functions | |
| void | build_ () |
| This does the actual building.   | |
Scales (or suppress) the gradient that is backpropagated.
Definition at line 51 of file ScaleGradientModule.h.
typedef OnlineLearningModule PLearn::ScaleGradientModule::inherited [private] |

Reimplemented from PLearn::OnlineLearningModule.
Definition at line 53 of file ScaleGradientModule.h.
| PLearn::ScaleGradientModule::ScaleGradientModule | ( | ) |
| string PLearn::ScaleGradientModule::_classname_ | ( | ) |  [static] |

Reimplemented from PLearn::OnlineLearningModule.
Definition at line 51 of file ScaleGradientModule.cc.
| OptionList & PLearn::ScaleGradientModule::_getOptionList_ | ( | ) |  [static] |

Reimplemented from PLearn::OnlineLearningModule.
Definition at line 51 of file ScaleGradientModule.cc.
| RemoteMethodMap & PLearn::ScaleGradientModule::_getRemoteMethodMap_ | ( | ) |  [static] |

Reimplemented from PLearn::OnlineLearningModule.
Definition at line 51 of file ScaleGradientModule.cc.
Reimplemented from PLearn::OnlineLearningModule.
Definition at line 51 of file ScaleGradientModule.cc.
| Object * PLearn::ScaleGradientModule::_new_instance_for_typemap_ | ( | ) |  [static] |

Reimplemented from PLearn::Object.
Definition at line 51 of file ScaleGradientModule.cc.
| StaticInitializer ScaleGradientModule::_static_initializer_ & PLearn::ScaleGradientModule::_static_initialize_ | ( | ) |  [static] |

Reimplemented from PLearn::OnlineLearningModule.
Definition at line 51 of file ScaleGradientModule.cc.

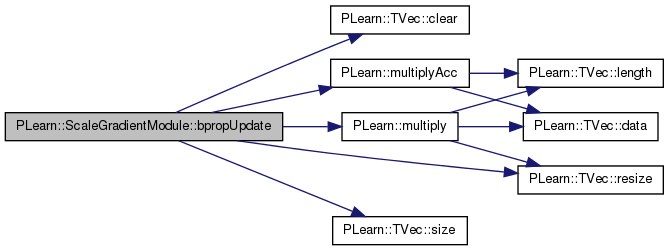

| void PLearn::ScaleGradientModule::bpropUpdate | ( | const Vec & | input, |
| const Vec & | output, | ||
| Vec & | input_gradient, | ||
| const Vec & | output_gradient, | ||
| bool | accumulate = false  |
        ||
| ) |  [virtual] |

SOON TO BE DEPRECATED, USE bpropAccUpdate(const TVec<Mat*>& ports_value, const TVec<Mat*>& ports_gradient) this version allows to obtain the input gradient as well N.B.
THE DEFAULT IMPLEMENTATION JUST RAISES A PLERROR. The flag indicates whether the input_gradients gets accumulated into or set with the computed derivatives.
Reimplemented from PLearn::OnlineLearningModule.
Definition at line 144 of file ScaleGradientModule.cc.
References PLearn::TVec< T >::clear(), PLearn::multiply(), PLearn::multiplyAcc(), PLASSERT_MSG, PLearn::TVec< T >::resize(), scale, and PLearn::TVec< T >::size().
{
    if (accumulate)
    {
        PLASSERT_MSG( input_gradient.size() == output_gradient.size(),
                      "Cannot accumulate into input_gradient and resize it" );
        if (scale == 0)
            return;
        else // input_gradient += scale * output_gradients
            multiplyAcc(input_gradient, output_gradient, scale);
    }
    else
    {
        input_gradient.resize(output_gradient.size());
        if (scale == 0)
            input_gradient.clear();
        else // input_gradient = scale * output_gradients
            multiply(output_gradient, scale, input_gradient);
    }
}

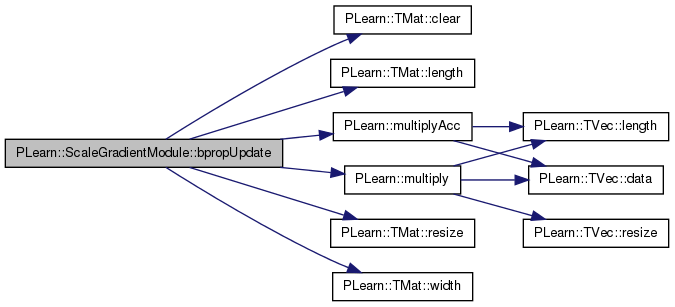

| void PLearn::ScaleGradientModule::bpropUpdate | ( | const Mat & | inputs, |
| const Mat & | outputs, | ||
| Mat & | input_gradients, | ||
| const Mat & | output_gradients, | ||
| bool | accumulate = false  |
        ||
| ) |  [virtual] |

SOON TO BE DEPRECATED, USE bpropAccUpdate(const TVec<Mat*>& ports_value, const TVec<Mat*>& ports_gradient)
Reimplemented from PLearn::OnlineLearningModule.
Definition at line 116 of file ScaleGradientModule.cc.
References PLearn::TMat< T >::clear(), PLearn::TMat< T >::length(), PLearn::multiply(), PLearn::multiplyAcc(), PLASSERT_MSG, PLearn::TMat< T >::resize(), scale, and PLearn::TMat< T >::width().
{
    if (accumulate)
    {
        PLASSERT_MSG( input_gradients.length() == output_gradients.length()
                      && input_gradients.width() == output_gradients.width(),
                      "Cannot accumulate into input_gradients and resize it" );
        if (scale == 0)
            return;
        else // input_gradients += scale * output_gradients
            multiplyAcc(input_gradients, output_gradients, scale);
    }
    else
    {
        input_gradients.resize(output_gradients.length(),
                               output_gradients.width());
        if (scale == 0)
            input_gradients.clear();
        else // input_gradients = scale * output_gradients
            multiply(input_gradients, output_gradients, scale);
    }
}

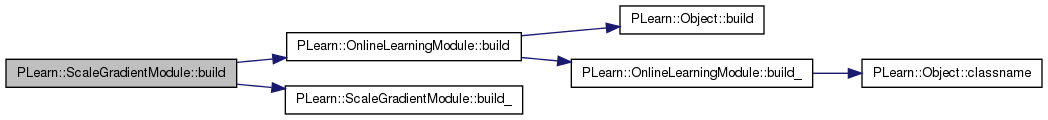

| void PLearn::ScaleGradientModule::build | ( | ) |  [virtual] |

Post-constructor.
The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.
Reimplemented from PLearn::OnlineLearningModule.
Definition at line 85 of file ScaleGradientModule.cc.
References PLearn::OnlineLearningModule::build(), and build_().
{
    inherited::build();
    build_();
}

| void PLearn::ScaleGradientModule::build_ | ( | ) |  [private] |

This does the actual building.
Reimplemented from PLearn::OnlineLearningModule.
Definition at line 78 of file ScaleGradientModule.cc.
Referenced by build().
{
}

| string PLearn::ScaleGradientModule::classname | ( | ) |  const [virtual] |

Reimplemented from PLearn::Object.
Definition at line 51 of file ScaleGradientModule.cc.
| void PLearn::ScaleGradientModule::declareOptions | ( | OptionList & | ol | ) |  [static, protected] |

Declares the class options.
Reimplemented from PLearn::OnlineLearningModule.
Definition at line 64 of file ScaleGradientModule.cc.
References PLearn::OptionBase::buildoption, PLearn::declareOption(), PLearn::OnlineLearningModule::declareOptions(), and scale.
{
    declareOption(ol, "scale", &ScaleGradientModule::scale,
        OptionBase::buildoption,
        "The scaling factor. If 0, no gradient will be backpropagated."
        );
    // Now call the parent class' declareOptions
    inherited::declareOptions(ol);
}

| static const PPath& PLearn::ScaleGradientModule::declaringFile | ( | ) |  [inline, static] |

Reimplemented from PLearn::OnlineLearningModule.
Definition at line 95 of file ScaleGradientModule.h.
:
    //#####  Protected Member Functions  ######################################
| ScaleGradientModule * PLearn::ScaleGradientModule::deepCopy | ( | CopiesMap & | copies | ) |  const [virtual] |

Reimplemented from PLearn::OnlineLearningModule.
Definition at line 51 of file ScaleGradientModule.cc.
| void PLearn::ScaleGradientModule::forget | ( | ) |  [virtual] |

Reset the parameters to the state they would be BEFORE starting training.
Note that this method is necessarily called from build().
Implements PLearn::OnlineLearningModule.
Definition at line 94 of file ScaleGradientModule.cc.
{
}
given the input, compute the output (possibly resize it appropriately) SOON TO BE DEPRECATED, USE fprop(const TVec<Mat*>& ports_value)
Reimplemented from PLearn::OnlineLearningModule.
Definition at line 107 of file ScaleGradientModule.cc.
References PLearn::TVec< T >::resize(), and PLearn::TVec< T >::size().
{
    output.resize(input.size());
    output << input;
}

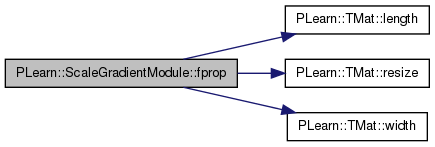

Given a batch of inputs, compute the outputs.
Reimplemented from PLearn::OnlineLearningModule.
Definition at line 101 of file ScaleGradientModule.cc.
References PLearn::TMat< T >::length(), PLearn::TMat< T >::resize(), and PLearn::TMat< T >::width().
{
    outputs.resize(inputs.length(), inputs.width());
    outputs << inputs;
}

| OptionList & PLearn::ScaleGradientModule::getOptionList | ( | ) |  const [virtual] |

Reimplemented from PLearn::Object.
Definition at line 51 of file ScaleGradientModule.cc.
| OptionMap & PLearn::ScaleGradientModule::getOptionMap | ( | ) |  const [virtual] |

Reimplemented from PLearn::Object.
Definition at line 51 of file ScaleGradientModule.cc.
| RemoteMethodMap & PLearn::ScaleGradientModule::getRemoteMethodMap | ( | ) |  const [virtual] |

Reimplemented from PLearn::Object.
Definition at line 51 of file ScaleGradientModule.cc.
| void PLearn::ScaleGradientModule::makeDeepCopyFromShallowCopy | ( | CopiesMap & | copies | ) |  [virtual] |

Transforms a shallow copy into a deep copy.
Reimplemented from PLearn::OnlineLearningModule.
Definition at line 176 of file ScaleGradientModule.cc.
References PLearn::OnlineLearningModule::makeDeepCopyFromShallowCopy().
{
    inherited::makeDeepCopyFromShallowCopy(copies);
}

| void PLearn::ScaleGradientModule::setLearningRate | ( | real | the_learning_rate | ) |  [virtual] |

Reimplemented from PLearn::OnlineLearningModule.
Definition at line 168 of file ScaleGradientModule.cc.
{
    // pass;
}
Reimplemented from PLearn::OnlineLearningModule.
Definition at line 95 of file ScaleGradientModule.h.
Scaling factor.
Definition at line 59 of file ScaleGradientModule.h.
Referenced by bpropUpdate(), and declareOptions().
