PLearn::SimpleDB< KeyType, QueryResult > Class Template Reference

#include <SimpleDB.h>

Inheritance diagram for PLearn::SimpleDB< KeyType, QueryResult >:
Inheritance graph
[legend]

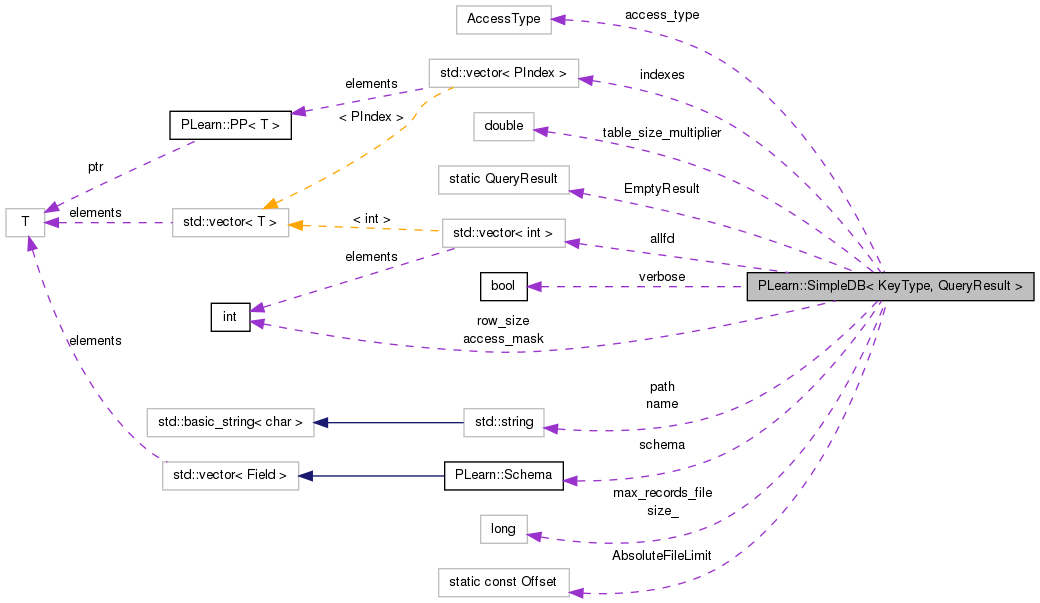

Collaboration diagram for PLearn::SimpleDB< KeyType, QueryResult >:
Collaboration graph
[legend]

List of all members.

Public Types

enum  { InvalidRow = ULONG_MAX }
enum  AccessType { readwrite = 0, readonly = 1 }
 Whether the user is granted read/write or read-only access. More...
typedef unsigned long RowNumber
 Friend functions and classes Template constraints function.
typedef unsigned long Offset
 A physical offset_into the database.
typedef QueryResult QueryResult_t
 The result of making a query.
typedef SimpleDBIndexKey< KeyType > IndexKey
 An index is simply a hash table from IndexKey to QueryResult.
typedef Hash< IndexKey,
QueryResult >
Index
typedef PP< IndexPIndex
typedef vector< const unsigned
char * >
vuc
 Use linear search to find multiple "lookfor".

Public Member Functions

 SimpleDB (string rootname, string path=".", AccessType=readwrite, bool verbose=true)
virtual ~SimpleDB ()
string getName () const
string getPath () const
void setSchema (const Schema &s)
const SchemagetSchema () const
void saveSchema ()
void loadSchema ()
bool findColumn (string name, int &position, int &start, int &precision) const
int indexOfField (const string &fieldname) const
 returns the index of the given field inside the Schema, -1 if not found
Row getRow (RowNumber) const
RowgetInRow (RowNumber, Row &) const
RowNumber size () const
 1 beyond maximum row number
int length () const
int width () const
void addRow (const Row &)
 add at end of database
void setRow (const Row &, RowNumber)
 set a particular row
void truncateFromRow (RowNumber n)
 erase all rows from row n (included) until end
bool indexColumn (string columnName, string secondColumn=string(""))
void clearIndex (string columnName)
 Clear an index from memory to free up space.
QueryResult findEqual (const unsigned char *lookfor, string columnName, string secondColumn=string(""))
const QueryResult & findEqualIndexed (const unsigned char *lookfor, string columnName, string secondColumn=string(""))
 Always use the index to find "lookfor".
QueryResult findEqualLinear (const unsigned char *lookfor, string columnName, string secondColumn=string(""))
 Use linear search to find "lookfor".
QueryResult findEqualLinear (const vuc &lookfor, string columnName, string secondColumn=string(""))
double tableSizeMultiplier () const
 Access the table size multiplier (see description below)
void tableSizeMultiplier (double x)

Static Public Attributes

static const Offset AbsoluteFileLimit = 512ul * 1024ul * 1024ul - 1
 Maximum size that a single database file can hold; this is currently set to 512 MB.
static QueryResult EmptyResult
 A null query.

Private Member Functions

void computeSize ()
 (should provide union, intersection, and such operators...)
void memoryToDisk (Row &) const
 convert a row from machine-dependent endianness to disk-standard little-endian format.
void diskToMemory (Row &) const
 convert a row from disk-standard little-endian format to machine-dependent endianness
int seekToRow (RowNumber) const
int seekToEnd () const
 seek to end of database, return FD to the correct file
void openAllFiles () const
 open all existing segments in database
void closeAllFiles () const
 close all open file descriptors
int lastSegment () const
 return the index (NOT FD!) of the last open segment
string getSegmentPath (int i) const
 return full path of segment i (zero-based)
 SimpleDB (const SimpleDB &)
 For now, disable copy construction and assignment.
void operator= (const SimpleDB &)

Private Attributes

string name
 database base name
string path
 database root path
AccessType access_type
 readwrite or readonly
int access_mask
 Unix constants for access_type.
RowNumber size_
 cached number of rows
Schema schema
 database schema
int row_size
 length of a row in bytes
RowNumber max_records_file
 maximum number of full rows in a single file
vector< intallfd
 File descriptors of open segments; -1 for not open.
double table_size_multiplier
vector< PIndexindexes
 There's one possible index per column in the database.
bool verbose
 print debugging info to cerr

Detailed Description

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
class PLearn::SimpleDB< KeyType, QueryResult >

Simple Database

This class permits the representation of a simple quasi-flat-file database in an efficient binary format, and enables indexing string columns to obtain the rows that match a given string.

Definition at line 500 of file SimpleDB.h.


Member Typedef Documentation

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
typedef Hash<IndexKey,QueryResult> PLearn::SimpleDB< KeyType, QueryResult >::Index

Definition at line 534 of file SimpleDB.h.

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
typedef SimpleDBIndexKey<KeyType> PLearn::SimpleDB< KeyType, QueryResult >::IndexKey

An index is simply a hash table from IndexKey to QueryResult.

Definition at line 533 of file SimpleDB.h.

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
typedef unsigned long PLearn::SimpleDB< KeyType, QueryResult >::Offset

A physical offset_into the database.

Definition at line 516 of file SimpleDB.h.

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
typedef PP<Index> PLearn::SimpleDB< KeyType, QueryResult >::PIndex

Definition at line 535 of file SimpleDB.h.

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
typedef QueryResult PLearn::SimpleDB< KeyType, QueryResult >::QueryResult_t

The result of making a query.

make it available

Definition at line 529 of file SimpleDB.h.

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
typedef unsigned long PLearn::SimpleDB< KeyType, QueryResult >::RowNumber

Friend functions and classes Template constraints function.

--- Public Type Definitions A row number in the database. Rows are numbered starting with 0. InvalidRow is a constant denoting an invalid row number.

Definition at line 510 of file SimpleDB.h.

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
typedef vector<const unsigned char*> PLearn::SimpleDB< KeyType, QueryResult >::vuc

Use linear search to find multiple "lookfor".

Definition at line 634 of file SimpleDB.h.


Member Enumeration Documentation

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
anonymous enum
Enumerator:
InvalidRow

Definition at line 511 of file SimpleDB.h.

         {
        InvalidRow = ULONG_MAX
    };
template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
enum PLearn::SimpleDB::AccessType

Whether the user is granted read/write or read-only access.

Enumerator:
readwrite
readonly

Definition at line 519 of file SimpleDB.h.

                    {
        readwrite = 0,
        readonly  = 1
    };

Constructor & Destructor Documentation

template<class KT , class QR >
PLearn::SimpleDB< KT, QR >::SimpleDB ( string  rootname,
string  path = ".",
AccessType  the_access_type = readwrite,
bool  verbose = true
)
template<class KT , class QR >
PLearn::SimpleDB< KT, QR >::~SimpleDB ( ) [virtual]

Upon destroying the database, save the current schema

Definition at line 1233 of file SimpleDB.h.

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
PLearn::SimpleDB< KeyType, QueryResult >::SimpleDB ( const SimpleDB< KeyType, QueryResult > &  ) [private]

For now, disable copy construction and assignment.


Member Function Documentation

template<class KT , class QR >
void PLearn::SimpleDB< KT, QR >::addRow ( const Row row)

add at end of database

--- Functions dealing with database modifications

Handle writing error

Preserve database integrity by truncating from the point where we should have started writing

< increment length of db

Definition at line 1357 of file SimpleDB.h.

References PLERROR, PLWARNING, PLearn::Row::raw(), PLearn::Row::sanitize(), PLearn::Row::size(), and PLearn::write().

{
    if(row_size != row.size())
        PLERROR("In addRow row_size != row.size() (%d != %d)", row_size, row.size());
    row.sanitize();
    int fd = seekToEnd();
    off_t curpos = lseek(fd, 0L, SEEK_CUR);

#ifdef LITTLEENDIAN

    //ssize_t writtensize = ::write(fd, row.raw(), row_size);
    int writtensize = ::write(fd, row.raw(), row_size);
#endif
#ifdef BIGENDIAN
    Row newrow(row);
    memoryToDisk(newrow);
    int writtensize = ::write(fd, newrow.raw(), row_size);
#endif

    if (writtensize == -1) {
#if defined(_MINGW_) || defined(WIN32)
        PLWARNING("could not truncate database file, end may be corrupted!");
#else
        ftruncate(fd, curpos);
#endif
        PLERROR("Could not write to database: %s", strerror(errno));
    }
    else
        size_++;
}

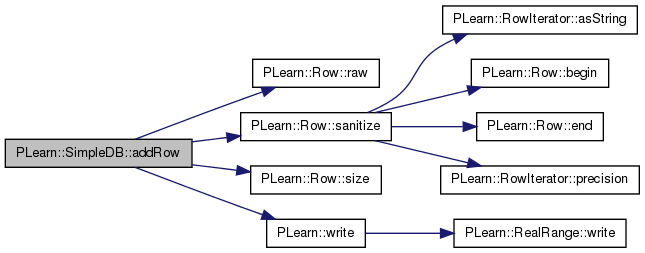

Here is the call graph for this function:

template<class KT , class QR >
void PLearn::SimpleDB< KT, QR >::clearIndex ( string  columnName)

Clear an index from memory to free up space.

Definition at line 1778 of file SimpleDB.h.

References n.

{
    int n, start_pos, column_precision=0;
    if (findColumn(column_name, n, start_pos, column_precision))
        indexes[n] = 0;
}
template<class KT , class QR >
void PLearn::SimpleDB< KT, QR >::closeAllFiles ( ) const [private]

close all open file descriptors

Definition at line 1650 of file SimpleDB.h.

{
    vector<int>::iterator it=allfd.begin(), end=allfd.end();
    for (; it != end; ++it)
        if (*it != -1) {
            close(*it);
        }
    allfd.clear();
}
template<class KT , class QR >
void PLearn::SimpleDB< KT, QR >::computeSize ( ) [private]

(should provide union, intersection, and such operators...)

computes the size_ field (called by constructor)

! cerr << "computing size" << endl; if(row_size<=0) //!< schema not yet set size_ = 0; else { int last = lastSegment(); int fd = seekToEnd(); assert (fd != -1 && last >= 0); off_t pos = lseek(fd, 0ul, SEEK_CUR); PLASSERT(row_size > 0 && pos % row_size == 0); size_ = pos / row_size + last * max_records_file; }

Definition at line 1493 of file SimpleDB.h.

References i.

Referenced by PLearn::SimpleDB< KeyType, QueryResult >::SimpleDB().

{
    if(row_size<=0)
        size_ = 0;
    else
    {
        size_ = 0;
        int i=0;
        int bytesinfile = file_size(getSegmentPath(i++));
        while(bytesinfile>0)
        {
            size_ += bytesinfile/row_size;
            bytesinfile = file_size(getSegmentPath(i++));
        }
    }


}

Here is the caller graph for this function:

template<class KT , class QR >
void PLearn::SimpleDB< KT, QR >::diskToMemory ( Row row) const [private]

convert a row from disk-standard little-endian format to machine-dependent endianness

Definition at line 1553 of file SimpleDB.h.

{
    memoryToDisk(row);
}
template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
bool PLearn::SimpleDB< KeyType, QueryResult >::findColumn ( string  name,
int position,
int start,
int precision
) const [inline]

Find a column by name, return true if found, and return the position, total bytes before in the row, and number of bytes in the column

Definition at line 568 of file SimpleDB.h.

                                          {
        return schema.findColumn(name,position,start,precision);
    }
template<class KT , class QR >
QR PLearn::SimpleDB< KT, QR >::findEqual ( const unsigned char *  lookfor,
string  columnName,
string  secondColumn = string("")
)

Find all rows in the database having the sequence of bytes contained in lookfor in the column columnName. (The number of bytes to match is determined by the precision of the field type of the specified column). If the column has been indexed before, use the index; otherwise, use linear search through the database.

Definition at line 1786 of file SimpleDB.h.

References n.

{
    int n, start_pos, column_precision;
    if (!findColumn(column_name, n, start_pos, column_precision))
        return EmptyResult;
    if (indexes[n])
        return findEqualIndexed(lookfor, column_name, second_column);
    else
        return findEqualLinear(lookfor, column_name, second_column);
}
template<class KT , class QR >
const QR & PLearn::SimpleDB< KT, QR >::findEqualIndexed ( const unsigned char *  lookfor,
string  columnName,
string  secondColumn = string("")
)

Always use the index to find "lookfor".

Definition at line 1800 of file SimpleDB.h.

References PLearn::Hash_UNUSED_TAG, n, and PLERROR.

{
    bool has_second_column = (second_column.size() > 0);
    int n,  start_pos,  column_precision =0,
        n2, start_pos2, column_precision2=0;
    if (!findColumn(column_name, n, start_pos, column_precision))
        return EmptyResult;
    if (has_second_column &&
        !findColumn(second_column, n2, start_pos2, column_precision2))
        return EmptyResult;

    if (!indexes[n])
        PLERROR("SimpleDB::indexColumn must be done before performing "
                "indexed searches on column %s", column_name.c_str());

    Index& index = *indexes[n];
    IndexKey key(lookfor, column_precision+column_precision2);
    unsigned int addr = index.hashAddress(key);
    if (addr == Hash_UNUSED_TAG)
        return EmptyResult;
    else
        return *index[addr];
}
template<class KT , class QR >
QR PLearn::SimpleDB< KT, QR >::findEqualLinear ( const unsigned char *  lookfor,
string  columnName,
string  secondColumn = string("")
)

Use linear search to find "lookfor".

Definition at line 1828 of file SimpleDB.h.

{
    vuc lf(1);
    lf[0] = lookfor;
    return findEqualLinear(lf, column_name, second_column);
}
template<class KT , class QR >
QR PLearn::SimpleDB< KT, QR >::findEqualLinear ( const vuc lookfor,
string  columnName,
string  secondColumn = string("")
)

Make a vector of keys from all strings to look for

Indeed search linearly...

(the -1 below assumes that the first column type is a string;--- should enforce this in the future)

Look among all keys to lookfor

Definition at line 1839 of file SimpleDB.h.

References PLearn::SimpleDBIndexKey< KeyType >::begin(), std::copy(), PLearn::endl(), i, n, and PLearn::Row::raw().

{
    bool has_second_column = (second_column.size() > 0);
    int n,  start_pos,  column_precision =0,
        n2, start_pos2, column_precision2=0;
    if (!findColumn(column_name, n, start_pos, column_precision))
        return EmptyResult;
    if (has_second_column &&
        !findColumn(second_column, n2, start_pos2, column_precision2))
        return EmptyResult;

    QR qr;

    vector<IndexKey> key_lookfor(lookfor.size());
    vuc::const_iterator
        lookit, lookbeg = lookfor.begin(), lookend = lookfor.end();
    typename vector<IndexKey>::iterator
        keyit, keybeg = key_lookfor.begin(), keyend = key_lookfor.end();
    size_t len = column_precision+column_precision2;

    for (lookit=lookbeg, keyit=keybeg ; lookit != lookend ;
         ++lookit, ++keyit) {
        keyit->resize(len);
        copy(*lookit, *lookit+len, keyit->begin());
    }

    IndexKey key_dbrow(column_precision+column_precision2);
    typename IndexKey::iterator keybegin = key_dbrow.begin();

    RowNumber maxrows = size();
    Row currow(&schema);
    unsigned char* begin1 = currow.raw() + start_pos;
    unsigned char* end1   = begin1 + column_precision;
    unsigned char* begin2 = currow.raw() + start_pos2;
    unsigned char* end2   = begin2 + column_precision2;

    for (RowNumber i=0; i<maxrows; ++i) {
        if (verbose && i % 1000000 == 0) {
            cerr << "Searching row " << i << endl;
        }

        getInRow(i, currow);

        copy(begin1, end1, keybegin);
        if (has_second_column)
            copy(begin2, end2, keybegin+column_precision-1);

        for (keyit = keybeg ; keyit != keyend ; ++keyit)
            if (*keyit == key_dbrow) {
                qr.push_back(i);
                if (verbose)
                    cerr << "Found string \"" << *keyit
                         << "\" at row " << i << endl;
            }
    }

    return qr;
}

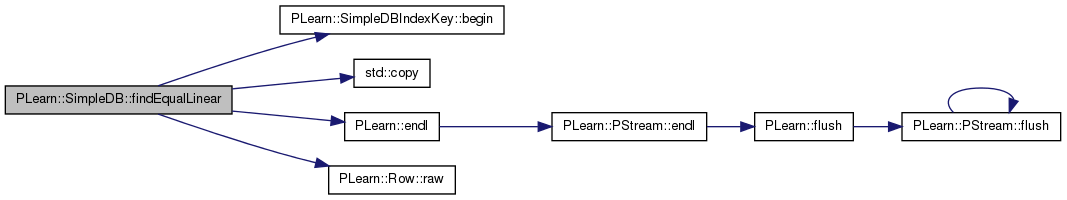

Here is the call graph for this function:

template<class KT , class QR >
Row & PLearn::SimpleDB< KT, QR >::getInRow ( RowNumber  n,
Row row
) const

Definition at line 1463 of file SimpleDB.h.

References PLERROR, PLearn::Row::raw(), PLearn::read(), and PLearn::Row::size().

Referenced by PLearn::SDBWithStats::computeStats(), PLearn::AutoSDBVMatrix::getNewRow(), PLearn::SDBVMatrix::getRow(), PLearn::halfShuffleRows(), and PLearn::randomShuffleRows().

{
#ifdef __INTEL_COMPILER
#pragma warning(disable:186)  // Get rid of compiler warning.
#endif
    if(n<0 || n>=size())
#ifdef __INTEL_COMPILER
#pragma warning(default:186)
#endif
        PLERROR("Out of Bounds in SimpleDB::getInRow");
    if(row_size != row.size())
        PLERROR("In getInRow row_size!=row_size()");
    int fd = seekToRow(n);

    int size_read = ::read(fd, row.raw(), row_size);
    if (size_read == -1)
        PLERROR("Could not read from database: %s",strerror(errno));
    diskToMemory(row);
    return row;
}

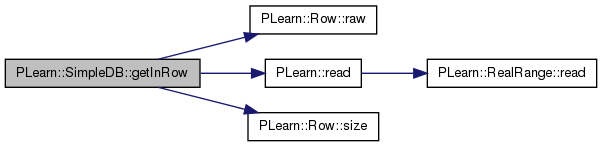

Here is the call graph for this function:

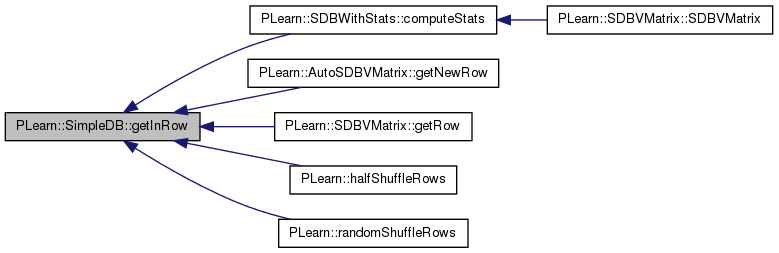

Here is the caller graph for this function:

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
string PLearn::SimpleDB< KeyType, QueryResult >::getName ( ) const [inline]

--- Functions dealing with database name and location

Definition at line 546 of file SimpleDB.h.

Referenced by PLearn::SDBWithStats::hasStats(), PLearn::SDBWithStats::loadStats(), and PLearn::SDBWithStats::saveStats().

                           {
        return name;
    }

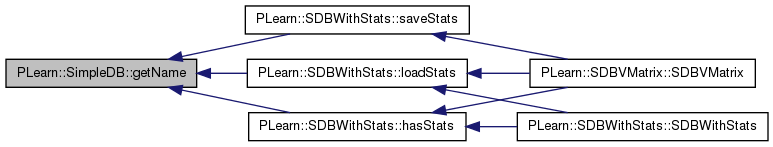

Here is the caller graph for this function:

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
string PLearn::SimpleDB< KeyType, QueryResult >::getPath ( ) const [inline]

Definition at line 549 of file SimpleDB.h.

Referenced by PLearn::SDBWithStats::hasStats(), PLearn::SDBWithStats::loadStats(), and PLearn::SDBWithStats::saveStats().

                           {
        return path;
    }

Here is the caller graph for this function:

template<class KT , class QR >
Row PLearn::SimpleDB< KT, QR >::getRow ( RowNumber  n) const

--- Functions dealing with simple database queries

Definition at line 1485 of file SimpleDB.h.

{
    Row row(&schema);
    getInRow(n, row);
    return row;
}
template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
const Schema& PLearn::SimpleDB< KeyType, QueryResult >::getSchema ( ) const [inline]
template<class KT , class QR >
string PLearn::SimpleDB< KT, QR >::getSegmentPath ( int  i) const [private]

return full path of segment i (zero-based)

Definition at line 1669 of file SimpleDB.h.

References PLERROR.

{
    string fullpath = path + name;
    if (i >= 1 && i <= 26) {
        string postfix(1, char('a'+i-1));
        fullpath += string("_") + postfix;
    }
    else if (i > 26)
        PLERROR("Too many segments in the database.");
    if(fullpath.find(".sdb")==string::npos)
        fullpath += ".sdb";
    return fullpath;
}
template<class KT , class QR >
bool PLearn::SimpleDB< KT, QR >::indexColumn ( string  columnName,
string  secondColumn = string("")
)

--- Functions dealing with indexing and more complex queries

Index according to the field having a given name. Return TRUE if indexing has been successful. At the moment, indexes are strictly kept in memory; they are not saved to disk. Optionally, the contents of a second column can be concatenated for indexing purposes.

Add all records to the index. Create one if necessary. Make initial size a constant times the number of records in the DB, as a heuristic.

If current key already exists, just add current row number; otherwise create new query result (the -1 below assumes that the first column type is a string;--- should enforce this in the future).

Avoid creating a one-element QueryResult and then copy it over. We add an EMPTY key/value pair to the hash, table, then access the value object (through the normal code to add a new row into an existing key, then set the row i into it.

Normal pathway: add row i to existing address

Definition at line 1687 of file SimpleDB.h.

References PLearn::Hash< KeyType, DataType >::add(), PLearn::SimpleDBIndexKey< KeyType >::begin(), std::copy(), PLearn::Hash< KeyType, DataType >::diagnostics(), PLearn::endl(), PLearn::Hash< KeyType, DataType >::flush(), PLearn::Hash_UNUSED_TAG, PLearn::Hash< KeyType, DataType >::hashAddress(), i, n, PLWARNING, PLearn::Row::raw(), and PLearn::Hash< KeyType, DataType >::resize().

{
    bool has_second_column = (second_column.size() > 0);
    int n,  start_pos,  column_precision =0,
        n2, start_pos2, column_precision2=0;
    if (!findColumn(column_name, n, start_pos, column_precision))
        return false;
    if (has_second_column &&
        !findColumn(second_column, n2, start_pos2, column_precision2))
        return false;

    RowNumber maxrows = size();
    RowNumber tablesize = RowNumber(table_size_multiplier*maxrows);
    if (maxrows <= 0 || tablesize <= 0) {
        PLWARNING("SimpleDB::indexColumn: cannot index a database of "
                  "zero size.");
        return false;
    }
    if (!indexes[n]) {
        indexes[n] = new Index(tablesize, true);
        indexes[n]->initializeTable((unsigned int)tablesize);
    }
    Index& index = *indexes[n];
    index.resize(tablesize);
    index.flush();

    Row currow(&schema);
    IndexKey key(column_precision + column_precision2);
    typename IndexKey::iterator keybegin = key.begin();
    unsigned char* begin1 = currow.raw() + start_pos;
    unsigned char* end1   = begin1 + column_precision;
    unsigned char* begin2 = currow.raw() + start_pos2;
    unsigned char* end2   = begin2 + column_precision2;

    for(RowNumber i=0; i<maxrows; ++i) {
        if (verbose && i % 1000000 == 0) {
            unsigned numclusters, maxcluster;
            index.diagnostics(numclusters, maxcluster);
            cerr << "indexing row " << i
                 << "\t num. clusters=" << numclusters
                 << "\t max. cluster size=" << maxcluster
                 << endl;
        }

        getInRow(i,currow);

        copy(begin1, end1, keybegin);
        if (has_second_column)
            copy(begin2, end2, keybegin+column_precision-1);
        unsigned int addr = index.hashAddress(key);

        if (addr == Hash_UNUSED_TAG) {
            bool needresize = !index.add(key,QueryResult_t());
            if (needresize) {
                cerr << "Hash table unexpectedly full; exiting..." << endl;
                exit(1);
            }
            addr = index.hashAddress(key);
        }

        QueryResult_t* qr = index[addr];
        try {
            qr->push_back(i);
        }
        catch (logic_error& e) {
            cerr << "Exception caught during indexing: "
                 << typeid(e).name() << endl
                 << "Containing: " << e.what() << endl;
            throw;
        }
    }
    return true;
}

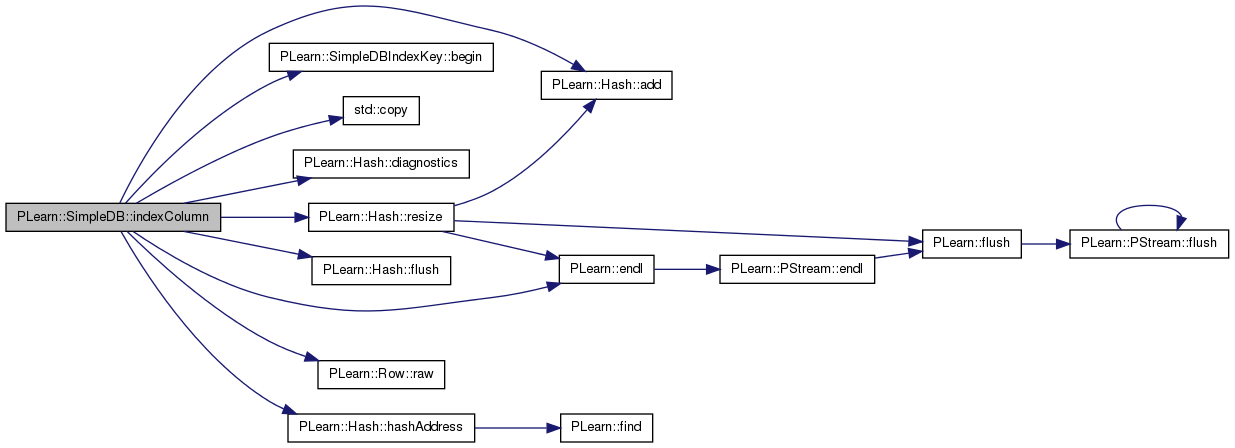

Here is the call graph for this function:

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
int PLearn::SimpleDB< KeyType, QueryResult >::indexOfField ( const string &  fieldname) const [inline]

returns the index of the given field inside the Schema, -1 if not found

Definition at line 575 of file SimpleDB.h.

Referenced by PLearn::SDBWithStats::getStat().

                                                    {
        return schema(fieldname).field_index();
    }

Here is the caller graph for this function:

template<class KT , class QR >
int PLearn::SimpleDB< KT, QR >::lastSegment ( ) const [inline, private]

return the index (NOT FD!) of the last open segment

Definition at line 1662 of file SimpleDB.h.

{
    return (int)allfd.size() - 1;
}
template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
int PLearn::SimpleDB< KeyType, QueryResult >::length ( ) const [inline]

Definition at line 584 of file SimpleDB.h.

Referenced by PLearn::AutoSDBVMatrix::AutoSDBVMatrix(), PLearn::halfShuffleRows(), and PLearn::randomShuffleRows().

                       {
        return int(size());
    }

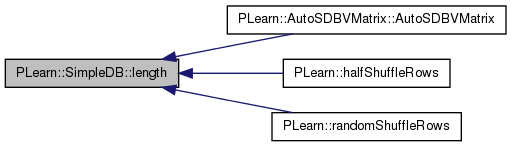

Here is the caller graph for this function:

template<class KT , class QR >
void PLearn::SimpleDB< KT, QR >::loadSchema ( )

If a schema does not exist, an empty schema is set into the current database!

Definition at line 1315 of file SimpleDB.h.

References PLearn::CharacterType, PLearn::DateType, PLearn::DoubleType, PLearn::endl(), PLearn::FloatType, PLearn::IntType, PLearn::lowerstring(), PLearn::ShortType, PLearn::SignedCharType, and PLearn::StringType.

Referenced by PLearn::SimpleDB< KeyType, QueryResult >::SimpleDB().

{
    string fullpath = path + name + ".ssc";
    ifstream sf(fullpath.c_str());
    Schema schema;
    while (sf) {
        string name,type;
        sf >> name >> type;
        if (name.size() == 0 || type.size() == 0)
            break;
        type = lowerstring(type);
        if (type == "string") {
            int length;
            sf >> length;
            schema.push_back(Field(name,StringType,length));
        }
        else if (type == "character")
            schema.push_back(Field(name,CharacterType));
        else if (type == "signedchar")
            schema.push_back(Field(name,SignedCharType));
        else if (type == "short")
            schema.push_back(Field(name,ShortType));
        else if (type == "int")
            schema.push_back(Field(name,IntType));
        else if (type == "float")
            schema.push_back(Field(name,FloatType));
        else if (type == "double")
            schema.push_back(Field(name,DoubleType));
        else if (type == "date")
            schema.push_back(Field(name,DateType));
        else {
            cerr << "Unexpected input type \"" << type
                 << "\" in schema file " << fullpath << endl;
            exit(1);
        }
    }
    setSchema(schema);
}

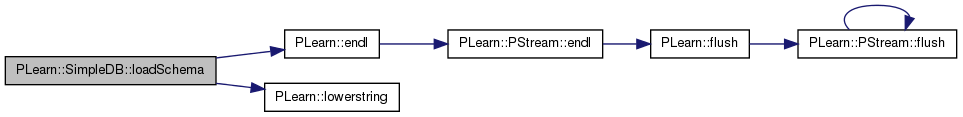

Here is the call graph for this function:

Here is the caller graph for this function:

template<class KT , class QR >
void PLearn::SimpleDB< KT, QR >::memoryToDisk ( Row row) const [private]

convert a row from machine-dependent endianness to disk-standard little-endian format.

Definition at line 1527 of file SimpleDB.h.

References PLearn::RowIterator::asDate(), PLearn::RowIterator::asDouble(), PLearn::RowIterator::asFloat(), PLearn::RowIterator::asInt(), PLearn::RowIterator::asShort(), PLearn::Row::begin(), PLearn::Row::end(), PLearn::reverse_double(), PLearn::reverse_float(), PLearn::reverse_int(), PLearn::reverse_short(), and x.

{
#ifdef LITTLEENDIAN

#endif
#ifdef BIGENDIAN
    Row newr(row);
    Row::iterator it = newr.begin(), end = newr.end();
    for(; it != end; ++it) {
        if (short* x = it.asShort())
            reverse_short(x,1);
        if (int* x = it.asInt())
            reverse_int(x,1);
        if (float* x = it.asFloat())
            reverse_float(x,1);
        if (double* x = it.asDouble())
            reverse_double(x,1);
        if (PDate* x = it.asDate()) {
            reverse_short(&(x->year),1);
        }
    }
#endif
}

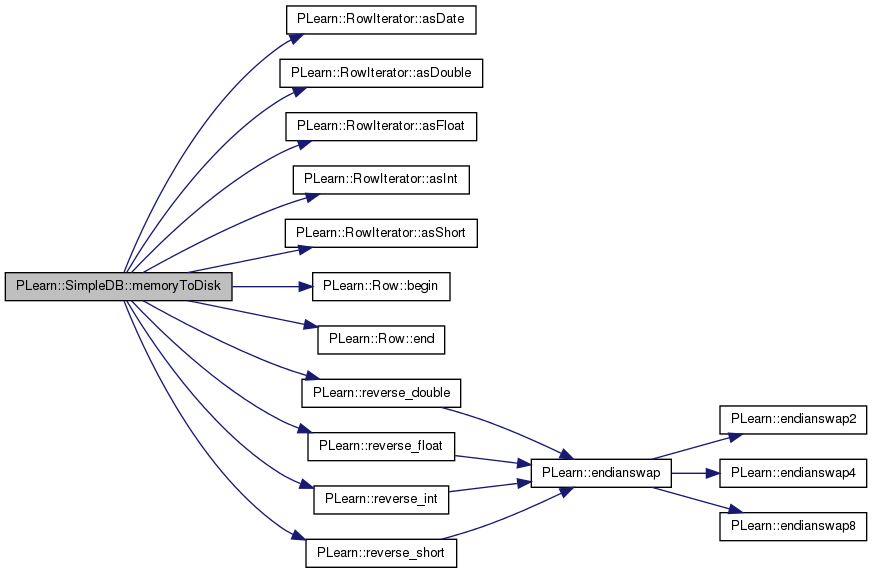

Here is the call graph for this function:

template<class KT , class QR >
void PLearn::SimpleDB< KT, QR >::openAllFiles ( ) const [private]

open all existing segments in database

Since we don't know in advance how many files are in the database, we start by opening segment zero (which always exists), and then successively try to open more segments

< safeguard

Definition at line 1620 of file SimpleDB.h.

References PLERROR.

Referenced by PLearn::SimpleDB< KeyType, QueryResult >::SimpleDB().

{
    closeAllFiles();

    int fd;
    fd = open(getSegmentPath(0).c_str(),
              access_mask | O_CREAT, 0777);
    if (fd == -1)
        PLERROR("Could not open main database segment %s: %s",
                getSegmentPath(0).c_str(), strerror(errno));
    allfd.push_back(fd);

    int index = 1;
    for ( ; ; ++index ) {
        fd = open(getSegmentPath(index).c_str(),
                  access_mask);
        if (fd == -1)
            break;
        else
            allfd.push_back(fd);
    }
}

Here is the caller graph for this function:

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
void PLearn::SimpleDB< KeyType, QueryResult >::operator= ( const SimpleDB< KeyType, QueryResult > &  ) [private]
template<class KT , class QR >
void PLearn::SimpleDB< KT, QR >::saveSchema ( )

Definition at line 1264 of file SimpleDB.h.

References PLearn::CharacterType, PLearn::DateType, PLearn::DoubleType, PLearn::endl(), PLearn::FloatType, PLearn::IntType, PLERROR, PLearn::ShortType, PLearn::SignedCharType, PLearn::StringType, and PLearn::Unknown.

{
    if (access_type==readwrite) {
        string fullpath = path + name + ".ssc";
        ofstream sf(fullpath.c_str(), ios::out);
        Schema::iterator it = schema.begin(), end = schema.end();
        for (; it != end; ++it) {
            sf << it->name << " ";
            switch (it->field_type) {
            case Unknown:
                break;
            case StringType:
                sf << "string " << it->precision << endl;
                break;

            case CharacterType:
                sf << "character" << endl;
                break;

            case SignedCharType:
                sf << "signedchar" << endl;
                break;

            case ShortType:
                sf << "short" << endl;
                break;

            case IntType:
                sf << "int" << endl;
                break;

            case FloatType:
                sf << "float" << endl;
                break;

            case DoubleType:
                sf << "double" << endl;
                break;

            case DateType:
                sf << "date" << endl;
                break;

            default:
                PLERROR("Unknown field type in database: %d", it->field_type);
            }
        }
    }
}

Here is the call graph for this function:

template<class KT , class QR >
int PLearn::SimpleDB< KT, QR >::seekToEnd ( ) const [private]

seek to end of database, return FD to the correct file

cout << "seekToEnd in db " << getName() << endl;

There is a slight subtlety here: if the last segment is full, we have to seek to the beginning of the next segment

Definition at line 1595 of file SimpleDB.h.

References PLERROR.

{

    if (max_records_file == 0)
        PLERROR("Attempting to seekToEnd without schema set");

    int last = lastSegment();
    int fd = allfd[last];
    if (fd == -1)
        PLERROR("Problem accessing database segment %d at path %s",
                last, getSegmentPath(last).c_str());

    off_t pos = lseek(fd, 0ul, SEEK_END);

    if (Offset(pos) / Offset(row_size) >= max_records_file)
        fd = seekToRow((last+1)*max_records_file);

    return fd;
}
template<class KT , class QR >
int PLearn::SimpleDB< KT, QR >::seekToRow ( RowNumber  i) const [private]

given a row number, seek to the beginning of the row of the correct underlying physical file (segment), and return a file descriptor to the file; open a new file if necessary

cout << "seekToRow " << i << " in db " << getSegmentPath(0) << endl;

verify that segment is indeed open

Definition at line 1562 of file SimpleDB.h.

References i, and PLERROR.

{

    if (max_records_file == 0)
        PLERROR("Attempting to seekToRow without schema set");

    int segmentNumber = int(i / max_records_file);
    Offset rowInSegment = Offset(i % max_records_file);

    if (segmentNumber > lastSegment()) {
        for (int i = lastSegment()+1; i <= segmentNumber; ++i) {
            int fd = open(getSegmentPath(i).c_str(),
                          access_mask | O_CREAT, 0777);
            if (fd == -1)
                PLERROR("Could not open database segment %d at path %s: %s",
                        i, getSegmentPath(i).c_str(), strerror(errno));
            allfd.push_back(fd);
        }
    }
    if (allfd[segmentNumber] == -1)
        PLERROR("Problem accessing database segment %d at path %s",
                segmentNumber, getSegmentPath(segmentNumber).c_str());

    if (lseek(allfd[segmentNumber],
              rowInSegment * Offset(row_size), SEEK_SET)<0)
        PLERROR("problem in lseek: %s",strerror(errno));
    return allfd[segmentNumber];
}
template<class KT , class QR >
void PLearn::SimpleDB< KT, QR >::setRow ( const Row row,
RowNumber  n
)

set a particular row

Handle writing error

Definition at line 1392 of file SimpleDB.h.

References PLERROR, PLearn::Row::raw(), PLearn::Row::sanitize(), PLearn::Row::size(), and PLearn::write().

Referenced by PLearn::halfShuffleRows(), and PLearn::randomShuffleRows().

{
#ifdef __INTEL_COMPILER
#pragma warning(disable:186)  // Get rid of compiler warning.
#endif
    if(n<0 || n>=size())
#ifdef __INTEL_COMPILER
#pragma warning(default:186)
#endif
        PLERROR("Out of bounds in SimpleDB::setRow");
    if(row_size != row.size())
        PLERROR("In setRow row_size != row.size() (%d != %d)", row_size, row.size());
    row.sanitize();
    int fd = seekToRow(n);

#ifdef LITTLEENDIAN
    int writtensize = ::write(fd, row.raw(), row_size);
#endif
#ifdef BIGENDIAN
    Row newrow(row);
    memoryToDisk(newrow);
    int writtensize = ::write(fd, newrow.raw(), row_size);
#endif

    if (writtensize == -1)
        PLERROR("Could not write to database: %s",strerror(errno));
}

Here is the call graph for this function:

Here is the caller graph for this function:

template<class KT , class QR >
void PLearn::SimpleDB< KT, QR >::setSchema ( const Schema s)

--- Functions dealing with schema representation.

Compute the maximum size of a single file, taking into account the row size.

cout << "In setSchema for db " << getName() << " row_size=" << row_size << " max_records_file=" << max_records_file << endl;

Reopen files with new schema in effect

Definition at line 1241 of file SimpleDB.h.

References PLearn::Row::size().

{
    schema = s;
    Row row(&s);
    row_size = row.size();
    indexes.resize(s.size());

    if (row_size > 0)
        max_records_file = RowNumber(AbsoluteFileLimit / row_size);
    else
        max_records_file = 0;


    closeAllFiles();
    openAllFiles();
    computeSize();
}

Here is the call graph for this function:

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
RowNumber PLearn::SimpleDB< KeyType, QueryResult >::size ( ) const [inline]

1 beyond maximum row number

Definition at line 582 of file SimpleDB.h.

Referenced by PLearn::SDBVMatrix::SDBVMatrix(), and PLearn::SDBWithStats::SDBWithStats().

Here is the caller graph for this function:

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
void PLearn::SimpleDB< KeyType, QueryResult >::tableSizeMultiplier ( double  x) [inline]

Definition at line 643 of file SimpleDB.h.

References x.

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
double PLearn::SimpleDB< KeyType, QueryResult >::tableSizeMultiplier ( ) const [inline]

Access the table size multiplier (see description below)

Definition at line 640 of file SimpleDB.h.

                                       {
        return table_size_multiplier;
    }
template<class KT , class QR >
void PLearn::SimpleDB< KT, QR >::truncateFromRow ( RowNumber  n)

erase all rows from row n (included) until end

We must perform the following: seek to the proper row, truncate the current file, unlink all remaining files until end, close everything, re-open everything.

Definition at line 1423 of file SimpleDB.h.

References PLearn::find(), PLERROR, PLWARNING, and PLearn::tostring().

{
    int curfd = seekToRow(n);
    off_t curpos = lseek(curfd, 0L, SEEK_CUR);
    if (ftruncate(curfd, curpos) == -1) {
        PLERROR((string("Could not truncate database at row ") +
                 tostring(n) + ": " + strerror(errno)).c_str());
    }

    vector<int>::iterator found = find(allfd.begin(), allfd.end(), curfd);
    int fromfd = found-allfd.begin() + 1;
    int last = lastSegment();

    closeAllFiles();
    bool allok = true;

    for ( ; fromfd <= last; ++fromfd) {
        string path = getSegmentPath(fromfd);
        if(unlink(path.c_str()) == -1) {
            PLWARNING((string("Could not unlink database segment ") + path +
                       ": " + strerror(errno)).c_str());
            allok = false;
        }
    }

    if (allok) {
        openAllFiles();
        computeSize();
    }
    else
        PLERROR("Error during truncation");
}

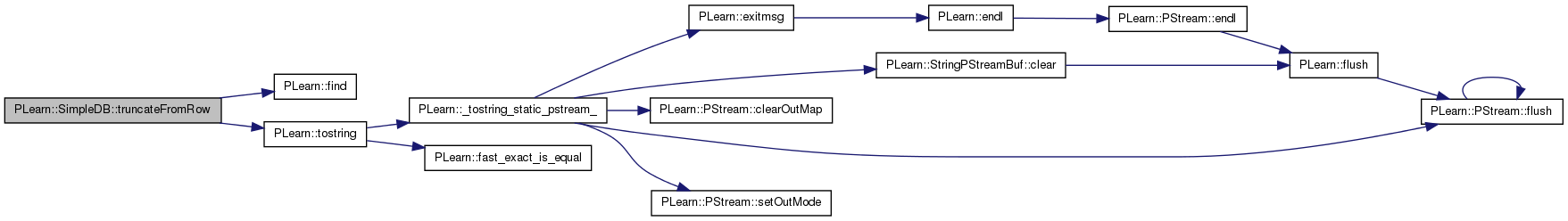

Here is the call graph for this function:

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
int PLearn::SimpleDB< KeyType, QueryResult >::width ( ) const [inline]

Definition at line 587 of file SimpleDB.h.

Referenced by PLearn::AutoSDBVMatrix::AutoSDBVMatrix(), PLearn::SDBWithStats::forgetStats(), and PLearn::SDBWithStats::getStat().

                      {
        return int(schema.size());
    }

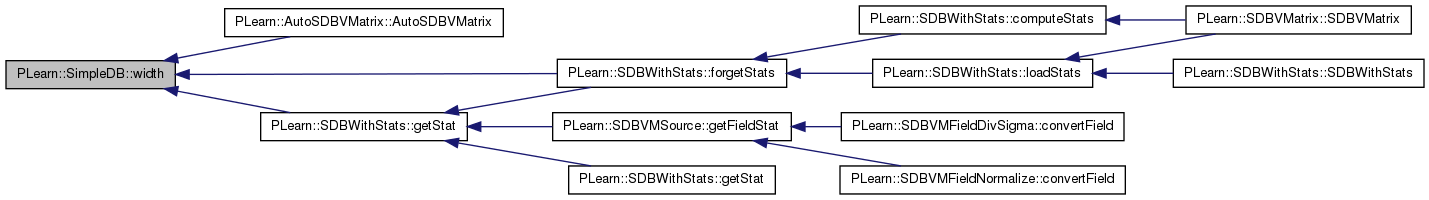

Here is the caller graph for this function:


Member Data Documentation

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
const Offset PLearn::SimpleDB< KeyType, QueryResult >::AbsoluteFileLimit = 512ul * 1024ul * 1024ul - 1 [static]

Maximum size that a single database file can hold; this is currently set to 512 MB.

Definition at line 526 of file SimpleDB.h.

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
int PLearn::SimpleDB< KeyType, QueryResult >::access_mask [private]

Unix constants for access_type.

Definition at line 687 of file SimpleDB.h.

Referenced by PLearn::SimpleDB< KeyType, QueryResult >::SimpleDB().

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
AccessType PLearn::SimpleDB< KeyType, QueryResult >::access_type [private]

readwrite or readonly

Definition at line 686 of file SimpleDB.h.

Referenced by PLearn::SimpleDB< KeyType, QueryResult >::SimpleDB().

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
vector<int> PLearn::SimpleDB< KeyType, QueryResult >::allfd [mutable, private]

File descriptors of open segments; -1 for not open.

Definition at line 697 of file SimpleDB.h.

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
QR PLearn::SimpleDB< KT, QR >::EmptyResult [static]

A null query.

Definition at line 530 of file SimpleDB.h.

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
vector<PIndex> PLearn::SimpleDB< KeyType, QueryResult >::indexes [private]

There's one possible index per column in the database.

An index is made only when indexColumn is called for a particular column.

Definition at line 710 of file SimpleDB.h.

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
RowNumber PLearn::SimpleDB< KeyType, QueryResult >::max_records_file [private]

maximum number of full rows in a single file

Definition at line 694 of file SimpleDB.h.

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
string PLearn::SimpleDB< KeyType, QueryResult >::name [private]

database base name

-- Physical characteristics of database

Definition at line 684 of file SimpleDB.h.

Referenced by PLearn::SDBWithStats::loadStats().

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
string PLearn::SimpleDB< KeyType, QueryResult >::path [private]

database root path

Definition at line 685 of file SimpleDB.h.

Referenced by PLearn::SimpleDB< KeyType, QueryResult >::SimpleDB().

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
int PLearn::SimpleDB< KeyType, QueryResult >::row_size [private]

length of a row in bytes

Definition at line 693 of file SimpleDB.h.

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
Schema PLearn::SimpleDB< KeyType, QueryResult >::schema [private]

database schema

-- Schema-related

Definition at line 692 of file SimpleDB.h.

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
RowNumber PLearn::SimpleDB< KeyType, QueryResult >::size_ [private]

cached number of rows

Definition at line 688 of file SimpleDB.h.

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
double PLearn::SimpleDB< KeyType, QueryResult >::table_size_multiplier [private]

-- Indexing-related

The multiplier factor for converting the number of database entries into the size of the hash table for indexing. By default, 1.8, but should be considerably less if there are many repeated keys.

Definition at line 706 of file SimpleDB.h.

template<class KeyType = TinyVector<unsigned char, 8>, class QueryResult = TinyVector<unsigned int, 4>>
bool PLearn::SimpleDB< KeyType, QueryResult >::verbose [private]

print debugging info to cerr

-- Miscellaneous

Definition at line 713 of file SimpleDB.h.


The documentation for this class was generated from the following file:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
