PLearn::VariableDeletionVMatrix Class Reference

#include <VariableDeletionVMatrix.h>

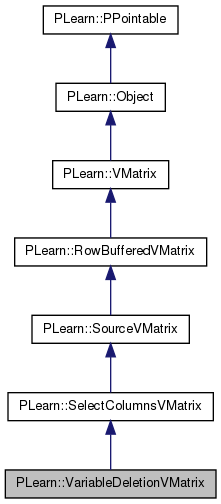

Inheritance diagram for PLearn::VariableDeletionVMatrix:
Inheritance graph
[legend]

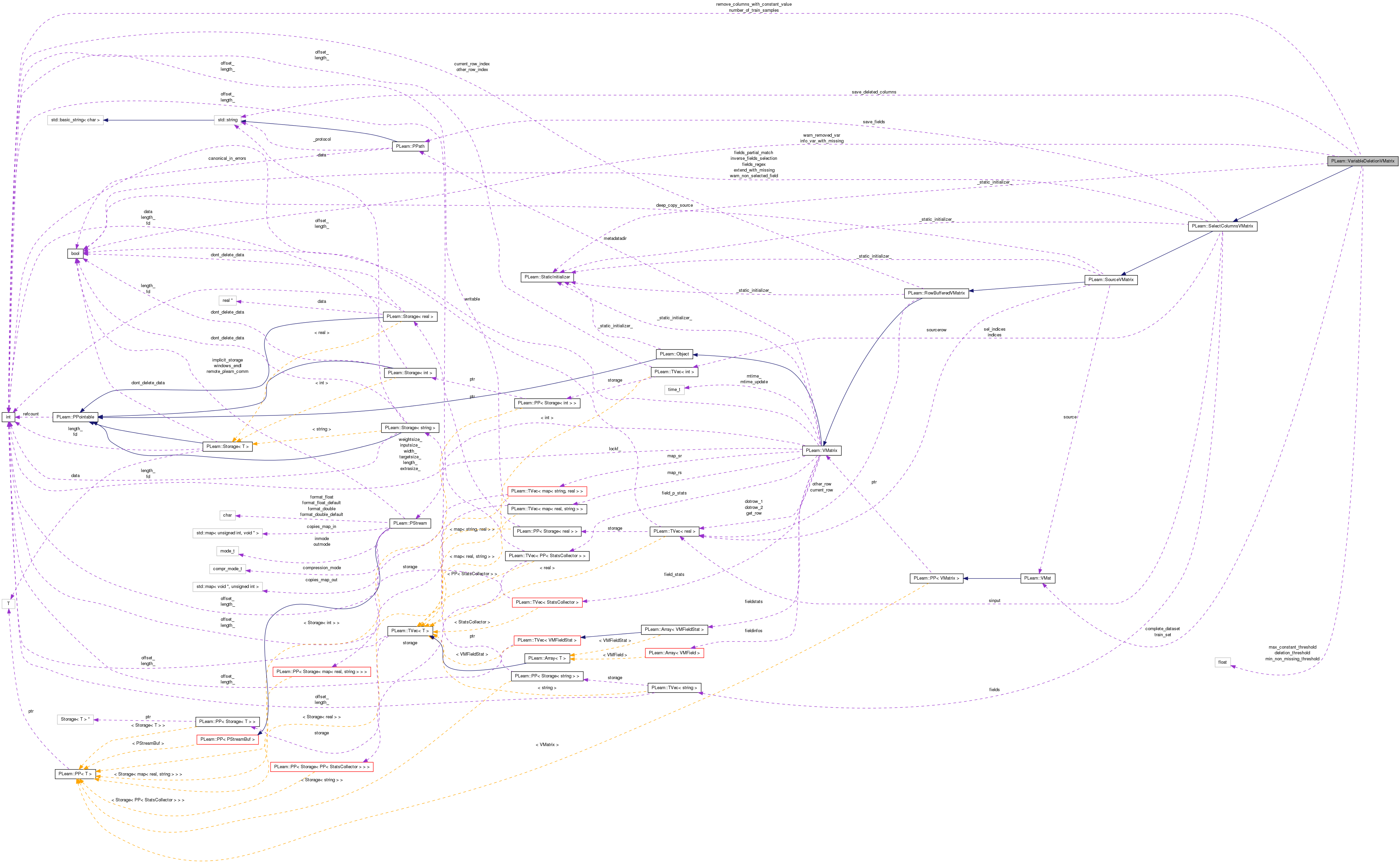

Collaboration diagram for PLearn::VariableDeletionVMatrix:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 VariableDeletionVMatrix ()
 VariableDeletionVMatrix (VMat the_source, real the_min_non_missing_threshold, bool the_remove_columns_with_constant_value, int the_number_of_train_samples, bool call_build_=true)
virtual void build ()
 Simply calls inherited::build() then build_().
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual VariableDeletionVMatrixdeepCopy (CopiesMap &copies) const

Static Public Member Functions

static string _classname_ ()
 SelectColumnsVMatrix.
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

real min_non_missing_threshold
real max_constant_threshold
int number_of_train_samples
bool warn_removed_var
bool info_var_with_missing
VMat train_set
string save_deleted_columns
VMat complete_dataset
real deletion_threshold
int remove_columns_with_constant_value

Static Public Attributes

static StaticInitializer _static_initializer_

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declares this class' options.

Private Types

typedef SelectColumnsVMatrix inherited

Private Member Functions

void build_ ()
 This does the actual building.
void buildIndices ()

Detailed Description

Definition at line 52 of file VariableDeletionVMatrix.h.


Member Typedef Documentation

Reimplemented from PLearn::SelectColumnsVMatrix.

Definition at line 54 of file VariableDeletionVMatrix.h.


Constructor & Destructor Documentation

PLearn::VariableDeletionVMatrix::VariableDeletionVMatrix ( )
PLearn::VariableDeletionVMatrix::VariableDeletionVMatrix ( VMat  the_source,
real  the_min_non_missing_threshold,
bool  the_remove_columns_with_constant_value,
int  the_number_of_train_samples,
bool  call_build_ = true
)

Definition at line 80 of file VariableDeletionVMatrix.cc.

References build_(), and PLDEPRECATED.

                         :
    inherited(the_source, TVec<int>(), call_build_),
    min_non_missing_threshold(the_min_non_missing_threshold),
    number_of_train_samples(the_number_of_train_samples),
    remove_columns_with_constant_value(the_remove_columns_with_constant_value)
{
    if (call_build_)
        build_();
    PLDEPRECATED("In VariableDeletionVMatrix::VariableDeletionVMatrix - You "
                 "are using a deprecated constructor");
    // Note: this constructor should take as argument the new non-deprecated
    // options.
}

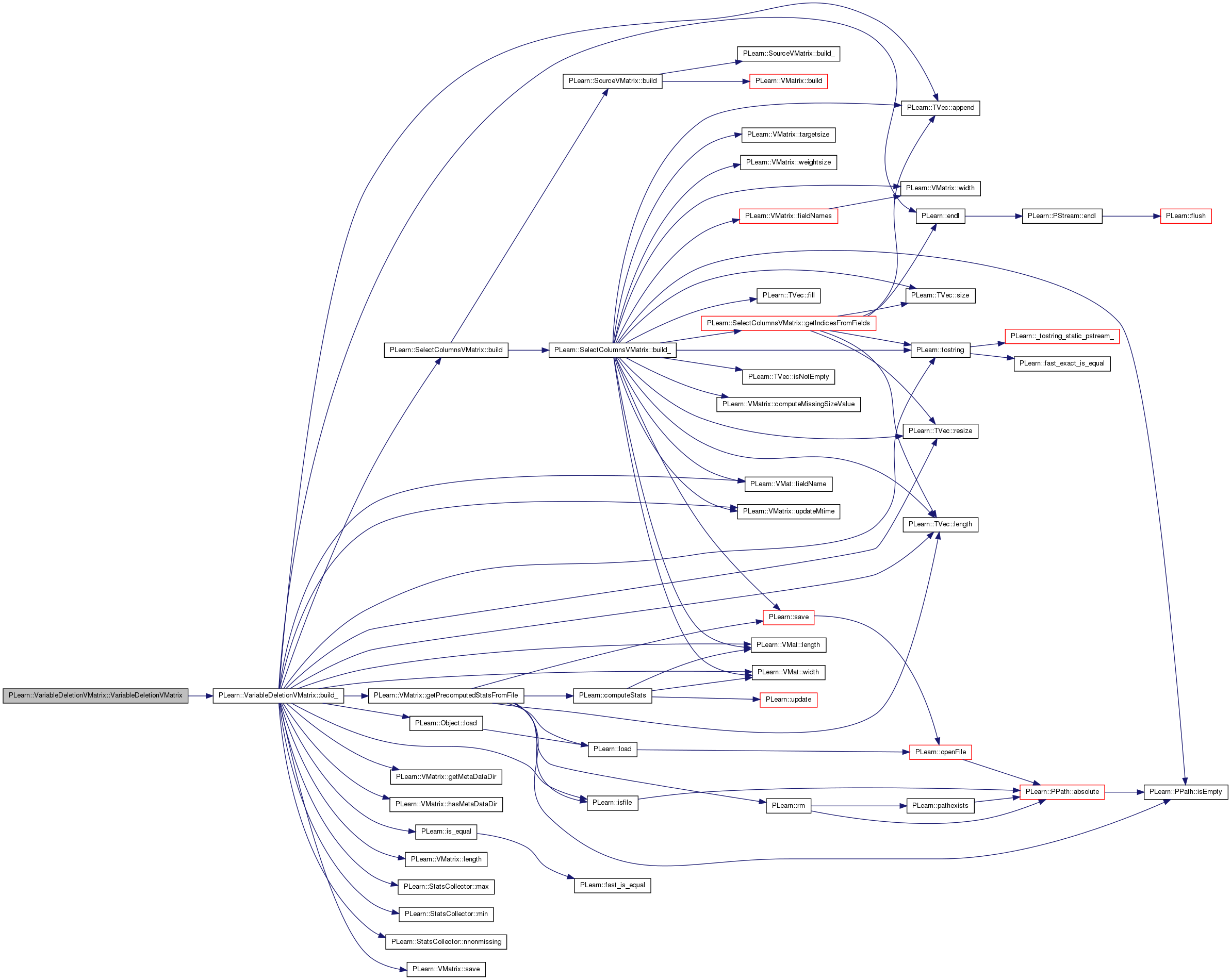

Here is the call graph for this function:


Member Function Documentation

string PLearn::VariableDeletionVMatrix::_classname_ ( ) [static]

SelectColumnsVMatrix.

Reimplemented from PLearn::SelectColumnsVMatrix.

Definition at line 65 of file VariableDeletionVMatrix.cc.

OptionList & PLearn::VariableDeletionVMatrix::_getOptionList_ ( ) [static]

Reimplemented from PLearn::SelectColumnsVMatrix.

Definition at line 65 of file VariableDeletionVMatrix.cc.

RemoteMethodMap & PLearn::VariableDeletionVMatrix::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::SelectColumnsVMatrix.

Definition at line 65 of file VariableDeletionVMatrix.cc.

bool PLearn::VariableDeletionVMatrix::_isa_ ( const Object o) [static]

Reimplemented from PLearn::SelectColumnsVMatrix.

Definition at line 65 of file VariableDeletionVMatrix.cc.

Object * PLearn::VariableDeletionVMatrix::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::SelectColumnsVMatrix.

Definition at line 65 of file VariableDeletionVMatrix.cc.

StaticInitializer VariableDeletionVMatrix::_static_initializer_ & PLearn::VariableDeletionVMatrix::_static_initialize_ ( ) [static]

Reimplemented from PLearn::SelectColumnsVMatrix.

Definition at line 65 of file VariableDeletionVMatrix.cc.

void PLearn::VariableDeletionVMatrix::build ( ) [virtual]

Simply calls inherited::build() then build_().

Reimplemented from PLearn::SelectColumnsVMatrix.

Definition at line 215 of file VariableDeletionVMatrix.cc.

References PLearn::SelectColumnsVMatrix::build(), build_(), and PLearn::SelectColumnsVMatrix::warn_non_selected_field.

Referenced by PLearn::Experimentation::setSourceDataset().

{
    //must be done even if we will call it later to have the
    //source metadatadir set correctly.
    bool saved_warn_non_selected_field=warn_non_selected_field;
    warn_non_selected_field=false;
    inherited::build();
    warn_non_selected_field=saved_warn_non_selected_field;
    build_();
}

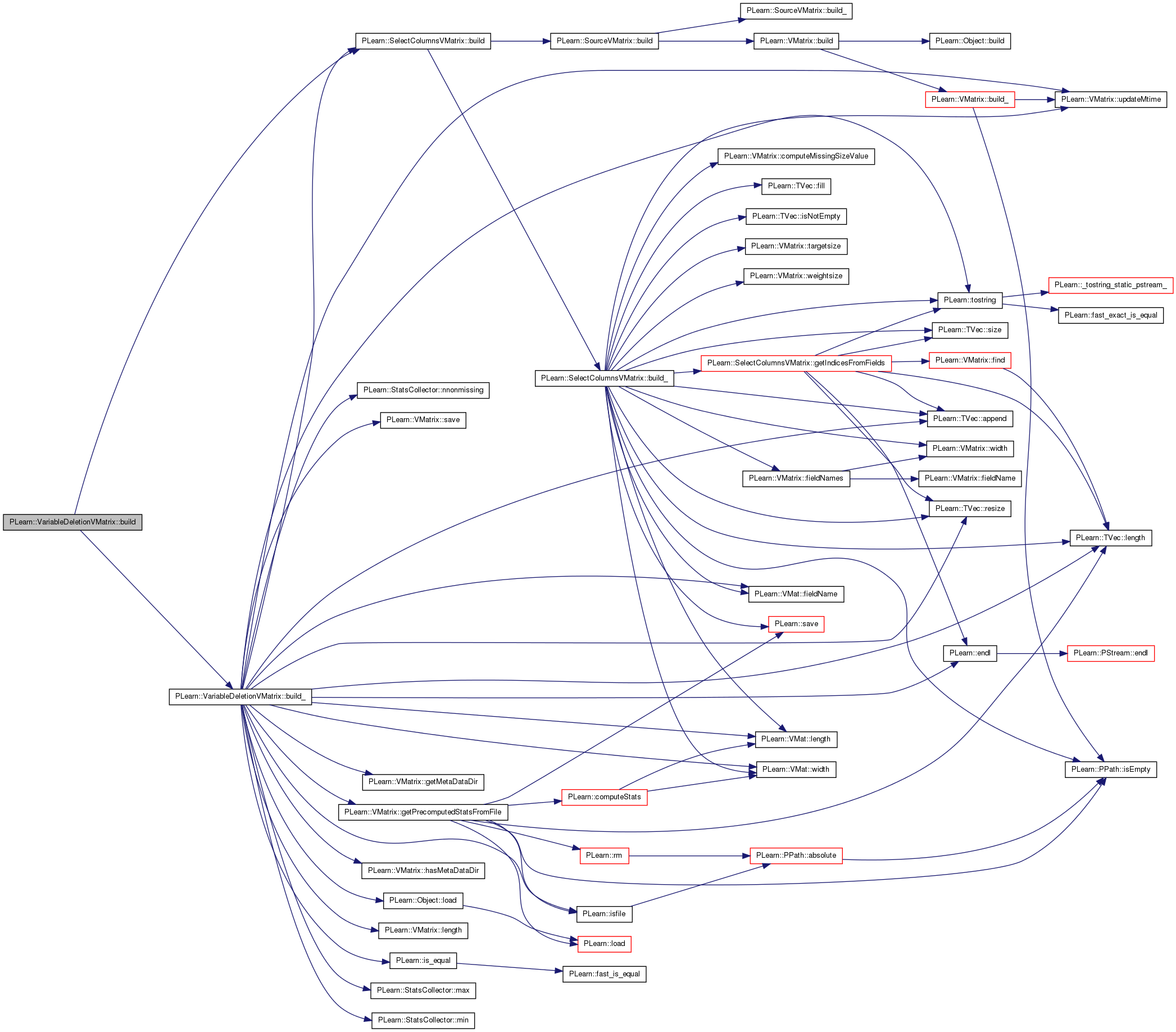

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::VariableDeletionVMatrix::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::SelectColumnsVMatrix.

Definition at line 239 of file VariableDeletionVMatrix.cc.

References PLearn::TVec< T >::append(), PLearn::SelectColumnsVMatrix::build(), complete_dataset, deletion_threshold, PLearn::endl(), PLearn::VMatrix::extrasize_, PLearn::VMat::fieldName(), PLearn::VMatrix::getMetaDataDir(), PLearn::VMatrix::getPrecomputedStatsFromFile(), PLearn::VMatrix::hasMetaDataDir(), i, PLearn::SelectColumnsVMatrix::indices, info_var_with_missing, PLearn::VMatrix::inputsize_, PLearn::is_equal(), PLearn::isfile(), PLearn::VMat::length(), PLearn::TVec< T >::length(), PLearn::VMatrix::length(), PLearn::Object::load(), PLearn::StatsCollector::max(), max_constant_threshold, PLearn::StatsCollector::min(), min_non_missing_threshold, n, PLearn::StatsCollector::nnonmissing(), NORMAL_LOG, number_of_train_samples, PLCHECK, PLDEPRECATED, PLERROR, PLWARNING, remove_columns_with_constant_value, PLearn::TVec< T >::resize(), PLearn::VMatrix::save(), save_deleted_columns, PLearn::SourceVMatrix::source, PLearn::VMatrix::targetsize_, PLearn::tostring(), train_set, PLearn::VMatrix::updateMtime(), warn_removed_var, PLearn::VMatrix::weightsize_, and PLearn::VMat::width().

Referenced by build(), and VariableDeletionVMatrix().

{
    if (complete_dataset) {
        PLDEPRECATED("In VariableDeletionVMatrix::build_ - The option "
                     "'complete_dataset' is deprecated, use source instead");
        if (source && source != complete_dataset)
            PLERROR("In VariableDeletionVMatrix::build_ - A source was also "
                    "specified, but it is different from 'complete_dataset'");
        source = complete_dataset;
    }
    if (!is_equal(deletion_threshold, -1)) {
        PLDEPRECATED("In VariableDeletionVMatrix::build_ - You are using the "
                     "deprecated option 'deletion_threshold', you should "
                     "instead use 'min_non_missing_threshold'");
        min_non_missing_threshold = deletion_threshold;
    }
    if (remove_columns_with_constant_value != -1) {
        PLDEPRECATED("In VariableDeletionVMatrix::build_ - You are using the "
                     "deprecated option 'remove_columns_with_constant_value', "
                     "you should instead use 'max_constant_threshold'");
        max_constant_threshold = remove_columns_with_constant_value == 0 ? 0:1;
    }
    if(!source)
        PLERROR("In VariableDeletionVMatrix::build_ - The source VMat do not exist!");

    updateMtime(source);
    updateMtime(train_set);

    int is = source->inputsize();
    if (is < 0)
        PLERROR("In VariableDeletionVMatrix::build_ - The source VMat must "
                "have an inputsize defined");

    VMat the_train_source = train_set ? train_set : source;
    PLCHECK( the_train_source.width() == source->width() );

    if (number_of_train_samples > 0 &&
        number_of_train_samples < the_train_source->length())
        the_train_source = new SubVMatrix(the_train_source, 0, 0,
                                          number_of_train_samples,
                                          the_train_source->width());
    TVec<StatsCollector> stats;
    if(min_non_missing_threshold > 0 || max_constant_threshold > 0){
        int maxnvalues = -1;
        if(is_equal(max_constant_threshold,1))
//We don't need all the value, if (min==max && non_missing_value>0) it is constant value.
            maxnvalues = 0;
        if(!the_train_source->hasMetaDataDir() && hasMetaDataDir())
            the_train_source->setMetaDataDir(getMetaDataDir()+"/source");
        stats = the_train_source->
            getPrecomputedStatsFromFile("stats_variableDeletionVMatrix_"+
                                        tostring(maxnvalues)+".psave",
                                        maxnvalues, true);
        PLCHECK( stats.length() == source->width() );
    }

    indices.resize(0);

    // First remove columns that have too many missing values.
    if (min_non_missing_threshold > 0){
        int min_non_missing =
            int(round(min_non_missing_threshold * the_train_source->length()));
        TVec<int> have_missing;
        for (int i = 0; i < is; i++){
            if (stats[i].nnonmissing() >= min_non_missing
                && stats[i].nnonmissing() > 0)
                indices.append(i);
            else if (warn_removed_var)
                PLWARNING("In VariableDeletionVMatrix::build_() var '%s'"
                          " have too many missing (%d/%d). We remove it.",
                          source->fieldName(i).c_str(),
                          int(stats[i].nmissing()),
                          int(stats[i].n()));
            if (info_var_with_missing && stats[i].nmissing() > 0){
                have_missing.append(i);
            }
        }
        if(have_missing.length()>0){
            string s="INFO: In build_() variable with missing value (var,nb_missing/nb_value): ";
            for(int k=0;k<have_missing.length();k++){
                int i = have_missing[k];
                s+=" ("+source->fieldName(i)
                    +","+tostring(stats[i].nmissing())
                    +"/"+ tostring(stats[i].n())+")";

            }
            MODULE_LOG<<s<<endl;
        }

    } else
        for (int i = 0; i < is; i++)
            indices.append(i);
    // Then remove columns that are too constant.
    TVec<int> final_indices;
    if (is_equal(max_constant_threshold,1)){
        TVec<int> const_indices;
        for (int k = 0; k < indices.length(); k++) {
            int i = indices[k];
            StatsCollector stat = stats[i];
            if(!(stat.min()==stat.max() && stat.nnonmissing()>0))
                final_indices.append(i);
            else if (warn_removed_var)
                const_indices.append(i);
        }
        if(warn_removed_var && const_indices.length()>0){
            string s = " WARNING: In VariableDeletionVMatrix::build_() - The following tuple (variable, constant value) indicate variable that are removed because they are constant: \n";
            for(int k=0;k<const_indices.length();k++){
                int i = const_indices[k];
                StatsCollector stat = stats[i];
                s+=" ("+source->fieldName(i)+","+tostring(stat.min())+")";
            }
            NORMAL_LOG<<s<<endl;
        }
        indices.resize(final_indices.length());
        indices << final_indices;
    }else if (max_constant_threshold > 0){
        for (int k = 0; k < indices.length(); k++) {
            int i = indices[k];
            int max_constant_absolute =
                int(round(max_constant_threshold * stats[i].nnonmissing()));
            map<real, StatsCollectorCounts>* counts = stats[i].getCounts();
            map<real, StatsCollectorCounts>::const_iterator it;
            bool ok = true;
            int n;
            for (it = counts->begin(); ok && it != counts->end(); it++) {
                n = int(round(it->second.n));
                if (n >= max_constant_absolute)
                    ok = false;
            }
            if (ok)
                final_indices.append(i);
            else if (warn_removed_var)
                PLWARNING("In VariableDeletionVMatrix::build_() var '%s'"
                          " is too constant. Value %f happen %d/%f",
                          source->fieldName(i).c_str(), it->first,
                          n, stats[i].nnonmissing());
        }
        indices.resize(final_indices.length());
        indices << final_indices;
    }
    // Define sizes.
    inputsize_  = indices.length();
    targetsize_ = source->targetsize();
    weightsize_ = source->weightsize();
    extrasize_  = source->extrasize();

    // Add target, weight and extra columns.
    for (int i = 0; i < source->targetsize(); i++)
        indices.append(is + i);
    if (source->targetsize() > 0)
        is += source->targetsize();
    for (int i = 0; i < source->weightsize(); i++)
        indices.append(is + i);
    if (source->weightsize() > 0)
        is += source->weightsize();
    for (int i = 0; i < source->extrasize(); i++)
        indices.append(is + i);

    // We have modified the selected columns, so the parent class must be
    // re-built.
    inherited::build();

    if(!save_deleted_columns.empty()){
        if(isfile(save_deleted_columns)){
            TVec<int> indices2;
            PLearn::load(save_deleted_columns, indices2);
            if(indices!=indices2){
                PLWARNING("In VariableDeletionVMatrix::build_() - the calculated"
                          " indices(%d) differ from the saved indices(%d) in file '%s'."
                          " We overwrite it.",
                        indices2.length(), indices.length(), save_deleted_columns.c_str());
                PLearn::save(save_deleted_columns,indices);
            }
        }else{
            PLearn::save(save_deleted_columns,indices);
        }
    }
}

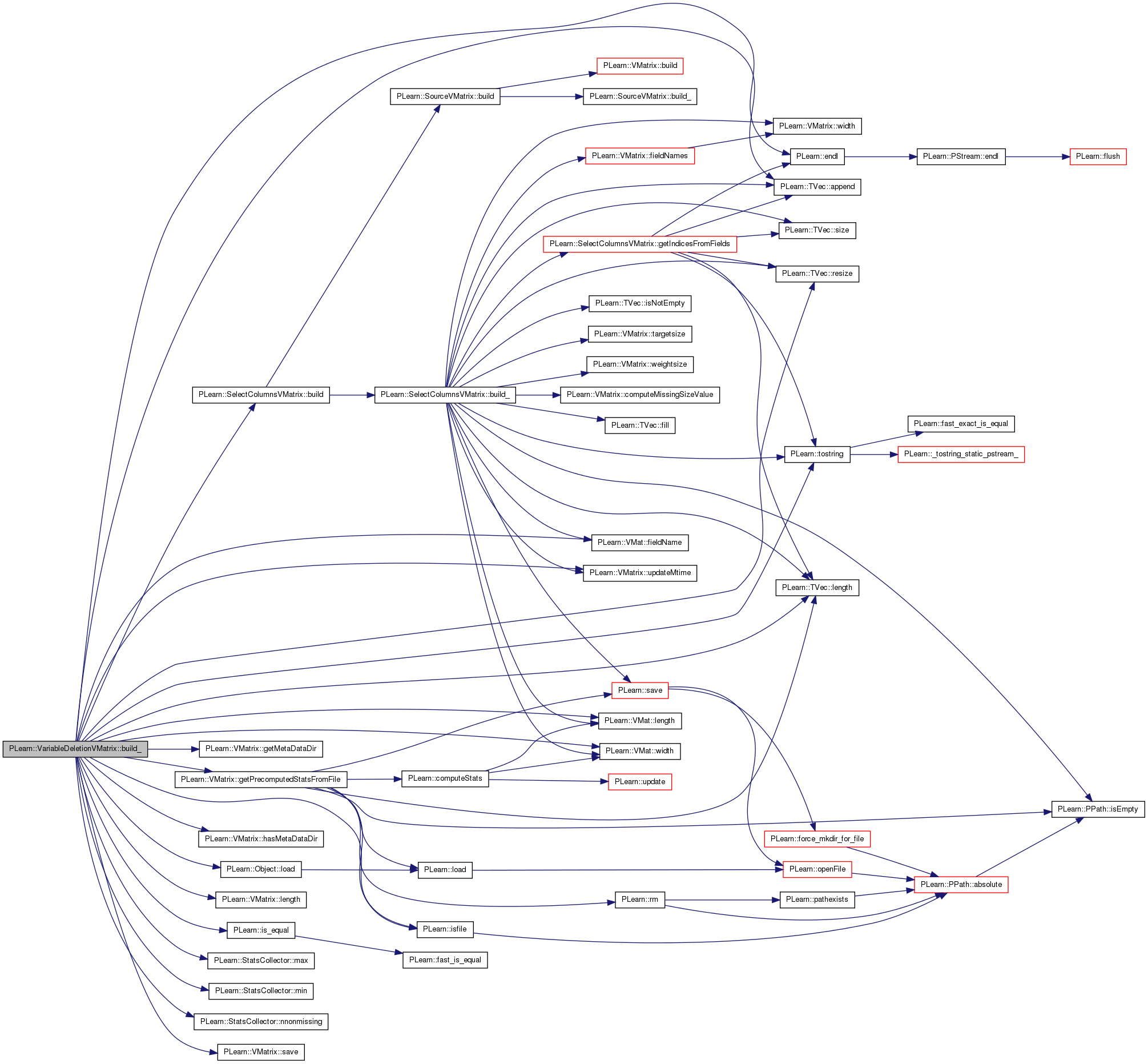

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::VariableDeletionVMatrix::buildIndices ( ) [private]
string PLearn::VariableDeletionVMatrix::classname ( ) const [virtual]

Reimplemented from PLearn::SelectColumnsVMatrix.

Definition at line 65 of file VariableDeletionVMatrix.cc.

void PLearn::VariableDeletionVMatrix::declareOptions ( OptionList ol) [static, protected]

Declares this class' options.

Reimplemented from PLearn::SelectColumnsVMatrix.

Definition at line 101 of file VariableDeletionVMatrix.cc.

References PLearn::OptionBase::buildoption, complete_dataset, PLearn::declareOption(), PLearn::SelectColumnsVMatrix::declareOptions(), deletion_threshold, PLearn::SelectColumnsVMatrix::extend_with_missing, PLearn::VMatrix::extrasize_, PLearn::SelectColumnsVMatrix::fields, PLearn::SelectColumnsVMatrix::fields_partial_match, PLearn::SelectColumnsVMatrix::indices, info_var_with_missing, PLearn::VMatrix::inputsize_, PLearn::OptionBase::learntoption, max_constant_threshold, min_non_missing_threshold, PLearn::OptionBase::nosave, number_of_train_samples, PLearn::redeclareOption(), remove_columns_with_constant_value, save_deleted_columns, PLearn::VMatrix::targetsize_, train_set, warn_removed_var, and PLearn::VMatrix::weightsize_.

{

    declareOption(ol, "min_non_missing_threshold",
                  &VariableDeletionVMatrix::min_non_missing_threshold,
                  OptionBase::buildoption,
        "Minimum proportion of non-missing values for a variable to be kept\n"
        "(a 1 means only variables with no missing values are kept).\n"
        "if >0, we will always remove columns with all missing value.");

    declareOption(ol, "max_constant_threshold",
                  &VariableDeletionVMatrix::max_constant_threshold,
                  OptionBase::buildoption,
        "Maximum proportion of a unique value for a variable to be kept\n"
        "(contrary to 'min_non_missing_threshold', a variable will be\n"
        "removed if this proportion is attained, so that a 1 means only\n"
        "constant variables are removed, while 0 is a special value meaning\n"
        "that none is removed).\n"
        "Note also that this proportion is computed over the non-missing\n"
        "values only.");

    declareOption(ol, "number_of_train_samples",
                  &VariableDeletionVMatrix::number_of_train_samples,
                  OptionBase::buildoption,
        "If equal to zero, all the underlying dataset samples are used to\n"
        "compute the percentages and constant values.\n"
        "If it is a fraction between 0 and 1, only this proportion of the\n"
        "samples will be used.\n"
        "If greater than or equal to 1, the integer portion will be\n"
        "interpreted as the number of samples to use.");

    declareOption(ol, "warn_removed_var",
                  &VariableDeletionVMatrix::warn_removed_var,
                  OptionBase::buildoption,
                  "If true, will print a warning about variable that are removed");

    declareOption(ol, "info_var_with_missing",
                  &VariableDeletionVMatrix::info_var_with_missing,
                  OptionBase::buildoption,
                  "If true, will print the variable that have some missing"
                  " that we keep.");

    declareOption(ol, "save_deleted_columns",
                  &VariableDeletionVMatrix::save_deleted_columns,
                  OptionBase::buildoption,
                  "If not empty will save the deleted culumns in this file."
                  "If present, will verify that it have the same content then"
                  " the calculated data.");

    declareOption(ol, "complete_dataset",
                  &VariableDeletionVMatrix::complete_dataset,
                  OptionBase::learntoption,
        "DEPRECATED (use 'source' instead) - The data set with all variables\n"
        "to select the columns from.");

    declareOption(ol, "train_set", &VariableDeletionVMatrix::train_set, OptionBase::buildoption,
                  "The train set in which to compute the percentage of missing values.\n"
                  "If null, will use the source to compute the percentage of missing values.");

    declareOption(ol, "deletion_threshold",
                  &VariableDeletionVMatrix::deletion_threshold,
                  OptionBase::learntoption,
        "DEPRECATED (use 'min_non_missing_threshold' instead) - The\n"
        "percentage of non-missing values for a variable above which\n"
        "the variable will be selected.");

    declareOption(ol, "remove_columns_with_constant_value",
                  &VariableDeletionVMatrix::remove_columns_with_constant_value,
                  OptionBase::learntoption,
        "DEPRECATED (use 'max_constant_threshold' instead) - If set to 1,\n"
        "the columns with constant non-missing values will be removed.");

    inherited::declareOptions(ol);

    // Hide unused parent class' options.

    redeclareOption(ol, "fields", &VariableDeletionVMatrix::fields,
                                  OptionBase::nosave,
        "Not used in VariableDeletionVMatrix.");

    redeclareOption(ol, "fields_partial_match",
                    &VariableDeletionVMatrix::fields_partial_match,
                    OptionBase::nosave,
        "Not used in VariableDeletionVMatrix.");

    redeclareOption(ol, "indices", &VariableDeletionVMatrix::indices,
                                   OptionBase::nosave,
        "Not used in VariableDeletionVMatrix.");

    redeclareOption(ol, "extend_with_missing",
                    &VariableDeletionVMatrix::extend_with_missing,
                    OptionBase::nosave,
        "Not used in VariableDeletionVMatrix.");

    redeclareOption(ol, "inputsize", &VariableDeletionVMatrix::inputsize_,
                                     OptionBase::nosave,
        "Not used in VariableDeletionVMatrix.");

    redeclareOption(ol, "targetsize", &VariableDeletionVMatrix::targetsize_,
                                     OptionBase::nosave,
        "Not used in VariableDeletionVMatrix.");

    redeclareOption(ol, "weightsize", &VariableDeletionVMatrix::weightsize_,
                                     OptionBase::nosave,
        "Not used in VariableDeletionVMatrix.");

    redeclareOption(ol, "extrasize", &VariableDeletionVMatrix::extrasize_,
                                     OptionBase::nosave,
        "Not used in VariableDeletionVMatrix.");
}

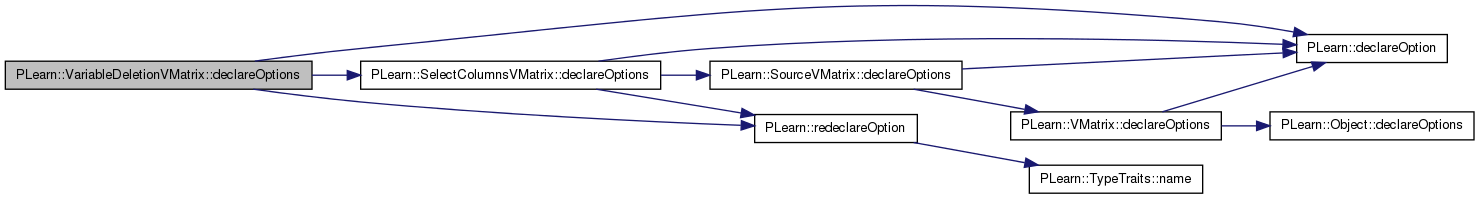

Here is the call graph for this function:

static const PPath& PLearn::VariableDeletionVMatrix::declaringFile ( ) [inline, static]

Reimplemented from PLearn::SelectColumnsVMatrix.

Definition at line 93 of file VariableDeletionVMatrix.h.

VariableDeletionVMatrix * PLearn::VariableDeletionVMatrix::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::SelectColumnsVMatrix.

Definition at line 65 of file VariableDeletionVMatrix.cc.

OptionList & PLearn::VariableDeletionVMatrix::getOptionList ( ) const [virtual]

Reimplemented from PLearn::SelectColumnsVMatrix.

Definition at line 65 of file VariableDeletionVMatrix.cc.

OptionMap & PLearn::VariableDeletionVMatrix::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::SelectColumnsVMatrix.

Definition at line 65 of file VariableDeletionVMatrix.cc.

RemoteMethodMap & PLearn::VariableDeletionVMatrix::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::SelectColumnsVMatrix.

Definition at line 65 of file VariableDeletionVMatrix.cc.

void PLearn::VariableDeletionVMatrix::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Transforms a shallow copy into a deep copy.

Reimplemented from PLearn::SelectColumnsVMatrix.

Definition at line 229 of file VariableDeletionVMatrix.cc.

References complete_dataset, PLearn::deepCopyField(), PLearn::SelectColumnsVMatrix::makeDeepCopyFromShallowCopy(), and train_set.

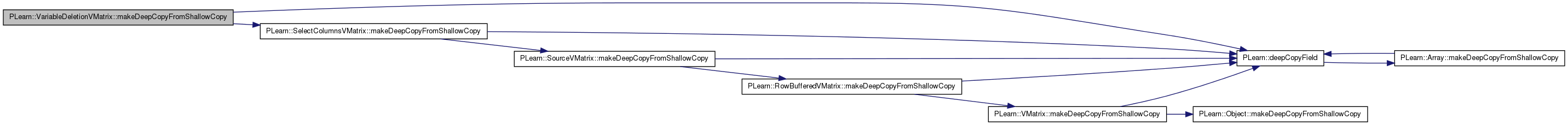

Here is the call graph for this function:


Member Data Documentation

Reimplemented from PLearn::SelectColumnsVMatrix.

Definition at line 93 of file VariableDeletionVMatrix.h.

Definition at line 62 of file VariableDeletionVMatrix.h.

Referenced by build_(), and declareOptions().

Definition at line 59 of file VariableDeletionVMatrix.h.

Referenced by build_(), and declareOptions().

Definition at line 58 of file VariableDeletionVMatrix.h.

Referenced by build_(), and declareOptions().

Definition at line 65 of file VariableDeletionVMatrix.h.

Referenced by build_(), and declareOptions().

Definition at line 61 of file VariableDeletionVMatrix.h.

Referenced by build_(), and declareOptions().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
