PLearn::NeighborhoodImputationVMatrix Class Reference

#include <NeighborhoodImputationVMatrix.h>

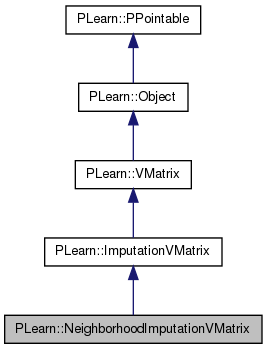

Inheritance diagram for PLearn::NeighborhoodImputationVMatrix:
Inheritance graph
[legend]

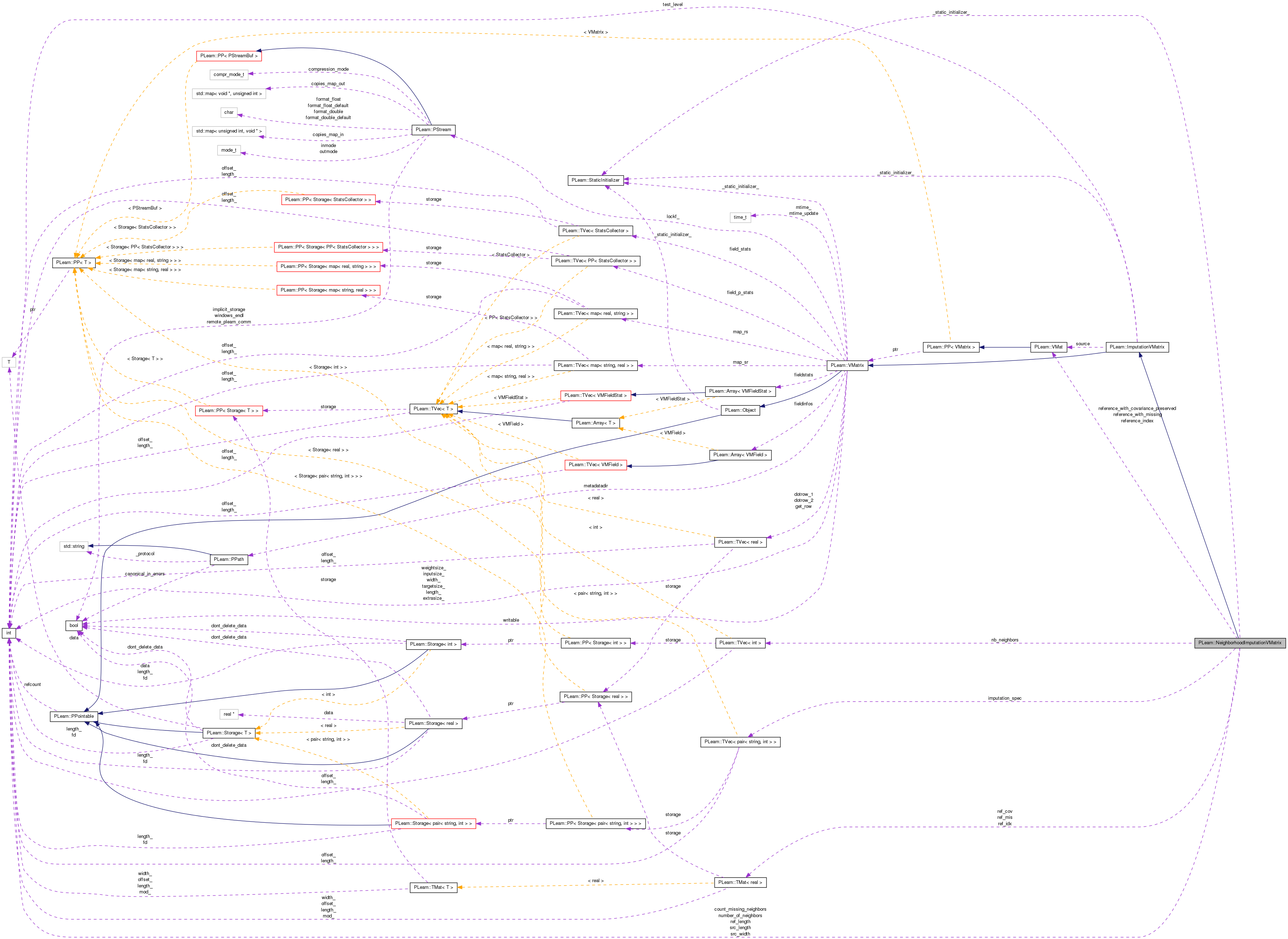

Collaboration diagram for PLearn::NeighborhoodImputationVMatrix:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 NeighborhoodImputationVMatrix ()
virtual ~NeighborhoodImputationVMatrix ()
virtual void build ()
 Simply calls inherited::build() then build_().
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Does the necessary operations to transform a shallow copy (this) into a deep copy by deep-copying all the members that need to be.
virtual void getExample (int i, Vec &input, Vec &target, real &weight)
 Default version calls getSubRow based on inputsize_ targetsize_ weightsize_ But exotic subclasses may construct, input, target and weight however they please.
virtual real get (int i, int j) const
 This method must be implemented in all subclasses.
virtual void put (int i, int j, real value)
 This method must be implemented in all subclasses of writable matrices.
virtual void getSubRow (int i, int j, Vec v) const
 It is suggested that this method be implemented in subclasses to speed up accesses (default version repeatedly calls get(i,j) which may have a significant overhead).
virtual void putSubRow (int i, int j, Vec v)
 It is suggested that this method be implemented in subclasses of writable matrices to speed up accesses (default version repeatedly calls put(i,j,value) which may have a significant overhead)
virtual void appendRow (Vec v)
 This method must be implemented for matrices that are allowed to grow.
virtual void insertRow (int i, Vec v)
 This method must be implemented for matrices that are allowed to grow.
virtual void getRow (int i, Vec v) const
 These methods do not usually need to be overridden in subclasses (default versions call getSubRow, which should do just fine)
virtual void putRow (int i, Vec v)
virtual void getColumn (int i, Vec v) const
 Copies column i into v (which must have appropriate length equal to the VMat's length).
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual
NeighborhoodImputationVMatrix
deepCopy (CopiesMap &copies) const

Static Public Member Functions

static void declareOptions (OptionList &ol)
 Declares this class' options.
static string _classname_ ()
 NeighborhoodImputationVMatrix.
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

VMat reference_index
 The set of pre-computed neighbors index.
VMat reference_with_missing
 The reference set corresponding to the pre-computed index with missing values.
VMat reference_with_covariance_preserved
 The reference set corresponding to the pre-computed index with the initial imputations.
int number_of_neighbors
 This is usually called K, the number of neighbors to consider.
TVec< pair< string, int > > imputation_spec
 A vector that give for each variable the number of neighbors to use If a variable is not in the spec, it will use number_of_neighbors.
int count_missing_neighbors
 0: (default) We do not count a neighbour with a missing value in the number of neighbors 1: We count a neighbour with a missing value in the number of neighbors

Static Public Attributes

static StaticInitializer _static_initializer_

Private Types

typedef ImputationVMatrix inherited

Private Member Functions

void build_ ()
 This does the actual building.
real impute (int i, int j) const

Private Attributes

int src_length
int src_width
int ref_length
Mat ref_idx
Mat ref_mis
Mat ref_cov
TVec< intnb_neighbors

Detailed Description

Definition at line 55 of file NeighborhoodImputationVMatrix.h.


Member Typedef Documentation

Reimplemented from PLearn::ImputationVMatrix.

Definition at line 57 of file NeighborhoodImputationVMatrix.h.


Constructor & Destructor Documentation

PLearn::NeighborhoodImputationVMatrix::NeighborhoodImputationVMatrix ( )

Definition at line 57 of file NeighborhoodImputationVMatrix.cc.

PLearn::NeighborhoodImputationVMatrix::~NeighborhoodImputationVMatrix ( ) [virtual]

Definition at line 62 of file NeighborhoodImputationVMatrix.cc.

{
}

Member Function Documentation

string PLearn::NeighborhoodImputationVMatrix::_classname_ ( ) [static]
OptionList & PLearn::NeighborhoodImputationVMatrix::_getOptionList_ ( ) [static]

Reimplemented from PLearn::ImputationVMatrix.

Definition at line 55 of file NeighborhoodImputationVMatrix.cc.

RemoteMethodMap & PLearn::NeighborhoodImputationVMatrix::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::ImputationVMatrix.

Definition at line 55 of file NeighborhoodImputationVMatrix.cc.

bool PLearn::NeighborhoodImputationVMatrix::_isa_ ( const Object o) [static]

Reimplemented from PLearn::ImputationVMatrix.

Definition at line 55 of file NeighborhoodImputationVMatrix.cc.

Object * PLearn::NeighborhoodImputationVMatrix::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 55 of file NeighborhoodImputationVMatrix.cc.

StaticInitializer NeighborhoodImputationVMatrix::_static_initializer_ & PLearn::NeighborhoodImputationVMatrix::_static_initialize_ ( ) [static]

Reimplemented from PLearn::ImputationVMatrix.

Definition at line 55 of file NeighborhoodImputationVMatrix.cc.

void PLearn::NeighborhoodImputationVMatrix::appendRow ( Vec  v) [virtual]

This method must be implemented for matrices that are allowed to grow.

Reimplemented from PLearn::VMatrix.

Definition at line 144 of file NeighborhoodImputationVMatrix.cc.

References PLERROR.

{
  PLERROR("In NeighborhoodImputationVMatrix::appendRow not implemented");
}
void PLearn::NeighborhoodImputationVMatrix::build ( ) [virtual]

Simply calls inherited::build() then build_().

Reimplemented from PLearn::ImputationVMatrix.

Definition at line 93 of file NeighborhoodImputationVMatrix.cc.

References PLearn::ImputationVMatrix::build(), build_(), and PLearn::ImputationVMatrix::testResultantVMatrix().

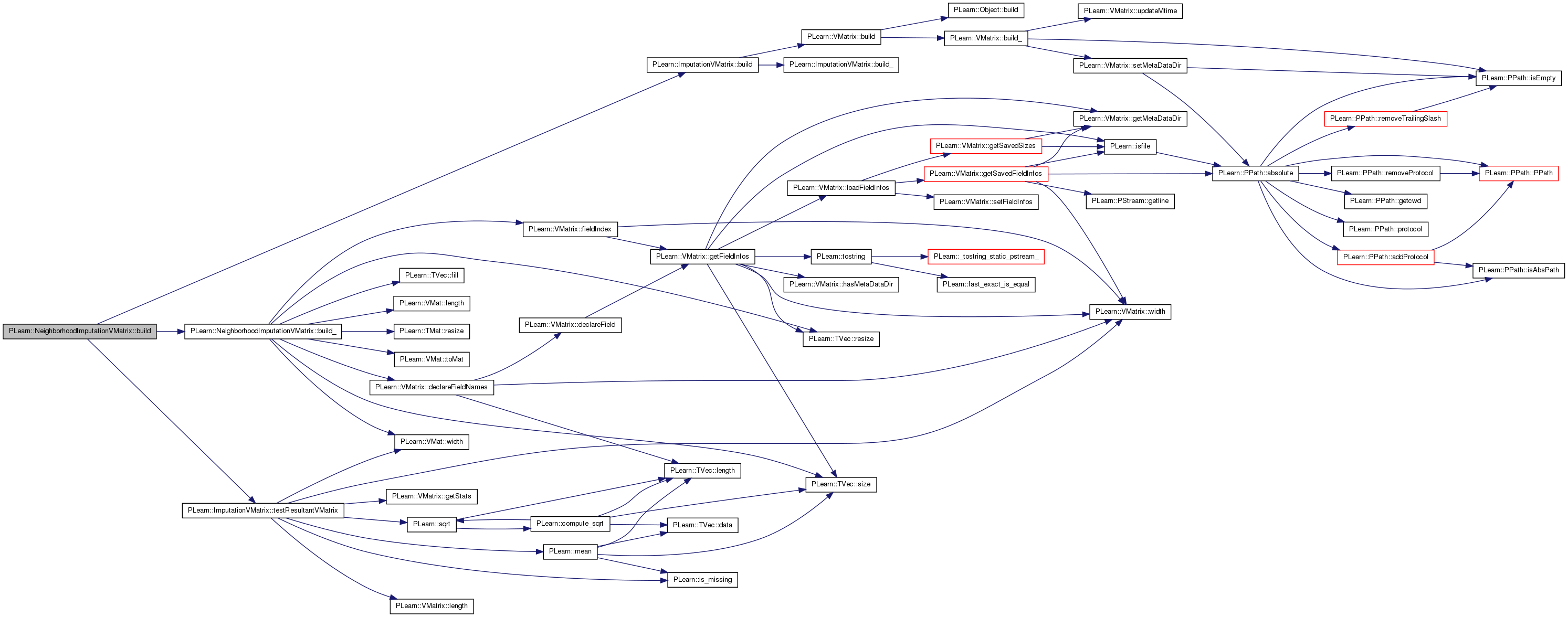

Here is the call graph for this function:

void PLearn::NeighborhoodImputationVMatrix::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::ImputationVMatrix.

Definition at line 173 of file NeighborhoodImputationVMatrix.cc.

References PLearn::VMatrix::declareFieldNames(), PLearn::VMatrix::fieldIndex(), PLearn::TVec< T >::fill(), imputation_spec, PLearn::VMatrix::inputsize_, PLearn::VMat::length(), PLearn::VMatrix::length_, nb_neighbors, number_of_neighbors, PLERROR, ref_cov, ref_idx, ref_length, ref_mis, reference_index, reference_with_covariance_preserved, reference_with_missing, PLearn::TVec< T >::resize(), PLearn::TMat< T >::resize(), PLearn::TVec< T >::size(), PLearn::ImputationVMatrix::source, src_length, src_width, PLearn::VMatrix::targetsize_, PLearn::VMat::toMat(), PLearn::VMatrix::weightsize_, PLearn::VMat::width(), and PLearn::VMatrix::width_.

Referenced by build().

{
    if (!source)                 PLERROR("In NeighborhoodImputationVMatrix::source with missing set must be supplied");
    if (!reference_index)                     PLERROR("In NeighborhoodImputationVMatrix::reference index set must be supplied");
    if (!reference_with_missing)              PLERROR("In NeighborhoodImputationVMatrix::reference with missing set must be supplied");
    if (!reference_with_covariance_preserved) PLERROR("In NeighborhoodImputationVMatrix::reference with covariance preserved must be supplied");
    src_length = source->length();
    if (src_length != reference_index->length())
        PLERROR("In NeighborhoodImputationVMatrix::length of the source and its index must agree, got: %i - %i", src_length, reference_index->length());
    ref_length = reference_with_missing->length();
    if (ref_length != reference_with_covariance_preserved->length())
        PLERROR("In NeighborhoodImputationVMatrix::length of the reference set with missing and with covariance preserved must agree, got: %i - %i",
                ref_length, reference_with_covariance_preserved->length());
    src_width = source->width();
    if (src_width != reference_with_missing->width())
        PLERROR("In NeighborhoodImputationVMatrix::width of the source and the reference with missing must agree, got: %i - %i",
                src_width, reference_with_missing->width());
    if (src_width != reference_with_covariance_preserved->width())
        PLERROR("In NeighborhoodImputationVMatrix::width of the source and the reference with covariance preserved must agree, got: %i - %i",
                src_width, reference_with_covariance_preserved->width());
    if (number_of_neighbors < 1)
      PLERROR("In NeighborhoodImputationVMatrix::there must be at least 1 neighbors, got: %d",number_of_neighbors);
    if (number_of_neighbors > reference_index->width())
        PLERROR("In NeighborhoodImputationVMatrix::the index must contains at least as many reference as the specified number of neighbors, got: %i - %i",
                number_of_neighbors, reference_index->width());
    ref_idx.resize(reference_index->length(), reference_index->width());
    ref_idx = reference_index->toMat();
    ref_mis.resize(reference_with_missing->length(), reference_with_missing->width());
    ref_mis = reference_with_missing->toMat();
    ref_cov.resize(reference_with_covariance_preserved->length(), reference_with_covariance_preserved->width());
    ref_cov = reference_with_covariance_preserved->toMat();

    length_ = src_length;
    width_ = src_width;
    inputsize_ = source->inputsize();
    targetsize_ = source->targetsize();
    weightsize_ = source->weightsize();
    declareFieldNames(source->fieldNames());

    nb_neighbors.resize(source->inputsize());
    nb_neighbors.fill(number_of_neighbors);
    for (int spec_col = 0; spec_col < imputation_spec.size(); spec_col++)
      {
        int source_col = fieldIndex(imputation_spec[spec_col].first);
        if (source_col < 0)
          PLERROR("In NeighborhoodImputationVMatrix::build_() no field with this name in source data set: %s", (imputation_spec[spec_col].first).c_str());
        nb_neighbors[source_col] = imputation_spec[spec_col].second;
      }
}

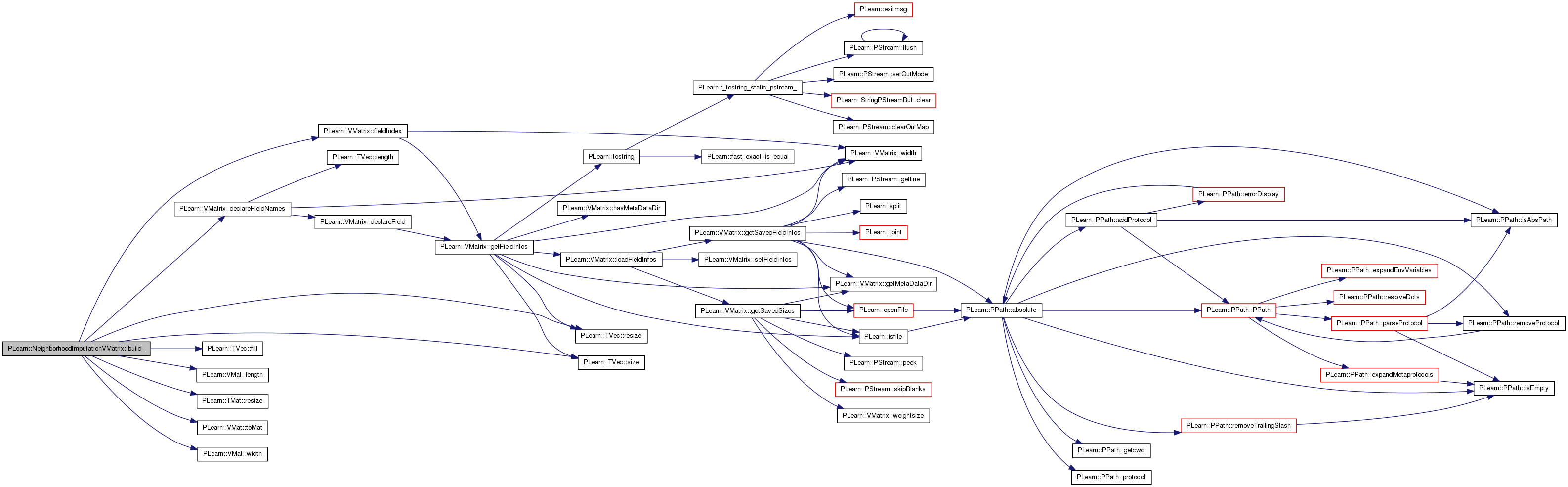

Here is the call graph for this function:

Here is the caller graph for this function:

string PLearn::NeighborhoodImputationVMatrix::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 55 of file NeighborhoodImputationVMatrix.cc.

void PLearn::NeighborhoodImputationVMatrix::declareOptions ( OptionList ol) [static]

Declares this class' options.

Reimplemented from PLearn::ImputationVMatrix.

Definition at line 66 of file NeighborhoodImputationVMatrix.cc.

References PLearn::OptionBase::buildoption, count_missing_neighbors, PLearn::declareOption(), PLearn::ImputationVMatrix::declareOptions(), imputation_spec, number_of_neighbors, reference_index, reference_with_covariance_preserved, and reference_with_missing.

{
  declareOption(ol, "reference_index", &NeighborhoodImputationVMatrix::reference_index, OptionBase::buildoption,
                "The set of pre-computed neighbors index.\n"
                "This can be done with BallTreeNearestNeighbors.\n");

  declareOption(ol, "reference_with_missing", &NeighborhoodImputationVMatrix::reference_with_missing, OptionBase::buildoption,
                "The reference set corresponding to the pre-computed index with missing values.");

  declareOption(ol, "reference_with_covariance_preserved", &NeighborhoodImputationVMatrix::reference_with_covariance_preserved, OptionBase::buildoption,
                "The reference set corresponding to the pre-computed index with the initial imputations.");

  declareOption(ol, "number_of_neighbors", &NeighborhoodImputationVMatrix::number_of_neighbors, OptionBase::buildoption,
                "This is usually called K, the number of neighbors to consider.\n"
                "It must be less or equal than the with of the reference index.");

  declareOption(ol, "count_missing_neighbors", &NeighborhoodImputationVMatrix::count_missing_neighbors, OptionBase::buildoption,
                "0: (default) We do not count a neighbour with a missing value in the number of neighbors.\n"
                "1: We count a neighbour with a missing value in the number of neighbors.\n");

  declareOption(ol, "imputation_spec", &NeighborhoodImputationVMatrix::imputation_spec, OptionBase::buildoption,
                "A vector that give for each variable the number of neighbors to use.\n"
                "If a variable don't have a value, we use the value of the varialbe: number_of_neighbors.\n"
                " Ex: [ varname1 : nbneighbors1, varname2 : nbneighbors2 ]\n");
  inherited::declareOptions(ol);
}

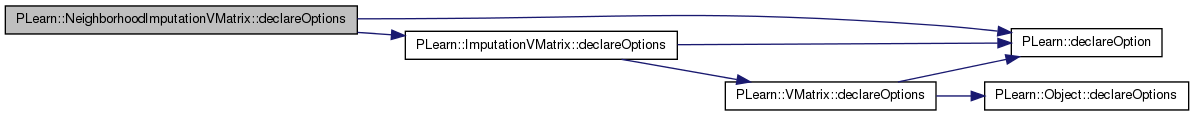

Here is the call graph for this function:

static const PPath& PLearn::NeighborhoodImputationVMatrix::declaringFile ( ) [inline, static]

Reimplemented from PLearn::ImputationVMatrix.

Definition at line 115 of file NeighborhoodImputationVMatrix.h.

NeighborhoodImputationVMatrix * PLearn::NeighborhoodImputationVMatrix::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::ImputationVMatrix.

Definition at line 55 of file NeighborhoodImputationVMatrix.cc.

real PLearn::NeighborhoodImputationVMatrix::get ( int  i,
int  j
) const [virtual]

This method must be implemented in all subclasses.

Returns element (i,j).

Implements PLearn::VMatrix.

Definition at line 120 of file NeighborhoodImputationVMatrix.cc.

References impute(), PLearn::is_missing(), and PLearn::ImputationVMatrix::source.

{
  real variable_value = source->get(i, j);
  if (!is_missing(variable_value)) return variable_value;
  return impute(i, j);
}

Here is the call graph for this function:

void PLearn::NeighborhoodImputationVMatrix::getColumn ( int  i,
Vec  v
) const [virtual]

Copies column i into v (which must have appropriate length equal to the VMat's length).

Reimplemented from PLearn::VMatrix.

Definition at line 166 of file NeighborhoodImputationVMatrix.cc.

References impute(), PLearn::is_missing(), PLearn::TVec< T >::length(), and PLearn::ImputationVMatrix::source.

{
  source-> getColumn(i, v);
  for (int source_row = 0; source_row < v->length(); source_row++)
    if (is_missing(v[source_row])) v[source_row] = impute(source_row, i);
}

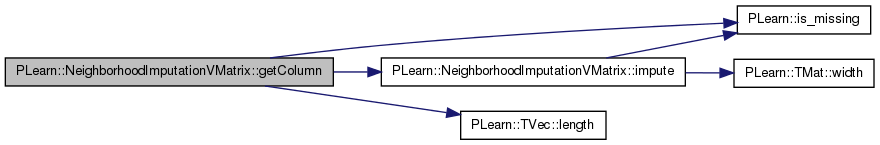

Here is the call graph for this function:

void PLearn::NeighborhoodImputationVMatrix::getExample ( int  i,
Vec input,
Vec target,
real weight
) [virtual]

Default version calls getSubRow based on inputsize_ targetsize_ weightsize_ But exotic subclasses may construct, input, target and weight however they please.

If not a weighted matrix, weight should be set to default value 1.

Reimplemented from PLearn::VMatrix.

Definition at line 111 of file NeighborhoodImputationVMatrix.cc.

References PLearn::VMat::getExample(), impute(), PLearn::is_missing(), PLearn::TVec< T >::length(), and PLearn::ImputationVMatrix::source.

{
  source->getExample(i, input, target, weight);
  for (int source_col = 0; source_col < input->length(); source_col++)
  {
    if (is_missing(input[source_col])) input[source_col] = impute(i, source_col);
  }
}

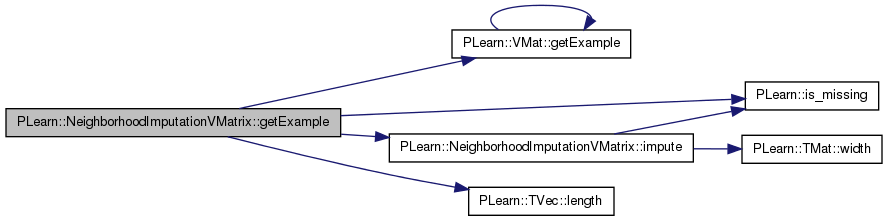

Here is the call graph for this function:

OptionList & PLearn::NeighborhoodImputationVMatrix::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 55 of file NeighborhoodImputationVMatrix.cc.

OptionMap & PLearn::NeighborhoodImputationVMatrix::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 55 of file NeighborhoodImputationVMatrix.cc.

RemoteMethodMap & PLearn::NeighborhoodImputationVMatrix::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 55 of file NeighborhoodImputationVMatrix.cc.

void PLearn::NeighborhoodImputationVMatrix::getRow ( int  i,
Vec  v
) const [virtual]

These methods do not usually need to be overridden in subclasses (default versions call getSubRow, which should do just fine)

Copies row i into v (which must have appropriate length equal to the VMat's width).

Reimplemented from PLearn::VMatrix.

Definition at line 154 of file NeighborhoodImputationVMatrix.cc.

References impute(), PLearn::is_missing(), PLearn::TVec< T >::length(), and PLearn::ImputationVMatrix::source.

{
  source-> getRow(i, v);
  for (int source_col = 0; source_col < v->length(); source_col++)
    if (is_missing(v[source_col])) v[source_col] = impute(i, source_col);
}

Here is the call graph for this function:

void PLearn::NeighborhoodImputationVMatrix::getSubRow ( int  i,
int  j,
Vec  v
) const [virtual]

It is suggested that this method be implemented in subclasses to speed up accesses (default version repeatedly calls get(i,j) which may have a significant overhead).

Fills v with the subrow i lying between columns j (inclusive) and j+v.length() (exclusive).

Reimplemented from PLearn::VMatrix.

Definition at line 132 of file NeighborhoodImputationVMatrix.cc.

References PLearn::VMat::getSubRow(), impute(), PLearn::is_missing(), PLearn::TVec< T >::length(), and PLearn::ImputationVMatrix::source.

{
  source->getSubRow(i, j, v);
  for (int source_col = 0; source_col < v->length(); source_col++)
    if (is_missing(v[source_col])) v[source_col] = impute(i, source_col + j);
}

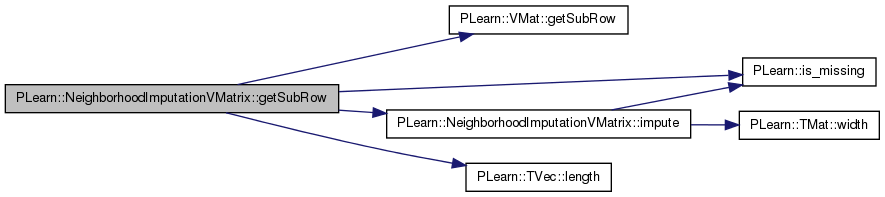

Here is the call graph for this function:

real PLearn::NeighborhoodImputationVMatrix::impute ( int  i,
int  j
) const [private]

Definition at line 222 of file NeighborhoodImputationVMatrix.cc.

References count_missing_neighbors, PLearn::is_missing(), j, nb_neighbors, number_of_neighbors, PLERROR, ref_cov, ref_idx, ref_length, ref_mis, and PLearn::TMat< T >::width().

Referenced by get(), getColumn(), getExample(), getRow(), and getSubRow().

{
    int ref_row;
    real return_value = 0.0;
    int value_count = 0;
    int neighbors_count = 0;
    for (int ref_idx_col = 0; ref_idx_col < ref_idx.width() &&
           neighbors_count < nb_neighbors[j]; ref_idx_col++)
    {
        ref_row = (int) ref_idx(i, ref_idx_col);
        if (ref_row < 0 || ref_row >= ref_length)
            PLERROR("In NeighborhoodImputationVMatrix::invalid index reference, got: %i for sample %i", ref_row, i);
        if (is_missing(ref_mis(ref_row, j))){
          if(count_missing_neighbors)
            neighbors_count++;
          continue;
        }
        return_value += ref_mis(ref_row, j);
        value_count++;
        neighbors_count++;
    }
    if (value_count > 0) return return_value / value_count;
    //if all neighbors have missing value we use the inputed version
    //TODO put a warning
    return_value = 0.0;
    value_count = 0;
    for (int ref_idx_col = 0; ref_idx_col < number_of_neighbors; ref_idx_col++)
    {
        ref_row = (int) ref_idx(i, ref_idx_col);
        if (is_missing(ref_cov(ref_row, j)))
            PLERROR("In NeighborhoodImputationVMatrix::missing value found in the reference with covariance preserved at: %i , %i", ref_row, j);
        return_value += ref_cov(ref_row, j);
        value_count += 1;
    }
    return return_value / value_count;
}

Here is the call graph for this function:

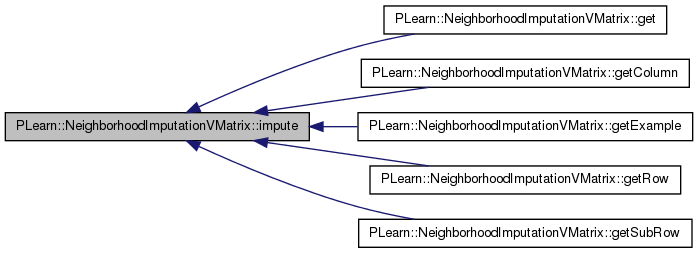

Here is the caller graph for this function:

void PLearn::NeighborhoodImputationVMatrix::insertRow ( int  i,
Vec  v
) [virtual]

This method must be implemented for matrices that are allowed to grow.

Reimplemented from PLearn::VMatrix.

Definition at line 149 of file NeighborhoodImputationVMatrix.cc.

References PLERROR.

{
  PLERROR("In NeighborhoodImputationVMatrix::insertRow not implemented");
}
void PLearn::NeighborhoodImputationVMatrix::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Does the necessary operations to transform a shallow copy (this) into a deep copy by deep-copying all the members that need to be.

This needs to be overridden by every class that adds "complex" data members to the class, such as Vec, Mat, PP<Something>, etc. Typical implementation:

  void CLASS_OF_THIS::makeDeepCopyFromShallowCopy(CopiesMap& copies)
  {
      inherited::makeDeepCopyFromShallowCopy(copies);
      deepCopyField(complex_data_member1, copies);
      deepCopyField(complex_data_member2, copies);
      ...
  }
Parameters:
copiesA map used by the deep-copy mechanism to keep track of already-copied objects.

Reimplemented from PLearn::ImputationVMatrix.

Definition at line 100 of file NeighborhoodImputationVMatrix.cc.

References count_missing_neighbors, PLearn::deepCopyField(), imputation_spec, PLearn::ImputationVMatrix::makeDeepCopyFromShallowCopy(), number_of_neighbors, reference_index, reference_with_covariance_preserved, and reference_with_missing.

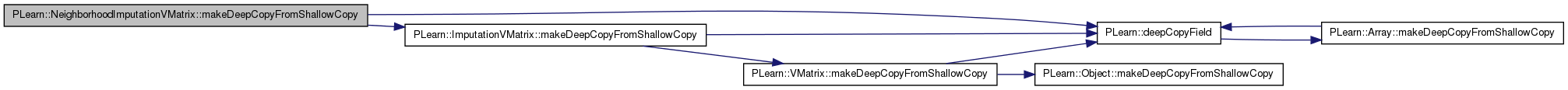

Here is the call graph for this function:

void PLearn::NeighborhoodImputationVMatrix::put ( int  i,
int  j,
real  value
) [virtual]

This method must be implemented in all subclasses of writable matrices.

Sets element (i,j) to value.

Reimplemented from PLearn::VMatrix.

Definition at line 127 of file NeighborhoodImputationVMatrix.cc.

References PLERROR.

{
  PLERROR("In NeighborhoodImputationVMatrix::put not implemented");
}
void PLearn::NeighborhoodImputationVMatrix::putRow ( int  i,
Vec  v
) [virtual]

Reimplemented from PLearn::VMatrix.

Definition at line 161 of file NeighborhoodImputationVMatrix.cc.

References PLERROR.

{
  PLERROR("In NeighborhoodImputationVMatrix::putRow not implemented");
}
void PLearn::NeighborhoodImputationVMatrix::putSubRow ( int  i,
int  j,
Vec  v
) [virtual]

It is suggested that this method be implemented in subclasses of writable matrices to speed up accesses (default version repeatedly calls put(i,j,value) which may have a significant overhead)

Reimplemented from PLearn::VMatrix.

Definition at line 139 of file NeighborhoodImputationVMatrix.cc.

References PLERROR.

{
  PLERROR("In NeighborhoodImputationVMatrix::putSubRow not implemented");
}

Member Data Documentation

Reimplemented from PLearn::ImputationVMatrix.

Definition at line 115 of file NeighborhoodImputationVMatrix.h.

0: (default) We do not count a neighbour with a missing value in the number of neighbors 1: We count a neighbour with a missing value in the number of neighbors

Definition at line 81 of file NeighborhoodImputationVMatrix.h.

Referenced by declareOptions(), impute(), and makeDeepCopyFromShallowCopy().

A vector that give for each variable the number of neighbors to use If a variable is not in the spec, it will use number_of_neighbors.

Definition at line 77 of file NeighborhoodImputationVMatrix.h.

Referenced by build_(), declareOptions(), and makeDeepCopyFromShallowCopy().

Definition at line 110 of file NeighborhoodImputationVMatrix.h.

Referenced by build_(), and impute().

This is usually called K, the number of neighbors to consider.

It must be less or equal than the with of the reference index.

Definition at line 73 of file NeighborhoodImputationVMatrix.h.

Referenced by build_(), declareOptions(), impute(), and makeDeepCopyFromShallowCopy().

Definition at line 109 of file NeighborhoodImputationVMatrix.h.

Referenced by build_(), and impute().

Definition at line 107 of file NeighborhoodImputationVMatrix.h.

Referenced by build_(), and impute().

Definition at line 106 of file NeighborhoodImputationVMatrix.h.

Referenced by build_(), and impute().

Definition at line 108 of file NeighborhoodImputationVMatrix.h.

Referenced by build_(), and impute().

The set of pre-computed neighbors index.

This can be done with BallTreeNearestNeighbors.

Definition at line 63 of file NeighborhoodImputationVMatrix.h.

Referenced by build_(), declareOptions(), and makeDeepCopyFromShallowCopy().

The reference set corresponding to the pre-computed index with the initial imputations.

Definition at line 69 of file NeighborhoodImputationVMatrix.h.

Referenced by build_(), declareOptions(), and makeDeepCopyFromShallowCopy().

The reference set corresponding to the pre-computed index with missing values.

Definition at line 66 of file NeighborhoodImputationVMatrix.h.

Referenced by build_(), declareOptions(), and makeDeepCopyFromShallowCopy().

Definition at line 104 of file NeighborhoodImputationVMatrix.h.

Referenced by build_().

Definition at line 105 of file NeighborhoodImputationVMatrix.h.

Referenced by build_().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
