PLearn::StackedModulesModule Class Reference

Wraps a stack of OnlineLearningModule, which are layers. More...

#include <StackedModulesModule.h>

Inheritance diagram for PLearn::StackedModulesModule:
Inheritance graph
[legend]

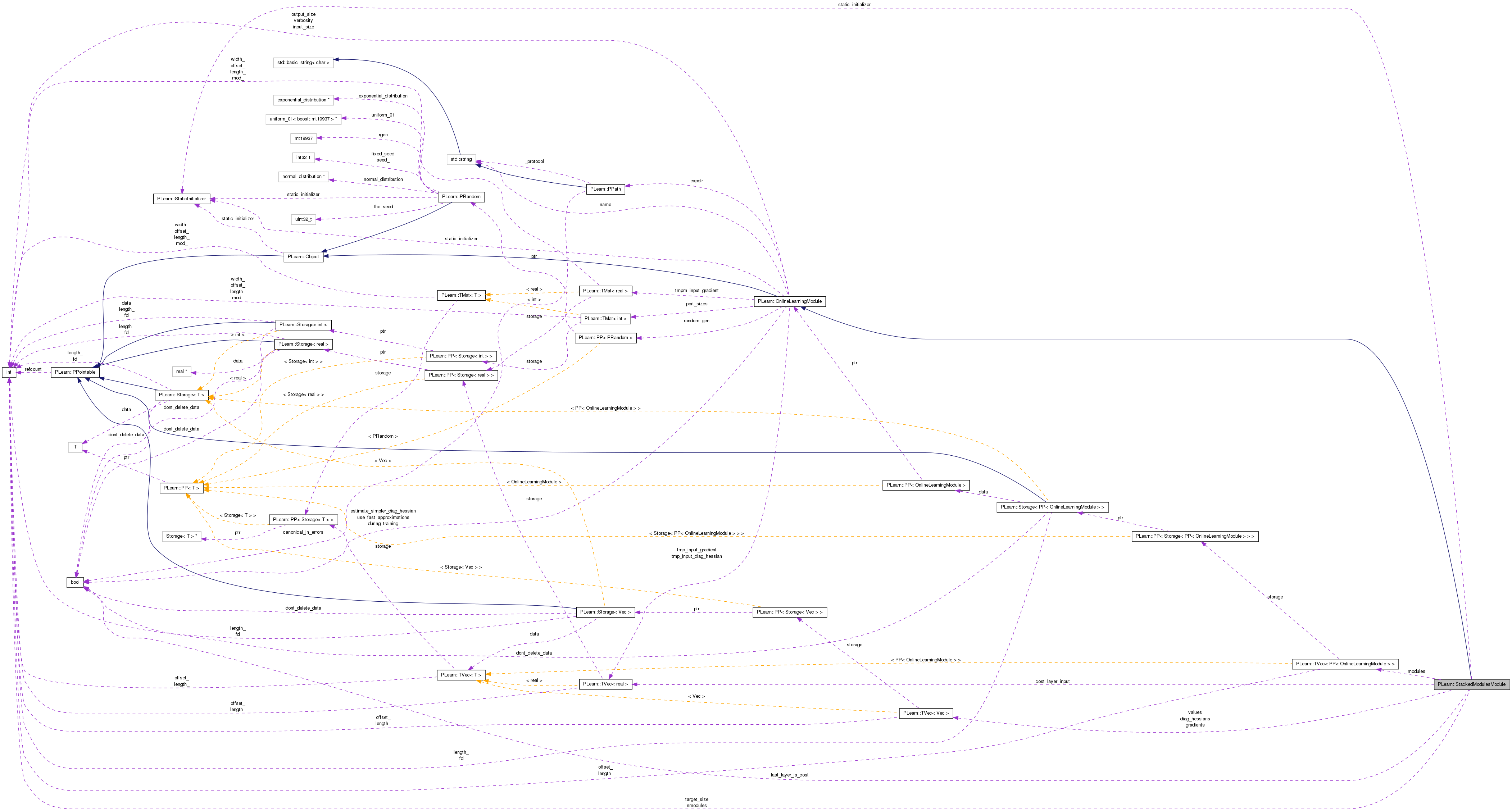

Collaboration diagram for PLearn::StackedModulesModule:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 StackedModulesModule ()
 Default constructor.
virtual void fprop (const Vec &input, Vec &output) const
 given the input, compute the output (possibly resize it appropriately)
virtual void bpropUpdate (const Vec &input, const Vec &output, Vec &input_gradient, const Vec &output_gradient)
 Adapt based on the output gradient: this method should only be called just after a corresponding fprop; it should be called with the same arguments as fprop for the first two arguments (and output should not have been modified since then).
virtual void bbpropUpdate (const Vec &input, const Vec &output, Vec &input_gradient, const Vec &output_gradient, Vec &input_diag_hessian, const Vec &output_diag_hessian)
 Similar to bpropUpdate, but adapt based also on the estimation of the diagonal of the Hessian matrix, and propagates this back.
virtual void forget ()
 reset the parameters to the state they would be BEFORE starting training.
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual StackedModulesModuledeepCopy (CopiesMap &copies) const
virtual void build ()
 Post-constructor.
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.

Static Public Member Functions

static string _classname_ ()
 optionally perform some processing after training, or after a series of fprop/bpropUpdate calls to prepare the model for truly out-of-sample operation.
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

TVec< PP< OnlineLearningModule > > modules
 ### declare public option fields (such as build options) here Start your comments with Doxygen-compatible comments such as //!
bool last_layer_is_cost
 Indicates if the last layer is a cost layer (taking input and target as input, and outputing the cost we will minimize), allowing this module to behave the same way.
int target_size
 If last_layer_is_cost, the size of the target.
TVec< Vecvalues
 stores the input and output values of the functions
Vec cost_layer_input
 stores the input of the last module, and the target if there is one
TVec< Vecgradients
 stores the gradients
TVec< Vecdiag_hessians
 stores the diagonal of Hessians

Static Public Attributes

static StaticInitializer _static_initializer_

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declares the class options.

Protected Attributes

int nmodules
 Number of module layers.

Private Types

typedef OnlineLearningModule inherited

Private Member Functions

void build_ ()
 This does the actual building.
void buildOptions ()
void buildLayers ()

Detailed Description

Wraps a stack of OnlineLearningModule, which are layers.

The OnlineLearningModule's are disposed like superposed layers: outputs of module i are the inputs of module (i+1), the last layer is the output layer.

Deprecated:
: use ../ModuleStackModule or ../ProcessInputCostModule instead

Definition at line 55 of file StackedModulesModule.h.


Member Typedef Documentation

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 57 of file StackedModulesModule.h.


Constructor & Destructor Documentation

PLearn::StackedModulesModule::StackedModulesModule ( )

Default constructor.

Definition at line 53 of file StackedModulesModule.cc.

                                           :
    last_layer_is_cost( false ),
    target_size( 0 ),
    nmodules( 0 )
{
}

Member Function Documentation

string PLearn::StackedModulesModule::_classname_ ( ) [static]

optionally perform some processing after training, or after a series of fprop/bpropUpdate calls to prepare the model for truly out-of-sample operation.

THE DEFAULT IMPLEMENTATION PROVIDED IN THE SUPER-CLASS DOES NOT DO ANYTHING. in case bpropUpdate does not do anything, make it known THE DEFAULT IMPLEMENTATION PROVIDED IN THE SUPER-CLASS RETURNS false;

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 51 of file StackedModulesModule.cc.

OptionList & PLearn::StackedModulesModule::_getOptionList_ ( ) [static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 51 of file StackedModulesModule.cc.

RemoteMethodMap & PLearn::StackedModulesModule::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 51 of file StackedModulesModule.cc.

bool PLearn::StackedModulesModule::_isa_ ( const Object o) [static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 51 of file StackedModulesModule.cc.

Object * PLearn::StackedModulesModule::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 51 of file StackedModulesModule.cc.

StaticInitializer StackedModulesModule::_static_initializer_ & PLearn::StackedModulesModule::_static_initialize_ ( ) [static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 51 of file StackedModulesModule.cc.

void PLearn::StackedModulesModule::bbpropUpdate ( const Vec input,
const Vec output,
Vec input_gradient,
const Vec output_gradient,
Vec input_diag_hessian,
const Vec output_diag_hessian
) [virtual]

Similar to bpropUpdate, but adapt based also on the estimation of the diagonal of the Hessian matrix, and propagates this back.

If these methods are defined, you can use them INSTEAD of bpropUpdate(...) N.B. A DEFAULT IMPLEMENTATION IS PROVIDED IN THE SUPER-CLASS, WHICH JUST CALLS bbpropUpdate(input, output, input_gradient, output_gradient, out_hess, in_hess) AND IGNORES INPUT HESSIAN AND INPUT GRADIENT. this version allows to obtain the input gradient and diag_hessian

If these methods are defined, you can use them INSTEAD of bpropUpdate(...) N.B. A DEFAULT IMPLEMENTATION IS PROVIDED IN THE SUPER-CLASS, WHICH RAISES A PLERROR.

Definition at line 260 of file StackedModulesModule.cc.

References PLearn::TVec< T >::copy(), diag_hessians, gradients, i, last_layer_is_cost, modules, nmodules, and values.

{
    // If last_layer_is_cost, the gradient wrt it is 1 and hessian is 0
    if( last_layer_is_cost )
    {
        gradients[nmodules][0] = 1;
        diag_hessians[nmodules][0] = 1;
    }
    else
    {
        gradients[nmodules] << output_gradient;
        diag_hessians[nmodules] << output_diag_hessian;
    }

    // values should have the values given by fprop(), so
    // values[nmodules] should already be equal to output
    for( int i=nmodules-1 ; i>=0 ; i-- )
        modules[i]->bbpropUpdate( values[i], values[i+1],
                                  gradients[i], gradients[i+1],
                                  diag_hessians[i], diag_hessians[i+1] );

    input_gradient = gradients[0].copy();
    input_diag_hessian = diag_hessians[0].copy();
}

Here is the call graph for this function:

void PLearn::StackedModulesModule::bpropUpdate ( const Vec input,
const Vec output,
Vec input_gradient,
const Vec output_gradient
) [virtual]

Adapt based on the output gradient: this method should only be called just after a corresponding fprop; it should be called with the same arguments as fprop for the first two arguments (and output should not have been modified since then).

this version allows to obtain the input gradient as well N.B.

Since sub-classes are supposed to learn ONLINE, the object is 'ready-to-be-used' just after any bpropUpdate. N.B. A DEFAULT IMPLEMENTATION IS PROVIDED IN THE SUPER-CLASS, WHICH JUST CALLS bpropUpdate(input, output, input_gradient, output_gradient) AND IGNORES INPUT GRADIENT. this version allows to obtain the input gradient as well

THE DEFAULT IMPLEMENTATION IN SUPER-CLASS JUST RAISES A PLERROR.

Definition at line 200 of file StackedModulesModule.cc.

References PLearn::TVec< T >::copy(), cost_layer_input, gradients, i, last_layer_is_cost, modules, nmodules, and values.

{
    // If last_layer_is_cost, the gradient wrt it is 1
    if( last_layer_is_cost )
        gradients[nmodules][0] = 1;
    else
        gradients[nmodules] << output_gradient;

    // values should have the values given by fprop(), so
    // values[nmodules] should already be equal to output
    modules[nmodules-1]->bpropUpdate( cost_layer_input, values[nmodules],
                                      gradients[nmodules-1],
                                      gradients[nmodules] );

    for( int i=nmodules-2 ; i>=0 ; i-- )
        modules[i]->bpropUpdate( values[i], values[i+1],
                                 gradients[i], gradients[i+1] );

    input_gradient = gradients[0].copy();
}

Here is the call graph for this function:

void PLearn::StackedModulesModule::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 157 of file StackedModulesModule.cc.

References PLearn::OnlineLearningModule::build(), and build_().

Here is the call graph for this function:

void PLearn::StackedModulesModule::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 92 of file StackedModulesModule.cc.

References buildLayers(), PLearn::OnlineLearningModule::input_size, last_layer_is_cost, PLearn::TVec< T >::length(), modules, nmodules, PLearn::OnlineLearningModule::output_size, PLASSERT, PLERROR, PLearn::OnlineLearningModule::random_gen, and target_size.

Referenced by build().

{
    // initialize random generator from seed
    if( !random_gen )
        random_gen = new PRandom();
    else
        random_gen->manual_seed( random_gen->seed_ );

    // get some options
    nmodules = modules.length();
    if( nmodules == 0 )
        return;

    if( last_layer_is_cost && target_size <= 0 )
        PLERROR("StackedModulesModule::build_() - Please provide a target_size"
                "  > 0\n"
                "(is '%d').\n", target_size );
    if( !last_layer_is_cost )
        target_size = 0;

    PLASSERT( modules[0]->input_size >= 0 );
    input_size = modules[0]->input_size + target_size;

//    int last_module_output_size = modules[nmodules-1]->output_size;
//    if( last_layer_is_cost )
//        last_module_output_size = 1;

    output_size = modules[nmodules-1]->output_size;

    // build the modules
    buildLayers();

}

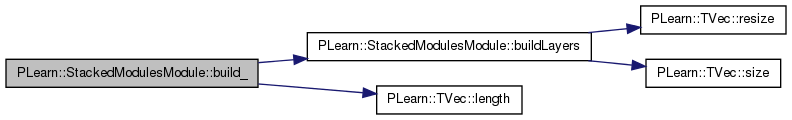

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::StackedModulesModule::buildLayers ( ) [private]

Definition at line 126 of file StackedModulesModule.cc.

References cost_layer_input, diag_hessians, PLearn::OnlineLearningModule::estimate_simpler_diag_hessian, gradients, i, PLearn::OnlineLearningModule::input_size, last_layer_is_cost, modules, nmodules, PLearn::OnlineLearningModule::random_gen, PLearn::TVec< T >::resize(), PLearn::TVec< T >::size(), target_size, and values.

Referenced by build_().

{
    // first values will be "input" values
    int size = input_size - target_size;
    values.resize( nmodules+1 );
    values[0].resize( size );
    gradients.resize( nmodules+1 );
    gradients[0].resize( size );
    // TODO: use it only if we actually use bbprop?
    diag_hessians.resize( nmodules+1 );
    diag_hessians[0].resize( size );

    for( int i=0 ; i<nmodules ; i++ )
    {
        modules[i]->estimate_simpler_diag_hessian =
            estimate_simpler_diag_hessian;
        modules[i]->random_gen = random_gen;
        modules[i]->build();

        size = modules[i]->output_size;
        values[i+1].resize( size );
        gradients[i+1].resize( size );
        diag_hessians[i+1].resize( size );
    }

    // stores the input of the last module, and the target if there is one
    cost_layer_input = values[nmodules-1];
    if( last_layer_is_cost )
        cost_layer_input.resize( cost_layer_input.size() + target_size );
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::StackedModulesModule::buildOptions ( ) [private]
string PLearn::StackedModulesModule::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 51 of file StackedModulesModule.cc.

void PLearn::StackedModulesModule::declareOptions ( OptionList ol) [static, protected]

Declares the class options.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 60 of file StackedModulesModule.cc.

References PLearn::OptionBase::buildoption, PLearn::declareOption(), PLearn::OnlineLearningModule::declareOptions(), last_layer_is_cost, PLearn::OptionBase::learntoption, modules, nmodules, and target_size.

{
    /*
    declareOption(ol, "", &StackedModulesModule::,
                  OptionBase::buildoption,
                  "");
     */
    declareOption(ol, "modules", &StackedModulesModule::modules,
                  OptionBase::buildoption,
                  "Underlying layers of the Module");

    declareOption(ol, "last_layer_is_cost",
                  &StackedModulesModule::last_layer_is_cost,
                  OptionBase::buildoption,
                  "Indicates if the last layer is a cost layer (taking input"
                  " and target\n"
                  "as input, and outputing the cost we will minimize),"
                  " allowing this\n"
                  "module to behave the same way.\n");

    declareOption(ol, "target_size", &StackedModulesModule::target_size,
                  OptionBase::buildoption,
                  "If last_layer_is_cost, the size of the target");

    declareOption(ol, "nmodules", &StackedModulesModule::nmodules,
                  OptionBase::learntoption,
                  "Number of module layers");

    // Now call the parent class' declareOptions
    inherited::declareOptions(ol);
}

Here is the call graph for this function:

static const PPath& PLearn::StackedModulesModule::declaringFile ( ) [inline, static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 148 of file StackedModulesModule.h.

:
    //#####  Protected Options  ###############################################
StackedModulesModule * PLearn::StackedModulesModule::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 51 of file StackedModulesModule.cc.

void PLearn::StackedModulesModule::forget ( ) [virtual]

reset the parameters to the state they would be BEFORE starting training.

Note that this method is necessarily called from build().

Implements PLearn::OnlineLearningModule.

Definition at line 225 of file StackedModulesModule.cc.

References PLearn::TVec< T >::clear(), diag_hessians, gradients, i, modules, nmodules, PLearn::OnlineLearningModule::random_gen, and values.

{
    random_gen->manual_seed( random_gen->seed_ );

    // reset inputs
    values[0].clear();
    gradients[0].clear();
    diag_hessians[0].clear();

    // reset modules and outputs
    for( int i=0 ; i<nmodules ; i++ )
    {
        modules[i]->forget();
        values[i+1].clear();
        gradients[i+1].clear();
        diag_hessians[i+1].clear();
    }
}

Here is the call graph for this function:

void PLearn::StackedModulesModule::fprop ( const Vec input,
Vec output
) const [virtual]

given the input, compute the output (possibly resize it appropriately)

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 176 of file StackedModulesModule.cc.

References cost_layer_input, i, PLearn::OnlineLearningModule::input_size, last_layer_is_cost, modules, nmodules, PLearn::OnlineLearningModule::output_size, PLASSERT, PLearn::TVec< T >::resize(), PLearn::TVec< T >::size(), PLearn::TVec< T >::subVec(), target_size, and values.

{
    PLASSERT( input.size() == input_size );
    PLASSERT( modules[0]->input_size + target_size == input_size );
    int last_input_size = values[nmodules-1].size();

    values[0] << input.subVec(0, input_size - target_size );

    for( int i=0 ; i<nmodules-1 ; i++ )
        modules[i]->fprop( values[i], values[i+1] );

    if( last_layer_is_cost )
    {
        cost_layer_input.subVec( last_input_size, target_size )
            << input.subVec( input_size - target_size, target_size );
    }

    modules[nmodules-1]->fprop( cost_layer_input, values[nmodules] );
    output.resize( output_size );
    output << values[ nmodules ];
}

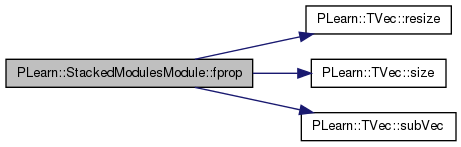

Here is the call graph for this function:

OptionList & PLearn::StackedModulesModule::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 51 of file StackedModulesModule.cc.

OptionMap & PLearn::StackedModulesModule::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 51 of file StackedModulesModule.cc.

RemoteMethodMap & PLearn::StackedModulesModule::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 51 of file StackedModulesModule.cc.

void PLearn::StackedModulesModule::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Transforms a shallow copy into a deep copy.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 164 of file StackedModulesModule.cc.

References cost_layer_input, PLearn::deepCopyField(), diag_hessians, gradients, PLearn::OnlineLearningModule::makeDeepCopyFromShallowCopy(), modules, and values.

Here is the call graph for this function:


Member Data Documentation

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 148 of file StackedModulesModule.h.

stores the input of the last module, and the target if there is one

Definition at line 169 of file StackedModulesModule.h.

Referenced by bpropUpdate(), buildLayers(), fprop(), and makeDeepCopyFromShallowCopy().

stores the diagonal of Hessians

Definition at line 175 of file StackedModulesModule.h.

Referenced by bbpropUpdate(), buildLayers(), forget(), and makeDeepCopyFromShallowCopy().

stores the gradients

Definition at line 172 of file StackedModulesModule.h.

Referenced by bbpropUpdate(), bpropUpdate(), buildLayers(), forget(), and makeDeepCopyFromShallowCopy().

Indicates if the last layer is a cost layer (taking input and target as input, and outputing the cost we will minimize), allowing this module to behave the same way.

Definition at line 71 of file StackedModulesModule.h.

Referenced by bbpropUpdate(), bpropUpdate(), build_(), buildLayers(), declareOptions(), and fprop().

### declare public option fields (such as build options) here Start your comments with Doxygen-compatible comments such as //!

Underlying layers of the Module

Definition at line 66 of file StackedModulesModule.h.

Referenced by bbpropUpdate(), bpropUpdate(), build_(), buildLayers(), declareOptions(), forget(), fprop(), and makeDeepCopyFromShallowCopy().

Number of module layers.

Definition at line 160 of file StackedModulesModule.h.

Referenced by bbpropUpdate(), bpropUpdate(), build_(), buildLayers(), declareOptions(), forget(), and fprop().

If last_layer_is_cost, the size of the target.

Definition at line 74 of file StackedModulesModule.h.

Referenced by build_(), buildLayers(), declareOptions(), and fprop().

stores the input and output values of the functions

Definition at line 166 of file StackedModulesModule.h.

Referenced by bbpropUpdate(), bpropUpdate(), buildLayers(), forget(), fprop(), and makeDeepCopyFromShallowCopy().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
