PLearn::SDBVMFieldDiscrete Class Reference

A field that recodes its source field according to an OutputCoder object. More...

#include <SDBVMat.h>

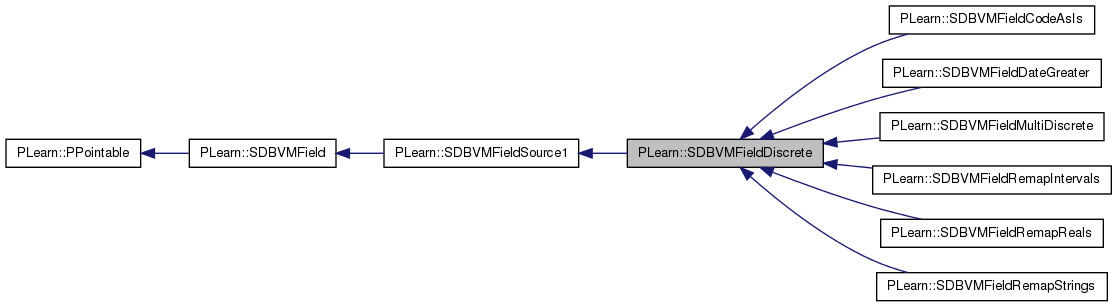

Inheritance diagram for PLearn::SDBVMFieldDiscrete:
Inheritance graph
[legend]

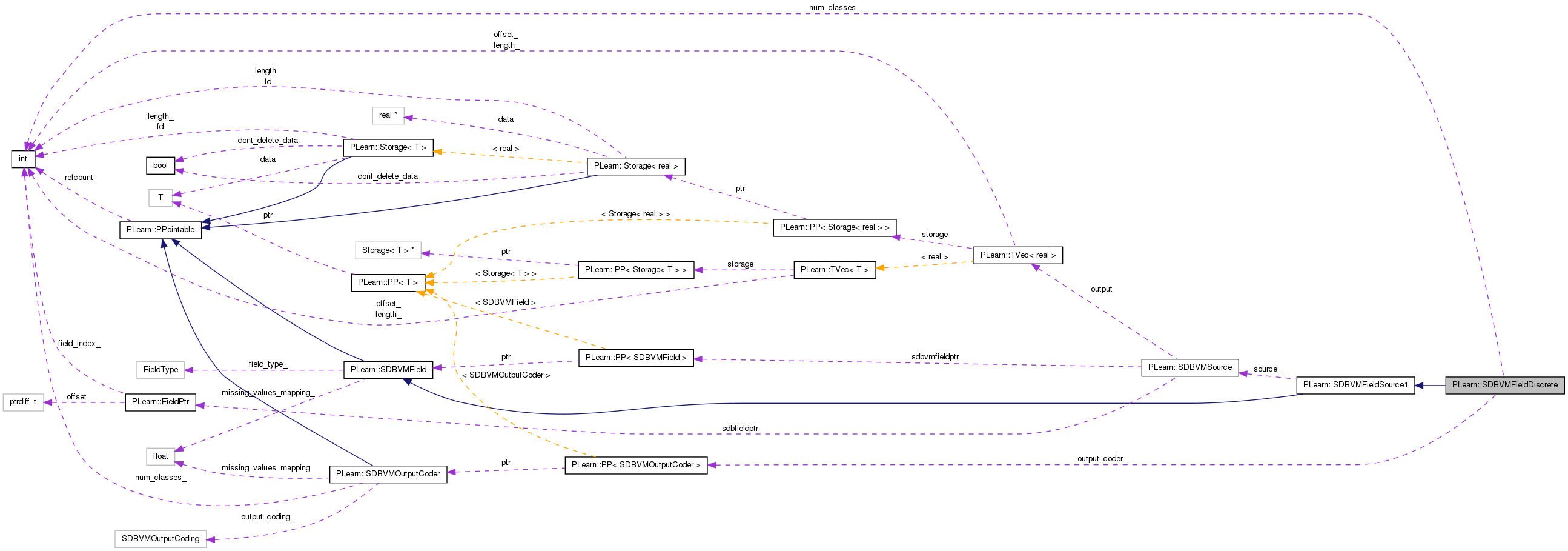

Collaboration diagram for PLearn::SDBVMFieldDiscrete:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 SDBVMFieldDiscrete (SDBVMSource source, int num_classes=0, real missing_values_mapping=MISSING_VALUE, SDBVMOutputCoding oc=SDBVMNumeric, VMField::FieldType ft=VMField::DiscrGeneral)
 SDBVMFieldDiscrete (SDBVMSource source, SDBVMOutputCoder *oc, int num_classes=0, real missing_values_mapping=MISSING_VALUE, VMField::FieldType ft=VMField::DiscrGeneral)
 Version of the constructor that takes an OutputCoder object.
virtual void convertField (const SDBWithStats &sdb, const Row &row, const Vec &output) const
virtual int fieldWidth () const
 Width that the field occupies in the VMat.
virtual SDBVMOutputCoding getOutputCoding () const
virtual real getDiscreteValue (const SDBWithStats &sdb, const Row &row) const =0
int getNumClasses () const
 Return the number of possible discrete values from 0 to N-1.
void setNumClasses (int)
 Call this function to set the number of classes (don't play with num_classes_ directly ==> important)
void setOutputCoder (SDBVMOutputCoder *oc)
 Set the currently-active output coder (captures ownership of passed object)

Protected Attributes

int num_classes_
 must be >0 for one-hot coding
PSDBVMOutputCoder output_coder_
 perform actual formatting

Private Types

typedef SDBVMFieldSource1 inherited

Detailed Description

A field that recodes its source field according to an OutputCoder object.

Definition at line 604 of file SDBVMat.h.


Member Typedef Documentation


Constructor & Destructor Documentation

PLearn::SDBVMFieldDiscrete::SDBVMFieldDiscrete ( SDBVMSource  source,
int  num_classes = 0,
real  missing_values_mapping = MISSING_VALUE,
SDBVMOutputCoding  oc = SDBVMNumeric,
VMField::FieldType  ft = VMField::DiscrGeneral
)

All constructors now specify the number of classes (between 0 and n-1), and whether one_hot output coding is desired (true) or direct integer codes (false, the default). By default, num_classes is not known at construction time, and must be set by derived classes. A remapping for missing values can also be provided.

Definition at line 588 of file SDBVMat.cc.

References output_coder_.

    : inherited(source,missing_values_mapping,ft), num_classes_(num_classes),
      output_coder_(new SDBVMOutputCoder(oc, missing_values_mapping))
{
    output_coder_->setNumClasses(num_classes);
}
PLearn::SDBVMFieldDiscrete::SDBVMFieldDiscrete ( SDBVMSource  source,
SDBVMOutputCoder oc,
int  num_classes = 0,
real  missing_values_mapping = MISSING_VALUE,
VMField::FieldType  ft = VMField::DiscrGeneral
)

Version of the constructor that takes an OutputCoder object.

Definition at line 597 of file SDBVMat.cc.

References output_coder_.

    : inherited(source, missing_values_mapping,ft),
      num_classes_(num_classes), output_coder_(oc)
{
    output_coder_->setNumClasses(num_classes);
}

Member Function Documentation

void PLearn::SDBVMFieldDiscrete::convertField ( const SDBWithStats sdb,
const Row row,
const Vec output
) const [virtual]

This function is implemented as a call to a virtual function getDiscreteValue(), followed by a call to setOutput of the OutputCoder.

Implements PLearn::SDBVMField.

Reimplemented in PLearn::SDBVMFieldDateGreater.

Definition at line 605 of file SDBVMat.cc.

References getDiscreteValue(), and output_coder_.

{
    real value = getDiscreteValue(sdb, row);
    output_coder_->setOutput(value, output);
}

Here is the call graph for this function:

int PLearn::SDBVMFieldDiscrete::fieldWidth ( ) const [virtual]

Width that the field occupies in the VMat.

Implements PLearn::SDBVMField.

Reimplemented in PLearn::SDBVMFieldDateGreater.

Definition at line 612 of file SDBVMat.cc.

References output_coder_.

{
    return output_coder_->fieldWidth();
}
virtual real PLearn::SDBVMFieldDiscrete::getDiscreteValue ( const SDBWithStats sdb,
const Row row
) const [pure virtual]

This function must be overridden in derived classes to get the correctly-mapped discrete value obtained from the SDB. The semantics prescribe missing values to be remapped to missing_values_mapping_.

Implemented in PLearn::SDBVMFieldDateGreater, PLearn::SDBVMFieldCodeAsIs, PLearn::SDBVMFieldRemapReals, PLearn::SDBVMFieldRemapStrings, PLearn::SDBVMFieldRemapIntervals, and PLearn::SDBVMFieldMultiDiscrete.

Referenced by convertField().

Here is the caller graph for this function:

int PLearn::SDBVMFieldDiscrete::getNumClasses ( ) const [inline]

Return the number of possible discrete values from 0 to N-1.

Definition at line 645 of file SDBVMat.h.

{ return num_classes_; }
SDBVMOutputCoding PLearn::SDBVMFieldDiscrete::getOutputCoding ( ) const [virtual]

Reimplemented from PLearn::SDBVMField.

Definition at line 617 of file SDBVMat.cc.

References output_coder_.

{
    return output_coder_->getOutputCoding();
}
void PLearn::SDBVMFieldDiscrete::setNumClasses ( int  num_classes)

Call this function to set the number of classes (don't play with num_classes_ directly ==> important)

Definition at line 622 of file SDBVMat.cc.

References num_classes_, and output_coder_.

Referenced by PLearn::SDBVMFieldRemapIntervals::SDBVMFieldRemapIntervals(), PLearn::SDBVMFieldRemapReals::SDBVMFieldRemapReals(), PLearn::SDBVMFieldRemapStrings::SDBVMFieldRemapStrings(), and PLearn::SDBVMFieldMultiDiscrete::setFields().

{
    num_classes_ = num_classes;
    output_coder_->setNumClasses(num_classes);
}

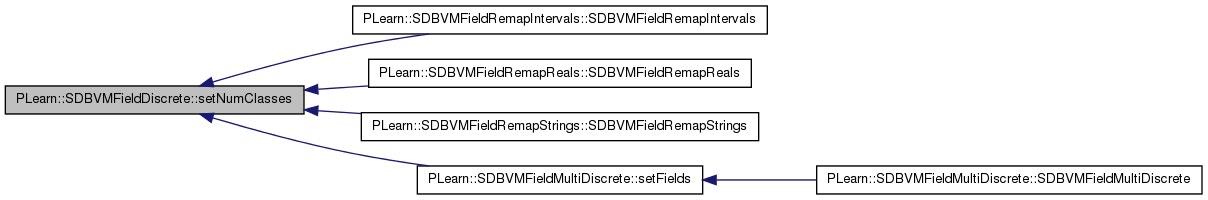

Here is the caller graph for this function:

void PLearn::SDBVMFieldDiscrete::setOutputCoder ( SDBVMOutputCoder oc) [inline]

Set the currently-active output coder (captures ownership of passed object)

Definition at line 653 of file SDBVMat.h.

{ output_coder_ = oc; }

Member Data Documentation

must be >0 for one-hot coding

Definition at line 657 of file SDBVMat.h.

Referenced by setNumClasses().

perform actual formatting

Definition at line 658 of file SDBVMat.h.

Referenced by convertField(), fieldWidth(), getOutputCoding(), SDBVMFieldDiscrete(), and setNumClasses().


The documentation for this class was generated from the following files:
