PLearn::MaxSubsampling2DModule Class Reference

Reduce the size of the 2D images by taking the max value of nearby pixels. More...

#include <MaxSubsampling2DModule.h>

Inheritance diagram for PLearn::MaxSubsampling2DModule:
Inheritance graph
[legend]

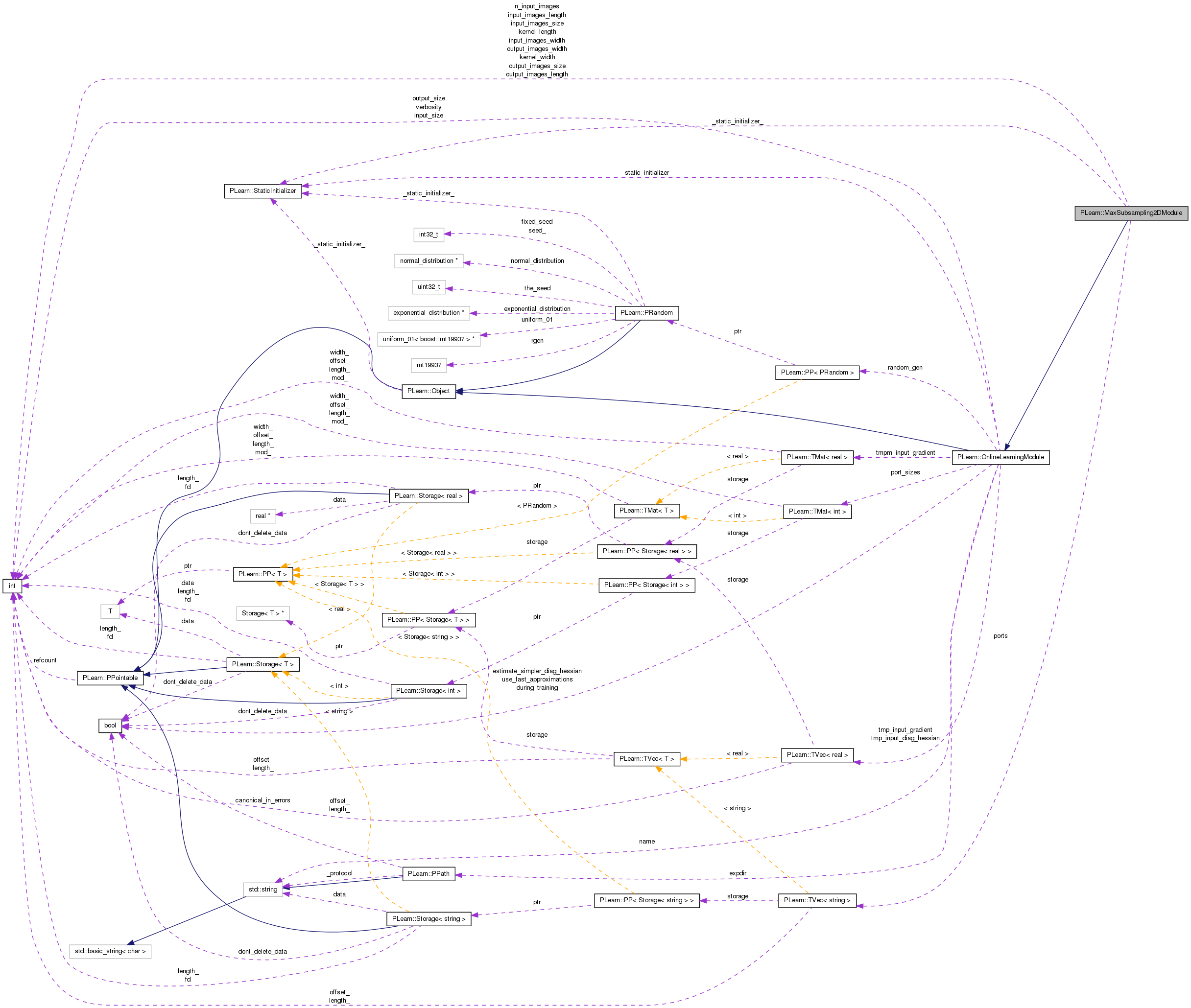

Collaboration diagram for PLearn::MaxSubsampling2DModule:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 MaxSubsampling2DModule ()
 Default constructor.
void fprop (const TVec< Mat * > &ports_value)
 Perform a fprop step.
virtual void bpropAccUpdate (const TVec< Mat * > &ports_value, const TVec< Mat * > &ports_gradient)
 Perform a back propagation step (also updating parameters according to the provided gradient).
virtual void forget ()
 Reset the parameters to the state they would be BEFORE starting training.
virtual void setLearningRate (real dynamic_learning_rate)
 If this class has a learning rate (or something close to it), set it.
virtual const TVec< string > & getPorts ()
 Return the list of ports in the module.
virtual const TMat< int > & getPortSizes ()
 Return the size of all ports, in the form of a two-column matrix, where each row represents a port, and the two numbers on a row are respectively its length and its width (with -1 representing an undefined or variable value).
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual MaxSubsampling2DModuledeepCopy (CopiesMap &copies) const
virtual void build ()
 Post-constructor.
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.

Static Public Member Functions

static string _classname_ ()
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

int n_input_images
 ### declare public option fields (such as build options) here Start your comments with Doxygen-compatible comments such as //!
int input_images_length
 Length of each of the input images.
int input_images_width
 Width of each of the input images.
int kernel_length
 Length of the areas over which we pick the max.
int kernel_width
 Width of the areas over which we pick the max.
int output_images_length
 Length of the output images.
int output_images_width
 Width of the output images.
int input_images_size
 Size of the input images (length * width)
int output_images_size
 Size of the input images (length * width)

Static Public Attributes

static StaticInitializer _static_initializer_

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declares the class options.

Private Types

typedef OnlineLearningModule inherited

Private Member Functions

void build_ ()
 This does the actual building.

Private Attributes

TVec< string > ports
 The name of the ports.

Detailed Description

Reduce the size of the 2D images by taking the max value of nearby pixels.

Definition at line 51 of file MaxSubsampling2DModule.h.


Member Typedef Documentation

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 53 of file MaxSubsampling2DModule.h.


Constructor & Destructor Documentation

PLearn::MaxSubsampling2DModule::MaxSubsampling2DModule ( )

Member Function Documentation

string PLearn::MaxSubsampling2DModule::_classname_ ( ) [static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 51 of file MaxSubsampling2DModule.cc.

OptionList & PLearn::MaxSubsampling2DModule::_getOptionList_ ( ) [static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 51 of file MaxSubsampling2DModule.cc.

RemoteMethodMap & PLearn::MaxSubsampling2DModule::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 51 of file MaxSubsampling2DModule.cc.

bool PLearn::MaxSubsampling2DModule::_isa_ ( const Object o) [static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 51 of file MaxSubsampling2DModule.cc.

Object * PLearn::MaxSubsampling2DModule::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 51 of file MaxSubsampling2DModule.cc.

StaticInitializer MaxSubsampling2DModule::_static_initializer_ & PLearn::MaxSubsampling2DModule::_static_initialize_ ( ) [static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 51 of file MaxSubsampling2DModule.cc.

void PLearn::MaxSubsampling2DModule::bpropAccUpdate ( const TVec< Mat * > &  ports_value,
const TVec< Mat * > &  ports_gradient
) [virtual]

Perform a back propagation step (also updating parameters according to the provided gradient).

The matrices in 'ports_value' must be the same as the ones given in a previous call to 'fprop' (and thus they should in particular contain the result of the fprop computation). However, they are not necessarily the same as the ones given in the LAST call to 'fprop': if there is a need to store an internal module state, this should be done using a specific port to store this state. Each Mat* pointer in the 'ports_gradient' vector can be one of:

  • a full matrix : this is the gradient that is provided to the module, and can be used to compute other ports' gradient.
  • an empty matrix: this is a gradient we want to compute and accumulate into. This matrix must have length 0 and a width equal to the width of the corresponding matrix in the 'ports_value' vector (we can thus accumulate gradients using PLearn's ability to keep intact stored values when resizing a matrix' length).
  • a NULL pointer : this is a gradient that is not available, but does not need to be returned (or even computed). The default version tries to use the standard mini-batch bpropUpdate method, when possible.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 236 of file MaxSubsampling2DModule.cc.

References PLearn::argmax(), classname(), PLearn::TMat< T >::data(), i, input_images_length, input_images_size, input_images_width, PLearn::TMat< T >::isEmpty(), j, kernel_length, kernel_width, PLearn::TMat< T >::length(), PLearn::TVec< T >::length(), n_input_images, PLearn::OnlineLearningModule::nPorts(), output_images_length, output_images_size, output_images_width, PLASSERT, PLERROR, PLearn::OnlineLearningModule::port_sizes, PLearn::TMat< T >::resize(), PLearn::TMat< T >::subMat(), and PLearn::TMat< T >::width().

{
    PLASSERT( ports_value.length() == nPorts()
              && ports_gradient.length() == nPorts() );
    // check which ports are input
    // (ports_value[i] && !ports_value[i]->isEmpty())
    // which ports are output (ports_value[i] && ports_value[i]->isEmpty())
    // and which ports are ignored (!ports_value[i]).
    // A similar logic applies to ports_gradients (to know whether gradient
    // is coming into the module of coming from the module through a given
    // ports_gradient[i]).
    // An input port_value should correspond to an outgoing port_gradient,
    // an output port_value could either correspond to an incoming
    // port_gradient (when that gradient is to be propagated inside and to the
    // input ports) or it should be null (no gradient is propagated from that
    // output port).

    Mat* input = ports_value[0];
#ifdef BOUNDCHECK
    Mat* output = ports_value[1];
#endif
    Mat* argmax = ports_value[2];
    Mat* input_grad = ports_gradient[0];
    Mat* output_grad = ports_gradient[1];
#ifdef BOUNDCHECK
    Mat* argmax_grad = ports_gradient[2];
#endif

    // If we want input_grad and we have output_grad
    if( input_grad && input_grad->isEmpty()
        && output_grad && !output_grad->isEmpty() )
    {
        PLASSERT( input );
        PLASSERT( output );
        PLASSERT( argmax );
        PLASSERT( !argmax_grad );

        PLASSERT( input->width() == port_sizes(0,1) );
        PLASSERT( output->width() == port_sizes(1,1) );
        PLASSERT( argmax->width() == port_sizes(2,1) );
        PLASSERT( input_grad->width() == port_sizes(0,1) );
        PLASSERT( output_grad->width() == port_sizes(1,1) );

        int batch_size = input->length();
        PLASSERT( output->length() == batch_size );
        PLASSERT( argmax->length() == batch_size );
        PLASSERT( output_grad->length() == batch_size );

        input_grad->resize(batch_size, port_sizes(0,1));

        for( int k=0; k<batch_size; k++ )
            for( int l=0; l<n_input_images; l++ )
            {
                Mat input_grad_image_kl = (*input_grad)(k)
                    .subVec(l*input_images_size, input_images_size)
                    .toMat(input_images_length, input_images_width);
                Mat output_grad_image_kl = (*output_grad)(k)
                    .subVec(l*output_images_size, output_images_size)
                    .toMat(output_images_length, output_images_width);
                Mat argmax_kl = (*argmax)(k)
                    .subVec(l*output_images_size, output_images_size)
                    .toMat(output_images_length, output_images_width);

                for( int i=0; i<output_images_length; i++ )
                    for( int j=0; j<output_images_width; j++ )
                    {
                        Mat input_grad_zone = input_grad_image_kl
                            .subMat(i*kernel_length, j*kernel_width,
                                    kernel_length, kernel_width);

                        int argmax_klij = (int) round(argmax_kl(i,j));
                        input_grad_zone.data()[argmax_klij] =
                            output_grad_image_kl(i,j);
                    }
            }
    }
    else
        PLERROR("In MaxSubsampling2DModule::bpropAccUpdate - this configuration of ports not implemented for class "
            "'%s'", classname().c_str());
}

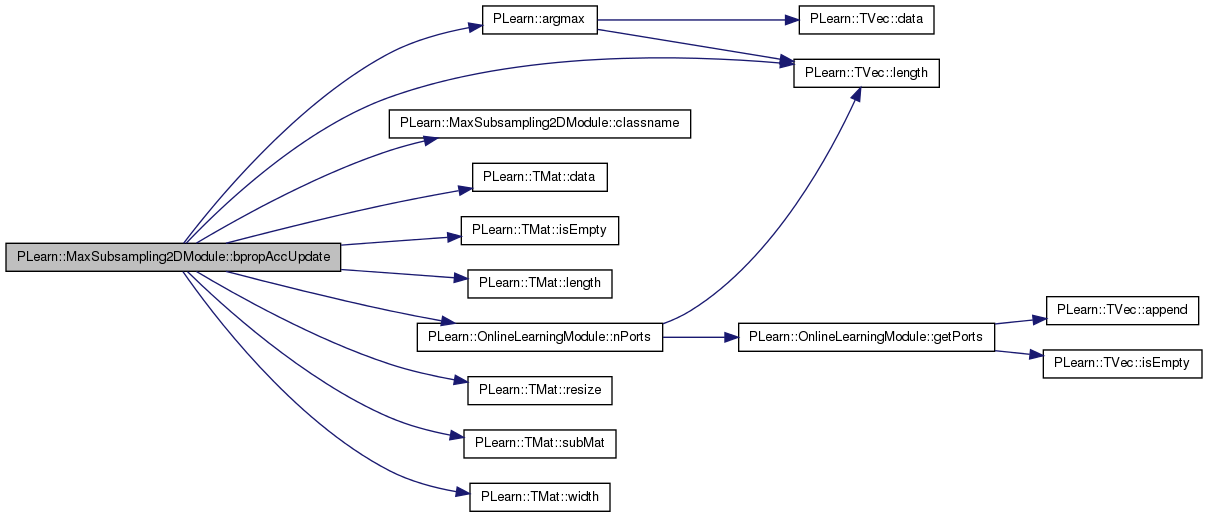

Here is the call graph for this function:

void PLearn::MaxSubsampling2DModule::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 160 of file MaxSubsampling2DModule.cc.

References PLearn::OnlineLearningModule::build(), and build_().

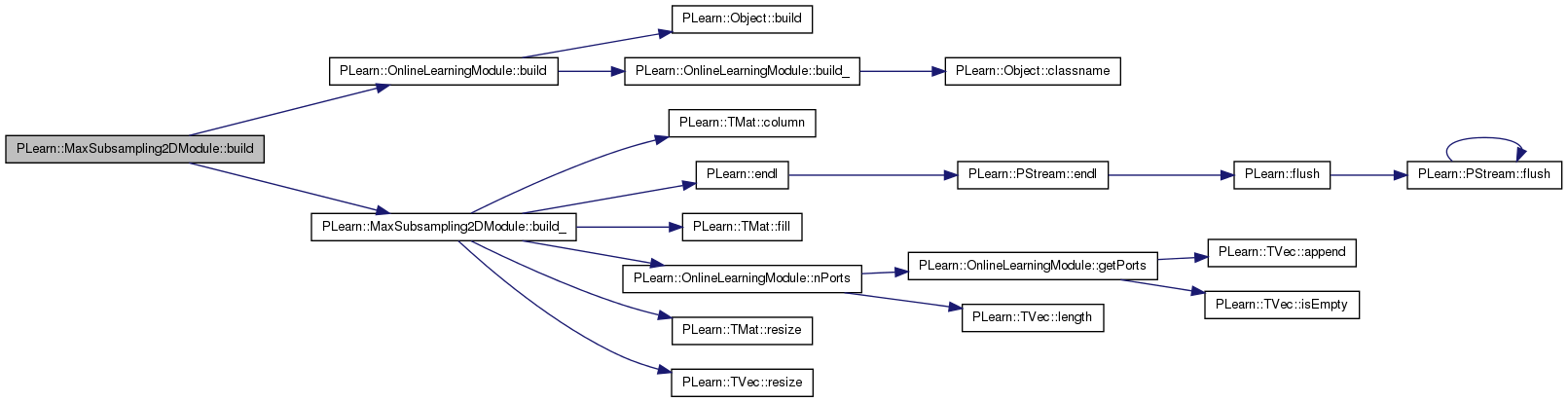

Here is the call graph for this function:

void PLearn::MaxSubsampling2DModule::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 122 of file MaxSubsampling2DModule.cc.

References PLearn::TMat< T >::column(), PLearn::endl(), PLearn::TMat< T >::fill(), input_images_length, input_images_size, input_images_width, PLearn::OnlineLearningModule::input_size, kernel_length, kernel_width, n_input_images, PLearn::OnlineLearningModule::nPorts(), output_images_length, output_images_size, output_images_width, PLearn::OnlineLearningModule::output_size, PLCHECK, PLCHECK_MSG, PLearn::OnlineLearningModule::port_sizes, ports, PLearn::TMat< T >::resize(), and PLearn::TVec< T >::resize().

Referenced by build().

{
    MODULE_LOG << "build_() called" << endl;

    // Build the learntoptions from the buildoptions
    input_images_size = input_images_length * input_images_width;
    input_size = n_input_images * input_images_size;

    PLCHECK( n_input_images > 0 );
    PLCHECK( input_images_length > 0 );
    PLCHECK( input_images_width > 0 );
    PLCHECK( kernel_length > 0 );
    PLCHECK( kernel_width > 0 );
    PLCHECK_MSG( input_images_length % kernel_length == 0,
                 "input_images_length should be a multiple of kernel_length" );
    PLCHECK_MSG( input_images_width % kernel_width == 0,
                 "input_images_width should be a multiple of kernel_width" );

    output_images_length = input_images_length / kernel_length;
    output_images_width = input_images_width / kernel_width;
    output_images_size = output_images_length * output_images_width;
    output_size = n_input_images * output_images_size;

    // build ports
    ports.resize(3);
    ports[0] = "input";
    ports[1] = "output";
    ports[2] = "argmax.state";

    // build port_sizes
    port_sizes.resize(nPorts(), 2);
    port_sizes.column(0).fill(-1);
    port_sizes(0, 1) = input_size;
    port_sizes(1, 1) = output_size;
    port_sizes(2, 1) = output_size;
}

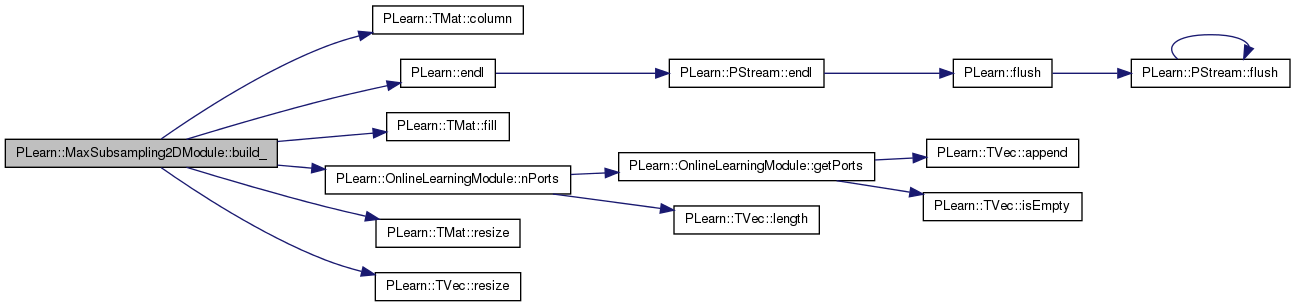

Here is the call graph for this function:

Here is the caller graph for this function:

string PLearn::MaxSubsampling2DModule::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 51 of file MaxSubsampling2DModule.cc.

Referenced by bpropAccUpdate().

Here is the caller graph for this function:

void PLearn::MaxSubsampling2DModule::declareOptions ( OptionList ol) [static, protected]

Declares the class options.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 66 of file MaxSubsampling2DModule.cc.

References PLearn::OptionBase::buildoption, PLearn::declareOption(), PLearn::OnlineLearningModule::declareOptions(), input_images_length, input_images_width, PLearn::OnlineLearningModule::input_size, kernel_length, kernel_width, PLearn::OptionBase::learntoption, n_input_images, output_images_length, output_images_width, PLearn::OnlineLearningModule::output_size, and PLearn::redeclareOption().

{
    declareOption(ol, "n_input_images",
                  &MaxSubsampling2DModule::n_input_images,
                  OptionBase::buildoption,
                  "Number of input images present at the same time in the"
                  " input vector");

    declareOption(ol, "input_images_length",
                  &MaxSubsampling2DModule::input_images_length,
                  OptionBase::buildoption,
                  "Length of each of the input images");

    declareOption(ol, "input_images_width",
                  &MaxSubsampling2DModule::input_images_width,
                  OptionBase::buildoption,
                  "Width of each of the input images");

    declareOption(ol, "kernel_length", &MaxSubsampling2DModule::kernel_length,
                  OptionBase::buildoption,
                  "Length of the areas to maximize over");

    declareOption(ol, "kernel_width", &MaxSubsampling2DModule::kernel_width,
                  OptionBase::buildoption,
                  "Width of the areas to maximize over");

    declareOption(ol, "output_images_length",
                  &MaxSubsampling2DModule::output_images_length,
                  OptionBase::learntoption,
                  "Length of the output images");

    declareOption(ol, "output_images_width",
                  &MaxSubsampling2DModule::output_images_width,
                  OptionBase::learntoption,
                  "Width of the output images");

    // declareOption(ol, "", &MaxSubsampling2DModule::,
    //               OptionBase::buildoption,
    //               "");

    // Now call the parent class' declareOptions
    inherited::declareOptions(ol);


    redeclareOption(ol, "input_size", &MaxSubsampling2DModule::input_size,
                    OptionBase::learntoption,
                    "Size of the input, computed from n_input_images,\n"
                    "input_images_length and input_images_width.\n");

    redeclareOption(ol, "output_size", &MaxSubsampling2DModule::output_size,
                    OptionBase::learntoption,
                    "Size of the output, computed from n_input_images,\n"
                    "output_images_length and output_images_width.\n");

}

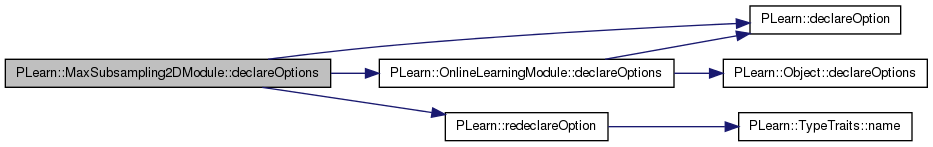

Here is the call graph for this function:

static const PPath& PLearn::MaxSubsampling2DModule::declaringFile ( ) [inline, static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 172 of file MaxSubsampling2DModule.h.

:
    //#####  Protected Member Functions  ######################################
MaxSubsampling2DModule * PLearn::MaxSubsampling2DModule::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 51 of file MaxSubsampling2DModule.cc.

void PLearn::MaxSubsampling2DModule::forget ( ) [virtual]

Reset the parameters to the state they would be BEFORE starting training.

Note that this method is necessarily called from build().

Implements PLearn::OnlineLearningModule.

Definition at line 322 of file MaxSubsampling2DModule.cc.

{
}
void PLearn::MaxSubsampling2DModule::fprop ( const TVec< Mat * > &  ports_value) [virtual]

Perform a fprop step.

Each Mat* pointer in the 'ports_value' vector can be one of:

  • a full matrix: this is data that is provided to the module, and can be used to compute other ports' values
  • an empty matrix: this is what we want to compute
  • a NULL pointer: this is data that is not available, but whose value does not need to be returned (or even computed) The default version will either:
  • call the mini-batch versions of standard fprop if 'ports_value' has size 2, with the first value being provided (and the second being the desired output)
  • crash otherwise

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 177 of file MaxSubsampling2DModule.cc.

References PLearn::argmax(), i, input_images_length, input_images_size, input_images_width, PLearn::TMat< T >::isEmpty(), j, kernel_length, kernel_width, PLearn::TVec< T >::length(), PLearn::max(), n_input_images, PLearn::OnlineLearningModule::nPorts(), output_images_length, output_images_size, output_images_width, PLASSERT, PLCHECK_MSG, PLearn::OnlineLearningModule::port_sizes, PLearn::TMat< T >::resize(), and PLearn::TMat< T >::subMat().

{
    PLASSERT( ports_value.length() == nPorts() );
    // check which ports are input
    // (ports_value[i] && !ports_value[i]->isEmpty())
    // which ports are output (ports_value[i] && ports_value[i]->isEmpty())
    // and which ports are ignored (!ports_value[i]).
    // If that combination of (input,output,ignored) is feasible by this class
    // then perform the corresponding computation. Otherwise launch the error
    // below. See the comment in the header file for more information.

    Mat* input = ports_value[0];
    Mat* output = ports_value[1];
    Mat* argmax = ports_value[2];

    if( input && !input->isEmpty()
        && output && output->isEmpty()
        && argmax && argmax->isEmpty() )
    {
        PLASSERT( input->width() == port_sizes(0,1) );

        int batch_size = input->length();
        output->resize(batch_size, port_sizes(1,1));
        argmax->resize(batch_size, port_sizes(2,1));

        for( int k=0; k<batch_size; k++ )
            for( int l=0; l<n_input_images; l++ )
            {
                Mat input_image_kl = (*input)(k)
                    .subVec(l*input_images_size, input_images_size)
                    .toMat(input_images_length, input_images_width);
                Mat output_image_kl = (*output)(k)
                    .subVec(l*output_images_size, output_images_size)
                    .toMat(output_images_length, output_images_width);
                Mat argmax_kl = (*argmax)(k)
                    .subVec(l*output_images_size, output_images_size)
                    .toMat(output_images_length, output_images_width);

                for( int i=0; i<output_images_length; i++ )
                    for( int j=0; j<output_images_width; j++ )
                    {
                        int argmax_i, argmax_j;
                        output_image_kl(i,j) = max(
                            input_image_kl.subMat(i*kernel_length,
                                                   j*kernel_width,
                                                   kernel_length,
                                                   kernel_width),
                            argmax_i, argmax_j );
                        argmax_kl(i,j) = argmax_i*input_images_width+argmax_j;
                    }
            }
    }
    else
        PLCHECK_MSG( false, "Unknown port configuration" );
}

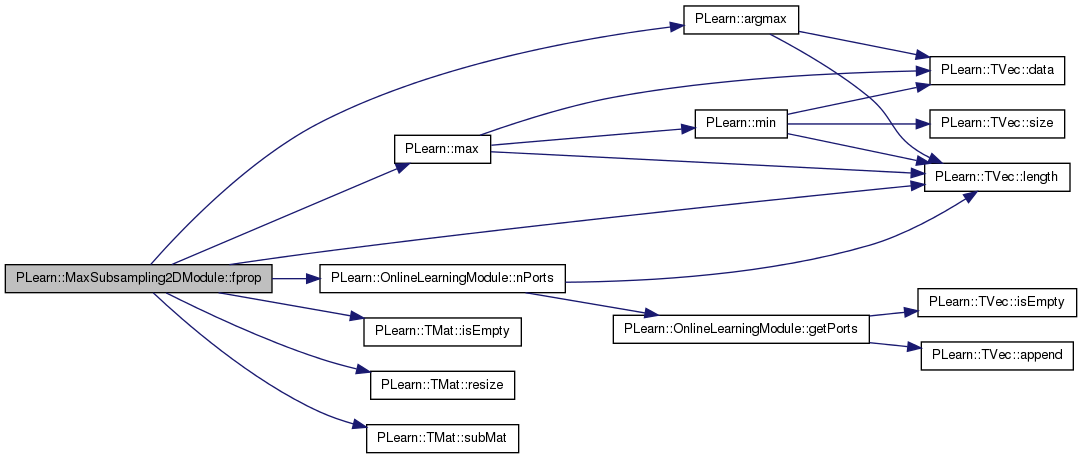

Here is the call graph for this function:

OptionList & PLearn::MaxSubsampling2DModule::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 51 of file MaxSubsampling2DModule.cc.

OptionMap & PLearn::MaxSubsampling2DModule::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 51 of file MaxSubsampling2DModule.cc.

const TVec< string > & PLearn::MaxSubsampling2DModule::getPorts ( ) [virtual]

Return the list of ports in the module.

The default implementation returns a pair ("input", "output") to handle the most common case.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 356 of file MaxSubsampling2DModule.cc.

References ports.

{
    return ports;
}
const TMat< int > & PLearn::MaxSubsampling2DModule::getPortSizes ( ) [virtual]

Return the size of all ports, in the form of a two-column matrix, where each row represents a port, and the two numbers on a row are respectively its length and its width (with -1 representing an undefined or variable value).

The default value fills this matrix with:

  • in the first column (lengths): -1
  • in the second column (widths):
    • -1 if nPorts() != 2
    • 'input_size' for the first row and 'output_size' for the second row if nPorts() == 2 (also assuming the port names are respectively 'input' and 'output')

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 364 of file MaxSubsampling2DModule.cc.

References PLearn::OnlineLearningModule::port_sizes.

{
    return port_sizes;
}
RemoteMethodMap & PLearn::MaxSubsampling2DModule::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 51 of file MaxSubsampling2DModule.cc.

void PLearn::MaxSubsampling2DModule::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Transforms a shallow copy into a deep copy.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 167 of file MaxSubsampling2DModule.cc.

References PLearn::deepCopyField(), PLearn::OnlineLearningModule::makeDeepCopyFromShallowCopy(), and ports.

Here is the call graph for this function:

void PLearn::MaxSubsampling2DModule::setLearningRate ( real  dynamic_learning_rate) [virtual]

If this class has a learning rate (or something close to it), set it.

If not, you can redefine this method to get rid of the warning.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 348 of file MaxSubsampling2DModule.cc.

{
    // Do nothing.
}

Member Data Documentation

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 172 of file MaxSubsampling2DModule.h.

Length of each of the input images.

Definition at line 65 of file MaxSubsampling2DModule.h.

Referenced by bpropAccUpdate(), build_(), declareOptions(), and fprop().

Size of the input images (length * width)

Definition at line 84 of file MaxSubsampling2DModule.h.

Referenced by bpropAccUpdate(), build_(), and fprop().

Width of each of the input images.

Definition at line 68 of file MaxSubsampling2DModule.h.

Referenced by bpropAccUpdate(), build_(), declareOptions(), and fprop().

Length of the areas over which we pick the max.

Definition at line 71 of file MaxSubsampling2DModule.h.

Referenced by bpropAccUpdate(), build_(), declareOptions(), and fprop().

Width of the areas over which we pick the max.

Definition at line 74 of file MaxSubsampling2DModule.h.

Referenced by bpropAccUpdate(), build_(), declareOptions(), and fprop().

### declare public option fields (such as build options) here Start your comments with Doxygen-compatible comments such as //!

Number of input images present at the same time in the input vector

Definition at line 62 of file MaxSubsampling2DModule.h.

Referenced by bpropAccUpdate(), build_(), declareOptions(), and fprop().

Length of the output images.

Definition at line 78 of file MaxSubsampling2DModule.h.

Referenced by bpropAccUpdate(), build_(), declareOptions(), and fprop().

Size of the input images (length * width)

Definition at line 87 of file MaxSubsampling2DModule.h.

Referenced by bpropAccUpdate(), build_(), and fprop().

Width of the output images.

Definition at line 81 of file MaxSubsampling2DModule.h.

Referenced by bpropAccUpdate(), build_(), declareOptions(), and fprop().

The name of the ports.

Definition at line 199 of file MaxSubsampling2DModule.h.

Referenced by build_(), getPorts(), and makeDeepCopyFromShallowCopy().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
