PLearn::Supersampling2DModule Class Reference

Augment the size of 2D images by duplicating pixels. More...

#include <Supersampling2DModule.h>

Inheritance diagram for PLearn::Supersampling2DModule:
Inheritance graph
[legend]

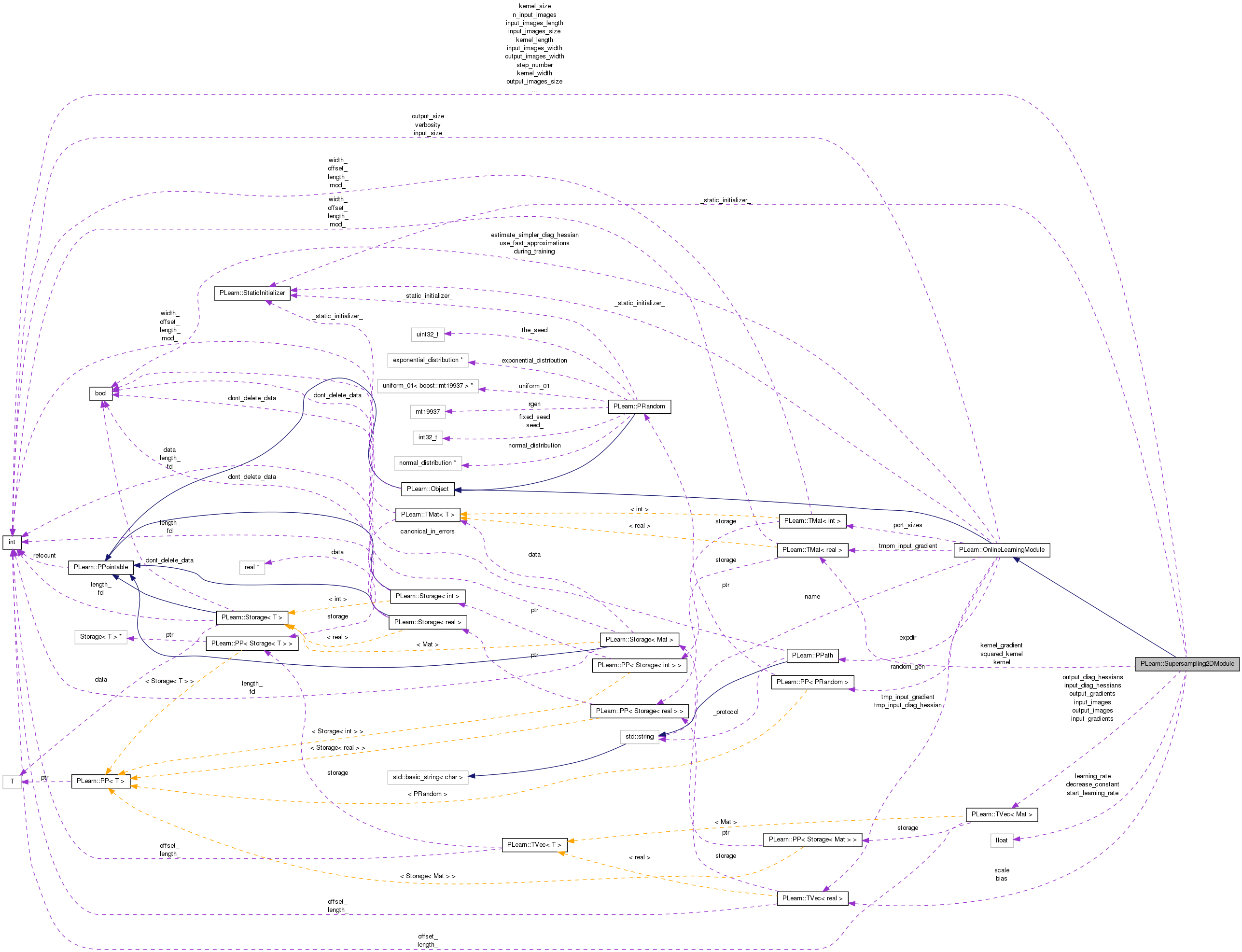

Collaboration diagram for PLearn::Supersampling2DModule:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 Supersampling2DModule ()
 Default constructor.
virtual void fprop (const Vec &input, Vec &output) const
 given the input, compute the output (possibly resize it appropriately)
virtual void bpropUpdate (const Vec &input, const Vec &output, Vec &input_gradient, const Vec &output_gradient, bool accumulate=false)
 Adapt based on the output gradient: this method should only be called just after a corresponding fprop; it should be called with the same arguments as fprop for the first two arguments (and output should not have been modified since then).
virtual void bbpropUpdate (const Vec &input, const Vec &output, Vec &input_gradient, const Vec &output_gradient, Vec &input_diag_hessian, const Vec &output_diag_hessian, bool accumulate=false)
 Similar to bpropUpdate, but adapt based also on the estimation of the diagonal of the Hessian matrix, and propagates this back.
virtual void forget ()
 reset the parameters to the state they would be BEFORE starting training.
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual Supersampling2DModuledeepCopy (CopiesMap &copies) const
virtual void build ()
 Post-constructor.
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.

Static Public Member Functions

static string _classname_ ()
 optionally perform some processing after training, or after a series of fprop/bpropUpdate calls to prepare the model for truly out-of-sample operation.
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

int n_input_images
 ### declare public option fields (such as build options) here Start your comments with Doxygen-compatible comments such as //!
int input_images_length
 Length of each of the input images.
int input_images_width
 Width of each of the input images.
int kernel_length
 Length of the area corresponding to one pixel.
int kernel_width
 Width of the area corresponding to one pixel.
real start_learning_rate
 Starting learning-rate, by which we multiply the gradient step.
real decrease_constant
 learning_rate = start_learning_rate / (1 + decrease_constant*t), where t is the number of updates since the beginning
Vec scale
 Scale applied to the sum (for each image)
Vec bias
 Bias added after the scaling.
int output_images_length
 Length of the output images.
int output_images_width
 Width of the output images.
int input_images_size
 Size of the input images (length * width)
int output_images_size
 Size of the input images (length * width)
int kernel_size
 Size of the input images (length * width)

Static Public Attributes

static StaticInitializer _static_initializer_

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declares the class options.

Private Types

typedef OnlineLearningModule inherited

Private Member Functions

void build_ ()
 This does the actual building.

Private Attributes

real learning_rate
int step_number
TVec< Matinput_images
TVec< Matoutput_images
TVec< Matinput_gradients
TVec< Matoutput_gradients
TVec< Matinput_diag_hessians
TVec< Matoutput_diag_hessians
Mat kernel
Mat squared_kernel
Mat kernel_gradient

Detailed Description

Augment the size of 2D images by duplicating pixels.

Definition at line 51 of file Supersampling2DModule.h.


Member Typedef Documentation

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 53 of file Supersampling2DModule.h.


Constructor & Destructor Documentation

PLearn::Supersampling2DModule::Supersampling2DModule ( )

Member Function Documentation

string PLearn::Supersampling2DModule::_classname_ ( ) [static]

optionally perform some processing after training, or after a series of fprop/bpropUpdate calls to prepare the model for truly out-of-sample operation.

THE DEFAULT IMPLEMENTATION PROVIDED IN THE SUPER-CLASS DOES NOT DO ANYTHING. in case bpropUpdate does not do anything, make it known THE DEFAULT IMPLEMENTATION PROVIDED IN THE SUPER-CLASS RETURNS false;

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 53 of file Supersampling2DModule.cc.

OptionList & PLearn::Supersampling2DModule::_getOptionList_ ( ) [static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 53 of file Supersampling2DModule.cc.

RemoteMethodMap & PLearn::Supersampling2DModule::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 53 of file Supersampling2DModule.cc.

bool PLearn::Supersampling2DModule::_isa_ ( const Object o) [static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 53 of file Supersampling2DModule.cc.

Object * PLearn::Supersampling2DModule::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 53 of file Supersampling2DModule.cc.

StaticInitializer Supersampling2DModule::_static_initializer_ & PLearn::Supersampling2DModule::_static_initialize_ ( ) [static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 53 of file Supersampling2DModule.cc.

void PLearn::Supersampling2DModule::bbpropUpdate ( const Vec input,
const Vec output,
Vec input_gradient,
const Vec output_gradient,
Vec input_diag_hessian,
const Vec output_diag_hessian,
bool  accumulate = false
) [virtual]

Similar to bpropUpdate, but adapt based also on the estimation of the diagonal of the Hessian matrix, and propagates this back.

If these methods are defined, you can use them INSTEAD of bpropUpdate(...) N.B. A DEFAULT IMPLEMENTATION IS PROVIDED IN THE SUPER-CLASS, WHICH JUST CALLS bbpropUpdate(input, output, input_gradient, output_gradient, out_hess, in_hess) AND IGNORES INPUT HESSIAN AND INPUT GRADIENT. this version allows to obtain the input gradient and diag_hessian

If these methods are defined, you can use them INSTEAD of bpropUpdate(...)

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 386 of file Supersampling2DModule.cc.

References bpropUpdate(), PLearn::convolve2D(), PLearn::TMat< T >::fill(), i, input_diag_hessians, input_images_length, input_images_size, input_images_width, PLearn::OnlineLearningModule::input_size, kernel, kernel_length, kernel_width, n_input_images, output_diag_hessians, output_images_length, output_images_size, output_images_width, PLearn::OnlineLearningModule::output_size, PLASSERT_MSG, PLERROR, PLearn::TVec< T >::resize(), scale, PLearn::TVec< T >::size(), squared_kernel, PLearn::TVec< T >::subVec(), and PLearn::TVec< T >::toMat().

{
    // This version forwards the second order information, but does not
    // actually use it for the update.

    // Check size
    if( output_diag_hessian.size() != output_size )
        PLERROR("Supersampling2DModule::bbpropUpdate:"
                " output_diag_hessian.size()\n"
                "should be equal to output_size (%i != %i).\n",
                output_diag_hessian.size(), output_size);

    if( accumulate )
    {
        PLASSERT_MSG( input_diag_hessian.size() == input_size,
                      "Cannot resize input_diag_hessian AND accumulate into it"
                    );
    }
    else
        input_diag_hessian.resize(input_size);

    // Make input_diag_hessians and output_diag_hessians point to the right
    // places
    for( int i=0 ; i<n_input_images ; i++ )
    {
        input_diag_hessians[i] =
            input_diag_hessian.subVec(i*input_images_size, input_images_size)
                .toMat( input_images_length, input_images_width );

        output_diag_hessians[i] =
            output_diag_hessian.subVec(i*output_images_size,output_images_size)
                .toMat( output_images_length, output_images_width );
    }

    // Propagates to input_diag_hessian
    for( int i=0 ; i<n_input_images ; i++ )
    {
        kernel.fill( scale[i] );
        squared_kernel.fill( scale[i]*scale[i] );
        convolve2D( output_diag_hessians[i], squared_kernel,
                    input_diag_hessians[i],
                    kernel_length, kernel_width, accumulate );
    }

    // Call bpropUpdate()
    bpropUpdate( input, output, input_gradient, output_gradient );
}

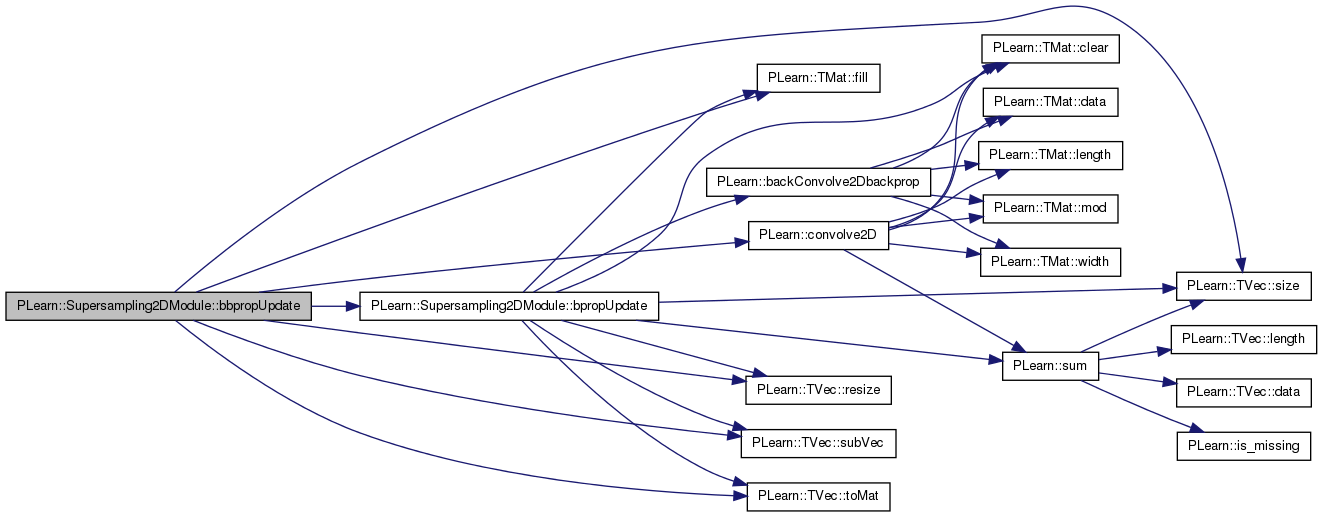

Here is the call graph for this function:

void PLearn::Supersampling2DModule::bpropUpdate ( const Vec input,
const Vec output,
Vec input_gradient,
const Vec output_gradient,
bool  accumulate = false
) [virtual]

Adapt based on the output gradient: this method should only be called just after a corresponding fprop; it should be called with the same arguments as fprop for the first two arguments (and output should not have been modified since then).

this version allows to obtain the input gradient as well

Since sub-classes are supposed to learn ONLINE, the object is 'ready-to-be-used' just after any bpropUpdate. N.B. A DEFAULT IMPLEMENTATION IS PROVIDED IN THE SUPER-CLASS, WHICH JUST CALLS bpropUpdate(input, output, input_gradient, output_gradient) AND IGNORES INPUT GRADIENT. this version allows to obtain the input gradient as well N.B. THE DEFAULT IMPLEMENTATION IN SUPER-CLASS JUST RAISES A PLERROR.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 273 of file Supersampling2DModule.cc.

References PLearn::backConvolve2Dbackprop(), bias, PLearn::TMat< T >::clear(), decrease_constant, PLearn::TMat< T >::fill(), i, input_gradients, input_images, input_images_length, input_images_size, input_images_width, PLearn::OnlineLearningModule::input_size, kernel, kernel_gradient, kernel_length, kernel_width, learning_rate, n_input_images, output_gradients, output_images_length, output_images_size, output_images_width, PLearn::OnlineLearningModule::output_size, PLASSERT_MSG, PLERROR, PLearn::TVec< T >::resize(), scale, PLearn::TVec< T >::size(), start_learning_rate, step_number, PLearn::TVec< T >::subVec(), PLearn::sum(), and PLearn::TVec< T >::toMat().

Referenced by bbpropUpdate().

{
    // Check size
    if( input.size() != input_size )
        PLERROR("Supersampling2DModule::bpropUpdate: input.size() should be\n"
                "equal to input_size (%i != %i).\n", input.size(), input_size);
    if( output.size() != output_size )
        PLERROR("Supersampling2DModule::bpropUpdate: output.size() should be\n"
                "equal to output_size (%i != %i).\n",
                output.size(), output_size);
    if( output_gradient.size() != output_size )
        PLERROR("Supersampling2DModule::bpropUpdate: output_gradient.size()"
                " should be\n"
                "equal to output_size (%i != %i).\n",
                output_gradient.size(), output_size);

    if( accumulate )
    {
        PLASSERT_MSG( input_gradient.size() == input_size,
                      "Cannot resize input_gradient AND accumulate into it" );
    }
    else
        input_gradient.resize(input_size);

    // Since fprop() has just been called, we assume that input_images,
    // output_images and gradient are up-to-date
    // Make input_gradients and output_gradients point to the right places
    for( int i=0 ; i<n_input_images ; i++ )
    {
        input_gradients[i] =
            input_gradient.subVec(i*input_images_size, input_images_size)
                .toMat( input_images_length, input_images_width );

        output_gradients[i] =
            output_gradient.subVec(i*output_images_size, output_images_size)
                .toMat( output_images_length, output_images_width );
    }

    // Do the actual bprop and update
    learning_rate = start_learning_rate / (1+decrease_constant*step_number);
    for( int i=0 ; i<n_input_images ; i++ )
    {
        kernel.fill( scale[i] );
        kernel_gradient.clear();
        backConvolve2Dbackprop( kernel, input_images[i],
                                input_gradients[i],
                                output_gradients[i], kernel_gradient,
                                kernel_length, kernel_width, accumulate );

        // The scale's gradient is the sum of contributions to kernel_gradient
        scale[i] -= learning_rate * sum( kernel_gradient );
        bias[i] -= learning_rate * sum( output_gradients[i] );
    }
}

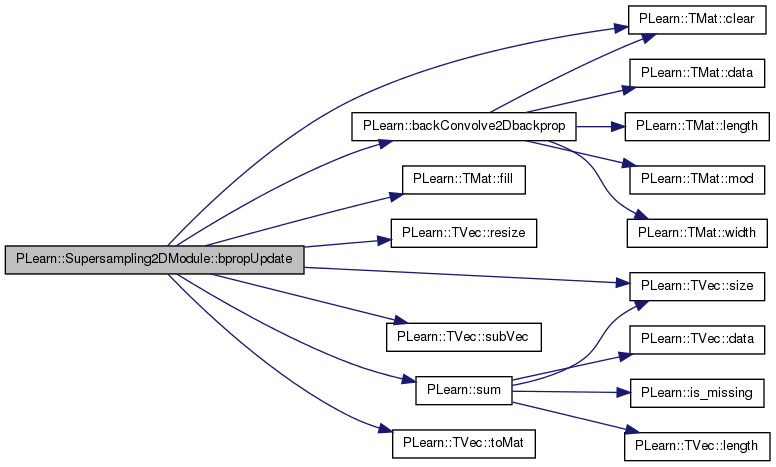

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::Supersampling2DModule::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 200 of file Supersampling2DModule.cc.

References PLearn::OnlineLearningModule::build(), and build_().

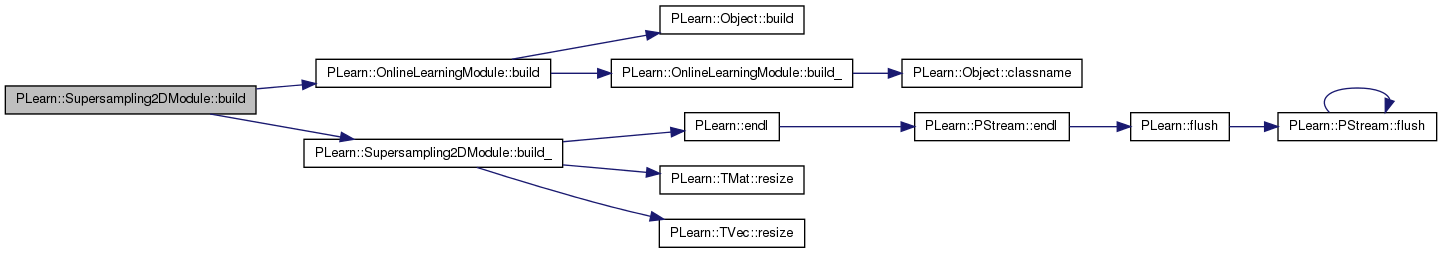

Here is the call graph for this function:

void PLearn::Supersampling2DModule::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 153 of file Supersampling2DModule.cc.

References bias, PLearn::endl(), input_gradients, input_images, input_images_length, input_images_size, input_images_width, PLearn::OnlineLearningModule::input_size, kernel_gradient, kernel_length, kernel_size, kernel_width, n_input_images, output_gradients, output_images, output_images_length, output_images_size, output_images_width, PLERROR, PLearn::TMat< T >::resize(), PLearn::TVec< T >::resize(), and scale.

Referenced by build().

{
    MODULE_LOG << "build_() called" << endl;

    // Verify the parameters
    if( n_input_images < 1 )
        PLERROR("Supersampling2DModule::build_: 'n_input_images' < 1 (%i).\n",
                n_input_images);

    if( input_images_length < 0 )
        PLERROR("Supersampling2DModule::build_: 'input_images_length'<0 (%i)."
                "\n",
                input_images_length);

    if( input_images_width < 0 )
        PLERROR("Supersampling2DModule::build_: 'input_images_width'<0 (%i)."
                "\n",
                input_images_width);

    if( kernel_length < 0 )
        PLERROR("Supersampling2DModule::build_: 'kernel_length'<0 (%i).\n",
                kernel_length);

    if( kernel_width < 0 )
        PLERROR("Supersampling2DModule::build_: 'kernel_width'<0 (%i).\n",
                kernel_width);

    // Build the learntoptions from the buildoptions
    input_images_size = input_images_length * input_images_width;
    input_size = n_input_images * input_size;

    output_images_length = input_images_length * kernel_length;
    output_images_width = input_images_width * kernel_width;
    output_images_size = output_images_length * output_images_width;

    kernel_size = kernel_length * kernel_width;

    scale.resize(n_input_images);
    bias.resize(n_input_images);

    input_images.resize(n_input_images);
    output_images.resize(n_input_images);
    input_gradients.resize(n_input_images);
    output_gradients.resize(n_input_images);
    kernel_gradient.resize(kernel_length, kernel_width);
}

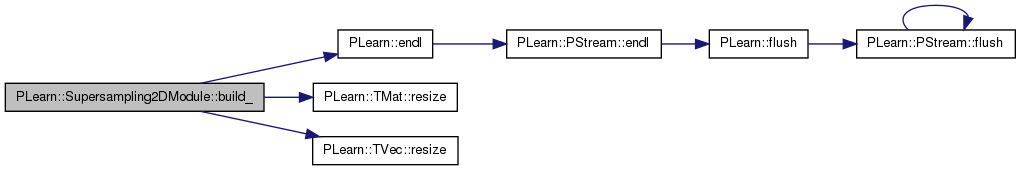

Here is the call graph for this function:

Here is the caller graph for this function:

string PLearn::Supersampling2DModule::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 53 of file Supersampling2DModule.cc.

void PLearn::Supersampling2DModule::declareOptions ( OptionList ol) [static, protected]

Declares the class options.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 73 of file Supersampling2DModule.cc.

References bias, PLearn::OptionBase::buildoption, PLearn::declareOption(), PLearn::OnlineLearningModule::declareOptions(), decrease_constant, input_images_length, input_images_width, PLearn::OnlineLearningModule::input_size, kernel_length, kernel_width, PLearn::OptionBase::learntoption, n_input_images, output_images_length, output_images_width, PLearn::OnlineLearningModule::output_size, PLearn::redeclareOption(), scale, and start_learning_rate.

{
    // declareOption(ol, "myoption", &Supersampling2DModule::myoption,
    //               OptionBase::buildoption,
    //               "Help text describing this option");

    declareOption(ol, "n_input_images", &Supersampling2DModule::n_input_images,
                  OptionBase::buildoption,
                  "Number of input images present at the same time in the"
                  " input vector");

    declareOption(ol, "input_images_length",
                  &Supersampling2DModule::input_images_length,
                  OptionBase::buildoption,
                  "Length of each of the input images");

    declareOption(ol, "input_images_width",
                  &Supersampling2DModule::input_images_width,
                  OptionBase::buildoption,
                  "Width of each of the input images");

    declareOption(ol, "kernel_length", &Supersampling2DModule::kernel_length,
                  OptionBase::buildoption,
                  "Length of the area corresponding to one pixel"
                  );

    declareOption(ol, "kernel_width", &Supersampling2DModule::kernel_width,
                  OptionBase::buildoption,
                  "Width of the area corresponding to one pixel"
                  );

    declareOption(ol, "start_learning_rate",
                  &Supersampling2DModule::start_learning_rate,
                  OptionBase::buildoption,
                  "Starting learning-rate, by which we multiply the gradient"
                  " step"
                  );

    declareOption(ol, "decrease_constant",
                  &Supersampling2DModule::decrease_constant,
                  OptionBase::buildoption,
                  "learning_rate = start_learning_rate / (1 +"
                  " decrease_constant*t),\n"
                  "where t is the number of updates since the beginning\n"
                  );

    declareOption(ol, "output_images_length",
                  &Supersampling2DModule::output_images_length,
                  OptionBase::learntoption,
                  "Length of the output images");

    declareOption(ol, "output_images_width",
                  &Supersampling2DModule::output_images_width,
                  OptionBase::learntoption,
                  "Width of the output images");

    declareOption(ol, "scale", &Supersampling2DModule::scale,
                  OptionBase::learntoption,
                  "Contains the scale of the output images");

    declareOption(ol, "bias", &Supersampling2DModule::bias,
                  OptionBase::learntoption,
                  "Contains the bias of the output images");


    // Now call the parent class' declareOptions
    inherited::declareOptions(ol);

    // Redeclare some of the parent's options as learntoptions
    redeclareOption(ol, "input_size", &Supersampling2DModule::input_size,
                    OptionBase::learntoption,
                    "Size of the input, computed from n_input_images,\n"
                    "n_input_length and n_input_width.\n");

    redeclareOption(ol, "output_size", &Supersampling2DModule::output_size,
                    OptionBase::learntoption,
                    "Size of the output, computed from n_output_images,\n"
                    "n_output_length and n_output_width.\n");
}

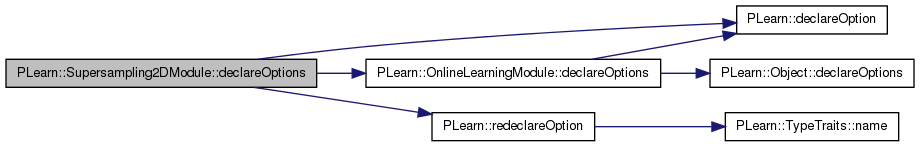

Here is the call graph for this function:

static const PPath& PLearn::Supersampling2DModule::declaringFile ( ) [inline, static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 183 of file Supersampling2DModule.h.

:
    //#####  Protected Member Functions  ######################################
Supersampling2DModule * PLearn::Supersampling2DModule::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 53 of file Supersampling2DModule.cc.

void PLearn::Supersampling2DModule::forget ( ) [virtual]

reset the parameters to the state they would be BEFORE starting training.

Note that this method is necessarily called from build().

Implements PLearn::OnlineLearningModule.

Definition at line 333 of file Supersampling2DModule.cc.

References bias, PLearn::TVec< T >::clear(), kernel_length, kernel_width, PLWARNING, PLearn::OnlineLearningModule::random_gen, and scale.

{
    bias.clear();

    if( !random_gen )
    {
        PLWARNING( "Supersampling2DModule: cannot forget() without random_gen"
                   );
        return;
    }
    real scale_factor = 1./(kernel_length*kernel_width);
    random_gen->fill_random_uniform( scale, -scale_factor, scale_factor );
}

Here is the call graph for this function:

void PLearn::Supersampling2DModule::fprop ( const Vec input,
Vec output
) const [virtual]

given the input, compute the output (possibly resize it appropriately)

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 224 of file Supersampling2DModule.cc.

References PLearn::backConvolve2D(), bias, PLearn::TMat< T >::fill(), PLearn::TVec< T >::fill(), i, input_images, input_images_length, input_images_size, input_images_width, PLearn::OnlineLearningModule::input_size, kernel, kernel_length, kernel_width, n_input_images, output_images, output_images_length, output_images_size, output_images_width, PLearn::OnlineLearningModule::output_size, PLERROR, PLearn::TVec< T >::resize(), scale, PLearn::TVec< T >::size(), PLearn::TVec< T >::subVec(), and PLearn::TVec< T >::toMat().

{
    // Check size
    if( input.size() != input_size )
        PLERROR("Supersampling2DModule::fprop: input.size() should be equal"
                " to\n"
                "input_size (%i != %i).\n", input.size(), input_size);
    output.resize(output_size);

    // Make input_images and output_images point to the right places
    for( int i=0 ; i<n_input_images ; i++ )
    {
        input_images[i] =
            input.subVec(i*input_images_size, input_images_size)
                .toMat( input_images_length, input_images_width );

        output_images[i] =
            output.subVec(i*output_images_size, output_images_size)
                .toMat( output_images_length, output_images_width );
    }

    // Compute the values of the output_images
    for( int i=0 ; i<n_input_images ; i++ )
    {
        output_images[i].fill( bias[i] );
        kernel.fill( scale[i] );
        backConvolve2D( output_images[i], kernel, input_images[i],
                        kernel_length, kernel_width, true );
    }
}

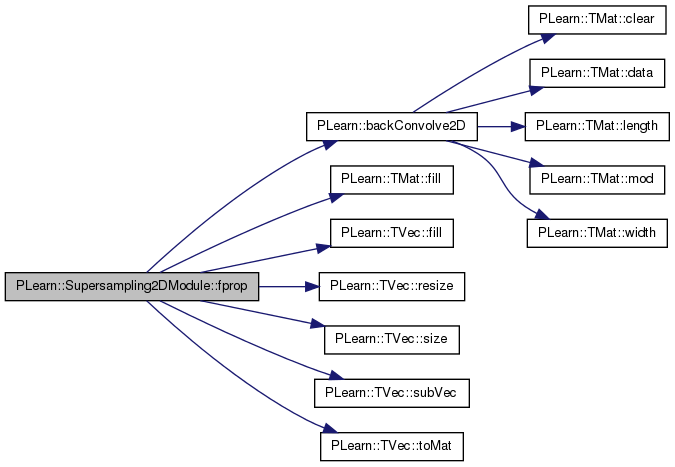

Here is the call graph for this function:

OptionList & PLearn::Supersampling2DModule::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 53 of file Supersampling2DModule.cc.

OptionMap & PLearn::Supersampling2DModule::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 53 of file Supersampling2DModule.cc.

RemoteMethodMap & PLearn::Supersampling2DModule::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 53 of file Supersampling2DModule.cc.

void PLearn::Supersampling2DModule::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Member Data Documentation

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 183 of file Supersampling2DModule.h.

Bias added after the scaling.

Definition at line 89 of file Supersampling2DModule.h.

Referenced by bpropUpdate(), build_(), declareOptions(), forget(), fprop(), and makeDeepCopyFromShallowCopy().

learning_rate = start_learning_rate / (1 + decrease_constant*t), where t is the number of updates since the beginning

Definition at line 81 of file Supersampling2DModule.h.

Referenced by bpropUpdate(), and declareOptions().

Definition at line 217 of file Supersampling2DModule.h.

Referenced by bbpropUpdate().

Definition at line 215 of file Supersampling2DModule.h.

Referenced by bpropUpdate(), build_(), and makeDeepCopyFromShallowCopy().

Definition at line 213 of file Supersampling2DModule.h.

Referenced by bpropUpdate(), build_(), fprop(), and makeDeepCopyFromShallowCopy().

Length of each of the input images.

Definition at line 65 of file Supersampling2DModule.h.

Referenced by bbpropUpdate(), bpropUpdate(), build_(), declareOptions(), and fprop().

Size of the input images (length * width)

Definition at line 99 of file Supersampling2DModule.h.

Referenced by bbpropUpdate(), bpropUpdate(), build_(), and fprop().

Width of each of the input images.

Definition at line 68 of file Supersampling2DModule.h.

Referenced by bbpropUpdate(), bpropUpdate(), build_(), declareOptions(), and fprop().

Definition at line 225 of file Supersampling2DModule.h.

Referenced by bpropUpdate(), build_(), and makeDeepCopyFromShallowCopy().

Length of the area corresponding to one pixel.

Definition at line 71 of file Supersampling2DModule.h.

Referenced by bbpropUpdate(), bpropUpdate(), build_(), declareOptions(), forget(), and fprop().

Size of the input images (length * width)

Definition at line 105 of file Supersampling2DModule.h.

Referenced by build_().

Width of the area corresponding to one pixel.

Definition at line 74 of file Supersampling2DModule.h.

Referenced by bbpropUpdate(), bpropUpdate(), build_(), declareOptions(), forget(), and fprop().

Definition at line 208 of file Supersampling2DModule.h.

Referenced by bpropUpdate().

### declare public option fields (such as build options) here Start your comments with Doxygen-compatible comments such as //!

Number of input images present at the same time in the input vector

Definition at line 62 of file Supersampling2DModule.h.

Referenced by bbpropUpdate(), bpropUpdate(), build_(), declareOptions(), and fprop().

Definition at line 218 of file Supersampling2DModule.h.

Referenced by bbpropUpdate().

Definition at line 216 of file Supersampling2DModule.h.

Referenced by bpropUpdate(), build_(), and makeDeepCopyFromShallowCopy().

Definition at line 214 of file Supersampling2DModule.h.

Referenced by build_(), fprop(), and makeDeepCopyFromShallowCopy().

Length of the output images.

Definition at line 93 of file Supersampling2DModule.h.

Referenced by bbpropUpdate(), bpropUpdate(), build_(), declareOptions(), and fprop().

Size of the input images (length * width)

Definition at line 102 of file Supersampling2DModule.h.

Referenced by bbpropUpdate(), bpropUpdate(), build_(), and fprop().

Width of the output images.

Definition at line 96 of file Supersampling2DModule.h.

Referenced by bbpropUpdate(), bpropUpdate(), build_(), declareOptions(), and fprop().

Scale applied to the sum (for each image)

Definition at line 86 of file Supersampling2DModule.h.

Referenced by bbpropUpdate(), bpropUpdate(), build_(), declareOptions(), forget(), fprop(), and makeDeepCopyFromShallowCopy().

Definition at line 223 of file Supersampling2DModule.h.

Referenced by bbpropUpdate(), and makeDeepCopyFromShallowCopy().

Starting learning-rate, by which we multiply the gradient step.

Definition at line 77 of file Supersampling2DModule.h.

Referenced by bpropUpdate(), and declareOptions().

Definition at line 209 of file Supersampling2DModule.h.

Referenced by bpropUpdate().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
