PLearn 0.1
|
#include <KNNVMatrix.h>


Public Member Functions | |
| KNNVMatrix () | |
| virtual void | build () |
| simply calls inherited::build() then build_() | |

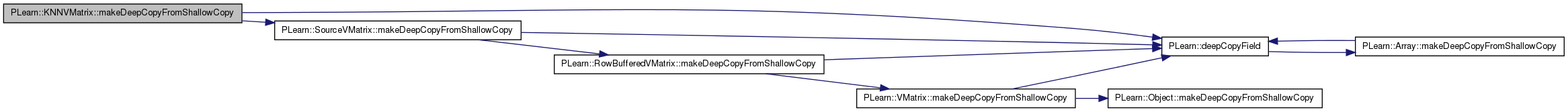

| virtual void | makeDeepCopyFromShallowCopy (CopiesMap &copies) |
| Transforms a shallow copy into a deep copy. | |
| virtual string | classname () const |
| virtual OptionList & | getOptionList () const |
| virtual OptionMap & | getOptionMap () const |
| virtual RemoteMethodMap & | getRemoteMethodMap () const |
| virtual KNNVMatrix * | deepCopy (CopiesMap &copies) const |
Static Public Member Functions | |
| static string | _classname_ () |
| Declares name and deepCopy methods. | |
| static OptionList & | _getOptionList_ () |
| static RemoteMethodMap & | _getRemoteMethodMap_ () |
| static Object * | _new_instance_for_typemap_ () |
| static bool | _isa_ (const Object *o) |
| static void | _static_initialize_ () |
| static const PPath & | declaringFile () |
Public Attributes | |
| VMat | k_nn_mat |
| Ker | kernel_pij |
| int | knn |
| bool | report_progress |
Static Public Attributes | |
| static StaticInitializer | _static_initializer_ |
Protected Member Functions | |
| int | getSourceIndexOf (int i, int &i_ref, int &i_n) const |
| Return the index in the source matrix of the sample number i in this matrix. | |
| int | getTag (int p) const |
| Return the tag of the sample number p in a bag: p == 0 => 1 p == knn-1 => 2 otherwise => 0 (If knn == 1, always return 3). | |
| virtual void | getNewRow (int i, const Vec &v) const |
| Needed because it's a SourceVMatrix. | |
Static Protected Member Functions | |
| static void | declareOptions (OptionList &ol) |
| Declares this class' options. | |
Protected Attributes | |
| Mat | nn |
| Store the nearest neighbours of each point. | |
| Mat | pij |
| Store the pij weights, if a kernel_pij is provided. | |
Private Types | |
| typedef SourceVMatrix | inherited |
Private Member Functions | |
| void | build_ () |
| This does the actual building. | |
Private Attributes | |
| Vec | source_row |
| Used to store a row of the source VMatrix. | |
Definition at line 53 of file KNNVMatrix.h.
typedef SourceVMatrix PLearn::KNNVMatrix::inherited [private] |
Reimplemented from PLearn::SourceVMatrix.
Definition at line 58 of file KNNVMatrix.h.
| PLearn::KNNVMatrix::KNNVMatrix | ( | ) |
Definition at line 55 of file KNNVMatrix.cc.
: knn(6), report_progress(1) {}
| string PLearn::KNNVMatrix::_classname_ | ( | ) | [static] |
Declares name and deepCopy methods.
Reimplemented from PLearn::SourceVMatrix.
Definition at line 71 of file KNNVMatrix.cc.
| OptionList & PLearn::KNNVMatrix::_getOptionList_ | ( | ) | [static] |
Reimplemented from PLearn::SourceVMatrix.
Definition at line 71 of file KNNVMatrix.cc.
| RemoteMethodMap & PLearn::KNNVMatrix::_getRemoteMethodMap_ | ( | ) | [static] |
Reimplemented from PLearn::SourceVMatrix.
Definition at line 71 of file KNNVMatrix.cc.
Reimplemented from PLearn::SourceVMatrix.
Definition at line 71 of file KNNVMatrix.cc.
| Object * PLearn::KNNVMatrix::_new_instance_for_typemap_ | ( | ) | [static] |
Reimplemented from PLearn::SourceVMatrix.
Definition at line 71 of file KNNVMatrix.cc.
| StaticInitializer KNNVMatrix::_static_initializer_ & PLearn::KNNVMatrix::_static_initialize_ | ( | ) | [static] |
Reimplemented from PLearn::SourceVMatrix.
Definition at line 71 of file KNNVMatrix.cc.

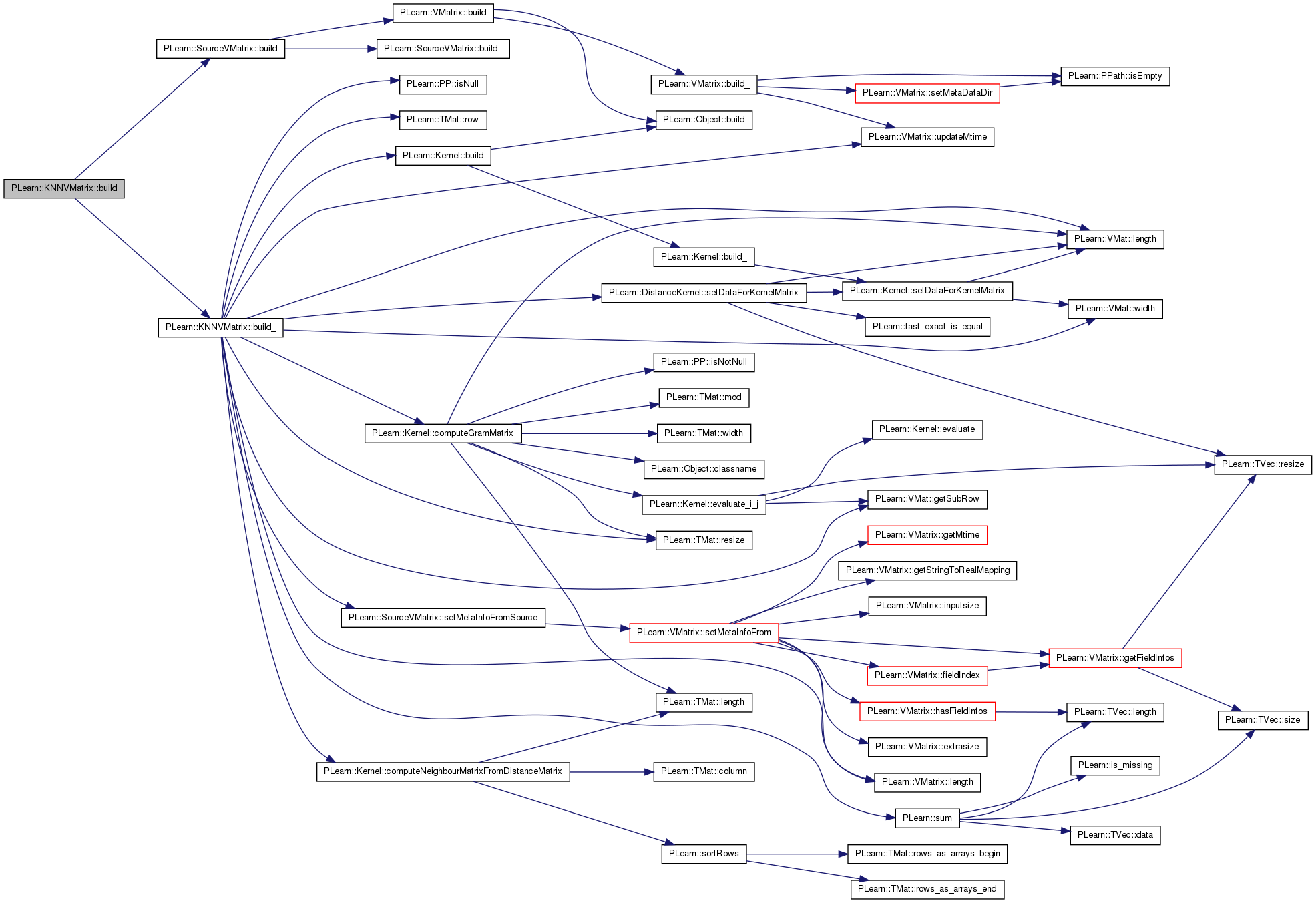

| void PLearn::KNNVMatrix::build | ( | ) | [virtual] |
simply calls inherited::build() then build_()
Reimplemented from PLearn::SourceVMatrix.
Definition at line 103 of file KNNVMatrix.cc.
References PLearn::SourceVMatrix::build(), and build_().
{
inherited::build();
build_();
}

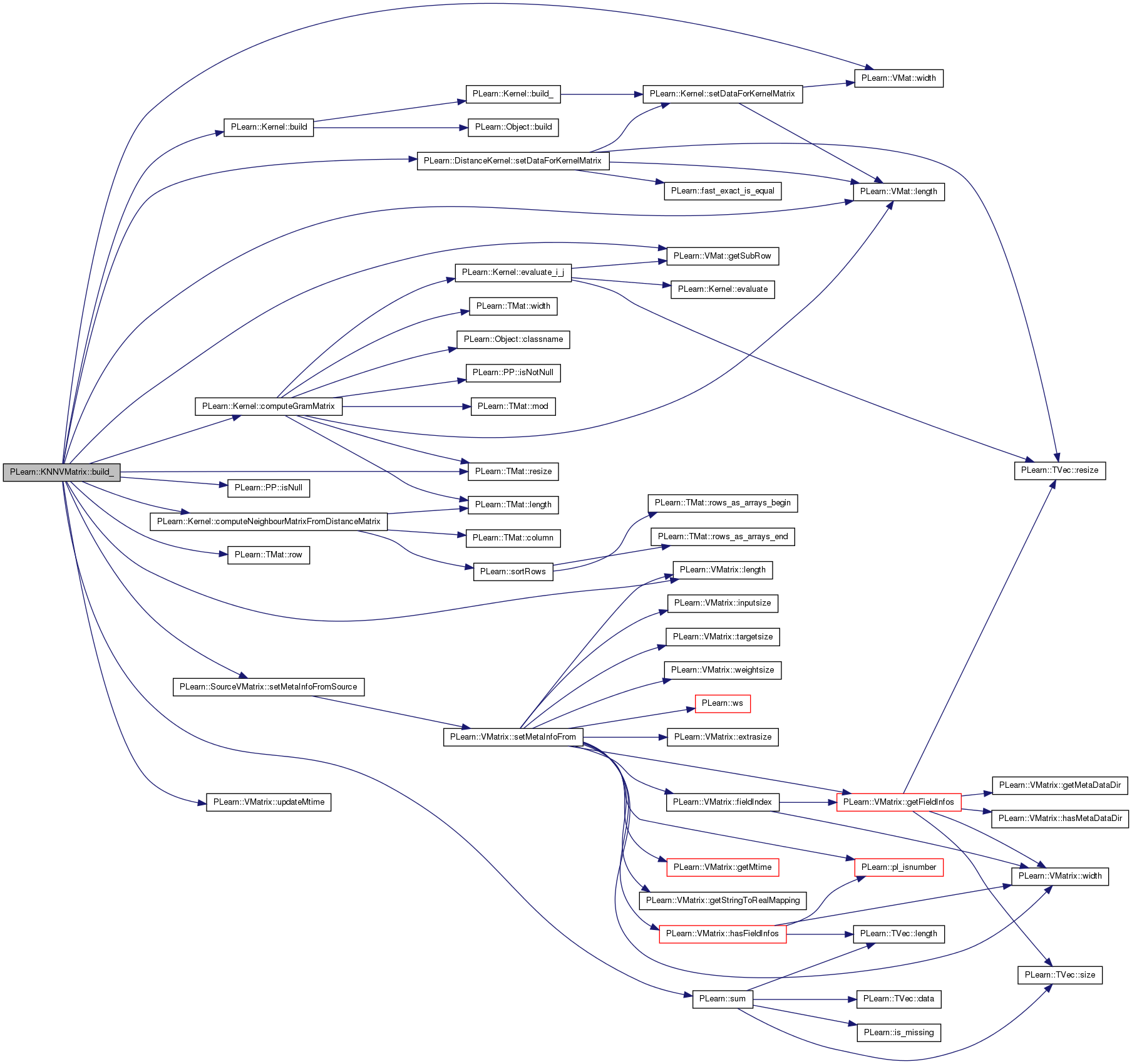

| void PLearn::KNNVMatrix::build_ | ( | ) | [private] |
This does the actual building.
Reimplemented from PLearn::SourceVMatrix.
Definition at line 112 of file KNNVMatrix.cc.
References PLearn::Kernel::build(), PLearn::Kernel::computeGramMatrix(), PLearn::Kernel::computeNeighbourMatrixFromDistanceMatrix(), PLearn::VMat::getSubRow(), i, PLearn::VMatrix::inputsize_, PLearn::PP< T >::isNull(), j, k_nn_mat, kernel_pij, knn, PLearn::VMatrix::length(), PLearn::VMat::length(), PLearn::VMatrix::length_, n, nn, pij, PLERROR, PLWARNING, PLearn::Kernel::report_progress, report_progress, PLearn::TMat< T >::resize(), PLearn::TMat< T >::row(), PLearn::DistanceKernel::setDataForKernelMatrix(), PLearn::SourceVMatrix::setMetaInfoFromSource(), PLearn::SourceVMatrix::source, PLearn::sum(), PLearn::VMatrix::targetsize_, PLearn::VMatrix::updateMtime(), PLearn::VMat::width(), and PLearn::VMatrix::width_.
Referenced by build().
{
updateMtime(source);
updateMtime(k_nn_mat);
if (source) {
int n = source->length();
bool recompute_nn = true;
if (k_nn_mat) {
if (k_nn_mat->length() > 0) {
// We are given precomputed k nearest neighbours, what a good news.
if (k_nn_mat->length() == source->length()) {
if (k_nn_mat->width() < knn) {
PLWARNING("In KNNVMatrix::build_ - Not enough neighbours in the given k_nn_mat, will recompute nearest neighbours");
} else {
// Looks like this is the right thing.
recompute_nn = false;
nn.resize(n, knn);
for (int i = 0; i < n; i++) {
k_nn_mat->getSubRow(i, 0, nn(i));
}
}
} else {
// Lengths differ: maybe the source VMat is a subset of the matrix
// whose nearest neighbours have been computed.
// Let's try a SelectRowsVMatrix.
PP<SelectRowsVMatrix> smat = dynamic_cast<SelectRowsVMatrix*>((VMatrix*) source);
if (!smat.isNull() && smat->source->length() == k_nn_mat->length()) {
// Bingo !
// Safety warning just in case it is not what we want.
PLWARNING("In KNNVMatrix::build_ - Will consider the given k_nn_mat has been computed on source's distr VMat");
recompute_nn = false;
// Now we need to retrieve the nearest neighbours within the SelectRowsVMatrix.
nn.resize(n, knn);
Vec store_nn(k_nn_mat->width());
for (int i = 0; i < n; i++) {
nn(i,0) = i; // The nearest neighbour is always itself.
k_nn_mat->getRow(smat->indices[i], store_nn);
int k = 1;
for (int j = 1; j < knn; j++) {
bool ok = false;
while (!ok && k < store_nn.length()) {
int q = smat->indices.find(int(store_nn[k]));
if (q >= 0) {
// The k-th nearest neighbour in smat->distr is in smat.
ok = true;
nn(i,j) = q;
}
k++;
}
if (k == store_nn.length()) {
// We didn't find the j-th nearest neighbour.
PLERROR("In KNNVMatrix::build_ - Not enough neighbours in the SelectRowsVMatrix");
}
}
}
} else {
// Maybe it's a SubVMatrix of the matrix whose nearest neighbours have been computed.
PP<SubVMatrix> smat_sub = dynamic_cast<SubVMatrix*>((VMatrix*) source);
if ( !smat_sub.isNull()
&& smat_sub->source->length() == k_nn_mat->length()
&& smat_sub->width() == smat_sub->source->width()) {
// Bingo !
// Safety warning just in case it is not what we want.
PLWARNING("In KNNVMatrix::build_ - Will consider the given k_nn_mat has been computed on source's parent VMat");
recompute_nn = false;
nn.resize(n, knn);
Vec store_nn(k_nn_mat->width());
for (int i = 0; i < n; i++) {
nn(i,0) = i; // The nearest neighbour is always itself.
k_nn_mat->getRow(i + smat_sub->istart, store_nn);
int k = 1;
for (int j = 1; j < knn; j++) {
bool ok = false;
while (!ok && k < store_nn.length()) {
int q = int(store_nn[k]) - smat_sub->istart;
if (q >= 0 && q < smat_sub->length()) {
// The k-th nearest neighbour in
// smat_sub->source is in smat_sub.
ok = true;
nn(i,j) = q - smat_sub->istart;
}
k++;
}
if (k == store_nn.length()) {
// We didn't find the j-th nearest neighbour.
PLERROR("In KNNVMatrix::build_ - Not enough neighbours in the SubVMatrix");
}
}
}
} else {
// What the hell is this ?
PLWARNING("In KNNVMatrix::build_ - Don't know what to do with k_nn_mat, will recompute the nearest neighbours");
}
}
}
}
}
if (recompute_nn) {
// First make sure we can store the result if needed.
if (k_nn_mat) {
if (k_nn_mat->length() > 0) {
PLERROR("In KNNVMatrix::build_ - The given k_nn_mat already has data, free it first");
}
}
// Compute the pairwise distances.
DistanceKernel dk(2);
if (report_progress) {
dk.report_progress = true;
dk.build();
}
dk.setDataForKernelMatrix(source);
Mat distances(n,n);
dk.computeGramMatrix(distances);
// Deduce the nearest neighbours.
nn = dk.computeNeighbourMatrixFromDistanceMatrix(distances);
// Only keep the (knn) nearest ones.
// TODO Free the memory used by the other neighbours.
// TODO Make the matrix be a TMat<int> instead of a Mat.
nn.resize(n, knn);
// Store the result.
if (k_nn_mat) {
for (int i = 0; i < n; i++) {
k_nn_mat->appendRow(nn(i));
}
}
}
// Initialize correctly the various fields.
targetsize_ = source->targetsize() + 1;
length_ = n * knn;
width_ = source->width() + 1;
setMetaInfoFromSource();
// Compute the p_ij if needed.
if (kernel_pij) {
// TODO REPORT PROGRESS IF NEEDED.
inputsize_++;
width_++;
kernel_pij->setDataForKernelMatrix(source);
int l = source->length();
pij.resize(l, knn-1);
for (int i = 0; i < l; i++) {
real sum = 0;
real k_ij;
for (int j = 1; j < knn; j++) {
// We omit the first nearest neighbour, which is the point itself.
k_ij = kernel_pij->evaluate_i_j(i, int(nn(i,j)));
pij(i,j-1) = k_ij;
sum += k_ij;
}
pij.row(i) /= sum;
}
}
}
}


| string PLearn::KNNVMatrix::classname | ( | ) | const [virtual] |
Reimplemented from PLearn::SourceVMatrix.
Definition at line 71 of file KNNVMatrix.cc.

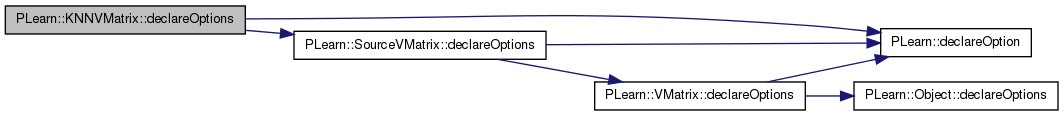

| void PLearn::KNNVMatrix::declareOptions | ( | OptionList & | ol | ) | [static, protected] |
Declares this class' options.
Reimplemented from PLearn::SourceVMatrix.
Definition at line 76 of file KNNVMatrix.cc.
References PLearn::OptionBase::buildoption, PLearn::declareOption(), PLearn::SourceVMatrix::declareOptions(), k_nn_mat, kernel_pij, knn, and report_progress.
{
declareOption(ol, "k_nn_mat", &KNNVMatrix::k_nn_mat, OptionBase::buildoption,
"TODO comment");
declareOption(ol, "knn", &KNNVMatrix::knn, OptionBase::buildoption,
"The number of nearest neighbours to consider (including the point itself).");
declareOption(ol, "kernel_pij", &KNNVMatrix::kernel_pij, OptionBase::buildoption,
"An optional kernel used to compute the pij weights (see help).");
declareOption(ol, "report_progress", &KNNVMatrix::report_progress, OptionBase::buildoption,
"TODO comment");
// Kinda useless to declare it as an option if we recompute it in build().
// TODO See how to be more efficient.
// declareOption(ol, "nn", &KNNVMatrix::nn, OptionBase::learntoption,
// "The matrix containing the index of the knn nearest neighbours of\n"
// "each data point.");
// Now call the parent class' declareOptions
inherited::declareOptions(ol);
}

| static const PPath& PLearn::KNNVMatrix::declaringFile | ( | ) | [inline, static] |
| KNNVMatrix * PLearn::KNNVMatrix::deepCopy | ( | CopiesMap & | copies | ) | const [virtual] |
Reimplemented from PLearn::SourceVMatrix.
Definition at line 71 of file KNNVMatrix.cc.

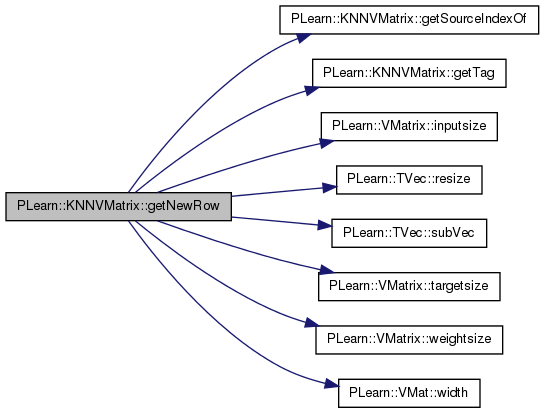

Needed because it's a SourceVMatrix.
Reimplemented from PLearn::SourceVMatrix.
Definition at line 308 of file KNNVMatrix.cc.
References getSourceIndexOf(), getTag(), PLearn::VMatrix::inputsize(), kernel_pij, pij, PLearn::TVec< T >::resize(), PLearn::SourceVMatrix::source, source_row, PLearn::TVec< T >::subVec(), PLearn::VMatrix::targetsize(), PLearn::VMatrix::weightsize(), and PLearn::VMat::width().
{
source_row.resize(source->width());
int i_n;
int i_ref;
int real_i = getSourceIndexOf(i, i_ref, i_n);
source->getRow(real_i, source_row);
if (kernel_pij) {
v.subVec(0, source->inputsize()) << source_row.subVec(0, source->inputsize());
if (i_n > 0) {
v[source->inputsize()] = pij(i_ref, i_n - 1);
} else {
v[source->inputsize()] = -1;
}
} else {
v.subVec(0, source->inputsize() + source->targetsize())
<< source_row.subVec(0, source->inputsize() + source->targetsize());
}
v.subVec(inputsize(), source->targetsize())
<< source_row.subVec(source->inputsize(), source->targetsize());
v[inputsize() + source->targetsize()] = getTag(i_n);
if (weightsize() > 0) {
v.subVec(inputsize() + targetsize(), weightsize())
<< source_row.subVec(source->inputsize() + source->targetsize(), source->weightsize());
}
}

| OptionList & PLearn::KNNVMatrix::getOptionList | ( | ) | const [virtual] |
Reimplemented from PLearn::SourceVMatrix.
Definition at line 71 of file KNNVMatrix.cc.
| OptionMap & PLearn::KNNVMatrix::getOptionMap | ( | ) | const [virtual] |
Reimplemented from PLearn::SourceVMatrix.
Definition at line 71 of file KNNVMatrix.cc.
| RemoteMethodMap & PLearn::KNNVMatrix::getRemoteMethodMap | ( | ) | const [virtual] |
Reimplemented from PLearn::SourceVMatrix.
Definition at line 71 of file KNNVMatrix.cc.
| int PLearn::KNNVMatrix::getSourceIndexOf | ( | int | i, |
| int & | i_ref, | ||
| int & | i_n | ||
| ) | const [inline, protected] |
Return the index in the source matrix of the sample number i in this matrix.
Also return in i_n the neighbour rank, and in i_ref the reference point.
Definition at line 298 of file KNNVMatrix.cc.
Referenced by getNewRow().
{
i_ref = i / knn;
i_n = i % knn;
int i_neighbour_source = int(nn(i_ref, i_n));
return i_neighbour_source;
}

Return the tag of the sample number p in a bag: p == 0 => 1 p == knn-1 => 2 otherwise => 0 (If knn == 1, always return 3).
Definition at line 337 of file KNNVMatrix.cc.
References knn.
Referenced by getNewRow().
{
// TODO Better use the constants defined in SumOverBagsVariable.h.
if (knn == 1) return 3;
if (p == 0) return 1;
if (p == knn - 1) return 2;
return 0;
}

| void PLearn::KNNVMatrix::makeDeepCopyFromShallowCopy | ( | CopiesMap & | copies | ) | [virtual] |
Transforms a shallow copy into a deep copy.
Reimplemented from PLearn::SourceVMatrix.
Definition at line 272 of file KNNVMatrix.cc.
References PLearn::deepCopyField(), kernel_pij, PLearn::SourceVMatrix::makeDeepCopyFromShallowCopy(), nn, pij, PLWARNING, and source_row.
{
inherited::makeDeepCopyFromShallowCopy(copies);
// ### Call deepCopyField on all "pointer-like" fields
// ### that you wish to be deepCopied rather than
// ### shallow-copied.
// ### ex:
// deepCopyField(trainvec, copies);
deepCopyField(source_row, copies);
deepCopyField(nn, copies);
deepCopyField(pij, copies);
// Currently commented out because some of the VMats used for k_nn_mat
// may not implement deep copy correctly.
// TODO Put back when other VMats are fine.
// deepCopyField(k_nn_mat, copies);
deepCopyField(kernel_pij, copies);
PLWARNING("In KNNVMatrix::makeDeepCopyFromShallowCopy - k_nn_mat will not be deep copied");
// PLERROR("KNNVMatrix::makeDeepCopyFromShallowCopy not fully (correctly) implemented yet!");
}

Reimplemented from PLearn::SourceVMatrix.
Definition at line 136 of file KNNVMatrix.h.
Definition at line 82 of file KNNVMatrix.h.
Referenced by build_(), and declareOptions().
Definition at line 83 of file KNNVMatrix.h.
Referenced by build_(), declareOptions(), getNewRow(), and makeDeepCopyFromShallowCopy().
Definition at line 84 of file KNNVMatrix.h.
Referenced by build_(), declareOptions(), getSourceIndexOf(), and getTag().
Mat PLearn::KNNVMatrix::nn [protected] |
Store the nearest neighbours of each point.
Definition at line 71 of file KNNVMatrix.h.
Referenced by build_(), getSourceIndexOf(), and makeDeepCopyFromShallowCopy().
Mat PLearn::KNNVMatrix::pij [protected] |
Store the pij weights, if a kernel_pij is provided.
Definition at line 74 of file KNNVMatrix.h.
Referenced by build_(), getNewRow(), and makeDeepCopyFromShallowCopy().
Definition at line 85 of file KNNVMatrix.h.
Referenced by build_(), and declareOptions().
Vec PLearn::KNNVMatrix::source_row [mutable, private] |
Used to store a row of the source VMatrix.
Definition at line 61 of file KNNVMatrix.h.
Referenced by getNewRow(), and makeDeepCopyFromShallowCopy().
1.7.4
