PLearn::SparseVMatrix Class Reference

#include <SparseVMatrix.h>

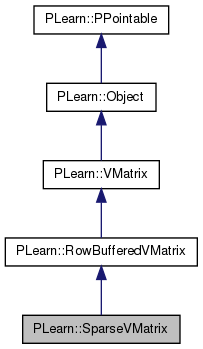

Inheritance diagram for PLearn::SparseVMatrix:
Inheritance graph
[legend]

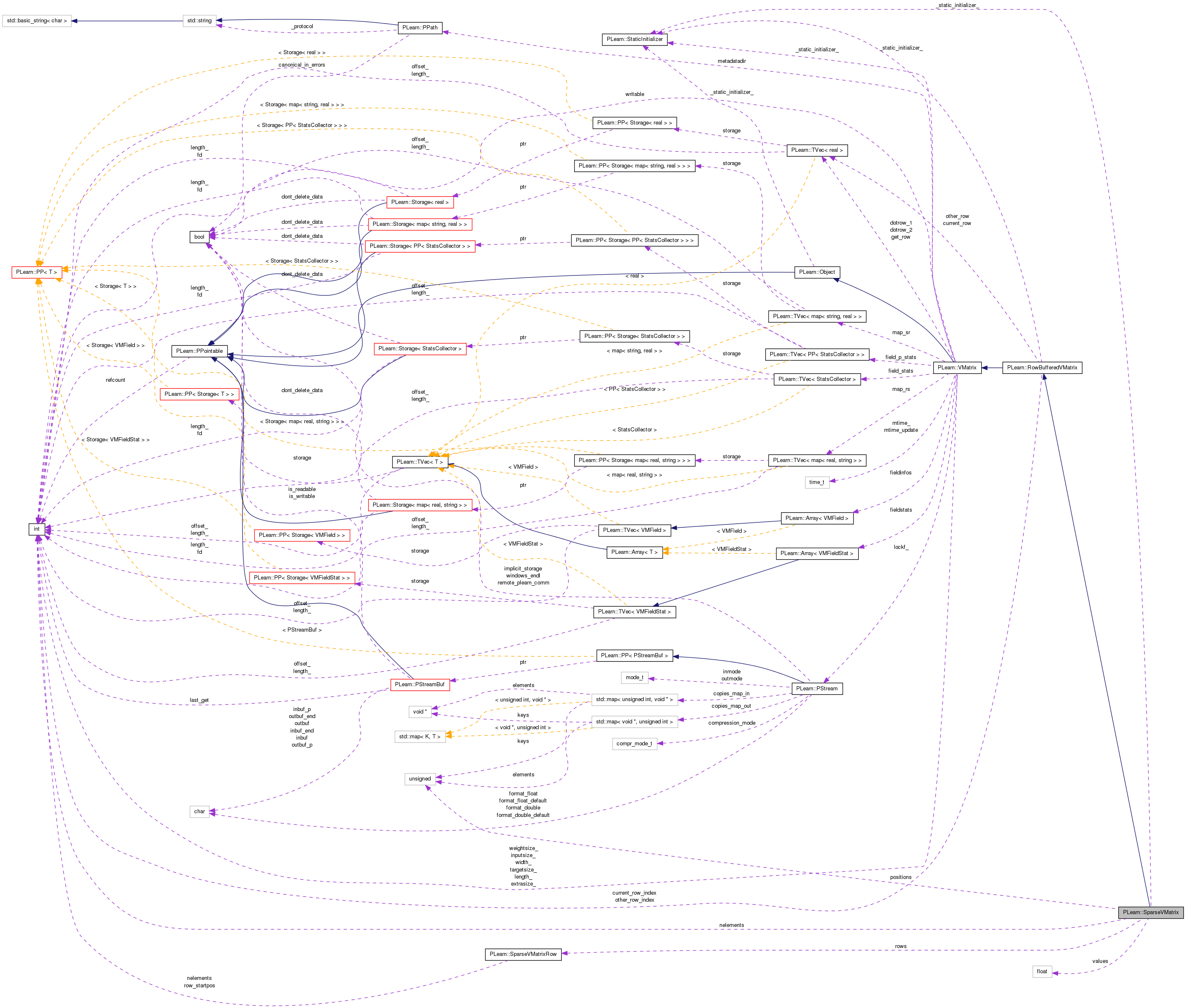

Collaboration diagram for PLearn::SparseVMatrix:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 SparseVMatrix ()
 SparseVMatrix (VMat m)
 This builds a sparse representation in memory of the VMat m passed as argument.
 SparseVMatrix (const string &filename)
 This reloads a previously saved sparse VMatrix.
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual SparseVMatrixdeepCopy (CopiesMap &copies) const
virtual void build ()
 Simply calls inherited::build() then build_().
virtual real dot (int i1, int i2, int inputsize) const
 Returns the dot product between row i1 and row i2 (considering only the inputsize first elements).
virtual real dot (int i, const Vec &v) const
 Returns the result of the dot product between row i and the given vec (only v.length() first elements of row i are considered).
virtual void save (const PPath &filename) const
 calls write
virtual ~SparseVMatrix ()

Static Public Member Functions

static string _classname_ ()
 SparseVMatrix.
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Static Public Attributes

static StaticInitializer _static_initializer_

Protected Member Functions

virtual void getNewRow (int i, const Vec &v) const
 This is the only method requiring implementation in subclasses.

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declare this class' options.

Protected Attributes

int nelements
 total number of non-zero elements in the VMatrix
unsigned short * positions
float * values
SparseVMatrixRowrows

Private Types

typedef RowBufferedVMatrix inherited

Private Member Functions

void build_ ()
 This does the actual building.

Detailed Description

Definition at line 68 of file SparseVMatrix.h.


Member Typedef Documentation

Reimplemented from PLearn::RowBufferedVMatrix.

Definition at line 70 of file SparseVMatrix.h.


Constructor & Destructor Documentation

PLearn::SparseVMatrix::SparseVMatrix ( ) [inline]

Definition at line 81 of file SparseVMatrix.h.

                   :
        nelements(0),
        positions(0),
        values(0),
        rows(0)
    {}
PLearn::SparseVMatrix::SparseVMatrix ( VMat  m)

This builds a sparse representation in memory of the VMat m passed as argument.

The original fieldinfos are copied as-is.

Definition at line 58 of file SparseVMatrix.cc.

References PLearn::fast_exact_is_equal(), PLearn::VMatrix::fieldinfos, i, j, PLearn::VMatrix::length(), PLearn::VMat::length(), PLearn::SparseVMatrixRow::nelements, nelements, PLearn::VMFieldStat::nmissing(), PLearn::VMFieldStat::nnegative(), PLearn::VMFieldStat::npositive(), PLERROR, positions, PLearn::SparseVMatrixRow::row_startpos, rows, PLearn::VMatrix::updateMtime(), values, and PLearn::VMat::width().

    : inherited(m.length(),m.width()), nelements(0), positions(0), values(0), rows(0)
{
    fieldinfos = m->getFieldInfos();                // Copy the field infos

    updateMtime(m);

    if(m.width()>USHRT_MAX)
        PLERROR("In SparseVMatrix constructor: m.width()=%d can't be greater than USHRT_MAX=%d",m.width(),USHRT_MAX);
    Vec v(m.width());
    real* vptr = v.data();

    // First count nelements
    nelements = 0;
    if(m->hasStats()) // use the stats!
    {
        for(int j=0; j<m.width(); j++)
        {
            const VMFieldStat& st = m->fieldStat(j);
            nelements += st.nmissing() + st.npositive() + st.nnegative();
        }
    }
    else // let's count them ourself
    {
        for(int i=0; i<m.length(); i++)
        {
            m->getRow(i,v);
            for(int j=0; j<v.length(); j++)
                if(!fast_exact_is_equal(vptr[j], 0.))
                    nelements++;
        }
    }

    // Now allocate space for those elements
    if(nelements>0)
    {
        positions = new unsigned short[nelements];
        values = new float[nelements];
        int l=length();
        rows = new SparseVMatrixRow[l];

        int pos = 0;
        // Fill the representation
        for(int i=0; i<m.length(); i++)
        {
            m->getRow(i,v);
            SparseVMatrixRow& r = rows[i];
            r.row_startpos = pos;
            int nelem = 0;
            for(int j=0; j<v.length(); j++)
                if(!fast_exact_is_equal(vptr[j], 0.))
                {
                    positions[pos] = j;
                    values[pos] = (float)vptr[j];
                    pos++;
                    nelem++;
                }
            r.nelements = nelem;
        }
    }
}

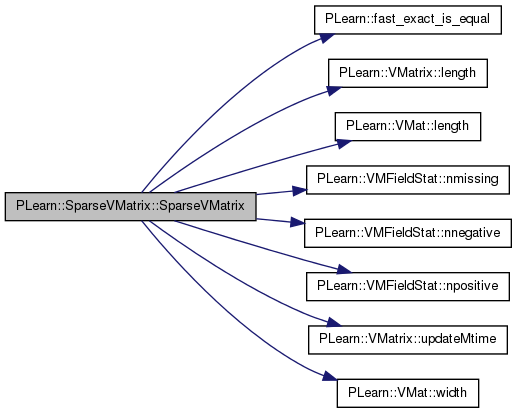

Here is the call graph for this function:

PLearn::SparseVMatrix::SparseVMatrix ( const string &  filename)

This reloads a previously saved sparse VMatrix.

Definition at line 51 of file SparseVMatrix.cc.

References PLearn::Object::load(), and PLearn::VMatrix::updateMtime().

    : nelements(0), positions(0), values(0), rows(0)
{
    load(filename);
    updateMtime(filename);
}

Here is the call graph for this function:

PLearn::SparseVMatrix::~SparseVMatrix ( ) [virtual]

Definition at line 303 of file SparseVMatrix.cc.

References nelements, positions, rows, and values.

{
    if(nelements>0)
    {
        delete[] positions;
        delete[] values;
        delete[] rows;
    }
}

Member Function Documentation

string PLearn::SparseVMatrix::_classname_ ( ) [static]

SparseVMatrix.

Reimplemented from PLearn::RowBufferedVMatrix.

Definition at line 49 of file SparseVMatrix.cc.

OptionList & PLearn::SparseVMatrix::_getOptionList_ ( ) [static]

Reimplemented from PLearn::RowBufferedVMatrix.

Definition at line 49 of file SparseVMatrix.cc.

RemoteMethodMap & PLearn::SparseVMatrix::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::RowBufferedVMatrix.

Definition at line 49 of file SparseVMatrix.cc.

bool PLearn::SparseVMatrix::_isa_ ( const Object o) [static]

Reimplemented from PLearn::RowBufferedVMatrix.

Definition at line 49 of file SparseVMatrix.cc.

Object * PLearn::SparseVMatrix::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 49 of file SparseVMatrix.cc.

StaticInitializer SparseVMatrix::_static_initializer_ & PLearn::SparseVMatrix::_static_initialize_ ( ) [static]

Reimplemented from PLearn::RowBufferedVMatrix.

Definition at line 49 of file SparseVMatrix.cc.

void PLearn::SparseVMatrix::build ( ) [virtual]

Simply calls inherited::build() then build_().

Reimplemented from PLearn::VMatrix.

Definition at line 121 of file SparseVMatrix.cc.

References PLearn::VMatrix::build(), and build_().

Here is the call graph for this function:

void PLearn::SparseVMatrix::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::VMatrix.

Definition at line 128 of file SparseVMatrix.cc.

Referenced by build().

{
    // TODO
}

Here is the caller graph for this function:

string PLearn::SparseVMatrix::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 49 of file SparseVMatrix.cc.

void PLearn::SparseVMatrix::declareOptions ( OptionList ol) [static, protected]

Declare this class' options.

Reimplemented from PLearn::VMatrix.

Definition at line 134 of file SparseVMatrix.cc.

References PLearn::VMatrix::declareOptions().

Here is the call graph for this function:

static const PPath& PLearn::SparseVMatrix::declaringFile ( ) [inline, static]

Reimplemented from PLearn::RowBufferedVMatrix.

Definition at line 95 of file SparseVMatrix.h.

:

SparseVMatrix * PLearn::SparseVMatrix::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::RowBufferedVMatrix.

Definition at line 49 of file SparseVMatrix.cc.

real PLearn::SparseVMatrix::dot ( int  i,
const Vec v
) const [virtual]

Returns the result of the dot product between row i and the given vec (only v.length() first elements of row i are considered).

Reimplemented from PLearn::RowBufferedVMatrix.

Definition at line 226 of file SparseVMatrix.cc.

References PLearn::TVec< T >::data(), i, PLearn::TVec< T >::length(), PLearn::VMatrix::length(), n, PLearn::SparseVMatrixRow::nelements, nelements, PLERROR, positions, PLearn::SparseVMatrixRow::row_startpos, rows, values, and PLearn::VMatrix::width().

{
#ifdef BOUNDCHECK
    if(i<0 || i>=length() || v.length()>width())
        PLERROR("IN SparseVMatrix::dot OUT OF BOUNDS");
#endif

    if(nelements==0)
        return 0.;

    SparseVMatrixRow row_i = rows[i];
    float* valueptr =  values + row_i.row_startpos;
    unsigned short* positionptr = positions + row_i.row_startpos;
    int n = row_i.nelements;

    real* vdata = v.data();
    real res = 0.;

    while(n--)
    {
        int nextpos = (int) *positionptr++;
        real nextval = (real) *valueptr++;
        if(nextpos>=v.length())
            break;
        res += nextval*vdata[nextpos];
    }
    return res;
}

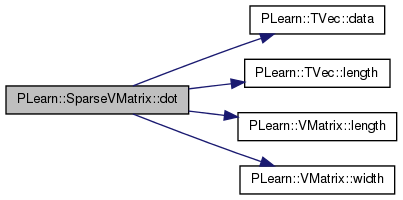

Here is the call graph for this function:

real PLearn::SparseVMatrix::dot ( int  i1,
int  i2,
int  inputsize
) const [virtual]

Returns the dot product between row i1 and row i2 (considering only the inputsize first elements).

The default version in VMatrix is somewhat inefficient, as it repeatedly calls get(i,j) The default version in RowBufferedVMatrix is a little better as it buffers the 2 Vecs between calls in case one of them is needed again. But the real strength of this method is for specialised and efficient versions in subbclasses. This method is typically used by SmartKernels so that they can compute kernel values between input samples efficiently.

Reimplemented from PLearn::RowBufferedVMatrix.

Definition at line 173 of file SparseVMatrix.cc.

References PLearn::VMatrix::length(), PLearn::SparseVMatrixRow::nelements, nelements, PLERROR, positions, PLearn::SparseVMatrixRow::row_startpos, rows, values, and PLearn::VMatrix::width().

{
#ifdef BOUNDCHECK
    if(i1<0 || i1>=length() || i2<0 || i2>=length() || inputsize>width())
        PLERROR("IN SparseVMatrix::dot OUT OF BOUNDS");
#endif

    if(nelements==0)
        return 0.;

    SparseVMatrixRow row_1 = rows[i1];
    float* valueptr_1 =  values + row_1.row_startpos;
    unsigned short* positionptr_1 = positions + row_1.row_startpos;
    int n_1 = row_1.nelements;

    SparseVMatrixRow row_2 = rows[i2];
    float* valueptr_2 =  values + row_2.row_startpos;
    unsigned short* positionptr_2 = positions + row_2.row_startpos;
    int n_2 = row_2.nelements;

    real res = 0.;

    while(n_1 && n_2)
    {
        if(*positionptr_1>=inputsize)
            break;
        if(*positionptr_1==*positionptr_2)
        {
            res += (*valueptr_1)*(*valueptr_2);
            positionptr_1++;
            valueptr_1++;
            n_1--;
            positionptr_2++;
            valueptr_2++;
            n_2--;
        }
        else if(*positionptr_1<*positionptr_2)
        {
            positionptr_1++;
            valueptr_1++;
            n_1--;
        }
        else
        {
            positionptr_2++;
            valueptr_2++;
            n_2--;
        }
    }

    return res;
}

Here is the call graph for this function:

void PLearn::SparseVMatrix::getNewRow ( int  i,
const Vec v
) const [protected, virtual]

This is the only method requiring implementation in subclasses.

Implements PLearn::RowBufferedVMatrix.

Definition at line 139 of file SparseVMatrix.cc.

References PLearn::TVec< T >::clear(), PLearn::TVec< T >::data(), i, j, PLearn::VMatrix::length(), PLearn::TVec< T >::length(), n, nelements, PLearn::SparseVMatrixRow::nelements, PLERROR, positions, PLearn::SparseVMatrixRow::row_startpos, rows, values, and PLearn::VMatrix::width().

{
#ifdef BOUNDCHECK
    if(i<0 || i>=length())
        PLERROR("In SparseVMatrix::getNewRow, row number i=%d OUT OF BOUNDS (matrix is %dx%d)",i,length(),width());
    if(v.length()!=width())
        PLERROR("In SparseVMatrix::getNewRow, length of v (%d) is different from width of VMatris (%d)",v.length(),width());
#endif

    if(nelements==0)
        v.clear();
    else
    {
        SparseVMatrixRow row_i = rows[i];
        float* valueptr =  values + row_i.row_startpos;
        unsigned short* positionptr = positions + row_i.row_startpos;
        int n = row_i.nelements;

        real* vdata = v.data();

        int j = 0;
        while(n--)
        {
            int nextpos = (int) *positionptr++;
            real nextval = (real) *valueptr++;
            while(j<nextpos)
                vdata[j++] = 0.;
            vdata[j++] = nextval;
        }
        while(j<v.length())
            vdata[j++] = 0.;
    }
}

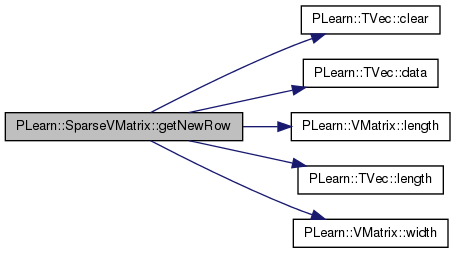

Here is the call graph for this function:

OptionList & PLearn::SparseVMatrix::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 49 of file SparseVMatrix.cc.

OptionMap & PLearn::SparseVMatrix::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 49 of file SparseVMatrix.cc.

RemoteMethodMap & PLearn::SparseVMatrix::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 49 of file SparseVMatrix.cc.

virtual void PLearn::SparseVMatrix::save ( const PPath filename) const [inline, virtual]

calls write

Reimplemented from PLearn::VMatrix.

Definition at line 109 of file SparseVMatrix.h.

References PLearn::save().

Here is the call graph for this function:


Member Data Documentation

Reimplemented from PLearn::RowBufferedVMatrix.

Definition at line 95 of file SparseVMatrix.h.

total number of non-zero elements in the VMatrix

Definition at line 73 of file SparseVMatrix.h.

Referenced by dot(), getNewRow(), SparseVMatrix(), and ~SparseVMatrix().

unsigned short* PLearn::SparseVMatrix::positions [protected]

Definition at line 74 of file SparseVMatrix.h.

Referenced by dot(), getNewRow(), SparseVMatrix(), and ~SparseVMatrix().

Definition at line 77 of file SparseVMatrix.h.

Referenced by dot(), getNewRow(), SparseVMatrix(), and ~SparseVMatrix().

float* PLearn::SparseVMatrix::values [protected]

Definition at line 75 of file SparseVMatrix.h.

Referenced by dot(), getNewRow(), SparseVMatrix(), and ~SparseVMatrix().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
