PLearn::OneHotVMatrix Class Reference

#include <OneHotVMatrix.h>

Inheritance diagram for PLearn::OneHotVMatrix:
Inheritance graph
[legend]

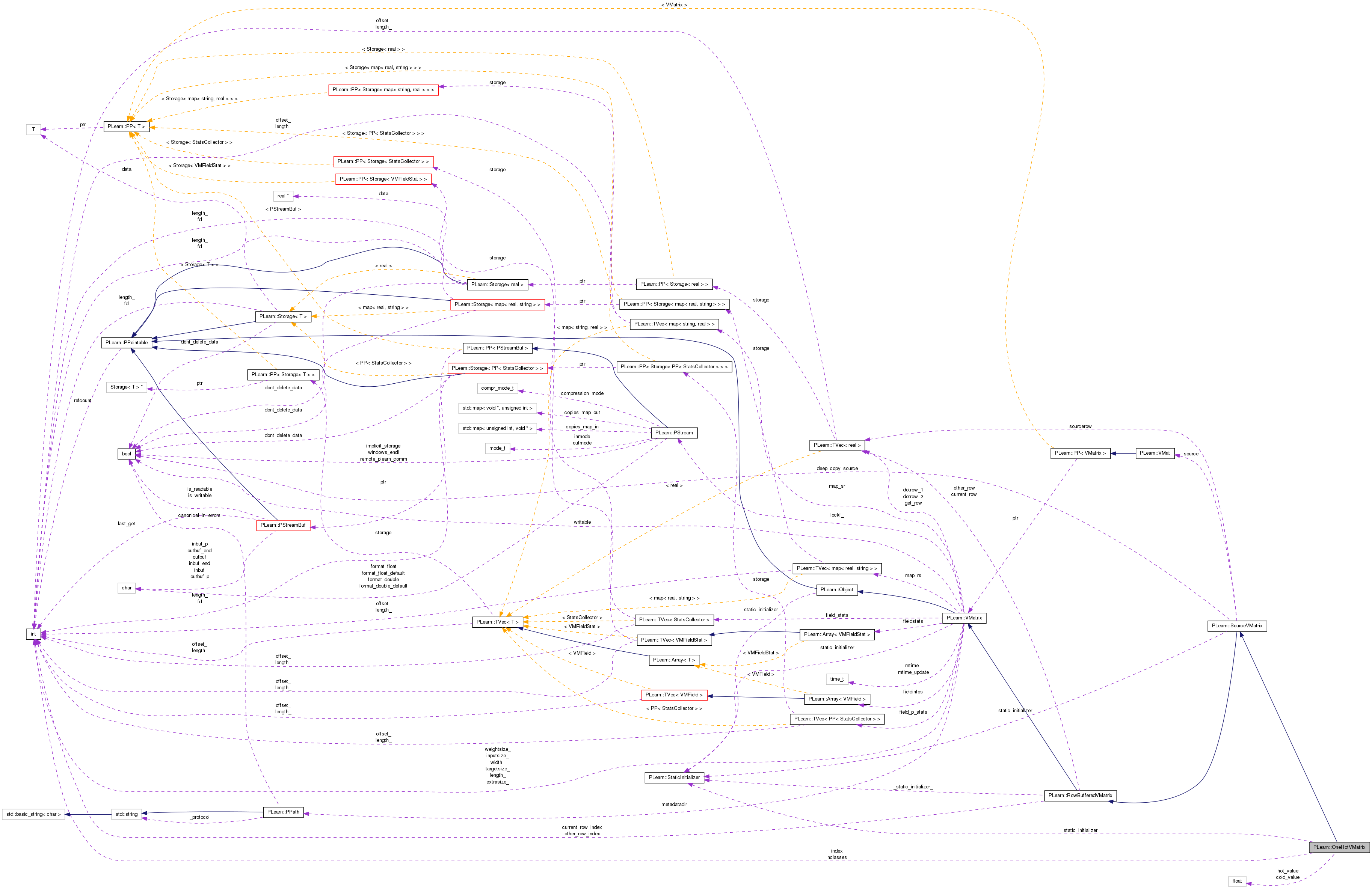

Collaboration diagram for PLearn::OneHotVMatrix:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 OneHotVMatrix (bool call_build_=false)
 default constructor (for automatic deserialization)
 OneHotVMatrix (VMat the_source, int the_nclasses, real the_cold_value=0.0, real the_host_value=1.0, int the_index=-1, bool call_build_=false)
 (see special case when nclasses==1 desribed above)
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual OneHotVMatrixdeepCopy (CopiesMap &copies) const
virtual void build ()
 Simply calls inherited::build() then build_().
virtual void reset_dimensions ()
 In case the dimensions of an underlying VMat has changed, recompute it.
virtual real dot (int i1, int i2, int inputsize) const
 Returns the dot product between row i1 and row i2 (considering only the inputsize first elements).
virtual real dot (int i, const Vec &v) const
 Returns the result of the dot product between row i and the given vec (only v.length() first elements of row i are considered).

Static Public Member Functions

static string _classname_ ()
 OneHotVMatrix.
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

int nclasses
real cold_value
real hot_value
int index

Static Public Attributes

static StaticInitializer _static_initializer_

Protected Member Functions

virtual void getNewRow (int i, const Vec &samplevec) const
 Must be implemented in subclasses: default version returns an error.
void updateNClassesAndWidth ()
 If 'nclasses' is greater than zero, do nothing.

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declares this class' options.

Private Types

typedef SourceVMatrix inherited

Private Member Functions

void build_ ()
 This does the actual building.

Detailed Description

Definition at line 53 of file OneHotVMatrix.h.


Member Typedef Documentation

Reimplemented from PLearn::SourceVMatrix.

Definition at line 55 of file OneHotVMatrix.h.


Constructor & Destructor Documentation

PLearn::OneHotVMatrix::OneHotVMatrix ( bool  call_build_ = false)

default constructor (for automatic deserialization)

Definition at line 67 of file OneHotVMatrix.cc.

References build_().

    : inherited(call_build_),
      nclasses(0), cold_value(0.0), hot_value(1.0), index(-1)
{
    if( call_build_ )
        build_();
}

Here is the call graph for this function:

PLearn::OneHotVMatrix::OneHotVMatrix ( VMat  the_source,
int  the_nclasses,
real  the_cold_value = 0.0,
real  the_host_value = 1.0,
int  the_index = -1,
bool  call_build_ = false
)

(see special case when nclasses==1 desribed above)

Definition at line 75 of file OneHotVMatrix.cc.

References build_().

    : inherited(the_source,
                the_source->length(),
                the_source->width()+the_nclasses-1,
                call_build_),
      nclasses(the_nclasses),
      cold_value(the_cold_value),
      hot_value(the_hot_value),
      index(the_index)
{
    if( call_build_ )
        build_();
}

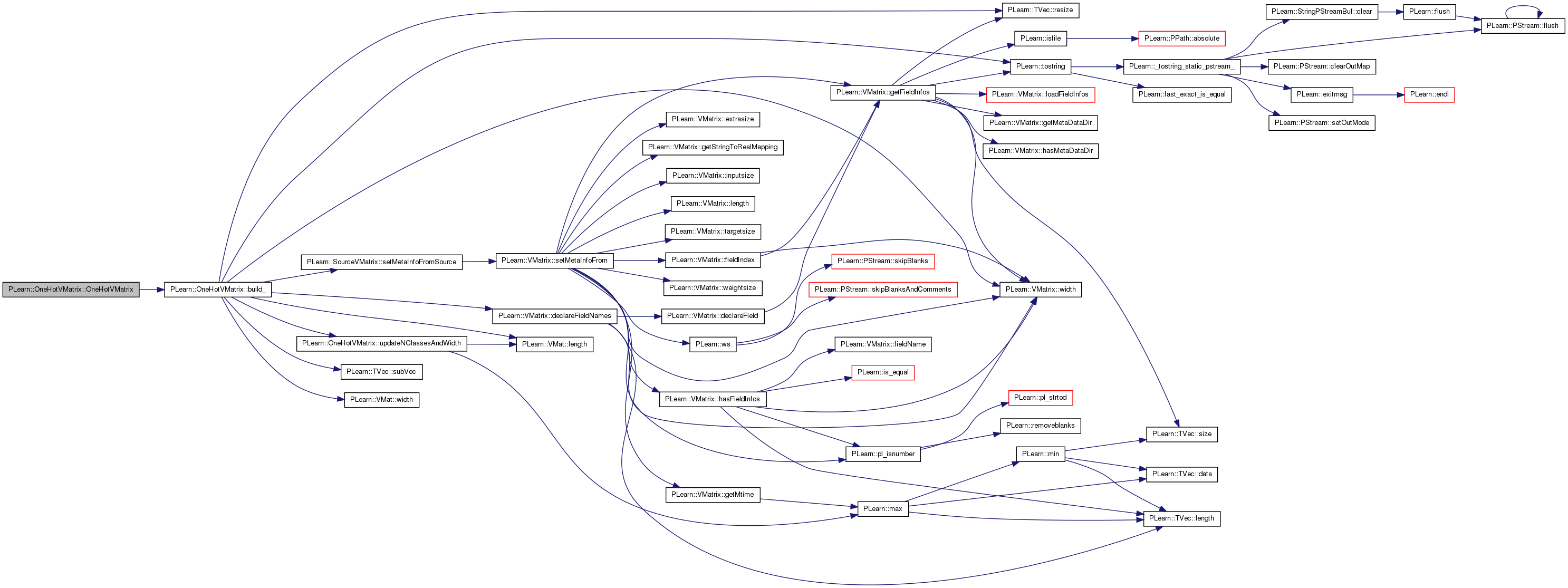

Here is the call graph for this function:


Member Function Documentation

string PLearn::OneHotVMatrix::_classname_ ( ) [static]

OneHotVMatrix.

Reimplemented from PLearn::SourceVMatrix.

Definition at line 62 of file OneHotVMatrix.cc.

OptionList & PLearn::OneHotVMatrix::_getOptionList_ ( ) [static]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 62 of file OneHotVMatrix.cc.

RemoteMethodMap & PLearn::OneHotVMatrix::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 62 of file OneHotVMatrix.cc.

bool PLearn::OneHotVMatrix::_isa_ ( const Object o) [static]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 62 of file OneHotVMatrix.cc.

Object * PLearn::OneHotVMatrix::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 62 of file OneHotVMatrix.cc.

StaticInitializer OneHotVMatrix::_static_initializer_ & PLearn::OneHotVMatrix::_static_initialize_ ( ) [static]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 62 of file OneHotVMatrix.cc.

void PLearn::OneHotVMatrix::build ( ) [virtual]

Simply calls inherited::build() then build_().

Reimplemented from PLearn::SourceVMatrix.

Definition at line 94 of file OneHotVMatrix.cc.

References PLearn::SourceVMatrix::build(), and build_().

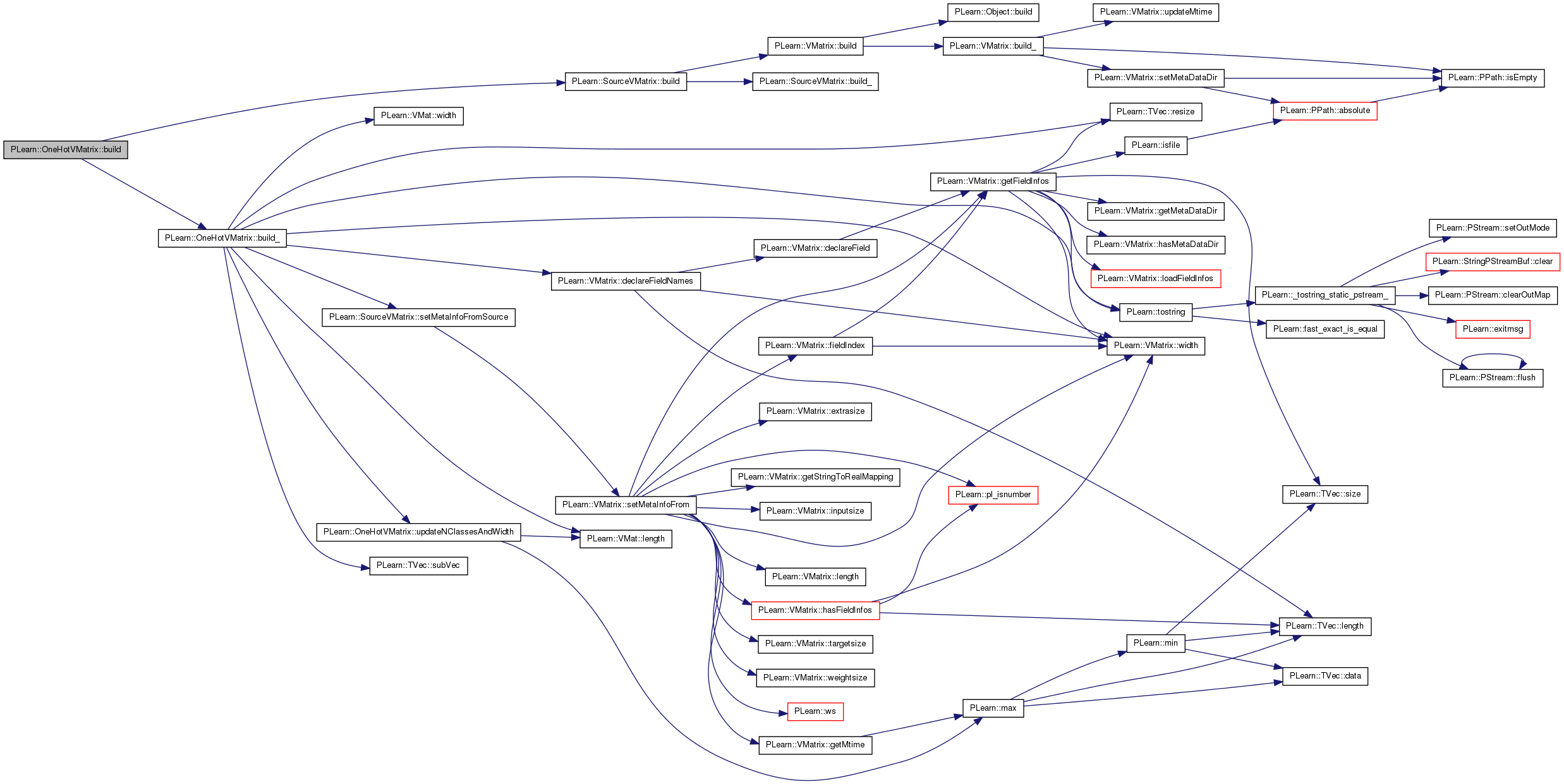

Here is the call graph for this function:

void PLearn::OneHotVMatrix::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::SourceVMatrix.

Definition at line 103 of file OneHotVMatrix.cc.

References PLearn::VMatrix::declareFieldNames(), i, index, PLearn::VMatrix::inputsize_, PLearn::VMat::length(), PLearn::VMatrix::length_, nclasses, PLearn::TVec< T >::resize(), PLearn::SourceVMatrix::setMetaInfoFromSource(), PLearn::SourceVMatrix::source, PLearn::TVec< T >::subVec(), PLearn::VMatrix::targetsize_, PLearn::tostring(), updateNClassesAndWidth(), PLearn::VMatrix::weightsize_, PLearn::VMatrix::width(), PLearn::VMat::width(), and PLearn::VMatrix::width_.

Referenced by build(), and OneHotVMatrix().

{
    int source_inputsize = source->inputsize();
    int source_targetsize = source->targetsize();
    int source_weightsize = source->weightsize();
    int source_width = source->width();
    int source_length = source->length();

    length_ = source_length;
    width_ = source_width + nclasses - 1;

    if(source_inputsize+source_targetsize+source_weightsize != source_width
       || source_targetsize != 1 ) // source->sizes are inconsistent
    {
        if( index < 0 )
        {
            index = source_width - 1;
            updateNClassesAndWidth();
        }
        if( inputsize_ + targetsize_ + weightsize_ != width() )
        {
            // sizes are not set, or inconsistently
            inputsize_ = index;
            targetsize_ = nclasses;
            weightsize_ = width() - inputsize_ - targetsize_;
        }
    }
    else // source->sizes are consistent
    {
        if( index < 0 )
        {
            index = source_inputsize;
            updateNClassesAndWidth();
        }
        if( inputsize_ + targetsize_ + weightsize_ != width() )
        {
            inputsize_ = source_inputsize;
            targetsize_ = source_targetsize;
            weightsize_ = source_weightsize;

            if( index < inputsize_ )
                inputsize_ += nclasses-1;
            else if( index < inputsize_ + targetsize_ )
                targetsize_ += nclasses-1;
            else
                weightsize_ += nclasses-1;
        }
    }

    TVec<string> fieldnames = source->fieldNames().copy();

    string target_name = fieldnames[ index ];
    fieldnames.resize( width() );
    for( int i=0 ; i<nclasses ; i++ )
        fieldnames[ index+i ] = target_name + "_" + tostring(i);

    fieldnames.subVec( index + nclasses, width() - index - nclasses )
        << source->fieldNames().subVec( index + 1, source_width - index - 1 );


    declareFieldNames( fieldnames );
    setMetaInfoFromSource();
}

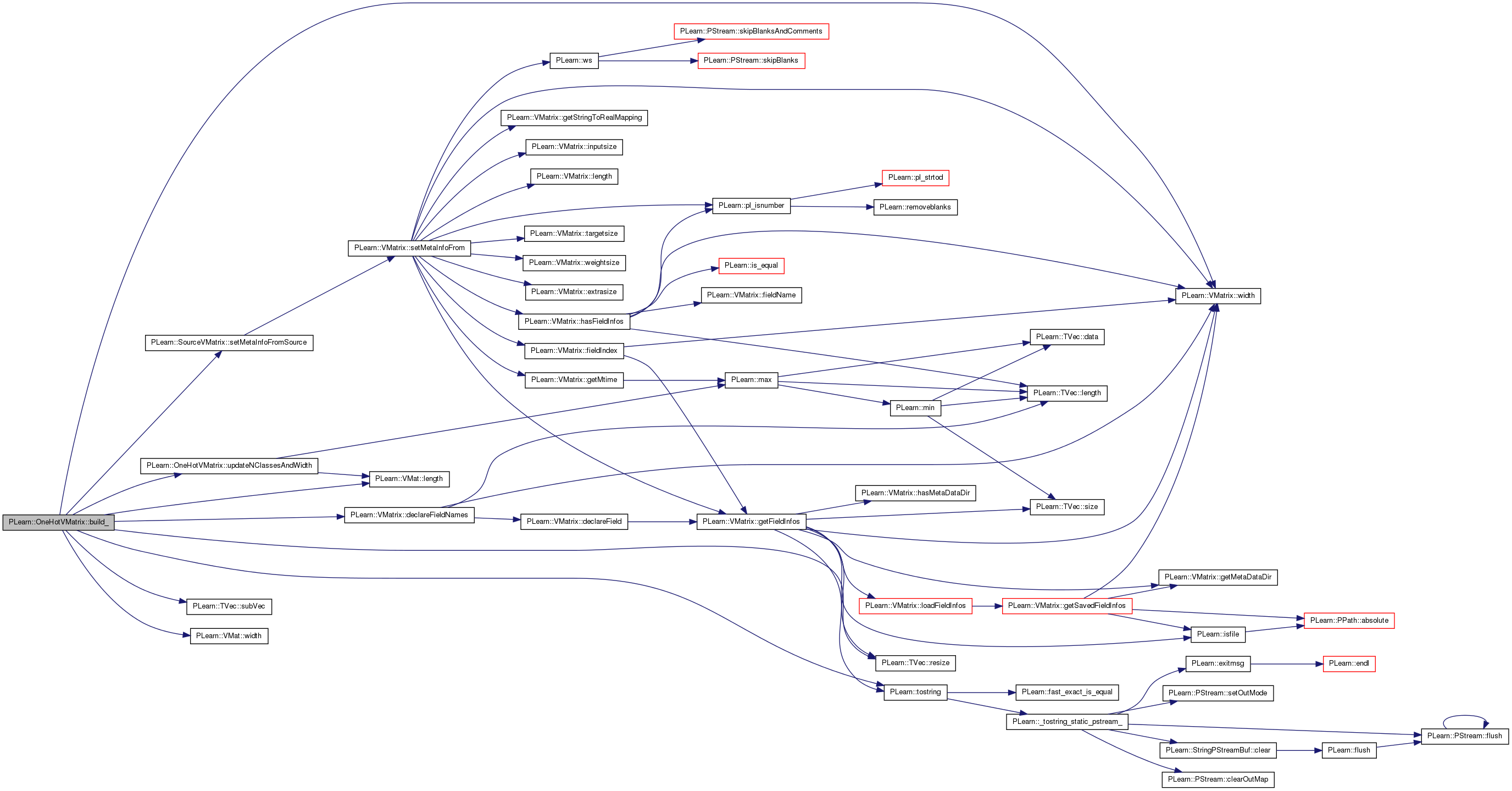

Here is the call graph for this function:

Here is the caller graph for this function:

string PLearn::OneHotVMatrix::classname ( ) const [virtual]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 62 of file OneHotVMatrix.cc.

void PLearn::OneHotVMatrix::declareOptions ( OptionList ol) [static, protected]

Declares this class' options.

Reimplemented from PLearn::SourceVMatrix.

Definition at line 170 of file OneHotVMatrix.cc.

References PLearn::OptionBase::buildoption, cold_value, PLearn::declareOption(), PLearn::SourceVMatrix::declareOptions(), hot_value, index, PLearn::OptionBase::learntoption, nclasses, PLearn::OptionBase::nosave, and PLearn::SourceVMatrix::source.

{
    declareOption(ol, "underlying_distr", &OneHotVMatrix::source,
                  (OptionBase::learntoption | OptionBase::nosave),
                  "DEPRECATED - use 'source' instead.");

    declareOption(ol, "nclasses", &OneHotVMatrix::nclasses,
                  OptionBase::buildoption,
        "Number of classes. If set to zero, then this number will be\n"
        "automatically found from the source VMat.");

    declareOption(ol, "cold_value", &OneHotVMatrix::cold_value,
                  OptionBase::buildoption,
        "Value used for non active elements in the one-hot vector.");

    declareOption(ol, "hot_value", &OneHotVMatrix::hot_value,
                  OptionBase::buildoption,
        "Value used for the active element in the one-hot vector.");

    declareOption(ol, "index", &OneHotVMatrix::index,
                  OptionBase::buildoption,
        "Index of the column on which we apply the one-hot transformation.\n"
        "By default, if targetsize==1 we take the target column, otherwise\n"
        "we take the last column.");

    inherited::declareOptions(ol);
}

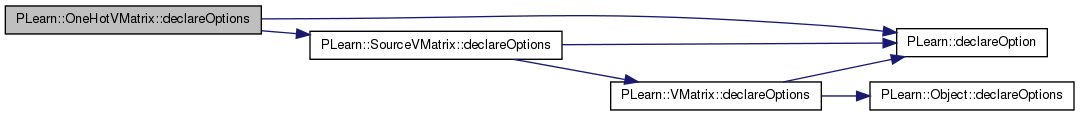

Here is the call graph for this function:

static const PPath& PLearn::OneHotVMatrix::declaringFile ( ) [inline, static]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 78 of file OneHotVMatrix.h.

:

OneHotVMatrix * PLearn::OneHotVMatrix::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 62 of file OneHotVMatrix.cc.

real PLearn::OneHotVMatrix::dot ( int  i1,
int  i2,
int  inputsize
) const [virtual]

Returns the dot product between row i1 and row i2 (considering only the inputsize first elements).

The default version in VMatrix is somewhat inefficient, as it repeatedly calls get(i,j) The default version in RowBufferedVMatrix is a little better as it buffers the 2 Vecs between calls in case one of them is needed again. But the real strength of this method is for specialised and efficient versions in subbclasses. This method is typically used by SmartKernels so that they can compute kernel values between input samples efficiently.

Reimplemented from PLearn::RowBufferedVMatrix.

Definition at line 222 of file OneHotVMatrix.cc.

References PLearn::SourceVMatrix::source.

{
    return source->dot(i1, i2, inputsize);
}
real PLearn::OneHotVMatrix::dot ( int  i,
const Vec v
) const [virtual]

Returns the result of the dot product between row i and the given vec (only v.length() first elements of row i are considered).

Reimplemented from PLearn::RowBufferedVMatrix.

Definition at line 227 of file OneHotVMatrix.cc.

References PLearn::SourceVMatrix::source.

{
    return source->dot(i, v);
}
void PLearn::OneHotVMatrix::getNewRow ( int  i,
const Vec v
) const [protected, virtual]

Must be implemented in subclasses: default version returns an error.

Reimplemented from PLearn::SourceVMatrix.

Definition at line 201 of file OneHotVMatrix.cc.

References cold_value, PLearn::fill_one_hot(), PLearn::VMat::getSubRow(), hot_value, index, PLearn::left(), PLearn::TVec< T >::length(), PLearn::VMatrix::length(), nclasses, PLERROR, PLearn::right(), PLearn::SourceVMatrix::source, PLearn::TVec< T >::subVec(), and PLearn::VMatrix::width().

{
#ifdef BOUNDCHECK
    if(i<0 || i>=length())
        PLERROR("In OneHotVMatrix::getNewRow OUT OF BOUNDS");
    if(samplevec.length()!=width())
        PLERROR("In OneHotVMatrix::getNewRow samplevec.length() must be\n"
                "equal to the VMat's width\n");
#endif
    Vec left = samplevec.subVec(0, index);
    Vec modified = samplevec.subVec(index, nclasses);
    Vec right = samplevec.subVec(index+nclasses, width()-index-nclasses);
    source->getSubRow(i, 0, left);
    int classnum = int(round(source->get(i, index)));
    fill_one_hot(modified, classnum, cold_value, hot_value);
    source->getSubRow(i, index+1, right);
}

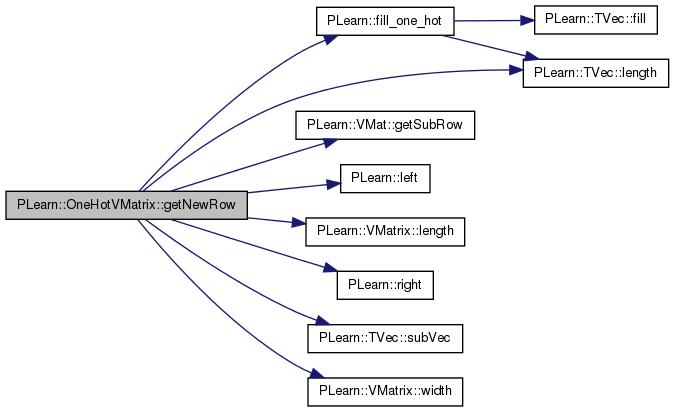

Here is the call graph for this function:

OptionList & PLearn::OneHotVMatrix::getOptionList ( ) const [virtual]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 62 of file OneHotVMatrix.cc.

OptionMap & PLearn::OneHotVMatrix::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 62 of file OneHotVMatrix.cc.

RemoteMethodMap & PLearn::OneHotVMatrix::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::SourceVMatrix.

Definition at line 62 of file OneHotVMatrix.cc.

virtual void PLearn::OneHotVMatrix::reset_dimensions ( ) [inline, virtual]

In case the dimensions of an underlying VMat has changed, recompute it.

Reimplemented from PLearn::VMatrix.

Definition at line 95 of file OneHotVMatrix.h.

    {
        source->reset_dimensions();
        width_ = source->width() + nclasses - 1;
        length_ = source->length();
    }
void PLearn::OneHotVMatrix::updateNClassesAndWidth ( ) [protected]

If 'nclasses' is greater than zero, do nothing.

Otherwise, obtain 'nclasses' by finding the maximum value of the source's 'index' column. Then update the width of this VMat accordingly.

Definition at line 236 of file OneHotVMatrix.cc.

References i, index, PLearn::VMat::length(), PLearn::max(), nclasses, PLASSERT, PLearn::SourceVMatrix::source, and PLearn::VMatrix::width_.

Referenced by build_().

{
    if (nclasses > 0)
        return;
    PLASSERT( nclasses == 0 && index >= 0 );
    real max = -1;
    for (int i = 0; i < source->length(); i++) {
        real val = source->get(i, index);
        if (val > max)
            max = val;
    }
    nclasses = int(round(max)) + 1;
    width_ += nclasses;
}

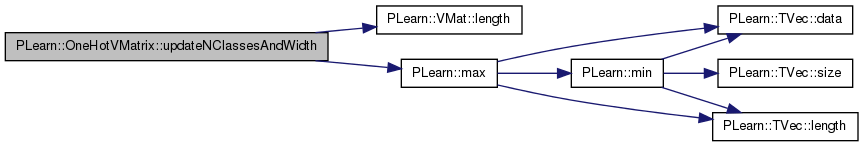

Here is the call graph for this function:

Here is the caller graph for this function:


Member Data Documentation

Reimplemented from PLearn::SourceVMatrix.

Definition at line 78 of file OneHotVMatrix.h.

Definition at line 60 of file OneHotVMatrix.h.

Referenced by declareOptions(), and getNewRow().

Definition at line 61 of file OneHotVMatrix.h.

Referenced by declareOptions(), and getNewRow().

Definition at line 62 of file OneHotVMatrix.h.

Referenced by build_(), declareOptions(), getNewRow(), and updateNClassesAndWidth().

Definition at line 59 of file OneHotVMatrix.h.

Referenced by build_(), declareOptions(), getNewRow(), and updateNClassesAndWidth().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
