PLearn::StackedAutoassociatorsNet Class Reference

Neural net, trained layer-wise in a greedy fashion using autoassociators. More...

#include <StackedAutoassociatorsNet.h>

Inheritance diagram for PLearn::StackedAutoassociatorsNet:
Inheritance graph
[legend]

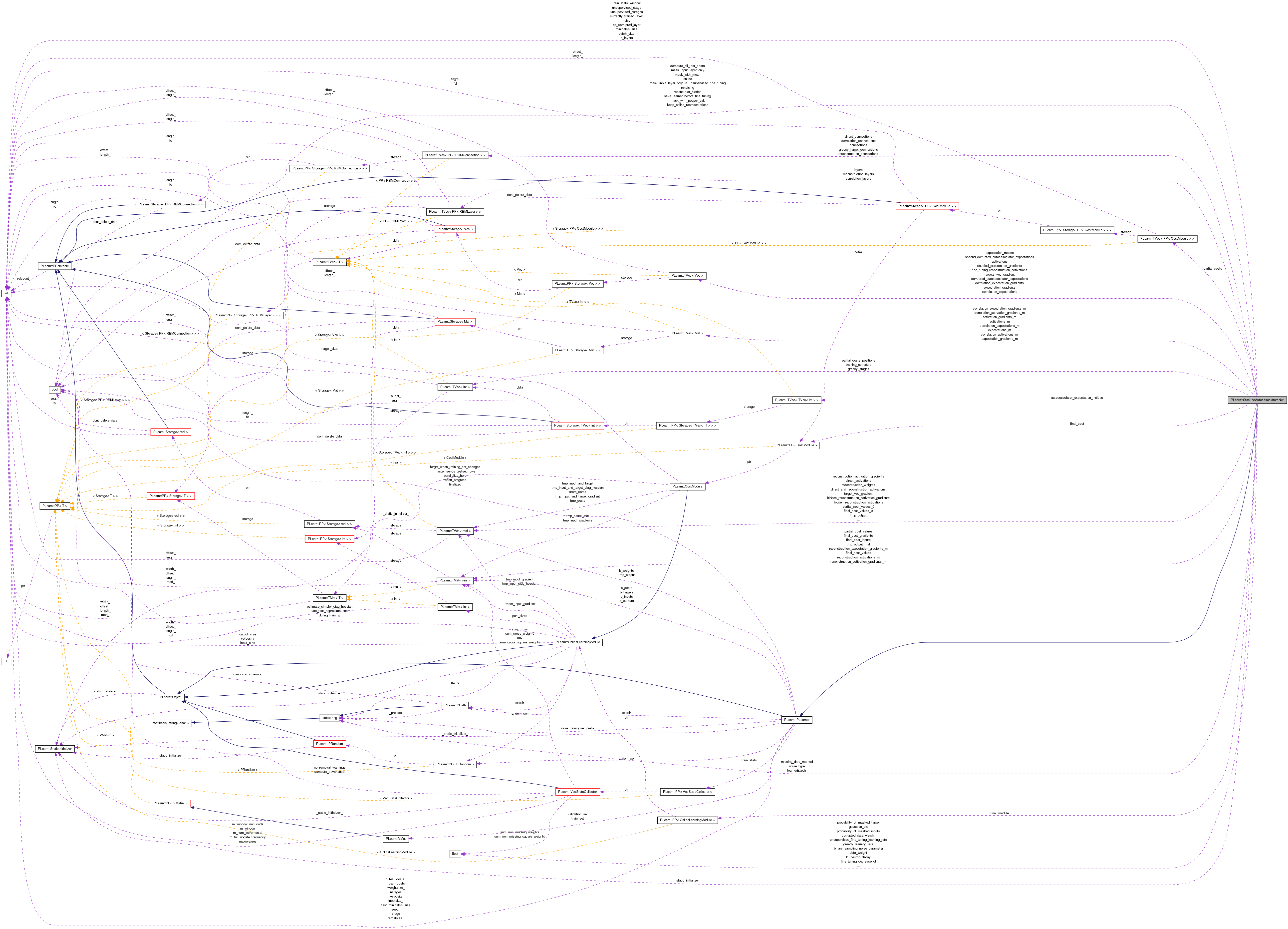

Collaboration diagram for PLearn::StackedAutoassociatorsNet:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 StackedAutoassociatorsNet ()
 Default constructor.
virtual int outputsize () const
 Returns the size of this learner's output, (which typically may depend on its inputsize(), targetsize() and set options).

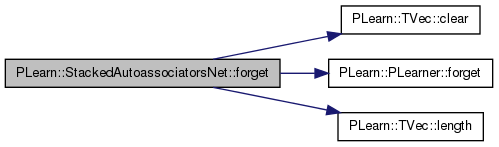

virtual void forget ()
 (Re-)initializes the PLearner in its fresh state (that state may depend on the 'seed' option) and sets 'stage' back to 0 (this is the stage of a fresh learner!).

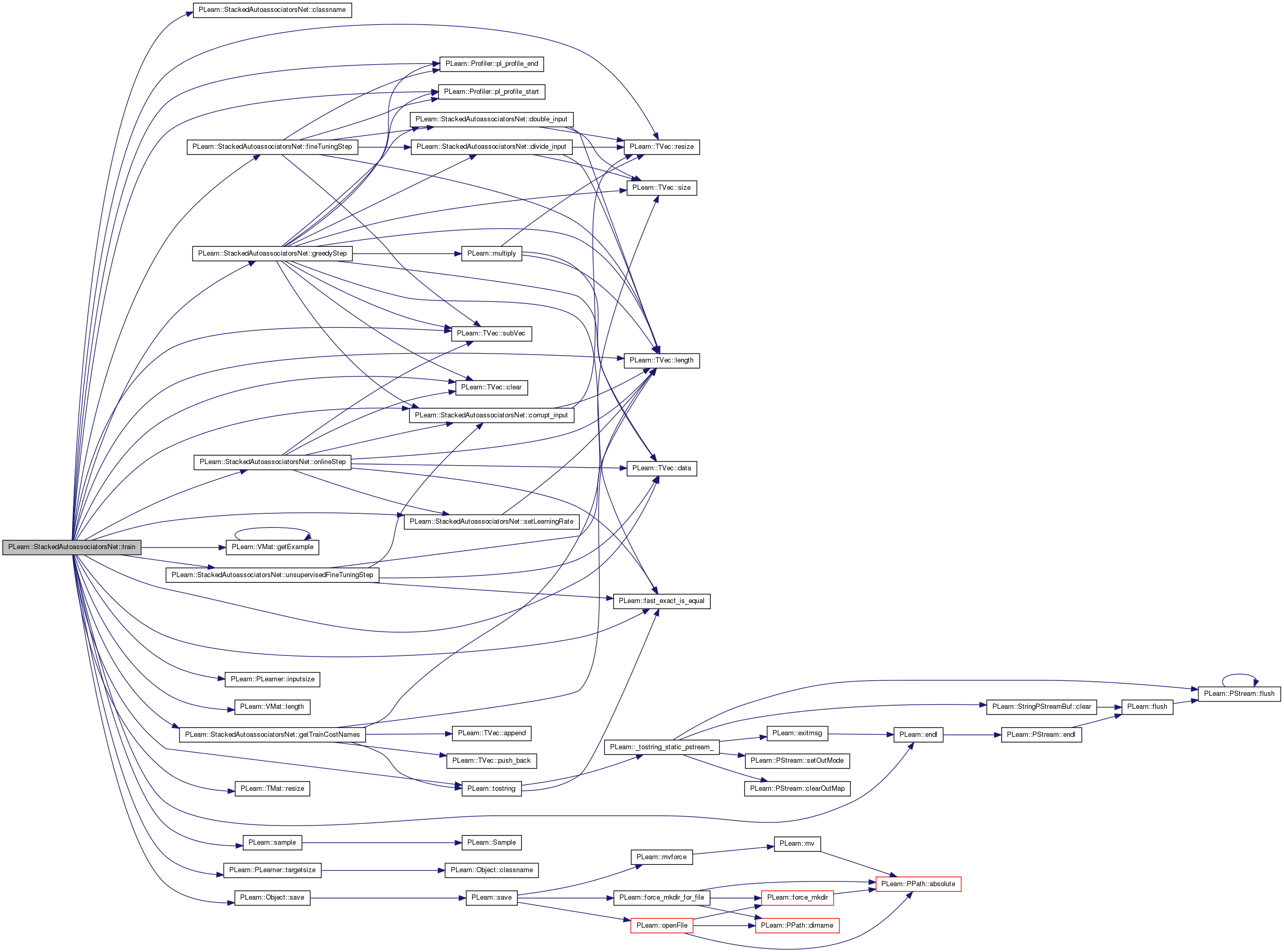

virtual void train ()
 The role of the train method is to bring the learner up to stage==nstages, updating the train_stats collector with training costs measured on-line in the process.

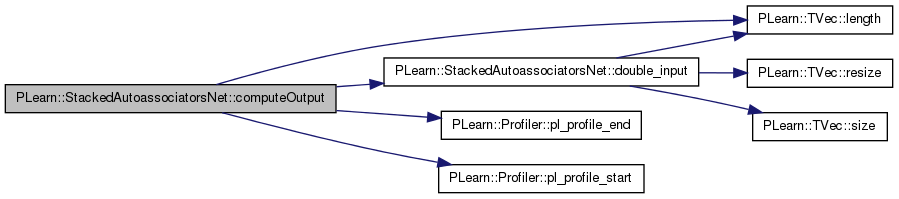

virtual void computeOutput (const Vec &input, Vec &output) const
 Computes the output from the input.

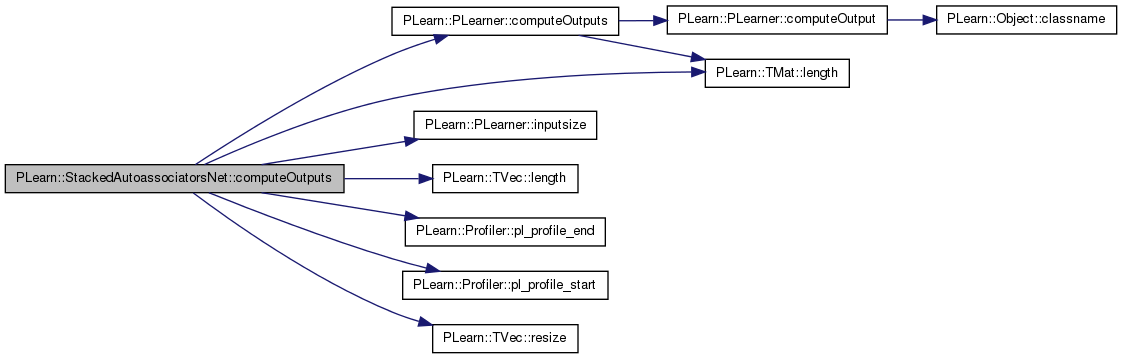

virtual void computeOutputs (const Mat &input, Mat &output) const
 Computes the output from the input.

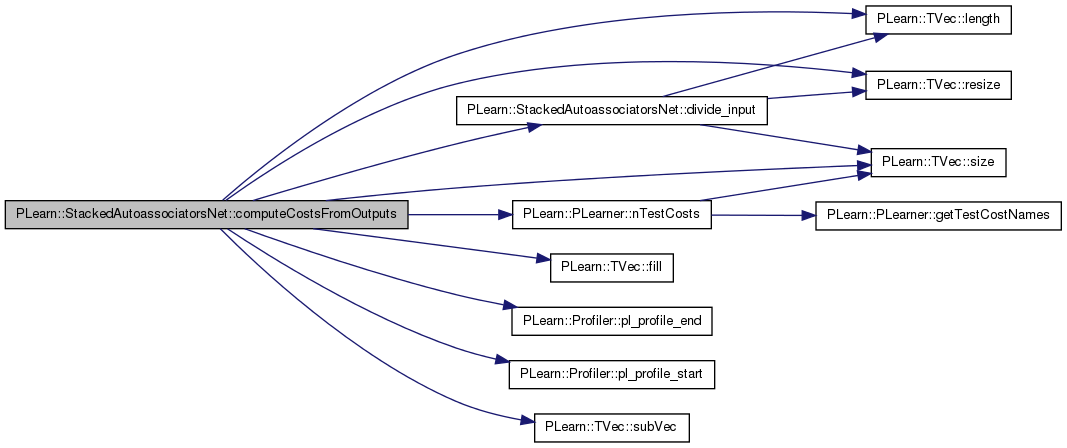

virtual void computeCostsFromOutputs (const Vec &input, const Vec &output, const Vec &target, Vec &costs) const
 Computes the costs from already computed output.

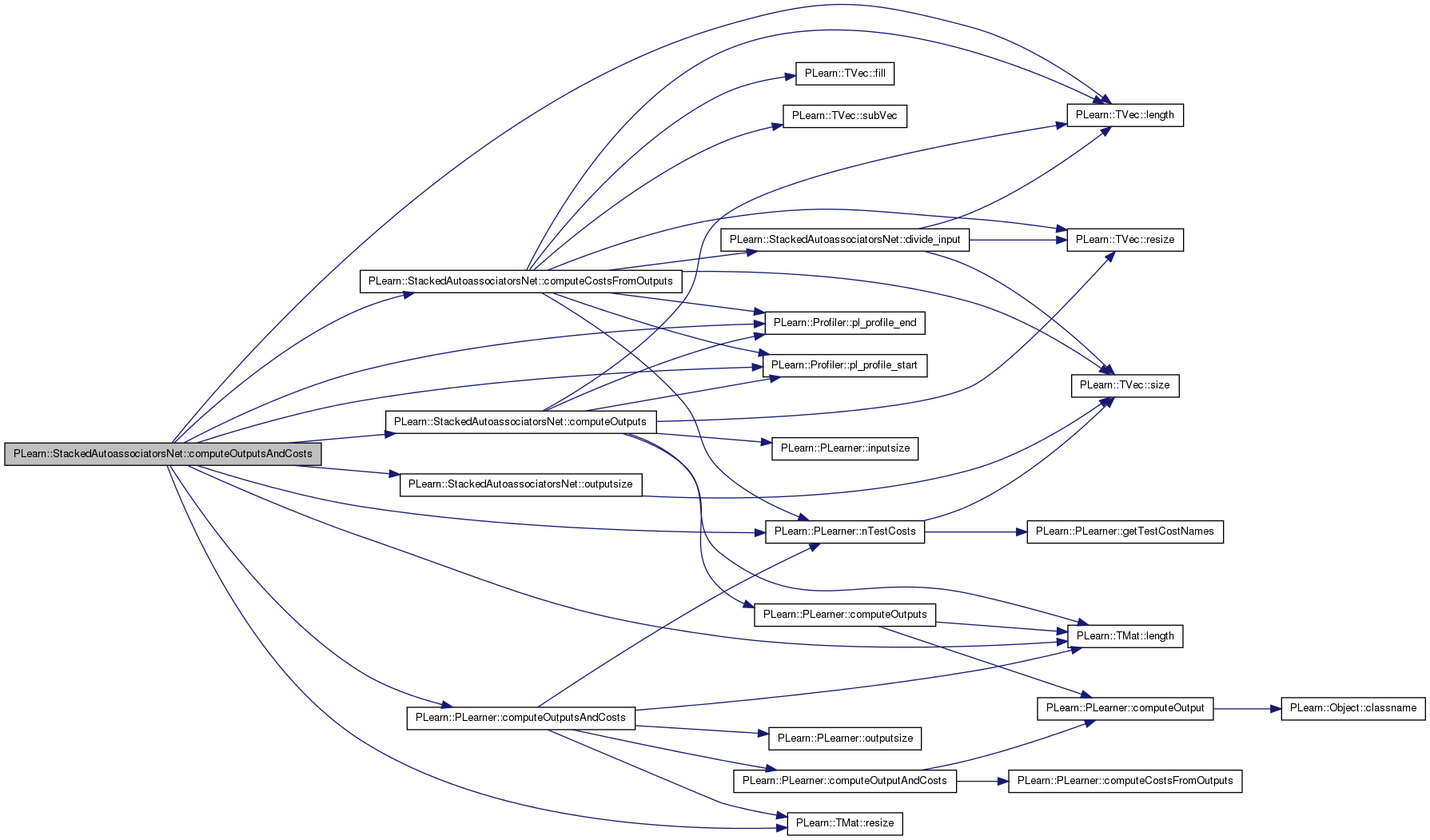

virtual void computeOutputsAndCosts (const Mat &input, const Mat &target, Mat &output, Mat &costs) const
 minibatch version of computeOutputAndCosts
virtual TVec< std::string > getTestCostNames () const
 Returns the names of the costs computed by computeCostsFromOutpus (and thus the test method).
virtual TVec< std::string > getTrainCostNames () const
 Returns the names of the objective costs that the train method computes and for which it updates the VecStatsCollector train_stats.
TVec< VecgetTrainRepresentations () const
 Returns the representations obtained during last pre-training of the current layer.
void remote_setCurrentlyTrainedLayer (int new_currently_trained_layer)

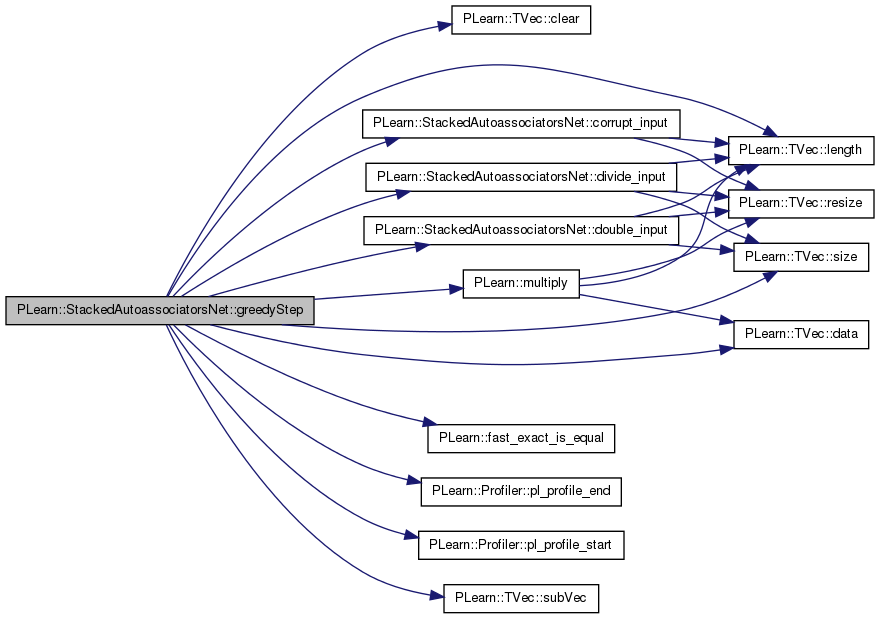

void greedyStep (const Vec &input, const Vec &target, int index, Vec train_costs, Vec &representation)
void greedyStep (const Mat &inputs, const Mat &targets, int index, Mat &train_costs)

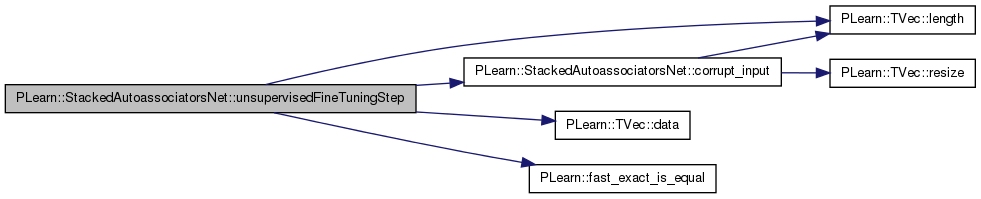

void unsupervisedFineTuningStep (const Vec &input, const Vec &target, Vec &train_costs)
void unsupervisedFineTuningStep (const Mat &inputs, const Mat &targets, Mat &train_costs)

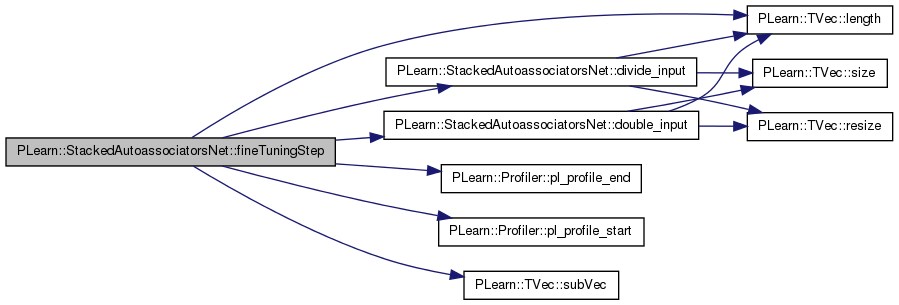

void fineTuningStep (const Vec &input, const Vec &target, Vec &train_costs)
void fineTuningStep (const Mat &inputs, const Mat &targets, Mat &train_costs)

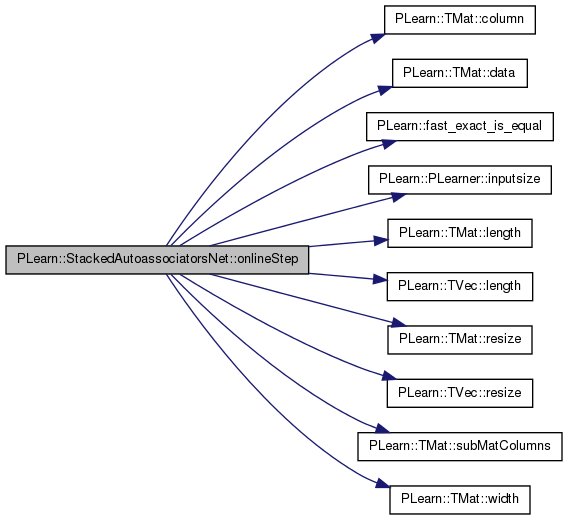

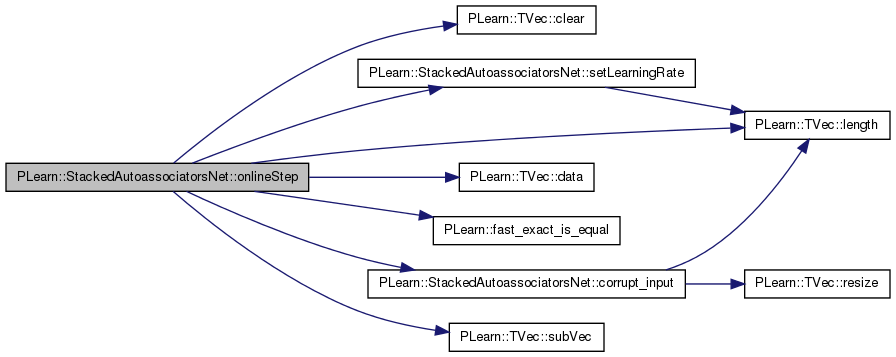

void onlineStep (const Vec &input, const Vec &target, Vec &train_costs)
void onlineStep (const Mat &inputs, const Mat &targets, Mat &train_costs)
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual StackedAutoassociatorsNetdeepCopy (CopiesMap &copies) const
virtual void build ()
 Finish building the object; just call inherited::build followed by build_()
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.

Static Public Member Functions

static string _classname_ ()
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

real greedy_learning_rate
 The learning rate used during the autoassociator gradient descent training.
real greedy_decrease_ct
 The decrease constant of the learning rate used during the autoassociator gradient descent training.
real fine_tuning_learning_rate
 The learning rate used during the fine tuning gradient descent.
real fine_tuning_decrease_ct
 The decrease constant of the learning rate used during fine tuning gradient descent.
real l1_neuron_decay
 L1 penalty weight on the hidden layers, to encourage sparsity during the greedy unsupervised phases.
real l1_neuron_decay_center
 Value around which the L1 penalty should be centered, i.e.
int batch_size
 Training batch size (1=stochastic learning, 0=full batch learning)
TVec< inttraining_schedule
 Number of examples to use during each phase of greedy pre-training.
bool online
 Whether to do things by stages, including fine-tuning, or on-line.
TVec< PP< RBMLayer > > layers
 The layers of units in the network.
TVec< PP< RBMLayer > > reconstruction_layers
 The reconstruction layers in the network.
TVec< PP< RBMConnection > > connections
 The weights of the connections between the layers.
TVec< PP< RBMConnection > > reconstruction_connections
 The weights of the reconstruction connections between the layers.
TVec< PP< RBMConnection > > correlation_connections
 Optional weights to capture correlation and anti-correlation in the hidden layers.
TVec< PP< RBMConnection > > direct_connections
 Optional weights from each inputs to all other inputs' reconstruction, which can capture simple (linear or log-linear) correlations between inputs.
PP< OnlineLearningModulefinal_module
 Module that takes as input the output of the last layer (layers[n_layers-1), and feeds its output to final_cost which defines the fine-tuning criteria.
PP< CostModulefinal_cost
 The cost function to be applied on top of the neural network (i.e.
TVec< PP< CostModule > > partial_costs
 Corresponding additional supervised cost function to be applied on top of each hidden layer during the autoassociator training stages.
Vec partial_costs_weights
 Relative weights of the partial costs.
TVec< PP< RBMConnection > > greedy_target_connections
 Optional target connections during greedy training.
bool compute_all_test_costs
 Indication that, at test time, all costs for all layers (up to the currently trained layer) should be computed.
bool reconstruct_hidden
 Indication that the autoassociators are also trained to reconstruct their hidden layers (inspired from CD1 in an RBM)
string noise_type
 Type of noise that corrupts the autoassociators input.
string missing_data_method
 Method used to fill the double_input vector when using missing_data noise type.
real corrupted_data_weight
 Weight given to a corrupted (or missing) data when backpropagating the gradient of reconstruction cost.
real data_weight
 Weight given to a data (not corrupted or not missing) when backpropagating the gradient of reconstruction cost.
real fraction_of_masked_inputs
 Random fraction of the autoassociators' input components that masked, i.e.
real probability_of_masked_inputs
 Probability of masking each input component.
real probability_of_masked_target
 Probability of masking the target, when using greedy_target_connections.
bool mask_with_mean
 training set mean of that component
bool mask_with_pepper_salt
 Indication that inputs should be masked with 0 or 1 according to prop_salt_noise.
real pep_salt_zero_centered
 Indicate if the pepper salt is zero centered (>0) or not (0).
bool renoising
 Indication that the autoassociator will try to "reconstruct" another _corrupted version_ of the input (instead of the input itself).
int noisy
 Usage of noisy example before doing a particular training.
real prob_salt_noise
 Probability that we mask the input by 1 instead of 0.
real gaussian_std
 Standard deviation of Gaussian noise.
real binary_sampling_noise_parameter
 Parameter $ \tau $ for corrupted input sampling: $ \tilde{x}_k ~ B((x_k - 0.5) \tau + 0.5) $.
int unsupervised_nstages
 Number of samples to use for unsupervised fine-tuning.
real unsupervised_fine_tuning_learning_rate
 The learning rate used during the unsupervised fine tuning gradient descent.
real unsupervised_fine_tuning_decrease_ct
 The decrease constant of the learning rate used during unsupervised fine tuning gradient descent.
int nb_corrupted_layer
 Indicates how many layers will be corrupted during gready layer-wise learning (starting with input layer)
bool mask_input_layer_only
 Indication that only the input layer should be masked during greedy layer-wise learning.
bool mask_input_layer_only_in_unsupervised_fine_tuning
 Indication that only the input layer should be masked during unsupervised fine-tuning.
int train_stats_window
 The number of samples to use to compute training stats.
string learnerExpdir
 Experiment directory where the learner will be save if save_learner_before_fine_tuning is true.
bool save_learner_before_fine_tuning
 Saves the learner before the supervised fine_tuning.
bool keep_online_representations
 Keep trace of the representations obtained during an unsupervised training phase.
int n_layers
 Number of layers.
int unsupervised_stage
 Number of samples visited so far during unsupervised fine-tuning.

Static Public Attributes

static StaticInitializer _static_initializer_

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declares the class options.

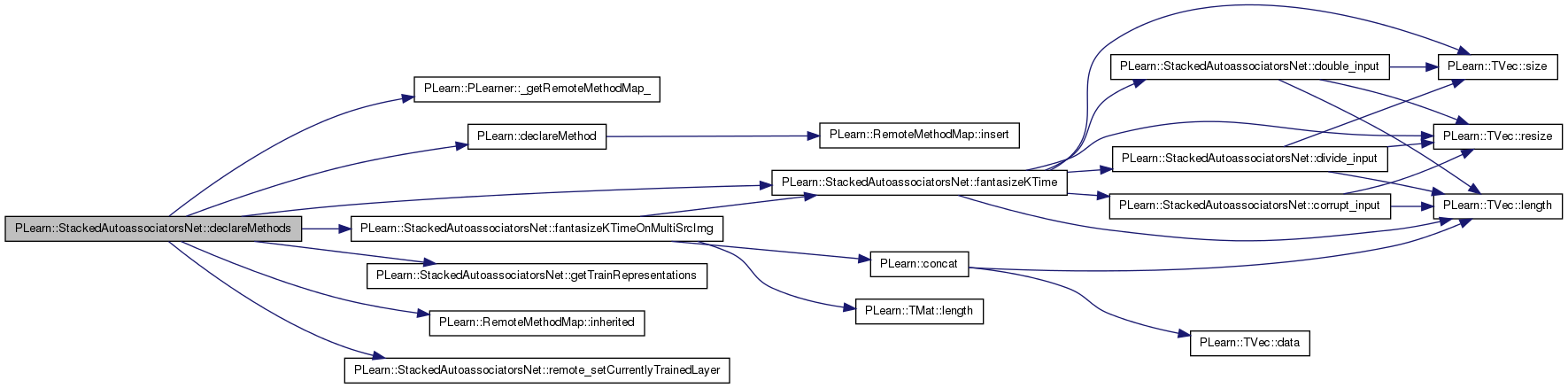

static void declareMethods (RemoteMethodMap &rmm)
 Declare the methods that are remote-callable.

Protected Attributes

int minibatch_size
 Actual size of a mini-batch (size of the training set if batch_size==1)
TVec< Vecactivations
 Stores the activations of the input and hidden layers (at the input of the layers)
TVec< Matactivations_m
TVec< Vecexpectations
 Stores the expectations of the input and hidden layers (at the output of the layers)
TVec< Matexpectations_m
TVec< Vecdoubled_expectations
 In case of missing_data: expectations doubled before corruption or before propagation to the next layer.
TVec< Vecactivation_gradients
 Stores the gradient of the cost wrt the activations of the input and hidden layers (at the input of the layers)
TVec< Matactivation_gradients_m
TVec< Vecexpectation_gradients
 Stores the gradient of the cost wrt the expectations of the input and hidden layers (at the output of the layers)
TVec< Matexpectation_gradients_m
TVec< Vecdoubled_expectation_gradients
 Stores the gradients of the doubled version of expectations.
Vec reconstruction_activations
 Reconstruction activations.
Mat reconstruction_activations_m
Vec reconstruction_activation_gradients
 Reconstruction activation gradients.
Mat reconstruction_activation_gradients_m
Vec reconstruction_expectation_gradients
 Reconstruction expectation gradients.
Mat reconstruction_expectation_gradients_m
TVec< Vecfine_tuning_reconstruction_activations
 Unsupervised fine-tuning reconstruction activations.
TVec< Vecfine_tuning_reconstruction_expectations
 Unsupervised fine-tuning reconstruction expectations.
TVec< Vecfine_tuning_reconstruction_activation_gradients
 Unsupervised fine-tuning reconstruction activations gradients.
TVec< Vecfine_tuning_reconstruction_expectation_gradients
 Unsupervised fine-tuning reconstruction expectations gradients.
Vec reconstruction_activation_gradients_from_hid_rec
 Reconstruction activation gradients coming from hidden reconstruction.
Vec reconstruction_expectation_gradients_from_hid_rec
 Reconstruction expectation gradients coming from hidden reconstruction.
Vec hidden_reconstruction_activations
 Hidden reconstruction activations.
Vec hidden_reconstruction_activation_gradients
 Hidden reconstruction activation gradients.
TVec< Veccorrelation_activations
 Activations before the correlation layer.
TVec< Matcorrelation_activations_m
TVec< Veccorrelation_expectations
 Expectations before the correlation layer.
TVec< Matcorrelation_expectations_m
TVec< Veccorrelation_activation_gradients
 Gradients of activations before the correlation layer.
TVec< Matcorrelation_activation_gradients_m
TVec< Veccorrelation_expectation_gradients
 Gradients of expectations before the correlation layer.
TVec< Matcorrelation_expectation_gradients_m
TVec< PP< RBMLayer > > correlation_layers
 Hidden layers for the correlation connections.
Vec direct_activations
 Activations from the direct connections.
Vec direct_and_reconstruction_activations
 Sum of activations from the direct and reconstruction connections.
Vec direct_and_reconstruction_activation_gradients
 Gradient of sum of activations from the direct and reconstruction connections.
TVec< intpartial_costs_positions
 Position in the total cost vector of the different partial costs.
Vec partial_cost_value
 Cost value of partial_costs.
Mat partial_cost_values
Vec partial_cost_values_0
Vec final_cost_input
 Input of the final_cost.
Mat final_cost_inputs
Vec final_cost_value
 Cost value of final_cost.
Mat final_cost_values
Vec final_cost_values_0
Vec final_cost_gradient
 Stores the gradient of the cost at the input of final_cost.
Mat final_cost_gradients
TVec< Veccorrupted_autoassociator_expectations
 Layers randomly masked, for unsupervised fine-tuning.
TVec< Vecsecond_corrupted_autoassociator_expectations
 Corrupted version of the autoassociator input not used for denoising.
Vec reconstruction_weights
 Stores the weight of each data used when backpropagating the gradient of reconstruction cost.
TVec< Vectrain_representations
 Representations computed for the current trained layer.
TVec< Vecbinary_masks
 Layers random binary maske, for online learning.
Vec tmp_mask
 For when corrupt_input() with binary_mask parameter is called.
TVec< TVec< int > > autoassociator_expectation_indices
 Indices of the expectation components.
TVec< Vecexpectation_means
 Mean of layers on the training set for each layer.
Vec target_vec
 Vectorial representation of the target.
Vec target_vec_gradient
TVec< Vectargets_vec
 For online case.
TVec< Vectargets_vec_gradient
TVec< intgreedy_stages
 Stages of the different greedy phases.
int currently_trained_layer
 Currently trained layer (1 means the first hidden layer, n_layers means the output layer)

Private Types

typedef PLearner inherited

Private Member Functions

void build_ ()
 This does the actual building.
void build_layers_and_connections ()
void build_classification_cost ()
void build_costs ()
void setLearningRate (real the_learning_rate)
void corrupt_input (const Vec &input, Vec &corrupted_input, int layer)
void double_input (const Vec &input, Vec &doubled_input, bool double_grad=false) const
 Useful in case that noise_type == "missing_data", returns the input if it's not the case.
void divide_input (const Vec &input, Vec &divided_input) const
 Useful in case that noise_type == "missing_data", returns the input if it's not the case.

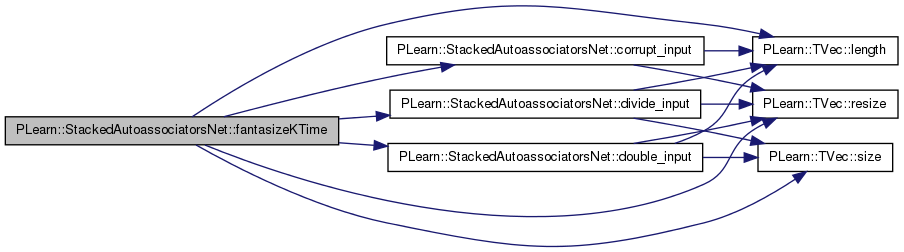

TVec< VecfantasizeKTime (const int KTime, const Vec &srcImg, const Vec &sample, const Vec &maskNoiseFractOrProb, bool alwaysFromSrcImg)
 Supposes the learner is already trained.
TVec< VecfantasizeKTimeOnMultiSrcImg (const int KTime, const Mat &srcImg, const Vec &sample, const Vec &maskNoiseFractOrProb, bool alwaysFromSrcImg)
 Same as fantasizeKTime, but does it on different source images.
void corrupt_input (const Vec &input, Vec &corrupted_input, int layer, Vec &binary_mask)

Private Attributes

Vec tmp_output
 Global storage to save memory allocations.
Mat tmp_output_mat

Detailed Description

Neural net, trained layer-wise in a greedy fashion using autoassociators.

It is highly inspired by the DeepBeliefNet class, and can use use the same RBMLayer and RBMConnection components.

Definition at line 60 of file StackedAutoassociatorsNet.h.


Member Typedef Documentation

Reimplemented from PLearn::PLearner.

Definition at line 62 of file StackedAutoassociatorsNet.h.


Constructor & Destructor Documentation

PLearn::StackedAutoassociatorsNet::StackedAutoassociatorsNet ( )

Default constructor.

Definition at line 59 of file StackedAutoassociatorsNet.cc.

References PLearn::PLearner::nstages, PLearn::PLearner::random_gen, and PLearn::PLearner::test_minibatch_size.


Member Function Documentation

string PLearn::StackedAutoassociatorsNet::_classname_ ( ) [static]

Reimplemented from PLearn::PLearner.

Definition at line 57 of file StackedAutoassociatorsNet.cc.

OptionList & PLearn::StackedAutoassociatorsNet::_getOptionList_ ( ) [static]

Reimplemented from PLearn::PLearner.

Definition at line 57 of file StackedAutoassociatorsNet.cc.

RemoteMethodMap & PLearn::StackedAutoassociatorsNet::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::PLearner.

Definition at line 57 of file StackedAutoassociatorsNet.cc.

bool PLearn::StackedAutoassociatorsNet::_isa_ ( const Object o) [static]

Reimplemented from PLearn::PLearner.

Definition at line 57 of file StackedAutoassociatorsNet.cc.

Object * PLearn::StackedAutoassociatorsNet::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 57 of file StackedAutoassociatorsNet.cc.

StaticInitializer StackedAutoassociatorsNet::_static_initializer_ & PLearn::StackedAutoassociatorsNet::_static_initialize_ ( ) [static]

Reimplemented from PLearn::PLearner.

Definition at line 57 of file StackedAutoassociatorsNet.cc.

void PLearn::StackedAutoassociatorsNet::build ( ) [virtual]

Finish building the object; just call inherited::build followed by build_()

Reimplemented from PLearn::PLearner.

Definition at line 1072 of file StackedAutoassociatorsNet.cc.

References PLearn::PLearner::build(), and build_().

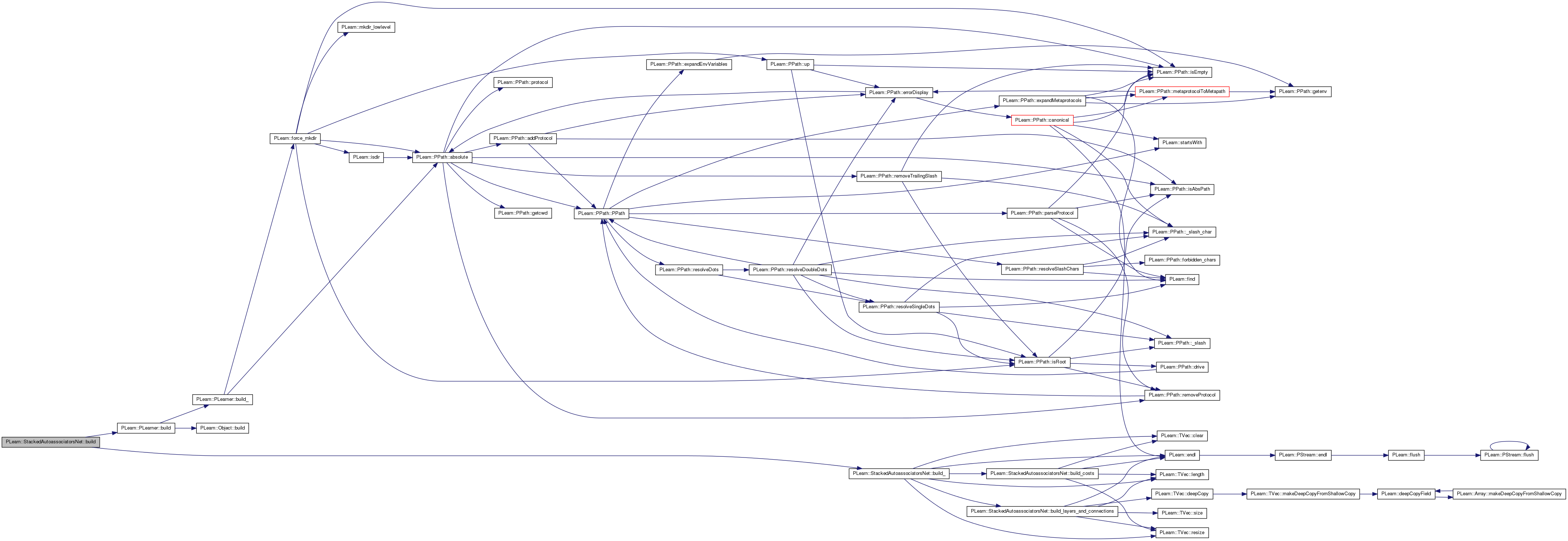

Here is the call graph for this function:

void PLearn::StackedAutoassociatorsNet::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::PLearner.

Definition at line 540 of file StackedAutoassociatorsNet.cc.

References batch_size, build_costs(), build_layers_and_connections(), PLearn::TVec< T >::clear(), corrupted_data_weight, currently_trained_layer, data_weight, PLearn::endl(), fraction_of_masked_inputs, greedy_stages, PLearn::PLearner::inputsize_, layers, PLearn::TVec< T >::length(), n_layers, nb_corrupted_layer, noise_type, noisy, online, partial_costs, partial_costs_weights, PLERROR, prob_salt_noise, probability_of_masked_inputs, probability_of_masked_target, reconstruct_hidden, renoising, PLearn::TVec< T >::resize(), PLearn::PLearner::stage, PLearn::PLearner::targetsize_, training_schedule, and PLearn::PLearner::weightsize_.

Referenced by build().

{
    MODULE_LOG << "build_() called" << endl;

    if(inputsize_ > 0 && targetsize_ > 0)
    {
        // Initialize some learnt variables
        n_layers = layers.length();

        if(nb_corrupted_layer == -1)
                nb_corrupted_layer = n_layers-1;

        if( nb_corrupted_layer >= n_layers)
            PLERROR("StackedAutoassociatorsNet::build_() - \n"
                    " - \n"
                    "nb_corrupted_layers should be < %d\n",n_layers);

        if( weightsize_ > 0 )
            PLERROR("StackedAutoassociatorsNet::build_() - \n"
                    "usage of weighted samples (weight size > 0) is not\n"
                    "implemented yet.\n");

        if( !online && training_schedule.length() != n_layers-1 )
            PLERROR("StackedAutoassociatorsNet::build_() - \n"
                    "training_schedule should have %d elements.\n",
                    n_layers-1);

        if( partial_costs && partial_costs.length() != n_layers-1 )
            PLERROR("StackedAutoassociatorsNet::build_() - \n"
                    "partial_costs should have %d elements.\n",
                    n_layers-1);

        if( partial_costs && partial_costs_weights &&
            partial_costs_weights.length() != n_layers-1 )
            PLERROR("StackedAutoassociatorsNet::build_() - \n"
                    "partial_costs_weights should have %d elements.\n",
                    n_layers-1);

        if( online && reconstruct_hidden )
            PLERROR("StackedAutoassociatorsNet::build_()"
                    " - \n"
                    "cannot use online setting with reconstruct_hidden=true.\n");

//        if( unsupervised_nstages > 0 && correlation_connections.length() != 0 )
//            PLERROR("StackedAutoassociatorsNet::build_()"
//                    " - \n"
//                    "cannot use unsupervised fine-tuning with correlation connections.\n");

        if( fraction_of_masked_inputs < 0 )
            PLERROR("StackedAutoassociatorsNet::build_()"
                    " - \n"
                    "fraction_of_masked_inputs should be > or equal to 0.\n");

        if( probability_of_masked_inputs < 0 )
            PLERROR("StackedAutoassociatorsNet::build_()"
                    " - \n"
                    "probability_of_masked_inputs should be > or equal to 0.\n");

        if( prob_salt_noise < 0 )
            PLERROR("StackedAutoassociatorsNet::build_()"
                    " - \n"
                    "prob_salt_noise should be > or equal to 0.\n");

        if( probability_of_masked_target < 0 )
            PLERROR("StackedAutoassociatorsNet::build_()"
                    " - \n"
                    "probability_of_masked_target should be > or equal to 0.\n");

        if( data_weight < 0 )
            PLERROR("StackedAutoassociatorsNet::build_()"
                    " - \n"
                    "data_weight should be > or equal to 0.\n");

        if( corrupted_data_weight < 0 )
            PLERROR("StackedAutoassociatorsNet::build_()"
                    " - \n"
                    "corrupted_data_weight should be > or equal to 0.\n");

        if( online && noise_type != "masking_noise" && batch_size != 1)
            PLERROR("StackedAutoassociatorsNet::build_()"
                    " - \n"
                    "corrupted inputs only works with masking noise in online setting,"
                    "in the non-minibatch case.\n");

        if( renoising && noisy > 0 )
            PLERROR("StackedAutoassociatorsNet::build_()"
                    " - \n"
                    "cannot use renoising and noisy at the same time.\n");

        if( renoising && noise_type == "missing_data" )
            PLERROR("StackedAutoassociatorsNet::build_()"
                    " - \n"
                    "cannot use renoising with missing data.\n");

        if( noisy > 0 && noise_type == "missing_data")
            PLERROR("StackedAutoassociatorsNet::build_()"
                    " - \n"
                    "cannot use noisy with missing data.\n");

        if( !online )
        {
            if( greedy_stages.length() == 0)
            {
                greedy_stages.resize(n_layers-1);
                greedy_stages.clear();
            }

            if(stage > 0)
                currently_trained_layer = n_layers;
            else
            {
                currently_trained_layer = n_layers-1;
                while(currently_trained_layer>1
                      && greedy_stages[currently_trained_layer-1] <= 0)
                    currently_trained_layer--;
            }
        }
        else
        {
            currently_trained_layer = n_layers;
        }

        build_layers_and_connections();
        build_costs();
    }
}

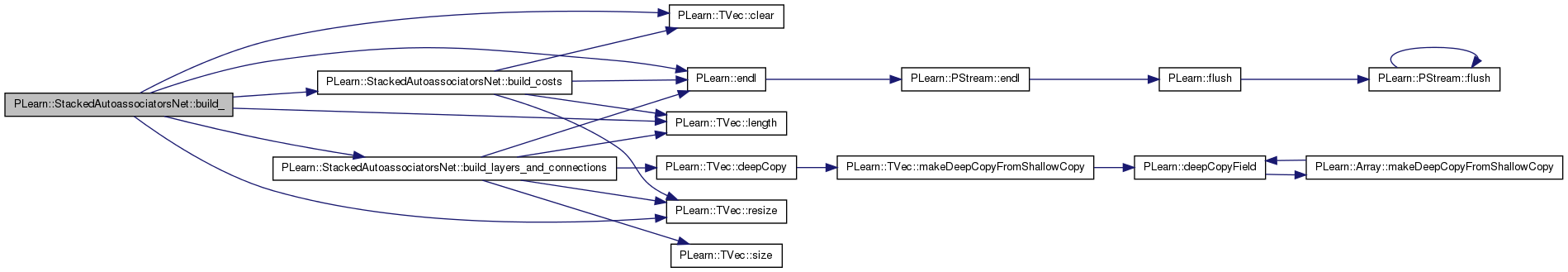

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::StackedAutoassociatorsNet::build_classification_cost ( ) [private]
void PLearn::StackedAutoassociatorsNet::build_costs ( ) [private]

Definition at line 994 of file StackedAutoassociatorsNet.cc.

References PLearn::TVec< T >::clear(), correlation_connections, PLearn::endl(), final_cost, final_cost_gradient, final_module, fine_tuning_learning_rate, i, layers, PLearn::TVec< T >::length(), n_layers, partial_costs, partial_costs_positions, PLERROR, PLearn::PLearner::random_gen, PLearn::TVec< T >::resize(), and PLearn::PLearner::targetsize_.

Referenced by build_().

{
    MODULE_LOG << "build_final_cost() called" << endl;

    if( !final_cost )
        PLERROR("StackedAutoassociatorsNet::build_costs() - \n"
                "final_cost should be provided.\n");

    final_cost_gradient.resize( final_cost->input_size );
    final_cost->setLearningRate( fine_tuning_learning_rate );

    if( !(final_cost->random_gen) )
    {
        final_cost->random_gen = random_gen;
        final_cost->forget();
    }


    if( !final_module )
        PLERROR("StackedAutoassociatorsNet::build_costs() - \n"
                "final_module should be provided.\n");

    if( layers[n_layers-1]->size != final_module->input_size )
        PLERROR("StackedAutoassociatorsNet::build_costs() - \n"
                "final_module should have an input_size of %d.\n",
                layers[n_layers-1]->size);

    if( final_module->output_size != final_cost->input_size )
        PLERROR("StackedAutoassociatorsNet::build_costs() - \n"
                "final_module should have an output_size of %d.\n",
                final_cost->input_size);

    final_module->setLearningRate( fine_tuning_learning_rate );

    if( !(final_module->random_gen) )
    {
        final_module->random_gen = random_gen;
        final_module->forget();
    }


    if(targetsize_ != 1)
        PLERROR("StackedAutoassociatorsNet::build_costs() - \n"
                "target size of %d is not supported.\n", targetsize_);

    if(partial_costs)
    {

        if( correlation_connections.length() != 0 )
            PLERROR("StackedAutoassociatorsNet::build_costs() - \n"
                    "correlation_connections cannot be used with partial costs.");

        partial_costs_positions.resize(partial_costs.length());
        partial_costs_positions.clear();
        for(int i=0; i<partial_costs.length(); i++)
        {
            if(!partial_costs[i])
                PLERROR("StackedAutoassociatorsNet::build_final_cost() - \n"
                        "partial_costs[%i] should be provided.\n",i);
            if( layers[i+1]->size != partial_costs[i]->input_size )
                PLERROR("StackedAutoassociatorsNet::build_costs() - \n"
                        "partial_costs[%i] should have an input_size of %d.\n",
                        i,layers[i+1]->size);
            if(i==0)
                partial_costs_positions[i] = n_layers-1;
            else
                partial_costs_positions[i] = partial_costs_positions[i-1]
                    + partial_costs[i-1]->costNames().length();

            if( !(partial_costs[i]->random_gen) )
            {
                partial_costs[i]->random_gen = random_gen;
                partial_costs[i]->forget();
            }
        }
    }
}

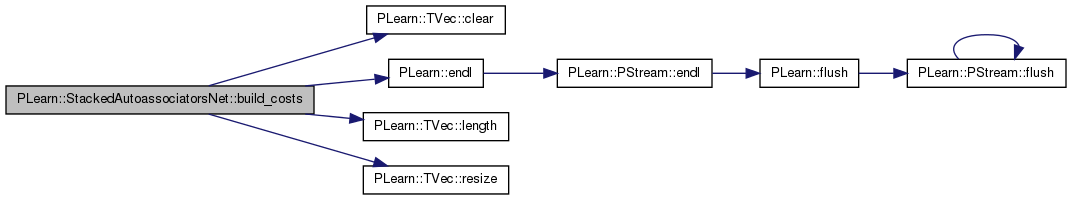

Here is the call graph for this function:

Here is the caller graph for this function:

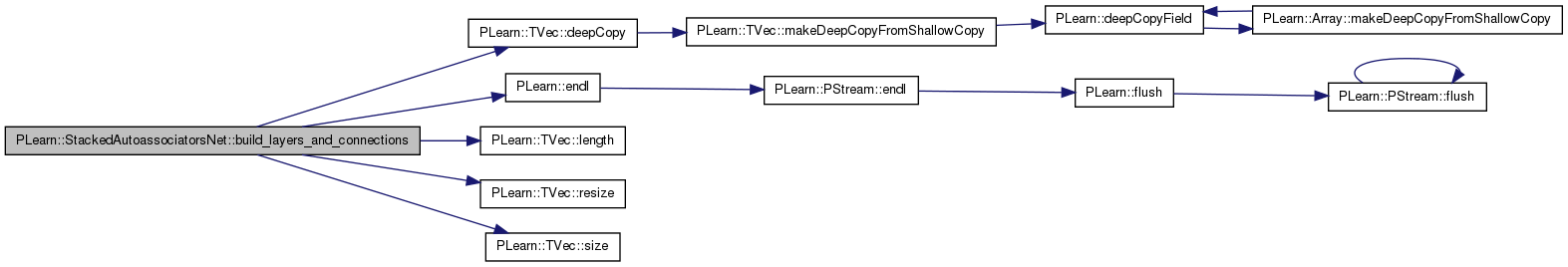

void PLearn::StackedAutoassociatorsNet::build_layers_and_connections ( ) [private]

Definition at line 667 of file StackedAutoassociatorsNet.cc.

References activation_gradients, activation_gradients_m, activations, activations_m, autoassociator_expectation_indices, binary_masks, compute_all_test_costs, connections, correlation_activation_gradients, correlation_activation_gradients_m, correlation_activations, correlation_activations_m, correlation_connections, correlation_expectation_gradients, correlation_expectation_gradients_m, correlation_expectations, correlation_expectations_m, correlation_layers, corrupted_autoassociator_expectations, PLearn::TVec< T >::deepCopy(), direct_connections, doubled_expectation_gradients, doubled_expectations, PLearn::endl(), expectation_gradients, expectation_gradients_m, expectations, expectations_m, fraction_of_masked_inputs, greedy_stages, greedy_target_connections, i, PLearn::PLearner::inputsize_, j, layers, PLearn::TVec< T >::length(), n_layers, noise_type, noisy, online, PLERROR, PLearn::PLearner::random_gen, reconstruct_hidden, reconstruction_connections, reconstruction_layers, reconstruction_weights, renoising, PLearn::TVec< T >::resize(), second_corrupted_autoassociator_expectations, PLearn::TVec< T >::size(), target_vec, target_vec_gradient, targets_vec, targets_vec_gradient, and train_representations.

Referenced by build_().

{
    MODULE_LOG << "build_layers_and_connections() called" << endl;

    if( connections.length() != n_layers-1 )
        PLERROR("StackedAutoassociatorsNet::build_layers_and_connections() - \n"
                "there should be %d connections.\n",
                n_layers-1);

    if( reconstruction_connections.length() != n_layers-1 )
        PLERROR("StackedAutoassociatorsNet::build_layers_and_connections() - \n"
                "there should be %d reconstruction connections.\n",
                n_layers-1);

    if( correlation_connections.length() != 0 &&
        correlation_connections.length() != n_layers-1 )
        PLERROR("StackedAutoassociatorsNet::build_layers_and_connections() - \n"
                "there should be either %d correlation connections or none.\n",
                n_layers-1);

    if( direct_connections.length() != 0 &&
        direct_connections.length() != n_layers-1 )
        PLERROR("StackedAutoassociatorsNet::build_layers_and_connections() - \n"
                "there should be either %d direct connections or none.\n",
                n_layers-1);

    if(reconstruct_hidden && compute_all_test_costs )
        PLERROR("StackedAutoassociatorsNet::build_layers_and_connections() - \n"
                "compute_all_test_costs option is not implemented for\n"
                "reconstruct_hidden option.");

    if( noise_type == "missing_data" || renoising || noisy > 0 )
    {
        if( correlation_connections.length() !=0 )
            PLERROR("StackedAutoassociatorsNet::build_layers_and_connections() - \n"
                    "Missing data, renoising and noisy are not implemented with correlation_connections.\n");

        if( direct_connections.length() !=0 )
            PLERROR("StackedAutoassociatorsNet::build_layers_and_connections() - \n"
                    "Missing data, renoising and noisy are not implemented with direct_connections.\n");

        if( reconstruct_hidden )
            PLERROR("StackedAutoassociatorsNet::build_layers_and_connections() - \n"
                    "Missing data, renoising and noisy are not implemented with reconstruct_hidden.\n");

        if( online )
            PLERROR("StackedAutoassociatorsNet::build_layers_and_connections() - \n"
                    "Missing data, renoising and noisy are not implemented in the online setting.\n");
    }

    if(correlation_connections.length() != 0)
    {
        if( compute_all_test_costs )
            PLERROR("StackedAutoassociatorsNet::build_layers_and_connections() - \n"
                    "compute_all_test_costs option is not implemented for\n"
                    "correlation_connections.");
        correlation_layers.resize( layers.length()-1 );
        for( int i=0 ; i<n_layers-1 ; i++ )
        {
            if( greedy_stages[i] == 0 )
            {
                CopiesMap map;
                correlation_layers[i] =
                    layers[i+1]->deepCopy(map);
            }
        }
        correlation_activations.resize( n_layers-1 );
        correlation_activations_m.resize( n_layers-1 );
        correlation_expectations.resize( n_layers-1 );
        correlation_expectations_m.resize( n_layers-1 );
        correlation_activation_gradients.resize( n_layers-1 );
        correlation_activation_gradients_m.resize( n_layers-1 );
        correlation_expectation_gradients.resize( n_layers-1 );
        correlation_expectation_gradients_m.resize( n_layers-1 );
    }

    if(layers[0]->size != inputsize_)
        PLERROR("StackedAutoassociatorsNet::build_layers_and_connections() - \n"
                "layers[0] should have a size of %d.\n",
                inputsize_);

    activations.resize( n_layers );
    activations_m.resize( n_layers );
    expectations.resize( n_layers );
    expectations_m.resize( n_layers );
    activation_gradients.resize( n_layers );
    activation_gradients_m.resize( n_layers );
    expectation_gradients.resize( n_layers );
    expectation_gradients_m.resize( n_layers );

    // If not defined, reconstruction_layers will
    // simply point to the layers vector.
    if( reconstruction_layers.length() == 0 )
        reconstruction_layers = layers;
    else
        if( reconstruction_layers.length() != layers.length()-1 &&
            reconstruction_layers.length() != layers.length() )
            PLERROR("StackedAutoassociatorsNet::build_layers_and_connections() "
                     "- \n"
                    "reconstruction_layers should have a length of layers.length-1 or layers.length, i.e: %d\n.",
                     layers.length()-1);

    for( int i=0 ; i<n_layers-1 ; i++ )
    {
        if( layers[i]->size != reconstruction_layers[i]->size )
            PLERROR("StackedAutoassociatorsNet::build_layers_and_connections() "
                     "- \n"
                    "layers[%i] should have same size of reconstruction_layers[%i], i.e: %d.\n",
                    i, i, layers[i]->size);

        if( noise_type == "missing_data")
        {
            if( layers[i]->size * 2 != connections[i]->down_size )
                PLERROR("StackedAutoassociatorsNet::build_layers_and_connections() "
                     "- \n"
                    "When noise_type==%s, connections[%i] should have a down_size "
                    "2 time the size of layers[%i], i.e: 2 * %d.\n",
                    noise_type.c_str(), i, i, layers[i]->size);

            if( reconstruction_connections[i]->up_size != layers[i]->size*2 )
            PLERROR("StackedAutoassociatorsNet::build_layers_and_connections() "
                    "- \n"
                    "When noise_type==%s, recontruction_connections[%i] should have a up_size "
                    "2 time the size of layers[%i], i.e: 2 * %d.\n",
                    noise_type.c_str(), i, i, layers[i]->size);
        }
        else
        {
            if( layers[i]->size != connections[i]->down_size )
                PLERROR("StackedAutoassociatorsNet::build_layers_and_connections() "
                     "- \n"
                    "connections[%i] should have a down_size of %d.\n",
                    i, layers[i]->size);

            if( reconstruction_connections[i]->up_size != layers[i]->size )
            PLERROR("StackedAutoassociatorsNet::build_layers_and_connections() "
                    "- \n"
                    "recontruction_connections[%i] should have a up_size of "
                    "%d.\n",
                    i, layers[i]->size);
        }

        if( connections[i]->up_size != layers[i+1]->size )
            PLERROR("StackedAutoassociatorsNet::build_layers_and_connections() "
                    "- \n"
                    "connections[%i] should have a up_size of %d.\n",
                    i, layers[i+1]->size);

        if( layers[i+1]->size != reconstruction_connections[i]->down_size )
            PLERROR("StackedAutoassociatorsNet::build_layers_and_connections() "
                    "- \n"
                    "recontruction_connections[%i] should have a down_size of "
                    "%d.\n",
                    i, layers[i+1]->size);

        if(correlation_connections.length() != 0)
        {
            if(reconstruct_hidden)
                PLERROR("StackedAutoassociatorsNet::build_layers_and_connections()"
                        " - \n"
                        "cannot use correlation_connections with reconstruct_hidden=true.\n");

            if( correlation_connections[i]->up_size != layers[i+1]->size ||
                correlation_connections[i]->down_size != layers[i+1]->size )
                PLERROR("StackedAutoassociatorsNet::build_layers_and_connections()"
                        " - \n"
                        "correlation_connections[%i] should have a up_size and "
                        "down_size of %d.\n",
                        i, layers[i+1]->size);
            correlation_activations[i].resize( layers[i+1]->size );
            correlation_expectations[i].resize( layers[i+1]->size );
            correlation_activation_gradients[i].resize( layers[i+1]->size );
            correlation_expectation_gradients[i].resize( layers[i+1]->size );
            if( !(correlation_connections[i]->random_gen) )
            {
                correlation_connections[i]->random_gen = random_gen;
                correlation_connections[i]->forget();
            }

            if( !(correlation_layers[i]->random_gen) )
            {
                correlation_layers[i]->random_gen = random_gen;
                correlation_layers[i]->forget();
            }
        }

        if(direct_connections.length() != 0)
        {
            if( online )
                PLERROR("StackedAutoassociatorsNet::build_layers_and_connections()"
                        " - \n"
                        "cannot use direct_connections in the online setting.\n");


            if(reconstruct_hidden)
                PLERROR("StackedAutoassociatorsNet::build_layers_and_connections()"
                        " - \n"
                        "cannot use direct_connections with reconstruct_hidden=true.\n");

            if( direct_connections[i]->up_size != layers[i]->size ||
                direct_connections[i]->down_size != layers[i]->size )
                PLERROR("StackedAutoassociatorsNet::build_layers_and_connections()"
                        " - \n"
                        "direct_connections[%i] should have a up_size and "
                        "down_size of %d.\n",
                        i, layers[i]->size);
            if( !(direct_connections[i]->random_gen) )
            {
                direct_connections[i]->random_gen = random_gen;
                direct_connections[i]->forget();
            }
        }

        if(greedy_target_connections.length() != 0)
        {
            if(reconstruct_hidden)
                PLERROR("StackedAutoassociatorsNet::build_layers_and_connections()"
                        " - \n"
                        "greedy_target_connections not implemented with reconstruct_hidden=true.\n");

            if( greedy_target_connections[i]->up_size != layers[i+1]->size )
                PLERROR("StackedAutoassociatorsNet::build_layers_and_connections()"
                        " - \n"
                        "greedy_target_connections[%i] should have a up_size of %d.\n",
                        i, layers[i+1]->size);
            if( !(greedy_target_connections[i]->random_gen) )
            {
                greedy_target_connections[i]->random_gen = random_gen;
                greedy_target_connections[i]->forget();
            }
        }

        if( !(layers[i]->random_gen) )
        {
            layers[i]->random_gen = random_gen;
            layers[i]->forget();
        }

        if( !(reconstruction_layers[i]->random_gen) )
        {
            reconstruction_layers[i]->random_gen = random_gen;
            reconstruction_layers[i]->forget();
        }

        if( !(connections[i]->random_gen) )
        {
            connections[i]->random_gen = random_gen;
            connections[i]->forget();
        }

        if( !(reconstruction_connections[i]->random_gen) )
        {
            reconstruction_connections[i]->random_gen = random_gen;
            reconstruction_connections[i]->forget();
        }

        activations[i].resize( layers[i]->size );
        expectations[i].resize( layers[i]->size );
        activation_gradients[i].resize( layers[i]->size );
        expectation_gradients[i].resize( layers[i]->size );
    }
    if( !(layers[n_layers-1]->random_gen) )
    {
        layers[n_layers-1]->random_gen = random_gen;
        layers[n_layers-1]->forget();
    }
    activations[n_layers-1].resize( layers[n_layers-1]->size );
    expectations[n_layers-1].resize( layers[n_layers-1]->size );
    activation_gradients[n_layers-1].resize( layers[n_layers-1]->size );
    expectation_gradients[n_layers-1].resize( layers[n_layers-1]->size );

    reconstruction_weights.resize( layers[0]->size );
    // Will be correctly resized if keep_online_representations == True
    train_representations.resize( 1 );

    // For denoising autoencoders
    doubled_expectations.resize( n_layers-1 );
    doubled_expectation_gradients.resize( n_layers-1 );
    corrupted_autoassociator_expectations.resize( n_layers-1 );
    binary_masks.resize( n_layers-1 );

    if( (noise_type == "masking_noise" || noise_type == "missing_data") && fraction_of_masked_inputs > 0 )
        autoassociator_expectation_indices.resize( n_layers-1 );

    if( renoising || noisy > 0 )
       second_corrupted_autoassociator_expectations.resize( n_layers-1 );

    for( int i=0 ; i<n_layers-1 ; i++ )
    {
        binary_masks[i].resize( layers[i]->size ); // For online learning
        if( noise_type == "missing_data" )
        {
            corrupted_autoassociator_expectations[i].resize( layers[i]->size * 2 );
            doubled_expectations[i].resize( layers[i]->size * 2 );
            doubled_expectation_gradients[i].resize( layers[i]->size * 2 );
        }
        else
        {
            corrupted_autoassociator_expectations[i].resize( layers[i]->size );
            doubled_expectations[i].resize( layers[i]->size );
            doubled_expectation_gradients[i].resize( layers[i]->size );
        }

        if( (noise_type == "masking_noise" || noise_type == "missing_data") && fraction_of_masked_inputs > 0 )
        {
            autoassociator_expectation_indices[i].resize( layers[i]->size );
            for( int j=0 ; j < autoassociator_expectation_indices[i].length() ; j++ )
                autoassociator_expectation_indices[i][j] = j;
        }

        if( renoising || noisy > 0 )
            second_corrupted_autoassociator_expectations[i].resize( layers[i]->size );
    }

    if(greedy_target_connections.length() != 0)
    {
        target_vec.resize(greedy_target_connections[0]->down_size);
        target_vec_gradient.resize(greedy_target_connections[0]->down_size);
        targets_vec.resize(n_layers-1);
        targets_vec_gradient.resize(n_layers-1);
        for( int i=0; i<n_layers-1; i++ )
        {
            targets_vec[i].resize(greedy_target_connections[0]->down_size);
            targets_vec_gradient[i].resize(greedy_target_connections[0]->down_size);
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

string PLearn::StackedAutoassociatorsNet::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 57 of file StackedAutoassociatorsNet.cc.

Referenced by train().

Here is the caller graph for this function:

void PLearn::StackedAutoassociatorsNet::computeCostsFromOutputs ( const Vec input,
const Vec output,
const Vec target,
Vec costs
) const [virtual]

Computes the costs from already computed output.

Implements PLearn::PLearner.

Definition at line 3221 of file StackedAutoassociatorsNet.cc.

References compute_all_test_costs, connections, currently_trained_layer, direct_activations, direct_connections, divide_input(), expectations, PLearn::TVec< T >::fill(), final_cost, final_cost_value, hidden_reconstruction_activations, i, layers, PLearn::TVec< T >::length(), MISSING_VALUE, n_layers, PLearn::PLearner::nTestCosts(), partial_cost_value, partial_costs, partial_costs_positions, PLearn::Profiler::pl_profile_end(), PLearn::Profiler::pl_profile_start(), reconstruct_hidden, reconstruction_activations, reconstruction_connections, reconstruction_layers, PLearn::TVec< T >::resize(), PLearn::TVec< T >::size(), and PLearn::TVec< T >::subVec().

Referenced by computeOutputsAndCosts().

{
    //Assumes that computeOutput has been called

    Profiler::pl_profile_start("StackedAutoassociatorsNet::computeCostsFromOutputs");
    costs.resize( nTestCosts() );
    costs.fill( MISSING_VALUE );

    if(compute_all_test_costs)
    {
        for(int i=0; i<currently_trained_layer-1; i++)
        {
            reconstruction_connections[ i ]->fprop( expectations[ i+1 ],
                                                    reconstruction_activations);
            if( direct_connections.length() != 0 )
            {
                direct_connections[ i ]->fprop(
                    expectations[ i ],
                    direct_activations );
                reconstruction_activations += direct_activations;
            }

            reconstruction_layers[ i ]->fprop( reconstruction_activations,
                                reconstruction_layers[ i ]->expectation);

            reconstruction_layers[ i ]->activation << reconstruction_activations;
            reconstruction_layers[ i ]->activation += reconstruction_layers[ i ]->bias;
            //reconstruction_layers[ i ]->expectation_is_up_to_date = true;
            reconstruction_layers[ i ]->setExpectationByRef( reconstruction_layers[ i ]->expectation );

            costs[i] = reconstruction_layers[ i ]->fpropNLL(expectations[ i ]);

            if( partial_costs && partial_costs[i])
            {
                partial_costs[ i ]->fprop( expectations[ i + 1],
                                           target, partial_cost_value );
                costs.subVec(partial_costs_positions[i],
                             partial_cost_value.length()) <<
                    partial_cost_value;
            }
        }
    }

    if( currently_trained_layer<n_layers )
    {
        reconstruction_connections[ currently_trained_layer-1 ]->fprop(
            output,
            reconstruction_activations);
        if( direct_connections.length() != 0 )
        {
            direct_connections[ currently_trained_layer-1 ]->fprop(
                expectations[ currently_trained_layer-1 ],
                direct_activations );
            reconstruction_activations += direct_activations;
        }

        Vec divided_reconstruction_activations(reconstruction_activations.size());
        divide_input(reconstruction_activations, divided_reconstruction_activations);

        reconstruction_layers[ currently_trained_layer-1 ]->fprop(
          divided_reconstruction_activations,
          reconstruction_layers[ currently_trained_layer-1 ]->expectation);

        reconstruction_layers[ currently_trained_layer-1 ]->activation <<
            divided_reconstruction_activations;
        reconstruction_layers[ currently_trained_layer-1 ]->activation +=
            reconstruction_layers[ currently_trained_layer-1 ]->bias;
        //reconstruction_layers[ currently_trained_layer-1 ]->expectation_is_up_to_date = true;
        reconstruction_layers[ currently_trained_layer-1 ]->setExpectationByRef(
            reconstruction_layers[ currently_trained_layer-1 ]->expectation );

        costs[ currently_trained_layer-1 ] =
            reconstruction_layers[ currently_trained_layer-1 ]->fpropNLL(
                expectations[ currently_trained_layer-1 ]);

        if(reconstruct_hidden)
        {
            connections[ currently_trained_layer-1 ]->fprop(
                reconstruction_layers[ currently_trained_layer-1 ]->expectation,
                hidden_reconstruction_activations );
            layers[ currently_trained_layer ]->fprop(
                hidden_reconstruction_activations,
                layers[ currently_trained_layer ]->expectation );
            layers[ currently_trained_layer ]->activation <<
                hidden_reconstruction_activations;
            layers[ currently_trained_layer ]->activation +=
                layers[ currently_trained_layer ]->bias;
            //layers[ currently_trained_layer ]->expectation_is_up_to_date = true;
            layers[ currently_trained_layer ]->setExpectationByRef(
                layers[ currently_trained_layer ]->expectation );
            costs[ currently_trained_layer-1 ] +=
                layers[ currently_trained_layer ]->fpropNLL(
                    output);
        }

        if( partial_costs && partial_costs[ currently_trained_layer-1 ] )
        {
            partial_costs[ currently_trained_layer-1 ]->fprop(
                output,
                target, partial_cost_value );
            costs.subVec(partial_costs_positions[currently_trained_layer-1],
                         partial_cost_value.length()) << partial_cost_value;
        }
    }
    else
    {
        final_cost->fprop( output, target, final_cost_value );
        costs.subVec(costs.length()-final_cost_value.length(),
                     final_cost_value.length()) <<
            final_cost_value;
    }
    Profiler::pl_profile_end("StackedAutoassociatorsNet::computeCostsFromOutputs");
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::StackedAutoassociatorsNet::computeOutput ( const Vec input,
Vec output
) const [virtual]

Computes the output from the input.

Reimplemented from PLearn::PLearner.

Definition at line 3092 of file StackedAutoassociatorsNet.cc.

References activations, connections, correlation_activations, correlation_connections, correlation_expectations, correlation_layers, currently_trained_layer, double_input(), doubled_expectations, expectations, final_module, i, layers, PLearn::TVec< T >::length(), n_layers, PLearn::Profiler::pl_profile_end(), and PLearn::Profiler::pl_profile_start().

{
    Profiler::pl_profile_start("StackedAutoassociatorsNet::computeOutput");
    // fprop

    expectations[0] << input;

    if(correlation_connections.length() != 0)
    {
        for( int i=0 ; i<currently_trained_layer-1; i++ )
        {
            connections[i]->fprop( expectations[i], correlation_activations[i] );
            layers[i+1]->fprop( correlation_activations[i],
                                correlation_expectations[i] );
            correlation_connections[i]->fprop( correlation_expectations[i],
                                               activations[i+1] );
            correlation_layers[i]->fprop( activations[i+1],
                                          expectations[i+1] );
        }
    }
    else
    {
        for(int i=0 ; i<currently_trained_layer-1 ; i++ )
        {
            double_input(expectations[i], doubled_expectations[i]);
            connections[i]->fprop( doubled_expectations[i], activations[i+1] );
            layers[i+1]->fprop(activations[i+1],expectations[i+1]);
        }
    }

    if( currently_trained_layer<n_layers )
    {
        if(correlation_connections.length() != 0)
        {
            connections[currently_trained_layer-1]->fprop(
                expectations[currently_trained_layer-1],
                correlation_activations[currently_trained_layer-1] );

            layers[currently_trained_layer]->fprop(
                correlation_activations[currently_trained_layer-1],
                correlation_expectations[currently_trained_layer-1] );

            correlation_connections[currently_trained_layer-1]->fprop(
                correlation_expectations[currently_trained_layer-1],
                activations[currently_trained_layer] );

            correlation_layers[currently_trained_layer-1]->fprop(
                activations[currently_trained_layer],
                output );
        }
        else
        {
            double_input(expectations[currently_trained_layer-1],
                doubled_expectations[currently_trained_layer-1]);
            connections[currently_trained_layer-1]->fprop(
                doubled_expectations[currently_trained_layer-1],
                activations[currently_trained_layer] );
            layers[currently_trained_layer]->fprop(
                activations[currently_trained_layer],
                output);
        }
    }
    else
        final_module->fprop( expectations[ currently_trained_layer - 1],
                             output );
    Profiler::pl_profile_end("StackedAutoassociatorsNet::computeOutput");
}

Here is the call graph for this function:

void PLearn::StackedAutoassociatorsNet::computeOutputs ( const Mat input,
Mat output
) const [virtual]

Computes the output from the input.

Reimplemented from PLearn::PLearner.

Definition at line 3160 of file StackedAutoassociatorsNet.cc.

References activations_m, compute_all_test_costs, PLearn::PLearner::computeOutputs(), connections, correlation_connections, currently_trained_layer, expectations_m, final_module, i, PLearn::PLearner::inputsize(), layers, PLearn::TMat< T >::length(), PLearn::TVec< T >::length(), m, n_layers, noise_type, PLearn::Profiler::pl_profile_end(), PLearn::Profiler::pl_profile_start(), and PLearn::TVec< T >::resize().

Referenced by computeOutputsAndCosts().

{
    if(correlation_connections.length() != 0
       || compute_all_test_costs
       || noise_type == "missing_data"){
        inherited::computeOutputs(input, output);
    }else{
        Profiler::pl_profile_start("StackedAutoassociatorsNet::computeOutputs");

        expectations_m[0].resize(input.length(), inputsize());
        Mat m = expectations_m[0];
        m<<input;

        for(int i=0 ; i<currently_trained_layer-1 ; i++ )
        {
            connections[i]->fprop( expectations_m[i], activations_m[i+1] );
            layers[i+1]->fprop(activations_m[i+1],expectations_m[i+1]);
        }
        if(currently_trained_layer < n_layers)
        {
            connections[currently_trained_layer-1]->fprop( expectations_m[currently_trained_layer-1],
                 activations_m[currently_trained_layer] );
            layers[currently_trained_layer]->fprop(activations_m[currently_trained_layer],
                 output);
        }
        else
        {
            final_module->fprop( expectations_m[ currently_trained_layer - 1],
                             output );
        }
        Profiler::pl_profile_end("StackedAutoassociatorsNet::computeOutputs");
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::StackedAutoassociatorsNet::computeOutputsAndCosts ( const Mat input,
const Mat target,
Mat output,
Mat costs
) const [virtual]

minibatch version of computeOutputAndCosts

Reimplemented from PLearn::PLearner.

Definition at line 3194 of file StackedAutoassociatorsNet.cc.

References compute_all_test_costs, computeCostsFromOutputs(), computeOutputs(), PLearn::PLearner::computeOutputsAndCosts(), correlation_connections, i, PLearn::TMat< T >::length(), PLearn::TVec< T >::length(), n, noise_type, PLearn::PLearner::nTestCosts(), outputsize(), PLearn::Profiler::pl_profile_end(), PLearn::Profiler::pl_profile_start(), PLASSERT, and PLearn::TMat< T >::resize().

{
    if(correlation_connections.length() != 0
       || compute_all_test_costs
       || noise_type == "missing_data"){
        inherited::computeOutputsAndCosts(input, target, output, costs);
    }else{
        Profiler::pl_profile_start("StackedAutoassociatorsNet::computeOutputsAndCosts");

        int n=input.length();
        PLASSERT(target.length()==n);
        output.resize(n,outputsize());
        costs.resize(n,nTestCosts());
        computeOutputs(input, output);
        for (int i=0;i<n;i++)
        {
            Vec in_i = input(i);
            Vec out_i = output(i);
            Vec target_i = target(i);
            Vec c_i = costs(i);
            computeCostsFromOutputs(in_i, out_i, target_i, c_i);
        }
        Profiler::pl_profile_end("StackedAutoassociatorsNet::computeOutputsAndCosts");
    }
}

Here is the call graph for this function:

void PLearn::StackedAutoassociatorsNet::corrupt_input ( const Vec input,
Vec corrupted_input,
int  layer
) [private]

Definition at line 1646 of file StackedAutoassociatorsNet.cc.

References PLearn::TVec< T >::length(), PLearn::TVec< T >::resize(), and tmp_mask.

Referenced by fantasizeKTime(), greedyStep(), onlineStep(), train(), and unsupervisedFineTuningStep().

{
    tmp_mask.resize(input.length());
    corrupt_input(input,corrupted_input,layer,tmp_mask);
}

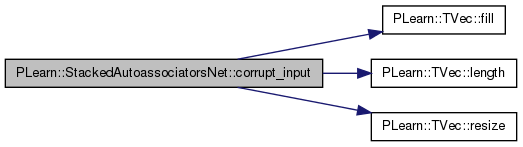

Here is the call graph for this function:

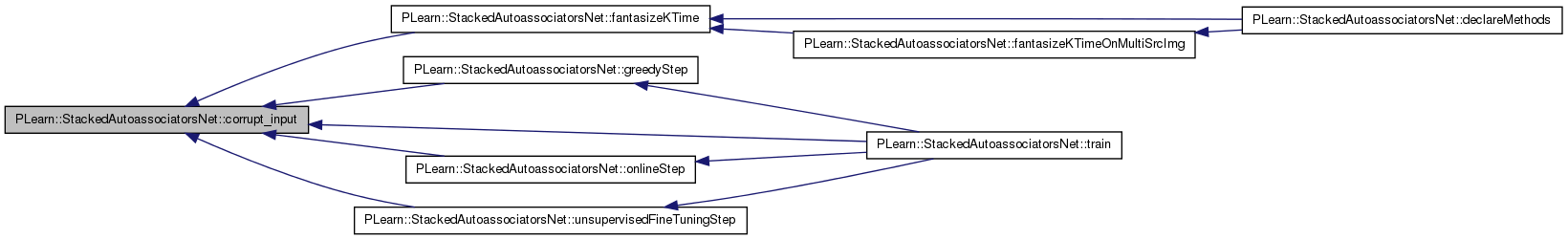

Here is the caller graph for this function:

void PLearn::StackedAutoassociatorsNet::corrupt_input ( const Vec input,
Vec corrupted_input,
int  layer,
Vec binary_mask
) [private]

Definition at line 1652 of file StackedAutoassociatorsNet.cc.

References autoassociator_expectation_indices, binary_sampling_noise_parameter, corrupted_data_weight, data_weight, expectation_means, PLearn::TVec< T >::fill(), fraction_of_masked_inputs, gaussian_std, i, j, PLearn::TVec< T >::length(), mask_input_layer_only, mask_with_mean, mask_with_pepper_salt, missing_data_method, nb_corrupted_layer, noise_type, pep_salt_zero_centered, PLERROR, prob_salt_noise, probability_of_masked_inputs, PLearn::PLearner::random_gen, reconstruction_weights, and PLearn::TVec< T >::resize().

{
    binary_mask.fill(1);
    corrupted_input.resize(input.length());
    reconstruction_weights.resize(input.length());
    reconstruction_weights.fill(1);

    if( (mask_input_layer_only && layer != 0) ||
         (!mask_input_layer_only && layer > (nb_corrupted_layer-1)) )
    {
        corrupted_input << input;
        return;
    }

    if( noise_type == "masking_noise" )
    {
        if( probability_of_masked_inputs > 0 )
        {
            if( fraction_of_masked_inputs > 0 )
                PLERROR("In StackedAutoassociatorsNet::corrupt_input():"
                        " fraction_of_masked_inputs and probability_of_masked_inputs can't be both > 0");
            if( mask_with_pepper_salt )
            {
                real pepVal = 0;
                real saltVal = 1;
                if( pep_salt_zero_centered>0. )
                {
                    pepVal = -pep_salt_zero_centered;
                    saltVal = pep_salt_zero_centered;
                }
                for( int j=0 ; j <input.length() ; j++)
                {
                    if( random_gen->uniform_sample() < probability_of_masked_inputs )
                    {
                        // Sample saltVal with probability prob_salt_noise,
                        // else pepVal
                        corrupted_input[ j ] =
                            random_gen->binomial_sample(prob_salt_noise) == 1 ?
                                saltVal:
                                pepVal;
                        reconstruction_weights[j] = corrupted_data_weight;
                    }
                    else
                    {
                        corrupted_input[ j ] = input[ j ];
                        reconstruction_weights[j] = data_weight;
                    }
                }
            }
            else if( mask_with_mean )
            {
                for( int j=0 ; j <input.length() ; j++)
                {
                    if( random_gen->uniform_sample() < probability_of_masked_inputs )
                    {
                        corrupted_input[ j ] = expectation_means[layer][ j ];
                        reconstruction_weights[j] = corrupted_data_weight;
                        binary_mask[ j ] = 0;
                    }
                    else
                    {
                        corrupted_input[ j ] = input[ j ];
                        reconstruction_weights[j] = data_weight;
                    }
                }
            }
            else
            {
                for( int j=0 ; j <input.length() ; j++)
                {
                    if( random_gen->uniform_sample() < probability_of_masked_inputs )
                    {
                        corrupted_input[ j ] = 0;
                        reconstruction_weights[j] = corrupted_data_weight;
                        binary_mask[ j ] = 0;
                    }
                    else
                    {
                        corrupted_input[ j ] = input[ j ];
                        reconstruction_weights[j] = data_weight;
                    }
                }
            }
        }
        else
        {
            corrupted_input << input;
            reconstruction_weights.fill(data_weight);
            if( fraction_of_masked_inputs > 0. )
            {
                random_gen->shuffleElements(autoassociator_expectation_indices[layer]);
                if( mask_with_pepper_salt )
                {
                    real pepVal = 0;
                    real saltVal = 1;
                    if( pep_salt_zero_centered>0. )
                    {
                        pepVal = -pep_salt_zero_centered;
                        saltVal = pep_salt_zero_centered;
                    }
                    for( int j=0 ; j < round(fraction_of_masked_inputs*input.length()) ; j++)
                    {
                        // Sample saltVal with probability prob_salt_noise,
                        // else pepVal
                        corrupted_input[ autoassociator_expectation_indices[layer][j] ] =
                            random_gen->binomial_sample(prob_salt_noise) == 1?
                                saltVal:
                                pepVal;
                        reconstruction_weights[autoassociator_expectation_indices[layer][j]] = corrupted_data_weight;
                    }
                }
                else if( mask_with_mean )
                {
                    for( int j=0 ; j < round(fraction_of_masked_inputs*input.length()) ; j++)
                    {
                        corrupted_input[ autoassociator_expectation_indices[layer][j] ] = expectation_means[layer][autoassociator_expectation_indices[layer][j]];
                        reconstruction_weights[autoassociator_expectation_indices[layer][j]] = corrupted_data_weight;
                        binary_mask[ autoassociator_expectation_indices[layer][j] ] = 0;
                    }
                }
                else
                {
                    for( int j=0 ; j < round(fraction_of_masked_inputs*input.length()) ; j++)
                    {
                        corrupted_input[ autoassociator_expectation_indices[layer][j] ] = 0;
                        reconstruction_weights[autoassociator_expectation_indices[layer][j]] = corrupted_data_weight;
                        binary_mask[ autoassociator_expectation_indices[layer][j] ] = 0;
                    }
                }
            }
        }
    }
    else if( noise_type == "binary_sampling" )
        for( int i=0; i<corrupted_input.length(); i++ )
            corrupted_input[i] = random_gen->binomial_sample((input[i]-0.5)*binary_sampling_noise_parameter+0.5);
    else if( noise_type == "gaussian" )
        for( int i=0; i<corrupted_input.length(); i++ )
            corrupted_input[i] = input[i] + random_gen->gaussian_01() * gaussian_std;
    else if( noise_type == "missing_data")
    {
        // The entry input is the doubled one according to missing_data_method
        int original_input_length = input.length() / 2;
        reconstruction_weights.resize(original_input_length);

        if(missing_data_method == "binomial_complementary" ||
           missing_data_method == "one_if_missing")
        {
            int down_missing_value = 0;
            int up_missing_value = 0;

            if(missing_data_method == "one_if_missing")
                up_missing_value = 1;

            if( probability_of_masked_inputs > 0 )
            {
                if( fraction_of_masked_inputs > 0 )
                    PLERROR("In StackedAutoassociatorsNet::corrupt_input():"
                            " fraction_of_masked_inputs and probability_of_masked_inputs can't be both > 0");
                for( int j=0 ; j<original_input_length ; j++ )
                    if( random_gen->uniform_sample() < probability_of_masked_inputs )
                    {
                        corrupted_input[ j*2 ] = down_missing_value;
                        corrupted_input[ j*2+1 ] = up_missing_value;
                        reconstruction_weights[j] = corrupted_data_weight;
                    }
                    else
                    {
                        corrupted_input[ j*2 ] = input[ j*2 ];
                        corrupted_input[ j*2+1] = input[ j*2+1 ];
                        reconstruction_weights[j] = data_weight;
                    }
            }
            else
            {
                corrupted_input << input;
                reconstruction_weights.fill(data_weight);
                if( fraction_of_masked_inputs > 0. )
                {
                    random_gen->shuffleElements(autoassociator_expectation_indices[layer]);
                    for( int j=0 ; j < round(fraction_of_masked_inputs*original_input_length) ; j++)
                    {
                        corrupted_input[ autoassociator_expectation_indices[layer][j]*2 ] = down_missing_value;
                        corrupted_input[ autoassociator_expectation_indices[layer][j]*2 + 1 ] = up_missing_value;
                        reconstruction_weights[autoassociator_expectation_indices[layer][j]] = corrupted_data_weight;
                    }
                }
            }
        }
        else
            PLERROR("In StackedAutoassociatorsNet::corrupt_input(): "
                    "missing_data_method %s not valid with noise_type %s",
                     missing_data_method.c_str(), noise_type.c_str());
    }
    else if( noise_type == "none" )
        corrupted_input << input;
    else
        PLERROR("In StackedAutoassociatorsNet::corrupt_input(): noise_type %s not valid", noise_type.c_str());
}

Here is the call graph for this function:

void PLearn::StackedAutoassociatorsNet::declareMethods ( RemoteMethodMap rmm) [static, protected]

Declare the methods that are remote-callable.

Reimplemented from PLearn::PLearner.

Definition at line 479 of file StackedAutoassociatorsNet.cc.

References PLearn::PLearner::_getRemoteMethodMap_(), PLearn::declareMethod(), fantasizeKTime(), fantasizeKTimeOnMultiSrcImg(), getTrainRepresentations(), PLearn::RemoteMethodMap::inherited(), and remote_setCurrentlyTrainedLayer().

{
    // Insert a backpointer to remote methods; note that this is different from
    // declareOptions().
    rmm.inherited(inherited::_getRemoteMethodMap_());

    declareMethod(
        rmm, "fantasizeKTime",
        &StackedAutoassociatorsNet::fantasizeKTime,
        (BodyDoc("On a trained learner, computes a codage-decodage phase (fantasize phase) through a specified number of hidden layer. From one specified source image."),
         ArgDoc ("kTime", "Number of time we want to fantasize. \n"
                 "Next input image will again be the source Image (if alwaysFromSrcImg is True) \n"
                 "or next input image will be the last fantasize image (if alwaysFromSrcImg is False), and so on for kTime.)"),
         ArgDoc ("srcImg", "Source image vector (should have same width as raws layer)"),
         ArgDoc ("sampling", "Vector of bool indicating whether or not a sampling will be done for each hidden layer\n"
                "during decodage. Its width indicates how many hidden layer will be used.)\n"
                " (should have same width as maskNoiseFractOrProb)\n"
                "smaller element of the vector correspond to lower layer"),
         ArgDoc ("maskNoiseFractOrProb", "Vector of noise fraction or probability\n"
                "(according to the one used during the learning stage)\n"
                "for each layer. (should have same width as sampling or be empty if unuseful.\n"
                "Smaller element of the vector correspond to lower layer"),
         ArgDoc ("alwaysFromSrcImg", "Booleen indicating whether each encode-decode \n"
                "steps are done from the source image (sets to True) or \n"
                "if the next input image is the preceding fantasize image obtained (sets to False). "),
         RetDoc ("Fantasize images obtained for each kTime.")));

    declareMethod(
        rmm, "fantasizeKTimeOnMultiSrcImg",
        &StackedAutoassociatorsNet::fantasizeKTimeOnMultiSrcImg,
        (BodyDoc("Call the 'fantasizeKTime' function for each source images found in the matrix 'srcImg'."),
         ArgDoc ("kTime", "Number of time we want to fantasize for each source images. \n"
                 "Next input image will again be the source Image (if alwaysFromSrcImg is True) \n"
                 "or next input image will be the last fantasize image (if alwaysFromSrcImg is False), and so on for kTime.)"),
         ArgDoc ("srcImg", "Source images matrix (should have same width as raws layer)"),
         ArgDoc ("sampling", "Vector of bool indicating whether or not a sampling will be done for each hidden layer\n"
                "during decodage. Its width indicates how many hidden layer will be used.)\n"
                " (should have same width as maskNoiseFractOrProb)\n"
                "smaller element of the vector correspond to lower layer"),
         ArgDoc ("maskNoiseFractOrProb", "Vector of noise fraction or probability\n"
                "(according to the one used during the learning stage)\n"
                "for each layer. (should have same width as sampling or be empty if unuseful.\n"
                "Smaller element of the vector correspond to lower layer"),
         ArgDoc ("alwaysFromSrcImg", "Booleen indicating whether each encode-decode \n"
                "steps are done from the source image (sets to True) or \n"
                "if the next input image is the preceding fantasize image obtained (sets to False). "),
         RetDoc ("For each source images, fantasize images obtained for each kTime.")));

    declareMethod(
        rmm, "getTrainRepresentations", &StackedAutoassociatorsNet::getTrainRepresentations,
        (BodyDoc("Returns the representations obtained during last pre-training of the current layer.\n"),
         RetDoc ("Current train representations")));

    declareMethod(
        rmm, "remote_setCurrentlyTrainedLayer", &StackedAutoassociatorsNet::remote_setCurrentlyTrainedLayer,
        (BodyDoc("Modify current_trained_layer.\n"),
        ArgDoc ("input", "Matrix of inputs."),
        RetDoc ("Outputs from each hidden layers.")));

}

Here is the call graph for this function:

void PLearn::StackedAutoassociatorsNet::declareOptions ( OptionList ol) [static, protected]

Declares the class options.

Reimplemented from PLearn::PLearner.

Definition at line 108 of file StackedAutoassociatorsNet.cc.

References batch_size, binary_sampling_noise_parameter, PLearn::OptionBase::buildoption, compute_all_test_costs, connections, correlation_connections, correlation_layers, corrupted_data_weight, data_weight, PLearn::declareOption(), PLearn::PLearner::declareOptions(), direct_connections, expectation_means, final_cost, final_module, fine_tuning_decrease_ct, fine_tuning_learning_rate, fraction_of_masked_inputs, gaussian_std, greedy_decrease_ct, greedy_learning_rate, greedy_stages, greedy_target_connections, keep_online_representations, l1_neuron_decay, l1_neuron_decay_center, layers, learnerExpdir, PLearn::OptionBase::learntoption, mask_input_layer_only, mask_input_layer_only_in_unsupervised_fine_tuning, mask_with_mean, mask_with_pepper_salt, missing_data_method, n_layers, nb_corrupted_layer, noise_type, noisy, online, partial_costs, partial_costs_weights, pep_salt_zero_centered, prob_salt_noise, probability_of_masked_inputs, probability_of_masked_target, reconstruct_hidden, reconstruction_connections, reconstruction_layers, renoising, save_learner_before_fine_tuning, train_stats_window, training_schedule, unsupervised_fine_tuning_decrease_ct, unsupervised_fine_tuning_learning_rate, unsupervised_nstages, and unsupervised_stage.

{
    declareOption(ol, "greedy_learning_rate",
                  &StackedAutoassociatorsNet::greedy_learning_rate,
                  OptionBase::buildoption,
                  "The learning rate used during the autoassociator "
                  "gradient descent training");

    declareOption(ol, "greedy_decrease_ct",
                  &StackedAutoassociatorsNet::greedy_decrease_ct,
                  OptionBase::buildoption,
                  "The decrease constant of the learning rate used during "
                  "the autoassociator\n"
                  "gradient descent training. When a hidden layer has finished "
                  "its training,\n"
                  "the learning rate is reset to it's initial value.\n");

    declareOption(ol, "fine_tuning_learning_rate",
                  &StackedAutoassociatorsNet::fine_tuning_learning_rate,
                  OptionBase::buildoption,
                  "The learning rate used during the fine tuning gradient descent");

    declareOption(ol, "fine_tuning_decrease_ct",
                  &StackedAutoassociatorsNet::fine_tuning_decrease_ct,
                  OptionBase::buildoption,
                  "The decrease constant of the learning rate used during "
                  "fine tuning\n"
                  "gradient descent.\n");

    declareOption(ol, "l1_neuron_decay",
                  &StackedAutoassociatorsNet::l1_neuron_decay,
                  OptionBase::buildoption,
                  " L1 penalty weight on the hidden layers, to encourage "
                  "sparsity during\n"
                  "the greedy unsupervised phases.\n"
                  );

    declareOption(ol, "l1_neuron_decay_center",
                  &StackedAutoassociatorsNet::l1_neuron_decay_center,
                  OptionBase::buildoption,
                  "Value around which the L1 penalty should be centered, i.e.\n"
                  "   L1(h) = | h - l1_neuron_decay_center |\n"
                  "where h are the values of the neurons.\n");

    declareOption(ol, "training_schedule",
                  &StackedAutoassociatorsNet::training_schedule,
                  OptionBase::buildoption,
                  "Number of examples to use during each phase of greedy pre-training.\n"
                  "The number of fine-tunig steps is defined by nstages.\n");

    declareOption(ol, "layers", &StackedAutoassociatorsNet::layers,
                  OptionBase::buildoption,
                  "The layers of units in the network. The first element\n"
                  "of this vector should be the input layer and the\n"
                  "subsequent elements should be the hidden layers. The\n"
                  "output layer should not be included in layers.\n");

    declareOption(ol, "reconstruction_layers", &StackedAutoassociatorsNet::reconstruction_layers,
                  OptionBase::buildoption,
                  "The reconstruction layers in the network (if different than encodage layers.\n"
                  "The first element of this vector should be the layer for the input layer reconstruction and the\n"
                  "subsequent elements should be the layer for the reconstruction of hidden layers.\n");

    declareOption(ol, "connections", &StackedAutoassociatorsNet::connections,
                  OptionBase::buildoption,
                  "The weights of the connections between the layers");

    declareOption(ol, "reconstruction_connections",
                  &StackedAutoassociatorsNet::reconstruction_connections,
                  OptionBase::buildoption,
                  "The weights of the reconstruction connections between the "
                  "layers");

    declareOption(ol, "correlation_connections",
                  &StackedAutoassociatorsNet::correlation_connections,
                  OptionBase::buildoption,
                  "Optional weights to capture correlation and anti-correlation\n"
                  "in the hidden layers. They must have the same input and\n"
                  "output sizes, compatible with their corresponding layers.");

    declareOption(ol, "direct_connections",
                  &StackedAutoassociatorsNet::direct_connections,
                  OptionBase::buildoption,
                  "Optional weights from each inputs to all other inputs'\n"
                  "reconstruction, which can capture simple (linear or log-linear)\n"
                  "correlations between inputs.");

    declareOption(ol, "final_module", &StackedAutoassociatorsNet::final_module,
                  OptionBase::buildoption,
                  "Module that takes as input the output of the last layer\n"
                  "(layers[n_layers-1), and feeds its output to final_cost\n"
                  "which defines the fine-tuning criteria.\n"
                 );

    declareOption(ol, "final_cost", &StackedAutoassociatorsNet::final_cost,
                  OptionBase::buildoption,
                  "The cost function to be applied on top of the neural network\n"
                  "(i.e. at the output of final_module). Its gradients will be \n"
                  "backpropagated to final_module and then backpropagated to\n"
                  "the layers.\n"
                  );

    declareOption(ol, "partial_costs", &StackedAutoassociatorsNet::partial_costs,
                  OptionBase::buildoption,
                  "Corresponding additional supervised cost function to be "
                  "applied on \n"
                  "top of each hidden layer during the autoassociator "
                  "training stages. \n"
                  "The gradient for these costs are not backpropagated to "
                  "previous layers.\n"
        );

    declareOption(ol, "batch_size", &StackedAutoassociatorsNet::batch_size,
                  OptionBase::buildoption,
                  "Training batch size (1=stochastic learning, 0=full batch"
                  " learning)");

    declareOption(ol, "online", &StackedAutoassociatorsNet::online,
                  OptionBase::buildoption,
                  "If true then all unsupervised training stages (as well as\n"
                  "the fine-tuning stage) are done simultaneously.\n");

    declareOption(ol, "partial_costs_weights",
                  &StackedAutoassociatorsNet::partial_costs_weights,
                  OptionBase::buildoption,
                  "Relative weights of the partial costs. If not defined,\n"
                  "weights of 1 will be assumed for all partial costs.\n"
        );

    declareOption(ol, "greedy_target_connections",
                  &StackedAutoassociatorsNet::greedy_target_connections,
                  OptionBase::buildoption,
                  "Optional target connections during greedy training..\n"
                  "They connect the target with the hidden layer from which\n"
                  "the autoassociator's cost (including partial cost) is computed\n"
                  "(only during training).\n"
                  "Currently works only if target is a class index.\n"
        );

    declareOption(ol, "compute_all_test_costs",
                  &StackedAutoassociatorsNet::compute_all_test_costs,
                  OptionBase::buildoption,
                  "Indication that, at test time, all costs for all layers \n"
                  "(up to the currently trained layer) should be computed.\n"
        );

    declareOption(ol, "reconstruct_hidden",
                  &StackedAutoassociatorsNet::reconstruct_hidden,
                  OptionBase::buildoption,
                  "Indication that the autoassociators are also trained to\n"
                  "reconstruct their hidden layers (inspired from CD1 in an RBM).\n"
        );

    declareOption(ol, "noise_type",
                  &StackedAutoassociatorsNet::noise_type,
                  OptionBase::buildoption,
                  "Type of noise that corrupts the autoassociators input. "
                  "Choose among:\n"
                  " - \"missing_data\"\n"
                  " - \"masking_noise\"\n"
                  " - \"binary_sampling\"\n"
                  " - \"gaussian\"\n"
                  " - \"none\"\n"
        );

    declareOption(ol, "missing_data_method",
                  &StackedAutoassociatorsNet::missing_data_method,
                  OptionBase::buildoption,
                  "Method used to fill the double_input vector for missing_data noise type."
                  "Choose among:\n"
                  " - \"binomial_complementary\"\n"
                  " - \"one_if_missing\""
        );

    declareOption(ol, "corrupted_data_weight",
                  &StackedAutoassociatorsNet::corrupted_data_weight,
                  OptionBase::buildoption,
                  "Weight owned by a corrupted or missing data when"
                  "backpropagating the gradient of reconstruction cost.\n"
        );

    declareOption(ol, "data_weight",
                  &StackedAutoassociatorsNet::data_weight,
                  OptionBase::buildoption,
                  "Weight owned by a data not corrupted when"
                  "backpropagating the gradient of reconstruction cost.\n"
        );

    declareOption(ol, "fraction_of_masked_inputs",
                  &StackedAutoassociatorsNet::fraction_of_masked_inputs,
                  OptionBase::buildoption,
                  "Random fraction of the autoassociators' input components that\n"
                  "masked, i.e. unsused to reconstruct the input.\n"
        );

    declareOption(ol, "probability_of_masked_inputs",
                  &StackedAutoassociatorsNet::probability_of_masked_inputs,
                  OptionBase::buildoption,
                  "Probability of masking each input component. Either this "
                  "option.\n"
                  "or fraction_of_masked_inputs should be > 0.\n"
        );

    declareOption(ol, "probability_of_masked_target",
                  &StackedAutoassociatorsNet::probability_of_masked_target,
                  OptionBase::buildoption,
                  "Probability of masking the target, when using greedy_target_connections.\n"
        );

    declareOption(ol, "mask_with_mean",
                  &StackedAutoassociatorsNet::mask_with_mean,
                  OptionBase::buildoption,
                  "Indication that inputs should be masked with the "
                  "training set mean of that component.\n"
        );

    declareOption(ol, "mask_with_pepper_salt",
                  &StackedAutoassociatorsNet::mask_with_pepper_salt,
                  OptionBase::buildoption,
                  "Indication that inputs should be masked with "
                  "0 or 1 according to prob_salt_noise.\n"
        );

    declareOption(ol, "pep_salt_zero_centered",
                  &StackedAutoassociatorsNet::pep_salt_zero_centered,
                  OptionBase::buildoption,
                  " Indicate if the mask is zero centered (>0) or not (==0). "
                  " If equal 0 (not centered)"
                  " then pepVal is 0 and saltVal is 1."
                  " If is greater than 0 (centered),"
                  " then pepVal is -pep_salt_zero_centered and "
                  " saltVal is pep_salt_zero_centered.\n"
        );

    declareOption(ol, "renoising",
                  &StackedAutoassociatorsNet::renoising,
                  OptionBase::buildoption,
                  "Indication that the autoassociator will try to"
                  "'reconstruct' _another_ corrupted version of the input"
                  "(instead of the input itself),"
                  "from an initial encoded corrupted version of the input.\n"
        );

    declareOption(ol, "noisy",
                  &StackedAutoassociatorsNet::noisy,
                  OptionBase::buildoption,
                  "Indication that example are corrupted before using them for a particular training."
                  "Note that the original example are used for any test."
                  "Choose among:\n"
                  "0 : no example noisy\n"
                  "1 : noisy applied before unsup. pre-training (basic autoassociator will be used (no denoising).\n"
                  "2 : noisy applied before unsup. pre-training and before supervised fine-tuning.\n"
        );


    declareOption(ol, "prob_salt_noise",
                  &StackedAutoassociatorsNet::prob_salt_noise,
                  OptionBase::buildoption,
                  "Probability that we mask the input by 1 instead of 0.\n"
        );

    declareOption(ol, "gaussian_std",
                  &StackedAutoassociatorsNet::gaussian_std,
                  OptionBase::buildoption,
                  "Standard deviation of Gaussian noise.\n"
        );

    declareOption(ol, "binary_sampling_noise_parameter",
                  &StackedAutoassociatorsNet::binary_sampling_noise_parameter,
                  OptionBase::buildoption,
                  "Parameter \tau for corrupted input sampling:\n"
                  "  \tilde{x}_k ~ B((x_k - 0.5) \tau + 0.5)\n"
        );

    declareOption(ol, "unsupervised_nstages",
                  &StackedAutoassociatorsNet::unsupervised_nstages,
                  OptionBase::buildoption,
                  "Number of samples to use for unsupervised fine-tuning.\n");

    declareOption(ol, "unsupervised_fine_tuning_learning_rate",
                  &StackedAutoassociatorsNet::unsupervised_fine_tuning_learning_rate,
                  OptionBase::buildoption,
                  "The learning rate used during the unsupervised "
                  "fine tuning gradient descent");

    declareOption(ol, "unsupervised_fine_tuning_decrease_ct",
                  &StackedAutoassociatorsNet::unsupervised_fine_tuning_decrease_ct,
                  OptionBase::buildoption,
                  "The decrease constant of the learning rate used during\n"
                  "unsupervised fine tuning gradient descent.\n");

    declareOption(ol, "nb_corrupted_layer",
                  &StackedAutoassociatorsNet::nb_corrupted_layer,
                  OptionBase::buildoption,
                  "Indicate how many layers should be corrupted,\n"
                  "starting with the input one,\n"
                  "during greedy layer-wise learning.\n");

    declareOption(ol, "mask_input_layer_only",
                  &StackedAutoassociatorsNet::mask_input_layer_only,
                  OptionBase::buildoption,
                  "Indication that only the input layer should be corrupted\n"
                  "during greedy layer-wise learning.\n");

    declareOption(ol, "mask_input_layer_only_in_unsupervised_fine_tuning",
                  &StackedAutoassociatorsNet::mask_input_layer_only_in_unsupervised_fine_tuning,
                  OptionBase::buildoption,
                  "Indication that only the input layer should be masked\n"
                  "during unsupervised fine-tuning.\n");

    declareOption(ol, "train_stats_window",
                  &StackedAutoassociatorsNet::train_stats_window,
                  OptionBase::buildoption,
                  "The number of samples to use to compute training stats.\n"
                  "-1 (default) means the number of training samples.\n");


    declareOption(ol, "learnerExpdir",
                  &StackedAutoassociatorsNet::learnerExpdir,
                  OptionBase::buildoption,
                  "Experiment directory where the learner will be save\n"
                  "if save_learner_before_fine_tuning is true."
        );

    declareOption(ol, "save_learner_before_fine_tuning",
                  &StackedAutoassociatorsNet::save_learner_before_fine_tuning,
                  OptionBase::buildoption,
                  "Saves the learner before the supervised fine-tuning."
        );

    declareOption(ol, "keep_online_representations",
                  &StackedAutoassociatorsNet::keep_online_representations,
                  OptionBase::buildoption,
                  "Keep trace of the representations obtained during an "
                  "unsupervised training phase.\n"
        );

    declareOption(ol, "greedy_stages",
                  &StackedAutoassociatorsNet::greedy_stages,
                  OptionBase::learntoption,
                  "Number of training samples seen in the different greedy "
                  "phases.\n"
        );

    declareOption(ol, "n_layers", &StackedAutoassociatorsNet::n_layers,
                  OptionBase::learntoption,
                  "Number of layers"
        );

    declareOption(ol, "unsupervised_stage",
                  &StackedAutoassociatorsNet::unsupervised_stage,
                  OptionBase::learntoption,
                  "Number of samples visited so far during unsupervised "
                  "fine-tuning.\n");

    declareOption(ol, "correlation_layers",
                  &StackedAutoassociatorsNet::correlation_layers,
                  OptionBase::learntoption,
                  "Hidden layers for the correlation connections"
        );

    declareOption(ol, "expectation_means",
                  &StackedAutoassociatorsNet::expectation_means,
                  OptionBase::learntoption,
                  "Mean of layers on the training set for each layer"
        );

    // Now call the parent class' declareOptions
    inherited::declareOptions(ol);
}

Here is the call graph for this function:

static const PPath& PLearn::StackedAutoassociatorsNet::declaringFile ( ) [inline, static]

Reimplemented from PLearn::PLearner.

Definition at line 353 of file StackedAutoassociatorsNet.h.

:

StackedAutoassociatorsNet * PLearn::StackedAutoassociatorsNet::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::PLearner.

Definition at line 57 of file StackedAutoassociatorsNet.cc.

void PLearn::StackedAutoassociatorsNet::divide_input ( const Vec input,
Vec divided_input
) const [private]

Useful in case that noise_type == "missing_data", returns the input if it's not the case.

Definition at line 1896 of file StackedAutoassociatorsNet.cc.

References i, PLearn::TVec< T >::length(), missing_data_method, noise_type, PLERROR, PLearn::TVec< T >::resize(), and PLearn::TVec< T >::size().

Referenced by computeCostsFromOutputs(), fantasizeKTime(), fineTuningStep(), and greedyStep().

{
    if( noise_type == "missing_data" )
    {
        divided_input.resize(input.length()/2);
        for( int i=0; i<divided_input.size(); i++ )
        {
            if( missing_data_method == "binomial_complementary" )
                divided_input[i] = input[i*2] - input[i*2+1];
            else if( missing_data_method == "one_if_missing" )
                divided_input[i] = input[i*2];
            else
                PLERROR("In StackedAutoassociatorsNet::divide_input(): "
                        "missing_data_method %s not valid", missing_data_method.c_str());
        }
    }
    else
    {
        divided_input.resize(input.length());
        divided_input << input;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::StackedAutoassociatorsNet::double_input ( const Vec input,
Vec doubled_input,
bool  double_grad = false
) const [private]

Useful in case that noise_type == "missing_data", returns the input if it's not the case.

Definition at line 1862 of file StackedAutoassociatorsNet.cc.

References i, PLearn::TVec< T >::length(), missing_data_method, noise_type, PLERROR, PLearn::TVec< T >::resize(), and PLearn::TVec< T >::size().

Referenced by computeOutput(), fantasizeKTime(), fineTuningStep(), and greedyStep().

{
    if( noise_type == "missing_data" )
    {
        doubled_input.resize(input.length()*2);
        for( int i=0; i<input.size(); i++ )
        {
            doubled_input[i*2] = input[i];
            if( missing_data_method == "binomial_complementary")
            {
                if( double_grad )
                    doubled_input[i*2+1] = - input[i];
                else
                    doubled_input[i*2+1] = 1 - input[i];
            }
            else if( missing_data_method == "one_if_missing" )
                doubled_input[i*2+1] = 0;
            else
                PLERROR("In StackedAutoassociatorsNet::double_input(): "
                "missing_data_method %s not valid",missing_data_method.c_str());
        }
    }
    else
    {
        doubled_input.resize(input.length());
        doubled_input << input;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

TVec< Vec > PLearn::StackedAutoassociatorsNet::fantasizeKTime ( const int  KTime,
const Vec srcImg,
const Vec sample,
const Vec maskNoiseFractOrProb,
bool  alwaysFromSrcImg
) [private]

Supposes the learner is already trained.

Allows a codage-decodage ktime, each time from the same source image (alwaysFromSrcImg==True) or each time from the last fantasize image (alwaysFromSrcImg==False). Returns the source image followed by the kTime obtained 'fantasize' images. You can choose how many layers to use (including raws layer) by defining the size of sample. You can corrupt layers differently during the codage phase by defining maskNoiseFractOrProb You can apply a binary sampling (1) or not (0) differently for each layer during the decode phase Lower element in sample and maskNoiseFractOrProb correspond to lower layer. Example using 3 hidden layers of a learner: maskNoiseFractOrProb = [0.1,0.25,0] // noise applied on raws layer and first hidden layer. sample = [1,0,0] // sampling only before reconstruction of the raws input.

Definition at line 3429 of file StackedAutoassociatorsNet.cc.

References activations, autoassociator_expectation_indices, connections, corrupt_input(), corrupted_autoassociator_expectations, divide_input(), double_input(), doubled_expectations, expectations, fraction_of_masked_inputs, i, j, layers, PLearn::TVec< T >::length(), mask_input_layer_only, n_layers, nb_corrupted_layer, noise_type, PLERROR, probability_of_masked_inputs, PLearn::PLearner::random_gen, reconstruction_activations, reconstruction_connections, reconstruction_layers, PLearn::TVec< T >::resize(), and PLearn::TVec< T >::size().

Referenced by declareMethods(), and fantasizeKTimeOnMultiSrcImg().

{
    bool bFractOrProbUseful=false;

    // Noise type that needs fraction_of_masked_inputs or prob_masked_inputs
    if(noise_type == "masking_noise" || noise_type == "missing_data")
        bFractOrProbUseful=true;

    if(bFractOrProbUseful && maskNoiseFractOrProb.size() == 0)
        PLERROR("In StackedAutoassociatorsNet::fantasize():"
        "maskNoiseFractOrProb should be defined because fraction_of_masked_inputs"
        " or prob_masked_inputs have been used during the learning stage.");

    if(bFractOrProbUseful && maskNoiseFractOrProb.size() != sample.size())
        PLERROR("In StackedAutoassociatorsNet::fantasize():"
        "Size of maskNoiseFractOrProb should be equal to sample's size.");

    if(sample.size() > n_layers-1)
        PLERROR("In StackedAutoassociatorsNet::fantasize():"
        " Size of sample (%i) should be <= "
        "number of hidden layer (%i).",sample.size(), n_layers-1);

    bool bFraction_masked_input = true;
    bool autoassociator_expectation_indices_temp_initialized = false;

    // Number of hidden layer to be 'covered'
    int n_hlayers_used = sample.size();

    // Save actual value
    real old_fraction_masked_inputs = fraction_of_masked_inputs;
    real old_prob_masked_inputs = probability_of_masked_inputs;
    bool old_mask_input_layer_only = mask_input_layer_only;
    int  old_nb_corrupted_layer = nb_corrupted_layer;

    // New values for fantasize
    mask_input_layer_only = false;
    nb_corrupted_layer = n_hlayers_used;

    if(bFractOrProbUseful)
    {
        if(old_prob_masked_inputs > 0.)
            bFraction_masked_input = false;
        else
            if(autoassociator_expectation_indices.size() == 0)
            {
                autoassociator_expectation_indices.resize( n_hlayers_used );
                autoassociator_expectation_indices_temp_initialized = true;
            }
    }

    TVec<Vec> fantaImagesObtained(KTime+1);

    fantaImagesObtained[0].resize(srcImg.size());
    fantaImagesObtained[0] << srcImg;
    expectations[0] << srcImg;

    // Do fantasize k time.
    for( int k=0 ; k<KTime ; k++ )
    {
        fantaImagesObtained[k+1].resize(srcImg.size());
        for( int i=0 ; i<n_hlayers_used; i++ )
        {
            // Initialisation made only at the first loop.
            if(k == 0)
            {
                // initialize autoassociator_expectation_indices if not already done
                // considering new fraction_of_masked_inputs possibly different (not
                // equal to zero) from the one used during the training.
                if(autoassociator_expectation_indices_temp_initialized)
                {
                    autoassociator_expectation_indices[i].resize( layers[i]->size );
                    for( int j=0 ; j < autoassociator_expectation_indices[i].length() ; j++ )
                         autoassociator_expectation_indices[i][j] = j;
                }
            }

            if(bFractOrProbUseful)
            {
                if(bFraction_masked_input)
                    fraction_of_masked_inputs = maskNoiseFractOrProb[i];
                else
                    probability_of_masked_inputs = maskNoiseFractOrProb[i];
            }
            double_input(expectations[i], doubled_expectations[i]);
            corrupt_input(
                doubled_expectations[i],
                corrupted_autoassociator_expectations[i], i);
            connections[i]->fprop(
                corrupted_autoassociator_expectations[i],
                activations[i+1] );
            layers[i+1]->fprop(activations[i+1],expectations[i+1]);
        }

        for( int i=n_hlayers_used-1 ; i>=0; i-- )
        {
            // Binomial sample
            if( sample[i] == 1 )
                for( int j=0; j<expectations[i+1].size(); j++ )
                    expectations[i+1][j] = random_gen->binomial_sample(expectations[i+1][j]);

            reconstruction_connections[i]->fprop(
                expectations[i+1],
                reconstruction_activations );

            Vec divided_reconstruction_activations(reconstruction_activations.size());
            divide_input(reconstruction_activations, divided_reconstruction_activations);

            reconstruction_layers[i]->fprop(divided_reconstruction_activations, expectations[i]);
        }
        fantaImagesObtained[k+1] << expectations[0];
        if( alwaysFromSrcImg )
            expectations[0] << srcImg;
    }

    if(bFractOrProbUseful)
    {
        fraction_of_masked_inputs = old_fraction_masked_inputs;
        probability_of_masked_inputs = old_prob_masked_inputs;
    }

    mask_input_layer_only = old_mask_input_layer_only;
    nb_corrupted_layer = old_nb_corrupted_layer;

    return fantaImagesObtained;
}

Here is the call graph for this function:

Here is the caller graph for this function:

TVec< Vec > PLearn::StackedAutoassociatorsNet::fantasizeKTimeOnMultiSrcImg ( const int  KTime,
const Mat srcImg,
const Vec sample,
const Vec maskNoiseFractOrProb,
bool  alwaysFromSrcImg
) [private]

Same as fantasizeKTime, but does it on different source images.

Definition at line 3413 of file StackedAutoassociatorsNet.cc.

References PLearn::concat(), fantasizeKTime(), i, PLearn::TMat< T >::length(), and n.

Referenced by declareMethods().

{
    int n=srcImg.length();
    TVec<Vec> output(0);

    for( int i=0; i<n; i++ )
    {
        const Vec img_i = srcImg(i);
        TVec<Vec> outputTmp;
        outputTmp = fantasizeKTime(KTime, img_i, sample, maskNoiseFractOrProb, alwaysFromSrcImg);
        output = concat(output, outputTmp);
    }

    return output;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::StackedAutoassociatorsNet::fineTuningStep ( const Mat inputs,
const Mat targets,
Mat train_costs
)

Definition at line 2490 of file StackedAutoassociatorsNet.cc.

References PLCHECK_MSG.

{
    PLCHECK_MSG(false, "Mini-batch not implemented yet.");
}
void PLearn::StackedAutoassociatorsNet::fineTuningStep ( const Vec input,
const Vec target,
Vec train_costs
)

Definition at line 2388 of file StackedAutoassociatorsNet.cc.

References activation_gradients, activations, connections, correlation_activation_gradients, correlation_activations, correlation_connections, correlation_expectation_gradients, correlation_expectations, correlation_layers, divide_input(), double_input(), doubled_expectation_gradients, doubled_expectations, expectation_gradients, expectations, final_cost, final_cost_gradient, final_cost_input, final_cost_value, final_module, i, layers, PLearn::TVec< T >::length(), n_layers, PLearn::Profiler::pl_profile_end(), PLearn::Profiler::pl_profile_start(), and PLearn::TVec< T >::subVec().

Referenced by train().

{
    Profiler::pl_profile_start("StackedAutoassociatorsNet::fineTuningStep");
    Profiler::pl_profile_start("StackedAutoassociatorsNet::fineTuningStep fprop");

    // fprop
    expectations[0] << input;

    if(correlation_connections.length() != 0)
    {
        for( int i=0 ; i<n_layers-1; i++ )
        {
            connections[i]->fprop( expectations[i], correlation_activations[i] );
            layers[i+1]->fprop( correlation_activations[i],
                                correlation_expectations[i] );
            correlation_connections[i]->fprop( correlation_expectations[i],
                                               activations[i+1] );
            correlation_layers[i]->fprop( activations[i+1],
                                          expectations[i+1] );
        }
    }
    else
    {
        for( int i=0 ; i<n_layers-1; i++ )
        {
            double_input(expectations[i], doubled_expectations[i]);
            Profiler::pl_profile_start("StackedAutoassociatorsNet::fineTuningStep fprop connection");
            connections[i]->fprop( doubled_expectations[i], activations[i+1] );
            Profiler::pl_profile_end("StackedAutoassociatorsNet::fineTuningStep fprop connection");
            layers[i+1]->fprop(activations[i+1],expectations[i+1]);
        }
    }
    Profiler::pl_profile_end("StackedAutoassociatorsNet::fineTuningStep fprop");
    final_module->fprop( expectations[ n_layers-1 ],
                         final_cost_input );
    final_cost->fprop( final_cost_input, target, final_cost_value );

    train_costs.subVec(train_costs.length()-final_cost_value.length(),
                       final_cost_value.length()) <<
        final_cost_value;

    final_cost->bpropUpdate( final_cost_input, target,
                             final_cost_value[0],
                             final_cost_gradient );
    final_module->bpropUpdate( expectations[ n_layers-1 ],
                               final_cost_input,
                               expectation_gradients[ n_layers-1 ],
                               final_cost_gradient );

    Profiler::pl_profile_start("StackedAutoassociatorsNet::fineTuningStep bpropUpdate");
    if( correlation_connections.length() != 0 )
    {
        for( int i=n_layers-1 ; i>0 ; i-- )
        {
            correlation_layers[i-1]->bpropUpdate(
                activations[i],
                expectations[i],
                activation_gradients[i],
                expectation_gradients[i] );

            correlation_connections[i-1]->bpropUpdate(
                correlation_expectations[i-1],
                activations[i],
                correlation_expectation_gradients[i-1],
                activation_gradients[i] );

            layers[i]->bpropUpdate( correlation_activations[i-1],
                                    correlation_expectations[i-1],
                                    correlation_activation_gradients[i-1],
                                    correlation_expectation_gradients[i-1] );

            connections[i-1]->bpropUpdate( expectations[i-1],
                                           correlation_activations[i-1],
                                           expectation_gradients[i-1],
                                           correlation_activation_gradients[i-1] );
        }
    }
    else
    {
        for( int i=n_layers-1 ; i>0 ; i-- )
        {
            layers[i]->bpropUpdate( activations[i],
                                    expectations[i],
                                    activation_gradients[i],
                                    expectation_gradients[i] );

            Profiler::pl_profile_start("StackedAutoassociatorsNet::fineTuningStep bpropUpdate connection");
            connections[i-1]->bpropUpdate( doubled_expectations[i-1],
                                           activations[i],
                                           doubled_expectation_gradients[i-1],
                                           activation_gradients[i] );

            Profiler::pl_profile_end("StackedAutoassociatorsNet::fineTuningStep bpropUpdate connection");
            divide_input( doubled_expectation_gradients[i-1], expectation_gradients[i-1] );
        }
    }
    Profiler::pl_profile_end("StackedAutoassociatorsNet::fineTuningStep bpropUpdate");
    Profiler::pl_profile_end("StackedAutoassociatorsNet::fineTuningStep");
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::StackedAutoassociatorsNet::forget ( ) [virtual]

(Re-)initializes the PLearner in its fresh state (that state may depend on the 'seed' option) and sets 'stage' back to 0 (this is the stage of a fresh learner!).

(Re-)initialize the PLearner in its fresh state (that state may depend on the 'seed' option) and sets 'stage' back to 0 (this is the stage of a fresh learner!)

A typical forget() method should do the following:

  • call inherited::forget() to initialize its random number generator with the 'seed' option
  • initialize the learner's parameters, using this random generator
  • stage = 0

Reimplemented from PLearn::PLearner.

Definition at line 1169 of file StackedAutoassociatorsNet.cc.

References PLearn::TVec< T >::clear(), connections, correlation_connections, correlation_layers, direct_connections, final_cost, final_module, PLearn::PLearner::forget(), greedy_stages, greedy_target_connections, i, layers, PLearn::TVec< T >::length(), n_layers, partial_costs, reconstruction_connections, reconstruction_layers, PLearn::PLearner::stage, and unsupervised_stage.

{

    inherited::forget();

    for( int i=0 ; i<n_layers ; i++ )
        layers[i]->forget();

    for( int i=0 ; i<n_layers-1 ; i++ )
    {
        reconstruction_layers[i]->forget();
        connections[i]->forget();
        reconstruction_connections[i]->forget();
    }

    final_module->forget();
    final_cost->forget();

    for( int i=0 ; i<partial_costs.length() ; i++ )
        if( partial_costs[i] )
            partial_costs[i]->forget();

    if(correlation_connections.length() != 0)
    {
        for( int i=0 ; i<n_layers-1 ; i++)
        {
            correlation_connections[i]->forget();
            correlation_layers[i]->forget();
        }
    }

    if(direct_connections.length() != 0)
    {
        for( int i=0 ; i<n_layers-1 ; i++)
            direct_connections[i]->forget();
    }

    for( int i=0; i<greedy_target_connections.length(); i++ )
        greedy_target_connections[i]->forget();

    stage = 0;
    unsupervised_stage = 0;
    greedy_stages.clear();
}

Here is the call graph for this function:

OptionList & PLearn::StackedAutoassociatorsNet::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 57 of file StackedAutoassociatorsNet.cc.

OptionMap & PLearn::StackedAutoassociatorsNet::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 57 of file StackedAutoassociatorsNet.cc.

RemoteMethodMap & PLearn::StackedAutoassociatorsNet::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 57 of file StackedAutoassociatorsNet.cc.

TVec< string > PLearn::StackedAutoassociatorsNet::getTestCostNames ( ) const [virtual]

Returns the names of the costs computed by computeCostsFromOutpus (and thus the test method).

Implements PLearn::PLearner.

Definition at line 3336 of file StackedAutoassociatorsNet.cc.

References PLearn::TVec< T >::append(), final_cost, i, j, layers, PLearn::TVec< T >::length(), partial_costs, PLearn::TVec< T >::push_back(), PLearn::TVec< T >::size(), and PLearn::tostring().

{
    // Return the names of the costs computed by computeCostsFromOutputs
    // (these may or may not be exactly the same as what's returned by
    // getTrainCostNames).

    TVec<string> cost_names(0);

    for( int i=0; i<layers.size()-1; i++)
        cost_names.push_back("reconstruction_error_" + tostring(i+1));

    for( int i=0 ; i<partial_costs.size() ; i++ )
    {
        TVec<string> names = partial_costs[i]->costNames();
        for(int j=0; j<names.length(); j++)
            cost_names.push_back("partial" + tostring(i) + "." +
                names[j]);
    }

    cost_names.append( final_cost->costNames() );

    return cost_names;
}

Here is the call graph for this function:

TVec< string > PLearn::StackedAutoassociatorsNet::getTrainCostNames ( ) const [virtual]

Returns the names of the objective costs that the train method computes and for which it updates the VecStatsCollector train_stats.

Implements PLearn::PLearner.

Definition at line 3360 of file StackedAutoassociatorsNet.cc.

References PLearn::TVec< T >::append(), final_cost, i, j, layers, PLearn::TVec< T >::length(), partial_costs, PLearn::TVec< T >::push_back(), PLearn::TVec< T >::size(), and PLearn::tostring().

Referenced by train().

{
    TVec<string> cost_names(0);

    for( int i=0; i<layers.size()-1; i++)
        cost_names.push_back("reconstruction_error_" + tostring(i+1));

    cost_names.push_back("global_reconstruction_error");

    for( int i=0 ; i<partial_costs.size() ; i++ )
    {
        TVec<string> names = partial_costs[i]->costNames();
        for(int j=0; j<names.length(); j++)
            cost_names.push_back("partial" + tostring(i) + "." +
                names[j]);
    }

    cost_names.append( final_cost->costNames() );

    return cost_names;
}

Here is the call graph for this function:

Here is the caller graph for this function:

TVec< Vec > PLearn::StackedAutoassociatorsNet::getTrainRepresentations ( ) const [inline]

Returns the representations obtained during last pre-training of the current layer.

Definition at line 316 of file StackedAutoassociatorsNet.h.

References train_representations.

Referenced by declareMethods().

    {
        return train_representations;
    }

Here is the caller graph for this function:

void PLearn::StackedAutoassociatorsNet::greedyStep ( const Vec input,
const Vec target,
int  index,
Vec  train_costs,
Vec representation
)

Definition at line 1920 of file StackedAutoassociatorsNet.cc.

References activation_gradients, activations, PLearn::TVec< T >::clear(), connections, correlation_activation_gradients, correlation_activations, correlation_connections, correlation_expectation_gradients, correlation_expectations, correlation_layers, corrupt_input(), corrupted_autoassociator_expectations, PLearn::TVec< T >::data(), direct_activations, direct_and_reconstruction_activation_gradients, direct_and_reconstruction_activations, direct_connections, divide_input(), double_input(), doubled_expectations, expectation_gradients, expectations, PLearn::fast_exact_is_equal(), grad, greedy_target_connections, hidden_reconstruction_activation_gradients, hidden_reconstruction_activations, i, keep_online_representations, l1_neuron_decay, l1_neuron_decay_center, layers, PLearn::TVec< T >::length(), PLearn::multiply(), n_layers, partial_cost_value, partial_costs, partial_costs_positions, partial_costs_weights, PLearn::Profiler::pl_profile_end(), PLearn::Profiler::pl_profile_start(), PLASSERT, probability_of_masked_target, PLearn::PLearner::random_gen, reconstruct_hidden, reconstruction_activation_gradients, reconstruction_activation_gradients_from_hid_rec, reconstruction_activations, reconstruction_connections, reconstruction_expectation_gradients, reconstruction_expectation_gradients_from_hid_rec, reconstruction_layers, reconstruction_weights, renoising, second_corrupted_autoassociator_expectations, PLearn::TVec< T >::size(), PLearn::TVec< T >::subVec(), target_vec, and target_vec_gradient.

Referenced by train().

{
    Profiler::pl_profile_start("StackedAutoassociatorsNet::greedyStep");
    PLASSERT( index < n_layers );

    expectations[0] << input;

    if(correlation_connections.length() != 0)
    {
        for( int i=0 ; i<index + 1; i++ )
        {
            if( i == index )
            {
                corrupt_input( expectations[i], corrupted_autoassociator_expectations[i], i );
                connections[i]->fprop( corrupted_autoassociator_expectations[i],
                                       correlation_activations[i] );
            }
            else
                connections[i]->fprop( expectations[i], correlation_activations[i] );

            if( i == index && greedy_target_connections.length() && greedy_target_connections[i] )
            {
                target_vec.clear();
                if( probability_of_masked_target == 0. ||
                    random_gen->uniform_sample() >= probability_of_masked_target )
                    target_vec[(int)target[0]] = 1;

                greedy_target_connections[i]->setAsDownInput(target_vec);
                greedy_target_connections[i]->computeProduct(0, correlation_activations[i].length(),
                                                             correlation_activations[i], true);
            }

            layers[i+1]->fprop( correlation_activations[i],
                                correlation_expectations[i] );
            correlation_connections[i]->fprop( correlation_expectations[i],
                                               activations[i+1] );

            correlation_layers[i]->fprop( activations[i+1],
                                          expectations[i+1] );
        }
    }
    else
    {
        for( int i=0 ; i<index + 1; i++ )
        {
            double_input(expectations[i], doubled_expectations[i]);

            if( i == index )
            {
                corrupt_input( doubled_expectations[i], corrupted_autoassociator_expectations[i], i );
                connections[i]->fprop( corrupted_autoassociator_expectations[i], activations[i+1] );
            }
            else
                connections[i]->fprop( doubled_expectations[i], activations[i+1] );

            if( i == index && greedy_target_connections.length() && greedy_target_connections[i] )
            {
                target_vec.clear();
                if( probability_of_masked_target == 0. ||
                    random_gen->uniform_sample() >= probability_of_masked_target )
                    target_vec[(int)target[0]] = 1;

                greedy_target_connections[i]->setAsDownInput(target_vec);
                greedy_target_connections[i]->computeProduct(0, activations[i+1].length(),
                                                             activations[i+1], true);
            }

            layers[i+1]->fprop(activations[i+1],expectations[i+1]);
            if( keep_online_representations )
                representation << expectations[i+1];
        }
    }


    if( partial_costs && partial_costs[ index ] )
    {
        partial_costs[ index ]->fprop( expectations[ index + 1],
                                       target, partial_cost_value );

        // Update partial cost (might contain some weights for example)
        partial_costs[ index ]->bpropUpdate( expectations[ index + 1 ],
                                             target, partial_cost_value[0],
                                             expectation_gradients[ index + 1 ]
                                             );

        train_costs.subVec(partial_costs_positions[index]+1,
                           partial_cost_value.length()) << partial_cost_value;

        if( !fast_exact_is_equal( partial_costs_weights.length(), 0 ) )
            expectation_gradients[ index + 1 ] *= partial_costs_weights[index];

        // Update hidden layer bias and weights
        layers[ index+1 ]->bpropUpdate( activations[ index + 1 ],
                                        expectations[ index + 1 ],
                                        activation_gradients[ index + 1 ],
                                        expectation_gradients[ index + 1 ] );

        Profiler::pl_profile_start("StackedAutoassociatorsNet::greedyStep bprop connection");
        connections[ index ]->bpropUpdate( corrupted_autoassociator_expectations[index],
                                           activations[ index + 1 ],
                                           expectation_gradients[ index ],
                                           activation_gradients[ index + 1 ] );
        Profiler::pl_profile_end("StackedAutoassociatorsNet::greedyStep bprop connection");
    }

    reconstruction_connections[ index ]->fprop( expectations[ index + 1],
                                                reconstruction_activations);
    if(direct_connections.length() != 0)
    {
        direct_connections[ index ]->fprop( corrupted_autoassociator_expectations[index],
                                            direct_activations );
        direct_and_reconstruction_activations.clear();
        direct_and_reconstruction_activations += direct_activations;
        direct_and_reconstruction_activations += reconstruction_activations;

        reconstruction_layers[ index ]->fprop( direct_and_reconstruction_activations,
                                reconstruction_layers[ index ]->expectation);

        reconstruction_layers[ index ]->activation << direct_and_reconstruction_activations;
        reconstruction_layers[ index ]->activation += reconstruction_layers[ index ]->bias;
        //reconstruction_layers[ index ]->expectation_is_up_to_date = true;  // Won't work for certain RBMLayers
        reconstruction_layers[ index ]->setExpectationByRef( reconstruction_layers[ index ]->expectation );
        train_costs[index] = reconstruction_layers[ index ]->fpropNLL(expectations[index]);

        reconstruction_layers[ index ]->bpropNLL(expectations[index], train_costs[index],
                                  direct_and_reconstruction_activation_gradients);

        reconstruction_layers[ index ]->update(direct_and_reconstruction_activation_gradients);

        direct_connections[ index ]->bpropUpdate(
            corrupted_autoassociator_expectations[index],
            direct_activations,
            reconstruction_expectation_gradients, // Will be overwritten later
            direct_and_reconstruction_activation_gradients);

        reconstruction_connections[ index ]->bpropUpdate(
            expectations[ index + 1],
            reconstruction_activations,
            reconstruction_expectation_gradients,
            direct_and_reconstruction_activation_gradients);
    }
    else
    {
        Vec divided_reconstruction_activations(reconstruction_activations.size());
        Vec divided_reconstruction_activation_gradients(reconstruction_layers[ index ]->size);

        divide_input(reconstruction_activations, divided_reconstruction_activations);

        reconstruction_layers[ index ]->fprop( divided_reconstruction_activations,
                               reconstruction_layers[ index ]->expectation);
        reconstruction_layers[ index ]->activation << divided_reconstruction_activations;
        reconstruction_layers[ index ]->activation += reconstruction_layers[ index ]->bias;
        //reconstruction_layers[ index ]->expectation_is_up_to_date = true;
        reconstruction_layers[ index ]->setExpectationByRef( reconstruction_layers[ index ]->expectation );
        real rec_err;

        // If we want to compute reconstruction error according to reconstruction weights.
        //   rec_err = reconstruction_layers[ index ]->fpropNLL(expectations[index], reconstruction_weights);

        if( renoising )
        {
            corrupt_input( expectations[index], second_corrupted_autoassociator_expectations[index], index );
            rec_err = reconstruction_layers[ index ]->fpropNLL(second_corrupted_autoassociator_expectations[index]);
            reconstruction_layers[ index ]->bpropNLL(second_corrupted_autoassociator_expectations[index], rec_err, divided_reconstruction_activation_gradients);
        }
        else
        {
            rec_err = reconstruction_layers[ index ]->fpropNLL(expectations[index]);
            reconstruction_layers[ index ]->bpropNLL(expectations[index], rec_err, divided_reconstruction_activation_gradients);
        }
        train_costs[index] = rec_err;

        // apply reconstruction weights which can be different for corrupted
        // (or missing) and non corrupted data.
        multiply(reconstruction_weights,
                divided_reconstruction_activation_gradients,
                divided_reconstruction_activation_gradients);

        double_input(divided_reconstruction_activation_gradients,
                    reconstruction_activation_gradients, true);

        if(reconstruct_hidden)
        {
            Profiler::pl_profile_start("StackedAutoassociatorsNet::greedyStep reconstruct_hidden");
            connections[ index ]->fprop( reconstruction_layers[ index ]->expectation,
                                         hidden_reconstruction_activations );
            layers[ index+1 ]->fprop( hidden_reconstruction_activations,
                layers[ index+1 ]->expectation );
            layers[ index+1 ]->activation << hidden_reconstruction_activations;
            layers[ index+1 ]->activation += layers[ index+1 ]->bias;
            //layers[ index+1 ]->expectation_is_up_to_date = true;
            layers[ index+1 ]->setExpectationByRef( layers[ index+1 ]->expectation );
            real hid_rec_err = layers[ index+1 ]->fpropNLL(expectations[index+1]);
            train_costs[index] += hid_rec_err;

            layers[ index+1 ]->bpropNLL(expectations[index+1], hid_rec_err,
                                        hidden_reconstruction_activation_gradients);
            layers[ index+1 ]->update(hidden_reconstruction_activation_gradients);

            Profiler::pl_profile_start("StackedAutoassociatorsNet::greedyStep reconstruct_hidden connection bprop");
            connections[ index ]->bpropUpdate(
                reconstruction_layers[ index ]->expectation,
                hidden_reconstruction_activations,
                reconstruction_expectation_gradients_from_hid_rec,
                hidden_reconstruction_activation_gradients);
            Profiler::pl_profile_end("StackedAutoassociatorsNet::greedyStep reconstruct_hidden connection bprop");

            reconstruction_layers[ index ]->bpropUpdate(
                reconstruction_activations,
                reconstruction_layers[ index ]->expectation,
                reconstruction_activation_gradients_from_hid_rec,
                reconstruction_expectation_gradients_from_hid_rec);
            Profiler::pl_profile_end("StackedAutoassociatorsNet::greedyStep reconstruct_hidden");
        }

        reconstruction_layers[ index ]->update(divided_reconstruction_activation_gradients);

        if(reconstruct_hidden)
            reconstruction_activation_gradients +=
                reconstruction_activation_gradients_from_hid_rec;

        // // This is a bad update! Propagates gradient through sigmoid again!
        // reconstruction_layers[ index ]->bpropUpdate( reconstruction_activations,
        //                                   reconstruction_layers[ index ]->expectation,
        //                                   reconstruction_activation_gradients,
        //                                   reconstruction_expectation_gradients);
        reconstruction_connections[ index ]->bpropUpdate(
            expectations[ index + 1],
            reconstruction_activations,
            reconstruction_expectation_gradients,
            reconstruction_activation_gradients);
    }


    if(!fast_exact_is_equal(l1_neuron_decay,0))
    {
        // Compute L1 penalty gradient on neurons
        real* hid = expectations[ index + 1 ].data();
        real* grad = reconstruction_expectation_gradients.data();
        int len = expectations[ index + 1 ].length();
        for(int l=0; l<len; l++)
        {
            if(*hid > l1_neuron_decay_center)
                *grad += l1_neuron_decay;
            else if(*hid < l1_neuron_decay_center)
                *grad -= l1_neuron_decay;
            hid++;
            grad++;
        }
    }

    // Update hidden layer bias and weights

    if(correlation_connections.length() != 0)
    {
        correlation_layers[ index ]->bpropUpdate(
            activations[ index + 1 ],
            expectations[ index + 1 ],
            reconstruction_activation_gradients,  // reused
            reconstruction_expectation_gradients
            );

        correlation_connections[ index ]->bpropUpdate(
            correlation_expectations[ index ],
            activations[ index+1 ],
            correlation_expectation_gradients[ index ],
            reconstruction_activation_gradients);

        layers[ index+1 ]->bpropUpdate(
            correlation_activations[ index ],
            correlation_expectations[ index ],
            correlation_activation_gradients [ index ],
            correlation_expectation_gradients [ index ]);

        connections[ index ]->bpropUpdate(
            corrupted_autoassociator_expectations[index],
            correlation_activations[ index ],
            reconstruction_expectation_gradients, //reused
            correlation_activation_gradients [ index ]);

        if( greedy_target_connections.length() && greedy_target_connections[index] )
        {
            greedy_target_connections[index]->bpropUpdate(
                target_vec,
                correlation_activations[index],
                target_vec_gradient,
                correlation_activation_gradients [ index ]);
        }
    }
    else
    {
        layers[ index+1 ]->bpropUpdate( activations[ index + 1 ],
                                        expectations[ index + 1 ],
                                        // reused
                                        reconstruction_activation_gradients,
                                        reconstruction_expectation_gradients);

        connections[ index ]->bpropUpdate(
            corrupted_autoassociator_expectations[index],
            activations[ index + 1 ],
            reconstruction_expectation_gradients, //reused
            reconstruction_activation_gradients);
        if( greedy_target_connections.length() && greedy_target_connections[index] )
        {
            greedy_target_connections[index]->bpropUpdate(
                target_vec,
                activations[ index + 1 ],
                target_vec_gradient,
                reconstruction_activation_gradients);
        }
    }

    Profiler::pl_profile_end("StackedAutoassociatorsNet::greedyStep");
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::StackedAutoassociatorsNet::greedyStep ( const Mat inputs,
const Mat targets,
int  index,
Mat train_costs
)

Definition at line 2236 of file StackedAutoassociatorsNet.cc.

References PLCHECK_MSG.

{
    PLCHECK_MSG(false, "Mini-batch not implemented yet.");
}
void PLearn::StackedAutoassociatorsNet::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Transforms a shallow copy into a deep copy.

Reimplemented from PLearn::PLearner.

Definition at line 1079 of file StackedAutoassociatorsNet.cc.

References activation_gradients, activation_gradients_m, activations, activations_m, autoassociator_expectation_indices, binary_masks, connections, correlation_activation_gradients, correlation_activation_gradients_m, correlation_activations, correlation_activations_m, correlation_connections, correlation_expectation_gradients, correlation_expectation_gradients_m, correlation_expectations, correlation_expectations_m, correlation_layers, corrupted_autoassociator_expectations, PLearn::deepCopyField(), direct_activations, direct_and_reconstruction_activation_gradients, direct_and_reconstruction_activations, direct_connections, doubled_expectation_gradients, doubled_expectations, expectation_gradients, expectation_gradients_m, expectation_means, expectations, expectations_m, final_cost, final_cost_gradient, final_cost_gradients, final_cost_input, final_cost_inputs, final_cost_value, final_cost_values, final_cost_values_0, final_module, fine_tuning_reconstruction_activation_gradients, fine_tuning_reconstruction_activations, fine_tuning_reconstruction_expectation_gradients, fine_tuning_reconstruction_expectations, greedy_stages, greedy_target_connections, hidden_reconstruction_activation_gradients, hidden_reconstruction_activations, layers, PLearn::PLearner::makeDeepCopyFromShallowCopy(), partial_cost_value, partial_cost_values, partial_cost_values_0, partial_costs, partial_costs_positions, partial_costs_weights, reconstruction_activation_gradients, reconstruction_activation_gradients_from_hid_rec, reconstruction_activation_gradients_m, reconstruction_activations, reconstruction_activations_m, reconstruction_connections, reconstruction_expectation_gradients, reconstruction_expectation_gradients_from_hid_rec, reconstruction_expectation_gradients_m, reconstruction_layers, reconstruction_weights, second_corrupted_autoassociator_expectations, target_vec, target_vec_gradient, targets_vec, targets_vec_gradient, tmp_mask, and training_schedule.

{
    inherited::makeDeepCopyFromShallowCopy(copies);

    // deepCopyField(, copies);

    // Public options
    deepCopyField(training_schedule, copies);
    deepCopyField(layers, copies);
    deepCopyField(reconstruction_layers, copies);
    deepCopyField(connections, copies);
    deepCopyField(reconstruction_connections, copies);
    deepCopyField(correlation_connections, copies);
    deepCopyField(direct_connections, copies);
    deepCopyField(final_module, copies);
    deepCopyField(final_cost, copies);
    deepCopyField(partial_costs, copies);
    deepCopyField(partial_costs_weights, copies);
    deepCopyField(greedy_target_connections, copies);

    // Protected options
    deepCopyField(activations, copies);
    deepCopyField(activations_m, copies);
    deepCopyField(expectations, copies);
    deepCopyField(expectations_m, copies);
    deepCopyField(doubled_expectations, copies);
    deepCopyField(activation_gradients, copies);
    deepCopyField(activation_gradients_m, copies);
    deepCopyField(expectation_gradients, copies);
    deepCopyField(doubled_expectation_gradients, copies);
    deepCopyField(expectation_gradients_m, copies);
    deepCopyField(reconstruction_activations, copies);
    deepCopyField(reconstruction_activations_m, copies);
    deepCopyField(reconstruction_activation_gradients, copies);
    deepCopyField(reconstruction_activation_gradients_m, copies);
    deepCopyField(reconstruction_expectation_gradients, copies);
    deepCopyField(reconstruction_expectation_gradients_m, copies);
    deepCopyField(fine_tuning_reconstruction_activations, copies);
    deepCopyField(fine_tuning_reconstruction_expectations, copies);
    deepCopyField(fine_tuning_reconstruction_activation_gradients, copies);
    deepCopyField(fine_tuning_reconstruction_expectation_gradients, copies);
    deepCopyField(reconstruction_activation_gradients_from_hid_rec, copies);
    deepCopyField(reconstruction_expectation_gradients_from_hid_rec, copies);
    deepCopyField(hidden_reconstruction_activations, copies);
    deepCopyField(hidden_reconstruction_activation_gradients, copies);
    deepCopyField(correlation_activations, copies);
    deepCopyField(correlation_activations_m, copies);
    deepCopyField(correlation_expectations, copies);
    deepCopyField(correlation_expectations_m, copies);
    deepCopyField(correlation_activation_gradients, copies);
    deepCopyField(correlation_activation_gradients_m, copies);
    deepCopyField(correlation_expectation_gradients, copies);
    deepCopyField(correlation_expectation_gradients_m, copies);
    deepCopyField(correlation_layers, copies);
    deepCopyField(direct_activations, copies);
    deepCopyField(direct_and_reconstruction_activations, copies);
    deepCopyField(direct_and_reconstruction_activation_gradients, copies);
    deepCopyField(partial_costs_positions, copies);
    deepCopyField(partial_cost_value, copies);
    deepCopyField(partial_cost_values, copies);
    deepCopyField(partial_cost_values_0, copies);
    deepCopyField(final_cost_input, copies);
    deepCopyField(final_cost_inputs, copies);
    deepCopyField(final_cost_value, copies);
    deepCopyField(final_cost_values, copies);
    deepCopyField(final_cost_values_0, copies);
    deepCopyField(final_cost_gradient, copies);
    deepCopyField(final_cost_gradients, copies);
    deepCopyField(corrupted_autoassociator_expectations, copies);
    deepCopyField(second_corrupted_autoassociator_expectations, copies);
    deepCopyField(reconstruction_weights, copies);
    deepCopyField(binary_masks, copies);
    deepCopyField(tmp_mask, copies);
    deepCopyField(autoassociator_expectation_indices, copies);
    deepCopyField(expectation_means, copies);
    deepCopyField(target_vec, copies);
    deepCopyField(target_vec_gradient, copies);
    deepCopyField(targets_vec, copies);
    deepCopyField(targets_vec_gradient, copies);
    deepCopyField(greedy_stages, copies);
}

Here is the call graph for this function:

void PLearn::StackedAutoassociatorsNet::onlineStep ( const Mat inputs,
const Mat targets,
Mat train_costs
)

Definition at line 2804 of file StackedAutoassociatorsNet.cc.

References activation_gradients_m, activations_m, PLearn::TMat< T >::column(), connections, correlation_activation_gradients_m, correlation_activations_m, correlation_connections, correlation_expectation_gradients_m, correlation_expectations_m, correlation_layers, PLearn::TMat< T >::data(), expectation_gradients_m, expectations_m, PLearn::fast_exact_is_equal(), final_cost, final_cost_gradients, final_cost_inputs, final_cost_values, final_cost_values_0, final_module, fine_tuning_decrease_ct, fine_tuning_learning_rate, grad, greedy_decrease_ct, greedy_learning_rate, greedy_target_connections, i, PLearn::PLearner::inputsize(), j, l1_neuron_decay, l1_neuron_decay_center, layers, PLearn::TMat< T >::length(), PLearn::TVec< T >::length(), n_layers, partial_cost_values, partial_cost_values_0, partial_costs, partial_costs_positions, partial_costs_weights, PLASSERT, PLERROR, reconstruction_activation_gradients_m, reconstruction_activations_m, reconstruction_connections, reconstruction_expectation_gradients_m, reconstruction_layers, PLearn::TMat< T >::resize(), PLearn::TVec< T >::resize(), PLearn::PLearner::stage, PLearn::TMat< T >::subMatColumns(), and PLearn::TMat< T >::width().

{
    real lr;
    int mbatch_size = inputs.length();
    PLASSERT( targets.length() == mbatch_size );
    train_costs.resize(mbatch_size, train_costs.width());

    // fprop
    expectations_m[0].resize(mbatch_size, inputsize());
    expectations_m[0] << inputs;

    if( greedy_target_connections.length() != 0 )
        PLERROR("In StackedAutoassociatorsNet::onlineStep(): greedy_target_connections not "
                "implemented yet in mini-batch online setting.\n");

    if(correlation_connections.length() != 0)
    {
        for( int i=0 ; i<n_layers-1; i++ )
        {
            if( partial_costs.length() != 0 && partial_costs[ i ] )
                PLERROR("In StackedAutoassociatorsNet::onlineStep(): partial costs not "
                        "implemented yet for correlation_connections, in mini-batch online "
                        "setting.\n");

            connections[i]->fprop(expectations_m[i],
                                  correlation_activations_m[i]);
            layers[i+1]->fprop(correlation_activations_m[i],
                               correlation_expectations_m[i]);
            correlation_connections[i]->fprop(correlation_expectations_m[i],
                                              activations_m[i+1] );
            correlation_layers[i]->fprop(activations_m[i+1],
                                         expectations_m[i+1]);
        }
    }
    else
    {
        for( int i=0 ; i<n_layers-1; i++ )
        {
            connections[i]->fprop( expectations_m[i], activations_m[i+1] );
            layers[i+1]->fprop(activations_m[i+1], expectations_m[i+1]);

            if( partial_costs.length() != 0 && partial_costs[ i ] )
            {
                // Set learning rates
                if( !fast_exact_is_equal(fine_tuning_decrease_ct, 0 ) )
                    lr = fine_tuning_learning_rate /
                        (1 + fine_tuning_decrease_ct * stage);
                else
                    lr = fine_tuning_learning_rate;

                partial_costs[ i ]->setLearningRate( lr );
                partial_costs[ i ]->fprop( expectations_m[i + 1],
                                           targets, partial_cost_values );
                // Update partial cost (might contain some weights for example)
                partial_cost_values_0.resize(mbatch_size);
                partial_cost_values_0 << partial_cost_values.column(0);
                partial_costs[ i ]->bpropUpdate(
                    expectations_m[ i + 1 ],
                    targets,
                    partial_cost_values_0,
                    expectation_gradients_m[ i + 1 ]
                    );

                train_costs.subMatColumns(partial_costs_positions[i]+1,
                                          partial_cost_values.width())
                    << partial_cost_values;

                if( partial_costs_weights.length() != 0 )
                    expectation_gradients_m[i + 1] *= partial_costs_weights[i];

                // Update hidden layer bias and weights
                layers[ i+1 ]->bpropUpdate( activations_m[ i + 1 ],
                                            expectations_m[ i + 1 ],
                                            activation_gradients_m[ i + 1 ],
                                            expectation_gradients_m[ i + 1 ] );

                connections[ i ]->bpropUpdate( expectations_m[ i ],
                                               activations_m[ i + 1 ],
                                               expectation_gradients_m[ i ],
                                               activation_gradients_m[ i + 1 ]
                                             );
            }
        }
    }

    final_module->fprop( expectations_m[ n_layers-1 ],
                         final_cost_inputs );

    final_cost->fprop( final_cost_inputs, targets, final_cost_values );

    train_costs.subMatColumns(train_costs.width() - final_cost_values.width(),
                              final_cost_values.width())
        << final_cost_values;

    final_cost_values_0.resize(mbatch_size);
    final_cost_values_0 << final_cost_values.column(0);
    final_cost->bpropUpdate( final_cost_inputs, targets,
                             final_cost_values_0,
                             final_cost_gradients );
    final_module->bpropUpdate( expectations_m[ n_layers-1 ],
                               final_cost_inputs,
                               expectation_gradients_m[ n_layers-1 ],
                               final_cost_gradients );

    // Unsupervised greedy layer-wise cost

    // Set learning rates
    if( !fast_exact_is_equal( greedy_decrease_ct, 0 ) )
        lr = greedy_learning_rate / (1 + greedy_decrease_ct * stage) ;
    else
        lr = greedy_learning_rate;

    for( int i=0 ; i<n_layers-1 ; i++ )
    {
        layers[i]->setLearningRate( lr );
        reconstruction_layers[i]->setLearningRate( lr );
        connections[i]->setLearningRate( lr );
        reconstruction_connections[i]->setLearningRate( lr );
        if(correlation_layers.length() != 0)
        {
            correlation_layers[i]->setLearningRate( lr );
            correlation_connections[i]->setLearningRate( lr );
        }
    }
    layers[n_layers-1]->setLearningRate( lr );

    // Backpropagate unsupervised gradient, layer-wise
    for( int i=n_layers-1 ; i>0 ; i-- )
    {
        reconstruction_connections[ i-1 ]->fprop(
            expectations_m[ i ],
            reconstruction_activations_m);

        reconstruction_layers[ i-1 ]->activations.resize(mbatch_size,reconstruction_layers[i-1]->size);
        reconstruction_layers[ i-1 ]->activations << reconstruction_activations_m;
        reconstruction_layers[ i-1 ]->activations += reconstruction_layers[ i-1 ]->bias;

        Mat layer_exp = reconstruction_layers[i-1]->getExpectations();
        reconstruction_layers[ i-1 ]->fprop(reconstruction_activations_m,
                             layer_exp);
        reconstruction_layers[ i-1 ]->setExpectationsByRef(layer_exp);

        reconstruction_layers[ i-1 ]->fpropNLL(expectations_m[i-1],
                                train_costs.column(i-1));

        reconstruction_layers[ i-1 ]->bpropNLL(expectations_m[i-1], train_costs.column(i-1),
                                reconstruction_activation_gradients_m);

        reconstruction_layers[ i-1 ]->update(reconstruction_activation_gradients_m);

        reconstruction_connections[ i-1 ]->bpropUpdate(
            expectations_m[ i ],
            reconstruction_activations_m,
            reconstruction_expectation_gradients_m,
            reconstruction_activation_gradients_m);

        if(!fast_exact_is_equal(l1_neuron_decay,0))
        {
            // Compute L1 penalty gradient on neurons
            for (int k = 0; k < mbatch_size; k++)
            {
                real* hid = expectations_m[i](k).data();
                real* grad = reconstruction_expectation_gradients_m(k).data();
                int width = expectations_m[i].width();
                for(int j = 0; j < width; j++)
                {
                    if(*hid > l1_neuron_decay_center)
                        *grad += l1_neuron_decay;
                    else if(*hid < l1_neuron_decay_center)
                        *grad -= l1_neuron_decay;
                    hid++;
                    grad++;
                }
            }
        }

        if( correlation_connections.length() != 0 )
        {
            correlation_layers[i-1]->bpropUpdate(
                activations_m[i],
                expectations_m[i],
                reconstruction_activation_gradients_m,
                reconstruction_expectation_gradients_m);

            correlation_connections[i-1]->bpropUpdate(
                correlation_expectations_m[i-1],
                activations_m[i],
                correlation_expectation_gradients_m[i-1],
                reconstruction_activation_gradients_m);

            layers[i]->bpropUpdate(
                correlation_activations_m[i-1],
                correlation_expectations_m[i-1],
                correlation_activation_gradients_m[i-1],
                correlation_expectation_gradients_m[i-1]);

            connections[i-1]->bpropUpdate(
                expectations_m[i-1],
                correlation_activations_m[i-1],
                reconstruction_expectation_gradients_m,
                correlation_activation_gradients_m[i-1]);
        }
        else
        {
            layers[i]->bpropUpdate(
                activations_m[i],
                expectations_m[i],
                reconstruction_activation_gradients_m,
                reconstruction_expectation_gradients_m);

            connections[i-1]->bpropUpdate(
                expectations_m[i-1],
                activations_m[i],
                reconstruction_expectation_gradients_m,
                reconstruction_activation_gradients_m);
        }
    }

    // Put back fine-tuning learning rate
    // Set learning rates
    if( !fast_exact_is_equal(fine_tuning_decrease_ct, 0) )
        lr = fine_tuning_learning_rate
            / (1 + fine_tuning_decrease_ct * stage) ;
    else
        lr = fine_tuning_learning_rate ;

    // Set learning rate back for fine-tuning
    for( int i=0 ; i<n_layers-1 ; i++ )
    {
        layers[i]->setLearningRate( lr );
        connections[i]->setLearningRate( lr );
        //reconstruction_connections[i]->setLearningRate( lr );
        if(correlation_layers.length() != 0)
        {
            correlation_layers[i]->setLearningRate( lr );
            correlation_connections[i]->setLearningRate( lr );
        }
    }
    layers[n_layers-1]->setLearningRate( lr );

    // Fine-tuning backpropagation
    if( correlation_connections.length() != 0 )
    {
        for( int i=n_layers-1 ; i>0 ; i-- )
        {
            correlation_layers[i-1]->bpropUpdate(
                activations_m[i],
                expectations_m[i],
                activation_gradients_m[i],
                expectation_gradients_m[i] );

            correlation_connections[i-1]->bpropUpdate(
                correlation_expectations_m[i-1],
                activations_m[i],
                correlation_expectation_gradients_m[i-1],
                activation_gradients_m[i] );

            layers[i]->bpropUpdate( correlation_activations_m[i-1],
                                    correlation_expectations_m[i-1],
                                    correlation_activation_gradients_m[i-1],
                                    correlation_expectation_gradients_m[i-1] );

            connections[i-1]->bpropUpdate(
                expectations_m[i-1],
                correlation_activations_m[i-1],
                expectation_gradients_m[i-1],
                correlation_activation_gradients_m[i-1] );
        }
    }
    else
    {
        for( int i=n_layers-1 ; i>0 ; i-- )
        {
            layers[i]->bpropUpdate( activations_m[i],
                                    expectations_m[i],
                                    activation_gradients_m[i],
                                    expectation_gradients_m[i] );

            connections[i-1]->bpropUpdate( expectations_m[i-1],
                                           activations_m[i],
                                           expectation_gradients_m[i-1],
                                           activation_gradients_m[i] );
        }
    }
}

Here is the call graph for this function:

void PLearn::StackedAutoassociatorsNet::onlineStep ( const Vec input,
const Vec target,
Vec train_costs
)

Definition at line 2499 of file StackedAutoassociatorsNet.cc.

References activation_gradients, activations, binary_masks, PLearn::TVec< T >::clear(), connections, correlation_activation_gradients, correlation_activations, correlation_connections, correlation_expectation_gradients, correlation_expectations, correlation_layers, corrupt_input(), corrupted_autoassociator_expectations, PLearn::TVec< T >::data(), expectation_gradients, expectations, PLearn::fast_exact_is_equal(), final_cost, final_cost_gradient, final_cost_input, final_cost_value, final_module, fine_tuning_decrease_ct, fine_tuning_learning_rate, grad, greedy_decrease_ct, greedy_learning_rate, greedy_target_connections, i, j, l1_neuron_decay, l1_neuron_decay_center, layers, PLearn::TVec< T >::length(), n_layers, partial_cost_value, partial_costs, partial_costs_positions, partial_costs_weights, probability_of_masked_target, PLearn::PLearner::random_gen, reconstruction_activation_gradients, reconstruction_activations, reconstruction_connections, reconstruction_expectation_gradients, reconstruction_layers, setLearningRate(), PLearn::PLearner::stage, PLearn::TVec< T >::subVec(), targets_vec, and targets_vec_gradient.

Referenced by train().

{
    real lr;
    // fprop
    expectations[0] << input;

    if(correlation_connections.length() != 0)
    {
        for( int i=0 ; i<n_layers-1; i++ )
        {
            corrupt_input( expectations[i], corrupted_autoassociator_expectations[i],
                           i, binary_masks[i] );
            connections[i]->fprop( corrupted_autoassociator_expectations[i],
                                   correlation_activations[i] );

            if( greedy_target_connections.length() && greedy_target_connections[i] )
            {
                targets_vec[i].clear();
                if( probability_of_masked_target == 0. ||
                    random_gen->uniform_sample() >= probability_of_masked_target )
                    targets_vec[i][(int)target[0]] = 1;

                greedy_target_connections[i]->setAsDownInput(targets_vec[i]);
                greedy_target_connections[i]->computeProduct(0, correlation_activations[i].length(),
                                                             correlation_activations[i], true);
            }

            layers[i+1]->fprop( correlation_activations[i],
                                correlation_expectations[i] );
            correlation_connections[i]->fprop( correlation_expectations[i],
                                               activations[i+1] );
            correlation_layers[i]->fprop( activations[i+1],
                                          expectations[i+1] );

        }
    }
    else
    {
        for( int i=0 ; i<n_layers-1; i++ )
        {
            corrupt_input( expectations[i], corrupted_autoassociator_expectations[i],
                           i, binary_masks[i] );
            connections[i]->fprop( corrupted_autoassociator_expectations[i],
                                   activations[i+1] );

            if( greedy_target_connections.length() && greedy_target_connections[i] )
            {
                targets_vec[i].clear();
                if( probability_of_masked_target == 0. ||
                    random_gen->uniform_sample() >= probability_of_masked_target )
                    targets_vec[i][(int)target[0]] = 1;

                greedy_target_connections[i]->setAsDownInput(targets_vec[i]);
                greedy_target_connections[i]->computeProduct(0, activations[i+1].length(),
                                                             activations[i+1], true);
            }

            layers[i+1]->fprop(activations[i+1],expectations[i+1]);
        }
    }

    // Unsupervised greedy layer-wise cost

    // Set learning rates
    if( !fast_exact_is_equal( greedy_decrease_ct , 0 ) )
        lr = greedy_learning_rate / (1 + greedy_decrease_ct * stage) ;
    else
        lr = greedy_learning_rate;

    for( int i=0 ; i<n_layers-1 ; i++ )
    {
        layers[i]->setLearningRate( lr );
        reconstruction_layers[i]->setLearningRate( lr );
        connections[i]->setLearningRate( lr );
        reconstruction_connections[i]->setLearningRate( lr );
        if(correlation_layers.length() != 0)
        {
            correlation_layers[i]->setLearningRate( lr );
            correlation_connections[i]->setLearningRate( lr );
        }
        if( partial_costs.length() != 0 && partial_costs[ i ] )
        {
            partial_costs[ i ]->setLearningRate( lr );
        }
        if( greedy_target_connections.length() && greedy_target_connections[i] )
            greedy_target_connections[i]->setLearningRate( lr );
    }
    layers[n_layers-1]->setLearningRate( lr );

    // Backpropagate unsupervised gradient, layer-wise
    for( int i=n_layers-1 ; i>0 ; i-- )
    {
        reconstruction_connections[ i-1 ]->fprop(
            expectations[ i ],
            reconstruction_activations);

        reconstruction_layers[ i-1 ]->fprop( reconstruction_activations,
                              reconstruction_layers[ i-1 ]->expectation);

        reconstruction_layers[ i-1 ]->activation << reconstruction_activations;
        reconstruction_layers[ i-1 ]->activation += reconstruction_layers[ i-1 ]->bias;
        //reconstruction_layers[ i-1 ]->expectation_is_up_to_date = true;
        reconstruction_layers[ i-1 ]->setExpectationByRef( reconstruction_layers[ i-1 ]->expectation );
        real rec_err = reconstruction_layers[ i-1 ]->fpropNLL( expectations[i-1] );
        train_costs[i-1] = rec_err;

        reconstruction_layers[ i-1 ]->bpropNLL(expectations[i-1], rec_err,
                                  reconstruction_activation_gradients);

        reconstruction_layers[ i-1 ]->update(reconstruction_activation_gradients);

        reconstruction_connections[ i-1 ]->bpropUpdate(
            expectations[ i ],
            reconstruction_activations,
            reconstruction_expectation_gradients,
            reconstruction_activation_gradients);

        if( partial_costs.length() != 0 && partial_costs[ i-1 ] )
        {

            partial_costs[ i-1 ]->fprop( expectations[ i],
                                       target, partial_cost_value );

            // Update partial cost (might contain some weights for example)
            partial_costs[ i-1 ]->bpropUpdate(
                expectations[ i ],
                target, partial_cost_value[0],
                expectation_gradients[ i ]
                );

            train_costs.subVec(partial_costs_positions[i-1]+1,
                               partial_cost_value.length())
                << partial_cost_value;

            if( !fast_exact_is_equal( partial_costs_weights.length(), 0 ) )
                expectation_gradients[ i ] *= partial_costs_weights[i-1];
            reconstruction_expectation_gradients += expectation_gradients[ i ];
        }

        if(!fast_exact_is_equal(l1_neuron_decay,0))
        {
            // Compute L1 penalty gradient on neurons
            real* hid = expectations[ i ].data();
            real* grad = reconstruction_expectation_gradients.data();
            int len = expectations[ i ].length();
            for(int j=0; j<len; j++)
            {
                if(*hid > l1_neuron_decay_center)
                    *grad += l1_neuron_decay;
                else if(*hid < l1_neuron_decay_center)
                    *grad -= l1_neuron_decay;
                hid++;
                grad++;
            }
        }

        if( correlation_connections.length() != 0 )
        {
            correlation_layers[i-1]->bpropUpdate(
                activations[i],
                expectations[i],
                reconstruction_activation_gradients,
                reconstruction_expectation_gradients );

            correlation_connections[i-1]->bpropUpdate(
                correlation_expectations[i-1],
                activations[i],
                correlation_expectation_gradients[i-1],
                reconstruction_activation_gradients);

            layers[i]->bpropUpdate( correlation_activations[i-1],
                                    correlation_expectations[i-1],
                                    correlation_activation_gradients[i-1],
                                    correlation_expectation_gradients[i-1] );

            connections[i-1]->bpropUpdate( corrupted_autoassociator_expectations[i-1],
                                           correlation_activations[i-1],
                                           reconstruction_expectation_gradients,
                                           correlation_activation_gradients[i-1] );

            if( greedy_target_connections.length() && greedy_target_connections[i-1] )
            {
                greedy_target_connections[i-1]->bpropUpdate(
                    targets_vec[i-1],
                    correlation_activations[i-1],
                    targets_vec_gradient[i-1],
                    correlation_activation_gradients [ i-1 ]);
            }
        }
        else
        {
            layers[i]->bpropUpdate(
                activations[i],
                expectations[i],
                reconstruction_activation_gradients,
                reconstruction_expectation_gradients );

            connections[i-1]->bpropUpdate(
                corrupted_autoassociator_expectations[i-1],
                activations[i],
                reconstruction_expectation_gradients,
                reconstruction_activation_gradients);

            if( greedy_target_connections.length() && greedy_target_connections[i-1] )
            {
                greedy_target_connections[i-1]->bpropUpdate(
                    targets_vec[i-1],
                    activations[ i ],
                    targets_vec_gradient[i-1],
                    reconstruction_activation_gradients);
            }
        }
    }

    // Put back fine-tuning learning rate
    // Set learning rates
    if( !fast_exact_is_equal( fine_tuning_decrease_ct , 0 ) )
        lr = fine_tuning_learning_rate
            / (1 + fine_tuning_decrease_ct * stage) ;
    else
        lr = fine_tuning_learning_rate ;

    // Set learning rate back for fine-tuning
    for( int i=0 ; i<n_layers-1 ; i++ )
    {
        layers[i]->setLearningRate( lr );
        connections[i]->setLearningRate( lr );
        //reconstruction_connections[i]->setLearningRate( lr );
        if(correlation_layers.length() != 0)
        {
            correlation_layers[i]->setLearningRate( lr );
            correlation_connections[i]->setLearningRate( lr );
        }
        if( greedy_target_connections.length() && greedy_target_connections[i] )
            greedy_target_connections[i]->setLearningRate( lr );
    }
    layers[n_layers-1]->setLearningRate( lr );


    final_module->fprop( expectations[ n_layers-1 ],
                         final_cost_input );
    final_cost->fprop( final_cost_input, target, final_cost_value );

    train_costs.subVec(train_costs.length()-final_cost_value.length(),
                       final_cost_value.length()) <<
        final_cost_value;

    final_cost->bpropUpdate( final_cost_input, target,
                             final_cost_value[0],
                             final_cost_gradient );
    final_module->bpropUpdate( expectations[ n_layers-1 ],
                               final_cost_input,
                               expectation_gradients[ n_layers-1 ],
                               final_cost_gradient );

    // Fine-tuning backpropagation
    if( correlation_connections.length() != 0 )
    {
        for( int i=n_layers-1 ; i>0 ; i-- )
        {
            correlation_layers[i-1]->bpropUpdate(
                activations[i],
                expectations[i],
                activation_gradients[i],
                expectation_gradients[i] );

            correlation_connections[i-1]->bpropUpdate(
                correlation_expectations[i-1],
                activations[i],
                correlation_expectation_gradients[i-1],
                activation_gradients[i] );

            layers[i]->bpropUpdate( correlation_activations[i-1],
                                    correlation_expectations[i-1],
                                    correlation_activation_gradients[i-1],
                                    correlation_expectation_gradients[i-1] );

            connections[i-1]->bpropUpdate(
                corrupted_autoassociator_expectations[i-1],
                correlation_activations[i-1],
                expectation_gradients[i-1],
                correlation_activation_gradients[i-1] );
            expectation_gradients[i-1] *= binary_masks[ i-1 ];
        }
    }
    else
    {
        for( int i=n_layers-1 ; i>0 ; i-- )
        {
            layers[i]->bpropUpdate( activations[i],
                                    expectations[i],
                                    activation_gradients[i],
                                    expectation_gradients[i] );

            connections[i-1]->bpropUpdate( corrupted_autoassociator_expectations[i-1],
                                           activations[i],
                                           expectation_gradients[i-1],
                                           activation_gradients[i] );
            expectation_gradients[i-1] *= binary_masks[ i-1 ];
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

int PLearn::StackedAutoassociatorsNet::outputsize ( ) const [virtual]

Returns the size of this learner's output, (which typically may depend on its inputsize(), targetsize() and set options).

Implements PLearn::PLearner.

Definition at line 1162 of file StackedAutoassociatorsNet.cc.

References currently_trained_layer, final_module, layers, n_layers, and PLearn::TVec< T >::size().

Referenced by computeOutputsAndCosts().

{
    if(currently_trained_layer < n_layers)
        return layers[currently_trained_layer]->size;
    return final_module->output_size;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::StackedAutoassociatorsNet::remote_setCurrentlyTrainedLayer ( int  new_currently_trained_layer) [inline]

Definition at line 321 of file StackedAutoassociatorsNet.h.

References currently_trained_layer.

Referenced by declareMethods().

    {
        currently_trained_layer = new_currently_trained_layer;
    }

Here is the caller graph for this function:

void PLearn::StackedAutoassociatorsNet::setLearningRate ( real  the_learning_rate) [private]

Definition at line 3385 of file StackedAutoassociatorsNet.cc.

References connections, correlation_connections, correlation_layers, direct_connections, final_cost, final_module, greedy_target_connections, i, layers, PLearn::TVec< T >::length(), n_layers, reconstruction_connections, and reconstruction_layers.

Referenced by onlineStep(), and train().

{
    for( int i=0 ; i<n_layers-1 ; i++ )
    {
        layers[i]->setLearningRate( the_learning_rate );
        reconstruction_layers[i]->setLearningRate( the_learning_rate );
        connections[i]->setLearningRate( the_learning_rate );
        if(correlation_layers.length() != 0)
        {
            correlation_layers[i]->setLearningRate( the_learning_rate );
            correlation_connections[i]->setLearningRate( the_learning_rate );
        }
        if(direct_connections.length() != 0)
        {
            direct_connections[i]->setLearningRate( the_learning_rate );
        }
        reconstruction_connections[i]->setLearningRate( the_learning_rate );
    }

    for( int i=0; i<greedy_target_connections.length(); i++ )
        greedy_target_connections[i]->setLearningRate( the_learning_rate );

    layers[n_layers-1]->setLearningRate( the_learning_rate );

    final_cost->setLearningRate( the_learning_rate );
    final_module->setLearningRate( the_learning_rate );
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::StackedAutoassociatorsNet::train ( ) [virtual]

The role of the train method is to bring the learner up to stage==nstages, updating the train_stats collector with training costs measured on-line in the process.

Implements PLearn::PLearner.

Definition at line 1223 of file StackedAutoassociatorsNet.cc.

References activations, batch_size, classname(), PLearn::TVec< T >::clear(), connections, correlation_activations, correlation_connections, correlation_expectations, correlation_layers, corrupt_input(), currently_trained_layer, PLearn::TVec< T >::data(), direct_activations, direct_and_reconstruction_activation_gradients, direct_and_reconstruction_activations, direct_connections, PLearn::endl(), expectation_means, expectations, PLearn::fast_exact_is_equal(), fine_tuning_decrease_ct, fine_tuning_learning_rate, fine_tuning_reconstruction_activation_gradients, fine_tuning_reconstruction_activations, fine_tuning_reconstruction_expectation_gradients, fine_tuning_reconstruction_expectations, fineTuningStep(), PLearn::VMat::getExample(), getTrainCostNames(), greedy_decrease_ct, greedy_learning_rate, greedy_stages, greedy_target_connections, greedyStep(), hidden_reconstruction_activation_gradients, hidden_reconstruction_activations, i, in, PLearn::PLearner::inputsize(), j, keep_online_representations, layers, learnerExpdir, PLearn::TVec< T >::length(), PLearn::VMat::length(), mask_with_mean, minibatch_hack, minibatch_size, MISSING_VALUE, n_layers, noise_type, noisy, PLearn::PLearner::nstages, online, onlineStep(), partial_costs, PLearn::Profiler::pl_profile_end(), PLearn::Profiler::pl_profile_start(), PLERROR, PLWARNING, reconstruct_hidden, reconstruction_activation_gradients, reconstruction_activation_gradients_from_hid_rec, reconstruction_activation_gradients_m, reconstruction_activations, reconstruction_activations_m, reconstruction_connections, reconstruction_expectation_gradients, reconstruction_expectation_gradients_from_hid_rec, reconstruction_expectation_gradients_m, reconstruction_layers, PLearn::PLearner::report_progress, PLearn::TMat< T >::resize(), PLearn::TVec< T >::resize(), PLearn::sample(), PLearn::Object::save(), save_learner_before_fine_tuning, second_corrupted_autoassociator_expectations, setLearningRate(), PLearn::PLearner::stage, PLearn::TVec< T >::subVec(), PLearn::PLearner::targetsize(), PLearn::tostring(), train_representations, PLearn::PLearner::train_set, PLearn::PLearner::train_stats, train_stats_window, training_schedule, unsupervised_fine_tuning_decrease_ct, unsupervised_fine_tuning_learning_rate, unsupervised_nstages, unsupervised_stage, unsupervisedFineTuningStep(), and w.

{
    Profiler::pl_profile_start("StackedAutoassociatorsNet::train");
    MODULE_LOG << "train() called " << endl;
    MODULE_LOG << "  training_schedule = " << training_schedule << endl;

    minibatch_size = batch_size > 0 ? batch_size : train_set->length();
    int n_train_stats_samples = (train_stats_window >= 0)
        ? train_stats_window
        : train_set->length();

    Vec input(inputsize());
    Mat inputs(minibatch_size, inputsize());
    Vec target(targetsize());
    Mat targets(minibatch_size, inputsize());
    real weight; // unused
    Vec weights(minibatch_size);

    TVec<string> train_cost_names = getTrainCostNames();
    Vec train_costs(train_cost_names.length(), MISSING_VALUE);
    Mat train_costs_m(minibatch_size, train_cost_names.length(),
                      MISSING_VALUE);

    int nsamples = train_set->length();
    int sample;

    PP<ProgressBar> pb;

    if( !train_stats )
    {
        train_stats = new VecStatsCollector();
        train_stats->setFieldNames(train_cost_names);
    }

    // clear stats of previous epoch
    train_stats->forget();

    real lr = 0;
    int init_stage;

    if( !online )
    {
        Profiler::pl_profile_start("StackedAutoassociatorsNet::train !online");

        /***** initial greedy training *****/
        Profiler::pl_profile_start("StackedAutoassociatorsNet::train greedy");
        for( int i=0 ; i<n_layers-1 ; i++ )
        {
            MODULE_LOG << "Training connection weights between layers " << i
                       << " and " << i+1 << endl;

            int end_stage = training_schedule[i];
            int* this_stage = greedy_stages.subVec(i,1).data();
            init_stage = *this_stage;

            MODULE_LOG << "  stage = " << *this_stage << endl;
            MODULE_LOG << "  end_stage = " << end_stage << endl;
            MODULE_LOG << "  greedy_learning_rate = " << greedy_learning_rate << endl;

            if( *this_stage == 0 && noise_type == "masking_noise" && mask_with_mean )
            {
                Vec in(inputsize());
                Vec tar(train_set->targetsize());
                real w;
                expectation_means.resize(n_layers-1);
                expectation_means[i].resize(expectations[i].length());
                expectation_means[i].clear();
                for( int l = 0; l<train_set->length(); l++ )
                {
                    train_set->getExample(l, in, tar, w);
                    // Get representation
                    expectations[0] << in;
                    if(correlation_connections.length() != 0)
                    {
                        for( int j=0 ; j<i; j++ )
                        {
                            connections[j]->fprop( expectations[j], correlation_activations[j] );
                            layers[j+1]->fprop( correlation_activations[j],
                                                correlation_expectations[j] );
                            correlation_connections[j]->fprop( correlation_expectations[j],
                                                               activations[j+1] );
                            correlation_layers[j]->fprop( activations[j+1],
                                                          expectations[j+1] );
                        }
                    }
                    else
                    {
                        for( int j=0 ; j<i; j++ )
                        {
                            connections[j]->fprop( expectations[j], activations[j+1] );
                            layers[j+1]->fprop(activations[j+1],expectations[j+1]);
                        }
                    }

                    expectation_means[i] += expectations[i];
                }
                expectation_means[i] /= train_set->length();
            }

            if( report_progress && *this_stage < end_stage )
                pb = new ProgressBar( "Training layer "+tostring(i)
                                      +" of "+classname(),
                                      end_stage - init_stage );

            train_costs.fill(MISSING_VALUE);
            lr = greedy_learning_rate;
            layers[i]->setLearningRate( lr );
            reconstruction_layers[i]->setLearningRate( lr );
            connections[i]->setLearningRate( lr );
            reconstruction_connections[i]->setLearningRate( lr );
            if(correlation_connections.length() != 0)
            {
                correlation_connections[i]->setLearningRate( lr );
                correlation_layers[i]->setLearningRate( lr );
            }
            if(direct_connections.length() != 0)
            {
                direct_connections[i]->setLearningRate( lr );
            }
            if( greedy_target_connections.length() && greedy_target_connections[i] )
                greedy_target_connections[i]->setLearningRate( lr );
            layers[i+1]->setLearningRate( lr );
            if(partial_costs.length() != 0 && partial_costs[i])
                        partial_costs[i]->setLearningRate( lr );

            // Make sure that storage not null, will be resized anyways by bprop calls
            reconstruction_activations.resize(layers[i]->size);
            reconstruction_activations_m.resize(minibatch_size,
                                                layers[i]->size);
            reconstruction_activation_gradients.resize(layers[i]->size);
            reconstruction_activation_gradients_m.resize(minibatch_size,
                                                         layers[i]->size);
            reconstruction_expectation_gradients.resize(layers[i]->size);
            reconstruction_expectation_gradients_m.resize(minibatch_size,
                                                          layers[i]->size);

            if(reconstruct_hidden)
            {
                reconstruction_activation_gradients_from_hid_rec.resize(
                    layers[i+1]->size);
                reconstruction_expectation_gradients_from_hid_rec.resize(
                    layers[i+1]->size);
                hidden_reconstruction_activations.resize(layers[i+1]->size);
                hidden_reconstruction_activation_gradients.resize(layers[i+1]->size);
            }

            if(direct_connections.length() != 0)
            {
                direct_activations.resize(layers[i]->size);
                direct_and_reconstruction_activations.resize(layers[i]->size);
                direct_and_reconstruction_activation_gradients.resize(layers[i]->size);
            }

            if( keep_online_representations )
            {
                train_representations.resize(end_stage-(*this_stage));
                train_representations.clear();
            }
            int greedyBatchSize = end_stage - (*this_stage);
            string old_noise_type = noise_type;
            for( ; *this_stage<end_stage ; (*this_stage)++ )
            {
                if( !fast_exact_is_equal( greedy_decrease_ct , 0 ) )
                {
                    lr = greedy_learning_rate/(1 + greedy_decrease_ct
                                               * (*this_stage));
                    layers[i]->setLearningRate( lr );
                    reconstruction_layers[i]->setLearningRate( lr );
                    connections[i]->setLearningRate( lr );
                    reconstruction_connections[i]->setLearningRate( lr );
                    layers[i+1]->setLearningRate( lr );
                    if(correlation_connections.length() != 0)
                    {
                        correlation_connections[i]->setLearningRate( lr );
                        correlation_layers[i]->setLearningRate( lr );
                    }
                    if(direct_connections.length() != 0)
                    {
                        direct_connections[i]->setLearningRate( lr );
                    }
                    if(partial_costs.length() != 0 && partial_costs[i])
                        partial_costs[i]->setLearningRate( lr );
                    if( greedy_target_connections.length() && greedy_target_connections[i] )
                        greedy_target_connections[i]->setLearningRate( lr );
                }
                int train_representations_i = 0;
                sample = *this_stage % nsamples;
                train_set->getExample(sample, input, target, weight);
                if( keep_online_representations )
                {
                    train_representations_i = greedyBatchSize - (end_stage-(*this_stage));
                    train_representations[train_representations_i].resize(layers[i+1]->size);
                }
                if( noisy >= 1 )
                {
                    corrupt_input( input, second_corrupted_autoassociator_expectations[0], 0 );
                    noise_type = "none";
                    greedyStep( second_corrupted_autoassociator_expectations[0], target, i, train_costs, train_representations[train_representations_i]);
                    noise_type = old_noise_type;
                }
                else
                    greedyStep( input, target, i, train_costs, train_representations[train_representations_i]);

                train_stats->update( train_costs );

                if( pb )
                    pb->update( *this_stage - init_stage + 1 );
            }
        }
        Profiler::pl_profile_end("StackedAutoassociatorsNet::train greedy");

        /***** unsupervised fine-tuning by gradient descent *****/
        if( unsupervised_stage < unsupervised_nstages )
        {
            Profiler::pl_profile_start("StackedAutoassociatorsNet::train unsupervised");

//            if( unsupervised_nstages > 0 && correlation_connections.length() != 0 )
//                PLERROR("StackedAutoassociatorsNet::train()"
//                        " - \n"
//                        "cannot use unsupervised fine-tuning with correlation connections.\n");

            MODULE_LOG << "Unsupervised fine-tuning all parameters, ";
            MODULE_LOG << "by gradient descent" << endl;
            MODULE_LOG << "  unsupervised_stage = " << unsupervised_stage << endl;
            MODULE_LOG << "  unsupervised_nstages = " <<
                unsupervised_nstages << endl;
            MODULE_LOG << "  unsupervised_fine_tuning_learning_rate = " <<
                unsupervised_fine_tuning_learning_rate << endl;

            init_stage = unsupervised_stage;
            if( report_progress && unsupervised_stage < unsupervised_nstages )
                pb = new ProgressBar( "Fine-tuning parameters of all layers of "
                                      + classname(),
                                      unsupervised_nstages - init_stage );

            fine_tuning_reconstruction_activations.resize( n_layers );
            fine_tuning_reconstruction_expectations.resize( n_layers );
            fine_tuning_reconstruction_activation_gradients.resize( n_layers );
            fine_tuning_reconstruction_expectation_gradients.resize( n_layers );
            for( int i=0 ; i<n_layers ; i++ )
            {
                fine_tuning_reconstruction_activations[i].resize(
                    layers[i]->size );
                fine_tuning_reconstruction_expectations[i].resize(
                    layers[i]->size );
                fine_tuning_reconstruction_activation_gradients[i].resize(
                    layers[i]->size );
                fine_tuning_reconstruction_expectation_gradients[i].resize(
                    layers[i]->size );
            }

            setLearningRate( unsupervised_fine_tuning_learning_rate );
            train_costs.fill(MISSING_VALUE);
            string old_noise_type = noise_type;
            for( ; unsupervised_stage<unsupervised_nstages ; unsupervised_stage++ )
            {
                sample = unsupervised_stage % nsamples;
                if( !fast_exact_is_equal( unsupervised_fine_tuning_decrease_ct, 0. ) )
                    setLearningRate(
                        unsupervised_fine_tuning_learning_rate
                        / (1. + unsupervised_fine_tuning_decrease_ct
                           * unsupervised_stage ) );

                train_set->getExample( sample, input, target, weight );
                if( noisy >= 1)
                {
                    corrupt_input( input, second_corrupted_autoassociator_expectations[0], 0 );
                    noise_type = "none";
                    unsupervisedFineTuningStep(second_corrupted_autoassociator_expectations[0], target, train_costs );
                    noise_type = old_noise_type;
                }
                else
                    unsupervisedFineTuningStep( input, target, train_costs );
                train_stats->update( train_costs );

                if( pb )
                    pb->update( unsupervised_stage - init_stage + 1 );
            }
            Profiler::pl_profile_end("StackedAutoassociatorsNet::train unsupervised");
        }

        if( save_learner_before_fine_tuning )
        {
            if( learnerExpdir == "" )
                PLWARNING("StackedAutoassociatorsNet::train() - \n"
                    "cannot save model before fine-tuning because\n"
                    "no experiment directory has been set.");
            else
                PLearn::save(learnerExpdir + "/learner_before_finetuning.psave",*this);
        }

        /***** fine-tuning by gradient descent *****/
        if( stage < nstages )
        {
            Profiler::pl_profile_start("StackedAutoassociatorsNet::train supervised");

            MODULE_LOG << "Fine-tuning all parameters, by gradient descent" << endl;
            MODULE_LOG << "  stage = " << stage << endl;
            MODULE_LOG << "  nstages = " << nstages << endl;
            MODULE_LOG << "  fine_tuning_learning_rate = " <<
                fine_tuning_learning_rate << endl;

            init_stage = stage;
            if( report_progress && stage < nstages )
                pb = new ProgressBar( "Fine-tuning parameters of all layers of "
                                      + classname(),
                                      nstages - init_stage );

            setLearningRate( fine_tuning_learning_rate );
            train_costs.fill(MISSING_VALUE);
            for( ; stage<nstages ; stage++ )
            {
                sample = stage % nsamples;
                if( !fast_exact_is_equal( fine_tuning_decrease_ct, 0. ) )
                    setLearningRate( fine_tuning_learning_rate
                                     / (1. + fine_tuning_decrease_ct * stage ) );

                train_set->getExample( sample, input, target, weight );
                if( noisy >= 2)
                {
                    corrupt_input( input, second_corrupted_autoassociator_expectations[0], 0 );
                    fineTuningStep( second_corrupted_autoassociator_expectations[0], target, train_costs );
                }
                else
                    fineTuningStep( input, target, train_costs );
                train_stats->update( train_costs );

                if( pb )
                    pb->update( stage - init_stage + 1 );
            }
        }

        train_stats->finalize();
        MODULE_LOG << "  train costs = " << train_stats->getMean() << endl;

        // Update currently_trained_layer
        if(stage > 0)
            currently_trained_layer = n_layers;
        else
        {
            currently_trained_layer = n_layers-1;
            while(currently_trained_layer>1
                  && greedy_stages[currently_trained_layer-1] <= 0)
                currently_trained_layer--;
        }
        Profiler::pl_profile_end("StackedAutoassociatorsNet::train !online");
        Profiler::pl_profile_end("StackedAutoassociatorsNet::train supervised");
    }
    else // online==true
    {
        Profiler::pl_profile_start("StackedAutoassociatorsNet::train online");

        if( unsupervised_nstages > 0 )
            PLERROR("StackedAutoassociatorsNet::train()"
                    " - \n"
                    "unsupervised fine-tuning with online=true is not implemented.\n");

        // Train all layers simultaneously AND fine-tuning as well!
        if( stage < nstages )
        {

            MODULE_LOG << "Training all layers greedy layer-wise AND "
                       << "fine-tuning all parameters, by gradient descent"
                       << endl;
            MODULE_LOG << "  stage = " << stage << endl;
            MODULE_LOG << "  nstages = " << nstages << endl;
            MODULE_LOG << "  fine_tuning_learning_rate = "
                       << fine_tuning_learning_rate << endl;
            MODULE_LOG << "  greedy_learning_rate = "
                       << greedy_learning_rate << endl;

            init_stage = stage;
            if( report_progress && stage < nstages )
                pb = new ProgressBar(
                    "Greedy layer-wise training AND fine-tuning parameters of "
                                      + classname(),
                                      nstages - init_stage );

            setLearningRate( fine_tuning_learning_rate );
            train_costs.fill(MISSING_VALUE);
            for( ; stage<nstages ; stage++ )
            {
                // Do a step every 'minibatch_size' examples
                if (stage % minibatch_size == 0)
                {
                    sample = stage % nsamples;
                    if( !fast_exact_is_equal(fine_tuning_decrease_ct, 0.) )
                        setLearningRate(fine_tuning_learning_rate
                                        /(1. + fine_tuning_decrease_ct*stage));

                    if (minibatch_size > 1 || minibatch_hack)
                    {
                        train_set->getExamples(sample, minibatch_size,
                                               inputs, targets, weights,
                                               NULL, true );
                        onlineStep(inputs, targets, train_costs_m);
                    }
                    else
                    {
                        train_set->getExample(sample, input, target, weight);
                        onlineStep(input, target, train_costs);
                    }

                    // Update stats if we are in the last n_train_stats_samples
                    if (stage >= nstages - n_train_stats_samples){
                        if (minibatch_size > 1 || minibatch_hack)
                            for (int k = 0; k < minibatch_size; k++)
                                train_stats->update(train_costs_m(k));
                        else
                            train_stats->update(train_costs);
                    }
                }

                if (pb)
                    pb->update(stage - init_stage + 1);
            }
        }
        Profiler::pl_profile_end("StackedAutoassociatorsNet::train online");

    }
    Profiler::pl_profile_end("StackedAutoassociatorsNet::train");
}

Here is the call graph for this function:

void PLearn::StackedAutoassociatorsNet::unsupervisedFineTuningStep ( const Vec input,
const Vec target,
Vec train_costs
)

Definition at line 2243 of file StackedAutoassociatorsNet.cc.

References activation_gradients, activations, connections, correlation_activation_gradients, correlation_activations, correlation_connections, correlation_expectation_gradients, correlation_expectations, correlation_layers, corrupt_input(), corrupted_autoassociator_expectations, PLearn::TVec< T >::data(), expectation_gradients, expectations, PLearn::fast_exact_is_equal(), fine_tuning_reconstruction_activation_gradients, fine_tuning_reconstruction_activations, fine_tuning_reconstruction_expectation_gradients, fine_tuning_reconstruction_expectations, grad, i, l1_neuron_decay, l1_neuron_decay_center, layers, PLearn::TVec< T >::length(), mask_input_layer_only, mask_input_layer_only_in_unsupervised_fine_tuning, n_layers, and reconstruction_connections.

Referenced by train().

{
    // fprop
    expectations[0] << input;

    bool old_mask_input_layer_only = mask_input_layer_only;
    mask_input_layer_only = mask_input_layer_only_in_unsupervised_fine_tuning;

    if(correlation_connections.length() != 0)
    {

        for( int i=0 ; i<n_layers-1; i++ )
        {
            corrupt_input( expectations[i], corrupted_autoassociator_expectations[i], i);
            connections[i]->fprop( corrupted_autoassociator_expectations[i],
                                   correlation_activations[i] );
            layers[i+1]->fprop( correlation_activations[i],
                                correlation_expectations[i] );
            correlation_connections[i]->fprop( correlation_expectations[i],
                                               activations[i+1] );
            correlation_layers[i]->fprop( activations[i+1],
                                          expectations[i+1] );
        }
    }
    else
    {
        for( int i=0 ; i<n_layers-1; i++ )
        {
            corrupt_input( expectations[i], corrupted_autoassociator_expectations[i], i);
            connections[i]->fprop( corrupted_autoassociator_expectations[i],
                                   activations[i+1] );
            layers[i+1]->fprop(activations[i+1],expectations[i+1]);
        }
    }
    fine_tuning_reconstruction_expectations[ n_layers-1 ] <<
        expectations[ n_layers-1 ];

    for( int i=n_layers-2 ; i>=0; i-- )
    {
        reconstruction_connections[i]->fprop(
            fine_tuning_reconstruction_expectations[i+1],
            fine_tuning_reconstruction_activations[i] );
        layers[i]->fprop( fine_tuning_reconstruction_activations[i],
                          fine_tuning_reconstruction_expectations[i]);
    }

    layers[ 0 ]->setExpectation( fine_tuning_reconstruction_expectations[ 0 ] );
    layers[ 0 ]->activation << fine_tuning_reconstruction_activations[0];
    layers[ 0 ]->activation += layers[ 0 ]->bias;
    real rec_err = layers[ 0 ]->fpropNLL( input );
    train_costs[n_layers-1] = rec_err;

    layers[ 0 ]->bpropNLL( input, rec_err,
                           fine_tuning_reconstruction_activation_gradients[ 0 ] );

    layers[ 0 ]->update( fine_tuning_reconstruction_activation_gradients[ 0 ] );

    for( int i=0 ; i<n_layers-1; i++ )
    {
        if( i != 0)
            layers[i]->bpropUpdate( fine_tuning_reconstruction_activations[i],
                                    fine_tuning_reconstruction_expectations[i],
                                    fine_tuning_reconstruction_activation_gradients[i],
                                    fine_tuning_reconstruction_expectation_gradients[i]);
        reconstruction_connections[i]->bpropUpdate(
            fine_tuning_reconstruction_expectations[i+1],
            fine_tuning_reconstruction_activations[i],
            fine_tuning_reconstruction_expectation_gradients[i+1],
            fine_tuning_reconstruction_activation_gradients[i]);
    }

    expectation_gradients[ n_layers-1 ] <<
        fine_tuning_reconstruction_expectation_gradients[ n_layers-1 ];

    for( int i=n_layers-2 ; i>=0; i-- )
    {

        if(!fast_exact_is_equal(l1_neuron_decay,0))
        {
            // Compute L1 penalty gradient on neurons
            real* hid = expectations[ i + 1 ].data();
            real* grad = expectation_gradients[ i + 1 ].data();
            int len = expectations[ i + 1 ].length();
            for(int l=0; l<len; l++)
            {
                if(*hid > l1_neuron_decay_center)
                    *grad += l1_neuron_decay;
                else if(*hid < l1_neuron_decay_center)
                    *grad -= l1_neuron_decay;
                hid++;
                grad++;
            }
        }

        if(correlation_connections.length() != 0)
        {
            correlation_layers[ i ]->bpropUpdate(
                activations[ i + 1 ],
                expectations[ i + 1 ],
                activation_gradients[ i + 1 ],
                expectation_gradients[ i + 1 ]
                );

            correlation_connections[ i ]->bpropUpdate(
                correlation_expectations[ i ],
                activations[ i + 1 ],
                correlation_expectation_gradients[ i ],
                activation_gradients[ i + 1 ] );

            layers[ i + 1 ]->bpropUpdate(
                correlation_activations[ i ],
                correlation_expectations[ i ],
                correlation_activation_gradients [ i ],
                correlation_expectation_gradients [ i ]);

            connections[ i ]->bpropUpdate(
                corrupted_autoassociator_expectations[ i ],
                correlation_activations[ i ],
                expectation_gradients[i],
                correlation_activation_gradients [ i ]);
        }
        else
        {

            layers[i+1]->bpropUpdate(
                activations[i+1],expectations[i+1],
                activation_gradients[i+1],expectation_gradients[i+1]);
            connections[i]->bpropUpdate(
                corrupted_autoassociator_expectations[i], activations[i+1],
                expectation_gradients[i], activation_gradients[i+1] );
        }
    }

    mask_input_layer_only = old_mask_input_layer_only;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::StackedAutoassociatorsNet::unsupervisedFineTuningStep ( const Mat inputs,
const Mat targets,
Mat train_costs
)

Definition at line 2381 of file StackedAutoassociatorsNet.cc.

References PLCHECK_MSG.

{
    PLCHECK_MSG(false, "Mini-batch not implemented yet.");
}

Member Data Documentation

Reimplemented from PLearn::PLearner.

Definition at line 353 of file StackedAutoassociatorsNet.h.

Stores the gradient of the cost wrt the activations of the input and hidden layers (at the input of the layers)

Definition at line 384 of file StackedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), fineTuningStep(), greedyStep(), makeDeepCopyFromShallowCopy(), onlineStep(), and unsupervisedFineTuningStep().

Stores the activations of the input and hidden layers (at the input of the layers)

Definition at line 370 of file StackedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), computeOutput(), fantasizeKTime(), fineTuningStep(), greedyStep(), makeDeepCopyFromShallowCopy(), onlineStep(), train(), and unsupervisedFineTuningStep().

Indices of the expectation components.

Definition at line 510 of file StackedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), corrupt_input(), fantasizeKTime(), and makeDeepCopyFromShallowCopy().

Training batch size (1=stochastic learning, 0=full batch learning)

Definition at line 94 of file StackedAutoassociatorsNet.h.

Referenced by build_(), declareOptions(), and train().

Layers random binary maske, for online learning.

Definition at line 504 of file StackedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), makeDeepCopyFromShallowCopy(), and onlineStep().

Parameter $ \tau $ for corrupted input sampling: $ \tilde{x}_k ~ B((x_k - 0.5) \tau + 0.5) $.

Definition at line 224 of file StackedAutoassociatorsNet.h.

Referenced by corrupt_input(), and declareOptions().

Indication that, at test time, all costs for all layers (up to the currently trained layer) should be computed.

Definition at line 157 of file StackedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), computeCostsFromOutputs(), computeOutputs(), computeOutputsAndCosts(), and declareOptions().

Gradients of activations before the correlation layer.

Definition at line 440 of file StackedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), fineTuningStep(), greedyStep(), makeDeepCopyFromShallowCopy(), onlineStep(), and unsupervisedFineTuningStep().

Optional weights to capture correlation and anti-correlation in the hidden layers.

They must have the same input and output sizes, compatible with their corresponding layers.

Definition at line 121 of file StackedAutoassociatorsNet.h.

Referenced by build_costs(), build_layers_and_connections(), computeOutput(), computeOutputs(), computeOutputsAndCosts(), declareOptions(), fineTuningStep(), forget(), greedyStep(), makeDeepCopyFromShallowCopy(), onlineStep(), setLearningRate(), train(), and unsupervisedFineTuningStep().

Gradients of expectations before the correlation layer.

Definition at line 444 of file StackedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), fineTuningStep(), greedyStep(), makeDeepCopyFromShallowCopy(), onlineStep(), and unsupervisedFineTuningStep().

Layers randomly masked, for unsupervised fine-tuning.

Definition at line 482 of file StackedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), fantasizeKTime(), greedyStep(), makeDeepCopyFromShallowCopy(), onlineStep(), and unsupervisedFineTuningStep().

Weight given to a corrupted (or missing) data when backpropagating the gradient of reconstruction cost.

Definition at line 172 of file StackedAutoassociatorsNet.h.

Referenced by build_(), corrupt_input(), and declareOptions().

Currently trained layer (1 means the first hidden layer, n_layers means the output layer)

Definition at line 527 of file StackedAutoassociatorsNet.h.

Referenced by build_(), computeCostsFromOutputs(), computeOutput(), computeOutputs(), outputsize(), remote_setCurrentlyTrainedLayer(), and train().

Weight given to a data (not corrupted or not missing) when backpropagating the gradient of reconstruction cost.

Definition at line 176 of file StackedAutoassociatorsNet.h.

Referenced by build_(), corrupt_input(), and declareOptions().

Activations from the direct connections.

Definition at line 451 of file StackedAutoassociatorsNet.h.

Referenced by computeCostsFromOutputs(), greedyStep(), makeDeepCopyFromShallowCopy(), and train().

Gradient of sum of activations from the direct and reconstruction connections.

Definition at line 458 of file StackedAutoassociatorsNet.h.

Referenced by greedyStep(), makeDeepCopyFromShallowCopy(), and train().

Sum of activations from the direct and reconstruction connections.

Definition at line 454 of file StackedAutoassociatorsNet.h.

Referenced by greedyStep(), makeDeepCopyFromShallowCopy(), and train().

Optional weights from each inputs to all other inputs' reconstruction, which can capture simple (linear or log-linear) correlations between inputs.

Definition at line 126 of file StackedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), computeCostsFromOutputs(), declareOptions(), forget(), greedyStep(), makeDeepCopyFromShallowCopy(), setLearningRate(), and train().

Stores the gradients of the doubled version of expectations.

Definition at line 393 of file StackedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), fineTuningStep(), and makeDeepCopyFromShallowCopy().

In case of missing_data: expectations doubled before corruption or before propagation to the next layer.

Definition at line 379 of file StackedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), computeOutput(), fantasizeKTime(), fineTuningStep(), greedyStep(), and makeDeepCopyFromShallowCopy().

Stores the gradient of the cost wrt the expectations of the input and hidden layers (at the output of the layers)

Definition at line 390 of file StackedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), fineTuningStep(), greedyStep(), makeDeepCopyFromShallowCopy(), onlineStep(), and unsupervisedFineTuningStep().

Mean of layers on the training set for each layer.

Definition at line 513 of file StackedAutoassociatorsNet.h.

Referenced by corrupt_input(), declareOptions(), makeDeepCopyFromShallowCopy(), and train().

Stores the expectations of the input and hidden layers (at the output of the layers)

Definition at line 375 of file StackedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), computeCostsFromOutputs(), computeOutput(), fantasizeKTime(), fineTuningStep(), greedyStep(), makeDeepCopyFromShallowCopy(), onlineStep(), train(), and unsupervisedFineTuningStep().

The cost function to be applied on top of the neural network (i.e.

at the output of final_module). Its gradients will be backpropagated to final_module and then backpropagated to the layers.

Definition at line 137 of file StackedAutoassociatorsNet.h.

Referenced by build_costs(), computeCostsFromOutputs(), declareOptions(), fineTuningStep(), forget(), getTestCostNames(), getTrainCostNames(), makeDeepCopyFromShallowCopy(), onlineStep(), and setLearningRate().

Stores the gradient of the cost at the input of final_cost.

Definition at line 478 of file StackedAutoassociatorsNet.h.

Referenced by build_costs(), fineTuningStep(), makeDeepCopyFromShallowCopy(), and onlineStep().

Definition at line 479 of file StackedAutoassociatorsNet.h.

Referenced by makeDeepCopyFromShallowCopy(), and onlineStep().

Input of the final_cost.

Definition at line 469 of file StackedAutoassociatorsNet.h.

Referenced by fineTuningStep(), makeDeepCopyFromShallowCopy(), and onlineStep().

Definition at line 470 of file StackedAutoassociatorsNet.h.

Referenced by makeDeepCopyFromShallowCopy(), and onlineStep().

Cost value of final_cost.

Definition at line 473 of file StackedAutoassociatorsNet.h.

Referenced by computeCostsFromOutputs(), fineTuningStep(), makeDeepCopyFromShallowCopy(), and onlineStep().

Definition at line 474 of file StackedAutoassociatorsNet.h.

Referenced by makeDeepCopyFromShallowCopy(), and onlineStep().

Definition at line 475 of file StackedAutoassociatorsNet.h.

Referenced by makeDeepCopyFromShallowCopy(), and onlineStep().

Module that takes as input the output of the last layer (layers[n_layers-1), and feeds its output to final_cost which defines the fine-tuning criteria.

Definition at line 131 of file StackedAutoassociatorsNet.h.

Referenced by build_costs(), computeOutput(), computeOutputs(), declareOptions(), fineTuningStep(), forget(), makeDeepCopyFromShallowCopy(), onlineStep(), outputsize(), and setLearningRate().

The decrease constant of the learning rate used during fine tuning gradient descent.

Definition at line 82 of file StackedAutoassociatorsNet.h.

Referenced by declareOptions(), onlineStep(), and train().

The learning rate used during the fine tuning gradient descent.

Definition at line 78 of file StackedAutoassociatorsNet.h.

Referenced by build_costs(), declareOptions(), onlineStep(), and train().

Unsupervised fine-tuning reconstruction activations gradients.

Definition at line 414 of file StackedAutoassociatorsNet.h.

Referenced by makeDeepCopyFromShallowCopy(), train(), and unsupervisedFineTuningStep().

Unsupervised fine-tuning reconstruction activations.

Definition at line 408 of file StackedAutoassociatorsNet.h.

Referenced by makeDeepCopyFromShallowCopy(), train(), and unsupervisedFineTuningStep().

Unsupervised fine-tuning reconstruction expectations gradients.

Definition at line 417 of file StackedAutoassociatorsNet.h.

Referenced by makeDeepCopyFromShallowCopy(), train(), and unsupervisedFineTuningStep().

Unsupervised fine-tuning reconstruction expectations.

Definition at line 411 of file StackedAutoassociatorsNet.h.

Referenced by makeDeepCopyFromShallowCopy(), train(), and unsupervisedFineTuningStep().

Random fraction of the autoassociators' input components that masked, i.e.

unsused to reconstruct the input.

Definition at line 180 of file StackedAutoassociatorsNet.h.

Referenced by build_(), build_layers_and_connections(), corrupt_input(), declareOptions(), and fantasizeKTime().

Standard deviation of Gaussian noise.

Definition at line 220 of file StackedAutoassociatorsNet.h.

Referenced by corrupt_input(), and declareOptions().

The decrease constant of the learning rate used during the autoassociator gradient descent training.

When a hidden layer has finished its training, the learning rate is reset to it's initial value.

Definition at line 75 of file StackedAutoassociatorsNet.h.

Referenced by declareOptions(), onlineStep(), and train().

The learning rate used during the autoassociator gradient descent training.

It is also used for the partial costs.

Definition at line 69 of file StackedAutoassociatorsNet.h.

Referenced by declareOptions(), onlineStep(), and train().

Stages of the different greedy phases.

Definition at line 523 of file StackedAutoassociatorsNet.h.

Referenced by build_(), build_layers_and_connections(), declareOptions(), forget(), makeDeepCopyFromShallowCopy(), and train().

Optional target connections during greedy training.

They connect the target with the hidden layer from which the autoassociator's cost (including partial cost) is computed (only during training). Currently works only if target is a class index.

Definition at line 153 of file StackedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), declareOptions(), forget(), greedyStep(), makeDeepCopyFromShallowCopy(), onlineStep(), setLearningRate(), and train().

Hidden reconstruction activation gradients.

Definition at line 429 of file StackedAutoassociatorsNet.h.

Referenced by greedyStep(), makeDeepCopyFromShallowCopy(), and train().

Hidden reconstruction activations.

Definition at line 426 of file StackedAutoassociatorsNet.h.

Referenced by computeCostsFromOutputs(), greedyStep(), makeDeepCopyFromShallowCopy(), and train().

Keep trace of the representations obtained during an unsupervised training phase.

Definition at line 262 of file StackedAutoassociatorsNet.h.

Referenced by declareOptions(), greedyStep(), and train().

L1 penalty weight on the hidden layers, to encourage sparsity during the greedy unsupervised phases.

Definition at line 86 of file StackedAutoassociatorsNet.h.

Referenced by declareOptions(), greedyStep(), onlineStep(), and unsupervisedFineTuningStep().

Value around which the L1 penalty should be centered, i.e.

L1(h) = | h - l1_neuron_decay_center | where h is the value of the neurons.

Definition at line 91 of file StackedAutoassociatorsNet.h.

Referenced by declareOptions(), greedyStep(), onlineStep(), and unsupervisedFineTuningStep().

Experiment directory where the learner will be save if save_learner_before_fine_tuning is true.

Definition at line 255 of file StackedAutoassociatorsNet.h.

Referenced by declareOptions(), and train().

Indication that only the input layer should be masked during greedy layer-wise learning.

Definition at line 243 of file StackedAutoassociatorsNet.h.

Referenced by corrupt_input(), declareOptions(), fantasizeKTime(), and unsupervisedFineTuningStep().

Indication that only the input layer should be masked during unsupervised fine-tuning.

Definition at line 247 of file StackedAutoassociatorsNet.h.

Referenced by declareOptions(), and unsupervisedFineTuningStep().

training set mean of that component

Definition at line 191 of file StackedAutoassociatorsNet.h.

Referenced by corrupt_input(), declareOptions(), and train().

Indication that inputs should be masked with 0 or 1 according to prop_salt_noise.

Definition at line 195 of file StackedAutoassociatorsNet.h.

Referenced by corrupt_input(), and declareOptions().

Actual size of a mini-batch (size of the training set if batch_size==1)

Definition at line 364 of file StackedAutoassociatorsNet.h.

Referenced by train().

Method used to fill the double_input vector when using missing_data noise type.

Definition at line 168 of file StackedAutoassociatorsNet.h.

Referenced by corrupt_input(), declareOptions(), divide_input(), and double_input().

Indicates how many layers will be corrupted during gready layer-wise learning (starting with input layer)

Definition at line 239 of file StackedAutoassociatorsNet.h.

Referenced by build_(), corrupt_input(), declareOptions(), and fantasizeKTime().

Usage of noisy example before doing a particular training.

Could be before unsup. pre-training (=1) or before unsup pre-training AND before supervised fine-tuning (=2). Original example are used for any test.

Definition at line 214 of file StackedAutoassociatorsNet.h.

Referenced by build_(), build_layers_and_connections(), declareOptions(), and train().

Whether to do things by stages, including fine-tuning, or on-line.

Definition at line 101 of file StackedAutoassociatorsNet.h.

Referenced by build_(), build_layers_and_connections(), declareOptions(), and train().

Cost value of partial_costs.

Definition at line 464 of file StackedAutoassociatorsNet.h.

Referenced by computeCostsFromOutputs(), greedyStep(), makeDeepCopyFromShallowCopy(), and onlineStep().

Definition at line 465 of file StackedAutoassociatorsNet.h.

Referenced by makeDeepCopyFromShallowCopy(), and onlineStep().

Definition at line 466 of file StackedAutoassociatorsNet.h.

Referenced by makeDeepCopyFromShallowCopy(), and onlineStep().

Corresponding additional supervised cost function to be applied on top of each hidden layer during the autoassociator training stages.

The gradient for these costs are not backpropagated to previous layers.

Definition at line 142 of file StackedAutoassociatorsNet.h.

Referenced by build_(), build_costs(), computeCostsFromOutputs(), declareOptions(), forget(), getTestCostNames(), getTrainCostNames(), greedyStep(), makeDeepCopyFromShallowCopy(), onlineStep(), and train().

Position in the total cost vector of the different partial costs.

Definition at line 461 of file StackedAutoassociatorsNet.h.

Referenced by build_costs(), computeCostsFromOutputs(), greedyStep(), makeDeepCopyFromShallowCopy(), and onlineStep().

Relative weights of the partial costs.

If not defined, weights of 1 will be assumed for all partial costs.

Definition at line 146 of file StackedAutoassociatorsNet.h.

Referenced by build_(), declareOptions(), greedyStep(), makeDeepCopyFromShallowCopy(), and onlineStep().

Indicate if the pepper salt is zero centered (>0) or not (0).

If pep_salt_zero_centered equal 0 then pepper value is 0 and salt value is 1. If pep_salt_zero_centered is greater than 0, then the pepper value is -pep_salt_zero_centered and the salt value is pep_salt_zero_centered.

Definition at line 203 of file StackedAutoassociatorsNet.h.

Referenced by corrupt_input(), and declareOptions().

Probability that we mask the input by 1 instead of 0.

Definition at line 217 of file StackedAutoassociatorsNet.h.

Referenced by build_(), corrupt_input(), and declareOptions().

Probability of masking each input component.

Either this option or fraction_of_masked_inputs should be > 0.

Definition at line 184 of file StackedAutoassociatorsNet.h.

Referenced by build_(), corrupt_input(), declareOptions(), and fantasizeKTime().

Probability of masking the target, when using greedy_target_connections.

Definition at line 188 of file StackedAutoassociatorsNet.h.

Referenced by build_(), declareOptions(), greedyStep(), and onlineStep().

Indication that the autoassociators are also trained to reconstruct their hidden layers (inspired from CD1 in an RBM)

Definition at line 161 of file StackedAutoassociatorsNet.h.

Referenced by build_(), build_layers_and_connections(), computeCostsFromOutputs(), declareOptions(), greedyStep(), and train().

Reconstruction activation gradients.

Definition at line 400 of file StackedAutoassociatorsNet.h.

Referenced by greedyStep(), makeDeepCopyFromShallowCopy(), onlineStep(), and train().

Reconstruction activation gradients coming from hidden reconstruction.

Definition at line 420 of file StackedAutoassociatorsNet.h.

Referenced by greedyStep(), makeDeepCopyFromShallowCopy(), and train().

Definition at line 401 of file StackedAutoassociatorsNet.h.

Referenced by makeDeepCopyFromShallowCopy(), onlineStep(), and train().

Reconstruction activations.

Definition at line 396 of file StackedAutoassociatorsNet.h.

Referenced by computeCostsFromOutputs(), fantasizeKTime(), greedyStep(), makeDeepCopyFromShallowCopy(), onlineStep(), and train().

Definition at line 397 of file StackedAutoassociatorsNet.h.

Referenced by makeDeepCopyFromShallowCopy(), onlineStep(), and train().

Reconstruction expectation gradients.

Definition at line 404 of file StackedAutoassociatorsNet.h.

Referenced by greedyStep(), makeDeepCopyFromShallowCopy(), onlineStep(), and train().

Reconstruction expectation gradients coming from hidden reconstruction.

Definition at line 423 of file StackedAutoassociatorsNet.h.

Referenced by greedyStep(), makeDeepCopyFromShallowCopy(), and train().

Definition at line 405 of file StackedAutoassociatorsNet.h.

Referenced by makeDeepCopyFromShallowCopy(), onlineStep(), and train().

The reconstruction layers in the network.

If not defined, will be the same layers as in the encodage phase. Useful for example if we want binomial input components and real reconstruction components.

Definition at line 110 of file StackedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), computeCostsFromOutputs(), declareOptions(), fantasizeKTime(), forget(), greedyStep(), makeDeepCopyFromShallowCopy(), onlineStep(), setLearningRate(), and train().

Stores the weight of each data used when backpropagating the gradient of reconstruction cost.

The weight is either corrupted_data_weight or data_weight if the data has been corrupted or not, respectively. Used for example to put emphasis on corrupted/missing data during the reconstruction.

Definition at line 498 of file StackedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), corrupt_input(), greedyStep(), and makeDeepCopyFromShallowCopy().

Indication that the autoassociator will try to "reconstruct" another _corrupted version_ of the input (instead of the input itself).

Definition at line 208 of file StackedAutoassociatorsNet.h.

Referenced by build_(), build_layers_and_connections(), declareOptions(), and greedyStep().

Saves the learner before the supervised fine_tuning.

Definition at line 258 of file StackedAutoassociatorsNet.h.

Referenced by declareOptions(), and train().

Corrupted version of the autoassociator input not used for denoising.

Useful when renoising or noisy is true. In the first case: autoassociator will try to have its decoded version getting closer to this corrupted version during the non-supervised training. In the second case: example will be corrupted before any non-supervised (without denoising) and supervised training.

Definition at line 490 of file StackedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), greedyStep(), makeDeepCopyFromShallowCopy(), and train().

Vectorial representation of the target.

Definition at line 516 of file StackedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), greedyStep(), and makeDeepCopyFromShallowCopy().

For online case.

Definition at line 519 of file StackedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), makeDeepCopyFromShallowCopy(), and onlineStep().

For when corrupt_input() with binary_mask parameter is called.

Definition at line 507 of file StackedAutoassociatorsNet.h.

Referenced by corrupt_input(), and makeDeepCopyFromShallowCopy().

Global storage to save memory allocations.

Reimplemented from PLearn::PLearner.

Definition at line 585 of file StackedAutoassociatorsNet.h.

Definition at line 586 of file StackedAutoassociatorsNet.h.

Representations computed for the current trained layer.

Definition at line 501 of file StackedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), getTrainRepresentations(), and train().

The number of samples to use to compute training stats.

-1 (default) means the number of training samples.

Definition at line 251 of file StackedAutoassociatorsNet.h.

Referenced by declareOptions(), and train().

Number of examples to use during each phase of greedy pre-training.

The number of fine-tunig steps is defined by nstages.

Definition at line 98 of file StackedAutoassociatorsNet.h.

Referenced by build_(), declareOptions(), makeDeepCopyFromShallowCopy(), and train().

The decrease constant of the learning rate used during unsupervised fine tuning gradient descent.

Definition at line 235 of file StackedAutoassociatorsNet.h.

Referenced by declareOptions(), and train().

The learning rate used during the unsupervised fine tuning gradient descent.

Definition at line 231 of file StackedAutoassociatorsNet.h.

Referenced by declareOptions(), and train().

Number of samples to use for unsupervised fine-tuning.

Definition at line 227 of file StackedAutoassociatorsNet.h.

Referenced by declareOptions(), and train().

Number of samples visited so far during unsupervised fine-tuning.

Definition at line 270 of file StackedAutoassociatorsNet.h.

Referenced by declareOptions(), forget(), and train().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
