PLearn::ICP Class Reference

#include <ICP.h>

Inheritance diagram for PLearn::ICP:
Inheritance graph
[legend]

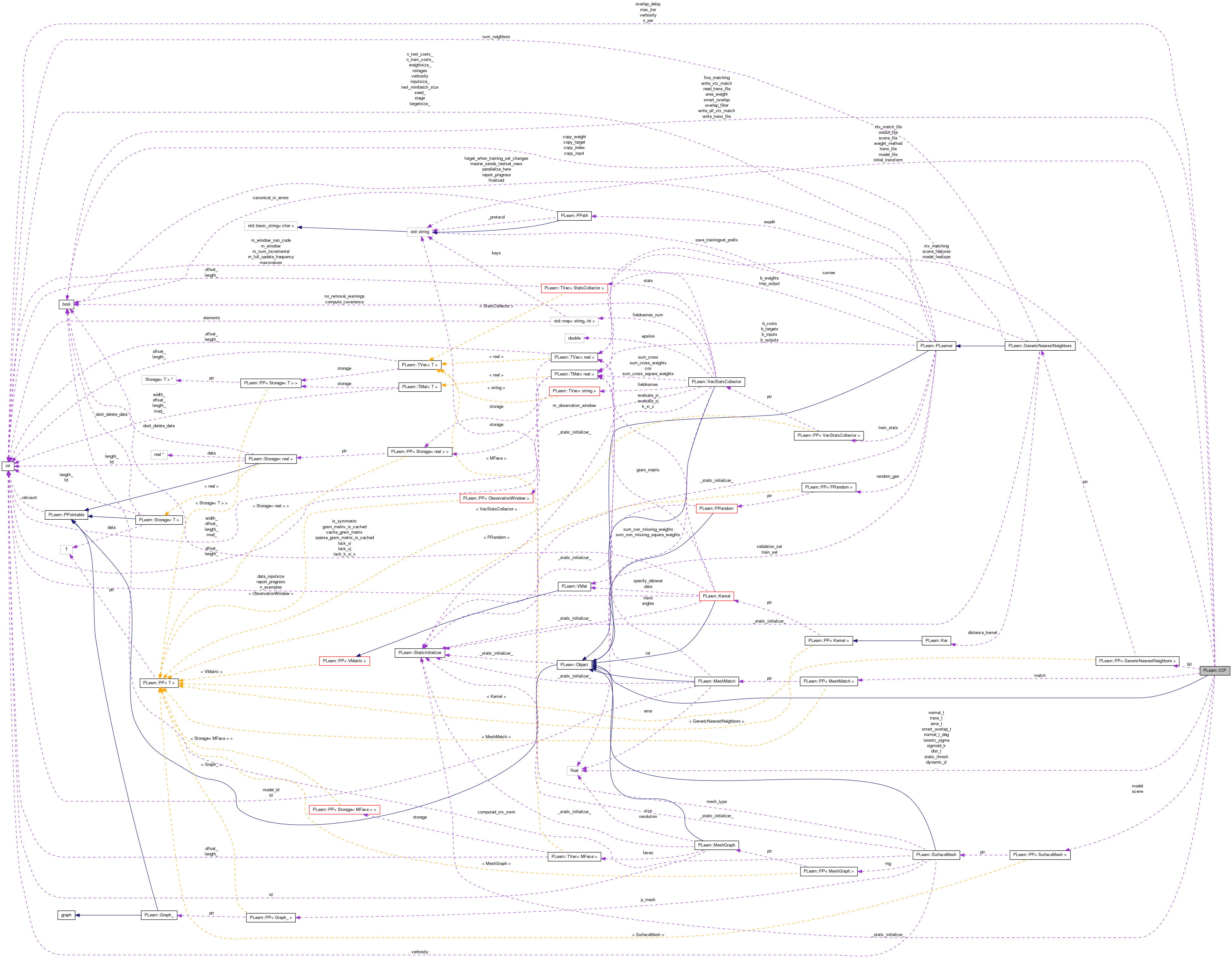

Collaboration diagram for PLearn::ICP:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 ICP ()
 Default constructor.
 ICP (SurfMesh a_model, SurfMesh a_scene, GenericNN btl_init)
 Other constructor.
virtual ~ICP ()
 Virtual destructor.
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual ICPdeepCopy (CopiesMap &copies) const
virtual void build ()
 Post-constructor.
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.
int iterate ()
void run ()
 Override this for runnable objects (default method issues a runtime error).

Static Public Member Functions

static string _classname_ ()
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

string weight_method
real sigmoid_dmid
real sigmoid_k
real lorentz_sigma
real dynamic_d
real static_thresh
real error_t
real dist_t
real angle_t
real trans_t
int max_iter
real normal_t
real normal_t_deg
bool area_weight
bool overlap_filter
int overlap_delay
bool smart_overlap
real smart_overlap_t
int n_per
bool fine_matching
string model_file
string scene_file
string output_file
string initial_transform
bool read_trans_file
bool write_trans_file
string trans_file
MMatch match
Mat vtx_matching
bool write_vtx_match
bool write_all_vtx_match
string vtx_match_file
SurfMesh model
SurfMesh scene
GenericNN btl
Mat model_features
Mat scene_features
int verbosity
 Level of verbosity.

Static Public Attributes

static StaticInitializer _static_initializer_

Protected Member Functions

void meshVertexAreas (const SurfMesh &mesh, Vec &areas)
real dynamicDistanceThreshold (const Mat model_pts, const Mat scene_pts, const real d, const real d_max)
real computeWeightedDistance (const Mat m1_pts, const Mat m2_pts, const Vec weights)
void computeWeights (const Mat model_pts, const Mat scene_pts, const Vec areas, Vec weights, real &min_wt, real &max_wt)
bool iterativeReweight (Mat model_pts, const Mat scene_pts, const Vec areas, Vec weights, const Mat init_corners, const int max_iter, Mat total_delta_rot, Vec total_delta_trans)
real weightOracle (int, Vec, int, Vec)

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declares this class' options.

Protected Attributes

real delta_trans_length
real delta_angle_length
real dynamic_dmax0

Private Types

typedef Object inherited

Private Member Functions

void build_ ()
 This does the actual building.
void buildMeshes ()

Detailed Description

Definition at line 60 of file ICP.h.


Member Typedef Documentation

typedef Object PLearn::ICP::inherited [private]

Reimplemented from PLearn::Object.

Definition at line 65 of file ICP.h.


Constructor & Destructor Documentation

PLearn::ICP::ICP ( )

Default constructor.

Definition at line 49 of file ICP.cc.

         :
  weight_method( "dynamic" ),
  sigmoid_dmid( 500 ),
  sigmoid_k( 1 ),
  lorentz_sigma( 100 ),
  dynamic_d( 100 ),
  static_thresh( 1000 ),
  error_t( 0 ),
  dist_t( 10 ),
  angle_t( 0 ),
  trans_t( 0 ),
  max_iter( 20 ),
  normal_t( DEG2RAD * 90 ),
  area_weight( false ),
  overlap_filter( false ),
  overlap_delay( 0 ),
  smart_overlap( false ),
  smart_overlap_t( 0 ),
  n_per( 0 ),
  fine_matching( false ),
  read_trans_file( false ),
  write_trans_file( false ),
  write_vtx_match( false ),
  write_all_vtx_match( false ),
  verbosity( 1 )
{}
PLearn::ICP::ICP ( SurfMesh  a_model,
SurfMesh  a_scene,
GenericNN  btl_init
)

Other constructor.

Definition at line 76 of file ICP.cc.

References btl, model, and scene.

                               :
  weight_method( "dynamic" ),
  sigmoid_dmid( 500 ),
  sigmoid_k( 1 ),
  lorentz_sigma( 100 ),
  dynamic_d( 100 ),
  static_thresh( 1000 ),
  error_t( 0 ),
  dist_t( 10 ),
  angle_t( 0 ),
  trans_t( 0 ),
  max_iter( 20 ),
  normal_t_deg( 90 ),
  area_weight( false ),
  overlap_filter( false ),
  overlap_delay( 0 ),
  smart_overlap( false ),
  smart_overlap_t( 0 ),
  n_per( 0 ),
  fine_matching( false ),
  read_trans_file( false ),
  write_trans_file( false ),
  write_vtx_match( false ),
  write_all_vtx_match( false ),
  verbosity( 1 )
{
  model = a_model;
  scene = a_scene;

  if( !btl_init )
  {
    btl->setTrainingSet( scene->getVertexCoordsAndFeatures() );
    btl->setOption( "nstages", "-1" );
//    btl->rmin = 1;
    btl->build();
    btl->train();
    btl->num_neighbors = 1;
    btl->copy_input = true;
    btl->copy_target = false;
    btl->copy_weight = false;
    btl->copy_index = true;
  }
  else
  {
    btl = btl_init;
  }

}
virtual PLearn::ICP::~ICP ( ) [inline, virtual]

Virtual destructor.

Definition at line 152 of file ICP.h.

{}

Member Function Documentation

string PLearn::ICP::_classname_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 130 of file ICP.cc.

OptionList & PLearn::ICP::_getOptionList_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 130 of file ICP.cc.

RemoteMethodMap & PLearn::ICP::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 130 of file ICP.cc.

bool PLearn::ICP::_isa_ ( const Object o) [static]

Reimplemented from PLearn::Object.

Definition at line 130 of file ICP.cc.

Object * PLearn::ICP::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 130 of file ICP.cc.

StaticInitializer ICP::_static_initializer_ & PLearn::ICP::_static_initialize_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 130 of file ICP.cc.

void PLearn::ICP::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::Object.

Definition at line 318 of file ICP.cc.

References PLearn::Object::build(), and build_().

Referenced by align_().

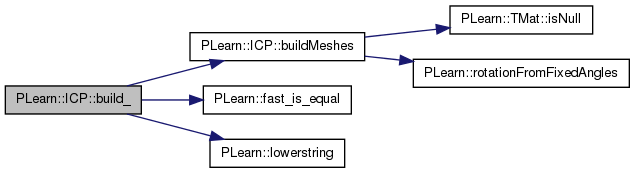

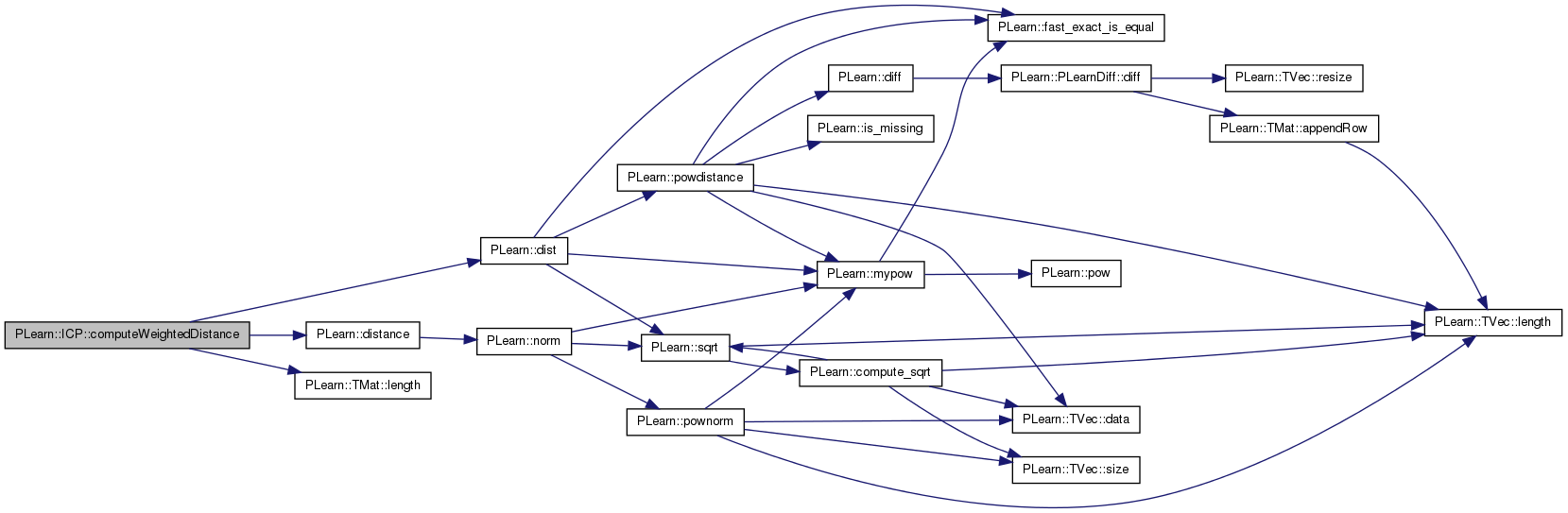

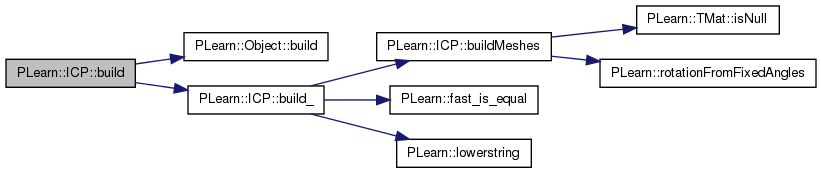

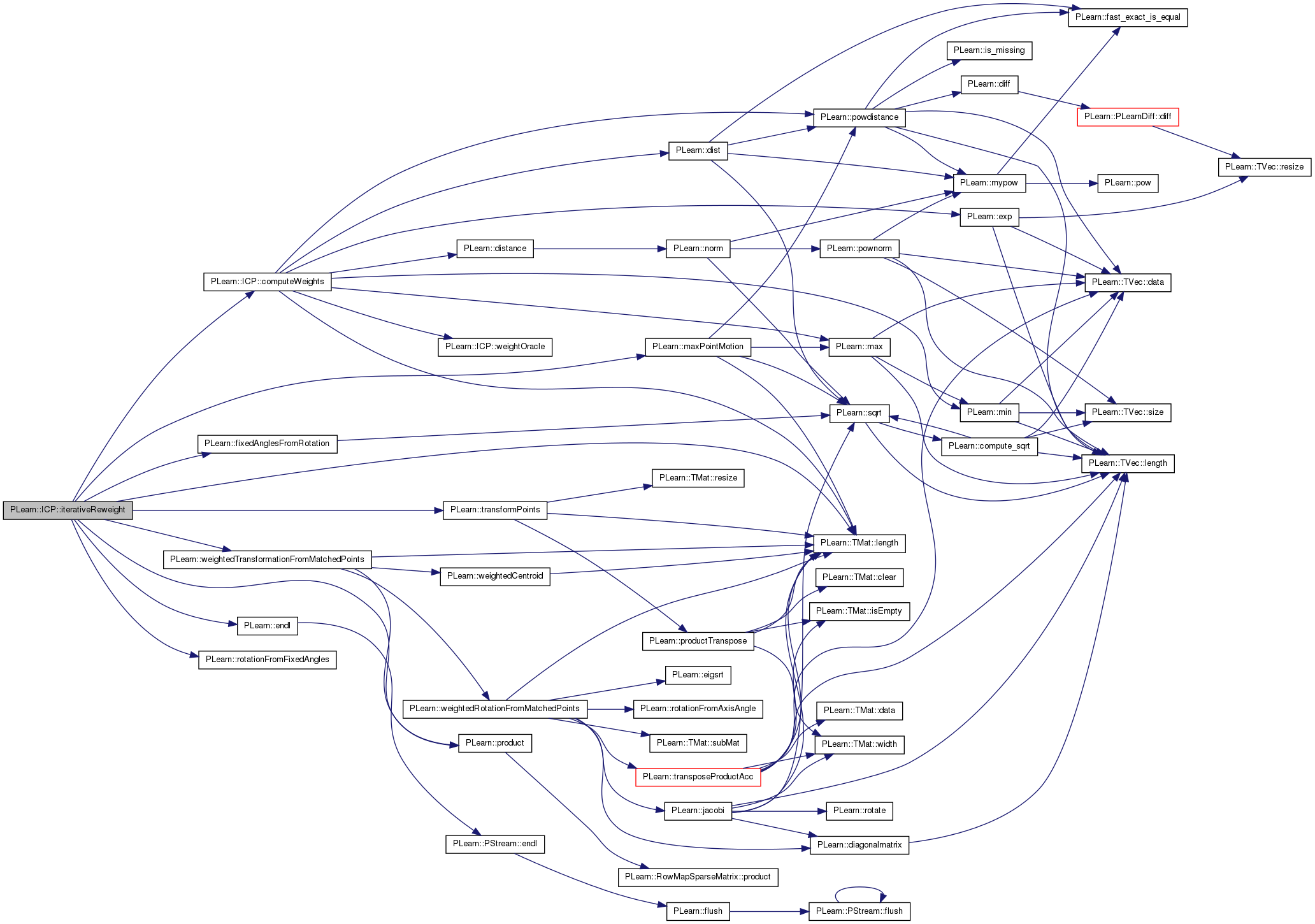

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::ICP::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::Object.

Definition at line 292 of file ICP.cc.

References buildMeshes(), DEG2RAD, PLearn::fast_is_equal(), PLearn::lowerstring(), normal_t, normal_t_deg, PLERROR, smart_overlap, smart_overlap_t, and weight_method.

Referenced by build().

{
  normal_t = DEG2RAD * normal_t_deg;

  if( fast_is_equal(smart_overlap_t, 0., REAL_MAX, 1e-5) )
    smart_overlap = false;
  else
    smart_overlap = true;

  string wm = lowerstring( weight_method );
  if( wm == "sigmoid" )
    weight_method = wm;
  else if( wm == "lorentz" )
    weight_method = wm;
  else if( wm == "dynamic" )
    weight_method = wm;
  else if( wm == "static" )
    weight_method = wm;
  else if( wm == "oracle" )
    weight_method = wm;
  else
    PLERROR( "weight_method \"%s\" not supported", weight_method.c_str() );

  buildMeshes();
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::ICP::buildMeshes ( ) [private]

Definition at line 775 of file ICP.cc.

References btl, fine_matching, in, initial_transform, PLearn::TMat< T >::isNull(), match, model, model_features, model_file, PLERROR, PLWARNING, read_trans_file, PLearn::rotationFromFixedAngles(), scene, scene_features, scene_file, and trans_file.

Referenced by build_().

{
  if( !model )
  {
    if( model_file.length() == 0 )
      PLERROR( "You need to provide either 'model' or 'model_file' option");

    model = new SurfaceMesh();

    // read in the model mesh
    if( model_features.isNull() )
    {
      if( !(model->readVRMLFile( model_file )) )
        PLERROR( "Problem reading %s\n", model_file.c_str() );
    }
    else
    {
      if( !(model->readVRMLFile( model_file, model_features )) )
        PLERROR( "Problem reading %s\n", model_file.c_str() );
    }
  }

  if( !scene )
  {
    if( scene_file.length() == 0 )
      PLERROR( "You need to provide either 'scene' or 'scene_file' option");

    scene = new SurfaceMesh();

    // red in the scene mesh
    if( scene_features.isNull() )
    {
      if( !(scene->readVRMLFile( scene_file )) )
        PLERROR( "Problem reading %s\n", scene_file.c_str() );
    }
    else
    {
      if( !(scene->readVRMLFile( scene_file, scene_features )) )
        PLERROR( "Problem reading %s\n", scene_file.c_str() );
    }
  }

  // check options compatible with information in meshes (mesh_type)
  if( scene->mesh_type == "PointSet" || model->mesh_type == "PointSet" )
    PLWARNING( "ICP without edge information is untested. Beware!" );
  if( scene->mesh_type != "FaceSet" && fine_matching )
  {
    PLWARNING( "Disabling 'fine_matching' because scene has no face information." );
    fine_matching = false;
  }

  // create BinBallTrees for closest point in scene computations
  BallTreeNN btnn = new BallTreeNearestNeighbors();
  btnn->setTrainingSet( scene->getVertexCoordsAndFeatures() );
  btnn->setOption( "nstages", "-1" );
  btnn->rmin = 1;
  btnn->build();
  btnn->train();
  btnn->num_neighbors = 1;
  btnn->copy_input = true;
  btnn->copy_target = false;
  btnn->copy_weight = false;
  btnn->copy_index = true;

  btl = btnn;

  real tx=0, ty=0, tz=0;
  real rx=0, ry=0, rz=0;

  if( initial_transform != "" )
  {
    istringstream in( initial_transform );
    if( !( in >> tx >> ty >> tz >> rx >> ry >> rz ) )
    {
      PLERROR( "initial_transform option in ICP should have syntax: \"tx ty tz rx ry rz\"" );
    }
  }

  if( read_trans_file )
  {
    ifstream in( trans_file.c_str() );
    if( !in )
      PLERROR( "Cannot open file: %s (trans_file option).\n",
               trans_file.c_str() );

    in >> tx >> ty >> tz >> rx >> ry >> rz;
  }

  // initial match
  match = new MeshMatch();
  match->rot = rotationFromFixedAngles( rx, ry, rz );
  match->trans[0] = tx;
  match->trans[1] = ty;
  match->trans[2] = tz;
  match->angles[0] = rx;
  match->angles[1] = ry;
  match->angles[2] = rz;

}

Here is the call graph for this function:

Here is the caller graph for this function:

string PLearn::ICP::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 130 of file ICP.cc.

real PLearn::ICP::computeWeightedDistance ( const Mat  m1_pts,
const Mat  m2_pts,
const Vec  weights
) [protected]

Definition at line 361 of file ICP.cc.

References PLearn::dist(), PLearn::distance(), i, PLearn::TMat< T >::length(), and n.

Referenced by iterate().

{
  int n = m1_pts.length();
  real weight_total = 0;
  real error_total = 0;

  for( int i=0 ; i<n ; i++ )
  {
    real distance = dist( m1_pts( i ), m2_pts( i ), 2 );
    weight_total += weights[ i ];
    error_total += weights[ i ] * distance;
  }

  if( weight_total > 0 )
  {
    return( error_total / weight_total );
  }
  else
  {
    return 0;
  }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::ICP::computeWeights ( const Mat  model_pts,
const Mat  scene_pts,
const Vec  areas,
Vec  weights,
real min_wt,
real max_wt
) [protected]

Definition at line 386 of file ICP.cc.

References area_weight, PLearn::dist(), PLearn::distance(), PLearn::exp(), i, PLearn::TMat< T >::length(), lorentz_sigma, PLearn::max(), PLearn::min(), n, PLERROR, PLearn::powdistance(), sigmoid_dmid, sigmoid_k, vtx_matching, w, weight_method, and weightOracle().

Referenced by iterativeReweight().

{
  int n = model_pts.length();
  real total_weight = 0;
  max_wt = 0;
  min_wt = INFINITY;

  if( area_weight )
    PLERROR( "area weighting not implemented yet, please come back later" );


  if( ( weight_method == "static" ) || ( weight_method == "dynamic" ) )
  {
    /*if( area_weight )
      PLERROR( "area weighting not implemented yet, please come back later" );
    */
    weights = 1./n;
    max_wt = weights[0];
    min_wt = weights[0];
  }
  else if( weight_method == "sigmoid" )
  {
    for( int i=0 ; i<n ; i++ )
    {
      real distance = dist( model_pts( i ), scene_pts( i ), 2 );
      real exp_part = exp( sigmoid_k * ( sigmoid_dmid - distance ) );
      weights[ i ] = exp_part / ( 1.0 + exp_part );
      /*if( area_weight )
      {
        PLERROR( "area weighting not implemented yet, please come back later" );
      }*/
      total_weight += weights[ i ];
    }
    weights /= total_weight;
    min_wt = min( weights );
    max_wt = max( weights );
  }
  else if( weight_method == "lorentz" )
  {
    for( int i=0 ; i<n ; i++ )
    {
      real dist2 = powdistance( model_pts( i ), scene_pts( i ), 2 );
      dist2 /= ( lorentz_sigma * lorentz_sigma );
      weights[ i ] = 1.0 / ( 1.0 + 0.5 * dist2 );
      /*if( area_weight )
      {
        PLERROR( "area weighting not implemented yet, please come back later" );
      }*/
      total_weight += weights[ i ];
    }
    weights /= total_weight;
    min_wt = min( weights );
    max_wt = max( weights );
  }

  else if( weight_method == "oracle" )
  {
    for( int i=0 ; i<n ; i++ )
    {
      real w = weightOracle( (int) vtx_matching( i, 0 ), model_pts(i),
                             (int) vtx_matching( i, 1 ), scene_pts(i) );
      weights[i] = w;
      total_weight += w;
    }
    weights /= total_weight;
    min_wt = min( weights );
    max_wt = max( weights );
  }

}

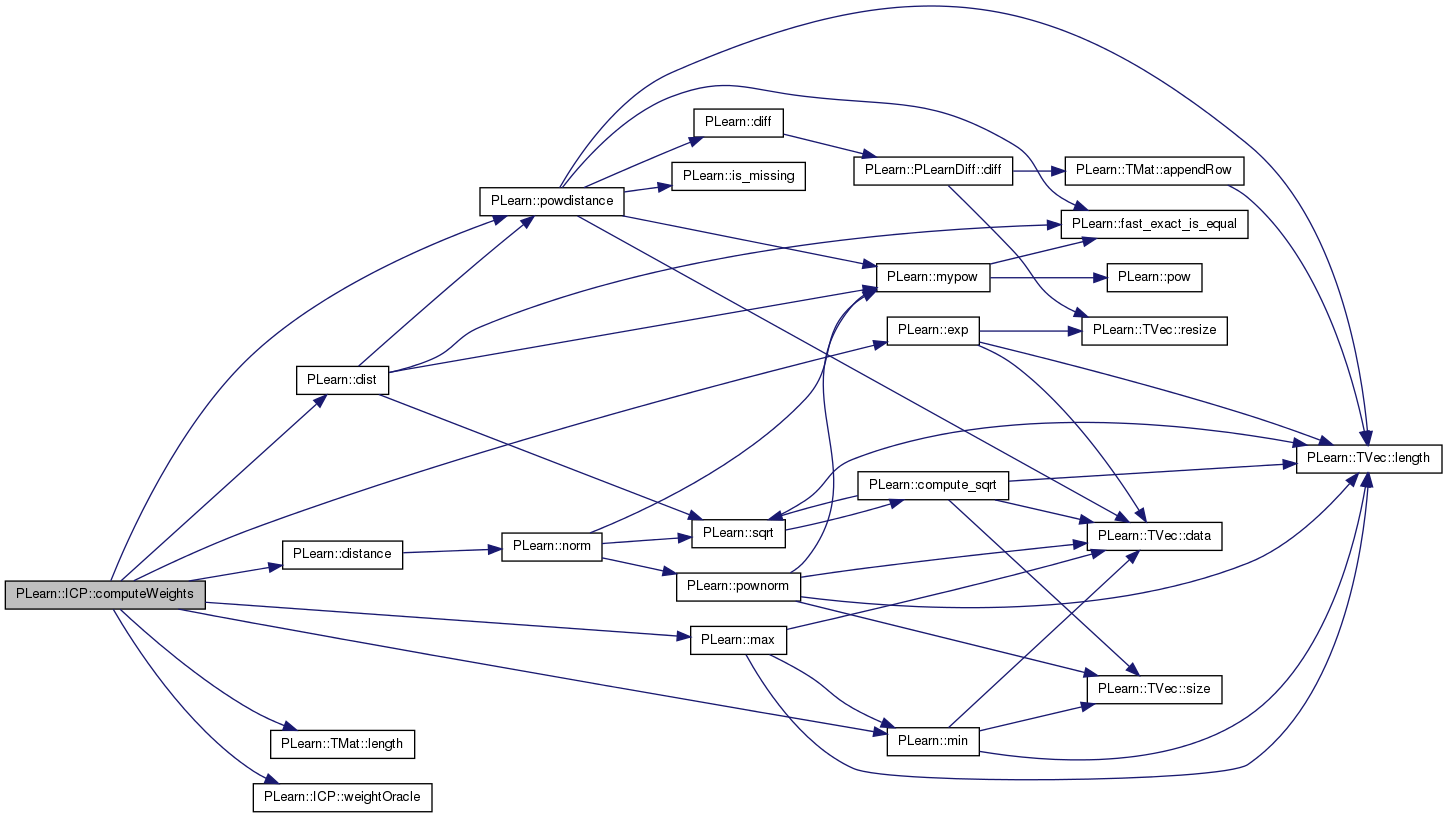

Here is the call graph for this function:

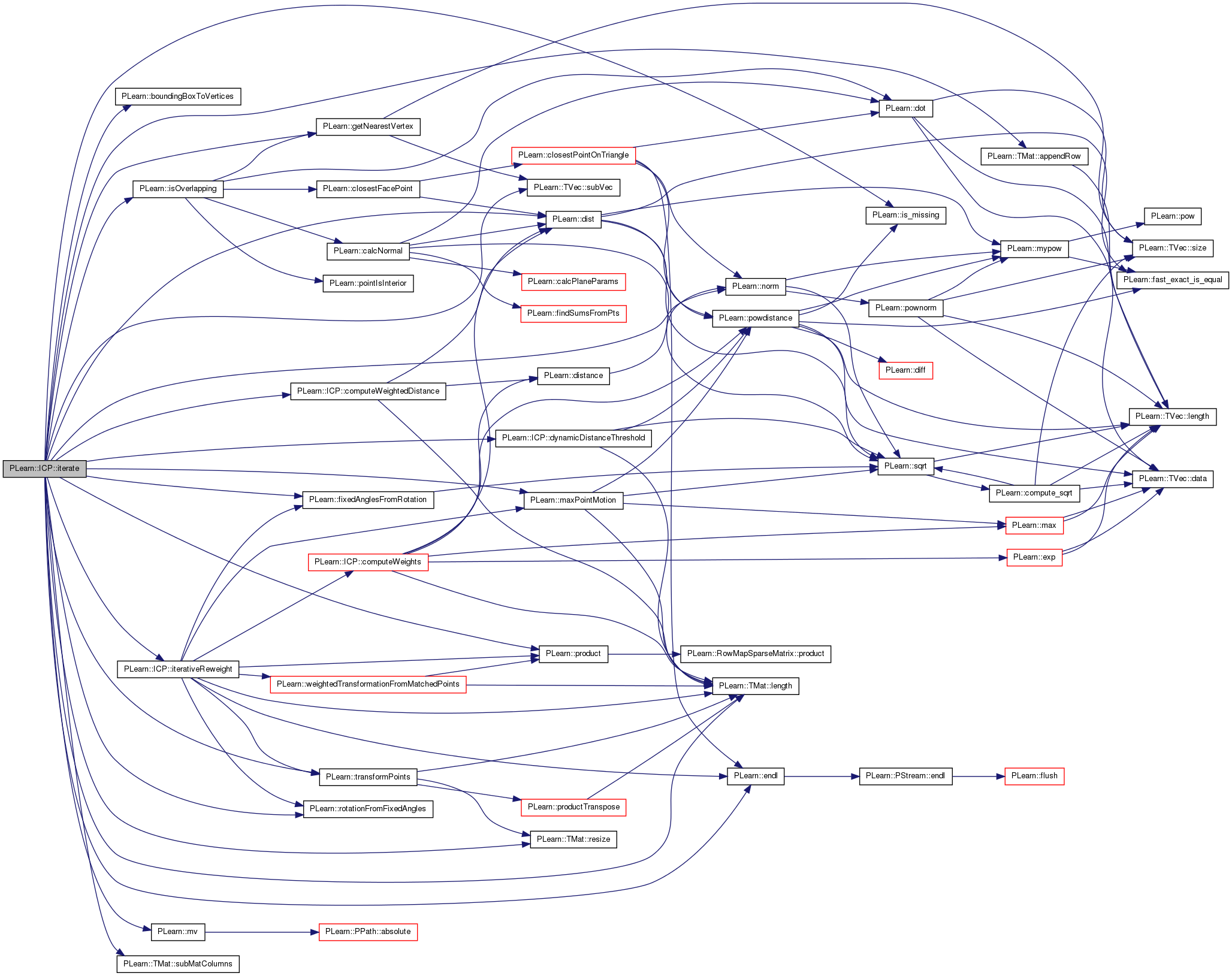

Here is the caller graph for this function:

void PLearn::ICP::declareOptions ( OptionList ol) [static, protected]

Declares this class' options.

Reimplemented from PLearn::Object.

Definition at line 132 of file ICP.cc.

References angle_t, area_weight, btl, PLearn::OptionBase::buildoption, PLearn::declareOption(), PLearn::Object::declareOptions(), dist_t, dynamic_d, error_t, fine_matching, initial_transform, PLearn::OptionBase::learntoption, lorentz_sigma, match, max_iter, model, model_features, model_file, n_per, normal_t_deg, output_file, overlap_delay, overlap_filter, read_trans_file, scene, scene_features, scene_file, sigmoid_dmid, sigmoid_k, smart_overlap_t, static_thresh, trans_file, trans_t, verbosity, vtx_match_file, weight_method, write_all_vtx_match, write_trans_file, and write_vtx_match.

{
  declareOption(ol, "weight_method", &ICP::weight_method,
                OptionBase::buildoption,
                "Method used to weight the points:\n"
                " - \"sigmoid\": sigmoid function\n"
                " - \"lorentz\": Lorentzian function\n"
                " - \"dynamic\": dynamic threshold\n"
                " - \"static\": static threshold\n" );

  declareOption(ol, "sigmoid_dmid", &ICP::sigmoid_dmid, OptionBase::buildoption,
                "midpoint offset parameter in sigmoid function");

  declareOption(ol, "sigmoid_k", &ICP::sigmoid_k, OptionBase::buildoption,
                "slope parameter in sigmoid function");

  declareOption(ol, "lorentz_sigma", &ICP::lorentz_sigma,
                OptionBase::buildoption,
                "sigma parameter in Lorentzian function");

  declareOption(ol, "dynamic_d", &ICP::dynamic_d, OptionBase::buildoption,
                "D parameter in dynamic thresholding");

  declareOption(ol, "static_thresh", &ICP::static_thresh,
                OptionBase::buildoption,
                "threshold distance for static thresholding");

  declareOption(ol, "error_t", &ICP::error_t, OptionBase::buildoption,
                "stop when average point distance falls below this");

  declareOption(ol, "dist_t", &ICP::dist_t, OptionBase::buildoption,
                "stop when max points movement falls below this");

  declareOption(ol, "angle_t", &ICP::angle_t, OptionBase::buildoption,
                "stop when max rotation change falls below this (degrees)");

  declareOption(ol, "trans_t", &ICP::trans_t, OptionBase::buildoption,
                "stop when translation distance falls below this");

  declareOption(ol, "max_iter", &ICP::max_iter, OptionBase::buildoption,
                "stop when number of iterations reaches this");

  declareOption(ol, "normal_t_deg", &ICP::normal_t_deg, OptionBase::buildoption,
                "angle threshold (degrees) for compatible normal");

  declareOption(ol, "area_weight", &ICP::area_weight, OptionBase::buildoption,
                "enables weighting by area");

  declareOption(ol, "overlap_filter", &ICP::overlap_filter,
                OptionBase::buildoption,
                "filter non-overlapping points");

  declareOption(ol, "overlap_delay", &ICP::overlap_delay,
                OptionBase::buildoption,
                "number of iterations before overlap filtering is enabled");

  declareOption(ol, "smart_overlap_t", &ICP::smart_overlap_t,
                OptionBase::buildoption,
                "enable overlap filter when average point distance is below this");

  declareOption(ol, "n_per", &ICP::n_per, OptionBase::buildoption,
                "number of perturbations about minimum");

  declareOption(ol, "fine_matching", &ICP::fine_matching,
                OptionBase::buildoption,
                "if true, will match model vertices to any scene point,\n"
                "if false, will match vertices only to scene vertices.\n");

  declareOption(ol, "model_file", &ICP::model_file, OptionBase::buildoption,
                "file containing the model we're trying to align on the scene");

  declareOption(ol, "scene_file", &ICP::scene_file, OptionBase::buildoption,
                "file containing the scene we're trying to align the model on");

  declareOption(ol, "output_file", &ICP::output_file, OptionBase::buildoption,
                "transformed model");

  declareOption(ol, "initial_transform", &ICP::initial_transform,
                OptionBase::buildoption,
                "initial transformation to apply, \"tx ty tz rx ry rz\"\n"
                "this option is overriden by read_trans_file\n" );

  declareOption(ol, "read_trans_file", &ICP::read_trans_file,
                OptionBase::buildoption,
                "read initial transformation from \"trans_file\"");

  declareOption(ol, "write_trans_file", &ICP::write_trans_file,
                OptionBase::buildoption,
                "write final transformation into file \"trans_file\"");

  declareOption(ol, "trans_file", &ICP::trans_file, OptionBase::buildoption,
                "file containing a transformation. syntax of this file is:\n"
                "tx ty tz rx ry rz\\n");

  declareOption(ol, "write_vtx_match", &ICP::write_vtx_match,
                OptionBase::buildoption,
                "write final matching between model and scene vertices in \"vtx_match_file\"");

  declareOption(ol, "write_all_vtx_match", &ICP::write_all_vtx_match,
                OptionBase::buildoption,
                "force to match _each_ model vertex to a scene vertex \n"
                "(wether it was used for the alignment or not).\n" );

  declareOption(ol, "vtx_match_file", &ICP::vtx_match_file,
                OptionBase::buildoption,
                "File containing the final match between model and vertices point indices");

  declareOption(ol, "verbosity", &ICP::verbosity,
                OptionBase::buildoption,
                "Level of verbosity. If 0 should not write anything on perr.\n"
                "If >0 may write some info on the steps performed along"
                " the way.\n"
                "The level of details written should depend on this value.\n"
               );

/*
  declareOption(ol, "tx", &ICP::tx, OptionBase::buildoption,
                "translation wrt x");

  declareOption(ol, "ty", &ICP::ty, OptionBase::buildoption,
                "translation wrt y");

  declareOption(ol, "tz", &ICP::tz, OptionBase::buildoption,
                "translation wrt z");

  declareOption(ol, "rx", &ICP::rx, OptionBase::buildoption,
                "rotation wrt x");

  declareOption(ol, "ry", &ICP::ry, OptionBase::buildoption,
                "rotation wrt y");

  declareOption(ol, "rz", &ICP::rz, OptionBase::buildoption,
                "rotation wrt z");
*/
  declareOption(ol, "model", &ICP::model, OptionBase::buildoption,
                "the model we're trying to align on the scene");

  declareOption(ol, "scene", &ICP::scene, OptionBase::buildoption,
                "the scene we're trying to align the model on");

  declareOption(ol, "model_features", &ICP::model_features,
                OptionBase::buildoption,
                "Matrix containing the chemical features of each vertex of"
                " the model");

  declareOption(ol, "scene_features", &ICP::scene_features,
                OptionBase::buildoption,
                "Matrix containing the chemical features of each vertex of"
                " the scene");

  declareOption(ol, "btl", &ICP::btl, OptionBase::buildoption,
                "BTreeLearner, containing efficiently the scene points");

  declareOption(ol, "match", &ICP::match, OptionBase::learntoption,
                "matching of the model on the scene");

  // Now call the parent class' declareOptions
  inherited::declareOptions(ol);
}

Here is the call graph for this function:

static const PPath& PLearn::ICP::declaringFile ( ) [inline, static]

Reimplemented from PLearn::Object.

Definition at line 190 of file ICP.h.

ICP * PLearn::ICP::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 130 of file ICP.cc.

real PLearn::ICP::dynamicDistanceThreshold ( const Mat  model_pts,
const Mat  scene_pts,
const real  d,
const real  d_max
) [protected]

Definition at line 324 of file ICP.cc.

References d, i, PLearn::TMat< T >::length(), n, PLearn::powdistance(), and PLearn::sqrt().

Referenced by iterate().

{
  /* calculate distance statistics */
  int n = model_pts.length();
  real sumd = 0;
  real sumd2 = 0;

  for( int i = 0 ; i < n ; i++ )
  {
    real d = powdistance( model_pts( i ), scene_pts( i ), 2 );
    sumd2 += d;
    sumd += sqrt( d );
  }

  real davg = sumd/n;
  real dsig = sqrt( sumd2/n - davg*davg );

  /* set dynamic threshold */
  if( davg < d )
  {
    return davg + 3*dsig;
  }
  else if( davg < 3*d )
  {
    return davg + 2*dsig;
  }
  else if( davg < 6*d )
  {
    return davg + dsig;
  }
  else
  {
    return d_max;
  }
}

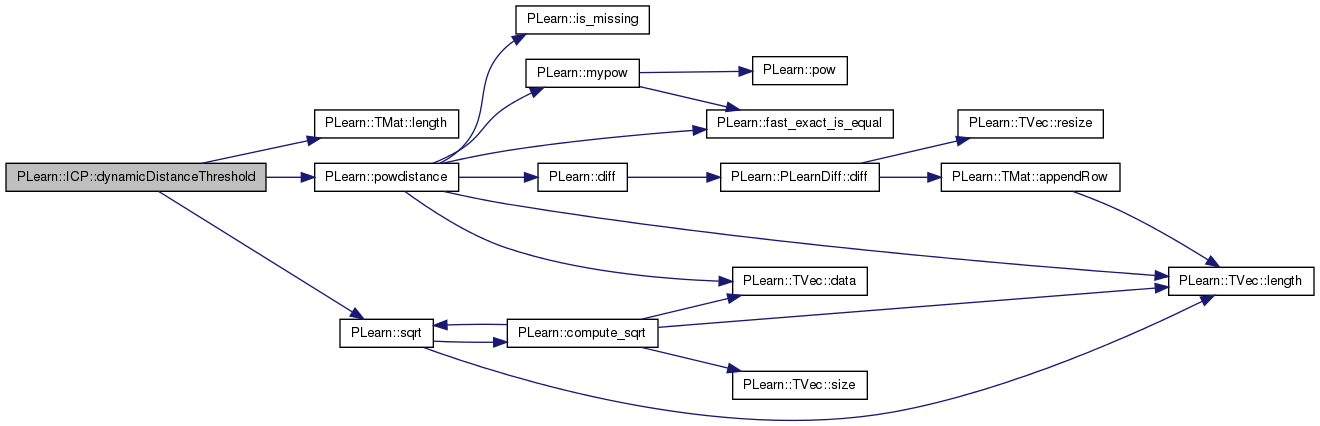

Here is the call graph for this function:

Here is the caller graph for this function:

OptionList & PLearn::ICP::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 130 of file ICP.cc.

OptionMap & PLearn::ICP::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 130 of file ICP.cc.

RemoteMethodMap & PLearn::ICP::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 130 of file ICP.cc.

int PLearn::ICP::iterate ( )

Definition at line 537 of file ICP.cc.

References angle_t, PLearn::TMat< T >::appendRow(), area_weight, PLearn::boundingBoxToVertices(), btl, computeWeightedDistance(), delta_angle_length, delta_trans_length, PLearn::dist(), dist_t, dynamic_d, dynamic_dmax0, dynamicDistanceThreshold(), PLearn::endl(), error_t, fine_matching, PLearn::fixedAnglesFromRotation(), PLearn::getNearestVertex(), i, PLearn::is_missing(), PLearn::isOverlapping(), iterativeReweight(), j, PLearn::TMat< T >::length(), match, max_iter, PLearn::maxPointMotion(), model, PLearn::mv(), PLearn::norm(), normal_t, overlap_delay, overlap_filter, PLERROR, PLearn::pout, PLearn::product(), PLearn::TMat< T >::resize(), PLearn::rotationFromFixedAngles(), scene, smart_overlap, smart_overlap_t, static_thresh, PLearn::TMat< T >::subMatColumns(), PLearn::TVec< T >::subVec(), trans_t, PLearn::transformPoints(), verbosity, vtx_matching, and weight_method.

Referenced by run().

{
  real error = REAL_MAX;
  real max_corner_motion = REAL_MAX;
  real delta_trans_length = REAL_MAX; // ?
  real delta_angle_length = REAL_MAX; // ?

  int n_iter = 0;

  if( verbosity >=2 )
    pout << "Initial transform: " << *match << endl; //

  Mat total_rot = match->rot;
  Vec total_trans = match->trans;

  if( area_weight )
    PLERROR( "area_weight not implemented yet. please come back later." );

  // cache scene faces by point
  TVec< set<int> > face_cache = scene->cacheNeighborFaces();

  // stores scene vertex coordinates
  Mat all_scene_coords = scene->getVertexCoords();

  // compute vertices of bounding box and apply initial transform
  Mat bbox = model->boundingBox();
  Mat orig_corners = boundingBoxToVertices( bbox );
  Mat cur_corners( 8, 3);
  cur_corners << orig_corners;

  transformPoints( total_rot, total_trans, cur_corners, cur_corners );

  real avg_pt_dist;
  int avg_pt_dist_cnt;

  // apply initial transform to
  // loop until convergence or other stopping criterion reached
  while( (error > error_t) &&
         (max_corner_motion > dist_t ) &&
         (delta_trans_length > trans_t) &&
         (delta_angle_length > angle_t) &&
         (n_iter < max_iter) )
  {
    n_iter++;

    // find scene points closest to model points
//    Vec model_vtx; vtx_matching[0,]
    Mat model_coords_feats;
//    Vec scene_vtx; vtx_matching[1,]
    Mat scene_coords_feats;

    real closest_dist;
    real dynamic_thresh = dynamic_dmax0 = 20 * dynamic_d;

    // record average distance between closest points for smart overlap enabler
    if( smart_overlap && !overlap_filter )
    {
      avg_pt_dist = 0;
      avg_pt_dist_cnt = 0;
    }

    int n_verts = model->numVertices();
    vtx_matching.resize( 0, 2 );

    vertex_iterator vi, vi_end;
    tie(vi, vi_end) = vertices( *model->p_mesh );
    int feat_size = model->getVertex( *vi )->features.size();

    for( int i=0 ; vi != vi_end ; i++, vi++ )
    {
      MVertex mv = model->getVertex( *vi );
      Vec model_coord(3);
      product( model_coord, total_rot, mv->coord );
      model_coord += total_trans;

      Vec model_coord_feat(3+feat_size);
      model_coord_feat.subVec(0,3) << model_coord;
      model_coord_feat.subVec(3,feat_size) << mv->features;

      Vec model_norm(3);
      product( model_norm, total_rot, mv->norm );

      Vec scene_coord_feat(3+feat_size);

      real init_dist_t = REAL_MAX;
//      vtx_matching[i] = false;

      int j;

      if( fine_matching )
      {
        Vec scene_coord(3);
        bool is_overlapping = isOverlapping( model_coord, model_norm,
                                             scene, face_cache, btl,
                                             init_dist_t, normal_t,
                                             j, scene_coord,
                                             closest_dist );
        scene_coord_feat.subVec(0,3) << scene_coord;

        if( overlap_filter && !is_overlapping && (n_iter > overlap_delay) )
          continue;

        if( smart_overlap && !overlap_filter )
        {
          avg_pt_dist += closest_dist;
          avg_pt_dist_cnt++;
        }
      }
      else
      {
        getNearestVertex( model_coord_feat, scene, btl,
                          j, scene_coord_feat, closest_dist );
      }

      // skip points beyond threshold
      if( (weight_method == "static") && (closest_dist > static_thresh) )
        continue;
      if( (weight_method == "dynamic") && (closest_dist > dynamic_thresh) )
        continue;

      // get vertex coordinates if we haven't them
      if( is_missing( scene_coord_feat[0] ) ||
          is_missing( scene_coord_feat[1] ) ||
          is_missing( scene_coord_feat[2] ) )
      {
        scene_coord_feat.subVec(0,3) << all_scene_coords(j);
        closest_dist = dist( scene_coord_feat.subVec(0,3), model_coord, 2 );
      }


      // add to list of pts to use in icp
      Vec vtx_matching_pair( 2 );
      vtx_matching_pair[0] = i;
      vtx_matching_pair[1] = j;
      vtx_matching.appendRow( vtx_matching_pair );
      model_coords_feats.appendRow( model_coord_feat );
      scene_coords_feats.appendRow( scene_coord_feat );
//      vtx_matching[i] = true;

    }

    //vtx_matching << model_vtx; // we keep track of the matching vertices

    int n_good = vtx_matching.length();
    if( n_good < 3 )
    {
      cerr << "Not enough points to compute transform" << endl;
      return( n_iter );
    }

    Mat delta_rot( 3, 3 );
    Vec delta_trans( 3 );

    int n_inner_iter;
    if( (weight_method == "static") || (weight_method == "dynamic")
        || (weight_method == "oracle") )
      n_inner_iter = 1;
    else
      n_inner_iter = 10;

    Vec weights( n_good );
    // iteratively reweight until convergence - updates model pts
    Mat model_coords = model_coords_feats.subMatColumns(0,3);
    Mat scene_coords = scene_coords_feats.subMatColumns(0,3);
    if( !iterativeReweight( model_coords, scene_coords,
                            Vec(), weights,
                            cur_corners, n_inner_iter,
                            delta_rot, delta_trans ) )
    {
      break;
    }
    // accumulate transformation ensuring normalization

    Mat tmp_mat( 3, 3 );
    product( tmp_mat, delta_rot, total_rot );
    Vec angles = fixedAnglesFromRotation( tmp_mat );

    total_rot = rotationFromFixedAngles( angles[0], angles[1], angles[2] );

    Vec tmp_vec( 3 );
    product( tmp_vec, delta_rot, total_trans );
    total_trans = tmp_vec + delta_trans;

    // compute error
    error = computeWeightedDistance( model_coords_feats, scene_coords_feats,
                                     weights );

    if( weight_method == "dynamic" ) // compute dynamic threshold
    {
      dynamic_thresh = dynamicDistanceThreshold( model_coords, scene_coords,
                                                 dynamic_d, dynamic_dmax0 );
    }

    // update corners and compute corner motion from start of this iteration
    Mat last_corners( 8, 3 );
    last_corners << cur_corners;
    transformPoints( total_rot, total_trans, orig_corners, cur_corners );
    max_corner_motion = maxPointMotion( last_corners, cur_corners );

    delta_trans_length = norm( delta_trans, 2 );
    delta_angle_length = norm( fixedAnglesFromRotation( delta_rot ), 2 );

    if( verbosity >= 3 )
    {
      pout << n_iter << " trans " << total_trans << " * rotate "
        << fixedAnglesFromRotation( total_rot ) << endl
        << " Wgt avg Err " << error << " * max motion "
        << max_corner_motion << " * n_pts " << n_good << " / " << n_verts
        << " * dist thresh " << dynamic_thresh
        << endl;
    }

    if( smart_overlap && !overlap_filter )
    {
      if( (error < smart_overlap_t) || (n_iter == overlap_delay) )
      {
        if( verbosity >= 2 )
        {
          pout <<
            "\n*********\n---- activating overlap filter now -----\n*********"
            << endl << endl;
        }
        overlap_filter = true;
        overlap_delay = n_iter;
      }
    }

  }

  /* store transformation in MMatch math */
  match->rot << total_rot;
  match->trans << total_trans;
  match->error = error;
  match->angles << fixedAnglesFromRotation( total_rot );

  return n_iter;
}

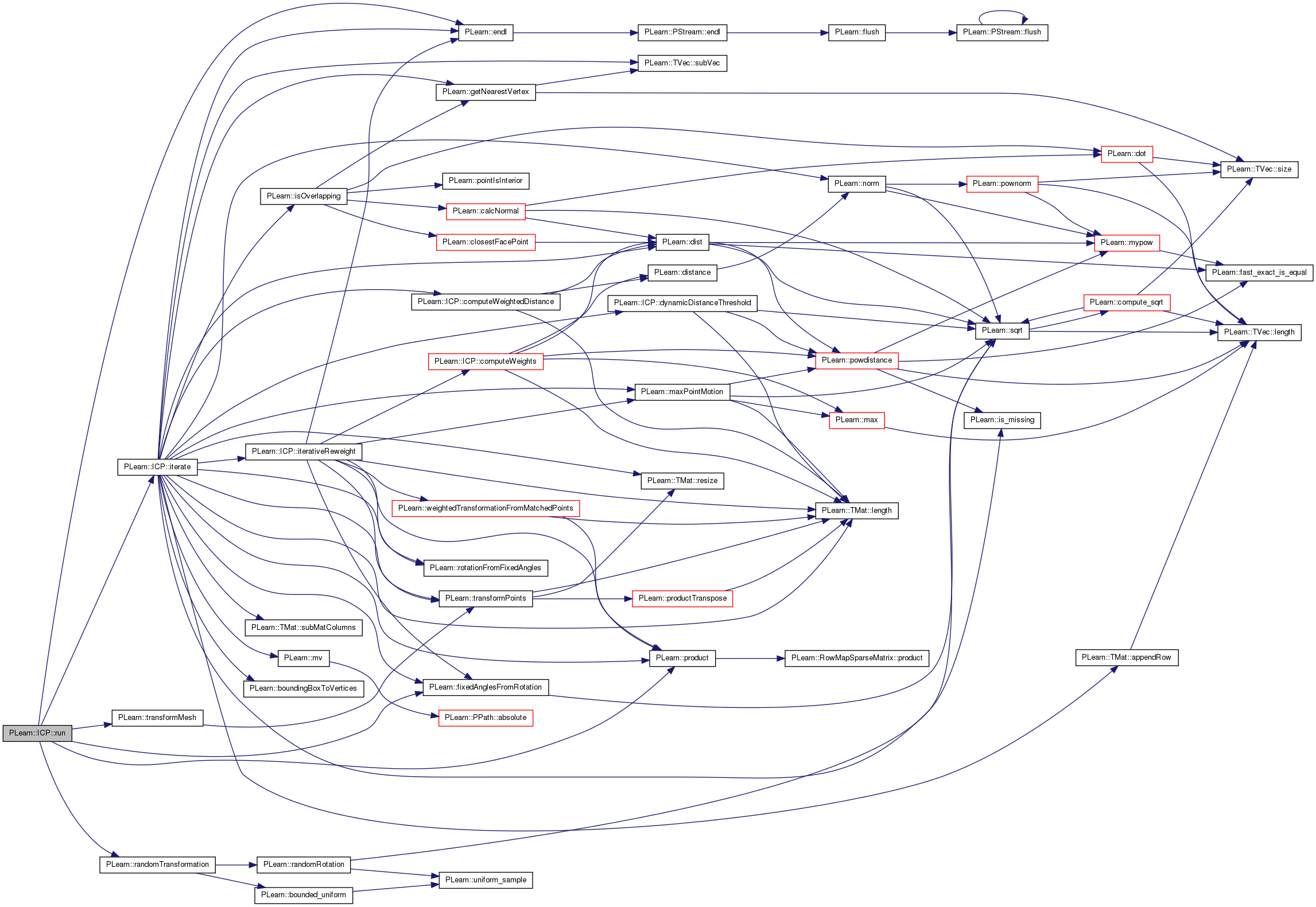

Here is the call graph for this function:

Here is the caller graph for this function:

bool PLearn::ICP::iterativeReweight ( Mat  model_pts,
const Mat  scene_pts,
const Vec  areas,
Vec  weights,
const Mat  init_corners,
const int  max_iter,
Mat  total_delta_rot,
Vec  total_delta_trans
) [protected]

Definition at line 460 of file ICP.cc.

References computeWeights(), dist_t, PLearn::endl(), PLearn::fixedAnglesFromRotation(), PLearn::TMat< T >::length(), PLearn::maxPointMotion(), n, PLERROR, PLearn::pout, PLearn::product(), PLearn::rotationFromFixedAngles(), PLearn::transformPoints(), verbosity, and PLearn::weightedTransformationFromMatchedPoints().

Referenced by iterate().

{
  Mat delta_rot( 3, 3 );
  Vec delta_trans( 3 );
  Vec angles( 3 );

  int n = model_pts.length();
  if( n < 3 )
  {
    PLERROR("not enough points to calculate transformation");
  }

  // initialize
  int n_iter = 0;

  real max_corner_motion = INFINITY;
  Mat cur_corners( 8, 3 );
  cur_corners << init_corners;
  Mat last_corners( 8, 3 );
  last_corners << init_corners;

  // loop until bounding box motion is small
  while( ( max_corner_motion > dist_t ) && ( n_iter < max_iter ) )
  {
    n_iter++;

    real min_wt, max_wt;
    computeWeights( model_pts, scene_pts, areas, weights, min_wt, max_wt );

    // calculate best transformation
    real error = INFINITY;
    weightedTransformationFromMatchedPoints( model_pts, scene_pts, weights,
                                             delta_rot, delta_trans, error );
    // compute max motion of bounding box and update corner points
    last_corners << cur_corners;
    transformPoints( delta_rot, delta_trans, cur_corners, cur_corners );
    max_corner_motion = maxPointMotion( last_corners, cur_corners );

    // accumulate transformation ensuring normalization
    if( n_iter == 1 )   // first time
    {
      total_delta_rot << delta_rot;
      total_delta_trans << delta_trans;
    }
    else
    {
      Mat tmp_mat( 3, 3 );
      product( tmp_mat, delta_rot, total_delta_rot );
      angles << fixedAnglesFromRotation( tmp_mat );

      total_delta_rot <<
        rotationFromFixedAngles( angles[0], angles[1], angles[2] );

      Vec tmp_vec( 3 );
      product( tmp_vec, delta_rot, total_delta_trans );
      total_delta_trans += tmp_vec;
    }

    // update model points using new transformation

    transformPoints( delta_rot, delta_trans, model_pts, model_pts );

    if( verbosity >= 3 )
    {
      pout << "  " << n_iter << " * delta trans " << delta_trans
        << " * delta rot " << fixedAnglesFromRotation( delta_rot ) << endl
        << "  max weight " << max_wt << " * min weight " << min_wt
        << " * max motion " << max_corner_motion << endl;
    }
  }

  return true;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::ICP::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Transforms a shallow copy into a deep copy.

Reimplemented from PLearn::Object.

Definition at line 994 of file ICP.cc.

References PLearn::deepCopyField(), PLearn::Object::makeDeepCopyFromShallowCopy(), model_features, PLERROR, and scene_features.

{
  inherited::makeDeepCopyFromShallowCopy(copies);

  // ### Call deepCopyField on all "pointer-like" fields
  // ### that you wish to be deepCopied rather than
  // ### shallow-copied.
  // ### ex:
  // deepCopyField(trainvec, copies);
  deepCopyField( model_features, copies );
  deepCopyField( scene_features, copies );


  // ### Remove this line when you have fully implemented this method.
  PLERROR("ICP::makeDeepCopyFromShallowCopy not fully (correctly) implemented yet!");
}

Here is the call graph for this function:

void PLearn::ICP::meshVertexAreas ( const SurfMesh mesh,
Vec areas
) [protected]
void PLearn::ICP::run ( ) [virtual]

Override this for runnable objects (default method issues a runtime error).

Runnable objects are objects that can be used as *THE* object of a .plearn script. The run() method specifies what they should do when executed.

Reimplemented from PLearn::Object.

Definition at line 875 of file ICP.cc.

References area_weight, PLearn::endl(), PLearn::fixedAnglesFromRotation(), i, iterate(), match, model, n_per, output_file, overlap_filter, PLERROR, PLearn::pout, PLearn::product(), PLearn::randomTransformation(), smart_overlap_t, trans_file, PLearn::transformMesh(), verbosity, vtx_match_file, vtx_matching, weight_method, write_trans_file, and write_vtx_match.

Referenced by align_().

{
  if( verbosity >= 1 )
  {
    pout << "Weight method: " << weight_method << endl
      << "Area weight: " << area_weight << endl
      << "Overlap filter: " << overlap_filter << endl
      << "Overlap Threshold: " << smart_overlap_t << endl
      << endl;
  }

  // determine the first best transformation
  int total_iterations = iterate();
  MMatch  m_best = match;

  if( verbosity >= 2 )
    pout << "Best registration so far\n" << *m_best << endl; // ??

  // randomly perturb transformation about minimum to get global minimum
  for( int i=0 ; i<n_per ; i++ )
  {
    Mat random_r( 3, 3 );
    Vec random_t( 3 );
    randomTransformation( 5, model->getResolution(), random_r, random_t );

    // init transform
    product( match->rot, m_best->rot, random_r );
    match->angles = fixedAnglesFromRotation( match->rot );
    match->trans = m_best->trans + random_t;

    total_iterations += iterate();

    if( match->error < m_best->error )
    {
      m_best = match;
    }

    if( verbosity >=3 )
    {
      pout << "Best registration after " << i << " perturbations\n"
        << *m_best << endl;
    }
  }

  if( verbosity >=2 )
  {
    pout << "Best Registration\n" << *m_best << endl;
    pout << "Total iterations: " << total_iterations << endl;
  }

  if( output_file.length()!=0 ) // write out transformed points
  {
    transformMesh( m_best->rot, m_best->trans, model );
    model->writeVRMLFile( output_file );
  }

  if( write_trans_file )
  {
    ofstream out( trans_file.c_str(), ios::trunc );
    if( !out )
    {
      PLERROR( "Cannot open file: %s.\n", trans_file.c_str() );
    }

    out << m_best->trans[0] << " " << m_best->trans[1] << " " << m_best->trans[2] << " " << m_best->angles[0] << " " << m_best->angles[1] << " " << m_best->angles[2]
        << endl;
  }

  if( write_vtx_match )
  {
    Mat vtx_match;

    ofstream out( vtx_match_file.c_str(), ios::trunc );
    if( !out )
      PLERROR( "Cannot open file: %s.\n", vtx_match_file.c_str() );

//    vtx_match = computeVertexMatches();
    out << vtx_matching << endl;
  }

}

Here is the call graph for this function:

Here is the caller graph for this function:

real PLearn::ICP::weightOracle ( int  ,
Vec  ,
int  ,
Vec
) [protected]

Definition at line 989 of file ICP.cc.

Referenced by computeWeights().

{
  return real(1);
}

Here is the caller graph for this function:


Member Data Documentation

Reimplemented from PLearn::Object.

Definition at line 190 of file ICP.h.

Definition at line 94 of file ICP.h.

Referenced by declareOptions(), and iterate().

Definition at line 101 of file ICP.h.

Referenced by computeWeights(), declareOptions(), iterate(), and run().

Definition at line 132 of file ICP.h.

Referenced by buildMeshes(), declareOptions(), ICP(), and iterate().

Definition at line 73 of file ICP.h.

Referenced by iterate().

Definition at line 72 of file ICP.h.

Referenced by iterate().

Definition at line 93 of file ICP.h.

Referenced by declareOptions(), iterate(), and iterativeReweight().

Definition at line 88 of file ICP.h.

Referenced by declareOptions(), and iterate().

Definition at line 74 of file ICP.h.

Referenced by iterate().

Definition at line 92 of file ICP.h.

Referenced by declareOptions(), and iterate().

Definition at line 107 of file ICP.h.

Referenced by buildMeshes(), declareOptions(), and iterate().

Definition at line 114 of file ICP.h.

Referenced by align_(), buildMeshes(), and declareOptions().

Definition at line 87 of file ICP.h.

Referenced by computeWeights(), and declareOptions().

Definition at line 120 of file ICP.h.

Referenced by align_(), buildMeshes(), declareOptions(), iterate(), and run().

Definition at line 96 of file ICP.h.

Referenced by declareOptions(), and iterate().

Definition at line 130 of file ICP.h.

Referenced by buildMeshes(), declareOptions(), ICP(), iterate(), and run().

Definition at line 133 of file ICP.h.

Referenced by align_(), buildMeshes(), declareOptions(), and makeDeepCopyFromShallowCopy().

Definition at line 110 of file ICP.h.

Referenced by buildMeshes(), and declareOptions().

Definition at line 106 of file ICP.h.

Referenced by declareOptions(), and run().

Definition at line 99 of file ICP.h.

Referenced by build_(), and iterate().

Definition at line 100 of file ICP.h.

Referenced by build_(), and declareOptions().

Definition at line 112 of file ICP.h.

Referenced by declareOptions(), and run().

Definition at line 103 of file ICP.h.

Referenced by declareOptions(), and iterate().

Definition at line 102 of file ICP.h.

Referenced by declareOptions(), iterate(), and run().

Definition at line 115 of file ICP.h.

Referenced by buildMeshes(), and declareOptions().

Definition at line 131 of file ICP.h.

Referenced by buildMeshes(), declareOptions(), ICP(), and iterate().

Definition at line 134 of file ICP.h.

Referenced by align_(), buildMeshes(), declareOptions(), and makeDeepCopyFromShallowCopy().

Definition at line 111 of file ICP.h.

Referenced by buildMeshes(), and declareOptions().

Definition at line 85 of file ICP.h.

Referenced by computeWeights(), and declareOptions().

Definition at line 86 of file ICP.h.

Referenced by computeWeights(), and declareOptions().

Definition at line 104 of file ICP.h.

Referenced by build_(), and iterate().

Definition at line 105 of file ICP.h.

Referenced by build_(), declareOptions(), iterate(), and run().

Definition at line 89 of file ICP.h.

Referenced by declareOptions(), and iterate().

Definition at line 117 of file ICP.h.

Referenced by buildMeshes(), declareOptions(), and run().

Definition at line 95 of file ICP.h.

Referenced by declareOptions(), and iterate().

Level of verbosity.

If 0 should not write anything on perr. If >0 may write some info on the steps performed along the way. The level of details written should depend on this value.

Definition at line 139 of file ICP.h.

Referenced by declareOptions(), iterate(), iterativeReweight(), and run().

Definition at line 124 of file ICP.h.

Referenced by declareOptions(), and run().

Definition at line 121 of file ICP.h.

Referenced by align_(), computeWeights(), iterate(), and run().

Definition at line 84 of file ICP.h.

Referenced by build_(), computeWeights(), declareOptions(), iterate(), and run().

Definition at line 123 of file ICP.h.

Referenced by declareOptions().

Definition at line 116 of file ICP.h.

Referenced by declareOptions(), and run().

Definition at line 122 of file ICP.h.

Referenced by declareOptions(), and run().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
