PLearn::TreeDBNModule Class Reference

#include <TreeDBNModule.h>

Inheritance diagram for PLearn::TreeDBNModule:
Inheritance graph
[legend]
Collaboration diagram for PLearn::TreeDBNModule:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 TreeDBNModule ()
 Default constructor.
void fprop (const TVec< Mat * > &ports_value)
 Perform a fprop step.
virtual void bpropAccUpdate (const TVec< Mat * > &ports_value, const TVec< Mat * > &ports_gradient)
 Perform a back propagation step (also updating parameters according to the provided gradient).
virtual void forget ()
 Reset the parameters to the state they would be BEFORE starting training.
virtual const TVec< string > & getPorts ()
 Return the list of ports in the module.
void initSampling (int gibbsTop)
 Initialize tree to perform sampling.
Vec sample (int nGibbs)
 Returns a sample of the visible layer.
void clearCache ()
 Clears all caches.
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual TreeDBNModuledeepCopy (CopiesMap &copies) const
virtual void build ()
 Post-constructor.
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.

Static Public Member Functions

static string _classname_ ()
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

TVec< PP< RBMModule > > modules
 Array of RBMModule's used for every layer.
int n_parents_per_node
 From how many parents the upper layer RBM takes its input.
int n_shared_parents
 NOT IMPLEMENTED.
real gradient_multiplier
 Value that multiplies the gradient of energy if it is computed.
bool propagate_gradient
 Whether to propagate gradient throug all hierarchical structure.
bool propagate_energy_gradient
 Whether to compute and propagate energy gradient.
bool propagate_full_gradient
 If true, gradient is propagated through all hierarchy, not only rightmost branch.
TVec< pair< string, string > > ports
 Ports that should be provided by module.

Static Public Attributes

static StaticInitializer _static_initializer_

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declares the class options.
static void declareMethods (RemoteMethodMap &rmm)
 Declare the methods that are remote-callable.

Protected Attributes

int n_layers
TVec< string > port_names
TVec< intport_rbms
TVec< intport_index
TVec< intlayer_sizes
TVec< intstep_size
Vec last_full_input
TVec< TVec< Mat * > > fprop_data
TVec< TVec< Mat * > > bprop_data
TVec< TVec< Mat * > > fprop_data_cache
TVec< TVec< Mat * > > bprop_data_cache
int time
TVec< intmbi_time
TMat< intmod_batch_length
TVec< Matmats
TVec< Matcache_mats

Private Types

typedef OnlineLearningModule inherited

Private Member Functions

void build_ ()
 This does the actual building.
bool check_shift (Vec &a, Vec &b, int k)
 Checks whether b is a shifted to the left by k.
int hash (int t, int k, int i)
 Used to compute row number in fprop matrix for a sample.
void appendPort (string name, int rbm_index, string port_name, int port_width)
 Add a port to the module with given name, which is filled from a rbm modules[rbm_index] an port port_name and provided port width.
MatcreateMatrix (int length, int width, TVec< Mat > &mats)
 Helper function to create a matrix.
void updateCache ()
 Updates cache after fprop.
void full_fprop (const TVec< Mat * > &ports_value)
 Fprop that does not use any optimization.

Detailed Description

Definition at line 50 of file TreeDBNModule.h.


Member Typedef Documentation

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 52 of file TreeDBNModule.h.


Constructor & Destructor Documentation

PLearn::TreeDBNModule::TreeDBNModule ( )

Default constructor.

Definition at line 61 of file TreeDBNModule.cc.

                             : n_parents_per_node(2), n_shared_parents(0), gradient_multiplier(1.0),
                               propagate_gradient(false), propagate_energy_gradient(false), propagate_full_gradient(false)
/* ### Initialize all fields to their default value here */
{
}

Member Function Documentation

string PLearn::TreeDBNModule::_classname_ ( ) [static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 56 of file TreeDBNModule.cc.

OptionList & PLearn::TreeDBNModule::_getOptionList_ ( ) [static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 56 of file TreeDBNModule.cc.

RemoteMethodMap & PLearn::TreeDBNModule::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 56 of file TreeDBNModule.cc.

bool PLearn::TreeDBNModule::_isa_ ( const Object o) [static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 56 of file TreeDBNModule.cc.

Object * PLearn::TreeDBNModule::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 56 of file TreeDBNModule.cc.

StaticInitializer TreeDBNModule::_static_initializer_ & PLearn::TreeDBNModule::_static_initialize_ ( ) [static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 56 of file TreeDBNModule.cc.

void PLearn::TreeDBNModule::appendPort ( string  name,
int  rbm_index,
string  port_name,
int  port_width = -1
) [private]

Add a port to the module with given name, which is filled from a rbm modules[rbm_index] an port port_name and provided port width.

If a port you add is not directly filled from a rbm then provide rbm_index=-1. If port_width is not provided then it is determined from the rbm it is filled from.

Definition at line 147 of file TreeDBNModule.cc.

References PLearn::TVec< T >::append(), PLearn::TMat< T >::appendRow(), modules, PLASSERT, port_index, port_names, port_rbms, and PLearn::OnlineLearningModule::port_sizes.

Referenced by build_().

{
       port_names.append(name);
       port_rbms.append(rbm_index);

       if (rbm_index >= 0) {
               int index = modules[rbm_index]->getPortIndex(port_name);
               PLASSERT(index >= 0);
               port_index.append( index );
       }
       else
               port_index.append( -1 );

       if (port_width == -1) {
               // We need to extract actual port size
               port_width = modules[rbm_index]->getPortWidth(port_name);
       }

       TVec <int> sz(2, -1);
       sz[1] = port_width;
       port_sizes.appendRow(sz);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::TreeDBNModule::bpropAccUpdate ( const TVec< Mat * > &  ports_value,
const TVec< Mat * > &  ports_gradient
) [virtual]

Perform a back propagation step (also updating parameters according to the provided gradient).

The matrices in 'ports_value' must be the same as the ones given in a previous call to 'fprop' (and thus they should in particular contain the result of the fprop computation). However, they are not necessarily the same as the ones given in the LAST call to 'fprop': if there is a need to store an internal module state, this should be done using a specific port to store this state. Each Mat* pointer in the 'ports_gradient' vector can be one of:

  • a full matrix : this is the gradient that is provided to the module, and can be used to compute other ports' gradient.
  • an empty matrix: this is a gradient we want to compute and accumulate into. This matrix must have length 0 and a width equal to the width of the corresponding matrix in the 'ports_value' vector (we can thus accumulate gradients using PLearn's ability to keep intact stored values when resizing a matrix' length).
  • a NULL pointer : this is a gradient that is not available, but does not need t(const TVec<Mat*>& ports_value);o be returned (or even computed). The default version tries to use the standard mini-batch bpropUpdate method, when possible.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 279 of file TreeDBNModule.cc.

References bprop_data, PLearn::OnlineLearningModule::checkProp(), createMatrix(), PLearn::Profiler::end(), PLearn::TVec< T >::fill(), fprop_data, PLearn::OnlineLearningModule::getPortIndex(), gradient_multiplier, hash(), i, PLearn::TMat< T >::isEmpty(), j, layer_sizes, PLearn::TMat< T >::length(), PLearn::TVec< T >::length(), mats, mbi_time, mod_batch_length, modules, n_layers, n_parents_per_node, PLearn::OnlineLearningModule::nPorts(), PLASSERT, PLWARNING, propagate_energy_gradient, propagate_full_gradient, propagate_gradient, PLearn::TVec< T >::resize(), PLearn::TVec< T >::size(), PLearn::Profiler::start(), step_size, PLearn::tostring(), and PLearn::TMat< T >::width().

{
       PLASSERT( ports_value.length() == nPorts() && ports_gradient.length() == nPorts());

       Profiler::start("full bprop");
       if (!propagate_gradient) {                       // Only unsupervised learning in a module
               for (int layer = n_layers-1; layer >= 0; layer--) {
                       int n_mod_ports = modules[layer]->nPorts();

                       bprop_data[layer].resize(n_mod_ports);
                       bprop_data[layer].fill((Mat*)NULL);
                       int mod_batch_size = fprop_data[layer][modules[layer]->getPortIndex("hidden.state")]->length();

                       if (modules[layer]->reconstruction_connection != NULL) {
                               bprop_data[layer][modules[layer]->getPortIndex("reconstruction_error.state")] = createMatrix(mod_batch_size, 1, mats);
                               bprop_data[layer][modules[layer]->getPortIndex("reconstruction_error.state")]->fill(1);
                       }

                       Profiler::start("bprop");
                       modules[layer]->bpropAccUpdate(fprop_data[layer], bprop_data[layer]);
                       Profiler::end("bprop");
               }
       } else
       {
               if (!propagate_full_gradient)           // Propagate only rightmost branch
               {
                       // For top RBM we provide energy gradient only and get gradient on visible
                       bprop_data[n_layers - 1].resize( modules[n_layers-1]->nPorts() );
                       bprop_data[n_layers - 1].fill((Mat*)NULL);

                       int mod_batch_size = fprop_data[n_layers-1][modules[n_layers-1]->getPortIndex("visible")]->length();

                       if (propagate_energy_gradient) {
                               bprop_data[n_layers-1][modules[n_layers-1]->getPortIndex("energy")] = createMatrix(mod_batch_size, 1, mats);
                               bprop_data[n_layers-1][modules[n_layers-1]->getPortIndex("energy")]->fill(1);
                       }

                       if (modules[n_layers-1]->reconstruction_connection != NULL) {
                               bprop_data[n_layers-1][modules[n_layers-1]->getPortIndex("reconstruction_error.state")] =
                                                                                                createMatrix(mod_batch_size, 1, mats);
                               bprop_data[n_layers-1][modules[n_layers-1]->getPortIndex("reconstruction_error.state")]->fill(1);
                       }

                       // Take external gradient on output
                       int out_grad = getPortIndex("output_"+tostring(n_layers));

                       if ( ports_gradient[out_grad] == NULL || ports_gradient[out_grad]->isEmpty() ) {
                               // Make gradient zero
                               ports_gradient[out_grad] = createMatrix(mod_batch_size, modules[n_layers-1]->hidden_layer->size, mats);
                               ports_gradient[out_grad]->fill(0);
                               PLWARNING("Top RBM output port has no gradient information. Using 0 gradient.");
                       }
                       //PLASSERT(ports_gradient[out_grad] != NULL);


                       bprop_data[n_layers-1][modules[n_layers-1]->getPortIndex("hidden.state")] =
                                                        createMatrix(mod_batch_size, ports_gradient[out_grad]->width(), mats);
                       *bprop_data[n_layers-1][modules[n_layers-1]->getPortIndex("hidden.state")] << *ports_gradient[out_grad];

                       // Ask for visible gradient
                       bprop_data[n_layers-1][modules[n_layers-1]->getPortIndex("visible")] =
                                                        createMatrix(0, modules[n_layers-1]->visible_layer->size, mats);

                       Profiler::start("bprop");
                       modules[n_layers-1]->bpropAccUpdate(fprop_data[n_layers-1], bprop_data[n_layers-1]);
                       Profiler::end("bprop");


                       Mat *mat = bprop_data[n_layers-1][modules[n_layers-1]->getPortIndex("visible")];
                       for (int i = 0; i < mat->length(); ++i)
                               for (int j = 0; j < mat->width(); ++j)
                                       (*mat)[i][j] *= gradient_multiplier;


                       // Now for every layer take upper layers visible gradient
                       // and pass it to current layers hidden.state port.
                       for (int layer = n_layers-1; layer > 0; layer--) {
                               int n_mod_ports = modules[layer-1]->nPorts();

                               bprop_data[layer-1].resize(n_mod_ports);
                               bprop_data[layer-1].fill((Mat*)NULL);

                               int mod_batch_size = fprop_data[layer-1][modules[layer-1]->getPortIndex("visible")]->length();
                               int width = modules[layer-1]->hidden_layer->size;


                               Mat *hidden_state = createMatrix(mod_batch_size, width, mats);
                               Mat *rbm_visible = bprop_data[layer][modules[layer]->getPortIndex("visible")];

                               int parent_width = modules[layer-1]->hidden_layer->size;
                               int minibatch_size = ports_value[getPortIndex("input")]->length();

                               TVec <int> used(mod_batch_size, 0);      // Ensure that we right gradient only once (the one we need is first one)

                               // do the same thing like in fprop
                               for (int mbi = 0, index = 0; mbi < minibatch_size; ++mbi)
                               {
                                       if (mbi_time[mbi] < step_size[layer]) {
                                               // Computed all rbms in upper layer
                                               for (int i = 0; i < layer_sizes[layer]; ++i)
                                               {
                                                       // Here parents are this layer rbm (where we want to write gradient)
                                                       for (int parent = 0; parent < n_parents_per_node; ++parent) {
                                                               int row_id = mod_batch_length[layer-1][mbi] -
                                                                                        hash(mbi_time[mbi], layer-1, 2*i + parent);
                                                               if (row_id < 0) {
                                                                       // It must be in cache - do nothing
                                                               } else {
                                                                       if (!used[row_id])
                                                                               (*hidden_state)(row_id) <<
                                                                                (*rbm_visible)(index).subVec(parent*parent_width, parent_width);
                                                                       used[row_id]++;
                                                               }
                                                       }
                                                       ++index;
                                               }
                                       } else {
                                               // Compute only last rbm
                                               for (int parent = 0; parent < n_parents_per_node; ++parent) {
                                                       int row_id = mod_batch_length[layer-1][mbi] -
                                                                                hash(mbi_time[mbi], layer-1, 2*(layer_sizes[layer]-1) + parent);
                                                       if (row_id < 0) {
                                                               // It must be in cache - do nothing
                                                       } else {
                                                               if (!used[row_id])
                                                                       (*hidden_state)(row_id) <<
                                                                                (*rbm_visible)(index).subVec(parent*parent_width, parent_width);
                                                               used[row_id]++;
                                                       }
                                               }
                                               ++index;
                                       }
                               }

                               // Provide hidden gradient..
                               bprop_data[layer-1][modules[layer-1]->getPortIndex("hidden.state")] = hidden_state;

                               // add a gradient that is provided externally on output_i port
                               Mat *xgrad = ports_gradient[getPortIndex("output_"+tostring(layer))];
                               if (xgrad != NULL && !xgrad->isEmpty()) {
                                       //cout << "grad_flow: " << layer << " " << (*xgrad)(0)[0] << endl;
                                       // Length of xgrad is <= hidden_state so we need to sum row by row
                                       for (int mbi = 0; mbi < minibatch_size; ++mbi) {
                                               (*hidden_state)(mod_batch_length[layer-1][mbi]-1) += (*xgrad)(mbi);
                                       }
                               }

                               // and ask for visible gradient
                               bprop_data[layer-1][modules[layer-1]->getPortIndex("visible")] =
                                                        createMatrix(0, modules[layer-1]->visible_layer->size, mats);

                               if (modules[layer-1]->reconstruction_connection != NULL) {
                                       bprop_data[layer-1][modules[layer-1]->getPortIndex("reconstruction_error.state")] =
                                                                                                createMatrix(mod_batch_size, 1, mats);
                                       bprop_data[layer-1][modules[layer-1]->getPortIndex("reconstruction_error.state")]->fill(1);
                               }

                               Profiler::start("bprop");
                               modules[layer-1]->bpropAccUpdate(fprop_data[layer-1], bprop_data[layer-1]);
                               Profiler::end("bprop");
                       }  // for every layer
               } else                          // Propagate through all hierarchy
               {
                        bprop_data[n_layers - 1].resize( modules[n_layers-1]->nPorts() );
                        bprop_data[n_layers - 1].fill((Mat*)NULL);

                        int mod_batch_size = fprop_data[n_layers-1][modules[n_layers-1]->getPortIndex("visible")]->length();

                        if (propagate_energy_gradient) {
                                bprop_data[n_layers-1][modules[n_layers-1]->getPortIndex("energy")] = createMatrix(mod_batch_size, 1, mats);
                                bprop_data[n_layers-1][modules[n_layers-1]->getPortIndex("energy")]->fill(1);
                        }

                        if (modules[n_layers-1]->reconstruction_connection != NULL) {
                                bprop_data[n_layers-1][modules[n_layers-1]->getPortIndex("reconstruction_error.state")] =
                                                                                                createMatrix(mod_batch_size, 1, mats);
                                bprop_data[n_layers-1][modules[n_layers-1]->getPortIndex("reconstruction_error.state")]->fill(1);
                        }

                        // Take external gradient on output
                        int out_grad = getPortIndex("output_"+tostring(n_layers));

                        if ( ports_gradient[out_grad] == NULL || ports_gradient[out_grad]->isEmpty() ) {
                                // Make gradient zero
                                ports_gradient[out_grad] = createMatrix(mod_batch_size, modules[n_layers-1]->hidden_layer->size, mats);
                                ports_gradient[out_grad]->fill(0);
                                PLWARNING("Top RBM output port has no gradient information. Using 0 gradient.");
                        }
                        //PLASSERT(ports_gradient[out_grad] != NULL);


                        bprop_data[n_layers-1][modules[n_layers-1]->getPortIndex("hidden.state")] =
                                                                createMatrix(mod_batch_size, ports_gradient[out_grad]->width(), mats);
                        *bprop_data[n_layers-1][modules[n_layers-1]->getPortIndex("hidden.state")] << *ports_gradient[out_grad];

                        // Ask for visible gradient
                        bprop_data[n_layers-1][modules[n_layers-1]->getPortIndex("visible")] =
                                                                createMatrix(0, modules[n_layers-1]->visible_layer->size, mats);

                        Profiler::start("bprop");
                        modules[n_layers-1]->bpropAccUpdate(fprop_data[n_layers-1], bprop_data[n_layers-1]);
                        Profiler::end("bprop");


                        Mat *mat = bprop_data[n_layers-1][modules[n_layers-1]->getPortIndex("visible")];
                        for (int i = 0; i < mat->length(); ++i)
                                for (int j = 0; j < mat->width(); ++j)
                                        (*mat)[i][j] *= gradient_multiplier;

                        int minibatch_size = ports_value[getPortIndex("input")]->length();

                        // Now for every layer take upper layers visible gradient
                        // and pass it to current layers hidden.state port.
                        for (int layer = n_layers-1; layer > 0; layer--) {
                                int n_mod_ports = modules[layer-1]->nPorts();

                                bprop_data[layer-1].resize(n_mod_ports);
                                bprop_data[layer-1].fill((Mat*)NULL);

                                int mod_batch_size = minibatch_size*layer_sizes[layer-1];
                                int width = modules[layer-1]->hidden_layer->size;

                                Mat *hidden_state = createMatrix(mod_batch_size, width, mats);
                                Mat *rbm_visible = bprop_data[layer][modules[layer]->getPortIndex("visible")];

                                int parent_width = modules[layer-1]->hidden_layer->size;

                                for (int mbi = 0, index = 0; mbi < minibatch_size; ++mbi)
                                {
                                        for (int i = 0; i < layer_sizes[layer-1]; ++i)
                                        {
                                                // Write gradient from parent
                                                int parent_ix = mbi*layer_sizes[layer] + i/n_parents_per_node;
                                                int child_ix = i%n_parents_per_node;
                                                (*hidden_state)(index++) << (*rbm_visible)(parent_ix).subVec(child_ix*parent_width, parent_width);
                                        }
                                }

                                // Provide hidden gradient..
                                bprop_data[layer-1][modules[layer-1]->getPortIndex("hidden.state")] = hidden_state;

                                // add a gradient that is provided externally on output_i port
                                Mat *xgrad = ports_gradient[getPortIndex("output_"+tostring(layer))];
                                if (xgrad != NULL && !xgrad->isEmpty()) {
                                        //cout << "grad_flow: " << layer << " " << (*xgrad)(0)[0] << endl;
                                        // Length of xgrad is <= hidden_state so we need to sum row by row
                                        for (int mbi = 0; mbi < minibatch_size; ++mbi) {
                                                (*hidden_state)(mbi*layer_sizes[layer-1]+layer_sizes[layer-1]-1) += (*xgrad)(mbi);
                                        }
                                }

                                // and ask for visible gradient
                                bprop_data[layer-1][modules[layer-1]->getPortIndex("visible")] =
                                                                        createMatrix(0, modules[layer-1]->visible_layer->size, mats);

                                if (modules[layer-1]->reconstruction_connection != NULL) {
                                        bprop_data[layer-1][modules[layer-1]->getPortIndex("reconstruction_error.state")] =
                                                                                                createMatrix(mod_batch_size, 1, mats);
                                        bprop_data[layer-1][modules[layer-1]->getPortIndex("reconstruction_error.state")]->fill(1);
                                }

                                /*for (int i = 0; i < n_mod_ports; ++i) {
                                        cout << i << " " << modules[layer-1]->getPorts()[i] << " ";
                                        if (full_fprop_data[i])
                                                cout << full_fprop_data[i]->length() << endl;
                                        else
                                                cout << "NULL" << endl;
                                }*/

                                Profiler::start("bprop");
                                modules[layer-1]->bpropAccUpdate(fprop_data[layer-1], bprop_data[layer-1]);
                                Profiler::end("bprop");
                        }       // for every layer
                        //updateCache();                // no cache update as we dont have any
                }


                // Following code would work without need of doing full_fprop. However because RBMMixedLayer caches nll
                // during fprop and then reuses it in bprop it is not possible.
                /*{
                        // For top RBM we provide energy gradient only and get gradient on visible
                        bprop_data[n_layers - 1].resize( modules[n_layers-1]->nPorts() );
                        bprop_data[n_layers - 1].fill((Mat*)NULL);

                        int mod_batch_size = fprop_data[n_layers-1][modules[n_layers-1]->getPortIndex("visible")]->length();

                        if (propagate_energy_gradient) {
                                bprop_data[n_layers-1][modules[n_layers-1]->getPortIndex("energy")] = createMatrix(mod_batch_size, 1, mats);
                                bprop_data[n_layers-1][modules[n_layers-1]->getPortIndex("energy")]->fill(1);
                        }

                        if (modules[n_layers-1]->reconstruction_connection != NULL) {
                                bprop_data[n_layers-1][modules[n_layers-1]->getPortIndex("reconstruction_error.state")] = createMatrix(mod_batch_size, 1, mats);
                                bprop_data[n_layers-1][modules[n_layers-1]->getPortIndex("reconstruction_error.state")]->fill(1);
                        }

                        // Take external gradient on output
                        int out_grad = getPortIndex("output_"+tostring(n_layers));

                        if ( ports_gradient[out_grad] == NULL || ports_gradient[out_grad]->isEmpty() ) {
                                // Make gradient zero
                                ports_gradient[out_grad] = createMatrix(mod_batch_size, modules[n_layers-1]->hidden_layer->size, mats);
                                ports_gradient[out_grad]->fill(0);
                                PLWARNING("Top RBM output port has no gradient information. Using 0 gradient.");
                        }
                        //PLASSERT(ports_gradient[out_grad] != NULL);


                        bprop_data[n_layers-1][modules[n_layers-1]->getPortIndex("hidden.state")] = createMatrix(mod_batch_size, ports_gradient[out_grad]->width(), mats);
                        *bprop_data[n_layers-1][modules[n_layers-1]->getPortIndex("hidden.state")] << *ports_gradient[out_grad];

                        // Ask for visible gradient
                        bprop_data[n_layers-1][modules[n_layers-1]->getPortIndex("visible")] = createMatrix(0, modules[n_layers-1]->visible_layer->size, mats);

                        Profiler::start("bprop");
                        modules[n_layers-1]->bpropAccUpdate(fprop_data[n_layers-1], bprop_data[n_layers-1]);
                        Profiler::end("bprop");


                        Mat *mat = bprop_data[n_layers-1][modules[n_layers-1]->getPortIndex("visible")];
                        for (int i = 0; i < mat->length(); ++i)
                                for (int j = 0; j < mat->width(); ++j)
                                        (*mat)[i][j] *= gradient_multiplier;

                        int minibatch_size = ports_value[getPortIndex("input")]->length();

                        // Now for every layer take upper layers visible gradient
                        // and pass it to current layers hidden.state port.
                        for (int layer = n_layers-1; layer > 0; layer--) {
                                int n_mod_ports = modules[layer-1]->nPorts();

                                bprop_data[layer-1].resize(n_mod_ports);
                                bprop_data[layer-1].fill((Mat*)NULL);

                                int mod_batch_size = minibatch_size*layer_sizes[layer-1];
                                int width = modules[layer-1]->hidden_layer->size;

                                // We need to make new fprop_data vector with full(expanded) data.
                                TVec <Mat*> full_fprop_data(n_mod_ports, (Mat*)NULL);
                                for (int i = 0; i < n_mod_ports; ++i) {
                                        if (fprop_data[layer-1][i] != NULL && !fprop_data[layer-1][i]->isEmpty()
                                                // HACK to make it work with a hack in RBMModule when visible_activations.state is not computed
                                                && (fprop_data[layer-1][i]->length() > 1 || fprop_data[layer-1][i]->width() > 1) ) {
                                                full_fprop_data[i] = createMatrix(mod_batch_size, fprop_data[layer-1][i]->width(), mats);
                                        }
                                }

                                Mat *hidden_state = createMatrix(mod_batch_size, width, mats);
                                Mat *rbm_visible = bprop_data[layer][modules[layer]->getPortIndex("visible")];

                                int parent_width = modules[layer-1]->hidden_layer->size;

                                for (int mbi = 0, index = 0; mbi < minibatch_size; ++mbi)
                                {
                                        for (int i = 0; i < layer_sizes[layer-1]; ++i)
                                        {
                                                // Fill full_fprop_data properly
                                                int row_id = mod_batch_length[layer-1][mbi] - hash(mbi_time[mbi], layer-1, i);
                                                for (int j = 0; j < n_mod_ports; ++j) {
                                                        if (full_fprop_data[j] != NULL) {
                                                                if (row_id < 0) {
                                                                        // Fill from cache
                                                                        PLASSERT_MSG(fprop_data_cache[layer-1][j], "Cache is NULL");
                                                                        int row_in_cache = fprop_data_cache[layer-1][j]->length()+row_id;
                                                                        PLASSERT_MSG(row_in_cache >= 0, "Cache is provided but is too small");
                                                                        (*full_fprop_data[j])(index) << (*fprop_data_cache[layer-1][j])(row_in_cache);
                                                                } else {
                                                                        (*full_fprop_data[j])(index) << (*fprop_data[layer-1][j])(row_id);
                                                                }
                                                        }
                                                }

                                                // Write gradient from parent
                                                int parent_ix = mbi*layer_sizes[layer] + i/n_parents_per_node;
                                                int child_ix = i%n_parents_per_node;
                                                (*hidden_state)(index++) << (*rbm_visible)(parent_ix).subVec(child_ix*parent_width, parent_width);
                                        }
                                }


                                // Provide hidden gradient..
                                bprop_data[layer-1][modules[layer-1]->getPortIndex("hidden.state")] = hidden_state;

                                // add a gradient that is provided externally on output_i port
                                Mat *xgrad = ports_gradient[getPortIndex("output_"+tostring(layer))];
                                if (xgrad != NULL && !xgrad->isEmpty()) {
                                        //cout << "grad_flow: " << layer << " " << (*xgrad)(0)[0] << endl;
                                        // Length of xgrad is <= hidden_state so we need to sum row by row
                                        for (int mbi = 0; mbi < minibatch_size; ++mbi) {
                                                (*hidden_state)(mbi*layer_sizes[layer-1]+layer_sizes[layer-1]-1) += (*xgrad)(mbi);
                                        }
                                }

                                // and ask for visible gradient
                                bprop_data[layer-1][modules[layer-1]->getPortIndex("visible")] = createMatrix(0, modules[layer-1]->visible_layer->size, mats);

                                if (modules[layer-1]->reconstruction_connection != NULL) {
                                        bprop_data[layer-1][modules[layer-1]->getPortIndex("reconstruction_error.state")] = createMatrix(mod_batch_size, 1, mats);
                                        bprop_data[layer-1][modules[layer-1]->getPortIndex("reconstruction_error.state")]->fill(1);
                                }

                                for (int i = 0; i < n_mod_ports; ++i) {
                                        cout << i << " " << modules[layer-1]->getPorts()[i] << " ";
                                        if (full_fprop_data[i])
                                                cout << full_fprop_data[i]->length() << endl;
                                        else
                                                cout << "NULL" << endl;
                                }

                                Profiler::start("bprop");
                                modules[layer-1]->bpropAccUpdate(full_fprop_data, bprop_data[layer-1]);
                                Profiler::end("bprop");
                        }       // for every layer
                        updateCache();
                }*/


       }

       //cout << "end back" << endl;
   // Ensure all required gradients have been computed.
       checkProp(ports_gradient);

       Profiler::end("full bprop");
}

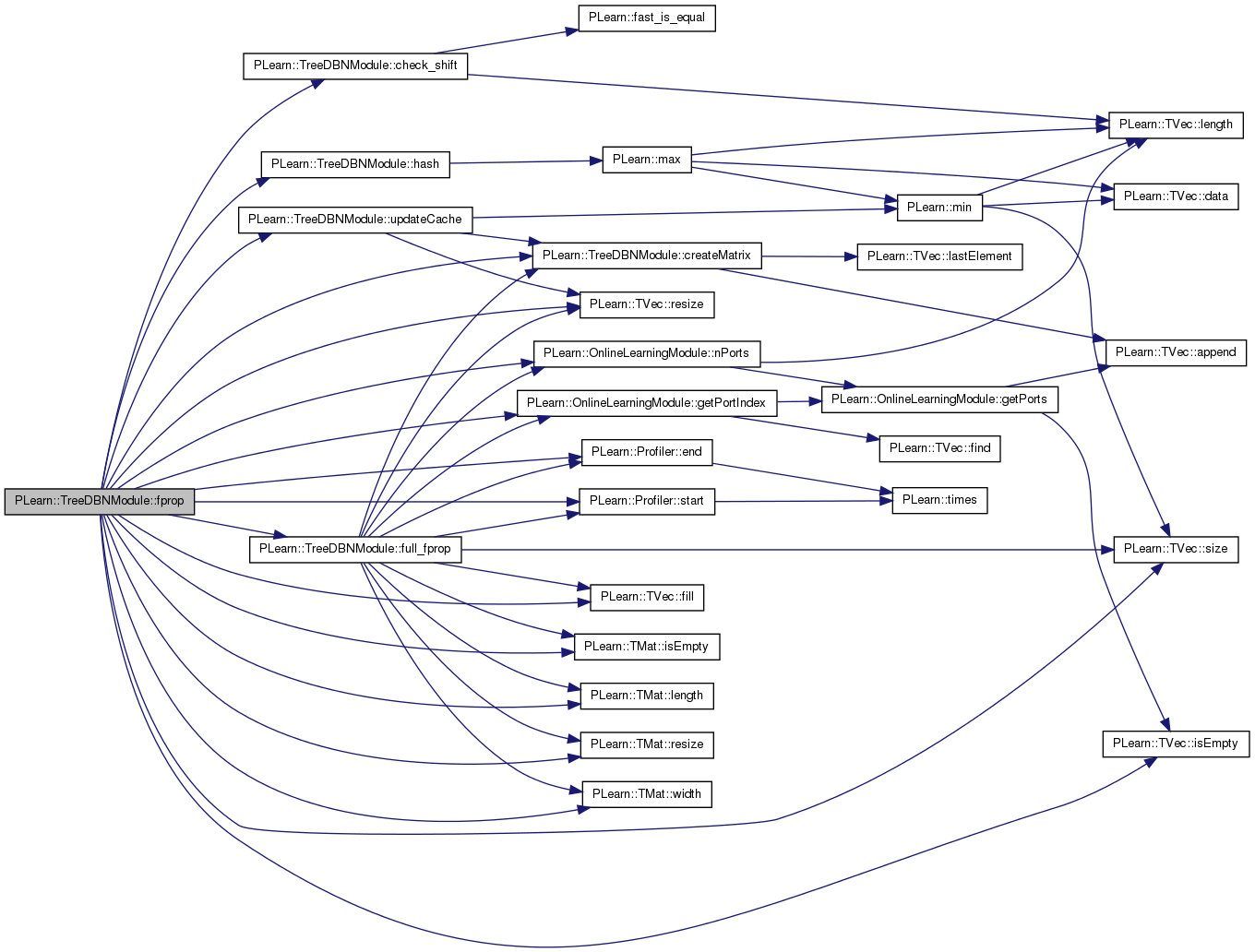

Here is the call graph for this function:

void PLearn::TreeDBNModule::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 269 of file TreeDBNModule.cc.

References PLearn::Profiler::activate(), PLearn::OnlineLearningModule::build(), and build_().

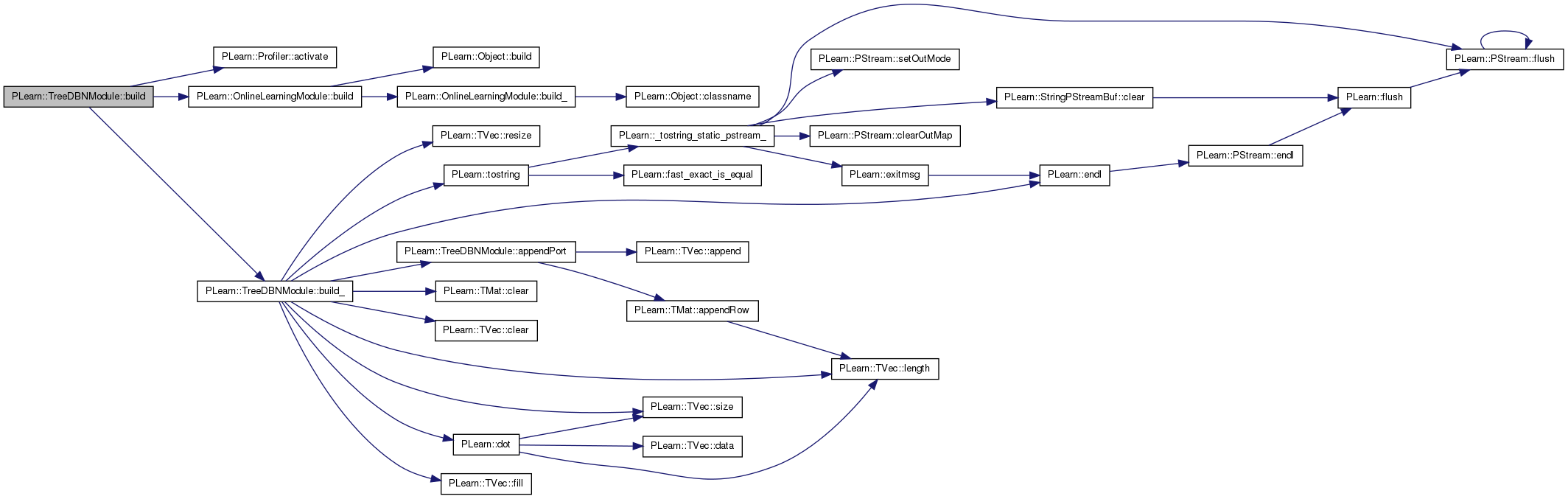

Here is the call graph for this function:

void PLearn::TreeDBNModule::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 173 of file TreeDBNModule.cc.

References appendPort(), bprop_data, bprop_data_cache, cache_mats, PLearn::TMat< T >::clear(), PLearn::TVec< T >::clear(), PLearn::dot(), PLearn::endl(), PLearn::TVec< T >::fill(), fprop_data, fprop_data_cache, i, j, last_full_input, layer_sizes, PLearn::TVec< T >::length(), mats, modules, n_layers, n_parents_per_node, PLearn::OnlineLearningModule::name, PLASSERT, port_index, port_names, port_rbms, PLearn::OnlineLearningModule::port_sizes, ports, PLearn::OnlineLearningModule::random_gen, PLearn::TVec< T >::resize(), PLearn::TVec< T >::size(), step_size, time, and PLearn::tostring().

Referenced by build().

{
       n_layers = modules.length();
       time = 0;

       // Fill ports
       port_names.clear();
       port_rbms.clear();
       port_index.clear();
       port_sizes.clear();
       appendPort("input", -1, "", modules[0]->visible_layer->size);

       layer_sizes.resize(n_layers);

       // Add output ports for every layer rbm
       for (int i = 1; i <= n_layers; ++i) {
               appendPort("output_" + tostring(i), i-1, "hidden.state");
               layer_sizes[i-1] = 1<<(n_layers-i);
       }

       // Add ports that are forwarded from internal modules
       for (int i = 0; i < ports.size(); ++i) {
               string s = ports[i].second;

               size_t dot = s.find('.');
               PLASSERT( dot != string::npos );
               string module_name = s.substr(0, dot);
               string port_name = s.substr(dot + 1);

               bool valid_redirect = false;
               for (int j = 0; j < n_layers; ++j) {
                       if (modules[j]->name == module_name) {
                               appendPort(ports[i].first, j, port_name);
                               valid_redirect = true;
                       }
               }

               PLASSERT(valid_redirect);
       }

       // Make sure storage matrix vectors will not be resized and we will not loose pointers.
       mats.resize(1000);
       mats.resize(0);
       cache_mats.resize(1000);
       cache_mats.resize(0);

       step_size.resize(n_layers);
       step_size[0] = 2;
       for (int i = 1; i < n_layers; ++i) {
               step_size[i] = n_parents_per_node * step_size[i-1];
       }

       // Prepare arrays for holding fprop and bprop data
       bprop_data.resize(n_layers);
       fprop_data.resize(n_layers);
       bprop_data_cache.resize(n_layers);                                      // do not cache (?)
       fprop_data_cache.resize(n_layers);

       for (int i = 0; i < n_layers; ++i) {
               int np = modules[i]->nPorts();
               bprop_data[i].resize(np);
               fprop_data[i].resize(np);
               bprop_data_cache[i].resize(np);
               fprop_data_cache[i].resize(np);
               bprop_data[i].fill((Mat*)NULL);
               fprop_data[i].fill((Mat*)NULL);
               bprop_data_cache[i].fill((Mat*)NULL);
               fprop_data_cache[i].fill((Mat*)NULL);
       }

       // Here we will hold last full input to lower layer
       // It is done to be able to check if input is a shifted
       // version of previous input.
       last_full_input.resize(0);

       // Safety check
       for (int i = 0; i < n_layers-1; ++i)
               PLASSERT(modules[i]->hidden_layer->size * n_parents_per_node == modules[i+1]->visible_layer->size);

       // Forward random number generator to all underlying modules.
       if (random_gen) {
               cout << "Forget in build" << endl;
               for (int i = 0; i < modules.length(); i++) {
                       if (!modules[i]->random_gen) {
                                cout << "pass forget" << endl;
                               modules[i]->random_gen = random_gen;
                               modules[i]->build();
                               modules[i]->forget();
                       }
               }
       }
}

Here is the call graph for this function:

Here is the caller graph for this function:

bool PLearn::TreeDBNModule::check_shift ( Vec a,
Vec b,
int  k
) [private]

Checks whether b is a shifted to the left by k.

Check if b equals a shifted left by k.

Definition at line 739 of file TreeDBNModule.cc.

References PLearn::fast_is_equal(), i, PLearn::TVec< T >::length(), and PLASSERT.

Referenced by fprop().

{
       PLASSERT(a.length() == b.length());

       for (int i = k; i < a.length(); ++i) {
               if ( !fast_is_equal(a[i], b[i-k]) )
                       return false;
       }

       return true;
}

Here is the call graph for this function:

Here is the caller graph for this function:

string PLearn::TreeDBNModule::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 56 of file TreeDBNModule.cc.

void PLearn::TreeDBNModule::clearCache ( )

Clears all caches.

Clears the cache. Do this if parameters changed.

Definition at line 1152 of file TreeDBNModule.cc.

References bprop_data_cache, cache_mats, fprop_data_cache, i, j, modules, n_layers, PLearn::TVec< T >::resize(), and time.

Referenced by declareMethods().

{
       time = 0;
       cache_mats.resize(0);
       for (int i = 0; i < n_layers; ++i) {
               int n_ports = modules[i]->nPorts();
               for (int j = 0; j < n_ports; ++j) {
                       fprop_data_cache[i][j] = NULL;
                       bprop_data_cache[i][j] = NULL;
               }
       }
}

Here is the call graph for this function:

Here is the caller graph for this function:

Mat * PLearn::TreeDBNModule::createMatrix ( int  length,
int  width,
TVec< Mat > &  mats
) [private]

Helper function to create a matrix.

Definition at line 778 of file TreeDBNModule.cc.

References PLearn::TVec< T >::append(), and PLearn::TVec< T >::lastElement().

Referenced by bpropAccUpdate(), fprop(), full_fprop(), and updateCache().

{
       mats.append(Mat(length, width));
       return &mats.lastElement();
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::TreeDBNModule::declareMethods ( RemoteMethodMap rmm) [static, protected]

Declare the methods that are remote-callable.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 121 of file TreeDBNModule.cc.

References PLearn::OnlineLearningModule::_getRemoteMethodMap_(), clearCache(), PLearn::declareMethod(), PLearn::RemoteMethodMap::inherited(), initSampling(), and sample().

{
   // Insert a backpointer to remote methods; note that this
   // different than for declareOptions()
       rmm.inherited(inherited::_getRemoteMethodMap_());

       declareMethod(
                       rmm, "initSampling", &TreeDBNModule::initSampling,
       (BodyDoc("Initializes network for sampling. This function must be called before any calls to sample().\n"),
        ArgDoc ("gibbsTop", "Number of gibbs steps to do in top rbm.")));

       declareMethod(
                       rmm, "clearCache", &TreeDBNModule::clearCache,
       (BodyDoc("Clears all caches. Call this after changing any of the module parameters.\n")));

       declareMethod(
                       rmm, "sample", &TreeDBNModule::sample,
       (BodyDoc("Samples the network. Returns a sample on the visible layer.\n"),
        ArgDoc("gibbsTop", "Number of gibbs steps in the top layer for each sample."),
        RetDoc ("Sample.")));
}

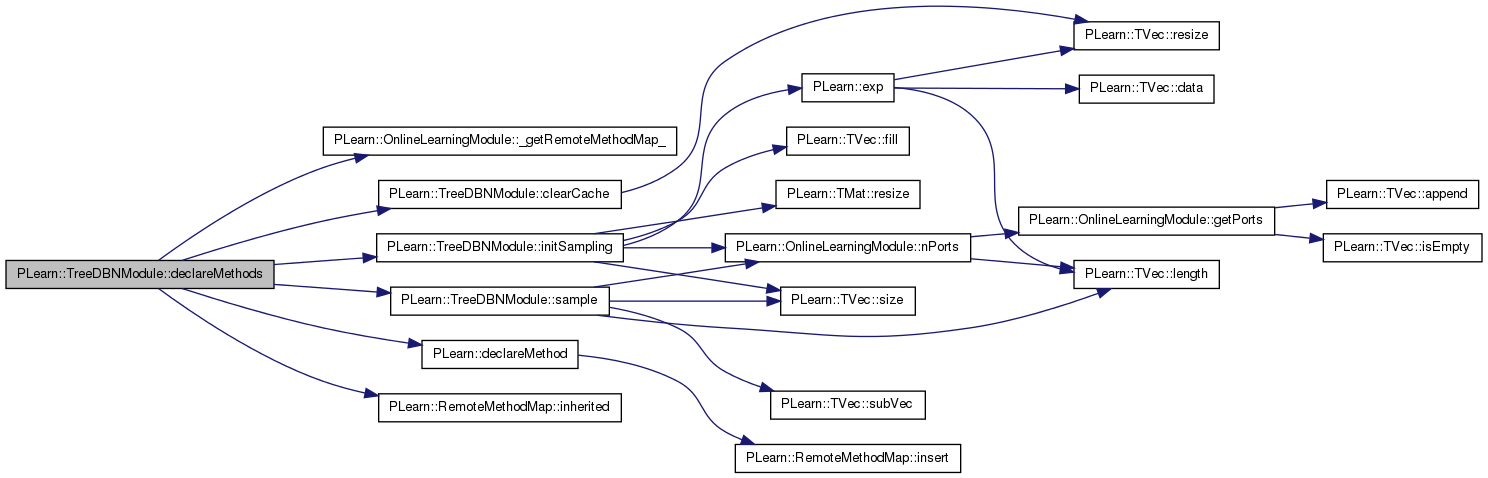

Here is the call graph for this function:

void PLearn::TreeDBNModule::declareOptions ( OptionList ol) [static, protected]

Declares the class options.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 70 of file TreeDBNModule.cc.

References PLearn::OptionBase::buildoption, PLearn::declareOption(), PLearn::OnlineLearningModule::declareOptions(), gradient_multiplier, modules, n_parents_per_node, ports, propagate_energy_gradient, propagate_full_gradient, and propagate_gradient.

{
   // Now call the parent class' declareOptions
   inherited::declareOptions(ol);

       declareOption(ol, "modules", &TreeDBNModule::modules,
                  OptionBase::buildoption,
                  "RBMModule list that is used to build DBN.");

       declareOption(ol, "n_parents_per_node", &TreeDBNModule::n_parents_per_node,
                                 OptionBase::buildoption,
                                 "How many parents each node has.");

       // Not implemented.
       //declareOption(ol, "n_shared_parents", &TreeDBNModule::n_shared_parents,
       //                        OptionBase::buildoption,
       //                        "Number of parents that two adjacent nodes share.");

       declareOption(ol, "propagate_gradient", &TreeDBNModule::propagate_gradient,
                                 OptionBase::buildoption,
                                 "Whether we propagate gradient through hierarchy.");

       declareOption(ol, "propagate_full_gradient", &TreeDBNModule::propagate_full_gradient,
                                 OptionBase::buildoption,
                                 "If propagate_gradient==true then this flag determines that gradient should be propagated"
                                 " through full hierarchy. Else propagation is only done through the rightmost branch.");

       declareOption(ol, "propagate_energy_gradient", &TreeDBNModule::propagate_energy_gradient,
                                 OptionBase::buildoption,
                                 "Whether we compute and propagate free energy gradient from top layer.");

        // Probabaly not useful.
       declareOption(ol, "gradient_multiplier", &TreeDBNModule::gradient_multiplier,
                                 OptionBase::buildoption,
                                 "Value that propagated gradient is multiplied before propagating from top layer.");

       declareOption(ol, "ports", &TreeDBNModule::ports,
                                 OptionBase::buildoption,
                                 "A sequence of pairs of strings, where each pair is of the form\n"
                                                 "\"P\":\"M.N\" with 'M' the name of an underlying module, 'N' one of\n"
                                                 "its ports, and 'P' the name under which the TreeDBNModule sees this\n"
                                                 "port. See the class help for an example. If 'P' is an empty string,\n"
                                                 "then the port name will be 'M.N'.");

}

Here is the call graph for this function:

static const PPath& PLearn::TreeDBNModule::declaringFile ( ) [inline, static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 284 of file TreeDBNModule.h.

:
    //#####  Protected Member Functions  ######################################
TreeDBNModule * PLearn::TreeDBNModule::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 56 of file TreeDBNModule.cc.

void PLearn::TreeDBNModule::forget ( ) [virtual]

Reset the parameters to the state they would be BEFORE starting training.

Note that this method is necessarily called from build().

Implements PLearn::OnlineLearningModule.

Definition at line 731 of file TreeDBNModule.cc.

References PLearn::endl(), i, modules, and n_layers.

{
       cout << "Forget" << endl;
       for (int i  = 0; i < n_layers; ++i)
               modules[i]->forget();
}

Here is the call graph for this function:

void PLearn::TreeDBNModule::fprop ( const TVec< Mat * > &  ports_value) [virtual]

Perform a fprop step.

Optimized fprop.

Each Mat* pointer in the 'ports_value' vector can be one of:

  • a full matrix: this is data that is provided to the module, and can be used to compute other ports' values
  • an empty matrix: this is what we want to compute
  • a NULL pointer: this is data that is not available, but whose value does not need to be returned (or even computed) The default version will either:
  • call the mini-batch versions of standard fprop if 'ports_value' has size 2, with the first value being provided (and the second being the desired output)
  • crash otherwise

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 908 of file TreeDBNModule.cc.

References check_shift(), createMatrix(), PLearn::Profiler::end(), PLearn::TVec< T >::fill(), fprop_data, fprop_data_cache, full_fprop(), PLearn::OnlineLearningModule::getPortIndex(), hash(), i, PLearn::TMat< T >::isEmpty(), PLearn::TVec< T >::isEmpty(), j, last_full_input, layer_sizes, PLearn::TMat< T >::length(), mats, mbi_time, mod_batch_length, modules, n_layers, n_parents_per_node, PLearn::OnlineLearningModule::nPorts(), PLASSERT_MSG, PLERROR, port_index, port_rbms, propagate_full_gradient, propagate_gradient, PLearn::TMat< T >::resize(), PLearn::TVec< T >::resize(), PLearn::TVec< T >::size(), PLearn::Profiler::start(), step_size, time, updateCache(), and PLearn::TMat< T >::width().

{
        if (propagate_gradient && propagate_full_gradient) {
                full_fprop(ports_value);
                return;
        }

       Profiler::start("full fprop");
       mats.resize(0);

       vector <string> prts = modules[0]->getPorts();
       //cout << "*********************" << endl;
       //for (int i = 0; i < prts.size(); ++i)
       //      cout << prts[i] << endl;
       //cout << "*********************" << endl;

        Mat* input = ports_value[getPortIndex("input")];
        int minibatch_size = input->length();
        int symbol_size = modules[0]->visible_layer->size/n_parents_per_node;

        mbi_time.resize(minibatch_size);
        mod_batch_length.resize(n_layers, minibatch_size);

        // Compute pseudo-time
        Vec v = (*input)(0), v2;
        if ( last_full_input != NULL && !last_full_input.isEmpty() && check_shift( last_full_input, v, symbol_size ) )
                mbi_time[0] = time + 1;
        else
                mbi_time[0] = 0;

        for (int mbi = 1; mbi < minibatch_size; ++mbi)
        {
                // Two cases: either it is a shifted version of the previous
                // or it is a new word
                v = (*input)(mbi-1);    v2 = (*input)(mbi);
                if ( check_shift( v, v2, symbol_size ) )
                        mbi_time[mbi] = mbi_time[mbi-1] + 1;
                else
                        mbi_time[mbi] = 0;
        }

        // Process layerwise
        for (int layer = 0; layer < n_layers; ++layer)
        {
                fprop_data[layer].resize(modules[layer]->nPorts());
                fprop_data[layer].fill((Mat*)NULL);

                // Count number of rows
                int nRows = 0;
                for (int mbi = 0; mbi < minibatch_size; ++mbi)
                {
                        // We might need to compute either all or only last rbm
                        if (mbi_time[mbi] < step_size[layer]) nRows += layer_sizes[layer];
                        else ++nRows;
                }

                // Prepare matrices
                Mat* rbm_visible = createMatrix(nRows, modules[layer]->visible_layer->size, mats);
                fprop_data[layer][modules[layer]->getPortIndex("visible")] = rbm_visible;

                //Create all .state matrices
                for (int i = 0; i < modules[layer]->nPorts(); ++i) {
                        string pname = modules[layer]->getPorts()[i];
                        if ( pname.length() > 6 && ".state" == pname.substr(pname.length()-6) ) {
                                if (fprop_data[layer][i] == NULL)
                                        fprop_data[layer][i] = createMatrix(0, 0, mats);
                        }
                }

                //fprop_data[layer][modules[layer]->getPortIndex("hidden.state")] = createMatrix(0, 0, mats);
                //fprop_data[layer][modules[layer]->getPortIndex("hidden_activations.state")] = createMatrix(0, 0, mats);

                if (modules[layer]->reconstruction_connection == NULL) {
                        fprop_data[layer][modules[layer]->getPortIndex("reconstruction_error.state")] = NULL;
                        fprop_data[layer][modules[layer]->getPortIndex("visible_reconstruction.state")] = NULL;
                        fprop_data[layer][modules[layer]->getPortIndex("visible_reconstruction_activations.state")] = NULL;
                }

                // Create empty matrices for forwarded ports
                for (int i = 0; i < nPorts(); ++i) {
                        if (port_rbms[i] >= 0) {
                                if (ports_value[i] != NULL && fprop_data[port_rbms[i]][port_index[i]] == NULL)
                                        fprop_data[port_rbms[i]][port_index[i]] = createMatrix(0, 0, mats);
                        }
                }

                // Go through all minibatch and fill visible expectations
                if (layer == 0)
                {                               // Handle input layer in different manner
                        int visible_size = modules[layer]->visible_layer->size;

                        for (int mbi = 0, index = 0; mbi < minibatch_size; ++mbi)
                        {
                                // We might need to compute either all or only last rbm
                                if (mbi_time[mbi] < step_size[layer]) {
                                        // Compute all rbms
                                        for (int i = 0; i < layer_sizes[layer]; ++i)
                                        {
                                                (*rbm_visible)(index++) << (*input)(mbi).subVec(i*visible_size, visible_size);
                                        }
                                } else {
                                        // Compute only last rbm
                                        (*rbm_visible)(index++) << (*input)(mbi).subVec((layer_sizes[layer]-1)*visible_size, visible_size);
                                }
                                mod_batch_length[0][mbi] = index;
                        }
                }
                else
                {
                        // Take parent layer expectations
                        Mat *expectations = fprop_data[layer-1][modules[layer-1]->getPortIndex("hidden.state")];
                        Mat *expectations_cache = fprop_data_cache[layer-1][modules[layer-1]->getPortIndex("hidden.state")];

                        int parent_width = modules[layer-1]->hidden_layer->size;
                        for (int mbi = 0, index = 0; mbi < minibatch_size; ++mbi)
                        {
                                // We might need to compute either all or only last rbm
                                if (mbi_time[mbi] < step_size[layer]) {
                                        // Compute all rbms
                                        for (int i = 0; i < layer_sizes[layer]; ++i)
                                        {
                                                for (int parent = 0; parent < n_parents_per_node; ++parent) {
                                                        int row_id = mod_batch_length[layer-1][mbi] - hash(mbi_time[mbi], layer-1, n_parents_per_node*i + parent);
                                                        //cout << "RID*: " << row_id << endl;
                                                        if (row_id < 0) {
                                                                // It must be in cache
                                                                PLASSERT_MSG(expectations_cache, "Cache is NULL");
                                                                int row_in_cache = expectations_cache->length()+row_id;
                                                                PLASSERT_MSG(row_in_cache >= 0, "Cache is provided but is too small");
                                                                (*rbm_visible)(index).subVec(parent*parent_width, parent_width) <<
                                                                                (*expectations_cache)(row_in_cache);
                                                        } else {
                                                                (*rbm_visible)(index).subVec(parent*parent_width, parent_width) <<
                                                                                (*expectations)(row_id);
                                                        }
                                                }
                                                ++index;
                                        }
                                } else {
                                        // Compute only last rbm
                                        for (int parent = 0; parent < n_parents_per_node; ++parent) {
                                                int row_id = mod_batch_length[layer-1][mbi] - hash(mbi_time[mbi], layer-1, n_parents_per_node*(layer_sizes[layer]-1) + parent);
                                                //cout << "RID: " << row_id << endl;
                                                //cout << mbi_time[mbi] << " " << mod_batch_length[mbi] << " " << hash(mbi_time[mbi], layer-1, 2*(layer_sizes[layer]-1) + parent) << " "<< row_id << endl;
                                                if (row_id < 0) {
                                                        // It must be in cache
                                                        PLASSERT_MSG(expectations_cache, "Cache is NULL");
                                                        int row_in_cache = expectations_cache->length()+row_id;
                                                        PLASSERT_MSG(row_in_cache >= 0, "Cache is provided but is too small");
                                                        (*rbm_visible)(index).subVec(parent*parent_width, parent_width) <<
                                                                        (*expectations_cache)(row_in_cache);
                                                } else {
                                                        (*rbm_visible)(index).subVec(parent*parent_width, parent_width) <<
                                                                        (*expectations)(row_id);
                                                }
                                        }
                                        ++index;
                                }
                                mod_batch_length[layer][mbi] = index;
                        }
                }

                Profiler::start("fprop");
                //cout << "fprop: " << endl;
                //cout << (*fprop_data[layer][0]) << endl;
                //cout << "************" << endl;
                modules[layer]->fprop(fprop_data[layer]);
                Profiler::end("fprop");
        }

        time = mbi_time[minibatch_size-1];
        last_full_input.resize(input->width());
        last_full_input << (*input)(minibatch_size-1);

        // Final things: fill the cache...
        if (!propagate_gradient || !propagate_full_gradient)
                updateCache();

        // and write all required output to the provided ports ( output_i + requested )
        for (int i = 0; i < nPorts(); ++i) {
                Mat *mat = ports_value[i];

                if ( mat != NULL && mat->isEmpty() ) {
                        // We check of which layer output should be writen to the port
                        int pl = port_rbms[i];
                        if (pl >= 0) {
                                mat->resize(minibatch_size, fprop_data[pl][port_index[i]]->width());
                                for (int j = 0; j < minibatch_size; ++j)
                                        (*mat)(j) << (*fprop_data[pl][port_index[i]])(mod_batch_length[pl][j] - 1);
                        } else
                                PLERROR("Data was requested for a port, but not computed!");
                }
        }

       //cout << "redirected " << *ports_value[port_redirects[0][0].first] << endl;

       Profiler::end("full fprop");

       //Profiler::report(cout);
}

Here is the call graph for this function:

void PLearn::TreeDBNModule::full_fprop ( const TVec< Mat * > &  ports_value) [private]

Fprop that does not use any optimization.

Unoptimized version of fprop.

Definition at line 786 of file TreeDBNModule.cc.

References createMatrix(), PLearn::Profiler::end(), PLearn::TVec< T >::fill(), fprop_data, PLearn::OnlineLearningModule::getPortIndex(), i, PLearn::TMat< T >::isEmpty(), j, last_full_input, layer_sizes, PLearn::TMat< T >::length(), mats, mbi_time, mod_batch_length, modules, n_layers, n_parents_per_node, PLearn::OnlineLearningModule::nPorts(), PLERROR, port_index, port_rbms, PLearn::TMat< T >::resize(), PLearn::TVec< T >::resize(), PLearn::TVec< T >::size(), PLearn::Profiler::start(), time, and PLearn::TMat< T >::width().

Referenced by fprop().

{
       Profiler::start("full fprop");
       mats.resize(0);

       vector <string> prts = modules[0]->getPorts();

        Mat* input = ports_value[getPortIndex("input")];
        int minibatch_size = input->length();

        mbi_time.resize(minibatch_size);
        mod_batch_length.resize(n_layers, minibatch_size);

        // Process layerwise
        for (int layer = 0; layer < n_layers; ++layer)
        {
                fprop_data[layer].resize(modules[layer]->nPorts());
                fprop_data[layer].fill((Mat*)NULL);

                // Count number of rows
                int nRows = layer_sizes[layer]*minibatch_size;

                // Prepare matrices
                Mat* rbm_visible = createMatrix(nRows, modules[layer]->visible_layer->size, mats);
                fprop_data[layer][modules[layer]->getPortIndex("visible")] = rbm_visible;

                //Create all .state matrices
                for (int i = 0; i < modules[layer]->nPorts(); ++i) {
                        string pname = modules[layer]->getPorts()[i];
                        if ( pname.length() > 6 && ".state" == pname.substr(pname.length()-6) ) {
                                if (fprop_data[layer][i] == NULL)
                                        fprop_data[layer][i] = createMatrix(0, 0, mats);
                        }
                }

                if (modules[layer]->reconstruction_connection == NULL) {
                        fprop_data[layer][modules[layer]->getPortIndex("reconstruction_error.state")] = NULL;
                        fprop_data[layer][modules[layer]->getPortIndex("visible_reconstruction.state")] = NULL;
                        fprop_data[layer][modules[layer]->getPortIndex("visible_reconstruction_activations.state")] = NULL;
                }

                // Create empty matrices for forwarded ports
                for (int i = 0; i < nPorts(); ++i) {
                        if (port_rbms[i] >= 0) {
                                if (ports_value[i] != NULL && fprop_data[port_rbms[i]][port_index[i]] == NULL)
                                        fprop_data[port_rbms[i]][port_index[i]] = createMatrix(0, 0, mats);
                        }
                }

                // Go through all minibatch and fill visible expectations
                if (layer == 0)
                {       // Handle input layer in different manner
                        int visible_size = modules[layer]->visible_layer->size;

                        for (int mbi = 0, index = 0; mbi < minibatch_size; ++mbi)
                        {
                                for (int i = 0; i < layer_sizes[layer]; ++i)
                                {
                                        (*rbm_visible)(index++) << (*input)(mbi).subVec(i*visible_size, visible_size);
                                }
                        }
                }
                else
                {
                        // Take parent layer expectations
                        Mat *expectations = fprop_data[layer-1][modules[layer-1]->getPortIndex("hidden.state")];

                        int parent_width = modules[layer-1]->hidden_layer->size;
                        for (int mbi = 0, index = 0; mbi < minibatch_size; ++mbi)
                        {
                                // Compute all rbms
                                for (int i = 0; i < layer_sizes[layer]; ++i)
                                {
                                        for (int parent = 0; parent < n_parents_per_node; ++parent) {
                                                int row_id = mbi*layer_sizes[layer-1] + i*n_parents_per_node + parent;
                                                (*rbm_visible)(index).subVec(parent*parent_width, parent_width) <<
                                                                        (*expectations)(row_id);
                                        }
                                        ++index;
                                }
                        }
                }

                Profiler::start("fprop");
                //cout << "fprop: " << endl;
                //cout << (*fprop_data[layer][0]) << endl;
                //cout << "************" << endl;
                modules[layer]->fprop(fprop_data[layer]);
                Profiler::end("fprop");
        }

        time = 0;
        last_full_input.resize(input->width());
        last_full_input << (*input)(minibatch_size-1);

        // and write all required output to the provided ports ( output_i + requested )
        //cout << "write" << endl;
        for (int i = 0; i < nPorts(); ++i) {
                Mat *mat = ports_value[i];

                if ( mat != NULL && mat->isEmpty() ) {
                        // We check of which layer output should be writen to the port
                        int pl = port_rbms[i];
                        if (pl >= 0) {
                                mat->resize(minibatch_size, fprop_data[pl][port_index[i]]->width());
                                //cout << modules[pl]->getPorts()[i] << endl;
                                for (int j = 0; j < minibatch_size; ++j)
                                        (*mat)(j) << (*fprop_data[pl][port_index[i]])(layer_sizes[pl]*j + layer_sizes[pl]-1);
                        } else
                                PLERROR("Data was requested for a port, but not computed!");
                }
        }

       //cout << "redirected " << *ports_value[port_redirects[0][0].first] << endl;
        //cout << "ffprop end" << endl;
       Profiler::end("full fprop");

       //Profiler::report(cout);
}

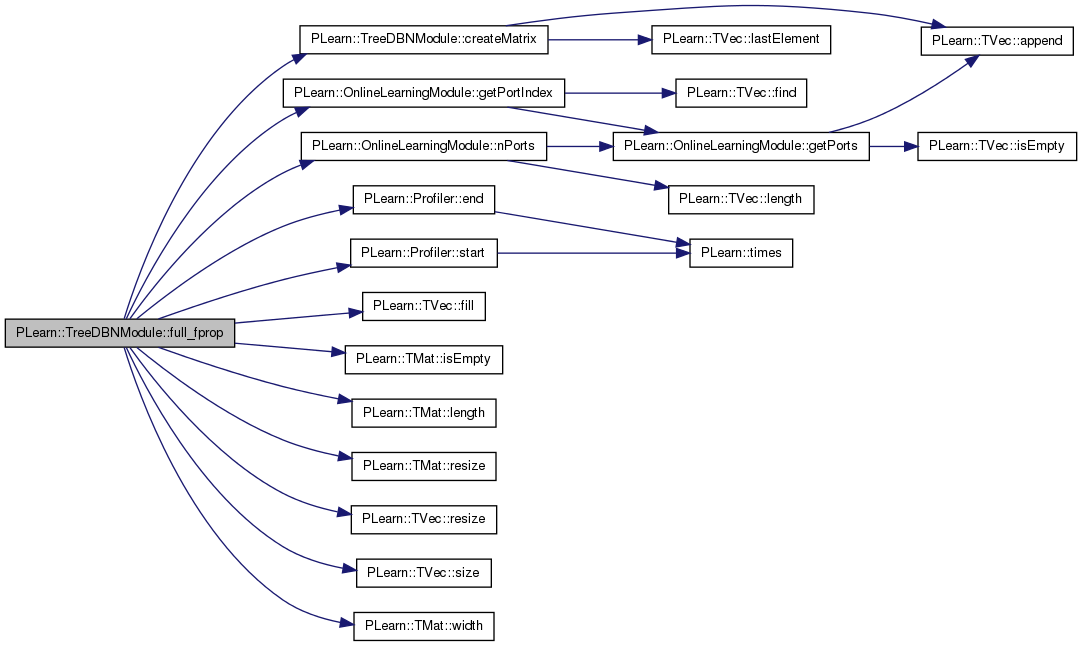

Here is the call graph for this function:

Here is the caller graph for this function:

OptionList & PLearn::TreeDBNModule::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 56 of file TreeDBNModule.cc.

OptionMap & PLearn::TreeDBNModule::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 56 of file TreeDBNModule.cc.

const TVec< string > & PLearn::TreeDBNModule::getPorts ( ) [virtual]

Return the list of ports in the module.

The default implementation returns a pair ("input", "output") to handle the most common case.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 1247 of file TreeDBNModule.cc.

References port_names.

                                            {
       return port_names;
}
RemoteMethodMap & PLearn::TreeDBNModule::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 56 of file TreeDBNModule.cc.

int PLearn::TreeDBNModule::hash ( int  t,
int  k,
int  i
) [private]

Used to compute row number in fprop matrix for a sample.

Provided pseudotime, rbm layer and rbm index (both zero based) in the layer returns distance from the end of computed fprop_data where rbm with same parameters was computed.

For example, if provided parameters 6, 1, 1 it returns -3, then it means that second rbm in the second layer was computed and is stored in fprop_data[fprop_data.length-3]

Definition at line 758 of file TreeDBNModule.cc.

References i, layer_sizes, PLearn::max(), and step_size.

Referenced by bpropAccUpdate(), and fprop().

{
       if (t < step_size[k]) return layer_sizes[k] - i;            // all rbms were computed
       if (i == layer_sizes[k] - 1) return 1;                                          // last rbm in layer asked, and was computed

  // check if there was a moment when this input was fed to the last rbm in the layer
       if ( (layer_sizes[k] - 1 - i)*step_size[k] <= t) {
               int t_diff = (layer_sizes[k] - 1 - i)*step_size[k];
      // In first step_size[k] time steps we added layer_size[k] entries.
               return t_diff + max(0, step_size[k] - (t - t_diff) - 1)*(layer_sizes[k]-1) + 1;
       }

  // the only option is that this input was fed to some intermediate rbm
       int ix = i + t/step_size[k];                    // Index of that rbm
       int t_diff = (ix - i)*step_size[k];             //
       return t_diff + max(0, step_size[k] - (t - t_diff) - 1)*(layer_sizes[k]-1) + layer_sizes[k] - 1 - ix + 1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::TreeDBNModule::initSampling ( int  gibbsTop)

Initialize tree to perform sampling.

Initializes sampling.

gibbsTop - number of Gibbs steps to do on the top layer.

Basically, it writes a random value to the top rbm and does gibbsTop gibbs steps. Call this before calling sample().

Definition at line 1167 of file TreeDBNModule.cc.

References PLearn::exp(), PLearn::TVec< T >::fill(), fprop_data, i, modules, n_layers, PLearn::OnlineLearningModule::nPorts(), PLearn::TMat< T >::resize(), and PLearn::TVec< T >::size().

Referenced by declareMethods().

{
       modules[n_layers-1]->min_n_Gibbs_steps = gibbsTop;

       Mat hidden(1, modules[n_layers-1]->hidden_layer->size);

       for (int i = 0; i < modules[n_layers-1]->hidden_layer->size; ++i)
       {
               hidden[0][i] = rand() & 1;
       }

       Mat exp;
       TVec <Mat*> fprop_data(modules[n_layers-1]->nPorts(), (Mat*)NULL);

       fprop_data[modules[n_layers-1]->getPortIndex("hidden_sample")] = &hidden;
       fprop_data[modules[n_layers-1]->getPortIndex("visible_sample")] = &exp;

       // Initialize with random sample
       modules[n_layers-1]->fprop(fprop_data);

       // Run chain for min_n_Gibbs_steps
       fprop_data.fill((Mat*)NULL);
       exp.resize(0,0);
       fprop_data[modules[n_layers-1]->getPortIndex("visible_sample")] = &exp;
       modules[n_layers-1]->fprop(fprop_data);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::TreeDBNModule::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Transforms a shallow copy into a deep copy.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 1262 of file TreeDBNModule.cc.

References PLearn::deepCopyField(), PLearn::OnlineLearningModule::makeDeepCopyFromShallowCopy(), and modules.

{
   inherited::makeDeepCopyFromShallowCopy(copies);

   // ### Call deepCopyField on all "pointer-like" fields
   // ### that you wish to be deepCopied rather than
   // ### shallow-copied.
   // ### ex:
   deepCopyField(modules, copies);

   // ### Remove this line when you have fully implemented this method.
   //PLERROR("TreeDBNModule::makeDeepCopyFromShallowCopy not fully (correctly) implemented yet!");
}

Here is the call graph for this function:

Vec PLearn::TreeDBNModule::sample ( int  nGibbs)

Returns a sample of the visible layer.

Returns a sample from the visible layer.

nGibbs - number of Gibbs steps to do before sampling

Definition at line 1196 of file TreeDBNModule.cc.

References fprop_data, i, layer_sizes, PLearn::TVec< T >::length(), modules, n_layers, n_parents_per_node, PLearn::OnlineLearningModule::nPorts(), PLearn::TVec< T >::size(), and PLearn::TVec< T >::subVec().

Referenced by declareMethods().

{
        modules[n_layers-1]->n_Gibbs_steps_per_generated_sample = gibbsTop;

       // Sample visible expectations from top layer rbm
       TVec <Mat> samples(n_layers);

       TVec <Mat*> fprop_data(modules[n_layers-1]->nPorts(), (Mat*)NULL);

       fprop_data[modules[n_layers-1]->getPortIndex("visible_sample")] = &samples[n_layers-1];

       modules[n_layers-1]->fprop(fprop_data);

       // Propagate expectations down the network
       for (int layer = n_layers-2; layer >= 0; --layer)
       {
               // Fill hidden sample for layer rbms
               int width = modules[layer]->hidden_layer->size;
               Mat hidden_sample(layer_sizes[layer], width);
               for (int i = 0; i < layer_sizes[layer]; ++i)
               {
                       hidden_sample(i) << samples[layer+1](i/n_parents_per_node).subVec((i%n_parents_per_node)*width, width);
               }

               TVec <Mat*> fp_data(modules[layer]->nPorts(), (Mat*)NULL);
               //fp_data[modules[layer]->getPortIndex("visible_reconstruction.state")] = &samples[layer];
               //fp_data[modules[layer]->getPortIndex("hidden.state")] = &hidden_sample;
               fp_data[modules[layer]->getPortIndex("visible_sample")] = &samples[layer];
               fp_data[modules[layer]->getPortIndex("hidden_sample")] = &hidden_sample;

               modules[layer]->fprop(fp_data);
       }

       Vec sample(samples[0].size());
       for (int i = 0; i < samples[0].length(); ++i)
               sample.subVec(i*samples[0].width(), samples[0].width()) << samples[0](i);

       return sample;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::TreeDBNModule::updateCache ( ) [private]

Updates cache after fprop.

Updates a cache with new fprop_data.

Definition at line 1110 of file TreeDBNModule.cc.

References cache_mats, createMatrix(), fprop_data, fprop_data_cache, i, j, layer_sizes, PLearn::min(), modules, n_layers, n_parents_per_node, and PLearn::TVec< T >::resize().

Referenced by fprop().

{
       //cache_mats.resize(0);
       for (int i = 0; i < n_layers; ++i) {
               int n_ports = modules[i]->nPorts();
               for (int j = 0; j < n_ports; ++j) {

                       if (fprop_data[i][j] != NULL && !fprop_data[i][j]->isEmpty()) {
                               // Take last rows
                               int max_rows = layer_sizes[0]*n_parents_per_node;               // max we could need
                               if (fprop_data[i][j]->length() > max_rows) {
                                       //cout << "full cache" << endl;
                                       // copy submatrix
                                       if (fprop_data_cache[i][j] == NULL)
                                               fprop_data_cache[i][j] = createMatrix(max_rows, fprop_data[i][j]->width(), cache_mats);
                                       else
                                               fprop_data_cache[i][j]->resize(max_rows, fprop_data[i][j]->width());
                                       *fprop_data_cache[i][j] << fprop_data[i][j]->subMatRows(fprop_data[i][j]->length()-max_rows, max_rows);
                               } else {
                                       if (fprop_data_cache[i][j] == NULL) {           // have no cache, copy all
                                               //cout << "first cache " << i << " " << j << endl;
                                               fprop_data_cache[i][j] = createMatrix(fprop_data[i][j]->length(), fprop_data[i][j]->width(), cache_mats);
                                               *fprop_data_cache[i][j] << *fprop_data[i][j];
                                       } else {
                                               //cout << "part cache" << endl;
                                               // had something.., check how many rows we have to leave
                                               int rows_reuse = min(max_rows - fprop_data[i][j]->length(), fprop_data_cache[i][j]->length());
                                               Mat tmp(rows_reuse, fprop_data[i][j]->width());
                                               tmp << fprop_data_cache[i][j]->subMatRows(fprop_data_cache[i][j]->length() - rows_reuse, rows_reuse);
                                               fprop_data_cache[i][j]->resize(rows_reuse + fprop_data[i][j]->length(), fprop_data[i][j]->width());
                                               fprop_data_cache[i][j]->subMatRows(0, rows_reuse) << tmp;
                                               fprop_data_cache[i][j]->subMatRows(rows_reuse, fprop_data[i][j]->length()) << *fprop_data[i][j];
                                       }
                               }
                       }

                       // TODO if we stop calculate fprop_data for some port the cache should be deleted (?)
               }
       }
}

Here is the call graph for this function:

Here is the caller graph for this function:


Member Data Documentation

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 284 of file TreeDBNModule.h.

Definition at line 323 of file TreeDBNModule.h.

Referenced by bpropAccUpdate(), and build_().

Definition at line 329 of file TreeDBNModule.h.

Referenced by build_(), and clearCache().

Definition at line 340 of file TreeDBNModule.h.

Referenced by build_(), clearCache(), and updateCache().

Definition at line 327 of file TreeDBNModule.h.

Referenced by build_(), clearCache(), fprop(), and updateCache().

Value that multiplies the gradient of energy if it is computed.

Definition at line 68 of file TreeDBNModule.h.

Referenced by bpropAccUpdate(), and declareOptions().

Definition at line 317 of file TreeDBNModule.h.

Referenced by build_(), fprop(), and full_fprop().

Definition at line 309 of file TreeDBNModule.h.

Referenced by bpropAccUpdate(), build_(), fprop(), full_fprop(), hash(), sample(), and updateCache().

Definition at line 339 of file TreeDBNModule.h.

Referenced by bpropAccUpdate(), build_(), fprop(), and full_fprop().

Definition at line 333 of file TreeDBNModule.h.

Referenced by bpropAccUpdate(), fprop(), and full_fprop().

Definition at line 336 of file TreeDBNModule.h.

Referenced by bpropAccUpdate(), fprop(), and full_fprop().

From how many parents the upper layer RBM takes its input.

Definition at line 61 of file TreeDBNModule.h.

Referenced by bpropAccUpdate(), build_(), declareOptions(), fprop(), full_fprop(), sample(), and updateCache().

NOT IMPLEMENTED.

Defines how many parent modules adjacent upper modules share

Definition at line 65 of file TreeDBNModule.h.

Definition at line 306 of file TreeDBNModule.h.

Referenced by appendPort(), build_(), fprop(), and full_fprop().

Definition at line 304 of file TreeDBNModule.h.

Referenced by appendPort(), build_(), and getPorts().

Definition at line 305 of file TreeDBNModule.h.

Referenced by appendPort(), build_(), fprop(), and full_fprop().

TVec< pair<string, string > > PLearn::TreeDBNModule::ports

Ports that should be provided by module.

It is mapping ("external_name", "rbm_name.rbm_port")

Definition at line 81 of file TreeDBNModule.h.

Referenced by build_(), and declareOptions().

Whether to compute and propagate energy gradient.

Definition at line 74 of file TreeDBNModule.h.

Referenced by bpropAccUpdate(), and declareOptions().

If true, gradient is propagated through all hierarchy, not only rightmost branch.

Definition at line 77 of file TreeDBNModule.h.

Referenced by bpropAccUpdate(), declareOptions(), and fprop().

Whether to propagate gradient throug all hierarchical structure.

Definition at line 71 of file TreeDBNModule.h.

Referenced by bpropAccUpdate(), declareOptions(), and fprop().

Definition at line 313 of file TreeDBNModule.h.

Referenced by bpropAccUpdate(), build_(), fprop(), and hash().

Definition at line 331 of file TreeDBNModule.h.

Referenced by build_(), clearCache(), fprop(), and full_fprop().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
