PLearn::CorrelationKernel Class Reference

#include <CorrelationKernel.h>

Inheritance diagram for PLearn::CorrelationKernel:
Inheritance graph
[legend]

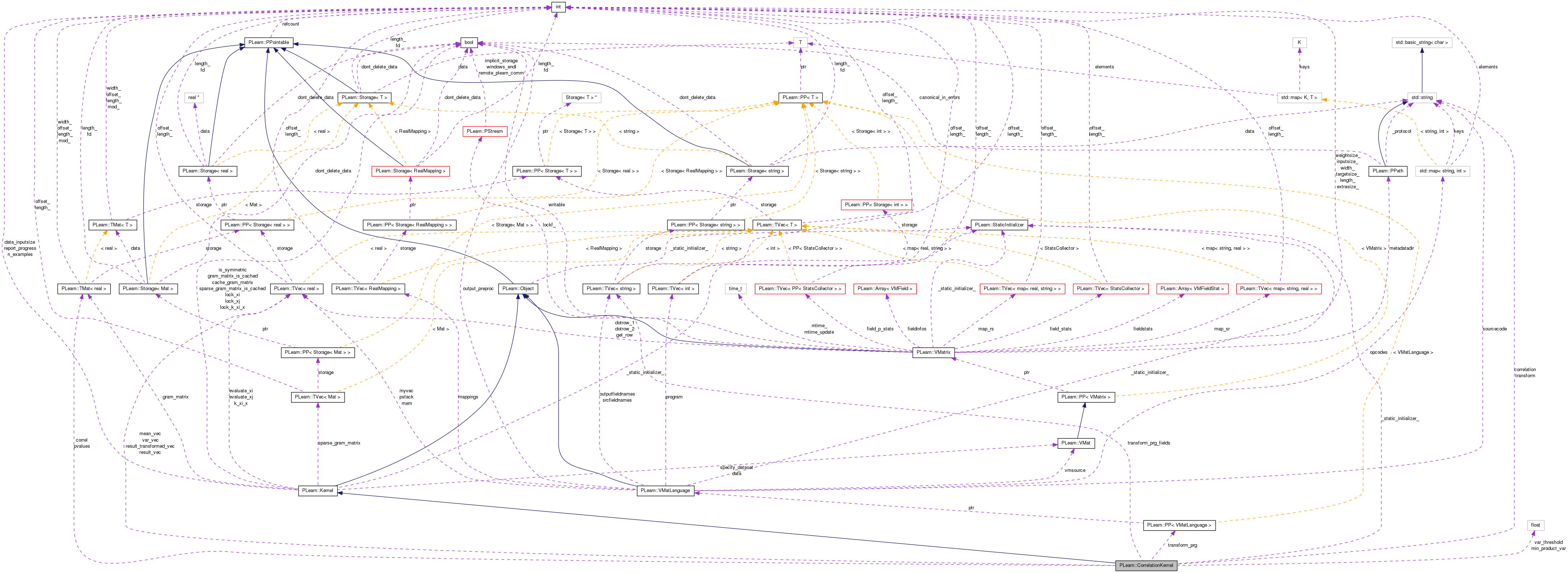

Collaboration diagram for PLearn::CorrelationKernel:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 CorrelationKernel ()
 Default constructor.
virtual void build ()
 Simply calls inherited::build() then build_().
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual CorrelationKerneldeepCopy (CopiesMap &copies) const
virtual real evaluate (const Vec &x1, const Vec &x2) const
 Compute K(x1,x2).
virtual void setDataForKernelMatrix (VMat the_data)
 Overridden to precompute 'min_product_var' if necessary.

Static Public Member Functions

static string _classname_ ()
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

string correlation
string transform
real var_threshold

Static Public Attributes

static StaticInitializer _static_initializer_

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declares this class' options.

Protected Attributes

Mat correl
 Used to store the correlations.
Mat pvalues
 Used to store the pvalues.
Vec mean_vec
 Used to store the mean of each example (variable).
Vec var_vec
 Used to store the variance of each example (variable).
real min_product_var
 Value used to threshold products of variances.
PP< VMatLanguagetransform_prg
 VPL program that transforms the similarity measure.
TVec< string > transform_prg_fields
 Fields of the VPL program.
Vec result_vec
 Used to store the similarity measure.
Vec result_transformed_vec
 Used to store the similarity measure tranformed by 'transform_prg'.

Private Types

typedef Kernel inherited

Private Member Functions

void build_ ()
 This does the actual building.

Detailed Description

Definition at line 52 of file CorrelationKernel.h.


Member Typedef Documentation

Reimplemented from PLearn::Kernel.

Definition at line 57 of file CorrelationKernel.h.


Constructor & Destructor Documentation

PLearn::CorrelationKernel::CorrelationKernel ( )

Default constructor.

Definition at line 55 of file CorrelationKernel.cc.

References transform_prg.

    : correlation("linear"),
      transform(""),
      var_threshold(0)
{
    transform_prg = new VMatLanguage();
}

Member Function Documentation

string PLearn::CorrelationKernel::_classname_ ( ) [static]

Reimplemented from PLearn::Kernel.

Definition at line 72 of file CorrelationKernel.cc.

OptionList & PLearn::CorrelationKernel::_getOptionList_ ( ) [static]

Reimplemented from PLearn::Kernel.

Definition at line 72 of file CorrelationKernel.cc.

RemoteMethodMap & PLearn::CorrelationKernel::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::Kernel.

Definition at line 72 of file CorrelationKernel.cc.

bool PLearn::CorrelationKernel::_isa_ ( const Object o) [static]

Reimplemented from PLearn::Kernel.

Definition at line 72 of file CorrelationKernel.cc.

Object * PLearn::CorrelationKernel::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 72 of file CorrelationKernel.cc.

StaticInitializer CorrelationKernel::_static_initializer_ & PLearn::CorrelationKernel::_static_initialize_ ( ) [static]

Reimplemented from PLearn::Kernel.

Definition at line 72 of file CorrelationKernel.cc.

void PLearn::CorrelationKernel::build ( ) [virtual]

Simply calls inherited::build() then build_().

Reimplemented from PLearn::Kernel.

Definition at line 106 of file CorrelationKernel.cc.

References PLearn::Kernel::build(), and build_().

Here is the call graph for this function:

void PLearn::CorrelationKernel::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::Kernel.

Definition at line 115 of file CorrelationKernel.cc.

References PLearn::TVec< T >::resize(), result_transformed_vec, result_vec, transform, transform_prg, and transform_prg_fields.

Referenced by build().

{
    // ### This method should do the real building of the object,
    // ### according to set 'options', in *any* situation.
    // ### Typical situations include:
    // ###  - Initial building of an object from a few user-specified options
    // ###  - Building of a "reloaded" object: i.e. from the complete set of all serialised options.
    // ###  - Updating or "re-building" of an object after a few "tuning" options have been modified.
    // ### You should assume that the parent class' build_() has already been called.
    transform_prg->setSourceFieldNames(TVec<string>(1)); // Dummy fieldnames.
    transform_prg->compileString(transform, transform_prg_fields);
    result_vec.resize(1);
    result_transformed_vec.resize(1);
}

Here is the call graph for this function:

Here is the caller graph for this function:

string PLearn::CorrelationKernel::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 72 of file CorrelationKernel.cc.

void PLearn::CorrelationKernel::declareOptions ( OptionList ol) [static, protected]

Declares this class' options.

Reimplemented from PLearn::Kernel.

Definition at line 77 of file CorrelationKernel.cc.

References PLearn::OptionBase::buildoption, correlation, PLearn::declareOption(), PLearn::Kernel::declareOptions(), transform, and var_threshold.

{
    // ### Declare all of this object's options here
    // ### For the "flags" of each option, you should typically specify
    // ### one of OptionBase::buildoption, OptionBase::learntoption or
    // ### OptionBase::tuningoption. Another possible flag to be combined with
    // ### is OptionBase::nosave

    declareOption(ol, "correlation", &CorrelationKernel::correlation, OptionBase::buildoption,
                  "The correlation method used to compute the similarity, among:\n"
                  "- 'linear'                  : linear correlation\n"
                  "- 'mutual_information_norm' : normalized mutual information\n");

    declareOption(ol, "transform", &CorrelationKernel::transform, OptionBase::buildoption,
                  "An additional transformation applied on the similarity, in VPL language.\n");

    declareOption(ol, "var_threshold", &CorrelationKernel::var_threshold, OptionBase::buildoption,
                  "If set to a value > 0, denote by x_i the training point whose variance is the\n"
                  "'var_threshold' quantile of all training variances. If v_i is its variance, then\n"
                  "all pairs of points whose product of variances is less than v_i^2 will be given a\n"
                  "similarity (correlation) of 1e-6.\n");

    // Now call the parent class' declareOptions
    inherited::declareOptions(ol);
}

Here is the call graph for this function:

static const PPath& PLearn::CorrelationKernel::declaringFile ( ) [inline, static]

Reimplemented from PLearn::Kernel.

Definition at line 132 of file CorrelationKernel.h.

CorrelationKernel * PLearn::CorrelationKernel::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::Kernel.

Definition at line 72 of file CorrelationKernel.cc.

real PLearn::CorrelationKernel::evaluate ( const Vec x1,
const Vec x2
) const [virtual]

Compute K(x1,x2).

Implements PLearn::Kernel.

Definition at line 133 of file CorrelationKernel.cc.

References correl, correlation, PLearn::correlations(), PLearn::dot(), PLearn::exp(), PLearn::fast_is_equal(), PLearn::TVec< T >::length(), m, PLearn::mean(), min_product_var, n, PLearn::norm(), Pi, pl_log, PLERROR, pvalues, result_transformed_vec, result_vec, PLearn::sqrt(), PLearn::TVec< T >::toMat(), transform_prg, var_threshold, and PLearn::variance().

                                                                   {
    real result = 0;
    int n = x1.length();
#ifdef BOUNDCHECK
    if (x2.length() != n)
        PLERROR("In CorrelationKernel::evaluate - x1 and x2 must have same size");
#endif
    if (correlation == "linear") {
        VMat x1_(x1.toMat(n, 1));
        VMat x2_(x2.toMat(n, 1));
        x1_->defineSizes(n, 0, 0);
        x2_->defineSizes(n, 0, 0);
        correlations(x1_, x2_, correl, pvalues, true);
        result = correl(0,0);
    } else if (correlation == "mutual_information_norm") {
        Vec x1_c(n);
        Vec x2_c(n);
        x1_c << x1;
        x2_c << x2;
        x1_c -= mean(x1);
        x2_c -= mean(x2);
        real cos12 = dot(x1_c, x2_c) / (norm(x1_c) * norm(x2_c));
        if (cos12 > 1)
            cos12 = 1;
        real sin12 = sqrt(1 - cos12 * cos12);   // |sin(x1,x2)|
        if (fast_is_equal(sin12, 0.0, 1.0, 1e-5))
            // The variables are considered equal.
            result = 1;
        else {
            real m = - pl_log(sin12);
            real epsilon = exp(0.5) / sqrt(2 * Pi);
            real sigma1 = sqrt(variance(x1_c.toMat(1,n), 0.0));
            real sigma2 = sqrt(variance(x2_c.toMat(1,n), 0.0));
            real h1 = 0.5 + pl_log(sqrt(2 * Pi) * (sigma1 + epsilon));
            real h2 = 0.5 + pl_log(sqrt(2 * Pi) * (sigma2 + epsilon));
            if (h1 <= 0 || h2 <= 0)
                PLERROR("In CorrelationKernel::evaluate - Entropy should always be > 0");
            result = m / (sqrt(h1) * sqrt(h2));
        }
    } else
        PLERROR("In CorrelationKernel::evaluate - Unknown value for 'correlation': "
                "%s", correlation.c_str());
    if (var_threshold > 0) {
        real v_1 = variance(x1, mean(x1));
        real v_2 = variance(x2, mean(x2));
        if (v_1 * v_2 < min_product_var)
            result = 1e-6;
    }
    result_vec[0] = result;
    transform_prg->run(result_vec, result_transformed_vec);
    return result_transformed_vec[0];
    /*
      if (transform.empty())
      return result;
      else if (transform == "minus_log")
      return -log(result);
      else if (transform == "minus_log_abs")
      return -log(fabs(result));
      else {
      PLERROR("In CorrelationKernel::evaluate - Unknown value for 'transform': "
      "%s", transform.c_str());
      return 0; // To make the compiler happy.
      }
    */
}

Here is the call graph for this function:

OptionList & PLearn::CorrelationKernel::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 72 of file CorrelationKernel.cc.

OptionMap & PLearn::CorrelationKernel::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 72 of file CorrelationKernel.cc.

RemoteMethodMap & PLearn::CorrelationKernel::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 72 of file CorrelationKernel.cc.

void PLearn::CorrelationKernel::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]
void PLearn::CorrelationKernel::setDataForKernelMatrix ( VMat  the_data) [virtual]

Overridden to precompute 'min_product_var' if necessary.

Reimplemented from PLearn::Kernel.

Definition at line 228 of file CorrelationKernel.cc.

References PLearn::computeMeanAndVariance(), PLearn::TVec< T >::length(), mean_vec, min_product_var, PLearn::Kernel::setDataForKernelMatrix(), PLearn::sortElements(), var_threshold, and var_vec.

                                                            {
    inherited::setDataForKernelMatrix(the_data);
    if (var_threshold > 0) {
        // Compute variances.
        VMat transp = new TransposeVMatrix(the_data);
        computeMeanAndVariance(transp, mean_vec, var_vec);
        // Compute quantile.
        sortElements(var_vec);
        int q = (int) floor(var_threshold * (var_vec.length() - 1));
        min_product_var = var_vec[q] * var_vec[q];
    }
}

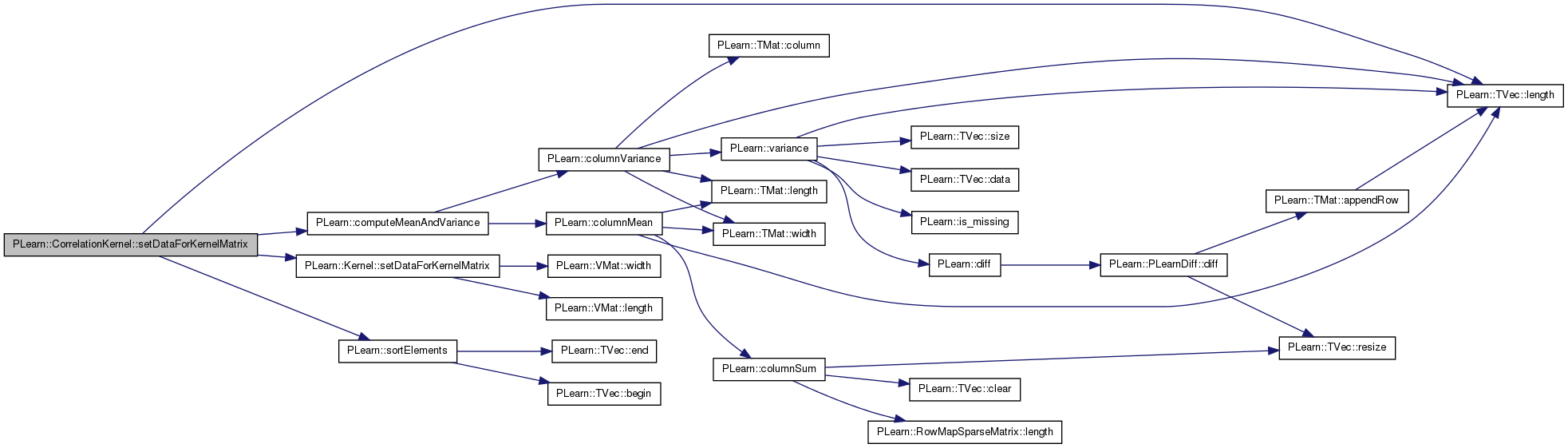

Here is the call graph for this function:


Member Data Documentation

Reimplemented from PLearn::Kernel.

Definition at line 132 of file CorrelationKernel.h.

Mat PLearn::CorrelationKernel::correl [mutable, protected]

Used to store the correlations.

Definition at line 61 of file CorrelationKernel.h.

Referenced by evaluate(), and makeDeepCopyFromShallowCopy().

Definition at line 88 of file CorrelationKernel.h.

Referenced by declareOptions(), and evaluate().

Used to store the mean of each example (variable).

Definition at line 63 of file CorrelationKernel.h.

Referenced by makeDeepCopyFromShallowCopy(), and setDataForKernelMatrix().

Value used to threshold products of variances.

Definition at line 65 of file CorrelationKernel.h.

Referenced by evaluate(), and setDataForKernelMatrix().

Used to store the pvalues.

Definition at line 62 of file CorrelationKernel.h.

Referenced by evaluate(), and makeDeepCopyFromShallowCopy().

Used to store the similarity measure tranformed by 'transform_prg'.

Definition at line 73 of file CorrelationKernel.h.

Referenced by build_(), evaluate(), and makeDeepCopyFromShallowCopy().

Used to store the similarity measure.

Definition at line 71 of file CorrelationKernel.h.

Referenced by build_(), evaluate(), and makeDeepCopyFromShallowCopy().

Definition at line 89 of file CorrelationKernel.h.

Referenced by build_(), and declareOptions().

VPL program that transforms the similarity measure.

Definition at line 67 of file CorrelationKernel.h.

Referenced by build_(), CorrelationKernel(), evaluate(), and makeDeepCopyFromShallowCopy().

Fields of the VPL program.

Definition at line 69 of file CorrelationKernel.h.

Referenced by build_(), and makeDeepCopyFromShallowCopy().

Definition at line 90 of file CorrelationKernel.h.

Referenced by declareOptions(), evaluate(), and setDataForKernelMatrix().

Used to store the variance of each example (variable).

Definition at line 64 of file CorrelationKernel.h.

Referenced by makeDeepCopyFromShallowCopy(), and setDataForKernelMatrix().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
