PLearn::StackedFocusedAutoassociatorsNet Class Reference

Neural net, trained layer-wise in a greedy but focused fashion using autoassociators/RBMs and a supervised non-parametric gradient. More...

#include <StackedFocusedAutoassociatorsNet.h>

Inheritance diagram for PLearn::StackedFocusedAutoassociatorsNet:
Inheritance graph
[legend]

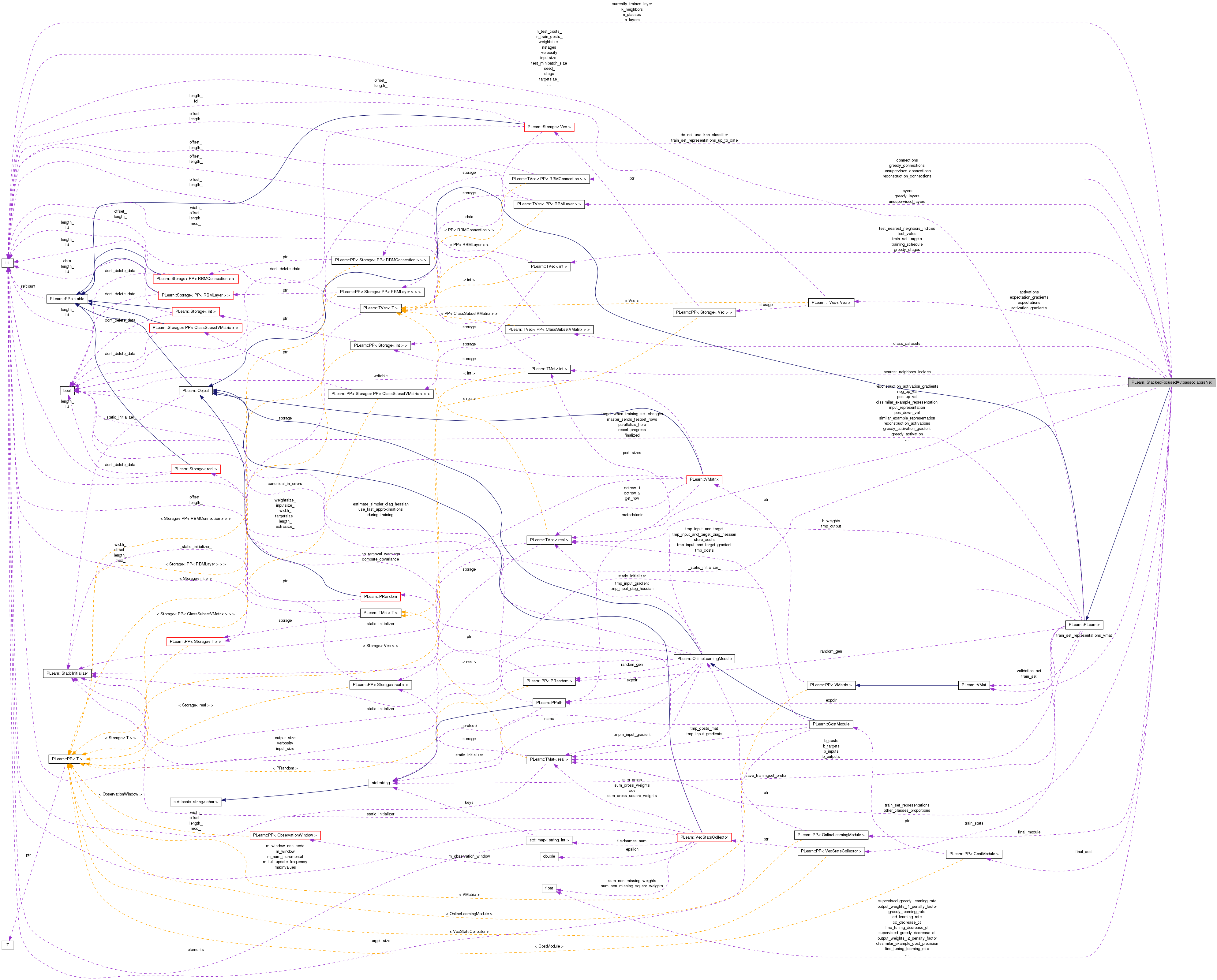

Collaboration diagram for PLearn::StackedFocusedAutoassociatorsNet:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 StackedFocusedAutoassociatorsNet ()
 Default constructor.
virtual int outputsize () const
 Returns the size of this learner's output, (which typically may depend on its inputsize(), targetsize() and set options).
virtual void forget ()
 (Re-)initializes the PLearner in its fresh state (that state may depend on the 'seed' option) and sets 'stage' back to 0 (this is the stage of a fresh learner!).
virtual void train ()
 The role of the train method is to bring the learner up to stage==nstages, updating the train_stats collector with training costs measured on-line in the process.

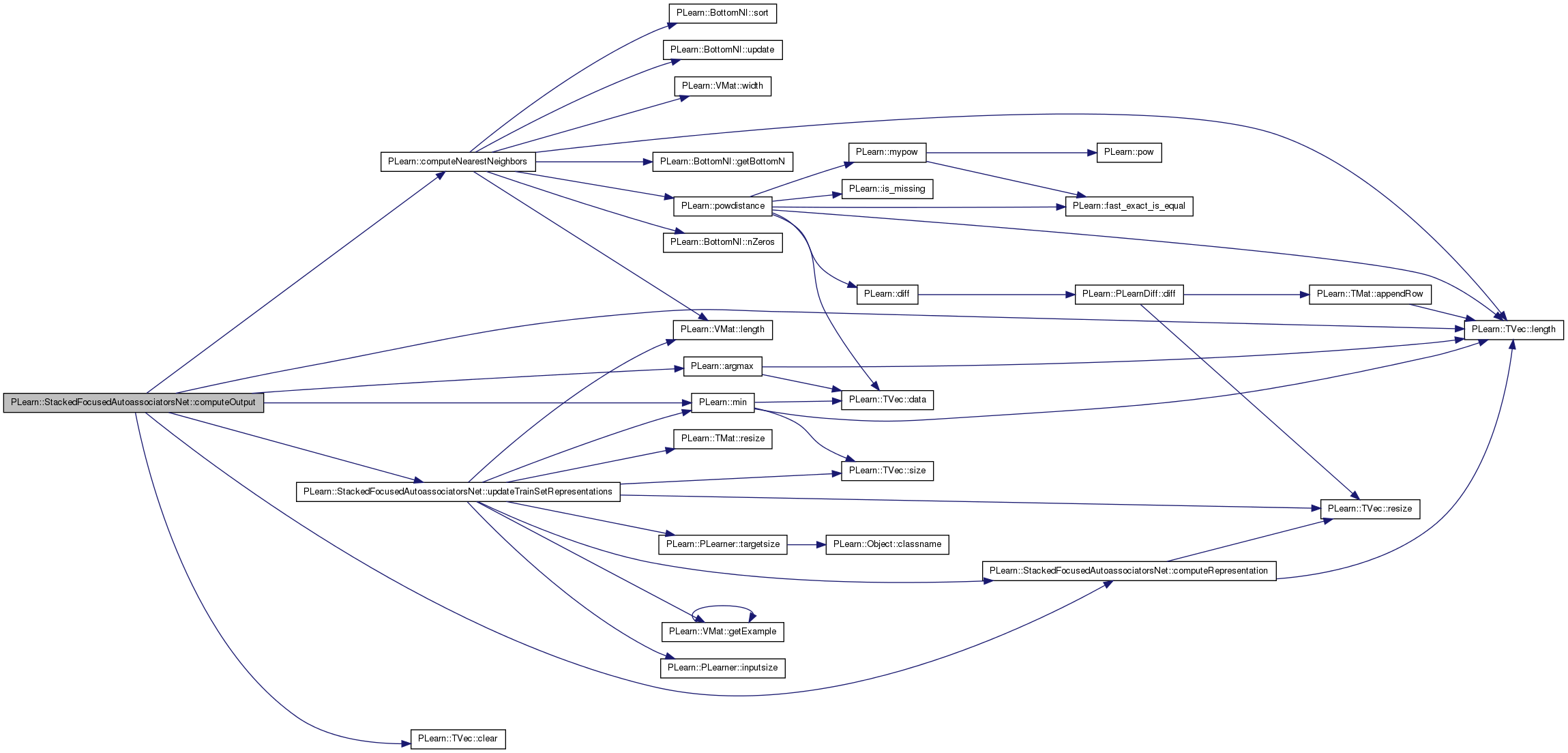

virtual void computeOutput (const Vec &input, Vec &output) const
 Computes the output from the input.
virtual void computeCostsFromOutputs (const Vec &input, const Vec &output, const Vec &target, Vec &costs) const
 Computes the costs from already computed output.

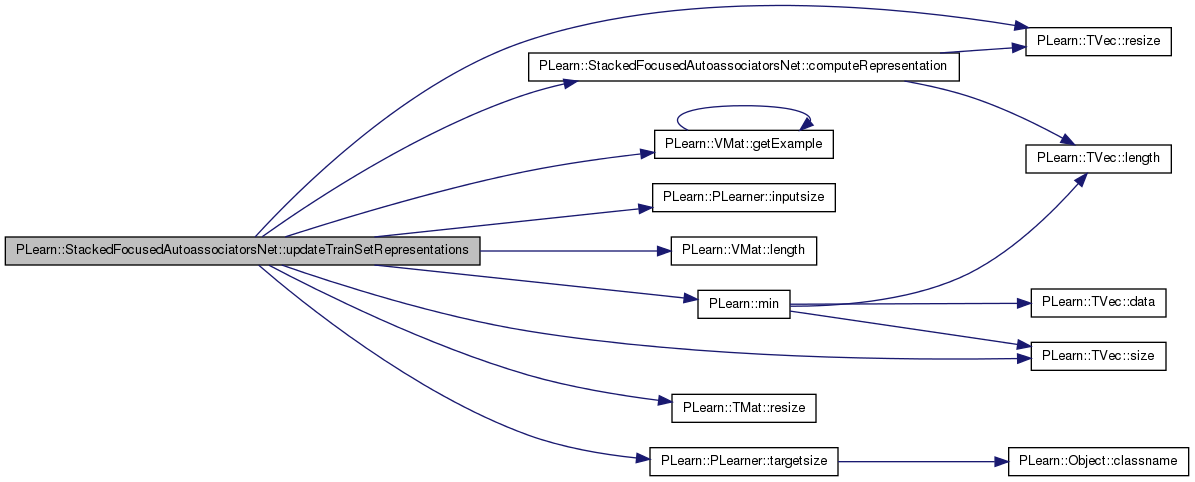

virtual void updateTrainSetRepresentations () const
 Precomputes the representations of the training set examples, to speed up nearest neighbors searches in that space.
virtual TVec< std::string > getTestCostNames () const
 Returns the names of the costs computed by computeCostsFromOutpus (and thus the test method).
virtual TVec< std::string > getTrainCostNames () const
 Returns the names of the objective costs that the train method computes and for which it updates the VecStatsCollector train_stats.
virtual void setTrainingSet (VMat training_set, bool call_forget=true)
 Declares the training set.

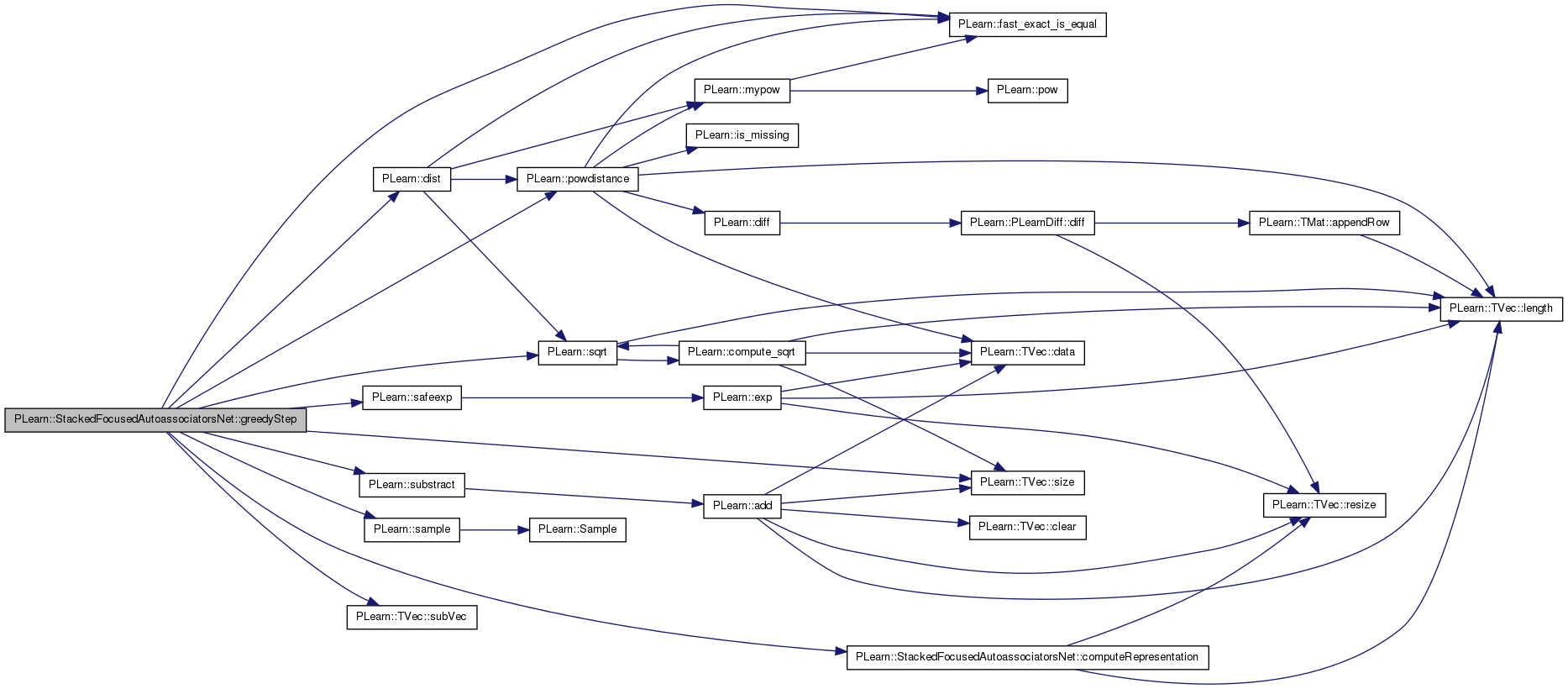

void greedyStep (const Vec &input, const Vec &target, int index, Vec train_costs, int stage, Vec similar_example, Vec dissimilar_example)

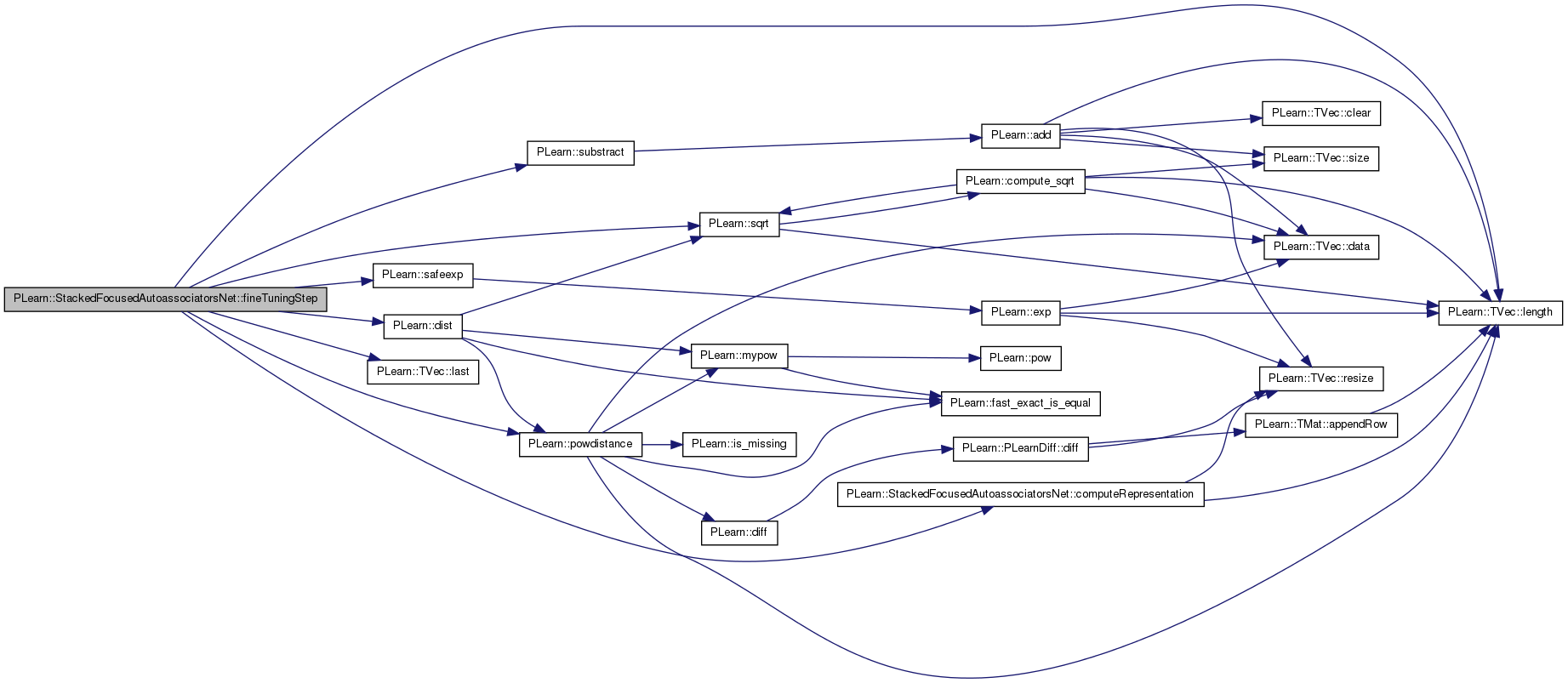

void fineTuningStep (const Vec &input, const Vec &target, Vec &train_costs, Vec similar_example, Vec dissimilar_example)
void computeRepresentation (const Vec &input, Vec &representation, int layer) const
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual
StackedFocusedAutoassociatorsNet
deepCopy (CopiesMap &copies) const
virtual void build ()
 Finish building the object; just call inherited::build followed by build_()
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.

Static Public Member Functions

static string _classname_ ()
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

real cd_learning_rate
 Contrastive divergence learning rate.
real cd_decrease_ct
 Contrastive divergence decrease constant.
real greedy_learning_rate
 The learning rate used during the autoassociator gradient descent training.
real greedy_decrease_ct
 The decrease constant of the learning rate used during the autoassociator gradient descent training.
real supervised_greedy_learning_rate
 Supervised, non-parametric, greedy learning rate.
real supervised_greedy_decrease_ct
 Supervised, non-parametric, greedy decrease constant.
real fine_tuning_learning_rate
 The learning rate used during the fine tuning gradient descent.
real fine_tuning_decrease_ct
 The decrease constant of the learning rate used during fine tuning gradient descent.
TVec< inttraining_schedule
 Number of examples to use during each phase of greedy pre-training.
TVec< PP< RBMLayer > > layers
 The layers of units in the network.
TVec< PP< RBMConnection > > connections
 The weights of the connections between the layers.
TVec< PP< RBMConnection > > reconstruction_connections
 The reconstruction weights of the autoassociators.
TVec< PP< RBMLayer > > unsupervised_layers
 Additional units for greedy unsupervised learning.
TVec< PP< RBMConnection > > unsupervised_connections
 Additional connections for greedy unsupervised learning.
int k_neighbors
 Number of good nearest neighbors to attract and bad nearest neighbors to repel.
int n_classes
 Number of classes.
real dissimilar_example_cost_precision
 Parameter that constrols the importance of the dissimilar example cost.
bool do_not_use_knn_classifier
 Use standard neural net architecture, not the nearest neighbor model.
real output_weights_l1_penalty_factor
 Output weights l1_penalty_factor.
real output_weights_l2_penalty_factor
 Output weights l2_penalty_factor.
int n_layers
 Number of layers.

Static Public Attributes

static StaticInitializer _static_initializer_

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declares the class options.

Protected Attributes

TVec< Vecactivations
 Stores the activations of the input and hidden layers (at the input of the layers)
TVec< Vecexpectations
 Stores the expectations of the input and hidden layers (at the output of the layers)
TVec< Vecactivation_gradients
 Stores the gradient of the cost wrt the activations of the input and hidden layers (at the input of the layers)
TVec< Vecexpectation_gradients
 Stores the gradient of the cost wrt the expectations of the input and hidden layers (at the output of the layers)
Vec greedy_activation
 Stores the activation of the trained hidden layer during a greedy step.
Vec greedy_expectation
 Stores the expectation of the trained hidden layer during a greedy step.
Vec greedy_activation_gradient
 Stores the activation gradient of the trained hidden layer during a greedy step.
Vec greedy_expectation_gradient
 Stores the expectation gradient of the trained hidden layer during a greedy step.
Vec reconstruction_activations
 Reconstruction activations.
Vec reconstruction_activation_gradients
 Reconstruction activation gradients.
Vec reconstruction_expectation_gradients
 Reconstruction expectation gradients.
TVec< PP< RBMLayer > > greedy_layers
 Layers used for greedy learning.
TVec< PP< RBMConnection > > greedy_connections
 Connections used for greedy learning.
Vec similar_example_representation
 Similar example representation.
Vec dissimilar_example_representation
 Dissimilar example representation.
Vec input_representation
 Example representation.
Vec previous_input_representation
 Example representation at the previous layer, in a greedy step.
Vec dissimilar_gradient_contribution
 Dissimilar gradient contribution.
Vec pos_down_val
 Positive down statistic.
Vec pos_up_val
 Positive up statistic.
Vec neg_down_val
 Negative down statistic.
Vec neg_up_val
 Negative up statistic.
Vec final_cost_input
 Input of cost function.
Vec final_cost_value
 Cost value.
Vec final_cost_gradient
 Cost gradient on output layer.
TVec< PP< ClassSubsetVMatrix > > class_datasets
 Datasets for each class.
Mat other_classes_proportions
 Proportions of examples from the other classes (columns), for each class (rows)
TMat< intnearest_neighbors_indices
 Nearest neighbors for each training example.
TVec< inttest_nearest_neighbors_indices
 Nearest neighbors for each test example.
TVec< inttest_votes
 Nearest neighbor votes for test example.
Mat train_set_representations
 Data set mapped to last hidden layer space.
VMat train_set_representations_vmat
TVec< inttrain_set_targets
bool train_set_representations_up_to_date
 Indication that train_set_representations is up to date.
TVec< intgreedy_stages
 Stages of the different greedy phases.
int currently_trained_layer
 Currently trained layer (1 means the first hidden layer, n_layers means the output layer)
PP< OnlineLearningModulefinal_module
 Output layer of neural net.
PP< CostModulefinal_cost
 Cost on output layer of neural net.

Private Types

typedef PLearner inherited

Private Member Functions

void build_ ()
 This does the actual building.

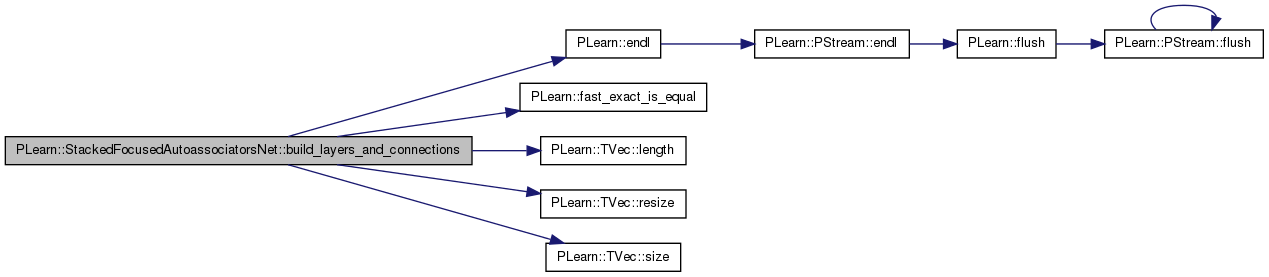

void build_layers_and_connections ()

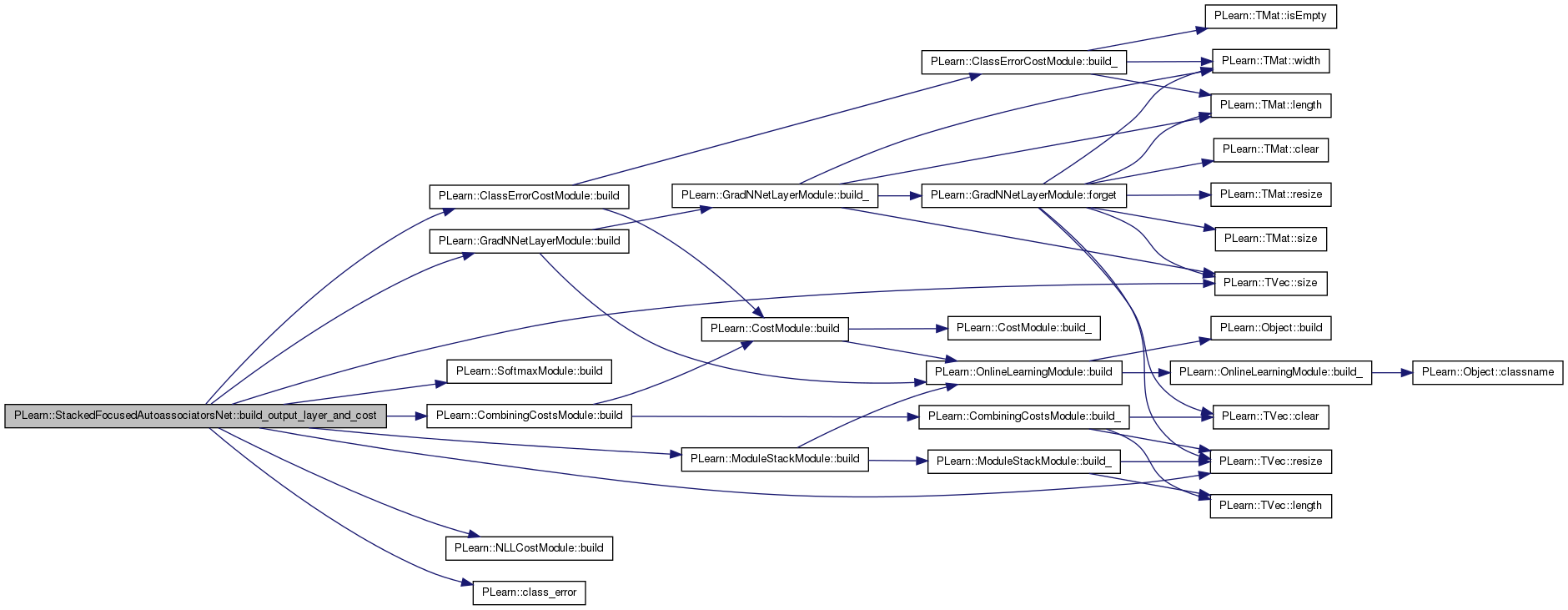

void build_output_layer_and_cost ()
void setLearningRate (real the_learning_rate)

Detailed Description

Neural net, trained layer-wise in a greedy but focused fashion using autoassociators/RBMs and a supervised non-parametric gradient.

It is highly inspired by the StackedAutoassociators class, and can use use the same RBMLayer and RBMConnection components.

Definition at line 67 of file StackedFocusedAutoassociatorsNet.h.


Member Typedef Documentation

Reimplemented from PLearn::PLearner.

Definition at line 69 of file StackedFocusedAutoassociatorsNet.h.


Constructor & Destructor Documentation

PLearn::StackedFocusedAutoassociatorsNet::StackedFocusedAutoassociatorsNet ( )

Member Function Documentation

string PLearn::StackedFocusedAutoassociatorsNet::_classname_ ( ) [static]

Reimplemented from PLearn::PLearner.

Definition at line 57 of file StackedFocusedAutoassociatorsNet.cc.

OptionList & PLearn::StackedFocusedAutoassociatorsNet::_getOptionList_ ( ) [static]

Reimplemented from PLearn::PLearner.

Definition at line 57 of file StackedFocusedAutoassociatorsNet.cc.

RemoteMethodMap & PLearn::StackedFocusedAutoassociatorsNet::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::PLearner.

Definition at line 57 of file StackedFocusedAutoassociatorsNet.cc.

bool PLearn::StackedFocusedAutoassociatorsNet::_isa_ ( const Object o) [static]

Reimplemented from PLearn::PLearner.

Definition at line 57 of file StackedFocusedAutoassociatorsNet.cc.

Object * PLearn::StackedFocusedAutoassociatorsNet::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 57 of file StackedFocusedAutoassociatorsNet.cc.

StaticInitializer StackedFocusedAutoassociatorsNet::_static_initializer_ & PLearn::StackedFocusedAutoassociatorsNet::_static_initialize_ ( ) [static]

Reimplemented from PLearn::PLearner.

Definition at line 57 of file StackedFocusedAutoassociatorsNet.cc.

void PLearn::StackedFocusedAutoassociatorsNet::build ( ) [virtual]

Finish building the object; just call inherited::build followed by build_()

Reimplemented from PLearn::PLearner.

Definition at line 524 of file StackedFocusedAutoassociatorsNet.cc.

References PLearn::PLearner::build(), and build_().

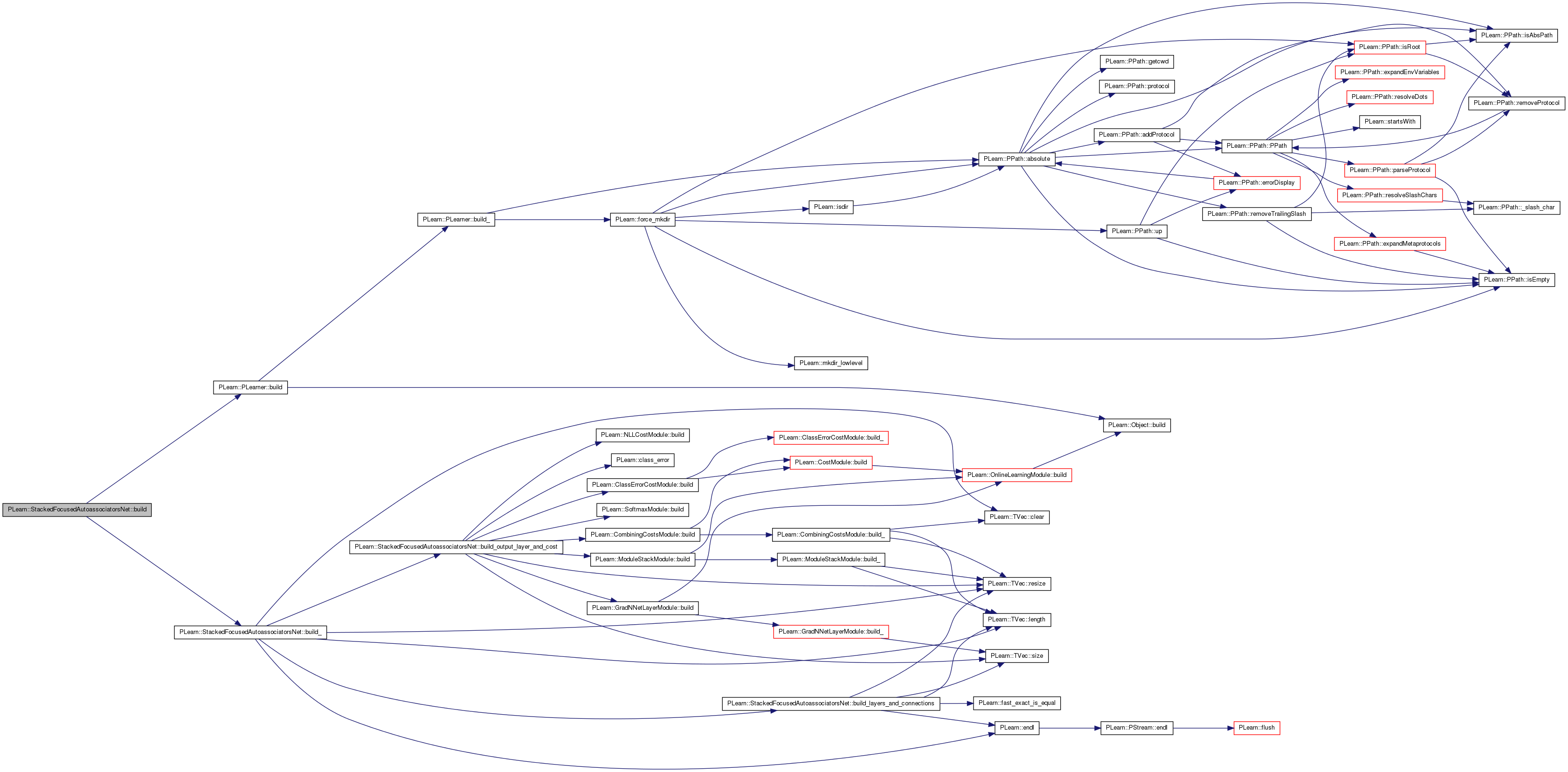

Here is the call graph for this function:

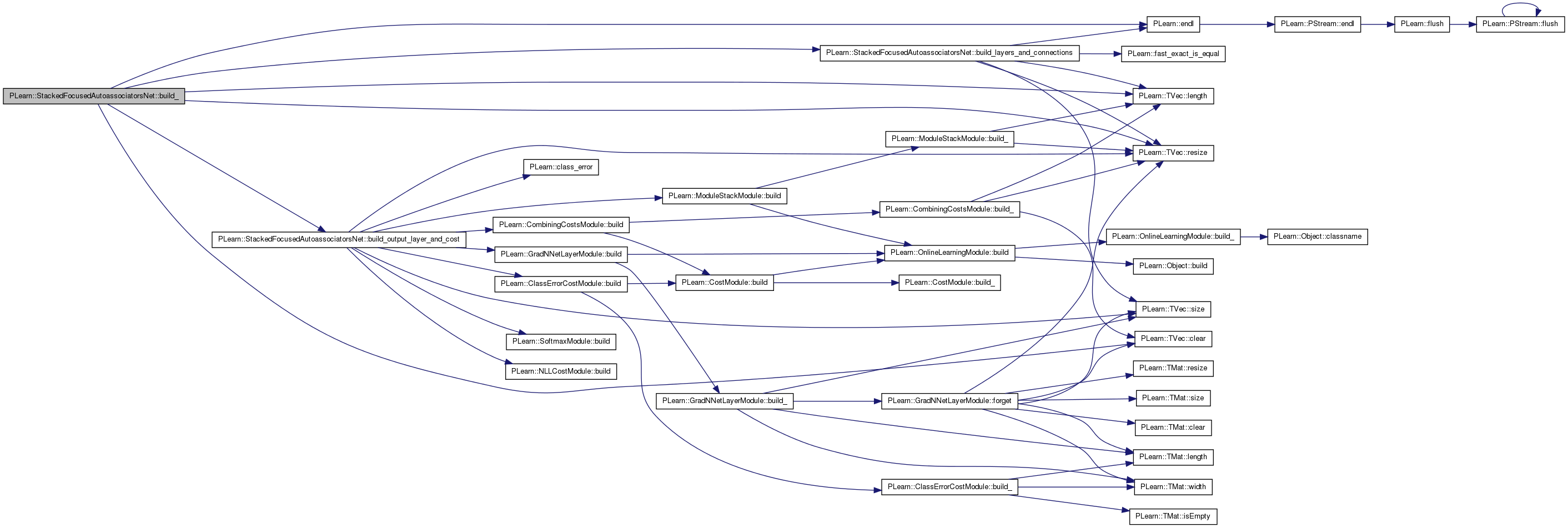

void PLearn::StackedFocusedAutoassociatorsNet::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::PLearner.

Definition at line 220 of file StackedFocusedAutoassociatorsNet.cc.

References build_layers_and_connections(), build_output_layer_and_cost(), PLearn::TVec< T >::clear(), currently_trained_layer, do_not_use_knn_classifier, PLearn::endl(), final_cost, final_module, greedy_stages, PLearn::PLearner::inputsize_, k_neighbors, layers, PLearn::TVec< T >::length(), n_classes, n_layers, PLERROR, PLearn::TVec< T >::resize(), PLearn::PLearner::stage, PLearn::PLearner::targetsize_, test_nearest_neighbors_indices, test_votes, train_set_representations_up_to_date, training_schedule, and PLearn::PLearner::weightsize_.

Referenced by build().

{
    // ### This method should do the real building of the object,
    // ### according to set 'options', in *any* situation.
    // ### Typical situations include:
    // ###  - Initial building of an object from a few user-specified options
    // ###  - Building of a "reloaded" object: i.e. from the complete set of
    // ###    all serialised options.
    // ###  - Updating or "re-building" of an object after a few "tuning"
    // ###    options have been modified.
    // ### You should assume that the parent class' build_() has already been
    // ### called.

    MODULE_LOG << "build_() called" << endl;

    if(inputsize_ > 0 && targetsize_ > 0)
    {
        // Initialize some learnt variables
        n_layers = layers.length();

        train_set_representations_up_to_date = false;

        if( n_classes <= 0 )
            PLERROR("StackedFocusedAutoassociatorsNet::build_() - \n"
                    "n_classes should be > 0.\n");
        test_votes.resize(n_classes);

        if( k_neighbors <= 0 )
            PLERROR("StackedFocusedAutoassociatorsNet::build_() - \n"
                    "k_neighbors should be > 0.\n");
        test_nearest_neighbors_indices.resize(k_neighbors);

        if( weightsize_ > 0 )
            PLERROR("StackedFocusedAutoassociatorsNet::build_() - \n"
                    "usage of weighted samples (weight size > 0) is not\n"
                    "implemented yet.\n");

        if( training_schedule.length() != n_layers-1 )
            PLERROR("StackedFocusedAutoassociatorsNet::build_() - \n"
                    "training_schedule should have %d elements.\n",
                    n_layers-1);

        if(greedy_stages.length() == 0)
        {
            greedy_stages.resize(n_layers-1);
            greedy_stages.clear();
        }

        if(stage > 0)
            currently_trained_layer = n_layers;
        else
        {
            currently_trained_layer = n_layers-1;
            while(currently_trained_layer>1
                  && greedy_stages[currently_trained_layer-1] <= 0)
                currently_trained_layer--;
        }

        build_layers_and_connections();

        if( do_not_use_knn_classifier & (!final_module || !final_cost) )
            build_output_layer_and_cost();
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::StackedFocusedAutoassociatorsNet::build_layers_and_connections ( ) [private]

Definition at line 333 of file StackedFocusedAutoassociatorsNet.cc.

References activation_gradients, activations, connections, PLearn::endl(), expectation_gradients, expectations, PLearn::fast_exact_is_equal(), greedy_connections, greedy_layers, greedy_learning_rate, i, PLearn::PLearner::inputsize_, layers, PLearn::TVec< T >::length(), n_layers, PLERROR, PLearn::PLearner::random_gen, reconstruction_connections, PLearn::TVec< T >::resize(), PLearn::TVec< T >::size(), unsupervised_connections, and unsupervised_layers.

Referenced by build_().

{
    MODULE_LOG << "build_layers_and_connections() called" << endl;

    if( connections.length() != n_layers-1 )
        PLERROR("StackedFocusedAutoassociatorsNet::build_layers_and_connections() - \n"
                "there should be %d connections.\n",
                n_layers-1);

    if( !fast_exact_is_equal( greedy_learning_rate, 0 )
        && reconstruction_connections.length() != n_layers-1 )
        PLERROR("StackedFocusedAutoassociatorsNet::build_layers_and_connections() - \n"
                "there should be %d reconstruction connections.\n",
                n_layers-1);

    if(  !( reconstruction_connections.length() == 0
            || reconstruction_connections.length() == n_layers-1 ) )
        PLERROR("StackedFocusedAutoassociatorsNet::build_layers_and_connections() - \n"
                "there should be either 0 or %d reconstruction connections.\n",
                n_layers-1);


    if(unsupervised_layers.length() != n_layers-1
       && unsupervised_layers.length() != 0)
        PLERROR("StackedFocusedAutoassociatorsNet::build_layers_and_connections() - \n"
                "there should be either 0 of %d unsupervised_layers.\n",
                n_layers-1);

    if(unsupervised_connections.length() != n_layers-1
       && unsupervised_connections.length() != 0)
        PLERROR("StackedFocusedAutoassociatorsNet::build_layers_and_connections() - \n"
                "there should be either 0 of %d unsupervised_connections.\n",
                n_layers-1);

    if(unsupervised_connections.length() != unsupervised_layers.length())
        PLERROR("StackedFocusedAutoassociatorsNet::build_layers_and_connections() - \n"
                "there should be as many unsupervised_connections and "
                "unsupervised_layers.\n");


    if(layers[0]->size != inputsize_)
        PLERROR("StackedFocusedAutoassociatorsNet::build_layers_and_connections() - \n"
                "layers[0] should have a size of %d.\n",
                inputsize_);


    activations.resize( n_layers );
    expectations.resize( n_layers );
    activation_gradients.resize( n_layers );
    expectation_gradients.resize( n_layers );

    greedy_layers.resize(n_layers-1);
    greedy_connections.resize(n_layers-1);
    for( int i=0 ; i<n_layers-1 ; i++ )
    {
        if( layers[i]->size != connections[i]->down_size )
            PLERROR("StackedFocusedAutoassociatorsNet::build_layers_and_connections() "
                    "- \n"
                    "connections[%i] should have a down_size of %d.\n",
                    i, layers[i]->size);

        if( connections[i]->up_size != layers[i+1]->size )
            PLERROR("StackedFocusedAutoassociatorsNet::build_layers_and_connections() "
                    "- \n"
                    "connections[%i] should have a up_size of %d.\n",
                    i, layers[i+1]->size);

        if(unsupervised_layers.length() != 0 &&
           unsupervised_connections.length() != 0 &&
           unsupervised_layers[i] && unsupervised_connections[i])
        {
            if( layers[i]->size !=
                unsupervised_connections[i]->down_size )
                PLERROR("StackedFocusedAutoassociatorsNet::build_layers_and_connections() "
                        "- \n"
                        "connections[%i] should have a down_size of %d.\n",
                        i, unsupervised_layers[i]->size);

            if( unsupervised_connections[i]->up_size !=
                unsupervised_layers[i]->size )
                PLERROR("StackedFocusedAutoassociatorsNet::build_layers_and_connections() "
                        "- \n"
                        "connections[%i] should have a up_size of %d.\n",
                        i, unsupervised_layers[i+1]->size);

            if( reconstruction_connections.length() != 0 )
            {
                if( layers[i+1]->size + unsupervised_layers[i]->size !=
                    reconstruction_connections[i]->down_size )
                    PLERROR("StackedFocusedAutoassociatorsNet::build_layers_and_connections() "
                            "- \n"
                            "recontruction_connections[%i] should have a down_size of "
                            "%d.\n",
                            i, layers[i+1]->size + unsupervised_layers[i]->size);

                if( reconstruction_connections[i]->up_size !=
                    layers[i]->size )
                    PLERROR("StackedFocusedAutoassociatorsNet::build_layers_and_connections() "
                            "- \n"
                            "recontruction_connections[%i] should have a up_size of "
                            "%d.\n",
                            i, layers[i]->size);
            }

            if( !(unsupervised_layers[i]->random_gen) )
            {
                unsupervised_layers[i]->random_gen = random_gen;
                unsupervised_layers[i]->forget();
            }

            if( !(unsupervised_connections[i]->random_gen) )
            {
                unsupervised_connections[i]->random_gen = random_gen;
                unsupervised_connections[i]->forget();
            }

            PP<RBMMixedLayer> greedy_layer = new RBMMixedLayer();
            greedy_layer->sub_layers.resize(2);
            greedy_layer->sub_layers[0] = layers[i+1];
            greedy_layer->sub_layers[1] = unsupervised_layers[i];
            greedy_layer->size = layers[i+1]->size + unsupervised_layers[i]->size;
            greedy_layer->build();

            PP<RBMMixedConnection> greedy_connection = new RBMMixedConnection();
            greedy_connection->sub_connections.resize(2,1);
            greedy_connection->sub_connections(0,0) = connections[i];
            greedy_connection->sub_connections(1,0) = unsupervised_connections[i];
            greedy_connection->build();

            greedy_layers[i] = greedy_layer;
            greedy_connections[i] = greedy_connection;
        }
        else
        {
            if( reconstruction_connections.length() != 0 )
            {
                if( layers[i+1]->size != reconstruction_connections[i]->down_size )
                    PLERROR("StackedFocusedAutoassociatorsNet::build_layers_and_connections() "
                            "- \n"
                            "recontruction_connections[%i] should have a down_size of "
                            "%d.\n",
                            i, layers[i+1]->size);

                if( reconstruction_connections[i]->up_size != layers[i]->size )
                    PLERROR("StackedFocusedAutoassociatorsNet::build_layers_and_connections() "
                            "- \n"
                            "recontruction_connections[%i] should have a up_size of "
                            "%d.\n",
                            i, layers[i]->size);
            }
            greedy_layers[i] = layers[i+1];
            greedy_connections[i] = connections[i];
        }

        if( !(layers[i]->random_gen) )
        {
            layers[i]->random_gen = random_gen;
            layers[i]->forget();
        }

        if( !(connections[i]->random_gen) )
        {
            connections[i]->random_gen = random_gen;
            connections[i]->forget();
        }

        if( reconstruction_connections.length() != 0
            && !(reconstruction_connections[i]->random_gen) )
        {
            reconstruction_connections[i]->random_gen = random_gen;
            reconstruction_connections[i]->forget();
        }

        activations[i].resize( layers[i]->size );
        expectations[i].resize( layers[i]->size );
        activation_gradients[i].resize( layers[i]->size );
        expectation_gradients[i].resize( layers[i]->size );
    }

    if( !(layers[n_layers-1]->random_gen) )
    {
        layers[n_layers-1]->random_gen = random_gen;
        layers[n_layers-1]->forget();
    }
    activations[n_layers-1].resize( layers[n_layers-1]->size );
    expectations[n_layers-1].resize( layers[n_layers-1]->size );
    activation_gradients[n_layers-1].resize( layers[n_layers-1]->size );
    expectation_gradients[n_layers-1].resize( layers[n_layers-1]->size );
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::StackedFocusedAutoassociatorsNet::build_output_layer_and_cost ( ) [private]

Definition at line 285 of file StackedFocusedAutoassociatorsNet.cc.

References PLearn::GradNNetLayerModule::build(), PLearn::SoftmaxModule::build(), PLearn::ModuleStackModule::build(), PLearn::ClassErrorCostModule::build(), PLearn::CombiningCostsModule::build(), PLearn::NLLCostModule::build(), PLearn::class_error(), PLearn::CombiningCostsModule::cost_weights, final_cost, final_module, PLearn::OnlineLearningModule::input_size, PLearn::GradNNetLayerModule::L1_penalty_factor, PLearn::GradNNetLayerModule::L2_penalty_factor, layers, PLearn::ModuleStackModule::modules, n_classes, n_layers, PLearn::OnlineLearningModule::output_size, output_weights_l1_penalty_factor, output_weights_l2_penalty_factor, PLearn::OnlineLearningModule::random_gen, PLearn::PLearner::random_gen, PLearn::TVec< T >::resize(), PLearn::TVec< T >::size(), and PLearn::CombiningCostsModule::sub_costs.

Referenced by build_(), and forget().

{
    GradNNetLayerModule* gnl = new GradNNetLayerModule();
    gnl->input_size = layers[n_layers-1]->size;
    gnl->output_size = n_classes;
    gnl->L1_penalty_factor = output_weights_l1_penalty_factor;
    gnl->L2_penalty_factor = output_weights_l2_penalty_factor;
    gnl->random_gen = random_gen;
    gnl->build();

    SoftmaxModule* sm = new SoftmaxModule();
    sm->input_size = n_classes;
    sm->random_gen = random_gen;
    sm->build();

    ModuleStackModule* msm = new ModuleStackModule();
    msm->modules.resize(2);
    msm->modules[0] = gnl;
    msm->modules[1] = sm;
    msm->random_gen = random_gen;
    msm->build();
    final_module = msm;

    final_module->forget();

    NLLCostModule* nll = new NLLCostModule();
    nll->input_size = n_classes;
    nll->random_gen = random_gen;
    nll->build();

    ClassErrorCostModule* class_error = new ClassErrorCostModule();
    class_error->input_size = n_classes;
    class_error->random_gen = random_gen;
    class_error->build();

    CombiningCostsModule* comb_costs = new CombiningCostsModule();
    comb_costs->cost_weights.resize(2);
    comb_costs->cost_weights[0] = 1;
    comb_costs->cost_weights[1] = 0;
    comb_costs->sub_costs.resize(2);
    comb_costs->sub_costs[0] = nll;
    comb_costs->sub_costs[1] = class_error;
    comb_costs->build();

    final_cost = comb_costs;
    final_cost->forget();
}

Here is the call graph for this function:

Here is the caller graph for this function:

string PLearn::StackedFocusedAutoassociatorsNet::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 57 of file StackedFocusedAutoassociatorsNet.cc.

Referenced by train().

Here is the caller graph for this function:

void PLearn::StackedFocusedAutoassociatorsNet::computeCostsFromOutputs ( const Vec input,
const Vec output,
const Vec target,
Vec costs
) const [virtual]

Computes the costs from already computed output.

Implements PLearn::PLearner.

Definition at line 1189 of file StackedFocusedAutoassociatorsNet.cc.

References currently_trained_layer, expectations, PLearn::TVec< T >::fill(), getTestCostNames(), greedy_activation, greedy_connections, greedy_expectation, greedy_layers, layers, PLearn::TVec< T >::length(), MISSING_VALUE, n_layers, reconstruction_activations, reconstruction_connections, and PLearn::TVec< T >::resize().

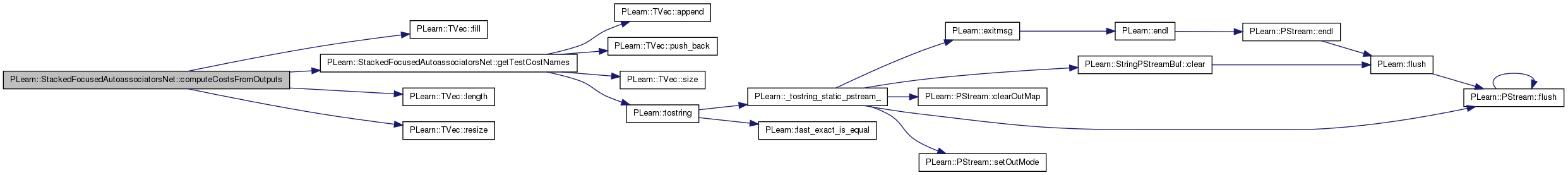

Here is the call graph for this function:

void PLearn::StackedFocusedAutoassociatorsNet::computeOutput ( const Vec input,
Vec output
) const [virtual]
void PLearn::StackedFocusedAutoassociatorsNet::computeRepresentation ( const Vec input,
Vec representation,
int  layer
) const

Definition at line 1140 of file StackedFocusedAutoassociatorsNet.cc.

References activations, connections, expectations, i, layers, PLearn::TVec< T >::length(), and PLearn::TVec< T >::resize().

Referenced by computeOutput(), fineTuningStep(), greedyStep(), and updateTrainSetRepresentations().

{
    if(layer == 0)
    {
        representation.resize(input.length());
        expectations[0] << input;
        representation << input;
        return;
    }

    expectations[0] << input;
    for( int i=0 ; i<layer; i++ )
    {
        connections[i]->fprop( expectations[i], activations[i+1] );
        layers[i+1]->fprop(activations[i+1],expectations[i+1]);
    }
    representation.resize(expectations[layer].length());
    representation << expectations[layer];
}

Here is the call graph for this function:

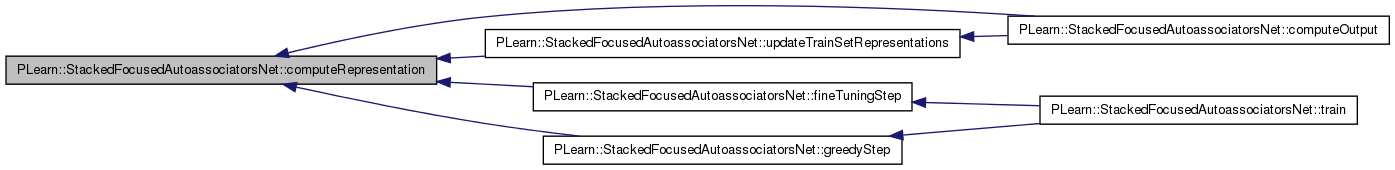

Here is the caller graph for this function:

void PLearn::StackedFocusedAutoassociatorsNet::declareOptions ( OptionList ol) [static, protected]

Declares the class options.

Reimplemented from PLearn::PLearner.

Definition at line 83 of file StackedFocusedAutoassociatorsNet.cc.

References PLearn::OptionBase::buildoption, cd_decrease_ct, cd_learning_rate, connections, PLearn::declareOption(), PLearn::PLearner::declareOptions(), dissimilar_example_cost_precision, do_not_use_knn_classifier, final_cost, final_module, fine_tuning_decrease_ct, fine_tuning_learning_rate, greedy_decrease_ct, greedy_learning_rate, greedy_stages, k_neighbors, layers, PLearn::OptionBase::learntoption, n_classes, n_layers, reconstruction_connections, supervised_greedy_decrease_ct, supervised_greedy_learning_rate, training_schedule, unsupervised_connections, and unsupervised_layers.

{
    declareOption(ol, "cd_learning_rate",
                  &StackedFocusedAutoassociatorsNet::cd_learning_rate,
                  OptionBase::buildoption,
                  "The learning rate used during the RBM "
                  "contrastive divergence training");

    declareOption(ol, "cd_decrease_ct",
                  &StackedFocusedAutoassociatorsNet::cd_decrease_ct,
                  OptionBase::buildoption,
                  "The decrease constant of the learning rate used during "
                  "the RBMs contrastive\n"
                  "divergence training. When a hidden layer has finished "
                  "its training,\n"
                  "the learning rate is reset to it's initial value.\n");

    declareOption(ol, "greedy_learning_rate",
                  &StackedFocusedAutoassociatorsNet::greedy_learning_rate,
                  OptionBase::buildoption,
                  "The learning rate used during the autoassociator "
                  "gradient descent training");

    declareOption(ol, "greedy_decrease_ct",
                  &StackedFocusedAutoassociatorsNet::greedy_decrease_ct,
                  OptionBase::buildoption,
                  "The decrease constant of the learning rate used during "
                  "the autoassociator\n"
                  "gradient descent training. When a hidden layer has finished "
                  "its training,\n"
                  "the learning rate is reset to it's initial value.\n");

    declareOption(ol, "supervised_greedy_learning_rate",
                  &StackedFocusedAutoassociatorsNet::supervised_greedy_learning_rate,
                  OptionBase::buildoption,
                  "Supervised, non-parametric, greedy learning rate");

    declareOption(ol, "supervised_greedy_decrease_ct",
                  &StackedFocusedAutoassociatorsNet::supervised_greedy_decrease_ct,
                  OptionBase::buildoption,
                  "Supervised, non-parametric, greedy decrease constant");

    declareOption(ol, "fine_tuning_learning_rate",
                  &StackedFocusedAutoassociatorsNet::fine_tuning_learning_rate,
                  OptionBase::buildoption,
                  "The learning rate used during the fine tuning gradient descent");

    declareOption(ol, "fine_tuning_decrease_ct",
                  &StackedFocusedAutoassociatorsNet::fine_tuning_decrease_ct,
                  OptionBase::buildoption,
                  "The decrease constant of the learning rate used during "
                  "fine tuning\n"
                  "gradient descent.\n");

    declareOption(ol, "training_schedule",
                  &StackedFocusedAutoassociatorsNet::training_schedule,
                  OptionBase::buildoption,
                  "Number of examples to use during each phase of greedy pre-training.\n"
                  "The number of fine-tunig steps is defined by nstages.\n"
        );

    declareOption(ol, "layers", &StackedFocusedAutoassociatorsNet::layers,
                  OptionBase::buildoption,
                  "The layers of units in the network. The first element\n"
                  "of this vector should be the input layer and the\n"
                  "subsequent elements should be the hidden layers. The\n"
                  "output layer should not be included in layers.\n");

    declareOption(ol, "connections", &StackedFocusedAutoassociatorsNet::connections,
                  OptionBase::buildoption,
                  "The weights of the connections between the layers");

    declareOption(ol, "reconstruction_connections",
                  &StackedFocusedAutoassociatorsNet::reconstruction_connections,
                  OptionBase::buildoption,
                  "The reconstruction weights of the autoassociators");

    declareOption(ol, "unsupervised_layers",
                  &StackedFocusedAutoassociatorsNet::unsupervised_layers,
                  OptionBase::buildoption,
                  "Additional units for greedy unsupervised learning");

    declareOption(ol, "unsupervised_connections",
                  &StackedFocusedAutoassociatorsNet::unsupervised_connections,
                  OptionBase::buildoption,
                  "Additional connections for greedy unsupervised learning");

    declareOption(ol, "k_neighbors",
                  &StackedFocusedAutoassociatorsNet::k_neighbors,
                  OptionBase::buildoption,
                  "Number of good nearest neighbors to attract and bad nearest "
                  "neighbors to repel.");

    declareOption(ol, "n_classes",
                  &StackedFocusedAutoassociatorsNet::n_classes,
                  OptionBase::buildoption,
                  "Number of classes.");

    declareOption(ol, "dissimilar_example_cost_precision",
                  &StackedFocusedAutoassociatorsNet::dissimilar_example_cost_precision,
                  OptionBase::buildoption,
                  "Parameter that constrols the importance of the dissimilar example cost.");

    declareOption(ol, "do_not_use_knn_classifier",
                  &StackedFocusedAutoassociatorsNet::do_not_use_knn_classifier,
                  OptionBase::buildoption,
                  "Use standard neural net architecture, not the nearest "
                  "neighbor model.");

    declareOption(ol, "greedy_stages",
                  &StackedFocusedAutoassociatorsNet::greedy_stages,
                  OptionBase::learntoption,
                  "Number of training samples seen in the different greedy "
                  "phases.\n"
        );

    declareOption(ol, "n_layers", &StackedFocusedAutoassociatorsNet::n_layers,
                  OptionBase::learntoption,
                  "Number of layers"
        );

    declareOption(ol, "final_module",
                  &StackedFocusedAutoassociatorsNet::final_module,
                  OptionBase::learntoption,
                  "Output layer of neural net"
        );

    declareOption(ol, "final_cost",
                  &StackedFocusedAutoassociatorsNet::final_cost,
                  OptionBase::learntoption,
                  "Cost on output layer of neural net"
        );

    // Now call the parent class' declareOptions
    inherited::declareOptions(ol);
}

Here is the call graph for this function:

static const PPath& PLearn::StackedFocusedAutoassociatorsNet::declaringFile ( ) [inline, static]

Reimplemented from PLearn::PLearner.

Definition at line 213 of file StackedFocusedAutoassociatorsNet.h.

:
    //#####  Not Options  #####################################################
StackedFocusedAutoassociatorsNet * PLearn::StackedFocusedAutoassociatorsNet::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::PLearner.

Definition at line 57 of file StackedFocusedAutoassociatorsNet.cc.

void PLearn::StackedFocusedAutoassociatorsNet::fineTuningStep ( const Vec input,
const Vec target,
Vec train_costs,
Vec  similar_example,
Vec  dissimilar_example
)

Definition at line 1044 of file StackedFocusedAutoassociatorsNet.cc.

References activation_gradients, activations, computeRepresentation(), connections, dissimilar_example_cost_precision, dissimilar_example_representation, dissimilar_gradient_contribution, PLearn::dist(), do_not_use_knn_classifier, expectation_gradients, expectations, final_cost, final_cost_gradient, final_cost_input, final_cost_value, final_module, i, PLearn::TVec< T >::last(), layers, PLearn::TVec< T >::length(), n_layers, PLearn::powdistance(), previous_input_representation, PLearn::safeexp(), similar_example_representation, PLearn::sqrt(), PLearn::substract(), and train_set_representations_up_to_date.

Referenced by train().

{
    train_set_representations_up_to_date = false;

    if( !do_not_use_knn_classifier )
    {
        // Get similar example representation

        computeRepresentation(similar_example, similar_example_representation,
                              n_layers-1);

        // Get dissimilar example representation

        computeRepresentation(dissimilar_example, dissimilar_example_representation,
                              n_layers-1);
    }

    // Get example representation

    computeRepresentation(input, previous_input_representation,
                          n_layers-1);

    // Compute supervised gradient


    if( !do_not_use_knn_classifier )
    {
        // Similar example contribution
        substract(previous_input_representation,similar_example_representation,
                  expectation_gradients[n_layers-1]);
        expectation_gradients[n_layers-1] *= 4/sqrt((real)layers[n_layers-1]->size);

        train_costs[train_costs.length()-3] =
            2 * sqrt(powdistance(previous_input_representation,
                                 similar_example_representation,
                                 2)) / sqrt((real)layers[n_layers-1]->size);

        // Dissimilar example contribution
        real dist = sqrt(powdistance(previous_input_representation,
                                     dissimilar_example_representation,
                                     2));

        train_costs[train_costs.length()-2] =
            2 * sqrt((real)layers[n_layers-1]->size) * safeexp( -dissimilar_example_cost_precision
                                                          *dist/sqrt((real)layers[n_layers-1]->size));
        train_costs.last() = train_costs[train_costs.length()-3] +
            train_costs[train_costs.length()-2];
        //if( dist == 0 )
        //    PLWARNING("StackedFocusedAutoassociatorsNet::fineTuningStep(): dissimilar"
        //              " example representation is exactly the sample as the"
        //              " input example. Gradient would be infinite! Skipping this"
        //              " example...");
        //else
        //{

        substract(previous_input_representation,
                  dissimilar_example_representation,
                  dissimilar_gradient_contribution);

        dissimilar_gradient_contribution *= -2 * dissimilar_example_cost_precision*
            safeexp(-dissimilar_example_cost_precision*dist/sqrt((real)layers[n_layers-1]->size));

        expectation_gradients[n_layers-1] += dissimilar_gradient_contribution;
        //}
    }
    else
    {
        final_module->fprop( previous_input_representation, final_cost_input );
        final_cost->fprop( final_cost_input, target, final_cost_value );

        final_cost->bpropUpdate( final_cost_input, target,
                                 final_cost_value[0],
                                 final_cost_gradient );
        final_module->bpropUpdate( previous_input_representation,
                                   final_cost_input,
                                   expectation_gradients[ n_layers-1 ],
                                   final_cost_gradient );
    }

    for( int i=n_layers-1 ; i>0 ; i-- )
    {
        layers[i]->bpropUpdate( activations[i],
                                expectations[i],
                                activation_gradients[i],
                                expectation_gradients[i] );


        connections[i-1]->bpropUpdate( expectations[i-1],
                                       activations[i],
                                       expectation_gradients[i-1],
                                       activation_gradients[i] );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::StackedFocusedAutoassociatorsNet::forget ( ) [virtual]

(Re-)initializes the PLearner in its fresh state (that state may depend on the 'seed' option) and sets 'stage' back to 0 (this is the stage of a fresh learner!).

(Re-)initialize the PLearner in its fresh state (that state may depend on the 'seed' option) and sets 'stage' back to 0 (this is the stage of a fresh learner!)

A typical forget() method should do the following:

  • call inherited::forget() to initialize its random number generator with the 'seed' option
  • initialize the learner's parameters, using this random generator
  • stage = 0

Reimplemented from PLearn::PLearner.

Definition at line 593 of file StackedFocusedAutoassociatorsNet.cc.

References build_output_layer_and_cost(), PLearn::TVec< T >::clear(), connections, do_not_use_knn_classifier, PLearn::PLearner::forget(), greedy_stages, i, layers, PLearn::TVec< T >::length(), n_layers, reconstruction_connections, PLearn::PLearner::stage, train_set_representations_up_to_date, unsupervised_connections, and unsupervised_layers.

{

    inherited::forget();

    train_set_representations_up_to_date = false;

    for( int i=0 ; i<n_layers ; i++ )
        layers[i]->forget();

    for( int i=0 ; i<n_layers-1 ; i++ )
        connections[i]->forget();

    if(unsupervised_layers.length() != 0)
        for( int i=0 ; i<n_layers-1 ; i++ )
            unsupervised_layers[i]->forget();

    if(unsupervised_connections.length() != 0)
        for( int i=0 ; i<n_layers-1 ; i++ )
            unsupervised_connections[i]->forget();

    for( int i=0; i<reconstruction_connections.length(); i++)
        reconstruction_connections[i]->forget();

    if( do_not_use_knn_classifier )
        build_output_layer_and_cost();

    stage = 0;
    greedy_stages.clear();
}

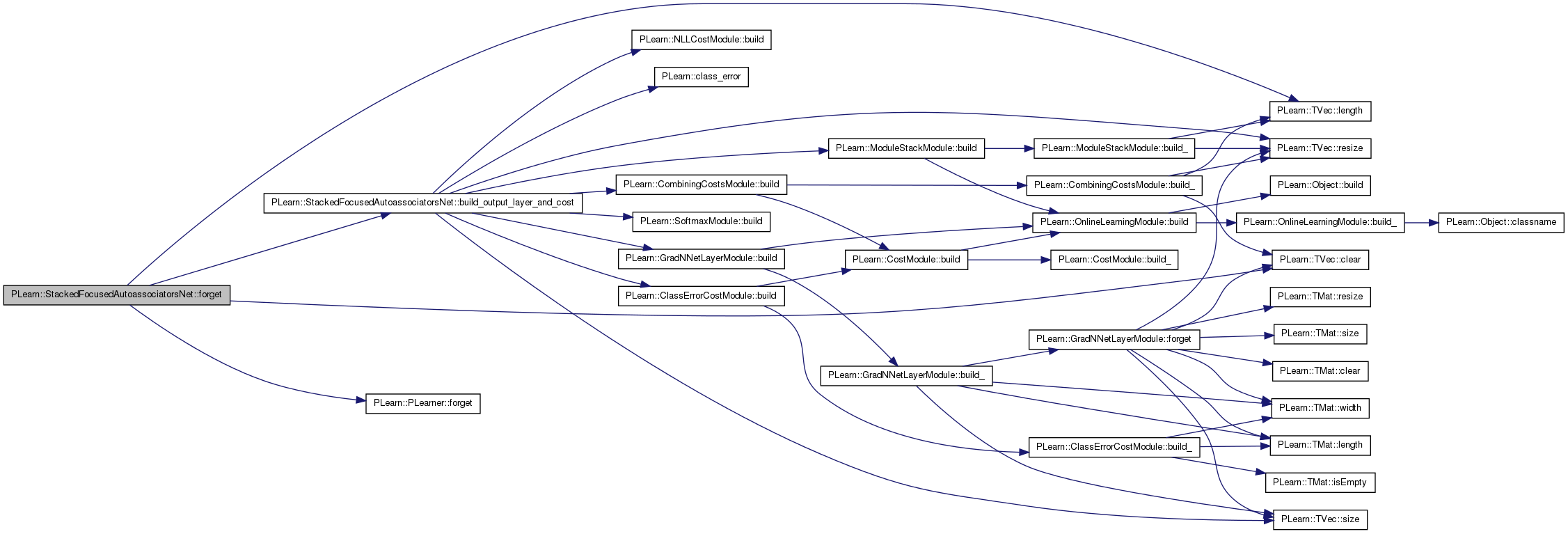

Here is the call graph for this function:

OptionList & PLearn::StackedFocusedAutoassociatorsNet::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 57 of file StackedFocusedAutoassociatorsNet.cc.

OptionMap & PLearn::StackedFocusedAutoassociatorsNet::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 57 of file StackedFocusedAutoassociatorsNet.cc.

RemoteMethodMap & PLearn::StackedFocusedAutoassociatorsNet::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 57 of file StackedFocusedAutoassociatorsNet.cc.

TVec< string > PLearn::StackedFocusedAutoassociatorsNet::getTestCostNames ( ) const [virtual]

Returns the names of the costs computed by computeCostsFromOutpus (and thus the test method).

Implements PLearn::PLearner.

Definition at line 1260 of file StackedFocusedAutoassociatorsNet.cc.

References PLearn::TVec< T >::append(), i, layers, PLearn::TVec< T >::push_back(), PLearn::TVec< T >::size(), and PLearn::tostring().

Referenced by computeCostsFromOutputs(), and getTrainCostNames().

{
    // Return the names of the costs computed by computeCostsFromOutputs
    // (these may or may not be exactly the same as what's returned by
    // getTrainCostNames).

    TVec<string> cost_names(0);

    for( int i=0; i<layers.size()-1; i++)
        cost_names.push_back("reconstruction_error_" + tostring(i+1));

    cost_names.append( "class_error" );

    return cost_names;
}

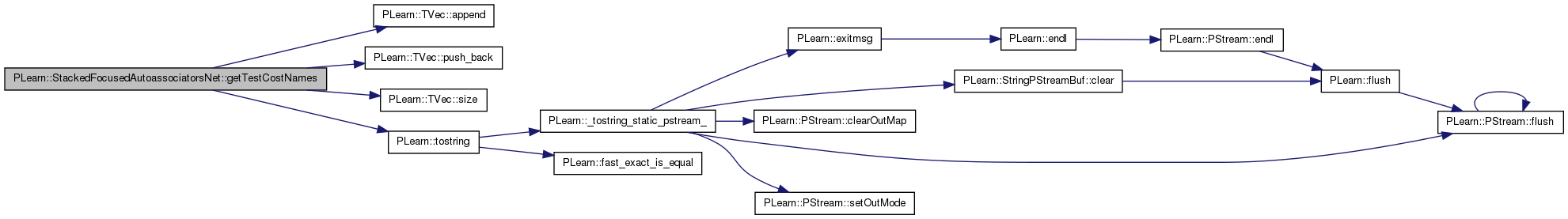

Here is the call graph for this function:

Here is the caller graph for this function:

TVec< string > PLearn::StackedFocusedAutoassociatorsNet::getTrainCostNames ( ) const [virtual]

Returns the names of the objective costs that the train method computes and for which it updates the VecStatsCollector train_stats.

Implements PLearn::PLearner.

Definition at line 1276 of file StackedFocusedAutoassociatorsNet.cc.

References getTestCostNames(), and PLearn::TVec< T >::push_back().

Referenced by train().

{
    TVec<string> cost_names = getTestCostNames();
    cost_names.push_back("similarity_cost");
    cost_names.push_back("dissimilarity_cost");
    cost_names.push_back("metric_cost");
    return cost_names;
}

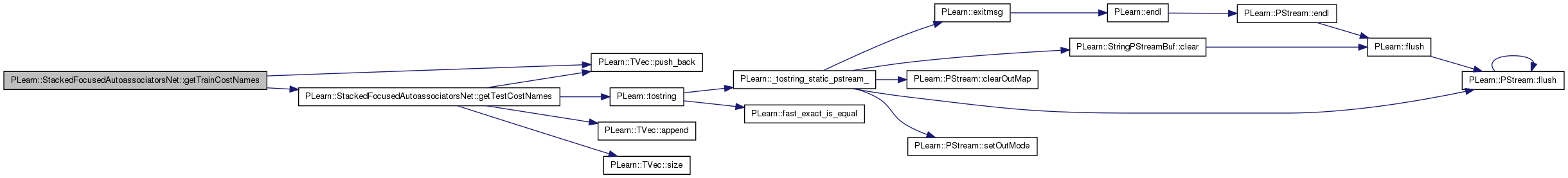

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::StackedFocusedAutoassociatorsNet::greedyStep ( const Vec input,
const Vec target,
int  index,
Vec  train_costs,
int  stage,
Vec  similar_example,
Vec  dissimilar_example
)

Definition at line 852 of file StackedFocusedAutoassociatorsNet.cc.

References activation_gradients, cd_decrease_ct, cd_learning_rate, computeRepresentation(), connections, dissimilar_example_cost_precision, dissimilar_example_representation, dissimilar_gradient_contribution, PLearn::dist(), expectation_gradients, expectations, PLearn::fast_exact_is_equal(), greedy_activation, greedy_connections, greedy_decrease_ct, greedy_expectation, greedy_layers, greedy_learning_rate, input_representation, layers, n_layers, neg_down_val, neg_up_val, PLASSERT, pos_down_val, pos_up_val, PLearn::powdistance(), previous_input_representation, reconstruction_activation_gradients, reconstruction_activations, reconstruction_connections, reconstruction_expectation_gradients, PLearn::safeexp(), PLearn::sample(), similar_example_representation, PLearn::TVec< T >::size(), PLearn::sqrt(), PLearn::substract(), PLearn::TVec< T >::subVec(), supervised_greedy_decrease_ct, supervised_greedy_learning_rate, and train_set_representations_up_to_date.

Referenced by train().

{
    PLASSERT( index < n_layers );
    real lr;
    train_set_representations_up_to_date = false;

    if( !fast_exact_is_equal( supervised_greedy_learning_rate, 0 ) )
    {
        // Get similar example representation

        computeRepresentation(similar_example, similar_example_representation,
                              index+1);

        // Get dissimilar example representation

        computeRepresentation(dissimilar_example, dissimilar_example_representation,
                              index+1);
    }

    // Get example representation

    computeRepresentation(input, previous_input_representation,
                          index);
    greedy_connections[index]->fprop(previous_input_representation,
                                     greedy_activation);
    greedy_layers[index]->fprop(greedy_activation,
                                greedy_expectation);
    input_representation << greedy_expectation.subVec(0,layers[index+1]->size);

    // Autoassociator learning

    if( !fast_exact_is_equal( greedy_learning_rate, 0 ) )
    {
        if( !fast_exact_is_equal( greedy_decrease_ct , 0 ) )
            lr = greedy_learning_rate/(1 + greedy_decrease_ct
                                       * this_stage);
        else
            lr = greedy_learning_rate;

        layers[index]->setLearningRate( lr );
        greedy_connections[index]->setLearningRate( lr );
        reconstruction_connections[index]->setLearningRate( lr );
        greedy_layers[index]->setLearningRate( lr );

        reconstruction_connections[ index ]->fprop( greedy_expectation,
                                                    reconstruction_activations);
        layers[ index ]->fprop( reconstruction_activations,
                                layers[ index ]->expectation);

        layers[ index ]->activation << reconstruction_activations;
        layers[ index ]->setExpectationByRef(layers[ index ]->expectation);
        real rec_err = layers[ index ]->fpropNLL(previous_input_representation);
        train_costs[index] = rec_err;

        layers[ index ]->bpropNLL(previous_input_representation, rec_err,
                                  reconstruction_activation_gradients);
    }

    if( !fast_exact_is_equal( supervised_greedy_learning_rate, 0 ) )
    {
        // Compute supervised gradient

        // Similar example contribution
        substract(input_representation,similar_example_representation,
                  expectation_gradients[index+1]);
        expectation_gradients[index+1] *= 4/sqrt((real)layers[index+1]->size);

        // Dissimilar example contribution
        real dist = sqrt(powdistance(input_representation,
                                     dissimilar_example_representation,
                                     2));

        //if( dist == 0 )
        //    PLWARNING("StackedFocusedAutoassociatorsNet::fineTuningStep(): dissimilar"
        //              " example representation is exactly the sample as the"
        //              " input example. Gradient would be infinite! Skipping this"
        //              " example...");
        //else
        //{
        substract(input_representation,dissimilar_example_representation,
                  dissimilar_gradient_contribution);

        dissimilar_gradient_contribution *= -2* dissimilar_example_cost_precision*
            safeexp(-dissimilar_example_cost_precision*dist/sqrt((real)layers[index+1]->size));

        expectation_gradients[index+1] += dissimilar_gradient_contribution;
        //}
    }

    // RBM learning
    if( !fast_exact_is_equal( cd_learning_rate, 0 ) )
    {
        greedy_layers[index]->setExpectation( greedy_expectation );
        greedy_layers[index]->generateSample();

        // accumulate positive stats using the expectation
        // we deep-copy because the value will change during negative phase
        pos_down_val = expectations[index];
        pos_up_val << greedy_layers[index]->expectation;

        // down propagation, starting from a sample of layers[index+1]
        greedy_connections[index]->setAsUpInput( greedy_layers[index]->sample );

        layers[index]->getAllActivations( greedy_connections[index] );
        layers[index]->computeExpectation();
        layers[index]->generateSample();

        // negative phase
        greedy_connections[index]->setAsDownInput( layers[index]->sample );
        greedy_layers[index]->getAllActivations( greedy_connections[index] );
        greedy_layers[index]->computeExpectation();
        // accumulate negative stats
        // no need to deep-copy because the values won't change before update
        neg_down_val = layers[index]->sample;
        neg_up_val = greedy_layers[index]->expectation;
    }

    // Update hidden layer bias and weights

    if( !fast_exact_is_equal( greedy_learning_rate, 0 ) )
    {
        layers[ index ]->update(reconstruction_activation_gradients);

        reconstruction_connections[ index ]->bpropUpdate(
            greedy_expectation,
            reconstruction_activations,
            reconstruction_expectation_gradients,
            reconstruction_activation_gradients);

        greedy_layers[ index ]->bpropUpdate(
            greedy_activation,
            greedy_expectation,
            // reused
            reconstruction_activation_gradients,
            reconstruction_expectation_gradients);

        greedy_connections[ index ]->bpropUpdate(
            previous_input_representation,
            greedy_activation,
            reconstruction_expectation_gradients, //reused
            reconstruction_activation_gradients);
    }


    if( !fast_exact_is_equal( supervised_greedy_learning_rate, 0 ) )
    {
        if( !fast_exact_is_equal( supervised_greedy_decrease_ct , 0 ) )
            lr = supervised_greedy_learning_rate/(1 + supervised_greedy_decrease_ct
                                                  * this_stage);
        else
            lr = supervised_greedy_learning_rate;

        layers[index]->setLearningRate( lr );
        connections[index]->setLearningRate( lr );
        layers[index+1]->setLearningRate( lr );

        layers[ index+1 ]->bpropUpdate(
            greedy_activation.subVec(0,layers[index+1]->size),
            greedy_expectation.subVec(0,layers[index+1]->size),
            activation_gradients[index+1],
            expectation_gradients[index+1]);

        connections[ index ]->bpropUpdate(
            previous_input_representation,
            greedy_activation.subVec(0,layers[index+1]->size),
            expectation_gradients[index],
            activation_gradients[index+1]);
    }

    // RBM updates

    if( !fast_exact_is_equal( cd_learning_rate, 0 ) )
    {
        if( !fast_exact_is_equal( cd_decrease_ct , 0 ) )
            lr = cd_learning_rate/(1 + cd_decrease_ct
                                       * this_stage);
        else
            lr = cd_learning_rate;

        layers[index]->setLearningRate( lr );
        greedy_connections[index]->setLearningRate( lr );
        greedy_layers[index]->setLearningRate( lr );

        layers[index]->update( pos_down_val, neg_down_val );
        greedy_connections[index]->update( pos_down_val, pos_up_val,
                                    neg_down_val, neg_up_val );
        greedy_layers[index]->update( pos_up_val, neg_up_val );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::StackedFocusedAutoassociatorsNet::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Transforms a shallow copy into a deep copy.

Reimplemented from PLearn::PLearner.

Definition at line 531 of file StackedFocusedAutoassociatorsNet.cc.

References activation_gradients, activations, class_datasets, connections, PLearn::deepCopyField(), dissimilar_example_representation, dissimilar_gradient_contribution, expectation_gradients, expectations, final_cost, final_cost_gradient, final_cost_input, final_cost_value, final_module, greedy_activation, greedy_activation_gradient, greedy_connections, greedy_expectation, greedy_expectation_gradient, greedy_layers, greedy_stages, input_representation, layers, PLearn::PLearner::makeDeepCopyFromShallowCopy(), nearest_neighbors_indices, neg_down_val, neg_up_val, other_classes_proportions, pos_down_val, pos_up_val, previous_input_representation, reconstruction_activation_gradients, reconstruction_activations, reconstruction_connections, reconstruction_expectation_gradients, similar_example_representation, test_nearest_neighbors_indices, test_votes, train_set_representations, train_set_representations_vmat, train_set_targets, training_schedule, unsupervised_connections, and unsupervised_layers.

{
    inherited::makeDeepCopyFromShallowCopy(copies);

    // deepCopyField(, copies);

    // Public options
    deepCopyField(training_schedule, copies);
    deepCopyField(layers, copies);
    deepCopyField(connections, copies);
    deepCopyField(reconstruction_connections, copies);
    deepCopyField(unsupervised_layers, copies);
    deepCopyField(unsupervised_connections, copies);

    // Protected options
    deepCopyField(activations, copies);
    deepCopyField(expectations, copies);
    deepCopyField(activation_gradients, copies);
    deepCopyField(expectation_gradients, copies);
    deepCopyField(greedy_activation, copies);
    deepCopyField(greedy_expectation, copies);
    deepCopyField(greedy_activation_gradient, copies);
    deepCopyField(greedy_expectation_gradient, copies);
    deepCopyField(reconstruction_activations, copies);
    deepCopyField(reconstruction_activation_gradients, copies);
    deepCopyField(reconstruction_expectation_gradients, copies);
    deepCopyField(greedy_layers, copies);
    deepCopyField(greedy_connections, copies);
    deepCopyField(similar_example_representation, copies);
    deepCopyField(dissimilar_example_representation, copies);
    deepCopyField(input_representation, copies);
    deepCopyField(previous_input_representation, copies);
    deepCopyField(dissimilar_gradient_contribution, copies);
    deepCopyField(pos_down_val, copies);
    deepCopyField(pos_up_val, copies);
    deepCopyField(neg_down_val, copies);
    deepCopyField(neg_up_val, copies);
    deepCopyField(final_cost_input, copies);
    deepCopyField(final_cost_value, copies);
    deepCopyField(final_cost_gradient, copies);
    deepCopyField(class_datasets, copies);
    deepCopyField(other_classes_proportions, copies);
    deepCopyField(nearest_neighbors_indices, copies);
    deepCopyField(test_nearest_neighbors_indices, copies);
    deepCopyField(test_votes, copies);
    deepCopyField(train_set_representations, copies);
    deepCopyField(train_set_representations_vmat, copies);
    deepCopyField(train_set_targets, copies);
    deepCopyField(greedy_stages, copies);
    deepCopyField(final_module, copies);
    deepCopyField(final_cost, copies);
}

Here is the call graph for this function:

int PLearn::StackedFocusedAutoassociatorsNet::outputsize ( ) const [virtual]

Returns the size of this learner's output, (which typically may depend on its inputsize(), targetsize() and set options).

Implements PLearn::PLearner.

Definition at line 585 of file StackedFocusedAutoassociatorsNet.cc.

References n_classes.

{
    //if(currently_trained_layer < n_layers)
    //    return layers[currently_trained_layer]->size;
    //return layers[n_layers-1]->size;
    return n_classes;
}
void PLearn::StackedFocusedAutoassociatorsNet::setLearningRate ( real  the_learning_rate) [private]

Definition at line 1346 of file StackedFocusedAutoassociatorsNet.cc.

References connections, do_not_use_knn_classifier, final_cost, final_module, i, layers, and n_layers.

Referenced by train().

{
    for( int i=0 ; i<n_layers-1 ; i++ )
    {
        layers[i]->setLearningRate( the_learning_rate );
        connections[i]->setLearningRate( the_learning_rate );
    }
    layers[n_layers-1]->setLearningRate( the_learning_rate );

    if( do_not_use_knn_classifier )
    {
        final_module->setLearningRate( the_learning_rate );
        final_cost->setLearningRate( the_learning_rate );
    }
}

Here is the caller graph for this function:

void PLearn::StackedFocusedAutoassociatorsNet::setTrainingSet ( VMat  training_set,
bool  call_forget = true
) [virtual]

Declares the training set.

Then calls build() and forget() if necessary. Also sets this learner's inputsize_ targetsize_ weightsize_ from those of the training_set. Note: You shouldn't have to override this in subclasses, except in maybe to forward the call to an underlying learner.

Reimplemented from PLearn::PLearner.

Definition at line 1285 of file StackedFocusedAutoassociatorsNet.cc.

References class_datasets, PLearn::computeNearestNeighbors(), do_not_use_knn_classifier, PLearn::fast_exact_is_equal(), PLearn::TMat< T >::fill(), i, PLearn::PLearner::inputsize(), j, k_neighbors, PLearn::VMat::length(), PLearn::TVec< T >::length(), n_classes, nearest_neighbors_indices, other_classes_proportions, PLearn::TMat< T >::resize(), PLearn::TVec< T >::resize(), PLearn::PLearner::setTrainingSet(), PLearn::sum(), supervised_greedy_learning_rate, PLearn::PLearner::targetsize(), and train_set_representations_up_to_date.

{
    inherited::setTrainingSet(training_set,call_forget);

    train_set_representations_up_to_date = false;

    if( do_not_use_knn_classifier && fast_exact_is_equal( supervised_greedy_learning_rate, 0 ) )
        return;
    Vec input( inputsize() );
    Vec target( targetsize() );
    real weight; // unused

    // Separate classes
    class_datasets.resize(n_classes);
    for(int k=0; k<n_classes; k++)
    {
        class_datasets[k] = new ClassSubsetVMatrix();
        class_datasets[k]->classes.resize(1);
        class_datasets[k]->classes[0] = k;
        class_datasets[k]->source = training_set;
        class_datasets[k]->build();
    }

    // Find other classes proportions
    other_classes_proportions.resize(n_classes,n_classes);
    other_classes_proportions.fill(0);
    for(int k=0; k<n_classes; k++)
    {
        real sum = 0;
        for(int j=0; j<n_classes; j++)
        {
            if(j==k) continue;
            other_classes_proportions(k,j) = class_datasets[j]->length();
            sum += class_datasets[j]->length();
        }
        other_classes_proportions(k) /= sum;
    }

    // Find training nearest neighbors
    input.resize(training_set->inputsize());
    target.resize(training_set->targetsize());
    nearest_neighbors_indices.resize(training_set->length(), k_neighbors);
    TVec<int> nearest_neighbors_indices_row;
    for(int k=0; k<n_classes; k++)
    {
        for(int i=0; i<class_datasets[k]->length(); i++)
        {
            class_datasets[k]->getExample(i,input,target,weight);
            nearest_neighbors_indices_row = nearest_neighbors_indices(
                class_datasets[k]->indices[i]);
            computeNearestNeighbors(
                new GetInputVMatrix((VMatrix *)class_datasets[k]),input,
                nearest_neighbors_indices_row,
                i);
        }
    }
}

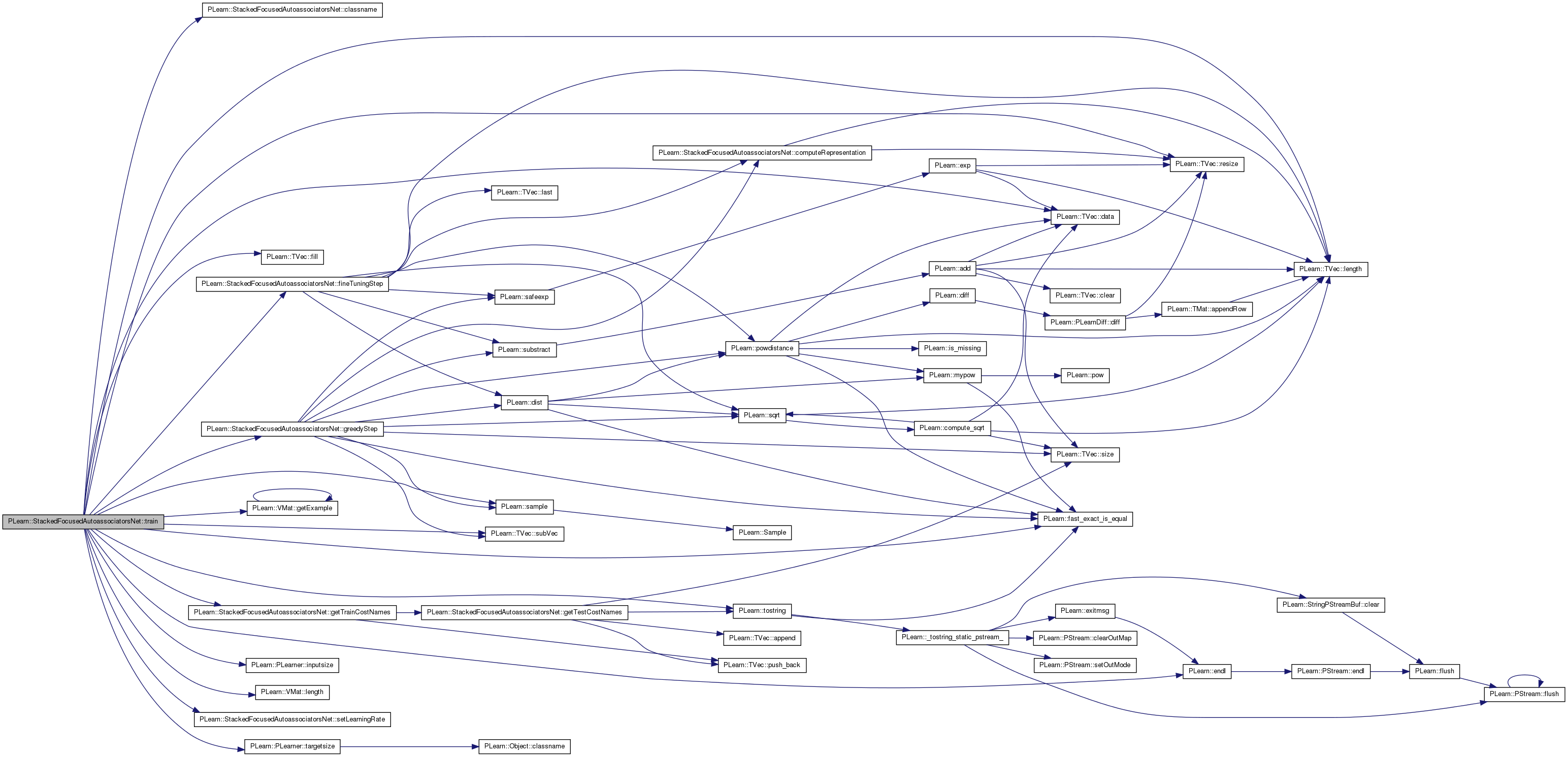

Here is the call graph for this function:

void PLearn::StackedFocusedAutoassociatorsNet::train ( ) [virtual]

The role of the train method is to bring the learner up to stage==nstages, updating the train_stats collector with training costs measured on-line in the process.

Implements PLearn::PLearner.

Definition at line 633 of file StackedFocusedAutoassociatorsNet.cc.

References class_datasets, classname(), currently_trained_layer, PLearn::TVec< T >::data(), dissimilar_example_representation, dissimilar_gradient_contribution, do_not_use_knn_classifier, PLearn::endl(), PLearn::fast_exact_is_equal(), PLearn::TVec< T >::fill(), final_cost_gradient, final_cost_input, final_cost_value, fine_tuning_decrease_ct, fine_tuning_learning_rate, fineTuningStep(), PLearn::VMat::getExample(), getTrainCostNames(), greedy_activation, greedy_activation_gradient, greedy_expectation, greedy_expectation_gradient, greedy_layers, greedy_learning_rate, greedy_stages, greedyStep(), i, input_representation, PLearn::PLearner::inputsize(), k_neighbors, layers, PLearn::VMat::length(), PLearn::TVec< T >::length(), MISSING_VALUE, n_classes, n_layers, nearest_neighbors_indices, neg_down_val, neg_up_val, PLearn::PLearner::nstages, other_classes_proportions, PLERROR, pos_down_val, pos_up_val, PLearn::PLearner::random_gen, reconstruction_activation_gradients, reconstruction_activations, reconstruction_expectation_gradients, PLearn::PLearner::report_progress, PLearn::TVec< T >::resize(), PLearn::sample(), setLearningRate(), similar_example_representation, PLearn::PLearner::stage, PLearn::TVec< T >::subVec(), supervised_greedy_learning_rate, PLearn::PLearner::targetsize(), PLearn::tostring(), PLearn::PLearner::train_set, PLearn::PLearner::train_stats, training_schedule, and PLearn::PLearner::verbosity.

{
    MODULE_LOG << "train() called " << endl;
    MODULE_LOG << "  training_schedule = " << training_schedule << endl;

    Vec input( inputsize() );
    Vec similar_example( inputsize() );
    Vec dissimilar_example( inputsize() );
    Vec target( targetsize() );
    Vec target2( targetsize() );
    real weight; // unused
    real weight2; // unused

    Vec similar_example_index(1);

    TVec<string> train_cost_names = getTrainCostNames() ;
    Vec train_costs( train_cost_names.length() );
    train_costs.fill(MISSING_VALUE) ;

    int nsamples = train_set->length();
    int sample;

    PP<ProgressBar> pb;

    // clear stats of previous epoch
    train_stats->forget();

    int init_stage;

    /***** initial greedy training *****/
    for( int i=0 ; i<n_layers-1 ; i++ )
    {
        MODULE_LOG << "Training connection weights between layers " << i
            << " and " << i+1 << endl;

        int end_stage = training_schedule[i];
        int* this_stage = greedy_stages.subVec(i,1).data();
        init_stage = *this_stage;

        MODULE_LOG << "  stage = " << *this_stage << endl;
        MODULE_LOG << "  end_stage = " << end_stage << endl;
        MODULE_LOG << "  greedy_learning_rate = " << greedy_learning_rate << endl;

        if( report_progress && *this_stage < end_stage )
            pb = new ProgressBar( "Training layer "+tostring(i)
                                  +" of "+classname(),
                                  end_stage - init_stage );

        train_costs.fill(MISSING_VALUE);
        reconstruction_activations.resize(layers[i]->size);
        reconstruction_activation_gradients.resize(layers[i]->size);
        reconstruction_expectation_gradients.resize(layers[i]->size);

        if( !fast_exact_is_equal( supervised_greedy_learning_rate, 0 ) )
        {
            similar_example_representation.resize(layers[i+1]->size);
            dissimilar_example_representation.resize(layers[i+1]->size);
            dissimilar_gradient_contribution.resize(layers[i+1]->size);
        }

        input_representation.resize(layers[i+1]->size);
        greedy_activation.resize(greedy_layers[i]->size);
        greedy_expectation.resize(greedy_layers[i]->size);
        greedy_activation_gradient.resize(greedy_layers[i]->size);
        greedy_expectation_gradient.resize(greedy_layers[i]->size);

        pos_down_val.resize(layers[i]->size);
        pos_up_val.resize(greedy_layers[i]->size);
        neg_down_val.resize(layers[i]->size);
        neg_up_val.resize(greedy_layers[i]->size);

        for( ; *this_stage<end_stage ; (*this_stage)++ )
        {

            sample = *this_stage % nsamples;
            train_set->getExample(sample, input, target, weight);
            if( !fast_exact_is_equal( supervised_greedy_learning_rate, 0 ) )
            {
                // Find similar example

                int sim_index = random_gen->uniform_multinomial_sample(k_neighbors);
                class_datasets[(int)round(target[0])]->getExample(
                    nearest_neighbors_indices(sample,sim_index),
                    similar_example, target2, weight2);

                if(round(target[0]) != round(target2[0]))
                    PLERROR("StackedFocusedAutoassociatorsNet::train(): similar"
                            " example is not from same class!");

                // Find dissimilar example

                int dissim_class_index = random_gen->multinomial_sample(
                    other_classes_proportions((int)round(target[0])));

                int dissim_index = random_gen->uniform_multinomial_sample(
                    class_datasets[dissim_class_index]->length());

                class_datasets[dissim_class_index]->getExample(dissim_index,
                                                               dissimilar_example, target2, weight2);

                if(((int)round(target[0])) == ((int)round(target2[0])))
                    PLERROR("StackedFocusedAutoassociatorsNet::train(): dissimilar"
                            " example is from same class!");
            }
            greedyStep( input, target, i, train_costs, *this_stage,
                        similar_example, dissimilar_example);
            train_stats->update( train_costs );

            if( pb )
                pb->update( *this_stage - init_stage + 1 );
        }
    }

    /***** fine-tuning by gradient descent *****/
    if( stage < nstages )
    {

        MODULE_LOG << "Fine-tuning all parameters, by gradient descent" << endl;
        MODULE_LOG << "  stage = " << stage << endl;
        MODULE_LOG << "  nstages = " << nstages << endl;
        MODULE_LOG << "  fine_tuning_learning_rate = " <<
            fine_tuning_learning_rate << endl;

        init_stage = stage;
        if( report_progress && stage < nstages )
            pb = new ProgressBar( "Fine-tuning parameters of all layers of "
                                  + classname(),
                                  nstages - init_stage );

        setLearningRate( fine_tuning_learning_rate );
        train_costs.fill(MISSING_VALUE);

        if( !do_not_use_knn_classifier )
        {
            similar_example_representation.resize(
                layers[n_layers-1]->size);
            dissimilar_example_representation.resize(
                layers[n_layers-1]->size);
            dissimilar_gradient_contribution.resize(
                layers[n_layers-1]->size);
            similar_example.resize(inputsize());
            dissimilar_example.resize(inputsize());
        }

        final_cost_input.resize(n_classes);
        final_cost_value.resize(2); // Should be resized anyways
        final_cost_gradient.resize(n_classes);

        for( ; stage<nstages ; stage++ )
        {
            sample = stage % nsamples;
            if( !fast_exact_is_equal( fine_tuning_decrease_ct, 0. ) )
                setLearningRate( fine_tuning_learning_rate
                                 / (1. + fine_tuning_decrease_ct * stage ) );

            train_set->getExample( sample, input, target, weight );

            if( !do_not_use_knn_classifier )
            {
                // Find similar example

                int sim_index = random_gen->uniform_multinomial_sample(k_neighbors);
                class_datasets[(int)round(target[0])]->getExample(
                    nearest_neighbors_indices(sample,sim_index),
                    similar_example, target2, weight2);

                if(((int)round(target[0])) != ((int)round(target2[0])))
                    PLERROR("StackedFocusedAutoassociatorsNet::train(): similar"
                            " example is not from same class!");

                // Find dissimilar example

                int dissim_class_index = random_gen->multinomial_sample(
                    other_classes_proportions((int)round(target[0])));

                int dissim_index = random_gen->uniform_multinomial_sample(
                    class_datasets[dissim_class_index]->length());

                class_datasets[dissim_class_index]->getExample(dissim_index,
                                  dissimilar_example, target2, weight2);

                if(((int)round(target[0])) == ((int)round(target2[0])))
                    PLERROR("StackedFocusedAutoassociatorsNet::train(): dissimilar"
                            " example is from same class!");
            }

            fineTuningStep( input, target, train_costs,
                            similar_example, dissimilar_example);
            train_stats->update( train_costs );

            if( pb )
                pb->update( stage - init_stage + 1 );
        }

        if(verbosity>2)
        {
            Vec train_stats_vec = train_stats->getMean();
            cout << "similarity_cost = " << train_stats_vec[train_stats_vec.length()-3] << endl;
            cout << "dissimilarity_cost = " << train_stats_vec[train_stats_vec.length()-2] << endl;
            cout << "metric_cost = " << train_stats_vec[train_stats_vec.length()-1] << endl;
        }
    }

    train_stats->finalize();
    MODULE_LOG << "  train costs = " << train_stats->getMean() << endl;


    // Update currently_trained_layer
    if(stage > 0)
        currently_trained_layer = n_layers;
    else
    {
        currently_trained_layer = n_layers-1;
        while(currently_trained_layer>1
              && greedy_stages[currently_trained_layer-1] <= 0)
            currently_trained_layer--;
    }
}

Here is the call graph for this function:

void PLearn::StackedFocusedAutoassociatorsNet::updateTrainSetRepresentations ( ) const [virtual]

Precomputes the representations of the training set examples, to speed up nearest neighbors searches in that space.

Definition at line 1233 of file StackedFocusedAutoassociatorsNet.cc.

References computeRepresentation(), currently_trained_layer, PLearn::VMat::getExample(), i, PLearn::PLearner::inputsize(), layers, PLearn::VMat::length(), PLearn::min(), n_layers, PLearn::TMat< T >::resize(), PLearn::TVec< T >::resize(), PLearn::TVec< T >::size(), PLearn::PLearner::targetsize(), PLearn::PLearner::train_set, train_set_representations, train_set_representations_up_to_date, train_set_representations_vmat, and train_set_targets.

Referenced by computeOutput().

{
    if(!train_set_representations_up_to_date)
    {
        // Precompute training set examples' representation
        int l = min(currently_trained_layer,n_layers-1);
        Vec input( inputsize() );
        Vec target( targetsize() );
        Vec train_set_representation;
        real weight;

        train_set_representations.resize(train_set->length(), layers[l]->size);
        train_set_targets.resize(train_set->length());

        for(int i=0; i<train_set->length(); i++)
        {
            train_set->getExample(i,input,target,weight);
            computeRepresentation(input,train_set_representation,l);
            train_set_representations(i) << train_set_representation;
            train_set_targets[i] = (int)round(target[0]);
        }
        train_set_representations_vmat = VMat(train_set_representations);

        train_set_representations_up_to_date = true;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:


Member Data Documentation

Reimplemented from PLearn::PLearner.

Definition at line 213 of file StackedFocusedAutoassociatorsNet.h.

Stores the gradient of the cost wrt the activations of the input and hidden layers (at the input of the layers)

Definition at line 236 of file StackedFocusedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), fineTuningStep(), greedyStep(), and makeDeepCopyFromShallowCopy().

Stores the activations of the input and hidden layers (at the input of the layers)

Definition at line 227 of file StackedFocusedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), computeRepresentation(), fineTuningStep(), and makeDeepCopyFromShallowCopy().

Contrastive divergence decrease constant.

Definition at line 78 of file StackedFocusedAutoassociatorsNet.h.

Referenced by declareOptions(), and greedyStep().

Contrastive divergence learning rate.

Definition at line 75 of file StackedFocusedAutoassociatorsNet.h.

Referenced by declareOptions(), and greedyStep().

Datasets for each class.

Definition at line 304 of file StackedFocusedAutoassociatorsNet.h.

Referenced by makeDeepCopyFromShallowCopy(), setTrainingSet(), and train().

Currently trained layer (1 means the first hidden layer, n_layers means the output layer)

Definition at line 332 of file StackedFocusedAutoassociatorsNet.h.

Referenced by build_(), computeCostsFromOutputs(), computeOutput(), train(), and updateTrainSetRepresentations().

Parameter that constrols the importance of the dissimilar example cost.

Definition at line 128 of file StackedFocusedAutoassociatorsNet.h.

Referenced by declareOptions(), fineTuningStep(), and greedyStep().

Dissimilar example representation.

Definition at line 276 of file StackedFocusedAutoassociatorsNet.h.

Referenced by fineTuningStep(), greedyStep(), makeDeepCopyFromShallowCopy(), and train().

Dissimilar gradient contribution.

Definition at line 285 of file StackedFocusedAutoassociatorsNet.h.

Referenced by fineTuningStep(), greedyStep(), makeDeepCopyFromShallowCopy(), and train().

Use standard neural net architecture, not the nearest neighbor model.

Definition at line 132 of file StackedFocusedAutoassociatorsNet.h.

Referenced by build_(), computeOutput(), declareOptions(), fineTuningStep(), forget(), setLearningRate(), setTrainingSet(), and train().

Stores the gradient of the cost wrt the expectations of the input and hidden layers (at the output of the layers)

Definition at line 241 of file StackedFocusedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), fineTuningStep(), greedyStep(), and makeDeepCopyFromShallowCopy().

Stores the expectations of the input and hidden layers (at the output of the layers)

Definition at line 231 of file StackedFocusedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), computeCostsFromOutputs(), computeRepresentation(), fineTuningStep(), greedyStep(), and makeDeepCopyFromShallowCopy().

Cost gradient on output layer.

Definition at line 301 of file StackedFocusedAutoassociatorsNet.h.

Referenced by fineTuningStep(), makeDeepCopyFromShallowCopy(), and train().

Input of cost function.

Definition at line 297 of file StackedFocusedAutoassociatorsNet.h.

Referenced by computeOutput(), fineTuningStep(), makeDeepCopyFromShallowCopy(), and train().

Cost value.

Definition at line 299 of file StackedFocusedAutoassociatorsNet.h.

Referenced by fineTuningStep(), makeDeepCopyFromShallowCopy(), and train().

The decrease constant of the learning rate used during fine tuning gradient descent.

Definition at line 99 of file StackedFocusedAutoassociatorsNet.h.

Referenced by declareOptions(), and train().

The learning rate used during the fine tuning gradient descent.

Definition at line 95 of file StackedFocusedAutoassociatorsNet.h.

Referenced by declareOptions(), and train().

Stores the activation of the trained hidden layer during a greedy step.

Definition at line 244 of file StackedFocusedAutoassociatorsNet.h.

Referenced by computeCostsFromOutputs(), greedyStep(), makeDeepCopyFromShallowCopy(), and train().

Stores the activation gradient of the trained hidden layer during a greedy step.

Definition at line 251 of file StackedFocusedAutoassociatorsNet.h.

Referenced by makeDeepCopyFromShallowCopy(), and train().

Connections used for greedy learning.

Definition at line 270 of file StackedFocusedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), computeCostsFromOutputs(), greedyStep(), and makeDeepCopyFromShallowCopy().

The decrease constant of the learning rate used during the autoassociator gradient descent training.

When a hidden layer has finished its training, the learning rate is reset to it's initial value.

Definition at line 86 of file StackedFocusedAutoassociatorsNet.h.

Referenced by declareOptions(), and greedyStep().

Stores the expectation of the trained hidden layer during a greedy step.

Definition at line 247 of file StackedFocusedAutoassociatorsNet.h.

Referenced by computeCostsFromOutputs(), greedyStep(), makeDeepCopyFromShallowCopy(), and train().

Stores the expectation gradient of the trained hidden layer during a greedy step.

Definition at line 255 of file StackedFocusedAutoassociatorsNet.h.

Referenced by makeDeepCopyFromShallowCopy(), and train().

The learning rate used during the autoassociator gradient descent training.

Definition at line 81 of file StackedFocusedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), declareOptions(), greedyStep(), and train().

Stages of the different greedy phases.

Definition at line 328 of file StackedFocusedAutoassociatorsNet.h.

Referenced by build_(), declareOptions(), forget(), makeDeepCopyFromShallowCopy(), and train().

Example representation.

Definition at line 279 of file StackedFocusedAutoassociatorsNet.h.

Referenced by computeOutput(), greedyStep(), makeDeepCopyFromShallowCopy(), and train().

Number of good nearest neighbors to attract and bad nearest neighbors to repel.

Definition at line 122 of file StackedFocusedAutoassociatorsNet.h.

Referenced by build_(), declareOptions(), setTrainingSet(), and train().

Nearest neighbors for each training example.

Definition at line 311 of file StackedFocusedAutoassociatorsNet.h.

Referenced by makeDeepCopyFromShallowCopy(), setTrainingSet(), and train().

Negative down statistic.

Definition at line 292 of file StackedFocusedAutoassociatorsNet.h.

Referenced by greedyStep(), makeDeepCopyFromShallowCopy(), and train().

Negative up statistic.

Definition at line 294 of file StackedFocusedAutoassociatorsNet.h.

Referenced by greedyStep(), makeDeepCopyFromShallowCopy(), and train().

Proportions of examples from the other classes (columns), for each class (rows)

Definition at line 308 of file StackedFocusedAutoassociatorsNet.h.

Referenced by makeDeepCopyFromShallowCopy(), setTrainingSet(), and train().

Output weights l1_penalty_factor.

Definition at line 135 of file StackedFocusedAutoassociatorsNet.h.

Referenced by build_output_layer_and_cost().

Output weights l2_penalty_factor.

Definition at line 138 of file StackedFocusedAutoassociatorsNet.h.

Referenced by build_output_layer_and_cost().

Positive down statistic.

Definition at line 288 of file StackedFocusedAutoassociatorsNet.h.

Referenced by greedyStep(), makeDeepCopyFromShallowCopy(), and train().

Positive up statistic.

Definition at line 290 of file StackedFocusedAutoassociatorsNet.h.

Referenced by greedyStep(), makeDeepCopyFromShallowCopy(), and train().

Example representation at the previous layer, in a greedy step.

Definition at line 282 of file StackedFocusedAutoassociatorsNet.h.

Referenced by fineTuningStep(), greedyStep(), and makeDeepCopyFromShallowCopy().

Reconstruction activation gradients.

Definition at line 261 of file StackedFocusedAutoassociatorsNet.h.

Referenced by greedyStep(), makeDeepCopyFromShallowCopy(), and train().

Reconstruction activations.

Definition at line 258 of file StackedFocusedAutoassociatorsNet.h.

Referenced by computeCostsFromOutputs(), greedyStep(), makeDeepCopyFromShallowCopy(), and train().

The reconstruction weights of the autoassociators.

Definition at line 112 of file StackedFocusedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), computeCostsFromOutputs(), declareOptions(), forget(), greedyStep(), and makeDeepCopyFromShallowCopy().

Reconstruction expectation gradients.

Definition at line 264 of file StackedFocusedAutoassociatorsNet.h.

Referenced by greedyStep(), makeDeepCopyFromShallowCopy(), and train().

Similar example representation.

Definition at line 273 of file StackedFocusedAutoassociatorsNet.h.

Referenced by fineTuningStep(), greedyStep(), makeDeepCopyFromShallowCopy(), and train().

Supervised, non-parametric, greedy decrease constant.

Definition at line 92 of file StackedFocusedAutoassociatorsNet.h.

Referenced by declareOptions(), and greedyStep().

Supervised, non-parametric, greedy learning rate.

Definition at line 89 of file StackedFocusedAutoassociatorsNet.h.

Referenced by declareOptions(), greedyStep(), setTrainingSet(), and train().

Nearest neighbors for each test example.

Definition at line 314 of file StackedFocusedAutoassociatorsNet.h.

Referenced by build_(), computeOutput(), and makeDeepCopyFromShallowCopy().

Nearest neighbor votes for test example.

Definition at line 317 of file StackedFocusedAutoassociatorsNet.h.

Referenced by build_(), computeOutput(), and makeDeepCopyFromShallowCopy().

Data set mapped to last hidden layer space.

Definition at line 320 of file StackedFocusedAutoassociatorsNet.h.

Referenced by makeDeepCopyFromShallowCopy(), and updateTrainSetRepresentations().

Indication that train_set_representations is up to date.

Definition at line 325 of file StackedFocusedAutoassociatorsNet.h.

Referenced by build_(), fineTuningStep(), forget(), greedyStep(), setTrainingSet(), and updateTrainSetRepresentations().

Number of examples to use during each phase of greedy pre-training.

The number of fine-tunig steps is defined by nstages.

Definition at line 103 of file StackedFocusedAutoassociatorsNet.h.

Referenced by build_(), declareOptions(), makeDeepCopyFromShallowCopy(), and train().

Additional connections for greedy unsupervised learning.

Definition at line 118 of file StackedFocusedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), declareOptions(), forget(), and makeDeepCopyFromShallowCopy().

Additional units for greedy unsupervised learning.

Definition at line 115 of file StackedFocusedAutoassociatorsNet.h.

Referenced by build_layers_and_connections(), declareOptions(), forget(), and makeDeepCopyFromShallowCopy().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
