PLearn::KLp0p1RBMModule Class Reference

The first sentence should be a BRIEF DESCRIPTION of what the class does. More...

#include <KLp0p1RBMModule.h>

Inheritance diagram for PLearn::KLp0p1RBMModule:
Inheritance graph
[legend]

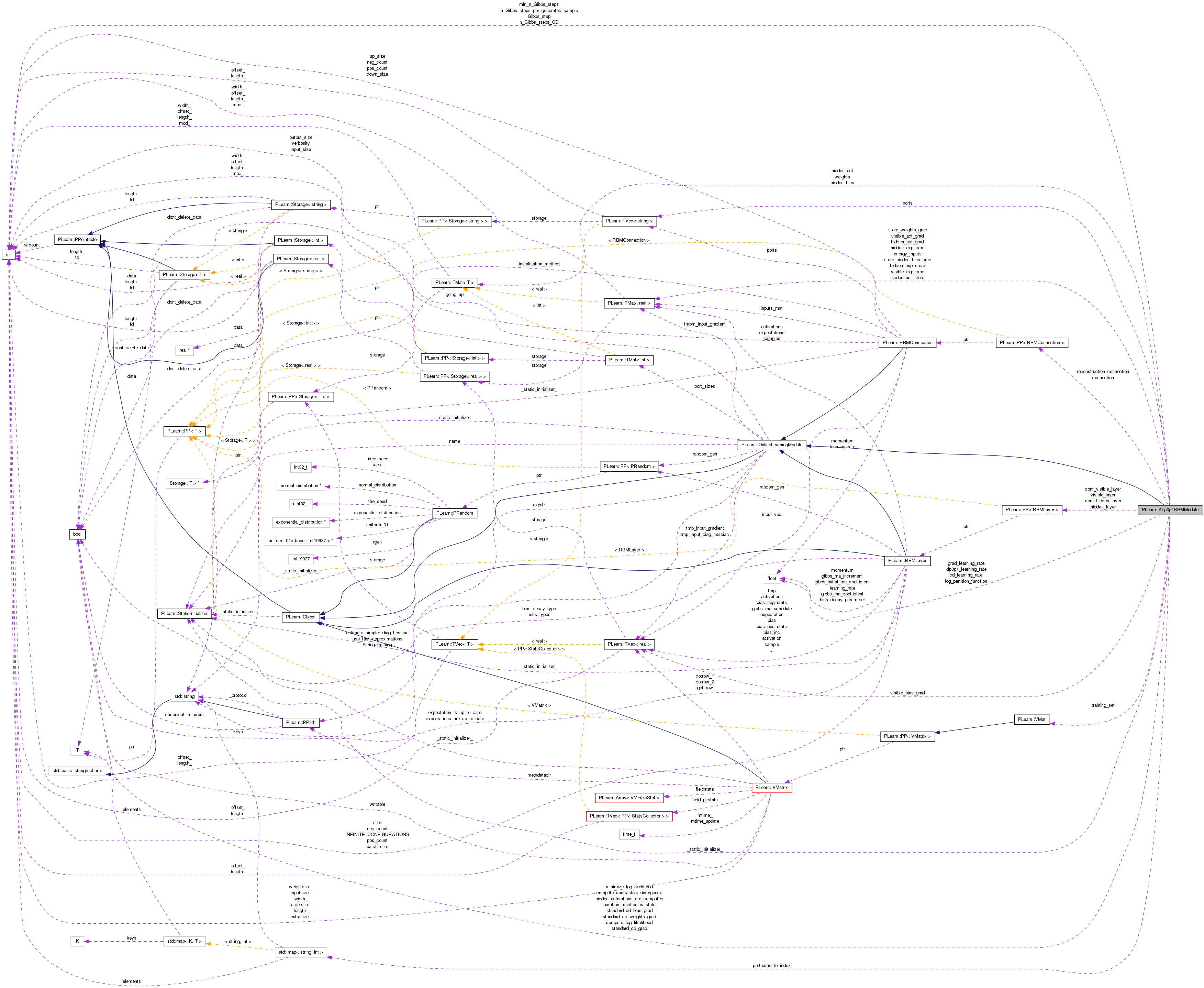

Collaboration diagram for PLearn::KLp0p1RBMModule:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 KLp0p1RBMModule ()
 Default constructor.
virtual void fprop (const Vec &input, Vec &output) const
 given the input, compute the output (possibly resize it appropriately)
virtual void forget ()
 Reset the parameters to the state they would be BEFORE starting training.
virtual void setLearningRate (real dynamic_learning_rate)
 Throws an error (please use explicitely the two different kinds of learning rates available here).
virtual void fprop (const TVec< Mat * > &ports_value)
 Overridden.
virtual void bpropAccUpdate (const TVec< Mat * > &ports_value, const TVec< Mat * > &ports_gradient)
 Overridden.
virtual const TVec< string > & getPorts ()
 Returns all ports in a KLp0p1RBMModule.
virtual const TMat< int > & getPortSizes ()
 The ports' sizes are given by the corresponding RBM layers.

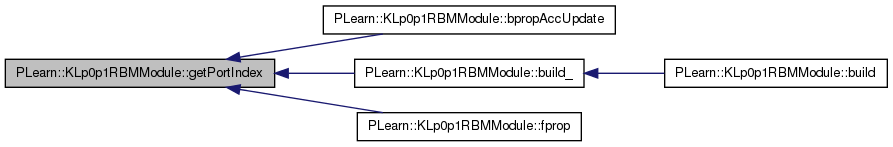

virtual int getPortIndex (const string &port)
 Return the index (as in the list of ports returned by getPorts()) of a given port.
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual KLp0p1RBMModuledeepCopy (CopiesMap &copies) const
virtual void build ()
 Post-constructor.
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.

Static Public Member Functions

static string _classname_ ()
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

VMat training_set
PP< RBMLayerhidden_layer
PP< RBMLayervisible_layer
PP< RBMConnectionconnection
PP< RBMConnectionreconstruction_connection
real cd_learning_rate
real grad_learning_rate
real klp0p1_learning_rate
bool compute_contrastive_divergence
int n_Gibbs_steps_CD
 Number of Gibbs sampling steps in negative phase of contrastive divergence.
int min_n_Gibbs_steps
 used to generate samples from the RBM
int n_Gibbs_steps_per_generated_sample
bool compute_log_likelihood
bool minimize_log_likelihood
int Gibbs_step
 used to generate samples from the RBM
real log_partition_function
bool partition_function_is_stale
bool standard_cd_grad
bool standard_cd_bias_grad
bool standard_cd_weights_grad

Static Public Attributes

static StaticInitializer _static_initializer_

Protected Member Functions

void addPortName (const string &name)
 Add a new port to the 'portname_to_index' map and 'ports' vector.
void setAllLearningRates (real lr)
 Forward the given learning rate to all elements of this module.

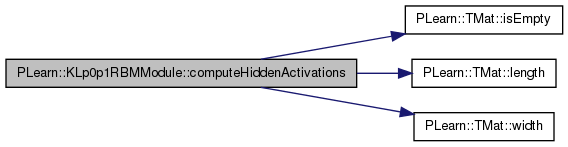

void computeHiddenActivations (const Mat &visible)
 Compute activations on the hidden layer based on the provided visible input.

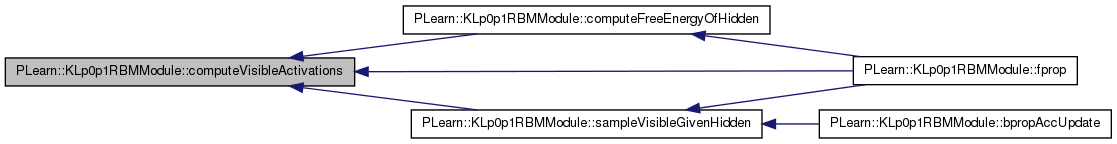

void computeVisibleActivations (const Mat &hidden, bool using_reconstruction_connection=false)
 Compute activations on the visible layer.

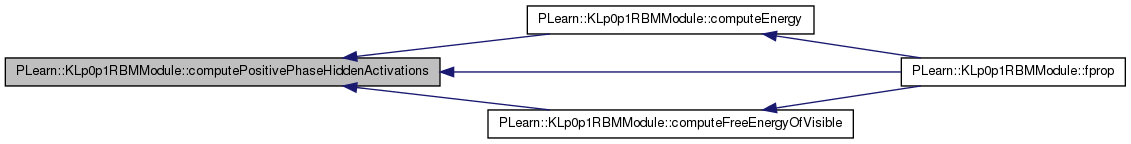

void computePositivePhaseHiddenActivations (const Mat &visible)
 Compute activations on the hidden layer based on the provided visible input during positive phase.

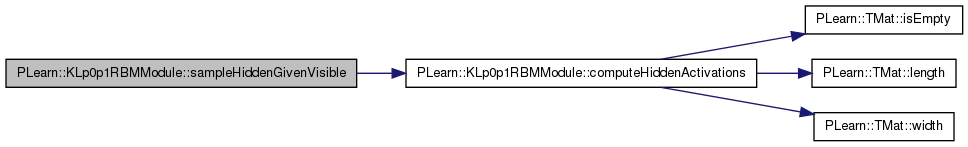

void sampleHiddenGivenVisible (const Mat &visible)
 Sample hidden layer data based on the provided 'visible' inputs.
void sampleVisibleGivenHidden (const Mat &hidden)
 Sample visible layer data based on the provided 'hidden' inputs.

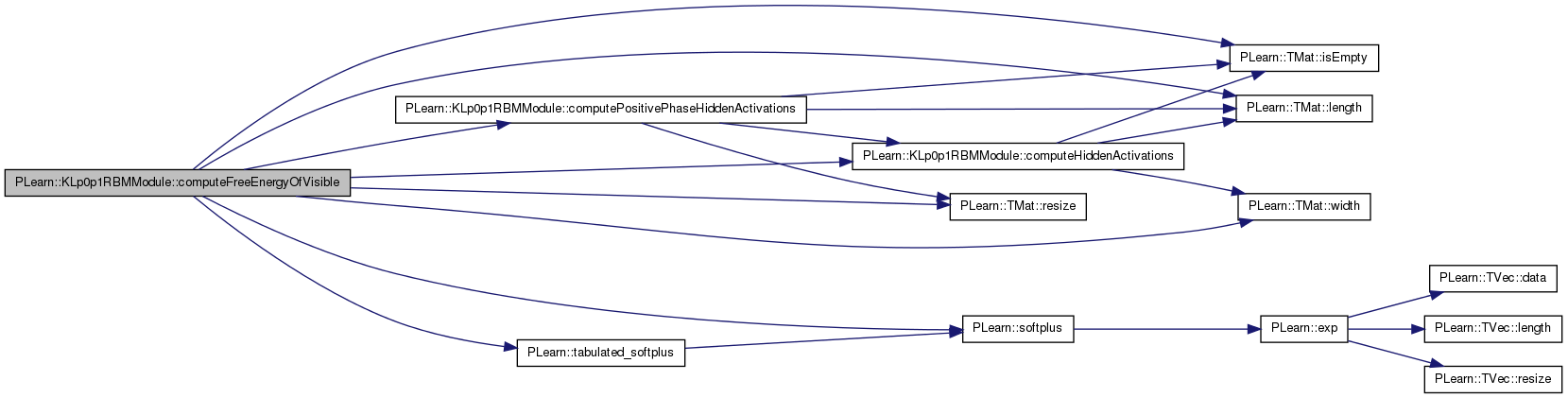

void computeFreeEnergyOfVisible (const Mat &visible, Mat &energy, bool positive_phase=true)
 Compute free energy on the visible layer and store it in the 'energy' matrix.
void computeFreeEnergyOfHidden (const Mat &hidden, Mat &energy)
 Compute free energy on the hidden layer and store it in the 'energy' matrix.

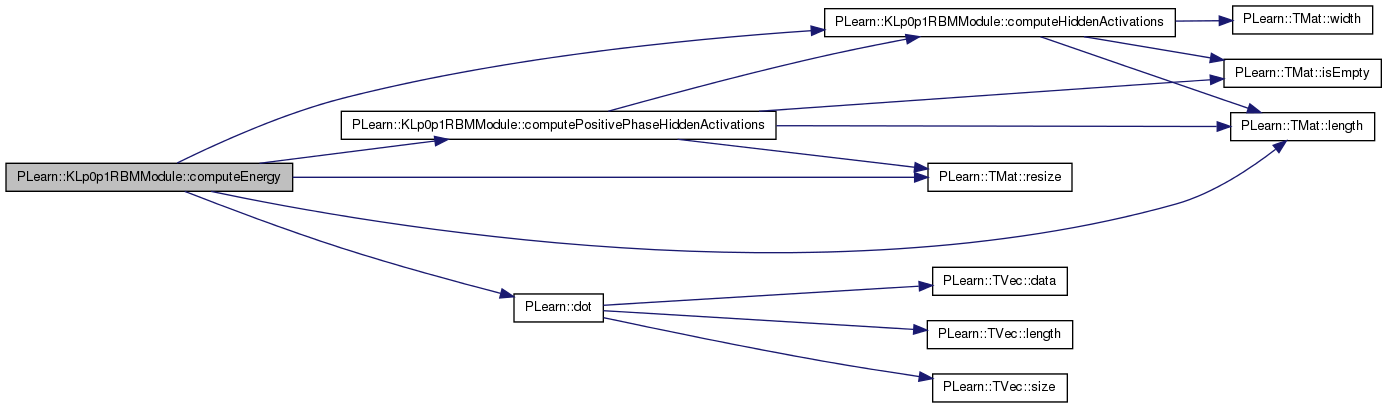

void computeEnergy (const Mat &visible, const Mat &hidden, Mat &energy, bool positive_phase=true)
 Compute energy of the joint (visible, hidden) configuration and store it in the 'energy' matrix.

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declares the class options.

Protected Attributes

PP< RBMLayerconf_hidden_layer
PP< RBMLayerconf_visible_layer
Mathidden_bias
Matweights
Mat hidden_exp_grad
 Used to store gradient w.r.t. expectations of the hidden layer.
Mat hidden_act_grad
 Used to store gradient w.r.t. activations of the hidden layer.
Mat visible_exp_grad
 Used to store gradient w.r.t. expectations of the visible layer.
Mat visible_act_grad
 Used to store gradient w.r.t. activations of the visible layer.
Vec visible_bias_grad
 Used to store gradient w.r.t. bias of visible layer.
Mat hidden_exp_store
 Used to cache the hidden layer expectations and activations.
Mat hidden_act_store
Mathidden_act
bool hidden_activations_are_computed
Mat store_weights_grad
 Used to store the contrastive divergence gradient w.r.t. weights.
Mat store_hidden_bias_grad
 Used to store the contrastive divergence gradient w.r.t. hidden bias.
TVec< string > ports
 List of port names.
map< string, intportname_to_index
 Map from a port name to its index in the 'ports' vector.
Mat energy_inputs
 Used to store inputs generated to compute the free energy.

Private Types

typedef OnlineLearningModule inherited

Private Member Functions

void build_ ()
 This does the actual building.

Detailed Description

The first sentence should be a BRIEF DESCRIPTION of what the class does.

Place the rest of the class programmer documentation here. Doxygen supports Javadoc-style comments. See http://www.doxygen.org/manual.html

Todo:
Write class to-do's here if there are any.
Deprecated:
Write deprecated stuff here if there is any. Indicate what else should be used instead.

Definition at line 61 of file KLp0p1RBMModule.h.


Member Typedef Documentation

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 63 of file KLp0p1RBMModule.h.


Constructor & Destructor Documentation

PLearn::KLp0p1RBMModule::KLp0p1RBMModule ( )

Member Function Documentation

string PLearn::KLp0p1RBMModule::_classname_ ( ) [static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 70 of file KLp0p1RBMModule.cc.

OptionList & PLearn::KLp0p1RBMModule::_getOptionList_ ( ) [static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 70 of file KLp0p1RBMModule.cc.

RemoteMethodMap & PLearn::KLp0p1RBMModule::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 70 of file KLp0p1RBMModule.cc.

bool PLearn::KLp0p1RBMModule::_isa_ ( const Object o) [static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 70 of file KLp0p1RBMModule.cc.

Object * PLearn::KLp0p1RBMModule::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 70 of file KLp0p1RBMModule.cc.

StaticInitializer KLp0p1RBMModule::_static_initializer_ & PLearn::KLp0p1RBMModule::_static_initialize_ ( ) [static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 70 of file KLp0p1RBMModule.cc.

void PLearn::KLp0p1RBMModule::addPortName ( const string &  name) [protected]

Add a new port to the 'portname_to_index' map and 'ports' vector.

Definition at line 368 of file KLp0p1RBMModule.cc.

References PLearn::TVec< T >::append(), PLearn::TVec< T >::length(), PLearn::OnlineLearningModule::name, PLASSERT, portname_to_index, and ports.

Referenced by build_().

{
    PLASSERT( portname_to_index.find(name) == portname_to_index.end() );
    portname_to_index[name] = ports.length();
    ports.append(name);
}

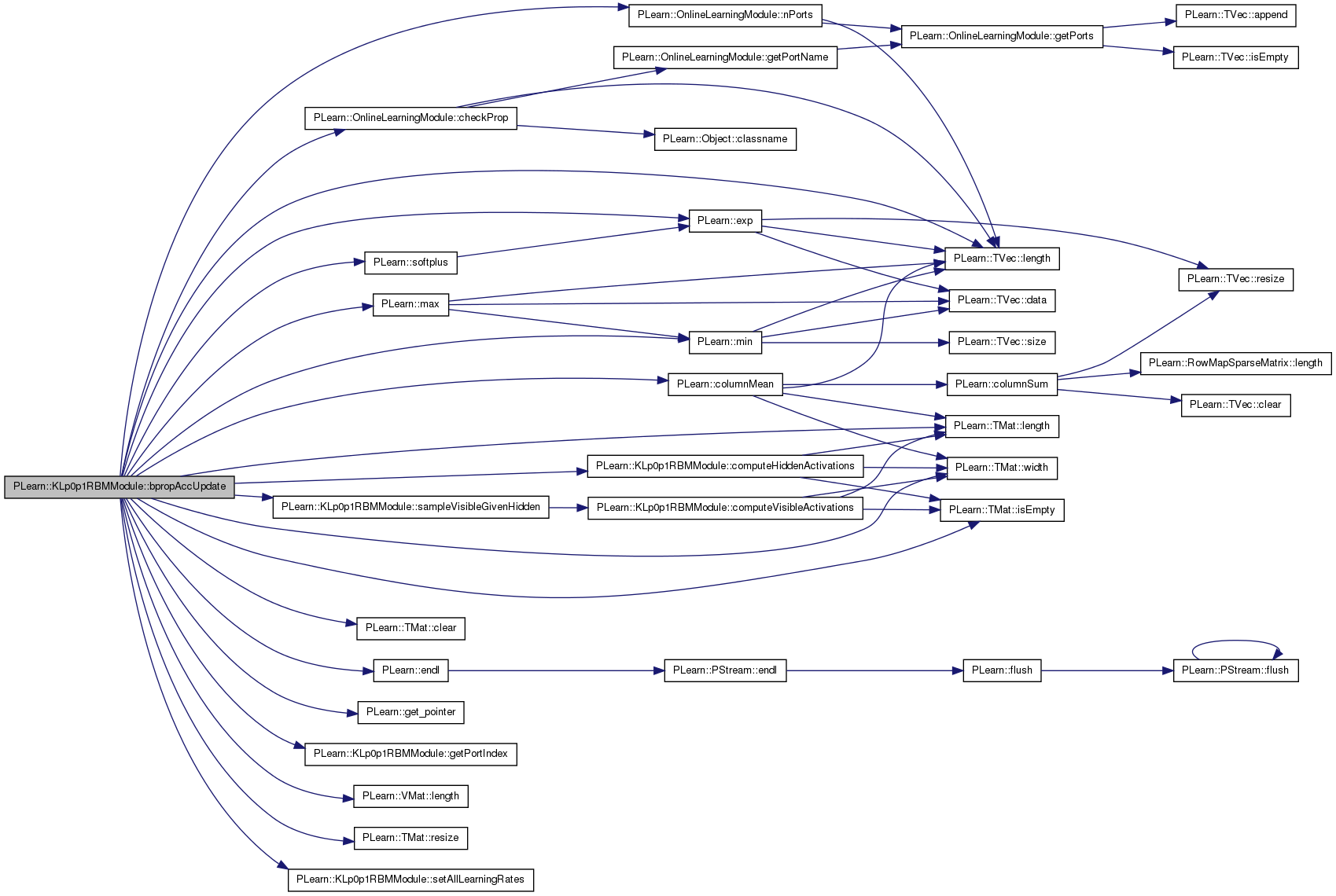

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::KLp0p1RBMModule::bpropAccUpdate ( const TVec< Mat * > &  ports_value,
const TVec< Mat * > &  ports_gradient
) [virtual]

Overridden.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 1250 of file KLp0p1RBMModule.cc.

References c, cd_learning_rate, PLearn::OnlineLearningModule::checkProp(), PLearn::TMat< T >::clear(), PLearn::columnMean(), compute_contrastive_divergence, computeHiddenActivations(), conf_hidden_layer, conf_visible_layer, connection, PLearn::endl(), energy_inputs, PLearn::exp(), PLearn::get_pointer(), getPortIndex(), grad, grad_learning_rate, hidden_act, hidden_act_grad, hidden_bias, hidden_exp_grad, hidden_layer, i, PLearn::TMat< T >::isEmpty(), j, klp0p1_learning_rate, PLearn::VMat::length(), PLearn::TMat< T >::length(), PLearn::TVec< T >::length(), PLearn::max(), PLearn::min(), minimize_log_likelihood, n, n_Gibbs_steps_CD, PLearn::OnlineLearningModule::name, PLearn::OnlineLearningModule::nPorts(), partition_function_is_stale, PLASSERT, PLASSERT_MSG, PLCHECK_MSG, PLERROR, reconstruction_connection, PLearn::TMat< T >::resize(), sampleVisibleGivenHidden(), setAllLearningRates(), PLearn::softplus(), standard_cd_bias_grad, standard_cd_grad, standard_cd_weights_grad, store_hidden_bias_grad, store_weights_grad, training_set, visible_act_grad, visible_bias_grad, visible_exp_grad, visible_layer, w, weights, PLearn::TMat< T >::width(), and x.

{
    PLASSERT( ports_value.length() == nPorts() );
    PLASSERT( ports_gradient.length() == nPorts() );
    Mat* visible_grad = ports_gradient[getPortIndex("visible")];
    Mat* hidden_grad = ports_gradient[getPortIndex("hidden.state")];
    Mat* visible = ports_value[getPortIndex("visible")];
    Mat* hidden = ports_value[getPortIndex("hidden.state")];
    hidden_act = ports_value[getPortIndex("hidden_activations.state")];
    Mat* reconstruction_error_grad = 0;
    Mat* hidden_bias_grad = ports_gradient[getPortIndex("hidden_bias")];
    weights = ports_value[getPortIndex("weights")];
    Mat* weights_grad = ports_gradient[getPortIndex("weights")];
    hidden_bias = ports_value[getPortIndex("hidden_bias")];
    Mat* contrastive_divergence_grad = NULL;
    Mat* KLp0p1 = ports_value[getPortIndex("KLp0p1")];

    // Ensure the gradient w.r.t. contrastive divergence is 1 (if provided).
    if (compute_contrastive_divergence) {
        contrastive_divergence_grad =
            ports_gradient[getPortIndex("contrastive_divergence")];
        if (contrastive_divergence_grad) {
            PLASSERT( !contrastive_divergence_grad->isEmpty() );
            PLASSERT( min(*contrastive_divergence_grad) >= 1 );
            PLASSERT( max(*contrastive_divergence_grad) <= 1 );
        }
    }

    if(reconstruction_connection)
        reconstruction_error_grad =
            ports_gradient[getPortIndex("reconstruction_error.state")];

    // Ensure the visible gradient is not provided as input. This is because we
    // accumulate more than once in 'visible_grad'.
    PLASSERT_MSG( !visible_grad || visible_grad->isEmpty(), "Cannot provide "
            "an input gradient w.r.t. visible units" );

    bool compute_visible_grad = visible_grad && visible_grad->isEmpty();
    bool compute_weights_grad = weights_grad && weights_grad->isEmpty();

    int mbs = (visible && !visible->isEmpty()) ? visible->length() : -1;

    if (hidden_grad && !hidden_grad->isEmpty())
    {
        // Note: the assert below is for behavior compatibility with previous
        // code. It might not be necessary, or might need to be modified.
        PLASSERT( visible && !visible->isEmpty() );

        // Note: we need to perform the following steps even if the gradient
        // learning rate is equal to 0. This is because we must propagate the
        // gradient to the visible layer, even though no update is required.
        setAllLearningRates(grad_learning_rate);
        PLASSERT( hidden && hidden_act );
        // Compute gradient w.r.t. activations of the hidden layer.
        hidden_layer->bpropUpdate(
                *hidden_act, *hidden, hidden_act_grad, *hidden_grad,
                false);
        if (hidden_bias_grad)
        {
            PLASSERT( hidden_bias_grad->isEmpty() &&
                      hidden_bias_grad->width() == hidden_layer->size );
            hidden_bias_grad->resize(mbs,hidden_layer->size);
            *hidden_bias_grad += hidden_act_grad;
        }
        // Compute gradient w.r.t. expectations of the visible layer (=
        // inputs).
        Mat* store_visible_grad = NULL;
        if (compute_visible_grad) {
            PLASSERT( visible_grad->width() == visible_layer->size );
            store_visible_grad = visible_grad;
        } else {
            // We do not actually need to store the gradient, but since it
            // is required in bpropUpdate, we provide a dummy matrix to
            // store it.
            store_visible_grad = &visible_exp_grad;
        }
        store_visible_grad->resize(mbs,visible_layer->size);

        if (weights)
        {
            int up = connection->up_size;
            int down = connection->down_size;
            PLASSERT( !weights->isEmpty() &&
                      weights_grad && weights_grad->isEmpty() &&
                      weights_grad->width() == up * down );
            weights_grad->resize(mbs, up * down);
            Mat w, wg;
            Vec v,h,vg,hg;
            for(int i=0; i<mbs; i++)
            {
                w = Mat(up, down,(*weights)(i));
                wg = Mat(up, down,(*weights_grad)(i));
                v = (*visible)(i);
                h = (*hidden_act)(i);
                vg = (*store_visible_grad)(i);
                hg = hidden_act_grad(i);
                connection->petiteCulotteOlivierUpdate(
                    v,
                    w,
                    h,
                    vg,
                    wg,
                    hg,true);
            }
        }
        else
        {
            connection->bpropUpdate(
                *visible, *hidden_act, *store_visible_grad,
                hidden_act_grad, true);
        }
        partition_function_is_stale = true;
    }

    if (cd_learning_rate > 0 && minimize_log_likelihood) {
        PLASSERT( visible && !visible->isEmpty() );
        PLASSERT( hidden && !hidden->isEmpty() );
        setAllLearningRates(cd_learning_rate);

        // positive phase
        visible_layer->accumulatePosStats(*visible);
        hidden_layer->accumulatePosStats(*hidden);
        connection->accumulatePosStats(*visible,*hidden);

        // negative phase
        PLASSERT_MSG(hidden_layer->size<32 || visible_layer->size<32,
                     "To minimize exact log-likelihood of an RBM, hidden_layer->size "
                     "or visible_layer->size must be <32");
        // gradient of partition function
        if (hidden_layer->size > visible_layer->size)
            // do it by summing over visible configurations
        {
            PLASSERT(visible_layer->classname()=="RBMBinomialLayer");
            // assuming a binary input we sum over all bit configurations
            int n_configurations = 1 << visible_layer->size; // = 2^{visible_layer->size}
            energy_inputs.resize(1, visible_layer->size);
            Vec input = energy_inputs(0);
            // COULD BE DONE MORE EFFICIENTLY BY DOING MANY CONFIGURATIONS
            // AT ONCE IN A 'MINIBATCH'
            for (int c=0;c<n_configurations;c++)
            {
                // convert integer c into a bit-wise visible representation
                int x=c;
                for (int i=0;i<visible_layer->size;i++)
                {
                    input[i]= x & 1; // take least significant bit
                    x >>= 1; // and shift right (divide by 2)
                }
                connection->setAsDownInput(input);
                hidden_layer->getAllActivations(connection,0,false);
                hidden_layer->computeExpectation();
                visible_layer->accumulateNegStats(input);
                hidden_layer->accumulateNegStats(hidden_layer->expectation);
                connection->accumulateNegStats(input,hidden_layer->expectation);
            }
        }
        else
        {
            PLASSERT(hidden_layer->classname()=="RBMBinomialLayer");
            // assuming a binary hidden we sum over all bit configurations
            int n_configurations = 1 << hidden_layer->size; // = 2^{hidden_layer->size}
            energy_inputs.resize(1, hidden_layer->size);
            Vec h = energy_inputs(0);
            for (int c=0;c<n_configurations;c++)
            {
                // convert integer c into a bit-wise hidden representation
                int x=c;
                for (int i=0;i<hidden_layer->size;i++)
                {
                    h[i]= x & 1; // take least significant bit
                    x >>= 1; // and shift right (divide by 2)
                }
                connection->setAsUpInput(h);
                visible_layer->getAllActivations(connection,0,false);
                visible_layer->computeExpectation();
                visible_layer->accumulateNegStats(visible_layer->expectation);
                hidden_layer->accumulateNegStats(h);
                connection->accumulateNegStats(visible_layer->expectation,h);
            }
        }
        // update
        visible_layer->update();
        hidden_layer->update();
        connection->update();
    }
    if (cd_learning_rate > 0 && !minimize_log_likelihood) {
        EXTREME_MODULE_LOG << "Performing contrastive divergence step in RBM '"
                           << name << "'" << endl;
        // Perform a step of contrastive divergence.
        PLASSERT( visible && !visible->isEmpty() );
        setAllLearningRates(cd_learning_rate);
        Mat* negative_phase_visible_samples =
            compute_contrastive_divergence?ports_value[getPortIndex("negative_phase_visible_samples.state")]:0;
        const Mat* negative_phase_hidden_expectations =
            compute_contrastive_divergence ?
                ports_value[getPortIndex("negative_phase_hidden_expectations.state")]
                : NULL;
        Mat* negative_phase_hidden_activations =
            compute_contrastive_divergence ?
                ports_value[getPortIndex("negative_phase_hidden_activations.state")]
                : NULL;

        PLASSERT( visible && hidden );
        PLASSERT( !negative_phase_visible_samples ||
                  !negative_phase_visible_samples->isEmpty() );
        if (!negative_phase_visible_samples)
        {
            // Generate hidden samples.
            hidden_layer->setExpectations(*hidden);
            for( int i=0; i<n_Gibbs_steps_CD; i++)
            {
                hidden_layer->generateSamples();
                // (Negative phase) Generate visible samples.
                sampleVisibleGivenHidden(hidden_layer->samples);
                // compute corresponding hidden expectations.
                computeHiddenActivations(visible_layer->samples);
                hidden_layer->computeExpectations();
            }
            PLASSERT( !compute_contrastive_divergence );
            PLASSERT( !negative_phase_hidden_expectations );
            PLASSERT( !negative_phase_hidden_activations );
            negative_phase_hidden_expectations = &(hidden_layer->getExpectations());
            negative_phase_visible_samples = &(visible_layer->samples);
            negative_phase_hidden_activations = &(hidden_layer->activations);
        }
        PLASSERT( negative_phase_hidden_expectations &&
                  !negative_phase_hidden_expectations->isEmpty() );
        PLASSERT( negative_phase_hidden_activations &&
                  !negative_phase_hidden_activations->isEmpty() );

        // Perform update.
        visible_layer->update(*visible, *negative_phase_visible_samples);

        bool connection_update_is_done = false;
        if (compute_weights_grad) {
            // First resize the 'weights_grad' matrix.
            int up = connection->up_size;
            int down = connection->down_size;
            PLASSERT( weights && !weights->isEmpty() &&
                      weights_grad->width() == up * down );
            weights_grad->resize(mbs, up * down);

            if (standard_cd_weights_grad)
            {
                // Perform both computation of weights gradient and do update
                // at the same time.
                Mat wg;
                Vec vp, hp, vn, hn;
                for(int i=0; i<mbs; i++)
                {
                    vp = (*visible)(i);
                    hp = (*hidden)(i);
                    vn = (*negative_phase_visible_samples)(i);
                    hn = (*negative_phase_hidden_expectations)(i);
                    wg = Mat(up, down,(*weights_grad)(i));
                    connection->petiteCulotteOlivierCD(
                            vp, hp,
                            vn,
                            hn,
                            wg,
                            true);
                    connection_update_is_done = true;
                }
            }
        }
        if (!standard_cd_weights_grad || !standard_cd_grad) {
            // Compute 'true' gradient of contrastive divergence w.r.t.
            // the weights matrix.
            int up = connection->up_size;
            int down = connection->down_size;
            Mat* weights_g = weights_grad;
            if (!weights_g) {
                // We need to store the gradient in another matrix.
                store_weights_grad.resize(mbs, up * down);
                store_weights_grad.clear();
                weights_g = & store_weights_grad;
            }
            PLASSERT( connection->classname() == "RBMMatrixConnection" &&
                      visible_layer->classname() == "RBMBinomialLayer" &&
                      hidden_layer->classname() == "RBMBinomialLayer" );

            for (int k = 0; k < mbs; k++) {
                int idx = 0;
                for (int i = 0; i < up; i++) {
                    real p_i_p = (*hidden)(k, i);
                    real a_i_p = (*hidden_act)(k, i);
                    real p_i_n =
                        (*negative_phase_hidden_expectations)(k, i);
                    real a_i_n =
                        (*negative_phase_hidden_activations)(k, i);

                    real scale_p = 1 + (1 - p_i_p) * a_i_p;
                    real scale_n = 1 + (1 - p_i_n) * a_i_n;
                    for (int j = 0; j < down; j++, idx++) {
                        // Weight 'idx' is the (i,j)-th element in the
                        // 'weights' matrix.
                        real v_j_p = (*visible)(k, j);
                        real v_j_n =
                            (*negative_phase_visible_samples)(k, j);
                        (*weights_g)(k, idx) +=
                            p_i_n * v_j_n * scale_n     // Negative phase.
                            -(p_i_p * v_j_p * scale_p); // Positive phase.
                    }
                }
            }
            if (!standard_cd_grad) {
                // Update connection manually.
                Mat& weights = ((RBMMatrixConnection*)
                                get_pointer(connection))->weights;
                real lr = cd_learning_rate / mbs;
                for (int k = 0; k < mbs; k++) {
                    int idx = 0;
                    for (int i = 0; i < up; i++)
                        for (int j = 0; j < down; j++, idx++)
                            weights(i, j) -= lr * (*weights_g)(k, idx);
                }
                connection_update_is_done = true;
            }
        }
        if (!connection_update_is_done)
            // Perform standard update of the connection.
            connection->update(*visible, *hidden,
                    *negative_phase_visible_samples,
                    *negative_phase_hidden_expectations);

        Mat* hidden_bias_g = hidden_bias_grad;
        if (!standard_cd_grad && !hidden_bias_grad) {
            // We need to compute the CD gradient w.r.t. bias of hidden layer,
            // but there is no bias coming from the outside. Thus we need
            // another matrix to store this gradient.
            store_hidden_bias_grad.resize(mbs, hidden_layer->size);
            store_hidden_bias_grad.clear();
            hidden_bias_g = & store_hidden_bias_grad;
        }

        if (hidden_bias_g)
        {
            if (hidden_bias_g->isEmpty()) {
                PLASSERT(hidden_bias_g->width() == hidden_layer->size);
                hidden_bias_g->resize(mbs,hidden_layer->size);
            }
            PLASSERT_MSG( hidden_layer->classname() == "RBMBinomialLayer" &&
                          visible_layer->classname() == "RBMBinomialLayer",
                          "Only implemented for binomial layers" );
            // d(contrastive_divergence)/dhidden_bias
            for (int k = 0; k < hidden_bias_g->length(); k++) {
                for (int i = 0; i < hidden_bias_g->width(); i++) {
                    real p_i_p = (*hidden)(k, i);
                    real a_i_p = (*hidden_act)(k, i);
                    real p_i_n = (*negative_phase_hidden_expectations)(k, i);
                    real a_i_n = (*negative_phase_hidden_activations)(k, i);
                    (*hidden_bias_g)(k, i) +=
                        standard_cd_bias_grad ? p_i_n - p_i_p :
                        p_i_n * (1 - p_i_n) * a_i_n + p_i_n     // Neg. phase
                     -( p_i_p * (1 - p_i_p) * a_i_p + p_i_p );  // Pos. phase

                }
            }
        }

        if (standard_cd_grad) {
            hidden_layer->update(*hidden, *negative_phase_hidden_expectations);
        } else {
            PLASSERT( hidden_layer->classname() == "RBMBinomialLayer" );
            // Update hidden layer by hand.
            Vec& bias = hidden_layer->bias;
            real lr = cd_learning_rate / mbs;
            for (int i = 0; i < mbs; i++)
                bias -= lr * (*hidden_bias_g)(i);
        }


        partition_function_is_stale = true;
    } else {
        PLCHECK_MSG( !contrastive_divergence_grad ||
                     (!hidden_bias_grad && !weights_grad),
                "You currently cannot compute the "
                "gradient of contrastive divergence w.r.t. external ports "
                "when 'cd_learning_rate' is set to 0" );
    }

    if (reconstruction_error_grad && !reconstruction_error_grad->isEmpty()) {
        setAllLearningRates(grad_learning_rate);
        PLASSERT( reconstruction_connection != 0 );
        // Perform gradient descent on Autoassociator reconstruction cost
        Mat* visible_reconstruction = ports_value[getPortIndex("visible_reconstruction.state")];
        Mat* visible_reconstruction_activations = ports_value[getPortIndex("visible_reconstruction_activations.state")];
        Mat* reconstruction_error = ports_value[getPortIndex("reconstruction_error.state")];
        PLASSERT( hidden != 0 );
        PLASSERT( visible  && hidden_act &&
                  visible_reconstruction && visible_reconstruction_activations &&
                  reconstruction_error);
        //int mbs = reconstruction_error_grad->length();

        PLCHECK_MSG( !weights, "In KLp0p1RBMModule::bpropAccUpdate(): reconstruction cost "
                     "for conditional weights is not implemented");

        // Backprop reconstruction gradient

        // Must change visible_layer's expectation
        visible_layer->getExpectations() << *visible_reconstruction;
        visible_layer->bpropNLL(*visible,*reconstruction_error,
                                visible_act_grad);

        // Combine with incoming gradient
        PLASSERT( (*reconstruction_error_grad).width() == 1 );
        for (int t=0;t<mbs;t++)
            visible_act_grad(t) *= (*reconstruction_error_grad)(t,0);

        // Visible bias update
        columnMean(visible_act_grad, visible_bias_grad);
        visible_layer->update(visible_bias_grad);

        // Reconstruction connection update
        hidden_exp_grad.resize(mbs, hidden_layer->size);
        hidden_exp_grad.clear();
        hidden_exp_grad.resize(0, hidden_layer->size);

        TVec<Mat*> rec_ports_value(2);
        rec_ports_value[0] = visible_reconstruction_activations;
        rec_ports_value[1] = hidden;
        TVec<Mat*> rec_ports_gradient(2);
        rec_ports_gradient[0] = &visible_act_grad;
        rec_ports_gradient[1] = &hidden_exp_grad;

        reconstruction_connection->bpropAccUpdate( rec_ports_value,
                                                   rec_ports_gradient );

        // Hidden layer bias update
        hidden_layer->bpropUpdate(*hidden_act,
                                  *hidden, hidden_act_grad,
                                  hidden_exp_grad, false);
        if (hidden_bias_grad)
        {
            if (hidden_bias_grad->isEmpty()) {
                PLASSERT( hidden_bias_grad->width() == hidden_layer->size );
                hidden_bias_grad->resize(mbs,hidden_layer->size);
            }
            *hidden_bias_grad += hidden_act_grad;
        }
        // Connection update
        if(compute_visible_grad)
        {
            // The length of 'visible_grad' must be either 0 (if not computed
            // previously) or the size of the mini-batches (otherwise).
            PLASSERT( visible_grad->width() == visible_layer->size &&
                      visible_grad->length() == 0 ||
                      visible_grad->length() == mbs );
            visible_grad->resize(mbs, visible_grad->width());
            connection->bpropUpdate(
                *visible, *hidden_act,
                *visible_grad, hidden_act_grad, true);
        }
        else
        {
            visible_exp_grad.resize(mbs,visible_layer->size);
            connection->bpropUpdate(
                *visible, *hidden_act,
                visible_exp_grad, hidden_act_grad, true);
        }
        partition_function_is_stale = true;
    }

    // compute gradient of KLp0p1 cost, given visible input
    if (klp0p1_learning_rate>0 && visible && !visible->isEmpty())
    {
        // WE ASSUME THAT THIS BPROP IS CALLED JUST AFTER THE CORRESPONDING FPROP!!!
        // consequentely, we have
        //   * P(h_i=1|x^k) for each x^k in the training set, in hidden_layer->expectations
        //   * every h configuration in conf_hidden_layer->samples
        //   * P(visible_j=1|h) for each h configuration, in conf_visible_layer->expectations
        //   * x^t for every t in the input visible, in *visible
        //   * -log P1(x^t) for each input visible(t) in KLp0p1(t,0)
        //
        // Since C(x) = - log sum_h P(x|h) sum_k P(h|x^k), dC/dsum = -1/sum = -1/exp(-C)=-exp(C)
        // We want to compute
        //   dC(x)/dWij = (-exp(C(x)))
        //       sum_{k=1}^n sum_h P(x|h) P(h|x^k) (h_i(x_j - P(x_j=1|h)) + x_j^k(h_i - P(h_i=1|x^k)))
        //
        PLASSERT_MSG(KLp0p1 && !KLp0p1->isEmpty(), "Must compute KLp0p1 in order to compute its gradient, connect that port!");
        int mbs=visible->length();
        int n=training_set.length();
        PLASSERT(connection->classname()=="RBMMatrixConnection");
        PP<RBMMatrixConnection> matrix_connection = PP<RBMMatrixConnection>(connection);
        hidden_layer->setBatchSize(n);
        visible_layer->setBatchSize(n);
        Mat& W = /* weights ? *weights :*/ matrix_connection->weights;
        Vec& hidden_bias = hidden_layer->bias;
        Vec& visible_bias = visible_layer->bias;
        const Mat& X=visible_layer->getExpectations();
        int n_configurations = 1 << hidden_layer->size; // = 2^{hidden_layer->size}
        //real logn=safelog(n);
        // we only computed the activations in the fprop
        conf_visible_layer->computeExpectations();
        const Mat& pvisible_given_H = conf_visible_layer->getExpectations();
        const Mat& ph_given_X = hidden_layer->getExpectations();
        for (int t=0;t<mbs;t++)
        {
            Vec xt = (*visible)(t);
            for (int k=0;k<n;k++)
            {
                Vec ah_given_xk = hidden_layer->activations(k);
                Vec ph_given_xk = ph_given_X(k);
                Vec xk = X(k);
                for (int c=0;c<n_configurations;c++)
                {
                    Vec h = conf_hidden_layer->samples(c);
                    Vec avisible_given_h=conf_visible_layer->activations(c);
                    // KLp0p1(x) = -log p1(x) - logn
                    real lp = (*KLp0p1)(t,0); // lp = log (exp(C(x^t)))
                    // compute and multiply exp(lp) by P(h|x^k)
                    for (int i=0;i<hidden_layer->size;i++)
                    {
                        real act=ah_given_xk[i];
                        // note that log sigmoid(act) = -softplus(-act)
                        // and       log(1 - sigmoid(act)) = -act -softplus(-act)
                        // so h*log(sigmoid(act))+(1-h)*log(sigmoid(act)) = act*h-softplus(act)
                        lp += h[i]*act-softplus(act);
                    }
                    // now lp = log ( exp(C(x^t)) P(h|x^k) )

                    // compute and multiply by P(x^t|h)
                    for (int j=0;j<visible_layer->size;j++)
                    {
                        real act=avisible_given_h[j];
                        lp += act*xt[j] - softplus(act);
                    }
                    // now lp = log ( exp(C(x^t)) P(h|x^k)  P(x^t|h) )
                    real coeff = exp(lp);
                    Vec pvisible_given_h=pvisible_given_H(c);
                    for (int j=0;j<visible_layer->size;j++)
                    {
                        visible_bias[j] +=
                            klp0p1_learning_rate*coeff*(xt[j]-pvisible_given_h[j]);
                    }
                    for (int i=0;i<hidden_layer->size;i++)
                    {
                        hidden_bias[i] += klp0p1_learning_rate*coeff*(h[i]-ph_given_xk[i]);
                        for (int j=0;j<visible_layer->size;j++)
                        {
                            real grad = - coeff *
                                (  xk[j] * (h[i]  - ph_given_xk[i])
                                 + h[i]  * (xt[j] - pvisible_given_h[j]));

#if 0
                            if (compute_weights_grad) {
                                weights_grad->resize(mbs,
                                        weights_grad->width());
                                (*weights_grad)(0, i * visible_layer->size + j)
                                    += grad;
                            }
#else
                            W(i,j) -= klp0p1_learning_rate * grad;
#endif
                        }
                    }
                }
            }
        }
        hidden_layer->setBatchSize(mbs);
        visible_layer->setBatchSize(mbs);
    }

    // Explicit error message in the case of the 'visible' port.
    if (compute_visible_grad && visible_grad->isEmpty())
        PLERROR("In KLp0p1RBMModule::bpropAccUpdate - The gradient with respect "
                "to the 'visible' port was asked, but not computed");

    checkProp(ports_gradient);

    // Reset pointers to ensure we do not reuse them by mistake.
    hidden_act = NULL;
    weights = NULL;
    hidden_bias = NULL;
}

Here is the call graph for this function:

void PLearn::KLp0p1RBMModule::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 359 of file KLp0p1RBMModule.cc.

References PLearn::OnlineLearningModule::build(), and build_().

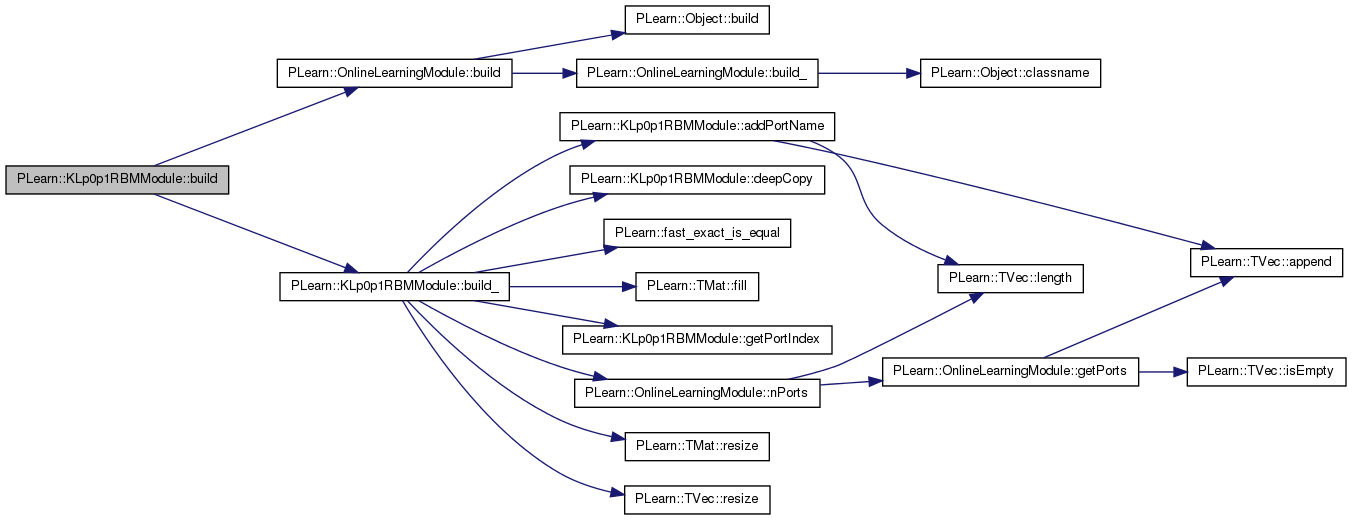

Here is the call graph for this function:

void PLearn::KLp0p1RBMModule::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 236 of file KLp0p1RBMModule.cc.

References addPortName(), cd_learning_rate, compute_contrastive_divergence, conf_hidden_layer, conf_visible_layer, connection, deepCopy(), PLearn::fast_exact_is_equal(), PLearn::TMat< T >::fill(), getPortIndex(), grad_learning_rate, hidden_layer, min_n_Gibbs_steps, n_Gibbs_steps_per_generated_sample, PLearn::OnlineLearningModule::nPorts(), PLASSERT, PLCHECK_MSG, PLWARNING, PLearn::OnlineLearningModule::port_sizes, portname_to_index, ports, PLearn::OnlineLearningModule::random_gen, reconstruction_connection, PLearn::TMat< T >::resize(), PLearn::TVec< T >::resize(), standard_cd_bias_grad, standard_cd_grad, visible_bias_grad, and visible_layer.

Referenced by build().

{
    PLASSERT( cd_learning_rate >= 0 && grad_learning_rate >= 0 );
    if(visible_layer)
        visible_bias_grad.resize(visible_layer->size);

    // copy layers to allow different storage of activations and samples
    // but keep the same parameters
    conf_visible_layer = PLearn::deepCopy(visible_layer);
    // (this pointing of bias would not suffice with RBMGaussianLayer, which has other params)
    conf_visible_layer->bias = visible_layer->bias;
    conf_hidden_layer = PLearn::deepCopy(hidden_layer);
    conf_hidden_layer->bias = hidden_layer->bias;


    // Forward random generator to underlying modules.
    if (random_gen) {
        if (hidden_layer && !hidden_layer->random_gen) {
            hidden_layer->random_gen = random_gen;
            hidden_layer->build();
            hidden_layer->forget();
        }
        if (visible_layer && !visible_layer->random_gen) {
            visible_layer->random_gen = random_gen;
            visible_layer->build();
            visible_layer->forget();
        }
        if (connection && !connection->random_gen) {
            connection->random_gen = random_gen;
            connection->build();
            connection->forget();
        }
        if (reconstruction_connection &&
                !reconstruction_connection->random_gen) {
            reconstruction_connection->random_gen = random_gen;
            reconstruction_connection->build();
            reconstruction_connection->forget();
        }
    }

    // buid ports and port_sizes

    ports.resize(0);
    portname_to_index.clear();
    addPortName("visible");
    addPortName("hidden.state");
    addPortName("hidden_activations.state");
    addPortName("visible_sample");
    addPortName("visible_expectation");
    addPortName("hidden_sample");
    addPortName("energy");
    addPortName("hidden_bias");
    addPortName("weights");
    addPortName("neg_log_likelihood");
    addPortName("KLp0p1");
    if(reconstruction_connection)
    {
        addPortName("visible_reconstruction.state");
        addPortName("visible_reconstruction_activations.state");
        addPortName("reconstruction_error.state");
    }
    if (compute_contrastive_divergence)
    {
        addPortName("contrastive_divergence");
        addPortName("negative_phase_visible_samples.state");
        addPortName("negative_phase_hidden_expectations.state");
        addPortName("negative_phase_hidden_activations.state");
    }

    port_sizes.resize(nPorts(), 2);
    port_sizes.fill(-1);
    if (visible_layer) {
        port_sizes(getPortIndex("visible"), 1) = visible_layer->size;
        port_sizes(getPortIndex("visible_sample"), 1) = visible_layer->size;
        port_sizes(getPortIndex("visible_expectation"), 1) = visible_layer->size;
    }
    if (hidden_layer) {
        port_sizes(getPortIndex("hidden.state"), 1) = hidden_layer->size;
        port_sizes(getPortIndex("hidden_activations.state"), 1) = hidden_layer->size;
        port_sizes(getPortIndex("hidden_sample"), 1) = hidden_layer->size;
        port_sizes(getPortIndex("hidden_bias"),1) = hidden_layer->size;
        if(visible_layer)
            port_sizes(getPortIndex("weights"),1) = hidden_layer->size * visible_layer->size;
    }
    port_sizes(getPortIndex("energy"),1) = 1;
    port_sizes(getPortIndex("neg_log_likelihood"),1) = 1;
    port_sizes(getPortIndex("KLp0p1"),1) = 1;
    if(reconstruction_connection)
    {
        if (visible_layer) {
            port_sizes(getPortIndex("visible_reconstruction.state"),1) =
                visible_layer->size;
            port_sizes(getPortIndex("visible_reconstruction_activations.state"),1) =
                       visible_layer->size;
        }
        port_sizes(getPortIndex("reconstruction_error.state"),1) = 1;
    }
    if (compute_contrastive_divergence)
    {
        port_sizes(getPortIndex("contrastive_divergence"),1) = 1;
        if (visible_layer)
            port_sizes(getPortIndex("negative_phase_visible_samples.state"),1) = visible_layer->size;
        if (hidden_layer)
            port_sizes(getPortIndex("negative_phase_hidden_expectations.state"),1) = hidden_layer->size;
        if (fast_exact_is_equal(cd_learning_rate, 0))
            PLWARNING("In KLp0p1RBMModule::build_ - Contrastive divergence is "
                    "computed but 'cd_learning_rate' is set to 0: no internal "
                    "update will be performed AND no contrastive divergence "
                    "gradient will be propagated.");
    }

    PLCHECK_MSG(!(!standard_cd_grad && standard_cd_bias_grad), "You cannot "
            "compute the standard CD gradient w.r.t. external hidden bias and "
            "use the 'true' CD gradient w.r.t. internal hidden bias");

    if (n_Gibbs_steps_per_generated_sample<0)
        n_Gibbs_steps_per_generated_sample = min_n_Gibbs_steps;

}

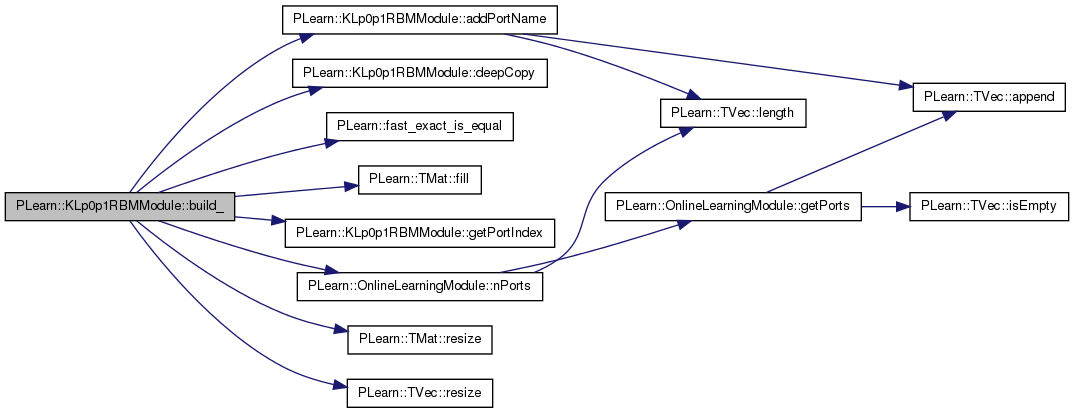

Here is the call graph for this function:

Here is the caller graph for this function:

string PLearn::KLp0p1RBMModule::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 70 of file KLp0p1RBMModule.cc.

void PLearn::KLp0p1RBMModule::computeEnergy ( const Mat visible,
const Mat hidden,
Mat energy,
bool  positive_phase = true
) [protected]

Compute energy of the joint (visible, hidden) configuration and store it in the 'energy' matrix.

The 'positive_phase' boolean is used to save computations when we know we are in the positive phase of fprop.

Definition at line 384 of file KLp0p1RBMModule.cc.

References computeHiddenActivations(), computePositivePhaseHiddenActivations(), PLearn::dot(), hidden_act, hidden_layer, i, PLearn::TMat< T >::length(), PLASSERT, PLearn::TMat< T >::resize(), and visible_layer.

Referenced by fprop().

{
    int mbs=hidden.length();
    energy.resize(mbs, 1);
    Mat* hidden_activations = NULL;
    if (positive_phase) {
        computePositivePhaseHiddenActivations(visible);
        hidden_activations = hidden_act;
    } else {
        computeHiddenActivations(visible);
        hidden_activations = & hidden_layer->activations;
    }
    PLASSERT( hidden_activations );
    for (int i=0;i<mbs;i++)
        energy(i,0) = visible_layer->energy(visible(i))
            - dot(hidden(i), (*hidden_activations)(i));
            // Why not: + hidden_layer->energy(hidden(i)) ?
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::KLp0p1RBMModule::computeFreeEnergyOfHidden ( const Mat hidden,
Mat energy
) [protected]

Compute free energy on the hidden layer and store it in the 'energy' matrix.

Definition at line 413 of file KLp0p1RBMModule.cc.

References computeVisibleActivations(), hidden_layer, i, PLearn::TMat< T >::isEmpty(), j, PLearn::TMat< T >::length(), PLASSERT, PLearn::TMat< T >::resize(), PLearn::softplus(), PLearn::tabulated_softplus(), PLearn::OnlineLearningModule::use_fast_approximations, visible_layer, and PLearn::TMat< T >::width().

Referenced by fprop().

{
    int mbs=hidden.length();
    if (energy.isEmpty())
        energy.resize(mbs,1);
    else {
        PLASSERT( energy.length() == mbs && energy.width() == 1 );
    }
    PLASSERT(visible_layer->classname()=="RBMBinomialLayer");
    computeVisibleActivations(hidden, false);
    for (int i=0;i<mbs;i++)
    {
        energy(i,0) = hidden_layer->energy(hidden(i));
        if (use_fast_approximations)
            for (int j=0;j<visible_layer->size;j++)
                energy(i,0) -= tabulated_softplus(visible_layer->activations(i,j));
        else
            for (int j=0;j<visible_layer->size;j++)
                energy(i,0) -= softplus(visible_layer->activations(i,j));
    }
}

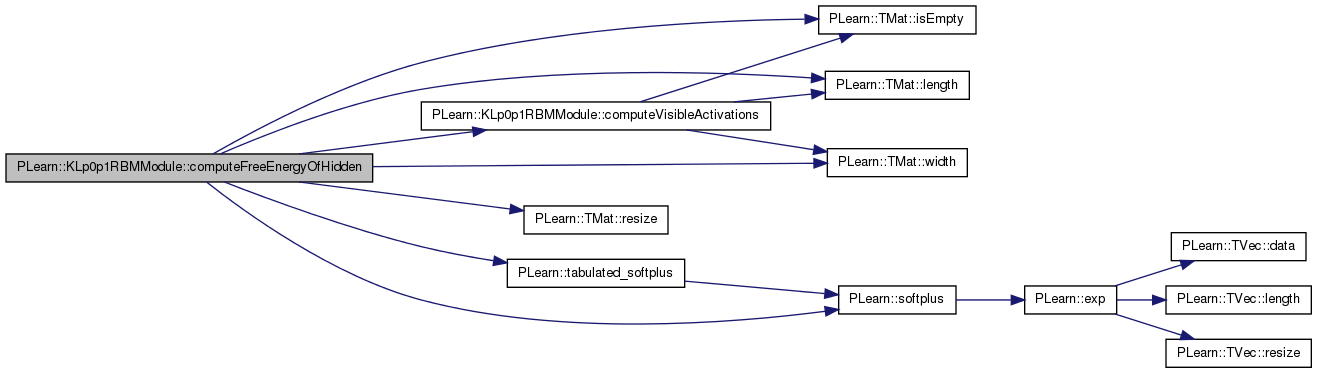

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::KLp0p1RBMModule::computeFreeEnergyOfVisible ( const Mat visible,
Mat energy,
bool  positive_phase = true
) [protected]

Compute free energy on the visible layer and store it in the 'energy' matrix.

The 'positive_phase' boolean is used to save computations when we know we are in the positive phase of fprop.

Definition at line 444 of file KLp0p1RBMModule.cc.

References computeHiddenActivations(), computePositivePhaseHiddenActivations(), hidden_act, hidden_layer, i, PLearn::TMat< T >::isEmpty(), j, PLearn::TMat< T >::length(), PLASSERT, PLearn::TMat< T >::resize(), PLearn::softplus(), PLearn::tabulated_softplus(), PLearn::OnlineLearningModule::use_fast_approximations, visible_layer, and PLearn::TMat< T >::width().

Referenced by fprop().

{
    int mbs=visible.length();
    if (energy.isEmpty())
        energy.resize(mbs,1);
    else {
        PLASSERT( energy.length() == mbs && energy.width() == 1 );
    }
    PLASSERT(hidden_layer->classname()=="RBMBinomialLayer");
    Mat* hidden_activations = NULL;
    if (positive_phase) {
        computePositivePhaseHiddenActivations(visible);
        hidden_activations = hidden_act;
    }
    else {
        computeHiddenActivations(visible);
        hidden_activations = & hidden_layer->activations;
    }
    PLASSERT( hidden_activations && hidden_activations->length() == mbs
            && hidden_activations->width() == hidden_layer->size );
    for (int i=0;i<mbs;i++)
    {
        energy(i,0) = visible_layer->energy(visible(i));
        if (use_fast_approximations)
            for (int j=0;j<hidden_layer->size;j++)
                energy(i,0) -= tabulated_softplus((*hidden_activations)(i,j));
        else
            for (int j=0;j<hidden_layer->size;j++)
                energy(i,0) -= softplus((*hidden_activations)(i,j));
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::KLp0p1RBMModule::computeHiddenActivations ( const Mat visible) [protected]

Compute activations on the hidden layer based on the provided visible input.

If 'hidden_bias' is not null nor empty, then it is used as an additional bias for hidden activations.

Definition at line 480 of file KLp0p1RBMModule.cc.

References connection, hidden_bias, hidden_layer, i, PLearn::TMat< T >::isEmpty(), PLearn::TMat< T >::length(), PLASSERT, weights, and PLearn::TMat< T >::width().

Referenced by bpropAccUpdate(), computeEnergy(), computeFreeEnergyOfVisible(), computePositivePhaseHiddenActivations(), fprop(), and sampleHiddenGivenVisible().

{
    if(weights && !weights->isEmpty())
    {
        Mat old_weights;
        Vec old_activation;
        connection->getAllWeights(old_weights);
        old_activation = hidden_layer->activation;
        int up = connection->up_size;
        int down = connection->down_size;
        PLASSERT( weights->width() == up * down  );
        hidden_layer->setBatchSize( visible.length() );
        for(int i=0; i<visible.length(); i++)
        {
            connection->setAllWeights(Mat(up, down, (*weights)(i)));
            connection->setAsDownInput(visible(i));
            hidden_layer->activation = hidden_layer->activations(i);
            hidden_layer->getAllActivations(connection, 0, false);
            if (hidden_bias && !hidden_bias->isEmpty())
                hidden_layer->activation += (*hidden_bias)(i);
        }
        connection->setAllWeights(old_weights);
        hidden_layer->activation = old_activation;
    }
    else
    {
        connection->setAsDownInputs(visible);
        hidden_layer->getAllActivations(connection, 0, true);
        if (hidden_bias && !hidden_bias->isEmpty())
            hidden_layer->activations += *hidden_bias;
    }
}

Here is the call graph for this function:

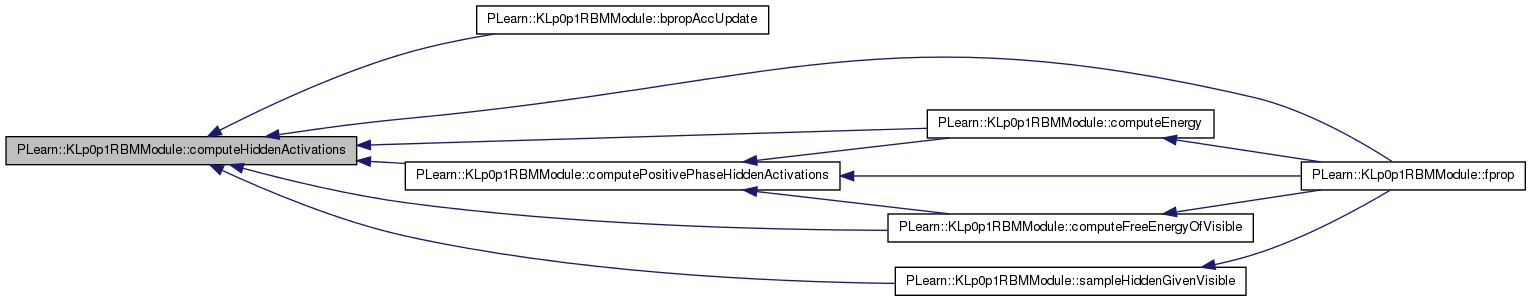

Here is the caller graph for this function:

void PLearn::KLp0p1RBMModule::computePositivePhaseHiddenActivations ( const Mat visible) [protected]

Compute activations on the hidden layer based on the provided visible input during positive phase.

This method is called to ensure hidden hidden activations are computed only once, and during a fprop it should always be called with the same 'visible' input. If 'hidden_act' is not null, it is filled with the computed hidden activations.

Definition at line 516 of file KLp0p1RBMModule.cc.

References computeHiddenActivations(), hidden_act, hidden_activations_are_computed, hidden_layer, PLearn::TMat< T >::isEmpty(), PLearn::TMat< T >::length(), PLASSERT, and PLearn::TMat< T >::resize().

Referenced by computeEnergy(), computeFreeEnergyOfVisible(), and fprop().

{
    if (hidden_activations_are_computed) {
        // Nothing to do.
        PLASSERT( !hidden_act || !hidden_act->isEmpty() );
        return;
    }
    computeHiddenActivations(visible);
    if (hidden_act && hidden_act->isEmpty())
    {
        hidden_act->resize(visible.length(),hidden_layer->size);
        *hidden_act << hidden_layer->activations;
    }
    hidden_activations_are_computed = true;
}

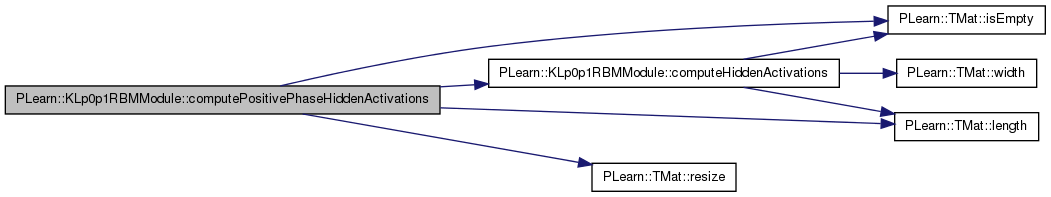

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::KLp0p1RBMModule::computeVisibleActivations ( const Mat hidden,
bool  using_reconstruction_connection = false
) [protected]

Compute activations on the visible layer.

If 'using_reconstruction_connection' is true, then we use the reconstruction connection to compute these activations. Otherwise, we use the normal connection, in a 'top->down' fashion.

Definition at line 535 of file KLp0p1RBMModule.cc.

References connection, i, PLearn::TMat< T >::isEmpty(), PLearn::TMat< T >::length(), PLASSERT, reconstruction_connection, visible_layer, weights, and PLearn::TMat< T >::width().

Referenced by computeFreeEnergyOfHidden(), fprop(), and sampleVisibleGivenHidden().

{
    if (using_reconstruction_connection)
    {
        PLASSERT( reconstruction_connection );
        reconstruction_connection->setAsUpInputs(hidden);
        visible_layer->getAllActivations(reconstruction_connection, 0, true);
    }
    else
    {
        if(weights && !weights->isEmpty())
        {
            PLASSERT( connection->classname() == "RBMMatrixConnection" );
            Mat old_weights;
            Vec old_activation;
            connection->getAllWeights(old_weights);
            old_activation = visible_layer->activation;
            int up = connection->up_size;
            int down = connection->down_size;
            PLASSERT( weights->width() == up * down  );
            visible_layer->setBatchSize( hidden.length() );
            for(int i=0; i<hidden.length(); i++)
            {
                connection->setAllWeights(Mat(up,down,(*weights)(i)));
                connection->setAsUpInput(hidden(i));
                visible_layer->activation = visible_layer->activations(i);
                visible_layer->getAllActivations(connection, 0, false);
            }
            connection->setAllWeights(old_weights);
            visible_layer->activation = old_activation;
        }
        else
        {
            connection->setAsUpInputs(hidden);
            visible_layer->getAllActivations(connection, 0, true);
        }
    }
}

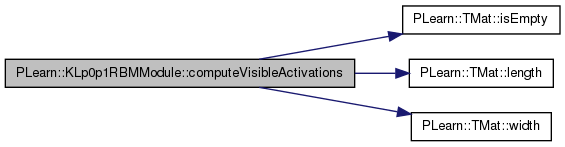

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::KLp0p1RBMModule::declareOptions ( OptionList ol) [static, protected]

Declares the class options.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 101 of file KLp0p1RBMModule.cc.

References PLearn::OptionBase::buildoption, cd_learning_rate, compute_contrastive_divergence, compute_log_likelihood, connection, PLearn::declareOption(), PLearn::OnlineLearningModule::declareOptions(), Gibbs_step, grad_learning_rate, hidden_layer, klp0p1_learning_rate, PLearn::OptionBase::learntoption, log_partition_function, min_n_Gibbs_steps, minimize_log_likelihood, n_Gibbs_steps_CD, n_Gibbs_steps_per_generated_sample, partition_function_is_stale, reconstruction_connection, standard_cd_bias_grad, standard_cd_grad, standard_cd_weights_grad, training_set, and visible_layer.

{
    declareOption(ol, "training_set", &KLp0p1RBMModule::training_set,
                  OptionBase::buildoption,
                  "VMatrix with one input example per row, the training set.");

    declareOption(ol, "visible_layer", &KLp0p1RBMModule::visible_layer,
                  OptionBase::buildoption,
        "Visible layer of the RBM.");

    declareOption(ol, "hidden_layer", &KLp0p1RBMModule::hidden_layer,
                  OptionBase::buildoption,
        "Hidden layer of the RBM.");

    declareOption(ol, "connection", &KLp0p1RBMModule::connection,
                  OptionBase::buildoption,
        "Connection between the visible and hidden layers.");

    declareOption(ol, "reconstruction_connection",
                  &KLp0p1RBMModule::reconstruction_connection,
                  OptionBase::buildoption,
        "Reconstuction connection between the hidden and visible layers.");

    declareOption(ol, "grad_learning_rate", &KLp0p1RBMModule::grad_learning_rate,
                  OptionBase::buildoption,
        "Learning rate for the gradient descent step.");

    declareOption(ol, "cd_learning_rate", &KLp0p1RBMModule::cd_learning_rate,
                  OptionBase::buildoption,
        "Learning rate for the constrastive divergence step. Note that when\n"
        "set to 0, the gradient of the contrastive divergence will not be\n"
        "computed at all.");

    declareOption(ol, "klp0p1_learning_rate", &KLp0p1RBMModule::klp0p1_learning_rate,
                  OptionBase::buildoption,
        "Learning rate for the KLp0p1 criterion update. If\n"
        "set to 0, the gradient of KLp0p1 (and corresponding update) will not be\n"
        "computed at all.");

    declareOption(ol, "compute_contrastive_divergence", &KLp0p1RBMModule::compute_contrastive_divergence,
                  OptionBase::buildoption,
        "Compute the constrastive divergence in an output port.");

    declareOption(ol, "standard_cd_grad",
                  &KLp0p1RBMModule::standard_cd_grad,
                  OptionBase::buildoption,
        "Whether to use the standard contrastive divergence gradient for\n"
        "updates, or the true gradient of the contrastive divergence. This\n"
        "affects only the gradient w.r.t. internal parameters of the layers\n"
        "and connections. Currently, this option works only with layers of\n"
        "the type 'RBMBinomialLayer', connected by a 'RBMMatrixConnection'.");

    declareOption(ol, "standard_cd_bias_grad",
                  &KLp0p1RBMModule::standard_cd_bias_grad,
                  OptionBase::buildoption,
        "This option is only used when biases of the hidden layer are given\n"
        "through the 'hidden_bias' port. When this is the case, the gradient\n"
        "of contrastive divergence w.r.t. these biases is either computed:\n"
        "- by the usual formula if 'standard_cd_bias_grad' is true\n"
        "- by the true gradient if 'standard_cd_bias_grad' is false.");

    declareOption(ol, "standard_cd_weights_grad",
                  &KLp0p1RBMModule::standard_cd_weights_grad,
                  OptionBase::buildoption,
        "This option is only used when weights of the connection are given\n"
        "through the 'weights' port. When this is the case, the gradient of\n"
        "contrastive divergence w.r.t. weights is either computed:\n"
        "- by the usual formula if 'standard_cd_weights_grad' is true\n"
        "- by the true gradient if 'standard_cd_weights_grad' is false.");

    declareOption(ol, "n_Gibbs_steps_CD",
                  &KLp0p1RBMModule::n_Gibbs_steps_CD,
                  OptionBase::buildoption,
                  "Number of Gibbs sampling steps in negative phase of "
                  "contrastive divergence.");

    declareOption(ol, "min_n_Gibbs_steps", &KLp0p1RBMModule::min_n_Gibbs_steps,
                  OptionBase::buildoption,
                  "Used in generative mode (when visible_sample or hidden_sample is requested)\n"
                  "when one has to sample from the joint or a marginal of visible and hidden,\n"
                  "and thus a Gibbs chain has to be run. This option gives the minimum number\n"
                  "of Gibbs steps to perform in the chain before outputting a sample.\n");

    declareOption(ol, "n_Gibbs_steps_per_generated_sample",
                  &KLp0p1RBMModule::n_Gibbs_steps_per_generated_sample,
                  OptionBase::buildoption,
                  "Used in generative mode (when visible_sample or hidden_sample is requested)\n"
                  "when one has to sample from the joint or a marginal of visible and hidden,\n"
                  "This option gives the number of steps to run in the Gibbs chain between\n"
                  "consecutive generated samples that are produced in output of the fprop method.\n"
                  "By default this is equal to min_n_Gibbs_steps.\n");

    declareOption(ol, "compute_log_likelihood",
                  &KLp0p1RBMModule::compute_log_likelihood,
                  OptionBase::buildoption,
                  "Whether to compute the exact RBM generative model's log-likelihood\n"
                  "(on the neg_log_likelihood port). If false then the neg_log_likelihood\n"
                  "port just computes the input visible's free energy.\n");

    declareOption(ol, "minimize_log_likelihood",
                  &KLp0p1RBMModule::minimize_log_likelihood,
                  OptionBase::buildoption,
                  "Whether to minimize the exact RBM generative model's log-likelihood\n"
                  "i.e. take stochastic gradient steps w.r.t. the log-likelihood instead\n"
                  "of w.r.t. the contrastive divergence.\n");

    declareOption(ol, "Gibbs_step",
                  &KLp0p1RBMModule::Gibbs_step,
                  OptionBase::learntoption,
                  "Used in generative mode (when visible_sample or hidden_sample is requested)\n"
                  "when one has to sample from the joint or a marginal of visible and hidden,\n"
                  "Keeps track of the number of steps that have been run since the beginning\n"
                  "of the chain.\n");

    declareOption(ol, "log_partition_function",
                  &KLp0p1RBMModule::log_partition_function,
                  OptionBase::learntoption,
                  "log(Z) = log(sum_{h,x} exp(-energy(h,x))\n"
                  "only computed if compute_log_likelihood is true and\n"
                  "the neg_log_likelihood port is requested.\n");

    declareOption(ol, "partition_function_is_stale",
                  &KLp0p1RBMModule::partition_function_is_stale,
                  OptionBase::learntoption,
                  "Whether parameters have changed since the last computation\n"
                  "of the log_partition_function (to know if it should be recomputed\n"
                  "when the neg_log_likelihood port is requested.\n");

    // Now call the parent class' declareOptions
    inherited::declareOptions(ol);
}

Here is the call graph for this function:

static const PPath& PLearn::KLp0p1RBMModule::declaringFile ( ) [inline, static]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 216 of file KLp0p1RBMModule.h.

:

KLp0p1RBMModule * PLearn::KLp0p1RBMModule::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 70 of file KLp0p1RBMModule.cc.

Referenced by build_().

Here is the caller graph for this function:

void PLearn::KLp0p1RBMModule::forget ( ) [virtual]

Reset the parameters to the state they would be BEFORE starting training.

Note that this method is necessarily called from build().

Implements PLearn::OnlineLearningModule.

Definition at line 1830 of file KLp0p1RBMModule.cc.

References connection, PLearn::endl(), hidden_layer, PLearn::OnlineLearningModule::name, PLASSERT, reconstruction_connection, and visible_layer.

{
    DBG_MODULE_LOG << "Forgetting KLp0p1RBMModule '" << name << "'" << endl;
    PLASSERT( hidden_layer && visible_layer && connection );
    hidden_layer->forget();
    visible_layer->forget();
    connection->forget();
    if (reconstruction_connection)
        reconstruction_connection->forget();
}

Here is the call graph for this function:

void PLearn::KLp0p1RBMModule::fprop ( const TVec< Mat * > &  ports_value) [virtual]

Overridden.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 611 of file KLp0p1RBMModule.cc.

References c, PLearn::OnlineLearningModule::checkProp(), PLearn::TMat< T >::clear(), compute_contrastive_divergence, compute_log_likelihood, computeEnergy(), computeFreeEnergyOfHidden(), computeFreeEnergyOfVisible(), computeHiddenActivations(), computePositivePhaseHiddenActivations(), computeVisibleActivations(), conf_hidden_layer, conf_visible_layer, connection, PLearn::dot(), PLearn::OnlineLearningModule::during_training, PLearn::endl(), energy_inputs, PLearn::exp(), getPortIndex(), Gibbs_step, hidden_act, hidden_act_store, hidden_activations_are_computed, hidden_bias, hidden_exp_store, hidden_layer, i, if(), PLearn::TMat< T >::isEmpty(), PLearn::VMat::length(), PLearn::TMat< T >::length(), PLearn::TVec< T >::length(), log_partition_function, PLearn::logadd(), PLearn::max(), min_n_Gibbs_steps, N, n, n_Gibbs_steps_CD, n_Gibbs_steps_per_generated_sample, PLearn::OnlineLearningModule::name, PLearn::OnlineLearningModule::nPorts(), partition_function_is_stale, PLASSERT, PLASSERT_MSG, PLCHECK_MSG, PLERROR, PLWARNING, PLearn::pout, reconstruction_connection, PLearn::TMat< T >::resize(), sampleHiddenGivenVisible(), sampleVisibleGivenHidden(), PLearn::softplus(), training_set, visible_layer, weights, PLearn::TMat< T >::width(), and x.

{

    PLASSERT( ports_value.length() == nPorts() );
    PLASSERT( visible_layer );
    PLASSERT( hidden_layer );
    PLASSERT( connection );

    Mat* visible = ports_value[getPortIndex("visible")];
    Mat* hidden = ports_value[getPortIndex("hidden.state")];
    hidden_act = ports_value[getPortIndex("hidden_activations.state")];
    Mat* visible_sample = ports_value[getPortIndex("visible_sample")];
    Mat* visible_expectation = ports_value[getPortIndex("visible_expectation")];
    Mat* hidden_sample = ports_value[getPortIndex("hidden_sample")];
    Mat* energy = ports_value[getPortIndex("energy")];
    Mat* neg_log_likelihood = ports_value[getPortIndex("neg_log_likelihood")];
    Mat* KLp0p1 = ports_value[getPortIndex("KLp0p1")];
    hidden_bias = ports_value[getPortIndex("hidden_bias")];
    weights = ports_value[getPortIndex("weights")];
    Mat* visible_reconstruction = 0;
    Mat* visible_reconstruction_activations = 0;
    Mat* reconstruction_error = 0;
    if(reconstruction_connection)
    {
        visible_reconstruction =
            ports_value[getPortIndex("visible_reconstruction.state")];
        visible_reconstruction_activations =
            ports_value[getPortIndex("visible_reconstruction_activations.state")];
        reconstruction_error =
            ports_value[getPortIndex("reconstruction_error.state")];
    }
    Mat* contrastive_divergence = 0;
    Mat* negative_phase_visible_samples = 0;
    Mat* negative_phase_hidden_expectations = 0;
    Mat* negative_phase_hidden_activations = NULL;
    if (compute_contrastive_divergence)
    {
        contrastive_divergence = ports_value[getPortIndex("contrastive_divergence")];
        if (!contrastive_divergence || !contrastive_divergence->isEmpty())
            PLERROR("In KLp0p1RBMModule::fprop - When option "
                    "'compute_contrastive_divergence' is 'true', the "
                    "'contrastive_divergence' port should be provided, as an "
                    "output.");
        negative_phase_visible_samples =
            ports_value[getPortIndex("negative_phase_visible_samples.state")];
        negative_phase_hidden_expectations =
            ports_value[getPortIndex("negative_phase_hidden_expectations.state")];
        negative_phase_hidden_activations =
            ports_value[getPortIndex("negative_phase_hidden_activations.state")];
    }

    bool hidden_expectations_are_computed = false;
    hidden_activations_are_computed = false;
    bool found_a_valid_configuration = false;

    if (visible && !visible->isEmpty())
    {
        // When an input is provided, that would restart the chain for
        // unconditional sampling, from that example.
        Gibbs_step = 0;
        visible_layer->samples.resize(visible->length(),visible->width());
        visible_layer->samples << *visible;
    }

    // COMPUTE ENERGY
    if (energy)
    {
        PLASSERT_MSG( energy->isEmpty(),
                      "KLp0p1RBMModule: the energy port can only be an output port\n" );
        if (visible && !visible->isEmpty()
            && hidden && !hidden->isEmpty())
        {
            computeEnergy(*visible, *hidden, *energy);
        }
        else if (visible && !visible->isEmpty())
        {
            computeFreeEnergyOfVisible(*visible,*energy);
        }
        else if (hidden && !hidden->isEmpty())
        {
            computeFreeEnergyOfHidden(*hidden,*energy);
        }
        else
        {
            PLERROR("KLp0p1RBMModule: unknown configuration to compute energy (currently\n"
                    "only possible if at least visible or hidden are provided).\n");
        }
        found_a_valid_configuration = true;
    }
    // COMPUTE NLL
    if (neg_log_likelihood && neg_log_likelihood->isEmpty() && compute_log_likelihood)
    {
        if (partition_function_is_stale && !during_training)
        {
            PLASSERT_MSG(hidden_layer->size<32 || visible_layer->size<32,
                         "To compute exact log-likelihood of an RBM, hidden_layer->size "
                         "or visible_layer->size must be <32");
            // recompute partition function
            if (hidden_layer->size > visible_layer->size)
                // do it by log-summing minus-free-energy of visible configurations
            {
                PLASSERT(visible_layer->classname()=="RBMBinomialLayer");
                // assuming a binary input we sum over all bit configurations
                int n_configurations = 1 << visible_layer->size; // = 2^{visible_layer->size}
                energy_inputs.resize(1, visible_layer->size);
                Vec input = energy_inputs(0);
                // COULD BE DONE MORE EFFICIENTLY BY DOING MANY CONFIGURATIONS
                // AT ONCE IN A 'MINIBATCH'
                Mat free_energy(1, 1);
                log_partition_function = 0;
                for (int c=0;c<n_configurations;c++)
                {
                    // convert integer c into a bit-wise visible representation
                    int x=c;
                    for (int i=0;i<visible_layer->size;i++)
                    {
                        input[i]= x & 1; // take least significant bit
                        x >>= 1; // and shift right (divide by 2)
                    }
                    computeFreeEnergyOfVisible(energy_inputs,free_energy,false);
                    if (c==0)
                        log_partition_function = -free_energy(0,0);
                    else
                        log_partition_function = logadd(log_partition_function,-free_energy(0,0));
                }
            }
            else
                // do it by summing free-energy of hidden configurations
            {
                PLASSERT(hidden_layer->classname()=="RBMBinomialLayer");
                // assuming a binary hidden we sum over all bit configurations
                int n_configurations = 1 << hidden_layer->size; // = 2^{hidden_layer->size}
                energy_inputs.resize(1, hidden_layer->size);
                Vec input = energy_inputs(0);
                // COULD BE DONE MORE EFFICIENTLY BY DOING MANY CONFIGURATIONS
                // AT ONCE IN A 'MINIBATCH'
                Mat free_energy(1,1);
                log_partition_function = 0;
                for (int c=0;c<n_configurations;c++)
                {
                    // convert integer c into a bit-wise hidden representation
                    int x=c;
                    for (int i=0;i<hidden_layer->size;i++)
                    {
                        input[i]= x & 1; // take least significant bit
                        x >>= 1; // and shift right (divide by 2)
                    }
                    computeFreeEnergyOfHidden(energy_inputs, free_energy);
                    if (c==0)
                        log_partition_function = -free_energy(0,0);
                    else
                        log_partition_function = logadd(log_partition_function,-free_energy(0,0));
                }
            }
            partition_function_is_stale=false;
        }
        if (visible && !visible->isEmpty()
            && hidden && !hidden->isEmpty())
        {
            // neg-log-likelihood(visible,hidden) = energy(visible,visible) + log(partition_function)
            computeEnergy(*visible,*hidden,*neg_log_likelihood);
            *neg_log_likelihood += log_partition_function;
        }
        else if (visible && !visible->isEmpty())
        {
            // neg-log-likelihood(visible) = free_energy(visible) + log(partition_function)
            computeFreeEnergyOfVisible(*visible,*neg_log_likelihood);
            *neg_log_likelihood += log_partition_function;
        }
        else if (hidden && !hidden->isEmpty())
        {
            // neg-log-likelihood(hidden) = free_energy(hidden) + log(partition_function)
            computeFreeEnergyOfHidden(*hidden,*neg_log_likelihood);
            *neg_log_likelihood += log_partition_function;
        }
        else PLERROR("RBMModule: neg_log_likelihood currently computable only of the visible as inputs");
    }

    // REGULAR FPROP
    // we are given the visible units and we want to compute the hidden
    // activation and/or the hidden expectation
    if ( visible && !visible->isEmpty() &&
         ((hidden && hidden->isEmpty() ) ||
          (hidden_act && hidden_act->isEmpty())) )
    {
        computePositivePhaseHiddenActivations(*visible);
        if (hidden) {
            PLASSERT( hidden->isEmpty() );
            PLCHECK_MSG( !hidden_layer->expectations_are_up_to_date, "Safety "
                    "check: how were expectations computed previously?" );
            hidden_layer->computeExpectations();
            hidden_expectations_are_computed=true;
            const Mat& hidden_out = hidden_layer->getExpectations();
            hidden->resize(hidden_out.length(), hidden_out.width());
            *hidden << hidden_out;
        }
        // Since we return below, the other ports must be unused.
        //PLASSERT( !visible_sample && !hidden_sample );
        found_a_valid_configuration = true;
    }

    // COMPUTE AUTOASSOCIATOR RECONSTRUCTION ERROR
    if ( visible && !visible->isEmpty() &&
         ( ( visible_reconstruction && visible_reconstruction->isEmpty() ) ||
           ( visible_reconstruction_activations &&
             visible_reconstruction_activations->isEmpty() ) ||
           ( reconstruction_error && reconstruction_error->isEmpty() ) ) )
    {
        // Autoassociator reconstruction cost
        PLASSERT( ports_value.length() == nPorts() );

        // if hidden is provided, condition on it rather than
        // use the P(h|visible) as hidden.
        Mat h;
        if (hidden && !hidden->isEmpty())
            h = *hidden;
        else {
            if(!hidden_expectations_are_computed)
            {
                computePositivePhaseHiddenActivations(*visible);
                hidden_layer->computeExpectations();
                hidden_expectations_are_computed=true;
            }
            h = hidden_layer->getExpectations();
        }

        // Don't need to verify if they are asked in a port, this was done previously

        computeVisibleActivations(h, true);
        if(visible_reconstruction_activations)
        {
            PLASSERT( visible_reconstruction_activations->isEmpty() );
            const Mat& to_store = visible_layer->activations;
            visible_reconstruction_activations->resize(to_store.length(),
                                                       to_store.width());
            *visible_reconstruction_activations << to_store;
        }
        if (visible_reconstruction || reconstruction_error)
        {
            visible_layer->computeExpectations();
            if(visible_reconstruction)
            {
                PLASSERT( visible_reconstruction->isEmpty() );
                const Mat& to_store = visible_layer->getExpectations();
                visible_reconstruction->resize(to_store.length(),
                                               to_store.width());
                *visible_reconstruction << to_store;
            }
            if(reconstruction_error)
            {
                PLASSERT( reconstruction_error->isEmpty() );
                reconstruction_error->resize(visible->length(),1);
                visible_layer->fpropNLL(*visible,
                                        *reconstruction_error);
            }
        }
        found_a_valid_configuration = true;
    }
    // COMPUTE VISIBLE GIVEN HIDDEN
    else if ( visible_reconstruction && visible_reconstruction->isEmpty()
         && hidden && !hidden->isEmpty())
    {
        // Don't need to verify if they are asked in a port, this was done previously
        computeVisibleActivations(*hidden,true);
        if(visible_reconstruction_activations)
        {
            PLASSERT( visible_reconstruction_activations->isEmpty() );
            const Mat& to_store = visible_layer->activations;
            visible_reconstruction_activations->resize(to_store.length(),
                                                       to_store.width());
            *visible_reconstruction_activations << to_store;
        }
        visible_layer->computeExpectations();
        PLASSERT( visible_reconstruction->isEmpty() );
        const Mat& to_store = visible_layer->getExpectations();
        visible_reconstruction->resize(to_store.length(),
                                       to_store.width());
        *visible_reconstruction << to_store;
        found_a_valid_configuration = true;
    }

    // compute KLp0p1 cost, given visible input
    if (KLp0p1 && KLp0p1->isEmpty() && visible && !visible->isEmpty())
    {
        int mbs=visible->length();
        KLp0p1->resize(mbs,1);
        KLp0p1->clear();
#if 0
        if (!training_set) {
            training_set = new AutoVMatrix("/u/delallea/tmp/kl/data.amat");
        } else
#else
            PLASSERT_MSG(training_set,"KLp0p1RBMModule: training_set must be provided");
#endif
        int n=training_set.length();
        PLASSERT_MSG(n>0,"KLp0p1RBMModule: training_set must have n>0 rows");

        // compute all P(hidden_i=1|x^k) for all x^k in training set
        hidden_layer->setBatchSize(n);
        visible_layer->setBatchSize(n);
        const Mat& ha=hidden_layer->activations;
        const Mat& X=visible_layer->getExpectations();
        training_set->getMat(0,0,X);
        PP<RBMMatrixConnection> matrix_connection = NULL;
#if 0
        if (weights) {
            matrix_connection = PP<RBMMatrixConnection>(connection);
            matrix_connection->weights << (*weights)(0);
            pout << "Weights: " << endl << matrix_connection->weights << endl;
        }
#endif
        connection->setAsDownInputs(visible_layer->getExpectations());
        hidden_layer->getAllActivations(connection,0,true);
        hidden_layer->computeExpectations();

        PLASSERT_MSG(hidden_layer->size<32,"To compute KLp0p1 of an RBM, hidden_layer->size must be <32");
        PLASSERT(hidden_layer->classname()=="RBMBinomialLayer");
        //real logn=safelog((real)n);
        // assuming a binary hidden we sum over all bit configurations
        int n_configurations = 1 << hidden_layer->size; // = 2^{hidden_layer->size}
        // put all h configurations in the hidden_layer->samples
        conf_hidden_layer->setBatchSize(n_configurations);
        conf_visible_layer->setBatchSize(n_configurations);
        for (int c=0;c<n_configurations;c++)
        {
            // convert integer c into a bit-wise hidden representation
            int N=c;
            for (int i=0;i<hidden_layer->size;i++)
            {
                conf_hidden_layer->samples(c,i)= N & 1; // take least significant bit
                N >>= 1; // and shift right (divide by 2)
            }
        }
        // compute all P(visible_i=1|h) for each h configuration
        connection->setAsUpInputs(conf_hidden_layer->samples);
        conf_visible_layer->getAllActivations(connection,0,true);

        //Vec check_sum_to_one(n);

        for (int c=0;c<n_configurations;c++)
        {
            // KL(p0|p1) = sum_t (1/n) log ((1/n) / p1(x_t)) = (1/n) sum_t C(x_t)
            //  p1(x) = sum_k (1/n) sum_h P(x|h) P(h|x_k)
            //  C(x) =  -log p1(x) - log n
            //       =  log n - log sum_{k=1}^n sum_h P(x|h) P(h|x^k)  - log n
            //       =  - log sum_h P(x|h) sum_k P(h|x^k)

            real log_sum_ph_given_xk = 0;
            Vec h = conf_hidden_layer->samples(c);
            for (int k=0;k<n;k++)
            {
                real lp=0;
                for (int i=0;i<hidden_layer->size;i++)
                {
                    real act=ha(k,i);
                    // note that log sigmoid(act) = -softplus(-act)
                    // and       log(1 - sigmoid(act)) = -act -softplus(-act)
                    // and  h log(sigm(act))+(1-h)log(1-sigm(act)) = act*h-softplus(act)
                    lp += h[i]*act-softplus(act);
                }
#if 0
                if (c==0)
                    check_sum_to_one[k]=lp;
                else
                    check_sum_to_one[k]=logadd(check_sum_to_one[k],lp);
#endif
                // now lp = log P(h|x^k)
                if (k==0)
                    log_sum_ph_given_xk = lp;
                else
                    log_sum_ph_given_xk = logadd(log_sum_ph_given_xk,lp);
            }
            // now log_sum_ph_given_xk = log sum_k P(h|x^k)
            conf_visible_layer->activation << conf_visible_layer->activations(c);
            //real log_sum_p_xt = 0;
            for (int t=0;t<mbs;t++)
            {
                real log_p_xt = -conf_visible_layer->fpropNLL((*visible)(t));
                //if (t==0) // check if sum_xt p(xt|h) = 1 (when testing with the full set of possible inputs)
                //    log_sum_p_xt = log_p_xt;
                //else
                //    log_sum_p_xt = logadd(log_sum_p_xt,log_p_xt);
                if (c==0) // at this point we accumulate log sum_h P(x_t|h) sum_k P(h|x_k) in KLp0p1
                    (*KLp0p1)(t,0) = log_p_xt + log_sum_ph_given_xk;
                else {
                    (*KLp0p1)(t,0) = logadd((*KLp0p1)(t,0), log_p_xt + log_sum_ph_given_xk);
                    //if ((*KLp0p1)(t,0) > 0)
                    // PLWARNING("KLp0p1: training example %d is getting mass > 1/n! KL=%g after getting to configuration %d",t,(double)(*KLp0p1)(t,0),c);
                }
            }
            //if (!during_training)
            //    cout << "sum_t(p(x_t|h)) = " << exp(log_sum_p_xt) << endl;
        }
#if 0
        for (int k=0;k<n;k++)
        {
            real p_k=exp(check_sum_to_one[k]);
            if (fabs(p_k-1)>1e-6)
                PLWARNING("Probabilities that do not sum to 1!");
        }
#endif
        *KLp0p1 *= -1;
#if 0
        if (!during_training)
        {
            real sum_pxt=0;
            for (int t=0;t<mbs;t++)
            {
                sum_pxt += exp(-(*KLp0p1)(t,0) -logn);
                if ((*KLp0p1)(t,0) < 0)
                    PLWARNING("KLp0p1: training example %d is getting mass = %g > 1/n!",t,(double)exp(-(*KLp0p1)(t,0)-logn));
            }
            cout << "sum_t p1(x_t) = " << sum_pxt << endl;
        }
#endif
        hidden_layer->setBatchSize(mbs);
        visible_layer->setBatchSize(mbs);
    }

    // SAMPLING
    if ((visible_sample && visible_sample->isEmpty())               // is asked to sample visible units (discrete)
        || (visible_expectation && visible_expectation->isEmpty())  //              "                   (continous)
        || (hidden_sample && hidden_sample->isEmpty()))             // or to sample hidden units
    {
        if (hidden_sample && !hidden_sample->isEmpty()) // sample visible conditionally on hidden
        {
            sampleVisibleGivenHidden(*hidden_sample);
            Gibbs_step=0;
            //cout << "sampling visible from hidden" << endl;
        }
        else if (visible_sample && !visible_sample->isEmpty()) // if an input is provided, sample hidden conditionally
        {
            sampleHiddenGivenVisible(*visible_sample);
            hidden_activations_are_computed = false;
            Gibbs_step=0;
            //cout << "sampling hidden from visible" << endl;
        }
        else if (visible_expectation && !visible_expectation->isEmpty())
        {
             PLERROR("In KLp0p1RBMModule::fprop visible_expectation can only be an output port (use visible as input port");
        }
        else // sample unconditionally: Gibbs sample after k steps
        {
            // the visible_layer->expectations contain the "state" from which we
            // start or continue the chain
            if (visible_layer->samples.isEmpty())
            {
                if (visible && !visible->isEmpty())
                    visible_layer->samples << *visible;
                else if (!visible_layer->getExpectations().isEmpty())
                    visible_layer->samples << visible_layer->getExpectations();
                else if (!hidden_layer->samples.isEmpty())
                    sampleVisibleGivenHidden(hidden_layer->samples);
                else if (!hidden_layer->getExpectations().isEmpty())
                    sampleVisibleGivenHidden(hidden_layer->getExpectations());
            }
            int min_n = max(Gibbs_step+n_Gibbs_steps_per_generated_sample,
                            min_n_Gibbs_steps);
            //cout << "Gibbs sampling " << Gibbs_step+1;
            for (;Gibbs_step<min_n;Gibbs_step++)
            {
                sampleHiddenGivenVisible(visible_layer->samples);
                sampleVisibleGivenHidden(hidden_layer->samples);
            }
            hidden_activations_are_computed = false;
            //cout << " -> " << Gibbs_step << endl;
        }

        if ( hidden && hidden->isEmpty())   // fill hidden.state with expectations
        {
              const Mat& hidden_expect = hidden_layer->getExpectations();
              hidden->resize(hidden_expect.length(), hidden_expect.width());
              *hidden << hidden_expect;
        }
        if (visible_sample && visible_sample->isEmpty()) // provide sample of the visible units
        {
            visible_sample->resize(visible_layer->samples.length(),
                                   visible_layer->samples.width());
            *visible_sample << visible_layer->samples;
        }
        if (hidden_sample && hidden_sample->isEmpty()) // provide sample of the hidden units
        {
            hidden_sample->resize(hidden_layer->samples.length(),
                                  hidden_layer->samples.width());
            *hidden_sample << hidden_layer->samples;
        }
        if (visible_expectation && visible_expectation->isEmpty()) // provide expectation of the visible units
        {
            const Mat& to_store = visible_layer->getExpectations();
            visible_expectation->resize(to_store.length(),
                                        to_store.width());
            *visible_expectation << to_store;
        }
        if (hidden && hidden->isEmpty())
        {
            hidden->resize(hidden_layer->samples.length(),
                           hidden_layer->samples.width());
            *hidden << hidden_layer->samples;
        }
        if (hidden_act && hidden_act->isEmpty())
        {
            hidden_act->resize(hidden_layer->samples.length(),
                               hidden_layer->samples.width());
            *hidden_act << hidden_layer->getExpectations();
        }
        found_a_valid_configuration = true;
    }// END SAMPLING

    // COMPUTE CONTRASTIVE DIVERGENCE CRITERION
    if (contrastive_divergence)
    {
        PLASSERT_MSG( contrastive_divergence->isEmpty(),
                      "KLp0p1RBMModule: the contrastive_divergence port can only be an output port\n" );
        if (visible && !visible->isEmpty())
        {
            int mbs = visible->length();
            const Mat& hidden_expectations = hidden_layer->getExpectations();
            Mat* h=0;
            Mat* h_act=0;
            if (!hidden_activations_are_computed) // it must be because neither hidden nor hidden_act were asked
            {
                PLASSERT(!hidden_act);
                computePositivePhaseHiddenActivations(*visible);

                // we need to save the hidden activations somewhere
                hidden_act_store.resize(mbs,hidden_layer->size);
                hidden_act_store << hidden_layer->activations;
                h_act = &hidden_act_store;
            }
            else
            {
                // hidden_act must have been computed above if they were requested on port
                PLASSERT(hidden_act && !hidden_act->isEmpty());
                h_act = hidden_act;
            }
            if (!hidden_expectations_are_computed) // it must be because hidden outputs were not asked
            {
                PLASSERT(!hidden);
                hidden_layer->computeExpectations();
                hidden_expectations_are_computed=true;
                // we need to save the hidden expectations somewhere
                hidden_exp_store.resize(mbs,hidden_layer->size);
                hidden_exp_store << hidden_expectations;
                h = &hidden_exp_store;
            }
            else
            {
                // hidden exp. must have been computed above if they were requested on port
                PLASSERT(hidden && !hidden->isEmpty());
                h = hidden;
            }
            // perform negative phase
            for( int i=0; i<n_Gibbs_steps_CD; i++)
            {
                hidden_layer->generateSamples();
                // (Negative phase) Generate visible samples.
                sampleVisibleGivenHidden(hidden_layer->samples);
                // compute corresponding hidden expectations.
                computeHiddenActivations(visible_layer->samples);
                hidden_activations_are_computed = false;
                hidden_layer->computeExpectations();
            }
            PLASSERT(negative_phase_visible_samples);
            PLASSERT(negative_phase_hidden_expectations &&
                     negative_phase_hidden_expectations->isEmpty());
            PLASSERT(negative_phase_hidden_activations &&
                     negative_phase_hidden_activations->isEmpty());
            negative_phase_visible_samples->resize(mbs,visible_layer->size);
            *negative_phase_visible_samples << visible_layer->samples;
            negative_phase_hidden_expectations->resize(hidden_expectations.length(),
                                                       hidden_expectations.width());
            *negative_phase_hidden_expectations << hidden_expectations;
            const Mat& neg_hidden_act = hidden_layer->activations;
            negative_phase_hidden_activations->resize(neg_hidden_act.length(),
                                                      neg_hidden_act.width());
            *negative_phase_hidden_activations << neg_hidden_act;

            // compute the energy (again for now only in the binomial case)
            PLASSERT(hidden_layer->classname()=="RBMBinomialLayer");

            // note that h_act and h may point to hidden_act_store and hidden_exp_store
            PLASSERT(h_act && !h_act->isEmpty());
            PLASSERT(h && !h->isEmpty());

            contrastive_divergence->resize(hidden_expectations.length(),1);
            // compute contrastive divergence itself
            for (int i=0;i<mbs;i++)
            {
                (*contrastive_divergence)(i,0) =
                    // positive phase energy
                    visible_layer->energy((*visible)(i))
                    - dot((*h)(i),(*h_act)(i))
                    // minus
                    -
                    // negative phase energy
                    (visible_layer->energy(visible_layer->samples(i))
                     - dot(hidden_expectations(i),hidden_layer->activations(i)));
            }
        }
        else
            PLERROR("KLp0p1RBMModule: unknown configuration to compute contrastive_divergence (currently\n"
                    "only possible if only visible are provided in input).\n");
        found_a_valid_configuration = true;
    }


    // Reset some class fields to ensure they are not reused by mistake.
    hidden_act = NULL;
    hidden_bias = NULL;
    weights = NULL;
    hidden_activations_are_computed = false;



    if (!found_a_valid_configuration)
    {
        /*
        if (visible)
            cout << "visible_empty : "<< (bool) visible->isEmpty() << endl;
        if (hidden)
            cout << "hidden_empty : "<< (bool) hidden->isEmpty() << endl;
        if (visible_sample)
            cout << "visible_sample_empty : "<< (bool) visible_sample->isEmpty() << endl;
        if (hidden_sample)
            cout << "hidden_sample_empty : "<< (bool) hidden_sample->isEmpty() << endl;
        if (visible_expectation)
            cout << "visible_expectation_empty : "<< (bool) visible_expectation->isEmpty() << endl;

        */
        PLERROR("In RBMModule::fprop - Unknown port configuration for module %s", name.c_str());
    }

    checkProp(ports_value);

}

Here is the call graph for this function:

void PLearn::KLp0p1RBMModule::fprop ( const Vec input,
Vec output
) const [virtual]

given the input, compute the output (possibly resize it appropriately)

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 606 of file KLp0p1RBMModule.cc.

References PLERROR.

{
    PLERROR("In KLp0p1RBMModule::fprop - Not implemented");
}
OptionList & PLearn::KLp0p1RBMModule::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 70 of file KLp0p1RBMModule.cc.

OptionMap & PLearn::KLp0p1RBMModule::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 70 of file KLp0p1RBMModule.cc.

int PLearn::KLp0p1RBMModule::getPortIndex ( const string &  port) [virtual]

Return the index (as in the list of ports returned by getPorts()) of a given port.

If 'port' does not exist, -1 is returned.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 1844 of file KLp0p1RBMModule.cc.

References portname_to_index.

Referenced by bpropAccUpdate(), build_(), and fprop().

{
    map<string, int>::const_iterator it = portname_to_index.find(port);
    if (it == portname_to_index.end())
        return -1;
    else
        return it->second;
}

Here is the caller graph for this function:

const TVec< string > & PLearn::KLp0p1RBMModule::getPorts ( ) [virtual]

Returns all ports in a KLp0p1RBMModule.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 1856 of file KLp0p1RBMModule.cc.

References ports.

{
    return ports;
}
const TMat< int > & PLearn::KLp0p1RBMModule::getPortSizes ( ) [virtual]

The ports' sizes are given by the corresponding RBM layers.

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 1864 of file KLp0p1RBMModule.cc.

References PLearn::OnlineLearningModule::port_sizes.

{
    return port_sizes;
}
RemoteMethodMap & PLearn::KLp0p1RBMModule::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 70 of file KLp0p1RBMModule.cc.

void PLearn::KLp0p1RBMModule::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]
void PLearn::KLp0p1RBMModule::sampleHiddenGivenVisible ( const Mat visible) [protected]

Sample hidden layer data based on the provided 'visible' inputs.

Definition at line 1893 of file KLp0p1RBMModule.cc.

References computeHiddenActivations(), and hidden_layer.

Referenced by fprop().

{
    computeHiddenActivations(visible);
    hidden_layer->computeExpectations();
    hidden_layer->generateSamples();
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::KLp0p1RBMModule::sampleVisibleGivenHidden ( const Mat hidden) [protected]

Sample visible layer data based on the provided 'hidden' inputs.

Definition at line 1903 of file KLp0p1RBMModule.cc.

References computeVisibleActivations(), and visible_layer.

Referenced by bpropAccUpdate(), and fprop().

{
    computeVisibleActivations(hidden);
    visible_layer->computeExpectations();
    visible_layer->generateSamples();
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::KLp0p1RBMModule::setAllLearningRates ( real  lr) [protected]

Forward the given learning rate to all elements of this module.

Definition at line 1881 of file KLp0p1RBMModule.cc.

References connection, hidden_layer, reconstruction_connection, and visible_layer.

Referenced by bpropAccUpdate().

{
    hidden_layer->setLearningRate(lr);
    visible_layer->setLearningRate(lr);
    connection->setLearningRate(lr);
    if(reconstruction_connection)
        reconstruction_connection->setLearningRate(lr);
}

Here is the caller graph for this function:

void PLearn::KLp0p1RBMModule::setLearningRate ( real  dynamic_learning_rate) [virtual]

Throws an error (please use explicitely the two different kinds of learning rates available here).

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 1913 of file KLp0p1RBMModule.cc.

References PLERROR.

{
    // Out of safety, force the user to go through the two different learning
    // rate. May need to be removed if it causes unwanted crashes.
    PLERROR("In KLp0p1RBMModule::setLearningRate - Do not use this method, instead "
            "explicitely use 'cd_learning_rate' and 'grad_learning_rate'");
}

Member Data Documentation

Reimplemented from PLearn::OnlineLearningModule.

Definition at line 216 of file KLp0p1RBMModule.h.

Definition at line 75 of file KLp0p1RBMModule.h.

Referenced by bpropAccUpdate(), build_(), and declareOptions().

Definition at line 79 of file KLp0p1RBMModule.h.

Referenced by bpropAccUpdate(), build_(), declareOptions(), and fprop().

Definition at line 89 of file KLp0p1RBMModule.h.

Referenced by declareOptions(), and fprop().

Definition at line 227 of file KLp0p1RBMModule.h.

Referenced by bpropAccUpdate(), build_(), fprop(), and makeDeepCopyFromShallowCopy().

Definition at line 228 of file KLp0p1RBMModule.h.

Referenced by bpropAccUpdate(), build_(), fprop(), and makeDeepCopyFromShallowCopy().

Used to store inputs generated to compute the free energy.

Definition at line 267 of file KLp0p1RBMModule.h.

Referenced by bpropAccUpdate(), fprop(), and makeDeepCopyFromShallowCopy().

used to generate samples from the RBM

Definition at line 94 of file KLp0p1RBMModule.h.

Referenced by declareOptions(), and fprop().

Definition at line 76 of file KLp0p1RBMModule.h.

Referenced by bpropAccUpdate(), build_(), and declareOptions().

Used to store gradient w.r.t. activations of the hidden layer.

Definition at line 237 of file KLp0p1RBMModule.h.

Referenced by bpropAccUpdate(), and makeDeepCopyFromShallowCopy().

Definition at line 250 of file KLp0p1RBMModule.h.

Referenced by fprop(), and makeDeepCopyFromShallowCopy().

Definition at line 252 of file KLp0p1RBMModule.h.

Referenced by computePositivePhaseHiddenActivations(), and fprop().

Definition at line 230 of file KLp0p1RBMModule.h.

Referenced by bpropAccUpdate(), computeHiddenActivations(), and fprop().

Used to store gradient w.r.t. expectations of the hidden layer.

Definition at line 234 of file KLp0p1RBMModule.h.

Referenced by bpropAccUpdate(), and makeDeepCopyFromShallowCopy().

Used to cache the hidden layer expectations and activations.

Definition at line 249 of file KLp0p1RBMModule.h.

Referenced by fprop(), and makeDeepCopyFromShallowCopy().

Definition at line 77 of file KLp0p1RBMModule.h.

Referenced by bpropAccUpdate(), and declareOptions().

Definition at line 95 of file KLp0p1RBMModule.h.

Referenced by declareOptions(), and fprop().

used to generate samples from the RBM

Definition at line 86 of file KLp0p1RBMModule.h.

Referenced by build_(), declareOptions(), and fprop().

Definition at line 90 of file KLp0p1RBMModule.h.

Referenced by bpropAccUpdate(), and declareOptions().

Number of Gibbs sampling steps in negative phase of contrastive divergence.

Definition at line 83 of file KLp0p1RBMModule.h.

Referenced by bpropAccUpdate(), declareOptions(), and fprop().

Definition at line 87 of file KLp0p1RBMModule.h.

Referenced by build_(), declareOptions(), and fprop().

Definition at line 96 of file KLp0p1RBMModule.h.

Referenced by bpropAccUpdate(), declareOptions(), and fprop().

Map from a port name to its index in the 'ports' vector.

Definition at line 264 of file KLp0p1RBMModule.h.

Referenced by addPortName(), build_(), and getPortIndex().

TVec<string> PLearn::KLp0p1RBMModule::ports [protected]

List of port names.

Definition at line 261 of file KLp0p1RBMModule.h.

Referenced by addPortName(), build_(), getPorts(), and makeDeepCopyFromShallowCopy().

Definition at line 99 of file KLp0p1RBMModule.h.

Referenced by bpropAccUpdate(), build_(), and declareOptions().

Definition at line 98 of file KLp0p1RBMModule.h.

Referenced by bpropAccUpdate(), build_(), and declareOptions().

Definition at line 100 of file KLp0p1RBMModule.h.

Referenced by bpropAccUpdate(), and declareOptions().

Used to store the contrastive divergence gradient w.r.t. hidden bias.

Definition at line 258 of file KLp0p1RBMModule.h.

Referenced by bpropAccUpdate(), and makeDeepCopyFromShallowCopy().

Used to store the contrastive divergence gradient w.r.t. weights.

Definition at line 255 of file KLp0p1RBMModule.h.

Referenced by bpropAccUpdate(), and makeDeepCopyFromShallowCopy().

Definition at line 68 of file KLp0p1RBMModule.h.

Referenced by bpropAccUpdate(), declareOptions(), and fprop().

Used to store gradient w.r.t. activations of the visible layer.

Definition at line 243 of file KLp0p1RBMModule.h.

Referenced by bpropAccUpdate(), and makeDeepCopyFromShallowCopy().

Used to store gradient w.r.t. bias of visible layer.

Definition at line 246 of file KLp0p1RBMModule.h.

Referenced by bpropAccUpdate(), build_(), and makeDeepCopyFromShallowCopy().

Used to store gradient w.r.t. expectations of the visible layer.

Definition at line 240 of file KLp0p1RBMModule.h.

Referenced by bpropAccUpdate(), and makeDeepCopyFromShallowCopy().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
