PLearn::RBMMultinomialLayer Class Reference

Layer in an RBM formed with binomial units. More...

#include <RBMMultinomialLayer.h>

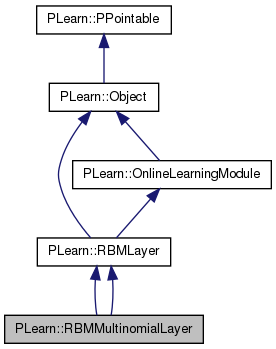

Inheritance diagram for PLearn::RBMMultinomialLayer:
Inheritance graph
[legend]

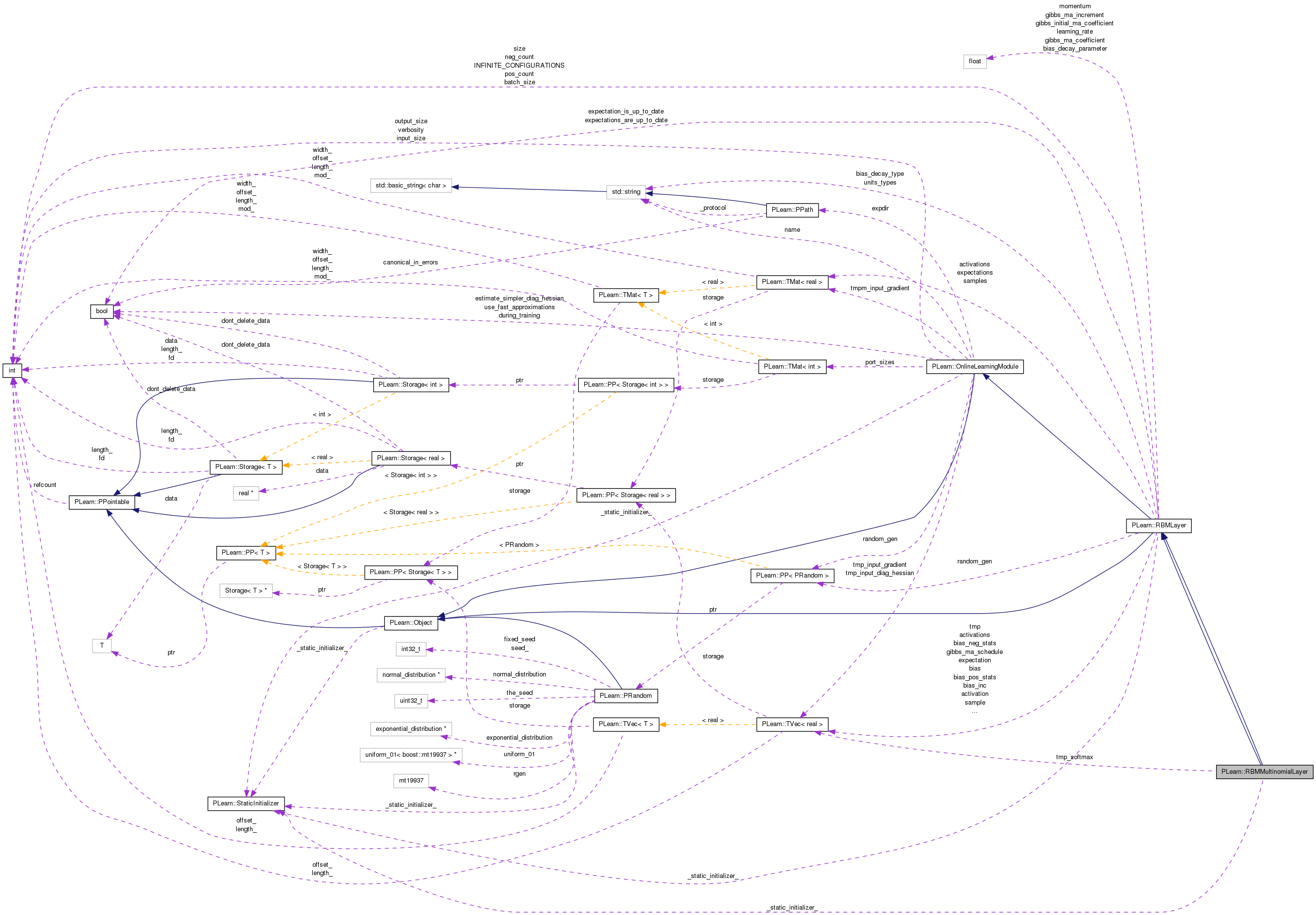

Collaboration diagram for PLearn::RBMMultinomialLayer:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 RBMMultinomialLayer ()
 Default constructor.
 RBMMultinomialLayer (int the_size)
 Constructor from the number of units in the multinomial.
virtual void getUnitActivations (int i, PP< RBMParameters > rbmp, int offset=0)
 Uses "rbmp" to obtain the activations of unit "i" of this layer.
virtual void getAllActivations (PP< RBMParameters > rbmp, int offset=0)
 Uses "rbmp" to obtain the activations of all units in this layer.
virtual void generateSample ()
 generate a sample, and update the sample field

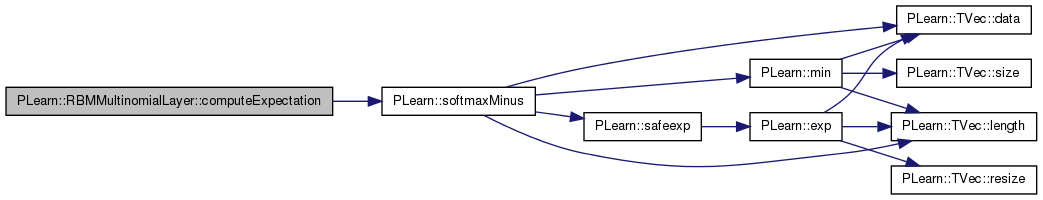

virtual void computeExpectation ()
 compute the expectation
virtual void bpropUpdate (const Vec &input, const Vec &output, Vec &input_gradient, const Vec &output_gradient)
 back-propagates the output gradient to the input
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual RBMMultinomialLayerdeepCopy (CopiesMap &copies) const
virtual void build ()
 Post-constructor.
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.
 RBMMultinomialLayer (real the_learning_rate=0.)
 Default constructor.
 RBMMultinomialLayer (int the_size, real the_learning_rate=0.)
 Constructor from the number of units in the multinomial.
virtual void generateSample ()
 generate a sample, and update the sample field

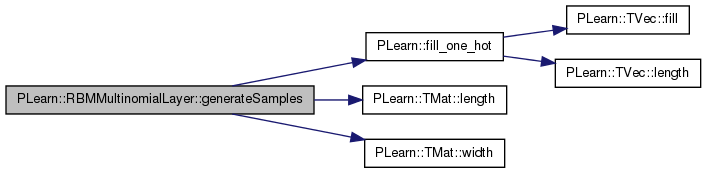

virtual void generateSamples ()
 batch version
virtual void computeExpectation ()
 compute the expectation
virtual void computeExpectations ()
 batch version

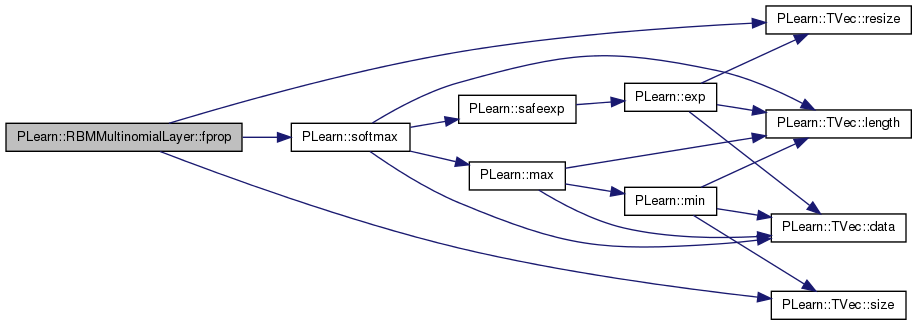

virtual void fprop (const Vec &input, Vec &output) const
 forward propagation
virtual void fprop (const Vec &input, const Vec &rbm_bias, Vec &output) const
 forward propagation with provided bias
virtual void bpropUpdate (const Vec &input, const Vec &output, Vec &input_gradient, const Vec &output_gradient, bool accumulate=false)
 back-propagates the output gradient to the input
virtual void bpropUpdate (const Mat &inputs, const Mat &outputs, Mat &input_gradients, const Mat &output_gradients, bool accumulate=false)
 Back-propagate the output gradient to the input, and update parameters.
virtual void bpropUpdate (const Vec &input, const Vec &rbm_bias, const Vec &output, Vec &input_gradient, Vec &rbm_bias_gradient, const Vec &output_gradient)
 back-propagates the output gradient to the input and the bias

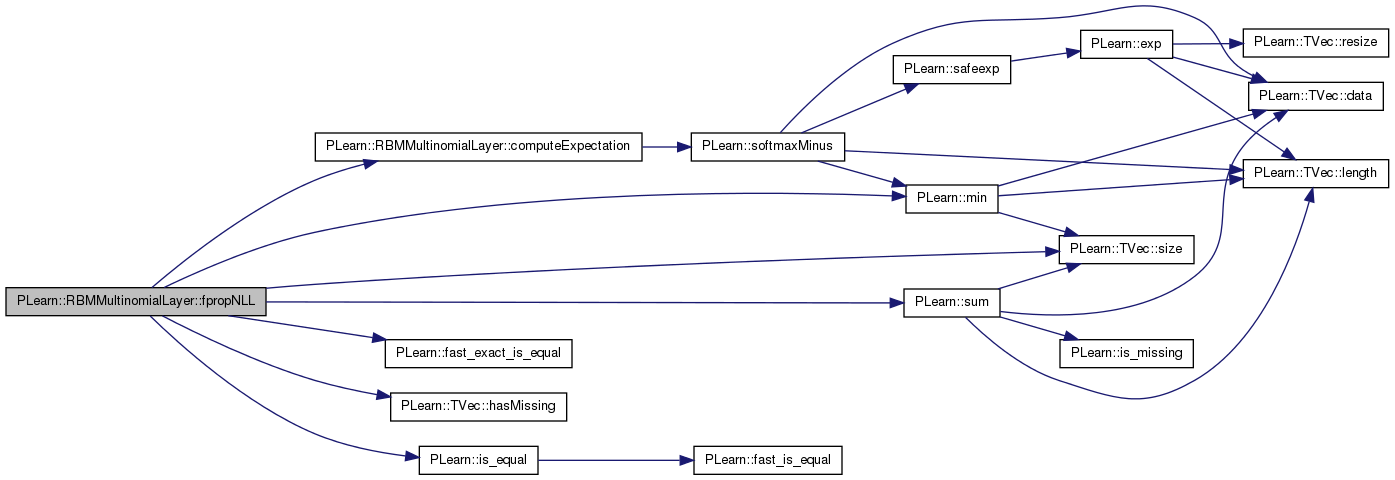

virtual real fpropNLL (const Vec &target)
 Computes the negative log-likelihood of target given the internal activations of the layer.
virtual void fpropNLL (const Mat &targets, const Mat &costs_column)
virtual void bpropNLL (const Vec &target, real nll, Vec &bias_gradient)
 Computes the gradient of the negative log-likelihood of target with respect to the layer's bias, given the internal activations.
virtual void bpropNLL (const Mat &targets, const Mat &costs_column, Mat &bias_gradients)

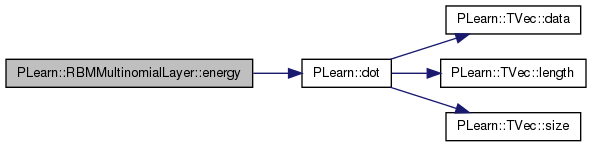

virtual real energy (const Vec &unit_values) const
virtual real freeEnergyContribution (const Vec &unit_activations) const
 Computes $ -log(\sum_{possible values of h} exp(h' unit_activations))$ This quantity is used for computing the free energy of a sample x in the OTHER layer of an RBM, from which unit_activations was computed.

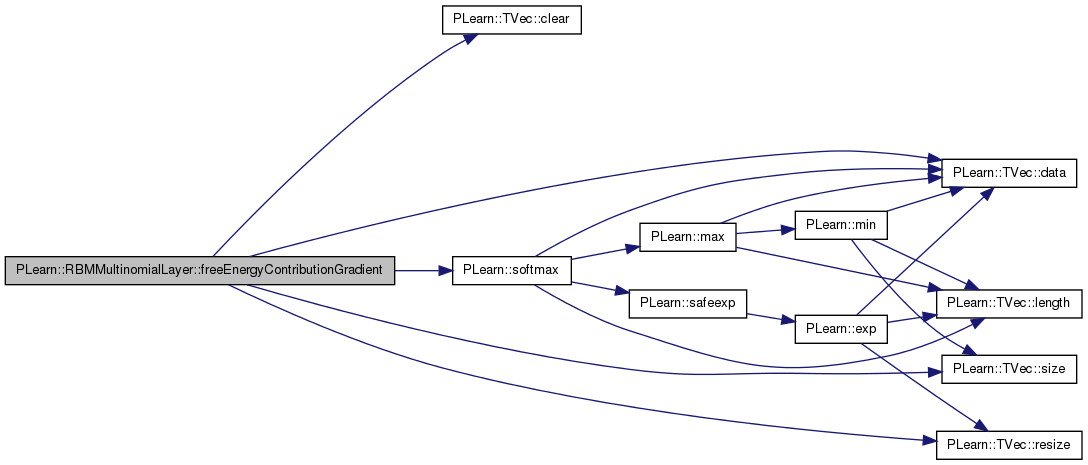

virtual void freeEnergyContributionGradient (const Vec &unit_activations, Vec &unit_activations_gradient, real output_gradient=1, bool accumulate=false) const
 Computes gradient of the result of freeEnergyContribution $ -log(\sum_{possible values of h} exp(h' unit_activations))$ with respect to unit_activations.
virtual int getConfigurationCount ()
 Returns a number of different configurations the layer can be in.
virtual void getConfiguration (int conf_index, Vec &output)
 Computes the conf_index configuration of the layer.
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual RBMMultinomialLayerdeepCopy (CopiesMap &copies) const
virtual void build ()
 Post-constructor.
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.

Static Public Member Functions

static string _classname_ ()
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()
static string _classname_ ()
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Static Public Attributes

static StaticInitializer _static_initializer_

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declares the class options.
static void declareOptions (OptionList &ol)
 Declares the class options.

Protected Attributes

Vec tmp_softmax

Private Types

typedef RBMLayer inherited
typedef RBMLayer inherited

Private Member Functions

void build_ ()
 This does the actual building.
void build_ ()
 This does the actual building.

Detailed Description

Layer in an RBM formed with binomial units.

Layer in an RBM consisting in one multinomial unit.

Todo:
: yes
Deprecated:
Use ../RBMMultinomialLayer.h instead
Todo:
: yes

Definition at line 54 of file DEPRECATED/RBMMultinomialLayer.h.


Member Typedef Documentation

Reimplemented from PLearn::RBMLayer.

Definition at line 56 of file DEPRECATED/RBMMultinomialLayer.h.

Reimplemented from PLearn::RBMLayer.

Definition at line 55 of file RBMMultinomialLayer.h.


Constructor & Destructor Documentation

PLearn::RBMMultinomialLayer::RBMMultinomialLayer ( )

Default constructor.

Definition at line 51 of file DEPRECATED/RBMMultinomialLayer.cc.

{
}
PLearn::RBMMultinomialLayer::RBMMultinomialLayer ( int  the_size)

Constructor from the number of units in the multinomial.

Definition at line 55 of file DEPRECATED/RBMMultinomialLayer.cc.

References PLearn::TVec< T >::resize(), and PLearn::sample().

{
    size = the_size;
    units_types = string( the_size, 'l' );
    activations.resize( the_size );
    sample.resize( the_size );
    expectation.resize( the_size );
    expectation_is_up_to_date = false;
}

Here is the call graph for this function:

PLearn::RBMMultinomialLayer::RBMMultinomialLayer ( real  the_learning_rate = 0.)

Default constructor.

Definition at line 53 of file RBMMultinomialLayer.cc.

                                                                 :
    inherited( the_learning_rate )
{
}
PLearn::RBMMultinomialLayer::RBMMultinomialLayer ( int  the_size,
real  the_learning_rate = 0.
)

Constructor from the number of units in the multinomial.

Definition at line 58 of file RBMMultinomialLayer.cc.

References PLearn::RBMLayer::activation, PLearn::RBMLayer::bias, PLearn::RBMLayer::bias_neg_stats, PLearn::RBMLayer::bias_pos_stats, PLearn::RBMLayer::expectation, PLearn::TVec< T >::resize(), PLearn::RBMLayer::sample, and PLearn::RBMLayer::size.

                                                                   :
    inherited( the_learning_rate )
{
    size = the_size;
    activation.resize( the_size );
    sample.resize( the_size );
    expectation.resize( the_size );
    bias.resize( the_size );
    bias_pos_stats.resize( the_size );
    bias_neg_stats.resize( the_size );
}

Here is the call graph for this function:


Member Function Documentation

string PLearn::RBMMultinomialLayer::_classname_ ( ) [static]

Reimplemented from PLearn::RBMLayer.

Definition at line 49 of file DEPRECATED/RBMMultinomialLayer.cc.

static string PLearn::RBMMultinomialLayer::_classname_ ( ) [static]

Reimplemented from PLearn::RBMLayer.

OptionList & PLearn::RBMMultinomialLayer::_getOptionList_ ( ) [static]

Reimplemented from PLearn::RBMLayer.

Definition at line 49 of file DEPRECATED/RBMMultinomialLayer.cc.

static OptionList& PLearn::RBMMultinomialLayer::_getOptionList_ ( ) [static]

Reimplemented from PLearn::RBMLayer.

RemoteMethodMap & PLearn::RBMMultinomialLayer::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::RBMLayer.

Definition at line 49 of file DEPRECATED/RBMMultinomialLayer.cc.

static RemoteMethodMap& PLearn::RBMMultinomialLayer::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::RBMLayer.

bool PLearn::RBMMultinomialLayer::_isa_ ( const Object o) [static]

Reimplemented from PLearn::RBMLayer.

Definition at line 49 of file DEPRECATED/RBMMultinomialLayer.cc.

static bool PLearn::RBMMultinomialLayer::_isa_ ( const Object o) [static]

Reimplemented from PLearn::RBMLayer.

static Object* PLearn::RBMMultinomialLayer::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Object * PLearn::RBMMultinomialLayer::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 49 of file DEPRECATED/RBMMultinomialLayer.cc.

StaticInitializer RBMMultinomialLayer::_static_initializer_ & PLearn::RBMMultinomialLayer::_static_initialize_ ( ) [static]

Reimplemented from PLearn::RBMLayer.

Definition at line 49 of file DEPRECATED/RBMMultinomialLayer.cc.

static void PLearn::RBMMultinomialLayer::_static_initialize_ ( ) [static]

Reimplemented from PLearn::RBMLayer.

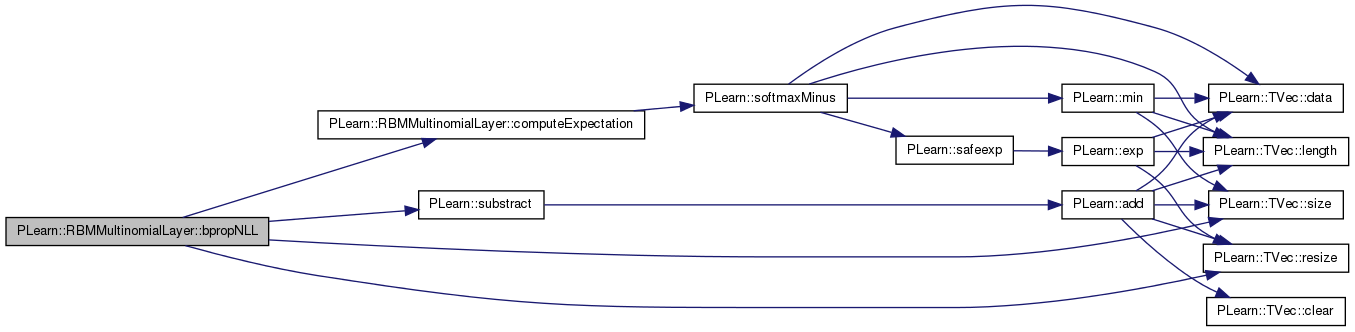

void PLearn::RBMMultinomialLayer::bpropNLL ( const Vec target,
real  nll,
Vec bias_gradient
) [virtual]

Computes the gradient of the negative log-likelihood of target with respect to the layer's bias, given the internal activations.

Reimplemented from PLearn::RBMLayer.

Definition at line 377 of file RBMMultinomialLayer.cc.

References computeExpectation(), PLearn::RBMLayer::expectation, PLearn::OnlineLearningModule::input_size, PLASSERT, PLearn::TVec< T >::resize(), PLearn::TVec< T >::size(), PLearn::RBMLayer::size, and PLearn::substract().

{
    computeExpectation();

    PLASSERT( target.size() == input_size );
    bias_gradient.resize( size );

    // bias_gradient = expectation - target
    substract(expectation, target, bias_gradient);
}

Here is the call graph for this function:

void PLearn::RBMMultinomialLayer::bpropNLL ( const Mat targets,
const Mat costs_column,
Mat bias_gradients
) [virtual]

Reimplemented from PLearn::RBMLayer.

Definition at line 389 of file RBMMultinomialLayer.cc.

References PLearn::RBMLayer::batch_size, computeExpectations(), PLearn::RBMLayer::expectations, PLearn::OnlineLearningModule::input_size, PLearn::TMat< T >::length(), PLASSERT, PLearn::TMat< T >::resize(), PLearn::RBMLayer::size, PLearn::substract(), and PLearn::TMat< T >::width().

{
    computeExpectations();

    PLASSERT( targets.width() == input_size );
    PLASSERT( targets.length() == batch_size );
    PLASSERT( costs_column.width() == 1 );
    PLASSERT( costs_column.length() == batch_size );
    bias_gradients.resize( batch_size, size );

    // bias_gradients = expectations - targets
    substract(expectations, targets, bias_gradients);
}

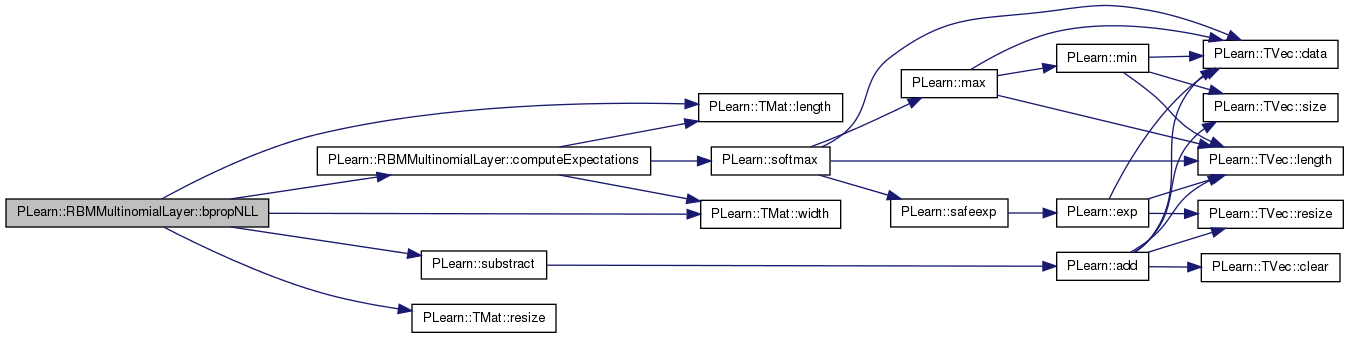

Here is the call graph for this function:

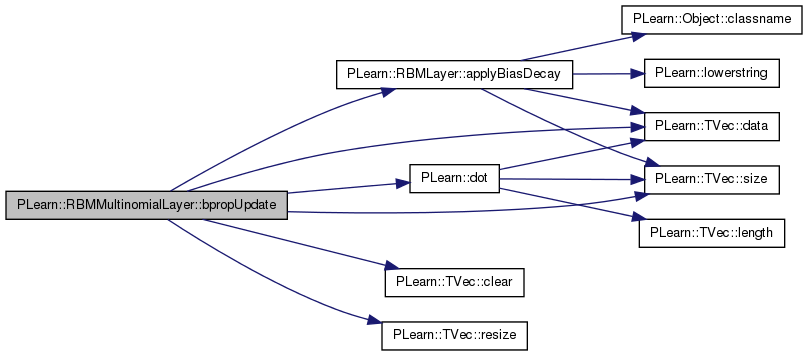

void PLearn::RBMMultinomialLayer::bpropUpdate ( const Vec input,
const Vec output,
Vec input_gradient,
const Vec output_gradient
) [virtual]

back-propagates the output gradient to the input

Implements PLearn::RBMLayer.

Definition at line 100 of file DEPRECATED/RBMMultinomialLayer.cc.

References PLERROR.

{
    PLERROR( "RBMMultinomialLayer::bpropUpdate not implemented yet." );
}
void PLearn::RBMMultinomialLayer::bpropUpdate ( const Vec input,
const Vec output,
Vec input_gradient,
const Vec output_gradient,
bool  accumulate = false
) [virtual]

back-propagates the output gradient to the input

Implements PLearn::RBMLayer.

Definition at line 152 of file RBMMultinomialLayer.cc.

References PLearn::RBMLayer::applyBiasDecay(), b, PLearn::RBMLayer::bias, PLearn::RBMLayer::bias_inc, PLearn::TVec< T >::clear(), PLearn::TVec< T >::data(), PLearn::dot(), i, PLearn::RBMLayer::learning_rate, PLearn::RBMLayer::momentum, PLASSERT, PLASSERT_MSG, PLearn::TVec< T >::resize(), PLearn::RBMLayer::size, and PLearn::TVec< T >::size().

{
    PLASSERT( input.size() == size );
    PLASSERT( output.size() == size );
    PLASSERT( output_gradient.size() == size );

    if( accumulate )
    {
        PLASSERT_MSG( input_gradient.size() == size,
                      "Cannot resize input_gradient AND accumulate into it" );
    }
    else
    {
        input_gradient.resize( size );
        input_gradient.clear();
    }

    if( momentum != 0. )
        bias_inc.resize( size );

    // input_gradient[i] =
    //      (output_gradient[i] - output_gradient . output) output[i]
    real outg_dot_out = dot( output_gradient, output );
    real* out = output.data();
    real* outg = output_gradient.data();
    real* ing = input_gradient.data();
    real* b = bias.data();
    real* binc = momentum==0?0:bias_inc.data();

    for( int i=0 ; i<size ; i++ )
    {
        real ing_i = (outg[i] - outg_dot_out) * out[i];
        ing[i] += ing_i;

        if( momentum == 0. )
        {
            // update the bias: bias -= learning_rate * input_gradient
            b[i] -= learning_rate * ing_i;
        }
        else
        {
            // The update rule becomes:
            // bias_inc = momentum * bias_inc - learning_rate * input_gradient
            // bias += bias_inc
            binc[i] = momentum * binc[i] - learning_rate * ing_i;
            b[i] += binc[i];
        }
    }
    applyBiasDecay();
}

Here is the call graph for this function:

void PLearn::RBMMultinomialLayer::bpropUpdate ( const Mat inputs,
const Mat outputs,
Mat input_gradients,
const Mat output_gradients,
bool  accumulate = false
) [virtual]

Back-propagate the output gradient to the input, and update parameters.

Implements PLearn::RBMLayer.

Definition at line 206 of file RBMMultinomialLayer.cc.

References PLearn::RBMLayer::applyBiasDecay(), b, PLearn::RBMLayer::bias, PLearn::RBMLayer::bias_inc, PLearn::TMat< T >::clear(), PLearn::TMat< T >::data(), PLearn::TVec< T >::data(), PLearn::dot(), i, PLearn::RBMLayer::learning_rate, PLearn::TMat< T >::length(), PLearn::RBMLayer::momentum, PLASSERT, PLASSERT_MSG, PLCHECK_MSG, PLearn::TMat< T >::resize(), PLearn::TVec< T >::resize(), PLearn::RBMLayer::size, and PLearn::TMat< T >::width().

{
    PLASSERT( inputs.width() == size );
    PLASSERT( outputs.width() == size );
    PLASSERT( output_gradients.width() == size );

    int mbatch_size = inputs.length();
    PLASSERT( outputs.length() == mbatch_size );
    PLASSERT( output_gradients.length() == mbatch_size );

    if( accumulate )
    {
        PLASSERT_MSG( input_gradients.width() == size &&
                input_gradients.length() == inputs.length(),
                "Cannot resize input_gradient and accumulate into it." );
    }
    else
    {
        input_gradients.resize(inputs.length(), size);
        input_gradients.clear();
    }


    if( momentum != 0. )
        bias_inc.resize( size );

    // TODO see if we can have a speed-up by reorganizing the different steps

    // input_gradients[k][i] =
    //   (output_gradients[k][i]-output_gradients[k].outputs[k]) outputs[k][i]
    real mean_lr = learning_rate / mbatch_size;
    for( int k=0; k<mbatch_size; k++ )
    {
        real outg_dot_out = dot( output_gradients(k), outputs(k) );
        real* out = outputs(k).data();
        real* outg = output_gradients(k).data();
        real* ing = input_gradients(k).data();
        real* b = bias.data();
        real* binc = momentum==0?0:bias_inc.data();

        for( int i=0 ; i<size ; i++ )
        {
            real ing_ki = (outg[i] - outg_dot_out) * out[i];
            ing[i] += ing_ki;

            if( momentum == 0. )
            {
                // update the bias: bias -= learning_rate * input_gradient
                b[i] -= mean_lr * ing_ki;
            }
            else
            {
                PLCHECK_MSG(false,
                            "Momentum not correctly implemented with batch");
                // The update rule becomes:
                // bias_inc = momentum*bias_inc - learning_rate*input_gradient
                // bias += bias_inc
                binc[i] = momentum * binc[i] - mean_lr * ing_ki;
                b[i] += binc[i];
            }
        }
    }
    applyBiasDecay();
}

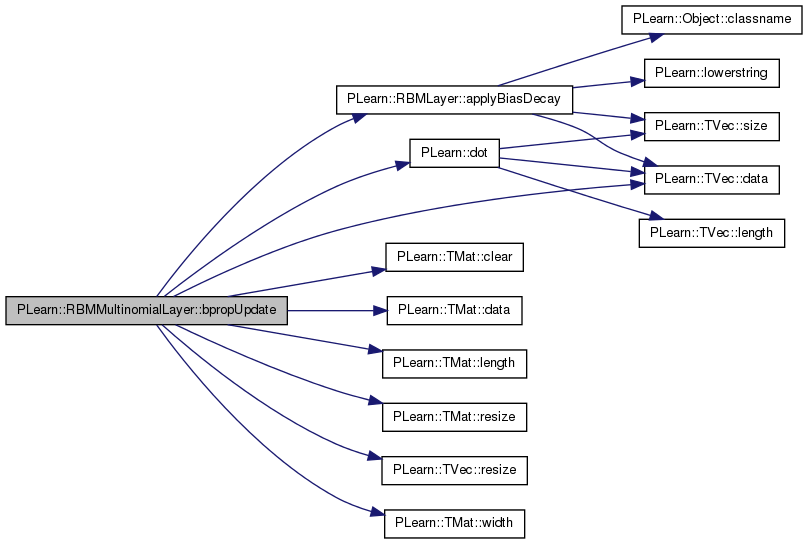

Here is the call graph for this function:

void PLearn::RBMMultinomialLayer::bpropUpdate ( const Vec input,
const Vec rbm_bias,
const Vec output,
Vec input_gradient,
Vec rbm_bias_gradient,
const Vec output_gradient
) [virtual]

back-propagates the output gradient to the input and the bias

TODO: add "accumulate" here.

Reimplemented from PLearn::RBMLayer.

Definition at line 275 of file RBMMultinomialLayer.cc.

References PLearn::TVec< T >::data(), PLearn::dot(), i, PLASSERT, PLearn::TVec< T >::resize(), PLearn::TVec< T >::size(), and PLearn::RBMLayer::size.

{
    PLASSERT( input.size() == size );
    PLASSERT( rbm_bias.size() == size );
    PLASSERT( output.size() == size );
    PLASSERT( output_gradient.size() == size );
    input_gradient.resize( size );
    rbm_bias_gradient.resize( size );

    // input_gradient[i] =
    //      (output_gradient . output - output_gradient[i] ) output[i]
    real outg_dot_out = dot( output_gradient, output );
    real* out = output.data();
    real* outg = output_gradient.data();
    real* ing = input_gradient.data();
    for( int i=0 ; i<size ; i++ )
        ing[i] = (outg[i] - outg_dot_out) * out[i];

    rbm_bias_gradient << input_gradient;
}

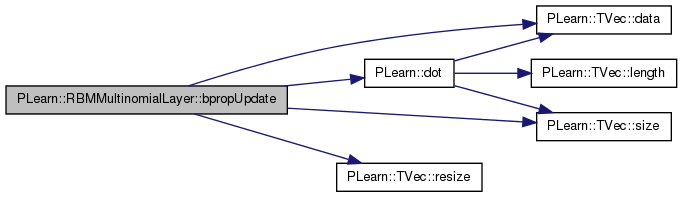

Here is the call graph for this function:

void PLearn::RBMMultinomialLayer::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::RBMLayer.

Definition at line 132 of file DEPRECATED/RBMMultinomialLayer.cc.

virtual void PLearn::RBMMultinomialLayer::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::RBMLayer.

void PLearn::RBMMultinomialLayer::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::RBMLayer.

Definition at line 119 of file DEPRECATED/RBMMultinomialLayer.cc.

References PLearn::TVec< T >::resize(), and PLearn::sample().

{
    if( size < 0 )
        size = int(units_types.size());
    if( size != (int) units_types.size() )
        units_types = string( size, 'l' );

    activations.resize( size );
    sample.resize( size );
    expectation.resize( size );
    expectation_is_up_to_date = false;
}

Here is the call graph for this function:

void PLearn::RBMMultinomialLayer::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::RBMLayer.

virtual string PLearn::RBMMultinomialLayer::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

string PLearn::RBMMultinomialLayer::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 49 of file DEPRECATED/RBMMultinomialLayer.cc.

void PLearn::RBMMultinomialLayer::computeExpectation ( ) [virtual]

compute the expectation

Implements PLearn::RBMLayer.

Definition at line 90 of file DEPRECATED/RBMMultinomialLayer.cc.

References PLearn::softmaxMinus().

Referenced by bpropNLL(), and fpropNLL().

{
    if( expectation_is_up_to_date )
        return;

    // expectation = softmax(-activations)
    softmaxMinus(activations, expectation);
    expectation_is_up_to_date = true;
}

Here is the call graph for this function:

Here is the caller graph for this function:

virtual void PLearn::RBMMultinomialLayer::computeExpectation ( ) [virtual]

compute the expectation

Implements PLearn::RBMLayer.

void PLearn::RBMMultinomialLayer::computeExpectations ( ) [virtual]

batch version

Implements PLearn::RBMLayer.

Definition at line 110 of file RBMMultinomialLayer.cc.

References PLearn::RBMLayer::activations, PLearn::RBMLayer::batch_size, PLearn::RBMLayer::expectations, PLearn::RBMLayer::expectations_are_up_to_date, PLearn::TMat< T >::length(), PLASSERT, PLearn::RBMLayer::size, PLearn::softmax(), and PLearn::TMat< T >::width().

Referenced by bpropNLL(), and fpropNLL().

{
    if( expectations_are_up_to_date )
        return;

    PLASSERT( expectations.width() == size
              && expectations.length() == batch_size );

    // expectation = softmax(-activation)
    for (int k = 0; k < batch_size; k++)
        softmax(activations(k), expectations(k));

    expectations_are_up_to_date = true;
}

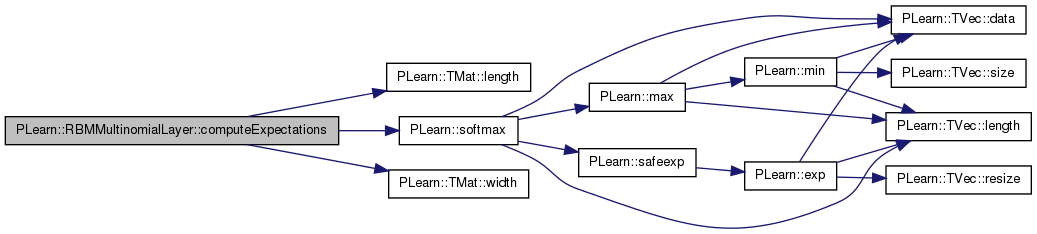

Here is the call graph for this function:

Here is the caller graph for this function:

static void PLearn::RBMMultinomialLayer::declareOptions ( OptionList ol) [static, protected]

Declares the class options.

Reimplemented from PLearn::RBMLayer.

void PLearn::RBMMultinomialLayer::declareOptions ( OptionList ol) [static, protected]

Declares the class options.

Reimplemented from PLearn::RBMLayer.

Definition at line 108 of file DEPRECATED/RBMMultinomialLayer.cc.

{
/*
    declareOption(ol, "size", &RBMMultinomialLayer::size,
                  OptionBase::buildoption,
                  "Number of units.");
*/
    // Now call the parent class' declareOptions
    inherited::declareOptions(ol);
}
static const PPath& PLearn::RBMMultinomialLayer::declaringFile ( ) [inline, static]

Reimplemented from PLearn::RBMLayer.

Definition at line 98 of file DEPRECATED/RBMMultinomialLayer.h.

:
    //#####  Not Options  #####################################################
static const PPath& PLearn::RBMMultinomialLayer::declaringFile ( ) [inline, static]

Reimplemented from PLearn::RBMLayer.

Definition at line 145 of file RBMMultinomialLayer.h.

:
    //#####  Not Options  #####################################################
virtual RBMMultinomialLayer* PLearn::RBMMultinomialLayer::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::RBMLayer.

RBMMultinomialLayer * PLearn::RBMMultinomialLayer::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::RBMLayer.

Definition at line 49 of file DEPRECATED/RBMMultinomialLayer.cc.

real PLearn::RBMMultinomialLayer::energy ( const Vec unit_values) const [virtual]

Reimplemented from PLearn::RBMLayer.

Definition at line 432 of file RBMMultinomialLayer.cc.

References PLearn::RBMLayer::bias, and PLearn::dot().

{
    return -dot(unit_values, bias);
}

Here is the call graph for this function:

void PLearn::RBMMultinomialLayer::fprop ( const Vec input,
Vec output
) const [virtual]

forward propagation

Reimplemented from PLearn::RBMLayer.

Definition at line 126 of file RBMMultinomialLayer.cc.

References PLearn::RBMLayer::bias, PLearn::OnlineLearningModule::input_size, PLearn::OnlineLearningModule::output_size, PLASSERT, PLearn::TVec< T >::resize(), PLearn::TVec< T >::size(), and PLearn::softmax().

{
    PLASSERT( input.size() == input_size );
    output.resize( output_size );

    // inefficient
    softmax( input+bias, output );
}

Here is the call graph for this function:

void PLearn::RBMMultinomialLayer::fprop ( const Vec input,
const Vec rbm_bias,
Vec output
) const [virtual]

forward propagation with provided bias

Reimplemented from PLearn::RBMLayer.

Definition at line 138 of file RBMMultinomialLayer.cc.

References PLearn::OnlineLearningModule::input_size, PLearn::OnlineLearningModule::output_size, PLASSERT, PLearn::TVec< T >::resize(), PLearn::TVec< T >::size(), and PLearn::softmax().

{
    PLASSERT( input.size() == input_size );
    PLASSERT( rbm_bias.size() == input_size );
    output.resize( output_size );

    // inefficient
    softmax( input+rbm_bias, output );
}

Here is the call graph for this function:

void PLearn::RBMMultinomialLayer::fpropNLL ( const Mat targets,
const Mat costs_column
) [virtual]

Reimplemented from PLearn::RBMLayer.

Definition at line 336 of file RBMMultinomialLayer.cc.

References PLearn::RBMLayer::batch_size, computeExpectations(), PLearn::RBMLayer::expectation, PLearn::RBMLayer::expectations, PLearn::fast_exact_is_equal(), PLearn::TMat< T >::hasMissing(), i, PLearn::OnlineLearningModule::input_size, PLearn::is_equal(), PLearn::TMat< T >::length(), PLearn::min(), pl_log, PLASSERT, PLASSERT_MSG, PLERROR, PLearn::RBMLayer::size, PLearn::sum(), and PLearn::TMat< T >::width().

{
    computeExpectations();

    PLASSERT( targets.width() == input_size );
    PLASSERT( targets.length() == batch_size );
    PLASSERT( costs_column.width() == 1 );
    PLASSERT( costs_column.length() == batch_size );

    real target_i, expectation_i;
    for (int k=0; k<batch_size; k++) // loop over minibatch
    {
#ifdef BOUNDCHECK
        if (!targets(k).hasMissing())
        {
            PLASSERT_MSG( min(targets(k)) >= 0.,
                          "Elements of \"targets\" should be positive" );
            // Ensure the distribution probabilities sum to 1. We relax a
            // bit the default tolerance as probabilities using
            // exponentials could suffer numerical imprecisions.
            if (!is_equal( sum(targets(k)), 1., 1., 1e-5, 1e-5 ))
                PLERROR("In RBMMultinomialLayer::fpropNLL - Elements of"
                        " \"target\" should sum to 1 (found a sum = %f at row"
                        " %d)",
                        sum(targets(k)), k);
        }
#endif
        real nll = 0;
        real* expectation = expectations[k];
        real* target = targets[k];
        for(int i=0; i<size; i++)
        {
            target_i = target[i];
            expectation_i = expectation[i];
            if(!fast_exact_is_equal(target_i, 0.0))
                nll -= target_i * pl_log(expectation_i);
        }
        costs_column(k, 0) = nll;
    }
}

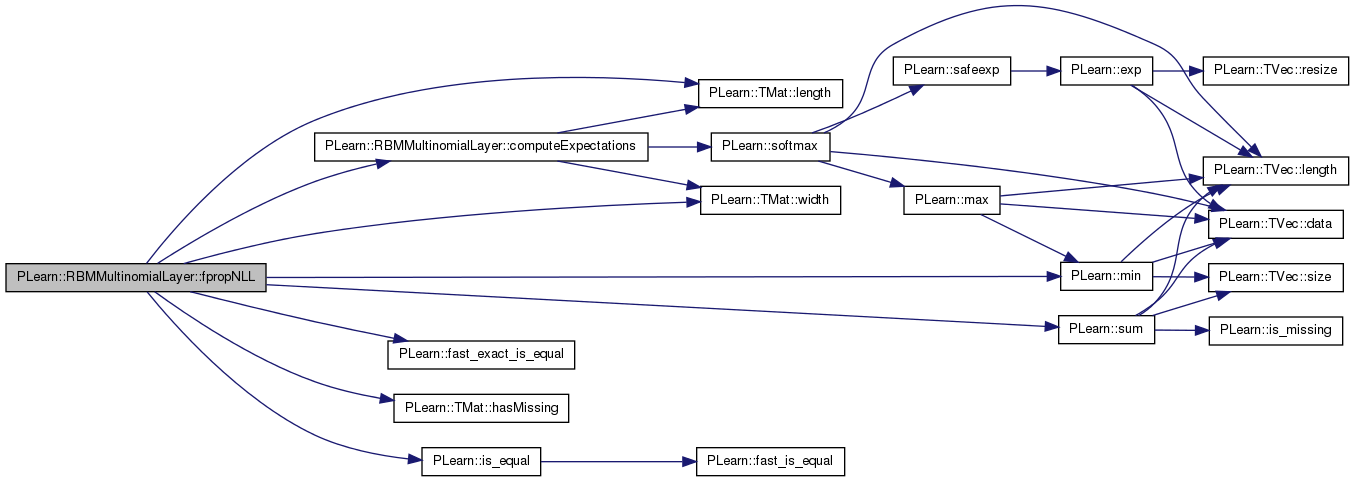

Here is the call graph for this function:

real PLearn::RBMMultinomialLayer::fpropNLL ( const Vec target) [virtual]

Computes the negative log-likelihood of target given the internal activations of the layer.

Reimplemented from PLearn::RBMLayer.

Definition at line 303 of file RBMMultinomialLayer.cc.

References computeExpectation(), PLearn::RBMLayer::expectation, PLearn::fast_exact_is_equal(), PLearn::TVec< T >::hasMissing(), i, PLearn::OnlineLearningModule::input_size, PLearn::is_equal(), PLearn::min(), pl_log, PLASSERT, PLASSERT_MSG, PLERROR, PLearn::TVec< T >::size(), PLearn::RBMLayer::size, and PLearn::sum().

{
    computeExpectation();

    PLASSERT( target.size() == input_size );

#ifdef BOUNDCHECK
    if (!target.hasMissing())
    {
        PLASSERT_MSG( min(target) >= 0.,
                      "Elements of \"target\" should be positive" );
        // Ensure the distribution probabilities sum to 1. We relax a
        // bit the default tolerance as probabilities using
        // exponentials could suffer numerical imprecisions.
        if (!is_equal( sum(target), 1., 1., 1e-5, 1e-5 ))
            PLERROR("In RBMMultinomialLayer::fpropNLL - Elements of \"target\""
                    " should sum to 1 (found a sum = %f)",
                    sum(target));
    }
#endif

    real nll = 0;
    real target_i, expectation_i;
    for (int i=0; i<size; i++)
    {
        target_i = target[i];
        expectation_i = expectation[i];
        if(!fast_exact_is_equal(target_i, 0.0))
            nll -= target_i * pl_log(expectation_i);
    }
    return nll;
}

Here is the call graph for this function:

real PLearn::RBMMultinomialLayer::freeEnergyContribution ( const Vec unit_activations) const [virtual]

Computes $ -log(\sum_{possible values of h} exp(h' unit_activations))$ This quantity is used for computing the free energy of a sample x in the OTHER layer of an RBM, from which unit_activations was computed.

Reimplemented from PLearn::RBMLayer.

Definition at line 437 of file RBMMultinomialLayer.cc.

References PLearn::logadd().

{
    // result = -log(\sum_{i=0}^{size-1} exp(a_i))
    return -logadd(unit_activations);
}

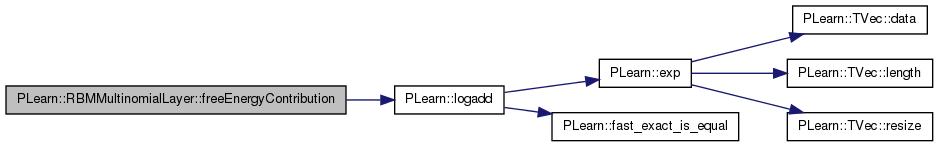

Here is the call graph for this function:

void PLearn::RBMMultinomialLayer::freeEnergyContributionGradient ( const Vec unit_activations,
Vec unit_activations_gradient,
real  output_gradient = 1,
bool  accumulate = false
) const [virtual]

Computes gradient of the result of freeEnergyContribution $ -log(\sum_{possible values of h} exp(h' unit_activations))$ with respect to unit_activations.

Optionally, a gradient with respect to freeEnergyContribution can be given

Reimplemented from PLearn::RBMLayer.

Definition at line 444 of file RBMMultinomialLayer.cc.

References PLearn::TVec< T >::clear(), PLearn::TVec< T >::data(), PLASSERT, PLearn::TVec< T >::resize(), PLearn::TVec< T >::size(), PLearn::RBMLayer::size, PLearn::softmax(), and tmp_softmax.

{
    PLASSERT( unit_activations.size() == size );
    unit_activations_gradient.resize( size );
    if( !accumulate ) unit_activations_gradient.clear();
    tmp_softmax.resize( size );
    softmax(unit_activations, tmp_softmax);
    real* ga = unit_activations_gradient.data();
    real* s = tmp_softmax.data();
    for (int i=0; i<size; i++)
        ga[i] -= output_gradient * s[i];
}

Here is the call graph for this function:

void PLearn::RBMMultinomialLayer::generateSample ( ) [virtual]

generate a sample, and update the sample field

Implements PLearn::RBMLayer.

Definition at line 82 of file DEPRECATED/RBMMultinomialLayer.cc.

References PLearn::fill_one_hot(), i, and PLearn::sample().

{
    computeExpectation();

    int i = random_gen->multinomial_sample( expectation );
    fill_one_hot( sample, i, 0., 1. );
}

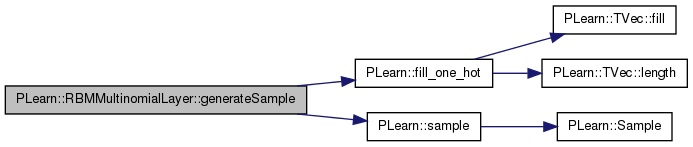

Here is the call graph for this function:

virtual void PLearn::RBMMultinomialLayer::generateSample ( ) [virtual]

generate a sample, and update the sample field

Implements PLearn::RBMLayer.

void PLearn::RBMMultinomialLayer::generateSamples ( ) [virtual]

batch version

Implements PLearn::RBMLayer.

Definition at line 83 of file RBMMultinomialLayer.cc.

References PLearn::RBMLayer::batch_size, PLearn::RBMLayer::expectations, PLearn::RBMLayer::expectations_are_up_to_date, PLearn::fill_one_hot(), PLearn::TMat< T >::length(), PLASSERT, PLASSERT_MSG, PLCHECK_MSG, PLearn::RBMLayer::random_gen, PLearn::RBMLayer::samples, PLearn::RBMLayer::size, and PLearn::TMat< T >::width().

{
    PLASSERT_MSG(random_gen,
                 "random_gen should be initialized before generating samples");

    PLCHECK_MSG(expectations_are_up_to_date, "Expectations should be computed "
                        "before calling generateSamples()");

    PLASSERT( samples.width() == size && samples.length() == batch_size );

    for (int k = 0; k < batch_size; k++)
    {
        int i = random_gen->multinomial_sample( expectations(k) );
        fill_one_hot( samples(k), i, real(0.), real(1.) );
    }
}

Here is the call graph for this function:

void PLearn::RBMMultinomialLayer::getAllActivations ( PP< RBMParameters rbmp,
int  offset = 0
) [virtual]

Uses "rbmp" to obtain the activations of all units in this layer.

Unit 0 of this layer corresponds to unit "offset" of "rbmp".

Implements PLearn::RBMLayer.

Definition at line 75 of file DEPRECATED/RBMMultinomialLayer.cc.

{
    rbmp->computeUnitActivations( offset, size, activations );
    expectation_is_up_to_date = false;
}
void PLearn::RBMMultinomialLayer::getConfiguration ( int  conf_index,
Vec output
) [virtual]

Computes the conf_index configuration of the layer.

Reimplemented from PLearn::RBMLayer.

Definition at line 465 of file RBMMultinomialLayer.cc.

References getConfigurationCount(), i, PLearn::TVec< T >::length(), PLASSERT, and PLearn::RBMLayer::size.

{
    PLASSERT( output.length() == size );
    PLASSERT( conf_index >= 0 && conf_index < getConfigurationCount() );

    for ( int i = 0; i < size; ++i ) {
        output[i] = i == conf_index ? 1 : 0;
    }
}

Here is the call graph for this function:

int PLearn::RBMMultinomialLayer::getConfigurationCount ( ) [virtual]

Returns a number of different configurations the layer can be in.

Reimplemented from PLearn::RBMLayer.

Definition at line 460 of file RBMMultinomialLayer.cc.

References PLearn::RBMLayer::size.

Referenced by getConfiguration().

{
    return size;
}

Here is the caller graph for this function:

virtual OptionList& PLearn::RBMMultinomialLayer::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

OptionList & PLearn::RBMMultinomialLayer::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 49 of file DEPRECATED/RBMMultinomialLayer.cc.

OptionMap & PLearn::RBMMultinomialLayer::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 49 of file DEPRECATED/RBMMultinomialLayer.cc.

virtual OptionMap& PLearn::RBMMultinomialLayer::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

virtual RemoteMethodMap& PLearn::RBMMultinomialLayer::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

RemoteMethodMap & PLearn::RBMMultinomialLayer::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 49 of file DEPRECATED/RBMMultinomialLayer.cc.

void PLearn::RBMMultinomialLayer::getUnitActivations ( int  i,
PP< RBMParameters rbmp,
int  offset = 0
) [virtual]

Uses "rbmp" to obtain the activations of unit "i" of this layer.

This activation vector is computed by the "i+offset"-th unit of "rbmp"

Implements PLearn::RBMLayer.

Definition at line 67 of file DEPRECATED/RBMMultinomialLayer.cc.

References PLearn::TVec< T >::subVec().

{
    Vec activation = activations.subVec( i, 1 );
    rbmp->computeUnitActivations( i+offset, 1, activation );
    expectation_is_up_to_date = false;
}

Here is the call graph for this function:

virtual void PLearn::RBMMultinomialLayer::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Transforms a shallow copy into a deep copy.

Reimplemented from PLearn::RBMLayer.

void PLearn::RBMMultinomialLayer::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Transforms a shallow copy into a deep copy.

Reimplemented from PLearn::RBMLayer.

Definition at line 139 of file DEPRECATED/RBMMultinomialLayer.cc.


Member Data Documentation

Reimplemented from PLearn::RBMLayer.

Definition at line 98 of file DEPRECATED/RBMMultinomialLayer.h.

Definition at line 155 of file RBMMultinomialLayer.h.

Referenced by freeEnergyContributionGradient().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
