PLearn::MPIPStreamBuf Class Reference

An implementation of the PStreamBuf interface using MPI communication. More...

#include <MPIPStreamBuf.h>

Inheritance diagram for PLearn::MPIPStreamBuf:
Inheritance graph
[legend]

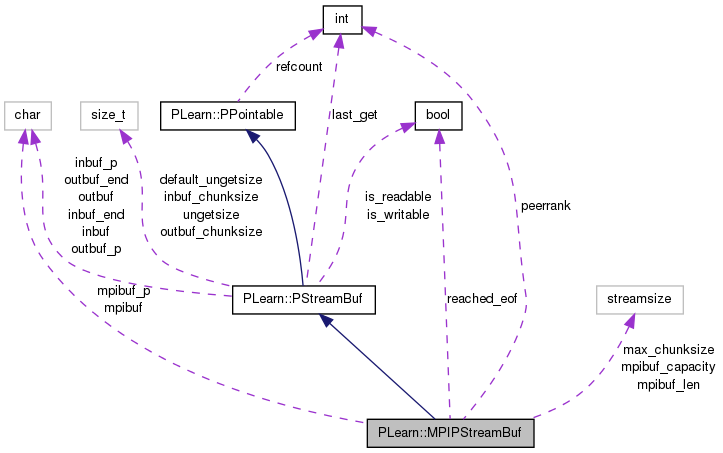

Collaboration diagram for PLearn::MPIPStreamBuf:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 MPIPStreamBuf (int peer_rank, streamsize chunksize=1024)
virtual ~MPIPStreamBuf ()

Protected Member Functions

virtual streamsize read_ (char *p, streamsize n)
 reads up to n characters into p You should override this call in subclasses.
virtual void write_ (const char *p, streamsize n)
 writes exactly n characters from p (unbuffered, must flush)

Protected Attributes

int peerrank
 rank of MPI peer

Private Types

typedef PStreamBuf inherited

Private Member Functions

void fill_mpibuf (int msglength)

Private Attributes

char * mpibuf
streamsize mpibuf_capacity
char * mpibuf_p
streamsize mpibuf_len
bool reached_eof
streamsize max_chunksize

Friends

class PLearn::Poll

Detailed Description

An implementation of the PStreamBuf interface using MPI communication.

Definition at line 54 of file MPIPStreamBuf.h.


Member Typedef Documentation

Reimplemented from PLearn::PStreamBuf.

Definition at line 60 of file MPIPStreamBuf.h.


Constructor & Destructor Documentation

PLearn::MPIPStreamBuf::MPIPStreamBuf ( int  peer_rank,
streamsize  chunksize = 1024
)

Definition at line 52 of file MPIPStreamBuf.cc.

    : PStreamBuf(true, true, chunksize, chunksize, default_ungetsize),
      mpibuf(0),
      mpibuf_capacity(0),
      mpibuf_p(0),
      mpibuf_len(0),
      reached_eof(false),
      max_chunksize(chunksize),
      peerrank(peer_rank)
{}
PLearn::MPIPStreamBuf::~MPIPStreamBuf ( ) [virtual]

Definition at line 63 of file MPIPStreamBuf.cc.

References mpibuf.

{
    if(mpibuf)
        delete[] mpibuf;
}

Member Function Documentation

void PLearn::MPIPStreamBuf::fill_mpibuf ( int  msglength) [private]

Definition at line 69 of file MPIPStreamBuf.cc.

References PLearn::max(), mpibuf, mpibuf_capacity, mpibuf_len, mpibuf_p, peerrank, and PLearn::PLMPI::tag.

Referenced by read_().

{
    if (msglength>int(mpibuf_capacity))
    {
        if(mpibuf)
            delete[] mpibuf;
        // inrease capacity
        mpibuf_capacity = max(msglength,int(mpibuf_capacity)*2);
        mpibuf = new char[mpibuf_capacity];
    }
    MPI_Status status;
    mpibuf_p = mpibuf;
    MPI_Recv(mpibuf_p, msglength, MPI_CHAR, peerrank, PLMPI::tag, MPI_COMM_WORLD, &status);
    mpibuf_len = msglength;
}

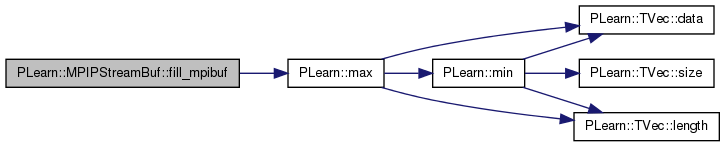

Here is the call graph for this function:

Here is the caller graph for this function:

MPIPStreamBuf::streamsize PLearn::MPIPStreamBuf::read_ ( char *  p,
streamsize  n
) [protected, virtual]

reads up to n characters into p You should override this call in subclasses.

Default version issues a PLERROR

On success, the number of bytes read is returned. Zero indicates end of file. If we are not at end of file, at least one character should be returned (the call must block until at least one char is available). It is not an error if the number returned is smaller than the number of bytes requested; this may happen for example because fewer bytes are actually available right now (maybe because we were close to end-of-file, or because we are reading from a pipe, or from a terminal). If an error occurs, an exception should be thrown.

Reimplemented from PLearn::PStreamBuf.

Definition at line 85 of file MPIPStreamBuf.cc.

References std::copy(), fill_mpibuf(), m, PLearn::min(), mpibuf_len, mpibuf_p, n, peerrank, reached_eof, and PLearn::PLMPI::tag.

{
    int msglength = 0;
    MPI_Status status;

    streamsize nread = 0;
    if (mpibuf_len>0)
    {
        streamsize m = min(n,mpibuf_len);
        copy(mpibuf_p, mpibuf_p+m, p);
        p += m;
        mpibuf_p += m;
        mpibuf_len -= m;
        n -= m;
        nread += m;
    }
    if (!reached_eof && n>0)
    {
        // MPI_Probe(peerrank, tag, MPI_COMM_WORLD, &status);
        MPI_Get_count(&status, MPI_CHAR, &msglength);
        if (msglength==0) // we reached EOF
            reached_eof = true;
        else
        {
            if (msglength<=(int)n)
            {
                MPI_Recv(p, msglength, MPI_CHAR, peerrank, PLMPI::tag, MPI_COMM_WORLD, &status);
                nread += msglength;
            }
            else // msglength>n
            {
                fill_mpibuf(msglength);
                copy(mpibuf_p, mpibuf_p+n, p);
                mpibuf_p += n;
                mpibuf_len -= n;
                nread += n;
            }
        }
    }
    return nread;
}

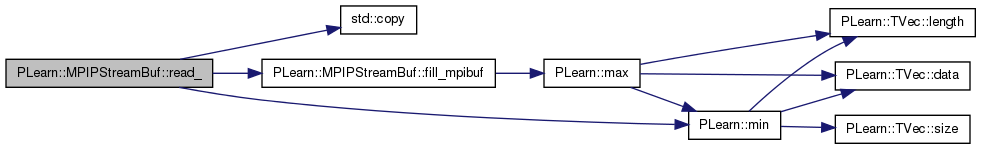

Here is the call graph for this function:

void PLearn::MPIPStreamBuf::write_ ( const char *  p,
streamsize  n
) [protected, virtual]

writes exactly n characters from p (unbuffered, must flush)

Reimplemented from PLearn::PStreamBuf.

Definition at line 128 of file MPIPStreamBuf.cc.

References m, max_chunksize, PLearn::min(), peerrank, PLERROR, and PLearn::PLMPI::tag.

{
    while (n>0)
    {
        streamsize m = min(max_chunksize,n);
        if( MPI_Send((void *)p, m, MPI_CHAR, peerrank, PLMPI::tag, MPI_COMM_WORLD) != MPI_SUCCESS )
            PLERROR("MPI_Send failed");
        p += m;
        n -= m;
    }
}

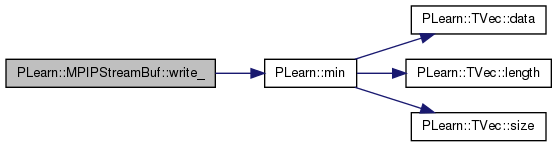

Here is the call graph for this function:


Friends And Related Function Documentation

friend class PLearn::Poll [friend]

Definition at line 56 of file MPIPStreamBuf.h.


Member Data Documentation

Definition at line 66 of file MPIPStreamBuf.h.

Referenced by write_().

Definition at line 61 of file MPIPStreamBuf.h.

Referenced by fill_mpibuf(), and ~MPIPStreamBuf().

Definition at line 62 of file MPIPStreamBuf.h.

Referenced by fill_mpibuf().

Definition at line 64 of file MPIPStreamBuf.h.

Referenced by fill_mpibuf(), and read_().

Definition at line 63 of file MPIPStreamBuf.h.

Referenced by fill_mpibuf(), and read_().

rank of MPI peer

Definition at line 74 of file MPIPStreamBuf.h.

Referenced by fill_mpibuf(), read_(), and write_().

Definition at line 65 of file MPIPStreamBuf.h.

Referenced by read_().


The documentation for this class was generated from the following files:
