PLearn::LLEKernel Class Reference

#include <LLEKernel.h>

Inheritance diagram for PLearn::LLEKernel:
Inheritance graph
[legend]

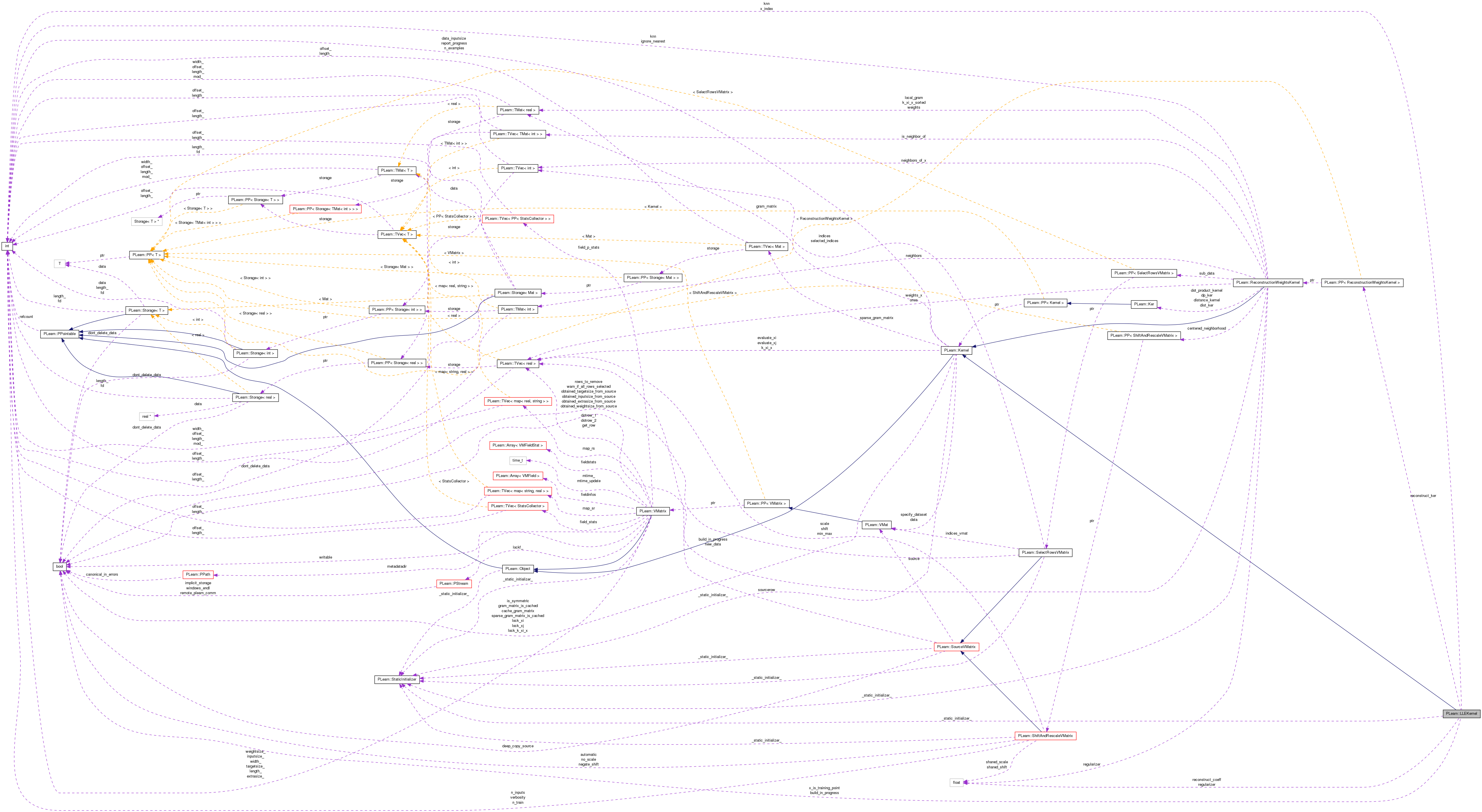

Collaboration diagram for PLearn::LLEKernel:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 LLEKernel ()
 Default constructor.
virtual void build ()
 Simply calls inherited::build() then build_().
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual LLEKerneldeepCopy (CopiesMap &copies) const
virtual void computeGramMatrix (Mat K) const
 Overridden for efficiency purpose.
virtual real evaluate (const Vec &x1, const Vec &x2) const
 Compute K(x1,x2).
virtual real evaluate_i_j (int i, int j) const
 returns evaluate(data(i),data(j))
virtual real evaluate_i_x (int i, const Vec &x, real squared_norm_of_x=-1) const
 Return evaluate(data(i),x).
virtual real evaluate_i_x_again (int i, const Vec &x, real squared_norm_of_x=-1, bool first_time=false) const
 Return evaluate(data(i),x), where x is the same as in the precedent call to this same function (except if 'first_time' is true).
virtual void setDataForKernelMatrix (VMat the_data)
 ** Subclasses may override these methods to provide efficient kernel matrix access **

Static Public Member Functions

static string _classname_ ()
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

int knn
real reconstruct_coeff
real regularizer

Static Public Attributes

static StaticInitializer _static_initializer_

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declares this class' options.

Protected Attributes

PP< ReconstructionWeightsKernelreconstruct_ker
 The kernel used to compute the reconstruction weights.

Private Types

typedef Kernel inherited

Private Member Functions

void build_ ()
 This does the actual building.

Private Attributes

bool build_in_progress
 True iff build() has been called but build_() has not been called yet.
bool x_is_training_point
 Used in 'evaluate_i_x_again' to remember whether x is a training point or not.
int x_index
 Used in 'evaluate_i_x_again' to remember the index of x when it is a training point.

Detailed Description

Definition at line 53 of file LLEKernel.h.


Member Typedef Documentation

Reimplemented from PLearn::Kernel.

Definition at line 58 of file LLEKernel.h.


Constructor & Destructor Documentation

PLearn::LLEKernel::LLEKernel ( )

Default constructor.

Definition at line 52 of file LLEKernel.cc.

    : build_in_progress(false),
      reconstruct_ker(new ReconstructionWeightsKernel()),
      knn(5),
      reconstruct_coeff(-1),
      regularizer(1e-6)
{
}

Member Function Documentation

string PLearn::LLEKernel::_classname_ ( ) [static]

Reimplemented from PLearn::Kernel.

Definition at line 77 of file LLEKernel.cc.

OptionList & PLearn::LLEKernel::_getOptionList_ ( ) [static]

Reimplemented from PLearn::Kernel.

Definition at line 77 of file LLEKernel.cc.

RemoteMethodMap & PLearn::LLEKernel::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::Kernel.

Definition at line 77 of file LLEKernel.cc.

bool PLearn::LLEKernel::_isa_ ( const Object o) [static]

Reimplemented from PLearn::Kernel.

Definition at line 77 of file LLEKernel.cc.

Object * PLearn::LLEKernel::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 77 of file LLEKernel.cc.

StaticInitializer LLEKernel::_static_initializer_ & PLearn::LLEKernel::_static_initialize_ ( ) [static]

Reimplemented from PLearn::Kernel.

Definition at line 77 of file LLEKernel.cc.

void PLearn::LLEKernel::build ( ) [virtual]

Simply calls inherited::build() then build_().

Reimplemented from PLearn::Kernel.

Definition at line 103 of file LLEKernel.cc.

References PLearn::Kernel::build(), build_(), and build_in_progress.

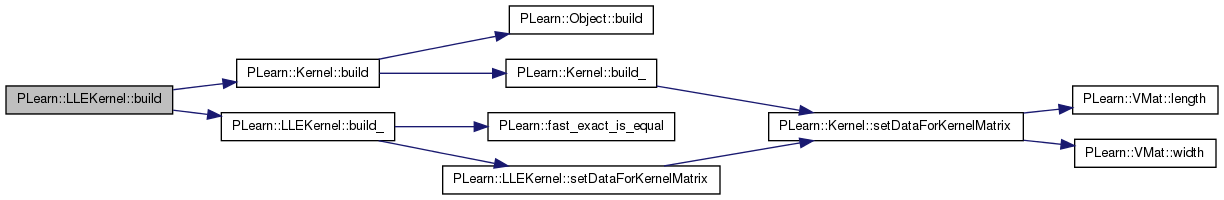

Here is the call graph for this function:

void PLearn::LLEKernel::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::Kernel.

Definition at line 113 of file LLEKernel.cc.

References build_in_progress, PLearn::fast_exact_is_equal(), knn, PLWARNING, reconstruct_coeff, reconstruct_ker, regularizer, PLearn::Kernel::report_progress, setDataForKernelMatrix(), and PLearn::Kernel::specify_dataset.

Referenced by build().

{
    // Let's make sure the value of 'reconstruct_coeff' is not set accidentally
    // to an unusual value.
    if (fast_exact_is_equal(reconstruct_coeff, 0)) {
        PLWARNING("In LLEKernel::build_ - 'reconstruct_coeff' is set to 0, you won't be able to apply this kernel out-of-sample");
    } else if (reconstruct_coeff > 0) {
        PLWARNING("In LLEKernel::build_ - 'reconstruct_coeff' is > 0, this may give weird results out-of-sample for small coefficients");
    } else if (fabs(reconstruct_coeff + 1) > 1e-6) {
        PLWARNING("In LLEKernel::build_ - 'reconstruct_coeff' is negative but not -1, this may give some very weird stuff out-of-sample");
    }
    reconstruct_ker->regularizer = this->regularizer;
    reconstruct_ker->knn = this->knn;
    reconstruct_ker->report_progress = this->report_progress;
    reconstruct_ker->build();
    build_in_progress = false;
    // This code, normally executed in Kernel::build_, can only be executed
    // now beause the kernel 'reconstruct_ker' has to be initialized.
    if (specify_dataset) {
        this->setDataForKernelMatrix(specify_dataset);
    }
}

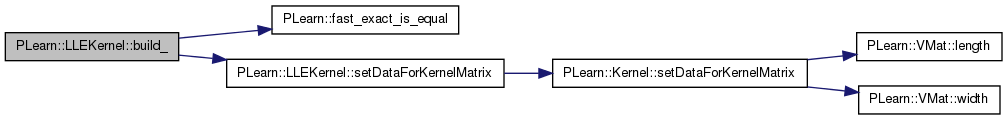

Here is the call graph for this function:

Here is the caller graph for this function:

string PLearn::LLEKernel::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 77 of file LLEKernel.cc.

void PLearn::LLEKernel::computeGramMatrix ( Mat  K) const [virtual]

Overridden for efficiency purpose.

Reimplemented from PLearn::Kernel.

Definition at line 139 of file LLEKernel.cc.

References PLearn::fast_exact_is_equal(), i, PLearn::Kernel::n_examples, reconstruct_coeff, and reconstruct_ker.

                                             {
    reconstruct_ker->computeLLEMatrix(K);
    if (!fast_exact_is_equal(reconstruct_coeff, 0)) {
        for (int i = 0; i < n_examples; i++) {
            K(i, i) += fabs(reconstruct_coeff);
        }
    }
}

Here is the call graph for this function:

void PLearn::LLEKernel::declareOptions ( OptionList ol) [static, protected]

Declares this class' options.

Reimplemented from PLearn::Kernel.

Definition at line 82 of file LLEKernel.cc.

References PLearn::OptionBase::buildoption, PLearn::declareOption(), PLearn::Kernel::declareOptions(), knn, reconstruct_coeff, and regularizer.

{
    declareOption(ol, "knn", &LLEKernel::knn, OptionBase::buildoption,
                  "The number of nearest neighbors considered.");

    declareOption(ol, "reconstruct_coeff", &LLEKernel::reconstruct_coeff, OptionBase::buildoption,
                  "The weight of K' in the weighted sum of K' and K''. If set to a negative\n"
                  "value, it will behave as its absolute value when evaluated on the training\n"
                  "points with the evaluate_i_j method, but will return only its absolute value\n"
                  "times K' when evaluated with the evaluate_i_x method.");

    declareOption(ol, "regularizer", &LLEKernel::regularizer, OptionBase::buildoption,
                  "The regularization factor used to make the linear systems stable.");

    // Now call the parent class' declareOptions
    inherited::declareOptions(ol);
}

Here is the call graph for this function:

static const PPath& PLearn::LLEKernel::declaringFile ( ) [inline, static]

Reimplemented from PLearn::Kernel.

Definition at line 126 of file LLEKernel.h.

LLEKernel * PLearn::LLEKernel::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::Kernel.

Definition at line 77 of file LLEKernel.cc.

real PLearn::LLEKernel::evaluate ( const Vec x1,
const Vec x2
) const [virtual]

Compute K(x1,x2).

Implements PLearn::Kernel.

Definition at line 151 of file LLEKernel.cc.

References evaluate_i_j(), evaluate_i_x(), and PLearn::Kernel::isInData().

                                                           {
    static int j1, j2;
    if (isInData(x1, &j1)) {
        if (isInData(x2, &j2)) {
            // Both points are in the training set.
            return evaluate_i_j(j1, j2);
        } else {
            // Only x1 is in the training set.
            return evaluate_i_x(j1, x2);
        }
    } else {
        if (isInData(x2, &j2)) {
            // Only x2 is in the training set.
            return evaluate_i_x(j2, x1);
        } else {
            // Neither x1 nor x2 is in the training set.
            return 0;
        }
    }
}

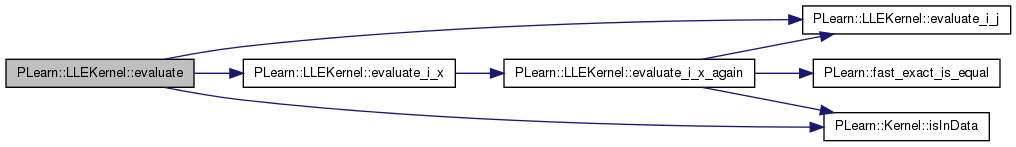

Here is the call graph for this function:

real PLearn::LLEKernel::evaluate_i_j ( int  i,
int  j
) const [virtual]

returns evaluate(data(i),data(j))

Reimplemented from PLearn::Kernel.

Definition at line 175 of file LLEKernel.cc.

References reconstruct_coeff, and reconstruct_ker.

Referenced by evaluate(), and evaluate_i_x_again().

                                               {
    // When evaluated on training points, we must ignore the nearest neighbor
    // (because it is the point itself).
    real result;
    int tmp = reconstruct_ker->ignore_nearest;
    reconstruct_ker->ignore_nearest = 1;
    if (i == j) {
        result =
            fabs(reconstruct_coeff) +
            2 * reconstruct_ker->evaluate_i_j(i,i) -
            reconstruct_ker->evaluate_sum_k_i_k_j(i,i);
        reconstruct_ker->ignore_nearest = tmp;
        return result;
    } else {
        result =
            reconstruct_ker->evaluate_i_j(j,i) +
            reconstruct_ker->evaluate_i_j(i,j) -
            reconstruct_ker->evaluate_sum_k_i_k_j(i,j);
        reconstruct_ker->ignore_nearest = tmp;
        return result;
    }
}

Here is the caller graph for this function:

real PLearn::LLEKernel::evaluate_i_x ( int  i,
const Vec x,
real  squared_norm_of_x = -1
) const [virtual]

Return evaluate(data(i),x).

[squared_norm_of_x is just a hint that may allow to speed up computation if it is already known, but it's optional]

Reimplemented from PLearn::Kernel.

Definition at line 201 of file LLEKernel.cc.

References evaluate_i_x_again().

Referenced by evaluate().

                                                                              {
    return evaluate_i_x_again(i, x, squared_norm_of_x, true);
}

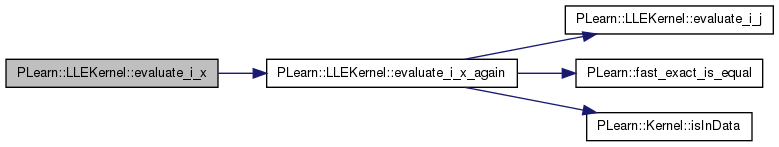

Here is the call graph for this function:

Here is the caller graph for this function:

real PLearn::LLEKernel::evaluate_i_x_again ( int  i,
const Vec x,
real  squared_norm_of_x = -1,
bool  first_time = false
) const [virtual]

Return evaluate(data(i),x), where x is the same as in the precedent call to this same function (except if 'first_time' is true).

This can be used to speed up successive computations of K(x_i, x) (default version just calls evaluate_i_x).

Reimplemented from PLearn::Kernel.

Definition at line 208 of file LLEKernel.cc.

References evaluate_i_j(), PLearn::fast_exact_is_equal(), PLearn::Kernel::isInData(), reconstruct_coeff, reconstruct_ker, x_index, and x_is_training_point.

Referenced by evaluate_i_x().

                                                                                                     {
    if (fast_exact_is_equal(reconstruct_coeff, 0)) {
        // This kernel should only be evaluated on training points.
        if (first_time) {
            x_is_training_point = isInData(x, &x_index);
        }
        if (!x_is_training_point)
            return 0;
        return evaluate_i_j(i, x_index);
    } else if (reconstruct_coeff > 0) {
        if (first_time) {
            x_is_training_point = isInData(x, &x_index);
        }
        if (x_is_training_point) {
            return evaluate_i_j(i, x_index);
        } else {
            return reconstruct_coeff * reconstruct_ker->evaluate_x_i_again(x, i, squared_norm_of_x, first_time);
        }
    } else {
        // reconstruct_coeff < 0: we assume x is not a training point.
        return fabs(reconstruct_coeff) * reconstruct_ker->evaluate_x_i_again(x, i, squared_norm_of_x, first_time);
    }
}

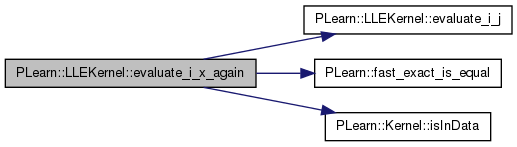

Here is the call graph for this function:

Here is the caller graph for this function:

OptionList & PLearn::LLEKernel::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 77 of file LLEKernel.cc.

OptionMap & PLearn::LLEKernel::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 77 of file LLEKernel.cc.

RemoteMethodMap & PLearn::LLEKernel::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 77 of file LLEKernel.cc.

void PLearn::LLEKernel::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Transforms a shallow copy into a deep copy.

Reimplemented from PLearn::Kernel.

Definition at line 235 of file LLEKernel.cc.

References PLearn::Kernel::makeDeepCopyFromShallowCopy(), and PLERROR.

{
    inherited::makeDeepCopyFromShallowCopy(copies);

    // ### Call deepCopyField on all "pointer-like" fields
    // ### that you wish to be deepCopied rather than
    // ### shallow-copied.
    // ### ex:
    // deepCopyField(trainvec, copies);

    // ### Remove this line when you have fully implemented this method.
    PLERROR("LLEKernel::makeDeepCopyFromShallowCopy not fully (correctly) implemented yet!");
}

Here is the call graph for this function:

void PLearn::LLEKernel::setDataForKernelMatrix ( VMat  the_data) [virtual]

** Subclasses may override these methods to provide efficient kernel matrix access **

This method sets the data VMat that will be used to define the kernel matrix. It may precompute values from this that may later accelerate the evaluation of a kernel matrix element

Reimplemented from PLearn::Kernel.

Definition at line 252 of file LLEKernel.cc.

References build_in_progress, reconstruct_ker, and PLearn::Kernel::setDataForKernelMatrix().

Referenced by build_().

                                                    {
    if (build_in_progress)
        return;
    inherited::setDataForKernelMatrix(the_data);
    // We ignore the nearest neighbor when computing the reconstruction weights
    // on the training data.
    reconstruct_ker->ignore_nearest = 1;
    reconstruct_ker->setDataForKernelMatrix(the_data);
    // But we do not ignore it anymore when computing the reconstruction weights
    // on new samples.
    reconstruct_ker->ignore_nearest = 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:


Member Data Documentation

Reimplemented from PLearn::Kernel.

Definition at line 126 of file LLEKernel.h.

True iff build() has been called but build_() has not been called yet.

Definition at line 61 of file LLEKernel.h.

Referenced by build(), build_(), and setDataForKernelMatrix().

Definition at line 88 of file LLEKernel.h.

Referenced by build_(), and declareOptions().

The kernel used to compute the reconstruction weights.

Definition at line 80 of file LLEKernel.h.

Referenced by build_(), computeGramMatrix(), evaluate_i_j(), evaluate_i_x_again(), and setDataForKernelMatrix().

Definition at line 90 of file LLEKernel.h.

Referenced by build_(), and declareOptions().

int PLearn::LLEKernel::x_index [mutable, private]

Used in 'evaluate_i_x_again' to remember the index of x when it is a training point.

Definition at line 69 of file LLEKernel.h.

Referenced by evaluate_i_x_again().

Used in 'evaluate_i_x_again' to remember whether x is a training point or not.

Definition at line 65 of file LLEKernel.h.

Referenced by evaluate_i_x_again().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
