PLearn 0.1
Public Member Functions | Static Public Member Functions | Public Attributes | Static Public Attributes | Static Protected Member Functions | Private Types | Private Member Functions
PLearn::ConstrainedSourceVariable Class Reference

SourceVariable that after each update, modifies values as needed to satisfy simple constraints. More...

#include <ConstrainedSourceVariable.h>

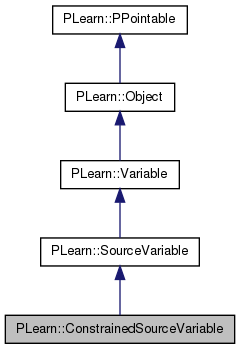

Inheritance diagram for PLearn::ConstrainedSourceVariable:
Inheritance graph
[legend]

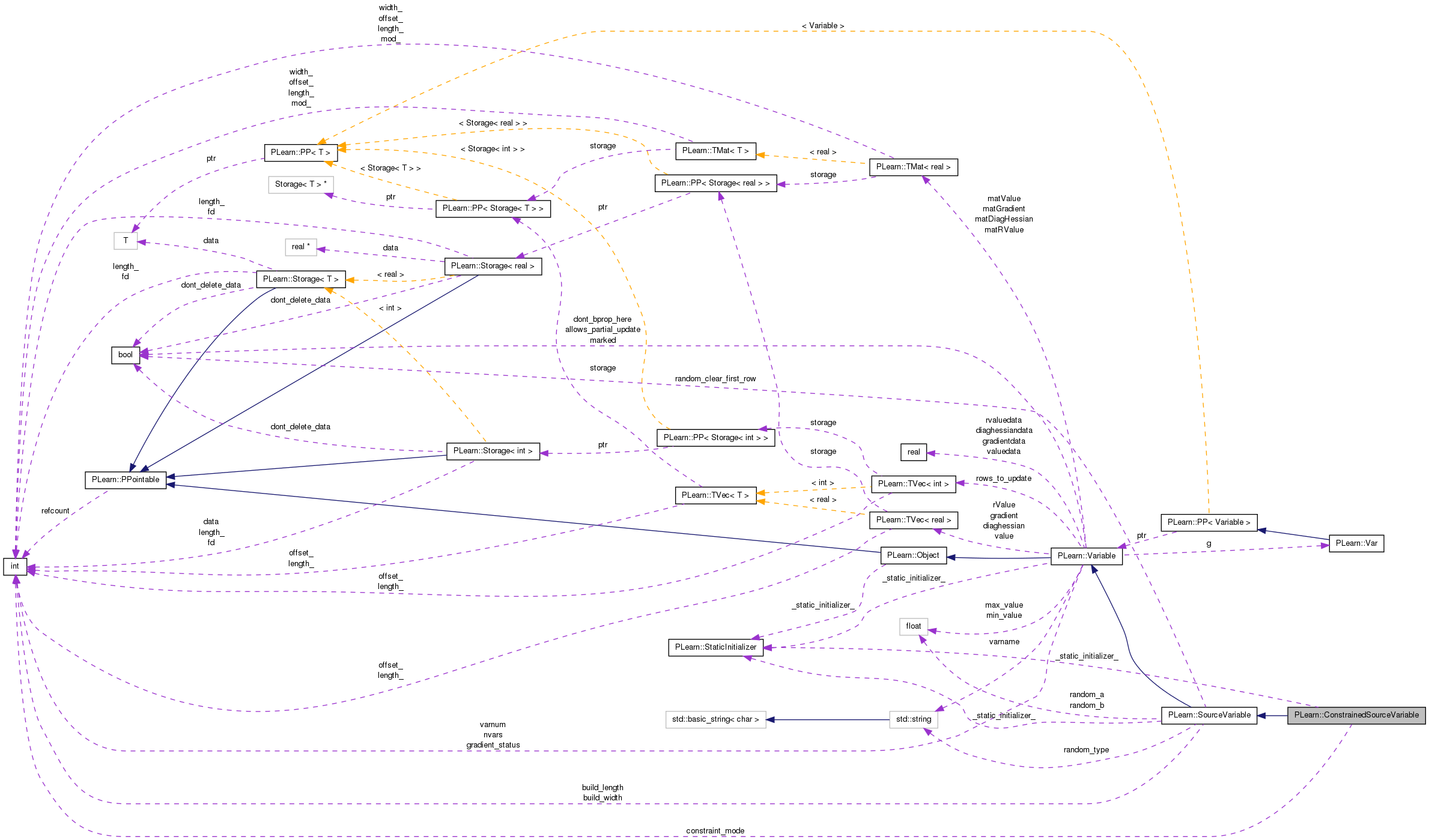

Collaboration diagram for PLearn::ConstrainedSourceVariable:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 ConstrainedSourceVariable ()
 Default constructor for persistence.
 ConstrainedSourceVariable (int thelength, int thewidth, int the_constraint_mode=2, bool call_build_=true)
 ConstrainedSourceVariable (const Vec &v, bool vertical=true, int the_constraint_mode=2, bool call_build_=true)
 ConstrainedSourceVariable (const Mat &m, int the_constraint_mode=2, bool call_build_=true)
virtual void satisfyConstraints ()
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual ConstrainedSourceVariabledeepCopy (CopiesMap &copies) const
virtual void build ()
 Post-constructor.
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.
virtual bool update (real step_size, Vec direction_vec, real coeff=1.0, real b=0.0)
 set value = value + (step_size * coeff + b) * direction
virtual bool update (Vec step_sizes, Vec direction_vec, real coeff=1.0, real b=0.0)
 set value[i] = value[i] + (step_sizes[i]*coeff + b) * direction[i]
virtual bool update (real step_size, bool clear=false)
 set value = value + step_size * gradient
virtual bool update (Vec new_value)
 set value = new_value
virtual void updateAndClear ()
 Set value += gradient (respecting potential box constraints), and clear the gradient.
virtual void updateWithWeightDecay (real step_size, real weight_decay, bool L1, bool clear=true)
 if (L1) value += learning_rate*gradient decrease |value| by learning_rate*weight_decay if it does not make value change sign else // L2 value += learning_rate*(gradient - weight_decay*value) if (clear) gradient=0

Static Public Member Functions

static string _classname_ ()
 ConstrainedSourceVariable.
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

int constraint_mode

Static Public Attributes

static StaticInitializer _static_initializer_

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declares the class options.

Private Types

typedef SourceVariable inherited

Private Member Functions

void build_ ()
 This does the actual building.

Detailed Description

SourceVariable that after each update, modifies values as needed to satisfy simple constraints.

The currently supported constraint is rows having norm 1. i.e. after each update rows are divided by their norm.

Definition at line 54 of file ConstrainedSourceVariable.h.


Member Typedef Documentation

Reimplemented from PLearn::SourceVariable.

Definition at line 56 of file ConstrainedSourceVariable.h.


Constructor & Destructor Documentation

PLearn::ConstrainedSourceVariable::ConstrainedSourceVariable ( ) [inline]

Default constructor for persistence.

Definition at line 65 of file ConstrainedSourceVariable.h.

PLearn::ConstrainedSourceVariable::ConstrainedSourceVariable ( int  thelength,
int  thewidth,
int  the_constraint_mode = 2,
bool  call_build_ = true
) [inline]

Definition at line 70 of file ConstrainedSourceVariable.h.

        :SourceVariable(thelength, thewidth, call_build_),
         constraint_mode(the_constraint_mode)
    {}
PLearn::ConstrainedSourceVariable::ConstrainedSourceVariable ( const Vec v,
bool  vertical = true,
int  the_constraint_mode = 2,
bool  call_build_ = true
) [inline]

Definition at line 75 of file ConstrainedSourceVariable.h.

        :SourceVariable(v, vertical, call_build_),
         constraint_mode(the_constraint_mode)
    {}
PLearn::ConstrainedSourceVariable::ConstrainedSourceVariable ( const Mat m,
int  the_constraint_mode = 2,
bool  call_build_ = true
) [inline]

Definition at line 80 of file ConstrainedSourceVariable.h.

        :SourceVariable(m, call_build_),
         constraint_mode(the_constraint_mode)
    {}

Member Function Documentation

string PLearn::ConstrainedSourceVariable::_classname_ ( ) [static]

ConstrainedSourceVariable.

Reimplemented from PLearn::SourceVariable.

Definition at line 52 of file ConstrainedSourceVariable.cc.

OptionList & PLearn::ConstrainedSourceVariable::_getOptionList_ ( ) [static]

Reimplemented from PLearn::SourceVariable.

Definition at line 52 of file ConstrainedSourceVariable.cc.

RemoteMethodMap & PLearn::ConstrainedSourceVariable::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::SourceVariable.

Definition at line 52 of file ConstrainedSourceVariable.cc.

bool PLearn::ConstrainedSourceVariable::_isa_ ( const Object o) [static]

Reimplemented from PLearn::SourceVariable.

Definition at line 52 of file ConstrainedSourceVariable.cc.

Object * PLearn::ConstrainedSourceVariable::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::SourceVariable.

Definition at line 52 of file ConstrainedSourceVariable.cc.

StaticInitializer ConstrainedSourceVariable::_static_initializer_ & PLearn::ConstrainedSourceVariable::_static_initialize_ ( ) [static]

Reimplemented from PLearn::SourceVariable.

Definition at line 52 of file ConstrainedSourceVariable.cc.

void PLearn::ConstrainedSourceVariable::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::SourceVariable.

Definition at line 87 of file ConstrainedSourceVariable.cc.

void PLearn::ConstrainedSourceVariable::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::SourceVariable.

Definition at line 84 of file ConstrainedSourceVariable.cc.

{ }
string PLearn::ConstrainedSourceVariable::classname ( ) const [virtual]

Reimplemented from PLearn::SourceVariable.

Definition at line 52 of file ConstrainedSourceVariable.cc.

void PLearn::ConstrainedSourceVariable::declareOptions ( OptionList ol) [static, protected]

Declares the class options.

Reimplemented from PLearn::SourceVariable.

Definition at line 73 of file ConstrainedSourceVariable.cc.

References PLearn::OptionBase::buildoption, constraint_mode, and PLearn::declareOption().

{
    declareOption(
        ol, "constraint_mode", &ConstrainedSourceVariable::constraint_mode, OptionBase::buildoption,
        "The constraint_mode: \n"
        "2: divide each row by its L2 norm after each update\n"
        "1: divide each row by its L1 norm after each update");
    inherited::declareOptions(ol);
}

Here is the call graph for this function:

static const PPath& PLearn::ConstrainedSourceVariable::declaringFile ( ) [inline, static]

Reimplemented from PLearn::SourceVariable.

Definition at line 91 of file ConstrainedSourceVariable.h.

:
ConstrainedSourceVariable * PLearn::ConstrainedSourceVariable::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::SourceVariable.

Definition at line 52 of file ConstrainedSourceVariable.cc.

OptionList & PLearn::ConstrainedSourceVariable::getOptionList ( ) const [virtual]

Reimplemented from PLearn::SourceVariable.

Definition at line 52 of file ConstrainedSourceVariable.cc.

OptionMap & PLearn::ConstrainedSourceVariable::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::SourceVariable.

Definition at line 52 of file ConstrainedSourceVariable.cc.

RemoteMethodMap & PLearn::ConstrainedSourceVariable::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::SourceVariable.

Definition at line 52 of file ConstrainedSourceVariable.cc.

void PLearn::ConstrainedSourceVariable::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Transforms a shallow copy into a deep copy.

Reimplemented from PLearn::SourceVariable.

Definition at line 93 of file ConstrainedSourceVariable.cc.

void PLearn::ConstrainedSourceVariable::satisfyConstraints ( ) [virtual]

Definition at line 55 of file ConstrainedSourceVariable.cc.

References i, PLearn::normalize(), and PLERROR.

{
    switch(constraint_mode)
    {
    case 2:
        for(int i=0; i<matValue.length(); i++)
            normalize(matValue(i), 2);
        break;
    case 1:
        for(int i=0; i<matValue.length(); i++)
            normalize(matValue(i), 1);
        break;
    default:
        PLERROR("Invalid constraint_mode %d",constraint_mode);
    }
}

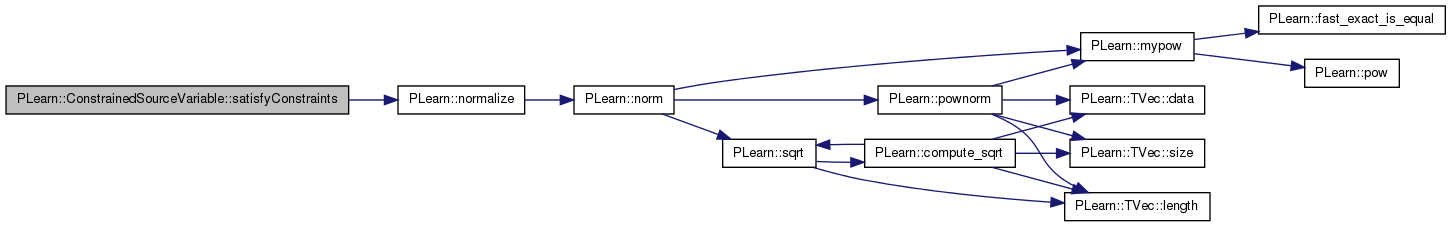

Here is the call graph for this function:

bool PLearn::ConstrainedSourceVariable::update ( Vec  new_value) [virtual]

set value = new_value

projected down in each direction independently in the subspace in which the box constraints are satisfied. return true if box constraints have been hit with the update

Reimplemented from PLearn::Variable.

Definition at line 122 of file ConstrainedSourceVariable.cc.

References PLearn::update().

{
    bool ret = inherited::update(new_value);
    satisfyConstraints();
    return ret;
}

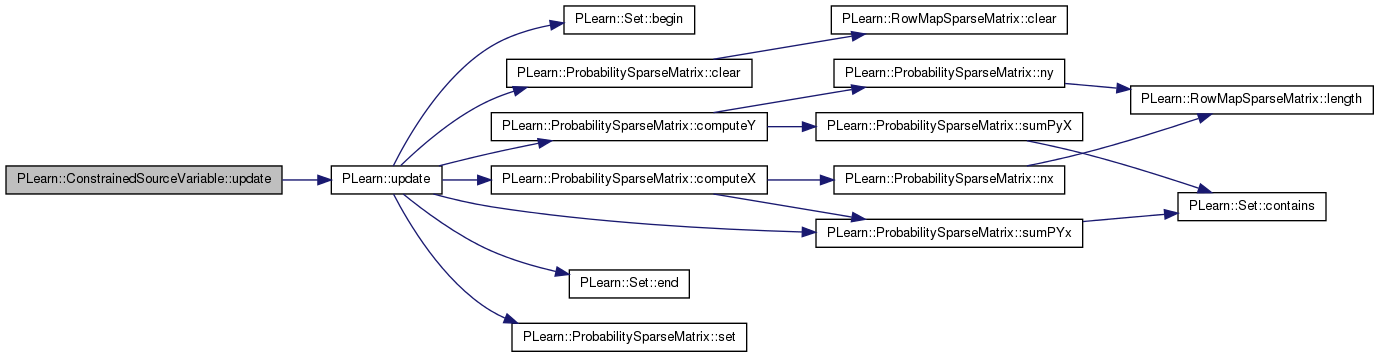

Here is the call graph for this function:

bool PLearn::ConstrainedSourceVariable::update ( real  step_size,
Vec  direction_vec,
real  coeff = 1.0,
real  b = 0.0
) [virtual]

set value = value + (step_size * coeff + b) * direction

with step_size possibly scaled down s.t. box constraints are satisfied return true if box constraints have been hit with the update If (allows_partial_update) the update is done where necessary. NB: Wrong ?

Reimplemented from PLearn::Variable.

Definition at line 101 of file ConstrainedSourceVariable.cc.

References PLearn::update().

{
    bool ret = inherited::update(step_size, direction_vec, coeff, b);
    satisfyConstraints();
    return ret;
}

Here is the call graph for this function:

bool PLearn::ConstrainedSourceVariable::update ( Vec  step_sizes,
Vec  direction_vec,
real  coeff = 1.0,
real  b = 0.0
) [virtual]

set value[i] = value[i] + (step_sizes[i]*coeff + b) * direction[i]

with step_size possibly scaled down s.t. box constraints are satisfied return true if box constraints have been hit with the update

Reimplemented from PLearn::Variable.

Definition at line 108 of file ConstrainedSourceVariable.cc.

References PLearn::update().

{
    bool ret = inherited::update(step_sizes, direction_vec, coeff, b);
    satisfyConstraints();
    return ret;
}

Here is the call graph for this function:

bool PLearn::ConstrainedSourceVariable::update ( real  step_size,
bool  clear = false
) [virtual]

set value = value + step_size * gradient

with step_size possibly scaled down s.t. box constraints are satisfied return true if box constraints have been hit with the update

Reimplemented from PLearn::Variable.

Definition at line 115 of file ConstrainedSourceVariable.cc.

References PLearn::update().

{
    bool ret = inherited::update(step_size, clear);
    satisfyConstraints();
    return ret;
}

Here is the call graph for this function:

void PLearn::ConstrainedSourceVariable::updateAndClear ( ) [virtual]

Set value += gradient (respecting potential box constraints), and clear the gradient.

Reimplemented from PLearn::Variable.

Definition at line 129 of file ConstrainedSourceVariable.cc.

void PLearn::ConstrainedSourceVariable::updateWithWeightDecay ( real  step_size,
real  weight_decay,
bool  L1,
bool  clear = true
) [virtual]

if (L1) value += learning_rate*gradient decrease |value| by learning_rate*weight_decay if it does not make value change sign else // L2 value += learning_rate*(gradient - weight_decay*value) if (clear) gradient=0

Reimplemented from PLearn::Variable.

Definition at line 135 of file ConstrainedSourceVariable.cc.

{
    inherited::updateWithWeightDecay(step_size, weight_decay, L1, clear);
    satisfyConstraints();
}

Member Data Documentation

Reimplemented from PLearn::SourceVariable.

Definition at line 91 of file ConstrainedSourceVariable.h.

Definition at line 61 of file ConstrainedSourceVariable.h.

Referenced by declareOptions().


The documentation for this class was generated from the following files:
