PLearn::Variable Class Reference

#include <Variable.h>

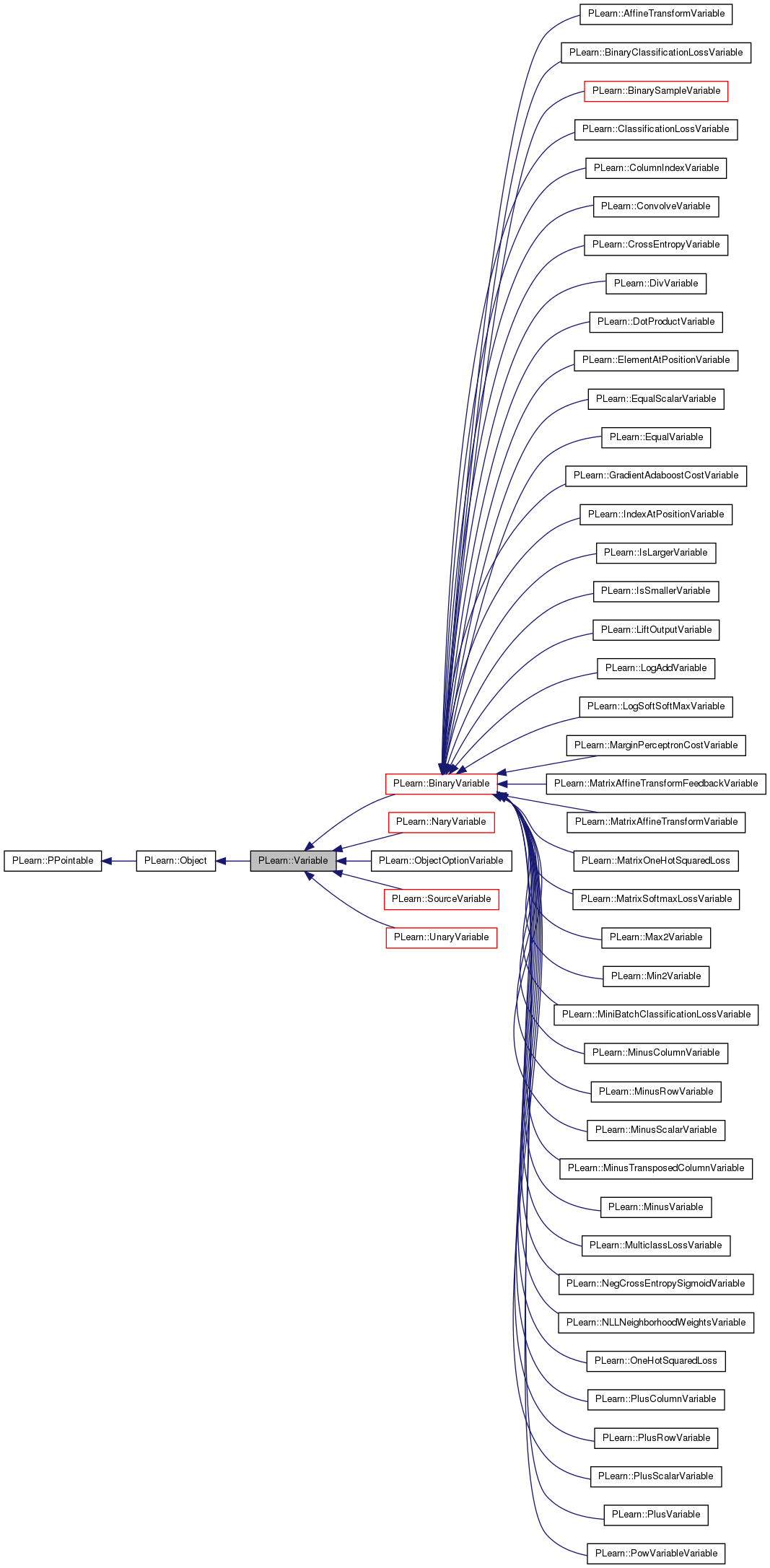

Inheritance diagram for PLearn::Variable:
Inheritance graph
[legend]
Collaboration diagram for PLearn::Variable:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 Variable ()
 Default constructor for persistence.
 Variable (int thelength, int thewidth, bool call_build_=true)
 Variable (const Mat &m, bool call_build_=true)
 this variable's value and m will be views of the same data
int length () const
int width () const

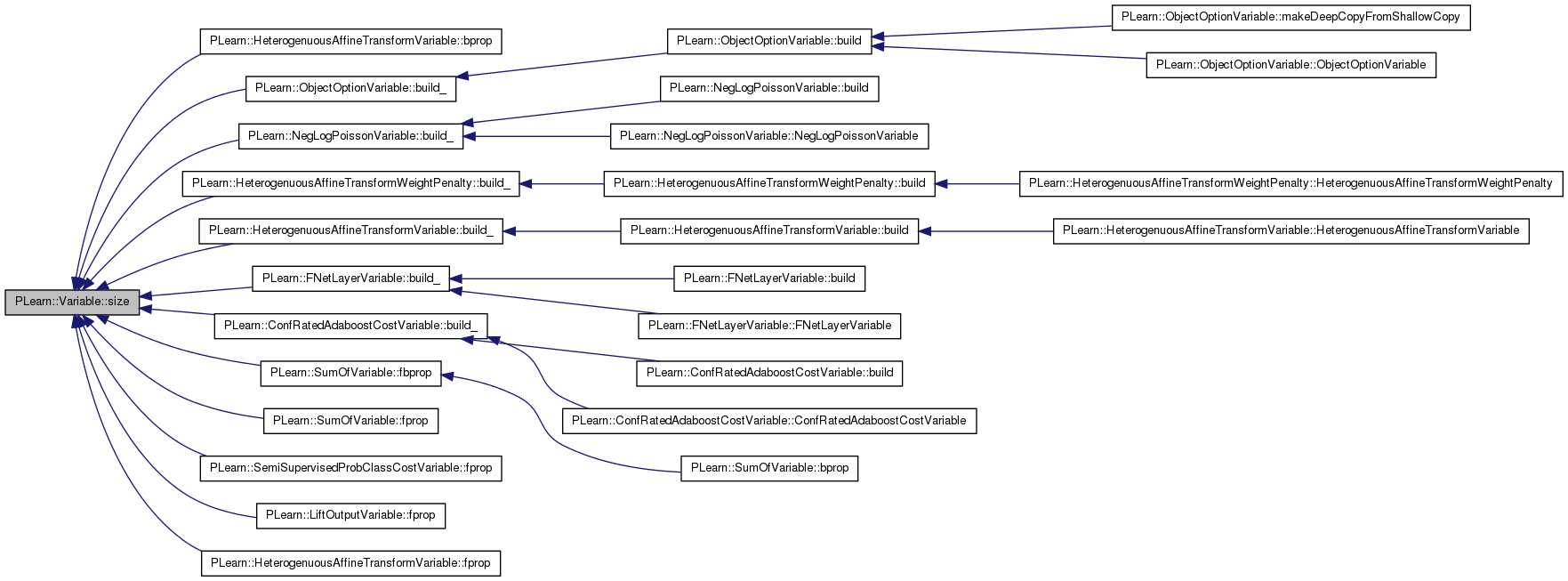

int size () const
int nelems () const

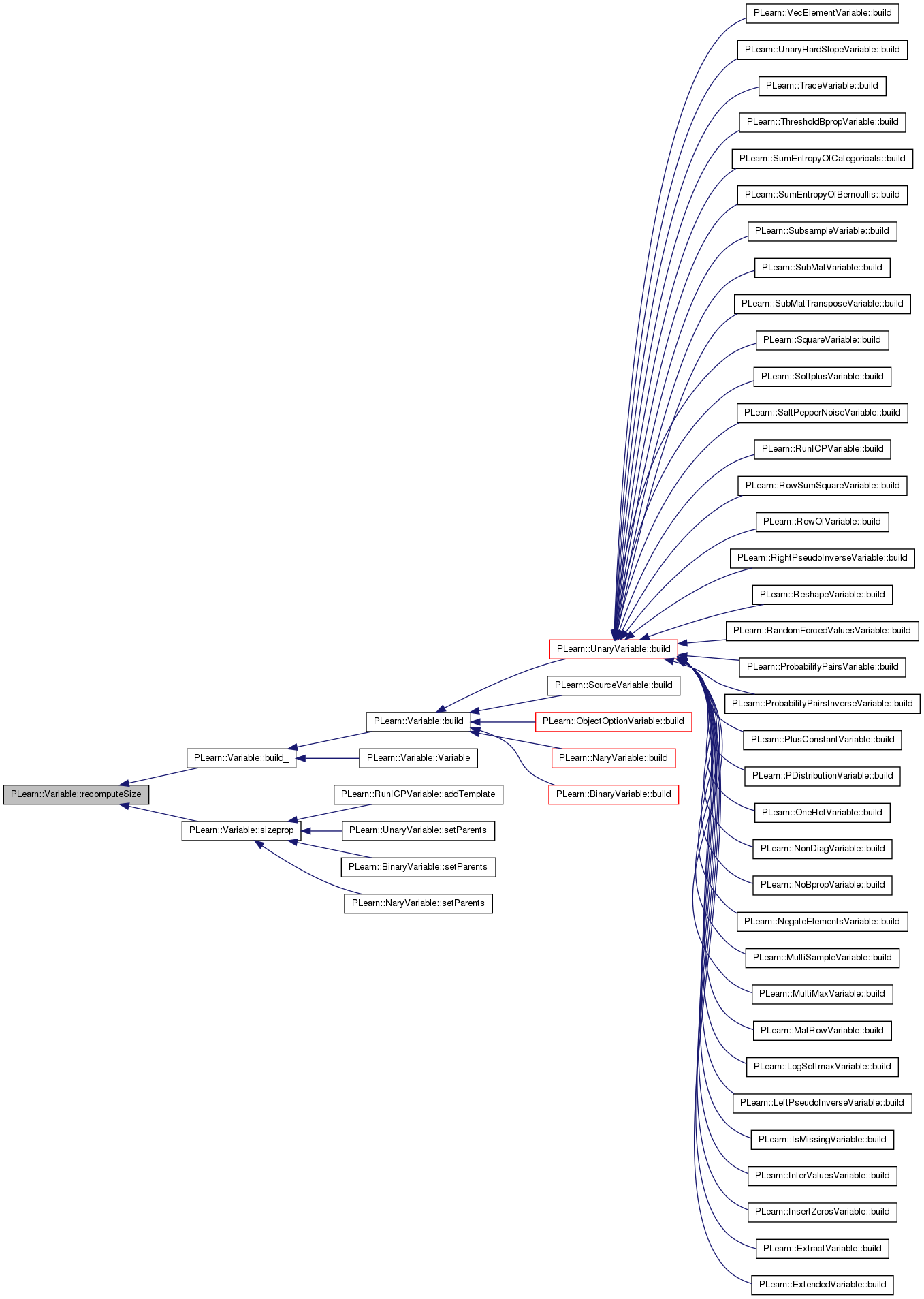

virtual void recomputeSize (int &l, int &w) const
 Recomputes the length l and width w that this variable should have, according to its parent variables.

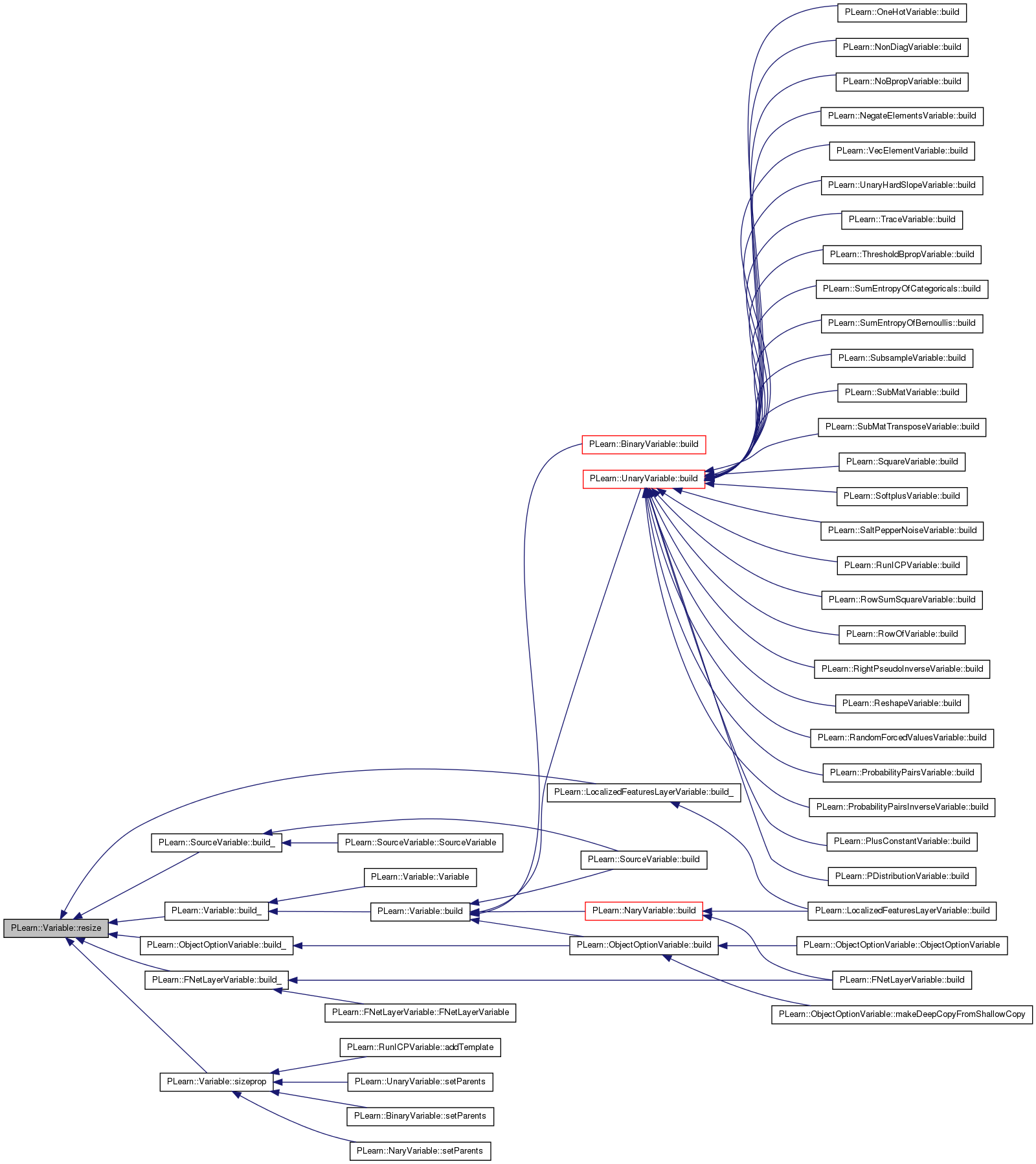

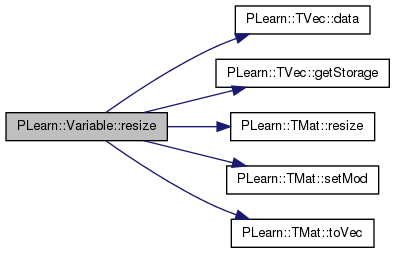

void resize (int l, int w)
 resizes the matValue and matGradient fields of this variable (and updates the value, gradient, valuedata and gradientdata fields accordingly)

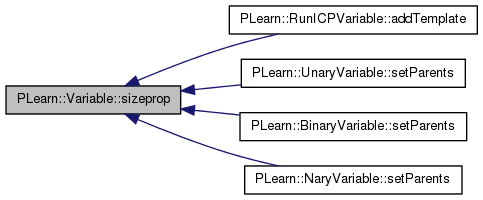

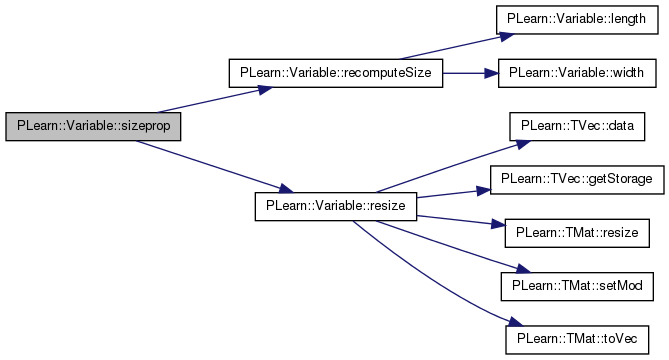

void sizeprop ()
 resizes value and gradient fields according to size given by recomputeSize(...) This corresponds to "propagating" the size from its parent's size, much as fprop propagates the values
virtual void setParents (const VarArray &parents)
 set this Variable's parents. To use with default constructor.
 Variable (const Variable &v)
 Copy constructor.

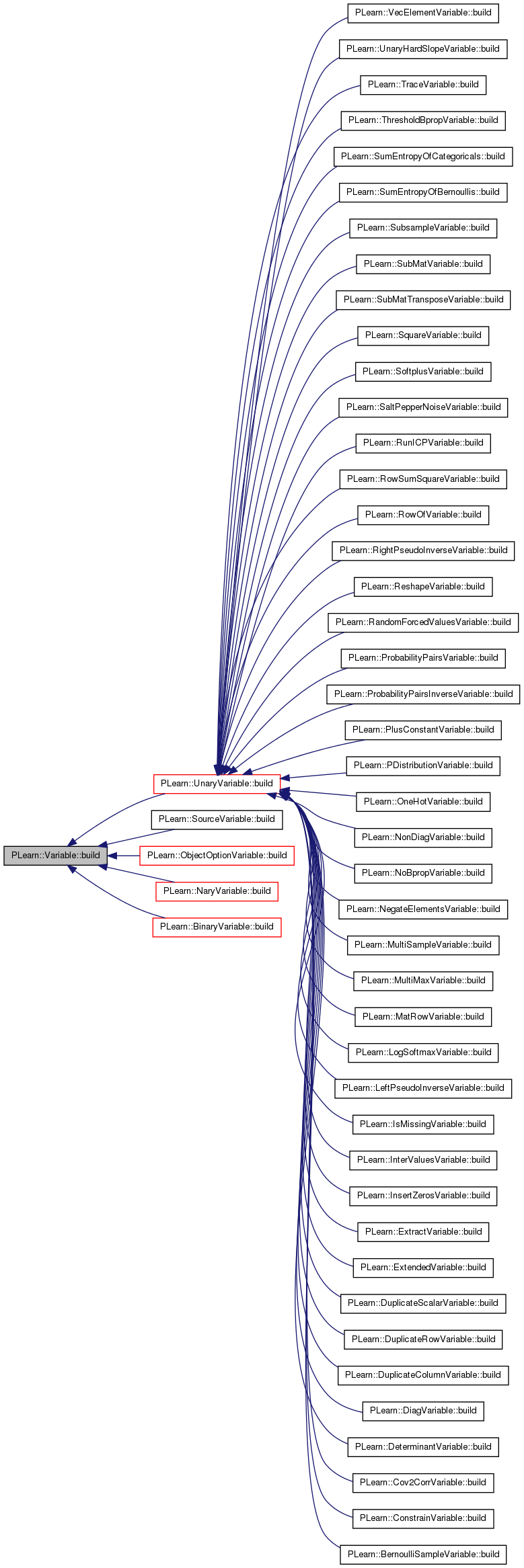

virtual void build ()
 Post-constructor.

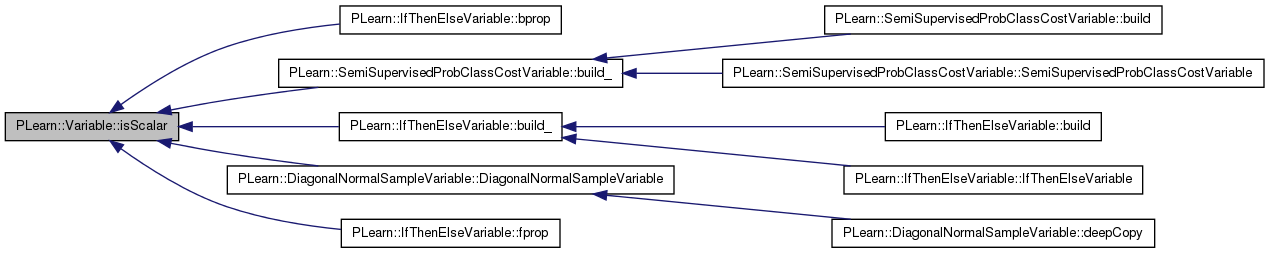

bool isScalar () const

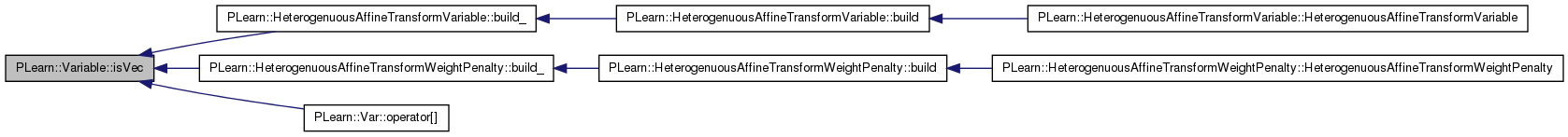

bool isVec () const
bool isColumnVec () const
bool isRowVec () const
virtual VariabledeepCopy (CopiesMap &copies) const

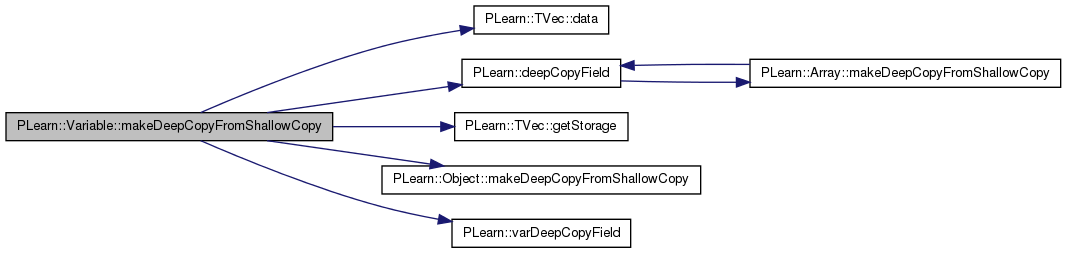

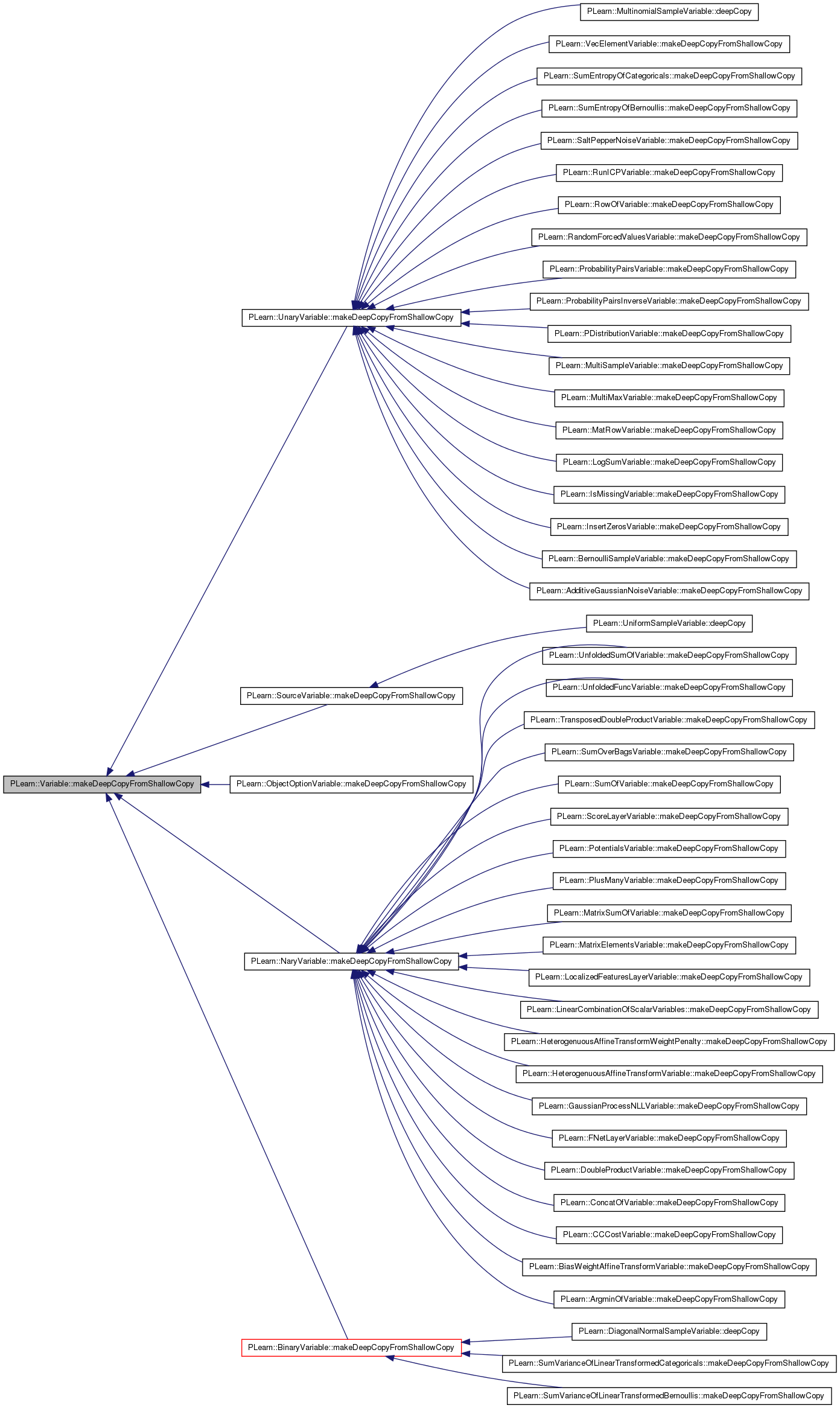

virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Does the necessary operations to transform a shallow copy (this) into a deep copy by deep-copying all the members that need to be.

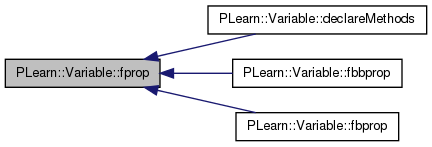

virtual void fprop ()=0
 compute output given input
void sizefprop ()
 compute dC/dinput given dC/doutput
virtual void bprop ()=0
virtual void bbprop ()
 compute an approximation to diag(d^2/dinput^2) given diag(d^2/doutput^2), with diag(d^2/dinput^2) ~=~ (doutput/dinput)' diag(d^2/doutput^2) (doutput/dinput) In particular: if 'C' depends on 'y' and 'y' depends on x ...
virtual void fbprop ()
 do both fprop and bprop
virtual void fbbprop ()
 do fprop, bprop and bbprop
virtual void symbolicBprop ()
 compute a piece of new Var graph that represents the symbolic derivative of this Var
virtual void rfprop ()
virtual void copyValueInto (Vec v)
virtual void copyGradientInto (Vec g)

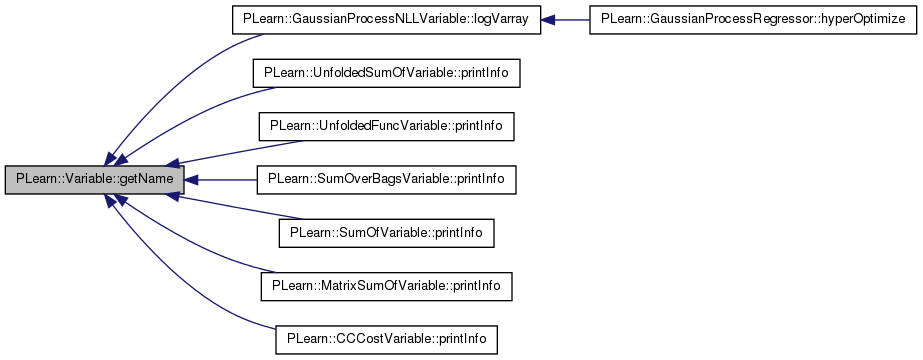

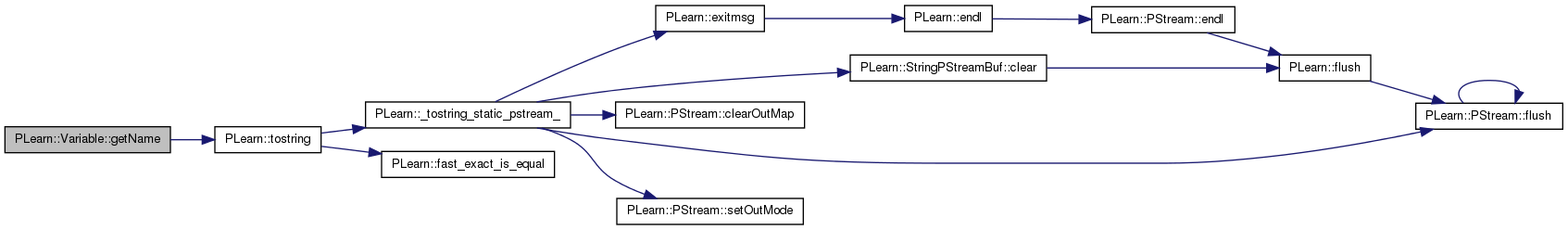

string getName () const
 returns the name of this variable.

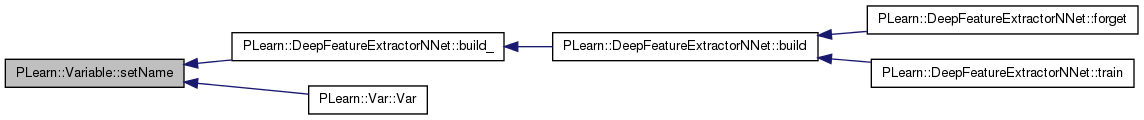

void setName (const string &the_name)
 call this to set a name for this variable
bool nameIsSet ()
Mat defineValueLocation (const Mat &m)
 Defines a new Mat to use as this Var's matValue field, modifies value and valuedata to keep consistent, and returns the previous matValue.

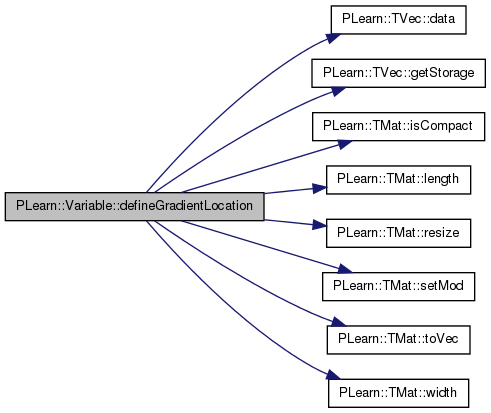

Mat defineGradientLocation (const Mat &m)
 Defines a new Mat to use as this Var's matGradient field, modifies gradient and gradientdata to keep consistent, and returns the previous matGradient.
virtual void printInfo (bool print_gradient=false)=0

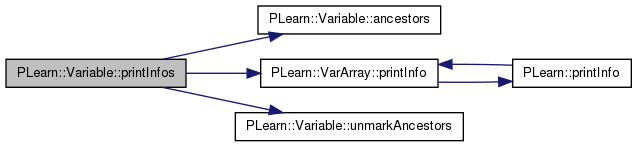

virtual void printInfos (bool print_gradient=false)

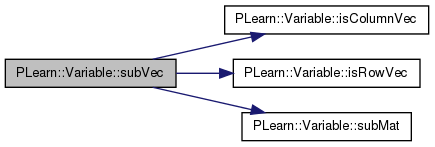

Var subVec (int start, int len, bool transpose=false)
Var subMat (int i, int j, int sublength, int subwidth, bool transpose=false)

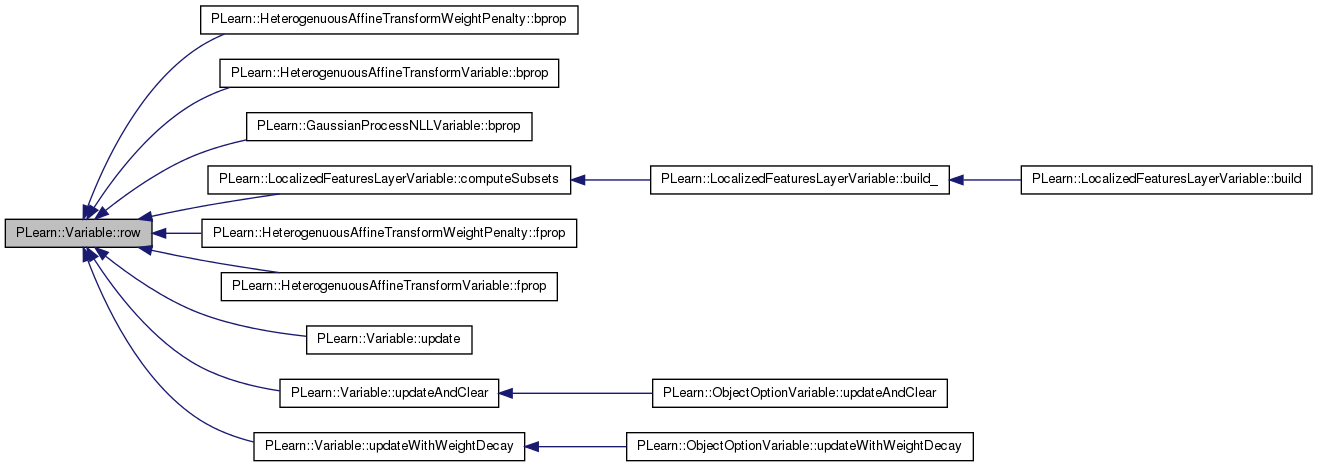

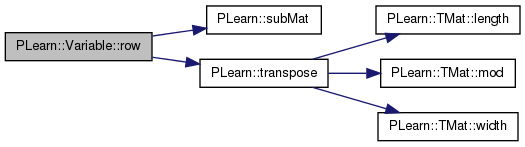

Var row (int i, bool transpose=false)

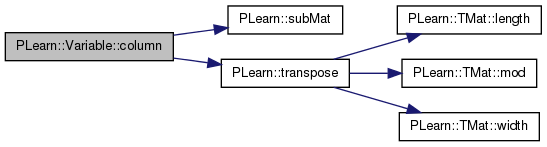

Var column (int j, bool transpose=false)
void setDontBpropHere (bool val)
void setKeepPositive ()
void setMinValue (real minv=-FLT_MAX)
void setMaxValue (real maxv=FLT_MAX)
void setBoxConstraint (real minv, real maxv)

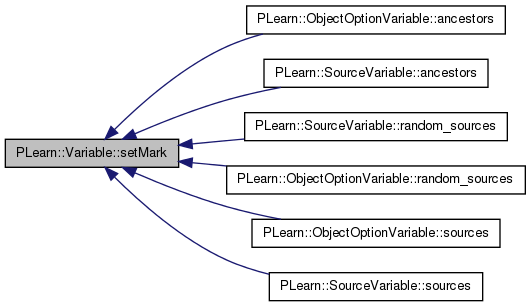

void setMark ()

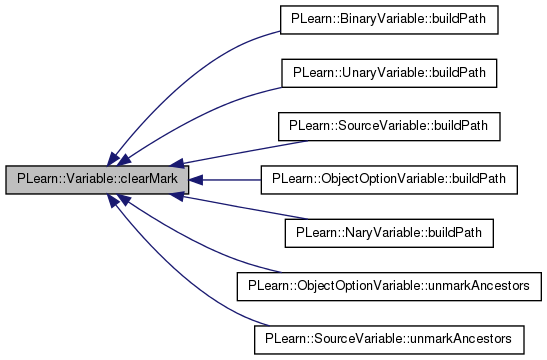

void clearMark ()
bool isMarked ()
void fillGradient (real value)
void fillValue (real val)

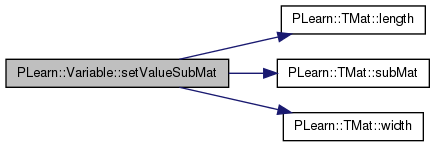

void setValueSubMat (const Mat &submat, int istart, int jstart)
 Replace with 'submat' the sub-matrix of the value starting at row 'istart' and column 'jstart'.
void clearRowsToUpdate ()
void clearGradient ()

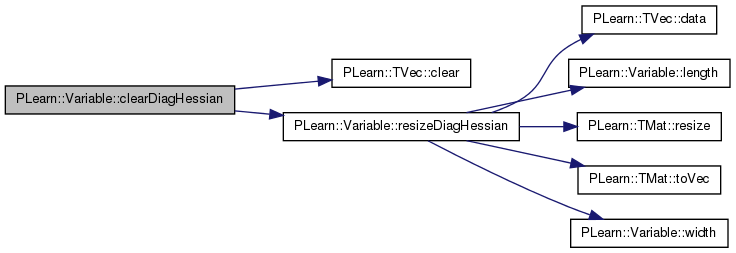

void clearDiagHessian ()
void clearSymbolicGradient ()

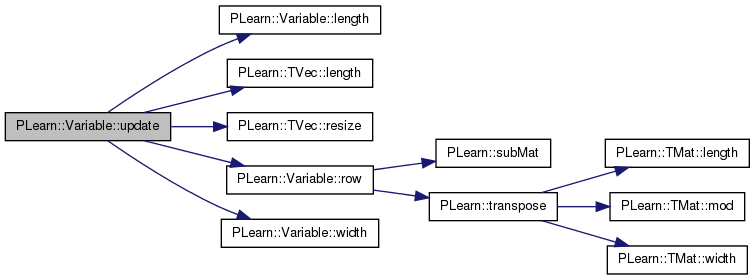

virtual bool update (real step_size, Vec direction_vec, real coeff=1.0, real b=0.0)
 set value = value + (step_size * coeff + b) * direction
virtual bool update (Vec step_sizes, Vec direction_vec, real coeff=1.0, real b=0.0)
 set value[i] = value[i] + (step_sizes[i]*coeff + b) * direction[i]
virtual bool update (real step_size, bool clear=false)
 set value = value + step_size * gradient
virtual bool update (Vec new_value)
 set value = new_value

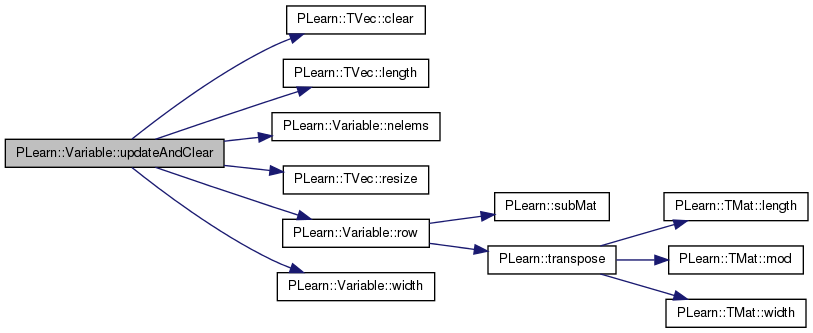

virtual void updateAndClear ()
 Set value += gradient (respecting potential box constraints), and clear the gradient.

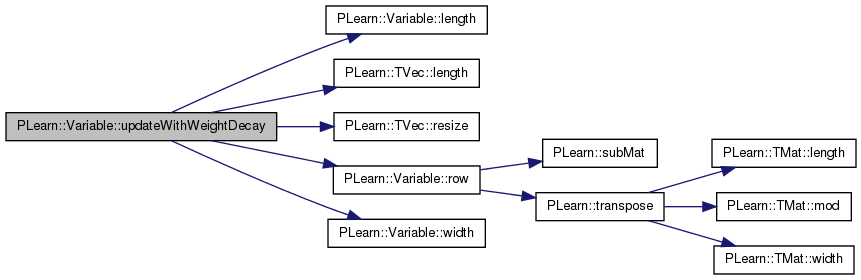

virtual void updateWithWeightDecay (real step_size, real weight_decay, bool L1, bool clear=true)
 if (L1) value += learning_rate*gradient decrease |value| by learning_rate*weight_decay if it does not make value change sign else // L2 value += learning_rate*(gradient - weight_decay*value) if (clear) gradient=0
void allowPartialUpdates ()
 send message that update may be sometimes needed on only parts of the Variable
void disallowPartialUpdates ()
 send message that updates must be full.
void updateRow (int row)
 says that given row has received gradient (should be updated on next call to update)
real maxUpdate (Vec direction)
 Using the box constraints on the values, return the maximum allowable step_size in the given direction i.e.,.
virtual bool markPath ()=0
 Sets the marked flag of all the sVariable that are to be in the fprop path.
virtual void buildPath (VarArray &proppath)=0
 Finally buildPath is to be called from the output Variable of interest (this will build the proppath at the same time as erasing the marks)

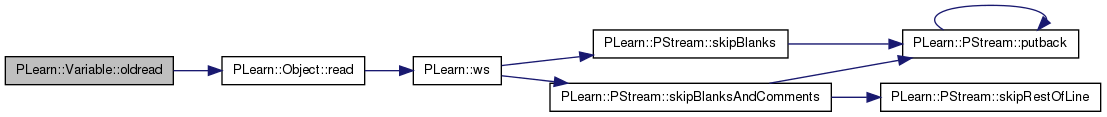

virtual void oldread (istream &in)
virtual void write (ostream &out) const
 Write the object to a C++ ostream.
void copyFrom (const Vec &v)
void copyTo (Vec &v)
void copyGradientFrom (const Vec &v)
void copyGradientTo (Vec &v)

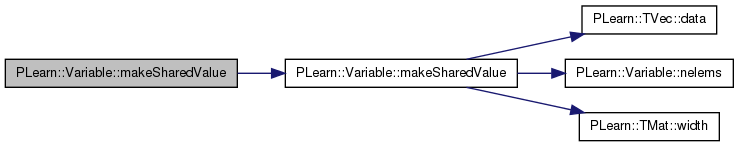

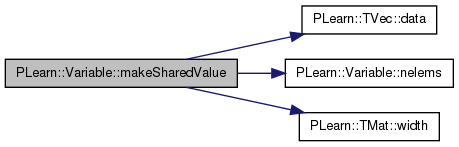

void makeSharedValue (real *x, int n)
 like copyTo but also makes value's point to x

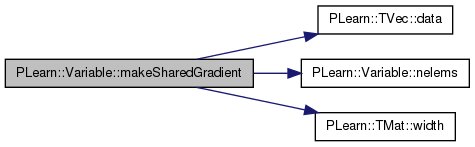

void makeSharedGradient (real *x, int n)
 like copyTo but also makes value's point to x
void makeSharedValue (PP< Storage< real > > storage, int offset_=0)
 make value and matValue point into this storage

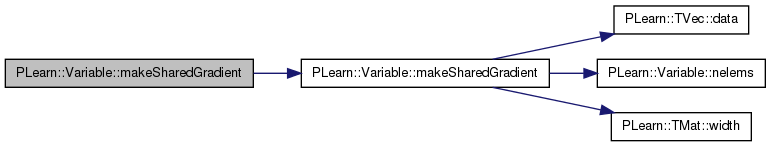

void makeSharedGradient (PP< Storage< real > > storage, int offset_=0)
void makeSharedValue (Vec &v, int offset_=0)
void makeSharedGradient (Vec &v, int offset_=0)
void copyRValueFrom (const Vec &v)
void copyRValueTo (Vec &v)

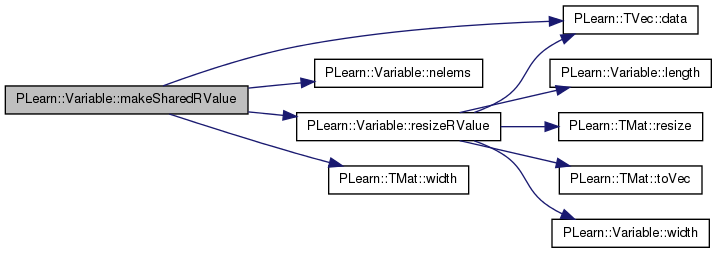

void makeSharedRValue (real *x, int n)
 like copyTo but also makes value's point to x
void makeSharedRValue (PP< Storage< real > > storage, int offset_=0)

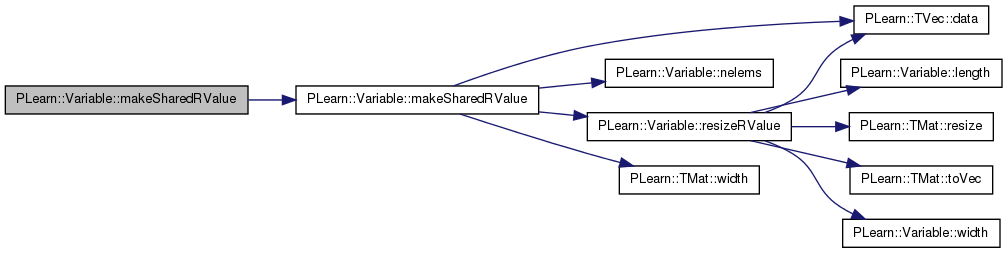

void makeSharedRValue (Vec &v, int offset_=0)
void makePointTo (Variable *v)
virtual bool isConstant ()

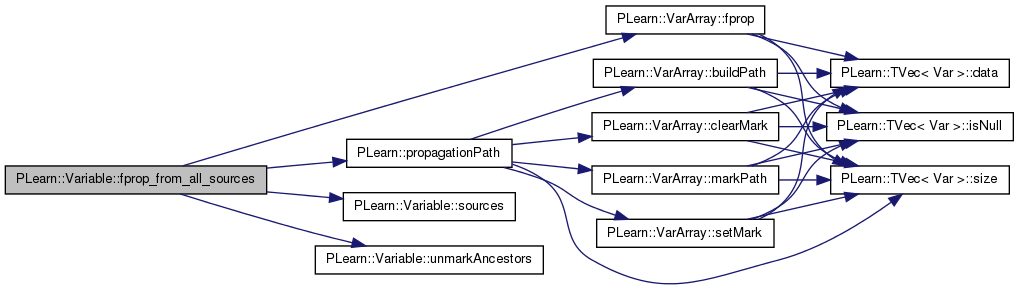

virtual void fprop_from_all_sources ()
 Find all constant sources that influence this Variable, build a propagation path from them to this Variable, and fprop through it.
virtual VarArray sources ()=0
 if not marked, find all constant sources that influence this Variable.
virtual VarArray random_sources ()=0
 return ancestors which compute a non-deterministic function of their parents
virtual VarArray ancestors ()=0
 if not marked, find all Variables that influence this Variable.

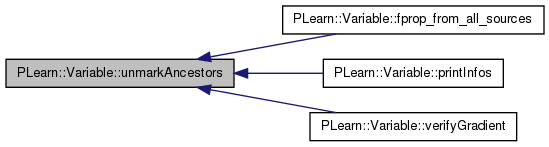

virtual void unmarkAncestors ()=0
 undo any marking done by a call to sources() or ancestors()
virtual VarArray parents ()=0
 returns all the direct parents of this Var that are not marked (the call doesn't change any mark)

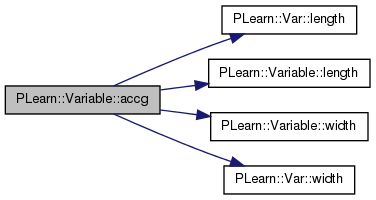

virtual void accg (Var v)
 accumulate the symbolic gradient in a smart way...

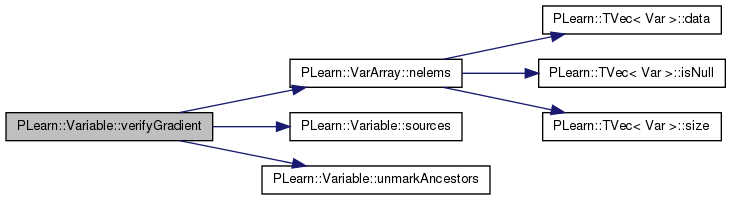

virtual void verifyGradient (real step=0.001)
 call verify gradient for the mapping from all the sources to this Variable.

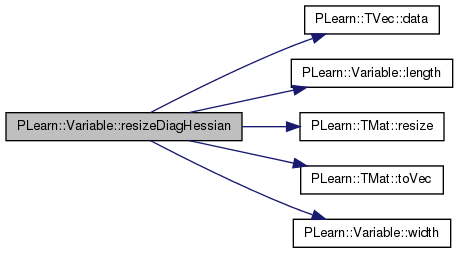

virtual void resizeDiagHessian ()
 resize the DiagHessian field

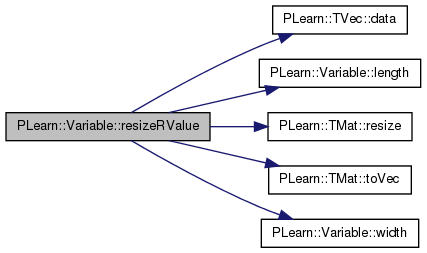

virtual void resizeRValue ()

Static Public Member Functions

static string _classname_ ()
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

int varnum
 number of this variable (the first one created is numbered 1, the second 2, etc...)
Vec value
Vec gradient
Mat matValue
Mat matGradient
Vec rValue
Mat matRValue
Mat matDiagHessian
 optionally computed second derivative (see bbprop methods)
realvaluedata
 Convenience variables.
realgradientdata
 set to gradient.data()
real min_value
real max_value
 box constraints on values
Var g
 symbolic gradient used for symbolicBprop
Vec diaghessian
 optionally computed second derivative (see bbprop methods)
realdiaghessiandata
 set to diaghessian.data() or NULL if no diaghessian
realrvaluedata
bool dont_bprop_here
 if true, children are encouraged not to bprop gradient in this var (saves computation time)

Static Public Attributes

static int nvars = 0
 keeps track of how many vars have been created (also used for the default naming scheme, see getName() )
static StaticInitializer _static_initializer_

Static Protected Member Functions

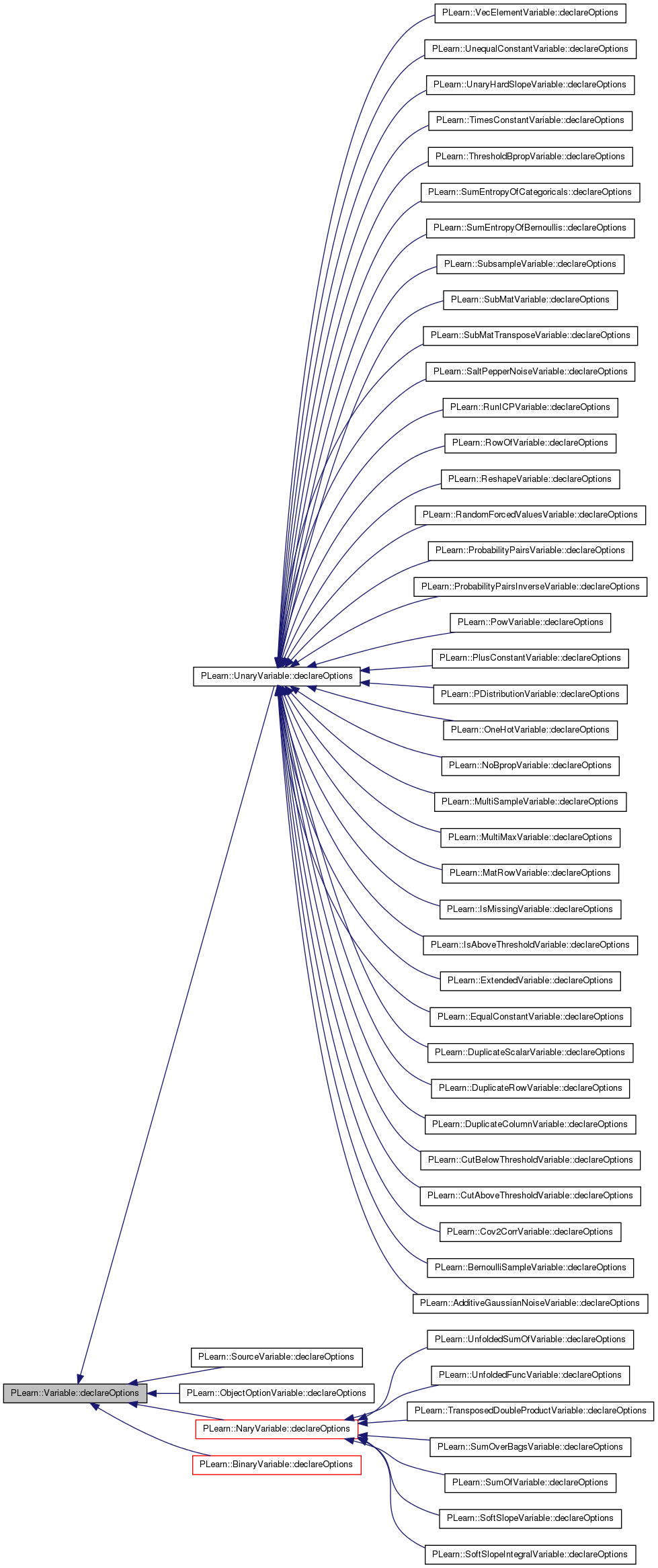

static void declareOptions (OptionList &ol)
 Declare options (data fields) for the class.

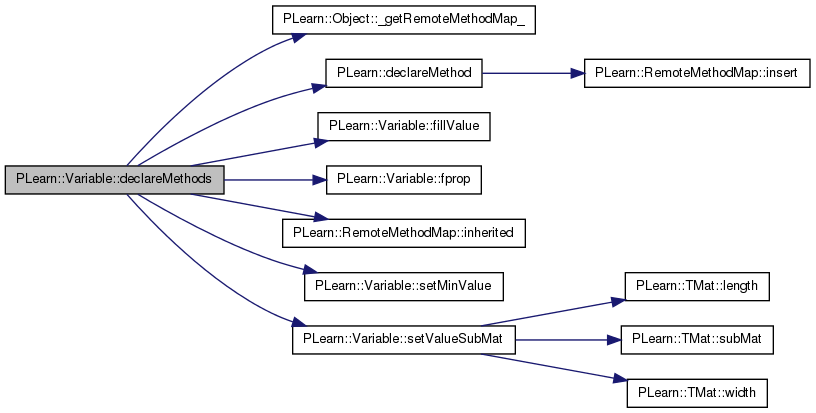

static void declareMethods (RemoteMethodMap &rmm)
 Declare the methods that are remote-callable.

Protected Attributes

bool marked
 used for building the propagation paths
string varname
 used when printing or drawing the var graph (see setName and getName)
bool allows_partial_update
 only if this is true then the following two fields are used.
int gradient_status
 0: no gradient was accumulated, 1: to some rows, 2: everywhere.
TVec< introws_to_update
 the list of rows to update.

Private Types

typedef Object inherited

Private Member Functions

void build_ ()
 Object-specific post-constructor.

Friends

class Var
class RandomVariable
class ProductRandomVariable
class Function
class UnaryVariable
class BinaryVariable
class NaryVariable

Detailed Description

Definition at line 103 of file Variable.h.


Member Typedef Documentation

Reimplemented from PLearn::Object.

Reimplemented in PLearn::AbsVariable, PLearn::AffineTransformVariable, PLearn::AffineTransformWeightPenalty, PLearn::ArgmaxVariable, PLearn::ArgminOfVariable, PLearn::ArgminVariable, PLearn::BiasWeightAffineTransformVariable, PLearn::BinaryClassificationLossVariable, PLearn::BinaryVariable, PLearn::CCCostVariable, PLearn::ClassificationLossVariable, PLearn::ColumnIndexVariable, PLearn::ColumnSumVariable, PLearn::ConcatColumnsVariable, PLearn::ConcatOfVariable, PLearn::ConcatRowsVariable, PLearn::ConfRatedAdaboostCostVariable, PLearn::ConvolveVariable, PLearn::CrossEntropyVariable, PLearn::CutAboveThresholdVariable, PLearn::CutBelowThresholdVariable, PLearn::DeterminantVariable, PLearn::DiagonalizedFactorsProductVariable, PLearn::DilogarithmVariable, PLearn::DivVariable, PLearn::DotProductVariable, PLearn::DuplicateColumnVariable, PLearn::DuplicateRowVariable, PLearn::DuplicateScalarVariable, PLearn::ElementAtPositionVariable, PLearn::EqualConstantVariable, PLearn::EqualScalarVariable, PLearn::EqualVariable, PLearn::ErfVariable, PLearn::AdditiveGaussianNoiseVariable, PLearn::BernoulliSampleVariable, PLearn::ConstrainedSourceVariable, PLearn::ConstrainVariable, PLearn::Cov2CorrVariable, PLearn::DiagVariable, PLearn::DoubleProductVariable, PLearn::LinearCombinationOfScalarVariables, PLearn::LogSoftSoftMaxVariable, PLearn::MultiMaxVariable, PLearn::MultiSampleVariable, PLearn::NonDiagVariable, PLearn::ProbabilityPairsInverseVariable, PLearn::ProbabilityPairsVariable, PLearn::RandomForcedValuesVariable, PLearn::SaltPepperNoiseVariable, PLearn::SoftSoftMaxVariable, PLearn::SumEntropyOfBernoullis, PLearn::SumEntropyOfCategoricals, PLearn::SumVarianceOfLinearTransformedBernoullis, PLearn::SumVarianceOfLinearTransformedCategoricals, PLearn::TimesConstantScalarVariable2, PLearn::TraceVariable, PLearn::TransposedDoubleProductVariable, PLearn::ExpVariable, PLearn::ExtendedVariable, PLearn::ExtractVariable, PLearn::FNetLayerVariable, PLearn::GaussianProcessNLLVariable, PLearn::GradientAdaboostCostVariable, PLearn::HardSlopeVariable, PLearn::HeterogenuousAffineTransformVariable, PLearn::HeterogenuousAffineTransformWeightPenalty, PLearn::IdentityVariable, PLearn::IfThenElseVariable, PLearn::IndexAtPositionVariable, PLearn::InsertZerosVariable, PLearn::InterValuesVariable, PLearn::InvertElementsVariable, PLearn::IsAboveThresholdVariable, PLearn::IsLargerVariable, PLearn::IsMissingVariable, PLearn::IsSmallerVariable, PLearn::LeftPseudoInverseVariable, PLearn::LiftOutputVariable, PLearn::LocalizedFeaturesLayerVariable, PLearn::LogAddVariable, PLearn::LogSoftmaxVariable, PLearn::LogSumVariable, PLearn::LogVariable, PLearn::MarginPerceptronCostVariable, PLearn::MatrixAffineTransformFeedbackVariable, PLearn::MatrixAffineTransformVariable, PLearn::MatrixElementsVariable, PLearn::MatrixInverseVariable, PLearn::MatrixOneHotSquaredLoss, PLearn::MatrixSoftmaxLossVariable, PLearn::MatrixSoftmaxVariable, PLearn::MatrixSumOfVariable, PLearn::MatRowVariable, PLearn::Max2Variable, PLearn::MaxVariable, PLearn::Min2Variable, PLearn::MiniBatchClassificationLossVariable, PLearn::MinusColumnVariable, PLearn::MinusRowVariable, PLearn::MinusScalarVariable, PLearn::MinusTransposedColumnVariable, PLearn::MinusVariable, PLearn::MinVariable, PLearn::MulticlassLossVariable, PLearn::NaryVariable, PLearn::NegateElementsVariable, PLearn::NegCrossEntropySigmoidVariable, PLearn::NegLogPoissonVariable, PLearn::NllGeneralGaussianVariable, PLearn::NllSemisphericalGaussianVariable, PLearn::NoBpropVariable, PLearn::ObjectOptionVariable, PLearn::OneHotSquaredLoss, PLearn::OneHotVariable, PLearn::OutputVariable, PLearn::PDistributionVariable, PLearn::PLogPVariable, PLearn::PlusColumnVariable, PLearn::PlusConstantVariable, PLearn::PlusManyVariable, PLearn::PlusRowVariable, PLearn::PlusScalarVariable, PLearn::PlusVariable, PLearn::PotentialsVariable, PLearn::PowVariable, PLearn::PowVariableVariable, PLearn::ProductTransposeVariable, PLearn::ProductVariable, PLearn::ProjectionErrorVariable, PLearn::ReIndexedTargetVariable, PLearn::ReshapeVariable, PLearn::RightPseudoInverseVariable, PLearn::RowAtPositionVariable, PLearn::RowOfVariable, PLearn::RowSumSquareVariable, PLearn::RowSumVariable, PLearn::SemiSupervisedProbClassCostVariable, PLearn::SigmoidVariable, PLearn::SignVariable, PLearn::SoftmaxLossVariable, PLearn::SoftmaxVariable, PLearn::SoftplusVariable, PLearn::SoftSlopeIntegralVariable, PLearn::SoftSlopeVariable, PLearn::SourceVariable, PLearn::SparseIncrementalAffineTransformVariable, PLearn::SquareRootVariable, PLearn::SquareVariable, PLearn::SubMatTransposeVariable, PLearn::SubMatVariable, PLearn::SubsampleVariable, PLearn::SumAbsVariable, PLearn::SumOfVariable, PLearn::SumOverBagsVariable, PLearn::SumSquareVariable, PLearn::SumVariable, PLearn::SVDVariable, PLearn::TanhVariable, PLearn::ThresholdBpropVariable, PLearn::TimesColumnVariable, PLearn::TimesConstantVariable, PLearn::TimesRowVariable, PLearn::TimesScalarVariable, PLearn::TimesVariable, PLearn::TransposeProductVariable, PLearn::TransposeVariable, PLearn::UnaryHardSlopeVariable, PLearn::UnaryVariable, PLearn::UnequalConstantVariable, PLearn::UnfoldedFuncVariable, PLearn::UnfoldedSumOfVariable, PLearn::VarArrayElementVariable, PLearn::VarColumnsVariable, PLearn::VarElementVariable, PLearn::VarRowsVariable, PLearn::VarRowVariable, PLearn::VecElementVariable, PLearn::WeightedSumSquareVariable, PLearn::NLLNeighborhoodWeightsVariable, PLearn::NoBpropVariable, PLearn::RunICPVariable, PLearn::ScoreLayerVariable, and PLearn::WeightedLogGaussian.

Definition at line 108 of file Variable.h.


Constructor & Destructor Documentation

PLearn::Variable::Variable ( ) [inline]

Default constructor for persistence.

Definition at line 113 of file Variable.h.

               : varnum(++nvars), marked(false), varname(), allows_partial_update(false),
                 gradient_status(0), valuedata(0), gradientdata(0), min_value(-FLT_MAX),
                 max_value(FLT_MAX), dont_bprop_here(false) {}
PLearn::Variable::Variable ( int  thelength,
int  thewidth,
bool  call_build_ = true
)

Definition at line 190 of file Variable.cc.

References build_(), PLearn::TVec< T >::data(), PLearn::TVec< T >::getStorage(), gradient, gradientdata, matGradient, matValue, PLearn::TMat< T >::toVec(), value, and valuedata.

                                                               :
    inherited(call_build_),
    varnum(++nvars), marked(false), varname(""),
    allows_partial_update(false), gradient_status(0),
    matValue(thelength,thewidth), matGradient(thelength,thewidth),
    min_value(-FLT_MAX), max_value(FLT_MAX), diaghessiandata(0), rvaluedata(0),
    dont_bprop_here(false)
{
    value = matValue.toVec();
    gradient = matGradient.toVec();
    if(value.getStorage())
        valuedata = value.data();
    else
        valuedata = 0;
    if (gradient.getStorage())
        gradientdata = gradient.data();
    else
        gradientdata = 0;
    if (call_build_)
        build_();
}

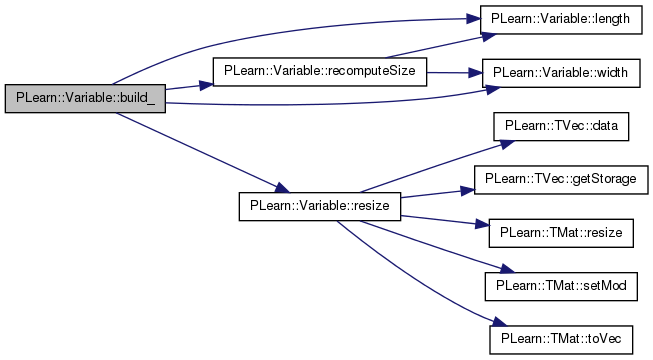

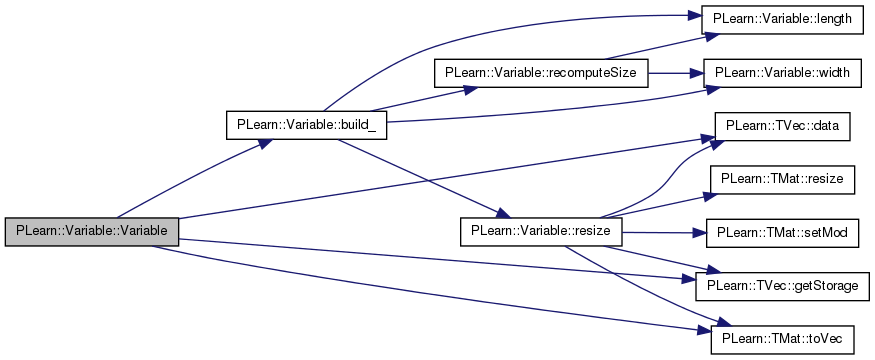

Here is the call graph for this function:

PLearn::Variable::Variable ( const Mat m,
bool  call_build_ = true
)

this variable's value and m will be views of the same data

Definition at line 212 of file Variable.cc.

References build_(), PLearn::TVec< T >::data(), PLearn::TVec< T >::getStorage(), gradient, gradientdata, PLearn::TMat< T >::isCompact(), matGradient, matValue, PLERROR, PLearn::TMat< T >::toVec(), value, and valuedata.

    :varnum(++nvars), marked(false), varname(""),
     allows_partial_update(false), gradient_status(0),
     matValue(m), matGradient(m.length(),m.width()),
     min_value(-FLT_MAX), max_value(FLT_MAX), diaghessiandata(0), rvaluedata(0),
     dont_bprop_here(false)
{
    if(!m.isCompact())
        PLERROR("To be able to construct a Var that views the same data as a Mat m, the Mat must be compact (width()==mod()). Maybe you can use m.copy() instead of m?");
    value = matValue.toVec();
    gradient = matGradient.toVec();
    if(value.getStorage())
        valuedata = value.data();
    else
        valuedata = 0;
    if (gradient.getStorage())
        gradientdata = gradient.data();
    else
        gradientdata = 0;
    if (call_build_)
        build_();
}

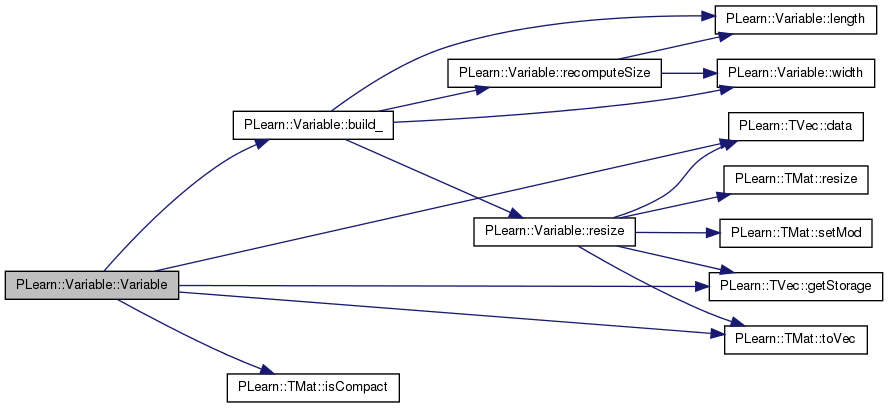

Here is the call graph for this function:

PLearn::Variable::Variable ( const Variable v)

Copy constructor.

Definition at line 236 of file Variable.cc.

    :varnum(++nvars), marked(false), varname(v.getName()),
     allows_partial_update(v.allows_partial_update), gradient_status(v.gradient_status),
     value(v.value), gradient(v.gradient),
     matValue(v.matValue),matGradient(v.matGradient),
     valuedata(v.valuedata), gradientdata(v.gradientdata),
     min_value(v.min_value),max_value(v.max_value),
     g(v.g), diaghessian(v.diaghessian), diaghessiandata(v.diaghessiandata),
     rvaluedata(v.rvaluedata), dont_bprop_here(v.dont_bprop_here)
{}

Member Function Documentation

string PLearn::Variable::_classname_ ( ) [static]

Reimplemented from PLearn::Object.

Reimplemented in PLearn::AbsVariable, PLearn::AffineTransformVariable, PLearn::AffineTransformWeightPenalty, PLearn::ArgmaxVariable, PLearn::ArgminOfVariable, PLearn::ArgminVariable, PLearn::BiasWeightAffineTransformVariable, PLearn::BinaryClassificationLossVariable, PLearn::BinaryVariable, PLearn::CCCostVariable, PLearn::ClassificationLossVariable, PLearn::ColumnIndexVariable, PLearn::ColumnSumVariable, PLearn::ConcatColumnsVariable, PLearn::ConcatOfVariable, PLearn::ConcatRowsVariable, PLearn::ConfRatedAdaboostCostVariable, PLearn::ConvolveVariable, PLearn::CrossEntropyVariable, PLearn::CutAboveThresholdVariable, PLearn::CutBelowThresholdVariable, PLearn::DeterminantVariable, PLearn::DiagonalizedFactorsProductVariable, PLearn::DilogarithmVariable, PLearn::DivVariable, PLearn::DotProductVariable, PLearn::DuplicateColumnVariable, PLearn::DuplicateRowVariable, PLearn::DuplicateScalarVariable, PLearn::ElementAtPositionVariable, PLearn::EqualConstantVariable, PLearn::EqualScalarVariable, PLearn::EqualVariable, PLearn::ErfVariable, PLearn::AdditiveGaussianNoiseVariable, PLearn::BernoulliSampleVariable, PLearn::ConstrainedSourceVariable, PLearn::ConstrainVariable, PLearn::Cov2CorrVariable, PLearn::DiagVariable, PLearn::DoubleProductVariable, PLearn::LinearCombinationOfScalarVariables, PLearn::LogSoftSoftMaxVariable, PLearn::MultiMaxVariable, PLearn::MultiSampleVariable, PLearn::NonDiagVariable, PLearn::ProbabilityPairsInverseVariable, PLearn::ProbabilityPairsVariable, PLearn::RandomForcedValuesVariable, PLearn::SaltPepperNoiseVariable, PLearn::SoftSoftMaxVariable, PLearn::SumEntropyOfBernoullis, PLearn::SumEntropyOfCategoricals, PLearn::SumVarianceOfLinearTransformedBernoullis, PLearn::SumVarianceOfLinearTransformedCategoricals, PLearn::TimesConstantScalarVariable2, PLearn::TraceVariable, PLearn::TransposedDoubleProductVariable, PLearn::ExpVariable, PLearn::ExtendedVariable, PLearn::ExtractVariable, PLearn::FNetLayerVariable, PLearn::GaussianProcessNLLVariable, PLearn::GradientAdaboostCostVariable, PLearn::HardSlopeVariable, PLearn::HeterogenuousAffineTransformVariable, PLearn::HeterogenuousAffineTransformWeightPenalty, PLearn::IdentityVariable, PLearn::IfThenElseVariable, PLearn::IndexAtPositionVariable, PLearn::InsertZerosVariable, PLearn::InterValuesVariable, PLearn::InvertElementsVariable, PLearn::IsAboveThresholdVariable, PLearn::IsLargerVariable, PLearn::IsMissingVariable, PLearn::IsSmallerVariable, PLearn::LeftPseudoInverseVariable, PLearn::LiftOutputVariable, PLearn::LocalizedFeaturesLayerVariable, PLearn::LogAddVariable, PLearn::LogSoftmaxVariable, PLearn::LogSumVariable, PLearn::LogVariable, PLearn::MarginPerceptronCostVariable, PLearn::MatrixAffineTransformFeedbackVariable, PLearn::MatrixAffineTransformVariable, PLearn::MatrixElementsVariable, PLearn::MatrixInverseVariable, PLearn::MatrixOneHotSquaredLoss, PLearn::MatrixSoftmaxLossVariable, PLearn::MatrixSoftmaxVariable, PLearn::MatrixSumOfVariable, PLearn::MatRowVariable, PLearn::Max2Variable, PLearn::MaxVariable, PLearn::Min2Variable, PLearn::MiniBatchClassificationLossVariable, PLearn::MinusColumnVariable, PLearn::MinusRowVariable, PLearn::MinusScalarVariable, PLearn::MinusTransposedColumnVariable, PLearn::MinusVariable, PLearn::MinVariable, PLearn::MulticlassLossVariable, PLearn::NaryVariable, PLearn::NegateElementsVariable, PLearn::NegCrossEntropySigmoidVariable, PLearn::NegLogPoissonVariable, PLearn::NllGeneralGaussianVariable, PLearn::NllSemisphericalGaussianVariable, PLearn::NoBpropVariable, PLearn::ObjectOptionVariable, PLearn::OneHotSquaredLoss, PLearn::OneHotVariable, PLearn::OutputVariable, PLearn::PDistributionVariable, PLearn::PLogPVariable, PLearn::PlusColumnVariable, PLearn::PlusConstantVariable, PLearn::PlusManyVariable, PLearn::PlusRowVariable, PLearn::PlusScalarVariable, PLearn::PlusVariable, PLearn::PotentialsVariable, PLearn::PowVariable, PLearn::PowVariableVariable, PLearn::ProductTransposeVariable, PLearn::ProductVariable, PLearn::ProjectionErrorVariable, PLearn::ReIndexedTargetVariable, PLearn::ReshapeVariable, PLearn::RightPseudoInverseVariable, PLearn::RowAtPositionVariable, PLearn::RowOfVariable, PLearn::RowSumSquareVariable, PLearn::RowSumVariable, PLearn::SemiSupervisedProbClassCostVariable, PLearn::SigmoidVariable, PLearn::SignVariable, PLearn::SoftmaxLossVariable, PLearn::SoftmaxVariable, PLearn::SoftplusVariable, PLearn::SoftSlopeIntegralVariable, PLearn::SoftSlopeVariable, PLearn::SourceVariable, PLearn::SparseIncrementalAffineTransformVariable, PLearn::SquareRootVariable, PLearn::SquareVariable, PLearn::SubMatTransposeVariable, PLearn::SubMatVariable, PLearn::SubsampleVariable, PLearn::SumAbsVariable, PLearn::SumOfVariable, PLearn::SumOverBagsVariable, PLearn::SumSquareVariable, PLearn::SumVariable, PLearn::SVDVariable, PLearn::TanhVariable, PLearn::ThresholdBpropVariable, PLearn::TimesColumnVariable, PLearn::TimesConstantVariable, PLearn::TimesRowVariable, PLearn::TimesScalarVariable, PLearn::TimesVariable, PLearn::TransposeProductVariable, PLearn::TransposeVariable, PLearn::UnaryHardSlopeVariable, PLearn::UnaryVariable, PLearn::UnequalConstantVariable, PLearn::UnfoldedFuncVariable, PLearn::UnfoldedSumOfVariable, PLearn::VarArrayElementVariable, PLearn::VarColumnsVariable, PLearn::VarElementVariable, PLearn::VarRowsVariable, PLearn::VarRowVariable, PLearn::VecElementVariable, PLearn::WeightedSumSquareVariable, PLearn::NLLNeighborhoodWeightsVariable, PLearn::NoBpropVariable, PLearn::RunICPVariable, PLearn::ScoreLayerVariable, and PLearn::WeightedLogGaussian.

Definition at line 465 of file Variable.cc.

OptionList & PLearn::Variable::_getOptionList_ ( ) [static]

Reimplemented from PLearn::Object.

Reimplemented in PLearn::AbsVariable, PLearn::AffineTransformVariable, PLearn::AffineTransformWeightPenalty, PLearn::ArgmaxVariable, PLearn::ArgminOfVariable, PLearn::ArgminVariable, PLearn::BiasWeightAffineTransformVariable, PLearn::BinaryClassificationLossVariable, PLearn::BinaryVariable, PLearn::CCCostVariable, PLearn::ClassificationLossVariable, PLearn::ColumnIndexVariable, PLearn::ColumnSumVariable, PLearn::ConcatColumnsVariable, PLearn::ConcatOfVariable, PLearn::ConcatRowsVariable, PLearn::ConfRatedAdaboostCostVariable, PLearn::ConvolveVariable, PLearn::CrossEntropyVariable, PLearn::CutAboveThresholdVariable, PLearn::CutBelowThresholdVariable, PLearn::DeterminantVariable, PLearn::DiagonalizedFactorsProductVariable, PLearn::DilogarithmVariable, PLearn::DivVariable, PLearn::DotProductVariable, PLearn::DuplicateColumnVariable, PLearn::DuplicateRowVariable, PLearn::DuplicateScalarVariable, PLearn::ElementAtPositionVariable, PLearn::EqualConstantVariable, PLearn::EqualScalarVariable, PLearn::EqualVariable, PLearn::ErfVariable, PLearn::AdditiveGaussianNoiseVariable, PLearn::BernoulliSampleVariable, PLearn::ConstrainedSourceVariable, PLearn::ConstrainVariable, PLearn::Cov2CorrVariable, PLearn::DiagVariable, PLearn::DoubleProductVariable, PLearn::LinearCombinationOfScalarVariables, PLearn::LogSoftSoftMaxVariable, PLearn::MultiMaxVariable, PLearn::MultiSampleVariable, PLearn::NonDiagVariable, PLearn::ProbabilityPairsInverseVariable, PLearn::ProbabilityPairsVariable, PLearn::RandomForcedValuesVariable, PLearn::SaltPepperNoiseVariable, PLearn::SoftSoftMaxVariable, PLearn::SumEntropyOfBernoullis, PLearn::SumEntropyOfCategoricals, PLearn::SumVarianceOfLinearTransformedBernoullis, PLearn::SumVarianceOfLinearTransformedCategoricals, PLearn::TimesConstantScalarVariable2, PLearn::TraceVariable, PLearn::TransposedDoubleProductVariable, PLearn::ExpVariable, PLearn::ExtendedVariable, PLearn::ExtractVariable, PLearn::FNetLayerVariable, PLearn::GaussianProcessNLLVariable, PLearn::GradientAdaboostCostVariable, PLearn::HardSlopeVariable, PLearn::HeterogenuousAffineTransformVariable, PLearn::HeterogenuousAffineTransformWeightPenalty, PLearn::IdentityVariable, PLearn::IfThenElseVariable, PLearn::IndexAtPositionVariable, PLearn::InsertZerosVariable, PLearn::InterValuesVariable, PLearn::InvertElementsVariable, PLearn::IsAboveThresholdVariable, PLearn::IsLargerVariable, PLearn::IsMissingVariable, PLearn::IsSmallerVariable, PLearn::LeftPseudoInverseVariable, PLearn::LiftOutputVariable, PLearn::LocalizedFeaturesLayerVariable, PLearn::LogAddVariable, PLearn::LogSoftmaxVariable, PLearn::LogSumVariable, PLearn::LogVariable, PLearn::MarginPerceptronCostVariable, PLearn::MatrixAffineTransformFeedbackVariable, PLearn::MatrixAffineTransformVariable, PLearn::MatrixElementsVariable, PLearn::MatrixInverseVariable, PLearn::MatrixOneHotSquaredLoss, PLearn::MatrixSoftmaxLossVariable, PLearn::MatrixSoftmaxVariable, PLearn::MatrixSumOfVariable, PLearn::MatRowVariable, PLearn::Max2Variable, PLearn::MaxVariable, PLearn::Min2Variable, PLearn::MiniBatchClassificationLossVariable, PLearn::MinusColumnVariable, PLearn::MinusRowVariable, PLearn::MinusScalarVariable, PLearn::MinusTransposedColumnVariable, PLearn::MinusVariable, PLearn::MinVariable, PLearn::MulticlassLossVariable, PLearn::NaryVariable, PLearn::NegateElementsVariable, PLearn::NegCrossEntropySigmoidVariable, PLearn::NegLogPoissonVariable, PLearn::NllGeneralGaussianVariable, PLearn::NllSemisphericalGaussianVariable, PLearn::NoBpropVariable, PLearn::ObjectOptionVariable, PLearn::OneHotSquaredLoss, PLearn::OneHotVariable, PLearn::OutputVariable, PLearn::PDistributionVariable, PLearn::PLogPVariable, PLearn::PlusColumnVariable, PLearn::PlusConstantVariable, PLearn::PlusManyVariable, PLearn::PlusRowVariable, PLearn::PlusScalarVariable, PLearn::PlusVariable, PLearn::PotentialsVariable, PLearn::PowVariable, PLearn::PowVariableVariable, PLearn::ProductTransposeVariable, PLearn::ProductVariable, PLearn::ProjectionErrorVariable, PLearn::ReIndexedTargetVariable, PLearn::ReshapeVariable, PLearn::RightPseudoInverseVariable, PLearn::RowAtPositionVariable, PLearn::RowOfVariable, PLearn::RowSumSquareVariable, PLearn::RowSumVariable, PLearn::SemiSupervisedProbClassCostVariable, PLearn::SigmoidVariable, PLearn::SignVariable, PLearn::SoftmaxLossVariable, PLearn::SoftmaxVariable, PLearn::SoftplusVariable, PLearn::SoftSlopeIntegralVariable, PLearn::SoftSlopeVariable, PLearn::SourceVariable, PLearn::SparseIncrementalAffineTransformVariable, PLearn::SquareRootVariable, PLearn::SquareVariable, PLearn::SubMatTransposeVariable, PLearn::SubMatVariable, PLearn::SubsampleVariable, PLearn::SumAbsVariable, PLearn::SumOfVariable, PLearn::SumOverBagsVariable, PLearn::SumSquareVariable, PLearn::SumVariable, PLearn::SVDVariable, PLearn::TanhVariable, PLearn::ThresholdBpropVariable, PLearn::TimesColumnVariable, PLearn::TimesConstantVariable, PLearn::TimesRowVariable, PLearn::TimesScalarVariable, PLearn::TimesVariable, PLearn::TransposeProductVariable, PLearn::TransposeVariable, PLearn::UnaryHardSlopeVariable, PLearn::UnaryVariable, PLearn::UnequalConstantVariable, PLearn::UnfoldedFuncVariable, PLearn::UnfoldedSumOfVariable, PLearn::VarArrayElementVariable, PLearn::VarColumnsVariable, PLearn::VarElementVariable, PLearn::VarRowsVariable, PLearn::VarRowVariable, PLearn::VecElementVariable, PLearn::WeightedSumSquareVariable, PLearn::NLLNeighborhoodWeightsVariable, PLearn::NoBpropVariable, PLearn::RunICPVariable, PLearn::ScoreLayerVariable, and PLearn::WeightedLogGaussian.

Definition at line 465 of file Variable.cc.

RemoteMethodMap & PLearn::Variable::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::Object.

Reimplemented in PLearn::AbsVariable, PLearn::AffineTransformVariable, PLearn::AffineTransformWeightPenalty, PLearn::ArgmaxVariable, PLearn::ArgminOfVariable, PLearn::ArgminVariable, PLearn::BiasWeightAffineTransformVariable, PLearn::BinaryClassificationLossVariable, PLearn::BinaryVariable, PLearn::CCCostVariable, PLearn::ClassificationLossVariable, PLearn::ColumnIndexVariable, PLearn::ColumnSumVariable, PLearn::ConcatColumnsVariable, PLearn::ConcatOfVariable, PLearn::ConcatRowsVariable, PLearn::ConfRatedAdaboostCostVariable, PLearn::ConvolveVariable, PLearn::CrossEntropyVariable, PLearn::CutAboveThresholdVariable, PLearn::CutBelowThresholdVariable, PLearn::DeterminantVariable, PLearn::DiagonalizedFactorsProductVariable, PLearn::DilogarithmVariable, PLearn::DivVariable, PLearn::DotProductVariable, PLearn::DuplicateColumnVariable, PLearn::DuplicateRowVariable, PLearn::DuplicateScalarVariable, PLearn::ElementAtPositionVariable, PLearn::EqualConstantVariable, PLearn::EqualScalarVariable, PLearn::EqualVariable, PLearn::ErfVariable, PLearn::AdditiveGaussianNoiseVariable, PLearn::BernoulliSampleVariable, PLearn::ConstrainedSourceVariable, PLearn::ConstrainVariable, PLearn::Cov2CorrVariable, PLearn::DiagVariable, PLearn::DoubleProductVariable, PLearn::LinearCombinationOfScalarVariables, PLearn::LogSoftSoftMaxVariable, PLearn::MultiMaxVariable, PLearn::MultiSampleVariable, PLearn::NonDiagVariable, PLearn::ProbabilityPairsInverseVariable, PLearn::ProbabilityPairsVariable, PLearn::RandomForcedValuesVariable, PLearn::SaltPepperNoiseVariable, PLearn::SoftSoftMaxVariable, PLearn::SumEntropyOfBernoullis, PLearn::SumEntropyOfCategoricals, PLearn::SumVarianceOfLinearTransformedBernoullis, PLearn::SumVarianceOfLinearTransformedCategoricals, PLearn::TimesConstantScalarVariable2, PLearn::TraceVariable, PLearn::TransposedDoubleProductVariable, PLearn::ExpVariable, PLearn::ExtendedVariable, PLearn::ExtractVariable, PLearn::FNetLayerVariable, PLearn::GaussianProcessNLLVariable, PLearn::GradientAdaboostCostVariable, PLearn::HardSlopeVariable, PLearn::HeterogenuousAffineTransformVariable, PLearn::HeterogenuousAffineTransformWeightPenalty, PLearn::IdentityVariable, PLearn::IfThenElseVariable, PLearn::IndexAtPositionVariable, PLearn::InsertZerosVariable, PLearn::InterValuesVariable, PLearn::InvertElementsVariable, PLearn::IsAboveThresholdVariable, PLearn::IsLargerVariable, PLearn::IsMissingVariable, PLearn::IsSmallerVariable, PLearn::LeftPseudoInverseVariable, PLearn::LiftOutputVariable, PLearn::LocalizedFeaturesLayerVariable, PLearn::LogAddVariable, PLearn::LogSoftmaxVariable, PLearn::LogSumVariable, PLearn::LogVariable, PLearn::MarginPerceptronCostVariable, PLearn::MatrixAffineTransformFeedbackVariable, PLearn::MatrixAffineTransformVariable, PLearn::MatrixElementsVariable, PLearn::MatrixInverseVariable, PLearn::MatrixOneHotSquaredLoss, PLearn::MatrixSoftmaxLossVariable, PLearn::MatrixSoftmaxVariable, PLearn::MatrixSumOfVariable, PLearn::MatRowVariable, PLearn::Max2Variable, PLearn::MaxVariable, PLearn::Min2Variable, PLearn::MiniBatchClassificationLossVariable, PLearn::MinusColumnVariable, PLearn::MinusRowVariable, PLearn::MinusScalarVariable, PLearn::MinusTransposedColumnVariable, PLearn::MinusVariable, PLearn::MinVariable, PLearn::MulticlassLossVariable, PLearn::NaryVariable, PLearn::NegateElementsVariable, PLearn::NegCrossEntropySigmoidVariable, PLearn::NegLogPoissonVariable, PLearn::NllGeneralGaussianVariable, PLearn::NllSemisphericalGaussianVariable, PLearn::NoBpropVariable, PLearn::ObjectOptionVariable, PLearn::OneHotSquaredLoss, PLearn::OneHotVariable, PLearn::OutputVariable, PLearn::PDistributionVariable, PLearn::PLogPVariable, PLearn::PlusColumnVariable, PLearn::PlusConstantVariable, PLearn::PlusManyVariable, PLearn::PlusRowVariable, PLearn::PlusScalarVariable, PLearn::PlusVariable, PLearn::PotentialsVariable, PLearn::PowVariable, PLearn::PowVariableVariable, PLearn::ProductTransposeVariable, PLearn::ProductVariable, PLearn::ProjectionErrorVariable, PLearn::ReIndexedTargetVariable, PLearn::ReshapeVariable, PLearn::RightPseudoInverseVariable, PLearn::RowAtPositionVariable, PLearn::RowOfVariable, PLearn::RowSumSquareVariable, PLearn::RowSumVariable, PLearn::SemiSupervisedProbClassCostVariable, PLearn::SigmoidVariable, PLearn::SignVariable, PLearn::SoftmaxLossVariable, PLearn::SoftmaxVariable, PLearn::SoftplusVariable, PLearn::SoftSlopeIntegralVariable, PLearn::SoftSlopeVariable, PLearn::SourceVariable, PLearn::SparseIncrementalAffineTransformVariable, PLearn::SquareRootVariable, PLearn::SquareVariable, PLearn::SubMatTransposeVariable, PLearn::SubMatVariable, PLearn::SubsampleVariable, PLearn::SumAbsVariable, PLearn::SumOfVariable, PLearn::SumOverBagsVariable, PLearn::SumSquareVariable, PLearn::SumVariable, PLearn::SVDVariable, PLearn::TanhVariable, PLearn::ThresholdBpropVariable, PLearn::TimesColumnVariable, PLearn::TimesConstantVariable, PLearn::TimesRowVariable, PLearn::TimesScalarVariable, PLearn::TimesVariable, PLearn::TransposeProductVariable, PLearn::TransposeVariable, PLearn::UnaryHardSlopeVariable, PLearn::UnaryVariable, PLearn::UnequalConstantVariable, PLearn::UnfoldedFuncVariable, PLearn::UnfoldedSumOfVariable, PLearn::VarArrayElementVariable, PLearn::VarColumnsVariable, PLearn::VarElementVariable, PLearn::VarRowsVariable, PLearn::VarRowVariable, PLearn::VecElementVariable, PLearn::WeightedSumSquareVariable, PLearn::NLLNeighborhoodWeightsVariable, PLearn::NoBpropVariable, PLearn::RunICPVariable, PLearn::ScoreLayerVariable, and PLearn::WeightedLogGaussian.

Definition at line 465 of file Variable.cc.

bool PLearn::Variable::_isa_ ( const Object o) [static]

Reimplemented from PLearn::Object.

Reimplemented in PLearn::AbsVariable, PLearn::AffineTransformVariable, PLearn::AffineTransformWeightPenalty, PLearn::ArgmaxVariable, PLearn::ArgminOfVariable, PLearn::ArgminVariable, PLearn::BiasWeightAffineTransformVariable, PLearn::BinaryClassificationLossVariable, PLearn::BinaryVariable, PLearn::CCCostVariable, PLearn::ClassificationLossVariable, PLearn::ColumnIndexVariable, PLearn::ColumnSumVariable, PLearn::ConcatColumnsVariable, PLearn::ConcatOfVariable, PLearn::ConcatRowsVariable, PLearn::ConfRatedAdaboostCostVariable, PLearn::ConvolveVariable, PLearn::CrossEntropyVariable, PLearn::CutAboveThresholdVariable, PLearn::CutBelowThresholdVariable, PLearn::DeterminantVariable, PLearn::DiagonalizedFactorsProductVariable, PLearn::DilogarithmVariable, PLearn::DivVariable, PLearn::DotProductVariable, PLearn::DuplicateColumnVariable, PLearn::DuplicateRowVariable, PLearn::DuplicateScalarVariable, PLearn::ElementAtPositionVariable, PLearn::EqualConstantVariable, PLearn::EqualScalarVariable, PLearn::EqualVariable, PLearn::ErfVariable, PLearn::AdditiveGaussianNoiseVariable, PLearn::BernoulliSampleVariable, PLearn::ConstrainedSourceVariable, PLearn::ConstrainVariable, PLearn::Cov2CorrVariable, PLearn::DiagVariable, PLearn::DoubleProductVariable, PLearn::LinearCombinationOfScalarVariables, PLearn::LogSoftSoftMaxVariable, PLearn::MultiMaxVariable, PLearn::MultiSampleVariable, PLearn::NonDiagVariable, PLearn::ProbabilityPairsInverseVariable, PLearn::ProbabilityPairsVariable, PLearn::RandomForcedValuesVariable, PLearn::SaltPepperNoiseVariable, PLearn::SoftSoftMaxVariable, PLearn::SumEntropyOfBernoullis, PLearn::SumEntropyOfCategoricals, PLearn::SumVarianceOfLinearTransformedBernoullis, PLearn::SumVarianceOfLinearTransformedCategoricals, PLearn::TimesConstantScalarVariable2, PLearn::TraceVariable, PLearn::TransposedDoubleProductVariable, PLearn::ExpVariable, PLearn::ExtendedVariable, PLearn::ExtractVariable, PLearn::FNetLayerVariable, PLearn::GaussianProcessNLLVariable, PLearn::GradientAdaboostCostVariable, PLearn::HardSlopeVariable, PLearn::HeterogenuousAffineTransformVariable, PLearn::HeterogenuousAffineTransformWeightPenalty, PLearn::IdentityVariable, PLearn::IfThenElseVariable, PLearn::IndexAtPositionVariable, PLearn::InsertZerosVariable, PLearn::InterValuesVariable, PLearn::InvertElementsVariable, PLearn::IsAboveThresholdVariable, PLearn::IsLargerVariable, PLearn::IsMissingVariable, PLearn::IsSmallerVariable, PLearn::LeftPseudoInverseVariable, PLearn::LiftOutputVariable, PLearn::LocalizedFeaturesLayerVariable, PLearn::LogAddVariable, PLearn::LogSoftmaxVariable, PLearn::LogSumVariable, PLearn::LogVariable, PLearn::MarginPerceptronCostVariable, PLearn::MatrixAffineTransformFeedbackVariable, PLearn::MatrixAffineTransformVariable, PLearn::MatrixElementsVariable, PLearn::MatrixInverseVariable, PLearn::MatrixOneHotSquaredLoss, PLearn::MatrixSoftmaxLossVariable, PLearn::MatrixSoftmaxVariable, PLearn::MatrixSumOfVariable, PLearn::MatRowVariable, PLearn::Max2Variable, PLearn::MaxVariable, PLearn::Min2Variable, PLearn::MiniBatchClassificationLossVariable, PLearn::MinusColumnVariable, PLearn::MinusRowVariable, PLearn::MinusScalarVariable, PLearn::MinusTransposedColumnVariable, PLearn::MinusVariable, PLearn::MinVariable, PLearn::MulticlassLossVariable, PLearn::NaryVariable, PLearn::NegateElementsVariable, PLearn::NegCrossEntropySigmoidVariable, PLearn::NegLogPoissonVariable, PLearn::NllGeneralGaussianVariable, PLearn::NllSemisphericalGaussianVariable, PLearn::NoBpropVariable, PLearn::ObjectOptionVariable, PLearn::OneHotSquaredLoss, PLearn::OneHotVariable, PLearn::OutputVariable, PLearn::PDistributionVariable, PLearn::PLogPVariable, PLearn::PlusColumnVariable, PLearn::PlusConstantVariable, PLearn::PlusManyVariable, PLearn::PlusRowVariable, PLearn::PlusScalarVariable, PLearn::PlusVariable, PLearn::PotentialsVariable, PLearn::PowVariable, PLearn::PowVariableVariable, PLearn::ProductTransposeVariable, PLearn::ProductVariable, PLearn::ProjectionErrorVariable, PLearn::ReIndexedTargetVariable, PLearn::ReshapeVariable, PLearn::RightPseudoInverseVariable, PLearn::RowAtPositionVariable, PLearn::RowOfVariable, PLearn::RowSumSquareVariable, PLearn::RowSumVariable, PLearn::SemiSupervisedProbClassCostVariable, PLearn::SigmoidVariable, PLearn::SignVariable, PLearn::SoftmaxLossVariable, PLearn::SoftmaxVariable, PLearn::SoftplusVariable, PLearn::SoftSlopeIntegralVariable, PLearn::SoftSlopeVariable, PLearn::SourceVariable, PLearn::SparseIncrementalAffineTransformVariable, PLearn::SquareRootVariable, PLearn::SquareVariable, PLearn::SubMatTransposeVariable, PLearn::SubMatVariable, PLearn::SubsampleVariable, PLearn::SumAbsVariable, PLearn::SumOfVariable, PLearn::SumOverBagsVariable, PLearn::SumSquareVariable, PLearn::SumVariable, PLearn::SVDVariable, PLearn::TanhVariable, PLearn::ThresholdBpropVariable, PLearn::TimesColumnVariable, PLearn::TimesConstantVariable, PLearn::TimesRowVariable, PLearn::TimesScalarVariable, PLearn::TimesVariable, PLearn::TransposeProductVariable, PLearn::TransposeVariable, PLearn::UnaryHardSlopeVariable, PLearn::UnaryVariable, PLearn::UnequalConstantVariable, PLearn::UnfoldedFuncVariable, PLearn::UnfoldedSumOfVariable, PLearn::VarArrayElementVariable, PLearn::VarColumnsVariable, PLearn::VarElementVariable, PLearn::VarRowsVariable, PLearn::VarRowVariable, PLearn::VecElementVariable, PLearn::WeightedSumSquareVariable, PLearn::NLLNeighborhoodWeightsVariable, PLearn::NoBpropVariable, PLearn::RunICPVariable, PLearn::ScoreLayerVariable, and PLearn::WeightedLogGaussian.

Definition at line 465 of file Variable.cc.

StaticInitializer Variable::_static_initializer_ & PLearn::Variable::_static_initialize_ ( ) [static]

Reimplemented from PLearn::Object.

Reimplemented in PLearn::AbsVariable, PLearn::AffineTransformVariable, PLearn::AffineTransformWeightPenalty, PLearn::ArgmaxVariable, PLearn::ArgminOfVariable, PLearn::ArgminVariable, PLearn::BiasWeightAffineTransformVariable, PLearn::BinaryClassificationLossVariable, PLearn::BinaryVariable, PLearn::CCCostVariable, PLearn::ClassificationLossVariable, PLearn::ColumnIndexVariable, PLearn::ColumnSumVariable, PLearn::ConcatColumnsVariable, PLearn::ConcatOfVariable, PLearn::ConcatRowsVariable, PLearn::ConfRatedAdaboostCostVariable, PLearn::ConvolveVariable, PLearn::CrossEntropyVariable, PLearn::CutAboveThresholdVariable, PLearn::CutBelowThresholdVariable, PLearn::DeterminantVariable, PLearn::DiagonalizedFactorsProductVariable, PLearn::DilogarithmVariable, PLearn::DivVariable, PLearn::DotProductVariable, PLearn::DuplicateColumnVariable, PLearn::DuplicateRowVariable, PLearn::DuplicateScalarVariable, PLearn::ElementAtPositionVariable, PLearn::EqualConstantVariable, PLearn::EqualScalarVariable, PLearn::EqualVariable, PLearn::ErfVariable, PLearn::AdditiveGaussianNoiseVariable, PLearn::BernoulliSampleVariable, PLearn::ConstrainedSourceVariable, PLearn::ConstrainVariable, PLearn::Cov2CorrVariable, PLearn::DiagVariable, PLearn::DoubleProductVariable, PLearn::LinearCombinationOfScalarVariables, PLearn::LogSoftSoftMaxVariable, PLearn::MultiMaxVariable, PLearn::MultiSampleVariable, PLearn::NonDiagVariable, PLearn::ProbabilityPairsInverseVariable, PLearn::ProbabilityPairsVariable, PLearn::RandomForcedValuesVariable, PLearn::SaltPepperNoiseVariable, PLearn::SoftSoftMaxVariable, PLearn::SumEntropyOfBernoullis, PLearn::SumEntropyOfCategoricals, PLearn::SumVarianceOfLinearTransformedBernoullis, PLearn::SumVarianceOfLinearTransformedCategoricals, PLearn::TimesConstantScalarVariable2, PLearn::TraceVariable, PLearn::TransposedDoubleProductVariable, PLearn::ExpVariable, PLearn::ExtendedVariable, PLearn::ExtractVariable, PLearn::FNetLayerVariable, PLearn::GaussianProcessNLLVariable, PLearn::GradientAdaboostCostVariable, PLearn::HardSlopeVariable, PLearn::HeterogenuousAffineTransformVariable, PLearn::HeterogenuousAffineTransformWeightPenalty, PLearn::IdentityVariable, PLearn::IfThenElseVariable, PLearn::IndexAtPositionVariable, PLearn::InsertZerosVariable, PLearn::InterValuesVariable, PLearn::InvertElementsVariable, PLearn::IsAboveThresholdVariable, PLearn::IsLargerVariable, PLearn::IsMissingVariable, PLearn::IsSmallerVariable, PLearn::LeftPseudoInverseVariable, PLearn::LiftOutputVariable, PLearn::LocalizedFeaturesLayerVariable, PLearn::LogAddVariable, PLearn::LogSoftmaxVariable, PLearn::LogSumVariable, PLearn::LogVariable, PLearn::MarginPerceptronCostVariable, PLearn::MatrixAffineTransformFeedbackVariable, PLearn::MatrixAffineTransformVariable, PLearn::MatrixElementsVariable, PLearn::MatrixInverseVariable, PLearn::MatrixOneHotSquaredLoss, PLearn::MatrixSoftmaxLossVariable, PLearn::MatrixSoftmaxVariable, PLearn::MatrixSumOfVariable, PLearn::MatRowVariable, PLearn::Max2Variable, PLearn::MaxVariable, PLearn::Min2Variable, PLearn::MiniBatchClassificationLossVariable, PLearn::MinusColumnVariable, PLearn::MinusRowVariable, PLearn::MinusScalarVariable, PLearn::MinusTransposedColumnVariable, PLearn::MinusVariable, PLearn::MinVariable, PLearn::MulticlassLossVariable, PLearn::NaryVariable, PLearn::NegateElementsVariable, PLearn::NegCrossEntropySigmoidVariable, PLearn::NegLogPoissonVariable, PLearn::NllGeneralGaussianVariable, PLearn::NllSemisphericalGaussianVariable, PLearn::NoBpropVariable, PLearn::ObjectOptionVariable, PLearn::OneHotSquaredLoss, PLearn::OneHotVariable, PLearn::OutputVariable, PLearn::PDistributionVariable, PLearn::PLogPVariable, PLearn::PlusColumnVariable, PLearn::PlusConstantVariable, PLearn::PlusManyVariable, PLearn::PlusRowVariable, PLearn::PlusScalarVariable, PLearn::PlusVariable, PLearn::PotentialsVariable, PLearn::PowVariable, PLearn::PowVariableVariable, PLearn::ProductTransposeVariable, PLearn::ProductVariable, PLearn::ProjectionErrorVariable, PLearn::ReIndexedTargetVariable, PLearn::ReshapeVariable, PLearn::RightPseudoInverseVariable, PLearn::RowAtPositionVariable, PLearn::RowOfVariable, PLearn::RowSumSquareVariable, PLearn::RowSumVariable, PLearn::SemiSupervisedProbClassCostVariable, PLearn::SigmoidVariable, PLearn::SignVariable, PLearn::SoftmaxLossVariable, PLearn::SoftmaxVariable, PLearn::SoftplusVariable, PLearn::SoftSlopeIntegralVariable, PLearn::SoftSlopeVariable, PLearn::SourceVariable, PLearn::SparseIncrementalAffineTransformVariable, PLearn::SquareRootVariable, PLearn::SquareVariable, PLearn::SubMatTransposeVariable, PLearn::SubMatVariable, PLearn::SubsampleVariable, PLearn::SumAbsVariable, PLearn::SumOfVariable, PLearn::SumOverBagsVariable, PLearn::SumSquareVariable, PLearn::SumVariable, PLearn::SVDVariable, PLearn::TanhVariable, PLearn::ThresholdBpropVariable, PLearn::TimesColumnVariable, PLearn::TimesConstantVariable, PLearn::TimesRowVariable, PLearn::TimesScalarVariable, PLearn::TimesVariable, PLearn::TransposeProductVariable, PLearn::TransposeVariable, PLearn::UnaryHardSlopeVariable, PLearn::UnaryVariable, PLearn::UnequalConstantVariable, PLearn::UnfoldedFuncVariable, PLearn::UnfoldedSumOfVariable, PLearn::VarArrayElementVariable, PLearn::VarColumnsVariable, PLearn::VarElementVariable, PLearn::VarRowsVariable, PLearn::VarRowVariable, PLearn::VecElementVariable, PLearn::WeightedSumSquareVariable, PLearn::NLLNeighborhoodWeightsVariable, PLearn::NoBpropVariable, PLearn::RunICPVariable, PLearn::ScoreLayerVariable, and PLearn::WeightedLogGaussian.

Definition at line 465 of file Variable.cc.

void PLearn::Variable::accg ( Var  v) [virtual]

accumulate the symbolic gradient in a smart way...

Definition at line 567 of file Variable.cc.

References g, PLearn::Var::length(), length(), Var, width(), and PLearn::Var::width().

Referenced by PLearn::MatrixAffineTransformVariable::symbolicBprop().

{
    if(g || (vg.length()==length() && vg.width()==width()))
        g += vg;
    else // g does not exist
    {
        g = Var(length(),width());
        g += vg;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::Variable::allowPartialUpdates ( ) [inline]

send message that update may be sometimes needed on only parts of the Variable

Definition at line 360 of file Variable.h.

Referenced by PLearn::HeterogenuousAffineTransformVariable::build_(), and PLearn::HeterogenuousAffineTransformWeightPenalty::build_().

    {
        allows_partial_update=true;
        rows_to_update.resize(length()); // make sure that there are always enough elements
        rows_to_update.resize(0);
        gradient_status=0;
    }

Here is the caller graph for this function:

virtual VarArray PLearn::Variable::ancestors ( ) [pure virtual]

if not marked, find all Variables that influence this Variable.

Implemented in PLearn::BinaryVariable, PLearn::NaryVariable, PLearn::ObjectOptionVariable, PLearn::SourceVariable, and PLearn::UnaryVariable.

Referenced by printInfos().

Here is the caller graph for this function:

void PLearn::Variable::bbprop ( ) [virtual]

compute an approximation to diag(d^2/dinput^2) given diag(d^2/doutput^2), with diag(d^2/dinput^2) ~=~ (doutput/dinput)' diag(d^2/doutput^2) (doutput/dinput) In particular: if 'C' depends on 'y' and 'y' depends on x ...

d^2C/dx^2 = d^2C/dy^2 * (dy/dx)^2 + dC/dy * d^2y/dx^2 (diaghessian) (gradient)

Reimplemented in PLearn::DotProductVariable, PLearn::ConstrainVariable, PLearn::Cov2CorrVariable, PLearn::DiagVariable, PLearn::NonDiagVariable, PLearn::TraceVariable, PLearn::ExtractVariable, PLearn::IdentityVariable, PLearn::InsertZerosVariable, PLearn::LogSoftmaxVariable, PLearn::MatrixSoftmaxLossVariable, PLearn::MatrixSoftmaxVariable, PLearn::MinusColumnVariable, PLearn::MinusRowVariable, PLearn::MinusScalarVariable, PLearn::MinusVariable, PLearn::NegateElementsVariable, PLearn::ObjectOptionVariable, PLearn::PDistributionVariable, PLearn::PlusColumnVariable, PLearn::PlusRowVariable, PLearn::PlusScalarVariable, PLearn::PlusVariable, PLearn::ProductTransposeVariable, PLearn::ProductVariable, PLearn::SigmoidVariable, PLearn::SoftmaxLossVariable, PLearn::SoftmaxVariable, PLearn::SourceVariable, PLearn::SquareVariable, PLearn::SubMatVariable, PLearn::TanhVariable, and PLearn::TransposeProductVariable.

Definition at line 506 of file Variable.cc.

References PLearn::Object::classname(), and PLERROR.

Referenced by fbbprop().

{ PLERROR("bbprop not implemented for this variable (%s)",classname().c_str()); }

Here is the call graph for this function:

Here is the caller graph for this function:

virtual void PLearn::Variable::bprop ( ) [pure virtual]

Implemented in PLearn::SourceSampleVariable, PLearn::UnarySampleVariable, PLearn::BinarySampleVariable, PLearn::AbsVariable, PLearn::AffineTransformVariable, PLearn::AffineTransformWeightPenalty, PLearn::ArgmaxVariable, PLearn::ArgminOfVariable, PLearn::ArgminVariable, PLearn::BiasWeightAffineTransformVariable, PLearn::BinaryClassificationLossVariable, PLearn::CCCostVariable, PLearn::ClassificationLossVariable, PLearn::ColumnIndexVariable, PLearn::ColumnSumVariable, PLearn::ConcatColumnsVariable, PLearn::ConcatOfVariable, PLearn::ConcatRowsVariable, PLearn::ConfRatedAdaboostCostVariable, PLearn::ConvolveVariable, PLearn::CrossEntropyVariable, PLearn::CutAboveThresholdVariable, PLearn::CutBelowThresholdVariable, PLearn::DeterminantVariable, PLearn::DiagonalizedFactorsProductVariable, PLearn::DilogarithmVariable, PLearn::DivVariable, PLearn::DotProductVariable, PLearn::DuplicateColumnVariable, PLearn::DuplicateRowVariable, PLearn::DuplicateScalarVariable, PLearn::ElementAtPositionVariable, PLearn::EqualConstantVariable, PLearn::EqualScalarVariable, PLearn::EqualVariable, PLearn::ErfVariable, PLearn::AdditiveGaussianNoiseVariable, PLearn::BernoulliSampleVariable, PLearn::ConstrainVariable, PLearn::Cov2CorrVariable, PLearn::DiagVariable, PLearn::DoubleProductVariable, PLearn::LinearCombinationOfScalarVariables, PLearn::LogSoftSoftMaxVariable, PLearn::MultiMaxVariable, PLearn::MultiSampleVariable, PLearn::NonDiagVariable, PLearn::ProbabilityPairsInverseVariable, PLearn::ProbabilityPairsVariable, PLearn::RandomForcedValuesVariable, PLearn::SaltPepperNoiseVariable, PLearn::SoftSoftMaxVariable, PLearn::SumEntropyOfBernoullis, PLearn::SumEntropyOfCategoricals, PLearn::SumVarianceOfLinearTransformedBernoullis, PLearn::SumVarianceOfLinearTransformedCategoricals, PLearn::TimesConstantScalarVariable2, PLearn::TraceVariable, PLearn::TransposedDoubleProductVariable, PLearn::ExpVariable, PLearn::ExtendedVariable, PLearn::ExtractVariable, PLearn::FNetLayerVariable, PLearn::GaussianProcessNLLVariable, PLearn::GradientAdaboostCostVariable, PLearn::HardSlopeVariable, PLearn::HeterogenuousAffineTransformVariable, PLearn::HeterogenuousAffineTransformWeightPenalty, PLearn::IdentityVariable, PLearn::IfThenElseVariable, PLearn::IndexAtPositionVariable, PLearn::InsertZerosVariable, PLearn::InterValuesVariable, PLearn::InvertElementsVariable, PLearn::IsAboveThresholdVariable, PLearn::IsLargerVariable, PLearn::IsMissingVariable, PLearn::IsSmallerVariable, PLearn::LeftPseudoInverseVariable, PLearn::LiftOutputVariable, PLearn::LocalizedFeaturesLayerVariable, PLearn::LogAddVariable, PLearn::LogSoftmaxVariable, PLearn::LogSumVariable, PLearn::LogVariable, PLearn::MarginPerceptronCostVariable, PLearn::MatrixAffineTransformFeedbackVariable, PLearn::MatrixAffineTransformVariable, PLearn::MatrixElementsVariable, PLearn::MatrixInverseVariable, PLearn::MatrixOneHotSquaredLoss, PLearn::MatrixSoftmaxLossVariable, PLearn::MatrixSoftmaxVariable, PLearn::MatrixSumOfVariable, PLearn::MatRowVariable, PLearn::Max2Variable, PLearn::MaxVariable, PLearn::Min2Variable, PLearn::MiniBatchClassificationLossVariable, PLearn::MinusColumnVariable, PLearn::MinusRowVariable, PLearn::MinusScalarVariable, PLearn::MinusTransposedColumnVariable, PLearn::MinusVariable, PLearn::MinVariable, PLearn::MulticlassLossVariable, PLearn::NegateElementsVariable, PLearn::NegCrossEntropySigmoidVariable, PLearn::NegLogPoissonVariable, PLearn::NllGeneralGaussianVariable, PLearn::NllSemisphericalGaussianVariable, PLearn::NoBpropVariable, PLearn::ObjectOptionVariable, PLearn::OneHotSquaredLoss, PLearn::OneHotVariable, PLearn::OutputVariable, PLearn::PDistributionVariable, PLearn::PLogPVariable, PLearn::PlusColumnVariable, PLearn::PlusConstantVariable, PLearn::PlusManyVariable, PLearn::PlusRowVariable, PLearn::PlusScalarVariable, PLearn::PlusVariable, PLearn::PotentialsVariable, PLearn::PowVariable, PLearn::PowVariableVariable, PLearn::ProductTransposeVariable, PLearn::ProductVariable, PLearn::ProjectionErrorVariable, PLearn::ReIndexedTargetVariable, PLearn::ReshapeVariable, PLearn::RightPseudoInverseVariable, PLearn::RowAtPositionVariable, PLearn::RowOfVariable, PLearn::RowSumSquareVariable, PLearn::RowSumVariable, PLearn::SemiSupervisedProbClassCostVariable, PLearn::SigmoidVariable, PLearn::SignVariable, PLearn::SoftmaxLossVariable, PLearn::SoftmaxVariable, PLearn::SoftplusVariable, PLearn::SoftSlopeIntegralVariable, PLearn::SoftSlopeVariable, PLearn::SourceVariable, PLearn::SparseIncrementalAffineTransformVariable, PLearn::SquareRootVariable, PLearn::SquareVariable, PLearn::SubMatTransposeVariable, PLearn::SubMatVariable, PLearn::SubsampleVariable, PLearn::SumAbsVariable, PLearn::SumOfVariable, PLearn::SumOverBagsVariable, PLearn::SumSquareVariable, PLearn::SumVariable, PLearn::SVDVariable, PLearn::TanhVariable, PLearn::ThresholdBpropVariable, PLearn::TimesColumnVariable, PLearn::TimesConstantVariable, PLearn::TimesRowVariable, PLearn::TimesScalarVariable, PLearn::TimesVariable, PLearn::TransposeProductVariable, PLearn::TransposeVariable, PLearn::UnaryHardSlopeVariable, PLearn::UnaryVariable, PLearn::UnequalConstantVariable, PLearn::UnfoldedFuncVariable, PLearn::UnfoldedSumOfVariable, PLearn::VarArrayElementVariable, PLearn::VarColumnsVariable, PLearn::VarElementVariable, PLearn::VarRowsVariable, PLearn::VarRowVariable, PLearn::VecElementVariable, PLearn::WeightedSumSquareVariable, PLearn::NLLNeighborhoodWeightsVariable, PLearn::NoBpropVariable, PLearn::RunICPVariable, PLearn::ScoreLayerVariable, and PLearn::WeightedLogGaussian.

Referenced by fbbprop(), and fbprop().

Here is the caller graph for this function:

void PLearn::Variable::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::Object.

Reimplemented in PLearn::AffineTransformVariable, PLearn::BiasWeightAffineTransformVariable, PLearn::BinaryClassificationLossVariable, PLearn::BinaryVariable, PLearn::CCCostVariable, PLearn::ClassificationLossVariable, PLearn::ColumnIndexVariable, PLearn::ConcatColumnsVariable, PLearn::ConcatOfVariable, PLearn::ConcatRowsVariable, PLearn::ConfRatedAdaboostCostVariable, PLearn::CrossEntropyVariable, PLearn::DeterminantVariable, PLearn::DiagonalizedFactorsProductVariable, PLearn::DivVariable, PLearn::DotProductVariable, PLearn::DuplicateColumnVariable, PLearn::DuplicateRowVariable, PLearn::DuplicateScalarVariable, PLearn::ElementAtPositionVariable, PLearn::EqualScalarVariable, PLearn::EqualVariable, PLearn::AdditiveGaussianNoiseVariable, PLearn::BernoulliSampleVariable, PLearn::ConstrainedSourceVariable, PLearn::ConstrainVariable, PLearn::Cov2CorrVariable, PLearn::DiagVariable, PLearn::DoubleProductVariable, PLearn::LinearCombinationOfScalarVariables, PLearn::LogSoftSoftMaxVariable, PLearn::MultiMaxVariable, PLearn::MultiSampleVariable, PLearn::NonDiagVariable, PLearn::ProbabilityPairsInverseVariable, PLearn::ProbabilityPairsVariable, PLearn::RandomForcedValuesVariable, PLearn::SaltPepperNoiseVariable, PLearn::SoftSoftMaxVariable, PLearn::SumEntropyOfBernoullis, PLearn::SumEntropyOfCategoricals, PLearn::SumVarianceOfLinearTransformedBernoullis, PLearn::SumVarianceOfLinearTransformedCategoricals, PLearn::TimesConstantScalarVariable2, PLearn::TraceVariable, PLearn::TransposedDoubleProductVariable, PLearn::ExtendedVariable, PLearn::ExtractVariable, PLearn::FNetLayerVariable, PLearn::GaussianProcessNLLVariable, PLearn::GradientAdaboostCostVariable, PLearn::HeterogenuousAffineTransformVariable, PLearn::HeterogenuousAffineTransformWeightPenalty, PLearn::IfThenElseVariable, PLearn::IndexAtPositionVariable, PLearn::InsertZerosVariable, PLearn::InterValuesVariable, PLearn::IsLargerVariable, PLearn::IsMissingVariable, PLearn::IsSmallerVariable, PLearn::LeftPseudoInverseVariable, PLearn::LiftOutputVariable, PLearn::LocalizedFeaturesLayerVariable, PLearn::LogAddVariable, PLearn::LogSoftmaxVariable, PLearn::MarginPerceptronCostVariable, PLearn::MatrixElementsVariable, PLearn::MatrixOneHotSquaredLoss, PLearn::MatrixSoftmaxLossVariable, PLearn::MatrixSumOfVariable, PLearn::MatRowVariable, PLearn::Max2Variable, PLearn::Min2Variable, PLearn::MiniBatchClassificationLossVariable, PLearn::MinusColumnVariable, PLearn::MinusRowVariable, PLearn::MinusScalarVariable, PLearn::MinusTransposedColumnVariable, PLearn::MinusVariable, PLearn::MulticlassLossVariable, PLearn::NaryVariable, PLearn::NegateElementsVariable, PLearn::NegCrossEntropySigmoidVariable, PLearn::NegLogPoissonVariable, PLearn::NllGeneralGaussianVariable, PLearn::NllSemisphericalGaussianVariable, PLearn::NoBpropVariable, PLearn::ObjectOptionVariable, PLearn::OneHotSquaredLoss, PLearn::OneHotVariable, PLearn::PDistributionVariable, PLearn::PlusColumnVariable, PLearn::PlusConstantVariable, PLearn::PlusManyVariable, PLearn::PlusRowVariable, PLearn::PlusScalarVariable, PLearn::PlusVariable, PLearn::PotentialsVariable, PLearn::PowVariableVariable, PLearn::ProductTransposeVariable, PLearn::ProductVariable, PLearn::ProjectionErrorVariable, PLearn::ReIndexedTargetVariable, PLearn::ReshapeVariable, PLearn::RightPseudoInverseVariable, PLearn::RowAtPositionVariable, PLearn::RowOfVariable, PLearn::RowSumSquareVariable, PLearn::SemiSupervisedProbClassCostVariable, PLearn::SoftmaxLossVariable, PLearn::SoftplusVariable, PLearn::SourceVariable, PLearn::SparseIncrementalAffineTransformVariable, PLearn::SquareVariable, PLearn::SubMatTransposeVariable, PLearn::SubMatVariable, PLearn::SubsampleVariable, PLearn::SumOfVariable, PLearn::SumOverBagsVariable, PLearn::ThresholdBpropVariable, PLearn::TimesColumnVariable, PLearn::TimesRowVariable, PLearn::TimesScalarVariable, PLearn::TimesVariable, PLearn::TransposeProductVariable, PLearn::UnaryHardSlopeVariable, PLearn::UnaryVariable, PLearn::UnfoldedFuncVariable, PLearn::UnfoldedSumOfVariable, PLearn::VarArrayElementVariable, PLearn::VarElementVariable, PLearn::VarRowsVariable, PLearn::VarRowVariable, PLearn::VecElementVariable, PLearn::WeightedSumSquareVariable, PLearn::NLLNeighborhoodWeightsVariable, PLearn::NoBpropVariable, PLearn::RunICPVariable, PLearn::ScoreLayerVariable, and PLearn::WeightedLogGaussian.

Definition at line 331 of file Variable.cc.

References PLearn::Object::build(), and build_().

Referenced by PLearn::UnaryVariable::build(), PLearn::SourceVariable::build(), PLearn::ObjectOptionVariable::build(), PLearn::NaryVariable::build(), and PLearn::BinaryVariable::build().

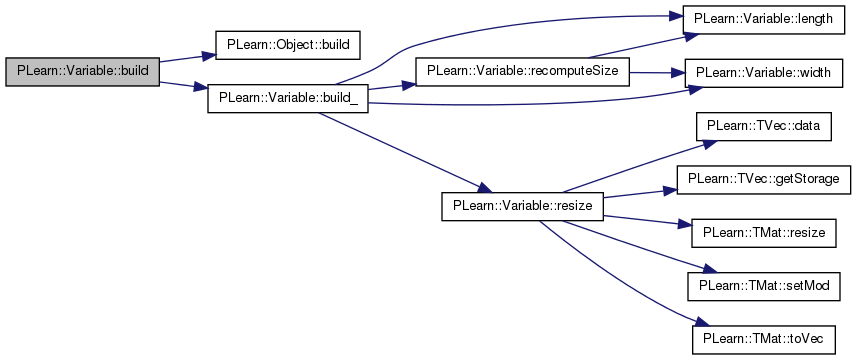

Here is the call graph for this function:

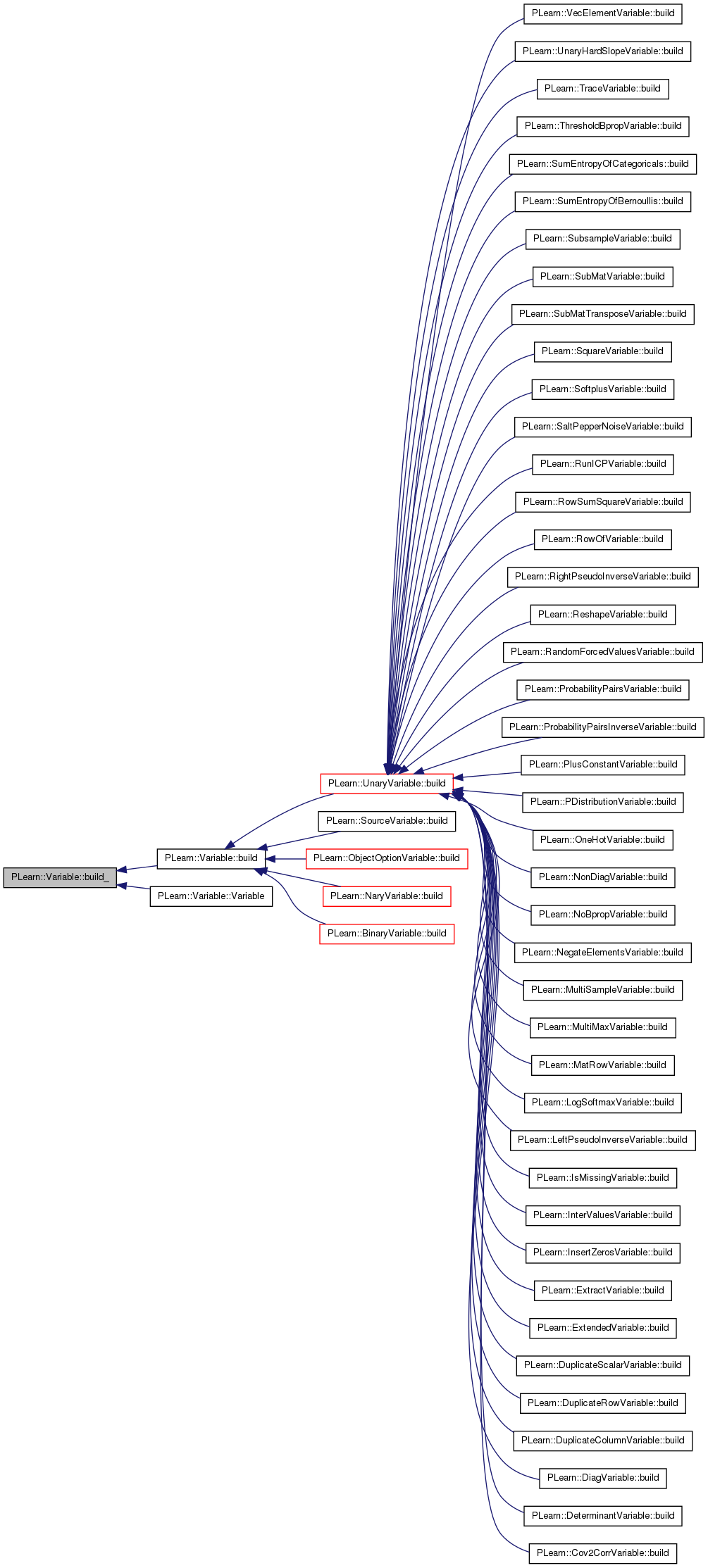

Here is the caller graph for this function:

void PLearn::Variable::build_ ( ) [private]

Object-specific post-constructor.

This method should be redefined in subclasses and do the actual building of the object according to previously set option fields. Constructors can just set option fields, and then call build_. This method is NOT virtual, and will typically be called only from three places: a constructor, the public virtual build() method, and possibly the public virtual read method (which calls its parent's read). build_() can assume that its parent's build_() has already been called.

Reimplemented from PLearn::Object.

Reimplemented in PLearn::AffineTransformVariable, PLearn::BiasWeightAffineTransformVariable, PLearn::BinaryClassificationLossVariable, PLearn::BinaryVariable, PLearn::CCCostVariable, PLearn::ClassificationLossVariable, PLearn::ColumnIndexVariable, PLearn::ConcatColumnsVariable, PLearn::ConcatOfVariable, PLearn::ConcatRowsVariable, PLearn::ConfRatedAdaboostCostVariable, PLearn::CrossEntropyVariable, PLearn::DeterminantVariable, PLearn::DiagonalizedFactorsProductVariable, PLearn::DivVariable, PLearn::DotProductVariable, PLearn::DuplicateColumnVariable, PLearn::DuplicateRowVariable, PLearn::DuplicateScalarVariable, PLearn::ElementAtPositionVariable, PLearn::EqualScalarVariable, PLearn::EqualVariable, PLearn::AdditiveGaussianNoiseVariable, PLearn::BernoulliSampleVariable, PLearn::ConstrainedSourceVariable, PLearn::ConstrainVariable, PLearn::Cov2CorrVariable, PLearn::DiagVariable, PLearn::DoubleProductVariable, PLearn::LinearCombinationOfScalarVariables, PLearn::LogSoftSoftMaxVariable, PLearn::MultiMaxVariable, PLearn::MultiSampleVariable, PLearn::NonDiagVariable, PLearn::ProbabilityPairsInverseVariable, PLearn::ProbabilityPairsVariable, PLearn::RandomForcedValuesVariable, PLearn::SaltPepperNoiseVariable, PLearn::SoftSoftMaxVariable, PLearn::SumEntropyOfBernoullis, PLearn::SumEntropyOfCategoricals, PLearn::SumVarianceOfLinearTransformedBernoullis, PLearn::SumVarianceOfLinearTransformedCategoricals, PLearn::TimesConstantScalarVariable2, PLearn::TraceVariable, PLearn::TransposedDoubleProductVariable, PLearn::ExtendedVariable, PLearn::ExtractVariable, PLearn::FNetLayerVariable, PLearn::GaussianProcessNLLVariable, PLearn::GradientAdaboostCostVariable, PLearn::HeterogenuousAffineTransformVariable, PLearn::HeterogenuousAffineTransformWeightPenalty, PLearn::IfThenElseVariable, PLearn::IndexAtPositionVariable, PLearn::InsertZerosVariable, PLearn::InterValuesVariable, PLearn::IsLargerVariable, PLearn::IsMissingVariable, PLearn::IsSmallerVariable, PLearn::LeftPseudoInverseVariable, PLearn::LiftOutputVariable, PLearn::LocalizedFeaturesLayerVariable, PLearn::LogAddVariable, PLearn::LogSoftmaxVariable, PLearn::MarginPerceptronCostVariable, PLearn::MatrixElementsVariable, PLearn::MatrixOneHotSquaredLoss, PLearn::MatrixSoftmaxLossVariable, PLearn::MatrixSumOfVariable, PLearn::MatRowVariable, PLearn::Max2Variable, PLearn::Min2Variable, PLearn::MiniBatchClassificationLossVariable, PLearn::MinusColumnVariable, PLearn::MinusRowVariable, PLearn::MinusScalarVariable, PLearn::MinusTransposedColumnVariable, PLearn::MinusVariable, PLearn::MulticlassLossVariable, PLearn::NaryVariable, PLearn::NegateElementsVariable, PLearn::NegCrossEntropySigmoidVariable, PLearn::NegLogPoissonVariable, PLearn::NllGeneralGaussianVariable, PLearn::NllSemisphericalGaussianVariable, PLearn::NoBpropVariable, PLearn::ObjectOptionVariable, PLearn::OneHotSquaredLoss, PLearn::OneHotVariable, PLearn::PDistributionVariable, PLearn::PlusColumnVariable, PLearn::PlusConstantVariable, PLearn::PlusManyVariable, PLearn::PlusRowVariable, PLearn::PlusScalarVariable, PLearn::PlusVariable, PLearn::PotentialsVariable, PLearn::PowVariableVariable, PLearn::ProductTransposeVariable, PLearn::ProductVariable, PLearn::ProjectionErrorVariable, PLearn::ReIndexedTargetVariable, PLearn::ReshapeVariable, PLearn::RightPseudoInverseVariable, PLearn::RowAtPositionVariable, PLearn::RowOfVariable, PLearn::RowSumSquareVariable, PLearn::SemiSupervisedProbClassCostVariable, PLearn::SoftmaxLossVariable, PLearn::SoftplusVariable, PLearn::SourceVariable, PLearn::SparseIncrementalAffineTransformVariable, PLearn::SquareVariable, PLearn::SubMatTransposeVariable, PLearn::SubMatVariable, PLearn::SubsampleVariable, PLearn::SumOfVariable, PLearn::SumOverBagsVariable, PLearn::ThresholdBpropVariable, PLearn::TimesColumnVariable, PLearn::TimesRowVariable, PLearn::TimesScalarVariable, PLearn::TimesVariable, PLearn::TransposeProductVariable, PLearn::UnaryHardSlopeVariable, PLearn::UnaryVariable, PLearn::UnfoldedFuncVariable, PLearn::UnfoldedSumOfVariable, PLearn::VarArrayElementVariable, PLearn::VarElementVariable, PLearn::VarRowsVariable, PLearn::VarRowVariable, PLearn::VecElementVariable, PLearn::WeightedSumSquareVariable, PLearn::NLLNeighborhoodWeightsVariable, PLearn::NoBpropVariable, PLearn::RunICPVariable, PLearn::ScoreLayerVariable, and PLearn::WeightedLogGaussian.

Definition at line 308 of file Variable.cc.

References length(), recomputeSize(), resize(), w, and width().

Referenced by build(), and Variable().

{
    int l_previous = length();
    int w_previous = width();
    int l, w;
    recomputeSize(l, w);
    if(l==0 || w==0)
    {
        l = l_previous;
        w = w_previous;
    }
    // we call resize in all cases, even if we already had matValue correctly sized
    // the call to resize makes sure that value, valuedata, matGradient, gradient, gradientdata
    // are correctly sized and initialized.
    resize(l, w);

    //if (l && w && (l != l_previous || w != w_previous))
    //    resize(l, w);
}

Here is the call graph for this function:

Here is the caller graph for this function:

virtual void PLearn::Variable::buildPath ( VarArray proppath) [pure virtual]

Finally buildPath is to be called from the output Variable of interest (this will build the proppath at the same time as erasing the marks)

Implemented in PLearn::BinaryVariable, PLearn::NaryVariable, PLearn::ObjectOptionVariable, PLearn::SourceVariable, and PLearn::UnaryVariable.

void PLearn::Variable::clearDiagHessian ( )

Definition at line 485 of file Variable.cc.

References PLearn::TVec< T >::clear(), diaghessian, and resizeDiagHessian().

Here is the call graph for this function:

void PLearn::Variable::clearGradient ( ) [inline]

Definition at line 290 of file Variable.h.

    {
        if(!allows_partial_update)
            gradient.clear();
        else
        {
            for (int r=0;r<rows_to_update.length();r++)
            {
                int row = rows_to_update[r];
                matGradient.row(row).clear();
            }
            rows_to_update.resize(0);
            gradient_status=0;
        }
    }
void PLearn::Variable::clearMark ( ) [inline]
void PLearn::Variable::clearRowsToUpdate ( ) [inline]

Definition at line 285 of file Variable.h.

    {
        rows_to_update.resize(0);
        gradient_status=0;
    }
void PLearn::Variable::clearSymbolicGradient ( ) [inline]

Definition at line 306 of file Variable.h.

References g.

{ g = Var(); }
Var PLearn::Variable::column ( int  j,
bool  transpose = false
) [inline]

Definition at line 266 of file Variable.h.

References PLearn::subMat(), and PLearn::transpose().

{ return subMat(0,j,length(),1,transpose); }

Here is the call graph for this function:

void PLearn::Variable::copyFrom ( const Vec v) [inline]

Definition at line 410 of file Variable.h.

{ value << v; }
void PLearn::Variable::copyGradientFrom ( const Vec v) [inline]

Definition at line 412 of file Variable.h.

{ gradient << v; }
virtual void PLearn::Variable::copyGradientInto ( Vec  g) [inline, virtual]

Definition at line 235 of file Variable.h.

{ g << gradient; }
void PLearn::Variable::copyGradientTo ( Vec v) [inline]

Definition at line 413 of file Variable.h.

{ v << gradient; }
void PLearn::Variable::copyRValueFrom ( const Vec v) [inline]

Definition at line 422 of file Variable.h.

{ resizeRValue(); rValue << v; }
void PLearn::Variable::copyRValueTo ( Vec v) [inline]

Definition at line 423 of file Variable.h.

{ resizeRValue(); v << rValue; }
void PLearn::Variable::copyTo ( Vec v) [inline]

Definition at line 411 of file Variable.h.

{ v << value; }
virtual void PLearn::Variable::copyValueInto ( Vec  v) [inline, virtual]

Definition at line 234 of file Variable.h.

{ v << value; }
void PLearn::Variable::declareMethods ( RemoteMethodMap rmm) [static, protected]

Declare the methods that are remote-callable.

Reimplemented from PLearn::Object.

Definition at line 276 of file Variable.cc.

References PLearn::Object::_getRemoteMethodMap_(), PLearn::declareMethod(), fillValue(), fprop(), PLearn::RemoteMethodMap::inherited(), setMinValue(), and setValueSubMat().

{
    // Insert a backpointer to remote methods; note that this
    // different than for declareOptions()
    rmm.inherited(inherited::_getRemoteMethodMap_());

    declareMethod(
            rmm, "fillValue", &Variable::fillValue,
            (BodyDoc("Fill value with the given constant"),
             ArgDoc ("val", "Value to fill with")));

    declareMethod(
            rmm, "setValueSubMat", &Variable::setValueSubMat,
            (BodyDoc("Replace a sub-matrix of the value with the given data"),
             ArgDoc ("submat", "Data to set (as a matrix)"),
             ArgDoc ("istart", "Row where 'submat' is inserted"),
             ArgDoc ("jstart", "Column where 'submat' is inserted")));

    declareMethod(
            rmm, "setMinValue", &Variable::setMinValue,
            (BodyDoc("Set box constraint (minimum bound) on this Variable."),
             ArgDoc ("val", "Minimum value it can take")));

    declareMethod(
            rmm, "fprop", &Variable::fprop,
            (BodyDoc("Update value of this Var")));

}

Here is the call graph for this function:

void PLearn::Variable::declareOptions ( OptionList ol) [static, protected]

Declare options (data fields) for the class.

Redefine this in subclasses: call declareOption(...) for each option, and then call inherited::declareOptions(options). Please call the inherited method AT THE END to get the options listed in a consistent order (from most recently defined to least recently defined).

  static void MyDerivedClass::declareOptions(OptionList& ol)
  {
      declareOption(ol, "inputsize", &MyObject::inputsize_,
                    OptionBase::buildoption,
                    "The size of the input; it must be provided");
      declareOption(ol, "weights", &MyObject::weights,
                    OptionBase::learntoption,
                    "The learned model weights");
      inherited::declareOptions(ol);
  }
Parameters:
olList of options that is progressively being constructed for the current class.

Reimplemented from PLearn::Object.

Reimplemented in PLearn::AffineTransformVariable, PLearn::AffineTransformWeightPenalty, PLearn::BinaryClassificationLossVariable, PLearn::BinaryVariable, PLearn::CCCostVariable, PLearn::ConcatOfVariable, PLearn::ConfRatedAdaboostCostVariable, PLearn::CutAboveThresholdVariable, PLearn::CutBelowThresholdVariable, PLearn::DuplicateColumnVariable, PLearn::DuplicateRowVariable, PLearn::DuplicateScalarVariable, PLearn::ElementAtPositionVariable, PLearn::EqualConstantVariable, PLearn::AdditiveGaussianNoiseVariable, PLearn::BernoulliSampleVariable, PLearn::ConstrainedSourceVariable, PLearn::Cov2CorrVariable, PLearn::DoubleProductVariable, PLearn::LinearCombinationOfScalarVariables, PLearn::LogSoftSoftMaxVariable, PLearn::MultiMaxVariable, PLearn::MultiSampleVariable, PLearn::ProbabilityPairsInverseVariable, PLearn::ProbabilityPairsVariable, PLearn::RandomForcedValuesVariable, PLearn::SaltPepperNoiseVariable, PLearn::SoftSoftMaxVariable, PLearn::SumEntropyOfBernoullis, PLearn::SumEntropyOfCategoricals, PLearn::SumVarianceOfLinearTransformedBernoullis, PLearn::SumVarianceOfLinearTransformedCategoricals, PLearn::TransposedDoubleProductVariable, PLearn::ExtendedVariable, PLearn::FNetLayerVariable, PLearn::GaussianProcessNLLVariable, PLearn::GradientAdaboostCostVariable, PLearn::HeterogenuousAffineTransformVariable, PLearn::HeterogenuousAffineTransformWeightPenalty, PLearn::IndexAtPositionVariable, PLearn::IsAboveThresholdVariable, PLearn::IsMissingVariable, PLearn::LocalizedFeaturesLayerVariable, PLearn::LogAddVariable, PLearn::MarginPerceptronCostVariable, PLearn::MatrixElementsVariable, PLearn::MatrixOneHotSquaredLoss, PLearn::MatrixSumOfVariable, PLearn::MatRowVariable, PLearn::NaryVariable, PLearn::NegCrossEntropySigmoidVariable, PLearn::NoBpropVariable, PLearn::ObjectOptionVariable, PLearn::OneHotSquaredLoss, PLearn::OneHotVariable, PLearn::PDistributionVariable, PLearn::PlusConstantVariable, PLearn::PlusManyVariable, PLearn::PotentialsVariable, PLearn::PowVariable, PLearn::ReIndexedTargetVariable, PLearn::ReshapeVariable, PLearn::RowAtPositionVariable, PLearn::RowOfVariable, PLearn::SemiSupervisedProbClassCostVariable, PLearn::SoftSlopeIntegralVariable, PLearn::SoftSlopeVariable, PLearn::SourceVariable, PLearn::SparseIncrementalAffineTransformVariable, PLearn::SubMatTransposeVariable, PLearn::SubMatVariable, PLearn::SubsampleVariable, PLearn::SumOfVariable, PLearn::SumOverBagsVariable, PLearn::ThresholdBpropVariable, PLearn::TimesConstantVariable, PLearn::UnaryHardSlopeVariable, PLearn::UnaryVariable, PLearn::UnequalConstantVariable, PLearn::UnfoldedFuncVariable, PLearn::UnfoldedSumOfVariable, PLearn::VecElementVariable, PLearn::NLLNeighborhoodWeightsVariable, PLearn::NoBpropVariable, PLearn::RunICPVariable, and PLearn::ScoreLayerVariable.

Definition at line 81 of file ConstrainVariable.cc.

References PLearn::OptionBase::buildoption, PLearn::declareOption(), PLearn::Object::declareOptions(), and PLearn::ConstrainVariable::max_rowsum.

Referenced by PLearn::UnaryVariable::declareOptions(), PLearn::SourceVariable::declareOptions(), PLearn::ObjectOptionVariable::declareOptions(), PLearn::NaryVariable::declareOptions(), and PLearn::BinaryVariable::declareOptions().

{
    declareOption(ol, "max_rowsum", &ConstrainVariable::max_rowsum, OptionBase::buildoption,
                  "maximum value the sum of elements in a row is allowed to reach\n");

    inherited::declareOptions(ol);
}

Here is the call graph for this function:

Here is the caller graph for this function:

static const PPath& PLearn::Variable::declaringFile ( ) [inline, static]

Reimplemented from PLearn::Object.

Reimplemented in PLearn::AbsVariable, PLearn::AffineTransformVariable, PLearn::AffineTransformWeightPenalty, PLearn::ArgmaxVariable, PLearn::ArgminOfVariable, PLearn::ArgminVariable, PLearn::BiasWeightAffineTransformVariable, PLearn::BinaryClassificationLossVariable, PLearn::BinaryVariable, PLearn::CCCostVariable, PLearn::ClassificationLossVariable, PLearn::ColumnIndexVariable, PLearn::ColumnSumVariable, PLearn::ConcatColumnsVariable, PLearn::ConcatOfVariable, PLearn::ConcatRowsVariable, PLearn::ConfRatedAdaboostCostVariable, PLearn::ConvolveVariable, PLearn::CrossEntropyVariable, PLearn::CutAboveThresholdVariable, PLearn::CutBelowThresholdVariable, PLearn::DeterminantVariable, PLearn::DiagonalizedFactorsProductVariable, PLearn::DilogarithmVariable, PLearn::DivVariable, PLearn::DotProductVariable, PLearn::DuplicateColumnVariable, PLearn::DuplicateRowVariable, PLearn::DuplicateScalarVariable, PLearn::ElementAtPositionVariable, PLearn::EqualConstantVariable, PLearn::EqualScalarVariable, PLearn::EqualVariable, PLearn::ErfVariable, PLearn::AdditiveGaussianNoiseVariable, PLearn::BernoulliSampleVariable, PLearn::ConstrainedSourceVariable, PLearn::ConstrainVariable, PLearn::Cov2CorrVariable, PLearn::DiagVariable, PLearn::DoubleProductVariable, PLearn::LinearCombinationOfScalarVariables, PLearn::LogSoftSoftMaxVariable, PLearn::MultiMaxVariable, PLearn::MultiSampleVariable, PLearn::NonDiagVariable, PLearn::ProbabilityPairsInverseVariable, PLearn::ProbabilityPairsVariable, PLearn::RandomForcedValuesVariable, PLearn::SaltPepperNoiseVariable, PLearn::SoftSoftMaxVariable, PLearn::SumEntropyOfBernoullis, PLearn::SumEntropyOfCategoricals, PLearn::SumVarianceOfLinearTransformedBernoullis, PLearn::SumVarianceOfLinearTransformedCategoricals, PLearn::TimesConstantScalarVariable2, PLearn::TraceVariable, PLearn::TransposedDoubleProductVariable, PLearn::ExpVariable, PLearn::ExtendedVariable, PLearn::ExtractVariable, PLearn::FNetLayerVariable, PLearn::GaussianProcessNLLVariable, PLearn::GradientAdaboostCostVariable, PLearn::HardSlopeVariable, PLearn::HeterogenuousAffineTransformVariable, PLearn::HeterogenuousAffineTransformWeightPenalty, PLearn::IdentityVariable, PLearn::IfThenElseVariable, PLearn::IndexAtPositionVariable, PLearn::InsertZerosVariable, PLearn::InterValuesVariable, PLearn::InvertElementsVariable, PLearn::IsAboveThresholdVariable, PLearn::IsLargerVariable, PLearn::IsMissingVariable, PLearn::IsSmallerVariable, PLearn::LeftPseudoInverseVariable, PLearn::LiftOutputVariable, PLearn::LocalizedFeaturesLayerVariable, PLearn::LogAddVariable, PLearn::LogSoftmaxVariable, PLearn::LogSumVariable, PLearn::LogVariable, PLearn::MarginPerceptronCostVariable, PLearn::MatrixAffineTransformFeedbackVariable, PLearn::MatrixAffineTransformVariable, PLearn::MatrixElementsVariable, PLearn::MatrixInverseVariable, PLearn::MatrixOneHotSquaredLoss, PLearn::MatrixSoftmaxLossVariable, PLearn::MatrixSoftmaxVariable, PLearn::MatrixSumOfVariable, PLearn::MatRowVariable, PLearn::Max2Variable, PLearn::MaxVariable, PLearn::Min2Variable, PLearn::MiniBatchClassificationLossVariable, PLearn::MinusColumnVariable, PLearn::MinusRowVariable, PLearn::MinusScalarVariable, PLearn::MinusTransposedColumnVariable, PLearn::MinusVariable, PLearn::MinVariable, PLearn::MulticlassLossVariable, PLearn::NaryVariable, PLearn::NegateElementsVariable, PLearn::NegCrossEntropySigmoidVariable, PLearn::NegLogPoissonVariable, PLearn::NllGeneralGaussianVariable, PLearn::NllSemisphericalGaussianVariable, PLearn::NoBpropVariable, PLearn::ObjectOptionVariable, PLearn::OneHotSquaredLoss, PLearn::OneHotVariable, PLearn::OutputVariable, PLearn::PDistributionVariable, PLearn::PLogPVariable, PLearn::PlusColumnVariable, PLearn::PlusConstantVariable, PLearn::PlusManyVariable, PLearn::PlusRowVariable, PLearn::PlusScalarVariable, PLearn::PlusVariable, PLearn::PotentialsVariable, PLearn::PowVariable, PLearn::PowVariableVariable, PLearn::ProductTransposeVariable, PLearn::ProductVariable, PLearn::ProjectionErrorVariable, PLearn::ReIndexedTargetVariable, PLearn::ReshapeVariable, PLearn::RightPseudoInverseVariable, PLearn::RowAtPositionVariable, PLearn::RowOfVariable, PLearn::RowSumSquareVariable, PLearn::RowSumVariable, PLearn::SemiSupervisedProbClassCostVariable, PLearn::SigmoidVariable, PLearn::SignVariable, PLearn::SoftmaxLossVariable, PLearn::SoftmaxVariable, PLearn::SoftplusVariable, PLearn::SoftSlopeIntegralVariable, PLearn::SoftSlopeVariable, PLearn::SourceVariable, PLearn::SparseIncrementalAffineTransformVariable, PLearn::SquareRootVariable, PLearn::SquareVariable, PLearn::SubMatTransposeVariable, PLearn::SubMatVariable, PLearn::SubsampleVariable, PLearn::SumAbsVariable, PLearn::SumOfVariable, PLearn::SumOverBagsVariable, PLearn::SumSquareVariable, PLearn::SumVariable, PLearn::SVDVariable, PLearn::TanhVariable, PLearn::ThresholdBpropVariable, PLearn::TimesColumnVariable, PLearn::TimesConstantVariable, PLearn::TimesRowVariable, PLearn::TimesScalarVariable, PLearn::TimesVariable, PLearn::TransposeProductVariable, PLearn::TransposeVariable, PLearn::UnaryHardSlopeVariable, PLearn::UnaryVariable, PLearn::UnequalConstantVariable, PLearn::UnfoldedFuncVariable, PLearn::UnfoldedSumOfVariable, PLearn::VarArrayElementVariable, PLearn::VarColumnsVariable, PLearn::VarElementVariable, PLearn::VarRowsVariable, PLearn::VarRowVariable, PLearn::VecElementVariable, PLearn::WeightedSumSquareVariable, PLearn::NLLNeighborhoodWeightsVariable, PLearn::NoBpropVariable, PLearn::RunICPVariable, PLearn::ScoreLayerVariable, and PLearn::WeightedLogGaussian.

Definition at line 206 of file Variable.h.

{ sizeprop(); fprop(); }
Variable * PLearn::Variable::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::Object.

Reimplemented in PLearn::SourceSampleVariable, PLearn::UniformSampleVariable, PLearn::MultinomialSampleVariable, PLearn::DiagonalNormalSampleVariable, PLearn::AbsVariable, PLearn::AffineTransformVariable, PLearn::AffineTransformWeightPenalty, PLearn::ArgmaxVariable, PLearn::ArgminOfVariable, PLearn::ArgminVariable, PLearn::BiasWeightAffineTransformVariable, PLearn::BinaryClassificationLossVariable, PLearn::BinaryVariable, PLearn::CCCostVariable, PLearn::ClassificationLossVariable, PLearn::ColumnIndexVariable, PLearn::ColumnSumVariable, PLearn::ConcatColumnsVariable, PLearn::ConcatOfVariable, PLearn::ConcatRowsVariable, PLearn::ConfRatedAdaboostCostVariable, PLearn::ConvolveVariable, PLearn::CrossEntropyVariable, PLearn::CutAboveThresholdVariable, PLearn::CutBelowThresholdVariable, PLearn::DeterminantVariable, PLearn::DiagonalizedFactorsProductVariable, PLearn::DilogarithmVariable, PLearn::DivVariable, PLearn::DotProductVariable, PLearn::DuplicateColumnVariable, PLearn::DuplicateRowVariable, PLearn::DuplicateScalarVariable, PLearn::ElementAtPositionVariable, PLearn::EqualConstantVariable, PLearn::EqualScalarVariable, PLearn::EqualVariable, PLearn::ErfVariable, PLearn::AdditiveGaussianNoiseVariable, PLearn::BernoulliSampleVariable, PLearn::ConstrainedSourceVariable, PLearn::ConstrainVariable, PLearn::Cov2CorrVariable, PLearn::DiagVariable, PLearn::DoubleProductVariable, PLearn::LinearCombinationOfScalarVariables, PLearn::LogSoftSoftMaxVariable, PLearn::MultiMaxVariable, PLearn::MultiSampleVariable, PLearn::NonDiagVariable, PLearn::ProbabilityPairsInverseVariable, PLearn::ProbabilityPairsVariable, PLearn::RandomForcedValuesVariable, PLearn::SaltPepperNoiseVariable, PLearn::SoftSoftMaxVariable, PLearn::SumEntropyOfBernoullis, PLearn::SumEntropyOfCategoricals, PLearn::SumVarianceOfLinearTransformedBernoullis, PLearn::SumVarianceOfLinearTransformedCategoricals, PLearn::TimesConstantScalarVariable2, PLearn::TraceVariable, PLearn::TransposedDoubleProductVariable, PLearn::ExpVariable, PLearn::ExtendedVariable, PLearn::ExtractVariable, PLearn::FNetLayerVariable, PLearn::GaussianProcessNLLVariable, PLearn::GradientAdaboostCostVariable, PLearn::HardSlopeVariable, PLearn::HeterogenuousAffineTransformVariable, PLearn::HeterogenuousAffineTransformWeightPenalty, PLearn::IdentityVariable, PLearn::IfThenElseVariable, PLearn::IndexAtPositionVariable, PLearn::InsertZerosVariable, PLearn::InterValuesVariable, PLearn::InvertElementsVariable, PLearn::IsAboveThresholdVariable, PLearn::IsLargerVariable, PLearn::IsMissingVariable, PLearn::IsSmallerVariable, PLearn::LeftPseudoInverseVariable, PLearn::LiftOutputVariable, PLearn::LocalizedFeaturesLayerVariable, PLearn::LogAddVariable, PLearn::LogSoftmaxVariable, PLearn::LogSumVariable, PLearn::LogVariable, PLearn::MarginPerceptronCostVariable, PLearn::MatrixAffineTransformFeedbackVariable, PLearn::MatrixAffineTransformVariable, PLearn::MatrixElementsVariable, PLearn::MatrixInverseVariable, PLearn::MatrixOneHotSquaredLoss, PLearn::MatrixSoftmaxLossVariable, PLearn::MatrixSoftmaxVariable, PLearn::MatrixSumOfVariable, PLearn::MatRowVariable, PLearn::Max2Variable, PLearn::MaxVariable, PLearn::Min2Variable, PLearn::MiniBatchClassificationLossVariable, PLearn::MinusColumnVariable, PLearn::MinusRowVariable, PLearn::MinusScalarVariable, PLearn::MinusTransposedColumnVariable, PLearn::MinusVariable, PLearn::MinVariable, PLearn::MulticlassLossVariable, PLearn::NaryVariable, PLearn::NegateElementsVariable, PLearn::NegCrossEntropySigmoidVariable, PLearn::NegLogPoissonVariable, PLearn::NllGeneralGaussianVariable, PLearn::NllSemisphericalGaussianVariable, PLearn::NoBpropVariable, PLearn::ObjectOptionVariable, PLearn::OneHotSquaredLoss, PLearn::OneHotVariable, PLearn::OutputVariable, PLearn::PDistributionVariable, PLearn::PLogPVariable, PLearn::PlusColumnVariable, PLearn::PlusConstantVariable, PLearn::PlusManyVariable, PLearn::PlusRowVariable, PLearn::PlusScalarVariable, PLearn::PlusVariable, PLearn::PotentialsVariable, PLearn::PowVariable, PLearn::PowVariableVariable, PLearn::ProductTransposeVariable, PLearn::ProductVariable, PLearn::ProjectionErrorVariable, PLearn::ReIndexedTargetVariable, PLearn::ReshapeVariable, PLearn::RightPseudoInverseVariable, PLearn::RowAtPositionVariable, PLearn::RowOfVariable, PLearn::RowSumSquareVariable, PLearn::RowSumVariable, PLearn::SemiSupervisedProbClassCostVariable, PLearn::SigmoidVariable, PLearn::SignVariable, PLearn::SoftmaxLossVariable, PLearn::SoftmaxVariable, PLearn::SoftplusVariable, PLearn::SoftSlopeIntegralVariable, PLearn::SoftSlopeVariable, PLearn::SourceVariable, PLearn::SparseIncrementalAffineTransformVariable, PLearn::SquareRootVariable, PLearn::SquareVariable, PLearn::SubMatTransposeVariable, PLearn::SubMatVariable, PLearn::SubsampleVariable, PLearn::SumAbsVariable, PLearn::SumOfVariable, PLearn::SumOverBagsVariable, PLearn::SumSquareVariable, PLearn::SumVariable, PLearn::SVDVariable, PLearn::TanhVariable, PLearn::ThresholdBpropVariable, PLearn::TimesColumnVariable, PLearn::TimesConstantVariable, PLearn::TimesRowVariable, PLearn::TimesScalarVariable, PLearn::TimesVariable, PLearn::TransposeProductVariable, PLearn::TransposeVariable, PLearn::UnaryHardSlopeVariable, PLearn::UnaryVariable, PLearn::UnequalConstantVariable, PLearn::UnfoldedFuncVariable, PLearn::UnfoldedSumOfVariable, PLearn::VarArrayElementVariable, PLearn::VarColumnsVariable, PLearn::VarElementVariable, PLearn::VarRowsVariable, PLearn::VarRowVariable, PLearn::VecElementVariable, PLearn::WeightedSumSquareVariable, PLearn::NLLNeighborhoodWeightsVariable, PLearn::NoBpropVariable, PLearn::RunICPVariable, PLearn::ScoreLayerVariable, and PLearn::WeightedLogGaussian.

Definition at line 465 of file Variable.cc.

Mat PLearn::Variable::defineGradientLocation ( const Mat m)

Defines a new Mat to use as this Var's matGradient field, modifies gradient and gradientdata to keep consistent, and returns the previous matGradient.

Also resizes the value in order to ensure it has same size as the new gradient.

Definition at line 415 of file Variable.cc.

References PLearn::TVec< T >::data(), PLearn::TVec< T >::getStorage(), gradient, gradientdata, PLearn::TMat< T >::isCompact(), PLearn::TMat< T >::length(), m, matGradient, matValue, PLERROR, PLearn::TMat< T >::resize(), PLearn::TMat< T >::setMod(), PLearn::TMat< T >::toVec(), value, valuedata, and PLearn::TMat< T >::width().

{
    if(!m.isCompact())
        PLERROR("In Variable::defineGradientLocation, Variables require"
                " compact matrices");
    Mat oldm = matGradient;
    matGradient = m;
    gradient  = matGradient.toVec();
    if (gradient.getStorage())
        gradientdata = gradient.data();
    else
        gradientdata = 0;
    value = Vec(); // Temporarily frees a reference to value's storage.
    matValue.setMod(matGradient.width());
    matValue.resize(matGradient.length(), matGradient.width());
    value = matValue.toVec();
    if(value.getStorage())
        valuedata = value.data();
    else
        valuedata = 0;
    return oldm;
}

Here is the call graph for this function:

Mat PLearn::Variable::defineValueLocation ( const Mat m)

Defines a new Mat to use as this Var's matValue field, modifies value and valuedata to keep consistent, and returns the previous matValue.

Also resizes the gradient in order to ensure it has same size as the new value.

Definition at line 389 of file Variable.cc.

References PLearn::TVec< T >::data(), PLearn::TVec< T >::getStorage(), gradient, gradientdata, PLearn::TMat< T >::isCompact(), PLearn::TMat< T >::length(), m, matGradient, matValue, PLERROR, PLearn::TMat< T >::resize(), PLearn::TMat< T >::setMod(), PLearn::TMat< T >::toVec(), value, valuedata, and PLearn::TMat< T >::width().

{
    if(!m.isCompact())
        PLERROR("In Variable::defineValueLocation, Variables require compact"
                " matrices");
    Mat oldm = matValue;
    matValue = m;
    value = matValue.toVec();
    if(value.getStorage())
        valuedata = value.data();
    else
        valuedata = 0;
    gradient = Vec(); // Temporarily frees a reference to gradient's storage.
    matGradient.setMod(matValue.width());
    matGradient.resize(matValue.length(), matValue.width());
    gradient = matGradient.toVec();
    if (gradient.getStorage())
        gradientdata = gradient.data();
    else
        gradientdata = 0;
    return oldm;
}

Here is the call graph for this function:

void PLearn::Variable::disallowPartialUpdates ( ) [inline]

send message that updates must be full.

Definition at line 369 of file Variable.h.

void PLearn::Variable::fbbprop ( ) [virtual]

do fprop, bprop and bbprop

Definition at line 499 of file Variable.cc.

References bbprop(), bprop(), and fprop().

{
    fprop();
    bprop();
    bbprop();
}

Here is the call graph for this function:

void PLearn::Variable::fbprop ( ) [virtual]

do both fprop and bprop

Reimplemented in PLearn::CCCostVariable, PLearn::ConcatOfVariable, PLearn::MatrixElementsVariable, PLearn::MatrixSumOfVariable, PLearn::RowOfVariable, PLearn::SumOfVariable, and PLearn::SumOverBagsVariable.

Definition at line 493 of file Variable.cc.

References bprop(), and fprop().

{
    fprop();
    bprop();
}

Here is the call graph for this function:

void PLearn::Variable::fillGradient ( real  value) [inline]

Definition at line 278 of file Variable.h.

{ gradient.fill(value); }
void PLearn::Variable::fillValue ( real  val) [inline]

Definition at line 279 of file Variable.h.

Referenced by declareMethods(), and PLearn::PlusManyVariable::fprop().

{ value.fill(val); }

Here is the caller graph for this function:

virtual void PLearn::Variable::fprop ( ) [pure virtual]

compute output given input

Implemented in PLearn::UniformSampleVariable, PLearn::MultinomialSampleVariable, PLearn::DiagonalNormalSampleVariable, PLearn::AbsVariable, PLearn::AffineTransformVariable, PLearn::AffineTransformWeightPenalty, PLearn::ArgmaxVariable, PLearn::ArgminOfVariable, PLearn::ArgminVariable, PLearn::BiasWeightAffineTransformVariable, PLearn::BinaryClassificationLossVariable, PLearn::CCCostVariable, PLearn::ClassificationLossVariable, PLearn::ColumnIndexVariable, PLearn::ColumnSumVariable, PLearn::ConcatColumnsVariable, PLearn::ConcatOfVariable, PLearn::ConcatRowsVariable, PLearn::ConfRatedAdaboostCostVariable, PLearn::ConvolveVariable, PLearn::CrossEntropyVariable, PLearn::CutAboveThresholdVariable, PLearn::CutBelowThresholdVariable, PLearn::DeterminantVariable, PLearn::DiagonalizedFactorsProductVariable, PLearn::DilogarithmVariable, PLearn::DivVariable, PLearn::DotProductVariable, PLearn::DuplicateColumnVariable, PLearn::DuplicateRowVariable, PLearn::DuplicateScalarVariable, PLearn::ElementAtPositionVariable, PLearn::EqualConstantVariable, PLearn::EqualScalarVariable, PLearn::EqualVariable, PLearn::ErfVariable, PLearn::AdditiveGaussianNoiseVariable, PLearn::BernoulliSampleVariable, PLearn::ConstrainVariable, PLearn::Cov2CorrVariable, PLearn::DiagVariable, PLearn::DoubleProductVariable, PLearn::LinearCombinationOfScalarVariables, PLearn::LogSoftSoftMaxVariable, PLearn::MultiMaxVariable, PLearn::MultiSampleVariable, PLearn::NonDiagVariable, PLearn::ProbabilityPairsInverseVariable, PLearn::ProbabilityPairsVariable, PLearn::RandomForcedValuesVariable, PLearn::SaltPepperNoiseVariable, PLearn::SoftSoftMaxVariable, PLearn::SumEntropyOfBernoullis, PLearn::SumEntropyOfCategoricals, PLearn::SumVarianceOfLinearTransformedBernoullis, PLearn::SumVarianceOfLinearTransformedCategoricals, PLearn::TimesConstantScalarVariable2, PLearn::TraceVariable, PLearn::TransposedDoubleProductVariable, PLearn::ExpVariable, PLearn::ExtendedVariable, PLearn::ExtractVariable, PLearn::FNetLayerVariable, PLearn::GaussianProcessNLLVariable, PLearn::GradientAdaboostCostVariable, PLearn::HardSlopeVariable, PLearn::HeterogenuousAffineTransformVariable, PLearn::HeterogenuousAffineTransformWeightPenalty, PLearn::IdentityVariable, PLearn::IfThenElseVariable, PLearn::IndexAtPositionVariable, PLearn::InsertZerosVariable, PLearn::InterValuesVariable, PLearn::InvertElementsVariable, PLearn::IsAboveThresholdVariable, PLearn::IsLargerVariable, PLearn::IsMissingVariable, PLearn::IsSmallerVariable, PLearn::LeftPseudoInverseVariable, PLearn::LiftOutputVariable, PLearn::LocalizedFeaturesLayerVariable, PLearn::LogAddVariable, PLearn::LogSoftmaxVariable, PLearn::LogSumVariable, PLearn::LogVariable, PLearn::MarginPerceptronCostVariable, PLearn::MatrixAffineTransformFeedbackVariable, PLearn::MatrixAffineTransformVariable, PLearn::MatrixElementsVariable, PLearn::MatrixInverseVariable, PLearn::MatrixOneHotSquaredLoss, PLearn::MatrixSoftmaxLossVariable, PLearn::MatrixSoftmaxVariable, PLearn::MatrixSumOfVariable, PLearn::MatRowVariable, PLearn::Max2Variable, PLearn::MaxVariable, PLearn::Min2Variable, PLearn::MiniBatchClassificationLossVariable, PLearn::MinusColumnVariable, PLearn::MinusRowVariable, PLearn::MinusScalarVariable, PLearn::MinusTransposedColumnVariable, PLearn::MinusVariable, PLearn::MinVariable, PLearn::MulticlassLossVariable, PLearn::NegateElementsVariable, PLearn::NegCrossEntropySigmoidVariable, PLearn::NegLogPoissonVariable, PLearn::NllGeneralGaussianVariable, PLearn::NllSemisphericalGaussianVariable, PLearn::NoBpropVariable, PLearn::ObjectOptionVariable, PLearn::OneHotSquaredLoss, PLearn::OneHotVariable, PLearn::OutputVariable, PLearn::PDistributionVariable, PLearn::PLogPVariable, PLearn::PlusColumnVariable, PLearn::PlusConstantVariable, PLearn::PlusManyVariable, PLearn::PlusRowVariable, PLearn::PlusScalarVariable, PLearn::PlusVariable, PLearn::PotentialsVariable, PLearn::PowVariable, PLearn::PowVariableVariable, PLearn::ProductTransposeVariable, PLearn::ProductVariable, PLearn::ProjectionErrorVariable, PLearn::ReIndexedTargetVariable, PLearn::ReshapeVariable, PLearn::RightPseudoInverseVariable, PLearn::RowAtPositionVariable, PLearn::RowOfVariable, PLearn::RowSumSquareVariable, PLearn::RowSumVariable, PLearn::SemiSupervisedProbClassCostVariable, PLearn::SigmoidVariable, PLearn::SignVariable, PLearn::SoftmaxLossVariable, PLearn::SoftmaxVariable, PLearn::SoftplusVariable, PLearn::SoftSlopeIntegralVariable, PLearn::SoftSlopeVariable, PLearn::SourceVariable, PLearn::SparseIncrementalAffineTransformVariable, PLearn::SquareRootVariable, PLearn::SquareVariable, PLearn::SubMatTransposeVariable, PLearn::SubMatVariable, PLearn::SubsampleVariable, PLearn::SumAbsVariable, PLearn::SumOfVariable, PLearn::SumOverBagsVariable, PLearn::SumSquareVariable, PLearn::SumVariable, PLearn::SVDVariable, PLearn::TanhVariable, PLearn::ThresholdBpropVariable, PLearn::TimesColumnVariable, PLearn::TimesConstantVariable, PLearn::TimesRowVariable, PLearn::TimesScalarVariable, PLearn::TimesVariable, PLearn::TransposeProductVariable, PLearn::TransposeVariable, PLearn::UnaryHardSlopeVariable, PLearn::UnaryVariable, PLearn::UnequalConstantVariable, PLearn::UnfoldedFuncVariable, PLearn::UnfoldedSumOfVariable, PLearn::VarArrayElementVariable, PLearn::VarColumnsVariable, PLearn::VarElementVariable, PLearn::VarRowsVariable, PLearn::VarRowVariable, PLearn::VecElementVariable, PLearn::WeightedSumSquareVariable, PLearn::NLLNeighborhoodWeightsVariable, PLearn::NoBpropVariable, PLearn::RunICPVariable, PLearn::ScoreLayerVariable, and PLearn::WeightedLogGaussian.

Referenced by declareMethods(), fbbprop(), and fbprop().

Here is the caller graph for this function:

void PLearn::Variable::fprop_from_all_sources ( ) [virtual]

Find all constant sources that influence this Variable, build a propagation path from them to this Variable, and fprop through it.

This can be useful to make sure that all dependencies are computed at least once. This function uses source(), below.

Definition at line 552 of file Variable.cc.

References PLearn::VarArray::fprop(), PLearn::propagationPath(), sources(), unmarkAncestors(), and Var.

{
    VarArray all_sources = sources();
    unmarkAncestors();
    VarArray prop_path = propagationPath(all_sources,Var(this));
    prop_path.fprop();
}

Here is the call graph for this function:

string PLearn::Variable::getName ( ) const

returns the name of this variable.

If its name has not been set, it will be assigned a name of V_varnum

Definition at line 518 of file Variable.cc.

References PLearn::tostring(), varname, and varnum.

Referenced by PLearn::GaussianProcessNLLVariable::logVarray(), PLearn::UnfoldedSumOfVariable::printInfo(), PLearn::UnfoldedFuncVariable::printInfo(), PLearn::SumOverBagsVariable::printInfo(), PLearn::SumOfVariable::printInfo(), PLearn::MatrixSumOfVariable::printInfo(), and PLearn::CCCostVariable::printInfo().

{
    if (varname.size() == 0)
        return "#" + tostring(varnum);

    return varname;
}

Here is the call graph for this function:

Here is the caller graph for this function:

bool PLearn::Variable::isColumnVec ( ) const [inline]

Definition at line 203 of file Variable.h.

Referenced by subVec().

{ return width()==1; }

Here is the caller graph for this function:

virtual bool PLearn::Variable::isConstant ( ) [inline, virtual]

Reimplemented in PLearn::ObjectOptionVariable, and PLearn::SourceVariable.

Definition at line 445 of file Variable.h.

{ return false; }
bool PLearn::Variable::isMarked ( ) [inline]

Definition at line 276 of file Variable.h.

{ return marked; }
bool PLearn::Variable::isRowVec ( ) const [inline]

Definition at line 204 of file Variable.h.

Referenced by subVec().

{ return length()==1; }

Here is the caller graph for this function:

bool PLearn::Variable::isScalar ( ) const [inline]
bool PLearn::Variable::isVec ( ) const [inline]

Definition at line 202 of file Variable.h.

Referenced by PLearn::HeterogenuousAffineTransformVariable::build_(), PLearn::HeterogenuousAffineTransformWeightPenalty::build_(), and PLearn::Var::operator[]().

{ return length()==1 || width()==1; }

Here is the caller graph for this function:

int PLearn::Variable::length ( ) const [inline]

Definition at line 166 of file Variable.h.

Referenced by accg(), PLearn::SubMatVariable::bbprop(), PLearn::PlusRowVariable::bbprop(), PLearn::PlusColumnVariable::bbprop(), PLearn::MinusRowVariable::bbprop(), PLearn::MinusColumnVariable::bbprop(), PLearn::TransposeVariable::bprop(), PLearn::TimesRowVariable::bprop(), PLearn::TimesColumnVariable::bprop(), PLearn::SubsampleVariable::bprop(), PLearn::SubMatVariable::bprop(), PLearn::SubMatTransposeVariable::bprop(), PLearn::ScoreLayerVariable::bprop(), PLearn::ProbabilityPairsVariable::bprop(), PLearn::PotentialsVariable::bprop(), PLearn::PlusRowVariable::bprop(), PLearn::PlusColumnVariable::bprop(), PLearn::MinusTransposedColumnVariable::bprop(), PLearn::MinusRowVariable::bprop(), PLearn::MinusColumnVariable::bprop(), PLearn::MatrixSoftmaxVariable::bprop(), PLearn::MatrixSoftmaxLossVariable::bprop(), PLearn::MatrixOneHotSquaredLoss::bprop(), PLearn::LogAddVariable::bprop(), PLearn::GradientAdaboostCostVariable::bprop(), PLearn::ExtractVariable::bprop(), PLearn::DuplicateRowVariable::bprop(), PLearn::DuplicateColumnVariable::bprop(), PLearn::ConvolveVariable::bprop(), PLearn::ConfRatedAdaboostCostVariable::bprop(), PLearn::MultiMaxVariable::bpropHardMaxValue(), PLearn::MultiMaxVariable::bpropLogSoftMax(), PLearn::MultiMaxVariable::bpropSoftMax(), build_(), PLearn::VarArrayElementVariable::build_(), PLearn::TransposedDoubleProductVariable::build_(), PLearn::SubMatVariable::build_(), PLearn::SemiSupervisedProbClassCostVariable::build_(), PLearn::ReshapeVariable::build_(), PLearn::PotentialsVariable::build_(), PLearn::PlusManyVariable::build_(), PLearn::ObjectOptionVariable::build_(), PLearn::NllSemisphericalGaussianVariable::build_(), PLearn::NllGeneralGaussianVariable::build_(), PLearn::IfThenElseVariable::build_(), PLearn::FNetLayerVariable::build_(), PLearn::ConcatColumnsVariable::build_(), PLearn::DiagonalNormalSampleVariable::DiagonalNormalSampleVariable(), PLearn::TransposeVariable::fprop(), PLearn::TimesRowVariable::fprop(), PLearn::TimesColumnVariable::fprop(), PLearn::SubMatVariable::fprop(), PLearn::SubMatTransposeVariable::fprop(), PLearn::ScoreLayerVariable::fprop(), PLearn::DiagonalNormalSampleVariable::fprop(), PLearn::PotentialsVariable::fprop(), PLearn::PlusRowVariable::fprop(), PLearn::PlusColumnVariable::fprop(), PLearn::NLLNeighborhoodWeightsVariable::fprop(), PLearn::MinusTransposedColumnVariable::fprop(), PLearn::MinusRowVariable::fprop(), PLearn::MinusColumnVariable::fprop(), PLearn::MatrixSoftmaxLossVariable::fprop(), PLearn::MatrixOneHotSquaredLoss::fprop(), PLearn::LogAddVariable::fprop(), PLearn::GradientAdaboostCostVariable::fprop(), PLearn::ExtractVariable::fprop(), PLearn::DuplicateRowVariable::fprop(), PLearn::DuplicateColumnVariable::fprop(), PLearn::ConfRatedAdaboostCostVariable::fprop(), PLearn::MultiMaxVariable::hardMax_range(), PLearn::MultiMaxVariable::logSoftmax_range(), recomputeSize(), PLearn::SoftSlopeVariable::recomputeSize(), PLearn::SoftSlopeIntegralVariable::recomputeSize(), PLearn::HardSlopeVariable::recomputeSize(), resizeDiagHessian(), resizeRValue(), PLearn::TimesRowVariable::rfprop(), PLearn::TimesColumnVariable::rfprop(), PLearn::SubMatVariable::rfprop(), PLearn::SubMatTransposeVariable::rfprop(), PLearn::PlusRowVariable::rfprop(), PLearn::PlusColumnVariable::rfprop(), PLearn::MultiMaxVariable::softmax_range(), PLearn::SVDVariable::SVDVariable(), PLearn::SubMatVariable::symbolicBprop(), PLearn::SubMatTransposeVariable::symbolicBprop(), PLearn::PowVariableVariable::symbolicBprop(), PLearn::IfThenElseVariable::symbolicBprop(), PLearn::ConcatColumnsVariable::symbolicBprop(), update(), and updateWithWeightDecay().

{ return matValue.length(); }
void PLearn::Variable::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Does the necessary operations to transform a shallow copy (this) into a deep copy by deep-copying all the members that need to be.

This needs to be overridden by every class that adds "complex" data members to the class, such as Vec, Mat, PP<Something>, etc. Typical implementation:

  void CLASS_OF_THIS::makeDeepCopyFromShallowCopy(CopiesMap& copies)
  {
      inherited::makeDeepCopyFromShallowCopy(copies);
      deepCopyField(complex_data_member1, copies);
      deepCopyField(complex_data_member2, copies);
      ...
  }
Parameters:
copiesA map used by the deep-copy mechanism to keep track of already-copied objects.

Reimplemented from PLearn::Object.

Reimplemented in PLearn::ArgminOfVariable, PLearn::BiasWeightAffineTransformVariable, PLearn::BinaryVariable, PLearn::CCCostVariable, PLearn::ConcatOfVariable, PLearn::AdditiveGaussianNoiseVariable, PLearn::BernoulliSampleVariable, PLearn::ConstrainedSourceVariable, PLearn::DoubleProductVariable, PLearn::LinearCombinationOfScalarVariables, PLearn::LogSoftSoftMaxVariable, PLearn::MultiMaxVariable, PLearn::MultiSampleVariable, PLearn::ProbabilityPairsInverseVariable, PLearn::ProbabilityPairsVariable, PLearn::RandomForcedValuesVariable, PLearn::SaltPepperNoiseVariable, PLearn::SoftSoftMaxVariable, PLearn::SumEntropyOfBernoullis, PLearn::SumEntropyOfCategoricals, PLearn::SumVarianceOfLinearTransformedBernoullis, PLearn::SumVarianceOfLinearTransformedCategoricals, PLearn::TransposedDoubleProductVariable, PLearn::FNetLayerVariable, PLearn::GaussianProcessNLLVariable, PLearn::HeterogenuousAffineTransformVariable, PLearn::HeterogenuousAffineTransformWeightPenalty, PLearn::InsertZerosVariable, PLearn::IsMissingVariable, PLearn::LocalizedFeaturesLayerVariable, PLearn::LogAddVariable, PLearn::LogSumVariable, PLearn::MatrixElementsVariable, PLearn::MatrixSumOfVariable, PLearn::MatRowVariable, PLearn::NaryVariable, PLearn::NllGeneralGaussianVariable, PLearn::ObjectOptionVariable, PLearn::PDistributionVariable, PLearn::PlusManyVariable, PLearn::PotentialsVariable, PLearn::ReIndexedTargetVariable, PLearn::RowOfVariable, PLearn::SourceVariable, PLearn::SparseIncrementalAffineTransformVariable, PLearn::SumOfVariable, PLearn::SumOverBagsVariable, PLearn::UnaryVariable, PLearn::UnfoldedFuncVariable, PLearn::UnfoldedSumOfVariable, PLearn::VecElementVariable, PLearn::NLLNeighborhoodWeightsVariable, PLearn::RunICPVariable, and PLearn::ScoreLayerVariable.

Definition at line 467 of file Variable.cc.

References PLearn::TVec< T >::data(), PLearn::deepCopyField(), g, PLearn::TVec< T >::getStorage(), gradient, gradientdata, PLearn::Object::makeDeepCopyFromShallowCopy(), matGradient, matValue, value, valuedata, and PLearn::varDeepCopyField().

Referenced by PLearn::UnaryVariable::makeDeepCopyFromShallowCopy(), PLearn::SourceVariable::makeDeepCopyFromShallowCopy(), PLearn::ObjectOptionVariable::makeDeepCopyFromShallowCopy(), PLearn::NaryVariable::makeDeepCopyFromShallowCopy(), and PLearn::BinaryVariable::makeDeepCopyFromShallowCopy().

{
    inherited::makeDeepCopyFromShallowCopy(copies);
    deepCopyField(value, copies);
    deepCopyField(gradient, copies);
    deepCopyField(matValue, copies);
    deepCopyField(matGradient, copies);
    if (value.getStorage())
        valuedata = value.data();
    else
        valuedata = 0;
    if (gradient.getStorage())
        gradientdata = gradient.data();
    else
        gradientdata = 0;
    varDeepCopyField(g, copies);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::Variable::makePointTo ( Variable v) [inline]

Definition at line 429 of file Variable.h.

References diaghessian, diaghessiandata, gradient, gradientdata, matDiagHessian, matGradient, matRValue, matValue, rows_to_update, rValue, rvaluedata, value, and valuedata.

                                  {
        value = v->value;
        valuedata = v->valuedata;
        matValue = v->matValue;
        gradient = v->gradient;
        matGradient = v->matGradient;
        gradientdata = v->gradientdata;
        rows_to_update = v->rows_to_update;
        rValue = v->rValue;
        matRValue = v->matRValue;
        matDiagHessian = v->matDiagHessian;
        diaghessian = v->diaghessian;
        diaghessiandata = v->diaghessiandata;
        rvaluedata = v->rvaluedata;
    }
void PLearn::Variable::makeSharedGradient ( real x,
int  n
)

like copyTo but also makes value's point to x

Definition at line 1056 of file Variable.cc.

References PLearn::TVec< T >::data(), gradient, gradientdata, j, matGradient, PLearn::TMat< T >::mod_, n, nelems(), PLearn::TMat< T >::offset_, PLearn::TVec< T >::offset_, PLERROR, PLearn::TVec< T >::storage, PLearn::TMat< T >::storage, PLearn::TMat< T >::width(), and x.

Referenced by makeSharedGradient().

{
    if (n!=nelems()) PLERROR("Variable::makeSharedGradient, n(%d) inconsistent with nelems(%d)",
                             n,nelems());
    real* v=gradient.data();
    gradientdata=x;
    if (x!=v)
        for (int j=0;j<n;j++)
            x[j]=v[j];
    gradient.storage = new Storage<real>(n,x);
    gradient.offset_ = 0;
    matGradient.storage = gradient.storage;
    matGradient.offset_ = 0;
    matGradient.mod_ = matGradient.width();
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::Variable::makeSharedGradient ( PP< Storage< real > >  storage,
int  offset_ = 0
)

Definition at line 1037 of file Variable.cc.

References PLearn::TVec< T >::data(), gradient, gradientdata, j, matGradient, PLearn::TMat< T >::mod_, n, nelems(), PLearn::TMat< T >::offset_, PLearn::TVec< T >::offset_, PLERROR, PLearn::TVec< T >::storage, PLearn::TMat< T >::storage, PLearn::TMat< T >::width(), and x.

{
    int n=nelems();
    if (storage->length()<offset_+n)
        PLERROR("Variable::makeSharedGradient, storage(%d) too small(%d+%d)",
                storage->length(),offset_,nelems());
    real* v=gradient.data();
    real* x=gradientdata=storage->data+offset_;
    if (x!=v)
        for (int j=0;j<n;j++)
            x[j]=v[j];
    gradient.storage = storage;
    gradient.offset_ = offset_;
    matGradient.storage = storage;
    matGradient.offset_ = offset_;
    matGradient.mod_ = matGradient.width();
}

Here is the call graph for this function:

void PLearn::Variable::makeSharedGradient ( Vec v,
int  offset_ = 0
)

Definition at line 1032 of file Variable.cc.

References makeSharedGradient(), PLearn::TVec< T >::offset_, and PLearn::TVec< T >::storage.

{
    makeSharedGradient(v.storage,v.offset_+offset_);
}

Here is the call graph for this function:

void PLearn::Variable::makeSharedRValue ( real x,
int  n
)

like copyTo but also makes value's point to x

Definition at line 1097 of file Variable.cc.

References PLearn::TVec< T >::data(), j, matRValue, PLearn::TMat< T >::mod_, n, nelems(), PLearn::TMat< T >::offset_, PLearn::TVec< T >::offset_, PLERROR, resizeRValue(), rValue, rvaluedata, PLearn::TVec< T >::storage, PLearn::TMat< T >::storage, PLearn::TMat< T >::width(), and x.

Referenced by makeSharedRValue().

{
    if (n!=nelems()) PLERROR("Variable::makeSharedRValue, n(%d) inconsistent with nelems(%d)",
                             n,nelems());
    resizeRValue();
    real* v=rValue.data();
    rvaluedata=x;
    if (x!=v)
        for (int j=0;j<n;j++)
            x[j]=v[j];
    rValue.storage = new Storage<real>(n,x);
    rValue.offset_ = 0;
    matRValue.storage = rValue.storage;
    matRValue.offset_ = 0;
    matRValue.mod_ = matRValue.width();
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::Variable::makeSharedRValue ( PP< Storage< real > >  storage,
int  offset_ = 0
)

Definition at line 1077 of file Variable.cc.

References PLearn::TVec< T >::data(), j, matRValue, PLearn::TMat< T >::mod_, n, nelems(), PLearn::TMat< T >::offset_, PLearn::TVec< T >::offset_, PLERROR, resizeRValue(), rValue, rvaluedata, PLearn::TVec< T >::storage, PLearn::TMat< T >::storage, PLearn::TMat< T >::width(), and x.

{
    resizeRValue();
    int n=nelems();
    if (storage->length()<offset_+n)
        PLERROR("Variable::makeSharedRValue, storage(%d) too small(%d+%d)",
                storage->length(),offset_,nelems());
    real* v=rValue.data();
    real* x=rvaluedata=storage->data+offset_;
    if (x!=v)
        for (int j=0;j<n;j++)
            x[j]=v[j];
    rValue.storage = storage;
    rValue.offset_ = offset_;
    matRValue.storage = storage;
    matRValue.offset_ = offset_;
    matRValue.mod_ = matRValue.width();
}

Here is the call graph for this function:

void PLearn::Variable::makeSharedRValue ( Vec v,
int  offset_ = 0
)

Definition at line 1117 of file Variable.cc.

References makeSharedRValue(), PLearn::TVec< T >::offset_, and PLearn::TVec< T >::storage.

{
    makeSharedRValue(v.storage,v.offset_+offset_);
}

Here is the call graph for this function:

void PLearn::Variable::makeSharedValue ( Vec v,
int  offset_ = 0
)

Definition at line 1072 of file Variable.cc.

References makeSharedValue(), PLearn::TVec< T >::offset_, and PLearn::TVec< T >::storage.

{
    makeSharedValue(v.storage,v.offset_+offset_);
}

Here is the call graph for this function:

void PLearn::Variable::makeSharedValue ( real x,
int  n
)

like copyTo but also makes value's point to x

Definition at line 998 of file Variable.cc.

References PLearn::TVec< T >::data(), j, matValue, PLearn::TMat< T >::mod_, n, nelems(), PLearn::TMat< T >::offset_, PLearn::TVec< T >::offset_, PLERROR, PLearn::TVec< T >::storage, PLearn::TMat< T >::storage, value, valuedata, PLearn::TMat< T >::width(), and x.

Referenced by makeSharedValue().

{
    if (n!=nelems()) PLERROR("Variable::makeSharedValue, n(%d) inconsistent with nelems(%d)",
                             n,nelems());
    real* v=value.data();
    valuedata=x;
    if (x!=v)
        for (int j=0;j<n;j++)
            x[j]=v[j];
    value.storage = new Storage<real>(n,x);
    value.offset_ = 0;
    matValue.storage = value.storage;
    matValue.offset_ = 0;
    matValue.mod_ = matValue.width();
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::Variable::makeSharedValue ( PP< Storage< real > >  storage,
int  offset_ = 0
)

make value and matValue point into this storage

Definition at line 1014 of file Variable.cc.

References PLearn::TVec< T >::data(), j, matValue, PLearn::TMat< T >::mod_, n, nelems(), PLearn::TMat< T >::offset_, PLearn::TVec< T >::offset_, PLERROR, PLearn::TVec< T >::storage, PLearn::TMat< T >::storage, value, valuedata, PLearn::TMat< T >::width(), and x.

{
    int n=nelems();
    if (storage->length()<offset_+n)
        PLERROR("Variable::makeSharedValue, storage(%d) too small(%d+%d)",
                storage->length(),offset_,nelems());
    real* v=value.data();
    real* x=valuedata=storage->data+offset_;
    if (x!=v)
        for (int j=0;j<n;j++)
            x[j]=v[j];
    value.storage = storage;
    value.offset_ = offset_;
    matValue.storage = storage;
    matValue.offset_ = offset_;
    matValue.mod_ = matValue.width();
}

Here is the call graph for this function:

virtual bool PLearn::Variable::markPath ( ) [pure virtual]

Sets the marked flag of all the sVariable that are to be in the fprop path.

The input sVariable that are of interest are to be marked first. Then markPath is to be called from the output Variable of interest

Implemented in PLearn::BinaryVariable, PLearn::NaryVariable, PLearn::ObjectOptionVariable, PLearn::SourceVariable, and PLearn::UnaryVariable.

real PLearn::Variable::maxUpdate ( Vec  direction)

Using the box constraints on the values, return the maximum allowable step_size in the given direction i.e.,.

argmax_{step_size} {new = value + step_size * direction, new in box}

Definition at line 962 of file Variable.cc.

References PLearn::TVec< T >::data(), i, max_value, min_value, nelems(), PLERROR, and valuedata.

{
    real max_step_size=FLT_MAX;
    if(min_value>-FLT_MAX || max_value<FLT_MAX)
        // constrained update
    {
        real* dir = direction.data();
        for(int i=0; i<nelems(); i++)
        {
            real v = valuedata[i];
            if (v<min_value || v>max_value)
                PLERROR("Variable::maxUpdate:current value %f already out of bounds (%f,%f)!",
                        v,min_value,max_value);
            if (dir[i]>0) // want to increase value: check max_value
            {
                if (max_value<FLT_MAX)
                {
                    real maxstep = (max_value - v)/dir[i];
                    if (maxstep < max_step_size) max_step_size = maxstep;
                }
            }
            else if (dir[i]<0) // want to decrease value: check min_value
            {
                if (min_value > -FLT_MAX)
                {
                    real maxstep = (min_value - v)/dir[i];
                    if (maxstep < max_step_size) max_step_size = maxstep;
                }
            }
        }
    }
    // else unconstrained

    return max_step_size;
}

Here is the call graph for this function:

bool PLearn::Variable::nameIsSet ( ) [inline]

Definition at line 244 of file Variable.h.

{ return varname.size()>0; }
int PLearn::Variable::nelems ( ) const [inline]

Definition at line 169 of file Variable.h.

Referenced by PLearn::SquareVariable::bbprop(), PLearn::TanhVariable::bbprop(), PLearn::SigmoidVariable::bbprop(), PLearn::MinusScalarVariable::bbprop(), PLearn::MinusVariable::bbprop(), PLearn::SubMatVariable::bbprop(), PLearn::NegateElementsVariable::bbprop(), PLearn::PlusVariable::bbprop(), PLearn::PlusScalarVariable::bbprop(), PLearn::PlusScalarVariable::bprop(), PLearn::SoftSlopeIntegralVariable::bprop(), PLearn::AbsVariable::bprop(), PLearn::ExpVariable::bprop(), PLearn::MinusScalarVariable::bprop(), PLearn::ReshapeVariable::bprop(), PLearn::TimesScalarVariable::bprop(), PLearn::DivVariable::bprop(), PLearn::InterValuesVariable::bprop(), PLearn::SoftplusVariable::bprop(), PLearn::SubMatTransposeVariable::bprop(), PLearn::DuplicateScalarVariable::bprop(), PLearn::HardSlopeVariable::bprop(), PLearn::TanhVariable::bprop(), PLearn::SoftmaxVariable::bprop(), PLearn::VarArrayElementVariable::bprop(), PLearn::ErfVariable::bprop(), PLearn::IfThenElseVariable::bprop(), PLearn::PlusManyVariable::bprop(), PLearn::PowVariableVariable::bprop(), PLearn::DilogarithmVariable::bprop(), PLearn::SoftSlopeVariable::bprop(), PLearn::SubMatVariable::bprop(), PLearn::CutAboveThresholdVariable::bprop(), PLearn::CutBelowThresholdVariable::bprop(), PLearn::TimesVariable::bprop(), PLearn::PowVariable::bprop(), PLearn::InvertElementsVariable::bprop(), PLearn::LogVariable::bprop(), PLearn::PlusVariable::bprop(), PLearn::SoftmaxLossVariable::bprop(), PLearn::PLogPVariable::bprop(), PLearn::PlusConstantVariable::bprop(), PLearn::SigmoidVariable::bprop(), PLearn::TimesConstantVariable::bprop(), PLearn::TransposeVariable::bprop(), PLearn::IdentityVariable::bprop(), PLearn::LogSoftmaxVariable::bprop(), PLearn::SquareRootVariable::bprop(), PLearn::MinusVariable::bprop(), PLearn::NegateElementsVariable::bprop(), PLearn::SquareVariable::bprop(), PLearn::TimesConstantScalarVariable2::bprop(), PLearn::LogAddVariable::bprop(), PLearn::UnaryHardSlopeVariable::bprop(), PLearn::ExtendedVariable::build_(), PLearn::DuplicateScalarVariable::fprop(), PLearn::HardSlopeVariable::fprop(), PLearn::PLogPVariable::fprop(), PLearn::MultinomialSampleVariable::fprop(), PLearn::SigmoidVariable::fprop(), PLearn::TanhVariable::fprop(), PLearn::TimesConstantVariable::fprop(), PLearn::TransposeVariable::fprop(), PLearn::MinusVariable::fprop(), PLearn::TimesConstantScalarVariable2::fprop(), PLearn::OneHotVariable::fprop(), PLearn::DilogarithmVariable::fprop(), PLearn::EqualVariable::fprop(), PLearn::UniformSampleVariable::fprop(), PLearn::AbsVariable::fprop(), PLearn::CutAboveThresholdVariable::fprop(), PLearn::ReshapeVariable::fprop(), PLearn::SignVariable::fprop(), PLearn::DivVariable::fprop(), PLearn::IsLargerVariable::fprop(), PLearn::BernoulliSampleVariable::fprop(), PLearn::InterValuesVariable::fprop(), PLearn::IsMissingVariable::fprop(), PLearn::PowVariable::fprop(), PLearn::EqualConstantVariable::fprop(), PLearn::LogVariable::fprop(), PLearn::PlusVariable::fprop(), PLearn::SoftmaxLossVariable::fprop(), PLearn::PlusConstantVariable::fprop(), PLearn::VarArrayElementVariable::fprop(), PLearn::ErfVariable::fprop(), PLearn::IdentityVariable::fprop(), PLearn::IsSmallerVariable::fprop(), PLearn::SquareRootVariable::fprop(), PLearn::IfThenElseVariable::fprop(), PLearn::NegateElementsVariable::fprop(), PLearn::PlusManyVariable::fprop(), PLearn::PowVariableVariable::fprop(), PLearn::SquareVariable::fprop(), PLearn::ScoreLayerVariable::fprop(), PLearn::SoftSlopeVariable::fprop(), PLearn::SubMatVariable::fprop(), PLearn::UnaryHardSlopeVariable::fprop(), PLearn::CutBelowThresholdVariable::fprop(), PLearn::PlusScalarVariable::fprop(), PLearn::SoftSlopeIntegralVariable::fprop(), PLearn::ExpVariable::fprop(), PLearn::MinusScalarVariable::fprop(), PLearn::TimesScalarVariable::fprop(), PLearn::TimesVariable::fprop(), PLearn::EqualScalarVariable::fprop(), PLearn::UnequalConstantVariable::fprop(), PLearn::InvertElementsVariable::fprop(), PLearn::SoftplusVariable::fprop(), PLearn::SubMatTransposeVariable::fprop(), makeSharedGradient(), makeSharedRValue(), makeSharedValue(), maxUpdate(), PLearn::MatrixSumOfVariable::printInfo(), PLearn::SumOfVariable::printInfo(), PLearn::SubMatVariable::rfprop(), PLearn::SoftmaxLossVariable::rfprop(), PLearn::PlusScalarVariable::rfprop(), PLearn::LogVariable::rfprop(), PLearn::MinusScalarVariable::rfprop(), PLearn::IfThenElseVariable::rfprop(), PLearn::SigmoidVariable::rfprop(), PLearn::TimesConstantVariable::rfprop(), PLearn::TimesScalarVariable::rfprop(), PLearn::NegateElementsVariable::rfprop(), PLearn::SubMatTransposeVariable::rfprop(), PLearn::AbsVariable::rfprop(), PLearn::InvertElementsVariable::rfprop(), PLearn::DivVariable::rfprop(), PLearn::TimesConstantScalarVariable2::rfprop(), PLearn::ExpVariable::rfprop(), PLearn::PlusConstantVariable::rfprop(), PLearn::SquareVariable::rfprop(), PLearn::TanhVariable::rfprop(), PLearn::ScoreLayerVariable::setScalingCoefficient(), update(), and updateAndClear().

{ return size(); }
void PLearn::Variable::oldread ( istream &  in) [virtual]
Deprecated:
For backward compatibility with old saved object

Reimplemented from PLearn::Object.

Definition at line 526 of file Variable.cc.

References PLearn::Object::read(), and value.

Here is the call graph for this function:

virtual VarArray PLearn::Variable::parents ( ) [pure virtual]

returns all the direct parents of this Var that are not marked (the call doesn't change any mark)

Implemented in PLearn::BinaryVariable, PLearn::NaryVariable, PLearn::ObjectOptionVariable, PLearn::SourceVariable, and PLearn::UnaryVariable.

virtual void PLearn::Variable::printInfo ( bool  print_gradient = false) [pure virtual]
void PLearn::Variable::printInfos ( bool  print_gradient = false) [virtual]

Definition at line 560 of file Variable.cc.

References ancestors(), PLearn::VarArray::printInfo(), and unmarkAncestors().

{
    VarArray ancetres = ancestors();
    unmarkAncestors();
    ancetres.printInfo(print_gradient);
}

Here is the call graph for this function:

virtual VarArray PLearn::Variable::random_sources ( ) [pure virtual]
void PLearn::Variable::recomputeSize ( int l,
int w
) const [virtual]

Recomputes the length l and width w that this variable should have, according to its parent variables.

This is used for ex. by sizeprop() The default version stupidly returns the current dimensions, so make sure to overload it in subclasses if this is not appropriate.

Reimplemented in PLearn::AbsVariable, PLearn::AffineTransformVariable, PLearn::AffineTransformWeightPenalty, PLearn::ArgmaxVariable, PLearn::ArgminOfVariable, PLearn::ArgminVariable, PLearn::BiasWeightAffineTransformVariable, PLearn::BinaryClassificationLossVariable, PLearn::CCCostVariable, PLearn::ClassificationLossVariable, PLearn::ColumnIndexVariable, PLearn::ColumnSumVariable, PLearn::ConcatColumnsVariable, PLearn::ConcatOfVariable, PLearn::ConcatRowsVariable, PLearn::ConfRatedAdaboostCostVariable, PLearn::ConvolveVariable, PLearn::CrossEntropyVariable, PLearn::CutAboveThresholdVariable, PLearn::CutBelowThresholdVariable, PLearn::DeterminantVariable, PLearn::DiagonalizedFactorsProductVariable, PLearn::DilogarithmVariable, PLearn::DivVariable, PLearn::DotProductVariable, PLearn::DuplicateColumnVariable, PLearn::DuplicateRowVariable, PLearn::DuplicateScalarVariable, PLearn::ElementAtPositionVariable, PLearn::EqualConstantVariable, PLearn::EqualScalarVariable, PLearn::EqualVariable, PLearn::ErfVariable, PLearn::AdditiveGaussianNoiseVariable, PLearn::BernoulliSampleVariable, PLearn::ConstrainVariable, PLearn::Cov2CorrVariable, PLearn::DiagVariable, PLearn::DoubleProductVariable, PLearn::LinearCombinationOfScalarVariables, PLearn::LogSoftSoftMaxVariable, PLearn::MultiMaxVariable, PLearn::MultiSampleVariable, PLearn::NonDiagVariable, PLearn::ProbabilityPairsInverseVariable, PLearn::ProbabilityPairsVariable, PLearn::RandomForcedValuesVariable, PLearn::SaltPepperNoiseVariable, PLearn::SoftSoftMaxVariable, PLearn::SumEntropyOfBernoullis, PLearn::SumEntropyOfCategoricals, PLearn::SumVarianceOfLinearTransformedBernoullis, PLearn::SumVarianceOfLinearTransformedCategoricals, PLearn::TimesConstantScalarVariable2, PLearn::TraceVariable, PLearn::TransposedDoubleProductVariable, PLearn::ExpVariable, PLearn::ExtendedVariable, PLearn::ExtractVariable, PLearn::FNetLayerVariable, PLearn::GaussianProcessNLLVariable, PLearn::GradientAdaboostCostVariable, PLearn::HardSlopeVariable, PLearn::HeterogenuousAffineTransformVariable, PLearn::HeterogenuousAffineTransformWeightPenalty, PLearn::IdentityVariable, PLearn::IfThenElseVariable, PLearn::IndexAtPositionVariable, PLearn::InsertZerosVariable, PLearn::InterValuesVariable, PLearn::InvertElementsVariable, PLearn::IsAboveThresholdVariable, PLearn::IsLargerVariable, PLearn::IsMissingVariable, PLearn::IsSmallerVariable, PLearn::LeftPseudoInverseVariable, PLearn::LiftOutputVariable, PLearn::LocalizedFeaturesLayerVariable, PLearn::LogAddVariable, PLearn::LogSoftmaxVariable, PLearn::LogSumVariable, PLearn::LogVariable, PLearn::MarginPerceptronCostVariable, PLearn::MatrixAffineTransformVariable, PLearn::MatrixElementsVariable, PLearn::MatrixInverseVariable, PLearn::MatrixOneHotSquaredLoss, PLearn::MatrixSoftmaxLossVariable, PLearn::MatrixSoftmaxVariable, PLearn::MatrixSumOfVariable, PLearn::MatRowVariable, PLearn::Max2Variable, PLearn::MaxVariable, PLearn::Min2Variable, PLearn::MiniBatchClassificationLossVariable, PLearn::MinusColumnVariable, PLearn::MinusRowVariable, PLearn::MinusScalarVariable, PLearn::MinusTransposedColumnVariable, PLearn::MinusVariable, PLearn::MinVariable, PLearn::MulticlassLossVariable, PLearn::NegateElementsVariable, PLearn::NegCrossEntropySigmoidVariable, PLearn::NegLogPoissonVariable, PLearn::NllGeneralGaussianVariable, PLearn::NllSemisphericalGaussianVariable, PLearn::NoBpropVariable, PLearn::OneHotSquaredLoss, PLearn::OneHotVariable, PLearn::OutputVariable, PLearn::PDistributionVariable, PLearn::PLogPVariable, PLearn::PlusColumnVariable, PLearn::PlusConstantVariable, PLearn::PlusManyVariable, PLearn::PlusRowVariable, PLearn::PlusScalarVariable, PLearn::PlusVariable, PLearn::PotentialsVariable, PLearn::PowVariable, PLearn::PowVariableVariable, PLearn::ProductTransposeVariable, PLearn::ProductVariable, PLearn::ProjectionErrorVariable, PLearn::ReIndexedTargetVariable, PLearn::ReshapeVariable, PLearn::RightPseudoInverseVariable, PLearn::RowAtPositionVariable, PLearn::RowOfVariable, PLearn::RowSumSquareVariable, PLearn::RowSumVariable, PLearn::SemiSupervisedProbClassCostVariable, PLearn::SigmoidVariable, PLearn::SignVariable, PLearn::SoftmaxLossVariable, PLearn::SoftmaxVariable, PLearn::SoftplusVariable, PLearn::SoftSlopeIntegralVariable, PLearn::SoftSlopeVariable, PLearn::SparseIncrementalAffineTransformVariable, PLearn::SquareRootVariable, PLearn::SquareVariable, PLearn::SubMatTransposeVariable, PLearn::SubMatVariable, PLearn::SubsampleVariable, PLearn::SumAbsVariable, PLearn::SumOfVariable, PLearn::SumOverBagsVariable, PLearn::SumSquareVariable, PLearn::SumVariable, PLearn::SVDVariable, PLearn::TanhVariable, PLearn::ThresholdBpropVariable, PLearn::TimesColumnVariable, PLearn::TimesConstantVariable, PLearn::TimesRowVariable, PLearn::TimesScalarVariable, PLearn::TimesVariable, PLearn::TransposeProductVariable, PLearn::TransposeVariable, PLearn::UnaryHardSlopeVariable, PLearn::UnequalConstantVariable, PLearn::UnfoldedFuncVariable, PLearn::UnfoldedSumOfVariable, PLearn::VarArrayElementVariable, PLearn::VarColumnsVariable, PLearn::VarElementVariable, PLearn::VarRowsVariable, PLearn::VarRowVariable, PLearn::VecElementVariable, PLearn::WeightedSumSquareVariable, PLearn::NLLNeighborhoodWeightsVariable, PLearn::NoBpropVariable, PLearn::RunICPVariable, PLearn::ScoreLayerVariable, and PLearn::WeightedLogGaussian.

Definition at line 341 of file Variable.cc.

References length(), and width().

Referenced by build_(), and sizeprop().

{ l = length(); w = width(); }

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::Variable::resize ( int  l,
int  w
)

resizes the matValue and matGradient fields of this variable (and updates the value, gradient, valuedata and gradientdata fields accordingly)

Definition at line 347 of file Variable.cc.

References PLearn::TVec< T >::data(), PLearn::TVec< T >::getStorage(), gradient, gradientdata, matGradient, matValue, PLearn::TMat< T >::resize(), PLearn::TMat< T >::setMod(), PLearn::TMat< T >::toVec(), value, and valuedata.

Referenced by build_(), PLearn::SourceVariable::build_(), PLearn::ObjectOptionVariable::build_(), PLearn::LocalizedFeaturesLayerVariable::build_(), PLearn::FNetLayerVariable::build_(), and sizeprop().

{
    value = Vec();
    // Force mod == width so that the call to 'toVec()' below does not crash.
    matValue.setMod(w);
    matValue.resize(l,w);
    value = matValue.toVec();
    if(value.getStorage())
        valuedata = value.data();
    else
        valuedata = 0;

    gradient = Vec();
    // Same as above.
    matGradient.setMod(w);
    matGradient.resize(l,w);
    gradient = matGradient.toVec();
    if (gradient.getStorage())
        gradientdata = gradient.data();
    else
        gradientdata = 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::Variable::resizeDiagHessian ( ) [virtual]

resize the DiagHessian field

Definition at line 1125 of file Variable.cc.

References PLearn::TVec< T >::data(), diaghessian, diaghessiandata, length(), matDiagHessian, PLearn::TMat< T >::resize(), PLearn::TMat< T >::toVec(), and width().

Referenced by clearDiagHessian().

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::Variable::resizeRValue ( ) [virtual]
void PLearn::Variable::rfprop ( ) [virtual]

Reimplemented in PLearn::AbsVariable, PLearn::CCCostVariable, PLearn::ConcatRowsVariable, PLearn::DivVariable, PLearn::DotProductVariable, PLearn::ElementAtPositionVariable, PLearn::ConstrainVariable, PLearn::Cov2CorrVariable, PLearn::DiagVariable, PLearn::NonDiagVariable, PLearn::TimesConstantScalarVariable2, PLearn::TraceVariable, PLearn::ExpVariable, PLearn::ExtendedVariable, PLearn::ExtractVariable, PLearn::IdentityVariable, PLearn::IfThenElseVariable, PLearn::IndexAtPositionVariable, PLearn::InsertZerosVariable, PLearn::InvertElementsVariable, PLearn::IsAboveThresholdVariable, PLearn::LogVariable, PLearn::MatrixSoftmaxLossVariable, PLearn::MatrixSoftmaxVariable, PLearn::MatrixSumOfVariable, PLearn::MinusScalarVariable, PLearn::NegateElementsVariable, PLearn::ObjectOptionVariable, PLearn::OneHotSquaredLoss, PLearn::OneHotVariable, PLearn::OutputVariable, PLearn::PDistributionVariable, PLearn::PlusColumnVariable, PLearn::PlusConstantVariable, PLearn::PlusRowVariable, PLearn::PlusScalarVariable, PLearn::PotentialsVariable, PLearn::ProductTransposeVariable, PLearn::ProductVariable, PLearn::ReIndexedTargetVariable, PLearn::RowAtPositionVariable, PLearn::RowOfVariable, PLearn::SemiSupervisedProbClassCostVariable, PLearn::SigmoidVariable, PLearn::SoftmaxLossVariable, PLearn::SoftmaxVariable, PLearn::SourceVariable, PLearn::SquareVariable, PLearn::SubMatTransposeVariable, PLearn::SubMatVariable, PLearn::SumOfVariable, PLearn::SumVariable, PLearn::SVDVariable, PLearn::TanhVariable, PLearn::TimesColumnVariable, PLearn::TimesConstantVariable, PLearn::TimesRowVariable, PLearn::TimesScalarVariable, PLearn::TransposeProductVariable, PLearn::TransposeVariable, PLearn::VarElementVariable, and PLearn::VarRowVariable.

Definition at line 512 of file Variable.cc.

References PLearn::Object::classname(), and PLERROR.

{ PLERROR("rfprop not implmented for this variable (%s)",classname().c_str()); }

Here is the call graph for this function:

Var PLearn::Variable::row ( int  i,
bool  transpose = false
) [inline]
void PLearn::Variable::setBoxConstraint ( real  minv,
real  maxv
) [inline]

Definition at line 272 of file Variable.h.

{ min_value = minv; max_value = maxv; }
void PLearn::Variable::setDontBpropHere ( bool  val) [inline]

Definition at line 268 of file Variable.h.

{ dont_bprop_here = val; }
void PLearn::Variable::setKeepPositive ( ) [inline]

Definition at line 269 of file Variable.h.

{ min_value = 0; }
void PLearn::Variable::setMark ( ) [inline]
void PLearn::Variable::setMaxValue ( real  maxv = FLT_MAX) [inline]

Definition at line 271 of file Variable.h.

{ max_value = maxv; }
void PLearn::Variable::setMinValue ( real  minv = -FLT_MAX) [inline]

Definition at line 270 of file Variable.h.

Referenced by declareMethods().

{ min_value = minv; }

Here is the caller graph for this function:

void PLearn::Variable::setName ( const string &  the_name)

call this to set a name for this variable

Definition at line 515 of file Variable.cc.

References varname.

Referenced by PLearn::DeepFeatureExtractorNNet::build_(), and PLearn::Var::Var().

{ varname = the_name; }

Here is the caller graph for this function:

void PLearn::Variable::setParents ( const VarArray parents) [virtual]

set this Variable's parents. To use with default constructor.

Reimplemented in PLearn::BinaryVariable, PLearn::NaryVariable, PLearn::ObjectOptionVariable, PLearn::SourceVariable, and PLearn::UnaryVariable.

Definition at line 383 of file Variable.cc.

References PLearn::Object::classname(), and PLERROR.

{ PLERROR("In Variable::setParents  setParents() function not implemented for %s", classname().c_str()); }

Here is the call graph for this function:

void PLearn::Variable::setValueSubMat ( const Mat submat,
int  istart,
int  jstart
)

Replace with 'submat' the sub-matrix of the value starting at row 'istart' and column 'jstart'.

Definition at line 1148 of file Variable.cc.

References PLearn::TMat< T >::length(), matValue, PLearn::TMat< T >::subMat(), and PLearn::TMat< T >::width().

Referenced by declareMethods().

{
    matValue.subMat(istart, jstart, submat.length(), submat.width()) << submat;
}

Here is the call graph for this function:

Here is the caller graph for this function:

int PLearn::Variable::size ( ) const [inline]
void PLearn::Variable::sizefprop ( ) [inline]

compute dC/dinput given dC/doutput

Calls sizeprop, then fprop

Definition at line 215 of file Variable.h.

    { sizeprop(); fprop(); }
void PLearn::Variable::sizeprop ( )

resizes value and gradient fields according to size given by recomputeSize(...) This corresponds to "propagating" the size from its parent's size, much as fprop propagates the values

Definition at line 373 of file Variable.cc.

References recomputeSize(), resize(), and w.

Referenced by PLearn::RunICPVariable::addTemplate(), PLearn::UnaryVariable::setParents(), PLearn::BinaryVariable::setParents(), and PLearn::NaryVariable::setParents().

{
    int l,w;
    recomputeSize(l,w);
    resize(l,w);
}

Here is the call graph for this function:

Here is the caller graph for this function:

virtual VarArray PLearn::Variable::sources ( ) [pure virtual]

if not marked, find all constant sources that influence this Variable.

A constant source is normally a SourceVariable.

Implemented in PLearn::BinaryVariable, PLearn::NaryVariable, PLearn::ObjectOptionVariable, PLearn::SourceVariable, and PLearn::UnaryVariable.

Referenced by fprop_from_all_sources(), and verifyGradient().

Here is the caller graph for this function:

Var PLearn::Variable::subMat ( int  i,
int  j,
int  sublength,
int  subwidth,
bool  transpose = false
)

Definition at line 544 of file Variable.cc.

Referenced by PLearn::ScoreLayerVariable::build_(), and subVec().

{
    if(do_transpose)
        return new SubMatTransposeVariable(this, i, j, sublength, subwidth);
    else
        return new SubMatVariable(this, i, j, sublength, subwidth);
}

Here is the caller graph for this function:

Var PLearn::Variable::subVec ( int  start,
int  len,
bool  transpose = false
)

Definition at line 533 of file Variable.cc.

References isColumnVec(), isRowVec(), PLERROR, subMat(), and Var.

{
    if(isColumnVec())
        return subMat(start,0,len,1,transpose);
    else if(isRowVec())
        return subMat(0,start,1,len,transpose);

    PLERROR("In Variable::subVec variable is not a vec (single column or single row)");
    return Var();
}

Here is the call graph for this function:

void PLearn::Variable::symbolicBprop ( ) [virtual]

compute a piece of new Var graph that represents the symbolic derivative of this Var

Reimplemented in PLearn::AbsVariable, PLearn::AffineTransformVariable, PLearn::ArgmaxVariable, PLearn::ArgminVariable, PLearn::BiasWeightAffineTransformVariable, PLearn::CCCostVariable, PLearn::ColumnIndexVariable, PLearn::ColumnSumVariable, PLearn::ConcatColumnsVariable, PLearn::ConcatRowsVariable, PLearn::ConfRatedAdaboostCostVariable, PLearn::ConvolveVariable, PLearn::CutAboveThresholdVariable, PLearn::CutBelowThresholdVariable, PLearn::DeterminantVariable, PLearn::DilogarithmVariable, PLearn::DivVariable, PLearn::DotProductVariable, PLearn::DuplicateColumnVariable, PLearn::DuplicateRowVariable, PLearn::DuplicateScalarVariable, PLearn::ElementAtPositionVariable, PLearn::EqualConstantVariable, PLearn::EqualScalarVariable, PLearn::EqualVariable, PLearn::ErfVariable, PLearn::ConstrainVariable, PLearn::Cov2CorrVariable, PLearn::DiagVariable, PLearn::NonDiagVariable, PLearn::TimesConstantScalarVariable2, PLearn::TraceVariable, PLearn::ExpVariable, PLearn::ExtendedVariable, PLearn::ExtractVariable, PLearn::HardSlopeVariable, PLearn::IdentityVariable, PLearn::IfThenElseVariable, PLearn::IndexAtPositionVariable, PLearn::InsertZerosVariable, PLearn::InterValuesVariable, PLearn::InvertElementsVariable, PLearn::IsAboveThresholdVariable, PLearn::IsLargerVariable, PLearn::IsMissingVariable, PLearn::IsSmallerVariable, PLearn::LeftPseudoInverseVariable, PLearn::LogAddVariable, PLearn::LogSoftmaxVariable, PLearn::LogSumVariable, PLearn::LogVariable, PLearn::MatrixAffineTransformVariable, PLearn::MatrixInverseVariable, PLearn::MatrixOneHotSquaredLoss, PLearn::MatrixSoftmaxLossVariable, PLearn::MatrixSoftmaxVariable, PLearn::MatrixSumOfVariable, PLearn::MatRowVariable, PLearn::Max2Variable, PLearn::MaxVariable, PLearn::Min2Variable, PLearn::MiniBatchClassificationLossVariable, PLearn::MinusColumnVariable, PLearn::MinusRowVariable, PLearn::MinusScalarVariable, PLearn::MinusTransposedColumnVariable, PLearn::MinusVariable, PLearn::MinVariable, PLearn::NegateElementsVariable, PLearn::NllGeneralGaussianVariable, PLearn::NllSemisphericalGaussianVariable, PLearn::ObjectOptionVariable, PLearn::OneHotSquaredLoss, PLearn::OneHotVariable, PLearn::OutputVariable, PLearn::PDistributionVariable, PLearn::PLogPVariable, PLearn::PlusColumnVariable, PLearn::PlusConstantVariable, PLearn::PlusRowVariable, PLearn::PlusScalarVariable, PLearn::PlusVariable, PLearn::PotentialsVariable, PLearn::PowVariable, PLearn::PowVariableVariable, PLearn::ProductTransposeVariable, PLearn::ProductVariable, PLearn::ProjectionErrorVariable, PLearn::ReIndexedTargetVariable, PLearn::ReshapeVariable, PLearn::RightPseudoInverseVariable, PLearn::RowAtPositionVariable, PLearn::RowOfVariable, PLearn::RowSumVariable, PLearn::SemiSupervisedProbClassCostVariable, PLearn::SigmoidVariable, PLearn::SignVariable, PLearn::SoftmaxLossVariable, PLearn::SoftmaxVariable, PLearn::SoftplusVariable, PLearn::SoftSlopeIntegralVariable, PLearn::SoftSlopeVariable, PLearn::SourceVariable, PLearn::SparseIncrementalAffineTransformVariable, PLearn::SquareVariable, PLearn::SubMatTransposeVariable, PLearn::SubMatVariable, PLearn::SubsampleVariable, PLearn::SumAbsVariable, PLearn::SumOfVariable, PLearn::SumSquareVariable, PLearn::SumVariable, PLearn::SVDVariable, PLearn::TanhVariable, PLearn::TimesColumnVariable, PLearn::TimesConstantVariable, PLearn::TimesRowVariable, PLearn::TimesScalarVariable, PLearn::TimesVariable, PLearn::TransposeProductVariable, PLearn::TransposeVariable, PLearn::UnequalConstantVariable, PLearn::VarArrayElementVariable, PLearn::VarColumnsVariable, PLearn::VarElementVariable, PLearn::VarRowsVariable, PLearn::VarRowVariable, PLearn::VecElementVariable, PLearn::WeightedSumSquareVariable, and PLearn::WeightedLogGaussian.

Definition at line 509 of file Variable.cc.

References PLearn::Object::classname(), and PLERROR.

{ PLERROR("symbolicBprop not implemented for this variable (%s)",classname().c_str()); }

Here is the call graph for this function:

virtual void PLearn::Variable::unmarkAncestors ( ) [pure virtual]

undo any marking done by a call to sources() or ancestors()

Implemented in PLearn::BinaryVariable, PLearn::NaryVariable, PLearn::ObjectOptionVariable, PLearn::SourceVariable, and PLearn::UnaryVariable.

Referenced by fprop_from_all_sources(), printInfos(), and verifyGradient().

Here is the caller graph for this function:

bool PLearn::Variable::update ( Vec  new_value) [virtual]

set value = new_value

projected down in each direction independently in the subspace in which the box constraints are satisfied. return true if box constraints have been hit with the update

Reimplemented in PLearn::ConstrainedSourceVariable.

Definition at line 925 of file Variable.cc.

References allows_partial_update, PLearn::TVec< T >::data(), i, max_value, min_value, nelems(), PLWARNING, and valuedata.

{
    if(allows_partial_update)
        PLWARNING("Warning in Variable::update(Vec): will update every elements of the Variable");
    bool hit=false;
    if(min_value>-FLT_MAX || max_value<FLT_MAX)
        // constrained update
    {
        real* new_v = new_value.data();
        for(int i=0; i<nelems(); i++)
        {
            valuedata[i] = new_v[i];
            if(valuedata[i]<min_value)
            {
                valuedata[i]=min_value;
                hit = true;
            }
            else if(valuedata[i]>max_value)
            {
                valuedata[i]=max_value;
                hit = true;
            }
        }
    }
    else
        // unconstrained update
    {
        real* new_v = new_value.data();
        for(int i=0; i<nelems(); i++)
            valuedata[i] = new_v[i];
    }
    return hit;
}

Here is the call graph for this function:

bool PLearn::Variable::update ( real  step_size,
bool  clear = false
) [virtual]

set value = value + step_size * gradient

with step_size possibly scaled down s.t. box constraints are satisfied return true if box constraints have been hit with the update

Reimplemented in PLearn::ConstrainedSourceVariable, and PLearn::ObjectOptionVariable.

Definition at line 661 of file Variable.cc.

References allows_partial_update, gradient_status, i, length(), PLearn::TVec< T >::length(), matGradient, matValue, max_value, min_value, PLearn::TVec< T >::resize(), row(), rows_to_update, and width().

{
    bool hit=false;
    if(min_value>-FLT_MAX || max_value<FLT_MAX)
        // constrained update
    {
        if (allows_partial_update && gradient_status!=2)
        {
            if (gradient_status!=0)
            {
                for (int r=0;r<rows_to_update.length();r++)
                {
                    int row = rows_to_update[r];
                    real* direction = matGradient[row];
                    real* params = matValue[row];
                    for(int i=0; i<width(); i++)
                    {
                        params[i] += step_size*direction[i];
                        if(params[i]<min_value)
                        {
                            params[i]=min_value;
                            hit = true;
                        }
                        else if(params[i]>max_value)
                        {
                            params[i]=max_value;
                            hit = true;
                        }
                        if (clear)
                            direction[i]=0;
                    }
                }
                if (clear) {
                    rows_to_update.resize(0);
                    gradient_status=0;
                }
            }
        }
        else for (int row=0;row<length();row++)
        {
            real* direction = matGradient[row];
            real* params = matValue[row];
            for(int i=0; i<width(); i++)
            {
                params[i] += step_size*direction[i];
                if(params[i]<min_value)
                {
                    params[i]=min_value;
                    hit = true;
                }
                else if(params[i]>max_value)
                {
                    params[i]=max_value;
                    hit = true;
                }
                if (clear)
                    direction[i]=0;
            }
        }
    }
    else
        // unconstrained update
    {
        if (allows_partial_update && gradient_status!=2)
        {
            if (gradient_status!=0)
            {
                for (int r=0;r<rows_to_update.length();r++)
                {
                    int row = rows_to_update[r];
                    real* direction = matGradient[row];
                    real* params = matValue[row];
                    for(int i=0; i<width(); i++)
                    {
                        params[i] += step_size*direction[i];
                        if (clear)
                            direction[i] = 0;
                    }
                }
                if (clear) {
                    rows_to_update.resize(0);
                    gradient_status=0;
                }
            }
        }
        else for (int row=0;row<length();row++)
        {
            real* direction = matGradient[row];
            real* params = matValue[row];
            for(int i=0; i<width(); i++)
            {
                params[i] += step_size*direction[i];
                if (clear)
                    direction[i] = 0;
            }
        }
    }
    return hit;
}

Here is the call graph for this function:

bool PLearn::Variable::update ( real  step_size,
Vec  direction_vec,
real  coeff = 1.0,
real  b = 0.0
) [virtual]

set value = value + (step_size * coeff + b) * direction

with step_size possibly scaled down s.t. box constraints are satisfied return true if box constraints have been hit with the update If (allows_partial_update) the update is done where necessary. NB: Wrong ?

Reimplemented in PLearn::ConstrainedSourceVariable.

Definition at line 592 of file Variable.cc.

References allows_partial_update, b, PLearn::TVec< T >::data(), i, max_value, min_value, nelems(), PLWARNING, and valuedata.

Referenced by PLearn::ObjectOptionVariable::update().

{
    bool hit = false;
    if(allows_partial_update)
        PLWARNING("Warning in Variable::update(real,Vec): will update every elements of the Variable");
    real full_coeff = step_size * coeff + b;
    if(min_value>-FLT_MAX || max_value<FLT_MAX)
        // constrained update
    {
        real* direction = direction_vec.data();
        for(int i=0; i<nelems(); i++)
        {
            valuedata[i] += (full_coeff) * direction[i];
            if(valuedata[i]<min_value)
            {
                valuedata[i]=min_value;
                hit = true;
            }
            else if(valuedata[i]>max_value)
            {
                valuedata[i]=max_value;
                hit = true;
            }
        }
    }
    else
        // unconstrained update
    {
        real* direction = direction_vec.data();
        for(int i=0; i<nelems(); i++)
        {
            valuedata[i] += (full_coeff) * direction[i];
        }
    }
    return hit;
}

Here is the call graph for this function:

Here is the caller graph for this function:

bool PLearn::Variable::update ( Vec  step_sizes,
Vec  direction_vec,
real  coeff = 1.0,
real  b = 0.0
) [virtual]

set value[i] = value[i] + (step_sizes[i]*coeff + b) * direction[i]

with step_size possibly scaled down s.t. box constraints are satisfied return true if box constraints have been hit with the update

Reimplemented in PLearn::ConstrainedSourceVariable.

Definition at line 629 of file Variable.cc.

References allows_partial_update, b, PLearn::TVec< T >::data(), i, max_value, min_value, nelems(), PLWARNING, and valuedata.

{
    if(allows_partial_update)
        PLWARNING("Warning in Variable::update(Vec,Vec): will update every elements of the Variable");
    bool hit=false;
    real* direction = direction_vec.data();
    real* step = step_sizes.data();
    if(min_value>-FLT_MAX || max_value<FLT_MAX)
        // constrained update
    {
        for(int i=0; i<nelems(); i++)
        {
            valuedata[i] += (step[i] * coeff + b) * direction[i];
            if(valuedata[i]<min_value)
            {
                valuedata[i]=min_value;
                hit = true;
            }
            else if(valuedata[i]>max_value)
            {
                valuedata[i]=max_value;
                hit = true;
            }
        }
    }
    else
        // unconstrained update
        for(int i=0; i<nelems(); i++)
            valuedata[i] += (step[i] * coeff + b) * direction[i];
    return hit;
}

Here is the call graph for this function:

void PLearn::Variable::updateAndClear ( ) [virtual]

Set value += gradient (respecting potential box constraints), and clear the gradient.

Reimplemented in PLearn::ConstrainedSourceVariable, and PLearn::ObjectOptionVariable.

Definition at line 841 of file Variable.cc.

References allows_partial_update, PLearn::TVec< T >::clear(), gradient, gradient_status, gradientdata, i, PLearn::TVec< T >::length(), matGradient, matValue, max_value, min_value, nelems(), PLearn::TVec< T >::resize(), row(), rows_to_update, value, valuedata, and width().

Referenced by PLearn::ObjectOptionVariable::updateAndClear().

{
    if (allows_partial_update && gradient_status!=2)
    {
        if (gradient_status!=0)
        {
            for (int r=0;r<rows_to_update.length();r++)
            {
                int row = rows_to_update[r];
                real* direction = matGradient[row];
                real* params = matValue[row];
                for(int i=0; i<width(); i++)
                {
                    real& param_i = params[i];
                    param_i += direction[i];
                    if (param_i < min_value)
                        param_i = min_value;
                    else if (param_i > max_value)
                        param_i = max_value;
                    direction[i] = 0;
                }
            }
            rows_to_update.resize(0);
            gradient_status=0;
        }
    }
    else
    {
        for(int i=0; i<nelems(); i++) {
            real& value = valuedata[i];
            value += gradientdata[i];
            if (value < min_value)
                value = min_value;
            else if (value > max_value)
                value = max_value;
        }
        gradient.clear();
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::Variable::updateRow ( int  row) [inline]

says that given row has received gradient (should be updated on next call to update)

Definition at line 376 of file Variable.h.

    {
        if (gradient_status!=2 && allows_partial_update && !rows_to_update.contains(row))
        {
            rows_to_update.append(row);
            if (gradient_status==0) gradient_status=1;
        }
    }
void PLearn::Variable::updateWithWeightDecay ( real  step_size,
real  weight_decay,
bool  L1,
bool  clear = true
) [virtual]

if (L1) value += learning_rate*gradient decrease |value| by learning_rate*weight_decay if it does not make value change sign else // L2 value += learning_rate*(gradient - weight_decay*value) if (clear) gradient=0

Reimplemented in PLearn::ConstrainedSourceVariable, and PLearn::ObjectOptionVariable.

Definition at line 764 of file Variable.cc.

References allows_partial_update, gradient_status, i, length(), PLearn::TVec< T >::length(), matGradient, matValue, PLearn::TVec< T >::resize(), row(), rows_to_update, and width().

Referenced by PLearn::ObjectOptionVariable::updateWithWeightDecay().

{
    // we do unconstrained update only here
    if (allows_partial_update && gradient_status!=2)
    {
        if (gradient_status!=0)
        {
            for (int r=0;r<rows_to_update.length();r++)
            {
                int row = rows_to_update[r];
                real* direction = matGradient[row];
                real* params = matValue[row];
                if (L1)
                {
                    real delta = fabs(step_size)*weight_decay;
                    for(int i=0; i<width(); i++)
                    {
                        real pi = params[i];
                        params[i] += step_size*direction[i];
                        if (pi>delta)
                            params[i] -= delta;
                        else if (pi<-delta)
                            params[i] += delta;
                        else
                            params[i] = 0;
                        if (clear)
                            direction[i] = 0;
                    }
                }
                else // L2
                    for(int i=0; i<width(); i++)
                    {
                        params[i] += step_size*(direction[i] + weight_decay*params[i]);
                        if (clear)
                            direction[i] = 0;
                    }
            }
            if (clear) {
                rows_to_update.resize(0);
                gradient_status=0;
            }
        }
    }
    else
        for (int row=0;row<length();row++)
        {
            real* direction = matGradient[row];
            real* params = matValue[row];
            if (L1)
            {
                real delta = fabs(step_size)*weight_decay;
                for(int i=0; i<width(); i++)
                {
                    real pi = params[i];
                    params[i] += step_size*direction[i];
                    if (pi>delta)
                        params[i] -= delta;
                    else if (pi<-delta)
                        params[i] += delta;
                    if (clear)
                        direction[i] = 0;
                }
            }
            else // L2
                for(int i=0; i<width(); i++)
                {
                    params[i] += step_size*(direction[i] + weight_decay*params[i]);
                    if (clear)
                        direction[i] = 0;
                }
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::Variable::verifyGradient ( real  step = 0.001) [virtual]

call verify gradient for the mapping from all the sources to this Variable.

Definition at line 578 of file Variable.cc.

References PLearn::VarArray::nelems(), sources(), unmarkAncestors(), and Var.

{
    VarArray inputs = sources();
    unmarkAncestors();
    Func f(inputs,Var(this));
    Vec p(inputs.nelems());
    inputs >> p;
    f->verifyGradient(p,step);
}

Here is the call graph for this function:

int PLearn::Variable::width ( ) const [inline]

Definition at line 167 of file Variable.h.

Referenced by accg(), PLearn::SubMatVariable::bbprop(), PLearn::PlusRowVariable::bbprop(), PLearn::PlusColumnVariable::bbprop(), PLearn::MinusRowVariable::bbprop(), PLearn::MinusColumnVariable::bbprop(), PLearn::TransposeVariable::bprop(), PLearn::TimesRowVariable::bprop(), PLearn::TimesColumnVariable::bprop(), PLearn::SubsampleVariable::bprop(), PLearn::SubMatVariable::bprop(), PLearn::SubMatTransposeVariable::bprop(), PLearn::PlusRowVariable::bprop(), PLearn::PlusColumnVariable::bprop(), PLearn::MinusTransposedColumnVariable::bprop(), PLearn::MinusRowVariable::bprop(), PLearn::MinusColumnVariable::bprop(), PLearn::LogAddVariable::bprop(), PLearn::IndexAtPositionVariable::bprop(), PLearn::ExtractVariable::bprop(), PLearn::ExtendedVariable::bprop(), PLearn::ElementAtPositionVariable::bprop(), PLearn::DuplicateRowVariable::bprop(), PLearn::DuplicateColumnVariable::bprop(), PLearn::ConvolveVariable::bprop(), build_(), PLearn::TransposedDoubleProductVariable::build_(), PLearn::ReshapeVariable::build_(), PLearn::NllSemisphericalGaussianVariable::build_(), PLearn::NllGeneralGaussianVariable::build_(), PLearn::HeterogenuousAffineTransformWeightPenalty::build_(), PLearn::HeterogenuousAffineTransformVariable::build_(), PLearn::FNetLayerVariable::build_(), PLearn::DoubleProductVariable::build_(), PLearn::ConcatRowsVariable::build_(), PLearn::DiagonalNormalSampleVariable::DiagonalNormalSampleVariable(), PLearn::TransposeVariable::fprop(), PLearn::TimesRowVariable::fprop(), PLearn::TimesColumnVariable::fprop(), PLearn::SubMatVariable::fprop(), PLearn::SubMatTransposeVariable::fprop(), PLearn::PlusRowVariable::fprop(), PLearn::PlusColumnVariable::fprop(), PLearn::MultiSampleVariable::fprop(), PLearn::MinusTransposedColumnVariable::fprop(), PLearn::MinusRowVariable::fprop(), PLearn::MinusColumnVariable::fprop(), PLearn::MatrixSoftmaxVariable::fprop(), PLearn::LogAddVariable::fprop(), PLearn::IndexAtPositionVariable::fprop(), PLearn::ExtractVariable::fprop(), PLearn::ExtendedVariable::fprop(), PLearn::ElementAtPositionVariable::fprop(), PLearn::DuplicateRowVariable::fprop(), PLearn::DuplicateColumnVariable::fprop(), recomputeSize(), PLearn::SoftSlopeVariable::recomputeSize(), PLearn::SoftSlopeIntegralVariable::recomputeSize(), PLearn::HeterogenuousAffineTransformVariable::recomputeSize(), PLearn::HardSlopeVariable::recomputeSize(), resizeDiagHessian(), resizeRValue(), PLearn::TimesRowVariable::rfprop(), PLearn::TimesColumnVariable::rfprop(), PLearn::SubMatVariable::rfprop(), PLearn::SubMatTransposeVariable::rfprop(), PLearn::PlusRowVariable::rfprop(), PLearn::PlusColumnVariable::rfprop(), PLearn::ExtendedVariable::rfprop(), PLearn::ElementAtPositionVariable::rfprop(), PLearn::SVDVariable::SVDVariable(), PLearn::SubMatVariable::symbolicBprop(), PLearn::SubMatTransposeVariable::symbolicBprop(), PLearn::PowVariableVariable::symbolicBprop(), PLearn::IfThenElseVariable::symbolicBprop(), PLearn::ConcatRowsVariable::symbolicBprop(), update(), updateAndClear(), and updateWithWeightDecay().

{ return matValue.width(); }
void PLearn::Variable::write ( ostream &  out) const [virtual]

Write the object to a C++ ostream.

The write method should write a complete description of the object to the given stream, that should be enough to later reconstruct it. (a somewhat human-readable ascii format is usually preferred). The new default version simply calls newwrite(...) which simply writes all the "options" declared in declareOptions, so there is no need to overload write in subclasses. Old classes that still override write should progressively be moved to the new declareOptions/build mechanism.

Deprecated:
Use the declareOption / build mechanism instead, that provides automatic serialization

Reimplemented from PLearn::Object.

Definition at line 529 of file Variable.cc.

References value.

{ PLearn::write(out, value); }

Friends And Related Function Documentation

friend class BinaryVariable [friend]

Definition at line 129 of file Variable.h.

friend class Function [friend]

Definition at line 126 of file Variable.h.

friend class NaryVariable [friend]

Definition at line 130 of file Variable.h.

friend class ProductRandomVariable [friend]

Definition at line 125 of file Variable.h.

friend class RandomVariable [friend]

Definition at line 124 of file Variable.h.

friend class UnaryVariable [friend]

Definition at line 128 of file Variable.h.

friend class Var [friend]

Member Data Documentation

Reimplemented from PLearn::Object.

Reimplemented in PLearn::AbsVariable, PLearn::AffineTransformVariable, PLearn::AffineTransformWeightPenalty, PLearn::ArgmaxVariable, PLearn::ArgminOfVariable, PLearn::ArgminVariable, PLearn::BiasWeightAffineTransformVariable, PLearn::BinaryClassificationLossVariable, PLearn::BinaryVariable, PLearn::CCCostVariable, PLearn::ClassificationLossVariable, PLearn::ColumnIndexVariable, PLearn::ColumnSumVariable, PLearn::ConcatColumnsVariable, PLearn::ConcatOfVariable, PLearn::ConcatRowsVariable, PLearn::ConfRatedAdaboostCostVariable, PLearn::ConvolveVariable, PLearn::CrossEntropyVariable, PLearn::CutAboveThresholdVariable, PLearn::CutBelowThresholdVariable, PLearn::DeterminantVariable, PLearn::DiagonalizedFactorsProductVariable, PLearn::DilogarithmVariable, PLearn::DivVariable, PLearn::DotProductVariable, PLearn::DuplicateColumnVariable, PLearn::DuplicateRowVariable, PLearn::DuplicateScalarVariable, PLearn::ElementAtPositionVariable, PLearn::EqualConstantVariable, PLearn::EqualScalarVariable, PLearn::EqualVariable, PLearn::ErfVariable, PLearn::AdditiveGaussianNoiseVariable, PLearn::BernoulliSampleVariable, PLearn::ConstrainedSourceVariable, PLearn::ConstrainVariable, PLearn::Cov2CorrVariable, PLearn::DiagVariable, PLearn::DoubleProductVariable, PLearn::LinearCombinationOfScalarVariables, PLearn::LogSoftSoftMaxVariable, PLearn::MultiMaxVariable, PLearn::MultiSampleVariable, PLearn::NonDiagVariable, PLearn::ProbabilityPairsInverseVariable, PLearn::ProbabilityPairsVariable, PLearn::RandomForcedValuesVariable, PLearn::SaltPepperNoiseVariable, PLearn::SoftSoftMaxVariable, PLearn::SumEntropyOfBernoullis, PLearn::SumEntropyOfCategoricals, PLearn::SumVarianceOfLinearTransformedBernoullis, PLearn::SumVarianceOfLinearTransformedCategoricals, PLearn::TimesConstantScalarVariable2, PLearn::TraceVariable, PLearn::TransposedDoubleProductVariable, PLearn::ExpVariable, PLearn::ExtendedVariable, PLearn::ExtractVariable, PLearn::FNetLayerVariable, PLearn::GaussianProcessNLLVariable, PLearn::GradientAdaboostCostVariable, PLearn::HardSlopeVariable, PLearn::HeterogenuousAffineTransformVariable, PLearn::HeterogenuousAffineTransformWeightPenalty, PLearn::IdentityVariable, PLearn::IfThenElseVariable, PLearn::IndexAtPositionVariable, PLearn::InsertZerosVariable, PLearn::InterValuesVariable, PLearn::InvertElementsVariable, PLearn::IsAboveThresholdVariable, PLearn::IsLargerVariable, PLearn::IsMissingVariable, PLearn::IsSmallerVariable, PLearn::LeftPseudoInverseVariable, PLearn::LiftOutputVariable, PLearn::LocalizedFeaturesLayerVariable, PLearn::LogAddVariable, PLearn::LogSoftmaxVariable, PLearn::LogSumVariable, PLearn::LogVariable, PLearn::MarginPerceptronCostVariable, PLearn::MatrixAffineTransformFeedbackVariable, PLearn::MatrixAffineTransformVariable, PLearn::MatrixElementsVariable, PLearn::MatrixInverseVariable, PLearn::MatrixOneHotSquaredLoss, PLearn::MatrixSoftmaxLossVariable, PLearn::MatrixSoftmaxVariable, PLearn::MatrixSumOfVariable, PLearn::MatRowVariable, PLearn::Max2Variable, PLearn::MaxVariable, PLearn::Min2Variable, PLearn::MiniBatchClassificationLossVariable, PLearn::MinusColumnVariable, PLearn::MinusRowVariable, PLearn::MinusScalarVariable, PLearn::MinusTransposedColumnVariable, PLearn::MinusVariable, PLearn::MinVariable, PLearn::MulticlassLossVariable, PLearn::NaryVariable, PLearn::NegateElementsVariable, PLearn::NegCrossEntropySigmoidVariable, PLearn::NegLogPoissonVariable, PLearn::NllGeneralGaussianVariable, PLearn::NllSemisphericalGaussianVariable, PLearn::NoBpropVariable, PLearn::ObjectOptionVariable, PLearn::OneHotSquaredLoss, PLearn::OneHotVariable, PLearn::OutputVariable, PLearn::PDistributionVariable, PLearn::PLogPVariable, PLearn::PlusColumnVariable, PLearn::PlusConstantVariable, PLearn::PlusManyVariable, PLearn::PlusRowVariable, PLearn::PlusScalarVariable, PLearn::PlusVariable, PLearn::PotentialsVariable, PLearn::PowVariable, PLearn::PowVariableVariable, PLearn::ProductTransposeVariable, PLearn::ProductVariable, PLearn::ProjectionErrorVariable, PLearn::ReIndexedTargetVariable, PLearn::ReshapeVariable, PLearn::RightPseudoInverseVariable, PLearn::RowAtPositionVariable, PLearn::RowOfVariable, PLearn::RowSumSquareVariable, PLearn::RowSumVariable, PLearn::SemiSupervisedProbClassCostVariable, PLearn::SigmoidVariable, PLearn::SignVariable, PLearn::SoftmaxLossVariable, PLearn::SoftmaxVariable, PLearn::SoftplusVariable, PLearn::SoftSlopeIntegralVariable, PLearn::SoftSlopeVariable, PLearn::SourceVariable, PLearn::SparseIncrementalAffineTransformVariable, PLearn::SquareRootVariable, PLearn::SquareVariable, PLearn::SubMatTransposeVariable, PLearn::SubMatVariable, PLearn::SubsampleVariable, PLearn::SumAbsVariable, PLearn::SumOfVariable, PLearn::SumOverBagsVariable, PLearn::SumSquareVariable, PLearn::SumVariable, PLearn::SVDVariable, PLearn::TanhVariable, PLearn::ThresholdBpropVariable, PLearn::TimesColumnVariable, PLearn::TimesConstantVariable, PLearn::TimesRowVariable, PLearn::TimesScalarVariable, PLearn::TimesVariable, PLearn::TransposeProductVariable, PLearn::TransposeVariable, PLearn::UnaryHardSlopeVariable, PLearn::UnaryVariable, PLearn::UnequalConstantVariable, PLearn::UnfoldedFuncVariable, PLearn::UnfoldedSumOfVariable, PLearn::VarArrayElementVariable, PLearn::VarColumnsVariable, PLearn::VarElementVariable, PLearn::VarRowsVariable, PLearn::VarRowVariable, PLearn::VecElementVariable, PLearn::WeightedSumSquareVariable, PLearn::NLLNeighborhoodWeightsVariable, PLearn::RunICPVariable, PLearn::ScoreLayerVariable, and PLearn::WeightedLogGaussian.

Definition at line 206 of file Variable.h.

only if this is true then the following two fields are used.

Definition at line 140 of file Variable.h.

Referenced by update(), updateAndClear(), and updateWithWeightDecay().

optionally computed second derivative (see bbprop methods)

Definition at line 157 of file Variable.h.

Referenced by clearDiagHessian(), makePointTo(), and resizeDiagHessian().

if true, children are encouraged not to bprop gradient in this var (saves computation time)

Definition at line 160 of file Variable.h.

symbolic gradient used for symbolicBprop

Definition at line 156 of file Variable.h.

Referenced by accg(), PLearn::TraceVariable::bprop(), PLearn::ConstrainVariable::bprop(), makeDeepCopyFromShallowCopy(), PLearn::WeightedSumSquareVariable::symbolicBprop(), PLearn::VarRowVariable::symbolicBprop(), PLearn::VarElementVariable::symbolicBprop(), PLearn::VarArrayElementVariable::symbolicBprop(), PLearn::TransposeProductVariable::symbolicBprop(), PLearn::TimesVariable::symbolicBprop(), PLearn::TimesScalarVariable::symbolicBprop(), PLearn::TimesRowVariable::symbolicBprop(), PLearn::TimesConstantVariable::symbolicBprop(), PLearn::TimesConstantScalarVariable2::symbolicBprop(), PLearn::TimesColumnVariable::symbolicBprop(), PLearn::TanhVariable::symbolicBprop(), PLearn::SumVariable::symbolicBprop(), PLearn::SumSquareVariable::symbolicBprop(), PLearn::SumAbsVariable::symbolicBprop(), PLearn::SubMatVariable::symbolicBprop(), PLearn::SubMatTransposeVariable::symbolicBprop(), PLearn::SquareVariable::symbolicBprop(), PLearn::SoftplusVariable::symbolicBprop(), PLearn::SoftmaxLossVariable::symbolicBprop(), PLearn::SigmoidVariable::symbolicBprop(), PLearn::RowSumVariable::symbolicBprop(), PLearn::RowAtPositionVariable::symbolicBprop(), PLearn::ReshapeVariable::symbolicBprop(), PLearn::ProductVariable::symbolicBprop(), PLearn::ProductTransposeVariable::symbolicBprop(), PLearn::PowVariableVariable::symbolicBprop(), PLearn::PowVariable::symbolicBprop(), PLearn::PlusVariable::symbolicBprop(), PLearn::PlusScalarVariable::symbolicBprop(), PLearn::PlusRowVariable::symbolicBprop(), PLearn::PlusConstantVariable::symbolicBprop(), PLearn::PlusColumnVariable::symbolicBprop(), PLearn::PLogPVariable::symbolicBprop(), PLearn::OneHotSquaredLoss::symbolicBprop(), PLearn::NegateElementsVariable::symbolicBprop(), PLearn::MinVariable::symbolicBprop(), PLearn::MinusVariable::symbolicBprop(), PLearn::MinusTransposedColumnVariable::symbolicBprop(), PLearn::MinusScalarVariable::symbolicBprop(), PLearn::MinusRowVariable::symbolicBprop(), PLearn::MinusColumnVariable::symbolicBprop(), PLearn::Min2Variable::symbolicBprop(), PLearn::MaxVariable::symbolicBprop(), PLearn::Max2Variable::symbolicBprop(), PLearn::LogVariable::symbolicBprop(), PLearn::LogSumVariable::symbolicBprop(), PLearn::LogAddVariable::symbolicBprop(), PLearn::InvertElementsVariable::symbolicBprop(), PLearn::InterValuesVariable::symbolicBprop(), PLearn::IndexAtPositionVariable::symbolicBprop(), PLearn::IfThenElseVariable::symbolicBprop(), PLearn::ExtendedVariable::symbolicBprop(), PLearn::ExpVariable::symbolicBprop(), PLearn::ErfVariable::symbolicBprop(), PLearn::ElementAtPositionVariable::symbolicBprop(), PLearn::DuplicateScalarVariable::symbolicBprop(), PLearn::DuplicateRowVariable::symbolicBprop(), PLearn::DuplicateColumnVariable::symbolicBprop(), PLearn::DotProductVariable::symbolicBprop(), PLearn::DivVariable::symbolicBprop(), PLearn::CutBelowThresholdVariable::symbolicBprop(), PLearn::CutAboveThresholdVariable::symbolicBprop(), PLearn::ConcatRowsVariable::symbolicBprop(), PLearn::ConcatColumnsVariable::symbolicBprop(), PLearn::ColumnSumVariable::symbolicBprop(), PLearn::ColumnIndexVariable::symbolicBprop(), and PLearn::AbsVariable::symbolicBprop().

Definition at line 146 of file Variable.h.

Referenced by PLearn::SparseIncrementalAffineTransformVariable::bprop(), PLearn::SumVarianceOfLinearTransformedBernoullis::bprop(), PLearn::GaussianProcessNLLVariable::bprop(), PLearn::PotentialsVariable::bprop(), PLearn::DiagVariable::bprop(), PLearn::AffineTransformVariable::bprop(), PLearn::HeterogenuousAffineTransformVariable::bprop(), PLearn::ProjectionErrorVariable::bprop(), PLearn::VarRowVariable::bprop(), PLearn::IfThenElseVariable::bprop(), PLearn::NllGeneralGaussianVariable::bprop(), PLearn::RandomForcedValuesVariable::bprop(), PLearn::BiasWeightAffineTransformVariable::bprop(), PLearn::Min2Variable::bprop(), PLearn::UnfoldedSumOfVariable::bprop(), PLearn::NonDiagVariable::bprop(), PLearn::Max2Variable::bprop(), PLearn::SaltPepperNoiseVariable::bprop(), PLearn::NegLogPoissonVariable::bprop(), PLearn::NllSemisphericalGaussianVariable::bprop(), PLearn::SumVarianceOfLinearTransformedCategoricals::bprop(), PLearn::DiagonalizedFactorsProductVariable::bprop(), PLearn::LogAddVariable::bprop(), PLearn::SumOverBagsVariable::build_(), defineGradientLocation(), defineValueLocation(), PLearn::CCCostVariable::fbprop(), PLearn::ConcatOfVariable::fbprop(), PLearn::MatrixSumOfVariable::fbprop(), PLearn::SumOfVariable::fbprop(), PLearn::SumOverBagsVariable::fbprop(), makeDeepCopyFromShallowCopy(), makePointTo(), makeSharedGradient(), PLearn::UnfoldedSumOfVariable::printInfo(), PLearn::MatrixSumOfVariable::printInfo(), PLearn::CCCostVariable::printInfo(), PLearn::SumOverBagsVariable::printInfo(), PLearn::SumOfVariable::printInfo(), PLearn::UnfoldedFuncVariable::printInfo(), resize(), updateAndClear(), and Variable().

0: no gradient was accumulated, 1: to some rows, 2: everywhere.

Definition at line 141 of file Variable.h.

Referenced by update(), updateAndClear(), and updateWithWeightDecay().

set to gradient.data()

Definition at line 154 of file Variable.h.

Referenced by PLearn::SquareVariable::bbprop(), PLearn::SigmoidVariable::bbprop(), PLearn::ConcatColumnsVariable::bprop(), PLearn::ExtractVariable::bprop(), PLearn::PlusScalarVariable::bprop(), PLearn::SoftSlopeIntegralVariable::bprop(), PLearn::SumEntropyOfBernoullis::bprop(), PLearn::VarElementVariable::bprop(), PLearn::AbsVariable::bprop(), PLearn::ExpVariable::bprop(), PLearn::MatrixOneHotSquaredLoss::bprop(), PLearn::MatrixSoftmaxLossVariable::bprop(), PLearn::MinusScalarVariable::bprop(), PLearn::NoBpropVariable::bprop(), PLearn::ReshapeVariable::bprop(), PLearn::TimesScalarVariable::bprop(), PLearn::DivVariable::bprop(), PLearn::IndexAtPositionVariable::bprop(), PLearn::LogSumVariable::bprop(), PLearn::MinusTransposedColumnVariable::bprop(), PLearn::PlusColumnVariable::bprop(), PLearn::SumAbsVariable::bprop(), PLearn::CrossEntropyVariable::bprop(), PLearn::DotProductVariable::bprop(), PLearn::InterValuesVariable::bprop(), PLearn::SoftplusVariable::bprop(), PLearn::SubMatTransposeVariable::bprop(), PLearn::DuplicateScalarVariable::bprop(), PLearn::HardSlopeVariable::bprop(), PLearn::HeterogenuousAffineTransformVariable::bprop(), PLearn::MaxVariable::bprop(), PLearn::TanhVariable::bprop(), PLearn::TimesRowVariable::bprop(), PLearn::WeightedLogGaussian::bprop(), PLearn::ConcatRowsVariable::bprop(), PLearn::SoftmaxVariable::bprop(), PLearn::VarArrayElementVariable::bprop(), PLearn::ColumnIndexVariable::bprop(), PLearn::DuplicateColumnVariable::bprop(), PLearn::ErfVariable::bprop(), PLearn::MinVariable::bprop(), PLearn::ThresholdBpropVariable::bprop(), PLearn::WeightedSumSquareVariable::bprop(), PLearn::IfThenElseVariable::bprop(), PLearn::PlusManyVariable::bprop(), PLearn::PowVariableVariable::bprop(), PLearn::DilogarithmVariable::bprop(), PLearn::ElementAtPositionVariable::bprop(), PLearn::LiftOutputVariable::bprop(), PLearn::LinearCombinationOfScalarVariables::bprop(), PLearn::RandomForcedValuesVariable::bprop(), PLearn::ScoreLayerVariable::bprop(), PLearn::SoftSlopeVariable::bprop(), PLearn::SubMatVariable::bprop(), PLearn::SumVariable::bprop(), PLearn::CutAboveThresholdVariable::bprop(), PLearn::CutBelowThresholdVariable::bprop(), PLearn::LocalizedFeaturesLayerVariable::bprop(), PLearn::NegCrossEntropySigmoidVariable::bprop(), PLearn::RowSumVariable::bprop(), PLearn::SumSquareVariable::bprop(), PLearn::ConfRatedAdaboostCostVariable::bprop(), PLearn::OneHotSquaredLoss::bprop(), PLearn::OutputVariable::bprop(), PLearn::SumEntropyOfCategoricals::bprop(), PLearn::TimesVariable::bprop(), PLearn::ArgminOfVariable::bprop(), PLearn::ColumnSumVariable::bprop(), PLearn::PowVariable::bprop(), PLearn::RowSumSquareVariable::bprop(), PLearn::InvertElementsVariable::bprop(), PLearn::LogVariable::bprop(), PLearn::MinusColumnVariable::bprop(), PLearn::PlusVariable::bprop(), PLearn::SaltPepperNoiseVariable::bprop(), PLearn::SemiSupervisedProbClassCostVariable::bprop(), PLearn::SoftmaxLossVariable::bprop(), PLearn::DuplicateRowVariable::bprop(), PLearn::PLogPVariable::bprop(), PLearn::PlusConstantVariable::bprop(), PLearn::SigmoidVariable::bprop(), PLearn::TimesColumnVariable::bprop(), PLearn::TimesConstantVariable::bprop(), PLearn::TransposeVariable::bprop(), PLearn::FNetLayerVariable::bprop(), PLearn::GradientAdaboostCostVariable::bprop(), PLearn::IdentityVariable::bprop(), PLearn::LogSoftmaxVariable::bprop(), PLearn::MarginPerceptronCostVariable::bprop(), PLearn::SquareRootVariable::bprop(), PLearn::MinusRowVariable::bprop(), PLearn::MinusVariable::bprop(), PLearn::NegateElementsVariable::bprop(), PLearn::SquareVariable::bprop(), PLearn::TimesConstantScalarVariable2::bprop(), PLearn::ExtendedVariable::bprop(), PLearn::HeterogenuousAffineTransformWeightPenalty::bprop(), PLearn::PlusRowVariable::bprop(), PLearn::UnaryHardSlopeVariable::bprop(), defineGradientLocation(), defineValueLocation(), PLearn::SumOfVariable::fbprop(), makeDeepCopyFromShallowCopy(), makePointTo(), makeSharedGradient(), resize(), updateAndClear(), and Variable().

optionally computed second derivative (see bbprop methods)

Definition at line 151 of file Variable.h.

Referenced by makePointTo(), and resizeDiagHessian().

Definition at line 148 of file Variable.h.

Referenced by PLearn::TransposeProductVariable::bbprop(), PLearn::ProductVariable::bbprop(), PLearn::ProductTransposeVariable::bbprop(), PLearn::ConvolveVariable::bprop(), PLearn::SoftSoftMaxVariable::bprop(), PLearn::ProductTransposeVariable::bprop(), PLearn::TransposeProductVariable::bprop(), PLearn::ProductVariable::bprop(), PLearn::MatrixSoftmaxVariable::bprop(), PLearn::ProbabilityPairsInverseVariable::bprop(), PLearn::MultiMaxVariable::bprop(), PLearn::VarColumnsVariable::bprop(), PLearn::WeightedLogGaussian::bprop(), PLearn::LogSoftSoftMaxVariable::bprop(), PLearn::MatrixElementsVariable::bprop(), PLearn::ConstrainVariable::bprop(), PLearn::InsertZerosVariable::bprop(), PLearn::NllGeneralGaussianVariable::bprop(), PLearn::DoubleProductVariable::bprop(), PLearn::ProbabilityPairsVariable::bprop(), PLearn::RowAtPositionVariable::bprop(), PLearn::UnfoldedFuncVariable::bprop(), PLearn::Cov2CorrVariable::bprop(), PLearn::VarRowsVariable::bprop(), PLearn::SubsampleVariable::bprop(), PLearn::FNetLayerVariable::bprop(), PLearn::TraceVariable::bprop(), PLearn::TransposedDoubleProductVariable::bprop(), PLearn::NllSemisphericalGaussianVariable::bprop(), PLearn::DiagonalizedFactorsProductVariable::bprop(), PLearn::UnaryVariable::checkContiguity(), defineGradientLocation(), defineValueLocation(), PLearn::MatrixElementsVariable::fbprop(), makeDeepCopyFromShallowCopy(), makePointTo(), makeSharedGradient(), resize(), update(), updateAndClear(), updateWithWeightDecay(), and Variable().

Definition at line 147 of file Variable.h.

Referenced by PLearn::ConcatColumnsVariable::bprop(), PLearn::MatrixSoftmaxVariable::bprop(), PLearn::MultiMaxVariable::bprop(), PLearn::WeightedLogGaussian::bprop(), PLearn::LogSoftSoftMaxVariable::bprop(), PLearn::Cov2CorrVariable::bprop(), PLearn::FNetLayerVariable::bprop(), PLearn::DiagonalizedFactorsProductVariable::bprop(), PLearn::ObjectOptionVariable::build_(), PLearn::FNetLayerVariable::build_(), PLearn::UnaryVariable::checkContiguity(), defineGradientLocation(), defineValueLocation(), PLearn::MatrixElementsVariable::fbprop(), PLearn::HeterogenuousAffineTransformVariable::fprop(), PLearn::MultiMaxVariable::fprop(), PLearn::RunICPVariable::fprop(), PLearn::SubsampleVariable::fprop(), PLearn::FNetLayerVariable::fprop(), PLearn::TransposedDoubleProductVariable::fprop(), PLearn::MatrixElementsVariable::fprop(), PLearn::DiagonalizedFactorsProductVariable::fprop(), PLearn::InsertZerosVariable::fprop(), PLearn::LeftPseudoInverseVariable::fprop(), PLearn::MultiSampleVariable::fprop(), PLearn::ConcatColumnsVariable::fprop(), PLearn::DoubleProductVariable::fprop(), PLearn::MatrixInverseVariable::fprop(), PLearn::ProbabilityPairsVariable::fprop(), PLearn::RightPseudoInverseVariable::fprop(), PLearn::RowOfVariable::fprop(), PLearn::UnfoldedFuncVariable::fprop(), PLearn::MatrixSoftmaxVariable::fprop(), PLearn::ProbabilityPairsInverseVariable::fprop(), PLearn::VarColumnsVariable::fprop(), PLearn::WeightedLogGaussian::fprop(), PLearn::LogSoftSoftMaxVariable::fprop(), PLearn::TraceVariable::fprop(), PLearn::ConstrainVariable::fprop(), PLearn::ConvolveVariable::fprop(), PLearn::SoftSoftMaxVariable::fprop(), PLearn::ProductTransposeVariable::fprop(), PLearn::RowAtPositionVariable::fprop(), PLearn::TransposeProductVariable::fprop(), PLearn::Cov2CorrVariable::fprop(), PLearn::ObjectOptionVariable::fprop(), PLearn::ProductVariable::fprop(), PLearn::VarRowsVariable::fprop(), makeDeepCopyFromShallowCopy(), makePointTo(), makeSharedValue(), PLearn::SourceVariable::randomInitialize(), resize(), setValueSubMat(), update(), updateAndClear(), updateWithWeightDecay(), and Variable().

box constraints on values

Reimplemented in PLearn::UniformSampleVariable.

Definition at line 155 of file Variable.h.

Referenced by PLearn::ConstrainVariable::bprop(), maxUpdate(), update(), and updateAndClear().

Reimplemented in PLearn::UniformSampleVariable.

Definition at line 155 of file Variable.h.

Referenced by PLearn::ConstrainVariable::bprop(), maxUpdate(), update(), and updateAndClear().

keeps track of how many vars have been created (also used for the default naming scheme, see getName() )

Definition at line 133 of file Variable.h.

Referenced by PLearn::displayVarGraph(), and PLearn::OldDisplayVarGraph().

the list of rows to update.

Definition at line 142 of file Variable.h.

Referenced by PLearn::SourceVariable::makeDeepCopyFromShallowCopy(), makePointTo(), update(), updateAndClear(), and updateWithWeightDecay().

Definition at line 149 of file Variable.h.

Referenced by PLearn::SquareRootVariable::bprop(), makePointTo(), makeSharedRValue(), resizeRValue(), PLearn::ExtendedVariable::rfprop(), PLearn::SubMatVariable::rfprop(), PLearn::SoftmaxLossVariable::rfprop(), PLearn::TimesRowVariable::rfprop(), PLearn::PlusScalarVariable::rfprop(), PLearn::SumOfVariable::rfprop(), PLearn::LogVariable::rfprop(), PLearn::ElementAtPositionVariable::rfprop(), PLearn::MinusScalarVariable::rfprop(), PLearn::RowAtPositionVariable::rfprop(), PLearn::VarRowVariable::rfprop(), PLearn::TimesColumnVariable::rfprop(), PLearn::ProductVariable::rfprop(), PLearn::IfThenElseVariable::rfprop(), PLearn::SigmoidVariable::rfprop(), PLearn::TimesConstantVariable::rfprop(), PLearn::TimesScalarVariable::rfprop(), PLearn::ConcatRowsVariable::rfprop(), PLearn::NegateElementsVariable::rfprop(), PLearn::SubMatTransposeVariable::rfprop(), PLearn::AbsVariable::rfprop(), PLearn::InvertElementsVariable::rfprop(), PLearn::ProductTransposeVariable::rfprop(), PLearn::DivVariable::rfprop(), PLearn::PlusColumnVariable::rfprop(), PLearn::TimesConstantScalarVariable2::rfprop(), PLearn::DotProductVariable::rfprop(), PLearn::OneHotVariable::rfprop(), PLearn::SumVariable::rfprop(), PLearn::ExpVariable::rfprop(), PLearn::IsAboveThresholdVariable::rfprop(), PLearn::PlusConstantVariable::rfprop(), PLearn::SquareVariable::rfprop(), PLearn::TransposeProductVariable::rfprop(), PLearn::VarElementVariable::rfprop(), PLearn::SoftmaxVariable::rfprop(), PLearn::TanhVariable::rfprop(), and PLearn::PlusRowVariable::rfprop().

Definition at line 145 of file Variable.h.

Referenced by PLearn::NllSemisphericalGaussianVariable::bprop(), PLearn::LogAddVariable::bprop(), PLearn::DiagonalizedFactorsProductVariable::bprop(), PLearn::ObjectOptionVariable::build_(), PLearn::LocalizedFeaturesLayerVariable::build_(), defineGradientLocation(), defineValueLocation(), PLearn::SumOverBagsVariable::fbprop(), PLearn::SumOfVariable::fbprop(), PLearn::MatrixSumOfVariable::fbprop(), PLearn::ConcatOfVariable::fbprop(), PLearn::WeightedLogGaussian::fprop(), PLearn::VarRowVariable::fprop(), PLearn::UnfoldedSumOfVariable::fprop(), PLearn::SVDVariable::fprop(), PLearn::SumVarianceOfLinearTransformedCategoricals::fprop(), PLearn::SumVarianceOfLinearTransformedBernoullis::fprop(), PLearn::SumOverBagsVariable::fprop(), PLearn::SumOfVariable::fprop(), PLearn::SparseIncrementalAffineTransformVariable::fprop(), PLearn::SoftmaxVariable::fprop(), PLearn::SaltPepperNoiseVariable::fprop(), PLearn::RowSumVariable::fprop(), PLearn::RowSumSquareVariable::fprop(), PLearn::RowAtPositionVariable::fprop(), PLearn::RandomForcedValuesVariable::fprop(), PLearn::ProjectionErrorVariable::fprop(), PLearn::PotentialsVariable::fprop(), PLearn::PDistributionVariable::fprop(), PLearn::OneHotVariable::fprop(), PLearn::ObjectOptionVariable::fprop(), PLearn::NonDiagVariable::fprop(), PLearn::NllSemisphericalGaussianVariable::fprop(), PLearn::NllGeneralGaussianVariable::fprop(), PLearn::Min2Variable::fprop(), PLearn::Max2Variable::fprop(), PLearn::MatRowVariable::fprop(), PLearn::MatrixSumOfVariable::fprop(), PLearn::LogSoftmaxVariable::fprop(), PLearn::LogAddVariable::fprop(), PLearn::IndexAtPositionVariable::fprop(), PLearn::IfThenElseVariable::fprop(), PLearn::GaussianProcessNLLVariable::fprop(), PLearn::ElementAtPositionVariable::fprop(), PLearn::DiagVariable::fprop(), PLearn::DiagonalizedFactorsProductVariable::fprop(), PLearn::ConcatOfVariable::fprop(), PLearn::ColumnSumVariable::fprop(), PLearn::CCCostVariable::fprop(), PLearn::BiasWeightAffineTransformVariable::fprop(), PLearn::ArgminOfVariable::fprop(), PLearn::AffineTransformVariable::fprop(), PLearn::AdditiveGaussianNoiseVariable::fprop(), PLearn::SumOverBagsVariable::fpropOneBag(), PLearn::GaussianProcessNLLVariable::logVarray(), makeDeepCopyFromShallowCopy(), makePointTo(), makeSharedValue(), oldread(), PLearn::UnfoldedSumOfVariable::printInfo(), PLearn::UnfoldedFuncVariable::printInfo(), PLearn::SumOverBagsVariable::printInfo(), PLearn::SumOfVariable::printInfo(), PLearn::MatrixSumOfVariable::printInfo(), PLearn::CCCostVariable::printInfo(), resize(), updateAndClear(), Variable(), and write().

Convenience variables.

Set to value.data()

Definition at line 153 of file Variable.h.

Referenced by PLearn::TanhVariable::bbprop(), PLearn::SigmoidVariable::bbprop(), PLearn::SoftSlopeIntegralVariable::bprop(), PLearn::ExpVariable::bprop(), PLearn::MatrixSoftmaxLossVariable::bprop(), PLearn::HeterogenuousAffineTransformVariable::bprop(), PLearn::MaxVariable::bprop(), PLearn::TanhVariable::bprop(), PLearn::SoftmaxVariable::bprop(), PLearn::MinVariable::bprop(), PLearn::IfThenElseVariable::bprop(), PLearn::PowVariableVariable::bprop(), PLearn::LocalizedFeaturesLayerVariable::bprop(), PLearn::ConfRatedAdaboostCostVariable::bprop(), PLearn::SoftmaxLossVariable::bprop(), PLearn::SigmoidVariable::bprop(), PLearn::FNetLayerVariable::bprop(), PLearn::LogSoftmaxVariable::bprop(), PLearn::NegLogPoissonVariable::bprop(), PLearn::HeterogenuousAffineTransformWeightPenalty::bprop(), PLearn::UnaryHardSlopeVariable::bprop(), PLearn::ExtendedVariable::build_(), defineGradientLocation(), defineValueLocation(), PLearn::DuplicateRowVariable::fprop(), PLearn::DuplicateScalarVariable::fprop(), PLearn::HardSlopeVariable::fprop(), PLearn::HeterogenuousAffineTransformVariable::fprop(), PLearn::MiniBatchClassificationLossVariable::fprop(), PLearn::PLogPVariable::fprop(), PLearn::MultinomialSampleVariable::fprop(), PLearn::DiagonalNormalSampleVariable::fprop(), PLearn::SigmoidVariable::fprop(), PLearn::TanhVariable::fprop(), PLearn::TimesConstantVariable::fprop(), PLearn::TimesRowVariable::fprop(), PLearn::TransposeVariable::fprop(), PLearn::DeterminantVariable::fprop(), PLearn::FNetLayerVariable::fprop(), PLearn::GradientAdaboostCostVariable::fprop(), PLearn::ArgminVariable::fprop(), PLearn::ColumnIndexVariable::fprop(), PLearn::DuplicateColumnVariable::fprop(), PLearn::MinusVariable::fprop(), PLearn::TimesConstantScalarVariable2::fprop(), PLearn::NLLNeighborhoodWeightsVariable::fprop(), PLearn::OneHotVariable::fprop(), PLearn::PlusRowVariable::fprop(), PLearn::ConcatColumnsVariable::fprop(), PLearn::DilogarithmVariable::fprop(), PLearn::EqualVariable::fprop(), PLearn::UniformSampleVariable::fprop(), PLearn::SumVariable::fprop(), PLearn::AbsVariable::fprop(), PLearn::AdditiveGaussianNoiseVariable::fprop(), PLearn::BinaryClassificationLossVariable::fprop(), PLearn::CutAboveThresholdVariable::fprop(), PLearn::LocalizedFeaturesLayerVariable::fprop(), PLearn::MatrixOneHotSquaredLoss::fprop(), PLearn::MatrixSoftmaxLossVariable::fprop(), PLearn::NoBpropVariable::fprop(), PLearn::ReshapeVariable::fprop(), PLearn::RowSumVariable::fprop(), PLearn::SignVariable::fprop(), PLearn::SumSquareVariable::fprop(), PLearn::DivVariable::fprop(), PLearn::IsLargerVariable::fprop(), PLearn::MinusTransposedColumnVariable::fprop(), PLearn::OutputVariable::fprop(), PLearn::SumAbsVariable::fprop(), PLearn::BernoulliSampleVariable::fprop(), PLearn::ColumnSumVariable::fprop(), PLearn::CrossEntropyVariable::fprop(), PLearn::DotProductVariable::fprop(), PLearn::InterValuesVariable::fprop(), PLearn::IsMissingVariable::fprop(), PLearn::PowVariable::fprop(), PLearn::RowSumSquareVariable::fprop(), PLearn::EqualConstantVariable::fprop(), PLearn::LogVariable::fprop(), PLearn::MaxVariable::fprop(), PLearn::MinusColumnVariable::fprop(), PLearn::PlusVariable::fprop(), PLearn::SaltPepperNoiseVariable::fprop(), PLearn::SoftmaxLossVariable::fprop(), PLearn::WeightedLogGaussian::fprop(), PLearn::ArgmaxVariable::fprop(), PLearn::ConcatRowsVariable::fprop(), PLearn::MulticlassLossVariable::fprop(), PLearn::PlusConstantVariable::fprop(), PLearn::ReIndexedTargetVariable::fprop(), PLearn::TimesColumnVariable::fprop(), PLearn::VarArrayElementVariable::fprop(), PLearn::ErfVariable::fprop(), PLearn::IdentityVariable::fprop(), PLearn::IsAboveThresholdVariable::fprop(), PLearn::IsSmallerVariable::fprop(), PLearn::MarginPerceptronCostVariable::fprop(), PLearn::MinVariable::fprop(), PLearn::NegLogPoissonVariable::fprop(), PLearn::SquareRootVariable::fprop(), PLearn::ThresholdBpropVariable::fprop(), PLearn::WeightedSumSquareVariable::fprop(), PLearn::IfThenElseVariable::fprop(), PLearn::MinusRowVariable::fprop(), PLearn::NegateElementsVariable::fprop(), PLearn::PlusManyVariable::fprop(), PLearn::PowVariableVariable::fprop(), PLearn::SquareVariable::fprop(), PLearn::ElementAtPositionVariable::fprop(), PLearn::ExtendedVariable::fprop(), PLearn::HeterogenuousAffineTransformWeightPenalty::fprop(), PLearn::LiftOutputVariable::fprop(), PLearn::LinearCombinationOfScalarVariables::fprop(), PLearn::RandomForcedValuesVariable::fprop(), PLearn::ScoreLayerVariable::fprop(), PLearn::SoftSlopeVariable::fprop(), PLearn::SubMatVariable::fprop(), PLearn::UnaryHardSlopeVariable::fprop(), PLearn::CutBelowThresholdVariable::fprop(), PLearn::ExtractVariable::fprop(), PLearn::NegCrossEntropySigmoidVariable::fprop(), PLearn::PlusScalarVariable::fprop(), PLearn::SoftSlopeIntegralVariable::fprop(), PLearn::SumEntropyOfBernoullis::fprop(), PLearn::VarElementVariable::fprop(), PLearn::VecElementVariable::fprop(), PLearn::ClassificationLossVariable::fprop(), PLearn::ConfRatedAdaboostCostVariable::fprop(), PLearn::ExpVariable::fprop(), PLearn::MinusScalarVariable::fprop(), PLearn::OneHotSquaredLoss::fprop(), PLearn::SumEntropyOfCategoricals::fprop(), PLearn::TimesScalarVariable::fprop(), PLearn::TimesVariable::fprop(), PLearn::EqualScalarVariable::fprop(), PLearn::IndexAtPositionVariable::fprop(), PLearn::LogSumVariable::fprop(), PLearn::PlusColumnVariable::fprop(), PLearn::UnequalConstantVariable::fprop(), PLearn::InvertElementsVariable::fprop(), PLearn::SemiSupervisedProbClassCostVariable::fprop(), PLearn::SoftplusVariable::fprop(), PLearn::SubMatTransposeVariable::fprop(), makeDeepCopyFromShallowCopy(), makePointTo(), makeSharedValue(), maxUpdate(), resize(), PLearn::SoftmaxLossVariable::rfprop(), PLearn::IfThenElseVariable::rfprop(), PLearn::SigmoidVariable::rfprop(), PLearn::InvertElementsVariable::rfprop(), PLearn::ExpVariable::rfprop(), PLearn::SoftmaxVariable::rfprop(), PLearn::TanhVariable::rfprop(), update(), updateAndClear(), and Variable().

string PLearn::Variable::varname [protected]

used when printing or drawing the var graph (see setName and getName)

Definition at line 138 of file Variable.h.

Referenced by PLearn::ScoreLayerVariable::declareOptions(), getName(), and setName().

number of this variable (the first one created is numbered 1, the second 2, etc...)

Definition at line 134 of file Variable.h.

Referenced by getName().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
