PLearn::RBMTruncExpLayer Class Reference

Layer in an RBM formed with binomial units. More...

#include <RBMTruncExpLayer.h>

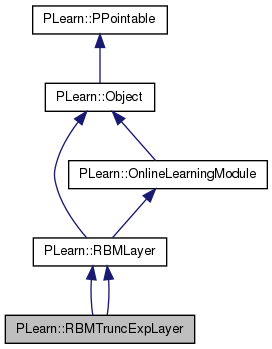

Inheritance diagram for PLearn::RBMTruncExpLayer:
Inheritance graph
[legend]

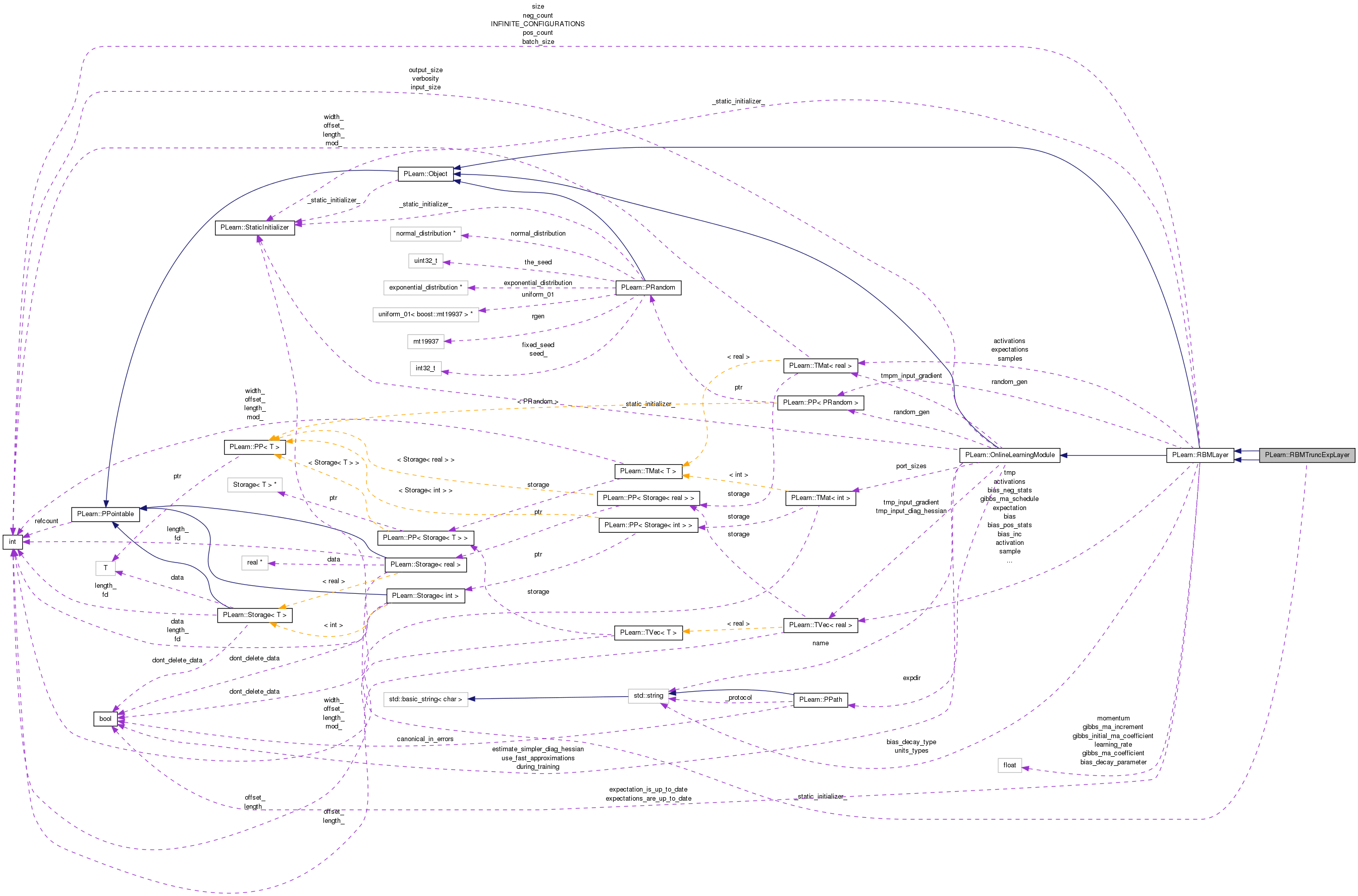

Collaboration diagram for PLearn::RBMTruncExpLayer:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 RBMTruncExpLayer ()
 Default constructor.
 RBMTruncExpLayer (int the_size)
 Constructor from the number of units.
virtual void getUnitActivations (int i, PP< RBMParameters > rbmp, int offset=0)
 Uses "rbmp" to obtain the activations of unit "i" of this layer.
virtual void getAllActivations (PP< RBMParameters > rbmp, int offset=0)
 Uses "rbmp" to obtain the activations of all units in this layer.
virtual void generateSample ()
 generate a sample, and update the sample field
virtual void computeExpectation ()
 compute the expectation
virtual void bpropUpdate (const Vec &input, const Vec &output, Vec &input_gradient, const Vec &output_gradient)
 back-propagates the output gradient to the input
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual RBMTruncExpLayerdeepCopy (CopiesMap &copies) const
virtual void build ()
 Post-constructor.
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.
 RBMTruncExpLayer (real the_learning_rate=0.)
 Default constructor.
 RBMTruncExpLayer (int the_size, real the_learning_rate=0.)
 Constructor from the number of units.
virtual void generateSample ()
 generate a sample, and update the sample field
virtual void generateSamples ()
 Generate a mini-batch set of samples.
virtual void computeExpectation ()
 compute the expectation
virtual void computeExpectations ()
 Not implemented.
virtual void fprop (const Vec &input, Vec &output) const
 forward propagation
virtual void bpropUpdate (const Vec &input, const Vec &output, Vec &input_gradient, const Vec &output_gradient, bool accumulate=false)
 back-propagates the output gradient to the input
virtual void bpropUpdate (const Mat &inputs, const Mat &outputs, Mat &input_gradients, const Mat &output_gradients, bool accumulate=false)
 Back-propagate the output gradient to the input, and update parameters.
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual RBMTruncExpLayerdeepCopy (CopiesMap &copies) const
virtual void build ()
 Post-constructor.
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.

Static Public Member Functions

static string _classname_ ()
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()
static string _classname_ ()
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Static Public Attributes

static StaticInitializer _static_initializer_

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declares the class options.
static void declareOptions (OptionList &ol)
 Declares the class options.

Private Types

typedef RBMLayer inherited
typedef RBMLayer inherited

Private Member Functions

void build_ ()
 This does the actual building.
void build_ ()
 This does the actual building.

Detailed Description

Layer in an RBM formed with binomial units.

Layer in an RBM formed with truncated exponential units.

Todo:
: yes
Deprecated:
Use ../RBMTruncExpLayer.h instead
Todo:
: yes

Definition at line 54 of file DEPRECATED/RBMTruncExpLayer.h.


Member Typedef Documentation

Reimplemented from PLearn::RBMLayer.

Definition at line 56 of file DEPRECATED/RBMTruncExpLayer.h.

Reimplemented from PLearn::RBMLayer.

Definition at line 55 of file RBMTruncExpLayer.h.


Constructor & Destructor Documentation

PLearn::RBMTruncExpLayer::RBMTruncExpLayer ( )

Default constructor.

Definition at line 51 of file DEPRECATED/RBMTruncExpLayer.cc.

{
}
PLearn::RBMTruncExpLayer::RBMTruncExpLayer ( int  the_size)

Constructor from the number of units.

Definition at line 55 of file DEPRECATED/RBMTruncExpLayer.cc.

References PLearn::TVec< T >::resize(), and PLearn::sample().

{
    size = the_size;
    units_types = string( the_size, 'l' );
    activations.resize( the_size );
    sample.resize( the_size );
    expectation.resize( the_size );
    expectation_is_up_to_date = false;
}

Here is the call graph for this function:

PLearn::RBMTruncExpLayer::RBMTruncExpLayer ( real  the_learning_rate = 0.)

Default constructor.

Definition at line 53 of file RBMTruncExpLayer.cc.

                                                           :
    inherited( the_learning_rate )
{
}
PLearn::RBMTruncExpLayer::RBMTruncExpLayer ( int  the_size,
real  the_learning_rate = 0.
)

Constructor from the number of units.

Definition at line 58 of file RBMTruncExpLayer.cc.

References PLearn::RBMLayer::activation, PLearn::RBMLayer::bias, PLearn::RBMLayer::bias_neg_stats, PLearn::RBMLayer::bias_pos_stats, PLearn::RBMLayer::expectation, PLearn::TVec< T >::resize(), PLearn::RBMLayer::sample, and PLearn::RBMLayer::size.

                                                                         :
    inherited( the_learning_rate )
{
    size = the_size;
    activation.resize( the_size );
    sample.resize( the_size );
    expectation.resize( the_size );
    bias.resize( the_size );
    bias_pos_stats.resize( the_size );
    bias_neg_stats.resize( the_size );
}

Here is the call graph for this function:


Member Function Documentation

string PLearn::RBMTruncExpLayer::_classname_ ( ) [static]

Reimplemented from PLearn::RBMLayer.

Definition at line 49 of file DEPRECATED/RBMTruncExpLayer.cc.

static string PLearn::RBMTruncExpLayer::_classname_ ( ) [static]

Reimplemented from PLearn::RBMLayer.

OptionList & PLearn::RBMTruncExpLayer::_getOptionList_ ( ) [static]

Reimplemented from PLearn::RBMLayer.

Definition at line 49 of file DEPRECATED/RBMTruncExpLayer.cc.

static OptionList& PLearn::RBMTruncExpLayer::_getOptionList_ ( ) [static]

Reimplemented from PLearn::RBMLayer.

static RemoteMethodMap& PLearn::RBMTruncExpLayer::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::RBMLayer.

RemoteMethodMap & PLearn::RBMTruncExpLayer::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::RBMLayer.

Definition at line 49 of file DEPRECATED/RBMTruncExpLayer.cc.

static bool PLearn::RBMTruncExpLayer::_isa_ ( const Object o) [static]

Reimplemented from PLearn::RBMLayer.

bool PLearn::RBMTruncExpLayer::_isa_ ( const Object o) [static]

Reimplemented from PLearn::RBMLayer.

Definition at line 49 of file DEPRECATED/RBMTruncExpLayer.cc.

static Object* PLearn::RBMTruncExpLayer::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Object * PLearn::RBMTruncExpLayer::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 49 of file DEPRECATED/RBMTruncExpLayer.cc.

StaticInitializer RBMTruncExpLayer::_static_initializer_ & PLearn::RBMTruncExpLayer::_static_initialize_ ( ) [static]

Reimplemented from PLearn::RBMLayer.

Definition at line 49 of file DEPRECATED/RBMTruncExpLayer.cc.

static void PLearn::RBMTruncExpLayer::_static_initialize_ ( ) [static]

Reimplemented from PLearn::RBMLayer.

void PLearn::RBMTruncExpLayer::bpropUpdate ( const Vec input,
const Vec output,
Vec input_gradient,
const Vec output_gradient
) [virtual]

back-propagates the output gradient to the input

Implements PLearn::RBMLayer.

Definition at line 120 of file DEPRECATED/RBMTruncExpLayer.cc.

References PLearn::exp(), i, PLASSERT, PLearn::TVec< T >::resize(), and PLearn::TVec< T >::size().

{
    PLASSERT( input.size() == size );
    PLASSERT( output.size() == size );
    PLASSERT( output_gradient.size() == size );
    input_gradient.resize( size );

    // df/da = exp(a)/(1-exp(a))^2 - 1/a^2

    for( int i=0 ; i<size ; i++ )
    {
        real a_i = input[i];
        real ea_i = exp( a_i );
        input_gradient[i] = ea_i/( (1 - ea_i) * (1 - ea_i) ) + 1/(a_i * a_i);
    }
}

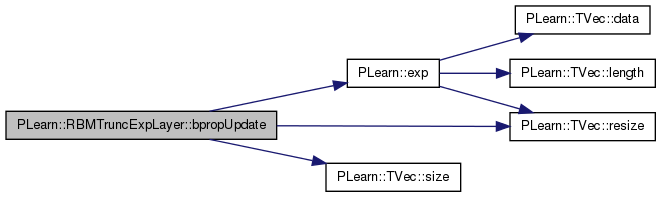

Here is the call graph for this function:

void PLearn::RBMTruncExpLayer::bpropUpdate ( const Vec input,
const Vec output,
Vec input_gradient,
const Vec output_gradient,
bool  accumulate = false
) [virtual]

back-propagates the output gradient to the input

Implements PLearn::RBMLayer.

Definition at line 194 of file RBMTruncExpLayer.cc.

References PLearn::RBMLayer::applyBiasDecay(), PLearn::RBMLayer::bias, PLearn::RBMLayer::bias_inc, PLearn::TVec< T >::clear(), PLearn::exp(), i, PLearn::RBMLayer::learning_rate, PLearn::RBMLayer::momentum, PLASSERT, PLASSERT_MSG, PLearn::TVec< T >::resize(), PLearn::RBMLayer::size, and PLearn::TVec< T >::size().

{
    PLASSERT( input.size() == size );
    PLASSERT( output.size() == size );
    PLASSERT( output_gradient.size() == size );

    if( accumulate )
    {
        PLASSERT_MSG( input_gradient.size() == size,
                      "Cannot resize input_gradient AND accumulate into it" );
    }
    else
    {
        input_gradient.resize( size );
        input_gradient.clear();
    }

    if( momentum != 0. )
        bias_inc.resize( size );

    // df/da = exp(a)/(1-exp(a))^2 - 1/a^2

    for( int i=0 ; i<size ; i++ )
    {
        real a_i = input[i] + bias[i];
        real in_grad_i;

        // Polynomial approximation to avoid numerical instability
        // df/da = -1/12 + a^2/240 + O(a^4)
        if( fabs( a_i ) <= 0.01 )
        {
            in_grad_i = output_gradient[i] * ( -1./12. + a_i * a_i / 240. );
        }
        else
        {
            real ea_i = exp( a_i );
            in_grad_i = output_gradient[i] * (
                ea_i/( (1 - ea_i) * (1 - ea_i) ) + 1/(a_i * a_i) );
        }

        input_gradient[i] += in_grad_i;

        if( momentum == 0. )
        {
            // update the bias: bias -= learning_rate * input_gradient
            bias[i] -= learning_rate * in_grad_i;
        }
        else
        {
            // The update rule becomes:
            // bias_inc = momentum * bias_inc - learning_rate * input_gradient
            // bias += bias_inc
            bias_inc[i] = momentum * bias_inc[i] - learning_rate * in_grad_i;
            bias[i] += bias_inc[i];
        }
    }

    applyBiasDecay();
}

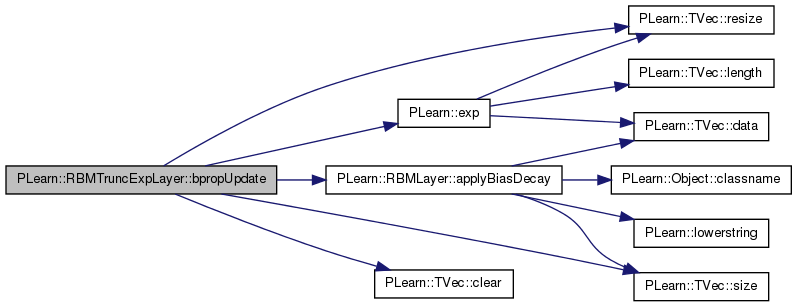

Here is the call graph for this function:

virtual void PLearn::RBMTruncExpLayer::bpropUpdate ( const Mat inputs,
const Mat outputs,
Mat input_gradients,
const Mat output_gradients,
bool  accumulate = false
) [inline, virtual]

Back-propagate the output gradient to the input, and update parameters.

Implements PLearn::RBMLayer.

Definition at line 92 of file RBMTruncExpLayer.h.

References PLASSERT_MSG.

    {
        PLASSERT_MSG(false, "Not implemented");
    }
void PLearn::RBMTruncExpLayer::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::RBMLayer.

Definition at line 165 of file DEPRECATED/RBMTruncExpLayer.cc.

virtual void PLearn::RBMTruncExpLayer::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::RBMLayer.

void PLearn::RBMTruncExpLayer::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::RBMLayer.

Definition at line 152 of file DEPRECATED/RBMTruncExpLayer.cc.

References PLearn::TVec< T >::resize(), and PLearn::sample().

{
    if( size < 0 )
        size = int(units_types.size());
    if( size != (int) units_types.size() )
        units_types = string( size, 'l' );

    activations.resize( size );
    sample.resize( size );
    expectation.resize( size );
    expectation_is_up_to_date = false;
}

Here is the call graph for this function:

void PLearn::RBMTruncExpLayer::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::RBMLayer.

string PLearn::RBMTruncExpLayer::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 49 of file DEPRECATED/RBMTruncExpLayer.cc.

virtual string PLearn::RBMTruncExpLayer::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

void PLearn::RBMTruncExpLayer::computeExpectation ( ) [virtual]

compute the expectation

Implements PLearn::RBMLayer.

Definition at line 102 of file DEPRECATED/RBMTruncExpLayer.cc.

References PLearn::exp(), and i.

{
    if( expectation_is_up_to_date )
        return;

    /* Conditional expectation:
     * E[u|x] = 1/(1-exp(a)) + 1/a
     */

    for( int i=0 ; i<size ; i++ )
    {
        real a_i = activations[i];
        expectation[i] = 1/(1-exp(a_i)) + 1/a_i;
    }

    expectation_is_up_to_date = true;
}

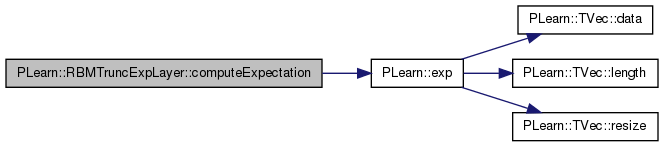

Here is the call graph for this function:

virtual void PLearn::RBMTruncExpLayer::computeExpectation ( ) [virtual]

compute the expectation

Implements PLearn::RBMLayer.

void PLearn::RBMTruncExpLayer::computeExpectations ( ) [virtual]

Not implemented.

Implements PLearn::RBMLayer.

Definition at line 146 of file RBMTruncExpLayer.cc.

References PLearn::RBMLayer::activations, PLearn::RBMLayer::batch_size, PLearn::exp(), PLearn::RBMLayer::expectations, PLearn::RBMLayer::expectations_are_up_to_date, i, PLearn::TMat< T >::length(), PLASSERT, PLearn::RBMLayer::size, and PLearn::TMat< T >::width().

{
    if( expectations_are_up_to_date )
        return;

    /* Conditional expectation:
     * E[u|x] = 1/(1-exp(-a)) - 1/a
     */

    PLASSERT( expectations.width() == size
              && expectations.length() == batch_size );

    for (int k = 0; k < batch_size; k++)
        for( int i=0 ; i<size ; i++ )
        {
            real a_i = activations(k,i);

            // Polynomial approximation to avoid numerical instability
            // f(a) = 1/2 + a/12 - a^3/720 + O(a^5)
            if( fabs( a_i ) <= 0.01 )
                expectations(k,i) = 0.5 + a_i*(1./12. - a_i*a_i/720.);
            else
                expectations(k,i) = 1/(1-exp(-a_i)) - 1/a_i;
        }

    expectations_are_up_to_date = true;
}

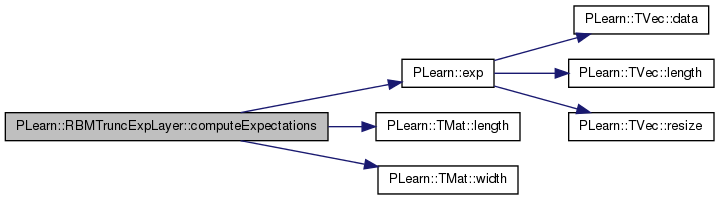

Here is the call graph for this function:

static void PLearn::RBMTruncExpLayer::declareOptions ( OptionList ol) [static, protected]

Declares the class options.

Reimplemented from PLearn::RBMLayer.

void PLearn::RBMTruncExpLayer::declareOptions ( OptionList ol) [static, protected]

Declares the class options.

Reimplemented from PLearn::RBMLayer.

Definition at line 141 of file DEPRECATED/RBMTruncExpLayer.cc.

{
/*
    declareOption(ol, "size", &RBMTruncExpLayer::size,
                  OptionBase::buildoption,
                  "Number of units.");
*/
    // Now call the parent class' declareOptions
    inherited::declareOptions(ol);
}
static const PPath& PLearn::RBMTruncExpLayer::declaringFile ( ) [inline, static]

Reimplemented from PLearn::RBMLayer.

Definition at line 98 of file DEPRECATED/RBMTruncExpLayer.h.

:
    //#####  Not Options  #####################################################
static const PPath& PLearn::RBMTruncExpLayer::declaringFile ( ) [inline, static]

Reimplemented from PLearn::RBMLayer.

Definition at line 103 of file RBMTruncExpLayer.h.

:
    //#####  Not Options  #####################################################
virtual RBMTruncExpLayer* PLearn::RBMTruncExpLayer::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::RBMLayer.

RBMTruncExpLayer * PLearn::RBMTruncExpLayer::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::RBMLayer.

Definition at line 49 of file DEPRECATED/RBMTruncExpLayer.cc.

void PLearn::RBMTruncExpLayer::fprop ( const Vec input,
Vec output
) const [virtual]

forward propagation

Reimplemented from PLearn::RBMLayer.

Definition at line 175 of file RBMTruncExpLayer.cc.

References PLearn::RBMLayer::bias, PLearn::exp(), i, PLearn::OnlineLearningModule::input_size, PLearn::OnlineLearningModule::output_size, PLASSERT, PLearn::TVec< T >::resize(), PLearn::TVec< T >::size(), and PLearn::RBMLayer::size.

{
    PLASSERT( input.size() == input_size );
    output.resize( output_size );

    for( int i=0 ; i<size ; i++ )
    {
        real a_i = input[i] + bias[i];

        // Polynomial approximation to avoid numerical instability
        // f(a) = 1/(1-exp(-a) - 1/a
        // f(a) = 1/2 + a/12 - a^3/720 + O(a^5)
        if( fabs( a_i ) <= 0.01 )
            output[i] = 0.5 + a_i*(1./12. - a_i*a_i/720.);
        else
            output[i] = 1/(1-exp(-a_i)) - 1/a_i;
    }
}

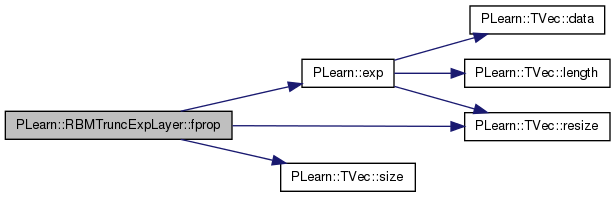

Here is the call graph for this function:

virtual void PLearn::RBMTruncExpLayer::generateSample ( ) [virtual]

generate a sample, and update the sample field

Implements PLearn::RBMLayer.

void PLearn::RBMTruncExpLayer::generateSample ( ) [virtual]

generate a sample, and update the sample field

Implements PLearn::RBMLayer.

Definition at line 83 of file DEPRECATED/RBMTruncExpLayer.cc.

References PLearn::exp(), i, pl_log, and PLearn::sample().

{
    /* The cumulative is :
     * C(U) = P(u<U | x) = (1 - exp(-U a)) / (1 - exp(-a)) if 0 < U < 1,
     *        0 if U <= 0 and
     *        1 if 1 <= U
     *
     * And the inverse, if 0 <= s <=1:
     * C^{-1}(s) = - log(1 - s*(1 - exp(-a)) / a
     */

    for( int i=0 ; i<size ; i++ )
    {
        real s = random_gen->uniform_sample();
        real a_i = activations[i];
        sample[i] = - pl_log( 1. - s*( 1 - exp(-a_i) ) ) / a_i;
    }
}

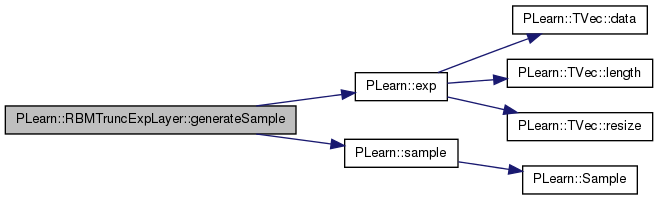

Here is the call graph for this function:

void PLearn::RBMTruncExpLayer::generateSamples ( ) [virtual]

Generate a mini-batch set of samples.

Implements PLearn::RBMLayer.

Definition at line 98 of file RBMTruncExpLayer.cc.

References PLearn::RBMLayer::activations, PLearn::RBMLayer::batch_size, PLearn::RBMLayer::expectations_are_up_to_date, i, PLearn::TMat< T >::length(), PLearn::logadd(), pl_log, PLASSERT, PLASSERT_MSG, PLCHECK_MSG, PLearn::RBMLayer::random_gen, PLearn::RBMLayer::samples, PLearn::RBMLayer::size, and PLearn::TMat< T >::width().

{
    PLASSERT_MSG(random_gen,
                 "random_gen should be initialized before generating samples");

    PLCHECK_MSG(expectations_are_up_to_date, "Expectations should be computed "
            "before calling generateSamples()");

    PLASSERT( samples.width() == size && samples.length() == batch_size );

    for (int k = 0; k < batch_size; k++)
        for (int i=0 ; i<size ; i++)
        {
            real s = random_gen->uniform_sample();
            real a_i = activations(k,i);
            if( fabs( a_i ) <= 1e-5 )
                samples(k, i) = s + a_i*( s*(1 - s)/2 );
            else
                samples(k, i) = logadd( pl_log( 1-s ), pl_log(s) + a_i ) / a_i;
        }

}

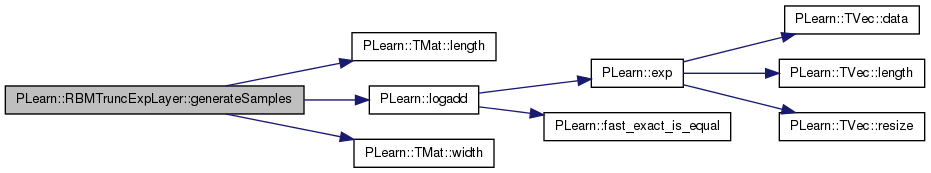

Here is the call graph for this function:

void PLearn::RBMTruncExpLayer::getAllActivations ( PP< RBMParameters rbmp,
int  offset = 0
) [virtual]

Uses "rbmp" to obtain the activations of all units in this layer.

Unit 0 of this layer corresponds to unit "offset" of "rbmp".

Implements PLearn::RBMLayer.

Definition at line 77 of file DEPRECATED/RBMTruncExpLayer.cc.

{
    rbmp->computeUnitActivations( offset, size, activations );
    expectation_is_up_to_date = false;
}
virtual OptionList& PLearn::RBMTruncExpLayer::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

OptionList & PLearn::RBMTruncExpLayer::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 49 of file DEPRECATED/RBMTruncExpLayer.cc.

OptionMap & PLearn::RBMTruncExpLayer::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 49 of file DEPRECATED/RBMTruncExpLayer.cc.

virtual OptionMap& PLearn::RBMTruncExpLayer::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

RemoteMethodMap & PLearn::RBMTruncExpLayer::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 49 of file DEPRECATED/RBMTruncExpLayer.cc.

virtual RemoteMethodMap& PLearn::RBMTruncExpLayer::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

void PLearn::RBMTruncExpLayer::getUnitActivations ( int  i,
PP< RBMParameters rbmp,
int  offset = 0
) [virtual]

Uses "rbmp" to obtain the activations of unit "i" of this layer.

This activation vector is computed by the "i+offset"-th unit of "rbmp"

Implements PLearn::RBMLayer.

Definition at line 67 of file DEPRECATED/RBMTruncExpLayer.cc.

References PLearn::TVec< T >::subVec().

{
    Vec activation = activations.subVec( i, 1 );
    rbmp->computeUnitActivations( i+offset, 1, activation );
    expectation_is_up_to_date = false;
}

Here is the call graph for this function:

void PLearn::RBMTruncExpLayer::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Transforms a shallow copy into a deep copy.

Reimplemented from PLearn::RBMLayer.

Definition at line 172 of file DEPRECATED/RBMTruncExpLayer.cc.

virtual void PLearn::RBMTruncExpLayer::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Transforms a shallow copy into a deep copy.

Reimplemented from PLearn::RBMLayer.


Member Data Documentation

Reimplemented from PLearn::RBMLayer.

Definition at line 98 of file DEPRECATED/RBMTruncExpLayer.h.


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
