PLearn::ObservationWindow Class Reference

Used by StatsCollector to keep a finite-size window of observations. More...

#include <ObservationWindow.h>

Inheritance diagram for PLearn::ObservationWindow:
Inheritance graph
[legend]

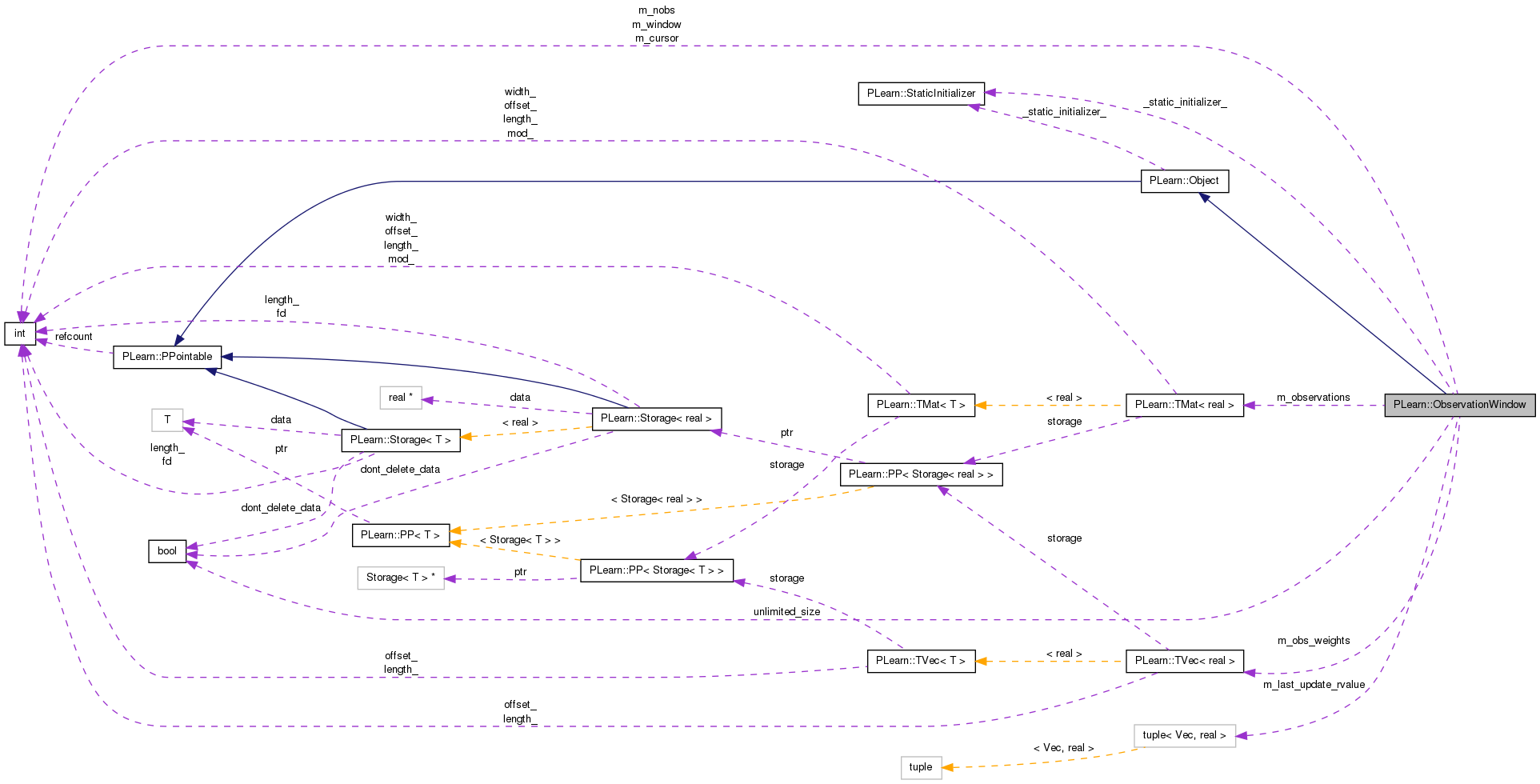

Collaboration diagram for PLearn::ObservationWindow:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 ObservationWindow (int window=-1)
int length () const
 Returns the current length (not m_window!).
bool isEmpty () const
bool isFull () const
void forget ()
tuple< Vec, realupdate (const Vec &obs, real weight=1.0)
const Vec getObs (int t) const
 Intelligent accessors.
real getObs (int t, int col) const
real getWeight (int t) const
const Vec lastObs () const
real lastWeight () const
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual ObservationWindowdeepCopy (CopiesMap &copies) const
virtual void build ()
 Post-constructor.
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.

Static Public Member Functions

static string _classname_ ()
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

int m_window
int m_nobs
int m_cursor
Mat m_observations
Vec m_obs_weights
bool unlimited_size
tuple< Vec, realm_last_update_rvalue

Static Public Attributes

static StaticInitializer _static_initializer_

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Deep copying.

Private Types

typedef Object inherited

Private Member Functions

void build_ ()
 This does the actual building.

Detailed Description

Used by StatsCollector to keep a finite-size window of observations.

This allows StatsCollector to compute finite-horizon moving averages, for instance.

Definition at line 58 of file ObservationWindow.h.


Member Typedef Documentation

Reimplemented from PLearn::Object.

Definition at line 60 of file ObservationWindow.h.


Constructor & Destructor Documentation

PLearn::ObservationWindow::ObservationWindow ( int  window = -1)

Definition at line 50 of file ObservationWindow.cc.

References forget().

    : m_window(window), unlimited_size(window == -2)
{
    forget();
}

Here is the call graph for this function:


Member Function Documentation

string PLearn::ObservationWindow::_classname_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 47 of file ObservationWindow.cc.

OptionList & PLearn::ObservationWindow::_getOptionList_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 47 of file ObservationWindow.cc.

RemoteMethodMap & PLearn::ObservationWindow::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 47 of file ObservationWindow.cc.

bool PLearn::ObservationWindow::_isa_ ( const Object o) [static]

Reimplemented from PLearn::Object.

Definition at line 47 of file ObservationWindow.cc.

Object * PLearn::ObservationWindow::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 47 of file ObservationWindow.cc.

StaticInitializer ObservationWindow::_static_initializer_ & PLearn::ObservationWindow::_static_initialize_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 47 of file ObservationWindow.cc.

void PLearn::ObservationWindow::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::Object.

Definition at line 58 of file ObservationWindow.cc.

References PLearn::Object::build(), and build_().

Here is the call graph for this function:

void PLearn::ObservationWindow::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::Object.

Definition at line 127 of file ObservationWindow.cc.

Referenced by build().

{
    // ### This method should do the real building of the object,
    // ### according to set 'options', in *any* situation.
    // ### Typical situations include:
    // ###  - Initial building of an object from a few user-specified options
    // ###  - Building of a "reloaded" object: i.e. from the complete set of
    // ###    all serialised options.
    // ###  - Updating or "re-building" of an object after a few "tuning"
    // ###    options have been modified.
    // ### You should assume that the parent class' build_() has already been
    // ### called.
}

Here is the caller graph for this function:

string PLearn::ObservationWindow::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 47 of file ObservationWindow.cc.

void PLearn::ObservationWindow::declareOptions ( OptionList ol) [static, protected]

Deep copying.

Declares the class options.

Reimplemented from PLearn::Object.

Definition at line 83 of file ObservationWindow.cc.

References PLearn::OptionBase::buildoption, PLearn::declareOption(), PLearn::Object::declareOptions(), PLearn::OptionBase::learntoption, m_cursor, m_last_update_rvalue, m_nobs, m_obs_weights, m_observations, m_window, PLearn::OptionBase::nosave, and PLearn::OptionBase::remotetransmit.

{
    // ### Declare all of this object's options here.
    // ### For the "flags" of each option, you should typically specify
    // ### one of OptionBase::buildoption, OptionBase::learntoption or
    // ### OptionBase::tuningoption. If you don't provide one of these three,
    // ### this option will be ignored when loading values from a script.
    // ### You can also combine flags, for example with OptionBase::nosave:
    // ### (OptionBase::buildoption | OptionBase::nosave)

    // ### ex:
    // declareOption(ol, "myoption", &ObservationWindow::myoption,
    //               OptionBase::buildoption,
    //               "Help text describing this option");
    // ...

    declareOption(ol, "window", &ObservationWindow::m_window,
                  OptionBase::buildoption,
                  "Window length");

    declareOption(ol, "nobs", &ObservationWindow::m_nobs,
                  OptionBase::learntoption,
                  "nb. observations");

    declareOption(ol, "cursor", &ObservationWindow::m_cursor,
                  OptionBase::learntoption | OptionBase::nosave | OptionBase::remotetransmit,
                  "cursor pos.");

    declareOption(ol, "observations", &ObservationWindow::m_observations,
                  OptionBase::learntoption | OptionBase::nosave | OptionBase::remotetransmit,
                  "the observations themselves");

    declareOption(ol, "obs_weights", &ObservationWindow::m_obs_weights,
                  OptionBase::learntoption | OptionBase::nosave | OptionBase::remotetransmit,
                  "observation weights");

    declareOption(ol, "last_update_rvalue", &ObservationWindow::m_last_update_rvalue,
                  OptionBase::learntoption | OptionBase::nosave | OptionBase::remotetransmit,
                  "last_update_rvalue");

    // Now call the parent class' declareOptions
    inherited::declareOptions(ol);
}

Here is the call graph for this function:

static const PPath& PLearn::ObservationWindow::declaringFile ( ) [inline, static]

Reimplemented from PLearn::Object.

Definition at line 100 of file ObservationWindow.h.

:
    //#####  Protected Member Functions  ######################################
ObservationWindow * PLearn::ObservationWindow::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 47 of file ObservationWindow.cc.

void PLearn::ObservationWindow::forget ( )

Definition at line 148 of file ObservationWindow.cc.

References m_cursor, m_nobs, m_observations, m_window, PLearn::TMat< T >::resize(), and unlimited_size.

Referenced by ObservationWindow().

{
    m_nobs = 0;
    m_cursor = 0;
    if(unlimited_size)
        m_window= 0;
    else if(m_window >= 0)
        m_observations.resize(m_window, 0);
    m_observations.resize(0, 0);
}

Here is the call graph for this function:

Here is the caller graph for this function:

const Vec PLearn::ObservationWindow::getObs ( int  t) const

Intelligent accessors.

Definition at line 188 of file ObservationWindow.cc.

References length(), m_cursor, m_observations, m_window, and PLASSERT.

{
    PLASSERT( t < m_window );
    if ( length() < m_window )
        return m_observations(t);

    int obs_index = (m_cursor+t) % m_window;
    return m_observations(obs_index);
}

Here is the call graph for this function:

real PLearn::ObservationWindow::getObs ( int  t,
int  col
) const

Definition at line 198 of file ObservationWindow.cc.

References length(), m_cursor, m_observations, m_window, and PLASSERT.

{
    PLASSERT( t < m_window );
    if ( length() < m_window )
        return m_observations(t, col);

    int obs_index = (m_cursor+t) % m_window;
    return m_observations(obs_index, col);
}

Here is the call graph for this function:

OptionList & PLearn::ObservationWindow::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 47 of file ObservationWindow.cc.

OptionMap & PLearn::ObservationWindow::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 47 of file ObservationWindow.cc.

RemoteMethodMap & PLearn::ObservationWindow::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 47 of file ObservationWindow.cc.

real PLearn::ObservationWindow::getWeight ( int  t) const

Definition at line 208 of file ObservationWindow.cc.

References length(), m_cursor, m_obs_weights, m_window, and PLASSERT.

{
    PLASSERT( t < m_window );
    if ( length() < m_window )
        return m_obs_weights[t];

    int obs_index = (m_cursor+t) % m_window;
    return m_obs_weights[obs_index];
}

Here is the call graph for this function:

bool PLearn::ObservationWindow::isEmpty ( ) const [inline]

Definition at line 77 of file ObservationWindow.h.

{ return length() == 0; }
bool PLearn::ObservationWindow::isFull ( ) const [inline]

Definition at line 78 of file ObservationWindow.h.

{ return length() == m_window; }
const Vec PLearn::ObservationWindow::lastObs ( ) const

Definition at line 218 of file ObservationWindow.cc.

References m_cursor, m_observations, and m_window.

{
    int last_obs = (m_cursor-1) % m_window;
    return m_observations(last_obs);
}
real PLearn::ObservationWindow::lastWeight ( ) const

Definition at line 224 of file ObservationWindow.cc.

References m_cursor, m_obs_weights, and m_window.

{
    int last_obs = (m_cursor-1) % m_window;
    return m_obs_weights[last_obs];
}
int PLearn::ObservationWindow::length ( ) const

Returns the current length (not m_window!).

Definition at line 143 of file ObservationWindow.cc.

References PLearn::TMat< T >::length(), and m_observations.

Referenced by getObs(), and getWeight().

{
    return m_observations.length();
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::ObservationWindow::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Transforms a shallow copy into a deep copy.

Reimplemented from PLearn::Object.

Definition at line 64 of file ObservationWindow.cc.

References PLearn::deepCopyField(), m_last_update_rvalue, m_obs_weights, m_observations, and PLearn::Object::makeDeepCopyFromShallowCopy().

{
    inherited::makeDeepCopyFromShallowCopy(copies);

    // ### Call deepCopyField on all "pointer-like" fields
    // ### that you wish to be deepCopied rather than
    // ### shallow-copied.
    // ### ex:
    // deepCopyField(trainvec, copies);

    // ### Remove this line when you have fully implemented this method.
    //PLERROR("ObservationWindow::makeDeepCopyFromShallowCopy not fully (correctly) implemented yet!");

    deepCopyField(m_observations, copies);
    deepCopyField(m_obs_weights,  copies);
    deepCopyField(m_last_update_rvalue,  copies);

}

Here is the call graph for this function:

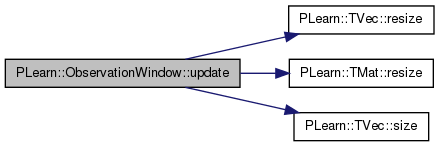

tuple< Vec, real > PLearn::ObservationWindow::update ( const Vec obs,
real  weight = 1.0
)

Definition at line 160 of file ObservationWindow.cc.

References m_cursor, m_last_update_rvalue, m_nobs, m_obs_weights, m_observations, m_window, MIN, PLASSERT, PLearn::TVec< T >::resize(), PLearn::TMat< T >::resize(), PLearn::TVec< T >::size(), and unlimited_size.

{
    Vec outdated;
    real outdated_weight = 0.0;

    ++m_nobs;
    if(unlimited_size) m_window= m_nobs;
    int new_size= MIN(m_nobs,m_window);
    int extra= unlimited_size? new_size : 0;//extra rows to alloc. when resizing
    m_observations.resize(new_size, obs.size(), extra*obs.size());
    m_obs_weights.resize(new_size, extra);
    if (m_nobs > m_window)
    {
        outdated.resize(obs.size());
        outdated << m_observations(m_cursor % m_window);
        outdated_weight = m_obs_weights[m_cursor % m_window];
        m_nobs--;
    }

    m_observations(m_cursor % m_window) << obs;
    m_obs_weights[m_cursor % m_window] = weight;
    m_cursor++;

    PLASSERT( m_nobs <= m_window );
    m_last_update_rvalue = tuple<Vec, real>(outdated, outdated_weight);
    return m_last_update_rvalue;
}

Here is the call graph for this function:


Member Data Documentation

Reimplemented from PLearn::Object.

Definition at line 100 of file ObservationWindow.h.

Definition at line 66 of file ObservationWindow.h.

Referenced by declareOptions(), forget(), getObs(), getWeight(), lastObs(), lastWeight(), and update().

Definition at line 71 of file ObservationWindow.h.

Referenced by declareOptions(), makeDeepCopyFromShallowCopy(), and update().

Definition at line 65 of file ObservationWindow.h.

Referenced by declareOptions(), forget(), and update().

Definition at line 63 of file ObservationWindow.h.

Referenced by declareOptions(), forget(), getObs(), getWeight(), lastObs(), lastWeight(), and update().

Definition at line 69 of file ObservationWindow.h.

Referenced by forget(), and update().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
