PLearn 0.1
Public Member Functions
PLearn::FunctionalRandomVariable Class Reference

#include <RandomVar.h>

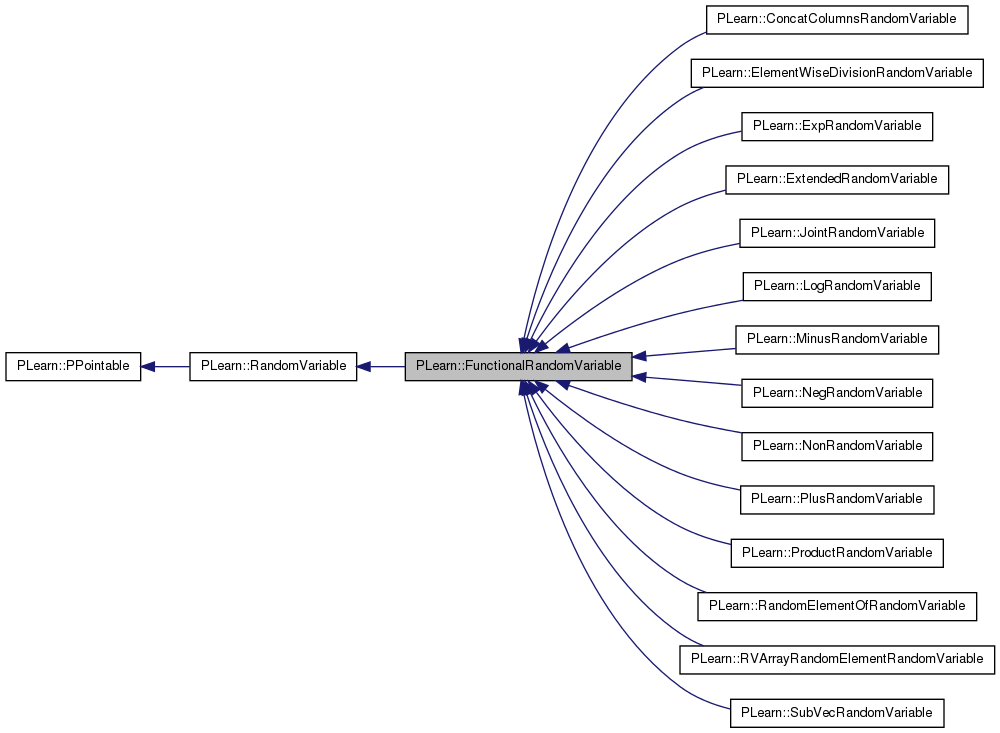

Inheritance diagram for PLearn::FunctionalRandomVariable:
Inheritance graph
[legend]

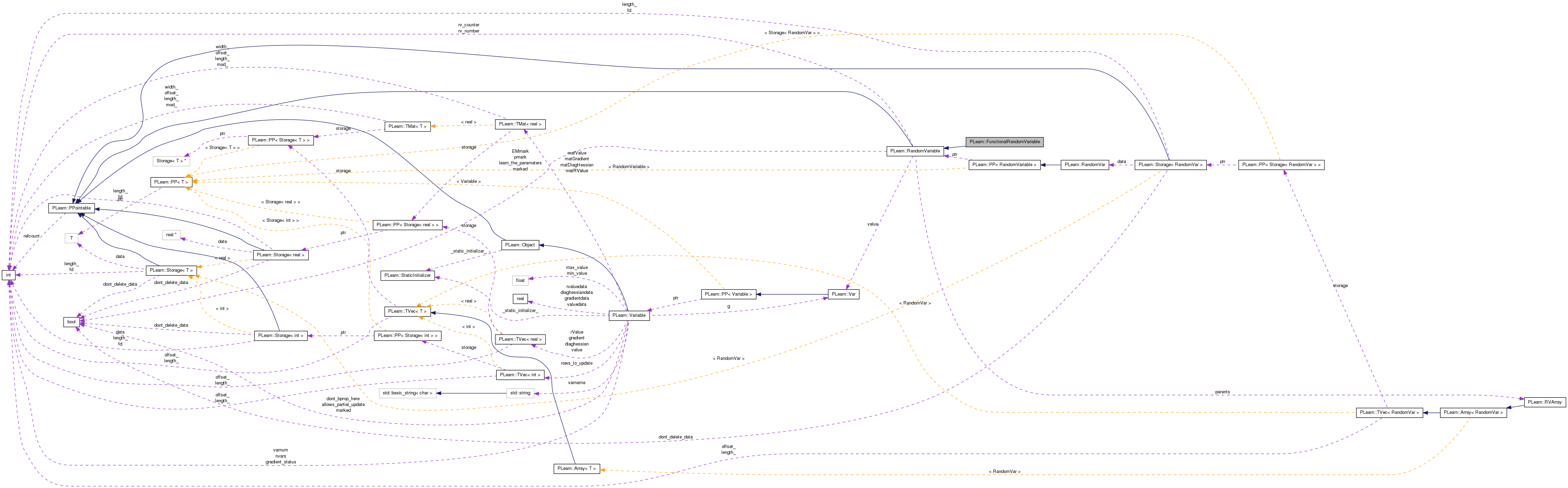

Collaboration diagram for PLearn::FunctionalRandomVariable:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 FunctionalRandomVariable (int length)
 FunctionalRandomVariable.
 FunctionalRandomVariable (int length, int width)
 FunctionalRandomVariable (const Vec &the_value)
 FunctionalRandomVariable (const Mat &the_value)
 FunctionalRandomVariable (const Var &the_value)
 FunctionalRandomVariable (const RVArray &parents, int length)
 FunctionalRandomVariable (const RVArray &parents, int length, int width)
virtual Var logP (const Var &obs, const RVInstanceArray &RHS, RVInstanceArray *parameters_to_learn)
 redefine RandomVariable functions
bool isNonRandom ()
 a Functional RV may be non-random if all its ancestors are non-random
virtual bool isDiscrete ()
 default is that the RV is discrete if all its parents are discrete
virtual bool invertible (const Var &obs, RVInstanceArray &unobserved_parents, Var **JacobianCorrection)
 functions specific to FunctionalRandomVariable's
virtual void setValueFromParentsValue ()=0
 set the field value from the values of the parents

Detailed Description

A FunctionalRandomVariable represents a RV that is a deterministic function of other RVs, e.g., the sum, mixture, product, exponential, etc... of parent RVs.

Definition at line 1006 of file RandomVar.h.


Constructor & Destructor Documentation

PLearn::FunctionalRandomVariable::FunctionalRandomVariable ( int  length)

FunctionalRandomVariable.

Definition at line 976 of file RandomVar.cc.

    :RandomVariable(thelength) {}
PLearn::FunctionalRandomVariable::FunctionalRandomVariable ( int  length,
int  width
)

Definition at line 978 of file RandomVar.cc.

    :RandomVariable(thelength,thewidth) {}
PLearn::FunctionalRandomVariable::FunctionalRandomVariable ( const Vec the_value)

Definition at line 980 of file RandomVar.cc.

    :RandomVariable(the_value) {}
PLearn::FunctionalRandomVariable::FunctionalRandomVariable ( const Mat the_value)

Definition at line 982 of file RandomVar.cc.

    :RandomVariable(the_value) {}
PLearn::FunctionalRandomVariable::FunctionalRandomVariable ( const Var the_value)

Definition at line 984 of file RandomVar.cc.

    :RandomVariable(the_value) {}
PLearn::FunctionalRandomVariable::FunctionalRandomVariable ( const RVArray parents,
int  length
)

Definition at line 988 of file RandomVar.cc.

    :RandomVariable(the_parents,length) {}
PLearn::FunctionalRandomVariable::FunctionalRandomVariable ( const RVArray parents,
int  length,
int  width
)

Definition at line 992 of file RandomVar.cc.

    :RandomVariable(the_parents,length,width) {}

Member Function Documentation

bool PLearn::FunctionalRandomVariable::invertible ( const Var obs,
RVInstanceArray unobserved_parents,
Var **  JacobianCorrection
) [virtual]

functions specific to FunctionalRandomVariable's

!< SUBCLASS WRITERS: IMPLEMENT FUNCTIONS BELOW //!<

check whether it is possible to invert the function which maps the given unobserved parents to the observed value of the RV (obs). If invertible, do the inversion, and set the value fields of the RVInstances to Var's which are functionally dependent on obs. If the absolute value of the Jacobian of the map from the unobserved parents to this R.V.'s value is different from 1, then JacobianCorrection should point to a Var that is the logarithm of the determinant of this Jacobian (first derivatives) matrix. If the function is not invertible but it is possible to write P(Y==obs | unobserved_parents) in terms of the unobserved_parents logP functions, then the sub-class writer should instead redefine the logP function appropriately.

Reimplemented in PLearn::NonRandomVariable, PLearn::JointRandomVariable, PLearn::RandomElementOfRandomVariable, PLearn::NegRandomVariable, PLearn::ExpRandomVariable, PLearn::LogRandomVariable, PLearn::PlusRandomVariable, PLearn::MinusRandomVariable, PLearn::ElementWiseDivisionRandomVariable, PLearn::ProductRandomVariable, PLearn::SubVecRandomVariable, PLearn::ExtendedRandomVariable, and PLearn::ConcatColumnsRandomVariable.

Definition at line 1051 of file RandomVar.cc.

References PLERROR.

Referenced by logP().

{
    PLERROR("FunctionalRandomVariable::invertible() should not be called\n"
            "Either the sub-class should re-implement logP() or re-define\n"
            "invertible() appropriately.");
    return false;
}

Here is the caller graph for this function:

bool PLearn::FunctionalRandomVariable::isDiscrete ( ) [virtual]

default is that the RV is discrete if all its parents are discrete

Implements PLearn::RandomVariable.

Definition at line 1074 of file RandomVar.cc.

References PLearn::RandomVariable::parents, and PLearn::TVec< T >::size().

Referenced by logP().

{
    bool all_discrete = true;
    for (int i=0;i<parents.size() && all_discrete;i++)
        all_discrete = parents[i]->isDiscrete();
    return all_discrete;
}

Here is the call graph for this function:

Here is the caller graph for this function:

bool PLearn::FunctionalRandomVariable::isNonRandom ( ) [virtual]

a Functional RV may be non-random if all its ancestors are non-random

Implements PLearn::RandomVariable.

Definition at line 1066 of file RandomVar.cc.

References PLearn::RandomVariable::parents, and PLearn::TVec< T >::size().

Referenced by PLearn::ProductRandomVariable::EMBprop(), PLearn::ProductRandomVariable::EMTrainingInitialize(), PLearn::RVArrayRandomElementRandomVariable::logP(), and logP().

{
    bool non_random=true;
    for (int i=0;i<parents.size() && non_random;i++)
        non_random = parents[i]->isNonRandom();
    return non_random;
}

Here is the call graph for this function:

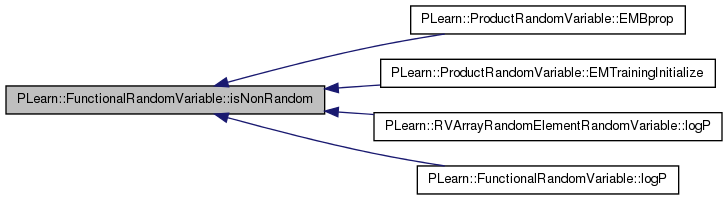

Here is the caller graph for this function:

Var PLearn::FunctionalRandomVariable::logP ( const Var obs,
const RVInstanceArray RHS,
RVInstanceArray parameters_to_learn
) [virtual]

redefine RandomVariable functions

Implements PLearn::RandomVariable.

Reimplemented in PLearn::RVArrayRandomElementRandomVariable.

Definition at line 996 of file RandomVar.cc.

References i, invertible(), isDiscrete(), PLearn::isequal(), PLearn::RandomVariable::isMarked(), isNonRandom(), PLearn::RandomVariable::length(), PLearn::marginalize(), PLearn::RandomVariable::parents, PLearn::RVInstanceArray::random_variables(), PLearn::TVec< T >::size(), PLearn::RVInstanceArray::sort(), and PLearn::RandomVariable::value.

{
    // gather the unobserved parents
    int np=parents.size();
    RVInstanceArray unobserved_parents(0,np);
    for (int i=0;i<np;i++)
        if (!(parents[i]->isMarked() || parents[i]->isNonRandom()))
            unobserved_parents &= RVInstance(parents[i],Var(parents[i]->length()));
    // simplest case first
    int nup = unobserved_parents.size();
    if (nup==0)
    {
        if (isDiscrete())
            return isequal(value,obs);
        // else
        return isequal(value,obs)*FLT_MAX;
    }
    // else
    Var *JacobianCorrection=0;
    if (invertible(obs,unobserved_parents,&JacobianCorrection))
    {
        Var logp(1);
        // sort the unobserved parents in topological order of graph
        unobserved_parents.sort();
        bool first = true;
        RVInstanceArray RHS(0,RHS.size()+unobserved_parents.size());
        RVInstanceArray xRHS(RHS);
        for (int i=0;i<nup;i++)
        {
            // note these are still symbolic computations to build Var logp
            if (first)
                logp = unobserved_parents[i].V->logP(unobserved_parents[i].v,xRHS,
                                                     parameters_to_learn);
            else
                logp = logp +
                    unobserved_parents[i].V->logP(unobserved_parents[i].v,xRHS,
                                                  parameters_to_learn);
            first = false;
            // add the visited parents to the RHS, e.g. to compute
            //   P(P1=p1,P2=p2,P3=p3) = P(P1=p1)*P(P2=p2|P1=p1)*P(P3=p3|P2=p2,P1=p1)
            //
            xRHS &= unobserved_parents[i];
        }
        if (JacobianCorrection)
            return logp + *JacobianCorrection;
        return logp;
    }
    // else
    return
        PLearn::logP(ConditionalExpression
                     (RVInstance(marginalize(this, unobserved_parents.random_variables()), obs),
                      RHS),true,parameters_to_learn);
}

Here is the call graph for this function:

virtual void PLearn::FunctionalRandomVariable::setValueFromParentsValue ( ) [pure virtual]

The documentation for this class was generated from the following files:
