PLearn::LinearARDKernel Class Reference

Linear kernel that can be used for Automatic Relevance Determination. More...

#include <LinearARDKernel.h>

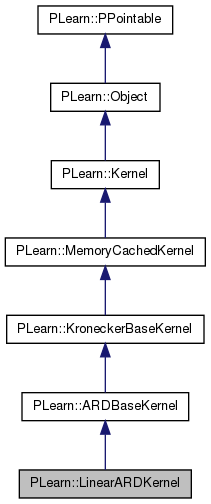

Inheritance diagram for PLearn::LinearARDKernel:
Inheritance graph
[legend]

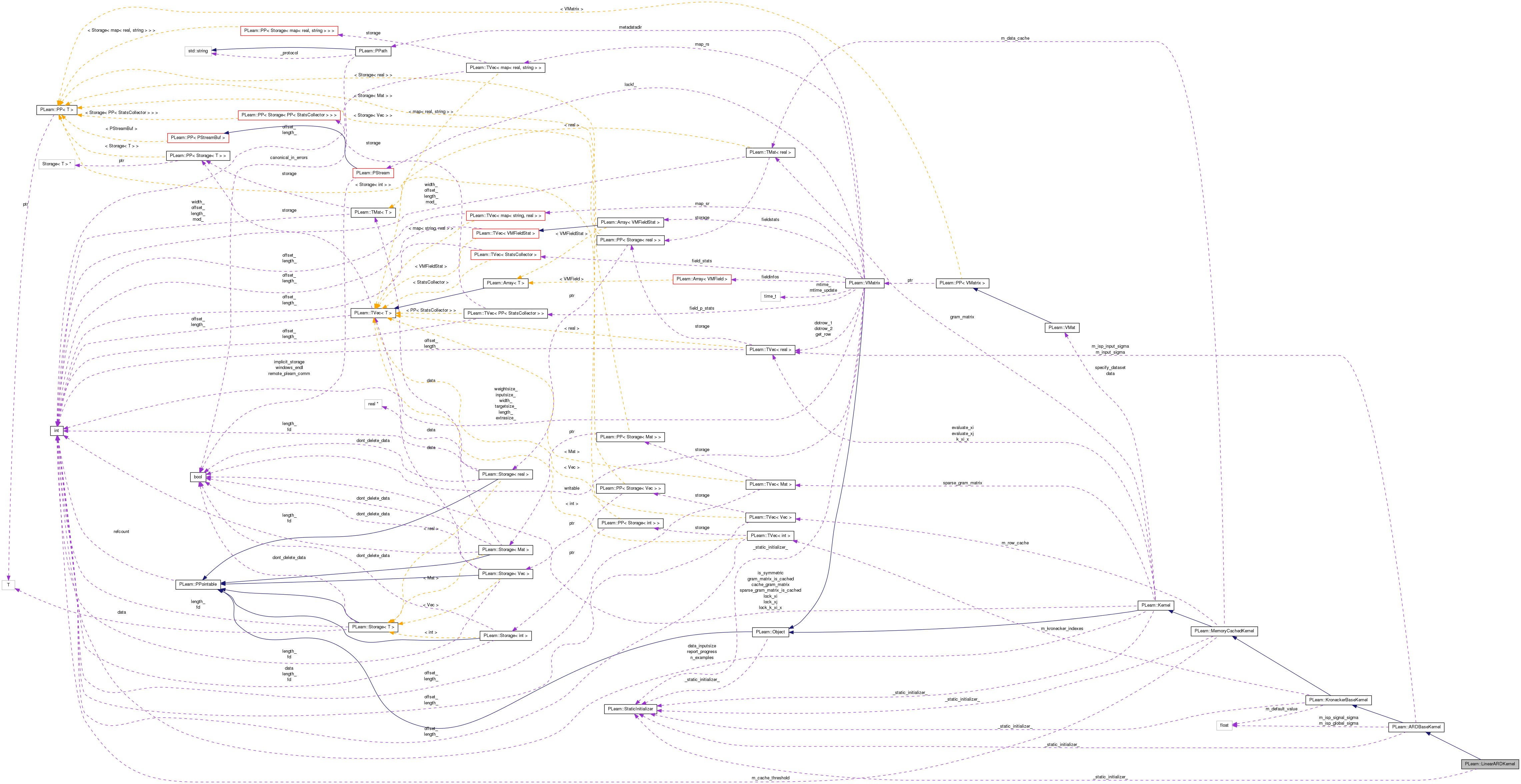

Collaboration diagram for PLearn::LinearARDKernel:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 LinearARDKernel ()
 Default constructor.
virtual real evaluate (const Vec &x1, const Vec &x2) const
 Compute K(x1,x2).
virtual void computeGramMatrix (Mat K) const
 Compute the Gram Matrix.
virtual void computeGramMatrixDerivative (Mat &KD, const string &kernel_param, real epsilon=1e-6) const
 Directly compute the derivative with respect to hyperparameters (Faster than finite differences...)
virtual void evaluate_all_i_x (const Vec &x, const Vec &k_xi_x, real squared_norm_of_x=-1, int istart=0) const
 Fill k_xi_x with K(x_i, x), for all i from istart to istart + k_xi_x.length() - 1.
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual LinearARDKerneldeepCopy (CopiesMap &copies) const
virtual void build ()
 Post-constructor.
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.

Static Public Member Functions

static string _classname_ ()
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Static Public Attributes

static StaticInitializer _static_initializer_

Protected Member Functions

real derivIspSignalSigma (int i, int j, int arg, real K) const
 Derivative function with respect to isp_signal_sigma.
real derivIspGlobalSigma (int i, int j, int arg, real K) const
 Derivative function with respect to isp_global_sigma.
void computeGramMatrixDerivIspSignalSigma (Mat &KD) const
void computeGramMatrixDerivIspInputSigma (Mat &KD, int arg) const

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declares the class options.

Private Types

typedef ARDBaseKernel inherited

Private Member Functions

void build_ ()
 This does the actual building.

Detailed Description

Linear kernel that can be used for Automatic Relevance Determination.

This is a simple linear (dot-product) kernel that provides a different length-scale parameter for each input variable. When used in conjunction with GaussianProcessRegressor it yields a Bayesian linear regression model with a non-isotropic prior. (It is not a particularly efficient way of performing linear regression, but can be useful as a benchmark against other kernels).

This kernel function is specified as:

k(x,y) = sf * (sum_i x_i * y_i / w_i) * k_kron(x,y)

where sf is softplus(isp_signal_sigma), w_i is softplus(isp_global_sigma + isp_input_sigma[i]), and k_kron(x,y) is the result of the KroneckerBaseKernel evaluation, or 1.0 if there are no Kronecker terms. Note that since the Kronecker terms are incorporated multiplicatively, the very presence of the term associated to this kernel can be gated by the value of some input variable(s) (that are incorporated within one or more Kronecker terms).

For best results, especially with moderately noisy data, IT IS IMPERATIVE to use whis kernel within a SummationKernel in conjunction with an IIDNoiseKernel, as follows (e.g. within a GaussianProcessRegressor):

kernel = SummationKernel(terms = [ LinearARDKernel(), IIDNoiseKernel() ] )

Note that to make its operations more robust when used with unconstrained optimization of hyperparameters, all hyperparameters of this kernel are specified in the inverse softplus domain. See IIDNoiseKernel for more explanations.

Definition at line 81 of file LinearARDKernel.h.


Member Typedef Documentation

Reimplemented from PLearn::ARDBaseKernel.

Definition at line 83 of file LinearARDKernel.h.


Constructor & Destructor Documentation

PLearn::LinearARDKernel::LinearARDKernel ( )

Default constructor.

Definition at line 81 of file LinearARDKernel.cc.

{ }

Member Function Documentation

string PLearn::LinearARDKernel::_classname_ ( ) [static]

Reimplemented from PLearn::ARDBaseKernel.

Definition at line 78 of file LinearARDKernel.cc.

OptionList & PLearn::LinearARDKernel::_getOptionList_ ( ) [static]

Reimplemented from PLearn::ARDBaseKernel.

Definition at line 78 of file LinearARDKernel.cc.

RemoteMethodMap & PLearn::LinearARDKernel::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::ARDBaseKernel.

Definition at line 78 of file LinearARDKernel.cc.

bool PLearn::LinearARDKernel::_isa_ ( const Object o) [static]

Reimplemented from PLearn::ARDBaseKernel.

Definition at line 78 of file LinearARDKernel.cc.

Object * PLearn::LinearARDKernel::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::ARDBaseKernel.

Definition at line 78 of file LinearARDKernel.cc.

StaticInitializer LinearARDKernel::_static_initializer_ & PLearn::LinearARDKernel::_static_initialize_ ( ) [static]

Reimplemented from PLearn::ARDBaseKernel.

Definition at line 78 of file LinearARDKernel.cc.

void PLearn::LinearARDKernel::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::ARDBaseKernel.

Definition at line 96 of file LinearARDKernel.cc.

{
    // ### Nothing to add here, simply calls build_
    inherited::build();
    build_();
}
void PLearn::LinearARDKernel::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::ARDBaseKernel.

Definition at line 106 of file LinearARDKernel.cc.

{
    // Ensure that we multiply in Kronecker terms
    inherited::m_default_value = 1.0;
}
string PLearn::LinearARDKernel::classname ( ) const [virtual]

Reimplemented from PLearn::ARDBaseKernel.

Definition at line 78 of file LinearARDKernel.cc.

void PLearn::LinearARDKernel::computeGramMatrix ( Mat  K) const [virtual]

Compute the Gram Matrix.

Reimplemented from PLearn::KroneckerBaseKernel.

Definition at line 145 of file LinearARDKernel.cc.

References i, j, m, PLearn::TMat< T >::mod(), n, PLASSERT, PLearn::TMat< T >::size(), and PLearn::softplus().

{
    PLASSERT( !m_isp_input_sigma.size() || dataInputsize() == m_isp_input_sigma.size() );
    PLASSERT( K.size() == 0 || m_data_cache.size() > 0 );  // Ensure data cached OK

    // Compute Kronecker gram matrix
    inherited::computeGramMatrix(K);

    // Precompute some terms. Make sure that the input sigmas don't get too
    // small
    real sf = softplus(m_isp_signal_sigma);
    m_input_sigma.resize(dataInputsize());
    softplusFloor(m_isp_global_sigma, 1e-6);
    m_input_sigma.fill(m_isp_global_sigma);  // Still in ISP domain
    for (int i=0, n=m_input_sigma.size() ; i<n ; ++i) {
        if (m_isp_input_sigma.size() > 0) {
            softplusFloor(m_isp_input_sigma[i], 1e-6);
            m_input_sigma[i] += m_isp_input_sigma[i];
        }
        m_input_sigma[i] = softplus(m_input_sigma[i]);
    }

    // Compute Gram Matrix
    int  l = data->length();
    int  m = K.mod();
    int  n = dataInputsize();
    int  cache_mod = m_data_cache.mod();

    real *data_start = &m_data_cache(0,0);
    real *Ki = K[0];                         // Start of current row
    real *Kij;                               // Current element along row
    real *input_sigma_data = m_input_sigma.data();
    real *xi = data_start;

    for (int i=0 ; i<l ; ++i, xi += cache_mod, Ki+=m)
    {
        Kij = Ki;
        real *xj = data_start;

        for (int j=0; j<=i; ++j, xj += cache_mod) {
            // Kernel evaluation per se
            real *x1 = xi;
            real *x2 = xj;
            real *p_inpsigma = input_sigma_data;
            real the_dot = 0.0;
            int  k = n;

            // Use Duff's device to unroll the following loop:
            //     while (k--) {
            //         the_dot += (*x1++ * *x2++) / *p_inpsigma++;
            //     }
            switch (k % 8) {
            case 0: do { the_dot += (*x1++ * *x2++) / *p_inpsigma++;
            case 7:      the_dot += (*x1++ * *x2++) / *p_inpsigma++;
            case 6:      the_dot += (*x1++ * *x2++) / *p_inpsigma++;
            case 5:      the_dot += (*x1++ * *x2++) / *p_inpsigma++;
            case 4:      the_dot += (*x1++ * *x2++) / *p_inpsigma++;
            case 3:      the_dot += (*x1++ * *x2++) / *p_inpsigma++;
            case 2:      the_dot += (*x1++ * *x2++) / *p_inpsigma++;
            case 1:      the_dot += (*x1++ * *x2++) / *p_inpsigma++;
                       } while((k -= 8) > 0);
            }

            // Multiplicatively update kernel matrix (already pre-filled with
            // Kronecker terms, or 1.0 if no Kronecker terms, as per build_).
            real Kij_cur = *Kij * sf * the_dot;
            *Kij++ = Kij_cur;
        }
    }
    if (cache_gram_matrix) {
        gram_matrix.resize(l,l);
        gram_matrix << K;
        gram_matrix_is_cached = true;
    }
}

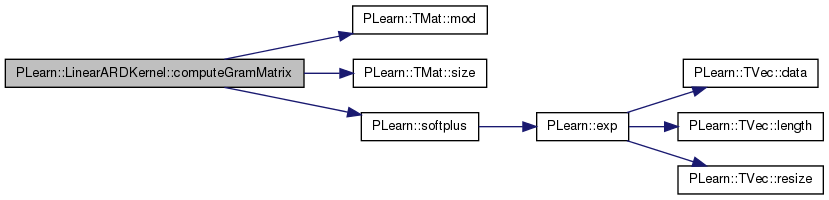

Here is the call graph for this function:

void PLearn::LinearARDKernel::computeGramMatrixDerivative ( Mat KD,
const string &  kernel_param,
real  epsilon = 1e-6
) const [virtual]

Directly compute the derivative with respect to hyperparameters (Faster than finite differences...)

Reimplemented from PLearn::Kernel.

Definition at line 224 of file LinearARDKernel.cc.

References derivIspGlobalSigma(), PLASSERT, PLearn::string_begins_with(), and PLearn::tolong().

{
    static const string ISS("isp_signal_sigma");
    static const string IGS("isp_global_sigma");
    static const string IIS("isp_input_sigma[");

    if (kernel_param == ISS) {
        computeGramMatrixDerivIspSignalSigma(KD);

        // computeGramMatrixDerivNV<
        //     LinearARDKernel,
        //     &LinearARDKernel::derivIspSignalSigma>(KD, this, -1);
    }
    else if (kernel_param == IGS) {
        computeGramMatrixDerivNV<
            LinearARDKernel,
            &LinearARDKernel::derivIspGlobalSigma>(KD, this, -1);
    }
    else if (string_begins_with(kernel_param, IIS) &&
             kernel_param[kernel_param.size()-1] == ']')
    {
        int arg = tolong(kernel_param.substr(
                             IIS.size(), kernel_param.size() - IIS.size() - 1));
        PLASSERT( arg < m_isp_input_sigma.size() );

        computeGramMatrixDerivIspInputSigma(KD, arg);

    }
    else
        inherited::computeGramMatrixDerivative(KD, kernel_param, epsilon);
}

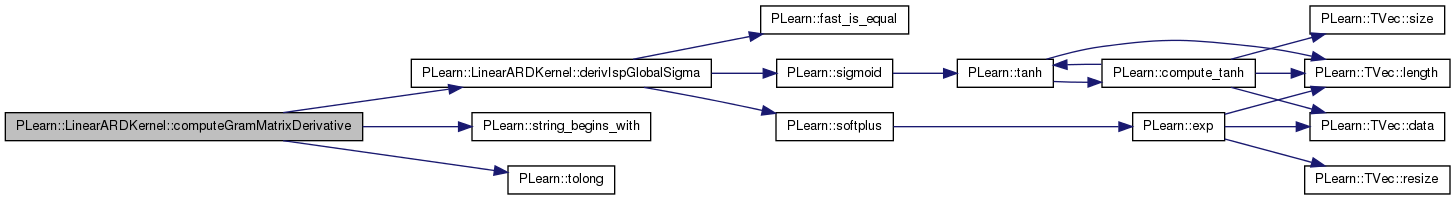

Here is the call graph for this function:

void PLearn::LinearARDKernel::computeGramMatrixDerivIspInputSigma ( Mat KD,
int  arg
) const [protected]

Definition at line 306 of file LinearARDKernel.cc.

References PLearn::TMat< T >::data(), i, j, PLearn::TMat< T >::mod(), PLASSERT_MSG, PLearn::TMat< T >::resize(), PLearn::sigmoid(), and PLearn::softplus().

{
    // Precompute some terms
    real signal_sigma    = softplus(m_isp_signal_sigma);
    real input_sigma_arg = m_input_sigma[arg];
    real input_sigma_sq  = input_sigma_arg * input_sigma_arg;
    real input_sigmoid   = sigmoid(m_isp_global_sigma + m_isp_input_sigma[arg]);

    // Compute Gram Matrix derivative w.r.t. isp_input_sigma[arg]
    int  l = data->length();
    PLASSERT_MSG(
        gram_matrix.width() == l && gram_matrix.length() == l,
        "To compute the derivative with respect to 'isp_input_sigma[i]', the\n"
        "Gram matrix must be precomputed and cached in LinearARDKernel.");

    // Variables that walk over the data matrix
    int  cache_mod = m_data_cache.mod();
    real *data_start = &m_data_cache(0,0);
    real *xi = data_start+arg;               // Iterator on data rows

    // Variables that walk over the kernel derivative matrix (KD)
    KD.resize(l,l);
    real* KDi = KD.data();                   // Start of row i
    real* KDij;                              // Current element on row i
    int   KD_mod = KD.mod();

    // Iterate on rows of derivative matrix
    for (int i=0 ; i<l ; ++i, xi += cache_mod, KDi += KD_mod)
    {
        KDij = KDi;
        real *xj  = data_start+arg;           // Inner iterator on data rows

        // Iterate on columns of derivative matrix
        for (int j=0 ; j <= i ; ++j, xj += cache_mod)
        {
            // Set into derivative matrix
            *KDij++ = - signal_sigma * (*xi * *xj) * input_sigmoid / input_sigma_sq;
        }
    }
}

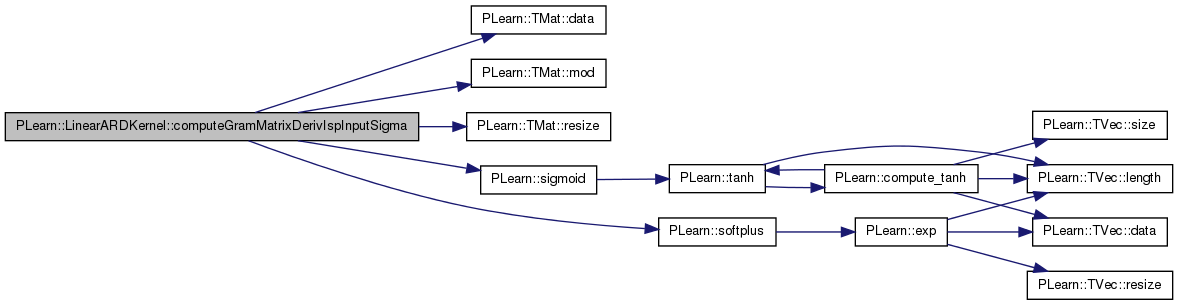

Here is the call graph for this function:

void PLearn::LinearARDKernel::computeGramMatrixDerivIspSignalSigma ( Mat KD) const [protected]

Definition at line 290 of file LinearARDKernel.cc.

References PLASSERT_MSG, PLearn::TMat< T >::resize(), PLearn::sigmoid(), and PLearn::softplus().

{
    int l = data->length();
    KD.resize(l,l);
    PLASSERT_MSG(
        gram_matrix.width() == l && gram_matrix.length() == l,
        "To compute the derivative with respect to 'isp_signal_sigma', the\n"
        "Gram matrix must be precomputed and cached in LinearARDKernel.");

    KD << gram_matrix;
    KD *= sigmoid(m_isp_signal_sigma)/softplus(m_isp_signal_sigma);
}

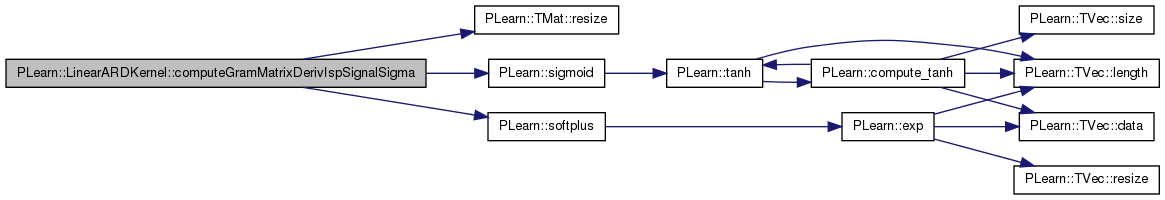

Here is the call graph for this function:

void PLearn::LinearARDKernel::declareOptions ( OptionList ol) [static, protected]

Declares the class options.

Reimplemented from PLearn::ARDBaseKernel.

Definition at line 87 of file LinearARDKernel.cc.

{
    // Now call the parent class' declareOptions
    inherited::declareOptions(ol);
}
static const PPath& PLearn::LinearARDKernel::declaringFile ( ) [inline, static]

Reimplemented from PLearn::ARDBaseKernel.

Definition at line 118 of file LinearARDKernel.h.

:
LinearARDKernel * PLearn::LinearARDKernel::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::ARDBaseKernel.

Definition at line 78 of file LinearARDKernel.cc.

real PLearn::LinearARDKernel::derivIspGlobalSigma ( int  i,
int  j,
int  arg,
real  K
) const [protected]

Derivative function with respect to isp_global_sigma.

Definition at line 279 of file LinearARDKernel.cc.

References PLearn::fast_is_equal(), PLearn::sigmoid(), and PLearn::softplus().

Referenced by computeGramMatrixDerivative().

{
    if (fast_is_equal(K,0.))
        return 0.;

    return - K * sigmoid(m_isp_global_sigma) / softplus(m_isp_global_sigma);
}

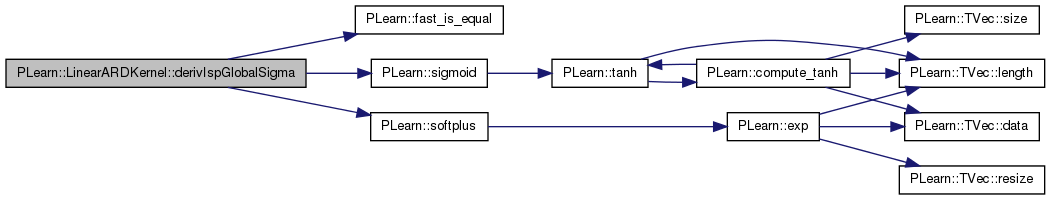

Here is the call graph for this function:

Here is the caller graph for this function:

real PLearn::LinearARDKernel::derivIspSignalSigma ( int  i,
int  j,
int  arg,
real  K
) const [protected]

Derivative function with respect to isp_signal_sigma.

Definition at line 270 of file LinearARDKernel.cc.

References PLearn::sigmoid(), and PLearn::softplus().

{
    // (No longer used; see computeGramMatrixDerivIspInputSigma below)
    return K*sigmoid(m_isp_signal_sigma)/softplus(m_isp_signal_sigma);
}

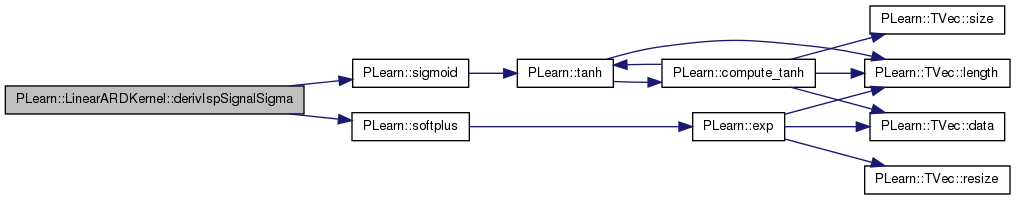

Here is the call graph for this function:

real PLearn::LinearARDKernel::evaluate ( const Vec x1,
const Vec x2
) const [virtual]

Compute K(x1,x2).

Reimplemented from PLearn::KroneckerBaseKernel.

Definition at line 115 of file LinearARDKernel.cc.

References PLearn::TVec< T >::data(), PLearn::dot(), PLearn::fast_is_equal(), i, n, PLASSERT, PLearn::TVec< T >::size(), and PLearn::softplus().

{
    PLASSERT( x1.size() == x2.size() );
    PLASSERT( !m_isp_input_sigma.size() || x1.size() == m_isp_input_sigma.size() );

    real gating_term = inherited::evaluate(x1,x2);
    if (fast_is_equal(gating_term, 0.0) || x1.size() == 0)
        return 0.0;

    real the_dot    = 0.0;
    if (m_isp_input_sigma.size() > 0) {
        const real* px1 = x1.data();
        const real* px2 = x2.data();
        const real* pinpsig = m_isp_input_sigma.data();
        for (int i=0, n=x1.size() ; i<n ; ++i) {
            the_dot += (*px1++ * *px2++) / softplus(m_isp_global_sigma + *pinpsig++);
        }
    }
    else {
        real global_sigma = softplus(m_isp_global_sigma);
        the_dot = dot(x1, x2) / global_sigma;
    }

    // Gate by Kronecker term
    return softplus(m_isp_signal_sigma) * the_dot * gating_term;
}

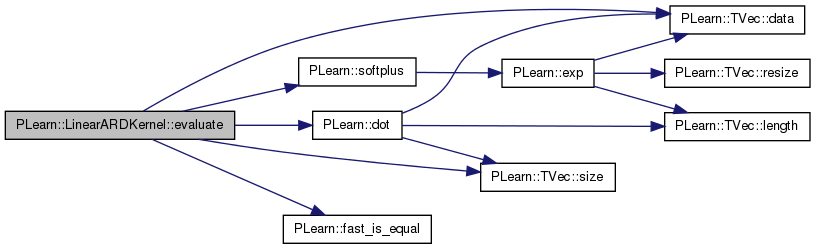

Here is the call graph for this function:

void PLearn::LinearARDKernel::evaluate_all_i_x ( const Vec x,
const Vec k_xi_x,
real  squared_norm_of_x = -1,
int  istart = 0
) const [virtual]

Fill k_xi_x with K(x_i, x), for all i from istart to istart + k_xi_x.length() - 1.

Reimplemented from PLearn::Kernel.

Definition at line 260 of file LinearARDKernel.cc.

References x.

{
    evaluateAllIXNV<LinearARDKernel>(x, k_xi_x, istart);
}
OptionList & PLearn::LinearARDKernel::getOptionList ( ) const [virtual]

Reimplemented from PLearn::ARDBaseKernel.

Definition at line 78 of file LinearARDKernel.cc.

OptionMap & PLearn::LinearARDKernel::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::ARDBaseKernel.

Definition at line 78 of file LinearARDKernel.cc.

RemoteMethodMap & PLearn::LinearARDKernel::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::ARDBaseKernel.

Definition at line 78 of file LinearARDKernel.cc.

void PLearn::LinearARDKernel::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Transforms a shallow copy into a deep copy.

Reimplemented from PLearn::ARDBaseKernel.

Definition at line 350 of file LinearARDKernel.cc.


Member Data Documentation

Reimplemented from PLearn::ARDBaseKernel.

Definition at line 118 of file LinearARDKernel.h.


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
