PLearn::AffineTransformVariable Class Reference

#include <AffineTransformVariable.h>

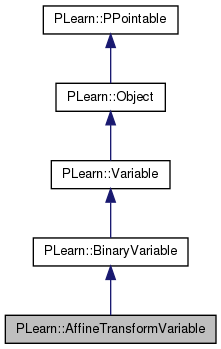

Inheritance diagram for PLearn::AffineTransformVariable:
Inheritance graph
[legend]

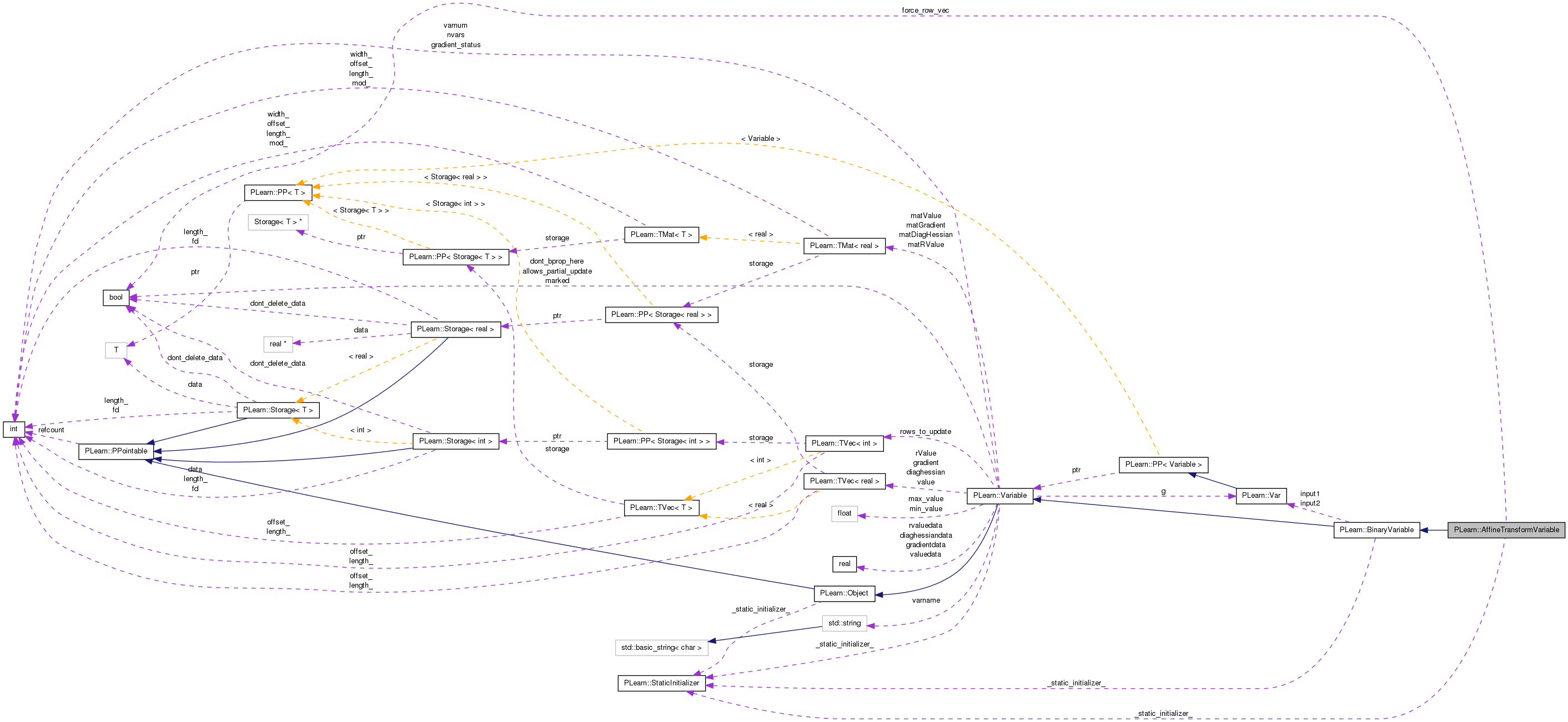

Collaboration diagram for PLearn::AffineTransformVariable:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 AffineTransformVariable ()
 Default constructor for persistence.
 AffineTransformVariable (Variable *vec, Variable *transformation, bool call_build_=true)
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual AffineTransformVariabledeepCopy (CopiesMap &copies) const
virtual void build ()
 Post-constructor.
virtual void recomputeSize (int &l, int &w) const
 Recomputes the length l and width w that this variable should have, according to its parent variables.
virtual void fprop ()
 compute output given input
virtual void bprop ()
virtual void symbolicBprop ()
 compute a piece of new Var graph that represents the symbolic derivative of this Var

Static Public Member Functions

static string _classname_ ()
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

bool force_row_vec

Static Public Attributes

static StaticInitializer _static_initializer_

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declare options (data fields) for the class.

Private Types

typedef BinaryVariable inherited

Private Member Functions

void build_ ()
 This does the actual building.

Detailed Description

Definition at line 54 of file AffineTransformVariable.h.


Member Typedef Documentation

Reimplemented from PLearn::BinaryVariable.

Definition at line 56 of file AffineTransformVariable.h.


Constructor & Destructor Documentation

PLearn::AffineTransformVariable::AffineTransformVariable ( ) [inline]

Default constructor for persistence.

Definition at line 65 of file AffineTransformVariable.h.

{}
PLearn::AffineTransformVariable::AffineTransformVariable ( Variable vec,
Variable transformation,
bool  call_build_ = true
)

Definition at line 65 of file AffineTransformVariable.cc.

References build_().

                                                                  :
    inherited(vec, transformation,
            vec->isScalar() || vec->isColumnVec() ? transformation->width()
                                                  : 1,
            vec->isScalar() || vec->isColumnVec() ? 1
                                                  : transformation->width(),
            call_build_),
    force_row_vec(false)
{
    if (call_build_)
        build_();
}

Here is the call graph for this function:


Member Function Documentation

string PLearn::AffineTransformVariable::_classname_ ( ) [static]

Reimplemented from PLearn::BinaryVariable.

Definition at line 60 of file AffineTransformVariable.cc.

OptionList & PLearn::AffineTransformVariable::_getOptionList_ ( ) [static]

Reimplemented from PLearn::BinaryVariable.

Definition at line 60 of file AffineTransformVariable.cc.

RemoteMethodMap & PLearn::AffineTransformVariable::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::BinaryVariable.

Definition at line 60 of file AffineTransformVariable.cc.

bool PLearn::AffineTransformVariable::_isa_ ( const Object o) [static]

Reimplemented from PLearn::BinaryVariable.

Definition at line 60 of file AffineTransformVariable.cc.

Object * PLearn::AffineTransformVariable::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 60 of file AffineTransformVariable.cc.

StaticInitializer AffineTransformVariable::_static_initializer_ & PLearn::AffineTransformVariable::_static_initialize_ ( ) [static]

Reimplemented from PLearn::BinaryVariable.

Definition at line 60 of file AffineTransformVariable.cc.

void PLearn::AffineTransformVariable::bprop ( ) [virtual]

Implements PLearn::Variable.

Definition at line 144 of file AffineTransformVariable.cc.

References PLearn::externalProductAcc(), PLearn::TMat< T >::firstRow(), PLearn::Variable::gradient, PLearn::BinaryVariable::input1, PLearn::BinaryVariable::input2, PLearn::TMat< T >::length(), PLearn::productAcc(), and PLearn::TMat< T >::subMatRows().

{
    Mat&  afftr = input2->matValue;
    int l = afftr.length();
    // Vec bias = afftr.firstRow();
    Mat lintr = afftr.subMatRows(1,l-1);

    Mat& afftr_g = input2->matGradient;
    Vec bias_g = afftr_g.firstRow();
    Mat lintr_g = afftr_g.subMatRows(1,l-1);

    bias_g += gradient;
    if(!input1->dont_bprop_here)
        productAcc(input1->gradient, lintr, gradient);
    externalProductAcc(lintr_g, input1->value, gradient);
}

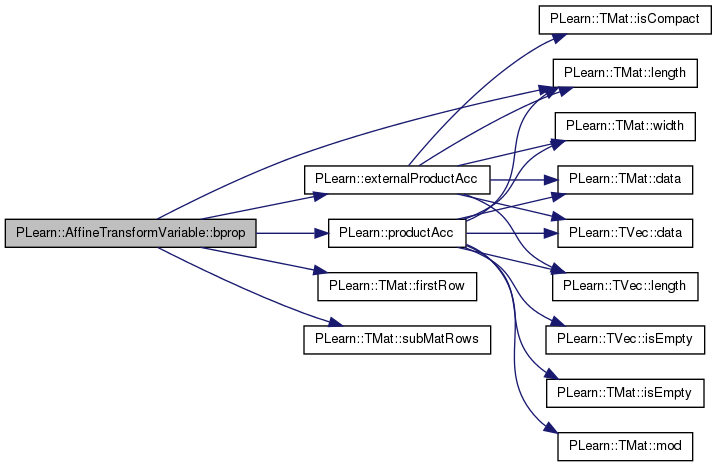

Here is the call graph for this function:

void PLearn::AffineTransformVariable::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::BinaryVariable.

Definition at line 83 of file AffineTransformVariable.cc.

References PLearn::BinaryVariable::build(), and build_().

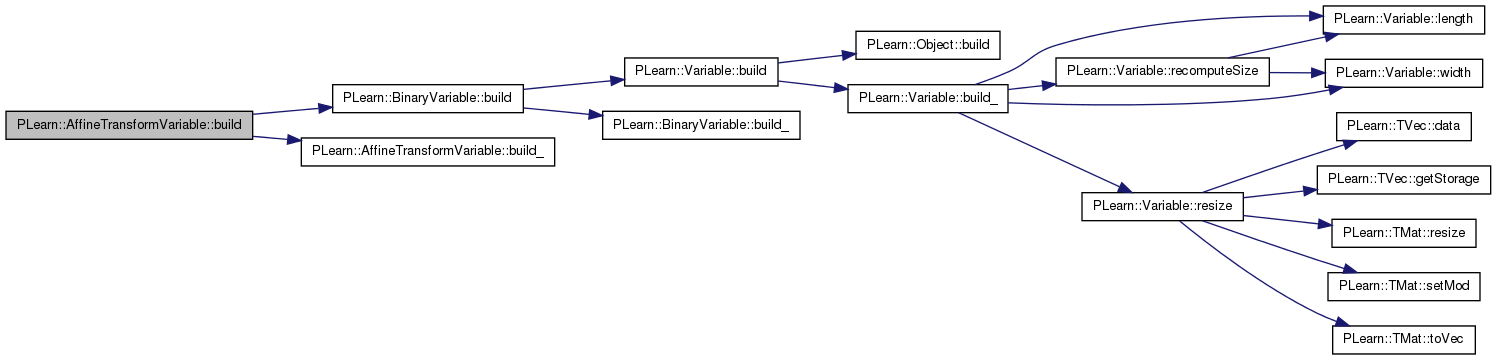

Here is the call graph for this function:

void PLearn::AffineTransformVariable::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::BinaryVariable.

Definition at line 92 of file AffineTransformVariable.cc.

References PLearn::BinaryVariable::input1, and PLERROR.

Referenced by AffineTransformVariable(), and build().

{
    // input1 is vec from constructor
    if (input1 && !input1->isVec())
        PLERROR("In AffineTransformVariable: expecting a vector Var (row or column) as first argument");
}

Here is the caller graph for this function:

string PLearn::AffineTransformVariable::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 60 of file AffineTransformVariable.cc.

void PLearn::AffineTransformVariable::declareOptions ( OptionList ol) [static, protected]

Declare options (data fields) for the class.

Redefine this in subclasses: call declareOption(...) for each option, and then call inherited::declareOptions(options). Please call the inherited method AT THE END to get the options listed in a consistent order (from most recently defined to least recently defined).

  static void MyDerivedClass::declareOptions(OptionList& ol)
  {
      declareOption(ol, "inputsize", &MyObject::inputsize_,
                    OptionBase::buildoption,
                    "The size of the input; it must be provided");
      declareOption(ol, "weights", &MyObject::weights,
                    OptionBase::learntoption,
                    "The learned model weights");
      inherited::declareOptions(ol);
  }
Parameters:
olList of options that is progressively being constructed for the current class.

Reimplemented from PLearn::BinaryVariable.

Definition at line 102 of file AffineTransformVariable.cc.

References PLearn::OptionBase::buildoption, PLearn::declareOption(), PLearn::BinaryVariable::declareOptions(), and force_row_vec.

{
     declareOption(ol, "force_row_vec", &AffineTransformVariable::force_row_vec,
                   OptionBase::buildoption,
        "If set to true, then the resulting vector will always be a row\n"
        "vector, even when the input is a column or a scalar.");

    inherited::declareOptions(ol);
}

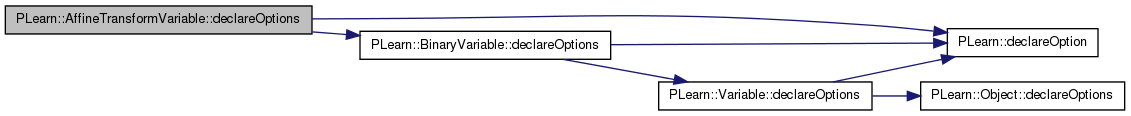

Here is the call graph for this function:

static const PPath& PLearn::AffineTransformVariable::declaringFile ( ) [inline, static]

Reimplemented from PLearn::BinaryVariable.

Definition at line 70 of file AffineTransformVariable.h.

:

AffineTransformVariable * PLearn::AffineTransformVariable::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::BinaryVariable.

Definition at line 60 of file AffineTransformVariable.cc.

void PLearn::AffineTransformVariable::fprop ( ) [virtual]

compute output given input

Implements PLearn::Variable.

Definition at line 134 of file AffineTransformVariable.cc.

References PLearn::BinaryVariable::input1, PLearn::BinaryVariable::input2, PLearn::Var::length(), PLearn::transposeProductAcc(), and PLearn::Variable::value.

{
    value << input2->matValue.firstRow();
    Mat lintransform = input2->matValue.subMatRows(1,input2->length()-1);
    transposeProductAcc(value, lintransform, input1->value);
}

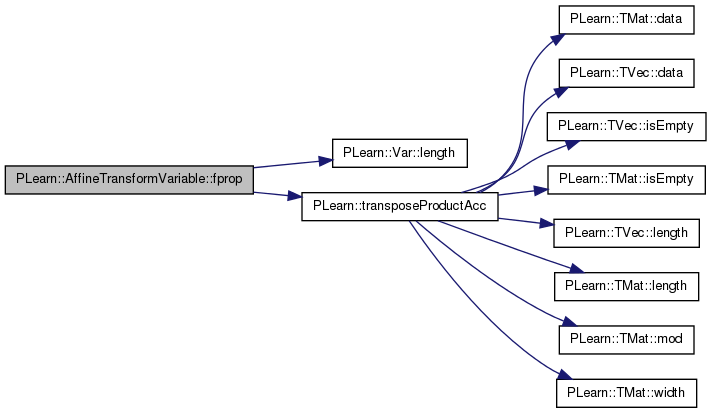

Here is the call graph for this function:

OptionList & PLearn::AffineTransformVariable::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 60 of file AffineTransformVariable.cc.

OptionMap & PLearn::AffineTransformVariable::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 60 of file AffineTransformVariable.cc.

RemoteMethodMap & PLearn::AffineTransformVariable::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 60 of file AffineTransformVariable.cc.

void PLearn::AffineTransformVariable::recomputeSize ( int l,
int w
) const [virtual]

Recomputes the length l and width w that this variable should have, according to its parent variables.

This is used for ex. by sizeprop() The default version stupidly returns the current dimensions, so make sure to overload it in subclasses if this is not appropriate.

Reimplemented from PLearn::Variable.

Definition at line 115 of file AffineTransformVariable.cc.

References force_row_vec, PLearn::BinaryVariable::input1, PLearn::BinaryVariable::input2, and PLearn::Var::width().

{
    if (input1 && input2) {
        if (force_row_vec || (!input1->isScalar() && input1->isRowVec())) {
            // Result is a row vector.
            l = 1;
            w = input2->width();
        } else {
            // Result is a column vector.
            l = input2->width();
            w = 1;
        }
    } else
        l = w = 0;
}

Here is the call graph for this function:

void PLearn::AffineTransformVariable::symbolicBprop ( ) [virtual]

compute a piece of new Var graph that represents the symbolic derivative of this Var

Reimplemented from PLearn::Variable.

Definition at line 162 of file AffineTransformVariable.cc.

References PLERROR.

{
    PLERROR("AffineTransformVariable::symbolicBprop() not implemented");
}

Member Data Documentation

Reimplemented from PLearn::BinaryVariable.

Definition at line 70 of file AffineTransformVariable.h.

Definition at line 62 of file AffineTransformVariable.h.

Referenced by declareOptions(), and recomputeSize().


The documentation for this class was generated from the following files:
