PLearn::ConjGradientOptimizer Class Reference

#include <ConjGradientOptimizer.h>

Inheritance diagram for PLearn::ConjGradientOptimizer:
Inheritance graph
[legend]

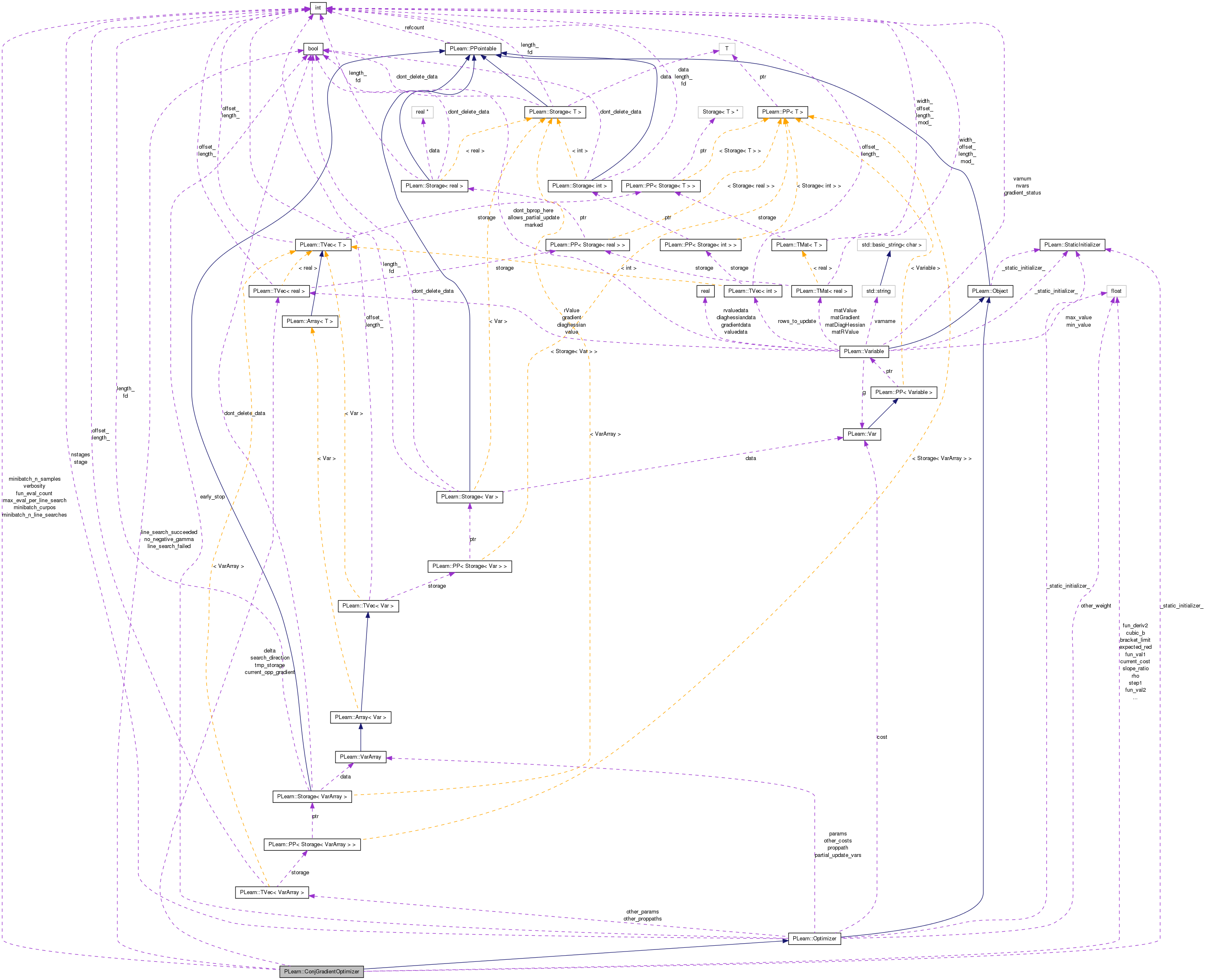

Collaboration diagram for PLearn::ConjGradientOptimizer:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 ConjGradientOptimizer ()
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual ConjGradientOptimizerdeepCopy (CopiesMap &copies) const
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Does the necessary operations to transform a shallow copy (this) into a deep copy by deep-copying all the members that need to be.
virtual void build ()
 Post-constructor.
virtual bool optimizeN (VecStatsCollector &stat_coll)
 Main optimization method, to be defined in subclasses.
virtual void reset ()

Static Public Member Functions

static string _classname_ ()
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

real constrain_limit
real expected_red
real max_extrapolate
real rho
real sigma
real slope_ratio
int max_eval_per_line_search
bool no_negative_gamma
int verbosity
int minibatch_n_samples
int minibatch_n_line_searches

Static Public Attributes

static StaticInitializer _static_initializer_

Protected Member Functions

void findDirection ()
 Find the new search direction for the line search algorithm.
bool lineSearch ()
 Search the minimum in the current search direction.
void updateSearchDirection (real gamma)
 Update the search_direction by search_direction = delta + gamma * search_direction 'delta' is supposed to be the opposite gradient at the point we have reached during the line search: 'current_opp_gradient' is also updated in this function (set equal to 'delta').
real polakRibiere ()
 A Conjugate Gradient formula finds the new search direction, given the current gradient, the previous one, and the current search direction.
real minimizeLineSearch ()
 A line search algorithm moves 'params' to the value minimizing 'cost', when moving in the direction 'search_direction'.
real computeCostValue (real alpha)
 Return cost->value() after an update of params with step size alpha in the current search direction, i.e: f(x) = cost(params + x*search_direction) in x = alpha.
real computeDerivative (real alpha)
 Return the derivative of the function f(x) = cost(params + x*search_direction) in x = alpha.
void computeCostAndDerivative (real alpha, real &cost, real &derivative)

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declare options (data fields) for the class.

Protected Attributes

int minibatch_curpos
real bracket_limit
 Bracket limit.
real cubic_a
 Cubic interpolation coefficients.
real cubic_b
real current_cost
 Current cost (=function) value.
real fun_deriv2
 Function derivative (w.r.t. to the step along the search direction).
real fun_deriv1
real fun_val1
 Function values.
real fun_val2
real step1
 Step values along the search direction, during line search.
real step2
int fun_eval_count
 Counter to make sure the number of function evaluations does not exceed the 'max_eval_per_line_search' option.
bool line_search_failed
 Booleans indicating the line search outcome.
bool line_search_succeeded
Vec current_opp_gradient
 Current opposite gradient value.
Vec search_direction
 Current search direction for line search.
Vec tmp_storage
 Temporary data storage.
Vec delta
 Temporary storage of the gradient.

Private Types

typedef Optimizer inherited

Private Member Functions

void build_ ()
 Object-specific post-constructor.

Detailed Description

Definition at line 51 of file ConjGradientOptimizer.h.


Member Typedef Documentation

Reimplemented from PLearn::Optimizer.

Definition at line 53 of file ConjGradientOptimizer.h.


Constructor & Destructor Documentation

PLearn::ConjGradientOptimizer::ConjGradientOptimizer ( )

Member Function Documentation

string PLearn::ConjGradientOptimizer::_classname_ ( ) [static]

Reimplemented from PLearn::Optimizer.

Definition at line 110 of file ConjGradientOptimizer.cc.

OptionList & PLearn::ConjGradientOptimizer::_getOptionList_ ( ) [static]

Reimplemented from PLearn::Optimizer.

Definition at line 110 of file ConjGradientOptimizer.cc.

RemoteMethodMap & PLearn::ConjGradientOptimizer::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::Optimizer.

Definition at line 110 of file ConjGradientOptimizer.cc.

bool PLearn::ConjGradientOptimizer::_isa_ ( const Object o) [static]

Reimplemented from PLearn::Optimizer.

Definition at line 110 of file ConjGradientOptimizer.cc.

Object * PLearn::ConjGradientOptimizer::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 110 of file ConjGradientOptimizer.cc.

StaticInitializer ConjGradientOptimizer::_static_initializer_ & PLearn::ConjGradientOptimizer::_static_initialize_ ( ) [static]

Reimplemented from PLearn::Optimizer.

Definition at line 110 of file ConjGradientOptimizer.cc.

virtual void PLearn::ConjGradientOptimizer::build ( ) [inline, virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::Optimizer.

Definition at line 114 of file ConjGradientOptimizer.h.

void PLearn::ConjGradientOptimizer::build_ ( ) [private]

Object-specific post-constructor.

This method should be redefined in subclasses and do the actual building of the object according to previously set option fields. Constructors can just set option fields, and then call build_. This method is NOT virtual, and will typically be called only from three places: a constructor, the public virtual build() method, and possibly the public virtual read method (which calls its parent's read). build_() can assume that its parent's build_() has already been called.

Reimplemented from PLearn::Optimizer.

Definition at line 204 of file ConjGradientOptimizer.cc.

References current_opp_gradient, delta, n, PLearn::VarArray::nelems(), PLearn::Optimizer::params, PLearn::TVec< T >::resize(), search_direction, and tmp_storage.

                                   {
    // Make sure the internal data have the right size.
    int n = params.nelems();
    current_opp_gradient.resize(n);
    search_direction.resize(n);
    tmp_storage.resize(n);
    delta.resize(n);
}

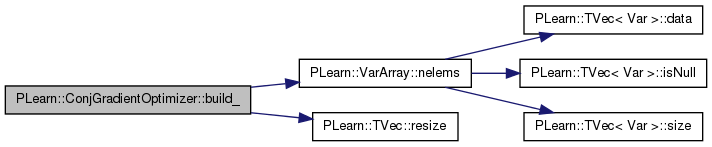

Here is the call graph for this function:

string PLearn::ConjGradientOptimizer::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 110 of file ConjGradientOptimizer.cc.

void PLearn::ConjGradientOptimizer::computeCostAndDerivative ( real  alpha,
real cost,
real derivative
) [protected]

Definition at line 216 of file ConjGradientOptimizer.cc.

References PLearn::Optimizer::computeGradient(), PLearn::VarArray::copyFrom(), PLearn::VarArray::copyTo(), current_cost, current_opp_gradient, delta, PLearn::dot(), PLearn::endl(), PLearn::fast_exact_is_equal(), PLearn::VarArray::nelems(), PLearn::Optimizer::params, PLearn::perr, search_direction, tmp_storage, and PLearn::VarArray::update().

Referenced by minimizeLineSearch().

                                              {
    if (fast_exact_is_equal(alpha, 0)) {
        cost = this->current_cost;
        derivative = -dot(this->search_direction, this->current_opp_gradient);
    } else {
        this->params.copyTo(this->tmp_storage);
        this->params.update(alpha, this->search_direction);
        computeGradient(this->delta);
        cost = this->cost->value[0];

#if 0
        Vec tmpparams(this->params.nelems());
        this->params >> tmpparams;
        perr << "Params: " << tmpparams << "   Cost: " << cost << endl;
#endif

        derivative = dot(this->search_direction, this->delta);
        this->params.copyFrom(this->tmp_storage);
    }
}

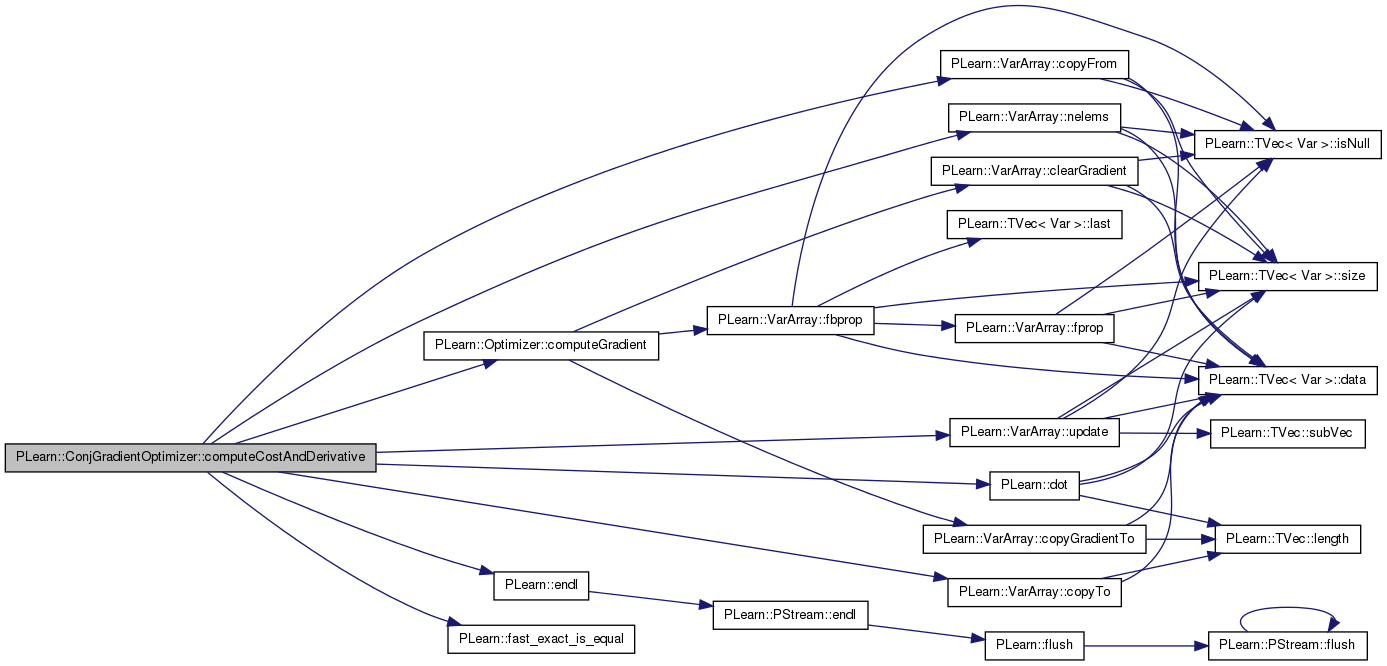

Here is the call graph for this function:

Here is the caller graph for this function:

real PLearn::ConjGradientOptimizer::computeCostValue ( real  alpha) [protected]

Return cost->value() after an update of params with step size alpha in the current search direction, i.e: f(x) = cost(params + x*search_direction) in x = alpha.

The parameters' values are not modified by this function.

Definition at line 241 of file ConjGradientOptimizer.cc.

References c, PLearn::VarArray::copyFrom(), PLearn::VarArray::copyTo(), PLearn::Optimizer::cost, current_cost, PLearn::endl(), PLearn::fast_exact_is_equal(), PLearn::VarArray::fprop(), PLearn::VarArray::nelems(), PLearn::Optimizer::params, PLearn::perr, PLearn::Optimizer::proppath, search_direction, tmp_storage, and PLearn::VarArray::update().

{
    if (fast_exact_is_equal(alpha, 0))
        return this->current_cost;
    this->params.copyTo(this->tmp_storage);
    this->params.update(alpha, this->search_direction);
    this->proppath.fprop();
    real c = this->cost->value[0];

#if 0
    Vec tmpparams(this->params.nelems());
    this->params >> tmpparams;
    perr << "Params: " << tmpparams << "   Cost: " << c << endl;
#endif

    this->params.copyFrom(this->tmp_storage);
    return c;
}

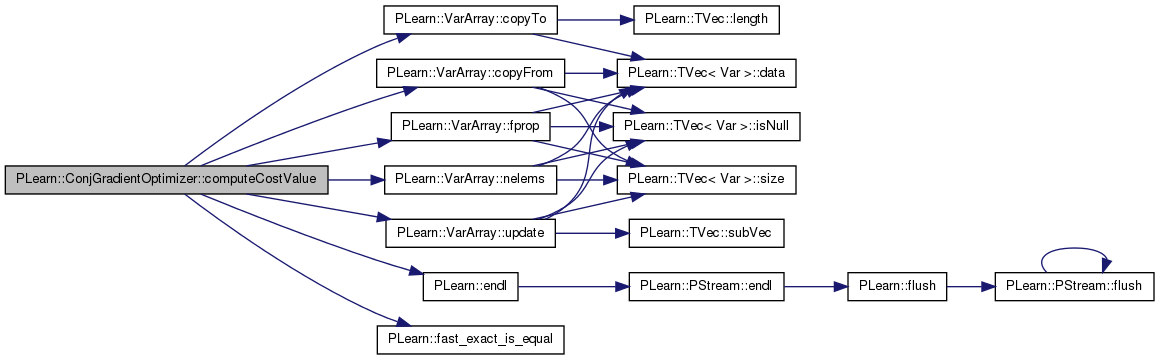

Here is the call graph for this function:

real PLearn::ConjGradientOptimizer::computeDerivative ( real  alpha) [protected]

Return the derivative of the function f(x) = cost(params + x*search_direction) in x = alpha.

The parameters' values are not modified by this function (however, the gradients are altered).

Definition at line 263 of file ConjGradientOptimizer.cc.

References PLearn::Optimizer::computeGradient(), PLearn::VarArray::copyFrom(), PLearn::VarArray::copyTo(), PLearn::Optimizer::cost, current_opp_gradient, delta, PLearn::dot(), PLearn::endl(), PLearn::fast_exact_is_equal(), PLearn::VarArray::nelems(), PLearn::Optimizer::params, PLearn::perr, search_direction, tmp_storage, and PLearn::VarArray::update().

{
    if (fast_exact_is_equal(alpha, 0))
        return -dot(this->search_direction, this->current_opp_gradient);
    this->params.copyTo(this->tmp_storage);
    this->params.update(alpha, this->search_direction);
    computeGradient(this->delta);

#if 0
    Vec tmpparams(this->params.nelems());
    this->params >> tmpparams;
    perr << "Params: " << tmpparams << "   Cost: " << this->cost->value[0] << endl;
#endif

    this->params.copyFrom(this->tmp_storage);
    return dot(this->search_direction, this->delta);
}

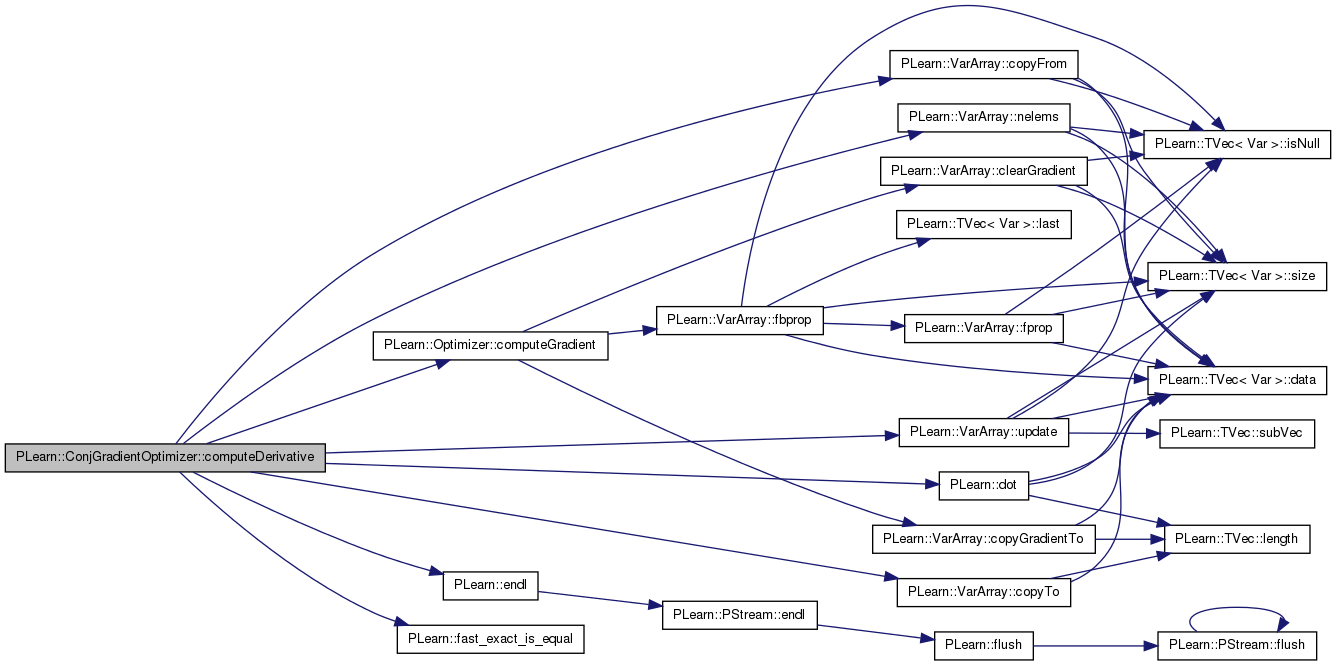

Here is the call graph for this function:

void PLearn::ConjGradientOptimizer::declareOptions ( OptionList ol) [static, protected]

Declare options (data fields) for the class.

Redefine this in subclasses: call declareOption(...) for each option, and then call inherited::declareOptions(options). Please call the inherited method AT THE END to get the options listed in a consistent order (from most recently defined to least recently defined).

  static void MyDerivedClass::declareOptions(OptionList& ol)
  {
      declareOption(ol, "inputsize", &MyObject::inputsize_,
                    OptionBase::buildoption,
                    "The size of the input; it must be provided");
      declareOption(ol, "weights", &MyObject::weights,
                    OptionBase::learntoption,
                    "The learned model weights");
      inherited::declareOptions(ol);
  }
Parameters:
olList of options that is progressively being constructed for the current class.

Reimplemented from PLearn::Optimizer.

Definition at line 115 of file ConjGradientOptimizer.cc.

References PLearn::OptionBase::buildoption, constrain_limit, PLearn::declareOption(), PLearn::Optimizer::declareOptions(), expected_red, max_eval_per_line_search, max_extrapolate, minibatch_n_line_searches, minibatch_n_samples, no_negative_gamma, rho, sigma, slope_ratio, and verbosity.

{
    declareOption(
        ol, "verbosity", &ConjGradientOptimizer::verbosity,
        OptionBase::buildoption,
        "Controls the amount of output.  If zero, does not print anything.\n"
        "If 'verbosity'=V, print the current cost if\n"
        "\n"
        "    stage % V == 0\n"
        "\n"
        "i.e. every V stages.  (Default=0)\n");

    declareOption(
        ol, "expected_red", &ConjGradientOptimizer::expected_red,
        OptionBase::buildoption,
        "Expected function reduction at first step.");

    declareOption(
        ol, "no_negative_gamma",
        &ConjGradientOptimizer::no_negative_gamma,
        OptionBase::buildoption,
        "If true, then a negative value for gamma in the Polak-Ribiere\n"
        "formula will trigger a restart.");

    declareOption(
        ol, "sigma", &ConjGradientOptimizer::sigma,
        OptionBase::buildoption,
        "Constant in the Wolfe-Powell stopping conditions.  It is the maximum allowed\n"
        "absolute ratio between previous and new slopes (derivatives in the search\n"
        "direction), thus setting sigma to low (positive) values forces higher\n"
        "precision in the line-searches.\n"
        "Tuning of sigma (depending on the nature of the function to be optimized) may\n"
        "may speed up the minimization.");

    declareOption(
        ol, "rho", &ConjGradientOptimizer::rho,
        OptionBase::buildoption,
        "Constant in the Wolfe-Powell stopping conditions.\n"
        "Rho is the minimum allowed fraction of the expected (from the slope at the\n"
        "initial point in the linesearch). Constants must satisfy 0 < rho < sigma < 1.\n"
        "It is probably not worth playing much with rho.\n");

    declareOption(
        ol, "constrain_limit",
        &ConjGradientOptimizer::constrain_limit,
        OptionBase::buildoption,
        "Multiplicative coefficient to constrain the evaluation bracket.\n"
        "We don't re-evaluate the function if we are within 'constrain_limit'\n"
        "of the current bracket.");

    declareOption(
        ol, "max_extrapolate",
        &ConjGradientOptimizer::max_extrapolate,
        OptionBase::buildoption,
        "Maximum coefficient for bracket extrapolation.  This limits the\n"
        "extrapolation to be within 'max_extrapolate' times the current step-size");

    declareOption(
        ol, "max_eval_per_line_search",
        &ConjGradientOptimizer::max_eval_per_line_search,
        OptionBase::buildoption,
        "Maximum number of function evalutions during line search.");

    declareOption(
        ol, "slope_ratio", &ConjGradientOptimizer::slope_ratio,
        OptionBase::buildoption,
        "Maximum slope ratio.");

    declareOption(
        ol, "minibatch_n_samples", &ConjGradientOptimizer::minibatch_n_samples,
        OptionBase::buildoption,
        "If >0 we'll do minibatch. In minibatch mode, weight updates are based on \n"
        "cost and gradients computed on a subset of the whole training set, made \n"
        "of minibatch_n_samples consecutive samples. Each such subset will be used \n"
        "to perform minibatch_n_line_searches line searches before moving to the \n"
        "next minibatch subset.\n");

    declareOption(
        ol, "minibatch_n_line_searches", &ConjGradientOptimizer::minibatch_n_line_searches,
        OptionBase::buildoption,
        "How many line searches to perform with each minibatch subset.");

    inherited::declareOptions(ol);
}

Here is the call graph for this function:

static const PPath& PLearn::ConjGradientOptimizer::declaringFile ( ) [inline, static]

Reimplemented from PLearn::Optimizer.

Definition at line 110 of file ConjGradientOptimizer.h.

{
ConjGradientOptimizer * PLearn::ConjGradientOptimizer::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::Optimizer.

Definition at line 110 of file ConjGradientOptimizer.cc.

void PLearn::ConjGradientOptimizer::findDirection ( ) [protected]

Find the new search direction for the line search algorithm.

Definition at line 284 of file ConjGradientOptimizer.cc.

References PLearn::endl(), no_negative_gamma, polakRibiere(), updateSearchDirection(), and verbosity.

Referenced by optimizeN().

                                          {
    real gamma = polakRibiere();
    if (gamma < 0 && no_negative_gamma) {
        if (verbosity > 0)
            MODULE_LOG << "gamma = " << gamma << " < 0 ==> Restarting" << endl;
        gamma = 0;
    }
    /*
    // Old code triggering restart.
    else {
        real dp = dot(delta, current_opp_gradient);
        real delta_n = pownorm(delta);
        if (abs(dp) > restart_coeff *delta_n ) {
            if (verbosity >= 5)
                pout << "Restart triggered !" << endl;
            gamma = 0;
        }
    }
    */
    updateSearchDirection(gamma);
}

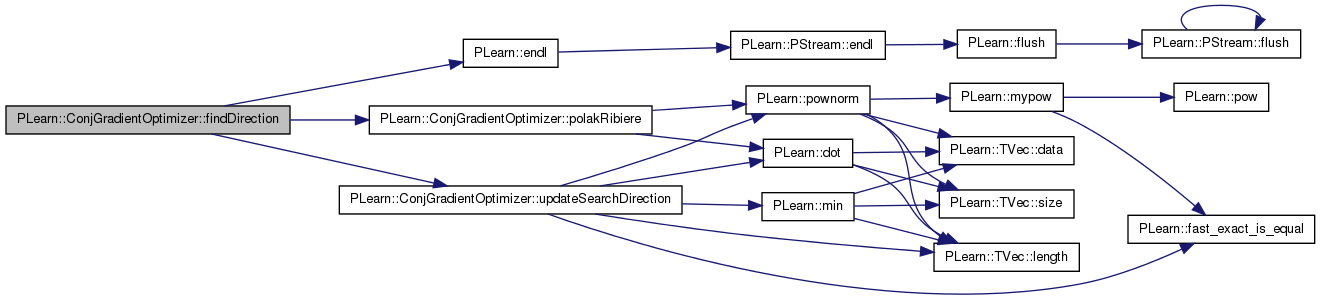

Here is the call graph for this function:

Here is the caller graph for this function:

OptionList & PLearn::ConjGradientOptimizer::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 110 of file ConjGradientOptimizer.cc.

OptionMap & PLearn::ConjGradientOptimizer::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 110 of file ConjGradientOptimizer.cc.

RemoteMethodMap & PLearn::ConjGradientOptimizer::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 110 of file ConjGradientOptimizer.cc.

bool PLearn::ConjGradientOptimizer::lineSearch ( ) [protected]

Search the minimum in the current search direction.

Return false iff no improvement was possible (and we can stop here).

Definition at line 435 of file ConjGradientOptimizer.cc.

References PLearn::endl(), PLearn::fast_exact_is_equal(), minimizeLineSearch(), PLearn::Optimizer::params, PLWARNING, search_direction, PLearn::VarArray::update(), and verbosity.

Referenced by optimizeN().

                                       {
    real step = minimizeLineSearch();
    if (step < 0)
        // Hopefully this will not happen.
        PLWARNING("Negative step!");
    bool no_improvement_possible = fast_exact_is_equal(step, 0);
    if (no_improvement_possible) {
        if (verbosity > 0)
            MODULE_LOG << "No more progress made by the line search, stopping" << endl;
    } else
        params.update(step, search_direction);
    return !no_improvement_possible;
}

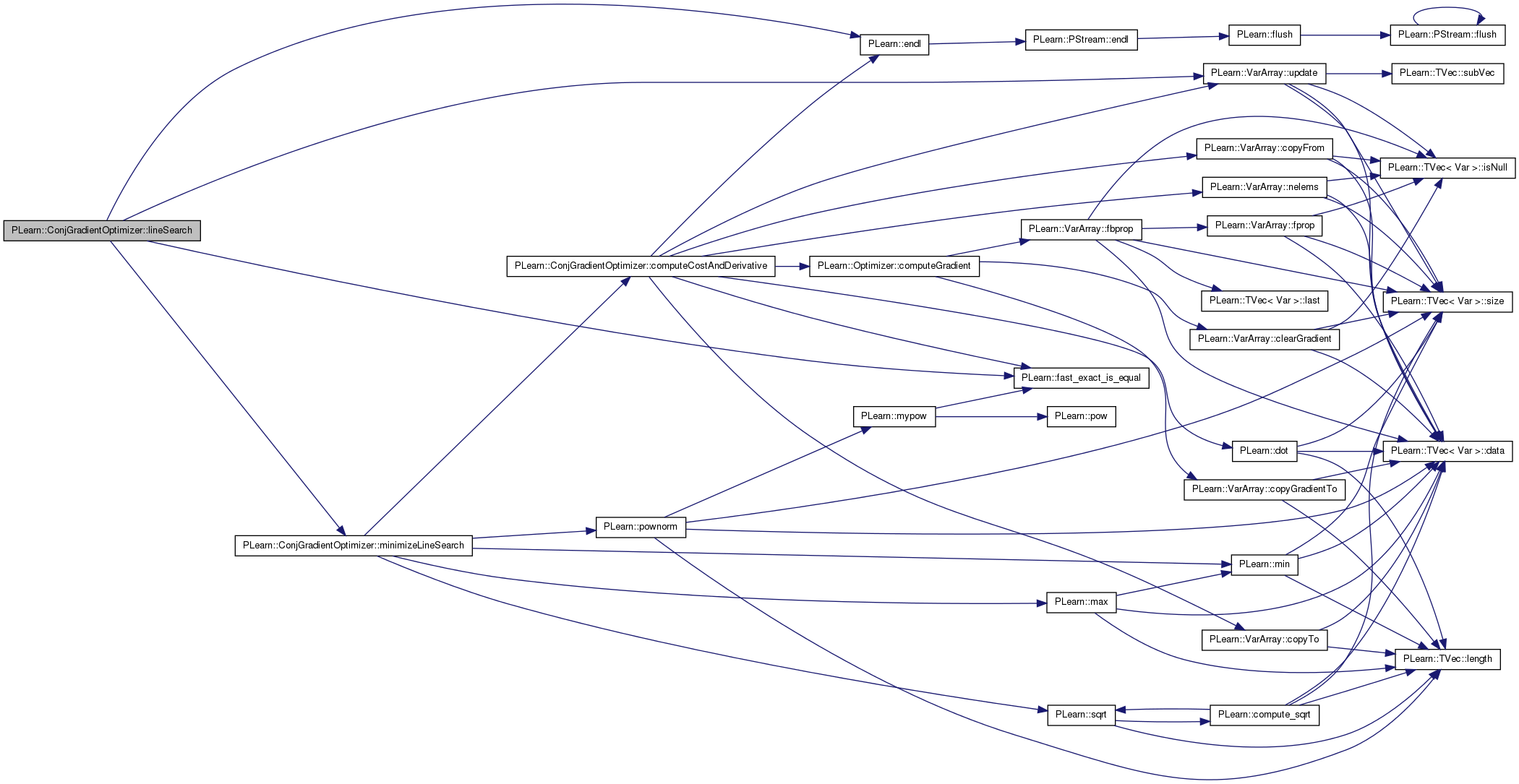

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::ConjGradientOptimizer::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Does the necessary operations to transform a shallow copy (this) into a deep copy by deep-copying all the members that need to be.

This needs to be overridden by every class that adds "complex" data members to the class, such as Vec, Mat, PP<Something>, etc. Typical implementation:

  void CLASS_OF_THIS::makeDeepCopyFromShallowCopy(CopiesMap& copies)
  {
      inherited::makeDeepCopyFromShallowCopy(copies);
      deepCopyField(complex_data_member1, copies);
      deepCopyField(complex_data_member2, copies);
      ...
  }
Parameters:
copiesA map used by the deep-copy mechanism to keep track of already-copied objects.

Reimplemented from PLearn::Optimizer.

Definition at line 452 of file ConjGradientOptimizer.cc.

References current_opp_gradient, PLearn::deepCopyField(), delta, PLearn::Optimizer::makeDeepCopyFromShallowCopy(), search_direction, and tmp_storage.

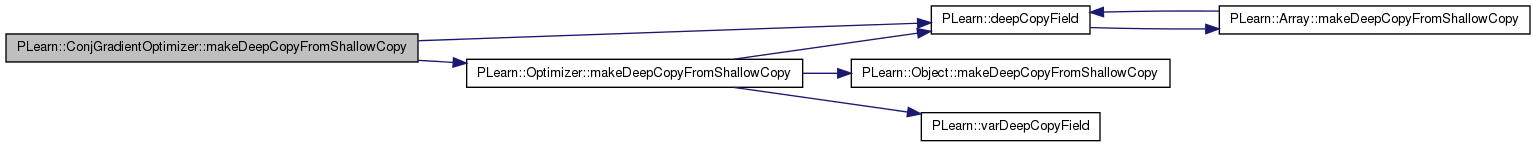

Here is the call graph for this function:

real PLearn::ConjGradientOptimizer::minimizeLineSearch ( ) [protected]

A line search algorithm moves 'params' to the value minimizing 'cost', when moving in the direction 'search_direction'.

It must not update 'current_opp_gradient' (this is done later in updateSearchDirection(..)). It returns the optimal step found to minimize the gradient. The following line search algorithm is inspired by Carl Rasmussen's 'minimize' Matlab algorithm.

Definition at line 309 of file ConjGradientOptimizer.cc.

References bracket_limit, computeCostAndDerivative(), constrain_limit, cubic_a, cubic_b, current_opp_gradient, fun_deriv1, fun_deriv2, fun_eval_count, fun_val1, fun_val2, line_search_failed, line_search_succeeded, PLearn::max(), max_eval_per_line_search, max_extrapolate, PLearn::min(), PLearn::pownorm(), rho, sigma, PLearn::sqrt(), step1, and step2.

Referenced by lineSearch().

{
    // We may need to perform two iterations of line search if the first one
    // fails.
    bool try_again = true;
    while (try_again) {
        try_again = false;
        real fun_val0 = fun_val1;
        computeCostAndDerivative(step1, fun_val2, fun_deriv2);
        real fun_val3 = fun_val1;
        real fun_deriv3 = fun_deriv1;
        real step3 = - step1;
        fun_eval_count = max_eval_per_line_search;
        line_search_succeeded = false;
        bracket_limit = -1;
        while (true) {
            while ( (fun_val2 > fun_val1 + step1 * rho * fun_deriv1 ||
                     fun_deriv2 > - sigma * fun_deriv1 ) &&
                    fun_eval_count > 0 )
            {
                // Tighten bracket.
                bracket_limit = step1;
                if (fun_val2 > fun_val1) {
                    // Quadratic fit.
                    step2 = step3 -
                        (0.5*fun_deriv3*step3*step3) /
                        (fun_deriv3*step3+fun_val2-fun_val3);
                } else {
                    // Cubic fit.
                    cubic_a = 6*(fun_val2-fun_val3)/step3 +
                              3*(fun_deriv2+fun_deriv3);
                    cubic_b = 3*(fun_val3-fun_val2) -
                              step3*(fun_deriv3+2*fun_deriv2);
                    step2 =
                        (sqrt(cubic_b*cubic_b-cubic_a*fun_deriv2*step3*step3) -
                         cubic_b) / cubic_a;
                }
                if (isnan(step2) || isinf(step2))
                    // Shit happens => bisection.
                    step2 = step3/2;
                // Constrained range.
                step2 = max(min(step2, constrain_limit*step3),
                            (1-constrain_limit)*step3);
                // Increase step and update function value and derivative.
                step1 += step2;
                computeCostAndDerivative(step1, fun_val2, fun_deriv2);
                // Update point 3.
                step3 = step3 - step2;
                fun_eval_count--;
            }
            if (fun_val2 > fun_val1+step1*rho*fun_deriv1 ||
                fun_deriv2 > -sigma*fun_deriv1)
                // Failure.
                break;
            else if (fun_deriv2 > sigma * fun_deriv1) {
                // Sucesss.
                line_search_succeeded = true;
                break;
            } else if (fun_eval_count == 0)
                // Failure.
                break;
            // Cubic fit.
            cubic_a = 6*(fun_val2-fun_val3)/step3+3*(fun_deriv2+fun_deriv3);
            cubic_b = 3*(fun_val3-fun_val2)-step3*(fun_deriv3+2*fun_deriv2);
            step2 = -fun_deriv2*step3*step3 /
                (cubic_b +
                 sqrt(cubic_b*cubic_b-cubic_a*fun_deriv2*step3*step3));
            if (isnan(step2) || isinf(step2) || step2 < 0) {
                // Numerical issue, or wrong sign.
                if (bracket_limit < -0.5)
                    // No upper limit.
                    step2 = step1 * (max_extrapolate - 1);
                else
                    step2 = (bracket_limit - step1) / 2;
            } else if (bracket_limit > -0.5 && (step2 + step1 > bracket_limit))
                // Extrapolation beyond maximum.
                step2 = (bracket_limit - step1) / 2;
            else if (bracket_limit < -0.5 &&
                     step2+step1 > step1 * max_extrapolate) {
                // Extrapolation beyond limit.
                step2 = step1 * (max_extrapolate - 1);
            } else if (step2 < - step3 * constrain_limit) {
                step2 = - step3 * constrain_limit;
                // % too close to limit?
            } else if (bracket_limit > -0.5 &&
                       step2 < (bracket_limit - step1) * (1 - constrain_limit))
                // Too close to limit.
                step2 = (bracket_limit - step1) * (1 - constrain_limit);
            // Point 3 = point 2.
            fun_val3 = fun_val2;
            fun_deriv3 = fun_deriv2;
            step3 = - step2;
            // Update step and function value and derivative.
            step1 += step2;
            computeCostAndDerivative(step1, fun_val2, fun_deriv2);
            fun_eval_count--;
        }

        if (line_search_succeeded) {
            fun_val1 = fun_val2;
            line_search_failed = false;
        } else {
            // Come back to initial point.
            fun_val1 = fun_val0;
            // If it is the second time it fails, then we cannot do better.
            if (line_search_failed)
                return 0;
            // Original code:
            // tmp = df1; df1 = df2; df2 = tmp; % swap derivatives
            // s = -df1; % try steepest
            // d1 = -s'*s;
            // We do not do that... it looks weird!
            // We will actually do s = -df0 as this seems more logical.
            // TODO See Carl Rasmussen's answer to email...
            fun_deriv1 = - pownorm(current_opp_gradient);
            step1 = 1 / (1 - fun_deriv1);
            line_search_failed = true;
            try_again = true;
        }
    }
    return step1;
}

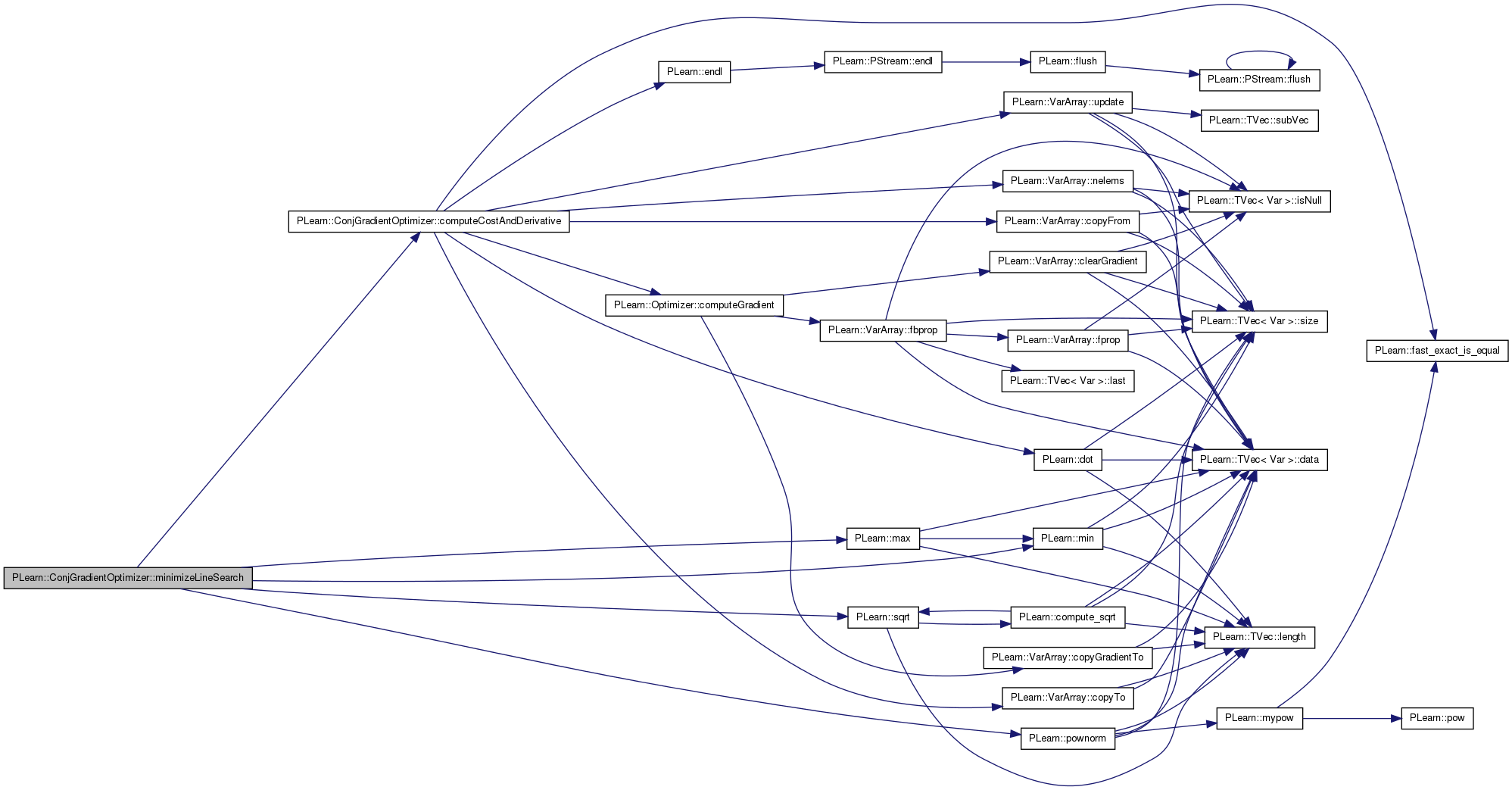

Here is the call graph for this function:

Here is the caller graph for this function:

bool PLearn::ConjGradientOptimizer::optimizeN ( VecStatsCollector stats_coll) [virtual]

Main optimization method, to be defined in subclasses.

Return true iff no further optimization is possible.

Implements PLearn::Optimizer.

Definition at line 464 of file ConjGradientOptimizer.cc.

References PLearn::Optimizer::computeOppositeGradient(), PLearn::Optimizer::cost, current_cost, current_opp_gradient, delta, PLearn::Optimizer::early_stop, PLearn::endl(), expected_red, findDirection(), PLearn::VarArray::fprop(), fun_deriv1, fun_val1, PLearn::SumOfVariable::getDataSet(), PLearn::VMat::length(), lineSearch(), minibatch_curpos, minibatch_n_line_searches, minibatch_n_samples, PLearn::Optimizer::nstages, PLWARNING, PLearn::pownorm(), PLearn::Optimizer::proppath, search_direction, PLearn::SumOfVariable::setSampleRange(), PLearn::Optimizer::stage, step1, PLearn::VecStatsCollector::update(), and verbosity.

                                                                   {
    int stage_max = stage + nstages; // The stage to reach.

    SumOfVariable* sumofvar = 0;
    int trainsetlength = -1;
    int minibatch_n_line_searches_left = minibatch_n_line_searches;
    if(minibatch_n_samples>0)
    {
        sumofvar = dynamic_cast<SumOfVariable*>((Variable*)cost);
        if(sumofvar)
        {
            trainsetlength = sumofvar->getDataSet()->length();
            sumofvar->setSampleRange(minibatch_curpos, minibatch_n_samples, true);
        }
        else
        {
            PLWARNING("In ConjGradientOptimizer, minibatch_n_samples>0 but can't "
                      "do minibatch since cost does not seem to be a SumOfVariable "
                      " (the only type of variable for which minibatch is supported)");
        }
    }

    if (stage == 0)
    {
        computeOppositeGradient(current_opp_gradient);
        // First search direction = - gradient.
        search_direction <<  current_opp_gradient;
        current_cost = cost->value[0];

        fun_val1 = current_cost;
        fun_deriv1 = - pownorm(search_direction);
        step1 = expected_red / ( 1 - fun_deriv1 );
    }

    if (early_stop) {
        // The 'early_stop' flag is already set: we must still update the stats
        // collector with the current cost value.
        this->proppath.fprop();
        stats_coll.update(cost->value);
    }

    for (; !early_stop && stage<stage_max; stage++) {

        if(sumofvar && minibatch_n_line_searches_left==0)
        {
            minibatch_curpos = (minibatch_curpos+minibatch_n_samples)%trainsetlength;
            sumofvar->setSampleRange(minibatch_curpos, minibatch_n_samples, true);
            minibatch_n_line_searches_left = minibatch_n_line_searches;
        }

        // Make a line search along the current search direction.
        early_stop = !lineSearch();
        if(sumofvar) // we're doing minibatch
            --minibatch_n_line_searches_left;

        // Ensure 'delta' contains the opposite gradient at the new point
        // reached after the line search.
        // Also update 'current_cost'.
        computeOppositeGradient(delta);
        current_cost = cost->value[0];
        // Display current cost value if required.
        if (verbosity > 0 && stage % verbosity == 0)
            MODULE_LOG << "Stage " << stage << ": "
                       << current_cost
                       << endl;
        stats_coll.update(cost->value);

        // Find the new search direction if we need to continue.
        if (!early_stop)
            findDirection();
    }

    if (early_stop && verbosity > 0)
        MODULE_LOG << "Early stopping at stage " << stage
                   << "; current-cost=" << current_cost
                   << endl;

    return early_stop;
}

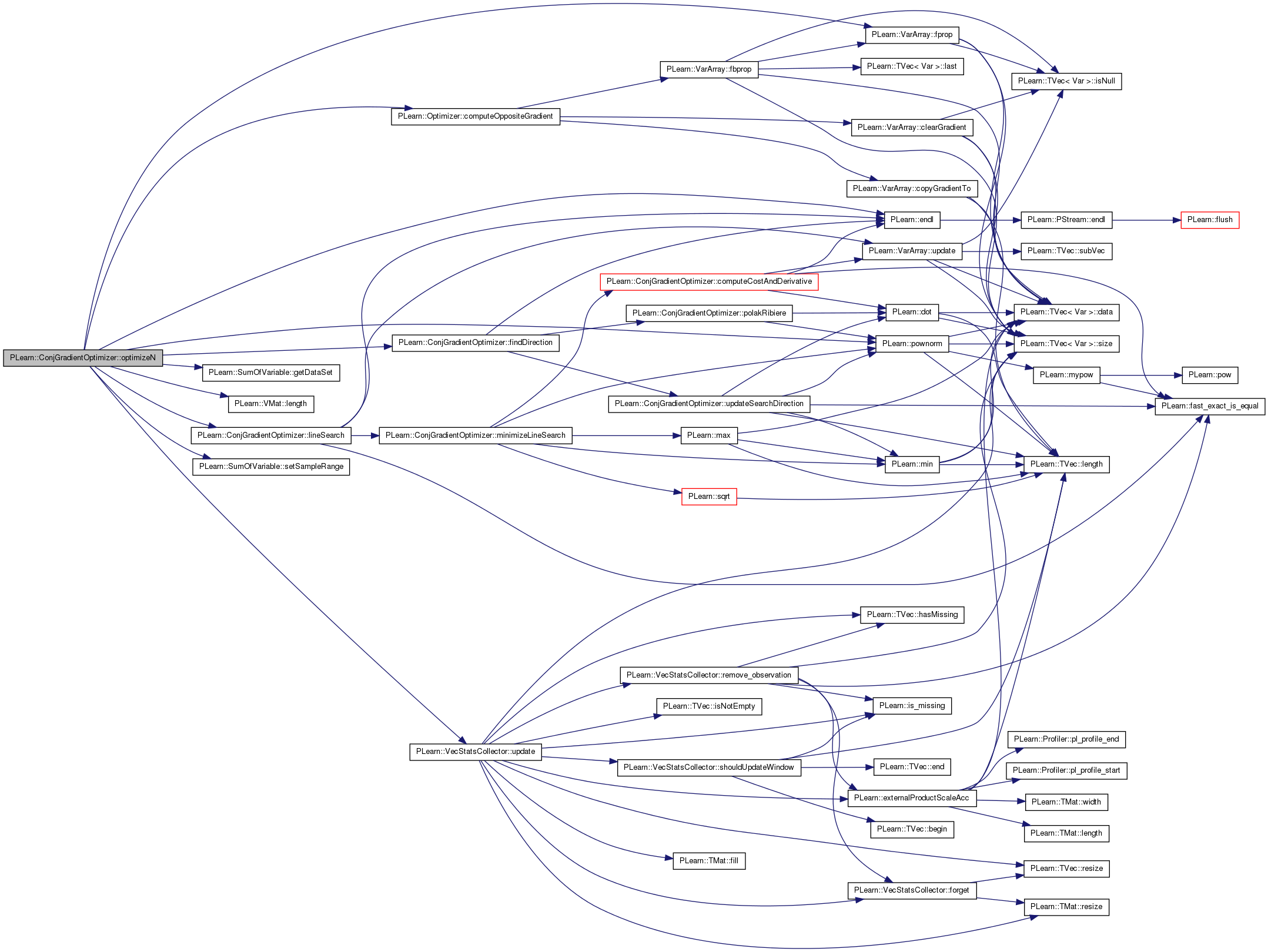

Here is the call graph for this function:

real PLearn::ConjGradientOptimizer::polakRibiere ( ) [protected]

A Conjugate Gradient formula finds the new search direction, given the current gradient, the previous one, and the current search direction.

It returns a constant gamma, which will be used in : search(t) = -gradient(t) + gamma * search(t-1) The Polak-Ribiere formula is: gamma = dot(gradient(t), gradient(t)-gradient(t-1)) / ||gradient(t-1)||^2

Definition at line 547 of file ConjGradientOptimizer.cc.

References current_opp_gradient, delta, PLearn::dot(), PLearn::pownorm(), and tmp_storage.

Referenced by findDirection().

{
    real normg = pownorm(this->current_opp_gradient);
    // At this point, delta = opposite gradient at new point.
    this->tmp_storage << this->delta;
    this->tmp_storage -= this->current_opp_gradient;
    return dot(this->tmp_storage, this->delta) / normg;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::ConjGradientOptimizer::reset ( ) [virtual]

Reimplemented from PLearn::Optimizer.

Definition at line 559 of file ConjGradientOptimizer.cc.

References line_search_failed, line_search_succeeded, minibatch_curpos, and PLearn::Optimizer::reset().

Here is the call graph for this function:

void PLearn::ConjGradientOptimizer::updateSearchDirection ( real  gamma) [protected]

Update the search_direction by search_direction = delta + gamma * search_direction 'delta' is supposed to be the opposite gradient at the point we have reached during the line search: 'current_opp_gradient' is also updated in this function (set equal to 'delta').

Definition at line 569 of file ConjGradientOptimizer.cc.

References current_opp_gradient, delta, PLearn::dot(), PLearn::fast_exact_is_equal(), fun_deriv1, fun_deriv2, i, PLearn::TVec< T >::length(), PLearn::min(), PLearn::pownorm(), search_direction, slope_ratio, and step1.

Referenced by findDirection().

                                                            {
    if (fast_exact_is_equal(gamma, 0))
        search_direction << delta;
    else
        for (int i=0; i<search_direction.length(); i++)
            search_direction[i] = delta[i] + gamma * search_direction[i];

    // Update 'current_opp_gradient' for the new current point.
    current_opp_gradient << delta;
    fun_deriv2 = - dot(current_opp_gradient, search_direction);
    if (fun_deriv2 > 0) {
        search_direction << current_opp_gradient;
        fun_deriv2 = - pownorm(search_direction);
    }
    step1 = step1 * min(slope_ratio, fun_deriv1/(fun_deriv2-REAL_EPSILON));
    fun_deriv1 = fun_deriv2;
}

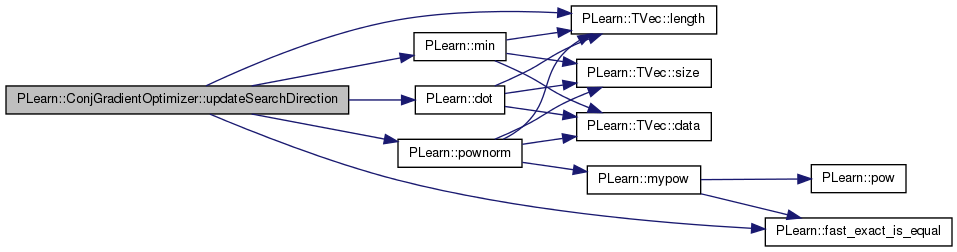

Here is the call graph for this function:

Here is the caller graph for this function:


Member Data Documentation

Reimplemented from PLearn::Optimizer.

Definition at line 110 of file ConjGradientOptimizer.h.

Bracket limit.

Definition at line 77 of file ConjGradientOptimizer.h.

Referenced by minimizeLineSearch().

Definition at line 59 of file ConjGradientOptimizer.h.

Referenced by declareOptions(), and minimizeLineSearch().

Cubic interpolation coefficients.

Definition at line 80 of file ConjGradientOptimizer.h.

Referenced by minimizeLineSearch().

Definition at line 80 of file ConjGradientOptimizer.h.

Referenced by minimizeLineSearch().

Current cost (=function) value.

Definition at line 83 of file ConjGradientOptimizer.h.

Referenced by computeCostAndDerivative(), computeCostValue(), and optimizeN().

Definition at line 60 of file ConjGradientOptimizer.h.

Referenced by declareOptions(), and optimizeN().

Definition at line 86 of file ConjGradientOptimizer.h.

Referenced by minimizeLineSearch(), optimizeN(), and updateSearchDirection().

Function derivative (w.r.t. to the step along the search direction).

Definition at line 86 of file ConjGradientOptimizer.h.

Referenced by minimizeLineSearch(), and updateSearchDirection().

Counter to make sure the number of function evaluations does not exceed the 'max_eval_per_line_search' option.

Definition at line 96 of file ConjGradientOptimizer.h.

Referenced by minimizeLineSearch().

Function values.

Definition at line 89 of file ConjGradientOptimizer.h.

Referenced by minimizeLineSearch(), and optimizeN().

Definition at line 89 of file ConjGradientOptimizer.h.

Referenced by minimizeLineSearch().

Booleans indicating the line search outcome.

Definition at line 99 of file ConjGradientOptimizer.h.

Referenced by minimizeLineSearch(), and reset().

Definition at line 99 of file ConjGradientOptimizer.h.

Referenced by minimizeLineSearch(), and reset().

Definition at line 65 of file ConjGradientOptimizer.h.

Referenced by declareOptions(), and minimizeLineSearch().

Definition at line 61 of file ConjGradientOptimizer.h.

Referenced by declareOptions(), and minimizeLineSearch().

Definition at line 74 of file ConjGradientOptimizer.h.

Referenced by optimizeN(), and reset().

Definition at line 70 of file ConjGradientOptimizer.h.

Referenced by declareOptions(), and optimizeN().

Definition at line 69 of file ConjGradientOptimizer.h.

Referenced by declareOptions(), and optimizeN().

Definition at line 66 of file ConjGradientOptimizer.h.

Referenced by declareOptions(), and findDirection().

Definition at line 62 of file ConjGradientOptimizer.h.

Referenced by declareOptions(), and minimizeLineSearch().

Definition at line 63 of file ConjGradientOptimizer.h.

Referenced by declareOptions(), and minimizeLineSearch().

Definition at line 64 of file ConjGradientOptimizer.h.

Referenced by declareOptions(), and updateSearchDirection().

Step values along the search direction, during line search.

Definition at line 92 of file ConjGradientOptimizer.h.

Referenced by minimizeLineSearch(), optimizeN(), and updateSearchDirection().

Definition at line 92 of file ConjGradientOptimizer.h.

Referenced by minimizeLineSearch().

Definition at line 67 of file ConjGradientOptimizer.h.

Referenced by declareOptions(), findDirection(), lineSearch(), and optimizeN().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
