PLearn::AutoScaledGradientOptimizer Class Reference

#include <AutoScaledGradientOptimizer.h>

Inheritance diagram for PLearn::AutoScaledGradientOptimizer:
Inheritance graph
[legend]

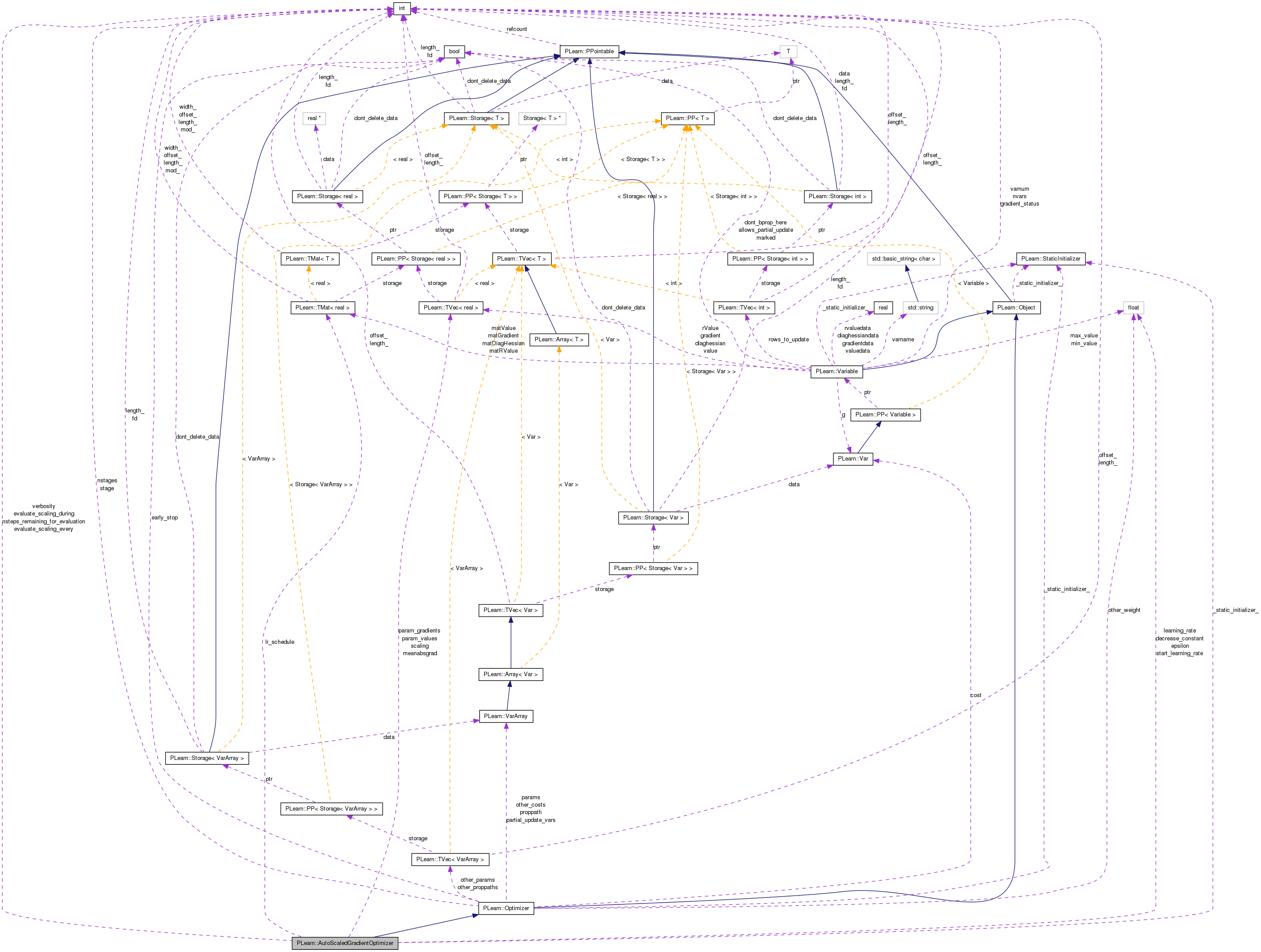

Collaboration diagram for PLearn::AutoScaledGradientOptimizer:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 AutoScaledGradientOptimizer ()
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual
AutoScaledGradientOptimizer
deepCopy (CopiesMap &copies) const
virtual void setToOptimize (const VarArray &the_params, Var the_cost, VarArray the_other_costs=VarArray(0), TVec< VarArray > the_other_params=TVec< VarArray >(0), real the_other_weight=1)
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Does the necessary operations to transform a shallow copy (this) into a deep copy by deep-copying all the members that need to be.
virtual void build ()
 Post-constructor.
virtual bool optimizeN (VecStatsCollector &stats_coll)
 Main optimization method, to be defined in subclasses.

Static Public Member Functions

static string _classname_ ()
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

real learning_rate
 gradient descent specific parameters (directly modifiable by the user)
real start_learning_rate
real decrease_constant
Mat lr_schedule
int verbosity
int evaluate_scaling_every
int evaluate_scaling_during
real epsilon

Static Public Attributes

static StaticInitializer _static_initializer_

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declare options (data fields) for the class.

Protected Attributes

Vec scaling
Vec meanabsgrad
int nsteps_remaining_for_evaluation
Vec param_values
Vec param_gradients

Private Types

typedef Optimizer inherited

Private Member Functions

void build_ ()
 Object-specific post-constructor.

Detailed Description

Definition at line 55 of file AutoScaledGradientOptimizer.h.


Member Typedef Documentation

Reimplemented from PLearn::Optimizer.

Definition at line 57 of file AutoScaledGradientOptimizer.h.


Constructor & Destructor Documentation

PLearn::AutoScaledGradientOptimizer::AutoScaledGradientOptimizer ( )

Member Function Documentation

string PLearn::AutoScaledGradientOptimizer::_classname_ ( ) [static]

Reimplemented from PLearn::Optimizer.

Definition at line 61 of file AutoScaledGradientOptimizer.cc.

OptionList & PLearn::AutoScaledGradientOptimizer::_getOptionList_ ( ) [static]

Reimplemented from PLearn::Optimizer.

Definition at line 61 of file AutoScaledGradientOptimizer.cc.

RemoteMethodMap & PLearn::AutoScaledGradientOptimizer::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::Optimizer.

Definition at line 61 of file AutoScaledGradientOptimizer.cc.

bool PLearn::AutoScaledGradientOptimizer::_isa_ ( const Object o) [static]

Reimplemented from PLearn::Optimizer.

Definition at line 61 of file AutoScaledGradientOptimizer.cc.

Object * PLearn::AutoScaledGradientOptimizer::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 61 of file AutoScaledGradientOptimizer.cc.

StaticInitializer AutoScaledGradientOptimizer::_static_initializer_ & PLearn::AutoScaledGradientOptimizer::_static_initialize_ ( ) [static]

Reimplemented from PLearn::Optimizer.

Definition at line 61 of file AutoScaledGradientOptimizer.cc.

virtual void PLearn::AutoScaledGradientOptimizer::build ( ) [inline, virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::Optimizer.

Definition at line 93 of file AutoScaledGradientOptimizer.h.

void PLearn::AutoScaledGradientOptimizer::build_ ( ) [inline, private]

Object-specific post-constructor.

This method should be redefined in subclasses and do the actual building of the object according to previously set option fields. Constructors can just set option fields, and then call build_. This method is NOT virtual, and will typically be called only from three places: a constructor, the public virtual build() method, and possibly the public virtual read method (which calls its parent's read). build_() can assume that its parent's build_() has already been called.

Reimplemented from PLearn::Optimizer.

Definition at line 109 of file AutoScaledGradientOptimizer.h.

    {}
string PLearn::AutoScaledGradientOptimizer::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 61 of file AutoScaledGradientOptimizer.cc.

void PLearn::AutoScaledGradientOptimizer::declareOptions ( OptionList ol) [static, protected]

Declare options (data fields) for the class.

Redefine this in subclasses: call declareOption(...) for each option, and then call inherited::declareOptions(options). Please call the inherited method AT THE END to get the options listed in a consistent order (from most recently defined to least recently defined).

  static void MyDerivedClass::declareOptions(OptionList& ol)
  {
      declareOption(ol, "inputsize", &MyObject::inputsize_,
                    OptionBase::buildoption,
                    "The size of the input; it must be provided");
      declareOption(ol, "weights", &MyObject::weights,
                    OptionBase::learntoption,
                    "The learned model weights");
      inherited::declareOptions(ol);
  }
Parameters:
olList of options that is progressively being constructed for the current class.

Reimplemented from PLearn::Optimizer.

Definition at line 75 of file AutoScaledGradientOptimizer.cc.

References PLearn::OptionBase::buildoption, PLearn::declareOption(), PLearn::Optimizer::declareOptions(), decrease_constant, epsilon, evaluate_scaling_during, evaluate_scaling_every, learning_rate, PLearn::OptionBase::learntoption, lr_schedule, start_learning_rate, and verbosity.

{
    declareOption(
        ol, "start_learning_rate", &AutoScaledGradientOptimizer::start_learning_rate,
        OptionBase::buildoption,
        "The initial learning rate\n");

    declareOption(
        ol, "learning_rate", &AutoScaledGradientOptimizer::learning_rate,
        OptionBase::learntoption,
        "The current learning rate\n");

    declareOption(
        ol, "decrease_constant", &AutoScaledGradientOptimizer::decrease_constant,
        OptionBase::buildoption,
        "The learning rate decrease constant \n");

    declareOption(
        ol, "lr_schedule", &AutoScaledGradientOptimizer::lr_schedule,
        OptionBase::buildoption,
        "Fixed schedule instead of decrease_constant. This matrix has 2 columns: iteration_threshold \n"
        "and learning_rate_factor. As soon as the iteration number goes above the iteration_threshold,\n"
        "the corresponding learning_rate_factor is applied (multiplied) to the start_learning_rate to\n"
        "obtain the learning_rate.\n");

    declareOption(
        ol, "verbosity", &AutoScaledGradientOptimizer::verbosity,
        OptionBase::buildoption,
        "Controls the amount of output.  If zero, does not print anything.\n"
        "If 'verbosity'=V, print the current cost and learning rate if\n"
        "\n"
        "    stage % V == 0\n"
        "\n"
        "i.e. every V stages.  (Default=0)\n");

    declareOption(
        ol, "evaluate_scaling_every", &AutoScaledGradientOptimizer::evaluate_scaling_every,
        OptionBase::buildoption,
        "every how-many steps should the mean and scaling be reevaluated\n");

    declareOption(
        ol, "evaluate_scaling_during", &AutoScaledGradientOptimizer::evaluate_scaling_during,
        OptionBase::buildoption,
        "how many steps should be used to re-evaluate the mean and scaling\n");

    declareOption(
        ol, "epsilon", &AutoScaledGradientOptimizer::epsilon,
        OptionBase::buildoption,
        "scaling will be 1/(mean_abs_grad + epsilon)\n");

    inherited::declareOptions(ol);
}

Here is the call graph for this function:

static const PPath& PLearn::AutoScaledGradientOptimizer::declaringFile ( ) [inline, static]

Reimplemented from PLearn::Optimizer.

Definition at line 86 of file AutoScaledGradientOptimizer.h.

AutoScaledGradientOptimizer * PLearn::AutoScaledGradientOptimizer::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::Optimizer.

Definition at line 61 of file AutoScaledGradientOptimizer.cc.

OptionList & PLearn::AutoScaledGradientOptimizer::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 61 of file AutoScaledGradientOptimizer.cc.

OptionMap & PLearn::AutoScaledGradientOptimizer::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 61 of file AutoScaledGradientOptimizer.cc.

RemoteMethodMap & PLearn::AutoScaledGradientOptimizer::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 61 of file AutoScaledGradientOptimizer.cc.

virtual void PLearn::AutoScaledGradientOptimizer::makeDeepCopyFromShallowCopy ( CopiesMap copies) [inline, virtual]

Does the necessary operations to transform a shallow copy (this) into a deep copy by deep-copying all the members that need to be.

This needs to be overridden by every class that adds "complex" data members to the class, such as Vec, Mat, PP<Something>, etc. Typical implementation:

  void CLASS_OF_THIS::makeDeepCopyFromShallowCopy(CopiesMap& copies)
  {
      inherited::makeDeepCopyFromShallowCopy(copies);
      deepCopyField(complex_data_member1, copies);
      deepCopyField(complex_data_member2, copies);
      ...
  }
Parameters:
copiesA map used by the deep-copy mechanism to keep track of already-copied objects.

Reimplemented from PLearn::Optimizer.

Definition at line 90 of file AutoScaledGradientOptimizer.h.

bool PLearn::AutoScaledGradientOptimizer::optimizeN ( VecStatsCollector stats_coll) [virtual]

Main optimization method, to be defined in subclasses.

Return true iff no further optimization is possible.

Implements PLearn::Optimizer.

Definition at line 148 of file AutoScaledGradientOptimizer.cc.

References PLearn::TVec< T >::clear(), PLearn::VarArray::clearGradient(), PLearn::Optimizer::cost, PLearn::TVec< T >::data(), decrease_constant, PLearn::displayVarGraph(), PLearn::endl(), epsilon, evaluate_scaling_during, evaluate_scaling_every, PLearn::VarArray::fbprop(), PLearn::TVec< T >::fill(), PLearn::TVec< T >::hasMissing(), i, learning_rate, PLearn::TMat< T >::length(), PLearn::TVec< T >::length(), lr_schedule, PLearn::max(), meanabsgrad, PLearn::min(), n, PLearn::Optimizer::nstages, nsteps_remaining_for_evaluation, PLearn::Optimizer::other_costs, param_gradients, param_values, PLearn::Optimizer::params, PLearn::perr, PLASSERT_MSG, PLERROR, PLearn::Optimizer::proppath, scaling, PLearn::TVec< T >::size(), PLearn::Optimizer::stage, start_learning_rate, PLearn::VecStatsCollector::update(), and verbosity.

{
    PLASSERT_MSG(other_costs.length()==0, "gradient on other costs not currently supported");

    param_gradients.clear();

    int stage_max = stage + nstages; // the stage to reach

    int current_schedule = 0;
    int n_schedules = lr_schedule.length();
    if (n_schedules>0)
        while (current_schedule+1 < n_schedules && stage > lr_schedule(current_schedule,0))
            current_schedule++;

    while (stage < stage_max)
    {
        if (n_schedules>0)
        {
            while (current_schedule+1 < n_schedules && stage > lr_schedule(current_schedule,0))
                current_schedule++;
            learning_rate = start_learning_rate * lr_schedule(current_schedule,1);
        }
        else
            learning_rate = start_learning_rate/(1.0+decrease_constant*stage);

        proppath.clearGradient();
        cost->gradient[0] = 1.0;

        static bool display_var_graph_before_fbprop=false;
        if (display_var_graph_before_fbprop)
            displayVarGraph(proppath, true, 333);
        proppath.fbprop();
#ifdef BOUNDCHECK
        int np = params.size();
        for(int i=0; i<np; i++)
            if (params[i]->value.hasMissing())
                PLERROR("parameter updated with NaN");
#endif
        static bool display_var_graph=false;
        if (display_var_graph)
            displayVarGraph(proppath, true, 333);

//       // Debugging of negative NLL bug...
//       if (cost->value[0] <= 0) {
//         displayVarGraph(proppath, true, 333);
//         cerr << "Negative NLL cost vector = " << cost << endl;
//         PLERROR("Negative NLL encountered in optimization");
//       }

        // set params += -learning_rate * params.gradient * scaling
        {
        real* p_val = param_values.data();
        real* p_grad = param_gradients.data();
        real* p_scale = scaling.data();
        real neg_learning_rate = -learning_rate;

        int n = param_values.length();
        while(n--)
            *p_val++ += neg_learning_rate*(*p_grad++)*(*p_scale++);
        }

        if(stage%evaluate_scaling_every==0)
        {
            nsteps_remaining_for_evaluation = evaluate_scaling_during;
            meanabsgrad.clear();
            if(verbosity>=4)
                perr << "At stage " << stage << " beginning evaluating meanabsgrad during " << evaluate_scaling_during << " stages" << endl;
        }

        if(nsteps_remaining_for_evaluation>0)
        {
            real* p_grad = param_gradients.data();
            real* p_mean = meanabsgrad.data();
            int n = param_gradients.length();
            while(n--)
                *p_mean++ += fabs(*p_grad++);
            --nsteps_remaining_for_evaluation;

            if(nsteps_remaining_for_evaluation==0) // finalize evaluation
            {
                int n = param_gradients.length();
                for(int i=0; i<n; i++)
                {
                    meanabsgrad[i] /= evaluate_scaling_during;
                    scaling[i] = 1.0/(meanabsgrad[i]+epsilon);
                }
                if(verbosity>=4)
                    perr << "At stage " << stage
                         << " finished evaluating meanabsgrad. It's in range: ( "
                         << min(meanabsgrad) << ",  " << max(meanabsgrad) << " )" << endl;
                if(verbosity>=5)
                    perr << meanabsgrad << endl;

                if(epsilon<0)
                    scaling.fill(1.0);
            }
        }
        param_gradients.clear();

        if (verbosity > 0 && stage % verbosity == 0) {
            MODULE_LOG << "Stage " << stage << ": " << cost->value
                       << "\tlr=" << learning_rate
                       << endl;
        }
        stats_coll.update(cost->value);
        ++stage;
    }

    return false;
}

Here is the call graph for this function:

void PLearn::AutoScaledGradientOptimizer::setToOptimize ( const VarArray the_params,
Var  the_cost,
VarArray  the_other_costs = VarArray(0),
TVec< VarArray the_other_params = TVec<VarArray>(0),
real  the_other_weight = 1
) [virtual]

Reimplemented from PLearn::Optimizer.

Definition at line 129 of file AutoScaledGradientOptimizer.cc.

References PLearn::TVec< T >::clear(), epsilon, PLearn::TVec< T >::fill(), PLearn::VarArray::makeSharedGradient(), PLearn::VarArray::makeSharedValue(), meanabsgrad, n, PLearn::VarArray::nelems(), param_gradients, param_values, PLearn::Optimizer::params, PLearn::TVec< T >::resize(), scaling, and PLearn::Optimizer::setToOptimize().

{
    inherited::setToOptimize(the_params, the_cost, the_other_costs, the_other_params, the_other_weight);
    int n = params.nelems();
    param_values = Vec(n);
    param_gradients = Vec(n);
    params.makeSharedValue(param_values);
    params.makeSharedGradient(param_gradients);
    scaling.resize(n);
    scaling.clear();
    if(epsilon<0)
        scaling.fill(1.0);
    meanabsgrad.resize(n);
    meanabsgrad.clear();
}

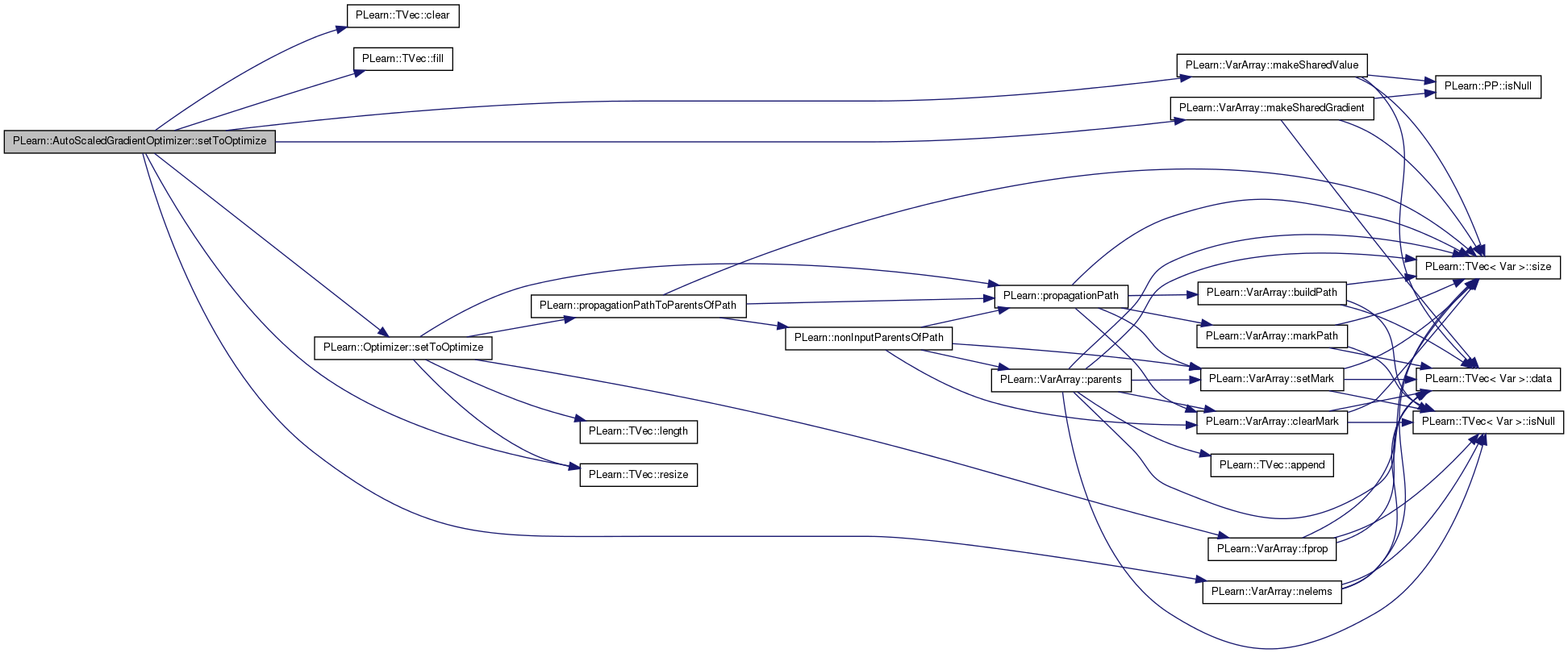

Here is the call graph for this function:


Member Data Documentation

Reimplemented from PLearn::Optimizer.

Definition at line 86 of file AutoScaledGradientOptimizer.h.

Definition at line 67 of file AutoScaledGradientOptimizer.h.

Referenced by declareOptions(), and optimizeN().

Definition at line 82 of file AutoScaledGradientOptimizer.h.

Referenced by declareOptions(), optimizeN(), and setToOptimize().

Definition at line 80 of file AutoScaledGradientOptimizer.h.

Referenced by declareOptions(), and optimizeN().

Definition at line 78 of file AutoScaledGradientOptimizer.h.

Referenced by declareOptions(), and optimizeN().

gradient descent specific parameters (directly modifiable by the user)

Definition at line 63 of file AutoScaledGradientOptimizer.h.

Referenced by declareOptions(), and optimizeN().

Definition at line 73 of file AutoScaledGradientOptimizer.h.

Referenced by declareOptions(), and optimizeN().

Definition at line 101 of file AutoScaledGradientOptimizer.h.

Referenced by optimizeN(), and setToOptimize().

Definition at line 102 of file AutoScaledGradientOptimizer.h.

Referenced by optimizeN().

Definition at line 106 of file AutoScaledGradientOptimizer.h.

Referenced by optimizeN(), and setToOptimize().

Definition at line 105 of file AutoScaledGradientOptimizer.h.

Referenced by optimizeN(), and setToOptimize().

Definition at line 100 of file AutoScaledGradientOptimizer.h.

Referenced by optimizeN(), and setToOptimize().

Definition at line 66 of file AutoScaledGradientOptimizer.h.

Referenced by declareOptions(), and optimizeN().

Definition at line 75 of file AutoScaledGradientOptimizer.h.

Referenced by declareOptions(), and optimizeN().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
