PLearn::LogAddVariable Class Reference

output = log(exp(input1)+exp(input2)) but it is computed in such a way as to preserve precision More...

#include <LogAddVariable.h>

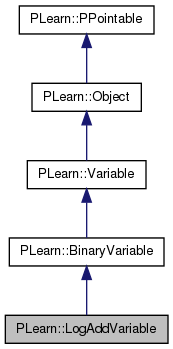

Inheritance diagram for PLearn::LogAddVariable:
Inheritance graph
[legend]

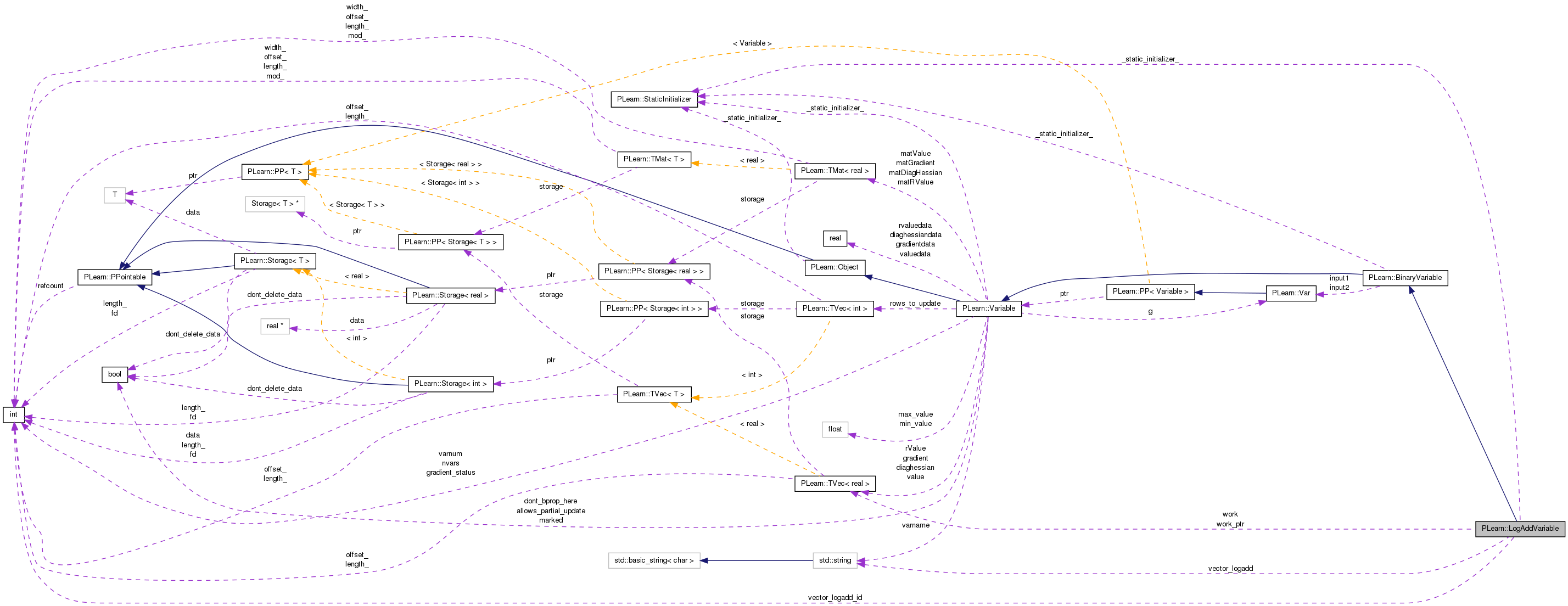

Collaboration diagram for PLearn::LogAddVariable:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 LogAddVariable ()
 Default constructor.
 LogAddVariable (Variable *input1, Variable *input2, const string &the_vector_logadd="none", bool call_build_=true)
 Convenience constructor.
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual LogAddVariabledeepCopy (CopiesMap &copies) const
virtual void build ()
 Post-constructor.
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Does the necessary operations to transform a shallow copy (this) into a deep copy by deep-copying all the members that need to be.
virtual void recomputeSize (int &l, int &w) const
 Recomputes the length l and width w that this variable should have, according to its parent variables.
virtual void fprop ()
 compute output given input
virtual void bprop ()

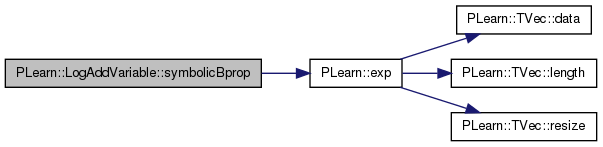

virtual void symbolicBprop ()
 compute a piece of new Var graph that represents the symbolic derivative of this Var

Static Public Member Functions

static string _classname_ ()
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

string vector_logadd

Static Public Attributes

static StaticInitializer _static_initializer_

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declare options (data fields) for the class.

Protected Attributes

int vector_logadd_id
 Integer coding for 'vector_logadd': 0 <-> 'none'.
Vec work
 Temporary work vector.
Vec work_ptr
 Temporary work vector whose content must not be modified: it can only be used to point to other data in memory.

Private Types

typedef BinaryVariable inherited

Private Member Functions

void build_ ()
 This does the actual building.

Detailed Description

output = log(exp(input1)+exp(input2)) but it is computed in such a way as to preserve precision

Definition at line 60 of file LogAddVariable.h.


Member Typedef Documentation

Reimplemented from PLearn::BinaryVariable.

Definition at line 62 of file LogAddVariable.h.


Constructor & Destructor Documentation

PLearn::LogAddVariable::LogAddVariable ( )

Default constructor.

Definition at line 73 of file LogAddVariable.cc.

                              :
    vector_logadd("none"),
    vector_logadd_id(0)
{}
PLearn::LogAddVariable::LogAddVariable ( Variable input1,
Variable input2,
const string &  the_vector_logadd = "none",
bool  call_build_ = true
)

Convenience constructor.

Definition at line 78 of file LogAddVariable.cc.

References build_().

                                                :
    inherited(input1, input2,
              vl == "none" || vl == "per_row" ? input1->length()
                                              : 1,
              vl == "none" || vl == "per_column" ? input1->width()
                                                 : 1,
              call_build_),
    vector_logadd(vl),
    vector_logadd_id(0)
{
    if (call_build_)
        build_();
}

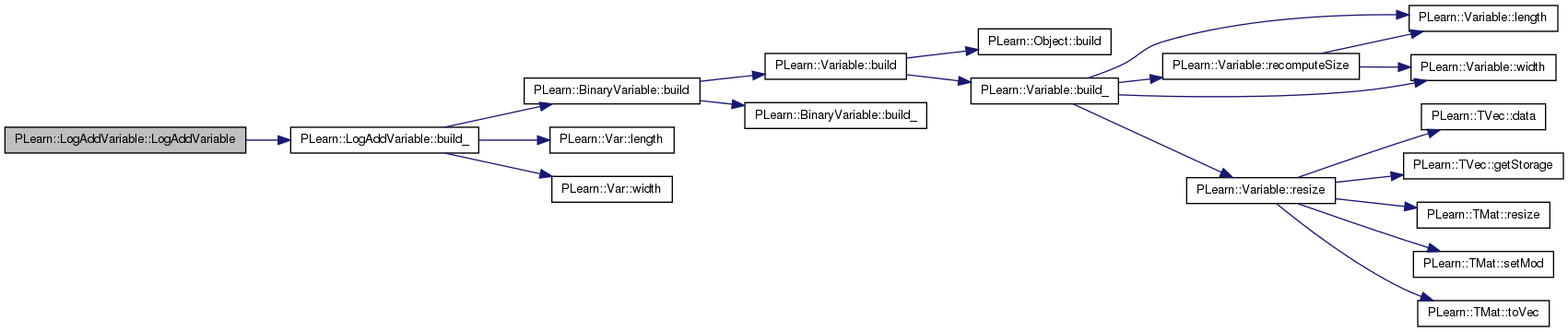

Here is the call graph for this function:


Member Function Documentation

string PLearn::LogAddVariable::_classname_ ( ) [static]

Reimplemented from PLearn::BinaryVariable.

Definition at line 68 of file LogAddVariable.cc.

OptionList & PLearn::LogAddVariable::_getOptionList_ ( ) [static]

Reimplemented from PLearn::BinaryVariable.

Definition at line 68 of file LogAddVariable.cc.

RemoteMethodMap & PLearn::LogAddVariable::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::BinaryVariable.

Definition at line 68 of file LogAddVariable.cc.

bool PLearn::LogAddVariable::_isa_ ( const Object o) [static]

Reimplemented from PLearn::BinaryVariable.

Definition at line 68 of file LogAddVariable.cc.

Object * PLearn::LogAddVariable::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 68 of file LogAddVariable.cc.

StaticInitializer LogAddVariable::_static_initializer_ & PLearn::LogAddVariable::_static_initialize_ ( ) [static]

Reimplemented from PLearn::BinaryVariable.

Definition at line 68 of file LogAddVariable.cc.

void PLearn::LogAddVariable::bprop ( ) [virtual]

Implements PLearn::Variable.

Definition at line 209 of file LogAddVariable.cc.

References PLearn::apply(), PLearn::Variable::gradient, i, PLearn::BinaryVariable::input1, PLearn::BinaryVariable::input2, PLearn::Variable::length(), PLearn::multiplyAcc(), n, PLearn::Variable::nelems(), PLearn::TVec< T >::resize(), PLearn::safeexp(), PLearn::Var::subMat(), PLearn::TVec< T >::toMat(), PLearn::Variable::value, vector_logadd_id, PLearn::Variable::width(), and work.

{
    if (!vector_logadd_id) {
        // TODO Note that these computations are not efficient at all.
        Vec grad1(nelems());
        grad1 = input1->value - value;
        apply(grad1, grad1, safeexp);
        input1->gradient += grad1%gradient;

        Vec grad2(nelems());
        grad2 = input2->value - value;
        apply(grad2, grad2, safeexp);
        input2->gradient += grad2%gradient;
    } else if (vector_logadd_id > 0) {
        int n = input2 ? int(round(input2->value[0]))
                       : width();
        work.resize(n);
        for (int i = 0; i < length(); i++) {
            work << input1->matValue.subMat(i, 0, 1, n);
            work -= value[i];
            apply(work, work, safeexp);
            multiplyAcc(input1->matGradient.subMat(i, 0, 1, n).toVec(),
                        work, gradient[i]);
        }
    } else {
        int n = input2 ? int(round(input2->value[0]))
                       : length();
        work.resize(n);
        for (int i = 0; i < width(); i++) {
            work << input1->matValue.subMat(0, i, n, 1);
            work -= value[i];
            apply(work, work, safeexp);
            work *= gradient[i];
            input1->matGradient.subMat(0, i, n, 1) += work.toMat(n, 1);
        }
    }
}

Here is the call graph for this function:

void PLearn::LogAddVariable::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::BinaryVariable.

Definition at line 114 of file LogAddVariable.cc.

References PLearn::BinaryVariable::build(), and build_().

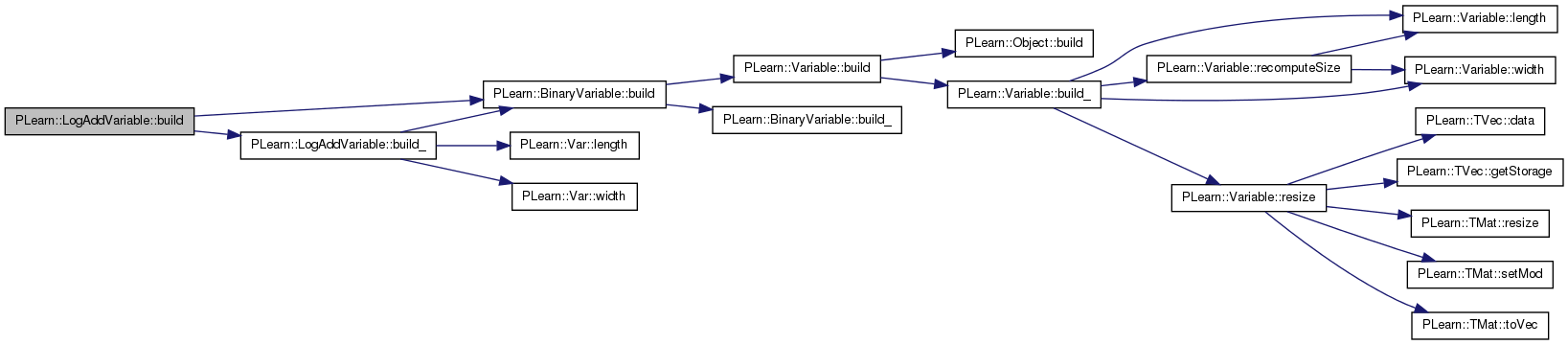

Here is the call graph for this function:

void PLearn::LogAddVariable::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::BinaryVariable.

Definition at line 123 of file LogAddVariable.cc.

References PLearn::BinaryVariable::build(), PLearn::BinaryVariable::input1, PLearn::BinaryVariable::input2, PLearn::Var::length(), PLERROR, vector_logadd, vector_logadd_id, and PLearn::Var::width().

Referenced by build(), and LogAddVariable().

{
    // Transform the string 'vector_logadd' into an integer for faster
    // computations.
    if (vector_logadd == "none")
        vector_logadd_id = 0;
    else if (vector_logadd == "per_row")
        vector_logadd_id = 1;
    else if (vector_logadd == "per_column")
        vector_logadd_id = -1;
    else
        PLERROR("In LogAddVariable::build_ - Invalid value for "
                "'vector_logadd': %s", vector_logadd.c_str());

    if (!vector_logadd_id && input1 && input2) {
        if (input1->length() != input2->length() ||
            input1->width() != input2->width())
            PLERROR("In LogAddVariable::build_ - input1 and input2 must "
                    "have the same size");
    }

    // Need to rebuild since correct sizes depend on 'vector_logadd_id'.
    inherited::build();
}

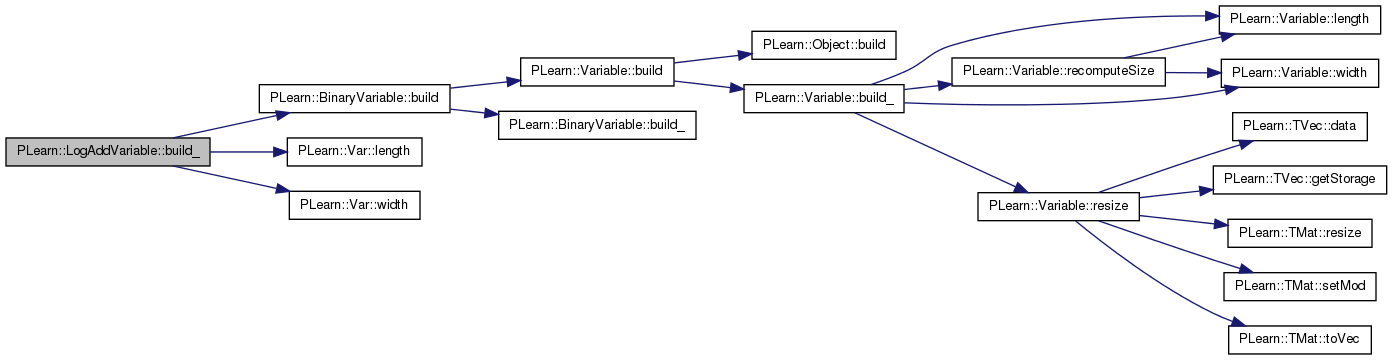

Here is the call graph for this function:

Here is the caller graph for this function:

string PLearn::LogAddVariable::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 68 of file LogAddVariable.cc.

void PLearn::LogAddVariable::declareOptions ( OptionList ol) [static, protected]

Declare options (data fields) for the class.

Redefine this in subclasses: call declareOption(...) for each option, and then call inherited::declareOptions(options). Please call the inherited method AT THE END to get the options listed in a consistent order (from most recently defined to least recently defined).

  static void MyDerivedClass::declareOptions(OptionList& ol)
  {
      declareOption(ol, "inputsize", &MyObject::inputsize_,
                    OptionBase::buildoption,
                    "The size of the input; it must be provided");
      declareOption(ol, "weights", &MyObject::weights,
                    OptionBase::learntoption,
                    "The learned model weights");
      inherited::declareOptions(ol);
  }
Parameters:
olList of options that is progressively being constructed for the current class.

Reimplemented from PLearn::BinaryVariable.

Definition at line 97 of file LogAddVariable.cc.

References PLearn::OptionBase::buildoption, PLearn::declareOption(), PLearn::BinaryVariable::declareOptions(), and vector_logadd.

{
    declareOption(ol, "vector_logadd", &LogAddVariable::vector_logadd,
                  OptionBase::buildoption,
        "Must be one of:\n"
        "   - 'none'      : element-wize logadd over the two input matrices\n"
        "   - 'per_column': vector logadd on each column of input1, using\n"
        "                   the first 'n' rows as given by input2\n"
        "   - 'per_row'   : vector logadd on each row of input1, using the\n"
        "                   first 'n' columns as given by input2.");

    inherited::declareOptions(ol);
}

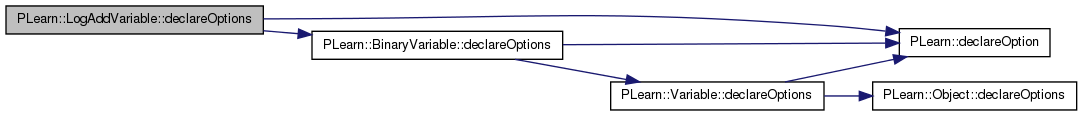

Here is the call graph for this function:

static const PPath& PLearn::LogAddVariable::declaringFile ( ) [inline, static]

Reimplemented from PLearn::BinaryVariable.

Definition at line 76 of file LogAddVariable.h.

:

LogAddVariable * PLearn::LogAddVariable::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::BinaryVariable.

Definition at line 68 of file LogAddVariable.cc.

void PLearn::LogAddVariable::fprop ( ) [virtual]

compute output given input

Implements PLearn::Variable.

Definition at line 174 of file LogAddVariable.cc.

References PLearn::apply(), PLearn::Var::column(), i, PLearn::BinaryVariable::input1, PLearn::BinaryVariable::input2, PLearn::Variable::length(), PLearn::logadd(), n, PLearn::TVec< T >::resize(), PLearn::Var::subMat(), PLearn::TVec< T >::subVec(), PLearn::Variable::value, vector_logadd_id, PLearn::Variable::width(), work, and work_ptr.

{
    if (!vector_logadd_id) {
        // Ugly hack to make it compile with ICC.
#ifdef __INTEL_COMPILER
        PLearn::apply(input1->value, input2->value, value, logadd_for_icc);
#else
        PLearn::apply(input1->value, input2->value, value, logadd);
#endif
    } else if (vector_logadd_id > 0) {
        int n = input2 ? int(round(input2->value[0]))
                       : width();
        for (int i = 0; i < length(); i++) {
            work_ptr = input1->matValue(i);
            if (input2)
                work_ptr = work_ptr.subVec(0, n);
            value[i] = logadd(work_ptr);
        }
    } else {
        int n = input2 ? int(round(input2->value[0]))
                       : length();
        work.resize(n);
        for (int i = 0; i < width(); i++) {
            if (input2)
                work << input1->matValue.subMat(0, i, n, 1);
            else
                work << input1->matValue.column(i);
            value[i] = logadd(work);
        }
    }
}

Here is the call graph for this function:

OptionList & PLearn::LogAddVariable::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 68 of file LogAddVariable.cc.

OptionMap & PLearn::LogAddVariable::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 68 of file LogAddVariable.cc.

RemoteMethodMap & PLearn::LogAddVariable::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 68 of file LogAddVariable.cc.

void PLearn::LogAddVariable::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Does the necessary operations to transform a shallow copy (this) into a deep copy by deep-copying all the members that need to be.

This needs to be overridden by every class that adds "complex" data members to the class, such as Vec, Mat, PP<Something>, etc. Typical implementation:

  void CLASS_OF_THIS::makeDeepCopyFromShallowCopy(CopiesMap& copies)
  {
      inherited::makeDeepCopyFromShallowCopy(copies);
      deepCopyField(complex_data_member1, copies);
      deepCopyField(complex_data_member2, copies);
      ...
  }
Parameters:
copiesA map used by the deep-copy mechanism to keep track of already-copied objects.

Reimplemented from PLearn::BinaryVariable.

Definition at line 151 of file LogAddVariable.cc.

References PLearn::deepCopyField(), PLearn::BinaryVariable::makeDeepCopyFromShallowCopy(), work, and work_ptr.

Here is the call graph for this function:

void PLearn::LogAddVariable::recomputeSize ( int l,
int w
) const [virtual]

Recomputes the length l and width w that this variable should have, according to its parent variables.

This is used for ex. by sizeprop() The default version stupidly returns the current dimensions, so make sure to overload it in subclasses if this is not appropriate.

Reimplemented from PLearn::Variable.

Definition at line 160 of file LogAddVariable.cc.

References PLearn::BinaryVariable::input1, PLearn::Var::length(), vector_logadd_id, and PLearn::Var::width().

{
    if (input1) {
        l = vector_logadd_id >= 0 ? input1->length()
                                  : 1;
        w = vector_logadd_id <= 0 ? input1->width()
                                  : 1;
    } else
        l = w = 0;
}

Here is the call graph for this function:

void PLearn::LogAddVariable::symbolicBprop ( ) [virtual]

compute a piece of new Var graph that represents the symbolic derivative of this Var

Reimplemented from PLearn::Variable.

Definition at line 250 of file LogAddVariable.cc.

References PLearn::exp(), PLearn::Variable::g, PLearn::BinaryVariable::input1, PLearn::BinaryVariable::input2, PLERROR, and vector_logadd_id.

{
    if (!vector_logadd_id) {
        input1->accg(g * (exp(input1)/(exp(input1)+exp(input2))));
        input2->accg(g * (exp(input2)/(exp(input1)+exp(input2))));
    } else {
        PLERROR("In LogAddVariable::symbolicBprop - Not implemented");
    }
}

Here is the call graph for this function:


Member Data Documentation

Reimplemented from PLearn::BinaryVariable.

Definition at line 76 of file LogAddVariable.h.

Definition at line 66 of file LogAddVariable.h.

Referenced by build_(), and declareOptions().

Integer coding for 'vector_logadd': 0 <-> 'none'.

-1 <-> 'per_column' +1 <-> 'per_row'

Definition at line 93 of file LogAddVariable.h.

Referenced by bprop(), build_(), fprop(), recomputeSize(), and symbolicBprop().

Temporary work vector.

Definition at line 96 of file LogAddVariable.h.

Referenced by bprop(), fprop(), and makeDeepCopyFromShallowCopy().

Temporary work vector whose content must not be modified: it can only be used to point to other data in memory.

Definition at line 100 of file LogAddVariable.h.

Referenced by fprop(), and makeDeepCopyFromShallowCopy().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
