PLearn::NllSemisphericalGaussianVariable Class Reference

This class implements the negative log-likelihood cost of a Markov chain that uses semispherical gaussian transition probabilities. More...

#include <NllSemisphericalGaussianVariable.h>

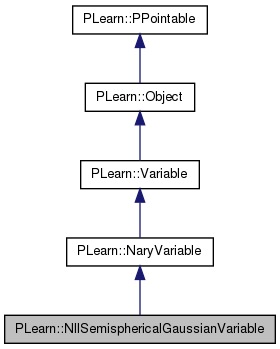

Inheritance diagram for PLearn::NllSemisphericalGaussianVariable:
Inheritance graph
[legend]

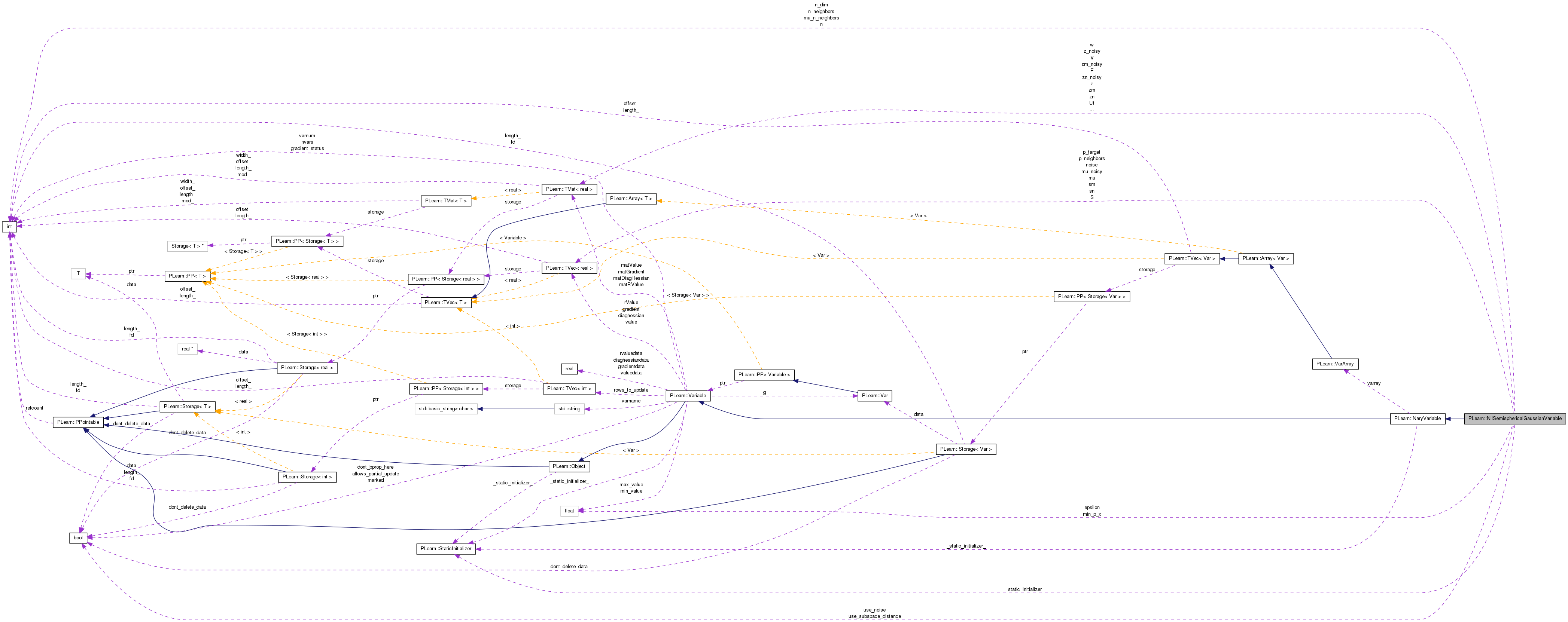

Collaboration diagram for PLearn::NllSemisphericalGaussianVariable:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 NllSemisphericalGaussianVariable ()
 Default constructor for persistence.
 NllSemisphericalGaussianVariable (const VarArray &the_varray, bool that_use_noise, real theepsilon, real min_p_x, int mu_n_neighbors)
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual
NllSemisphericalGaussianVariable
deepCopy (CopiesMap &copies) const
virtual void build ()
 Post-constructor.
virtual void recomputeSize (int &l, int &w) const
 Recomputes the length l and width w that this variable should have, according to its parent variables.
virtual void fprop ()
 compute output given input
virtual void bprop ()
virtual void symbolicBprop ()
 compute a piece of new Var graph that represents the symbolic derivative of this Var

Static Public Member Functions

static string _classname_ ()
 NllSemisphericalGaussianVariable.
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

int n
bool use_subspace_distance
bool use_noise
real epsilon
real min_p_x
int n_dim
int n_neighbors
int mu_n_neighbors
Vec mu
Vec sm
Vec sn
Vec S
Vec noise
Vec mu_noisy
Mat F
Mat diff_y_x
Mat z
Mat B
Mat Ut
Mat V
Mat zn
Mat zm
Mat z_noisy
Mat zn_noisy
Mat zm_noisy
Vec p_neighbors
Vec p_target
Mat w

Static Public Attributes

static StaticInitializer _static_initializer_

Protected Member Functions

void build_ ()
 Object-specific post-constructor.

Private Types

typedef NaryVariable inherited

Detailed Description

This class implements the negative log-likelihood cost of a Markov chain that uses semispherical gaussian transition probabilities.

The parameters of the semispherical gaussians are a tangent plane, two variances, one mean and the distance of the point with its nearest neighbors. The two variances correspond to the shared variance of every manifold directions and of every noise directions. This variable is used to do gradient descent on the parameters, but not to estimate de likelihood of the Markov chain a some point, which is more complex to estimate.

Definition at line 56 of file NllSemisphericalGaussianVariable.h.


Member Typedef Documentation

Reimplemented from PLearn::NaryVariable.

Definition at line 58 of file NllSemisphericalGaussianVariable.h.


Constructor & Destructor Documentation

PLearn::NllSemisphericalGaussianVariable::NllSemisphericalGaussianVariable ( ) [inline]

Default constructor for persistence.

Definition at line 75 of file NllSemisphericalGaussianVariable.h.

{}
PLearn::NllSemisphericalGaussianVariable::NllSemisphericalGaussianVariable ( const VarArray the_varray,
bool  that_use_noise,
real  theepsilon,
real  min_p_x,
int  mu_n_neighbors
)

Definition at line 66 of file NllSemisphericalGaussianVariable.cc.

References build_().

                                                                                                                                                                            : inherited(the_varray,the_varray[4]->length(),1),
                                                                                                                                                                                n(varray[0]->width()), use_noise(that_use_noise),epsilon(theepsilon), min_p_x(themin_p_x), n_dim(varray[0]->length()),
                                                                                                                                                                                n_neighbors(varray[4]->length()), mu_n_neighbors(the_mu_n_neighbors)
{
    build_();
}

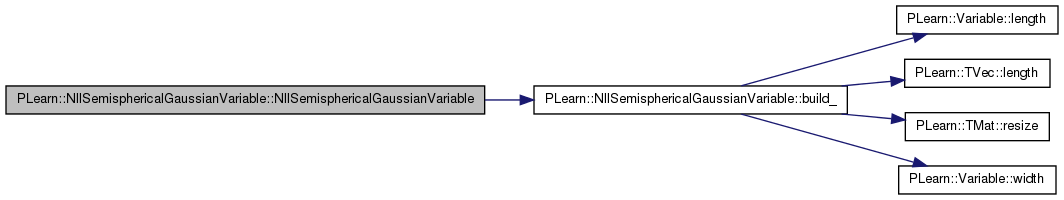

Here is the call graph for this function:


Member Function Documentation

string PLearn::NllSemisphericalGaussianVariable::_classname_ ( ) [static]
OptionList & PLearn::NllSemisphericalGaussianVariable::_getOptionList_ ( ) [static]

Reimplemented from PLearn::NaryVariable.

Definition at line 64 of file NllSemisphericalGaussianVariable.cc.

RemoteMethodMap & PLearn::NllSemisphericalGaussianVariable::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::NaryVariable.

Definition at line 64 of file NllSemisphericalGaussianVariable.cc.

bool PLearn::NllSemisphericalGaussianVariable::_isa_ ( const Object o) [static]

Reimplemented from PLearn::NaryVariable.

Definition at line 64 of file NllSemisphericalGaussianVariable.cc.

Object * PLearn::NllSemisphericalGaussianVariable::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 64 of file NllSemisphericalGaussianVariable.cc.

StaticInitializer NllSemisphericalGaussianVariable::_static_initializer_ & PLearn::NllSemisphericalGaussianVariable::_static_initialize_ ( ) [static]

Reimplemented from PLearn::NaryVariable.

Definition at line 64 of file NllSemisphericalGaussianVariable.cc.

void PLearn::NllSemisphericalGaussianVariable::bprop ( ) [virtual]

Implements PLearn::Variable.

Definition at line 237 of file NllSemisphericalGaussianVariable.cc.

References PLearn::exp(), PLearn::externalProductScaleAcc(), PLearn::Variable::gradient, i, PLearn::TVec< T >::length(), PLearn::Variable::matGradient, mu, mu_n_neighbors, mu_noisy, n, n_dim, n_neighbors, p_neighbors, p_target, PLearn::pownorm(), sm, sn, use_noise, PLearn::Variable::value, PLearn::NaryVariable::varray, w, zm, zm_noisy, zn, and zn_noisy.

{
    if(n_neighbors < mu_n_neighbors) mu_n_neighbors = n_neighbors;

    for(int neighbor=0; neighbor<n_neighbors; neighbor++)
    {

        // dNLL/dF
        /*
          for(int i=0; i<F.length(); i++)
          for(int j=0; j<F.width(); j++)
          //varray[0]->matGradient(i,j) += gradient[neighbor]*exp(-1.0*value[neighbor] + p_target[0] - p_neighbors[neighbor]) * (1/sm[0] - 1/sn[0]) * w(neighbor,i) * zn(neighbor,j);
          varray[0]->matGradient(i,j) += gradient[neighbor]*exp(p_target[0]) * (1/sm[0] - 1/sn[0]) * w(neighbor,i) * zn(neighbor,j);
        */

        externalProductScaleAcc(varray[0]->matGradient,w(neighbor),zn(neighbor),gradient[neighbor]*exp(p_target[0]) * (1/sm[0] - 1/sn[0]));

        if(neighbor < mu_n_neighbors)
        {
            // dNLL/dmu
            if(!use_noise)
            {
                for(int i=0; i<mu.length(); i++)
                    //varray[1]->gradient[i] -= ((real)n_neighbors)/(mu_n_neighbors)*gradient[neighbor]*exp(-1.0*value[neighbor] + p_target[0] - p_neighbors[neighbor])*( 1/sm[0] * zm(neighbor,i) + 1/sn[0] * zn(neighbor,i));
                    varray[1]->gradient[i] -= ((real)n_neighbors)/(mu_n_neighbors)*gradient[neighbor]*exp(p_target[0])*( 1/sm[0] * zm(neighbor,i) + 1/sn[0] * zn(neighbor,i));
            }
            else
            {
                // dNLL/dmu with noisy data

                for(int i=0; i<mu_noisy.length(); i++)
                    varray[8]->gradient[i] -= ((real)n_neighbors)/(mu_n_neighbors)*gradient[neighbor]*exp(-1.0*value[neighbor] + p_target[0] - p_neighbors[neighbor])* ( 1/sm[0] * zm_noisy(neighbor,i) + 1/sn[0] * zn_noisy(neighbor,i));
            }
        }

        // dNLL/dsm

        //varray[2]->gradient[0] += gradient[neighbor]*exp(-1.0*value[neighbor] + p_target[0] - p_neighbors[neighbor])* (0.5 * n_dim/sm[0] - pownorm(zm(neighbor),2)/(sm[0]*sm[0]))/(n_dim*n_dim);
        varray[2]->gradient[0] += gradient[neighbor]*exp(p_target[0])* (0.5 * n_dim/sm[0] - pownorm(zm(neighbor),2)/(sm[0]*sm[0]));

        // dNLL/dsn

        // varray[3]->gradient[0] += gradient[neighbor]*exp(-1.0*value[neighbor] + p_target[0] - p_neighbors[neighbor])* (0.5 * (n-n_dim)/sn[0] - pownorm(zn(neighbor),2)/(sn[0]*sn[0]))/(n*n);
        varray[3]->gradient[0] += gradient[neighbor]*exp(p_target[0])* (0.5 * (n-n_dim)/sn[0] - pownorm(zn(neighbor),2)/(sn[0]*sn[0]));


    }
    //cout << "value = " << value << " p_neighbors = " << p_neighbors << endl;
}

Here is the call graph for this function:

void PLearn::NllSemisphericalGaussianVariable::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::NaryVariable.

Definition at line 75 of file NllSemisphericalGaussianVariable.cc.

References PLearn::NaryVariable::build(), and build_().

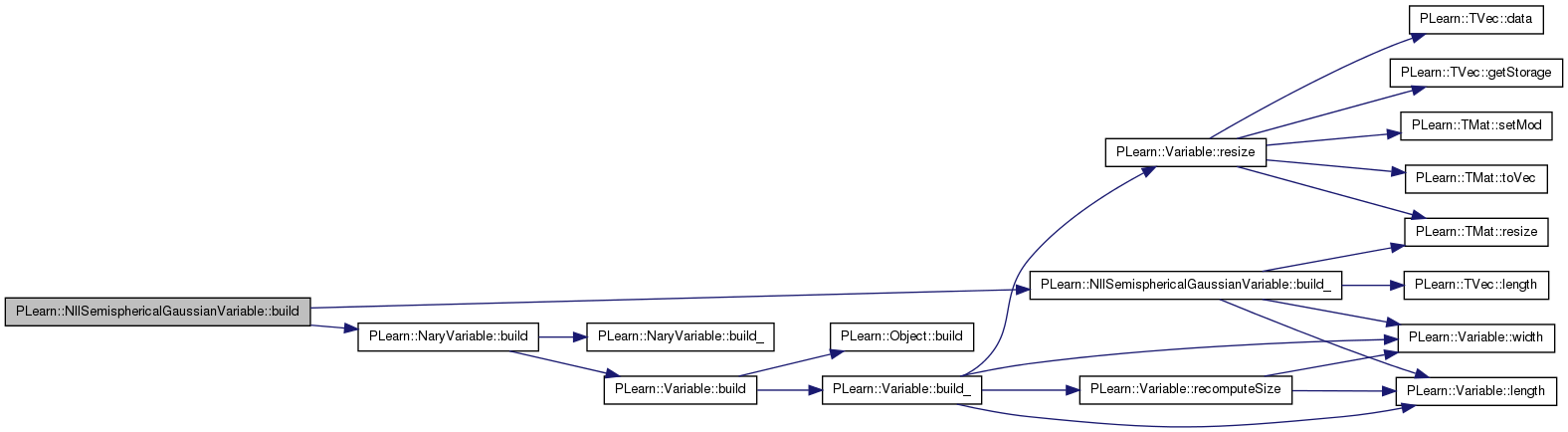

Here is the call graph for this function:

void PLearn::NllSemisphericalGaussianVariable::build_ ( ) [protected]

Object-specific post-constructor.

This method should be redefined in subclasses and do the actual building of the object according to previously set option fields. Constructors can just set option fields, and then call build_. This method is NOT virtual, and will typically be called only from three places: a constructor, the public virtual build() method, and possibly the public virtual read method (which calls its parent's read). build_() can assume that its parent's build_() has already been called.

Reimplemented from PLearn::NaryVariable.

Definition at line 82 of file NllSemisphericalGaussianVariable.cc.

References B, diff_y_x, F, PLearn::Variable::length(), PLearn::TVec< T >::length(), mu, mu_n_neighbors, mu_noisy, n, n_dim, n_neighbors, noise, p_neighbors, p_target, PLERROR, PLearn::TMat< T >::resize(), sm, sn, Ut, V, PLearn::NaryVariable::varray, w, PLearn::Variable::width(), z, z_noisy, zm, zm_noisy, zn, and zn_noisy.

Referenced by build(), and NllSemisphericalGaussianVariable().

{

    // The VarArray constaints the following variables:
    //    - varray[0] = the tangent plane (n_dim x n)
    //    - varray[1] = mu(data_point) (n x 1)
    //    - varray[2] = sigma_manifold (1 x 1)
    //    - varray[3] = sigma_noise (1 x 1)
    //    - varray[4] = neighbor_distances (n_neighbors x n)
    //    - varray[5] = p_target (1 x 1)
    //    - varray[6] = p_neighbors (n_neighbors x 1)
    //    - varray[7] = noisy x (n x 1)

    if(varray.length() != 9)
        PLERROR("In NllSemisphericalGaussianVariable constructor: varray is of length %d but should be of length %d", varray.length(), 7);

    if(varray[1]->length() != n || varray[1]->width() != 1) PLERROR("In NllSemisphericalGaussianVariable constructor: varray[1] is of size (%d,%d), but should be of size (%d,%d)",
                                                                    varray[1]->length(), varray[1]->width(),
                                                                    n_dim, 1);
    if(varray[2]->length() != 1 || varray[2]->width() != 1) PLERROR("In NllSemisphericalGaussianVariable constructor: varray[2] is of size (%d,%d), but should be of size (%d,%d)",
                                                                    varray[2]->length(), varray[2]->width(),
                                                                    1, 1);
    if(varray[3]->length() != 1 || varray[3]->width() != 1) PLERROR("In NllSemisphericalGaussianVariable constructor: varray[3] is of size (%d,%d), but should be of size (%d,%d)",
                                                                    varray[3]->length(), varray[3]->width(),
                                                                    1, 1);
    if(varray[4]->width() != n) PLERROR("In NllSemisphericalGaussianVariable constructor: varray[4] is of size (%d,%d), but should be of size (%d,%d)",
                                        varray[4]->length(), varray[4]->width(),
                                        n_neighbors, n);
    if(varray[5]->length() != 1 || varray[5]->width() != 1) PLERROR("In NllSemisphericalGaussianVariable constructor: varray[5] is of size (%d,%d), but should be of size (%d,%d)",
                                                                    varray[5]->length(), varray[5]->width(),
                                                                    1, 1);
    if(varray[6]->length() != n_neighbors || varray[6]->width() != 1) PLERROR("In NllSemisphericalGaussianVariable constructor: varray[6] is of size (%d,%d), but should be of size (%d,%d)",
                                                                              varray[6]->length(), varray[6]->width(), n_neighbors, 1);
    if(varray[7]->length() != n || varray[7]->width() != 1) PLERROR("In NllSemisphericalGaussianVariable constructor: varray[7] is of size (%d,%d), but should be of size (%d,%d)",
                                                                    varray[7]->length(), varray[7]->width(), n, 1);
    if(varray[8]->length() != n || varray[8]->width() != 1) PLERROR("In NllSemisphericalGaussianVariable constructor: varray[8] is of size (%d,%d), but should be of size (%d,%d)",
                                                                    varray[8]->length(), varray[8]->width(), n, 1);

    if(mu_n_neighbors < 0)
        mu_n_neighbors = n_neighbors;

    F = varray[0]->matValue;
    mu = varray[1]->value;
    sm = varray[2]->value;
    sn = varray[3]->value;
    diff_y_x = varray[4]->matValue;

    z.resize(n_neighbors,n);
    zm.resize(n_neighbors,n);
    zn.resize(n_neighbors,n);
    z_noisy.resize(n_neighbors,n);
    zm_noisy.resize(n_neighbors,n);
    zn_noisy.resize(n_neighbors,n);
    B.resize(n_dim,n);
    Ut.resize(n,n);
    V.resize(n_dim,n_dim);
    w.resize(n_neighbors,n_dim);

    p_target = varray[5]->value;
    p_neighbors = varray[6]->value;
    noise = varray[7]->value;
    mu_noisy = varray[8]->value;
}

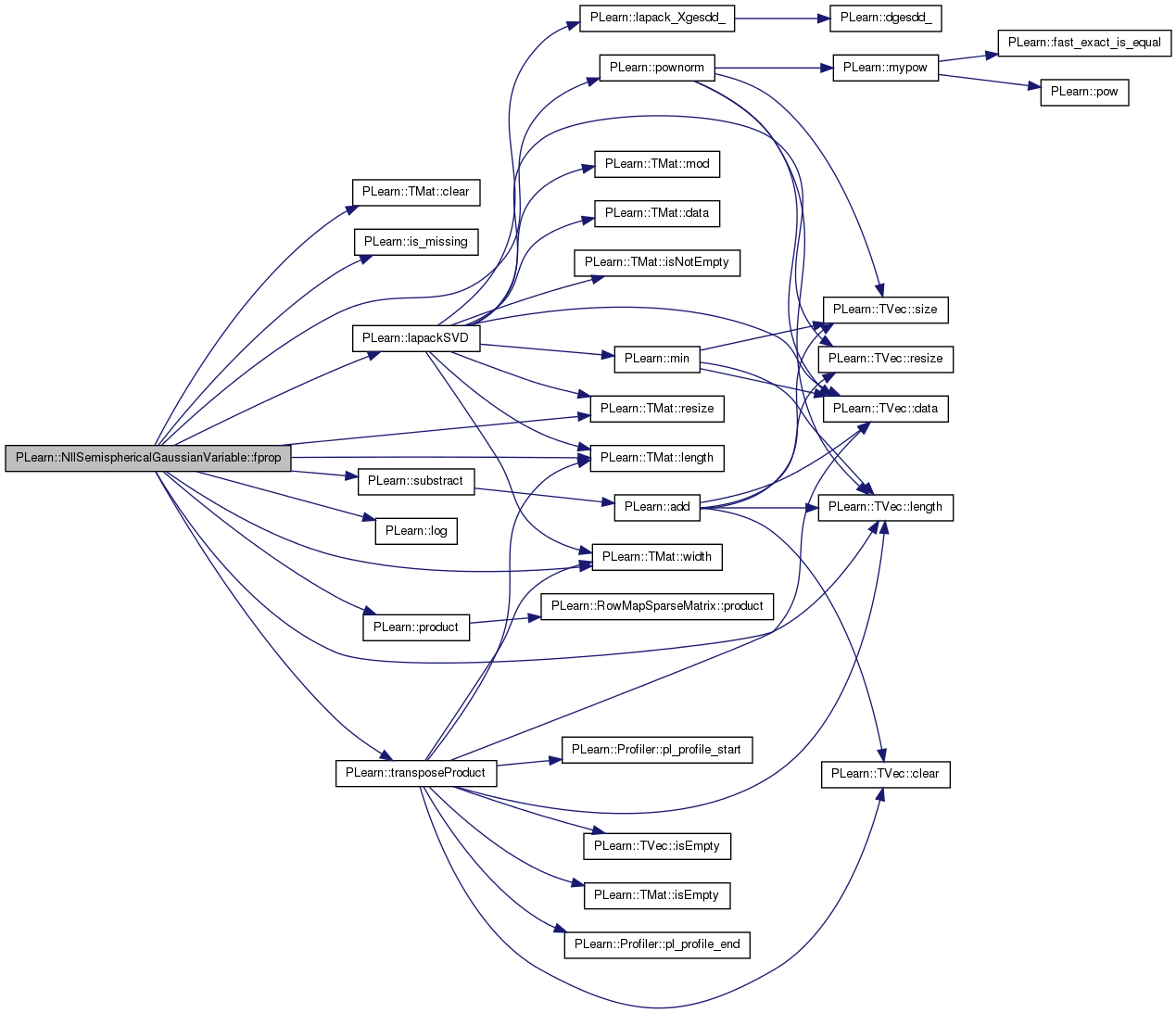

Here is the call graph for this function:

Here is the caller graph for this function:

string PLearn::NllSemisphericalGaussianVariable::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 64 of file NllSemisphericalGaussianVariable.cc.

static const PPath& PLearn::NllSemisphericalGaussianVariable::declaringFile ( ) [inline, static]

Reimplemented from PLearn::NaryVariable.

Definition at line 78 of file NllSemisphericalGaussianVariable.h.

:
    void build_();
NllSemisphericalGaussianVariable * PLearn::NllSemisphericalGaussianVariable::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::NaryVariable.

Definition at line 64 of file NllSemisphericalGaussianVariable.cc.

void PLearn::NllSemisphericalGaussianVariable::fprop ( ) [virtual]

compute output given input

Implements PLearn::Variable.

Definition at line 153 of file NllSemisphericalGaussianVariable.cc.

References B, PLearn::TMat< T >::clear(), diff_y_x, epsilon, F, i, PLearn::is_missing(), j, PLearn::lapackSVD(), PLearn::TVec< T >::length(), PLearn::TMat< T >::length(), PLearn::log(), Log2Pi, mu, mu_noisy, n, n_dim, n_neighbors, noise, p_neighbors, PLearn::pownorm(), PLearn::product(), PLearn::TMat< T >::resize(), S, sm, sn, PLearn::substract(), PLearn::transposeProduct(), Ut, V, PLearn::Variable::value, w, PLearn::TMat< T >::width(), z, z_noisy, zm, zm_noisy, zn, and zn_noisy.

{
    // Let F the tangent plan matrix with rows f_i.
    //  We need to solve the system
    //     F F' w_j = F z_j
    //  where z_j is the distance between the data point and the j_th neighbor,
    //  to find the solution w_j of
    //    min_{w_j} || z_j - sum_i w_{ji} f_i ||^2
    //  for each j. Then sum over j the above square errors.
    //  Let F' = U D V' the SVD of F'. Then
    //    w_j = (F F')^{-1} F t_j = (V D U' U D V')^{-1} F t_j = V D^{-2} V' V D U' z_j
    //                                                         = V D^{-1} U' z_j
    //                                                         = B z_j
    //

    // Compute w

    static Mat F_copy;
    F_copy.resize(F.length(),F.width());
    F_copy << F;
    // N.B. this is the SVD of F'
    lapackSVD(F_copy, Ut, S, V,'A',1.5);
    B.clear();
    for (int k=0;k<S.length();k++)
    {
        real s_k = S[k];
        if (s_k>epsilon) // ignore the components that have too small singular value (more robust solution)
        {
            real coef = 1/s_k;
            for (int i=0;i<n_dim;i++)
            {
                real* Bi = B[i];
                for (int j=0;j<n;j++)
                    Bi[j] += V(i,k)*Ut(k,j)*coef;
            }
        }
    }

    //  now that we have B, we can compute the w's and the nll for every neighbors
    /*
      Vec mean_diff(n); mean_diff.clear();
      for(int j=0; j<n_neighbors;j++)
      {
      mean_diff += diff_y_x(j);
      }

      mean_diff /= n_neighbors;
    */
    for(int j=0; j<n_neighbors;j++)
    {
        Vec zj = z(j);
        //substract(diff_y_x(j),mean_diff,zj); // z = y - x - mean_diff
        substract(diff_y_x(j),mu,zj); // z = y - x - mu(x)
        Vec zmj = zm(j);
        Vec znj = zn(j);
        Vec wj = w(j);
        product(wj, B, zj); // w = B * z = projection weights for neighbor j
        transposeProduct(zmj, F, wj); // F' w = z_m
        substract(zj,zmj,znj); // z_n = z - zm
        value[j] = 0.5*(pownorm(zmj,2)/sm[0] + pownorm(znj,2)/sn[0] + n_dim*log(sm[0]) + (n-n_dim)*log(sn[0])) + n/2.0 * Log2Pi; // This value is not really -log(p(y))
        if(is_missing(p_neighbors[j]))
            p_neighbors[j] = -1.0*value[j];
    }

    // and we can make the noisy zm and zn

    for(int j=0; j<n_neighbors;j++)
    {
        Vec zj_noisy = z_noisy(j);
        Vec diff_noisy(n);
        substract(diff_y_x(j),noise,diff_noisy);
        substract(diff_noisy,mu_noisy,zj_noisy); // z = y - x - mu(x)
        Vec zmj_noisy = zm_noisy(j);
        Vec znj_noisy = zn_noisy(j);
        Vec wj_noisy(n_dim);
        product(wj_noisy, B, zj_noisy); // w = B * z = projection weights for neighbor j
        transposeProduct(zmj_noisy, F, wj_noisy); // F' w = z_m
        substract(zj_noisy,zmj_noisy,znj_noisy); // z_n = z - zm
    }


}

Here is the call graph for this function:

OptionList & PLearn::NllSemisphericalGaussianVariable::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 64 of file NllSemisphericalGaussianVariable.cc.

OptionMap & PLearn::NllSemisphericalGaussianVariable::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 64 of file NllSemisphericalGaussianVariable.cc.

RemoteMethodMap & PLearn::NllSemisphericalGaussianVariable::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 64 of file NllSemisphericalGaussianVariable.cc.

void PLearn::NllSemisphericalGaussianVariable::recomputeSize ( int l,
int w
) const [virtual]

Recomputes the length l and width w that this variable should have, according to its parent variables.

This is used for ex. by sizeprop() The default version stupidly returns the current dimensions, so make sure to overload it in subclasses if this is not appropriate.

Reimplemented from PLearn::Variable.

Definition at line 147 of file NllSemisphericalGaussianVariable.cc.

References PLearn::TVec< T >::length(), and PLearn::NaryVariable::varray.

{
    len = varray[4]->length();
    wid = 1;
}

Here is the call graph for this function:

void PLearn::NllSemisphericalGaussianVariable::symbolicBprop ( ) [virtual]

compute a piece of new Var graph that represents the symbolic derivative of this Var

Reimplemented from PLearn::Variable.

Definition at line 288 of file NllSemisphericalGaussianVariable.cc.

References PLERROR.

{
    PLERROR("Not implemented");
}

Member Data Documentation

Reimplemented from PLearn::NaryVariable.

Definition at line 78 of file NllSemisphericalGaussianVariable.h.

Definition at line 70 of file NllSemisphericalGaussianVariable.h.

Referenced by build_(), and fprop().

Definition at line 70 of file NllSemisphericalGaussianVariable.h.

Referenced by build_(), and fprop().

Definition at line 64 of file NllSemisphericalGaussianVariable.h.

Referenced by fprop().

Definition at line 70 of file NllSemisphericalGaussianVariable.h.

Referenced by build_(), and fprop().

Definition at line 65 of file NllSemisphericalGaussianVariable.h.

Definition at line 69 of file NllSemisphericalGaussianVariable.h.

Referenced by bprop(), build_(), and fprop().

Definition at line 68 of file NllSemisphericalGaussianVariable.h.

Referenced by bprop(), and build_().

Definition at line 69 of file NllSemisphericalGaussianVariable.h.

Referenced by bprop(), build_(), and fprop().

Definition at line 61 of file NllSemisphericalGaussianVariable.h.

Referenced by bprop(), build_(), and fprop().

Definition at line 66 of file NllSemisphericalGaussianVariable.h.

Referenced by bprop(), build_(), and fprop().

Definition at line 67 of file NllSemisphericalGaussianVariable.h.

Referenced by bprop(), build_(), and fprop().

Definition at line 69 of file NllSemisphericalGaussianVariable.h.

Referenced by build_(), and fprop().

Definition at line 71 of file NllSemisphericalGaussianVariable.h.

Referenced by bprop(), build_(), and fprop().

Definition at line 71 of file NllSemisphericalGaussianVariable.h.

Referenced by bprop(), and build_().

Definition at line 69 of file NllSemisphericalGaussianVariable.h.

Referenced by fprop().

Definition at line 69 of file NllSemisphericalGaussianVariable.h.

Referenced by bprop(), build_(), and fprop().

Definition at line 69 of file NllSemisphericalGaussianVariable.h.

Referenced by bprop(), build_(), and fprop().

Definition at line 63 of file NllSemisphericalGaussianVariable.h.

Referenced by bprop().

Definition at line 62 of file NllSemisphericalGaussianVariable.h.

Definition at line 70 of file NllSemisphericalGaussianVariable.h.

Referenced by build_(), and fprop().

Definition at line 70 of file NllSemisphericalGaussianVariable.h.

Referenced by build_(), and fprop().

Definition at line 72 of file NllSemisphericalGaussianVariable.h.

Referenced by bprop(), build_(), and fprop().

Definition at line 70 of file NllSemisphericalGaussianVariable.h.

Referenced by build_(), and fprop().

Definition at line 70 of file NllSemisphericalGaussianVariable.h.

Referenced by build_(), and fprop().

Definition at line 70 of file NllSemisphericalGaussianVariable.h.

Referenced by bprop(), build_(), and fprop().

Definition at line 70 of file NllSemisphericalGaussianVariable.h.

Referenced by bprop(), build_(), and fprop().

Definition at line 70 of file NllSemisphericalGaussianVariable.h.

Referenced by bprop(), build_(), and fprop().

Definition at line 70 of file NllSemisphericalGaussianVariable.h.

Referenced by bprop(), build_(), and fprop().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
