PLearn::ObjectOptionVariable Class Reference

Variable which wraps an option of an object. More...

#include <ObjectOptionVariable.h>

Inheritance diagram for PLearn::ObjectOptionVariable:
Inheritance graph
[legend]

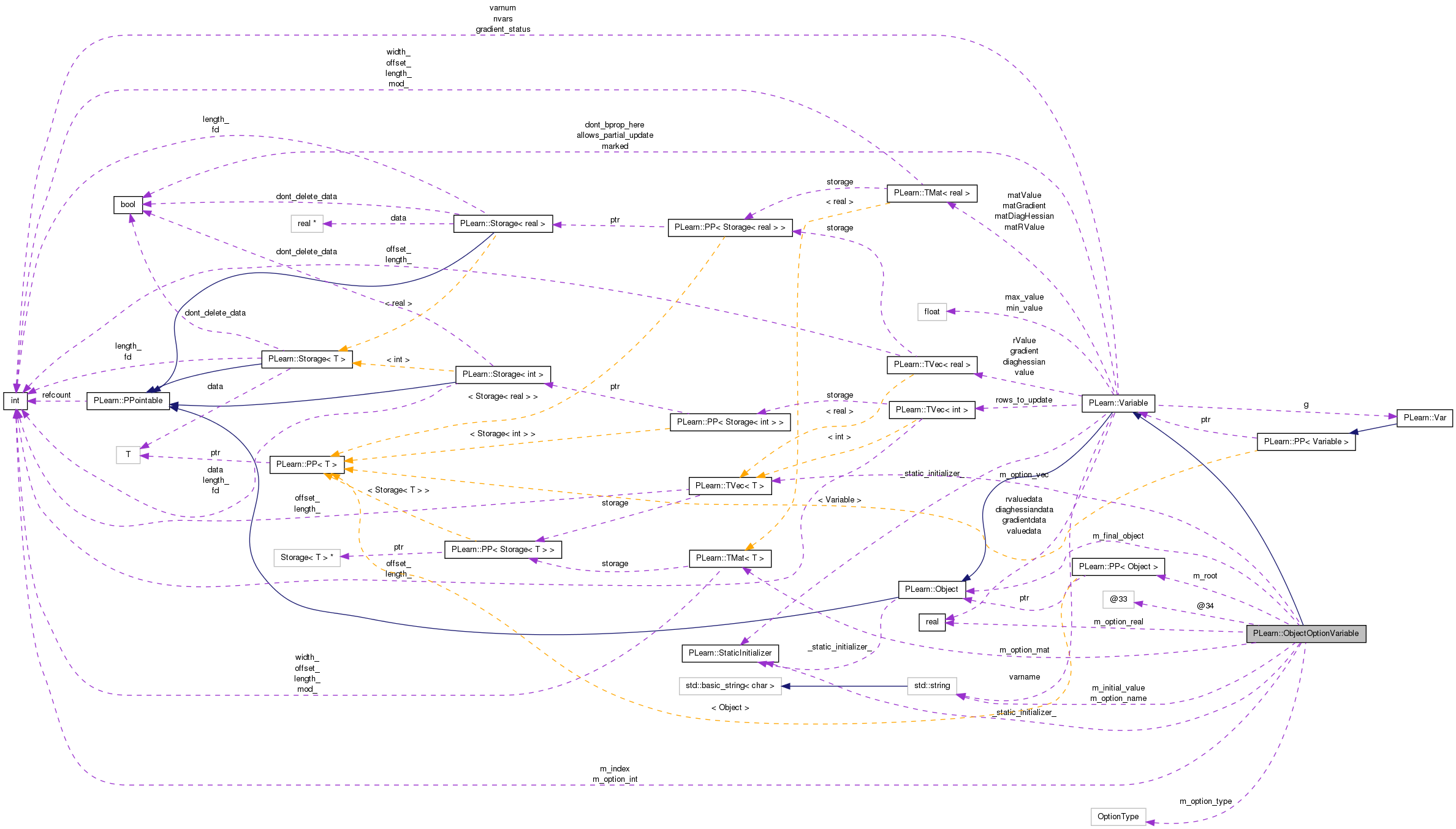

Collaboration diagram for PLearn::ObjectOptionVariable:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 ObjectOptionVariable ()
 Default constructor for persistence.
 ObjectOptionVariable (PP< Object > root, const string &option_name, const string &initial_value="")
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual ObjectOptionVariabledeepCopy (CopiesMap &copies) const
virtual void build ()
 Post-constructor.
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.
virtual void setParents (const VarArray &parents)
 set this Variable's parents. To use with default constructor.
virtual bool markPath ()
 Sets the marked flag of all the sVariable that are to be in the fprop path.
virtual void buildPath (VarArray &proppath)
 Finally buildPath is to be called from the output Variable of interest (this will build the proppath at the same time as erasing the marks)
virtual void fprop ()
 compute output given input
virtual void bprop ()
virtual void bbprop ()
 compute an approximation to diag(d^2/dinput^2) given diag(d^2/doutput^2), with diag(d^2/dinput^2) ~=~ (doutput/dinput)' diag(d^2/doutput^2) (doutput/dinput) In particular: if 'C' depends on 'y' and 'y' depends on x ...
virtual void symbolicBprop ()
 compute a piece of new Var graph that represents the symbolic derivative of this Var
virtual void rfprop ()
virtual VarArray sources ()
 if not marked, find all constant sources that influence this Variable.
virtual VarArray random_sources ()
 return ancestors which compute a non-deterministic function of their parents
virtual VarArray ancestors ()
 if not marked, find all Variables that influence this Variable.
virtual void unmarkAncestors ()
 undo any marking done by a call to sources() or ancestors()
virtual VarArray parents ()
 returns all the direct parents of this Var that are not marked (the call doesn't change any mark)
bool isConstant ()
void printInfo (bool print_gradient)
virtual bool update (real step_size, Vec direction_vec, real coeff=1.0, real b=0.0)
virtual bool update (Vec step_sizes, Vec direction_vec, real coeff=1.0, real b=0.0)
virtual bool update (real step_size, bool clear=false)
 set value = value + step_size * gradient
virtual bool update (Vec new_value)
virtual void updateAndClear ()
 Set value += gradient (respecting potential box constraints), and clear the gradient.
virtual void updateWithWeightDecay (real step_size, real weight_decay, bool L1, bool clear=true)
 if (L1) value += learning_rate*gradient decrease |value| by learning_rate*weight_decay if it does not make value change sign else // L2 value += learning_rate*(gradient - weight_decay*value) if (clear) gradient=0

Static Public Member Functions

static string _classname_ ()
 ObjectOptionVariable.
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

PP< Objectm_root
 Pointer to the object we are wrapping an option of.
string m_option_name
 Name of the option we are wrapping within the object.
string m_initial_value
 Optional initial value that should be set into the option.
intm_option_int
realm_option_real
Vecm_option_vec
Matm_option_mat

Static Public Attributes

static StaticInitializer _static_initializer_

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declares the class options.

Private Types

enum  OptionType {
  OptionTypeUnknown, OptionTypeInt, OptionTypeReal, OptionTypeVec,
  OptionTypeMat
}
 Encodes the type of the option in order to perform appropriate cast upon fpropping. More...
typedef Variable inherited

Private Member Functions

void build_ ()
 This does the actual building.

Private Attributes

Objectm_final_object
 Pointer to the final enclosing object of the option.
enum
PLearn::ObjectOptionVariable::OptionType
m_option_type
union {
   int *   m_option_int
   real *   m_option_real
   Vec *   m_option_vec
   Mat *   m_option_mat
};
int m_index
 Index into a vector if the option contains [].

Detailed Description

Variable which wraps an option of an object.

This variable serves to mirror its contents onto an option of a PLearn Object. The option can refer to either an integer, a real value, a vector or a matrix within the object: the option will discover its size automatically. Furthermore, upon performing an fprop on the variable, this translates into a changeOption on the object.

Definition at line 58 of file ObjectOptionVariable.h.


Member Typedef Documentation

Reimplemented from PLearn::Variable.

Definition at line 60 of file ObjectOptionVariable.h.


Member Enumeration Documentation

Encodes the type of the option in order to perform appropriate cast upon fpropping.

Enumerator:
OptionTypeUnknown
OptionTypeInt
OptionTypeReal
OptionTypeVec
OptionTypeMat

Definition at line 150 of file ObjectOptionVariable.h.


Constructor & Destructor Documentation

PLearn::ObjectOptionVariable::ObjectOptionVariable ( )

Default constructor for persistence.

Definition at line 62 of file ObjectOptionVariable.cc.

PLearn::ObjectOptionVariable::ObjectOptionVariable ( PP< Object root,
const string &  option_name,
const string &  initial_value = ""
)

Definition at line 69 of file ObjectOptionVariable.cc.

References build(), and m_root.

    : m_root(root),
      m_option_name(option_name),
      m_initial_value(initial_value),
      m_final_object(0),
      m_option_type(OptionTypeUnknown),
      m_option_int(0),
      m_index(-1)
{
    if (m_root)
        build();
}

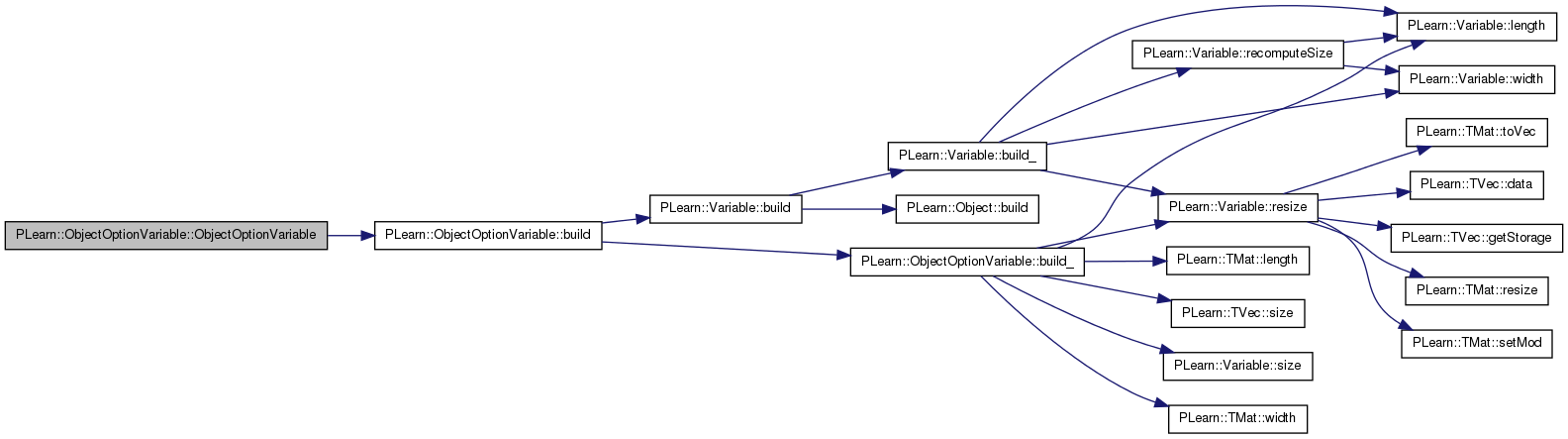

Here is the call graph for this function:


Member Function Documentation

string PLearn::ObjectOptionVariable::_classname_ ( ) [static]

ObjectOptionVariable.

Reimplemented from PLearn::Variable.

Definition at line 60 of file ObjectOptionVariable.cc.

OptionList & PLearn::ObjectOptionVariable::_getOptionList_ ( ) [static]

Reimplemented from PLearn::Variable.

Definition at line 60 of file ObjectOptionVariable.cc.

RemoteMethodMap & PLearn::ObjectOptionVariable::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::Variable.

Definition at line 60 of file ObjectOptionVariable.cc.

bool PLearn::ObjectOptionVariable::_isa_ ( const Object o) [static]

Reimplemented from PLearn::Variable.

Definition at line 60 of file ObjectOptionVariable.cc.

Object * PLearn::ObjectOptionVariable::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 60 of file ObjectOptionVariable.cc.

StaticInitializer ObjectOptionVariable::_static_initializer_ & PLearn::ObjectOptionVariable::_static_initialize_ ( ) [static]

Reimplemented from PLearn::Variable.

Definition at line 60 of file ObjectOptionVariable.cc.

VarArray PLearn::ObjectOptionVariable::ancestors ( ) [virtual]

if not marked, find all Variables that influence this Variable.

Implements PLearn::Variable.

Definition at line 278 of file ObjectOptionVariable.cc.

References PLearn::Variable::marked, PLearn::Variable::setMark(), and PLearn::Variable::Var.

{
    if (marked)
        return VarArray(0,0);
    setMark();
    return Var(this);
}

Here is the call graph for this function:

void PLearn::ObjectOptionVariable::bbprop ( ) [virtual]

compute an approximation to diag(d^2/dinput^2) given diag(d^2/doutput^2), with diag(d^2/dinput^2) ~=~ (doutput/dinput)' diag(d^2/doutput^2) (doutput/dinput) In particular: if 'C' depends on 'y' and 'y' depends on x ...

d^2C/dx^2 = d^2C/dy^2 * (dy/dx)^2 + dC/dy * d^2y/dx^2 (diaghessian) (gradient)

Reimplemented from PLearn::Variable.

Definition at line 257 of file ObjectOptionVariable.cc.

{} // No input: nothing to bbprop
void PLearn::ObjectOptionVariable::bprop ( ) [virtual]

Implements PLearn::Variable.

Definition at line 256 of file ObjectOptionVariable.cc.

{} // No input: nothing to bprop
void PLearn::ObjectOptionVariable::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::Variable.

Definition at line 188 of file ObjectOptionVariable.cc.

References PLearn::Variable::build(), and build_().

Referenced by makeDeepCopyFromShallowCopy(), and ObjectOptionVariable().

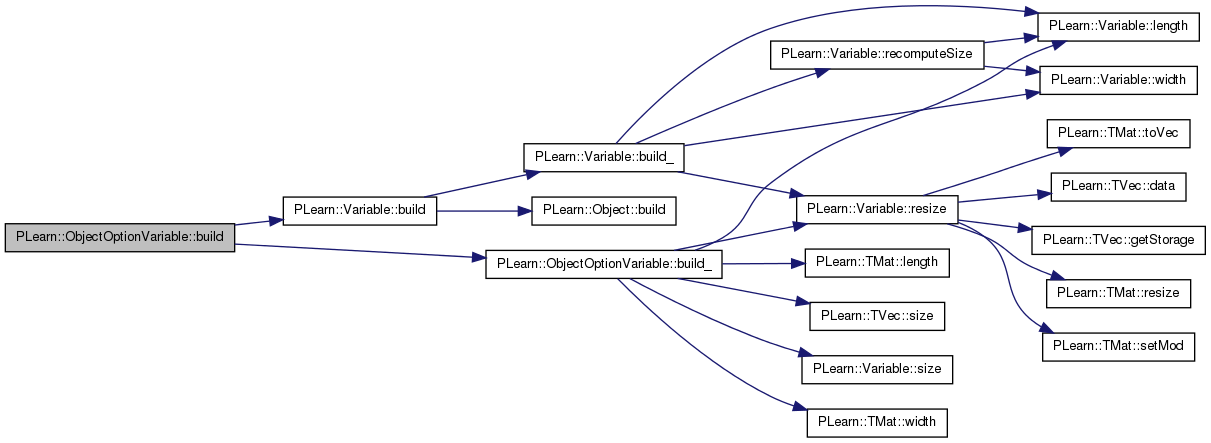

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::ObjectOptionVariable::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::Variable.

Definition at line 90 of file ObjectOptionVariable.cc.

References PLearn::TMat< T >::length(), PLearn::Variable::length(), m_final_object, m_index, m_initial_value, m_option_int, m_option_mat, m_option_name, m_option_real, m_option_type, m_option_vec, m_root, PLearn::Variable::matValue, OptionTypeInt, OptionTypeMat, OptionTypeReal, OptionTypeVec, PLASSERT, PLERROR, PLearn::Variable::resize(), PLearn::TVec< T >::size(), PLearn::Variable::size(), PLearn::Variable::value, and PLearn::TMat< T >::width().

Referenced by build().

{
    PLASSERT( m_root );
    PLASSERT( ! m_option_name.empty() );
    if (! m_initial_value.empty())
        m_root->changeOption(m_option_name, m_initial_value);

    // Infer the option type from the option, set related member variables, and
    // initialize the base-class variable size
    OptionList::iterator option_iter;
    string option_index;
    if (m_root->parseOptionName(m_option_name, m_final_object,
                                option_iter,   option_index))
    {
        PLASSERT( m_final_object );
        void* bound_option = (*option_iter)->getAsVoidPtr(m_final_object);
        string option_type = (*option_iter)->optiontype();
        if (! option_index.empty())
            m_index = lexical_cast<int>(option_index);
        else
            m_index = -1;

        // Set the appropriate pointer depending on the actual option type.  If
        // an index is specified, don't immediately dereference it. Wait until
        // very last minute since the actual memory location the vector points
        // to may change with vector resizes/reallocations.
        if (option_type == TypeTraits<int>::name()) {
            m_option_type = OptionTypeInt;
            m_option_int  = static_cast<int*>(bound_option);
        }
        else if (option_type == TypeTraits<real>::name()) {
            m_option_type = OptionTypeReal;
            m_option_real = static_cast<real*>(bound_option);
        }
        else if (option_type == TypeTraits<Vec>::name()) {
            m_option_type = OptionTypeVec;
            m_option_vec  = static_cast<Vec*>(bound_option);
        }
        else if (option_type == TypeTraits<Mat>::name()) {
            m_option_type = OptionTypeMat;
            m_option_mat  = static_cast<Mat*>(bound_option);
        }
        else
            PLERROR("ObjectOptionVariable::build: unhandled type \"%s\" the option "
                    "\"%s\"; supported types are: { %s, %s, %s, %s }",
                    option_type.c_str(),
                    m_option_name.c_str(),
                    TypeTraits<int>::name() .c_str(),
                    TypeTraits<real>::name().c_str(),
                    TypeTraits<Vec>::name() .c_str(),
                    TypeTraits<Mat>::name() .c_str());
    }

    // Now properly set the size and initial contents of the variable
    switch (m_option_type) {
    case OptionTypeInt:
        PLASSERT( m_option_int );
        inherited::resize(1,1);
        value[0] = *m_option_int;
        break;

    case OptionTypeReal:
        PLASSERT( m_option_real );
        inherited::resize(1,1);
        value[0] = *m_option_real;
        break;

    case OptionTypeVec:
        // Assume row vector
        PLASSERT( m_option_vec );
        if (m_index < 0 || m_option_vec->size() == 0) {
            inherited::resize(1, m_option_vec->size());
            value << *m_option_vec;
        }
        else {
            inherited::resize(1,1);
            value[0] = (*m_option_vec)[m_index];
        }
        break;

    case OptionTypeMat:
        // Indexing works for ROWS in the case of matrices
        PLASSERT( m_option_mat );
        if (m_index < 0 || m_option_mat->length() == 0) {
            inherited::resize(m_option_mat->length(), m_option_mat->width());
            matValue << *m_option_mat;
        }
        else {
            inherited::resize(1, m_option_mat->width());
            value << (*m_option_mat)(m_index);
        }
        break;

    default:
        PLASSERT( false );
    }
}

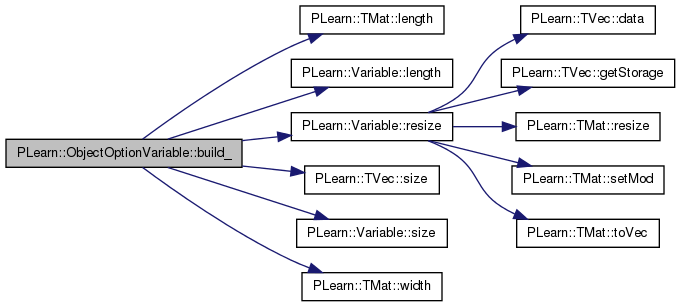

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::ObjectOptionVariable::buildPath ( VarArray proppath) [virtual]

Finally buildPath is to be called from the output Variable of interest (this will build the proppath at the same time as erasing the marks)

Implements PLearn::Variable.

Definition at line 302 of file ObjectOptionVariable.cc.

References PLearn::TVec< T >::append(), PLearn::Variable::clearMark(), PLearn::Variable::marked, and PLearn::Variable::Var.

{
    if(marked)
    {
        proppath.append(Var(this));
        clearMark();
    }
}

Here is the call graph for this function:

string PLearn::ObjectOptionVariable::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 60 of file ObjectOptionVariable.cc.

void PLearn::ObjectOptionVariable::declareOptions ( OptionList ol) [static, protected]

Declares the class options.

Reimplemented from PLearn::Variable.

Definition at line 84 of file ObjectOptionVariable.cc.

References PLearn::Variable::declareOptions().

Here is the call graph for this function:

static const PPath& PLearn::ObjectOptionVariable::declaringFile ( ) [inline, static]

Reimplemented from PLearn::Variable.

Definition at line 90 of file ObjectOptionVariable.h.

{ return true; }
ObjectOptionVariable * PLearn::ObjectOptionVariable::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::Variable.

Definition at line 60 of file ObjectOptionVariable.cc.

void PLearn::ObjectOptionVariable::fprop ( ) [virtual]

compute output given input

Implements PLearn::Variable.

Definition at line 203 of file ObjectOptionVariable.cc.

References PLearn::Object::build(), m_final_object, m_index, m_option_int, m_option_mat, m_option_real, m_option_type, m_option_vec, PLearn::Variable::matValue, OptionTypeInt, OptionTypeMat, OptionTypeReal, OptionTypeVec, PLASSERT, and PLearn::Variable::value.

Referenced by update(), updateAndClear(), and updateWithWeightDecay().

{
    // Depending on the type of the option, set the proper contents of the option.
    switch (m_option_type) {
    case OptionTypeInt:
    {
        PLASSERT( m_option_int );
        *m_option_int = int(value[0]);
        break;
    }

    case OptionTypeReal:
    {
        PLASSERT( m_option_real );
        *m_option_real = value[0];
        break;
    }

    case OptionTypeVec:
    {
        PLASSERT( m_option_vec );
        if (m_index < 0)
            *m_option_vec << value;
        else
            (*m_option_vec)[m_index] = value[0];
        break;
    }

    case OptionTypeMat:
    {
        PLASSERT( m_option_mat );
        if (m_index < 0)
            *m_option_mat << matValue;
        else
            (*m_option_mat)(m_index)<< value;
        break;
    }

    default:
        PLASSERT( false );
    }

    // Rebuild the object to reflect the change; we should find a smart way to
    // optimize this away in the future
    PLASSERT( m_final_object );
    m_final_object->build();
}

Here is the call graph for this function:

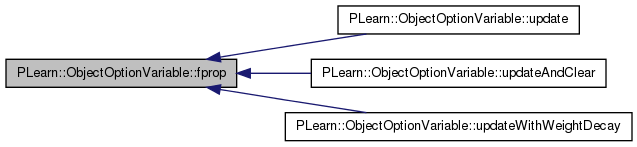

Here is the caller graph for this function:

OptionList & PLearn::ObjectOptionVariable::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 60 of file ObjectOptionVariable.cc.

OptionMap & PLearn::ObjectOptionVariable::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 60 of file ObjectOptionVariable.cc.

RemoteMethodMap & PLearn::ObjectOptionVariable::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 60 of file ObjectOptionVariable.cc.

bool PLearn::ObjectOptionVariable::isConstant ( ) [inline, virtual]

Reimplemented from PLearn::Variable.

Definition at line 117 of file ObjectOptionVariable.h.

{ return true; }

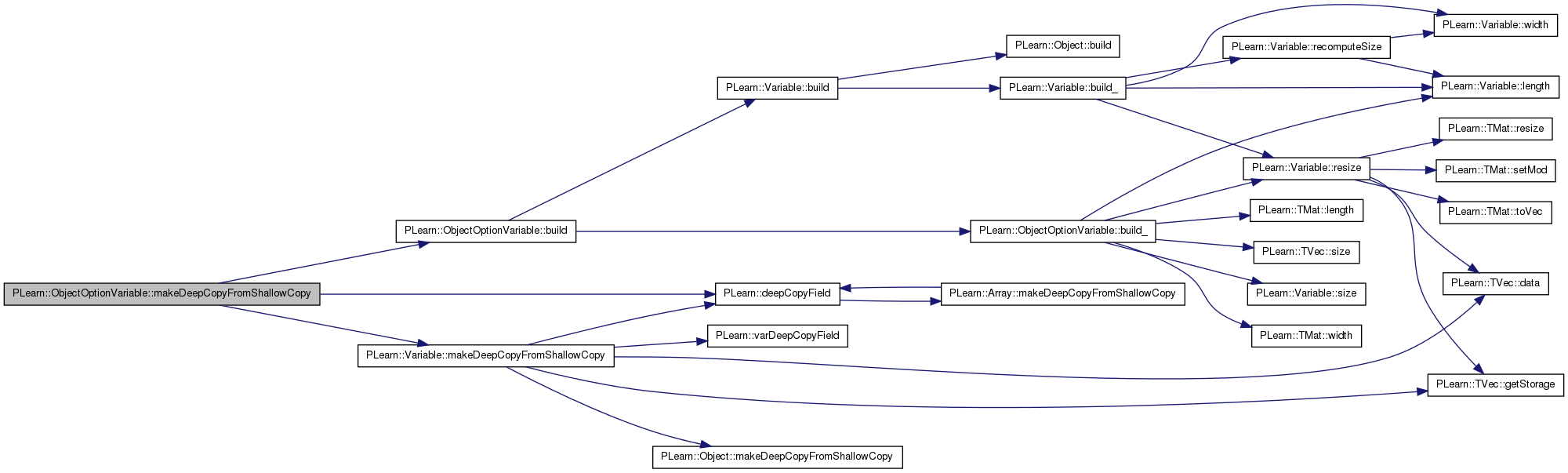

void PLearn::ObjectOptionVariable::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Transforms a shallow copy into a deep copy.

Reimplemented from PLearn::Variable.

Definition at line 196 of file ObjectOptionVariable.cc.

References build(), PLearn::deepCopyField(), m_root, and PLearn::Variable::makeDeepCopyFromShallowCopy().

Here is the call graph for this function:

bool PLearn::ObjectOptionVariable::markPath ( ) [virtual]

Sets the marked flag of all the sVariable that are to be in the fprop path.

The input sVariable that are of interest are to be marked first. Then markPath is to be called from the output Variable of interest

Implements PLearn::Variable.

Definition at line 297 of file ObjectOptionVariable.cc.

References PLearn::Variable::marked.

{
    return marked;
}
VarArray PLearn::ObjectOptionVariable::parents ( ) [virtual]

returns all the direct parents of this Var that are not marked (the call doesn't change any mark)

Implements PLearn::Variable.

Definition at line 292 of file ObjectOptionVariable.cc.

{
    return VarArray(0,0);
}
void PLearn::ObjectOptionVariable::printInfo ( bool  print_gradient) [inline, virtual]

Implements PLearn::Variable.

Definition at line 119 of file ObjectOptionVariable.h.

References PLearn::endl(), and PLearn::pout.

                                        {
        pout << getName() << "[" << (void*)this << "] " << *this << " = " << value;
        if (print_gradient) pout << " gradient=" << gradient;
        pout << endl;
    }

Here is the call graph for this function:

VarArray PLearn::ObjectOptionVariable::random_sources ( ) [virtual]

return ancestors which compute a non-deterministic function of their parents

Implements PLearn::Variable.

Definition at line 271 of file ObjectOptionVariable.cc.

References PLearn::Variable::marked, and PLearn::Variable::setMark().

{
    if (!marked)
        setMark();
    return VarArray(0,0);
}

Here is the call graph for this function:

void PLearn::ObjectOptionVariable::rfprop ( ) [virtual]

Reimplemented from PLearn::Variable.

Definition at line 258 of file ObjectOptionVariable.cc.

{} // No input: nothing to rfprop
void PLearn::ObjectOptionVariable::setParents ( const VarArray parents) [virtual]

set this Variable's parents. To use with default constructor.

Reimplemented from PLearn::Variable.

Definition at line 251 of file ObjectOptionVariable.cc.

References PLERROR.

{
    PLERROR("ObjectOptionVariable::setParents: this variable has no parents.");
}
VarArray PLearn::ObjectOptionVariable::sources ( ) [virtual]

if not marked, find all constant sources that influence this Variable.

A constant source is normally a SourceVariable.

Implements PLearn::Variable.

Definition at line 261 of file ObjectOptionVariable.cc.

References PLearn::Variable::marked, PLearn::Variable::setMark(), and PLearn::Variable::Var.

{
    if (!marked)
    {
        setMark();
        return Var(this);
    }
    return VarArray(0,0);
}

Here is the call graph for this function:

void PLearn::ObjectOptionVariable::symbolicBprop ( ) [virtual]

compute a piece of new Var graph that represents the symbolic derivative of this Var

Reimplemented from PLearn::Variable.

Definition at line 259 of file ObjectOptionVariable.cc.

{} // No input: nothing to bprop
void PLearn::ObjectOptionVariable::unmarkAncestors ( ) [virtual]

undo any marking done by a call to sources() or ancestors()

Implements PLearn::Variable.

Definition at line 286 of file ObjectOptionVariable.cc.

References PLearn::Variable::clearMark(), and PLearn::Variable::marked.

{
    if (marked)
        clearMark();
}

Here is the call graph for this function:

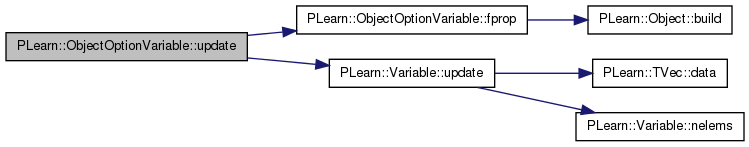

bool PLearn::ObjectOptionVariable::update ( real  step_size,
bool  clear = false
) [virtual]

set value = value + step_size * gradient

with step_size possibly scaled down s.t. box constraints are satisfied return true if box constraints have been hit with the update

Reimplemented from PLearn::Variable.

Definition at line 328 of file ObjectOptionVariable.cc.

References fprop(), and PLearn::Variable::update().

{
    bool ret = inherited::update(step_size, clear);
    fprop();
    return ret;
}

Here is the call graph for this function:

virtual bool PLearn::ObjectOptionVariable::update ( real  step_size,
Vec  direction_vec,
real  coeff = 1.0,
real  b = 0.0
) [virtual]
virtual bool PLearn::ObjectOptionVariable::update ( Vec  step_sizes,
Vec  direction_vec,
real  coeff = 1.0,
real  b = 0.0
) [virtual]
virtual bool PLearn::ObjectOptionVariable::update ( Vec  new_value) [virtual]

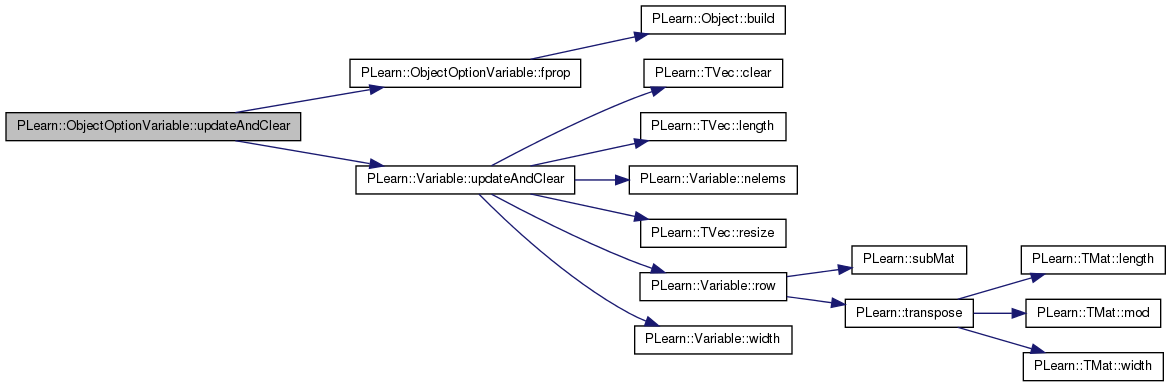

void PLearn::ObjectOptionVariable::updateAndClear ( ) [virtual]

Set value += gradient (respecting potential box constraints), and clear the gradient.

Reimplemented from PLearn::Variable.

Definition at line 342 of file ObjectOptionVariable.cc.

References fprop(), and PLearn::Variable::updateAndClear().

Here is the call graph for this function:

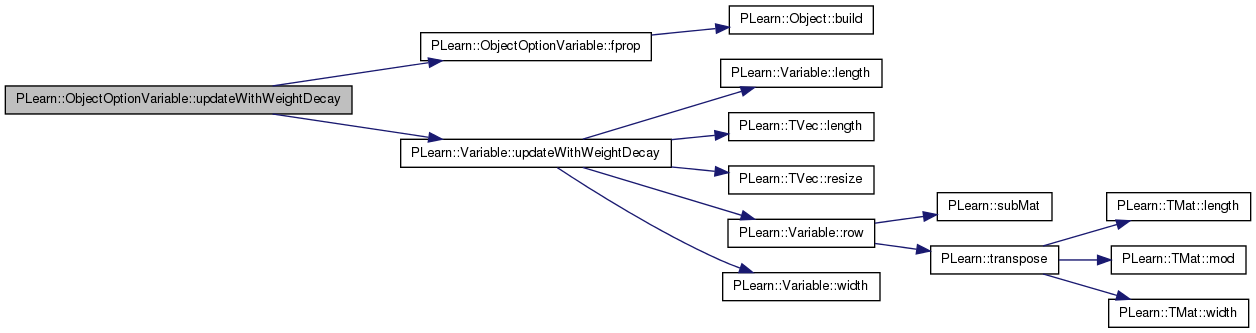

void PLearn::ObjectOptionVariable::updateWithWeightDecay ( real  step_size,
real  weight_decay,
bool  L1,
bool  clear = true
) [virtual]

if (L1) value += learning_rate*gradient decrease |value| by learning_rate*weight_decay if it does not make value change sign else // L2 value += learning_rate*(gradient - weight_decay*value) if (clear) gradient=0

Reimplemented from PLearn::Variable.

Definition at line 348 of file ObjectOptionVariable.cc.

References fprop(), and PLearn::Variable::updateWithWeightDecay().

{
    inherited::updateWithWeightDecay(step_size, weight_decay, L1, clear);
    fprop();
}

Here is the call graph for this function:


Member Data Documentation

union { ... } [private]

Reimplemented from PLearn::Variable.

Definition at line 90 of file ObjectOptionVariable.h.

Pointer to the final enclosing object of the option.

Definition at line 146 of file ObjectOptionVariable.h.

Referenced by build_(), and fprop().

Index into a vector if the option contains [].

Definition at line 167 of file ObjectOptionVariable.h.

Referenced by build_(), and fprop().

Optional initial value that should be set into the option.

This is a string that is set with 'changeOption'. Note that this exact initial value is initially set into the option, regardless of the setting for 'log_variable'.

Definition at line 78 of file ObjectOptionVariable.h.

Referenced by build_().

Definition at line 160 of file ObjectOptionVariable.h.

Referenced by build_(), and fprop().

Definition at line 163 of file ObjectOptionVariable.h.

Referenced by build_(), and fprop().

Name of the option we are wrapping within the object.

Definition at line 70 of file ObjectOptionVariable.h.

Referenced by build_().

Definition at line 161 of file ObjectOptionVariable.h.

Referenced by build_(), and fprop().

Referenced by build_(), and fprop().

Definition at line 162 of file ObjectOptionVariable.h.

Referenced by build_(), and fprop().

Pointer to the object we are wrapping an option of.

This can also be a 'root' object in the case of a complex option such as 'A.B.C'.

Definition at line 67 of file ObjectOptionVariable.h.

Referenced by build_(), makeDeepCopyFromShallowCopy(), and ObjectOptionVariable().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
