PLearn::ChemicalICP Class Reference

The first sentence should be a BRIEF DESCRIPTION of what the class does. More...

#include <ChemicalICP.h>

Inheritance diagram for PLearn::ChemicalICP:
Inheritance graph
[legend]

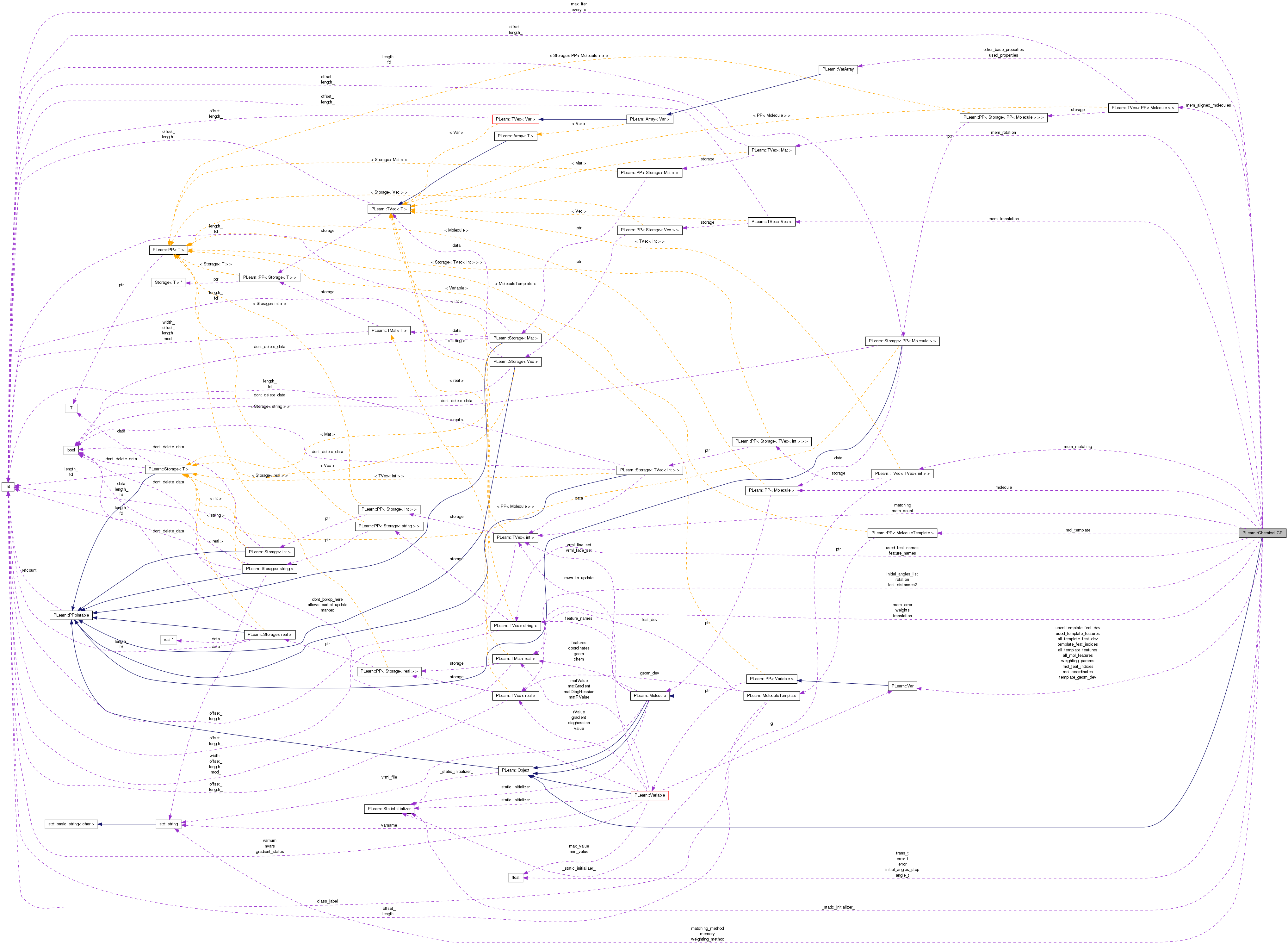

Collaboration diagram for PLearn::ChemicalICP:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 ChemicalICP ()
 Default constructor.
 ChemicalICP (const MolTemplate &the_template, const Mol &the_molecule, const TVec< string > &the_feature_names=TVec< string >(), string the_weighting_method="features_sigmoid", const Var &the_weighting_params=Var(Vec(2, 1)), string the_matching_method="exhaustive")
virtual void setMolecule (const Mol &the_molecule)
 Use this function to set the molecule and update every parameter that depends on it without having to call build().
virtual void run ()
 Performs the alignment.
virtual void saveMatch (const PPath &filename)
 Saves the alignment parameters: rotation, translation, matching...
void forgetMemorizedAlignments ()
 Forget any previously memorized alignment.
virtual string classname () const
virtual OptionListgetOptionList () const
virtual OptionMapgetOptionMap () const
virtual RemoteMethodMapgetRemoteMethodMap () const
virtual ChemicalICPdeepCopy (CopiesMap &copies) const
virtual void build ()
 Post-constructor.
virtual void makeDeepCopyFromShallowCopy (CopiesMap &copies)
 Transforms a shallow copy into a deep copy.

Static Public Member Functions

static string _classname_ ()
static OptionList_getOptionList_ ()
static RemoteMethodMap_getRemoteMethodMap_ ()
static Object_new_instance_for_typemap_ ()
static bool _isa_ (const Object *o)
static void _static_initialize_ ()
static const PPathdeclaringFile ()

Public Attributes

Var mol_feat_indices
 Indices of the used features, for the molecule and the template.
Var template_feat_indices
Var matching_neighbors
 Variable that has the same content as the 'matching' vector after an ICP run.
MolTemplate mol_template
 ### declare public option fields (such as build options) here Start your comments with Doxygen-compatible comments such as //!
Mol molecule
 The molecule.
TVec< string > feature_names
 Names of features to use during alignment.
string weighting_method
 Method used to compute the weight of a pair of point.
Var weighting_params
 Parameters used during weighting. Meaning depends on "weighting_method".
string matching_method
 Method used to find the nearest neighbors.
string memory
real initial_angles_step
 Tries initial rotations every "initial_angles_step" degrees.
Mat initial_angles_list
 Explicit list of initial rotations angles.
int max_iter
 Maximum number of iterations to perform during alignment.
real error_t
 Stop alignment if error falls below this threshold.
real angle_t
 Stop alignment if angles falls below this threshold.
real trans_t
 Stop alignment if translation falls below this threshold.
Mat rotation
 Learned rotation matrix.
Vec translation
 Learned translation vector.
TVec< intmatching
 matching[i] is the index of the molecule point being the nearest neighbor of template point i
Vec weights
 Weight of the pair of points (i, matching[i])
real error
 Weigted error of the alignment (equal to the 'distance' part of 'score', as computed in ComputeScoreVariable)
VarArray used_properties
VarArray other_base_properties
Var all_mol_features
Var all_template_features
Var all_template_feat_dev
Var mol_coordinates
Var used_mol_features
Var template_coordinates
Var template_geom_dev
Var used_template_features
Var used_template_feat_dev

Static Public Attributes

static StaticInitializer _static_initializer_

Protected Member Functions

virtual void computeUsedFeatures ()
 computes the intersection of feature_names, molecule->feature_names and mol_template->feature_names, stores it in used_feat_names, and computes correspondance index for mol and mol_template
virtual void computeVariables ()
 updates the 'used_...' variables' fields
virtual void cacheFeatureDistances ()
 fills feat_distances2 matrix
virtual void matchNearestNeighbors (const Mat &tr_template_coords, const Mat &matched_mol_coords)
 fills matching, and compute matched_mol_coords as the list of coordinates of transformed template's nearest neighbors
virtual void minimizeWeightedDistance (const Mat &tr_template_coords, const Mat &matched_mol_coords, real &delta_rot_length, real &delta_trans_length)
 finds transformation minimizing weighted distance between matched points
virtual real computeWeightedDistance (const Mat &tr_template_coords, const Mat &matched_mol_coords)
 computes the alignment error: sum over every matched pairs of (weighted geometrical distance) + feature distance
virtual void computeWeights (const Mat &tr_template_coords, const Mat &matched_mol_coords)
 computes weights for every pair of matched points (fills weights)

Static Protected Member Functions

static void declareOptions (OptionList &ol)
 Declares the class options.

Protected Attributes

int every_x
 When the memory option is set to 'every-X', this variable contains the value of X.
TVec< PP< Molecule > > mem_aligned_molecules
 List of molecules previously aligned.
Vec mem_error
 List of errors corresponding to molecules in 'mem_aligned_molecules'.
TVec< Matmem_rotation
 List of rotation matrices corresponding to molecules in 'mem_aligned_molecules'.
TVec< Vecmem_translation
 List of translation vectors corresponding to molecules in 'mem_aligned_molecules'.
TVec< TVec< int > > mem_matching
 List of matching vectors corresponding to molecules in 'mem_aligned_molecules'.
TVec< intmem_count
 Indicates the number of time each molecule in 'mem_aligned_molecules' has been aligned (regardless of whether or not this alignement has been recomputed or obtained from a previous alignemnt).
TVec< string > used_feat_names
 feature names really used during alignment: intersection between
Mat feat_distances2
 Cache of feature distances : feat_distances2(i,j) is feature distance between point i of the template and point j of the molecule.

Private Types

typedef Object inherited

Private Member Functions

void build_ ()
 This does the actual building.

Detailed Description

The first sentence should be a BRIEF DESCRIPTION of what the class does.

Place the rest of the class programmer documentation here. Doxygen supports Javadoc-style comments. See http://www.doxygen.org/manual.html

Definition at line 60 of file ChemicalICP.h.


Member Typedef Documentation

Reimplemented from PLearn::Object.

Definition at line 62 of file ChemicalICP.h.


Constructor & Destructor Documentation

PLearn::ChemicalICP::ChemicalICP ( )

Default constructor.

Definition at line 56 of file ChemicalICP.cc.

                        :
      mol_feat_indices( new UnaryVariable() ),
      template_feat_indices( new UnaryVariable() ),
      matching_neighbors( new UnaryVariable() ),
      weighting_method( "features_sigmoid" ),
      weighting_params( Vec(2,1) ),
      matching_method( "exhaustive" ),
      memory( "none" ),
      initial_angles_step( 0 ),
      max_iter( 50 ),
      error_t( 0 ),
      angle_t( 0.5 ),
      trans_t( 0 ),
      rotation( 3, 3 ),
      translation( 3 ),
      all_mol_features( 0 ),
      all_template_features( 0 ),
      all_template_feat_dev( 0 ),
      mol_coordinates( 0 ),
      used_mol_features( new VarColumnsVariable( all_mol_features,
                                                 mol_feat_indices ) ),
      template_coordinates( 0 ),
      template_geom_dev( 0 ),
      used_template_features( new VarColumnsVariable(all_template_features,
                                                     template_feat_indices) ),
      used_template_feat_dev( new VarColumnsVariable(all_template_feat_dev,
                                                     template_feat_indices) )
{}
PLearn::ChemicalICP::ChemicalICP ( const MolTemplate the_template,
const Mol the_molecule,
const TVec< string > &  the_feature_names = TVec<string>(),
string  the_weighting_method = "features_sigmoid",
const Var the_weighting_params = VarVec(2,1) ),
string  the_matching_method = "exhaustive"
)

Definition at line 85 of file ChemicalICP.cc.

References build().

                                                      :
      mol_feat_indices( new UnaryVariable() ),
      template_feat_indices( new UnaryVariable() ),
      matching_neighbors( new UnaryVariable() ),
      mol_template(the_template),
      molecule(the_molecule),
      feature_names(the_feature_names),
      weighting_method(the_weighting_method),
      weighting_params(the_weighting_params),
      matching_method( the_matching_method ),
      memory( "none" ),
      initial_angles_step( 0 ),
      max_iter( 50 ),
      error_t( 0 ),
      angle_t( 0.5 ),
      trans_t( 0 ),
      rotation( 3, 3 ),
      translation( 3 ),
      all_mol_features( 0 ), // calls SourceVariable()
      all_template_features( 0 ),
      all_template_feat_dev( 0 ),
      mol_coordinates( 0 ),
      used_mol_features( new VarColumnsVariable( all_mol_features,
                                                 mol_feat_indices ) ),
      template_coordinates( 0 ),
      template_geom_dev( 0 ),
      used_template_features( new VarColumnsVariable(all_template_features,
                                                     template_feat_indices) ),
      used_template_feat_dev( new VarColumnsVariable(all_template_feat_dev,
                                                     template_feat_indices) )
{
//pout << "Big constructor called" << endl;
    build();
}

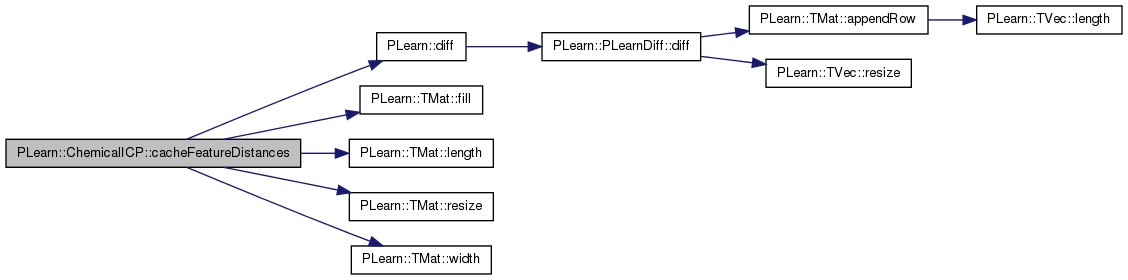

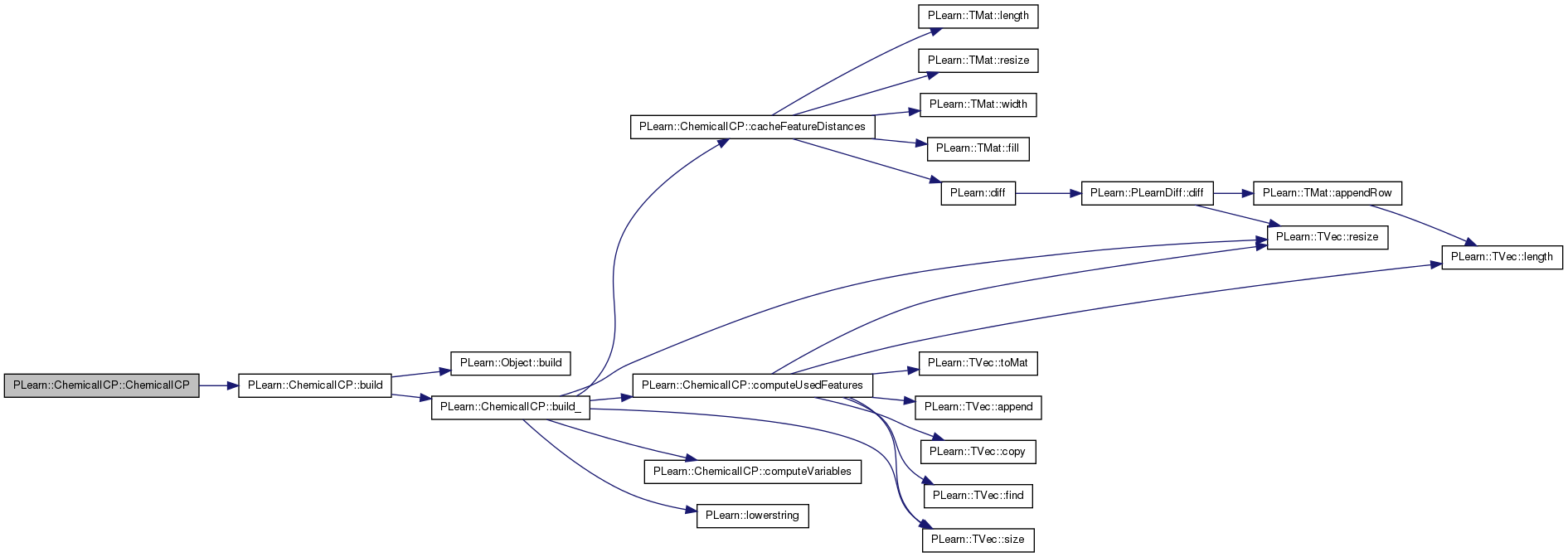

Here is the call graph for this function:


Member Function Documentation

string PLearn::ChemicalICP::_classname_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 54 of file ChemicalICP.cc.

OptionList & PLearn::ChemicalICP::_getOptionList_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 54 of file ChemicalICP.cc.

RemoteMethodMap & PLearn::ChemicalICP::_getRemoteMethodMap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 54 of file ChemicalICP.cc.

bool PLearn::ChemicalICP::_isa_ ( const Object o) [static]

Reimplemented from PLearn::Object.

Definition at line 54 of file ChemicalICP.cc.

Object * PLearn::ChemicalICP::_new_instance_for_typemap_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 54 of file ChemicalICP.cc.

StaticInitializer ChemicalICP::_static_initializer_ & PLearn::ChemicalICP::_static_initialize_ ( ) [static]

Reimplemented from PLearn::Object.

Definition at line 54 of file ChemicalICP.cc.

void PLearn::ChemicalICP::build ( ) [virtual]

Post-constructor.

The normal implementation should call simply inherited::build(), then this class's build_(). This method should be callable again at later times, after modifying some option fields to change the "architecture" of the object.

Reimplemented from PLearn::Object.

Definition at line 610 of file ChemicalICP.cc.

References PLearn::Object::build(), and build_().

Referenced by ChemicalICP().

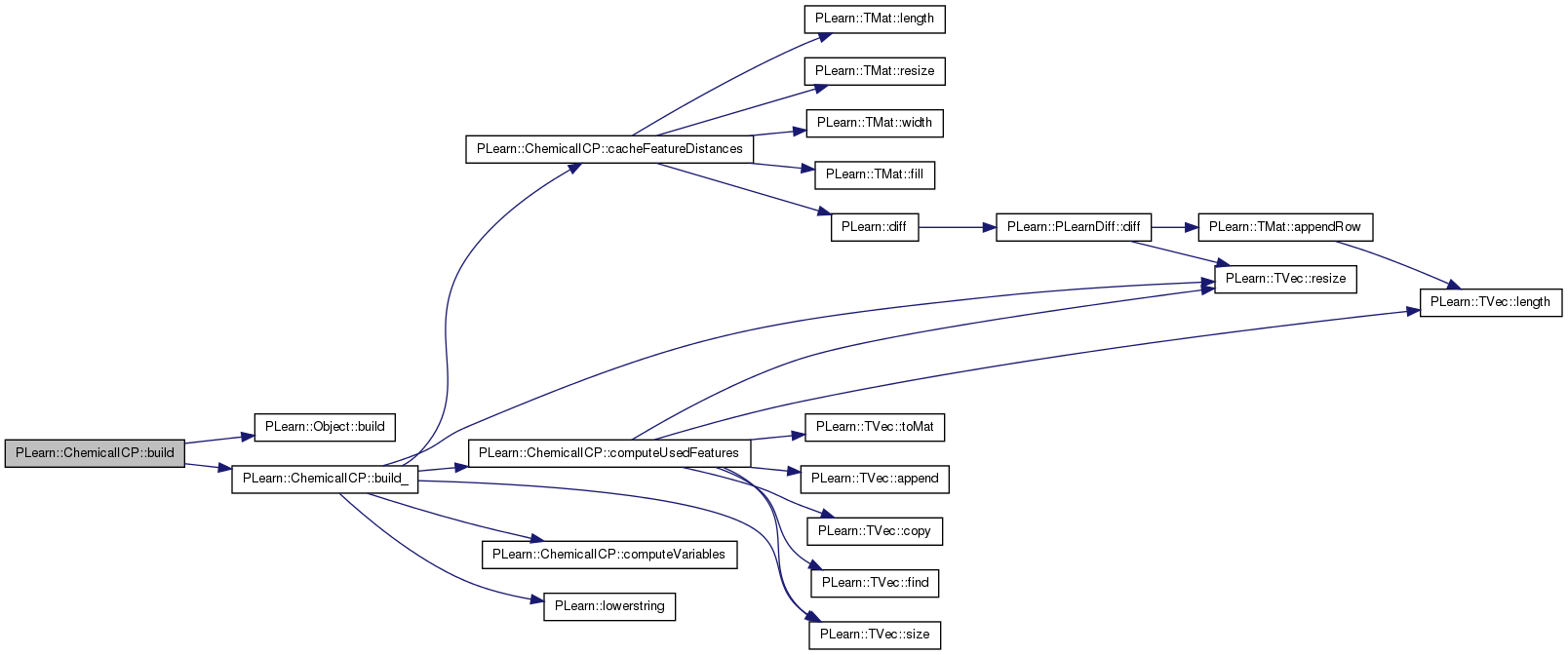

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::ChemicalICP::build_ ( ) [private]

This does the actual building.

Reimplemented from PLearn::Object.

Definition at line 765 of file ChemicalICP.cc.

References all_mol_features, all_template_feat_dev, all_template_features, cacheFeatureDistances(), computeUsedFeatures(), computeVariables(), every_x, feature_names, PLearn::lowerstring(), matching_method, matching_neighbors, memory, mol_coordinates, mol_template, molecule, other_base_properties, PLERROR, PLWARNING, PLearn::TVec< T >::resize(), PLearn::TVec< T >::size(), template_coordinates, template_geom_dev, used_mol_features, used_properties, used_template_feat_dev, used_template_features, weighting_method, weighting_params, and x.

Referenced by build().

{

#ifdef BOUNDCHECK
    // Variable names for debugging.
    used_mol_features->setName("used_mol_features");
    used_template_features->setName("used_template_features");
    used_template_feat_dev->setName("used_template_feat_dev");
#endif

    if (memory == "none") {
        // A negative value for 'every_x' means it is not used.
        every_x = -1;
    } else if (memory.find("every-") == 0) {
        string x = memory.substr(6);
        every_x = atoi(x.c_str());
        if (every_x <= 0)
            PLERROR("In ChemicalICP::build_ - The X value in 'every-X' (option"
                    " 'memory') must be positive");
    } else
        PLERROR("In ChemicalICP::build_ - Invalid value for option 'memory'");

    if( feature_names.size() > 0 &&
        lowerstring( feature_names[0] ) == "none" )
    {
        // no feature will be used during the alignment nor score computation
        feature_names[0] = "none";
        if( feature_names.size() > 1 )
        {
            PLWARNING("First element of 'feature_names' is 'none', but"
                      " other features are present.\n"
                      "Resizing 'feature_names' to 1.\n");
            feature_names.resize( 1 );
        }
    }

    if( lowerstring( weighting_method ) == "none" || weighting_method == "" )
    {
        weighting_method = "none";
        weighting_params->resize(0, 0);
    }
    else if( lowerstring( weighting_method ) == "features_sigmoid" )
    {
        weighting_method = "features_sigmoid";
        weighting_params->resize(2, 1);
    }
    else
        PLERROR( "ChemicalICP::build_ - weighting_method '%s' is unknown.\n",
                 weighting_method.c_str() );


    if( lowerstring( matching_method ) == "exhaustive" )
        matching_method = "exhaustive";
    else
        PLERROR( "ChemicalICP::build_ - matching_method '%s' is unknown.\n",
                 matching_method.c_str() );

    if( mol_template )
    {
        // make the Var's relative to the template have the right storage
        template_coordinates->defineValueLocation( mol_template->coordinates );
        template_geom_dev->defineValueLocation(
            mol_template->geom_dev.toMat( mol_template->n_points(), 1 ) );
        all_template_features->defineValueLocation( mol_template->features );
        all_template_feat_dev->defineValueLocation( mol_template->feat_dev );

        if( molecule )
        {
            // make as if 'setMolecule' were called
            computeUsedFeatures();
            computeVariables();

            if( matching_method == "exhaustive" )
                cacheFeatureDistances();
        }

        // Resize 'matching_neighbors' so that it has the correct size (i.e.
        // the number of points in the template).
        matching_neighbors->resize(mol_template->n_points(), 1);
    }

    // build VarArray
    used_properties = mol_coordinates
        & template_coordinates & template_geom_dev
        & used_mol_features & used_template_features & used_template_feat_dev;

    other_base_properties = all_mol_features
        & all_template_features & all_template_feat_dev;
//pout << "end build_()" << endl;

}

Here is the call graph for this function:

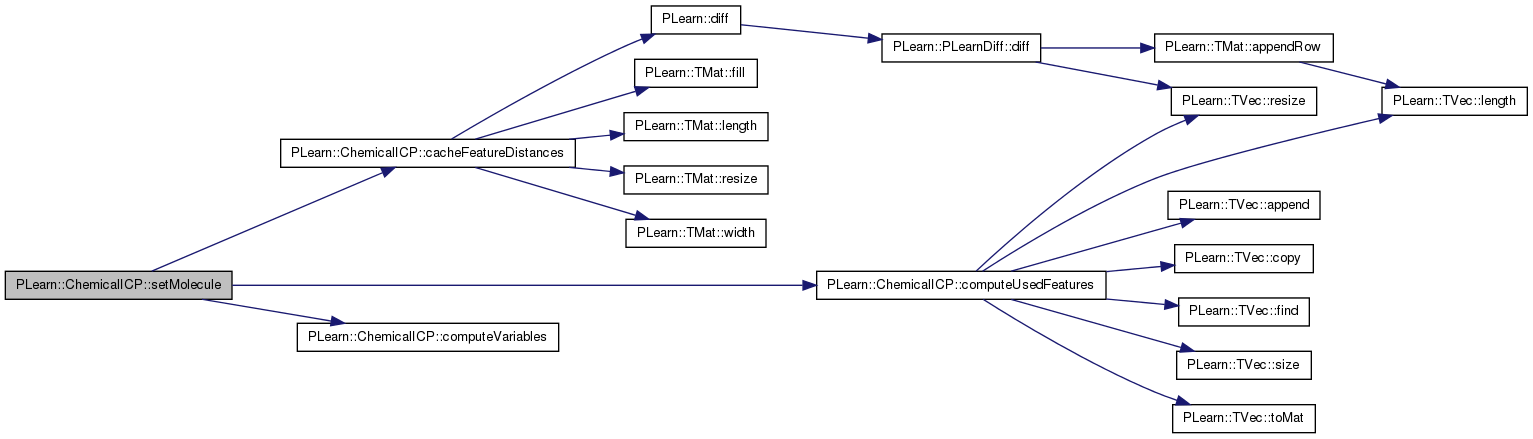

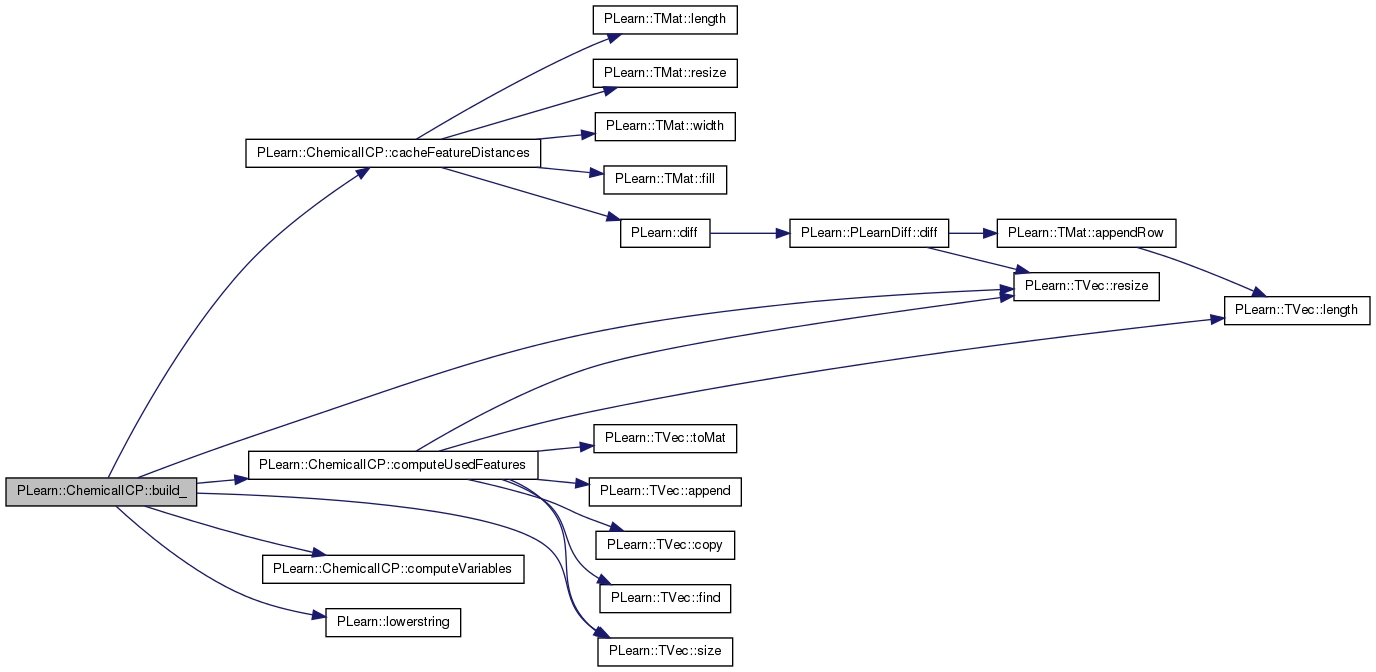

Here is the caller graph for this function:

void PLearn::ChemicalICP::cacheFeatureDistances ( ) [protected, virtual]

fills feat_distances2 matrix

Definition at line 214 of file ChemicalICP.cc.

References PLearn::diff(), feat_distances2, PLearn::TMat< T >::fill(), i, j, PLearn::TMat< T >::length(), PLearn::TMat< T >::resize(), used_mol_features, used_template_feat_dev, used_template_features, and PLearn::TMat< T >::width().

Referenced by build_(), and setMolecule().

{
//pout << "cacheFeatureDistances()" << endl;
    Mat t_features = used_template_features->matValue;
    Mat t_feat_dev = used_template_feat_dev->matValue;
    Mat m_features = used_mol_features->matValue;

    int n_template_points = t_features.length();
    int n_mol_points = m_features.length();
    int n_features = m_features.width();

    feat_distances2.resize( n_template_points, n_mol_points );
    feat_distances2.fill(0);

    for( int i=0 ; i<n_template_points ; i++ )
    {
        for( int j=0 ; j<n_mol_points ; j++ )
        {
            for( int k=0 ; k<n_features ; k++ )
            {
                real diff = (t_features(i, k) - m_features(j, k))
                                / t_feat_dev(i, k);
                feat_distances2(i, j) += diff * diff;
            }
        }
    }
/*pout << "t_features(0) = " << t_features(0) << endl;
pout << "t_feat_dev(0) = " << t_feat_dev(0) << endl;
pout << "feat_distances2(0) = " << feat_distances2(0) << endl;*/
}

Here is the call graph for this function:

Here is the caller graph for this function:

string PLearn::ChemicalICP::classname ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 54 of file ChemicalICP.cc.

void PLearn::ChemicalICP::computeUsedFeatures ( ) [protected, virtual]

computes the intersection of feature_names, molecule->feature_names and mol_template->feature_names, stores it in used_feat_names, and computes correspondance index for mol and mol_template

Definition at line 135 of file ChemicalICP.cc.

References PLearn::TVec< T >::append(), PLearn::TVec< T >::copy(), feature_names, PLearn::TVec< T >::find(), i, PLearn::TVec< T >::length(), mol_feat_indices, mol_template, molecule, PLearn::TVec< T >::resize(), PLearn::TVec< T >::size(), template_feat_indices, PLearn::TVec< T >::toMat(), and used_feat_names.

Referenced by build_(), and setMolecule().

{
    // compute intersection between mol_template->feature_names and
    // feature_names
    TVec<string> template_names = mol_template->feature_names;
    TVec<string> common_names;
    TVec<int> common_indices;

    if( feature_names.length() == 0 )
    {
        common_names = template_names.copy();
        common_indices = TVec<int>( 0, template_names.length() - 1, 1 );
    }
    else if( feature_names[0] == "none" )
    {
        used_feat_names.resize( 0 );
        mol_feat_indices->resize( 0, 0 );
        template_feat_indices->resize( 0, 0 );
        return;
    }
    else
    {
        common_names.resize(0, feature_names.length()); // to have some space
        common_indices.resize(0, feature_names.length());
        TVec<int> indices = feature_names.find( template_names );

        for( int i=0 ; i<indices.length() ; i++ )
        {
            if( indices[i] >= 0 )
            {
                // template_names[i] is present in feature_names
                common_names.append( template_names[i] );
                common_indices.append( i );
            }
        }
    }

    // then compute intersection with molecule->feature_names
    TVec<string> mol_names = molecule->feature_names;
    used_feat_names.resize(0, common_names.length());

    // storage for indices
    Vec template_feat_indices_;
    Vec mol_feat_indices_;

    TVec<int> indices = mol_names.find( common_names );
    for( int i=0 ; i<indices.length() ; i++ )
    {
        if( indices[i] >= 0 )
        {
            // common_names[i] is present in mol_names at position indices[i]
            used_feat_names.append( common_names[i] );
            template_feat_indices_.append( common_indices[i] );
            mol_feat_indices_.append( indices[i] );
        }
    }

    // update Var's value
    template_feat_indices->defineValueLocation(
        template_feat_indices_.toMat( template_feat_indices_.size(), 1 ) );

    mol_feat_indices->defineValueLocation(
        mol_feat_indices_.toMat( mol_feat_indices_.size(), 1 ) );
}

Here is the call graph for this function:

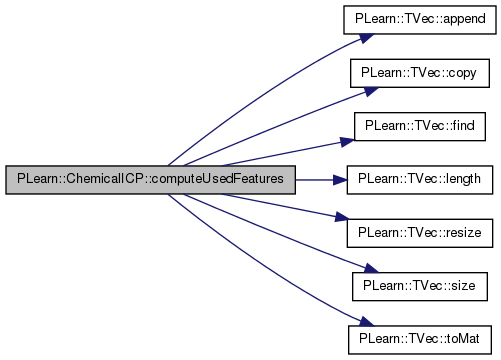

Here is the caller graph for this function:

void PLearn::ChemicalICP::computeVariables ( ) [protected, virtual]

updates the 'used_...' variables' fields

Definition at line 200 of file ChemicalICP.cc.

References all_mol_features, mol_coordinates, molecule, used_mol_features, used_template_feat_dev, and used_template_features.

Referenced by build_(), and setMolecule().

{
    // make mol_coordinates point to the new molecule's coordinates
    mol_coordinates->defineValueLocation( molecule->coordinates );

    // make mol_features point to the new molecule's features
    all_mol_features->defineValueLocation( molecule->features );

    // update used_... Var's so they have the right size
    used_mol_features->sizefprop();
    used_template_features->sizefprop();
    used_template_feat_dev->sizefprop();
}

Here is the caller graph for this function:

real PLearn::ChemicalICP::computeWeightedDistance ( const Mat tr_template_coords,
const Mat matched_mol_coords
) [protected, virtual]

computes the alignment error: sum over every matched pairs of (weighted geometrical distance) + feature distance

Definition at line 532 of file ChemicalICP.cc.

References feat_distances2, i, PLearn::TMat< T >::length(), matching, matching_method, PLearn::powdistance(), PLearn::sqrt(), and weights.

Referenced by run().

{
//pout << "computeWeightedDistance()" << endl;
    real err = 0;
    int n_points = tr_template_coords.length();
    if( matching_method == "exhaustive" )
    {
        for( int i=0 ; i<n_points ; i++ )
        {
            real diff2 = feat_distances2( i, matching[i] ) +
                powdistance( tr_template_coords(i), matched_mol_coords(i), 2 );
            err += weights[i] * sqrt( diff2 );
/*pout << "i = " << i << endl
    << "tr_template_coords = " << tr_template_coords(i) << endl
    << "matched_mol_coords = " << matched_mol_coords(i) << endl
    << "weights = " <<  weights[i] << endl
    << "delta_err = " << weights[i] * sqrt( diff2 ) << endl
    << endl;*/
        }
    }
    return err;
}

Here is the call graph for this function:

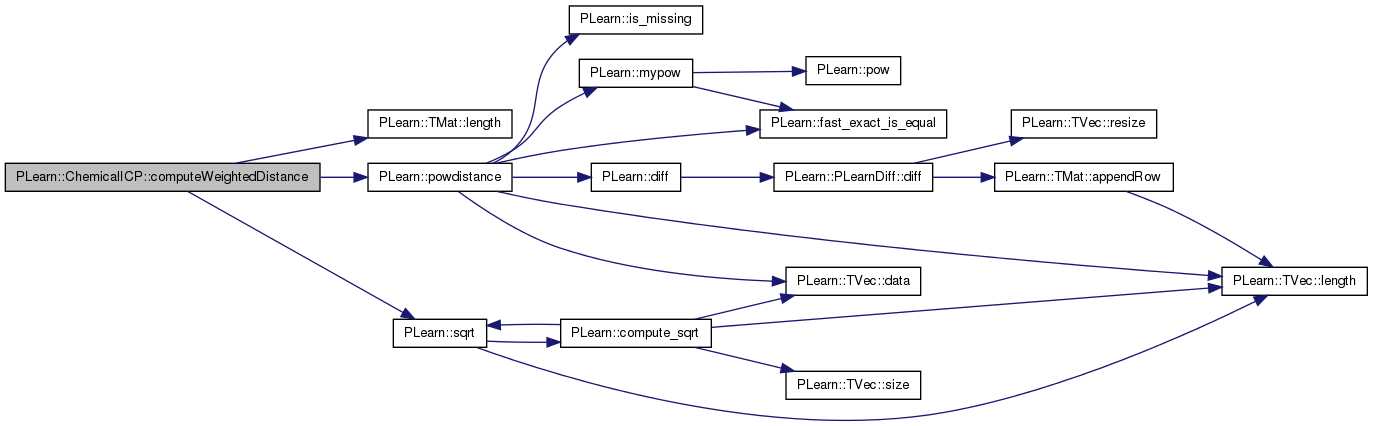

Here is the caller graph for this function:

void PLearn::ChemicalICP::computeWeights ( const Mat tr_template_coords,
const Mat matched_mol_coords
) [protected, virtual]

computes weights for every pair of matched points (fills weights)

Definition at line 556 of file ChemicalICP.cc.

References feat_distances2, PLearn::TVec< T >::fill(), i, PLearn::TMat< T >::length(), matching, matching_method, PLearn::sigmoid(), PLearn::sqrt(), weighting_method, weighting_params, and weights.

Referenced by minimizeWeightedDistance().

{
//pout << "computeWeights()" << endl;
    int n_points = tr_template_coords.length();
//pout << "n_points = " << n_points << endl;

    if( weighting_method == "none" )
    {
//pout << "pouet!" << endl;
        weights.fill( 1. / real( n_points ) );
//pout << "1. / real( n_points ) = " << 1. / real( n_points ) << endl;
//pout << "weights[0] = " << weights[0] << endl;
    }
    else if( weighting_method == "features_sigmoid" )
    {
//pout << "plouf!" << endl;
        real total_weight = 0;
        real mid = weighting_params->value[0];
        real slope = weighting_params->value[1];

        if( matching_method == "exhaustive" )
        {
            for( int i=0 ; i<n_points ; i++ )
            {
                real diff2 = feat_distances2( i, matching[i] );
                weights[i] = sigmoid( slope * (mid - sqrt(diff2)) );
                total_weight += weights[i];
/*pout << "i = " << i << endl
    << "diff2 = " << diff2 << endl
    << "slope = " << slope << endl
    << "mid = " << mid << endl
    << "weights = " <<  weights[i] << endl
    << endl;*/
            }
            weights /= total_weight;
//pout << "total_weight = " << total_weight << endl;
        }
    }
}

Here is the call graph for this function:

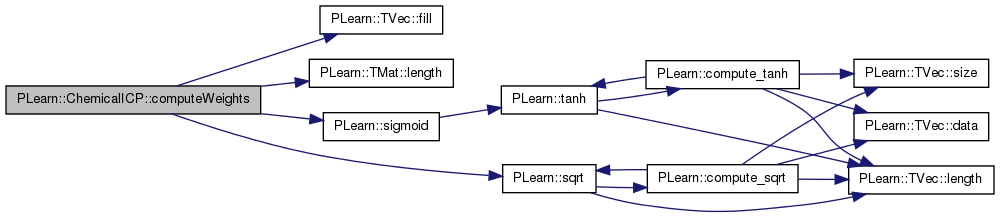

Here is the caller graph for this function:

void PLearn::ChemicalICP::declareOptions ( OptionList ol) [static, protected]

Declares the class options.

Reimplemented from PLearn::Object.

Definition at line 662 of file ChemicalICP.cc.

References angle_t, PLearn::OptionBase::buildoption, PLearn::declareOption(), PLearn::Object::declareOptions(), error, error_t, feature_names, initial_angles_list, initial_angles_step, PLearn::OptionBase::learntoption, matching, matching_method, max_iter, memory, mol_template, molecule, rotation, trans_t, translation, weighting_method, weighting_params, and weights.

{
    // declareOption(ol, "myoption", &ChemicalICP::myoption, OptionBase::buildoption,
    //               "Help text describing this option");
    // ...

    declareOption(ol, "mol_template", &ChemicalICP::mol_template,
                  OptionBase::buildoption,
                  "The template we try to align on the molecule");

    declareOption(ol, "molecule", &ChemicalICP::molecule,
                  OptionBase::buildoption,
                  "The molecule");

    declareOption(ol, "feature_names", &ChemicalICP::feature_names,
                  OptionBase::buildoption,
                  "Names of features to use during alignment.\n"
                  "Empty TVec means 'use all available features.\n"
                  "Use '[ \"none\" ]' if you don't want to use any feature.\n"
                  );

    declareOption(ol, "weighting_method", &ChemicalICP::weighting_method,
                  OptionBase::buildoption,
                  "Method used to compute the weight of a pair of point."
                  " One of:\n"
                  "    - \"features_sigmoid\": sigmoid of feature distance,\n"
                  "    - \"none\": same weight for each pair.\n"
                  );

    declareOption(ol, "weighting_params", &ChemicalICP::weighting_params,
                  OptionBase::buildoption,
                  "Var containing parameters used during weighting.\n"
                  "Size and meaning depends on value of 'weighting_method'.\n"
                  );

    declareOption(ol, "matching_method", &ChemicalICP::matching_method,
                  OptionBase::buildoption,
                  "Method used to find the nearest neighbors. For the moment,"
                  " only one:\n"
                  "    - \"exhaustive\": exhaustive search (caching feature"
                  " distances).\n"
                  );

    declareOption(ol, "memory", &ChemicalICP::memory, OptionBase::buildoption,
        "The kind of memory allowing ICP to re-use previous alignments:\n"
        "- 'none'   : no memory\n"
        "- 'every-X': the alignment for a given molecule is re-computed only\n"
        "             once every X times it is asked\n"
    );

    declareOption(ol, "initial_angles_step", &ChemicalICP::initial_angles_step,
                  OptionBase::buildoption,
                  "Tries initial rotations every \"initial_angles_step\""
                  " degrees");

    declareOption(ol, "initial_angles_list", &ChemicalICP::initial_angles_list,
                  OptionBase::buildoption,
                  "Explicit list of initial rotations angles");

    declareOption(ol, "max_iter", &ChemicalICP::max_iter,
                  OptionBase::buildoption,
                  "Maximum number of iterations to perform during alignment");

    declareOption(ol, "error_t", &ChemicalICP::error_t,
                  OptionBase::buildoption,
                  "Stop alignment if error falls below this threshold");

    declareOption(ol, "angle_t", &ChemicalICP::angle_t,
                  OptionBase::buildoption,
                  "Stop alignment if angles falls below this threshold");

    declareOption(ol, "trans_t", &ChemicalICP::trans_t,
                  OptionBase::buildoption,
                  "Stop alignment if translation falls below this threshold");

    declareOption(ol, "rotation", &ChemicalICP::rotation,
                  OptionBase::learntoption,
                  "Learned rotation matrix");

    declareOption(ol, "translation", &ChemicalICP::translation,
                  OptionBase::learntoption,
                  "Learned translation vector");

    declareOption(ol, "matching", &ChemicalICP::matching,
                  OptionBase::learntoption,
                  "matching[i] is the index of the molecule point being\n"
                  "the nearest neighbor of template point i.\n");

    declareOption(ol, "weights", &ChemicalICP::weights,
                  OptionBase::learntoption,
                  "Weight of the pair of points (i, matching[i])");

    declareOption(ol, "error", &ChemicalICP::error,
                  OptionBase::learntoption,
                  "Weigted error of the alignment");

    // Now call the parent class' declareOptions
    inherited::declareOptions(ol);
}

Here is the call graph for this function:

static const PPath& PLearn::ChemicalICP::declaringFile ( ) [inline, static]

Reimplemented from PLearn::Object.

Definition at line 228 of file ChemicalICP.h.

:
    //#####  Protected Member Functions  ######################################
ChemicalICP * PLearn::ChemicalICP::deepCopy ( CopiesMap copies) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 54 of file ChemicalICP.cc.

void PLearn::ChemicalICP::forgetMemorizedAlignments ( )

Forget any previously memorized alignment.

Definition at line 248 of file ChemicalICP.cc.

References mem_aligned_molecules, mem_count, mem_error, mem_matching, mem_rotation, mem_translation, and PLearn::TVec< T >::resize().

{
    mem_aligned_molecules.resize(0);
    mem_error.resize(0);
    mem_rotation.resize(0);
    mem_translation.resize(0);
    mem_matching.resize(0);
    mem_count.resize(0);
}

Here is the call graph for this function:

OptionList & PLearn::ChemicalICP::getOptionList ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 54 of file ChemicalICP.cc.

OptionMap & PLearn::ChemicalICP::getOptionMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 54 of file ChemicalICP.cc.

RemoteMethodMap & PLearn::ChemicalICP::getRemoteMethodMap ( ) const [virtual]

Reimplemented from PLearn::Object.

Definition at line 54 of file ChemicalICP.cc.

void PLearn::ChemicalICP::makeDeepCopyFromShallowCopy ( CopiesMap copies) [virtual]

Transforms a shallow copy into a deep copy.

Reimplemented from PLearn::Object.

Definition at line 619 of file ChemicalICP.cc.

References all_mol_features, all_template_feat_dev, all_template_features, PLearn::deepCopyField(), feat_distances2, feature_names, initial_angles_list, PLearn::Object::makeDeepCopyFromShallowCopy(), matching, matching_neighbors, mem_aligned_molecules, mem_count, mem_error, mem_matching, mem_rotation, mem_translation, mol_coordinates, mol_feat_indices, mol_template, molecule, other_base_properties, rotation, template_coordinates, template_feat_indices, template_geom_dev, translation, used_feat_names, used_mol_features, used_properties, used_template_feat_dev, used_template_features, PLearn::varDeepCopyField(), weighting_params, and weights.

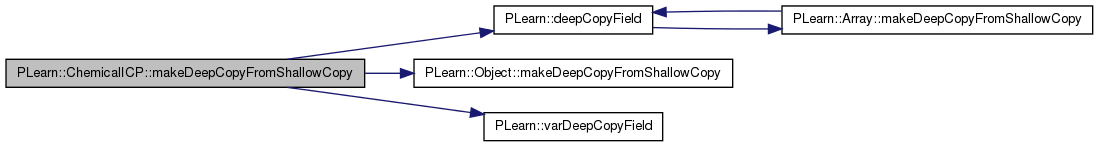

Here is the call graph for this function:

void PLearn::ChemicalICP::matchNearestNeighbors ( const Mat tr_template_coords,
const Mat matched_mol_coords
) [protected, virtual]

fills matching, and compute matched_mol_coords as the list of coordinates of transformed template's nearest neighbors

Definition at line 447 of file ChemicalICP.cc.

References feat_distances2, i, j, PLearn::TMat< T >::length(), matching, matching_method, mol_coordinates, and PLearn::powdistance().

Referenced by run().

{
//pout << "matchNearestNeighbors()" << endl;
    Mat mol_coords = mol_coordinates->matValue;
    int n_template_points = tr_template_coords.length();
    int n_mol_points = mol_coords.length();

    if( matching_method == "exhaustive" )
    {
        // bruteforce searche
        for( int i=0 ; i<n_template_points ; i++ )
        {
            Vec t_point = tr_template_coords( i );
//pout << "tr_template_coords(" << i  << ") = " << t_point << endl;
            Vec dists( n_template_points );
            real closest_dist2 = REAL_MAX;
//pout << "closest_dist2 = " << closest_dist2 << endl;

            for( int j=0 ; j<n_mol_points ; j++ )
            {
                // compute distance
                Vec m_point = mol_coords( j );
                real dist2 = powdistance( t_point, m_point, 2 )
                                + feat_distances2(i, j);
/*pout << "m_point = " << m_point << endl;
pout << "powdistance( t_point, m_point, 2 ) = "
    << powdistance( t_point, m_point, 2 ) << endl;
pout << "feat_distances2(" << i << "," << j << ") = " <<
    feat_distances2(i, j) << endl;
pout << "dist2 = " << dist2 << endl;*/

                // keep the smallest
                if( dist2 < closest_dist2 )
                {
//pout << "beep " << endl;
//pout << " matching[" << i << "] = " << j << endl;
                    closest_dist2 = dist2;
                    matching[i] = j;
                }
            }
            matched_mol_coords( i ) << mol_coords( matching[i] );
        }
    }
}

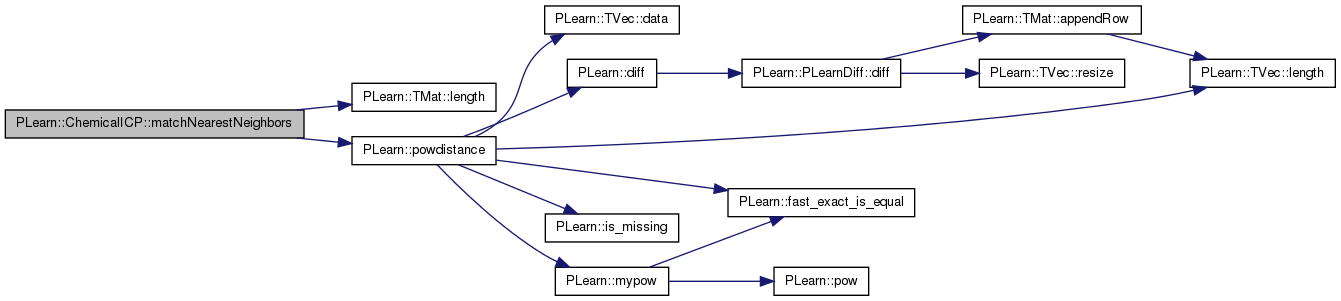

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::ChemicalICP::minimizeWeightedDistance ( const Mat tr_template_coords,
const Mat matched_mol_coords,
real delta_rot_length,
real delta_trans_length
) [protected, virtual]

finds transformation minimizing weighted distance between matched points

Definition at line 493 of file ChemicalICP.cc.

References PLearn::anglesFromRotationMatrix(), computeWeights(), PLearn::norm(), PLearn::product(), PLearn::productAcc(), rotation, PLearn::rotationMatrixFromAngles(), PLearn::transformationFromWeightedMatchedPoints(), translation, and weights.

Referenced by run().

{
    Mat delta_rot( 3, 3 );
    Vec delta_trans( 3 );
    real err = REAL_MAX;

//pout << "before computeWeights()" << endl
//    << tr_template_coords(0) << endl;
    computeWeights( tr_template_coords, matched_mol_coords );
//pout << "after computeWeights() / before transformationFromWeightedMatchedPoints" << endl
//    << tr_template_coords(0) << endl;
    transformationFromWeightedMatchedPoints( tr_template_coords,
                                             matched_mol_coords,
                                             weights,
                                             delta_rot, delta_trans,
                                             err );
/*pout << "after transformationFromWeightedMatchedPoints" << endl
    << tr_template_coords(0) << endl;
pout << "weights = " << weights << endl
     << "delta_rot = " << endl << delta_rot << endl
     << "delta_trans = " << delta_trans << endl;*/

    delta_rot_length = norm( anglesFromRotationMatrix( delta_rot ), 2 );
    delta_trans_length = norm( delta_trans );

    // accumulate transformation ensuring normalization
    Vec angles = anglesFromRotationMatrix( product( rotation, delta_rot ) );
    rotation << rotationMatrixFromAngles( angles );

    // translation = delta_trans + delta_rot * translation
    productAcc( delta_trans, delta_rot, translation );
    translation << delta_trans;
//pout << "rotation = " << endl << rotation << endl
//     << "translation = " << translation << endl;
}

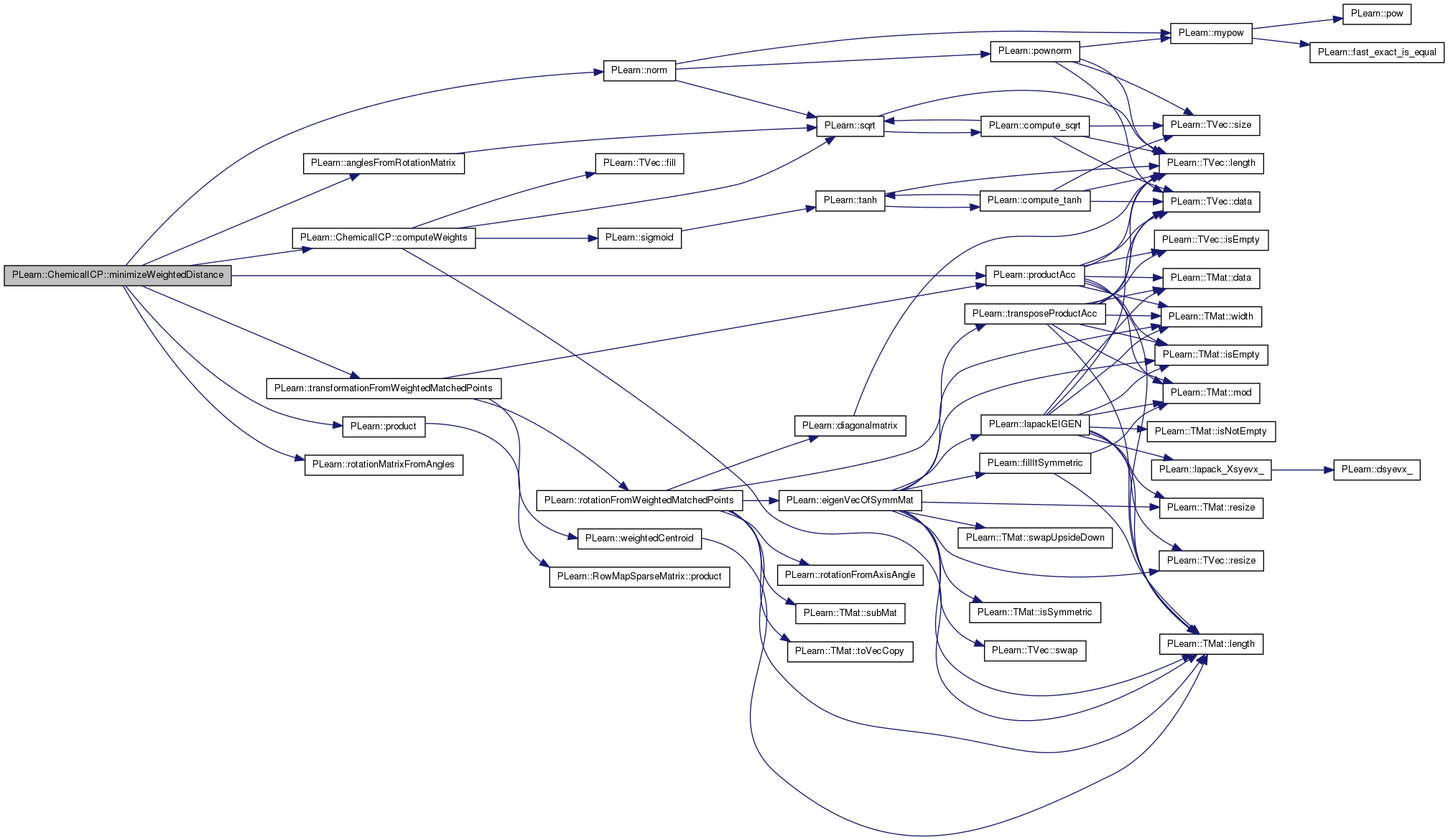

Here is the call graph for this function:

Here is the caller graph for this function:

void PLearn::ChemicalICP::run ( ) [virtual]

Performs the alignment.

Reimplemented from PLearn::Object.

Definition at line 261 of file ChemicalICP.cc.

References angle_t, PLearn::TVec< T >::append(), PLearn::TMat< T >::appendRow(), PLearn::applyGeomTransformation(), computeWeightedDistance(), PLearn::TVec< T >::copy(), PLearn::endl(), error, error_t, every_x, EXTREME_NAMED_LOG, PLearn::fast_is_equal(), PLearn::TVec< T >::fill(), PLearn::TVec< T >::find(), i, initial_angles_list, initial_angles_step, PLearn::TVec< T >::length(), PLearn::TMat< T >::length(), matching, matching_neighbors, matchNearestNeighbors(), max_iter, mem_aligned_molecules, mem_count, mem_error, mem_matching, mem_rotation, mem_translation, memory, minimizeWeightedDistance(), mol_template, molecule, PLASSERT, PLERROR, PLWARNING, PLearn::TVec< T >::resize(), PLearn::TMat< T >::resize(), rotation, PLearn::rotationMatrixFromAngles(), template_coordinates, trans_t, translation, weights, and PLearn::TMat< T >::width().

{
    if( initial_angles_list.length() > 0 )
    {
        if( initial_angles_step > 0 )
        {
            PLWARNING( "ChemicalICP::run - both 'initial_angles_step' and"
                       " 'initial_angles_list'\n"
                       "are provided. Setting 'initial_angles_step' to 0.\n" );
            initial_angles_step = 0;
        }
    }
    else
    {
        if( fast_is_equal( initial_angles_step, 0. ) )
            initial_angles_step = 360;

        initial_angles_list.resize( 0, 3 );
        for( real rx=0. ; rx<360. ; rx += initial_angles_step )
            for( real ry=0. ; ry<360. ; ry += initial_angles_step )
                for( real rz=0. ; rz<180. ; rz += initial_angles_step )
                {
                    Vec angles( 3 );
                    angles[0] = rx;
                    angles[1] = ry;
                    angles[2] = rz;
                    initial_angles_list.appendRow( angles );
                }
    }
    EXTREME_NAMED_LOG("ICP+NNet") << "begin run()" << endl;

    // Only perform the alignment if we do not just obtain the result from a
    // previously memorized alignment.
    bool realign = true;
    int find_mol = -1;
    if (memory != "none") {
        find_mol = mem_aligned_molecules.find(molecule);
        if (find_mol == -1) {
            // This molecule had not been previously aligned.
            find_mol = mem_aligned_molecules.length();
            mem_aligned_molecules.append(molecule);
            // Dummy additions just to resize the vectors correctly.
            mem_error.append(0);
            mem_rotation.append(Mat());
            mem_translation.append(Vec());
            mem_matching.append(TVec<int>());
            mem_count.append(0);
        }
    }

    if (every_x > 0) {
        PLASSERT( find_mol >= 0 );
        if (mem_count[find_mol] % every_x != 0)
            realign = false;
    }

    if (realign) {

    int n_points = mol_template->n_points();
    if( n_points < 3 )
        PLERROR( "ChemicalICP::run() - not enough points in template (%d).\n",
                 n_points );

    Mat best_rotation(3, 3);
    Vec best_translation(3);
    TVec<int> best_matching( n_points );
    Vec best_weights( n_points );
    real best_error = REAL_MAX;

    // transformed template coordinates
    Mat tr_template_coords( n_points, 3 );

    // coordinates of molecule points matched to template ones
    Mat matched_mol_coords( n_points, 3 );

    int n_initial_angles = initial_angles_list.length();
    EXTREME_NAMED_LOG("ICP+NNet") << n_initial_angles << " initial angles to try" << endl;
    for( int i=0 ; i<n_initial_angles ; i++ )
    {
                EXTREME_NAMED_LOG("ICP+NNet") << "global iteration number " << i << endl;
        // initialization
        rotation = rotationMatrixFromAngles( initial_angles_list(i) );
        translation.fill(0);
        matching = TVec<int>( n_points, -1 );
        weights = Vec( n_points );

        int n_iter = 0;
        real delta_rot_length = REAL_MAX;
        real delta_trans_length = REAL_MAX;

        applyGeomTransformation( rotation, translation,
                                 template_coordinates->matValue,
                                 tr_template_coords );
                EXTREME_NAMED_LOG("ICPDEBUG") << "beginning ICP:" << endl
                        << "rotation = " << endl << rotation << endl
                << "translation = " << translation << endl
                << "template_coordinates->matValue = " << endl
                << template_coordinates->matValue << endl
                << "tr_template_coords = " << endl << tr_template_coords << endl
                << endl;
        // main loop
        do
        {
                        EXTREME_NAMED_LOG("ICPDEBUG") << "    beginning of main loop" << endl;
                        EXTREME_NAMED_LOG("ICPDEBUG") << "    matchNearestNeighbors()" << endl;
            matchNearestNeighbors( tr_template_coords, matched_mol_coords );
                        EXTREME_NAMED_LOG("ICPDEBUG") << "    minimizeWeightedDistance()" << endl;
            minimizeWeightedDistance( tr_template_coords, matched_mol_coords,
                                      delta_rot_length, delta_trans_length );
                        EXTREME_NAMED_LOG("ICPDEBUG") << "    applyGeomTransformation()" << endl;
            applyGeomTransformation( rotation, translation,
                                     template_coordinates->matValue,
                                     tr_template_coords );
                        EXTREME_NAMED_LOG("ICPDEBUG") << "tr_template_coords = " << endl << tr_template_coords << endl;
            error = computeWeightedDistance( tr_template_coords,
                                             matched_mol_coords );
            n_iter++;
                        EXTREME_NAMED_LOG("ICPDEBUG") << "end of main loop" << endl;
                        EXTREME_NAMED_LOG("ICPDEBUG") << "    iteration = " << n_iter << " / " << max_iter << endl
                                << "    error = " << error << " / " << error_t << endl
                                << "    delta_rot_length = " << delta_rot_length << " / "
                                << angle_t << endl
                                << "    delta_trans_length = " << delta_trans_length << " / "
                                << trans_t << endl
                                << endl;
        }
        while( n_iter < max_iter &&
               error > error_t &&
               delta_rot_length > angle_t &&
               delta_trans_length > trans_t  );

        // keep the best one
        if( error < best_error )
        {
            best_error = error;
            best_rotation << rotation;
            best_translation << translation;
            best_matching << matching;
        }
                EXTREME_NAMED_LOG("ICP+NNet") << "end global iteration number " << i << endl;
    }

    // get best parameters
    error = best_error;
    rotation = best_rotation;
    translation = best_translation;
    matching = best_matching;

    if (memory != "none") {
        // Remember this alignment.
        PLASSERT( find_mol >= 0 );
        mem_error[find_mol] = error;
        mem_rotation[find_mol].resize(rotation.length(), rotation.width());
        mem_rotation[find_mol] << rotation;
        mem_translation[find_mol].resize(translation.length());
        mem_translation[find_mol] << translation;
        mem_matching[find_mol].resize(matching.length());
        mem_matching[find_mol] << matching;
    }

    } else {
        PLASSERT( find_mol >= 0 );
        error = mem_error[find_mol];
        // Copies make the code simpler, though it would be slightly more
        // efficient to use resize and the << operator.
        rotation = mem_rotation[find_mol].copy();
        translation = mem_translation[find_mol].copy();
        matching = mem_matching[find_mol].copy();
    }

    if (find_mol >= 0)
        // Increment counter of alignments for this molecule.
        mem_count[find_mol]++;

    // Update the 'matching_neighbors' variable.
    matching_neighbors->resize(matching.length(), 1);
    for (int i = 0; i < matching.length(); i++)
        matching_neighbors->value[i] = matching[i];

    if( !fast_is_equal( initial_angles_step, 0. ) )
        initial_angles_list.resize( 0, 3 );
}

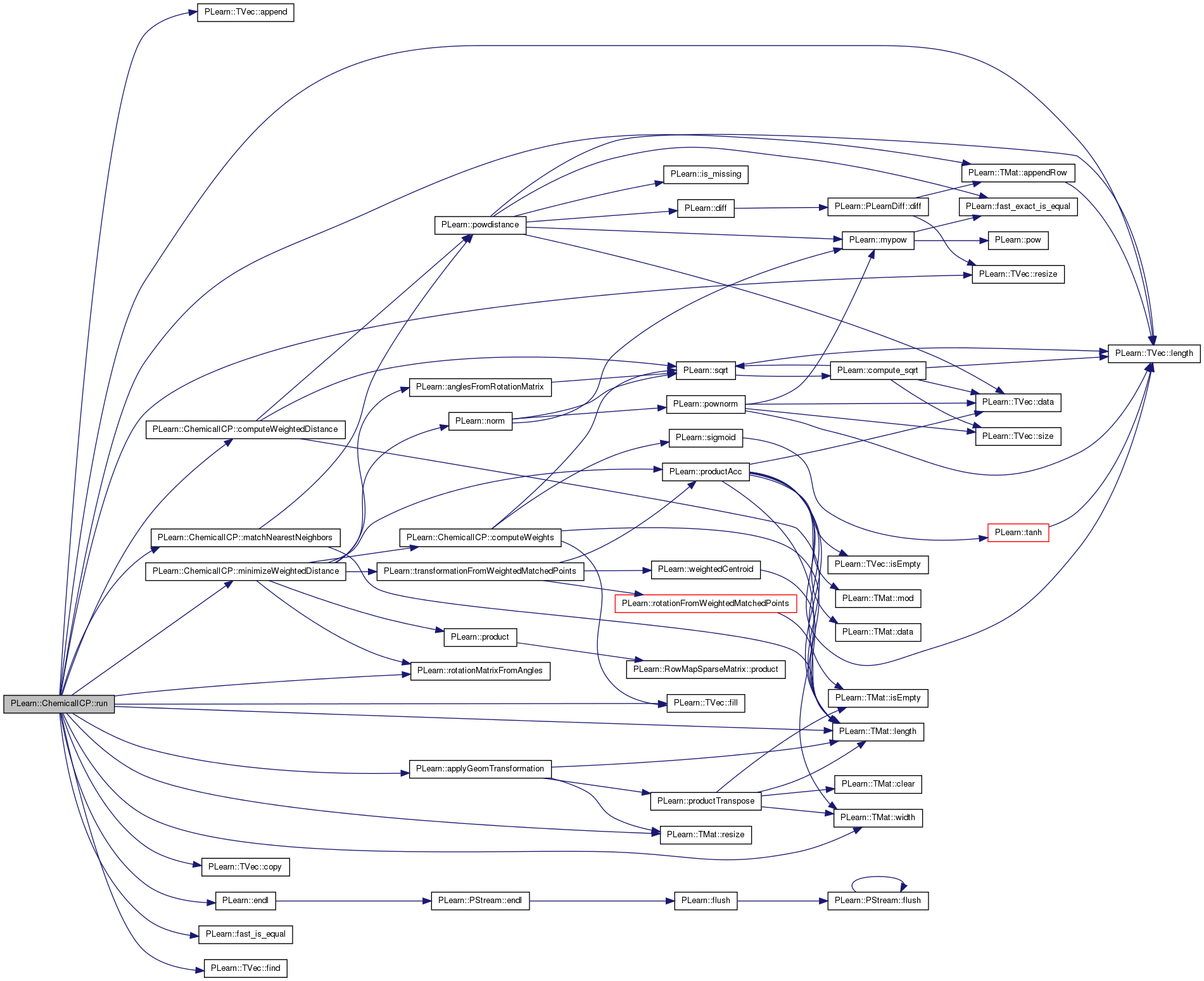

Here is the call graph for this function:

void PLearn::ChemicalICP::saveMatch ( const PPath filename) [virtual]

Saves the alignment parameters: rotation, translation, matching...

in a file (in plearn format)

Definition at line 597 of file ChemicalICP.cc.

References PLearn::endl(), error, matching, PLearn::openFile(), PLearn::PStream::plearn_ascii, rotation, and translation.

{
    PStream file = openFile( filename, PStream::plearn_ascii, "w" );
    file<< "rotation =" << endl
        << rotation << endl
        << "translation =" << endl
        << translation << endl
        << "matching =" << endl
        << matching << endl
        << "error = " << error << endl;
}

Here is the call graph for this function:

void PLearn::ChemicalICP::setMolecule ( const Mol the_molecule) [virtual]

Use this function to set the molecule and update every parameter that depends on it without having to call build().

Definition at line 125 of file ChemicalICP.cc.

References cacheFeatureDistances(), computeUsedFeatures(), computeVariables(), matching_method, and molecule.

{
    molecule = the_molecule;
    computeUsedFeatures();
    computeVariables();

    if( matching_method == "exhaustive" )
        cacheFeatureDistances();
}

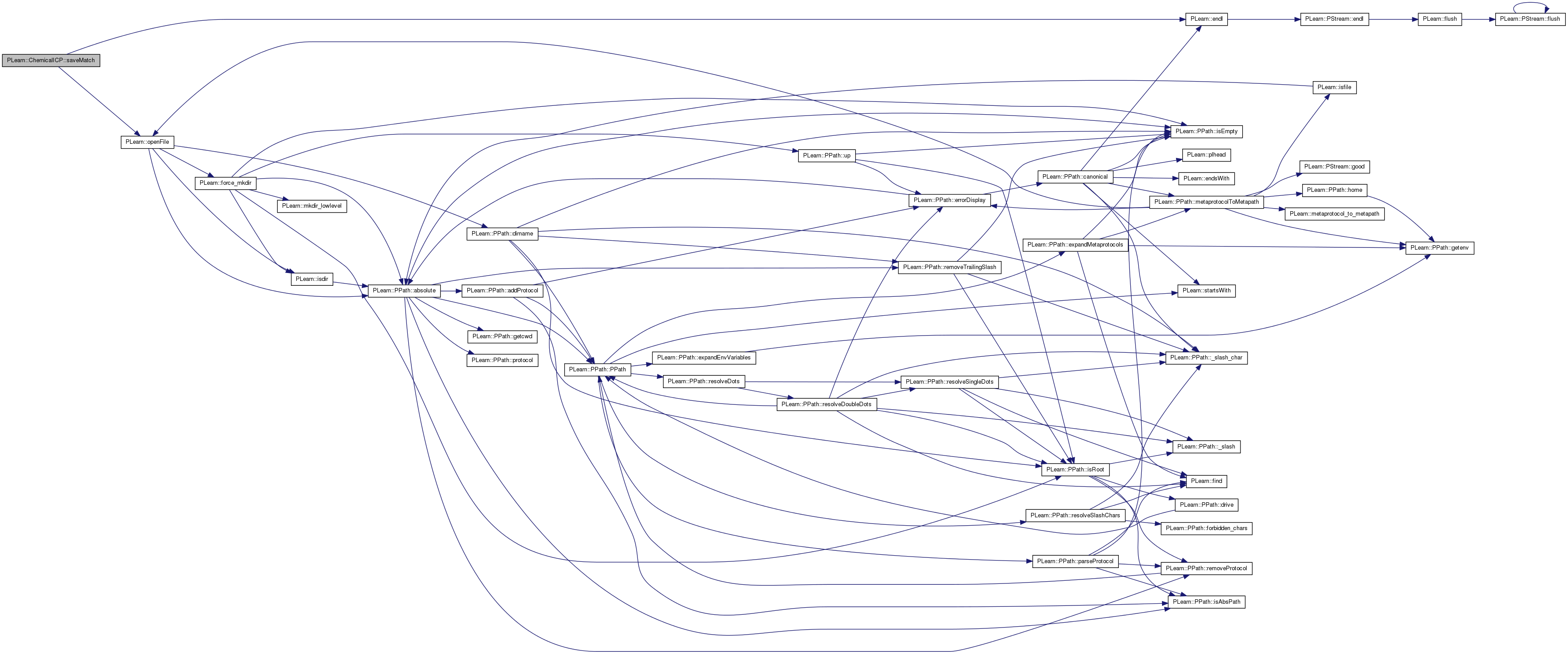

Here is the call graph for this function:


Member Data Documentation

Reimplemented from PLearn::Object.

Definition at line 228 of file ChemicalICP.h.

Definition at line 184 of file ChemicalICP.h.

Referenced by build_(), computeVariables(), and makeDeepCopyFromShallowCopy().

Definition at line 186 of file ChemicalICP.h.

Referenced by build_(), and makeDeepCopyFromShallowCopy().

Definition at line 185 of file ChemicalICP.h.

Referenced by build_(), and makeDeepCopyFromShallowCopy().

Stop alignment if angles falls below this threshold.

Definition at line 114 of file ChemicalICP.h.

Referenced by declareOptions(), and run().

Weigted error of the alignment (equal to the 'distance' part of 'score', as computed in ComputeScoreVariable)

Definition at line 130 of file ChemicalICP.h.

Referenced by declareOptions(), run(), and saveMatch().

Stop alignment if error falls below this threshold.

Definition at line 113 of file ChemicalICP.h.

Referenced by declareOptions(), and run().

When the memory option is set to 'every-X', this variable contains the value of X.

Definition at line 140 of file ChemicalICP.h.

Referenced by build_(), and run().

Cache of feature distances : feat_distances2(i,j) is feature distance between point i of the template and point j of the molecule.

Definition at line 178 of file ChemicalICP.h.

Referenced by cacheFeatureDistances(), computeWeightedDistance(), computeWeights(), makeDeepCopyFromShallowCopy(), and matchNearestNeighbors().

Names of features to use during alignment.

Empty TVec means "use all available features" use "none" if you don't want to use any feature.

Definition at line 89 of file ChemicalICP.h.

Referenced by build_(), computeUsedFeatures(), declareOptions(), and makeDeepCopyFromShallowCopy().

Explicit list of initial rotations angles.

Definition at line 109 of file ChemicalICP.h.

Referenced by declareOptions(), makeDeepCopyFromShallowCopy(), and run().

Tries initial rotations every "initial_angles_step" degrees.

Definition at line 106 of file ChemicalICP.h.

Referenced by declareOptions(), and run().

matching[i] is the index of the molecule point being the nearest neighbor of template point i

Definition at line 123 of file ChemicalICP.h.

Referenced by computeWeightedDistance(), computeWeights(), declareOptions(), makeDeepCopyFromShallowCopy(), matchNearestNeighbors(), run(), and saveMatch().

Method used to find the nearest neighbors.

For the moment, only one:

  • "exhaustive": exhaustive search (caching feature distances).

Definition at line 101 of file ChemicalICP.h.

Referenced by build_(), computeWeightedDistance(), computeWeights(), declareOptions(), matchNearestNeighbors(), and setMolecule().

Variable that has the same content as the 'matching' vector after an ICP run.

Definition at line 74 of file ChemicalICP.h.

Referenced by build_(), makeDeepCopyFromShallowCopy(), and run().

Maximum number of iterations to perform during alignment.

Definition at line 112 of file ChemicalICP.h.

Referenced by declareOptions(), and run().

List of molecules previously aligned.

Definition at line 146 of file ChemicalICP.h.

Referenced by forgetMemorizedAlignments(), makeDeepCopyFromShallowCopy(), and run().

Indicates the number of time each molecule in 'mem_aligned_molecules' has been aligned (regardless of whether or not this alignement has been recomputed or obtained from a previous alignemnt).

Definition at line 166 of file ChemicalICP.h.

Referenced by forgetMemorizedAlignments(), makeDeepCopyFromShallowCopy(), and run().

List of errors corresponding to molecules in 'mem_aligned_molecules'.

Definition at line 149 of file ChemicalICP.h.

Referenced by forgetMemorizedAlignments(), makeDeepCopyFromShallowCopy(), and run().

List of matching vectors corresponding to molecules in 'mem_aligned_molecules'.

Definition at line 161 of file ChemicalICP.h.

Referenced by forgetMemorizedAlignments(), makeDeepCopyFromShallowCopy(), and run().

List of rotation matrices corresponding to molecules in 'mem_aligned_molecules'.

Definition at line 153 of file ChemicalICP.h.

Referenced by forgetMemorizedAlignments(), makeDeepCopyFromShallowCopy(), and run().

List of translation vectors corresponding to molecules in 'mem_aligned_molecules'.

Definition at line 157 of file ChemicalICP.h.

Referenced by forgetMemorizedAlignments(), makeDeepCopyFromShallowCopy(), and run().

Definition at line 103 of file ChemicalICP.h.

Referenced by build_(), declareOptions(), and run().

Indices of the used features, for the molecule and the template.

They are UnaryVariable, so that their parent may be set to a Var that runs an ICP (in order to make sure they are not used before the ICP is run).

Definition at line 70 of file ChemicalICP.h.

Referenced by computeUsedFeatures(), and makeDeepCopyFromShallowCopy().

### declare public option fields (such as build options) here Start your comments with Doxygen-compatible comments such as //!

The template we try to align on the molecule

Definition at line 82 of file ChemicalICP.h.

Referenced by build_(), computeUsedFeatures(), declareOptions(), makeDeepCopyFromShallowCopy(), and run().

Definition at line 134 of file ChemicalICP.h.

Referenced by build_(), and makeDeepCopyFromShallowCopy().

Learned rotation matrix.

Definition at line 118 of file ChemicalICP.h.

Referenced by declareOptions(), makeDeepCopyFromShallowCopy(), minimizeWeightedDistance(), run(), and saveMatch().

Definition at line 192 of file ChemicalICP.h.

Referenced by build_(), makeDeepCopyFromShallowCopy(), and run().

Definition at line 70 of file ChemicalICP.h.

Referenced by computeUsedFeatures(), and makeDeepCopyFromShallowCopy().

Definition at line 193 of file ChemicalICP.h.

Referenced by build_(), and makeDeepCopyFromShallowCopy().

Stop alignment if translation falls below this threshold.

Definition at line 115 of file ChemicalICP.h.

Referenced by declareOptions(), and run().

Learned translation vector.

Definition at line 119 of file ChemicalICP.h.

Referenced by declareOptions(), makeDeepCopyFromShallowCopy(), minimizeWeightedDistance(), run(), and saveMatch().

feature names really used during alignment: intersection between

Definition at line 174 of file ChemicalICP.h.

Referenced by computeUsedFeatures(), and makeDeepCopyFromShallowCopy().

Definition at line 133 of file ChemicalICP.h.

Referenced by build_(), and makeDeepCopyFromShallowCopy().

Method used to compute the weight of a pair of point.

One of:

  • "features_sigmoid": sigmoid of feature distance,
  • "none": same weight for each pair.

Definition at line 94 of file ChemicalICP.h.

Referenced by build_(), computeWeights(), and declareOptions().

Parameters used during weighting. Meaning depends on "weighting_method".

Definition at line 97 of file ChemicalICP.h.

Referenced by build_(), computeWeights(), declareOptions(), and makeDeepCopyFromShallowCopy().

Weight of the pair of points (i, matching[i])

Definition at line 126 of file ChemicalICP.h.

Referenced by computeWeightedDistance(), computeWeights(), declareOptions(), makeDeepCopyFromShallowCopy(), minimizeWeightedDistance(), and run().


The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
